Article

Genetic Relationship of Brassicaceae Hybrids with Various Resistance to Blackleg Is Disclosed by the Use of Molecular Markers

1
Department of Genetics and Plant Breeding, Poznań University of Life Sciences, Dojazd 11, 60-632 Poznan, Poland
2
Institute of Plant Genetics of the Polish Academy of Sciences, Strzeszyńska 34, 60-479 Poznań, Poland
3
Department of Mathematical and Statistical Methods, Poznań University of Life Sciences, Wojska Polskiego 28, 60-637 Poznań, Poland
*
Author to whom correspondence should be addressed.
Curr. Issues Mol. Biol. 2022, 44(9), 4290-4302; https://doi.org/10.3390/cimb44090295
Submission received: 1 August 2022 / Revised: 2 September 2022 / Accepted: 15 September 2022 / Published: 17 September 2022
(This article belongs to the Special Issue Genetic Sight: Plant Traits during Postharvest)

Abstract

:
Brassica napus is an important oil source. Its narrow gene pool can be widened by interspecific hybridization with the Brassicaceae species. One of the agronomically important traits, that can be transferred through the hybridization, is the resistance to blackleg, a dangerous disease mainly caused by Leptosphaeria maculans. Hybrid individuals can be analyzed with various molecular markers, including Simple Sequence Repeats (SSR). We investigated the genetic similarity of 32 Brassicaceae hybrids and 19 parental components using SSR markers to reveal their genetic relationship. Furthermore, we compared the field resistance to blackleg of the interspecific progenies. The tested set of 15 SSR markers proved to be useful in revealing the genetic distances in the Brassicaceae hybrids and species. However, genetic similarity of the studied hybrids could not be correlated with the level of field resistance to L. maculans. Moreover, our studies confirmed the usefulness of the Brassicaceae hybrids in terms of blackleg management.

1. Introduction

Brassicaceae is a family of high agroeconomic importance comprising fodder, oilseed plants, vegetables, ornamental species, as well as plants of medical and scientific importance. Furthermore, ecological, morphological, and genetic diversity of this family makes it a perfect model for relationship and evolution studies [1]. The genus Brassica contains three diploid species, i.e., B. rapa (AA genome), B. nigra (BB genome), and B. oleracea (CC genome), and allotetraploid species obtained as a result of natural interspecific crosses, namely B. napus (AACC), B. juncea (AABB), and B. carinata (BBCC). Another representative of the Brassicaceae family is Sinapis alba, a yellow mustard plant closely related to Brassica, well known for possessing many potentially useful traits [2].
Brassica napus (rapeseed) is one of the most important oil crops, accounting for over 12% of worldwide oil production (USDA). Due to a relatively short history of cultivation and use of conventional breeding methods, rapeseed displays limited genetic diversity [3,4]; therefore, it seems crucial to expand the B. napus gene pool. One of the most effective approaches to solve this problem is interspecific hybridization [5]. Crossing the rapeseed with different species may help to enrich the B. napus germplasm and to enable the transfer of genome fragments carrying desirable traits, which could further improve the cultivar’s characteristics. The sexual incompatibility and differences in the genome sizes of parental components may result in hybridization failure [6]. Barriers of interspecific hybridization can be overcome by implementing in vitro techniques, including ovary, ovule, and embryo rescue [7]. The Department of Genetics and Plant Breeding of Poznań University of Life Sciences has great experience in creating interspecific Brassicaceae hybrids, which are profoundly analyzed in terms of chromosomal constitution, morphology, as well as insect and pathogen resistance. Recently developed hybrids showed a significant variability of blackleg resistance in field conditions. Blackleg, mainly caused by L. maculans, is a fungal disease which can cause significant yield losses [8]. The reliance on commercial cultivars with a single resistance source increases the selective pressure on pathogens and accelerates its evolution. Management of blackleg disease includes proper agronomic practices (such as crop rotation and tillage), the use of fungicides, weed control, the use of certified seeds and the use of resistant cultivars [9]. The breeding of resistant cultivars is environmentally friendly and is a reliable method of controlling blackleg disease [10]. It relies on the existence of naturally resistant genotypes, which can be used as a donor of certain genes conferring blackleg resistance.
Various molecular marker systems such as RFLP, SSR, and RAPD can be used to determine the genetic distance of the Brassicaceae species [11]. Simple Sequence Repeats (SSR) or microsatellites are defined as tandem repeats of short nucleotide motifs, usually consisting of 1–6 base pairs [12]. They occur frequently in eucaryotic organisms, and the variation in repeat numbers results in a high degree of polymorphism. The random distribution of SSR loci in plant genomes allows for genetic differentiation within and between species [13]. Moreover, it defines the high utility of SSR markers for cruciferous plants, as the microsatellite loci among members of the Brassicaceae family show high variation in length, which subsequently permits the differentiation of species [14,15]. The SSR markers had been previously used in numerous Brassicaceae studies, including unraveling the genetic variation and species diversity [14,16,17], species and cultivar differentiation [13,18], and estimation of genetic distances [19].
We are aiming to gain insight into the genetic relationship between hybrids with different parental components, which are diverse in terms of resistance to blackleg. Therefore, the objectives of this research are to determine the genetic similarity of hybrid and parental genotypes from the Brassicaceae family and to evaluate the usefulness of the chosen SSR markers for genetic diversity analysis.

2. Materials and Methods

A total of 32 various Brassicaceae hybrids of F9 and F10 generation and 19 parental genotypes were used as research material (Table 1). Interspecific hybrids of the F1 generation were developed at the Department of Genetics and Plant Breeding (Poznań University of Life Sciences), with the use of in vitro cultures. Next, selected combinations were self-pollinated multiple times in order to obtain stable hybrid lines.

2.1. Molecular Analysis

15 SSR markers were selected to characterize the genetic background of the research material. The markers were chosen according to the literature data [20]. This set of microsatellites was developed from B. rapa using the ISSR-suppression-PCR method. Preliminary screening was performed in order to assess their usefulness in the present study. Genomic DNA was extracted from young seedling leaves of the studied individuals using the Genomic Mini AX Plant kit (A&A Biotechnology, Gdańsk, Poland) according to the manufacturer’s protocol. PCR was performed in a total volume of 12.5 µL (6.25 µL OptiTaq Master Mix (EURx, Gdańsk, Poland), 2 × 0.5 µL primers, 4.25 µL H2O, and 1 µL DNA template) under the following conditions: initial denaturation at 94 °C for 5 min, thirty-five cycles of amplification (denaturing at 94 °C for 45 s, annealing at primer specific temperature for 45 s, extension at 72 °C for 1.5 min), followed by a final extension step at 72 °C for 7 min. Primer sequences and annealing temperatures are presented in Table 2.
Electrophoresis was performed on agarose gel stained with Midori Green Advance (Nippon Genetics, Düren, Deutchland), 5 µL per 100 mL of TBE buffer. All image data obtained from the electrophoresis gels were examined in the same way: for each marker, the presence or absence of a band of particular size was scored as ‘1’ or ‘0’, respectively. Next, a binary data matrix was created which was further analyzed with Peak Scanner Software v1.0 (Applied Biosystems, Waltham, MA, USA).

2.2. Statistical Analysis

The polymorphic information content (PIC) was calculated for each marker using the formula:
P I C i = 1 j = 1 k p i j 2 ,
where pij denotes frequency of the jth allele for i-th marker among a total of k alleles [21,22].
Genetic similarity (GS) was estimated for each pair of genotypes on the basis of Nei and Li [23]:
G S = 2 N A B N A + N B ,
where NAB denotes the number of bands in genotypes A and B, NA and NB denote the number of bands in A and B, respectively. The similarity matrix was used to construct a dendrogram using the unweighted pair group method with arithmetic mean (UPGMA) to determine genetic relationships among the genotypes studied. The principal component analysis (PCA) was calculated on the basis of the similarity matrix. All the analyses were conducted using the GenStat 18.2 edition (VSN International Ltd., Hemel Hempstead, UK) statistical software package. The analysis of molecular variance (AMOVA) was made using GenAlEx 6.5 [24]. AMOVA estimated and partitioned the total molecular variance between and within the groups of genotypes and tested the partitioned variance components [25]. The population genetic structure coefficient (FST) was calculated using the formula:
F S T = H T H S H T ,
where HT denotes the probability that two alleles drawn at random from the entire group differ in state and HS denotes the probability that two alleles drawn at random from a subgroup differ in state. Groups for AMOVA, presented in the Table 1, were created by organizing the genotypes on the basis of their parental components, e.g., B. napus × S. alba hybrids were grouped together with S. alba. Four B. napus cultivars were added to each group.

2.3. Resistance to Blackleg

All hybrid combinations have been studied in terms of resistance to phoma leaf spotting/blackleg in field conditions. The assessment was carried out in testing fields at the Poznań University of Life Sciences experimental station Dłoń, located in Wielkopolska Voivodeship. The soil and weather conditions were typical for this region of Poland, and no fungicides or pesticides were used on the testing field. The agricultural practices were optimal for the local ecological conditions. The experiment was set up in a completely randomized block design with five replications; the size of a single plot was 10 m2 with a 0.30 m row distance and a sowing density of 60 seeds per square meter. The assessment was performed in two terms, i.e., in November, BBCH 19 (term I), and July, BBCH 70-89 (term II). Phoma leaf spotting (term I) was evaluated according to the scale from 0 to 4, where 0 was no visible disease symptoms and 4 was numerous (over 10) leaf spots per plant [26]. The blackleg symptoms (term II) were assessed according to a scale from 0 to 9, where 0 was no visible symptoms and 9 was a plant totally damaged by the disease [26]. Obtained scale values were subsequently transformed into percentage values. For every genotype, 10 randomly chosen individuals were examined, and for each genotype, the average values from 10 replications were calculated.

3. Results

3.1. Genetic Similarity Assessment

The set of 15 primer pairs allowed for the detection of 2 monomorphic and 98 polymorphic alleles (Table 3, Figure 1). The average number of polymorphic alleles per marker was 6.533, ranging from 2 to 15. Monomorphic alleles were observed only for two markers: mstg028 and mstg042. The SSR markers used in this study generated highly informative loci with the PIC values ranging from 0.594 for mstg016 to 0.989 for mstg039, with the mean 0.848 (Table 3).
The data were computed to estimate genetic similarity between the studied rapeseed genotypes based on Nei and Li’s coefficients. The highest genetic similarity (equal to 0.97) was found between genotypes B. napus cv. Zhongshuang9 × B. rapa ssp. pekinensis 08 006169 (34) and B. napus cv. Zhongshuang9 × B. rapa ssp. pekinensis 08 006169 (51), whereas the lowest genetic similarity (0.22) was found for B. carinata (7) and B. fruticulosa PI 649097 (18). The mean value of genetic similarity was 0.63. The SSR marker data were used to group cultivars by the UPGMA method. The relationships between genotypes are presented in the form of a dendrogram (Figure 2), in which nine clusters were clearly distinguished. Cluster I comprised only one individual, genotype 13 (B. rapa ssp. chinensis (COBORU)), which had less than a 0.5 similarity with other genotypes; Cluster II comprised only one individual, genotype 18 (B. fruticulosa PI 649097); Cluster III comprised only one individual, genotype 43 (B. napus cv. Lisek × B. fruticulosa—PI649099); Cluster IV comprised genotypes 42, 44, 47, and 50 (B. napus cv. Jet Neuf × S. alba cv. Bamberka, B. napus cv. Lisek × S. alba cv. Bamberka, B. napus cv. Californium × S. alba cv. Bamberka, and S. alba cv. Bamberka); Cluster V, 14, 38, 39, 40, and 48 (B. rapa ssp. chinensis PI430485 98CI, B. rapa ssp. pekinensis 08, 007569, B. rapa ssp. pekinensis 08, 007574, B. rapa ssp. pekinensis (COBORU), and B. rapa ssp. pekinensis 08 006169); Cluster VI comprised only one individual, genotype 49 (B. oleracea var. alboglabra); Cluster VII comprised genotypes 1, 2, 3, 4, 5, 6, 7, 8, 9, and 10 (B. napus cv. Jet Neuf × B. carinata PI 649091, B. napus cv. Lisek × B. carinata Dodola, B. napus cv. Jet Neuf × B. carinata—PI 649094, B. napus cv. Jet Neuf × B. carinata—PI 649096, B. carinata 1, B. carinata 2, B. carinata 3, B. carinata 4, B. carinata cv. Dodola, and B. carinata PI 596534); Cluster VIII comprised two genotypes, 19 and 20 (B. napus cv. Californium × B. fruticulosa—PI649097 and B. napus cv. Lisek × B. fruticulosa—PI649097), while the ninth cluster contained the remaining 26 genotypes (Figure 2).
The significant differentiation (FST = 0.059; p = 0.011) between the genotypes among the groups presented in Table 1 was further supported by the AMOVA results. The intra- and inter-genotype variabilities were found to be significant, with 6% of the genetic variance contributed by the differentiation between the groups, whereas 94% was partitioned within the groups. The largest variability was observed in the first group (mean squares within the group was equal to 9.582), while the smallest was in group number 7 (4.160) (Table 4).
Statistical significant differences were observed between the following pairs of groups of genotypes: 1–2, 1–3, 1–4, 1–5, 1–6, 3–4, 3–5, and 4–6 (Table 4).
The PCA for 51 genotypes based on the distance matrix was presented in Figure 3. The first two PCs explained a total of 31.54% SSR marker variation (16.69% and 14.85%, respectively).

3.2. Field Resistance to Blackleg

The performed analysis allowed to distinguish the genotypes with the highest resistance level to blackleg (Table 5). Sixteen hybrid combinations belonged to the statistically best group (group f) in both terms, which indicates their ability to maintain stable and low susceptibility to pathogen infestation. These include hybrids with B. carinata, B. fruticulosa, and S. alba as a parental component. The lowest level of blackleg resistance was observed for B. napus cv. Górczański × B. rapa ssp. chinensis in both terms (23.33% and 25% infestation), although those genotypes are still considered as moderately resistant. Examples of lesions observed on hybrid combinations are presented in Figure 4.

4. Discussion

The assessment of diversity between species is important for the management of germplasm resources and for the curation of genetic databases. As the phenotypic assessments partially relay on environmental conditions, they do not allow for a clear discrimination of related species. Thus, in this study, genotypic analysis using SSR markers was performed for the unbiased determination of genetic diversity.
Molecular DNA markers are important tools for genetic similarity studies. SSR markers are especially valuable, as they enable multi-allelic detection and can be applied using various laboratory systems [27]. The markers selected for this study derived only from B. rapa (AA, 2n = 20) and were developed using the ISSR-suppression-PCR method by Tamura et al., [20]; however, the applicability of these markers for a wider group of Brassica species has been suggested by the aforementioned authors. The Brassicaceae family consists of approximately 3000 species [28] with diverse genomic composition, e.g., the U triangle (A, B, and C genome), S. alba (S genome), and B. fruticulosa (F genome), although conserved regions of gene content and gene order are present among the family [29]. This attribute, combined with the before mentioned unique features of the microsatellite loci that are widely spread among the Brassicaceae, allows to detect sequences originating from one species in the genomes of its relatives. We managed to confirm that the selected SSR markers can be used for genetic similarity studies in the Brassicaceae family, as the markers enabled the detection of allelic variation.
Polymorphism Information Content (PIC) is an indicator that allows to evaluate the discriminatory ability of molecular markers and to study the genetic diversity [30]. The PIC value can vary from 0 to 1, and markers with a PIC value exceeding 0.7 are considered highly informative [31]. Therefore, it can be concluded that twelve out of fifteen tested markers are particularly effective in detecting the polymorphism in the studied population.
The UPGMA allowed for the distinction of nine groups, based on genetic similarity. Generally, the applied method permitted the assessment of the genetic distance of the studied hybrids and their parents, but not all of the results are in line with the predictions. For example, B. rapa ssp. chinensis (COBORU) shows weak connection to their progeny or other genotypes form the same species. Furthermore, the distinctiveness of this genotype was confirmed with the PCA method. The weaker-than-expected association between species can be explained by a different origin (geographical distribution) or outbreeding [32].
The PCA analysis was conducted to confirm the complicated structure of the studied individuals, and the results confirmed a close relationship for B. rapa and B. carinata and their hybrid progeny. The rest of the genotypes were generally more scattered around the diagram. However, attention should be drawn to the short distance revealed for two pairs of genotypes: B. napus cv. Lisek × B. fruticulosa PI649099 and B. napus cv. Californium × S. alba cv. Bamberka, and B. napus MS8 line × B. rapa ssp. pekinensis 08 006169 and B. napus cv. Jet Neuf × B. oleracea var. alboglabra. These hybrids’ male parental components present entirely different genomic structures, however their genetic similarity can be explained by the unequal inheritance of the B. napus genome during hybridization. It should also be emphasized that the markers used in this study derived from B. rapa, which possess A genome, which might have an impact on the obtained PCR products.
The genetic similarity of the studied genotypes varied from 0.22 to 0.97. The extensive range of the similarity coefficient values show that the Brassicaceae germplasm collection reflects a diverse and varied population. These results are in line with the findings of Kumari et al. [33], as well as other researchers [34], who studied the genetic diversity in nine genotypes of Brassica and their wild relatives.
The level of field resistance to blackleg varied between the studied genotypes. We managed to select sixteen combinations with the lowest pathogen infestation, which might be especially valuable in future studies focusing on finding a durable resistance to L. maculans and incorporating their germplasm into the B. napus gene pool. All individuals that had B. carinata, B. fruticulosa, and S. alba as one of the interspecific cross components showed the lowest infestation level. This indicates that particular attention should be paid to these parental species, as they may hold valuable resistance genes that could help to control the disease. This is especially important considering the previously reported resistance breakdowns [35]. The aforementioned species have been previously characterized as potentially significant resistance gene sources [36,37,38], which is in line with our findings.
Hybrid individuals with the lowest blackleg infestation could be found in five out of nine groups distinguished with UPGMA and were spread evenly on the PCA diagram. This indicates that the genetic similarity of the studied hybrid genotypes is not correlated with their level of field resistance. On the other hand, it might be simply explained by the fact that applied molecular markers are not linked to the regions of the genome containing the resistance genes.
In conclusion, the tested SSR markers proved to be useful in revealing the genetic distances in Brassicaceae hybrids and species. The ability to properly characterize and organize the genetic resources is key to the effective conservation of accessions. More precise and quick determination of the relationship of genotypes and the amount of variation within or among accessions in a collection can be accomplished by using molecular diagnostic techniques. Other than successfully maintaining the collections, genetic markers are invaluable for crop improvement and plant breeding programs. Moreover, our studies confirmed the usefulness of the Brassicaceae hybrids in terms of blackleg management and the importance of searching new sources of L. maculans resistance outside the B. napus gene pool.

Author Contributions

Conceptualization, J.N. and J.S.; methodology, J.S., J.N., J.K., J.B., and D.W.; software, J.B.; validation, J.S., J.N., and J.K.; formal analysis, J.N., J.S., D.W., and J.K.; investigation, J.N. and J.K.; resources, J.N.; data curation, J.S., J.N., and J.B.; writing—original draft preparation, J.S. and J.N.; writing—review and editing, J.S., J.N., and J.B.; visualization, J.S. and J.B.; supervision, J.N., J.S., and J.K.; project administration, J.N.; funding acquisition, J.N. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the Polish Ministry of Agriculture and Rural Development, project number 27.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hasanuzzaman, M. The Plant Family Brassicaceae; Springer Nature Singapore Pte Ltd.: Singapore, 2020; ISBN 978-981-15-6344-7. [Google Scholar]
  2. Kumari, P.; Bisht, D.S.; Bhat, S.R. Stable, fertile somatic hybrids between Sinapis alba and Brassica juncea show resistance to Alternaria brassicae and heat stress. Plant Cell Tissue Organ Cult. 2018, 133, 77–86. [Google Scholar] [CrossRef]
  3. Prakash, S.; Xiao Ming, W.; Bhat, S.R. History, evolution, and domestication of Brassica crops. Plant Breed. Rev. 2012, 35, 19–84. [Google Scholar]
  4. Fu, Y.-B.; Gugel, R.K. Genetic diversity of Canadian elite summer rape (Brassica napus L.) cultivars from the pre- to post-canola quality era. Can. J. Plant Sci. 2010, 90, 23–33. [Google Scholar] [CrossRef]
  5. Hu, D.; Jing, J.; Snowdon, R.J.; Mason, A.S.; Shen, J.; Meng, J.; Zou, J. Exploring the gene pool of Brassica napus by genomics-based approaches. Plant Biotechnol. J. 2021, 19, 1693–1712. [Google Scholar] [CrossRef]
  6. Kamiński, P.; Marasek-Ciolakowska, A.; Podwyszyńska, M.; Starzycki, M.; Starzycka-Korbas, E.; Nowak, K. Development and Characteristics of Interspecific Hybrids between Brassica oleracea L. and B. napus L. Agronomy 2020, 10, 1339. [Google Scholar] [CrossRef]
  7. Sharma, B.B.; Kalia, P.; Singh, D.; Sharma, T.R. Introgression of Black Rot Resistance from Brassica carinata to Cauliflower (Brassica oleracea botrytis Group) through Embryo Rescue. Front. Plant Sci. 2017, 8, 1255. [Google Scholar] [CrossRef]
  8. Hwang, S.-F.; Strelkov, S.E.; Peng, G.; Ahmed, H.; Zhou, Q.; Turnbull, G. Blackleg (Leptosphaeria maculans) Severity and Yield Loss in Canola in Alberta, Canada. Plants 2016, 5, 31. [Google Scholar] [CrossRef]
  9. Kutcher, H.; Fernando, D.; Turkington, T.; Mclaren, D. Best Management Practices for Blackleg Disease of Canola. Prairie Soils Crops 2011, 4, 122–134. [Google Scholar]
  10. Fernando, W.G.D.; Chen, Y.; Ghanbarnia, K. Breeding for Blackleg Resistance: The Biology and Epidemiology. In Advances in Botanical Research; Rapeseed Breeding; Academic Press: Cambridge, MA, USA, 2007; Volume 45, pp. 271–311. [Google Scholar]
  11. Hasan, M.; Seyis, F.; Badani, A.; Pons-Kühnemann, J.; Friedt, W.; Lühs, W.; Snowdon, R. Analysis of Genetic Diversity in the Brassica napus L. Gene Pool Using SSR Markers. Genet. Resour. Crop Evol. 2006, 53, 793–802. [Google Scholar] [CrossRef]
  12. Gupta, P.K.; Balyan, H.S.; Sharma, P.C.; Ramesh, B. Microsatellites in plants: A new class of molecular markers. Curr. Sci. 1996, 70, 45–54. [Google Scholar]
  13. Yu, Q.; Wang, Q.; Wu, G.; Ma, Y.; He, X.; Wang, X.; Xie, P.; Hu, L.; Liu, J. Genetic differentiation and delimitation of Pugionium dolabratum and Pugionium cornutum (Brassicaceae). Plant Syst. Evol. 2013, 299, 1355–1365. [Google Scholar] [CrossRef]
  14. Thakur, A.K.; Singh, K.H.; Singh, L.; Nanjundan, J.; Khan, Y.J.; Singh, D. SSR marker variations in Brassica species provide insight into the origin and evolution of Brassica amphidiploids. Hereditas 2017, 155, 6. [Google Scholar] [CrossRef]
  15. Matuszczak, M. Markery molekularne w badaniach rzepaku (Brassica napus L.). I. Przegląd stosowanych technik. Rośliny Oleiste-Oilseed Crops 2013, 34, 129–150. [Google Scholar]
  16. Abbas, S.J.; Farhatullah; Marwat, K.B.; Khan, I.A.; Munir, I. Molecular analysis of genetic diversity in Brassica species. Pak. J. Bot. Pak. 2009, 41, 167–176. [Google Scholar]
  17. Wang, J.; Kaur, S.; Cogan, N.O.I.; Dobrowolski, M.P.; Salisbury, P.A.; Burton, W.A.; Baillie, R.; Hand, M.; Hopkins, C.; Forster, J.W.; et al. Assessment of genetic diversity in Australian canola (Brassica napus L.) cultivars using SSR markers. Crop Pasture Sci. 2009, 60, 1193–1201. [Google Scholar] [CrossRef]
  18. Zhai, L.; Xu, L.; Wang, Y.; Cheng, H.; Chen, Y.; Gong, Y.; Liu, L. Novel and useful genic-SSR markers from de novo transcriptome sequencing of radish (Raphanus sativus L.). Mol. Breed. 2014, 33, 611–624. [Google Scholar] [CrossRef]
  19. Plieske, J.; Struss, D. Microsatellite markers for genome analysis in Brassica. I. development in Brassica napus and abundance in Brassicaceae species. Theor. Appl. Genet. 2001, 102, 689–694. [Google Scholar] [CrossRef]
  20. Tamura, K.; Nishioka, M.; Hayashi, M.; Zhang, Z.; Lian, C.; Hougetsu, T.; Harada, K. Development of Microsatellite Markers by ISSR-suppression-PCR Method in Brassica rapa. Breed. Sci. 2005, 55, 247–252. [Google Scholar] [CrossRef]
  21. Anderson, J.A.; Churchill, G.A.; Autrique, J.E.; Tanksley, S.D.; Sorrells, M.E. Optimizing parental selection for genetic linkage maps. Genome 1993, 36, 181–186. [Google Scholar] [CrossRef]
  22. Wolko, Ł.; Bocianowski, J.; Antkowiak, W.; Słomski, R. Genetic diversity and population structure of wild pear (Pyrus pyraster (L.) Burgsd.) in Poland. Open Life Sci. 2014, 10, 19–29. [Google Scholar] [CrossRef]
  23. Nei, M.; Li, W.H. Mathematical model for studying genetic variation in terms of restriction endonucleases. Proc. Natl. Acad. Sci. USA 1979, 76, 5269–5273. [Google Scholar] [CrossRef]
  24. Peakall, R.; Smouse, P.E. genalex 6: Genetic analysis in Excel. Population genetic software for teaching and research. Mol. Ecol. Notes 2006, 6, 288–295. [Google Scholar] [CrossRef]
  25. Excoffier, L.; Smouse, P.E.; Quattro, J.M. Analysis of molecular variance inferred from metric distances among DNA haplotypes: Application to human mitochondrial DNA restriction data. Genetics 1992, 131, 479–491. [Google Scholar] [CrossRef]
  26. Brachaczek, A.; Kaczmarek, J.; Jedryczka, M. Warm and Wet Autumns Favour Yield Losses of Oilseed Rape Caused by Phoma Stem Canker. Agronomy 2021, 11, 1171. [Google Scholar] [CrossRef]
  27. Shirasawa, K.; Oyama, M.; Hirakawa, H.; Sato, S.; Tabata, S.; Fujioka, T.; Kimizuka-Takagi, C.; Sasamoto, S.; Watanabe, A.; Kato, M.; et al. An EST-SSR Linkage Map of Raphanus sativus and Comparative Genomics of the Brassicaceae. DNA Res. 2011, 18, 221–232. [Google Scholar] [CrossRef] [Green Version]
  28. Flannery, M.; Mitchell, F.; Coyne, S.; Kavanagh, T.; Burke, J.; Salamin, N.; Dowding, P.; Hodkinson, T. Plastid genome characterisation in Brassica and Brassicaceae using a new set of nine SSRs. Theor. Appl. Genet. Theor. Angew. Genet. 2006, 113, 1221–1231. [Google Scholar] [CrossRef]
  29. Suwabe, K.; Iketani, H.; Nunome, T.; Ohyama, A.; Hirai, M.; Fukuoka, H. Characteristics of Microsatellites in Brassica rapa Genome and their Potential Utilization for Comparative Genomics in Cruciferae. Breed. Sci. 2004, 54, 85–90. [Google Scholar] [CrossRef]
  30. Serrote, C.M.L.; Reiniger, L.R.S.; Silva, K.B.; dos Santos Rabaiolli, S.M.; Stefanel, C.M. Determining the Polymorphism Information Content of a molecular marker. Gene 2020, 726, 144175. [Google Scholar] [CrossRef]
  31. Berg, P.; Singer, M. Dealing with Genes: The Language of Heredity; University Science Books: Mill Valley, CA, USA, 1992; ISBN 978-0-935702-69-9. [Google Scholar]
  32. Das, S.; Rajagopal, J.; Bhatia, S.; Srivastava, P.S.; Lakshmikumaran, M. Assessment of genetic variation within Brassica campestris cultivars using amplified fragment length polymorphism and random amplification of polymorphic DNA markers. J. Biosci. 1999, 24, 433–440. [Google Scholar] [CrossRef]
  33. Kumari, P.; Rathore, R.K.S.; Yadav, R.; Singh, K.P.; Kumar, R. Utility of SSR and ISSR markers for assessment of genetic diversity in Brassicas and their related genera. Progress. Agric. 2009, 9, 71–78. [Google Scholar]
  34. Westman, A.L.; Kresovich, S. Simple sequence repeat (SSR)-based marker variation in Brassica nigra genebank accessions and weed populations. Euphytica 1999, 109, 85–92. [Google Scholar] [CrossRef]
  35. Van de Wouw, A.P.; Marcroft, S.J.; Ware, A.; Lindbeck, K.; Khangura, R.; Howlett, B.J. Breakdown of resistance to the fungal disease, blackleg, is averted in commercial canola (Brassica napus) crops in Australia. Field Crops Res. 2014, 166, 144–151. [Google Scholar] [CrossRef]
  36. Rimmer, S.R.; van den Berg, C.G.J. Resistance of oilseed Brassica spp. to blackleg caused by Leptosphaeria maculans. Can. J. Plant Pathol. 1992, 14, 56–66. [Google Scholar] [CrossRef]
  37. Marcroft, S.J.; Wratten, N.; Purwantara, A.; Salisbury, P.A.; Potter, T.D.; Barbetti, M.J.; Khangura, R.; Howlett, B.J. Reaction of a range of Brassica species under Australian conditions to the fungus, Leptosphaeria maculans, the causal agent of blackleg. Aust. J. Exp. Agric. 2002, 42, 587–594. [Google Scholar] [CrossRef]
  38. Niemann, J.; Kaczmarek, J.; Wojciechowski, A.; Jędryczka, M. Resistance to stem canker (Leptosphaeria spp.) in interspecific Brassica hybrids. Prog. Plant Prot. 2016, 56, 245–250. [Google Scholar]

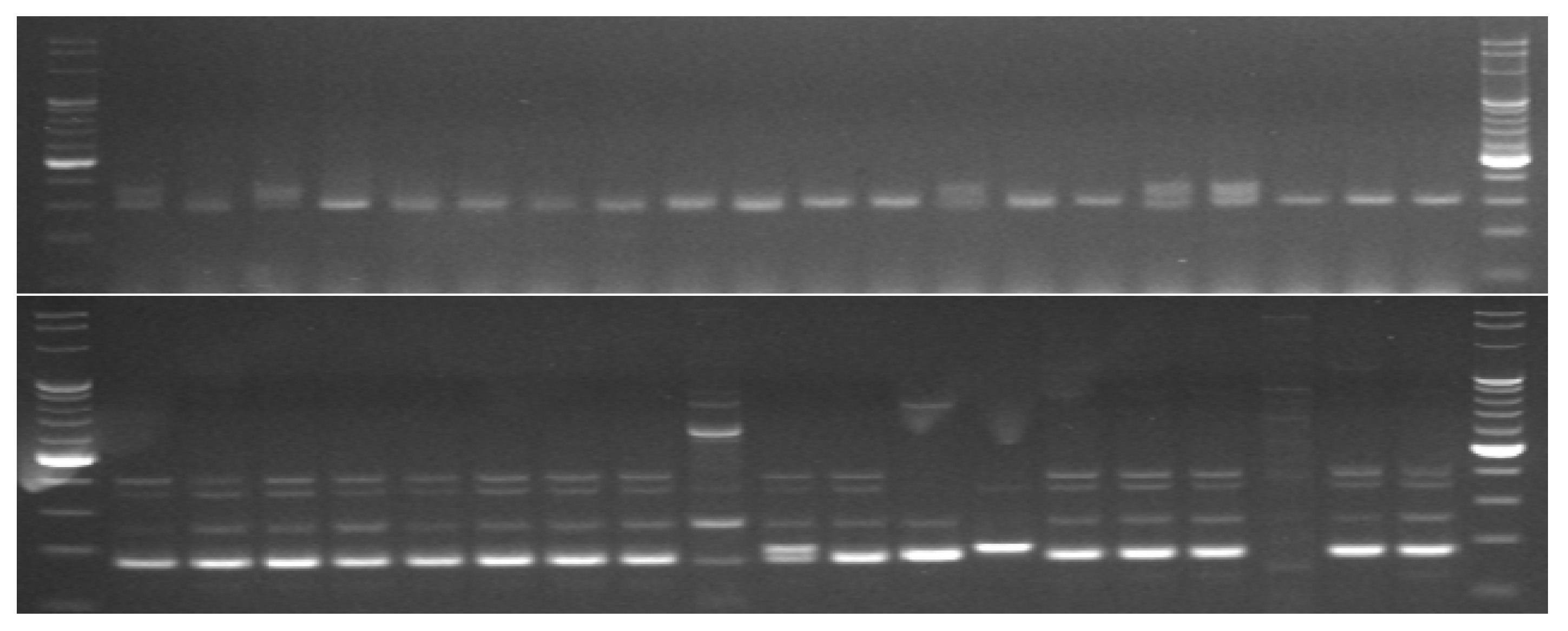

Figure 1. Example of electrophorograms with visible PCR products. Results for genotypes 21–40, marker mstg004 (above) and mstg008 (below).
Figure 1. Example of electrophorograms with visible PCR products. Results for genotypes 21–40, marker mstg004 (above) and mstg008 (below).
Cimb 44 00295 g001

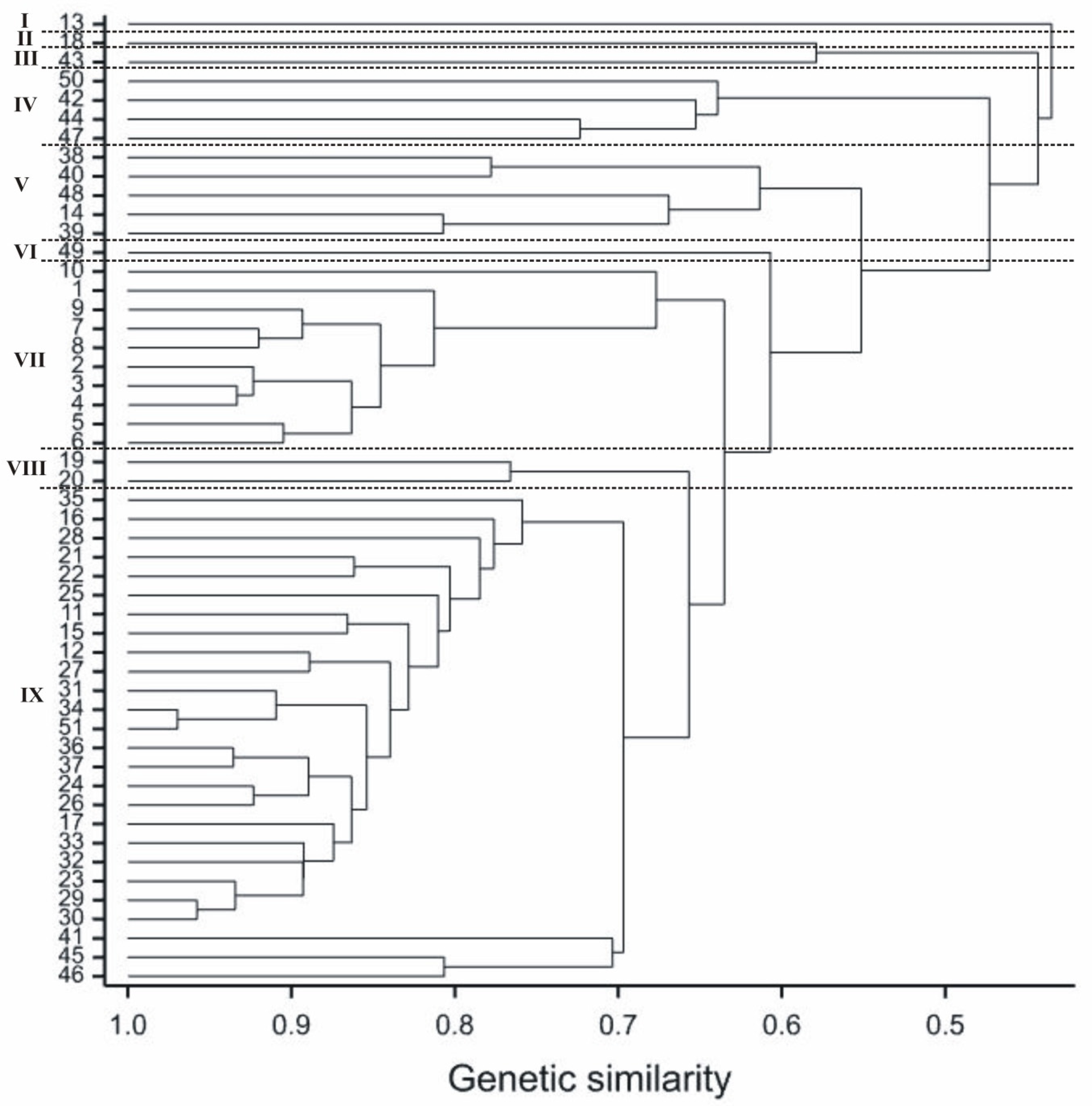

Figure 2. Dendrogram obtained from SSR data showing the genetic relationship of studied genotypes (numbers according to Table 1). Genotypes were grouped hierarchically using the UPGMA method. The scale at the bottom of the dendrogram indicates the level of similarity between individual plants.
Figure 2. Dendrogram obtained from SSR data showing the genetic relationship of studied genotypes (numbers according to Table 1). Genotypes were grouped hierarchically using the UPGMA method. The scale at the bottom of the dendrogram indicates the level of similarity between individual plants.
Cimb 44 00295 g002

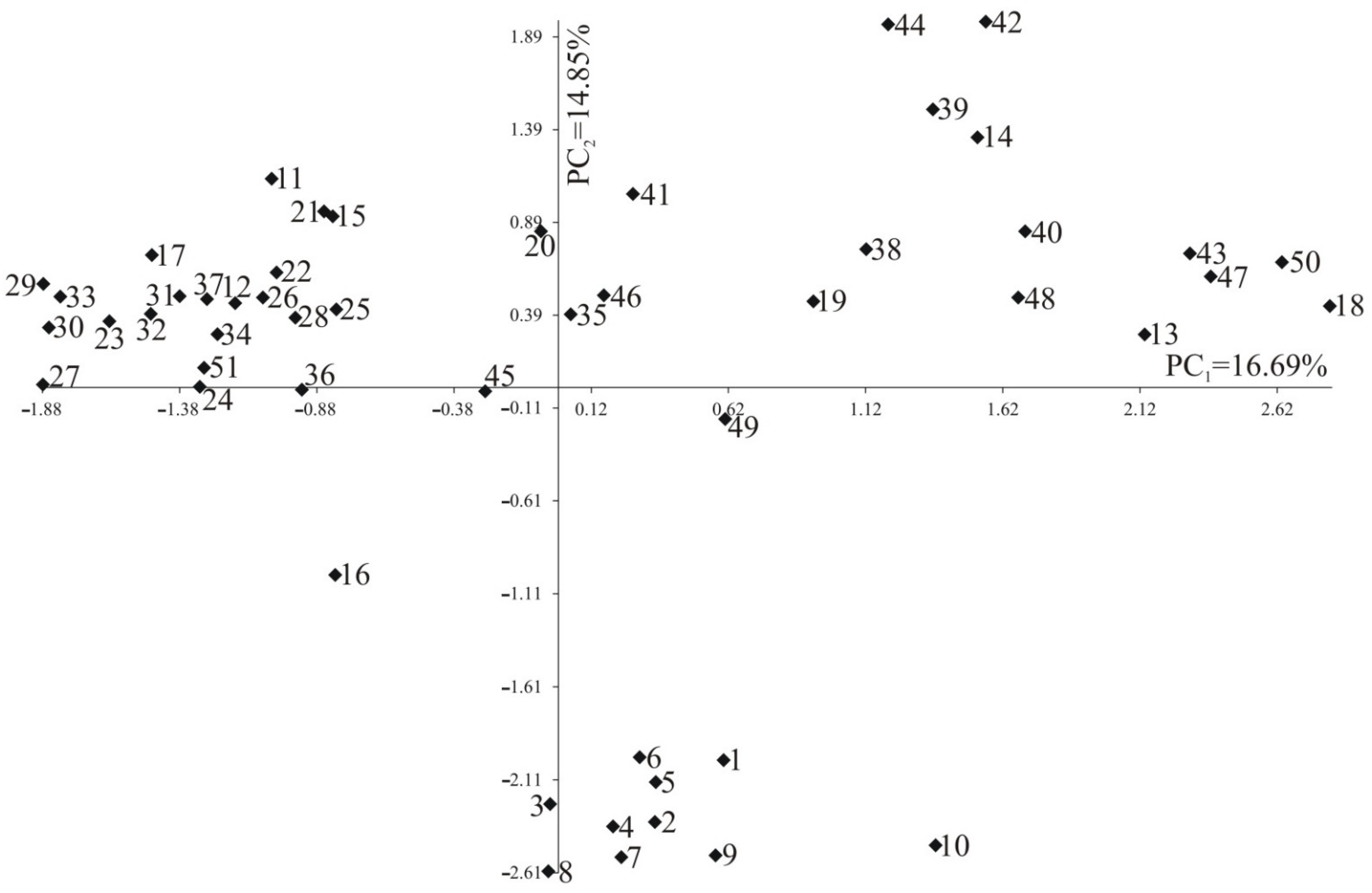

Figure 3. Principal component analysis of 51 genotypes based on 100 detected PCR products, numbers 1–51 according to Table 1.
Figure 3. Principal component analysis of 51 genotypes based on 100 detected PCR products, numbers 1–51 according to Table 1.
Cimb 44 00295 g003
Figure 4. Examples of leaf damage on hybrid genotypes caused by L. maculans.
Figure 4. Examples of leaf damage on hybrid genotypes caused by L. maculans.
Cimb 44 00295 g004
Table 1. List of Brassicaceae genotypes used in this study and groups for the analysis of molecular variance (AMOVA).
Table 1. List of Brassicaceae genotypes used in this study and groups for the analysis of molecular variance (AMOVA).
No of GenotypeCombination/SpeciesGroup
1B. napus cv. Jet Neuf × B. carinata PI 6490911
2B. napus cv. Lisek × B. carinata Dodola1
3B. napus cv. Jet Neuf × B. carinata—PI 6490941
4B. napus cv. Jet Neuf × B. carinata—PI 6490961
5B. carinata 11
6B. carinata 21
7B. carinata 31
8B. carinata 41
9B. carinata cv. Dodola1
10B. carinata PI 5965341
11B. napus cv. Górczański × B. rapa ssp. chinensis2
12B. napus cv. Zhongshuang9 × B. rapa ssp. chinensis 08 0075742
13B. rapa ssp. chinensis (COBORU)2
14B. rapa ssp. chinensis PI430485 98CI2
15B. napus cv. Lisek × B. rapa Pak Choi 08, 0075742
16B. napus cv. Lisek × B. rapa Pak Choi 08, 0075692
17B. napus cv. Górczański × B. rapa Pak Choi 08, 0075742
18B. fruticulosa PI 6490973
19B. napus cv. Californium × B. fruticulosa—PI6490973
20B. napus cv. Lisek × B. fruticulosa—PI6490973
21B.napus cv. Anderson1, 2, 3, 4, 5, 6, 7
22B. napus cv. Monolit1, 2, 3, 4, 5, 6, 7
23B. napus cv. Skrzeszowicki1, 2, 3, 4, 5, 6, 7
24B. napus cv. Lisek1, 2, 3, 4, 5, 6, 7
25B. napus cv. Californium × B. oleracea var. alboglabra4
26B. napus cv. Jet Neuf × B. rapa ssp. pekinensis 08 0075695
27B. napus cv. Jet Neuf × B. rapa ssp. pekinensis 08 0075745
28B. napus cv. Górczański × B. rapa ssp. pekinensis 08.0075745
29B. napus cv. Górczański × B. rapa ssp. pekinensis 08.0075695
30B. napus cv. Californium × B. rapa ssp. pekinensis 08 0075745
31B. napus cv. Californium × B. rapa ssp. pekinensis 08 007574-15
32B. napus cv. Californium × B. rapa ssp. pekinensis 08 007574-25
33B. napus cv. Californium × B. rapa ssp. pekinensis 08 007574-35
34B. napus cv. Zhongshuang9 × B. rapa ssp. pekinensis 08 0061695
35B. napus MS8 line × B. rapa ssp. pekinensis 08 0061695
36B. napus MS8 line × B. rapa ssp. pekinensis 08 0061695
37B. napus MS8 line × B. rapa ssp. pekinensis 08 0061695
38B. rapa ssp. pekinensis 08, 0075695
39B. rapa ssp. pekinensis 08, 0075745
40B. rapa ssp. pekinensis (COBORU)5
41B. napus cv. Lisek × B. oleracea var. alboglabra4
42B. napus cv. Jet Neuf × S. alba cv. Bamberka6
43B. napus cv. Lisek × B. fruticulosa—PI6490993
44B. napus cv. Lisek × S. alba cv. Bamberka6
45B. napus cv. Lisek × B. tournefortii7
46B. napus cv. Jet Neuf × B. oleracea var. alboglabra4
47B. napus cv. Californium × S. alba cv. Bamberka6
48B. rapa ssp. pekinensis 08 0061695
49B. oleracea var. alboglabra4
50S. alba cv. Bamberka6
51B. napus cv. Zhongshuang9 × B. rapa ssp. pekinensis 08 006169 25
Table 2. Primer sequences and annealing temperatures of SSR markers used in the study.
Table 2. Primer sequences and annealing temperatures of SSR markers used in the study.
SSR MarkerPrimer SequencesAnnealing Temperature
mstg001F: CAT GAG TTT TCA TAA ATA AAA41 °C
R: TAT GCA ACT TGT CTT TGA TAT
mstg004F: CAT ATA TAG CAT GAG TGG TGC47 °C
R: CTT AAA GGG CAC TCT TTC ATG
mstg008F: TCT CTT TGA AAT CTC AAC CCA47 °C
R: AGA TGG CAT GTT AAA CTG AAC
mstg012F: TGA TAC ATA GAC TTG GTG GTG48 °C
R: CGG CAT TAT CTT GAA CAC GTT
mstg013F: AGA TTT GGC TTA CAC GAC GAC50 °C
R: ATA TAC CAG GTA CCG TCA CTC
mstg016F: CGT TAC ATT CGG GTA TCA CTA48 °C
R: TCA TCG AAA GCC TTG TAA CTG
mstg025F: AGA GGC AGT TAC GTT CAC GTC52 °C
R: CAT CGC ACT CGT GTC TCT TTC
mstg027F: CTC TTT TGG TCA GCT TCC TCA48 °C
R: TTG TTA GTT AGA TCC TCG TAG
mstg028F: GCC AAG AAG ACG AAG ATT CTC49 °C
R: AGG TTC TCG ATT TAG GAA CCG
mstg033F: ATG TAA GCA TCT TTG ATC TGC46 °C
R: CTT GAT CTT CCT GAT GTA CTC
mstg034F: CGA CTG GTA ATA TTC TGA TAC46 °C
R: CAT GAA AGA CTC TCA AAT CCC
mstg038F: GAA TGG TGG TTC TTG TGT GTC49 °C
R: CAA AGC GAA GCT CTT GAA TTG
mstg039F: TAC TCG CTC TTG TTG AAG CTG50 °C
R: GAC AAT CTT GGA GTC ATC TCG
mstg042F: GAT ATT CGA TCC GCT TCG ACA49 °C
R: CGA ATA TCT CAT CCA CTT TGT
mstg052F: AGT AAC ATG TTT TCT TTT GTG46 °C
R: CAT CAG ATG CTC AAG GAA CTT
mstg055F: ACA CGC GCC TAT GCA GAA TAC52 °C
R: CTT AGC GAT TAC GGT GAA GCC
Table 3. Quantity of detected alleles and PIC values for SSR markers.
Table 3. Quantity of detected alleles and PIC values for SSR markers.
SSR MarkerQuantity of Polymorphic AllelesQuantity of Monomorphic AllelesPercentage of Polymorphic Alleles (%)PIC (Polymorphism Information Content)
mstg004201000.962
mstg008801000.969
mstg012701000.771
mstg016801000.594
mstg025401000.838
mstg0287187.50.769
mstg033301000.988
mstg038901000.841
mstg0391501000.989
mstg0422166.70.913
mstg052701000.893
mstg055901000.776
mstg001401000.908
mstg034501000.686
mstg027801000.822
Mean6.5330.13396.9470.848
Table 4. Values of differentiation FST (below diagonal) and probability based on non-parametric permutational testing procedures with 999 permutations (above diagonal) between groups of genotypes.
Table 4. Values of differentiation FST (below diagonal) and probability based on non-parametric permutational testing procedures with 999 permutations (above diagonal) between groups of genotypes.
Group1234567
10.0000.0450.0020.0160.0050.0020.055
20.041 *0.0000.1530.0720.4210.3980.433
30.154 **0.0280.0000.0010.0120.0520.181
40.077 *0.0520.191 ***0.0000.0830.0090.060
50.066 **0.0000.092 *0.0500.0000.2890.393
60.135 **0.0000.1030.160 *0.0170.0000.384
70.0770.0000.0460.0990.0000.0000.000
Mean squares within group9.5828.1324.2818.7978.8534.2504.160
* p < 0.05, ** p < 0.01, *** p < 0.001
Table 5. Results of blackleg field resistance assessment for hybrid plants. The level of infestation is expressed as a percentage.
Table 5. Results of blackleg field resistance assessment for hybrid plants. The level of infestation is expressed as a percentage.
No of GenotypeCombinationInfestation Level—Term IInfestation Level—Term II
1B. napus cv. Jet Neuf × B. carinata PI 6490910 f *3 ef
2B. napus cv. Lisek × B. carinata Dodola0 f3 ef
3B. napus cv. Jet Neuf × B. carinata—PI 6490940 f4 ef
4B. napus cv. Jet Neuf × B. carinata—PI 6490960 f3 ef
11B. napus cv. Górczański × B. rapa ssp. chinensis23.33 a25 a
12B. napus cv. Zhongshuang9 × B. rapa ssp. chinensis 08 00757415 b22 ab
15B. napus cv. Lisek × B. rapa Pak Choi 08, 0075748 bcde8 def
16B. napus cv. Lisek × B. rapa Pak Choi 08, 0075698 bcde9 cdef
17B. napus cv. Górczański × B. rapa Pak Choi 08, 0075747 cdef8 def
19B. napus cv. Californium × B. fruticulosa—PI6490970 f4 ef
20B. napus cv. Lisek × B. fruticulosa—PI6490970 f5 ef
25B. napus cv. Californium × B. oleracea var. alboglabra9.33 bcde2.08 f
26B. napus cv. Jet Neuf × B. rapa ssp. pekinensis 08 0075698 bcde8 def
27B. napus cv. Jet Neuf × B. rapa ssp. pekinensis 08 0075745 def6 ef
28B. napus cv. Górczański × B. rapa ssp. pekinensis 08.00757412.33 bc15 bcd
29B. napus cv. Górczański × B. rapa ssp. pekinensis 08.00756911 bcd6 ef
30B. napus cv. Californium × B. rapa ssp. pekinensis 08 0075745 def15 bcd
31B. napus cv. Californium × B. rapa ssp. pekinensis 08 007574-14 def16 bc
32B. napus cv. Californium × B. rapa ssp. pekinensis 08 007574-25.25 def13.33 cd
33B. napus cv. Californium × B. rapa ssp. pekinensis 08 007574-36 cdef14 cd
34B. napus cv. Zhongshuang9 × B. rapa ssp. pekinensis 08 0061693.33 ef9 cdef
35B. napus MS8 line × B. rapa ssp. pekinensis 08 006169 14 def6 ef
36B. napus MS8 line × B. rapa ssp. pekinensis 08 006169 26 cdef6 ef
37B. napus MS8 line × B. rapa ssp. pekinensis 08 006169 36 cdef6 ef
41B. napus cv. Lisek × B. oleracea var. alboglabra10 bcde10 cde
42B. napus cv. Jet Neuf × S. alba cv. Bamberka0 f3 ef
43B. napus cv. Lisek × B. fruticulosa—PI6490990 f5 ef
44B. napus cv. Lisek × S. alba cv. Bamberka4 def4 ef
45B. napus cv. Lisek × B. tournefortii8 bcde6 ef
46B. napus cv. Jet Neuf × B. oleracea var. alboglabra10.33 bcde10 cde
47B. napus cv. Californium × S. alba cv. Bamberka0 f3 ef
51B. napus cv. Zhongshuang9 × B. rapa ssp. pekinensis 08 006169 26 cdef15 bcd
* Values with different letters in columns are significantly different.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Szwarc, J.; Niemann, J.; Kaczmarek, J.; Bocianowski, J.; Weigt, D. Genetic Relationship of Brassicaceae Hybrids with Various Resistance to Blackleg Is Disclosed by the Use of Molecular Markers. Curr. Issues Mol. Biol. 2022, 44, 4290-4302. https://doi.org/10.3390/cimb44090295

AMA Style

Szwarc J, Niemann J, Kaczmarek J, Bocianowski J, Weigt D. Genetic Relationship of Brassicaceae Hybrids with Various Resistance to Blackleg Is Disclosed by the Use of Molecular Markers. Current Issues in Molecular Biology. 2022; 44(9):4290-4302. https://doi.org/10.3390/cimb44090295

Chicago/Turabian Style

Szwarc, Justyna, Janetta Niemann, Joanna Kaczmarek, Jan Bocianowski, and Dorota Weigt. 2022. "Genetic Relationship of Brassicaceae Hybrids with Various Resistance to Blackleg Is Disclosed by the Use of Molecular Markers" Current Issues in Molecular Biology 44, no. 9: 4290-4302. https://doi.org/10.3390/cimb44090295

Article Metrics

Back to TopTop
