The Use of DArTseq Technology to Identify Markers Related to the Heterosis Effects in Selected Traits in Maize

by
Jan Bocianowski
1,*,
Agnieszka Tomkowiak
2,
Marianna Bocianowska
3 and
Aleksandra Sobiech
2
1
Department of Mathematical and Statistical Methods, Poznań University of Life Sciences, Wojska Polskiego 28, 60-637 Poznan, Poland
2
Department of Genetics and Plant Breeding, Poznań University of Life Sciences, Dojazd 11, 60-632 Poznan, Poland
3
Faculty of Chemical Technology, Poznań University of Technology, Piotrowo 3A, 60-965 Poznan, Poland
*
Author to whom correspondence should be addressed.
Curr. Issues Mol. Biol. 2023, 45(4), 2644-2660; https://doi.org/10.3390/cimb45040173
Submission received: 20 February 2023 / Revised: 18 March 2023 / Accepted: 21 March 2023 / Published: 23 March 2023
(This article belongs to the Section Molecular Plant Sciences)
Browse Figures
Review Reports Versions Notes

Abstract

:
Spectacular scientific advances in the area of molecular biology and the development of modern biotechnological tools have had a significant impact on the development of maize heterosis breeding. One technology based on next-generation sequencing is DArTseq. The plant material used for the research consisted of 13 hybrids resulting from the crossing of inbred maize lines. A two-year field experiment was established at two Polish breeding stations: Smolice and Łagiewniki. Nine quantitative traits were observed: cob length, cob diameter, core length, core diameter, number of rows of grain, number of grains in a row, mass of grain from the cob, weight of one thousand grains, and yield. The isolated DNA was subjected to DArTseq genotyping. Association mapping was performed using a method based on the mixed linear model. A total of 81602 molecular markers (28571 SNPs and 53031 SilicoDArTs) were obtained as a result of next-generation sequencing. Out of 81602, 15409 (13850 SNPs and 1559 SilicoDArTs) were selected for association analysis. The 105 molecular markers (8 SNPs and 97 SilicoDArTs) were associated with the heterosis effect of at least one trait in at least one environment. A total of 186 effects were observed. The number of statistically significant relationships between the molecular marker and heterosis effect varied from 8 (for cob length) and 9 (for yield) to 42 (for the number of rows of grain). Of particular note were three markers (2490222, 2548691 and 7058267), which were significant in 17, 8 and 6 cases, respectively. Two of them (2490222 and 7058267) were associated with the heterosis effects of yield in three of the four environments.

1. Introduction

The continuous development of molecular biology and statistical tools to analyze the large amount of data obtained for different mapping populations is changing the approach to selecting plant materials for breeding [1]. There is an increasing emphasis on the selection of multiple functional traits using, for this purpose, unrelated but genetically aligned plant materials. For maize, yield and its structural traits are the most important [2,3,4]. Increasing the range of maize cultivation is linked to breeding progress, which includes exploiting heterosis (the vigor of the first generation of hybrids) and creating hybrids with lower climatic requirements [5,6,7]. Access to increasingly modern cultivation technologies and breeding methods is also very important. The demand for new varieties of maize is constantly growing, making it the subject of intensive breeding and genetic research. The identification of molecular markers linked to genes determining not only the heterosis effect or grain yield but also other functional traits is now a priority in maize breeding programs [1,8].
To identify markers and their coupled genes, association mapping [9,10] and genomic selection [11,12] are currently the most commonly used. In association mapping, we can distinguish between candidate gene association and genome-wide association study (GWAS). In candidate gene association, correlations between DNA polymorphisms in a specific gene and a trait are checked. In the absence of detailed biochemical knowledge related to the sought-after trait, a GWAS analysis is justified. This approach searches for trait–marker associations across the genome and assumes that there are markers within the genome conditioning the expression of the trait that show coupling imbalances [13]. It was on maize that the first association mapping was performed [14] using simple RAPD and RFLP techniques. With the development of new biotechnological methods and statistical programs, the number of species studied has increased.
The breakthrough came in 2006 with Illumina’s launch of the Solexa (Genome Analyzer) Next Generation Sequencer. The sequencing technology used in this device is still being developed and Illumina now has several sequencing platforms, including two for ‘bulk’ analysis (NovaSeq and NextSeq), and the smallest is for sequencing small numbers of samples with shorter genomes (MiniSeq and iSeq). The platforms differ in the amount of data that they can obtain (from 1.8 GB for MiniSeq to 6000 GB on the NovaSeq platform) and the number of reads that they can generate in a limited time [15]. Initially, the problem was the large amount of sequencing data preventing bioinformatics analyses on desktop computers; nowadays, analyses are performed on high-throughput servers with large RAM capacity, in either a Linux or an iOS environment [16]. Many bioinformatics tools run algorithms that allow whole genomes and transcriptomes to be assembled from short sequences [17]. As the results show, bioinformatics analyses currently pose the greatest difficulty in adapting NGS for diagnostics, as the result of improper folding is false positives and incorrectly folded genomes, making it difficult to correctly interpret the results obtained [18].
One technology based on next-generation sequencing is DArTseq. This technology was used in the present study to identify single nucleotide polymorphism (SNP) and Silico DArT polymorphisms, for which associations with the heterosis effect were sought. DArTseq technology (in opposition to GBS) provides a large pool of both SNP and SilicoDArT markers (which are also characterized by dominance) [19]. In this method, the complexity of the genome is reduced via restriction enzymes and sequencing short reads. DArTseq technology replaces the hybridization step, and sequencing is conducted using the Illumina system [20].
Molecular analyses in maize are focused on the identification of new markers (SNP and SilicoDArT) and quantitative trait loci (QTLs) regions, as well as breeders’ interest in DNA analyses, which additionally includes the search for new methods to select the parental components for heterosis crosses [21]. The idea here is to find a relationship between the yield of an F1 hybrid and the heterogeneity of loci markers for its parental forms. It is well known that breeding success is determined by access to starting materials with significant genetic diversity because well-identified and heterotically partitioned starting material results in lower costs for the entire hybrid breeding process [22].
The purpose of this study was to identify molecular markers (SNPs and SilicoDArTs) linked to the heterosis effects for yield and yield traits in maize (Zea mays L.).

2. Materials and Methods

2.1. Plant Material

The plant material for the study consisted of 13 (Bejm, Blask, Brda, Budrys, Grom, Kozak, M Glejt, M Prosna, M Wilga, Narew, O Glejt, Popis and Smok) hybrids created by crossing inbred maize lines. Maize lines and hybrids came from Smolice Plant Breading Company. The plan of the work is shown in Figure 1.

2.2. Field Experiment

Two-year (2013 and 2014) field experiments with hybrids were established at two breeding stations belonging to Smolice Plant Breeding, part of the Plant Breeding Acclimatization Institute Group, in Smolice (51°42′20.813″ N, 17°9′57.405″ E) and Łagiewniki (50°47′27″ N, 16°50′40″ E), Poland, in plots of 10 m2 in a randomized block design with three replicates. Łagiewniki and Smolice are 137 km apart. Both locations were chosen because they differ in soil type and rainfall. In Łagiewniki, the soil quality classification is predominantly class I to III, while in Smolice it is class III to V. The average annual rainfall in Łagiewniki is 560–660 mm, while in Smolice it is 390–460 mm. The locations, which vary in terms of environmental conditions, were chosen to test the influence of the environment on the magnitude of the heterosis effect. Maize was sown in each year of the study on April 20. Mineral fertilization was adapted to the needs of maize grown for grain harvest. Polyphoska in the quantity of 350 kg ha–1 and 160 kg ha–1 of urea were applied. The nutrient content was as follows: Before winter ploughing: N—21 kg N ha–1 in the form of polyphoska, P—70 kg P2O5 ha−1 in the form of polyphoska, and K—105 kg K2O ha–1 in the form of polyphoska. Before sowing: N—73.6 kg N ha–1 in the form of urea—was applied. The chemical control of weeds was performed with a field sprayer. Within each repetition, one cob each was selected from ten plants and biometric measurements were made on them. These biometric measurements were carried out in the first half of November each year. Nine quantitative traits were observed: cob length (LC), cob diameter (DC), core length (LCO), core diameter (DCO), the number of rows of grain (NRG), the number of grains in a row (NGR), mass of grain from the cob (MGC), weight of 1000 grains (WTGs) and yield.

2.3. Genotyping as Well as SNP and SilicoDArT Data Processing

The seeds of each hybrid were divided. One part was allocated to set up a field experiment and ten pieces were allocated for molecular analyses. Seeds of the F1 generation hybrids (10 from each hybrid) were sown onto sterile Petri plates to obtain young seedlings. Approximately 1 cm2 of leaf tissue was taken from each of the 10 plants and a collection sample was prepared (separately for each hybrid). The plant material prepared in this way was isolated. Isolation was carried out using Maxwell equipment from Promega, for automatic DNA isolation. The Maxwell® RSC Tissue DNA Kit AS1610 was used for this purpose. After isolation, the concentration and purity of the DNA samples were tested and equal dilutions were prepared to 100 ng µL–1. DNA concentration and purity were checked using a DeNovix spectrophotometer from TK Biotech. Care was taken to only select samples for sequencing where the DNA purity at 260/280 absorbance was between 1.8 and 2.0 and at 230/260 absorbance was not less than 1.8. DNA prepared in this way was placed in a 96-well plate and sent for sequencing to Diversity Arrays Technology.
For next-generation sequencing, F1 hybrids and inbred lines (highly homozygous), which were the parental forms of these hybrids, were sent to a 96-well plate. However, for the above publication, only the sequencing results of the F1 hybrids were used from the database of the results obtained. The results for the lines were used for a different inference. The inbred lines were obviously characterized by low yield because they had previously undergone inbreeding to obtain plant materials that were highly homozygous. The F1 hybrids were characterized by a high yield.

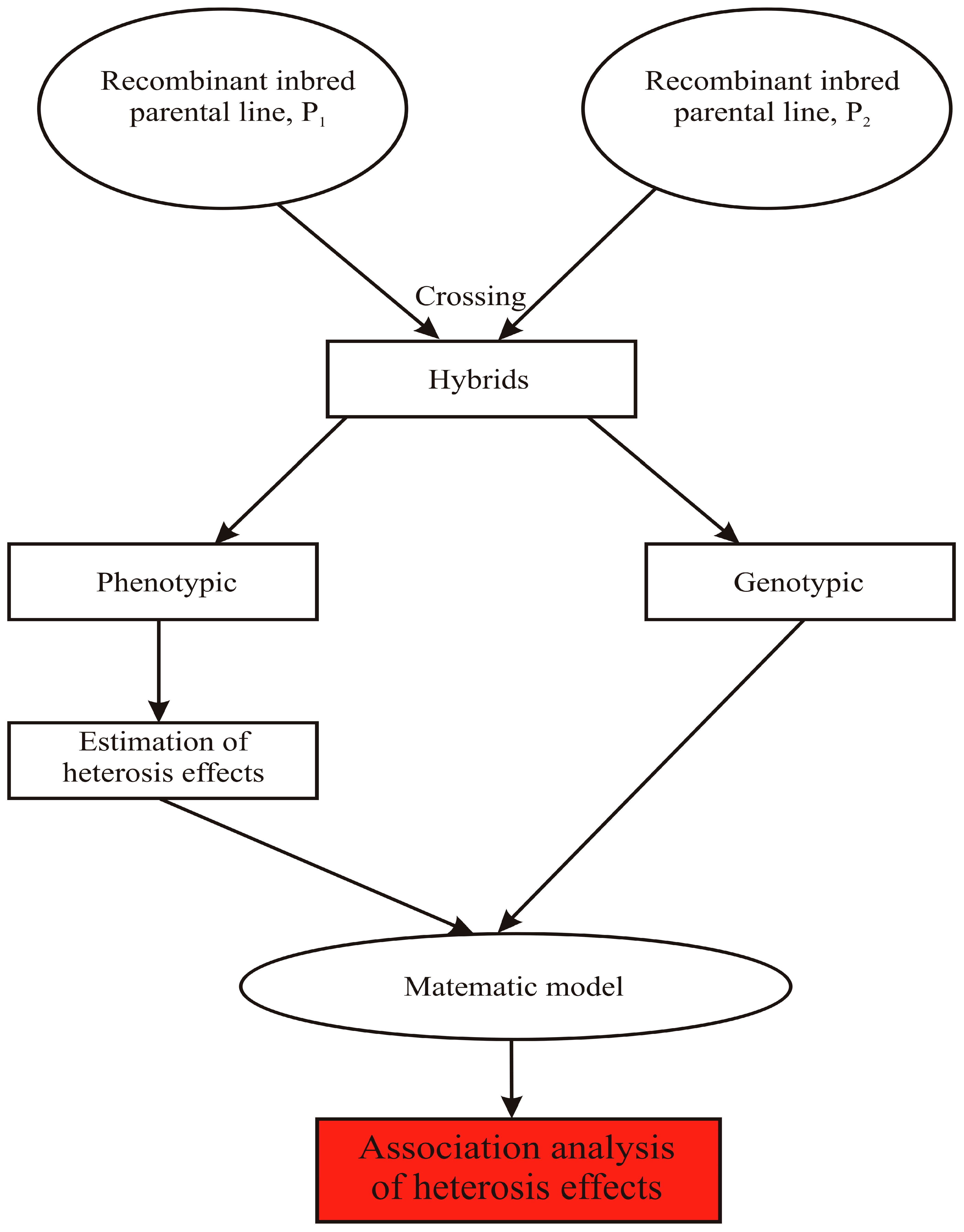

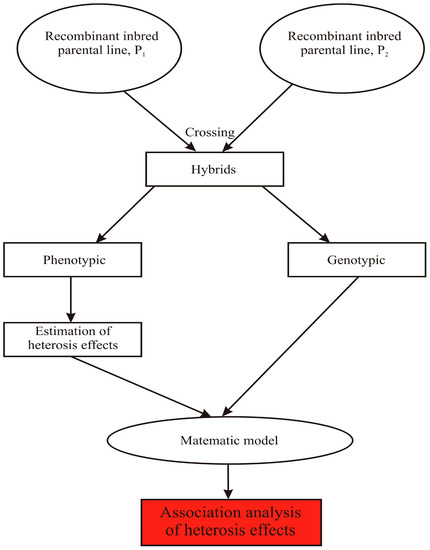

The genotypic data used for association mapping were obtained from polymorphisms identified in DArT and candidate gene sequences. The details of DArT sequences were described by Tomkowiak et al. [23]. Genotyping using DArTseq technology was performed by Diversity Arrays Technology Pty Ltd. (Kilian A., Canberra, Australia). DNA sample digestion/ligation reactions were processed according to Kilian and Graner [20], but by replacing a single PstI-compatible adaptor with two adaptors corresponding to PstIand NspI-compatible sequences and moving the assay on the sequencing platform as described by Sansaloni et al. [24]. The PstI-compatible adapter was designed to include an Illumina flow cell attachment sequence, a sequencing primer sequence and a “staggered” varying length barcode region, similar to the sequence reported by Elshire et al. [25]. The reverse adapter contained a flow cell attachment region and an NspI-compatible overhang sequence. Only “mixed fragments” (PstI–NspI) were amplified via PCR using the following reaction conditions: denaturation for 1 min at 94 °C; followed by 30 cycles of 94 °C for 20 s, 57 °C for 30 s and 72 °C for 45 s; and the final elongation at 72 °C for 7 min. After PCR, equimolar amounts of amplification products from each sample of the 96–well microtiter plate were bulked and applied in c–Bot (Illumina) bridge PCR, followed by sequencing on Illumina Hiseq2500. The sequencing (single read) was run for 78 cycles. Sequences generated from each lane were processed using proprietary DArT analytical pipelines. In the primary pipeline, the fastq files were first processed to filter away poor-quality sequences, applying more stringent selection criteria to the barcode region compared to the rest of the sequence. In this way, the assignments of the sequences to specific samples carried in the “barcode split” step were very reliable. Approximately 2,500,000 (±7%) sequences per barcode/sample were used in the marker calling. Finally, identical sequences were collapsed into “fastqcall files”. These files were used in the secondary pipeline for DArT PL’s proprietary SNP and SilicoDArT (presence/absence of restriction fragments in representation) calling algorithms (DArTsoft14).

2.4. Statistical Analysis

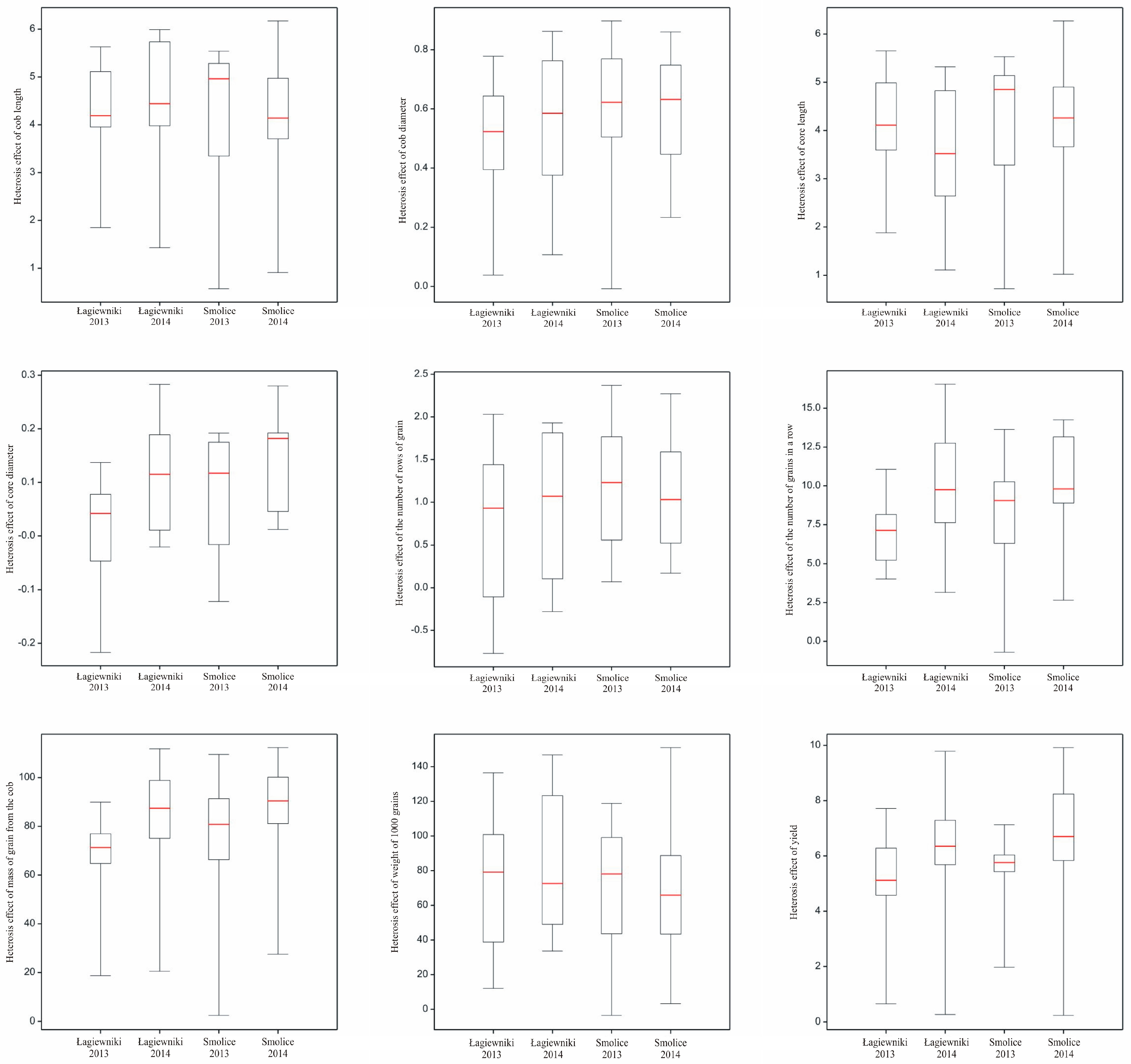

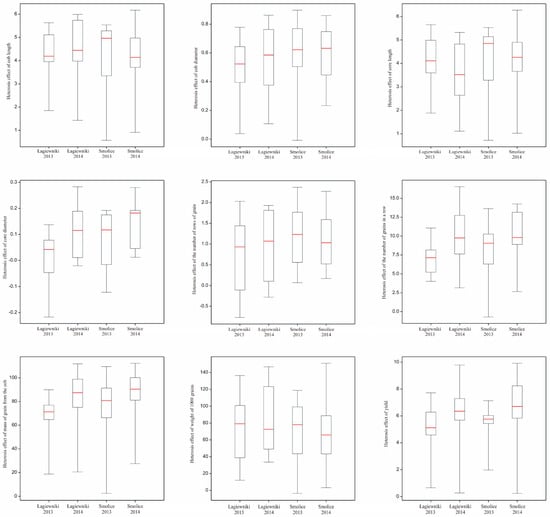

Heterosis effects for hybrids were calculated relative to the average of both parents, for each trait (Figure 2) [23].
The effects of heterosis were tested at the 0.05 level. DArT sequences meeting three criteria were selected for association analysis: the missing observation fractions < 10%, minor allele frequency (MAF) > 0.25 and one SNP and SilicoDArT within a given sequence (69 nt). Association mapping of heterosis effects was performed using a method based on a mixed linear model [26,27]. The GenStat v. 22 [28] statistical software package was used for all of the analyses. The significance of associations between SilicoDArT and SNP markers and heterosis effects was tested at the 0.001 level (with Benjamini–Hochberg correction, for multiple comparisons) [29]. All analyses were conducted for four environments (two localities, two years) independently.

3. Results

Next-generation sequencing yielded 81,602 molecular markers (28,571 SNPs and 53,031 SilicoDArTs). Of the 81,602, 15,409 (13,850 SNPs and 1559 SilicoDArTs) were selected for association analysis using the criteria given above. Due to statistically significant interactions, association analyses of genotypes–years, genotypes–locations, years–locations and genotypes–years–locations were performed independently for four environments (combinations of years–locations). The 105 molecular markers (8 SNPs and 97 SilicoDArTs) were associated with the heterosis effect of at least one trait in at least one environment. A total of 186 effects were observed (Figure 3, Table 1, Table 2, Table 3, Table 4, Table 5, Table 6, Table 7, Table 8 and Table 9).
The heterosis effect of the cob length was determined by five markers: four SilicoDArTs and one SNP (Table 1). The effects of these markers varied from 2.494 (for 9693403—SilicoDArT marker in Łagiewniki 2014) to 3.579 (for SilicoDArT marker 2490222 in Smolice 2013), with an average of 2.977. The percentage variance accounted by individual markers varied from 59.4% (for 4584773—SilicoDArT marker in Smolice 2014) to 72.3% (for SilicoDArT marker 2548691 in Łagiewniki 2014), with an average of 66.76%. SilicoDArT marker 2490222 was associated with the heterosis effect of cob length in all four environments (Table 1). The other four markers determined the heterosis effect only in single environments. The largest number (four) of associations was observed in Łagiewniki in 2014.
Table
Table 1. Molecular markers significantly (LOD > 3.0) associated with the heterosis effect of cob length (LC).
Table 1. Molecular markers significantly (LOD > 3.0) associated with the heterosis effect of cob length (LC).
Type of MarkerMarker NameŁagiewnikiSmolice
2013201420132014
EffectR2EffectR2EffectR2EffectR2
SilicoDArT24902222.62670.43.39469.23.57970.23.572
SilicoDArT2548691 2.96472.3
SilicoDArT9693403 2.49460.1
SilicoDArT4584773 2.75459.4
SNP4776193 2.50260.5
R2—percentage variance accounted [in %].
The heterosis effect of cob diameter was determined by 18 SilicoDArT markers (Table 2). The effects of these markers varied from −0.3455 (for marker 4580744 in Smolice 2014) to 0.606 (for marker 2490222 in Smolice 2013), with a mean value of 0.367. R2 for individual markers ranged from 58.3% (for marker 21697645 in Smolice 2013) to 74.5% (for marker 4769006 in Łagiewniki 2014), with an average of 63.91%. SilicoDArT markers 21697645 and 2529741 were associated with the heterosis effect of cob length in three of the four environments (except for Łagiewniki 2014 and Smolice 2013, respectively). The largest number (11) of associations was observed in Łagiewniki in 2014 (Table 2).
Table
Table 2. Molecular markers (SilicoDArT) significantly (LOD > 3.0) associated with the heterosis effect of cob diameter (DC).
Table 2. Molecular markers (SilicoDArT) significantly (LOD > 3.0) associated with the heterosis effect of cob diameter (DC).
Marker NameŁagiewnikiSmolice
2013201420132014
EffectR2EffectR2EffectR2EffectR2
9626263 0.412161.1 0.354772.1
2455130 0.401660.9
2380663 0.426169.7 0.327963.8
7057126 0.426766.2 0.329561
4769006 0.438774.5 0.340169.3
216976450.341463 0.43258.30.358265.5
4584035 0.429359.5
4766435 0.434969.1
25297410.322862.60.407959.7 0.324859
7051437 0.323762
100000032 0.325562.8
100000044 0.394558.4
24902220.427660.1 0.60671.8
4583359 0.44462
9698148 0.41967.1 0.32663
45847730.366460.2 0.51370
9679877 0.345560.3
4580744 −0.345560.3
R2—percentage variance accounted [in %].
The heterosis effect of core length was determined by eleven markers: eight SilicoDArTs and three SNPs (Table 3). The effects of these markers ranged from −2.241 (for 4767009—SilicoDArT marker in Łagiewniki 2014) to 3.377 (for 2490222—SilicoDArT marker in Smolice 2013), with an average of 2.033. The R2 for particular markers ranged from 58.7% (for SilicoDArT marker 2383880 in Łagiewniki 2013 and SNP marker 4592834 in Łagiewniki 2014) to 78.1% (for SilicoDArT marker 7058267 in Smolice 2013), with an average of 63.57%. No marker was significant for the heterosis effect in Smolice in 2014. No marker was significant for the heterosis effect in more than two environments. Three markers (SilicoDArT markers 2490222 and 2548691, and SNP marker 4776193) were associated with the heterosis effect of core length in two environments (Table 3). The largest number (eight) of associations was observed in Łagiewniki in 2014.
Table
Table 3. Molecular markers significantly (LOD > 3.0) associated with the heterosis effect of core length (LCO).
Table 3. Molecular markers significantly (LOD > 3.0) associated with the heterosis effect of core length (LCO).
Type of MarkerMarker NameŁagiewnikiSmolice
2013201420132014
EffectR2EffectR2EffectR2EffectR2
SilicoDArT9624336 2.13859.5
SilicoDArT24902222.44662.7 3.37765.3
SilicoDArT25486912.10863.62.60863.8
SilicoDArT23838801.76358.7
SilicoDArT2425331 2.24162.6
SilicoDArT4767009 −2.24162.6
SilicoDArT4764251 2.20764
SilicoDArT7058267 3.1378.1
SNP4592834 2.12658.7
SNP47761931.89561.52.40965.5
SNP7049788 2.25463.4
R2—percentage variance accounted [in %].
The heterosis effect of core diameter was determined by 27 markers: 24 SilicoDArTs and 3 SNPs (Table 4). The effects of individual markers ranged from −1.1633 (for 2552284—SilicoDArT marker in Łagiewniki 2014) to 0.2323 (for 2495461—SilicoDArT marker in Smolice 2013), with an average of 0.1091. The R2 for particular markers ranged from 58.3% (for 21698399—SilicoDArT marker in Smolice 2014) to 83.3% (for 4769006—SilicoDArT marker in Smolice 2014), with an average of 65.98%. The SNP marker 4590442 was associated with the heterosis effect of core diameter in all four environments (Table 4). Two SilicoDArT markers (4769006 and 21697628) were associated in three of the four environments. The largest number (15) of associations was observed in Smolice in 2014.
Table
Table 4. Molecular markers associated with the heterosis effect of core diameter (DCO).
Table 4. Molecular markers associated with the heterosis effect of core diameter (DCO).
Type of MarkerMarker NameŁagiewnikiSmolice
2013201420132014
EffectR2EffectR2EffectR2EffectR2
SilicoDArT4590044 0.153158.9
SilicoDArT9626263 0.140961.6
SilicoDArT2380663 0.141165.2
SilicoDArT4588725 0.165170 0.142366.5
SilicoDArT9680027 0.181662.1
SilicoDArT47690060.159565.30.164969.8 0.157383.3
SilicoDArT21698399 0.137758.3
SilicoDArT2602895 0.142666.9
SilicoDArT216976280.166860.60.176268.20.203967.8
SilicoDArT4766435 0.160562.1
SilicoDArT25297410.160362.4
SilicoDArT45833590.174467.1 0.220280.5
SilicoDArT9698148 0.157462.8
SilicoDArT4590586 0.134658.5
SilicoDArT24954610.190566.7 0.232374
SilicoDArT4778477 0.165566.6
SilicoDArT9679877 0.150363.2
SilicoDArT100000188 0.185865.30.137261.2
SilicoDArT9713962 0.155661.2
SilicoDArT4580744 −0.150363.2
SilicoDArT2504629 −0.146759.8
SilicoDArT2464213 −0.153158.9
SilicoDArT2552284 −0.163368.3 −0.136960.9
SilicoDArT4591821 −0.158960.7
SNP7058274 0.146759.8
SNP4777654 −0.142666.9
SNP45904420.164265.90.1712720.207579.30.159581.4
R2—percentage variance accounted [in %].
The 34 SilicoDArT markers and one SNP marker were associated with the heterosis effect of the number of rows of grain (Table 5). The effects of the individual markers ranged from –1.412 (for 4765009—SilicoDArT marker in Łagiewniki 2014) to 1.597 (for 2544571—SilicoDArT marker in Łagiewniki 2014), with an average of 0.583. The R2 for individual markers ranged from 58.2% (for 4764693—SilicoDArT marker in Smolice 2013 and 2393601 SilicoDArT marker in Łagiewniki 2014) to 79.9% (for 2544571 SilicoDArT marker in Łagiewniki 2014), with an average of 65.42%. No marker was significant for the heterosis effect in all four environments. Only one marker (SilicoDArT 2437173) was associated with the heterosis effect of the number of rows of grain in three environments (except for Łagiewniki 2013). The largest number (16) of associations was observed in Smolice in 2014 (Table 5).
Table
Table 5. Molecular markers associated (LOD > 3.0) with the heterosis effect of the number of rows of grain (NRG).
Table 5. Molecular markers associated (LOD > 3.0) with the heterosis effect of the number of rows of grain (NRG).
Type of MarkerMarker NameŁagiewnikiSmolice
2013201420132014
EffectR2EffectR2EffectR2EffectR2
SilicoDArT7057126 1.02559.5
SilicoDArT2379644 1.0160.9
SilicoDArT47787531.30961.5
SilicoDArT2544571 1.59779.9
SilicoDArT47646931.31658.9 1.16858.2
SilicoDArT24917391.49169.4 1.32669
SilicoDArT2437173 1.41268.21.23365.91.05563.5
SilicoDArT4581103 1.15660.2
SilicoDArT100000044 1.3261.8 1.05467
SilicoDArT100000049 1.20162
SilicoDArT2444826 1.0968.4
SilicoDArT2435684 1.20161.5
SilicoDArT96685091.32262.91.40471.1
SilicoDArT9698148 1.0262.2
SilicoDArT4588300 1.37968.3 1.07269.7
SilicoDArT4765474 −1.37968.3 −1.07269.7
SilicoDArT24621761.33464.2
SilicoDArT9706913 1.0867.1
SilicoDArT2386741 1.1559.4
SilicoDArT9624718 1.18163.1
SilicoDArT55847581.47976.7
SilicoDArT2443558 1.32558.9
SilicoDArT2611917 1.1670
SilicoDArT2393601 1.28658.2
SilicoDArT21696515 1.49978.1
SilicoDArT70483121.38469.8
SilicoDArT4591958 −1.20161.5
SilicoDArT4765009 −1.41268.2
SilicoDArT2425024 −1.0867.1
SilicoDArT2386050 −1.1670
SilicoDArT4578555 −1.3261.8 −1.05467
SilicoDArT4583930 −1.18763.9
SilicoDArT4578963 −1.0160.9
SilicoDArT4591690−1.29760.2
SNP4764456 −1.22164.4
R2—percentage variance accounted [in %].
The heterosis effect of the number of grains in a row was determined by 15 SilicoDArT markers (Table 6). The effects of individual markers ranged from −6.98 (for 2532754 marker in Smolice 2013) to 8.55 (for 2490222 marker in Smolice 2013), with an average of 5.725. The R2 for individual markers ranged from 58.1% (for 4769448 marker in Łagiewniki 2014) to 76.7% (for 7058267 marker in Smolice 2013), with an average of 63.43%. Only one marker (2490222) was associated with the heterosis effect of the number of grains in a row in two of the four environments (Smolice in both years). The other 14 markers determined the heterosis effect of the number of grains in a row only in single environments. The largest number (eight) of associations was observed in Łagiewniki in 2014 (Table 6).
Table
Table 6. Molecular markers (SilicoDArT) significantly (LOD > 3.0) associated with the heterosis effect of the number of grains in a row (NGR).
Table 6. Molecular markers (SilicoDArT) significantly (LOD > 3.0) associated with the heterosis effect of the number of grains in a row (NGR).
Marker NameŁagiewnikiSmolice
2013201420132014
EffectR2EffectR2EffectR2EffectR2
2456387 6.1661.2
2434942 6.3558.3
4765710 6.9867.9
4778447 5.8958.5
2400466 6.5963.3
2490222 8.5561.67.9965.8
2548691 7.3265.5
45782193.42259.5
4575644 6.2559.4
2547687 6.1865.2
2523729 6.1564.5
2562473 6.6561.5
4769448 6.0258.1
2532754 −6.9867.9
7058267 8.0776.7
R2—percentage variance accounted [in %].
The heterosis effect of mass of grain from the cob was determined by seven SilicoDArT markers (Table 7). The effects of individual markers ranged from 35.98 (for 2548691 marker in Łagiewniki 2013) to 72.60 (for 2548691 marker in Smolice 2013), with an average of 52.682. The R2 for individual markers ranged from 59.0% (for 2434942 marker in Łagiewniki 2014) to 86.7% (for 2490222 marker in Smolice 2014), with an average of 68.78%. SilicoDArT marker 2490222 was associated with the heterosis effect of mass of grain from the cob in all four environments, whereas marker 2548691 was associated in three of the four environments, except for Smolice 2013 (Table 7). The largest number (four) of associations was observed in Łagiewniki in 2014 and in Smolice in 2014.
Table
Table 7. Molecular markers (SilicoDArT) significantly (LOD > 3.0) associated with the heterosis effect of mass of grain from the cob (MGC).
Table 7. Molecular markers (SilicoDArT) significantly (LOD > 3.0) associated with the heterosis effect of mass of grain from the cob (MGC).
Marker NameŁagiewnikiSmolice
2013201420132014
EffectR2EffectR2EffectR2EffectR2
2434942 46.559
2397282 51.560.4 4859.2
249022247.9582.467.7579.372.678.866.4186.7
254869135.9861.15467.4 5065
4584773 50.566.3
477864936.3762.7
7058267 57.365.8
R2—percentage variance accounted [in %].
The heterosis effect of weight of one thousand grains was determined by ten SilicoDArT markers (Table 8). The effects of individual markers ranged from –69.6 (for 4594009 marker in Łagiewniki 2013) to 69.7 (for 100000034 marker in Łagiewniki 2013), with an average of 20.2. The R2 for individual markers ranged from 58.3% (for 4779015 marker in Łagiewniki 2014) to 74.0% (for 4594009 marker in Łagiewniki 2013), with an average of 62.66%. No marker was significant for the heterosis effect of WTGs in Smolice in 2014. No marker was significant for the heterosis effect of WTGs in more than two environments. Two markers (100000034 and 4594009) were associated with the heterosis effect of WTGs in two environments (Table 8). The largest number (six) of associations was observed in Łagiewniki in 2014.
Table
Table 8. Molecular markers (SilicoDArT) significantly (LOD > 3.0) associated with the heterosis effect of weight of 1000 grains (WTGs).
Table 8. Molecular markers (SilicoDArT) significantly (LOD > 3.0) associated with the heterosis effect of weight of 1000 grains (WTGs).
Marker NameŁagiewnikiSmolice
2013201420132014
EffectR2EffectR2EffectR2EffectR2
4773439 61.459.4
10000003469.760.3 6960.8
4779015 6158.3
100000073 −65.661.2
2429497 5859.9
100000117 62.565.3
2526480 61.258.8
4594009−69.674 −66.769.3
2449821 −61.258.8
458734562.765.8
R2—percentage variance accounted [in %].
The heterosis effect of yield was determined by five markers: four SilicoDArTs and one SNP (Table 9). The effects of individual markers ranged from 2.729 (for 9693146 SilicoDArT marker in Smolice 2013) to 6.850 (for 2490222 SilicoDArT marker in Smolice 2014), with an average of 4.830. The R2 for individual markers ranged from 58.7% (for 2548691 SilicoDArT marker in Łagiewniki 2014) to 78.1% (for 2490222 SilicoDArT marker in Łagiewniki 2014), with an average of 68.7%. SilicoDArT markers 2490222 and 7058267 were associated with the heterosis effect of yield in three of the four environments, except for Smolice 2013 (Table 9). The other three markers determined the heterosis effect of yield only in single environments. The largest number (three) of associations was observed in Łagiewniki in 2013.
Table
Table 9. Molecular markers associated with the heterosis effect of yield.
Table 9. Molecular markers associated with the heterosis effect of yield.
Type of MarkerMarker NameŁagiewnikiSmolice
2013201420132014
EffectR2EffectR2EffectR2EffectR2
SilicoDArT9693146 2.72961.7
SilicoDArT24902224.89673.36.50978.1 6.8576.8
SilicoDArT25486913.80458.7
SilicoDArT70582673.80958.95.1866.1 5.76673.9
SNP7054002 3.92670.8
R2—percentage variance accounted [in %].

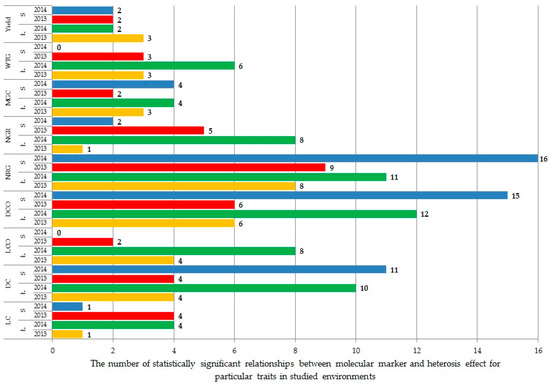

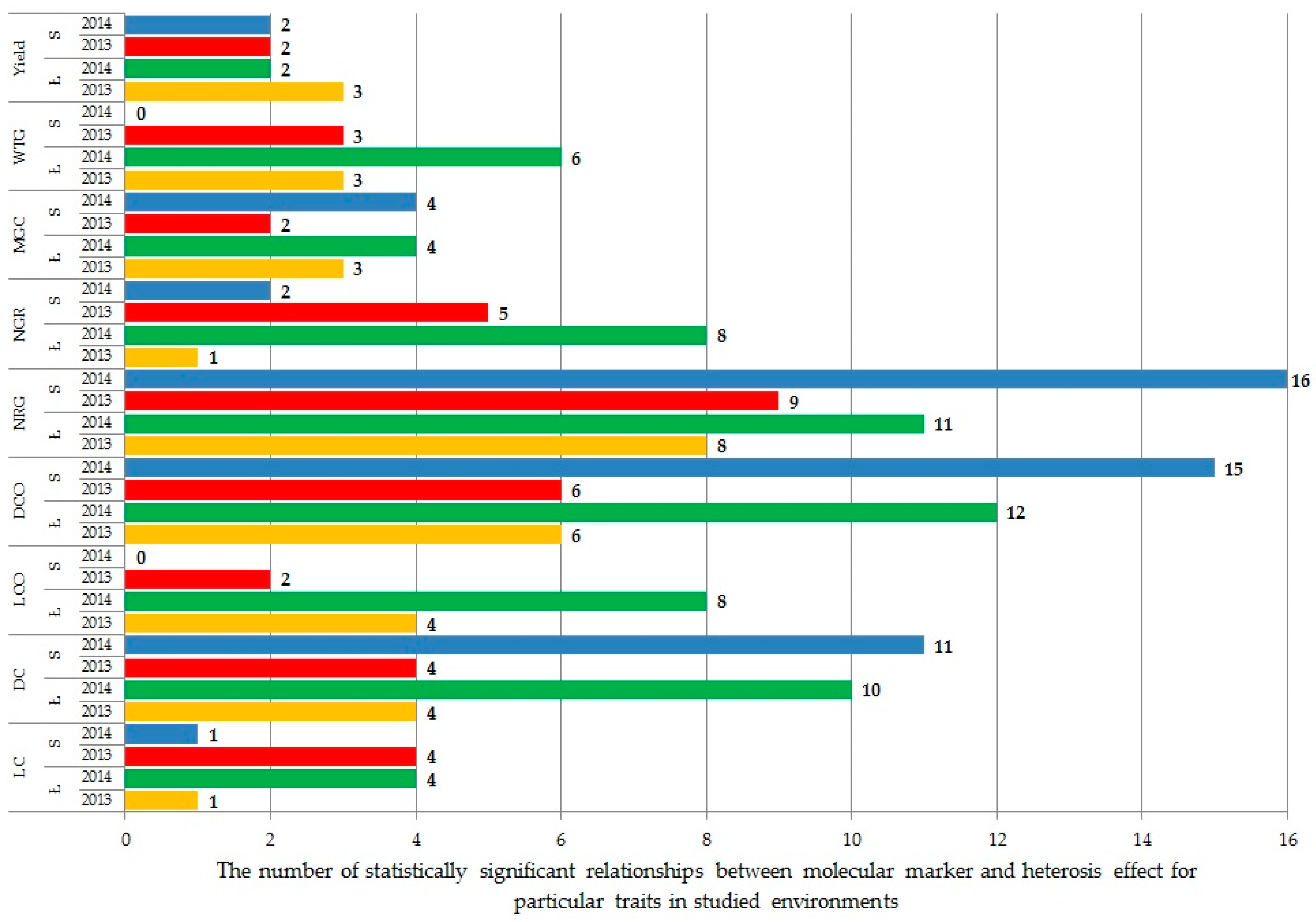

Of particular note are three markers (2490222, 2548691 and 7058267) which were significant in 17, 8 and 6 cases, respectively. Two of them (2490222 and 7058267) were associated with the heterosis effects of yield in three of the four environments (Table 9).

4. Discussion

It is estimated that by 2050 the planet will be inhabited by approximately 10 billion people and therefore there is increasing pressure to increase and balance food production. Breeders, with the support of scientific entities, are developing ever newer tools that guarantee ever greater accuracy in selection [30,31]. Current selection methods have been enriched by statistical models and advances in molecular biology that allow for both the identification of markers for individual traits that are the result of single genes and those that are determined by multiple QTLs to different degrees, explaining the phenotypic variation in a trait [32,33]. Recent selection methods allow work to be carried out using both Mendelian and population-based models. Each of the aforementioned models has a defined field of action that defines its use within specific experimental needs. Increasingly, molecular markers obtained by next-generation sequencing and association mapping are being used for selection [34].
Association mapping is one tool for identifying novel markers and associated genes. Association mapping assumes that multiple plant materials (usually unrelated or distantly related with a high degree of alignment within lineages) are taken for study [35]. Obviously, the size of the study population depends on the species and trait. In order to achieve the desired effect, the size of the mapping population can vary from about 200 to 800 individuals [35]. Increasing the population size is usually not economically justified [36]. The use of diverse plant materials means that recombinations occurring at earlier stages of derivation of materials are frequent, and the variation contained between them reflects the variation in the gene pool [35]. Thus, the trait markers identified should be useful for broader plant material. The method assumes that all analyzed plant materials are screened for a specific trait and are profiled with the relevant DNA markers [37]. In order to identify trait markers, it is necessary to have a large number of markers densely and evenly distributed across the genome. The density of such coverage is dependent on the value of the coupling imbalance, which will depend on the species and the trait [38]. As a result, markers obtained by next-generation sequencing methods such as GBS [25] or DArTseq [39] and relatively high computing power [38] are required for such studies. In this study, association mapping was used to identify molecular markers related with the heterosis effect. The results of our study indicate that the 105 molecular markers (8 SNPs and 97 SilicoDArTs) were associated with the heterosis effect of at least one trait in at least one environment. A total of 186 effects were observed. The number of statistically significant relationships between the molecular marker and heterosis effect varied from eight (for cob length) and nine (for yield) to forty-two (for the number of rows of grain).
Heterosis, as a genetic phenomenon, determines the beneficial consequence of crossbreeding, which is the vigor of the first generation of hybrids [40]. Interest in hybrid vigor and its practical use started in 1880, when Beal found and described the existence of hybrid vigor after crossing two population varieties. Very often, the economic importance of the heterosis phenomenon can be demonstrated without statistical analyses, as its symptoms are sometimes striking [41]. Although the phenomenon of heterosis has measurable economic benefits, unfortunately it cannot be perpetuated. One exception is vegetatively propagated plants, e.g., bananas, where production has been dominated by two vegetatively propagated hybrids [42].
Very often, but not always, the phenomenon of heterosis concerns quantitative traits, e.g., plant yield. A major breeding goal is the heterosis of grain yield, although we know little about how heterosis effects affect yield components [43]. Many authors argue that grain yield is a trait characterized by low heritability and that the lack of correlation between yield levels of parental lines and their F1 generation hybrids is a result of gene dominance and overdominance [44,45]. In some experimental combinations, despite the significance of additive effects, the percentage of non-additive gene effects to the genetic yield variance of F1 generation hybrids often exceeded 80%. It appeared that environmental interaction effects influenced the expression of gene action [46]. In the past decade, many researchers in their studies [47,48,49] have applied molecular biology methods to detect and locate loci determining grain yield and yield structure traits in maize. However, intensive research is still underway to search for loci that are coupled to yield and its components [50]. According to various studies, QTL regions associated with genes that determine grain yield and its components are distributed throughout the genome [4]. Our results indicate that five molecular markers (four SilicoDArTs and one SNP) were associated with the heterosis effect of yield. Two (SilicoDArTs: 2490222 and 7058267) of them were associated with the heterosis effect of yield in three of the four environments.
In maize research, molecular analyses intensively focus on identifying QTL regions and new markers. Breeders with DNA analyses are also interested in developing methods to select parental components for heterosis crosses [21] and to predict the effect of heterosis [51]. An idea here is to find an association between the heterogeneity of loci markers for their parental forms and the yield of an F1 hybrid [52]. It is well known that starting materials with high genetic diversity make for breeding success, as well-identified and heterotically divided starting material results in lower costs for the entire hybrid breeding process [22]. We can divide plant materials into heterotic groups according to the following criteria: genetic origin (pedigree), results of crossing in diallel systems, geographical origin and molecular markers. Unfortunately, the first three subdivision criteria presented are flawed. Therefore, in recent years, attempts have been made to select parental components for heterosis crosses on the basis of their genetic diversity, determined by molecular markers [53]. In the research presented here, association analysis was used to detect relationships between the effect of heterosis and the genotype of hybrids. Similar studies were conducted on winter oilseed rape [54].
Rapidly developing new genotyping methods based on hybridization markers or next generation sequencing are finding increasing application in basic research. The reproducibility of the results of DArT and DArTseq technologies and the availability of a very large number of SNP markers, as well as their declining costs, mean that these modern methods are finding increasing applications in identifying markers for quantitative traits and genome-wide selection in economically important plants. The use of these methods reduces work time significantly. DArTseq technology also proves itself as a powerful diagnostic tool for studying genotypic diversity [55]. DArT and DArTseq technology have been successfully applied in Chinese common wheat (Triticulum aestivum L.) to study the population structure and genetic diversity for 111 breeding lines and cultivars from northern China. The results obtained provided valuable information into China’s wheat breeding program for selecting parental forms [56]. The DArT method has been widely used in parentage analysis, such as in oats (Avena sp.), where groups corresponding to spring and winter forms were distinguished for 134 varieties [57]. A low degree of differentiation was shown in 232 forms of Bengal pea (Cajanus cajan) based on 696 DArT markers, of which only 64 were polymorphic; wild forms were the most diverse [58]. Tomkowiak et al. [53], using next-generation sequencing and association mapping, identified 15,409 silicoDArT markers and SNPs significantly associated with yield and yield structure traits in maize. From these markers, 18 SilicoDArT markers determined the quantitative trait, in all localities considered. A physical map was constructed based on these markers. Six of the eighteen identified markers (numbered 1818, 14506, 2317, 3233, 11657 and 12812) were located within the genes on chromosomes 8, 9, 7, 3, 5 and 1, respectively. Two markers (no. 15097—SilicoDArT—and no. 5871—SNP) linked to fusarium resistance in maize have been localized within genes [59] on chromosomes 2 and 3, respectively. In their study, Tomkowiak et al. [60], using DArTseq technology and association mapping, identified six markers associated with vigor and germination in maize. The existing literature indicates that four of these genes (phosphoinositide phosphatase sac7 isoform ×1 gene, grx_c8-glutaredoxin subgroup iii gene, sucrose synthase 4 isoform ×2 gene and putative SET domain-containing protein family isoform ×1 gene) determine the level of seed germination and seed vigor in maize.

5. Conclusions

The integration of molecular genetics with traditional plant selection methods guarantees an objective assessment of phenotype, taking into account environmental factors, and offers the possibility of eliminating undesirable genotypes as early as the seedling stage, thus reducing breeding time. The development of molecular biology, including in vitro culture breeding methods, marker technologies (e.g., next-generation sequencing), the construction of genetic maps of crop plants of different species or the use of genetic mapping, quantitative trait mapping and, more recently, association mapping in combination with appropriately selected mapping populations and automated plant phenotyping methods, open up new possibilities for breeding. The association mapping used in the present study is a good and useful tool for identifying molecular markers that determine the effect of heterosis yield and yield structure traits in maize. The main objective of our work was to propose a method for detecting markers coupled to the effects of heterosis of quantitative traits. The results obtained show the versatility of the given markers as tools for heterosis diagnosis. The advantage of the proposed approach is that it is independent of the sign of the heterosis effect.

Author Contributions

Conceptualization, J.B.; methodology, J.B. and M.B.; software, J.B. and M.B.; validation, J.B., A.T., M.B. and A.S.; formal analysis, J.B. and M.B.; investigation, J.B., A.T., M.B. and A.S.; resources, J.B., A.T., M.B. and A.S.; data curation, A.T. and A.S.; writing—original draft preparation, J.B., A.T., M.B. and A.S.; writing—review and editing, J.B., A.T., M.B. and A.S.; supervision, J.B.; project administration, J.B.; funding acquisition, A.S. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Millet, E.J.; Welcker, C.; Kruijer, W.; Negro, S.; Coupel-Ledru, A.; Nicolas, S.D.; Laborde, J.; Bauland, C.; Praud, S.; Ranc, N.; et al. Genome-wide analysis of yield in europe: Allelic effects vary with drought and heat scenarios. Plant Physiol. 2016, 172, 749–764. [Google Scholar] [CrossRef] [Green Version]
  2. Doust, A.N.; Lukens, L.; Olsen, K.M.; Mauro-Herrera, M.; Meyer, A.; Rogers, K. Beyond the single gene: How epistasis and geneby-environment effects influence crop domestication. Proc. Natl. Acad. Sci. USA 2014, 111, 6178–6183. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Yang, J.; Mezmouk, S.; Baumgarten, A.; Buckler, E.S.; Guill, K.E.; McMullen, M.D.; Mumm, R.H.; Ross-Ibarra, J. Incomplete dominance of deleterious alleles contributes substantially to trait variation and heterosis in maize. PLoS Genet. 2017, 13, e1007019. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Liu, J.; Fernie, A.R.; Yan, J. The past, present, and future of maize improvement: Domestication, genomics, and functional genomic routes toward crop enhancement. Plant Commun. 2019, 1, 100010. [Google Scholar] [CrossRef] [PubMed]
  5. Shehata, A.I.; Al-Ghethar, H.A.; Al-Homaidan, A.A. Application of simple sequence repeat (SSR) markers for molecular diversity and heterozygosity analysis in maize inbred lines. Saudi J. Biol. Sci. 2009, 16, 57–62. [Google Scholar] [CrossRef] [Green Version]
  6. Berilli, A.P.C.G.; Pereira, M.G.; Gonçalves, L.S.A.; da Cunha, K.S.; Ramos, H.C.C.; Souza Filho, G.A.; do Amaral Júnior, A.T. Use of molecular markers in reciprocal recurrent selection of maize increases heterosis effects. Genet. Mol. Res. 2011, 10, 2589–2596. [Google Scholar] [CrossRef] [PubMed]
  7. Herzog, E.; Falke, K.C.; Presterl, T.; Scheuermann, D.; Ouzunova, M.; Frisch, M. Selection Strategies for the Development of Maize Introgression Populations. PLoS ONE 2014, 9, e92429. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  8. Burgueño, J.; de los Campos, G.; Weigel, K.; Crossa, J. Genomic prediction of breeding values when modeling genotype× environment interaction using pedigree and dense molecular markers. Crop Sci. 2012, 52, 707–719. [Google Scholar] [CrossRef] [Green Version]
  9. Rakoczy-Trojanowska, M.; Krajewski, P.; Bocianowski, J.; Schollenberger, M.; Wakuliński, W.; Milczarski, P.; Masojć, P.; Targońska-Karasek, M.; Banaszak, Z.; Banaszak, K.; et al. Identification of Single Nucleotide Polymorphisms Associated with Brown Rust Resistance, α-Amylase Activity and Pre-harvest Sprouting in Rye (Secale cereale L.). Plant Mol. Biol. Rep. 2017, 35, 366–378. [Google Scholar] [CrossRef] [Green Version]
  10. Rakoczy-Trojanowska, M.; Orczyk, W.; Krajewski, P.; Bocianowski, J.; Stochmal, A.; Kowalczyk, M. ScBx gene based association analysis of hydroxamate content in rye (Secale cereale L.). J. Appl. Genet. 2017, 58, 1–9. [Google Scholar] [CrossRef] [Green Version]
  11. Rio, S.; Mary-Huard, T.; Moreau, L.; Charcosset, A. Genomic selection efficiency and a priori estimation of accuracy in a structured dent maize panel. Theor. Appl. Genet. 2019, 132, 81–96. [Google Scholar] [CrossRef] [PubMed]
  12. Meuwissen, T.H.E.; Hayes, B.J.; Goddard, M.E. Prediction of total genetic value using genome-wide dense marker maps. Genetics 2001, 157, 1819–1829. [Google Scholar] [CrossRef] [PubMed]
  13. Soto-Cerda, B.J.; Cloutier, S. Genetic Diversity in Plants. Association Mapping in Plant Genomes. Red. Çalişkan M. 2012, 29–54. Available online: https://www.intechopen.com/books/genetic-diversity-in-plants/association-mapping-inplant-genomes (accessed on 22 March 2023).
  14. Bar-Hen, A.; Charcosset, A.; Bourgoin, M.; Guiard, J. Relationship between genetic markers and morphological traits in a maize inbred line collection. Euphytica 1995, 84, 145–154. [Google Scholar] [CrossRef]
  15. Maliogka, V.; Minafra, A.; Saldarelli, P.; Ruiz-García, A.; Glasa, M.; Katis, N.; Olmos, A. Recent advances on detection and characterization of fruit tree viruses using high-throughput sequencing technologies. Viruses 2018, 10, 436. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  16. Fox, A.; Adams, I.; Hany, U.; Hodges, T.; Forde, S.; Jackson, L.; Skelton, A.; Barton, V. The application of next-generation sequencing for screening seeds for viruses and viroids. Seed Sci. Technol. 2015, 43, 531–535. [Google Scholar] [CrossRef]
  17. Barba, M.; Czosnek, H.; Hadidi, A. Historical perspective, development and applications of next-generation sequencing in plant virology. Viruses 2014, 6, 106–136. [Google Scholar] [CrossRef] [Green Version]
  18. Massart, S.; Chiumenti, M.; De Jonghe, K.; Glover, R.; Haegeman, A.; Koloniuk, I.; Komínek, P.; Kreuze, J.; Kutnjak, D.; Lotos, L.; et al. Virus detection by high-throughput equencing of small RNAs: Large-scale performance testing of sequence analysis strategies. Phytopathology 2019, 109, 488–497. [Google Scholar] [CrossRef] [Green Version]
  19. von Cruz, M.; Kilian, A.; Dierig, D.A. Development of DArT marker platforms and genetic diversity assessment of the U.S. Collection of the new oilseed crop lesquerella and related species. PLoS ONE 2013, 8, e64062. [Google Scholar] [CrossRef] [Green Version]
  20. Kilian, A.; Graner, A. NGS technologies for analyzing germplasm diversity in genebanks. Brief. Funct. Genom. 2012, 11, 38–50. [Google Scholar] [CrossRef] [Green Version]
  21. Tang, J.; Yan, Y.; Ma, X.; Teng, W.; Wu, W.; Dai, J.; Dhillon, B.S.; Melchinger, A.E.; Li, J. Dissection of the genetic basis of heterosis in an elite maize hybrid by QTL mapping in an immortalized F2 population. Theor. Appl. Genet. 2009, 120, 333–340. [Google Scholar] [CrossRef] [PubMed]
  22. Barata, C.; Carena, M.J. Classification of North Dakota maize inbred lines into heterotic groups based on molecular and testcross data. Euphytica 2006, 151, 339–349. [Google Scholar] [CrossRef]
  23. Tomkowiak, A.; Bocianowski, J.; Radzikowska, D.; Kowalczewski, P.Ł. Selection of Parental Material to Maximize Heterosis Using SNP and SilicoDarT Markers in Maize. Plants 2019, 8, 349. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  24. Sansaloni, C.; Petroli, C.; Jaccoud, D.; Carling, J.; Detering, F.; Grattapaglia, D.; Kilian, A. Diversity Arrays Technology (DArT) and next-generation sequencing combined: Genome-wide, high throughput, highly informative genotyping for molecular breeding of Eucalyptus. BMC Proc. 2011, 5, P54. [Google Scholar] [CrossRef] [Green Version]
  25. Elshire, R.J.; Glaubitz, J.C.; Sun, Q.; Poland, J.A.; Kawamoto, K.; Buckler, E.S.; Mitchell, S.E. A robust, simple Genotyping-by-Sequencing (GBS) approach for high diversity species. PLoS ONE 2011, 6, e19379. [Google Scholar] [CrossRef] [Green Version]
  26. van Eeuwijk, F.A.; Bink, M.C.; Chenu, K.; Chapman, S.C. Detection and use of QTL for complex traits in multiple environments. Curr. Opin. Plant Biol. 2010, 13, 193–205. [Google Scholar] [CrossRef] [PubMed]
  27. Malosetti, M.; Ribaut, J.M.; van Eeuwijk, F.A. The statistical analysis of multi-environment data: Modeling genotype-by-environment interaction and its genetic basis. Front. Physiol. 2013, 4, 44. [Google Scholar] [CrossRef] [Green Version]
  28. VSN International Genstat for Windows, 22nd ed.; VSN International: Hemel Hempstead, UK, 2022.
  29. Benjamini, Y.; Hochberg, Y. Controlling the False Discovery Rate: A Practical and Powerful Approach to Multiple Testing. J. R. Stat. Soc. Ser. B 1995, 57, 289–300. [Google Scholar] [CrossRef]
  30. Araus, J.L.; Cairns, J.E. Field high-throughput phenotyping: The new crop breeding frontier. Trends Plant Sci. 2014, 19, 52–61. [Google Scholar] [CrossRef]
  31. Niedziela, A.; Bednarek, P.T.; Labudda, M.; Mańkowski, D.R.; Anioł, A. Genetic mapping of a 7R Al tolerance QTL in triticale (x Triticosecale Wittmack). J. Appl. Genet. 2014, 55, 1–14. [Google Scholar] [CrossRef] [Green Version]
  32. Dell’Acqua, M.; Gatti, D.M.; Pea, G.; Cattonaro, F.; Coppens, F.; Magris, G.; Hlaing, A.L.; Aung, H.A.; Nelissen, H.; Baute, J.; et al. Genetic properties of the MAGIC maize population: A new platform for high definition QTL mapping in Zea mays. Genome Biol. 2015, 16, 167. [Google Scholar] [CrossRef] [Green Version]
  33. Francis, D.M.; Merk, H.L. Equation to Estimate Sample Size Required for QTL Detection. Plant Breeding and Genomics. 2012. Available online: http://www.extension.org/pages/32355/equation-to-estimate-sample-size-required-for-qtl (accessed on 22 March 2023).
  34. Nepolean, T.; Kaul, J.; Mukri, G.; Mittal, S. Genomics-Enabled Next-Generation Breeding Approaches for Developing System-Specific Drought Tolerant Hybrids in Maize. Front. Plant Sci. 2018, 9, 361. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Li, X.; Zhou, Z.; Ding, J.; Wu, Y.; Zhou, B.; Wang, R.; Ma, J.; Wang, S.; Zhang, X.; Xia, Z.; et al. Combined linkage and association mapping reveals qtl and candidate genes for plant and ear height in maize. Front. Plant Sci. 2016, 7, 833. [Google Scholar] [CrossRef] [Green Version]
  36. Semagn, K.; Bjørnstad, Å.; Xu, Y. The genetic dissection of quantitative traits in crops. Electron. J. Biotechnol. 2010, 13, 5. [Google Scholar] [CrossRef] [Green Version]
  37. Cook, J.P.; McMullen, M.D.; Holland, J.B.; Tian, F.; Bradbury, P.; Ross-Ibarra, J.; Buckler, E.S. Genetic Architecture of Maize Kernel Composition in the Nested Association Mapping and Inbred Association Panels. Plant Physiol. 2012, 158, 824–834. [Google Scholar] [CrossRef] [Green Version]
  38. Hall, D.; Tegström, C.; Ingvarsson, P.K. Using association mapping to dissect the genetic basis of complex traits in plants. Brief. Funct. Genom. 2010, 9, 157–165. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Carling, J.; Heller-Uszyńska, K.; Jaccoud, D.; Machado, A.; Hopper, C.; Xia, L.; Vippin, C.; Caig, V.; Uszyński, G.; Kilian, A. DArTTM and DArTseqTM genome profiling for breeding, pre-breeding and population genetics applications. In Proceedings of the Contribution P0052, XXIII Plant and Animal Genome, San Diego, CA, USA, 10–14 January 2015. [Google Scholar]
  40. Huang, X.; Yang, S.; Gong, J.; Zhao, Q.; Feng, Q.; Zhan, Q.; Zhao, Y.; Li, W.; Cheng, B.; Xia, J.; et al. Genomic architecture of heterosis for yield traits in rice. Nature 2016, 537, 629–633. [Google Scholar] [CrossRef]
  41. Schnable, P.S.; Springer, N.M. Progress toward understanding heterosis in crop plants. Annu. Rev. Plant Biol. 2013, 64, 71–88. [Google Scholar] [CrossRef]
  42. Birchler, J.A.; Yao, H.; Chudalayandi, S.; Vaiman, D.; Veitia, R.A. Heterosis. Plant Cell 2010, 22, 2105–2112. [Google Scholar] [CrossRef] [Green Version]
  43. Guo, T.; Yang, N.; Tong, H.; Pan, Q.; Yang, X.; Tang, J.; Wang, J.; Li, J.; Yan, J. Genetic basis of grain yield heterosis in an “immortalized F2” maize population. Theor. Appl. Genet. 2014, 127, 2149–2158. [Google Scholar] [CrossRef]
  44. Bocianowski, J.; Nowosad, K.; Szulc, P.; Tratwal, A.; Bakinowska, E.; Piesik, D. Genetic parameters and selection of maize cultivars using Bayesian inference in a multi-trait linear model. Acta Agric. Scand. Sect. B 2019, 69, 465–478. [Google Scholar] [CrossRef]
  45. Hochholdinger, F.; Hoecker, N. Towards the molecular basis of heterosis. Trends Plant Sci. 2017, 12, 427–432. [Google Scholar] [CrossRef] [PubMed]
  46. Malvar, R.A.; Revilla, P.; Butrón, A.; Gouesnard, B.; Boyat, A.; Soengas, P.; Álvarez, A.; Ordás, A. Performance of crosses among French and Spanish Maize populations across environments. Crop Sci. 2004, 45, 1052–1057. [Google Scholar] [CrossRef]
  47. Baird, N.A.; Etter, P.D.; Atwood, T.S.; Currey, M.C.; Shiver, A.L.; Lewis, Z.A.; Selker, E.U.; Cresko, W.A.; Johnson, E.A. Rapid SNP Discovery and Genetic Mapping Using Sequenced RAD Markers. PLoS ONE 2008, 3, e3376. [Google Scholar] [CrossRef]
  48. Guo, Z.; Tucker, D.M.; Wang, D.; Basten, C.J.; Ersoz, E.; Briggs, W.H.; Lu, J.; Li, M.; Gay, G. Accuracy of Across-Environment Genome-Wide Prediction in Maize Nested Association Mapping Populations. G3 Genes Genomes Genet. 2013, 3, 263–272. [Google Scholar] [CrossRef] [Green Version]
  49. Benke, A.; Urbany, C.; Stich, B. Genome-wide association mapping of iron homeostasis in the maize association population. BMC Genet. 2015, 16, 1. [Google Scholar] [CrossRef] [Green Version]
  50. Liu, H.; Wang, Q.; Chen, M.; Ding, Y.; Yang, X.; Liu, J.; Li, X.; Zhou, C.; Tian, Q.; Lu, Y.; et al. Genome-wide identification and analysis of heterotic loci in three maize hybrids. Plant Biotechnol. J. 2020, 18, 185–194. [Google Scholar] [CrossRef] [Green Version]
  51. Millet, E.J.; Kruijer, W.; Coupel-Ledru, A.; Alvarez Prado, S.; Cabrera-Bosquet, L.; Lacube, S.; Charcosset, A.; Welcker, C.; van Eeuwijk, F.; Tardieu, F. Genomic prediction of maize yield across European environmental conditions. Nat. Genet. 2019, 51, 952–956. [Google Scholar] [CrossRef]
  52. Xiao, Y.; Jiang, S.; Cheng, Q.; Wang, X.; Yan, J.; Zhang, R.; Qiao, F.; Ma, C.; Luo, J.; Li, W.; et al. The genetic mechanism of heterosis utilization in maize improvement. Genome Biol. 2021, 22, 148. [Google Scholar] [CrossRef]
  53. Tomkowiak, A.; Nowak, B.; Sobiech, A.; Bocianowski, J.; Wolko, Ł.; Spychała, J. The use of DArTseq technology to identify new SNP and SilicoDArT markers related to the yield-related traits components in maize. Genes 2022, 13, 848. [Google Scholar] [CrossRef]
  54. Wolko, J.; Łopatyńska, A.; Wolko, Ł.; Bocianowski, J.; Mikołajczyk, K.; Liersch, A. Identification of SSR Markers Associated with Yield-Related Traits and Heterosis Effect in Winter Oilseed Rape (Brassica napus L.). Agronomy 2022, 12, 1544. [Google Scholar] [CrossRef]
  55. Wenzl, P.; Carling, J.; Kudrna, D.; Jaccoud, D.; Huttner, E.; Kleinhofs, A.; Kilian, A. Diversity Arrays Technology (DArT) for whole-genome profiling of barley. Proc. Natl. Acad. Sci. USA 2004, 101, 9915–9920. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  56. Zhang, L.; Liu, D.; Guo, X.; Yang, W.; Sun, J.; Wang, D.; Sourdille, P.; Zhang, A. Investigation of genetic diversity and population structure of common wheat cultivars in northern China using DArT markers. BMC Genet. 2011, 12, 42. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  57. Tinker, N.A.; Kilian, A.; Wight, C.P.; Heller-Uszynska, K.; Wenzl, P.; Rines, H.W.; Bjørnstad, Å.; Howarth, C.J.; Jannink, J.L.; Anderson, J.M.; et al. New DArT markers for oat provide enhanced map coverage and global germplasm characterization. BMC Genom. 2009, 10, 39. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  58. Yang, S.; Pang, W.; Ash, G.; Harper, J.; Carling, J.; Wenzl, P.; Huttner, E.; Zong, X.; Kilian, A. Low level of genetic diversity in cultivated Pigeonpea compared to its wild relatives is revealed by diversity arrays technology. Theor. Appl. Genet. 2006, 113, 585–595. [Google Scholar] [CrossRef]
  59. Sobiech, A.; Tomkowiak, A.; Nowak, B.; Bocianowski, J.; Wolko, Ł.; Spychała, J. Associative and physical mapping of markers related to Fusarium in maize resistance, obtained by next-generation sequencing (NGS). Int. J. Mol. Sci. 2022, 23, 6105. [Google Scholar] [CrossRef]
  60. Tomkowiak, A.; Bocianowski, J.; Spychała, J.; Grynia, J.; Sobiech, A.; Kowalczewski, P.Ł. DArTseq-Based High-Throughput SilicoDArT and SNP Markers Applied for Association Mapping of Genes Related to Maize Morphology. Int. J. Mol. Sci. 2021, 22, 5840. [Google Scholar] [CrossRef]
Cimb 45 00173 g001 550
Figure 1. The plan of work.
Figure 1. The plan of work.
Cimb 45 00173 g001
Cimb 45 00173 g002 550
Figure 2. Box-and-whisker diagrams of the values of heterosis effects of nine quantitative traits; classified by the studied environments.
Figure 2. Box-and-whisker diagrams of the values of heterosis effects of nine quantitative traits; classified by the studied environments.
Cimb 45 00173 g002
Cimb 45 00173 g003 550
Figure 3. The number of statistically significant relationships between the molecular marker and heterosis effect for particular traits in studied environments. LC—cob length, DC—cob diameter, LCO—core length, DCO—core diameter, NRG—the number of rows of grain, NGR—the number of grains in a row, MGC—mass of grain from the cob, WTGs—weight of 1000 grains, Ł—Łagiewniki, S—Smolice.
Figure 3. The number of statistically significant relationships between the molecular marker and heterosis effect for particular traits in studied environments. LC—cob length, DC—cob diameter, LCO—core length, DCO—core diameter, NRG—the number of rows of grain, NGR—the number of grains in a row, MGC—mass of grain from the cob, WTGs—weight of 1000 grains, Ł—Łagiewniki, S—Smolice.
Cimb 45 00173 g003
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Bocianowski, J.; Tomkowiak, A.; Bocianowska, M.; Sobiech, A. The Use of DArTseq Technology to Identify Markers Related to the Heterosis Effects in Selected Traits in Maize. Curr. Issues Mol. Biol. 2023, 45, 2644-2660. https://doi.org/10.3390/cimb45040173

AMA Style

Bocianowski J, Tomkowiak A, Bocianowska M, Sobiech A. The Use of DArTseq Technology to Identify Markers Related to the Heterosis Effects in Selected Traits in Maize. Current Issues in Molecular Biology. 2023; 45(4):2644-2660. https://doi.org/10.3390/cimb45040173

Chicago/Turabian Style

Bocianowski, Jan, Agnieszka Tomkowiak, Marianna Bocianowska, and Aleksandra Sobiech. 2023. "The Use of DArTseq Technology to Identify Markers Related to the Heterosis Effects in Selected Traits in Maize" Current Issues in Molecular Biology 45, no. 4: 2644-2660. https://doi.org/10.3390/cimb45040173

Article Metrics

Back to TopTop
