Article

Implications of a De Novo Variant in the SOX12 Gene in a Patient with Generalized Epilepsy, Intellectual Disability, and Childhood Emotional Behavioral Disorders

by
Simone Treccarichi
1,†,
Francesco Calì
1,†,
Mirella Vinci
1,
Alda Ragalmuto
1,
Antonino Musumeci
1,
Concetta Federico
2,
Carola Costanza
3,
Maria Bottitta
1,
Donatella Greco
1,
Salvatore Saccone
2,* and
Maurizio Elia
1
1
Oasi Research Institute-IRCCS, 94018 Troina, Italy
2
Department of Biological, Geological and Environmental Sciences, University of Catania, Via Androne 81, 95124 Catania, Italy
3
Department of Sciences for Health Promotion and Mother and Child Care “G. D’Alessandro”, University of Palermo, 90128 Palermo, Italy
*
Author to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Curr. Issues Mol. Biol. 2024, 46(7), 6407-6422; https://doi.org/10.3390/cimb46070383
Submission received: 14 May 2024 / Revised: 17 June 2024 / Accepted: 21 June 2024 / Published: 26 June 2024
(This article belongs to the Special Issue Genetics and Epigenetics of Neurodegenerative Diseases)
Browse Figures
Versions Notes

Abstract

:
SRY-box transcription factor (SOX) genes, a recently discovered gene family, play crucial roles in the regulation of neuronal stem cell proliferation and glial differentiation during nervous system development and neurogenesis. Whole exome sequencing (WES) in patients presenting with generalized epilepsy, intellectual disability, and childhood emotional behavioral disorder, uncovered a de novo variation within SOX12 gene. Notably, this gene has never been associated with neurodevelopmental disorders. No variants in known genes linked with the patient’s symptoms have been detected by the WES Trio analysis. To date, any MIM phenotype number associated with intellectual developmental disorder has not been assigned for SOX12. In contrast, both SOX4 and SOX11 genes within the same C group (SoxC) of the Sox gene family have been associated with neurodevelopmental disorders. The variant identified in the patient here described was situated within the critical high-mobility group (HMG) functional site of the SOX12 protein. This domain, in the Sox protein family, is essential for DNA binding and bending, as well as being responsible for transcriptional activation or repression during the early stages of gene expression. Sequence alignment within SoxC (SOX12, SOX4 and SOX11) revealed a high conservation rate of the HMG region. The in silico predictive analysis described this novel variant as likely pathogenic. Furthermore, the mutated protein structure predictions unveiled notable changes with potential deleterious effects on the protein structure. The aim of this study is to establish a correlation between the SOX12 gene and the symptoms diagnosed in the patient.

1. Introduction

The history of the SRY-box transcription factor (SOX) gene family dates back to its discovery in 1990 through the cloning of the mammalian sex-determining region Y (Sry) gene, codifying the testis-determining factor (TDF). This breakthrough was achieved by identifying conserved DNA sequences on the Y chromosomes of other mammals [1,2,3]. At the onset of the 21st century, a comprehensive enumeration and classification of SOX genes was undertaken. Through meticulous analysis of the initial whole genome sequences available, researchers identified a total of 20 SOX genes in both mice and humans [4]. SOX genes are involved in a wide range of developmental processes, including the development of the nervous system, the skeleton, the cardiovascular system and the male and female reproductive systems. Furthermore, they govern the maintenance of the pluripotency of stem cells, cell proliferation and cell fate decisions/germ layer formation as well as terminal cell differentiation into tissues and organs [5,6].
As documented, SOX transcription factors (TFs) act as important regulators of neuronal stem cell proliferation and glial differentiation during nervous system development and adult neurogenesis [6]. They contribute to the formation of neural circuits, thus playing a key role in establishing neuronal connectivity within the nervous system [7,8]. SOX TFs are crucial for neural progenitor identity, expressed from its onset and persisting throughout development and adulthood. Research into mammals’ systems underscores their role in promoting self-renewal and maintaining progenitor cell potency, enabling both proliferation and differentiation [9]. In particular, Sox transcription factors like SOX2, SOX21, SOX4 and SOX11 regulate crucial aspects of adult neurogenesis such as radial glial cell maintenance, intermediate progenitor cell proliferation, newborn neuron maturation, axonal growth and dendritic morphogenesis with subsequent neuronal migration within the developing cerebral cortex [10,11,12,13,14].
SOX proteins exhibit both the characteristics of a classical transcription factors and chromatin architectural components. In fact, they interact with other transcription factors, facilitating DNA binding and bending, thereby modulating transcriptional activation or repression during the early stages of gene expression [15,16]. Dysregulation of SOX genes can lead to neurological disorders and diseases, highlighting their importance in neural development and function. In fact, SOX proteins act as pioneering regulators, occupying silenced target genes and keeping them in a poised state for activation during subsequent phases of differentiation [6,17]. As has been extensively documented, mutations in Sox genes, specifically SOX1, SOX2 and SOX11, are implicated in the onset of epileptic seizures in both human patients and animal models [18,19,20,21,22]. It has been demonstrated that diverse SOX genes are crucial during cancer development. In fact, their plausible use in cancer therapeutics has been postulated [23,24].
The SOX gene family comprises several groups, each with distinct functions. For instance, the B1 group, represented by SOX1, SOX2 and SOX3, plays critical roles in early embryonic development and neural stem cell maintenance. Additionally, the B2 group, represented by SOX14 and SOX21, is implicated in various developmental processes, including eye and brain development. The C group of SOX genes, consisting of SOX4, SOX11 and SOX12, is pivotal in various developmental processes, particularly neurogenesis. These genes play essential roles in regulating cell fate determination and differentiation within the nervous system [25,26]. The D group, including SOX5, SOX6 and SOX13, is involved in neural and skeletal development. Moreover, according to entries in the OMIM database, 11 SOX genes have been assigned unique entry codes.
Within the C group, SOX12 stands out as the only member that has not been assigned a MIM phenotype number associated with intellectual developmental disorder. Although it does have an OMIM entry (601947), it is not linked to any disease. As already documented, SOX12 is crucial for visual pathway development [27]. Furthermore, SOX12 has been identified as potential target for acute myeloid leukemia [28]. Knockdown of SOX12 expression inhibits the proliferation and metastasis of lung cancer cells [29]. Moreover, it has been found to be overexpressed in colorectal cancer [30].
The SOX-C genes exhibit redundant expression patterns [25], with SOX4 and SOX11 displaying extensive overlap in embryonic expression. In contrast, SOX12 shows more uniform expression levels without specific high-expression sites. Moreover, all three proteins demonstrate similar DNA-binding characteristics and function as transcriptional activators [31]. As is known, SOX4, SOX11 and SOX12 are all expressed in the post-mitotic neurons of the central nervous system [25,32]. Specifically, all of them participate in the regulation of neuronal maturation during embryonic neurogenesis [32,33,34]. As outlined, SOX12 has been identified as a candidate gene involved in developmental delay in a microdeletion of 20p13, which includes SOX12 along with another gene [35]. SOX12 plays a critical role in organogenesis, facilitating the transition of pluripotent embryonic stem cells into multipotent neural and mesenchymal cells. These progenitor cells are essential for embryo growth and organ development, as they possess the capacity for self-renewal and differentiation into various cell types. As reported, SOX12 has not been detected in the adult mouse brain [36].
The absence of detailed studies on SOX12 in relation to epilepsy, intellectual disability and childhood emotional behavioral disorders represents a critical gap in our knowledge. Understanding whether variants in SOX12 contribute to these conditions could provide new insights into their genetic underpinnings and potentially lead to novel therapeutic strategies. In this study, we aim to establish a potential link between a de novo variant identified within the SOX12 gene through WES and epilepsy, diagnosed in the patient under examination. Furthermore, our investigation seeks to address this gap in the literature by exploring the potential involvement of SOX12 in neurodevelopmental processes, thus laying the groundwork for future research into the diverse array of genes implicated in epilepsy and neurodevelopmental disorders.

2. Materials and Methods

2.1. Library Preparation and NGS Analysis

Genomic DNA was extracted from peripheral blood leukocytes obtained from the patient and both parents. DNA extraction was conducted as previously described [37]. Library preparation (TRIOS) and exome enrichment was carried out using the Agilent SureSelect V7 kit (Santa Clara, CA, USA) according to the manufacturer’s instructions. A sequencing run was performed on an Illumina HiSeq 3000 instrument (San Diego, CA, USA). This approach achieved 97% of regions covered at a minimum of 20× magnification. We filtered the identified variants according to (i) recessive/de novo/X-linked pattern of inheritance and (ii) allele frequencies (mean average frequency, MAF) <1%, using as reference the following genomic datasets: 1000 Genomes, ESP6500, ExAC, gnomAD. Integrated Genomics Viewer (IGV) [38] was used to display DNA sequences. To confirm the identified mutation, Sanger sequencing was performed using the BigDye Terminator v1.1 Cycle Sequencing Kit (Life Technologies, Carlsbad, CA, USA) with an ABI 3130 instrument (Life Technologies, CA, USA) as previously described [39]. Primers were for. 5′-CGGCGGAAGATCATGGACCAGTG-3′, rev. 5′-GCGGCCCGGGCTTGAG-3′.

2.2. Data Analysis

The Uniprot database (https://www.uniprot.org/) (accessed on 15 March 2024) was used for retrieving the SOX12 protein details related to the functional regions and domains. Additionally, the Uniprot alignment tool was used for obtaining the percentage of identity of SOX12 with each SOX protein. SOX12 expression among the different tissue was retrieved on the specific expression databases Genotype-Tissue Expression (GTEx) (https://www.gtexportal.org/) [40] (accessed on 15 March 2024) and the Human Protein Atlas (https://www.proteinatlas.org/) [41] (accessed on 15 March 2024). The amino acid structure of SOX12 protein was retrieved from the UCSC Genome Browser (https://genome.ucsc.edu/) (accessed on 15 March 2024) database. Gene ontology terms (GO) related to the functional high-mobility group (HMG) domain annotation were retrieved from the QuickGO database (https://www.ebi.ac.uk/QuickGO/) [42] (accessed on 15 March 2024). BioEdit software version 7.2 was used for retrieving the graphical representation of the sequence alignment [43]. Protein structure predictions were generated through AlphaFold prediction algorithms based on the machine learning program DeepMind Technologies (London, UK), employing UCSF ChimeraX software version 1.7 (software developed by the Resource for Biocomputing, Visualization and Informatics at the University of California, San Francisco, with support from the National Institutes of Health R01-GM129325 and the Office of Cyber Infrastructure and Computational Biology, National Institute of Allergy and Infectious Diseases) (https://www.cgl.ucsf.edu/chimerax/), (accessed on 15 March 2024) as described previously [44]. Notably, the AlphaFold algorithm generated five models, and in accordance with its output, the “best model” was selected for this investigation. In the Supplementary Materials, the procedure for the selection of the best model is clearly depicted and precisely described in Figures S2 and S3.
The pathogenic variants were investigated in the Human Gene Mutation Database (HGMD Professional 2023). Diverse VarAFT [45] filters were employed on the vcf files. The observed variant was described according to the American College of Medical Genetics (ACMG) guidelines [46] indicated in Table 1 and was actualized with VarSome according to a previous study [47] and other evidence from the literature. PhastCons100way and PhyloP100way scores (from VarSome analysis) were used for analyzing the conservation tendency of the specific mutation region.
The in silico analysis employing multiple algorithms was performed via the VarSome platform release 11.12, employing diverse tools including Mutation Taster 2021 (https://www.mutationtaster.org/) (accessed on 15 March 2024) and MutPred v.2.0 (http://mutpred2.mutdb.org/) (accessed on 15 March 2024) [48], as well as FATHMM (https://fathmm.biocompute.org.uk/) (accessed on 15 March 2024), and FATHMM-MKL v.2.3 (https://fathmm.biocompute.org.uk/) (accessed on 15 March 2024). According to a previous work, FATHMM scores around zero suggest no significant change in amino acid probabilities, while scores below zero indicate an unfavorable substitution, with the mutant residue less likely than in the wild type. Scores above zero suggest a favorable substitution, with the mutant residue more likely than the wild type [49]. Conversely, FATHMM-MKL score is a predictive value used to assess the functional impact of genetic variants on protein function, particularly focusing on the likelihood of pathogenicity. Its value ranges from 0 to 1 [50]. The MuPRO v.12.0 (http://mupro.proteomics.ics.uci.edu/) (accessed on 15 March 2024) tool was used to predict the value and sign of energy change (delta delta G) caused by mutations, with a confidence score ranging from −1 to 1. Scores below 0 indicate decreased protein stability, with lower scores indicating higher confidence, while scores above 0 indicate increased stability, with higher scores signifying greater confidence [51]. For the MuPRO analysis, the input inserted was the amino acid sequence of the protein, specifying the mutation site. The analysis of the proteins involved in the same SOX12 pathways was carried out employing the databases STRING 12.0 (https://string-db.org/) [52] (accessed on 15 March 2024), BioGRID v.4.4.234 (https://thebiogrid.org/) [53] (accessed on 15 March 2024) and IntAct portal v.10.4 (https://www.ebi.ac.uk/intact/) [54] (accessed on 15 March 2024).
The percentages of protein sequence identity for the 19 Sox genes were obtained from the Uniprot database using the Align tool release 2024_03. Heatmaps and dendrograms were generated in RStudio version 3.6.3 using the ggplot2, gplots, ggdendro and tidyverse packages.

3. Results

3.1. Clinical Report

The patient was a 16-year-old male. There was no known family history of febrile seizures, epilepsy or other neurological conditions. Both parents were healthy and non-consanguineous. Pregnancy was uneventful. Born at term, at birth his weight was 3850 g; length and cranial circumference were unknown. There were no reported jaundice or asphyxia. The patient’s developmental milestones were reported as normal. He achieved appropriate developmental milestones for his age, including sitting, crawling, walking and language acquisition, without any significant delays or regressions.
At the age of 6, he started to present absence seizures. These episodes were characterized by sudden staring spells lasting approximately 10 to 20 s. The seizures occurred many times a day (2–3/day), significantly impacting the patient’s daily activities and school performance.
He was brought to our observation at 7 years of age. Phenotype was characterized by coarse facial appearance, widow’s peak hairline, broad and anteverted nasal tip, thick lips, microretrognathia, low tongue posture, single palmar crease on the right hand, diffuse muscle hypotonia and hyperlaxity of ligaments. Interictal EEG showed generalized spike- and polyspike-and-wave complexes, prevalent over the frontotemporal regions of both hemispheres. Ictal EEG during wakefulness and drowsiness was characterized by generalized discharges of spike-and-wave complexes at 3.5–4 Hz of variable duration (2–14 s). Brain MRI did not reveal any malformations or focal parenchymal lesions but showed a slight volumetric predominance of the left lateral ventricle. Cortical sulci were moderately and symmetrically accentuated. CGH array analysis, performed at the age of 13 years, did not detect any genomic imbalances with a probable pathogenic role. Three years later, whole exome sequencing analysis was performed. This was carried out in the frame of the second hospitalization of the patient.
The patient was initially treated with valproic acid. However, the effectiveness of the medication in controlling absence seizures was limited, and levetiracetam was added. Since the patient showed irritability and poor tolerance to frustration, levetiracetam was replaced by ethosuximide. At present, he is taking ethosuximide (600 mg/day) and sodium valproate (900 mg/day), and absences have been completely controlled since the age of 9. Interictal EEG shows sporadic brief bursts of spike-and-wave complexes over the parietal-temporal–occipital regions of both hemispheres and sporadic sharp waves over the parietal regions.
At 10 years of age, behavioral disturbances emerged, characterized by oppositional conduct, poor adherence to rules and fixed thoughts. Sporadic episodes of anxiety, with somatization, vomiting, diurnal enuresis and poor socialization with peers were described. At the last observation, at 16 years of age, a diagnosis of mild intellectual disability and emotional behavioral disorder in childhood and adolescence was made.

3.2. Genetic Analysis

Whole exome sequencing (WES), performed at the age of 16 years, unveiled the presence of the de novo nucleotide variation c.329G>C within the SOX12 gene (NM_006943). Sanger sequencing confirmed the de novo variant. This variation altered the protein sequence leading to the change of the amino acid arginine at position 110 with proline (p.Arg110Pro) (Figure 1). No variants in known genes associated with the patient’s phenotype were detected by the WES analysis.
The in silico predictive analysis involved multiple algorithms, which collectively classified the variant as likely pathogenic (Table 2).
The DEOGEN2 tool (http://deogen2.mutaframe.com/, accessed on 15 March 2024) indicated a 77.5% residue difference between the wild-type arginine and the mutant proline. Additionally, the mutation was classified as deleterious. The sequence alignment, which compared 19 SOX genes (excluding the SRY gene present on the Y chromosome), revealed that SOX12 shares an identity percentage ranging from 21.51% with SOX30 to 52.58% with SOX4. Based on sequence alignment predictions carried out on the SOXC group, SOX12 shares 46.08% and 52.58% sequence similarity with SOX11 and SOX4, respectively (Figure 2 and Supplementary Figure S1).
However, when focusing on the high-mobility group (HMG) box region (aa 29 to aa 116 for SOX12; aa 38 to aa 125 for SOX11; aa 48 to aa 135 for SOX4), SOX12 exhibits high sequence similarity, with 85.2% and 88.6% of similarity, with SOX11 and SOX4, respectively (Figure 3).

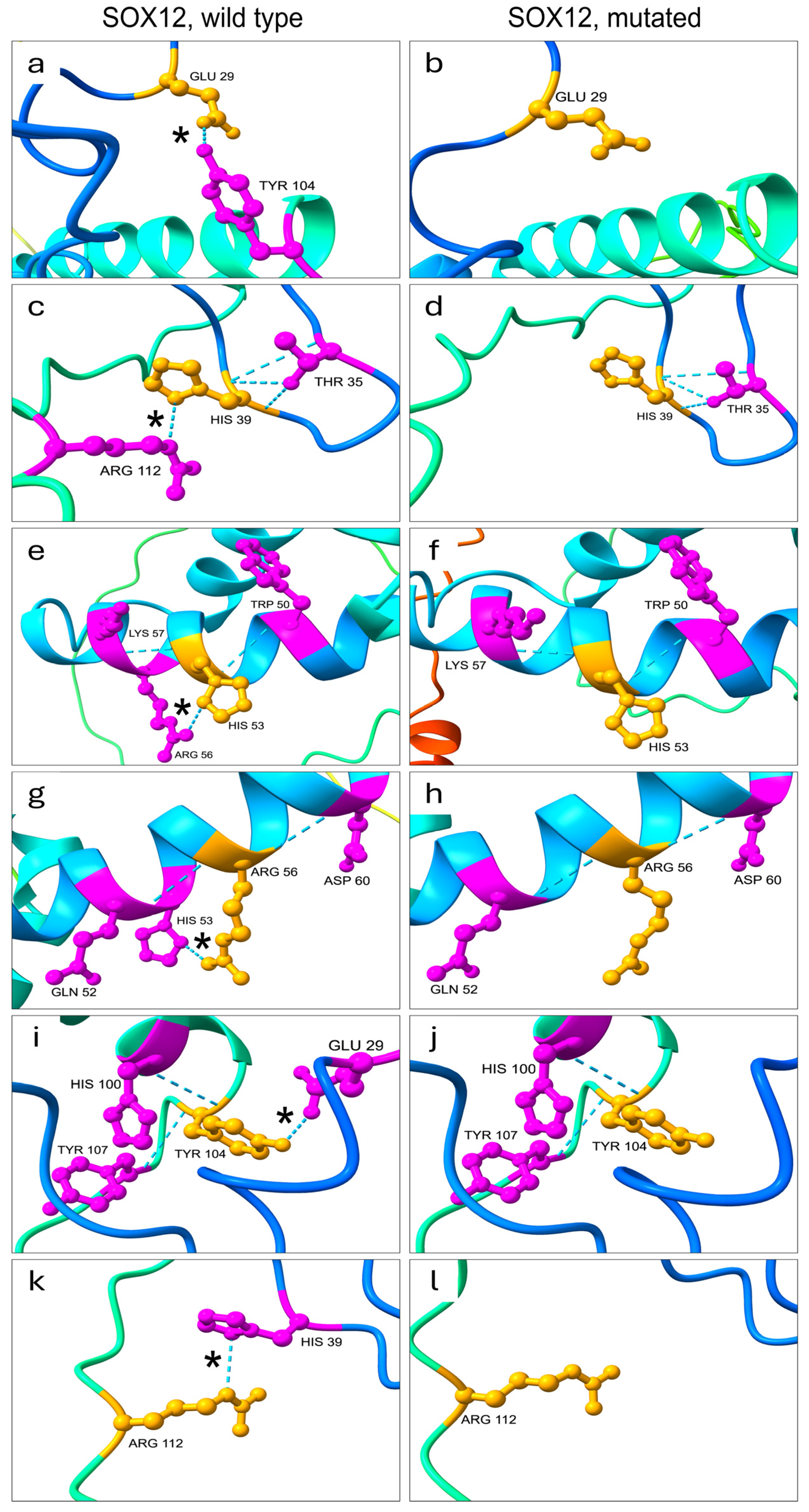

With regards to the impact of the mutation in the protein structure, the analysis carried out by MuPRO indicated that the variant decreased the protein stability, as indicated by the delta delta G score of −0.916 (score ranging from −1 to 1). Conversely, the protein structure prediction analysis, conducted using AlphaFold algorithm, generated five SOX12 protein models. The criteria adopted for the selection of the best model are clearly depicted and described in Figures S2 and S3. Within this context, the analysis of the best model revealed a total of 159 hydrogen bonds in the wild-type SOX12 protein. In contrast, the mutated protein structure prediction identified 103 hydrogen bonds in the “best model” obtained from the analysis. Figure 4 depicts the differences in structure between the wild type (Figure 4a) and the mutated (Figure 4b) SOX12 protein structure. Notably, the changing amino acid residue (p.Arg110Pro) is located at the HMG box site (from aa 29 to aa 116) within the SOX12 protein (Figure 4e).
As depicted in Figure S4, both the predicted Local Distance Difference Test (plDDT) score and the sequence coverage show higher values corresponding to the HMG domain, indicating that it is the most conserved sequence within the SOX12 protein. In fact, the HMG sequence is well covered by many sequences with high sequence identity. This high coverage suggests that the HMG domain is likely conserved, and the mutation identified at position 110 could lead to significant variations in protein folding.
Furthermore, the AlphaFold algorithm predicted a variation within the conserved HMG domain affecting hydrogen bonds involving six residues. Specifically, the mutated protein showed a reduction in hydrogen bonds between the residues Glu 29 and Tyr 104, His 39 and Arg 112 and His 53 and Arg 56 (Table 3 and Figure 5).

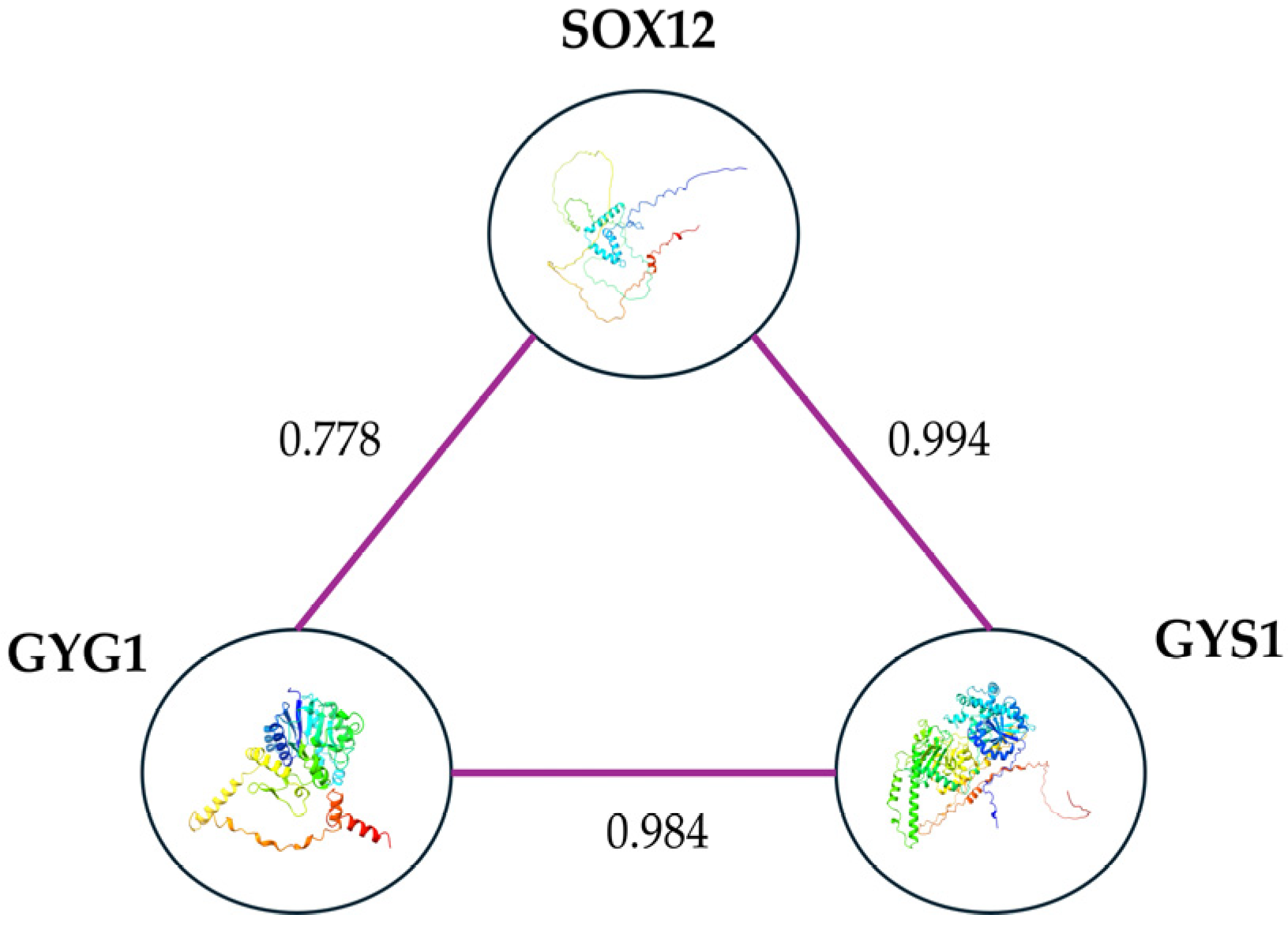

The analysis involving databases related to protein–protein interaction (STRING) identified a robust interaction between GYS1 and GYG1 genes related to glycogen metabolism. As depicted in Figure 6, the interaction between SOX12, GYS1 and GYG1 is strong and supported by high correlation coefficients.

4. Discussion

The current manuscript describes a clinical case of epilepsy in a child born to healthy unrelated parents. The patient experienced frequent epileptic seizures, alongside neurodevelopmental delay and childhood emotional behavior disorder. WES trio analysis revealed a novel de novo variant within the SOX12 gene. Notably, no mutations were detected in genes previously earmarked as candidates for epilepsy. The variant was not reported in ExAC nor 1000 G databases. According to the ACMG criteria, the variant was described as likely pathogenic. The protein structure prediction analysis carried out by UCSF ChimeraX revealed a structure modification from the wild-type SOX12 to the mutated form. Specifically, the structure prediction revealed the loss of 56 hydrogen bonds from the wild type to the mutated form. Additionally, MuPRO indicated that the variant significantly decreased protein stability. Furthermore, DEOGEN2 indicated a 77.5% residue difference between the wild-type arginine and the mutated proline residue. It is worth noting that various algorithms, specifically EIGEN, Mutation Assessor, MutPred2 and MVP, suggest that the variant is benign. However, we emphasize that the potential pathogenic role of this variant is also based on other factors, such as the strong association of SoxC genes with developmental issues, despite the “uncertainty” indicated by the in silico predictors.
Based on these predictions, we hypothesize that the amino acid change significantly impacted protein function, hypothesizing an autosomal dominant (AD) inheritance pattern. Indeed, all the OMIM-annotated SOX genes display an AD inheritance model.
As has been extensively documented, SOX gene family is intricately involved in the neurodevelopmental process. Specifically, disruptions of SOX1, SOX2, SOX4 and SOX11 have been found to be intricately involved in the onset of epileptic seizures [18,19,20,21,22,55]. Furthermore, SOX4 and SOX11, members of the SoxC gene group, are both associated with neurodevelopmental delay and intellectual disability [55,56,57]. Additionally, about 58% of the 19 SOX genes have been assigned a MIM phenotype number. Interestingly, within this group, 73% of the genes with a MIM phenotype number are associated with clinical features related to neurodevelopmental disorders.
The SOX12 gene is part of the SOX gene family. In this context, protein sequence similarity analysis reveals that SOX12 shares a percentage of its sequence identity with all members of the SOX gene family, ranging from 21.51% with SOX30 to 52.58% with SOX4. Remarkably, the mutation identified within the SOX12 gene is situated within the high-mobility group (HMG) site. Within this context, the HMG domain of SOX12 shares 85.2% and 88.6% of its sequence identity with the same domains in SOX11 and SOX4, respectively, both belonging to the SoxC group. As extensively documented, the functional HMG site is crucial for binding DNA molecules at their specific binding sites [58]. This functional domain is associated with specific gene ontology (GO) terms (GO:0003677), corresponding to “DNA binding”. The high percentage of identity within the HMG domains underscores its remarkable conservation rate, suggesting that the variant that we observed (p.Arg110Pro) may disrupt its function as a DNA binding site. In fact, both PhastCons100way and PhyloP100way scores indicate the high conservation rate (1 and 4.124 respectively) of the specific mutation site, being conserved among 100 vertebrate species. Furthermore, the AlphaFold algorithm predicts that both the plDDT score and sequence coverage are highest in the HMG domain, indicating it is highly conserved within the SOX12 protein. This suggests that a mutation at position 110 could significantly impact protein folding (Figure S4).
As documented, SOX12 demonstrates overlapping embryonic expression patterns and DNA binding characteristic with SOX4 and SOX11, all of which belong to the C group of the Sox gene family (SoxC). They are all expressed in post-mitotic neurons and play crucial roles in neuronal maturation during embryonic neurogenesis. SOX12 is essential for organogenesis, guiding the transition of embryonic stem cells into multipotent cells, but is not detected in the adult mouse brain [25,31,32,33,34,36]. Although no neurodevelopmental disorders have been directly attributed to defects in the SOX12 gene thus far, it has been implicated as a candidate gene in developmental delay. Specifically, SOX12 was identified in a microdeletion of 20p13 alongside another gene, highlighting its potential role in neurodevelopmental processes [35].
According to previous studies and the expression databases, SOX12 is predominantly expressed in human nervous tissues [59]. Specifically, as indicated, this gene shows the highest expression pattern during fetal development [59]. Specifically, the highest expression patterns of SOX12 gene have been observed in the cerebellum, followed by the cerebral cortex tissues. Within this context, it is worth underscoring that dysfunctions within these tissues are significantly associated with epilepsy [60,61,62,63].
SOX12 is a transcription factor with nuclear localization [59]. Within this context, it is worth mentioning that several transcription factors involved in DNA binding are intricately associated with both neurodevelopmental and psychiatric disorders [64,65,66].
Furthermore, as reported by the STRING, Biogrid and IntAct databases, alongside findings from an interactome study [67], the pathway analysis uncovered a protein–protein interaction with the GYS1 and GYG1 genes. In particular, the Glycogen Synthase 1 (GYS1) gene stimulates glycogen biosynthesis, and its dysregulation has been associated with epilepsy in mouse models, impacting synaptic plasticity [68,69,70]. It has a MIM phenotype number associated with defects in glycogen storage (611556) but has also been recently described in the literature as a potential candidate for Lafora disease, a progressive myoclonic epilepsy [71,72,73]. As is well known, brain glycogen acts as an energy reserve during hypoxia, aiding neuronal function. Dysregulated metabolism may heighten epilepsy susceptibility by disrupting energy balance and neuronal excitability [68,69,74,75]. Additionally, the GYG1 gene is associated with defects in glycogen storage (613507) and polyglucosan body myopathy (616199).
This study addresses a critical gap in the existing literature by investigating the role of SOX12 in neurodevelopmental disorders. Through our research, we aim to provide essential insights into the genetic underpinnings of epilepsy and related conditions, ultimately advancing our understanding and paving the way for future therapeutic strategies. We emphasize that functional analyses are needed to confirm the involvement of SOX12 gene in neurogenesis. Additionally, we highlight that mutations in this gene may contribute to a spectrum of neurodevelopmental disorders, including epilepsy and borderline personality disorder, as observed in the patient examined in this study. The objective of this research is to provide groundwork for assigning a MIM phenotype number to this gene, aligning with the precedent set by other SoxC genes such as SOX4 and SOX11.

5. Conclusions

The current manuscript presents a clinical case of a patient presenting with epilepsy, as well both neurodevelopmental and borderline personality disorders. WES trio analysis revealed a de novo variant within SOX12, a transcription factor crucial for DNA binding within the C group of the SOX family. As previously documented, this gene is predominantly expressed in brain tissues, and notably, except for SOX12, all the members of the C group have an entry code assigned to neurodevelopmental disorders. The variant was situated within the critical high-mobility group (HMG), a functional protein region crucial for DNA binding. In silico predictions described the variant as likely pathogenically significant, underscoring significant structural variations affecting protein function. Further analyses are imperative to confirm the involvement of this gene in neurogenesis and to assess the impact of the identified mutation in this study.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/cimb46070383/s1, Figure S1: Sequence alignment of the SOX genes; Figure S2: Models of the protein structure prediction; Figure S3: Heatmaps of the AlphaFold prediction; Figure S4: Prediction of the most conserved region.

Author Contributions

Conceptualization: S.T., F.C. and M.V.; methodology: F.C., M.V., A.R., M.B. and D.G.; validation: S.T., F.C., M.V. and A.R.; investigation: S.T., F.C., M.V., A.R., A.M., C.F., C.C., M.B., D.G., S.S. and M.E.; data curation: S.T., F.C., M.V., S.S. and M.E.; original draft preparation: S.T., F.C., M.V., S.S. and M.E.; manuscript review and editing: S.T., F.C., M.V., S.S. and M.E.; supervision: S.T., F.C. and S.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was partially supported by the Italian Ministry of Health “Ricerca Corrente 2017–2023” and 5 × mille.

Institutional Review Board Statement

All procedures performed in this study were in accordance with the ethical standards of the institutional and/or national research committee and with the 1964 Helsinki Declaration and its later amendments or comparable ethical standards. This study was conducted in accordance with the Declaration of Helsinki and approved by the local Ethics Committee “Comitato Etico IRCCS Sicilia-Oasi Maria SS”. Prot. CE/193, as of 5 April 2022, approval code: 2022/04/05/CE-IRCCS-OASI/52.

Informed Consent Statement

Written informed consent has been obtained from the patients to publish this article.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

Special acknowledgements for this paper are due to Eleonora Di Fatta for her valuable assistance in the translation, preparation and formatting of the text. We would like to thank Angelo Gloria, Rosanna Galati Rando and Valeria Chiavetta for their technical contribution.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Sinclair, A.H.; Berta, P.; Palmer, M.S.; Hawkins, J.R.; Griffiths, B.L.; Smith, M.J.; Foster, J.W.; Frischauf, A.-M.; Lovell-Badge, R.; Goodfellow, P.N. A Gene from the Human Sex-Determining Region Encodes a Protein with Homology to a Conserved DNA-Binding Motif. Nature 1990, 346, 240–244. [Google Scholar] [CrossRef] [PubMed]
  2. Gubbay, J.; Koopman, P.; Collignon, J.; Burgoyne, P.; Lovell-Badge, R. Normal Structure and Expression of Zfy Genes in XY Female Mice Mutant in Tdy. Development 1990, 109, 647–653. [Google Scholar] [CrossRef] [PubMed]
  3. Lovell-Badge, R. The Early History of the Sox Genes. Int. J. Biochem. Cell Biol. 2010, 42, 378–380. [Google Scholar] [CrossRef] [PubMed]
  4. Schepers, G.E.; Teasdale, R.D.; Koopman, P. Twenty Pairs of Sox. Dev. Cell 2002, 3, 167–170. [Google Scholar] [CrossRef] [PubMed]
  5. Lefebvre, V.; Dumitriu, B.; Penzo-Méndez, A.; Han, Y.; Pallavi, B. Control of Cell Fate and Differentiation by Sry-Related High-Mobility-Group Box (Sox) Transcription Factors. Int. J. Biochem. Cell Biol. 2007, 39, 2195–2214. [Google Scholar] [CrossRef] [PubMed]
  6. Stevanovic, M.; Drakulic, D.; Lazic, A.; Ninkovic, D.S.; Schwirtlich, M.; Mojsin, M. SOX Transcription Factors as Important Regulators of Neuronal and Glial Differentiation during Nervous System Development and Adult Neurogenesis. Front. Mol. Neurosci. 2021, 14, 654031. [Google Scholar] [CrossRef] [PubMed]
  7. Scott, C.E.; Wynn, S.L.; Sesay, A.; Cruz, C.; Cheung, M.; Gaviro, M.-V.G.; Booth, S.; Gao, B.; Cheah, K.S.E.; Lovell-Badge, R.; et al. SOX9 Induces and Maintains Neural Stem Cells. Nat. Neurosci. 2010, 13, 1181–1189. [Google Scholar] [CrossRef] [PubMed]
  8. Li, L.; Medina-Menéndez, C.; García-Corzo, L.; Córdoba-Beldad, C.M.; Quiroga, A.C.; Calleja Barca, E.; Zinchuk, V.; Muñoz-López, S.; Rodríguez-Martín, P.; Ciorraga, M.; et al. SoxD Genes Are Required for Adult Neural Stem Cell Activation. Cell Rep. 2022, 38, 110313. [Google Scholar] [CrossRef] [PubMed]
  9. Pevny, L.; Placzek, M. SOX Genes and Neural Progenitor Identity. Curr. Opin. Neurobiol. 2005, 15, 7–13. [Google Scholar] [CrossRef]
  10. Favaro, R.; Valotta, M.; Ferri, A.L.M.; Latorre, E.; Mariani, J.; Giachino, C.; Lancini, C.; Tosetti, V.; Ottolenghi, S.; Taylor, V.; et al. Hippocampal Development and Neural Stem Cell Maintenance Require Sox2-Dependent Regulation of Shh. Nat. Neurosci. 2009, 12, 1248–1256. [Google Scholar] [CrossRef]
  11. Lin, L.; Lee, V.M.; Wang, Y.; Lin, J.S.; Sock, E.; Wegner, M.; Lei, L. Sox11 Regulates Survival and Axonal Growth of Embryonic Sensory Neurons. Dev. Dyn. 2011, 240, 52–64. [Google Scholar] [CrossRef] [PubMed]
  12. Matsuda, S.; Kuwako, K.; Okano, H.J.; Tsutsumi, S.; Aburatani, H.; Saga, Y.; Matsuzaki, Y.; Akaike, A.; Sugimoto, H.; Okano, H. Sox21 Promotes Hippocampal Adult Neurogenesis via the Transcriptional Repression of the Hes5 Gene. J. Neurosci. 2012, 32, 12543–12557. [Google Scholar] [CrossRef] [PubMed]
  13. Mu, L.; Berti, L.; Masserdotti, G.; Covic, M.; Michaelidis, T.M.; Doberauer, K.; Merz, K.; Rehfeld, F.; Haslinger, A.; Wegner, M.; et al. SoxC Transcription Factors Are Required for Neuronal Differentiation in Adult Hippocampal Neurogenesis. J. Neurosci. 2012, 32, 3067–3080. [Google Scholar] [CrossRef] [PubMed]
  14. Hoshiba, Y.; Toda, T.; Ebisu, H.; Wakimoto, M.; Yanagi, S.; Kawasaki, H. Sox11 Balances Dendritic Morphogenesis with Neuronal Migration in the Developing Cerebral Cortex. J. Neurosci. 2016, 36, 5775–5784. [Google Scholar] [CrossRef] [PubMed]
  15. Zhang, Y.; Hou, L. Alternate Roles of Sox Transcription Factors beyond Transcription Initiation. Int. J. Mol. Sci. 2021, 22, 5949. [Google Scholar] [CrossRef] [PubMed]
  16. Mukherjee, S.; Luedeke, D.M.; McCoy, L.; Iwafuchi, M.; Zorn, A.M. SOX Transcription Factors Direct TCF-Independent WNT/β-Catenin Responsive Transcription to Govern Cell Fate in Human Pluripotent Stem Cells. Cell Rep. 2022, 40, 111247. [Google Scholar] [CrossRef] [PubMed]
  17. Bergsland, M.; Ramsköld, D.; Zaouter, C.; Klum, S.; Sandberg, R.; Muhr, J. Sequentially Acting Sox Transcription Factors in Neural Lineage Development. Genes. Dev. 2011, 25, 2453–2464. [Google Scholar] [CrossRef] [PubMed]
  18. Malas, S.; Postlethwaite, M.; Ekonomou, A.; Whalley, B.; Nishiguchi, S.; Wood, H.; Meldrum, B.; Constanti, A.; Episkopou, V. Sox1-Deficient Mice Suffer from Epilepsy Associated with Abnormal Ventral Forebrain Development and Olfactory Cortex Hyperexcitability. Neuroscience 2003, 119, 421–432. [Google Scholar] [CrossRef]
  19. Sisodiya, S.M.; Ragge, N.K.; Cavalleri, G.L.; Hever, A.; Lorenz, B.; Schneider, A.; Williamson, K.A.; Stevens, J.M.; Free, S.L.; Thompson, P.J.; et al. Role of SOX2 Mutations in Human Hippocampal Malformations and Epilepsy. Epilepsia 2006, 47, 534–542. [Google Scholar] [CrossRef]
  20. Rosiles, A.; Rubio, C.; Trejo, C.; Gutierrez, J.; Hernández, L.; Paz, C. Commentary: Participation of Sox-1 Expression and Signaling of β-Catenin in the Pathophysiology of Generalized Seizures in Cerebellum of Rat. CNS Neurol. Disord. Drug Targets 2016, 15, 3–6. [Google Scholar] [CrossRef]
  21. Haenisch, S.; Zhao, Y.; Chhibber, A.; Kaiboriboon, K.; Do, L.V.; Vogelgesang, S.; Barbaro, N.M.; Alldredge, B.K.; Lowenstein, D.H.; Cascorbi, I.; et al. SOX11 Identified by Target Gene Evaluation of MiRNAs Differentially Expressed in Focal and Non-Focal Brain Tissue of Therapy-Resistant Epilepsy Patients. Neurobiol. Dis. 2015, 77, 127–140. [Google Scholar] [CrossRef] [PubMed]
  22. Rubio-Osornio, C.; Eguiluz-Meléndez, A.; Trejo-Solís, C.; Custodio, V.; Rubio-Osornio, M.; Rosiles-Abonce, A.; Martínez-Lazcano, J.C.; González, E.; Paz, C. Decreased Expression of Sox-1 in Cerebellum of Rat with Generalized Seizures Induced by Kindling Model. CNS Neurol. Disord. Drug Targets 2016, 15, 723–729. [Google Scholar] [CrossRef] [PubMed]
  23. Castillo, S.D.; Sanchez-Cespedes, M. The SOX Family of Genes in Cancer Development: Biological Relevance and Opportunities for Therapy. Expert. Opin. Ther. Targets 2012, 16, 903–919. [Google Scholar] [CrossRef] [PubMed]
  24. Seok, J.; Gil, M.; Dayem, A.A.; Saha, S.K.; Cho, S.-G. Multi-Omics Analysis of SOX4, SOX11, and SOX12 Expression and the Associated Pathways in Human Cancers. J. Pers. Med. 2021, 11, 823. [Google Scholar] [CrossRef] [PubMed]
  25. Dy, P.; Penzo-Méndez, A.; Wang, H.; Pedraza, C.E.; Macklin, W.B.; Lefebvre, V. The Three SoxC Proteins—Sox4, Sox11 and Sox12—Exhibit Overlapping Expression Patterns and Molecular Properties. Nucleic Acids Res. 2008, 36, 3101–3117. [Google Scholar] [CrossRef] [PubMed]
  26. Potzner, M.R.; Tsarovina, K.; Binder, E.; Penzo-Méndez, A.; Lefebvre, V.; Rohrer, H.; Wegner, M.; Sock, E. Sequential Requirement of Sox4 and Sox11 during Development of the Sympathetic Nervous System. Development 2010, 137, 775–784. [Google Scholar] [CrossRef] [PubMed]
  27. Chang, K.-C.; Hertz, J.; Zhang, X.; Jin, X.-L.; Shaw, P.; Derosa, B.A.; Li, J.Y.; Venugopalan, P.; Valenzuela, D.A.; Patel, R.D.; et al. Novel Regulatory Mechanisms for the SoxC Transcriptional Network Required for Visual Pathway Development. J. Neurosci. 2017, 37, 4967–4981. [Google Scholar] [CrossRef] [PubMed]
  28. Wan, H.; Cai, J.; Chen, F.; Zhu, J.; Zhong, J.; Zhong, H. SOX12: A Novel Potential Target for Acute Myeloid Leukaemia. Br. J. Haematol. 2017, 176, 421–430. [Google Scholar] [CrossRef] [PubMed]
  29. Wang, L.; Hu, F.; Shen, S.; Xiao, H.; Li, G.; Wang, M.; Mei, J. Knockdown of SOX12 Expression Inhibits the Proliferation and Metastasis of Lung Cancer Cells. Am. J. Transl. Res. 2017, 9, 4003–4014. [Google Scholar]
  30. Du, F.; Chen, J.; Liu, H.; Cai, Y.; Cao, T.; Han, W.; Yi, X.; Qian, M.; Tian, D.; Nie, Y.; et al. SOX12 Promotes Colorectal Cancer Cell Proliferation and Metastasis by Regulating Asparagine Synthesis. Cell Death Dis. 2019, 10, 239. [Google Scholar] [CrossRef]
  31. Hoser, M.; Potzner, M.R.; Koch, J.M.C.; Bösl, M.R.; Wegner, M.; Sock, E. Sox12 Deletion in the Mouse Reveals Nonreciprocal Redundancy with the Related Sox4 and Sox11 Transcription Factors. Mol. Cell Biol. 2008, 28, 4675–4687. [Google Scholar] [CrossRef]
  32. Cheung, M.; Abu-Elmagd, M.; Clevers, H.; Scotting, P.J. Roles of Sox4 in Central Nervous System Development. Mol. Brain Res. 2000, 79, 180–191. [Google Scholar] [CrossRef]
  33. Uwanogho, D.; Rex, M.; Cartwright, E.J.; Pearl, G.; Healy, C.; Scotting, P.J.; Sharpe, P.T. Embryonic Expression of the Chicken Sox2, Sox3 and Sox11 Genes Suggests an Interactive Role in Neuronal Development. Mech. Dev. 1995, 49, 23–36. [Google Scholar] [CrossRef] [PubMed]
  34. Hargrave, M.; Wright, E.; Kun, J.; Emery, J.; Cooper, L.; Koopman, P. Expression of TheSox11 Gene in Mouse Embryos Suggests Roles in Neuronal Maturation and Epithelio-Mesenchymal Induction. Dev. Dyn. 1997, 210, 79–86. [Google Scholar] [CrossRef]
  35. An, Y.; Amr, S.S.; Torres, A.; Weissman, L.; Raffalli, P.; Cox, G.; Sheng, X.; Lip, V.; Bi, W.; Patel, A.; et al. SOX12 and NRSN2 Are Candidate Genes for 20p13 Subtelomeric Deletions Associated with Developmental Delay. Am. J. Med. Genet. Part. B Neuropsychiatr. Genet. 2013, 162, 832–840. [Google Scholar] [CrossRef]
  36. Haslinger, A.; Schwarz, T.J.; Covic, M.; Chichung Lie, D. Expression of Sox11 in Adult Neurogenic Niches Suggests a Stage-specific Role in Adult Neurogenesis. Eur. J. Neurosci. 2009, 29, 2103–2114. [Google Scholar] [CrossRef] [PubMed]
  37. Vinci, M.; Costanza, C.; Galati Rando, R.; Treccarichi, S.; Saccone, S.; Carotenuto, M.; Roccella, M.; Calì, F.; Elia, M.; Vetri, L. STXBP6 Gene Mutation: A New Form of SNAREopathy Leads to Developmental Epileptic Encephalopathy. Int. J. Mol. Sci. 2023, 24, 16436. [Google Scholar] [CrossRef]
  38. Thorvaldsdottir, H.; Robinson, J.T.; Mesirov, J.P. Integrative Genomics Viewer (IGV): High-Performance Genomics Data Visualization and Exploration. Brief. Bioinform. 2013, 14, 178–192. [Google Scholar] [CrossRef]
  39. Musumeci, A.; Calì, F.; Scuderi, C.; Vinci, M.; Vitello, G.A.; Musumeci, S.A.; Chiavetta, V.; Federico, C.; Amore, G.; Saccone, S.; et al. Identification of a Novel Missense Mutation of POLR3A Gene in a Cohort of Sicilian Patients with Leukodystrophy. Biomedicines 2022, 10, 2276. [Google Scholar] [CrossRef] [PubMed]
  40. Carithers, L.J.; Moore, H.M. The Genotype-Tissue Expression (GTEx) Project. Biopreserv Biobank 2015, 13, 307–308. [Google Scholar] [CrossRef]
  41. Pontén, F.; Schwenk, J.M.; Asplund, A.; Edqvist, P.-H.D. The Human Protein Atlas as a Proteomic Resource for Biomarker Discovery. J. Intern. Med. 2011, 270, 428–446. [Google Scholar] [CrossRef] [PubMed]
  42. Binns, D.; Dimmer, E.; Huntley, R.; Barrell, D.; O’Donovan, C.; Apweiler, R. QuickGO: A Web-Based Tool for Gene Ontology Searching. Bioinformatics 2009, 25, 3045–3046. [Google Scholar] [CrossRef] [PubMed]
  43. Hall, T. BioEdit: An Important Software for Molecular Biology. GERF Bull. Biosci. 2011, 2, 60–61. [Google Scholar]
  44. Pettersen, E.F.; Goddard, T.D.; Huang, C.C.; Meng, E.C.; Couch, G.S.; Croll, T.I.; Morris, J.H.; Ferrin, T.E. UCSF ChimeraX: Structure Visualization for Researchers, Educators, and Developers. Protein Sci. 2021, 30, 70–82. [Google Scholar] [CrossRef] [PubMed]
  45. Desvignes, J.-P.; Bartoli, M.; Delague, V.; Krahn, M.; Miltgen, M.; Béroud, C.; Salgado, D. VarAFT: A Variant Annotation and Filtration System for Human next Generation Sequencing Data. Nucleic Acids Res. 2018, 46, W545–W553. [Google Scholar] [CrossRef]
  46. Richards, S.; Aziz, N.; Bale, S.; Bick, D.; Das, S.; Gastier-Foster, J.; Grody, W.W.; Hegde, M.; Lyon, E.; Spector, E.; et al. Standards and Guidelines for the Interpretation of Sequence Variants: A Joint Consensus Recommendation of the American College of Medical Genetics and Genomics and the Association for Molecular Pathology. Genet. Med. 2015, 17, 405–424. [Google Scholar] [CrossRef]
  47. Kopanos, C.; Tsiolkas, V.; Kouris, A.; Chapple, C.E.; Albarca Aguilera, M.; Meyer, R.; Massouras, A. VarSome: The Human Genomic Variant Search Engine. Bioinformatics 2019, 35, 1978–1980. [Google Scholar] [CrossRef] [PubMed]
  48. Pejaver, V.; Urresti, J.; Lugo-Martinez, J.; Pagel, K.A.; Lin, G.N.; Nam, H.-J.; Mort, M.; Cooper, D.N.; Sebat, J.; Iakoucheva, L.M.; et al. Inferring the Molecular and Phenotypic Impact of Amino Acid Variants with MutPred2. Nat. Commun. 2020, 11, 5918. [Google Scholar] [CrossRef] [PubMed]
  49. Shihab, H.A.; Gough, J.; Cooper, D.N.; Stenson, P.D.; Barker, G.L.A.; Edwards, K.J.; Day, I.N.M.; Gaunt, T.R. Predicting the Functional, Molecular, and Phenotypic Consequences of Amino Acid Substitutions Using Hidden Markov Models. Hum. Mutat. 2013, 34, 57–65. [Google Scholar] [CrossRef]
  50. Shihab, H.A.; Rogers, M.F.; Gough, J.; Mort, M.; Cooper, D.N.; Day, I.N.M.; Gaunt, T.R.; Campbell, C. An Integrative Approach to Predicting the Functional Effects of Non-Coding and Coding Sequence Variation. Bioinformatics 2015, 31, 1536–1543. [Google Scholar] [CrossRef]
  51. Cheng, J.; Randall, A.; Baldi, P. Prediction of Protein Stability Changes for Single-site Mutations Using Support Vector Machines. Proteins Struct. Funct. Bioinform. 2006, 62, 1125–1132. [Google Scholar] [CrossRef] [PubMed]
  52. Crosara, K.T.B.; Moffa, E.B.; Xiao, Y.; Siqueira, W.L. Merging In-Silico and in Vitro Salivary Protein Complex Partners Using the STRING Database: A Tutorial. J. Proteom. 2018, 171, 87–94. [Google Scholar] [CrossRef] [PubMed]
  53. Oughtred, R.; Rust, J.; Chang, C.; Breitkreutz, B.; Stark, C.; Willems, A.; Boucher, L.; Leung, G.; Kolas, N.; Zhang, F.; et al. The BioGRID Database: A Comprehensive Biomedical Resource of Curated Protein, Genetic, and Chemical Interactions. Protein Sci. 2021, 30, 187–200. [Google Scholar] [CrossRef] [PubMed]
  54. del Toro, N.; Shrivastava, A.; Ragueneau, E.; Meldal, B.; Combe, C.; Barrera, E.; Perfetto, L.; How, K.; Ratan, P.; Shirodkar, G.; et al. The IntAct Database: Efficient Access to Fine-Grained Molecular Interaction Data. Nucleic Acids Res. 2022, 50, D648–D653. [Google Scholar] [CrossRef] [PubMed]
  55. Grippa, M.; Graziano, C. Landscape of Constitutional SOX4 Variation in Human Disorders. Genes 2024, 15, 158. [Google Scholar] [CrossRef] [PubMed]
  56. Zawerton, A.; Yao, B.; Yeager, J.P.; Pippucci, T.; Haseeb, A.; Smith, J.D.; Wischmann, L.; Kühl, S.J.; Dean, J.C.S.; Pilz, D.T.; et al. De Novo SOX4 Variants Cause a Neurodevelopmental Disease Associated with Mild Dysmorphism. Am. J. Hum. Genet. 2019, 104, 246–259. [Google Scholar] [CrossRef] [PubMed]
  57. Ghaffar, A.; Rasheed, F.; Rashid, M.; van Bokhoven, H.; Ahmed, Z.M.; Riazuddin, S.; Riazuddin, S. Biallelic In-Frame Deletion of SOX4 Is Associated with Developmental Delay, Hypotonia and Intellectual Disability. Eur. J. Hum. Genet. 2022, 30, 243–247. [Google Scholar] [CrossRef]
  58. Wissmuller, S. The High-Mobility-Group Domain of Sox Proteins Interacts with DNA-Binding Domains of Many Transcription Factors. Nucleic Acids Res. 2006, 34, 1735–1744. [Google Scholar] [CrossRef] [PubMed]
  59. Jay, P. SOX22 Is a New Member of the SOX Gene Family, Mainly Expressed in Human Nervous Tissue. Hum. Mol. Genet. 1997, 6, 1069–1077. [Google Scholar] [CrossRef]
  60. Alhusaini, S.; Ronan, L.; Scanlon, C.; Whelan, C.D.; Doherty, C.P.; Delanty, N.; Fitzsimons, M. Regional Increase of Cerebral Cortex Thickness in Juvenile Myoclonic Epilepsy. Epilepsia 2013, 54, e138–e141. [Google Scholar] [CrossRef]
  61. Wong, J.C.; Escayg, A. Illuminating the Cerebellum as a Potential Target for Treating Epilepsy. Epilepsy Curr. 2015, 15, 277–278. [Google Scholar] [CrossRef]
  62. Streng, M.L.; Krook-Magnuson, E. The Cerebellum and Epilepsy. Epilepsy Behav. 2021, 121, 106909. [Google Scholar] [CrossRef]
  63. Ibdali, M.; Hadjivassiliou, M.; Grünewald, R.A.; Shanmugarajah, P.D. Cerebellar Degeneration in Epilepsy: A Systematic Review. Int. J. Environ. Res. Public Health 2021, 18, 473. [Google Scholar] [CrossRef]
  64. Forrest, M.P.; Hill, M.J.; Kavanagh, D.H.; Tansey, K.E.; Waite, A.J.; Blake, D.J. The Psychiatric Risk Gene Transcription Factor 4 (TCF4) Regulates Neurodevelopmental Pathways Associated With Schizophrenia, Autism, and Intellectual Disability. Schizophr. Bull. 2018, 44, 1100–1110. [Google Scholar] [CrossRef]
  65. Yasin, H.; Zahir, F.R. Chromodomain Helicase DNA-Binding Proteins and Neurodevelopmental Disorders. J. Transl. Genet. Genom. 2020, 4, 10–20517. [Google Scholar] [CrossRef]
  66. Santos-Terra, J.; Deckmann, I.; Fontes-Dutra, M.; Schwingel, G.B.; Bambini-Junior, V.; Gottfried, C. Transcription Factors in Neurodevelopmental and Associated Psychiatric Disorders: A Potential Convergence for Genetic and Environmental Risk Factors. Int. J. Dev. Neurosci. 2021, 81, 545–578. [Google Scholar] [CrossRef]
  67. Cho, N.H.; Cheveralls, K.C.; Brunner, A.-D.; Kim, K.; Michaelis, A.C.; Raghavan, P.; Kobayashi, H.; Savy, L.; Li, J.Y.; Canaj, H.; et al. OpenCell: Endogenous Tagging for the Cartography of Human Cellular Organization. Science 2022, 375, eabi6983. [Google Scholar] [CrossRef]
  68. López-Ramos, J.C.; Duran, J.; Gruart, A.; Guinovart, J.J.; Delgado-García, J.M. Role of Brain Glycogen in the Response to Hypoxia and in Susceptibility to Epilepsy. Front. Cell Neurosci. 2015, 9, 431. [Google Scholar] [CrossRef]
  69. Seo, G.Y.; Neal, E.S.; Han, F.; Vidovic, D.; Nooru-Mohamed, F.; Dienel, G.A.; Sullivan, M.A.; Borges, K. Brain Glycogen Content Is Increased in the Acute and Interictal Chronic Stages of the Mouse Pilocarpine Model of Epilepsy. Epilepsia Open 2022, 7, 361–367. [Google Scholar] [CrossRef]
  70. Mitra, S.; Chen, B.; Wang, P.; Chown, E.E.; Dear, M.; Guisso, D.R.; Mariam, U.; Wu, J.; Gumusgoz, E.; Minassian, B.A. Laforin Targets Malin to Glycogen in Lafora Progressive Myoclonus Epilepsy. Dis. Model. Mech. 2023, 16, dmm049802. [Google Scholar] [CrossRef]
  71. Nitschke, S.; Chown, E.E.; Zhao, X.; Gabrielian, S.; Petković, S.; Guisso, D.R.; Perri, A.M.; Wang, P.; Ahonen, S.; Nitschke, F.; et al. An Inducible Glycogen Synthase-1 Knockout Halts but Does Not Reverse Lafora Disease Progression in Mice. J. Biol. Chem. 2021, 296, 100150. [Google Scholar] [CrossRef] [PubMed]
  72. Donohue, K.J.; Fitzsimmons, B.; Bruntz, R.C.; Markussen, K.H.; Young, L.E.A.; Clarke, H.A.; Coburn, P.T.; Griffith, L.E.; Sanders, W.; Klier, J.; et al. Gys1 Antisense Therapy Prevents Disease-Driving Aggregates and Epileptiform Discharges in a Lafora Disease Mouse Model. Neurotherapeutics 2023, 20, 1808–1819. [Google Scholar] [CrossRef] [PubMed]
  73. Ahonen, S.; Nitschke, S.; Grossman, T.R.; Kordasiewicz, H.; Wang, P.; Zhao, X.; Guisso, D.R.; Kasiri, S.; Nitschke, F.; Minassian, B.A. Gys1 Antisense Therapy Rescues Neuropathological Bases of Murine Lafora Disease. Brain 2021, 144, 2985–2993. [Google Scholar] [CrossRef] [PubMed]
  74. DiNuzzo, M.; Mangia, S.; Maraviglia, B.; Giove, F. Does Abnormal Glycogen Structure Contribute to Increased Susceptibility to Seizures in Epilepsy? Metab. Brain Dis. 2015, 30, 307–316. [Google Scholar] [CrossRef]
  75. Dienel, G.A.; Gillinder, L.; McGonigal, A.; Borges, K. Potential New Roles for Glycogen in Epilepsy. Epilepsia 2023, 64, 29–53. [Google Scholar] [CrossRef]
Cimb 46 00383 g001

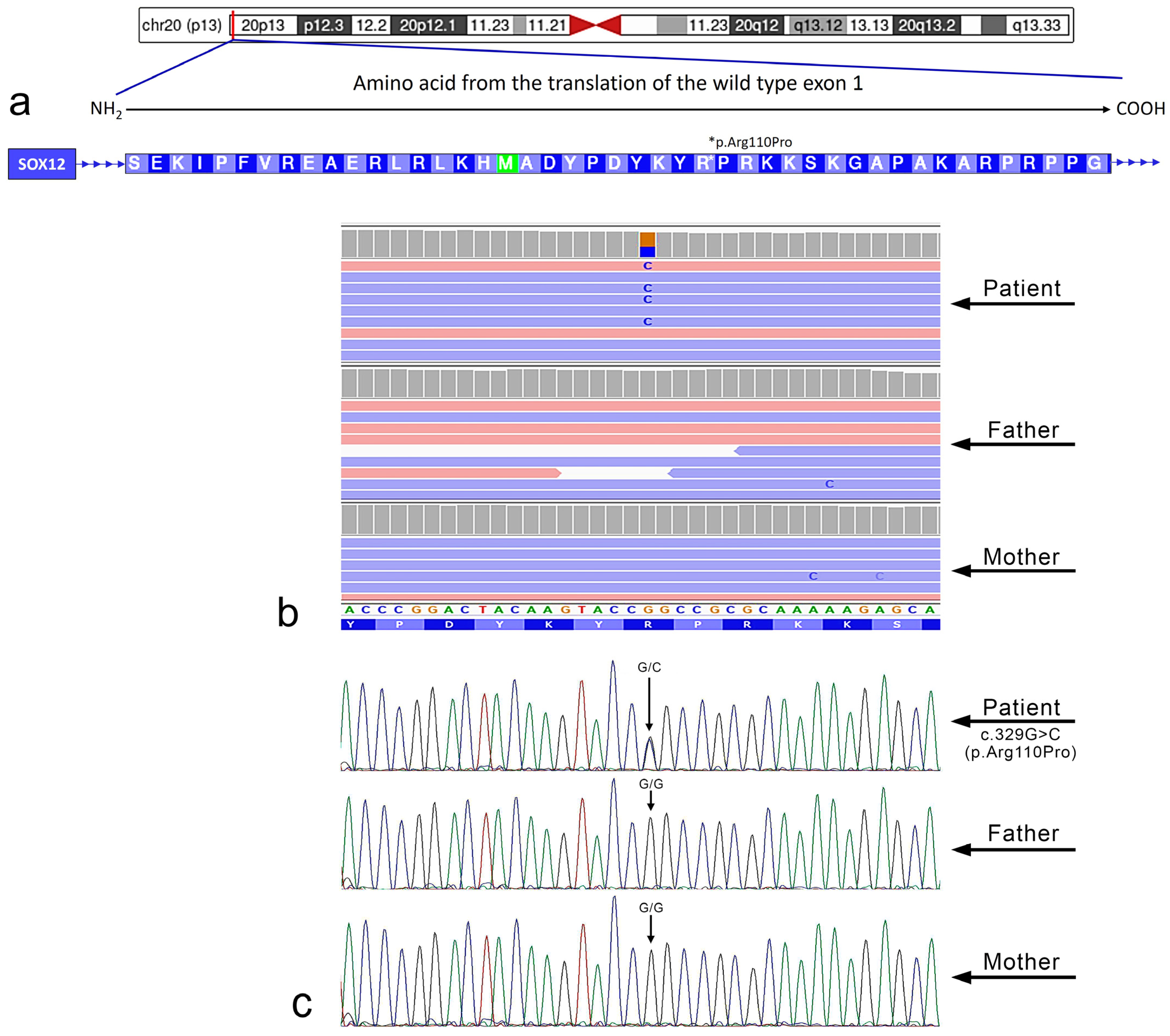

Figure 1. (a) Graphical representation of the amino acid sequence corresponding to the region where the mutation was identified within the SOX12 gene. Additionally, the chromosomal localization of this gene is illustrated. An arrow indicates the NH2 → COOH direction of translation for the unique exon of the SOX12 gene. Figure was a modified from UCSC genome database. The asterisk indicates the variant site. (b) Whole exome sequencing results are presented using the Integrative Genomics Viewer (IGV) visualization tool. As shown in the picture, WES was carried out for the examined patient and both the healthy parents. (c) Conventional Sanger sequencing was performed to confirm the variant c.329G>C identified by whole exome sequencing (WES). In the electropherograms, the black, blue, green, and red profiles indicate nucleotide G, C, A, and T, respectively.
Figure 1. (a) Graphical representation of the amino acid sequence corresponding to the region where the mutation was identified within the SOX12 gene. Additionally, the chromosomal localization of this gene is illustrated. An arrow indicates the NH2 → COOH direction of translation for the unique exon of the SOX12 gene. Figure was a modified from UCSC genome database. The asterisk indicates the variant site. (b) Whole exome sequencing results are presented using the Integrative Genomics Viewer (IGV) visualization tool. As shown in the picture, WES was carried out for the examined patient and both the healthy parents. (c) Conventional Sanger sequencing was performed to confirm the variant c.329G>C identified by whole exome sequencing (WES). In the electropherograms, the black, blue, green, and red profiles indicate nucleotide G, C, A, and T, respectively.
Cimb 46 00383 g001
Cimb 46 00383 g002

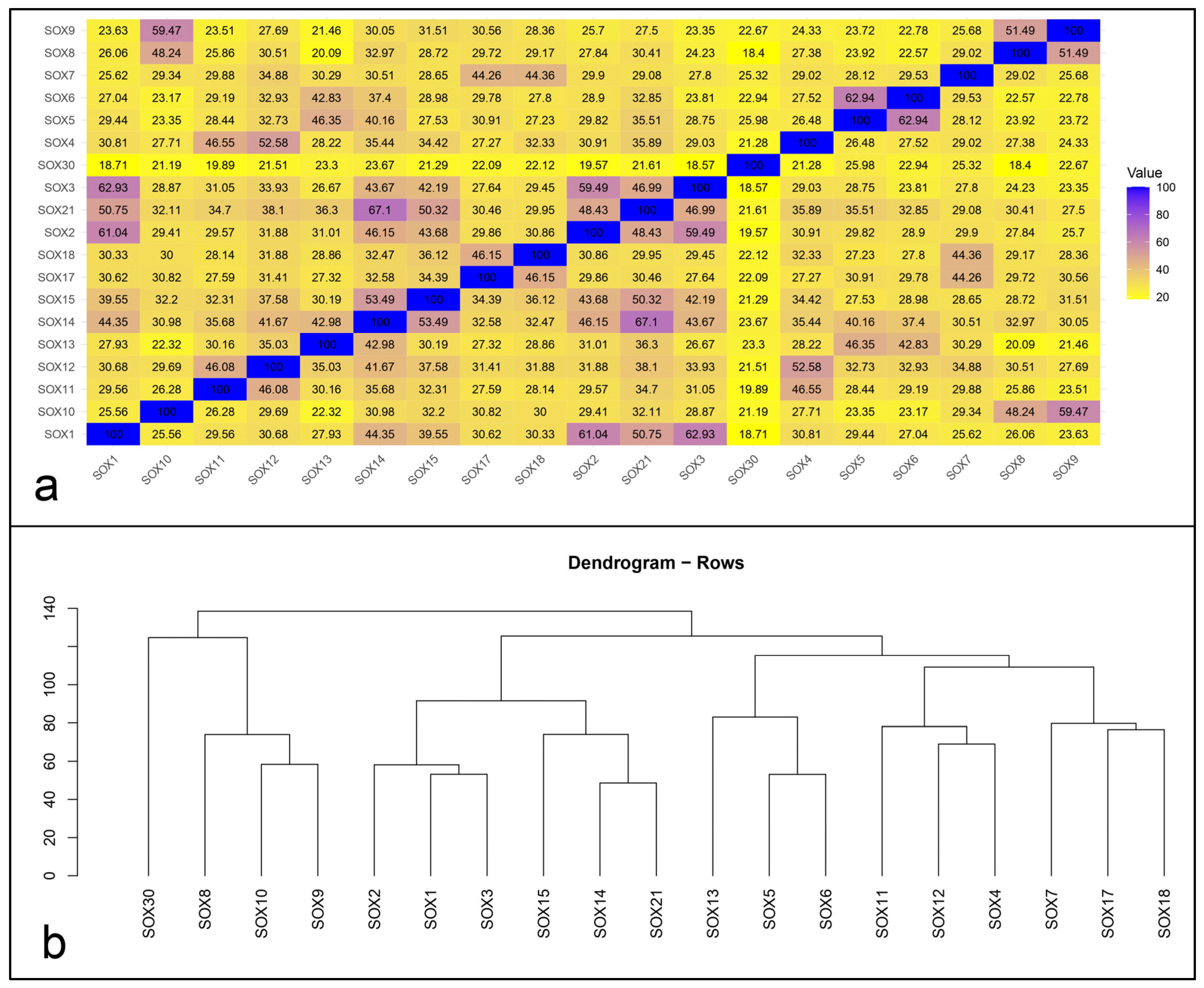

Figure 2. Identity level of 19 SOX genes. (a) Heatmap related to the percentage of identity ascertained from the 19 SOX proteins. The percentages were obtained from the Uniprot database. (b) Dendrogram obtained considering percentage of identity among SOX genes. The percentages of similarity were obtained from the Uniprot database. Both the plots were generated by R studio version 3.6.3.
Figure 2. Identity level of 19 SOX genes. (a) Heatmap related to the percentage of identity ascertained from the 19 SOX proteins. The percentages were obtained from the Uniprot database. (b) Dendrogram obtained considering percentage of identity among SOX genes. The percentages of similarity were obtained from the Uniprot database. Both the plots were generated by R studio version 3.6.3.
Cimb 46 00383 g002
Cimb 46 00383 g003

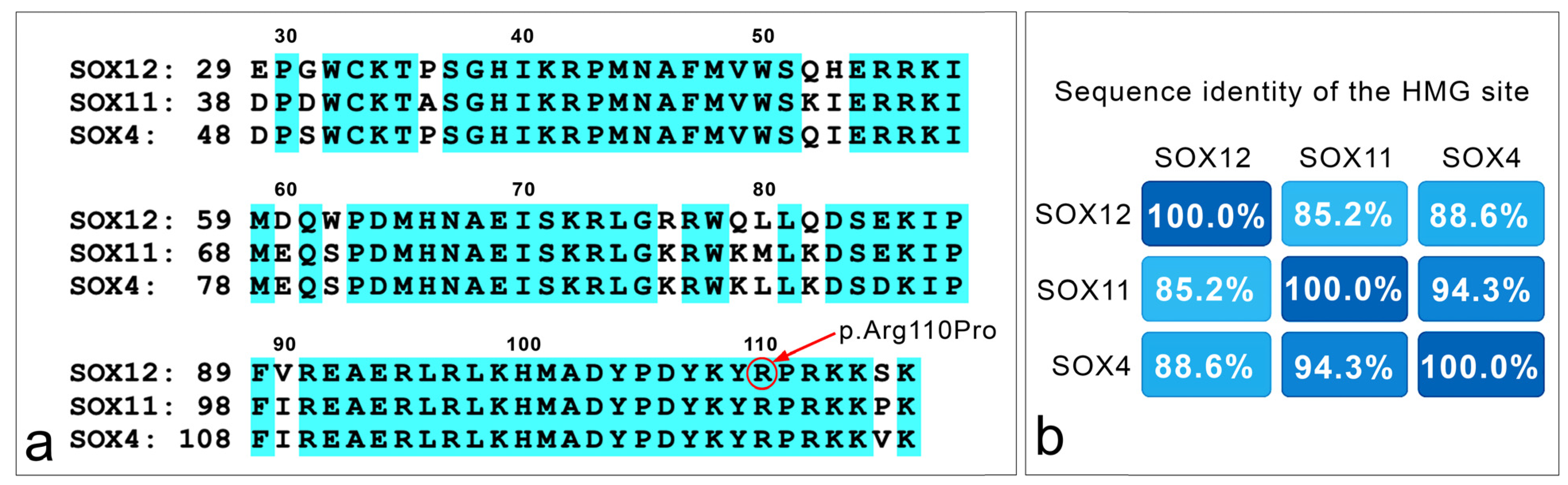

Figure 3. Sequence similarity between HMG sites in SOXC genes. (a) Sequence alignment of the HMG sites within the three SOXC genes, namely SOX12 (aa 29–116), SOX11 (aa 38–125) and SOX4 (48–135). The identity of the residues within the amino acid chain of the three genes is evidenced in light blue. The circled site in SOX12 sequence indicates the variant amino acid here described (p.Arg110Pro). On the left of each sequence, the number indicates the position in each protein of the first aa here shown. The number in the upper part of the sequences refers to the amino acid sequence of the SOX12 protein. NCBI reference sequences were as follows: NP_008874.2 (SOX12), NP_003099.1 (SOX11) and 003098.1 (SOX4), accessed on 13 May 2024. (b) A heatmap depicting the sequence identity of the HMG site within SOX12, SOX11 and SOX4. Blue color scale indicates the highest percentage of identity rate (modified from the Uniprot database).
Figure 3. Sequence similarity between HMG sites in SOXC genes. (a) Sequence alignment of the HMG sites within the three SOXC genes, namely SOX12 (aa 29–116), SOX11 (aa 38–125) and SOX4 (48–135). The identity of the residues within the amino acid chain of the three genes is evidenced in light blue. The circled site in SOX12 sequence indicates the variant amino acid here described (p.Arg110Pro). On the left of each sequence, the number indicates the position in each protein of the first aa here shown. The number in the upper part of the sequences refers to the amino acid sequence of the SOX12 protein. NCBI reference sequences were as follows: NP_008874.2 (SOX12), NP_003099.1 (SOX11) and 003098.1 (SOX4), accessed on 13 May 2024. (b) A heatmap depicting the sequence identity of the HMG site within SOX12, SOX11 and SOX4. Blue color scale indicates the highest percentage of identity rate (modified from the Uniprot database).
Cimb 46 00383 g003
Cimb 46 00383 g004
Figure 4. Graphical representation of SOX12 protein with the mutated aa residue. (a) Structure prediction of the wild-type SOX12 protein. The black circle indicated by an asterisk shows the wild-type aa at position 110. (b) Structure prediction of the mutated SOX12 protein (p.Arg110Pro). The different protein folding between the wild type and the mutated is evident. (c) Focus (black circle indicated by an asterisk) on the wild-type amino acid residue (Arg) at position 110. (d) Focus (black circle) on the mutated amino acid residue (Pro) at position 110. (a–d) structures were generated by UCSC ChimeraX v.1.7 software. The variant amino acids (Arg vs. Pro) in the black circles are indicated in green. (e) Graphical representation of the SOX12 functional domains, regions and sites. aa: aminocid position. HMG: high-mobility group. DRTA: Domain required for transcriptional activation activity and synergistic coactivation of transcriptional activity with POU3F2. Notably, the mutation occurred within the HMG box (modified from the Uniprot database). The colors vary based on different domains or regions. Specifically, red is used for all regions, blue for the extra domain region and green for both the acidic residues. The mutation site within the protein structure is indicated in light green.
Figure 4. Graphical representation of SOX12 protein with the mutated aa residue. (a) Structure prediction of the wild-type SOX12 protein. The black circle indicated by an asterisk shows the wild-type aa at position 110. (b) Structure prediction of the mutated SOX12 protein (p.Arg110Pro). The different protein folding between the wild type and the mutated is evident. (c) Focus (black circle indicated by an asterisk) on the wild-type amino acid residue (Arg) at position 110. (d) Focus (black circle) on the mutated amino acid residue (Pro) at position 110. (a–d) structures were generated by UCSC ChimeraX v.1.7 software. The variant amino acids (Arg vs. Pro) in the black circles are indicated in green. (e) Graphical representation of the SOX12 functional domains, regions and sites. aa: aminocid position. HMG: high-mobility group. DRTA: Domain required for transcriptional activation activity and synergistic coactivation of transcriptional activity with POU3F2. Notably, the mutation occurred within the HMG box (modified from the Uniprot database). The colors vary based on different domains or regions. Specifically, red is used for all regions, blue for the extra domain region and green for both the acidic residues. The mutation site within the protein structure is indicated in light green.
Cimb 46 00383 g004
Cimb 46 00383 g005
Figure 5. Comparison of the hydrogen bonds between wild-type and mutated SOX12 protein within the HMG domain. Hydrogen bonds are represented by light blue dashed lines. The amino acid (aa) residues considered are colored yellow/orange and the aa residues with which they form hydrogen bonds are colored magenta. In the left panels (a,c,e,g,i,k) hydrogen bonds formed in the SOX12 wild-type protein are shown. In the right panels (b,d,f,h,j,l) hydrogen bonds formed in the SOX12 mutated protein are shown (p.Arg110Pro). The disappearance of the hydrogen bonds between the amino acids Glu29/Tyr104 (panels (a/b) and (i/j)), His39/Arg112 (panels (c/d), and (k/l)) and His53/Arg56 (panels (e/f), and (g/h)) is highlighted by an asterisk in the left images (wild-type SOX12).
Figure 5. Comparison of the hydrogen bonds between wild-type and mutated SOX12 protein within the HMG domain. Hydrogen bonds are represented by light blue dashed lines. The amino acid (aa) residues considered are colored yellow/orange and the aa residues with which they form hydrogen bonds are colored magenta. In the left panels (a,c,e,g,i,k) hydrogen bonds formed in the SOX12 wild-type protein are shown. In the right panels (b,d,f,h,j,l) hydrogen bonds formed in the SOX12 mutated protein are shown (p.Arg110Pro). The disappearance of the hydrogen bonds between the amino acids Glu29/Tyr104 (panels (a/b) and (i/j)), His39/Arg112 (panels (c/d), and (k/l)) and His53/Arg56 (panels (e/f), and (g/h)) is highlighted by an asterisk in the left images (wild-type SOX12).
Cimb 46 00383 g005
Cimb 46 00383 g006
Figure 6. Graphical representation of the protein–protein interaction analysis using the STRING database, supported by experimental evidence. The proteins interacting with SOX12 include GYS1 and GYG1, with high correlation scores of 0.994 and 0.778, respectively. The correlation score range between 0 and 1 and high values indicate robust correlations.
Figure 6. Graphical representation of the protein–protein interaction analysis using the STRING database, supported by experimental evidence. The proteins interacting with SOX12 include GYS1 and GYG1, with high correlation scores of 0.994 and 0.778, respectively. The correlation score range between 0 and 1 and high values indicate robust correlations.
Cimb 46 00383 g006
Table 1. Criteria used for the classification of the observed nucleotide variation (a).
Table 1. Criteria used for the classification of the observed nucleotide variation (a).
Evidence of PathogenicityCategory CodeDescription
StrongPS2De novo (both maternity and paternity confirmed) in a patient with the disease and no family history.
ModeratePM2Absent from controls (or at extremely low frequency if recessive) in Exome Sequencing Project, 1000 Genomes Project, or Exome Aggregation Consortium.
ModeratePP4Patient’s phenotype or family history is highly specific for a disease with a single genetic etiology.
Germline Variant Classification (ACMG criteria): Likely Pathogenic
(a) According to the American College of Medical Genetics (ACMG) guidelines [46].
Table 2. Multiple in silico prediction algorithms for predicting the effect of the variant c.329G>C within the SOX12 gene (NM_006943).
Table 2. Multiple in silico prediction algorithms for predicting the effect of the variant c.329G>C within the SOX12 gene (NM_006943).
ToolPredictionScore
CADDUncertain23.8999
M-CAPPathogenic Moderate0.979
PrimateAIPathogenic, moderate0.9664
EIGENBenign, moderate−0.2651
Mutation assessorBenign, moderate0.55
MutationTasterDisease-causing0.9626
PROVEANPathogenic-supporting−5.77
SIFTPathogenic-supporting0
FATHMM-MKLPathogenic-supporting0.84340
MutPred2Benign-supporting0.464
MVPBenign-supporting0.6871
DANNUncertain0.9784
FATHMMDamaging−3.33
LRTUncertain0.000318
SIFT4GUncertain0.004
DEOGEN2Deleterious0.6900
BayesDel addAFUncertain0.1551
BayesDel noAFUncertain−0.0149
MetaLRUncertain0.5195
MetaRNNUncertain0.5739
MetaSVMUncertain0.02229
Table 3. Variation in the hydrogen bond numbers between the wild-type and mutated SOX12 protein, within the HMG domain.
Table 3. Variation in the hydrogen bond numbers between the wild-type and mutated SOX12 protein, within the HMG domain.
aa ResidueHyB aa Partner (a)SOX12wt
(Arg 110) (b)		SOX12mut
(Pro 110) (c)
Glu 29Tyr 10410
His 39Thr 3533
Arg 11210
His 53Trp 5011
Arg 5610
Lys 5711
Arg 56Gln 52 11
His 5310
Asp 6011
Tyr 104Glu 29 10
His 10011
Tyr 10711
Arg 112His 3910
(a) Amino acid (aa) involved in hydrogen bonds (HyB) with the aa residue listed in the first column; (b) number of hydrogen bonds in the wild-type SOX12 protein; (c) number of hydrogen bonds in the mutated SOX12 protein.
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Treccarichi, S.; Calì, F.; Vinci, M.; Ragalmuto, A.; Musumeci, A.; Federico, C.; Costanza, C.; Bottitta, M.; Greco, D.; Saccone, S.; et al. Implications of a De Novo Variant in the SOX12 Gene in a Patient with Generalized Epilepsy, Intellectual Disability, and Childhood Emotional Behavioral Disorders. Curr. Issues Mol. Biol. 2024, 46, 6407-6422. https://doi.org/10.3390/cimb46070383

AMA Style

Treccarichi S, Calì F, Vinci M, Ragalmuto A, Musumeci A, Federico C, Costanza C, Bottitta M, Greco D, Saccone S, et al. Implications of a De Novo Variant in the SOX12 Gene in a Patient with Generalized Epilepsy, Intellectual Disability, and Childhood Emotional Behavioral Disorders. Current Issues in Molecular Biology. 2024; 46(7):6407-6422. https://doi.org/10.3390/cimb46070383

Chicago/Turabian Style

Treccarichi, Simone, Francesco Calì, Mirella Vinci, Alda Ragalmuto, Antonino Musumeci, Concetta Federico, Carola Costanza, Maria Bottitta, Donatella Greco, Salvatore Saccone, and et al. 2024. "Implications of a De Novo Variant in the SOX12 Gene in a Patient with Generalized Epilepsy, Intellectual Disability, and Childhood Emotional Behavioral Disorders" Current Issues in Molecular Biology 46, no. 7: 6407-6422. https://doi.org/10.3390/cimb46070383

Article Metrics

Back to TopTop
