A Polyol-Polyol Super-Carbon-Chain Compound Containing Thirty-Six Carbon Stereocenters from the Dinoflagellate Amphidinium gibbosum: Absolute Configuration and Multi-Segment Modification

Abstract

A super-carbon-chain compound, named gibbosol C, featuring a polyoxygenated C₇₀-linear-carbon-chain backbone encompassing two acyclic polyol chains, was obtained from the South China Sea dinoflagellate Amphidinium gibbosum. Its planar structure was elucidated by extensive NMR investigations, whereas its absolute configurations, featuring the presence of 36 carbon stereocenters and 30 hydroxy groups, were successfully established by comparison of NMR data of the ozonolyzed products with those of gibbosol A, combined with J-based configuration analysis, Kishi’s universal NMR database, and the modified Mosher’s MTPA ester method. Multi-segment modification was revealed as the smart biosynthetic strategy for the dinoflagellate to create remarkable super-carbon-chain compounds with structural diversity.

1. Introduction

Marine dinoflagellates produce huge organic molecules, particularly super-carbon-chain compounds (SCCCs), which are complex natural products with numerous carbon stereocenters on a long-carbon-chain backbone [1,2,3,4]. According to the structural feature of backbones, SCCCs can be categorized into two classes, viz., polyol-polyene and polyol-polyol compounds.

To date, most reported SCCCs are polyol-polyene compounds, such as amphidinol homologs [5,6,7,8,9,10,11,12,13,14,15,16] and karlotoxin congeners [17,18,19,20,21,22], characterized by the presence of both a polyol and a polyene chain, connected by a central core containing two tetrahydropyran rings. Polyol-polyene compounds, mainly isolated from marine dinoflagellates of the genera Amphidinium and Karlodinium, exhibit antifungal, antitumor, antiosteoclastic, and analgesic effects [5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21,22]. These SCCCs can specifically bind to membrane cholesterol or ergosterol and then disrupt cell membranes without altering their integrity [23].

Polyol-polyol compounds, however, are SCCCs featuring the presence of two polyol chains connected by a central core containing tetrahydropyran rings. So far, few examples have been reported. Ostreol B, isolated from the marine dinoflagellate Ostreopsis cf. ovata, could be classified as a polyol-polyol compound, although it only contains a tetrahydropyran ring as the central core [24]. Previously, two SCCCs with activation or inhibitory effects on the expression of vascular cell adhesion molecule 1, named gibbosols A and B (Figure 1a), were obtained by our team from the South China Sea dinoflagellate Amphidinium gibbosum. After years of unremitting effort, the planar structures and absolute configurations of these SCCCs have been completely established by a combined chemical, spectroscopic, and computational approach [25]. Gibbosols A and B represent a new type of polyol-polyol SCCC. During our ongoing investigation of SCCCs from the same dinoflagellate, a minor polyol-polyol SCCC, named gibbosol C (1) (3.0 mg) (Figure 1b), was obtained by the aid of the UPLC-MS/MS technique. The structures of the C-1–C-4, C-11–C-17, and C-34–C-35 segments within the starting polyol chain of gibbosol C (1) were different from those of gibbosol A. In this work, the isolation, planar structure elucidation, and stereochemical assignment of gibbosol C (1) are reported.

2. Results and Discussion

2.1. Planar Structure and Ozonolysis of Gibbosol C (1)

The molecular formula of 1 was established as C₇₆H₁₄₂O₃₂ with six degrees of unsaturation by the positive high resolution-electrospray ionization-mass spectrometry [(+)-HR-ESI-MS)] ions at m/z 784.4814 ([M + 2H]²⁺, calcd 784.4815) and 1567.9579 ([M + H]⁺, calcd 1567.9557). According to the ¹H and ¹³C NMR data of 1 (

Table 1. ¹H (700 MHz) and ¹³C (175 MHz) NMR data for 1 in CD₃OD.

No.	δH (J in Hz)	δC, Type
1a	3.41, m	67.4, CH2
1b	3.45, m
2	3.53, m	73.6, CH
3a	1.39, m	31.9, CH2
3b	1.48, m
4a	1.32, m	34.8, CH2
4b	1.32, m
5	1.65, m f	30.5, CH
6a	1.12, m	47.1, CH2
6b	1.46, m
7	3.62, m	68.5, CH
8a	1.28, m	47.4, CH2
8b	1.43, m a
9	2.74, m	30.6, CH
10	4.92, br d (9.8) i	136.2, CH
11		133.3, qC
12	5.67, br s	130.3, CH
13		136.3, qC
14a	2.08, m	37.7, CH2
14b	2.26, m
15a	1.47, m	32.3, CH2
15b	1.74, m
16	3.42, m	75.81, CH
17	3.70, m	72.8, CH
18a	1.50, m	41.2, CH2
18b	1.67, m e
19	4.10, m	66.5, CH
20a	1.58, m b	46.9, CH2
20b	1.58, m b
21	4.09, m j	66.4, CH
22a	1.58, m b	46.9, CH2
22b	1.58, m b
23	4.12, m	66.3, CH
24a	1.54, m	41.5, CH2
24b	1.79, m
25	3.88, m	70.5, CH
26	3.37 t, (6.3)	78.8, CH
27	3.83, m	73.1, CH
28a	1.58, m b	41.0, CH2
28b	1.80, m
29	3.78, m	70.2, CH
30a	1.35, m	46.8, CH2
30b	1.43, m a
31	2.69, m	30.1, CH
32	4.92, br d (9.8) i	132.1, CH
33		135.5, CH
34a	2.04, m	37.1, CH2
34b	2.19, m
35a	1.55, m c	32.44, CH2
35b	1.69, m
36	3.44, m	74.7, CH
37	3.69, m	73.5, CH
38a	1.77, m g	37.4, CH2
38b	1.81, m
39	4.13, m	70.36, CH
40	3.46, m	74.6, CH
41	3.69, m	75.7, CH
42	4.04, m	70.06, CH
43a	1.77, m g	34.9, CH2
43b	1.98, m
44	3.67, m	70.9, CH
45	3.03, t (8.4)	77.6, CH
46	3.75, m	70.4, CH
47a	1.70, m	37.6, CH2
47b	1.88, m
48	3.93, m	73.2, CH
49a	1.38, m	32.4, CH2
49b	1.91, m
50a	1.53, m	23.4, CH2
50b	1.53, m
51a	1.52, m d	32.8, CH2
51b	1.75, m
52	3.41, m	76.5, CH
53	3.14, t (7.7)	75.2, CH
54	3.72, t (7.7)	75.1, CH
55	3.78, m	73.8, CH
56	3.60, dd (9.1, 4.9)	75.76, CH
57	4.39, m	67.7, CH
58a	1.52, m d	42.1, CH2
58b	1.85, m h
59	4.09, m j	67.1, CH
60a	1.67, m e	42.7, CH2
60b	1.85, m h
61	4.09, m	69.7, CH
62	3.24, dd (7.7, 1.4)	77.1, CH
63	3.82, m	71.9, CH
64a	1.59, m	42.2, CH2
64b	1.94, m
65	4.08, m j	68.7, CH
66a	1.55, m c	45.7, CH2
66b	1.65, m f
67	4.26, m	70.1, CH
68	5.51, ddq (14.7, 6.3, 1.4)	135.9, CH
69	5.66, m	126.4, CH
70	1.68, br d (6.3)	17.9, CH3
71	0.88, d (6.3)	19.7, CH3
72	0.96, d (6.3)	22.2, CH3
73	1.72, br s	17.6, CH3
74	1.76, br s	18.1, CH3
75	0.94, d (7.0)	22.4, CH3
76	1.68, br s	16.7, CH3

^a–j Overlapped signals assigned by ¹H–¹H COSY, HSQC, H2BC, and HMBC spectra without designating multiplicity.

), four degrees of unsaturation result from four carbon–carbon double bonds. Thus, the molecule must contain two rings. The ¹³C NMR data and the DEPT135 experiment of 1 indicated the presence of 76 carbon resonances that can be categorized as seven methyl groups, 25 methylene groups (including an oxymethylene), 41 methine groups (including 5 olefinic and 33 oxymethine groups), and three non-protonated olefinic carbons.

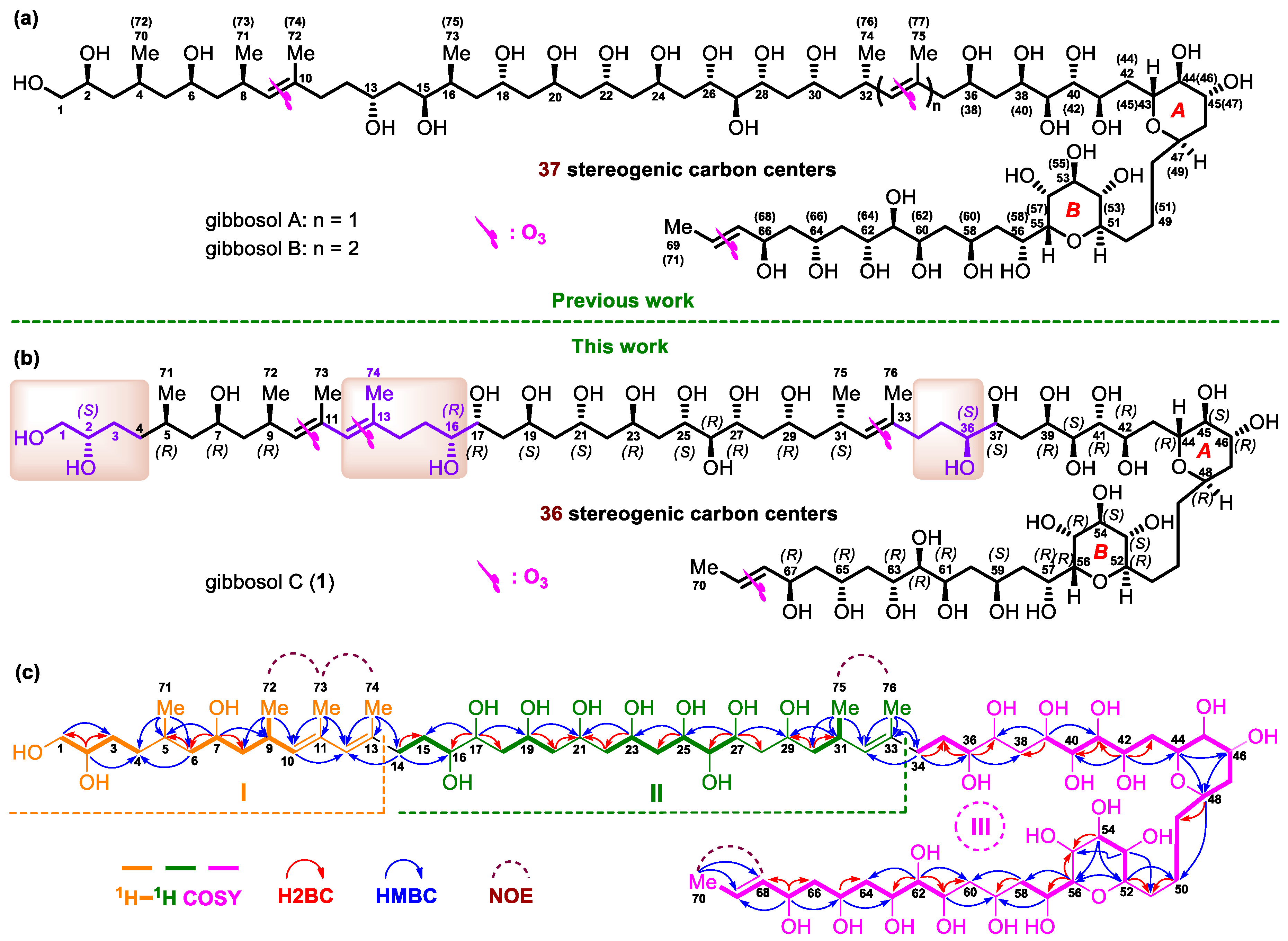

Three substructures, viz., I (from C-1 to C-13, C-71, C-72, C-73, and C-74, in orange), II (from C-14 to C-33, C-75, and C-76, in green), and III (from C-34 to C-70, in pink), were determined by analysis of key ¹H–¹H COSY, H2BC, and HMBC correlations of 1 (Figure 1c).

For substructure I, the linear connection of C-1 to C-4 was indicated by the proton spin system H₂-1–H-2–H₂-3–H₂-4, which was deduced from the corresponding ¹H–¹H COSY correlations; H2BC correlations from H-2/C-1 and H-2/C-3; and HMBC correlations from H-2/C-4 and H₂-1/C-3. Similarly, the linear connection of C-6 to C-10 and the branched connection of C-9 and C-72 were revealed by the proton spin system H₂-6–H-7–H₂-8–H-9(H₃-72)–H-10, H2BC correlations from H-7/C-6 and H-7/C-8, and HMBC correlations from H-7/C-9, H₃-72/C-8, H₃-72/C-9, and H₃-72/C-10. The linear connection of C-4 to C-6 and the branched connection of C-5 and C-71 were corroborated by the H2BC correlation from H-6/C-5 and HMBC cross-peaks from H₃-71/C-4, H₃-71/C-5, H₃-71/C-6, and H-7/C-5, whereas the linear connection of C-10 to C-13 and the branched connections from C-11/C-73 and C-13/C-74 were confirmed by HMBC cross-peaks from H-10/C-12, H₃-73/C-10, H₃-73/C-11, H₃-73/C-12, H₃-74/C-12, and H₃-74/C-13. Taken together, the planar structure of I was elucidated (Figure 1c).

For substructure II, the linear connection of C-14 to C-16 was revealed by ¹H–¹H COSY correlations between H₂-14/H₂-15 and H₂-15/H-16, H2BC correlations between H₂-14/C-15, and HMBC cross-peaks between H₂-14/C-16. Similarly, the linear connection of C-16 to C-27 was corroborated by two proton spin systems, H₂-18–H-19–H₂-20 and H₂-22–H-23–H₂-24–H-25– H-26–H-27; H2BC correlations between H-17/C-16, H-17/C-18, H-19/C-20, H₂-20/C-21, H₂-22/C-21, H-23/C-22, H-25/C-24, and H-27/C-26; and key HMBC cross-peaks between H-17/C-15, H-17/C-19, H-19/C-21, H-23/C-21, H-25/C-23, and H-27/C-25. In addition, the linear connection of C-27 to C-33 and the branched connections between C-31/C-75 and C-33/C-76 were established by ¹H–¹H COSY correlations between H₂-30/H-31 and H₃-75/H-31, H2BC correlations between H-27/C-28, H₂-30/C-29, and H₂-30/C-31, and HMBC cross-peaks between H-27/C-29, H-31/C-29, H₃-75/C-30, H₃-75/C-31, H₃-75/C-32, H₃-76/C-32, and H₃-76/C-33. Taken together, the planar structure of II was assigned (Figure 1c).

For substructure III, the linear connection of C-34 to C-70 was undoubtedly elucidated by ¹H–¹H COSY, H2BC, and HMBC correlations (Figure 1c). The linear connection of C-34 to C-36 was revealed by ¹H–¹H COSY correlations from H₂-34/H₂-35 and H₂-35/H-36, H2BC correlations from H₂-34/C-35 and H-36/C-35, and HMBC cross-peaks from H₂-34/C-36. The linear connections of C-39 to C-50, C-52 to C-54, C-56 to C-58, and C-61 to C-70 were confirmed by four proton spin systems, viz., H-39–H-40–H-41–H-42–H₂-43–H-44–H-45–H-46–H₂-47–H-48–H₂-49–H₂-50, H-52–H-53–H-54, H-56–H-57–H₂-58, and H-61–H-62–H-63–H₂-64–H-65–H₂-66–H-67–H-68–H-69–H₃-70; H2BC correlations from H-41/C-40, H-42/C-41, H-42/C-43, H-48/C-49, H-56/C-57, H-62/C-61, H-62/C-63, H-65/C-64, H-67/C-66, and H-67/C-68; and HMBC cross-peaks from H-39/C-41, H-42/C-40, H-42/C-44, H-44/C-46, H-46/C-48, H-48/C-50, H-54/C-52, H-56/C-58, H-62/C-64, H-65/C-63, H-67/C-65, H-67/C-69, H₃-70/C-68, and H₃-70/C-69. The linear connections of C-37 to C39, C-50 to C52, C-54 to C56, and C-58 to C-61 were resolved by H2BC correlations from H-39/C-38, H₂-50/C-51, H-52/C-51, H-54/C-55, H-56/C-55, H₂-58/C-59, and H-61/C-60 and crucial HMBC correlations from H-39/C-37, H-52/C-50, H-53/C-51, H-53/C-55, H-54/C-56, H-57/C-59, H₂-58/C-60, H-61/C-59, and H-62/C-60 (Figure 1c)

The presence of two tetrahydropyran moieties in III was indicated by isotope shift experiments, measured in both CD₃OD and CD₃OH [26]. Four oxymethine carbons involved in ether linkage, viz., C-44 (δ 70.9), C-48 (δ 73.2), C-52(δ 76.5), and C-56 (δ 75.76), did not exhibit a deuterium-induced isotope shift. The presence of ether bridges between C-44/C-48 and C-52/C-56, respectively, was further supported by HMBC cross-peaks from H-44/C-48 and H-52/C-56. Taken together, the backbone of III was assembled (Figure 1c).

Finally, crucial HMBC cross-peaks from H₃-74/C-14 and H₂-14/C-12 confirmed the connection between I and II through C-13−C-14, whereas the correlations from H₃-76/C-34, H₂-34/C-32, and H₂-34/C-33 revealed the connection between II and III through C-33−C-34. The large value of ³J_H-68,H-69 (14.7 Hz) and NOE correlations from H₃-72/H₃-73, H-10/H-12, H₃-75/H₃-76, H-32/H₂-34, and H₃-70/H-68 concluded that the geometries of the four carbon–carbon double bonds in 1, viz., C10═C11, C12═C13, C32═C33, and C68═C69, were all E-configured. Based on the above results, the planar structure of 1, containing 30 hydroxy groups and six pendant methyl moieties, was successfully established (Figure 1c).

Due to the heavy overlap of the ¹H and ¹³C NMR signals of 1, the relative configurations of its stereogenic carbons could not be determined based on various 1D and 2D NMR data of the intact 1. Comparison of the planar structure of 1 with that of gibbosol A (Figure 1) revealed that the structures of the C-5–C-11, C-17–C-33, and C-37–C-70 segments in 1 are the same as those of the C-4–C-10, C-18–C-34, and C-36–C-69 segments in gibbosol A, respectively. Based on the same biosynthetic machinery, the absolute configurations of the corresponding segments above should be identical. With detailed NMR data of three ozonolyzed products of gibbosol A (viz., gAa–c, Figure 2a) at hand [25], ozonolysis reaction was carried out for 1 to obtain the corresponding NMR data for comparison. As a result, O₃/NaBH₄-mediated cleavage of the carbon–carbon double bonds of 1 afforded three main fragments, viz., 1a, 1b, and 1c (Figure 2b, Tables S1–S3). Both 1b and 1c were obtained as epimeric pairs at C-13 and C-33, respectively.

2.2. Relative and Absolute Configurations of Gibbosol C (1)

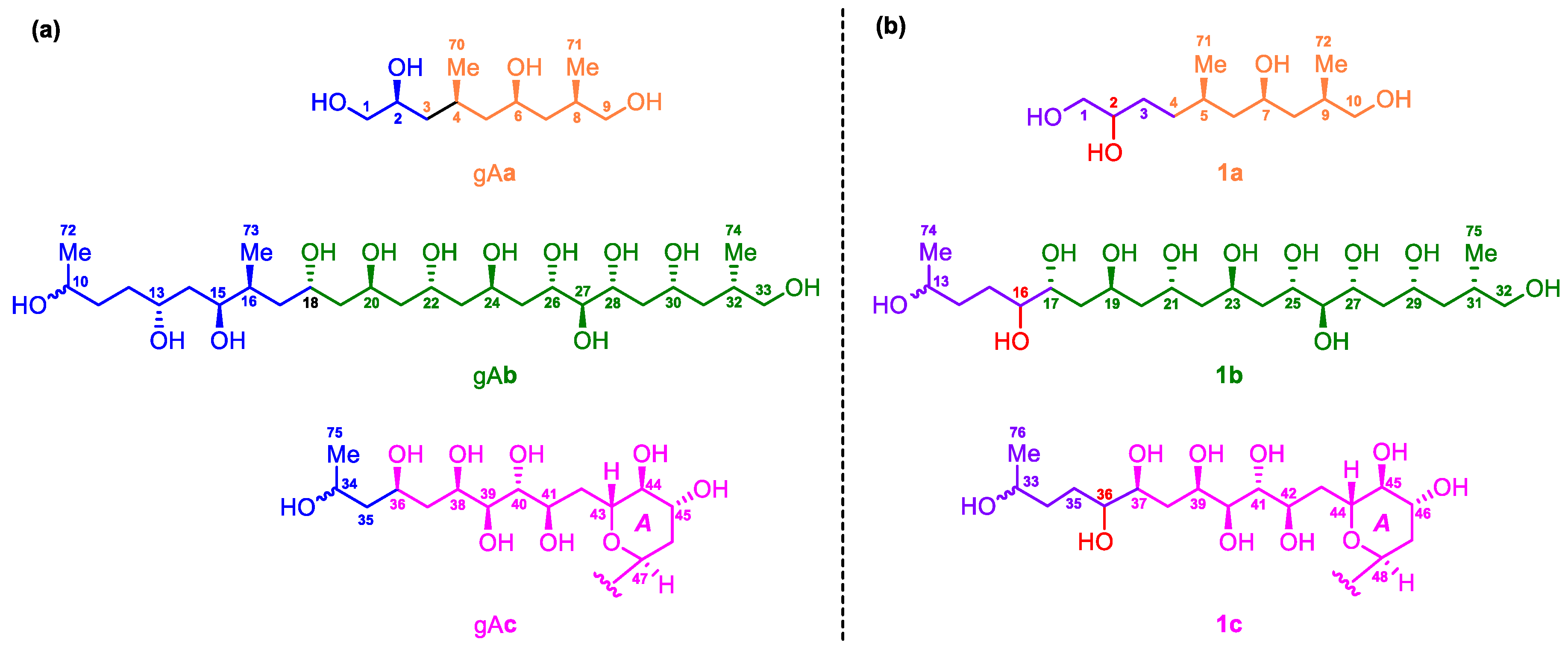

Because gibbosols A and C were produced by the same marine dinoflagellate, the common biosynthetic origins of the two SCCCs should lead to identical absolute configurations of the corresponding segments in the three main pairs of the ozonolyzed fragments above. Detailed analysis of the NMR data led to the conclusion that the relative configurations of 1a, 1b, and 1c were similar to those of gAa, gAb, and gAc, respectively, except for the insertion of an additional methylene group between C-2 and C-4 in 1a, the presence of an additional 16-OH group in 1b and an additional 36-OH group in 1c, and the absence of the 13,15-diol and 16-Me (Me-73 in gAb) groups in 1b (Figure 2). Coincidentally, all these modifications appear on the starting segments within three ozonolyzed products of gibbosol A [25].

For the C-5−C-7 segment of 1a, J-based configuration analysis (JBCA) [27,28] was used (Figure 3a). ³J_H,H values were measured by 2D J-resolved spectroscopy (2D JRES), whereas ^2,3J_C,H values were obtained by the HETLOC experiment. The anti orientations between H-5/H-6a and H-7/H-6b were assigned by the large values of ³J_H-5,H-6a (10.1 Hz) and ³J_H-7,H-6b (9.5 Hz), respectively, whereas the gauche orientations between H-5/H-6b and H-7/H-6a were proved by the small values of ³J_H-5,H-6b (3.9 Hz) and ³J_H-7,H-6a (3.3 Hz), respectively. The anti orientations between C-4/H-6b and 7-OH/H-6a were deduced from the large value of ³J_C-4,H-6b (6.8 Hz) and the small value of ²J_C-7,H-6a (−1.9 Hz), respectively. The gauche orientations between C-71/H-6a, C-71/H-6b, C-4/H-6a, C-8/H-6a, C-8/H-6b, and 7-OH/H-6b were established by the small values of ³J_C-71,H-6a (3.0 Hz), ³J_C-71,H-6b (2.8 Hz), ³J_C-4,H-6a (1.3 Hz), ³J_C-8,H-6a (2.4 Hz), and ³J_C-8,H-6b (2.8 Hz) and the large value of ²J_C-7,H-6b (−6.6 Hz), respectively. Thus, the relative configuration between Me-71/7-OH in 1a was concluded to be syn (Figure 3a).

The intermediate values of ³J_H-7,H-8a (7.6 Hz) and ³J_H-7,H-8b (5.2 Hz) indicated two interconverting conformations for both H-7/H-8a and H-7/H-8b. Similarly, those of ²J_C-7,H-8b (−3.1 Hz) and ³J_C-6,H-8a (3.6 Hz) suggested two alternating conformations for both 7-OH/H-8b and C-6/H-8a. The large value of ²J_C-7,H-8a (−6.1 Hz) and the small value of ³J_C-6,H-8b (1.1 Hz) revealed that both 7-OH/H-8a and C-6/H-8b remained in gauche orientations. Thus, two alternating conformers were assigned for the C-7−C-8 segment (Figure S1). Similarly, the intermediate values of ³J_H-9,H-8a (6.2 Hz) and ³J_H-9,H-8b (7.2 Hz) indicated two interconverting conformations for both H-9/H-8a and H-9/H-8b. Those of ³J_C-72,H-8b (4.2 Hz) and ³J_C-10,H-8a (3.3 Hz) suggested two alternating conformations for both C-72/H-8b and C-10/H-8a. The small values of ³J_C-72,H-8a (1.8 Hz) and ³J_C-10,H-8b (2.3 Hz) revealed that both C-72/H-8a and C-10/H-8b were in gauche orientations. Therefore, two alternating conformers were assigned for the C-8−C-9 segment. Based on the results above, the relative configuration between 7-OH/Me-72 was determined as syn (Figure 3a).

To determine the absolute configurations of C-2, C-7, and C-9 in 1a, the modified Mosher’s MTPA method was used. Through a comparison of the sign of Δδ^SR values between 1as/1ar, the absolute configurations of C-2 and C-7 in 1a were determined to be S and R (Figure 3b), respectively [29]. In addition, the absolute configuration of C-9 was assigned as R by the widely separated H₂-10 signals of 1ar (δ 4.29, 4.18) when compared with those of 1as (δ 4.18, 4.13) [30,31]. Based on this syn relationship between Me-71 and 7-OH, the absolute configuration of C-5 in 1a was established as R. Therefore, the absolute configurations of the stereogenic carbons in 1a were established as 2S,5R,7R,9R (Figure 3b), which are the same as those in gAa.

Based on Kishi’s universal NMR database, the relative configurations of the C-17−C-25 segment in 1b were assigned as (anti/anti/anti/anti), the same as those of the C-18−C-26 segment in gAb (Figure 2) [25], by chemical shifts of three central carbons of the consecutive 1,3,5-triol moieties, viz., C-19 (δ 66.5), C-21 (δ 66.4), and C-23 (δ 66.4) [32,33].

To establish the relative configuration between 16-OH and 17-OH, JBCA [27,28] was used. ^2,3J_C,H values were obtained by both the HETLOC and HECADE experiments (Figure 4a). Though the observed ³J_H-16,H-17, ²J_C-16,H-17, and ²J_C-17,H-16 values fell into the intermediate range, implying interconversion between two conformers, the gauche orientations between C-18/H-16 and C-15/H-17 were undoubtedly determined by the small values of ³J_C-18,H-16 (1.6 Hz from HETLOC and 1.7 Hz from HECADE) and ³J_C-15,H-17 (2.3 Hz from HETLOC and 2.5 Hz from HECADE). Accordingly, the relationship between 16-OH and 17-OH was concluded to be syn (Figure 4a).

For the C-36−C-37 segment, the gauche orientation between H-36 and H-37 was supported by the small value of ³J_H-36,H-37 (2.7 Hz). The gauche orientations between C-38 and H-36 and between C-35 and H-37 were revealed by the small values of ³J_C-38,H-36 (1.1 Hz) and ³J_C-35,H-37 (2.3 Hz), while the anti orientations between 36-OH and H-37 and between 37-OH and H-36 were deduced from the small values of ²J_C-36,H-37 (1.2 Hz) and ²J_C-37,H-36 (0.4 Hz). Therefore, the relationship between 36-OH and 37-OH was concluded to be syn (Figure 4b).

The relative configurations of the C-37–C-39 segment in 1c were determined to be the same as that of the C-36–C-38 segment of gAc by JBCA [27,28] (Figure 4b). For the C-37−C-38 segment, the gauche orientation between H-37 and H-38a was determined by the small value of ³J_H-37,H-38a (4.0 Hz), while the anti orientation between H-37 and H-38b was assigned by the large value of ³J_H-37,H-38b (9.3 Hz). Similarly, the anti orientation between 37-OH and H-38a was established by the small value of ²J_C-37,H-38a (−1.9 Hz), whereas the gauche orientation between 37-OH and H-38b was established by the large value of ²J_C-37,H-38b (−5.5 Hz). In addition, the gauche orientations between C-36 and H-38a and between C-36 and H-38b were suggested by the small values of ³J_C-36,H-38a (1.1 Hz) and ³J_C-36,H-38b (2.3 Hz), respectively. For the C-38−C-39 segment, the intermediate values of ³J_H-39,H-38a (5.6 Hz) and ³J_H-39,H-38b (7.2 Hz) indicated two interconverting conformations for both H-39/H-38a and H-39/H-38b. Similarly, those of ²J_C-39,H-38a (−3.7 Hz) and ³J_C-40,H-38b (3.4 Hz) suggested two alternating configurations for both 39-OH/H-38a and C-40/H-38b. The gauche orientations between 39-OH/H-38b and C-40/H-38a were deduced from the large value of ²J_C-39,H-38b (−5.3 Hz) and the small value of ³J_C-40,H-38a (1.0 Hz). Accordingly, the relationship between 37-OH and 39-OH was concluded to be syn. Finally, the relative configurations of the C-36−C-39 segment in 1c were concluded to be syn/syn (Figure 4b).

Furthermore, the relative configurations of the C-39−C-42 segment in 1c were assigned as syn/anti/anti (Table S1), the same as those of the C-38−C-41 segment in gAc [25], on the basis of Kishi’s universal NMR database [27,28].

Based on the absolute configurations of the C-17–C-25 and C-37–C-42 segments of 1, viz., 17R,19S,21S,23R,25S and 37S,39R,40S,41R,42R, which were deduced from those of the corresponding segments of gibbosol A, the absolute configurations of C-16 in 1b and of C-37 in 1c were assigned as R and S, respectively. In summary, the absolute configurations of 36 stereogenic carbons in gibbosol C (1) were established as 2S, 5R, 7R, 9R, 16R, 17R, 19S, 21S, 23R, 25S, 26R, 27R, 29R, 31S, 36S, 37S, 39R, 40S, 41R, 42R, 44R, 45S, 46R, 48R, 52R, 53S, 54S, 55R, 56R, 57R, 59S, 61R, 62R, 63R, 65R, and 67R (Figure 1b).

In the pathogenesis of atherosclerosis, vascular cell adhesion molecule 1 (VCAM-1) and intercellular adhesion molecule 1 (ICAM-1) promote the accumulation of macrophages within the intima, leading to formation of the atherosclerotic lesion [34,35,36]. The above two adhesion molecules, particularly VCAM-1, have been considered as potential therapeutic targets for anti-atherogenic drug development [37]. It is important to find promising VCAM-1 inhibitors from natural products. Thus, the effects of gibbosol C (1) on VCAM-1 and ICAM-1 in human umbilical vein endothelial cells were investigated according to previous procedures [25]. At the concentration range of 10.0 and 100.0 μg/mL, gibbosol C (1) showed no obvious activities on VCAM-1 and ICAM-1 expression (Figure S1), whereas gibbosol A displayed remarkable activation effects on VCAM-1 expression. On the contrary, gibbosol B exhibited marked inhibitory activities on VCAM-1 expression [25].

The co-isolation of gibbosols A–C enabled us to summarize their structural features, which may shed light on the biosynthesis of these polyol-polyol SCCCs. The 13 carbon central cores (C-43–C-55); the C-4–C-10, C-18–C-34, and C-36–C-42 segments of the starting polyol chain; and the whole terminal polyol chain (C-56–C-69) of gibbosol A are quite conserved, whereas other segments of the starting polyol chain are variable. Diverse modification patterns, such as insertion, substitution, oxidation, and reduction, appear on the C-1–C-4, C-11–C-17, or C-34–C-35 segment of the starting polyol chain of gibbosol A. In other words, multi-segment modification on the starting polyol chain is the biosynthetic strategy for the generation of gibbosol C (1).

In addition, glycolate should be the starter unit in the biosynthesis of gibbosols A–C [38]. Though acetate labeling patterns of some polyol-polyene SCCCs, such as amphidinols A [38], 4 [2,39], and 17 [39,40], have been reported, no enzymatic mechanisms involved in the biosynthesis of these SCCCs have been uncovered so far [38,39,40,41]. Of course, the acetate labeling patterns of gibbosols A–C are worthy of further investigation in future.

3. Materials and Methods

3.1. General Experimental Procedures

HR-ESI-MS was obtained on a Bruker maXis ESI-QTOF mass spectrometer (Bruker Daltonics, Bremen, Germany) in the positive-ion mode. LR-ESI-MS was recorded on a Bruker amaZon SL mass spectrometer (Bruker Daltonics, Bremen, Germany) in both the positive- and negative-ion modes. One- and two-dimensional NMR spectra were measured on a Bruker AV-700 MHz NMR spectrometer (Bruker Scientific Technology Co. Ltd., Karlsruhe, Germany). UV spectra were recorded on a UV-2600 UV-Vis spectrophotometer (SHIMADZU, Kyoto, Japan) and optical rotations determined on an MCP 500 modular circular polarimeter (Anton Paar GmbH, Seelze, Germany) with a 1.0 cm cell at 25 °C. Preparative HPLC was performed on a Waters 2535 pump equipped with a YMC C₁₈ reversed-phase column (250 × 10 mm i.d., 5 μm, Kyoto, Japan) and a 2998 photodiode array detector coupled with a 2424 evaporative light scattering detector (Waters Corporation, Milford, NY, USA). For column chromatography, silica gel (100–200 mesh, Qingdao Mar. Chem. Ind. Co. Ltd., Qingdao, China) and C₁₈ reversed-phase silica gel (ODS-A-HG 12 nm, 50 µm, YMC, Kyoto, Japan) were employed.

3.2. Isolation of the Dinoflagellate and the Large-Scale Culture

The isolation and culture of the marine dinoflagellate Amphidinium gibbosum was described in our previous publication [25].

3.3. Isolation of Gibbosol C (1)

The filtrate of the culture medium (1200 L) was loaded onto a macroporous resin column (DIAION, HP-20, 120 cm × 15 cm i.d.), eluted with freshwater to remove sea salt. The loaded sample was successively eluted with 25%, 50%, 75%, and 95% aqueous ethanol. All the eluates were concentrated under reduced pressure to afford the resultant solid (5.5 g), which was separated by a C₁₈ reversed-phase column (60 × 5 cm i.d.), eluted with an aqueous methanol solution (10% to 100%) to yield 83 fractions. UPLC-MS (Waters ACQUITY UPLC BEH C₁₈ 150 × 2.1 mm i.d., 1.7 μm, MeCN/H₂O, from 5:95 to 98:2) was used for the detection of super-carbon-chain compounds in these fractions. Fractions 62 and 63 (23.6 mg) were combined and purified by HPLC (YMC-Pack 250 × 4.6 mm i. d., MeCN/H₂O, 21:79) to give 1 (3.2 mg, t_R = 60.5 min).

Gibbosol C (1): Colorless solid, ${\left[a\right]}_{\mathrm{D}}^{25}$ = + 9.3 (c = 0.08, methanol); UV (MeCN) λ_max (log ε) 203.6 (3.9), 230.2 (3.6) nm; for ¹H and ¹³C NMR spectroscopic data, see Table 1; HR-ESI-MS m/z [M + 2H]²⁺ (calcd for C₇₆H₁₄₄O₃₂, 784.4814, found 784.4815) and [M + H]⁺ (calcd for C₇₆H₁₄₃O₃₂, 1567.9579, found 1567.9557).

3.4. Ozonolysis

Gibbosol C (1) (3.0 mg, 0.002 mM) was dissolved in a mixture of CH₂Cl₂–MeOH (1:1, each 2 mL). Ozone was bubbled into the above solution at –78 °C for 2 min. An excess amount of NaBH₄ was then added and stirred at –78 °C for 3 h. The reaction mixture was purified by a C₁₈ reversed-phase silica gel column (Daisogel, SP-120-50-ODS-B, 3 g, 5.0 cm × 1.0 cm i.d.), eluted with 10 mL of water followed by 15 mL of MeOH, to afford three fractions. The second fraction was purified by HPLC (Cosmosil, HILIC, 250 × 4.6 mm i. d., MeCN/H₂O, 90:10−50:50) to afford three products, viz., fragments 1a (0.4 mg, t_R = 4.9 min), 1b (0.9 mg, t_R = 50.8 min), and 1c (1.3 mg, t_R = 72.7 min) (Figure 2).

1a: For ¹H and ¹³C NMR spectroscopic data, see Table S2; LR-ESI-MS m/z 257.6 [M + Na]⁺ and 491.6 [2M + Na]⁺.

1b: For ¹H and ¹³C NMR spectroscopic data, see Table S3; LR-ESI-MS m/z 487.6 [M + H]⁺ and 509.5 [M + Na]⁺.

1c: For ¹H and ¹³C NMR spectroscopic data, see Table S4; LR-ESI-MS m/z 869.4 [M + H]⁺ and 891.3 [M + Na]⁺.

3.5. Mosher’s MTPA Esters 1as and 1ar

The fragment 1a (0.3 mg) was treated with (R)-MTPACl (8.0 μL) in dried pyridine (0.8 mL) at room temperature for 10 h. The reaction mixture was concentrated and purified by HPLC (YMC-Pack 250 cm × 4.6 mm i.d., MeCN/H₂O, 92:8) to afford the (S)-MTPA ester 1as (1.1 mg). The (R)-MTPA ester 1ar (1.0 mg) was prepared in the same way. With the aid of key ¹H–¹H COSY correlations, ¹H NMR spectroscopic data of 1as and 1ar were assigned (Table S5).

1as: For ¹H NMR spectroscopic data, see Table S5; LR-ESI-MS m/z 1116.4 [M + NH₄]⁺ and 1121.2 [M + Na]⁺.

1ar: For ¹H NMR spectroscopic data, see Table S5; LR-ESI-MS m/z 1116.4 [M + NH₄]⁺ and 1121.3 [M + Na]⁺.

4. Conclusions

In summary, a new polyol-polyol SCCC, named gibbosol C, was isolated from the South China Sea dinoflagellate A. gibbosum. Its planar structure and absolute configurations, featuring the presence of 36 carbon stereocenters and 30 hydroxy groups, were successfully established by extensive NMR investigations, ozonolysis of the carbon–carbon double bonds, J-based configuration analysis, Kishi’s universal NMR database, the modified Mosher’s MTPA ester method, and comparison of the NMR data of the ozonolyzed products with those of gibbosol A. Multi-segment modification seems to be the smart biosynthetic strategy for the dinoflagellate to create remarkable SCCCs with diverse structures. Marine dinoflagellates of the genus Amphidinium harbor novel and complex SCCC biosynthetic routes. New integrated chemical, spectroscopic, and computational approaches or intelligent databases should be developed to cope with the stereochemical complexity of SCCCs. Evidently, specific carbon–carbon bond cleavages are an important means for the determination of the relative and absolute configurations of polyol-polyol SCCCs in the future.
