Article

Sponge-Derived 24-Homoscalaranes as Potent Anti-Inflammatory Agents

1
Doctoral Degree Program in Marine Biotechnology, National Sun Yat-Sen University, Kaohsiung 804201, Taiwan
2
Doctoral Degree Program in Marine Biotechnology, Academia Sinica, Taipei 115201, Taiwan
3
National Museum of Marine Biology and Aquarium, Pingtung 944401, Taiwan
4
Graduate Institute of Pharmacognosy, College of Pharmacy, Taipei Medical University, Taipei 110301, Taiwan
5
Research Center for Chinese Herbal Medicine, College of Human Ecology, Chang Gung University of Science and Technology, Taoyuan 333324, Taiwan
6
Department of Marine Biotechnology and Resources, National Sun Yat-Sen University, Kaohsiung 804201, Taiwan
7
Graduate Institute of Marine Biology, National Dong Hwa University, Pingtung 944401, Taiwan
8
Department of Marine Recreation, National Penghu University of Science and Technology, Penghu 880011, Taiwan
9
Department of Cosmetic Science, Providence University, Taichung 433303, Taiwan
10
Institute of Chemistry, Academia Sinica, Taipei 115201, Taiwan
11
Chinese Medicine Research and Development Center, China Medical University Hospital, Taichung 404333, Taiwan
12
Graduate Institute of Natural Products, Kaohsiung Medical University, Kaohsiung 807377, Taiwan
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2020, 18(9), 434; https://doi.org/10.3390/md18090434
Submission received: 8 July 2020 / Revised: 12 August 2020 / Accepted: 14 August 2020 / Published: 19 August 2020
(This article belongs to the Special Issue Marine Compounds and Inflammation II)

Abstract

:
Scalarane-type sesterterpenoids are known for their therapeutic potential in cancer treatments. However, the anti-inflammatory properties of this class of metabolites remain elusive. Our current work aimed to investigate the anti-inflammatory scalaranes from marine sponge Lendenfeldia sp., resulting in the isolation of six new 24-homoscalaranes, lendenfeldaranes E–J (16). The structures of the new metabolites were determined by extensive spectroscopic analyses, and the absolute configuration of 1 was established by electronic circular dichroism (ECD) calculations. Compounds 2 and 3 were discovered to individually reduce the generation of superoxide anions, and compound 1 displayed an inhibitor effect on the release of elastase. These three compounds were proven to be the first anti-neutrophilic scalaranes.

1. Introduction

The marine sponges of genus Lendenfeldia have been studied for decades since first being reported in 1982 [1]. Further investigation of this genus revealed more than 50 compounds categorized into scalarane-type sesterterpenoids [1,2,3,4,5], other types of sesterterpenoids [4], amino acids [6], steroids [7,8], iminosugars [9], naphthalenes [10], lipid [10,11], and diphenyl ethers [12]. Our group has extensively studied scalarane-type sesterterpenoids over the past few years and has found that they demonstrate a wide structural diversity [5,13,14,15,16]. This class of compounds possesses a pentamethyl-D-homoandrostane skeleton. Alkylated scalaranes are usually known as homoscalarane, exhibiting methylation at C-20 or C-24. In the current report, we summarize a series of structural classification for scalaranes from the Lendenfeldia sp. sponge. In detail, a normal 25-carbon scalarane represents the basic type of scalarane, while the 26-carbon ones can be further sorted into tetra- and pentacyclic homoscalarane groups. Nor-homoscalaranes were characterized with a missing methyl at position 18 and bishomoscalaranes are defined for the scalaranes with a pair of methylations at both C-20 and C-24. Additionally, it is noteworthy that most of them present a different oxidation in positions C-12, C-16, C-22, C-24, and C-25 [17]. The biological properties of scalarane-type sesterterpenoids were extensively studied with special emphasis on cytotoxic and anti-proliferative properties [5]. For instance, the scalaranes isolated from sponges of Hyrtios, Hippospongia, Lendenfeldia, Phyllospongia, and Psammocinia genus were examined to show potent cytotoxicity against A498, ACHN, MIA-paca, PANC-1, CV-1, molt-4, K562, DLD-1, HCT-116, and T-47D cancer cell lines at low concentrations (< 4 μM) [5,15,18]. The previous pharmacological studies on scalaranes have also revealed several possible anti-proliferative mechanisms, including the inhibition of Hsp90 and topoisomerase II [16], and the binding of DNA [19]. In addition, these sesterterpenoids were also reported to exhibit other pharmacological activities, such as anti-microbial, anti-fungal, anti-viral, and so on [16]. However, only few studies have explored the anti-inflammatory activity of this class of metabolites. A sponge-derived scalarane, named deacetylphylloketa, was reported to exhibit anti-inflammatory activity by regulating the expression levels of pro-inflammatory factors (TNF-α, IL-6, and IL-1β) and anti-inflammatory factors (Nrf-2 and HO-1). It could downregulate the expressions of iNOS and COX-2, as well as attenuate nuclear translocation of NF-κB [20]. Recently, we focused our ongoing studies on a marine sponge identified as Lendenfeldia sp. From the result of our studies on this species, we report herein the isolation, structural determination, and bioactivity of six new 24-homoscalaranes, lendenfeldaranes E–J (16) (Figure 1). Moreover, the extensive biological screening suggested the isolates significantly inhibited superoxide anion generation and elastase release in neutrophils responding to N-formyl-methionyl-leucyl-phenylalanine (fMLF).

2. Results and Discussion

Specimens of the marine sponge Lendenfeldia sp. were collected by hand by self-contained underwater breathing apparatus (scuba) diving off the coast of Southern Taiwan in 2012, and stored frozen at −20 °C until extraction. The frozen sponge was minced and extracted with ethyl acetate (EtOAc). The fractionation of the EtOAc-soluble extract led to the production of 11 fractions A–K. Fractions I and J were further purified by normal-phase and reversed-phase HPLC to afford scalaranes 16.
Lendenfeldarane E (1), isolated as an amorphous powder, has a molecular formula of C27H44O4 as determined from its (+)-HRESIMS at m/z 455.31340 (calcd. for C27H44O4 + Na, 455.31318) implying 6 degrees of unsaturation. The IR spectrum showed absorptions for OH (3438 cm−1) and C=O (1701 cm−1) functionalities. The 1H NMR data (Table 1) demonstrated five tertiary methyls at δH 0.82, 0.85, 0.86, 1.07, and 1.36 (each 3H × s); one secondary methyl at δH 1.40 (3H, d, J = 6.0 Hz); one methoxy at δH 3.30 (3H, s); as well as three oxymethine protons at 3.43 (1H, ddd, J = 10.4, 10.4, 4.4 Hz), 3.84 (1H, qd, J = 6.0, 2.4 Hz), and 5.35 (1H, d, J = 4.0 Hz). The 13C NMR (Table 1), heteronuclear single quantum correlation (HSQC), and distortionless enhancement by polarization transfer (DEPT) spectra revealed in total 27 carbon signals including a few oxygenated ones, such as a ketone (δC 215.3), a ketal carbon (δC 104.8), and two oxymethine carbons (δC 74.8 and 78.7).
After the detailed analysis of above NMR data, one degree of unsaturation (ketone) was found to form a part of total. Then the rest of the five unsaturated degrees obscured a pentacyclic homoscalarane. This inference can be further confirmed from the heteronuclear multiple bond correlation (HMBC) (Figure 2) of H3-19 to C-3, C-4, C-5, and C-20; H3-21 to C-7, C-8, C-9, and C-14; H3-22 to C-1, C-5, C-9, and C-10; H3-23 to C-12, C-13, C-14, and C-18; H-24 to C-16, C-17, C-18, and C-25; H3-26 to C-17 and C-24; 25-methoxy to C-25, and further confirmed by the 1H–1H correlation spectroscopy (COSY) (Figure 2). Thus, it indicated that compound 1 is a 6/6/6/6/5 pentacyclic scalarane sesterterpene, having a 2-methoxy-5-methyltetrahydrofuran. A detailed analysis of these NMR data with those of a known metabolite, felixin E (7) [14], suggested that the structure of 1 is closely related to that of 7, with the only difference being an α-hydroxy group at C-25 in 7 replaced by an α-methoxy group in 1 [14]. All naturally occurring scalarane sesterterpenoids displayed the H-5 trans to Me-22, assigned as α- and β-orientation, respectively [17]. Then, the relative stereochemistry of 1 was established by nuclear Overhauser effect spectroscopy (NOESY) spectral analysis. The NOESY experimental data (Figure 3) demonstrated the correlations H3-22/H3-20, H3-22/H3-21, H3-21/ H3-23, H3-23/H-17, H3-23/H-25, H-5/H-9, H-9/H-14, H-14/16, H-14/H-18, and H-16/H-24, supporting the β-Me-20, β-Me-21, β-Me-23, β-H-17, α-OMe-25, α-H-9, α-H-14, β-OH-16, α-H-18, and β-Me-26 assignments. The aforementioned results enabled the establishment of the relative configuration of 1. Based on the above findings; the configurations of stereogenic carbons of 1 were determined as 5S*, 8R*,9S*,10R*,13S*,14S*,16S*,17S*,18S*,24S*, and 25R*. To further determine the absolute configuration of 1, the electronic circular dichroism (ECD) calculations for the enantiomers of 1, including 1a (5S,8R,9S,10R,13S,14S,16S,17S,18S,24S, and 25R) and 1b (5R,8S,9R,10S,13R,14R,16R,17R, 18R,24R, and 25S) were performed using the method at the B3LYP/6-31þG* level with Gaussian 9.0 software (Figure 4). By comparison of the experimental and calculated ECD spectra, the result of compound 1 was in good agreement with that of 1a, inferring the 5S,8R,9S,10R,13S,14S,16S,17S,18S, 24S, and 25R configurations. Hence, the structure, including the absolute configuration of lendenfeldarane E (1) was unambiguously assigned as shown in Figure 1 and Figure 3 (Supplementary Materials, Figures S1–S8).
Lendenfeldarane F (2), an amorphous powder, showed the molecular formula C29H46O6 determined by (+)-HRESIMS and 13C NMR data, implying seven unsaturated degrees. The IR spectra indicated the presence of OH (3451 cm−1), ester carbonyl (1731 cm−1), and C=O (1700 cm−1) functional groups. The 1H, 13C, DEPT, and HSQC spectra (Table 1) displayed seven methyls, one oxymethylene, two oxymethines, one ester carbonyl, one ketone, and one ketal carbon, representing two unsaturated calculations. Thus, the above NMR data and the rest of the five unsaturated degrees of 2 implied a pentacyclic homoscalarane. The NMR data of 2 resembled those of 1 with the exception of an additional oxymethylene signal (δC 64.6; δH 4.19, 1H, dd, J = 12.4, 1.6 Hz; 4.65, 1H, d, J = 12.4 Hz, CH2-22), and an acetoxy group (δH 2.04, 3H, s; δC 170.7, C; 21.1, CH3). An ethyl acetate substitution at position 10 can be deduced by HMBC cross-peaks from H2-22 to C-1, C-5, C-9, C-10, and acetate carbonyl. The stereochemical configuration was identical to that of other scalarane sesterterpenes based on the NOESY cross-correlations at H3-22/H3-20, H2-22/H3-21, H3-21/H3-23, H3-23/H-25, H-5/H-9, H-9/H-14, H-14/16, H-14/H-18, and H-16/H-24 (Figure 3). Based on the above findings, the configurations of stereogenic carbons of 2 were determined to be 5S*,8R*,9S*,10R*,13S*,14S*,16S*, 17S*,18S*,24S*, and 25R*. As 24-homoscalaranes 26 were isolated along with 1 from the same target organism, it is reasonable on biogenetic grounds to assume that 26 have the same absolute configurations as that of 1. Therefore, the configurations of stereogenic centers of 2 were determined as 5S,8R,9S,10R,13S,14S,16S,17S,18S,24S, and 25R (Supplementary Materials, Figures S9–S16).
Compound 3 (lendenfeldarane G) was obtained as an amorphous powder. Its molecular formula was determined to be C29H48O6 by (+)-HRESIMS with six degrees of unsaturation. The IR spectra indicated the presence of OH (3462 cm−1) and ester carbonyl (1729 cm−1) functionalities. 1D and 2D NMR data disclosed a 6/6/6/6/5 pentacyclic skeleton, which was closely related to compound 2. The only difference between these two compounds was a reductive substitution at C-12 in 3. Comparing the 1H and 13C NMR data (Table 2) of 3 with those of 2 showed an extra oxymethine signal (δC 72.0; δH 3.57, 1H, br s, CH-12) and the 12-ketonic group was absent in 3. Moreover, the substitution with -OH at position 12 can also be confirmed by HMBC (Figure 2) from H3-23 (δH 0.93, 3H, s) to C-12 (δC 72.0), as well the COSY correlation (Figure 2) H2-11/H-12. The configuration of 3 was confirmed to be unanimous as that of 2. The NOESY correlations from H3-23 to H-12 supported an S assignment of oxymethine carbon at C-12, then established the structure illumination of lendenfeldarane G (Supplementary Materials, Figures S17–S24).
Lendenfeldarane H (4) was also obtained as an amorphous powder. The (+)-HRESIMS (m/z 501.31879, calculated for C28H46O6 + Na, 501.31866) and NMR data of 4 indicated a molecular formula C28H46O6 with six degrees of unsaturation. The IR spectra revealed the presence of OH (3292 cm−1) and ester carbonyl (1740 cm−1) groups. Based on the analysis of the NMR spectra between 3 and 4 (Table 2), a missing methoxy group signal was found, together with different assignments at position 25 (4: δH 5.35, 1H, dd, J = 6.8, 3.2 Hz/δC 96.5; 3: δH 4.85, 1H, d, J = 6.4 Hz/δC 103.9). The HMBC cross peak (Figure 2) further revealed the replacement of an α-hydroxy group in 4. The configuration of 4 was confirmed to be identical to that of 3 by NOESY experiment (Figure 5). Compound 4 was finally assigned, as shown in Figure 1 (Supplementary Materials, Figures S25–S32).
Lendenfeldarane I (5) was isolated as a white powder. The (+)-HRESIMS at m/z 497.28757 (calculated for C28H42O6 + Na, 497.28736) indicated a molecular formula of C28H42O6. The IR spectra showed absorptions for OH (3460 cm−1), C=O (1701 cm−1), and ester carbonyl (1745 cm−1) functionalities. The 13C NMR data (Table 3) revealed 28 carbons signals stored by HSQC and DEPT, including a ketone at δC 211.9 and two ester carbonyls at δC 170.7 and 172.3. Therefore, three degrees of unsaturation were built up, then the rest of the five unsaturated degrees were speculated to come from a pentacyclic homoscalarane. The 1D and 2D NMR data disclosed the existence of a compound 5-like 6/6/6/6/5 pentacyclic skeleton. The only found divergence was located at E-ring, the disappearance of the ketal carbon in 2 was replaced by an ester carbonyl in 5. Then the HMBC (Figure 2) cross-peak from H-24 to C-17, C-18, and C-25 allowed the establishment of a γ-valerolactone. The stereochemical configuration was identical to that of other scalarane sesterterpenes [5] based on the NOESY (Figure 6) correlations at H3-22/H3-20, H2-22/H3-21, H3-21/H3-23, H-5/H-9, H-9/H-14, H-14/16, H-14/H-18, and H-16/H-24. Consequently, compound 5 was assigned as shown in Figure 1 (Supplementary Materials, Figures S33–S40).
The molecular formula of lendenfeldarane J (6) was determined as C28H42O6 from an [M + Na]+ sodiated adduct ion at m/z 497.28729 (calcd. for C28H42O6 + Na, 497.28736) and NMR data, revealing eight degrees of unsaturation. The 1H NMR data (Table 3) of 6 showed the five uncoupled (singlet) methyls at δH 0.77, 0.87, 1.10, 1.16, and 1.98; one doublet coupled methyl at δH 1.41 (J = 6.6 Hz); and two oxymethines at δH 5.51(1H, t, J = 3.0 Hz) and 4.46 (1H, dd, J = 5.4, 5.4 Hz). The diastereotopic geminal proton at δH 3.88 (1H, dd, J = 11.4, 4.8 Hz) and 4.04 (1H, d, J = 11.4 Hz) were assumed to be an oxymethylene group. Based on the 13C spectrum, 6 was found to possess an oxymethylene (δC 62.8), two oxymethines (δC 61.7 and 75.5), two ester carbonyls (δC 170.5 and 169.8), as well as a tetra-substituted olefin (δC 135.7 and 161.3) that accounted for an unsaturated degree. Thus, the above NMR data and the remaining five unsaturated degrees of 6 required a pentacyclic analogue. Based on the COSY and HMBC correlations (Figure 2), the planer structure of 6 was determined as shown in Figure 1. Compound 6 held a methylfuran-2(5H)-one moiety determined by HMBC cross-correlations from H-24 to C-17, C-18, and C-25. Furthermore, the relative configuration was confirmed by NOESY (Figure 6) correlations (H-12/H3-23, H-16/H-14, and H-16/H-24) and the comparison with related compounds [5,21] (Supplementary Materials, Figures S41–S47).
Several lines of scientific and clinical evidences indicated that neutrophil oxidants and elastase secreted by inflammatory cells play critical roles in the pathogenesis of several inflammation-related disorders, such as psoriasis, arthritis, acute respiratory distress syndrome, and systemic lupus erythematos [22]. NADPH oxidase type 2 (NOX2) is an important enzyme that causes superoxide generation during respiratory burst, a predominant neutrophil function against foreign pathogens. An excessive amount of superoxide release can damage host tissues and lead to neutrophilic inflammation. Besides, another critical role, elastase, can contribute to neutrophil migration toward the inflammatory site, and activates neutrophil degranulation that causes the release of more elastolytic proteases to degrade the proteins from invading pathogens. Many recent studies have revealed that the pharmacological inhibition of NOX2 and elastase can restrict inflammatory responses, indicating the promising therapeutic potential of NOX2 and elastase inhibitors for treating neutrophil-dominant inflammatory disorders [23].
In the current study, the inhibition of fMLF-activated superoxide anion generation and elastase release were evaluated on metabolites 16 to characterize their property of anti-neutrophilic inflammation (Table 4). From these results, compound 1 showed the most potent inhibitory effect independently against elastase release, as well as a slight enhancing property in superoxide generation. With an additional acetyl functionality at C-22, compounds 2 and 3 both displayed activity of superoxide inhibition, but not elastase inhibition. These results suggest a crucial role of C-22-acetylation of homoscalarane on specifically affecting neutrophilic targets, such as NOX2 and elastase.

3. Material and Methods

3.1. General Experimental Procedures

Optical rotations spectra were recorded on a JASCO P-1010 polarimeter (cell length 10 mm) (JASCO, Tokyo, Japan). IR spectra were obtained with a Thermo Scientific Nicolet iS5 FT-IR spectrophotometer (Thermo Fisher Scientific, Waltham, MA, USA). ECD spectra were recorded on JASCO-815 CD spectrometer. The NMR spectra were obtained on a JEOL ECZ 400S or an ECZ 600R NMR (JEOL, Tokyo, Japan), using the residual CHCl3 signals (δH 7.26 ppm) and CDCl3C 77.0 ppm) as the internal standards for 1H and 13C NMR, respectively. The coupling constants (J) are presented in Hz. ESIMS and HRESIMS data were collected on a Bruker 7 Tesla solariX FTMS system (Bruker, Bremen, Germany). TLC was performed on Kieselgel 60 F254 (0.25 mm, Merck, Darmstadt, Germany) and/or RP-18 F254S (0.25 mm, Merck, Darmstadt, Germany) coated plates and then visualized by spraying with 10% H2SO4 and heating on a hot plate. Silica gel 60 (Merck, 40−63 and 63−200 μm) were used for column chromatography. Normal-phase HPLC (NP-HPLC) was performed using a system comprising a pump (L-7110; Hitachi, Tokyo, Japan), an injection port (Rheodyne, 7725; Rohnert Park, CA, USA), and a semi-preparative normal-phase column (YMC-Pack SIL, SIL-06, 250 × 20 mm, D. S-5 μm; Sigma-Aldrich, St. Louis, MO, USA). Reverse-phase HPLC (RP-HPLC) was performed using a system comprising a pump (L-2130; Hitachi), a photodiode array detector (L-2455; Hitachi), an injection port (Rheodyne; 7725), and a reverse-phase column (Luna 5 μm, C18(2) 100Å AXIA Packed, 250 × 21.2 mm; phenomenex, Torrance, CA, USA).

3.2. Animal Material

Specimen of the marine sponges Lendenfeldia sp. was collected by hand using self-contained underwater breathing apparatus (scuba) diving off the coast of Southern Taiwan on September 5, 2012, and stored in a freezer until extraction. The specimen was identified by one of the authors (Y.M. Huang). A voucher specimen (NMMBA-TWSP-12006) was deposited in the National Museum of Marine Biology and Aquarium, Pingtung, Taiwan.

3.3. Extraction and Isolation

Sliced bodies of Lendenfeldia sp. (wet weight 1.21 kg) were extracted with ethyl acetate (EtOAc). The EtOAc layer (5.09 g) was separated on silica gel and eluted using a mixture of hexanes and EtOAc (stepwise, 100:1—pure EtOAc) to yield 11 fractions A–K. Fraction I was separated by NP-HPLC using a mixture of dichloromethane and acetone (4:1, flow rate: 3.0 mL/min) to afford 22 fractions I1–I22. Fraction I4 was separated by RP-HPLC using a mixture of MeOH and H2O (85:15, flow rate: 5.0 mL/min) to afford 5 (1.3 mg). Fraction I6 was separated by RP-HPLC using a mixture of MeOH and H2O (8:2, flow rate: 5.0 mL/min) to afford 6 (0.2 mg). Fraction I17 was separated by RP-HPLC using a mixture of MeOH and H2O (8:2, flow rate: 5.0 mL/min) to afford 4 (3.2 mg). Fraction J was separated by NP-HPLC using a mixture of n-hexane and acetone (2:1, flow rate: 2.0 mL/min) to afford 1 (0.2 mg), 2 (10.0 mg) and 3 (14.8 mg).
Lendenfeldarane E (1): Amorphous powder; [ α ] D 25 −94 (c 0.07, CHCl3); IR (ATR) νmax 3438, 1701 cm−1; 1H and 13C NMR spectroscopic data, see Table 1; ESIMS: m/z 455 [M + Na]+; HRESIMS: m/z 455.31340 (calcd. for C27H44O4 + Na, 455.31318).
Lendenfeldarane F (2): Amorphous powder; [ α ] D 25 +38 (c 0.50, CHCl3); IR (ATR) νmax 3451, 1731, 1700 cm−1; 1H and 13C NMR spectroscopic data, see Table 1; ESIMS: m/z 513 [M + Na]+; HRESIMS: m/z 513.31878 (calcd. for C29H46O6 + Na, 513.31866).
Lendenfeldarane G (3): Amorphous powder; [ α ] D 25 +59 (c 0.74, CHCl3); IR (ATR) νmax 3462, 1729 cm−1; 1H and 13C NMR spectroscopic data, see Table 2; ESIMS: m/z 515 [M + Na]+; HRESIMS: m/z 515.33437 (calcd. for C29H48O6 + Na, 515.33431).
Lendenfeldarane H (4): Amorphous powder; [ α ] D 25 +73 (c 0.16, CHCl3); IR (ATR) νmax 3292, 1740 cm−1; 1H and 13C NMR spectroscopic data, see Table 2; ESIMS: m/z 501 [M + Na]+; HRESIMS: m/z 501.31879 (calcd. for C28H46O6 + Na, 501.31866).
Lendenfeldarane I (5): Amorphous powder; [ α ] D 25 +20 (c 0.07, CHCl3); IR (ATR) νmax 3460, 1745, 1701 cm−1; 1H and 13C NMR spectroscopic data, see Table 3; ESIMS: m/z 497 [M + Na]+; HRESIMS: m/z 497.28757 (calcd. for C28H42O6 + Na, 497.28736).
Lendenfeldarane J (6): Amorphous powder; [ α ] D 25 −25 (c 0.07, CHCl3); IR (ATR) νmax 3463, 1738 cm−1; 1H and 13C NMR spectroscopic data, see Table 3; ESIMS: m/z 497 [M + Na]+; HRESIMS: m/z 497.28729 (calcd. for C28H42O6 + Na, 497.28736).

3.4. ECD Calculations

The lowest energies of 1a (5S,8R,9S,10R,13S,14S,16S,17S,18S,24S, and 25R) and 1b (5R,8S,9R,10S, 13R,14R,16R,17R,18R,24R, and 25S) were calculated and the data were performed by the Gaussian 09 software (Gaussian Inc., Wallingford, CT, USA). The density functional theory (DFT) at the B3LYP/6-31G(d) level in the gas phase were used to obtain the restricted conformation. The final ECD files were generated by GaussSum 2.2.5 software with a bandwidth σ of 0.5 eV. The calculated ECD and experimental ECD curves were drawn by Excel.

3.5. Superoxide Anion Generation and Elastase Release by Human Neutrophils

Human neutrophils were obtained from healthy human volunteers and were isolated by Ficoll centrifugation and dextran sedimentation. Purified neutrophils were re-suspended in calcium (Ca2+)-free Hank’s balanced salt solution (HBSS) buffer at pH 7.4 and were maintained at 4 °C before use. For the superoxide anion generation assay, neutrophils (6 × 105 cell/mL) were equilibrated in ferricytochrome c (0.6 mg/mL) and Ca2+ (1 mM) at 37 °C for 5 min and incubated with DMSO (0.1%) or tested compounds for another 5 min [24]. Cells were activated with formyl-methionyl-leucyl-phenylalanine (fMLF, 0.1 μM) for 10 min after priming with cytochalasin B (CB, 1 μg/mL) for 3 min. The change in absorbance was monitored continuously at 550 nm with a spectrophotometer (Hitachi U-3010). For the elastase release assay, neutrophils (6 × 105 cell/mL) were equilibrated in MeO-Suc-Ala-Ala-Pro-Val-p-nitroanilide (100 μM) and Ca2+ (1 mM) at 37 °C for 5 min and incubated with dimethyl sulfoxide (DMSO) (0.1%) or test compounds for another 5 min. The cells were activated with fMLF (0.1 μM) for 10 min after the priming with CB (0.5 μg/mL) for 3 min. The change in absorbance was monitored continuously at 405 nm with a spectrophotometer [24]. The results are recorded as the mean ± SEM of three measurements. The inhibition % was measured at 10 μM concentration of each compound, and IC50 values were estimated from dose-response curves. Statistical analysis was carried out using Student’s t-tests with SigmaPlot (Systat Software, San Jose, CA, USA).

4. Conclusions

The current work is the first to illustrate the anti-neutrophilic inflammatory properties of scalarane-type sesterterpenoids, and reported a series of metabolites with novel structures, lendenfeldaranes E–J (16). These results also suggested a structural dependent specificity of C-22-acetylation in neutrophilic targets, which motivates future research to illustrate structural dependent specificity as well as further clarify the corresponding molecular mechanisms of the active leads.

Supplementary Materials

Supplementary Materials according to this article can be found online at https://www.mdpi.com/1660-3397/18/9/434/s1. HRESIMS, 1D and 2D NMR spectra of compounds 16.

Author Contributions

B.-R.P., S.S.-F.Y., C.-Y.D., and P.-J.S. conceived and designed the experiments; B.-R.P., Y.-Y.C., J.-H.S., Y.-C.C. and Y.M.H. performed the sample collections, species identification, extraction, isolation, and structures determination; the pharmacological experiments were carried out by P.-J.C.; P.-J.S. contributed reagents and analysis tools; B.-R.P., K.-H.L. and P.-J.S. participated in data interpretation, wrote the manuscript and revised the paper. All authors have read and agreed to the published version of the manuscript.

Funding

The research was founded by the Ministry of Science and Technology of Taiwan (MOST 106-2320-B-291-001-MY3, 107-2320-B-291-001-MY3, and 109-2320-B-291-001-MY3).

Acknowledgments

This work was mainly supported by grants from the National Museum of Marine Biology and Aquarium; and the Ministry of Science and Technology (Grant Nos MOST 106-2320-B-291-001-MY3, 107-2320-B-291-001-MY3, and 109-2320-B-291-001-MY3), Taiwan, awarded to P.-J.S.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kazlauskas, R.; Murphy, P.T.; Wells, R.J. Five new C26 tetracyclic terpenes from a sponge (Lendenfeldia sp.). Aust. J. Chem. 1982, 35, 51–59. [Google Scholar] [CrossRef]
  2. Alvi, K.A.; Crews, P. Homoscalarane sesterterpenes from Lendenfeldia frondosa. J. Nat. Prod. 1992, 55, 859–865. [Google Scholar] [CrossRef] [PubMed]
  3. Stessman, C.C.; Ebel, R.; Corvino, A.J.; Crews, P. Employing dereplication and gradient 1D NMR methods to rapidly characterize sponge-derived sesterterpenes. J. Nat. Prod. 2002, 65, 1183–1186. [Google Scholar] [CrossRef] [PubMed]
  4. Chill, L.; Rudi, A.; Aknin, M.; Loya, S.; Hizi, A.; Kashman, Y. New sesterterpenes from Madagascan Lendenfeldia sponges. Tetrahedron 2004, 60, 10619–10626. [Google Scholar] [CrossRef]
  5. Peng, B.-R.; Lai, K.-H.; Chen, Y.-Y.; Su, J.-H.; Huang, Y.M.; Chen, Y.-H.; Lu, M.-C.; Yu, S.S.-F.; Duh, C.-Y.; Sung, P.-J. Probing anti-proliferative 24-homoscalaranes from a sponge Lendenfeldia sp. Mar. Drugs 2020, 18, 76. [Google Scholar] [CrossRef] [Green Version]
  6. Oda, Y.; Zhang, Q.; Matsunaga, S.; Fujita, M.J.; Sakai, R. Two new mycosporine-like amino acids LC-343 and mycosporine-ethanolamine from the Micronesian marine sponge Lendenfeldia chondrodes. Chem. Lett. 2017, 46, 1272–1274. [Google Scholar] [CrossRef]
  7. Sera, Y.; Adachi, K.; Shizuri, Y. A new epidioxy sterol as an antifouling substance from a Palauan marine sponge, Lendenfeldia chondrodes. J. Nat. Prod. 1999, 62, 152–154. [Google Scholar] [CrossRef]
  8. Radwan, M.M.; Manly, S.P.; Ross, S.A. Two new sulfated sterols from the marine sponge Lendenfeldia dendyi. Nat. Prod. Commun. 2019, 2, 901–904. [Google Scholar] [CrossRef] [Green Version]
  9. Sakai, R.; Kamiya, H. 1-Deoxynojirimycin derivatives from the marine sponge Lendenfeldia chondrodes. J. Antibiot. 2006, 59, 507–511. [Google Scholar] [CrossRef] [Green Version]
  10. Dai, J.; Liu, Y.; Zhou, Y.-D.; Nagle, D.G. Cytotoxic metabolites from an Indonesian sponge Lendenfeldia sp. J. Nat. Prod. 2007, 70, 1824–1826. [Google Scholar] [CrossRef] [Green Version]
  11. Liu, Y.; Liu, R.; Mao, S.-C.; Morgan, J.B.; Jekabsons, M.B.; Zhou, Y.-D.; Nagle, D.G. Molecular-targeted antitumor agents. 19. Furospongolide from a marine Lendenfeldia sp. sponge inhibits hypoxia-inducible factor-1 activation in breast tumor cells. J. Nat. Prod. 2008, 71, 1854–1860. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Radwan, M.M.; Wanas, A.S.; Fronczek, F.R.; Jacob, M.R.; Ross, S.A. Polybrominated diphenyl ethers from the marine organisms Lendenfeldia dendyi and Sinularia dura with anti-MRSa activity. Med. Chem. Res. 2015, 24, 3398–3404. [Google Scholar] [CrossRef]
  13. Lai, Y.-Y.; Chen, L.-C.; Wu, C.-F.; Lu, M.-C.; Wen, Z.-H.; Wu, T.-Y.; Fang, L.-S.; Wang, L.-H.; Wu, Y.-C.; Sung, P.-J. New cytotoxic 24-homoscalarane sesterterpenoids from the sponge Ircinia felix. Int. J. Mol. Sci. 2015, 16, 21950–21958. [Google Scholar] [CrossRef] [PubMed]
  14. Lai, Y.-Y.; Lu, M.-C.; Wang, L.-H.; Chen, J.-J.; Fang, L.-S.; Wu, Y.-C.; Sung, P.-J. New scalarane sesterterpenoids from the Formosan sponge Ircinia felix. Mar. Drugs 2015, 13, 4296–4309. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Chang, Y.-C.; Tseng, S.-W.; Liu, L.-L.; Chou, Y.; Ho, Y.-S.; Lu, M.-C.; Su, J.-H. Cytotoxic sesterterpenoids from a sponge Hippospongia sp. Mar Drugs 2012, 10, 987–997. [Google Scholar] [CrossRef] [Green Version]
  16. Lai, K.-H.; Liu, Y.-C.; Su, J.-H.; El-Shazly, M.; Wu, C.-F.; Du, Y.-C.; Hsu, Y.-M.; Yang, J.-C.; Weng, M.-K.; Chou, C.-H.; et al. Antileukemic scalarane sesterterpenoids and meroditerpenoid from Carteriospongia (Phyllospongia) sp., induce apoptosis via dual inhibitory effects on topoisomerase II and Hsp90. Sci. Rep. 2016, 6, 36170. [Google Scholar] [CrossRef]
  17. González, M.A. Scalarane sesterterpenoids. Curr. Bioact. Compd. 2010, 6, 178–206. [Google Scholar] [CrossRef] [Green Version]
  18. Hahn, D.; Won, D.H.; Mun, B.; Kim, H.; Han, C.; Wang, W.; Chun, T.; Park, S.; Yoon, D.; Choi, H.; et al. Cytotoxic scalarane sesterterpenes from a Korean marine sponge Psammocinia sp. Bioorg. Med. Chem. Lett. 2003, 23, 2336–2339. [Google Scholar] [CrossRef]
  19. Alarif, W.M.; Al-Lihaibi, S.S.; Ghandourah, M.A.; Orif, M.I.; Basaif, S.A.; Ayyad, S.E.N. Cytotoxic scalarane-type sesterterpenes from the Saudi Red Sea sponge Hyrtios erectus. J. Asian Nat. Prod. Res. 2016, 18, 611–617. [Google Scholar] [CrossRef]
  20. Lee, S.M.; Kim, N.-H.; Lee, S.; Kim, Y.N.; Heo, J.D.; Jeong, E.J.; Rho, J.-R. Deacetylphylloketal, a new phylloketal derivative from a marine sponge, genus Phyllospongia, with potent anti-inflammatory activity in in vitro co-culture model of intestine. Mar. Drugs 2019, 17, 634. [Google Scholar] [CrossRef] [Green Version]
  21. Fu, X.; Zeng, L.M.; Su, J.Y.; Pais, M.; Potier, P. Scalarane-type bishomosesterterpenes from the sponge Phyllospongia foliascens. J. Nat. Prod. 1992, 55, 1607–1613. [Google Scholar] [CrossRef]
  22. Sachs, C.W.; Christensen, R.H.; Pratt, P.C.; Lynn, W.S. Neutrophil elastase activity and superoxide production are diminished in neutrophils of alcoholics. Am. Rev. Respir. Dis. 1990, 141, 1249–1255. [Google Scholar] [CrossRef] [PubMed]
  23. Liu, F.-C.; Yu, H.-P.; Chen, P.-J.; Yang, H.-W.; Chang, S.-H.; Tzeng, C.-C.; Cheng, W.-J.; Chen, Y.-R.; Chen, Y.-L.; Hwang, T.-L. A novel NOX2 inhibitor attenuates human neutrophil oxidative stress and ameliorates inflammatory arthritis in mice. Redox Biol. 2019, 26, 101273. [Google Scholar] [CrossRef] [PubMed]
  24. Chen, P.-J.; Ko, I.-L.; Lee, C.-L.; Hu, H.-C.; Chang, F.-R.; Wu, Y.-C.; Leu, Y.-L.; Wu, C.-C.; Lin, C.-Y.; Pan, C.-Y.; et al. Targeting allosteric site of AKT by 5,7-dimethoxy-1,4- phenanthrenequinone suppresses neutrophilic inflammation. EBioMedicine 2019, 40, 528–540. [Google Scholar] [CrossRef] [PubMed] [Green Version]

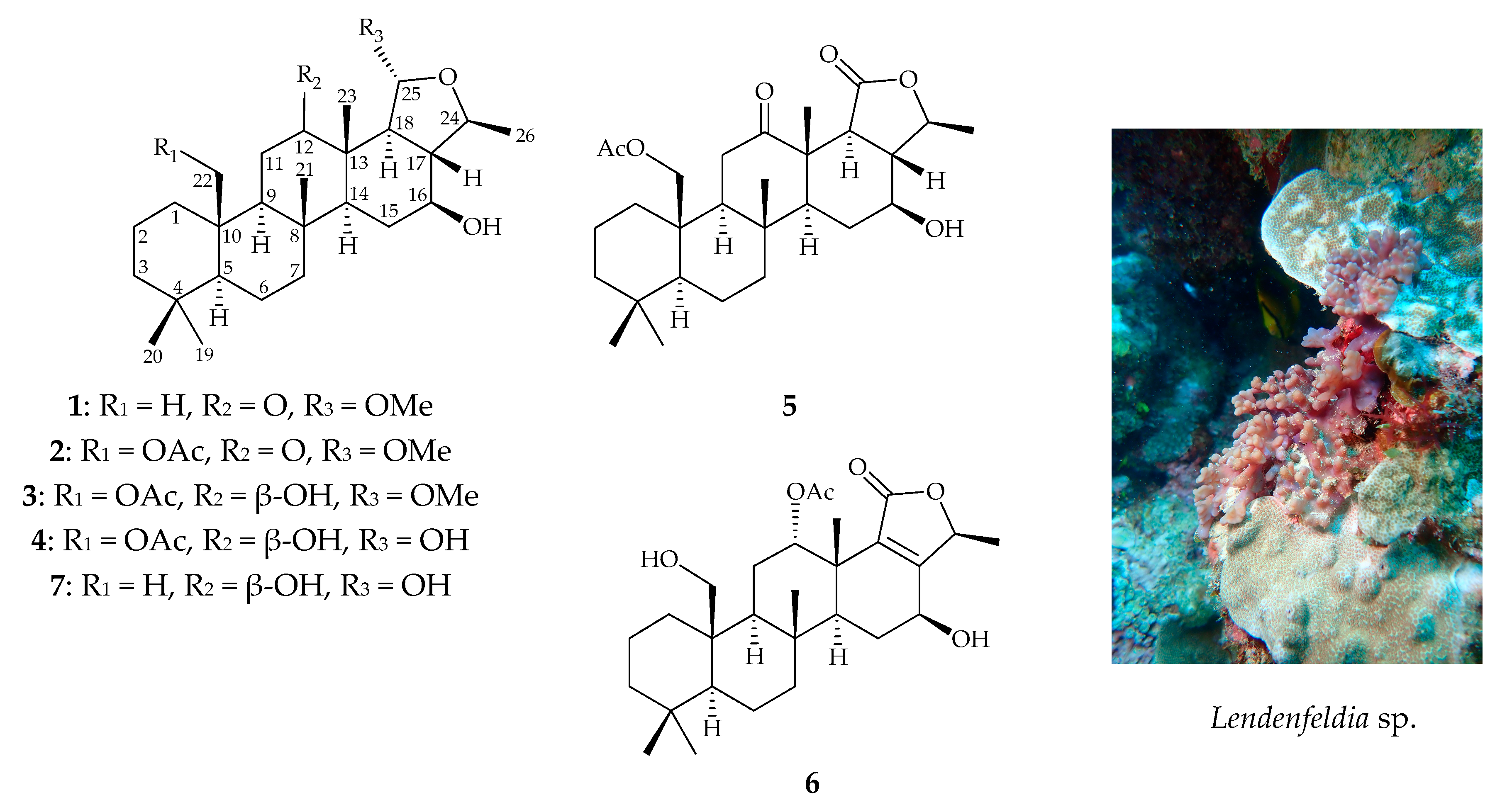

Figure 1. Structures of lendenfeldaranes E–J (16) and felixin E (7) and a picture of Lendenfeldia sp.
Figure 1. Structures of lendenfeldaranes E–J (16) and felixin E (7) and a picture of Lendenfeldia sp.
Marinedrugs 18 00434 g001

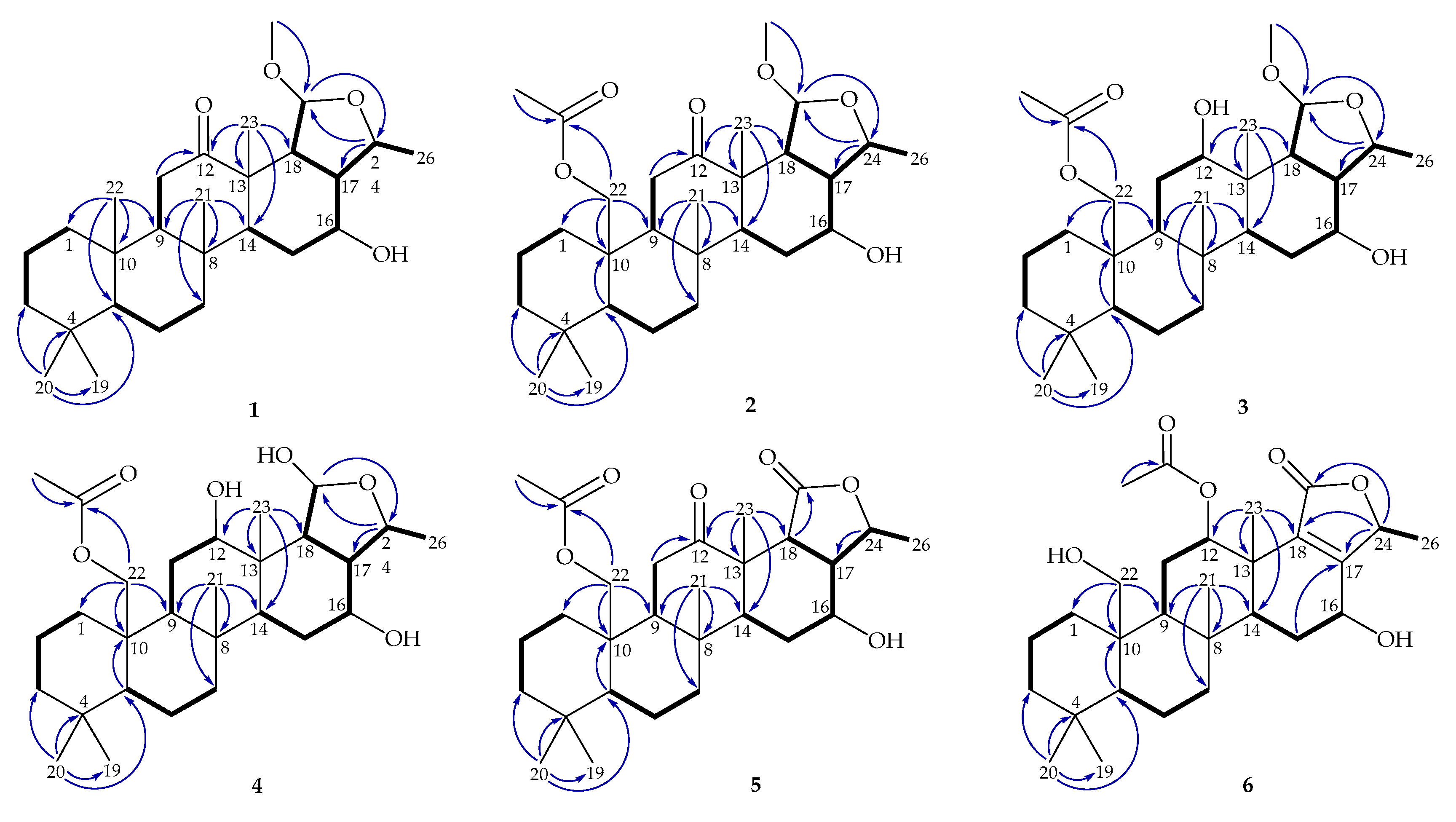

Figure 2. The COSY ( Marinedrugs 18 00434 i001) and HMBC ( Marinedrugs 18 00434 i002) of 16.
Figure 2. The COSY ( Marinedrugs 18 00434 i001) and HMBC ( Marinedrugs 18 00434 i002) of 16.
Marinedrugs 18 00434 g002

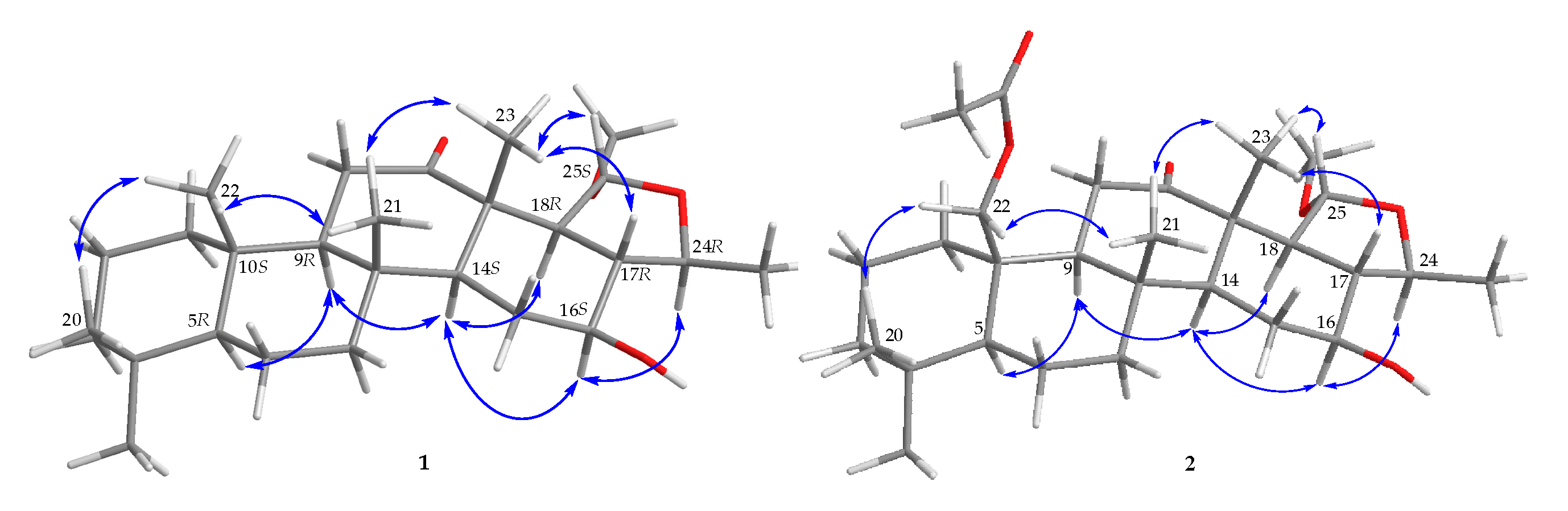

Figure 3. The selected NOESY correlations ( Marinedrugs 18 00434 i003) of 1 and 2.
Figure 3. The selected NOESY correlations ( Marinedrugs 18 00434 i003) of 1 and 2.
Marinedrugs 18 00434 g003

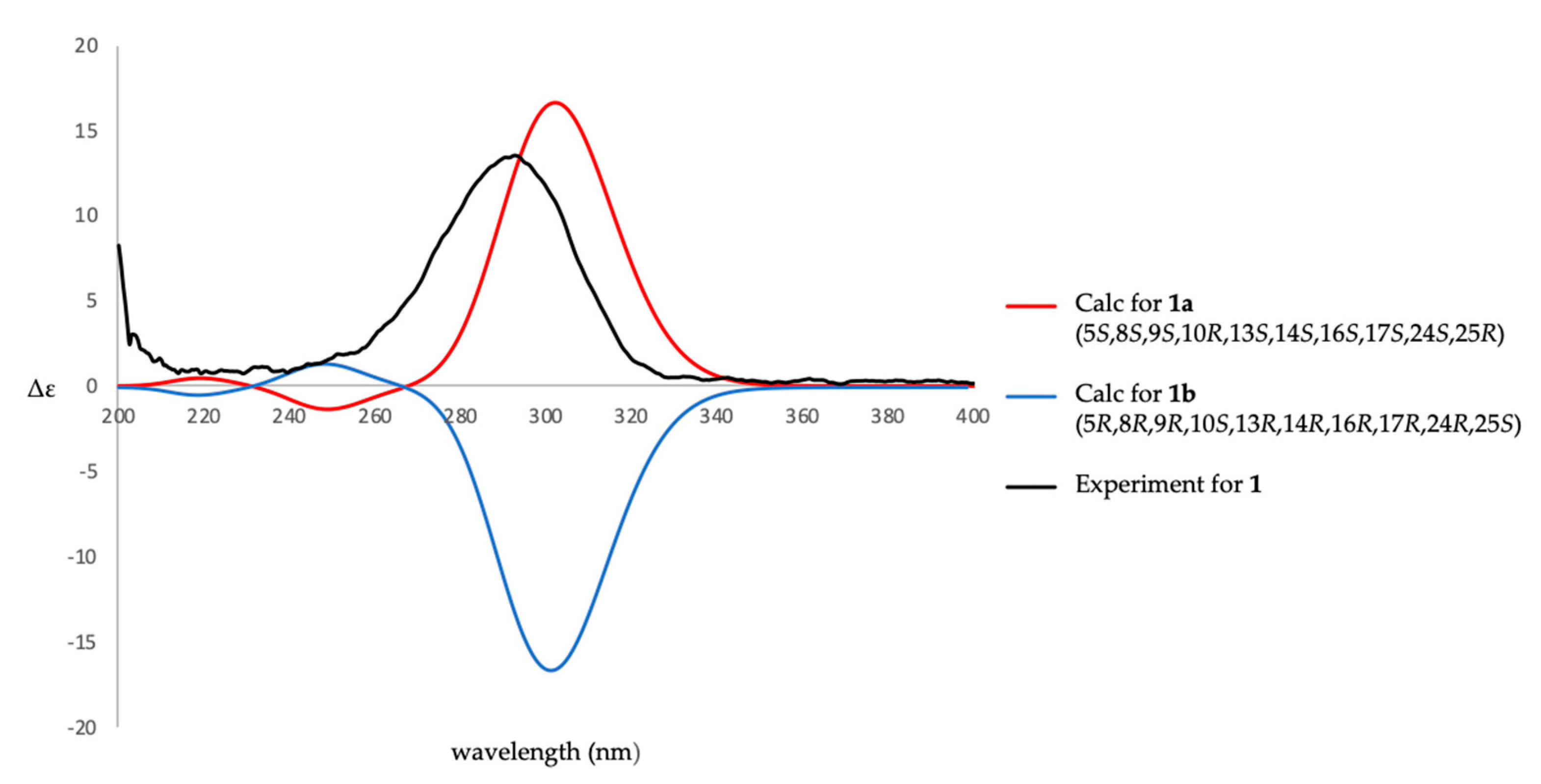

Figure 4. Calculated and experimental electronic circular dichroism (ECD) spectra of 1.
Figure 4. Calculated and experimental electronic circular dichroism (ECD) spectra of 1.
Marinedrugs 18 00434 g004

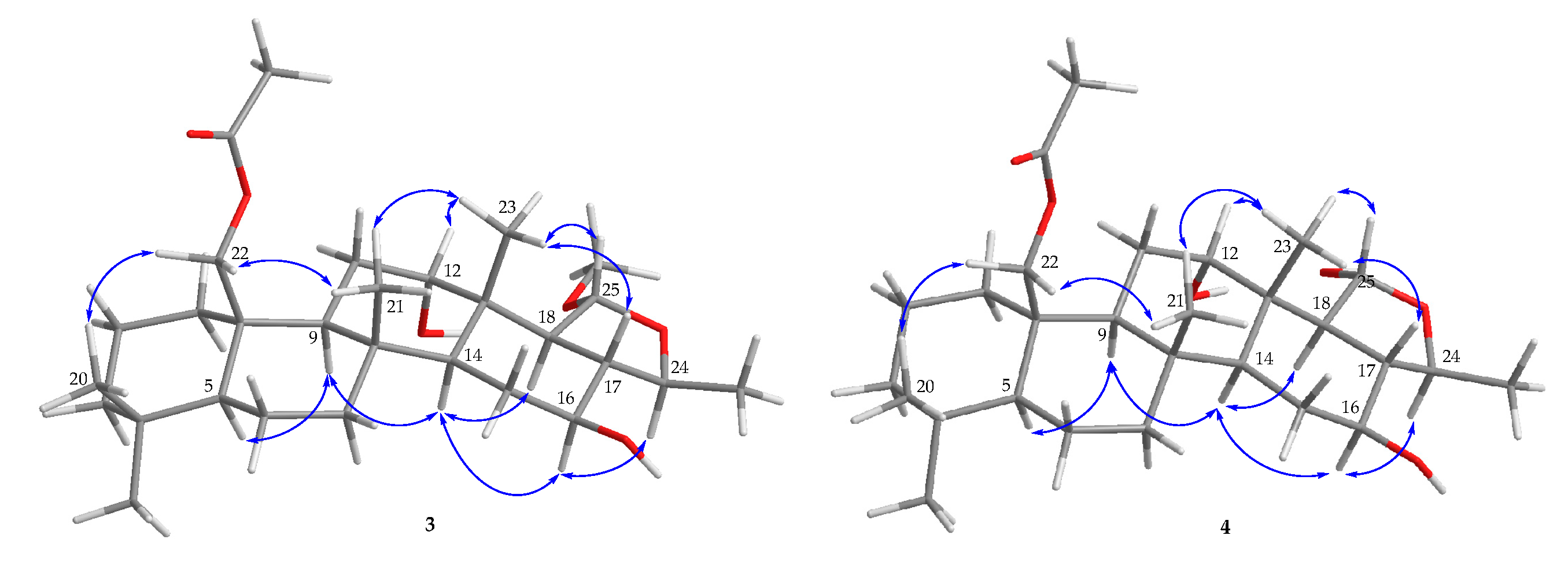

Figure 5. The selected NOESY correlations ( Marinedrugs 18 00434 i004) of 3 and 4.
Figure 5. The selected NOESY correlations ( Marinedrugs 18 00434 i004) of 3 and 4.
Marinedrugs 18 00434 g005

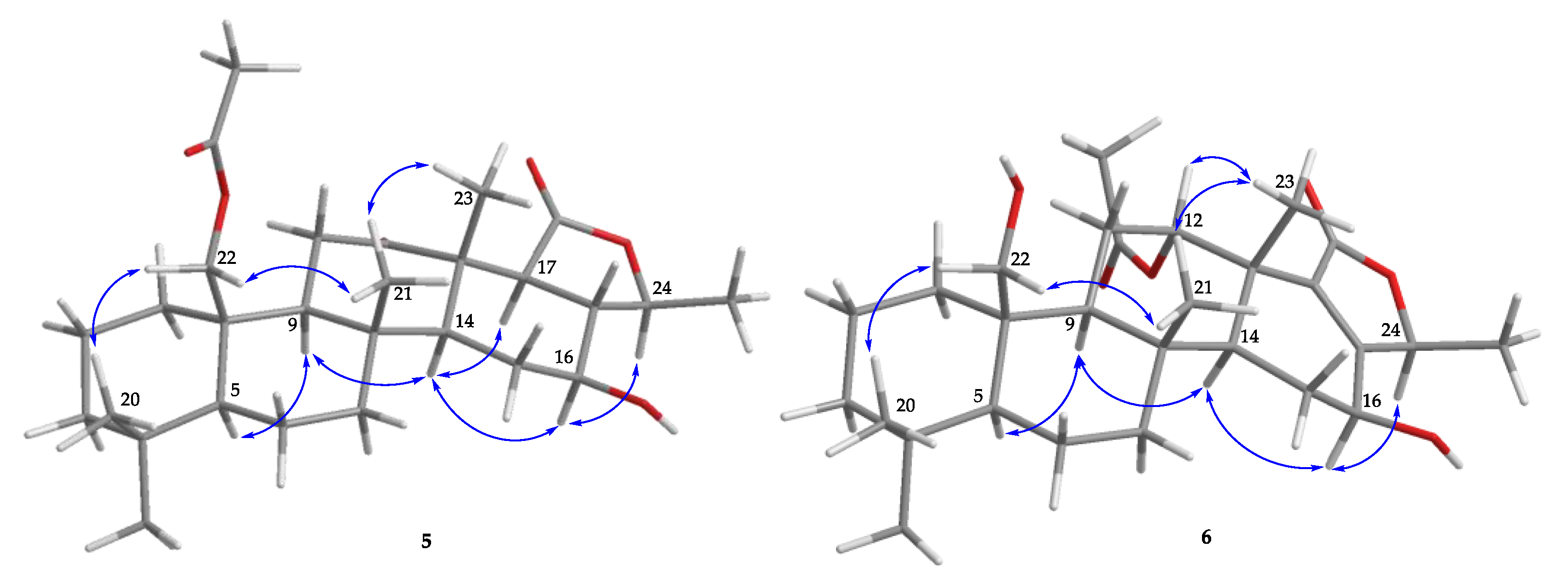

Figure 6. The selected NOESY correlations ( Marinedrugs 18 00434 i005) of 5 and 6.
Figure 6. The selected NOESY correlations ( Marinedrugs 18 00434 i005) of 5 and 6.
Marinedrugs 18 00434 g006
Table 1. 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR data for 24-homoscalaranes 1 and 2.
Table 1. 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR data for 24-homoscalaranes 1 and 2.
12
C/HδH (J in Hz)δC Mult.δH (J in Hz)δC Mult.
11.59 m; 0.80 m39.4, CH21.99 m; 0.77 m34.3, CH2
21.43 m; 1.58 m18.1, CH21.46 m; 1.58 m17.9, CH2
31.10 m; 1.36 m41.8, CH21.14 m; 1.43 m41.4, CH2
4 33.3, C 33.0, C
50.81 m56.6, CH0.97 m56.9, CH
61.43 m18.4, CH21.46 m18.1, CH2
70.92 ddd (12.8, 12.8, 4.0)41.9, CH20.98 m; 1.90 m42.2, CH2
1.82 ddd (12.8, 2.8, 2.8)
8 37.8, C 37.7, C
91.15 m61.3, CH1.26 m61.1, CH
10 38.1, C 41.2, C
112.66 dd (14.4, 13.6)35.1, CH22.99 dd (14.8, 13.6)37.9, CH2
2.24 dd (13.6, 2.0) 2.43 dd (13.6, 2.4)
12 215.3, C 214.8, C
13 51.8, C 51.9, C
141.13 m59.6, CH1.13 m59.7, CH
151.52 m; 1.90 m30.8, CH21.56 m; 1.92 m31.0, CH2
163.43 ddd (10.4, 10.4, 4.4)74.8, CH3.43 ddd (10.0, 10.0, 4.4)74.6, CH
171.89 m49.6, CH1.91 m49.5, CH
181.62 m53.0, CH1.60 m52.8, CH
190.82 s21.3, CH30.84 s21.8, CH3
200.85 s33.2, CH30.87 s33.7, CH3
211.07 s17.1, CH31.15 s16.5, CH3
220.86 s15.7, CH34.19 dd (12.4, 1.6); 4.65 d (12.4)64.6, CH2
231.36 s15.3, CH31.37 s15.4, CH3
243.84 qd (6.0, 2.4)78.7, CH3.83 qd (6.0, 2.0)78.8, CH
255.35 d (4.0)104.8, CH5.33 d (4.4)104.7, CH
261.40 d (6.0)23.5, CH31.40 d (6.0)23.5, CH3
22-OAc 170.7, C
2.04 s21.1, CH3
25-OMe3.30 s54.4, CH33.28 s54.4, CH3
Table 2. 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR data for 24-homoscalaranes 3 and 4.
Table 2. 1H (400 MHz, CDCl3) and 13C (100 MHz, CDCl3) NMR data for 24-homoscalaranes 3 and 4.
34
C/HδH (J in Hz)δC Mult.δH (J in Hz)δC Mult.
12.04 m; 0.82 m34.5, CH22.03 m; 0.84 m34.6, CH2
21.45 m; 1.56 m18.4, CH21.45 m; 1.56 m18.4, CH2
31.18 m; 1.43 m41.5, CH21.17 br d (3.6); 1.42 m41.5, CH2
4 32.9, C 33.0, C
51.10 m56.6, CH1.09 m56.6, CH
61.56 m18.1, CH21.56 m18.1, CH2
71.09 m; 1.78 ddd (12.8, 3.2, 3.2)42.0, CH21.08 m; 1.79 ddd (12.4, 3.2, 3.2)42.1, CH2
8 37.6, C 37.6, C
91.57 m52.0, CH1.58 m52.1, CH
10 40.1, C 40.2, C
111.89 m; 1.29 m31.3, CH21.90 m; 1.29 m31.3, CH2
123.57 br s72.0, CH3.67 ddd (3.2, 3.2, 3.2)72.1, CH
13 39.0, C 39.0, C
141.38 m52.2, CH1.40 m52.2, CH
151.86–1.98 m25.9 CH21.91 m, 2.00 m26.1 CH2
163.55 ddd (10.0, 10.0, 4.8)72.9, CH3.58 ddd (10.0, 10.0, 4.8)73.0, CH
171.57 m51.7, CH1.58 m52.1, CH
181.92 m55.8, CH1.94 m56.7, CH
190.82 s21.8, CH30.82 s21.8, CH3
200.86 s33.7, CH30.87 s33.7, CH3
210.90 s16.1, CH30.91 s16.1, CH3
224.17 d (11.6); 4.56 d (11.6)65.0, CH24.18 dd (12.0, 0.8); 4.57 d (12.0)65.0, CH2
230.93 s16.3, CH30.94 s16.2, CH3
243.98 qd (6.0, 3.2)79.5, CH4.09 qd (6.0, 3.2)79.7, CH
254.85 d (6.4)103.9, CH5.35 dd (6.8, 3.2)96.5, CH
261.37 d (6.0)20.3, CH31.36 d (6.0)20.5, CH3
22-OAc 171.0, C 171.0, C
2.05 s21.2, CH32.06 s21.2, CH3
25-OMe3.45 s56.6, CH3
Table 3. 1H and 13C NMR data for 24-homoscalaranes 5 and 6.
Table 3. 1H and 13C NMR data for 24-homoscalaranes 5 and 6.
56
C/HδH (J in Hz) aδC Mult. bδH (J in Hz) cδC Mult. d
11.99 m; 0.80 m34.4, CH22.10 m; 0.51 ddd (12.6, 12.6, 3.6)34.3, CH2
21.49 m; 1.64 m18.0, CH21.43 m; 1.56 m18.1, CH2
31.15 m; 1.45 m41.4, CH21.13 m; 1.44 m41.7, CH2
4 33.0, C 33.0, C
50.97 m57.0, CH0.98 dd (12.6, 2.4)57.0, CH
61.50 m; 1.60 m18.1, CH21.42 m; 1.57 m17.9, CH2
70.99 m; 1.87 m41.9, CH21.12 m, 1.90 m42.0, CH2
8 38.5, C 37.0, C
91.28 br d (14.0)63.3, CH1.31 dd (7.2, 7.2)53.5, CH
10 41.6, C 41.8, C
113.15 dd (14.0, 12.4); 2.51 dd (12.4, 2.4)37.6, CH21.87–1.95 m27.9, CH2
12 211.9, C5.51 t (3.0)73.8, CH
13 50.0, C 39.0, C
140.95 m59.3, CH1.79 dd (12.6, 2.4)46.2, CH
151.50 m; 1.97 m31.1, CH22.21 m23.9 CH2
163.61 ddd (9.6, 9.6, 4.4)72.0, CH4.46 dd (5.4, 5.4)61.7, CH
171.92 m51.4, CH 161.3, C
182.58 d (14.4)49.7, CH 135.7, C
190.84 s21.8, CH30.77 s21.8, CH3
200.87 s33.7, CH30.87 s33.8, CH3
211.18 s16.6, CH31.10 s16.3, CH3
224.17 dd (11.6, 1.6); 4.67 d (11.6)64.6, CH23.88 dd (11.4, 4.8); 4.04 d (11.4)62.8, CH2
231.38 s14.7, CH31.16 s19.4, CH3
244.30 qd (6.0, 2.4)79.5, CH5.07 q (6.6)76.5, CH
25 172.3, C 170.5, C
261.53 d (6.0)20.1, CH31.41 d (6.6)18.3, CH3
12-OAc 169.8, C
1.98 s21.2, CH3
22-OAc 170.7, C
2.06 s21.1, CH3
a 400 MHz, CDCl3. b 100 MHz, CDCl3. c 600 MHz, CDCl3. d 150 MHz, CDCl3.
Table 4. Inhibitory effects of 24-homoscalaranes 16 on superoxide anion generation and elastase release by human neutrophils in response to fMLF.
Table 4. Inhibitory effects of 24-homoscalaranes 16 on superoxide anion generation and elastase release by human neutrophils in response to fMLF.
CompoundSuperoxide Anions Elastase Release
IC50 (μM) aInh (Enh) b % IC50 (μM) aInh %
1 (11.35 ± 3.65)*1.74 ± 0.0882.80 ± 3.91***
26.17 ± 0.1670.68 ± 3.86*** 26.15 ± 3.40**
36.81 ± 0.5262.92 ± 2.58*** 25.19 ± 4.01**
4 7.13 ± 3.69 2.97 ± 1.63
5 9.97 ± 4.38 6.81 ± 2.46
6 4.52 ± 2.91 1.16 ± 0.89
Percentage of inhibition (Inh %) at 10 μM. Results are presented as mean ± S.E.M. (n = 3~5). * p < 0.05, ** p < 0.01, *** p < 0.001 compared with the control (DMSO). a Concentration necessary for 50 % inhibition (IC50). b Inh = inhibition, Enh = Enhancement.

Share and Cite

MDPI and ACS Style

Peng, B.-R.; Lai, K.-H.; Chang, Y.-C.; Chen, Y.-Y.; Su, J.-H.; Huang, Y.M.; Chen, P.-J.; Yu, S.S.-F.; Duh, C.-Y.; Sung, P.-J. Sponge-Derived 24-Homoscalaranes as Potent Anti-Inflammatory Agents. Mar. Drugs 2020, 18, 434. https://doi.org/10.3390/md18090434

AMA Style

Peng B-R, Lai K-H, Chang Y-C, Chen Y-Y, Su J-H, Huang YM, Chen P-J, Yu SS-F, Duh C-Y, Sung P-J. Sponge-Derived 24-Homoscalaranes as Potent Anti-Inflammatory Agents. Marine Drugs. 2020; 18(9):434. https://doi.org/10.3390/md18090434

Chicago/Turabian Style

Peng, Bo-Rong, Kuei-Hung Lai, Yu-Chia Chang, You-Ying Chen, Jui-Hsin Su, Yusheng M. Huang, Po-Jen Chen, Steve Sheng-Fa Yu, Chang-Yih Duh, and Ping-Jyun Sung. 2020. "Sponge-Derived 24-Homoscalaranes as Potent Anti-Inflammatory Agents" Marine Drugs 18, no. 9: 434. https://doi.org/10.3390/md18090434

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
