Article

New Isocoumarin Analogues from the Marine-Derived Fungus Paraphoma sp. CUGBMF180003

1
School of Ocean Sciences, China University of Geosciences, Beijing 100083, China
2
School of Light Industry, Beijing Technology and Business University, Beijing 100048, China
3
UniSA Clinical and Health Sciences, University of South Australia, Adelaide 5005, Australia
4
CAS Key Laboratory of Experimental Marine Biology, Institute of Oceanology, Chinese Academy of Sciences, Qingdao 266071, China
5
Laboratory for Marine Biology and Biotechnology, Qingdao National Laboratory for Marine Science and Technology, Qingdao 266071, China
*
Authors to whom correspondence should be addressed.
Mar. Drugs 2021, 19(6), 313; https://doi.org/10.3390/md19060313
Submission received: 12 May 2021 / Revised: 25 May 2021 / Accepted: 26 May 2021 / Published: 28 May 2021
(This article belongs to the Special Issue Fungal Natural Products: An Ongoing Source for New Drug Leads)

Abstract

:
Nine new secondary metabolites, including six isocoumarin analogues, 7-hydroxyoospolactone (1), 7-methoxyoospolactone (2), 7-methoxy-9-hydroxyoospolactone (3), 10-acetoxy-9-hydroxyoospolactone (4), 6-dehydroxysescandelin (5), parapholactone (6), and three compounds with a rare skeleton of isocoumarin coupled with phenylethylamine, namely paraphamide A (12), paraphamide B (13), and paraphamide C (14), together with five known compounds, oospolactone (7), 8-O-methyloospolactone (8), 10-hydroxyoospolactone (9), 9,10-dihydroxyoospolactone (10), and oospoglycol (11), were isolated and identified from the marine-derived fungus Paraphoma sp. CUGBMF180003. Their chemical structures were determined using spectroscopic data, including HRESIMS and 1D and 2D NMR techniques. Furthermore, the stereogenic carbons in 5 and 14 were determined by comparing the experimental and calculated electronic circular dichroism (ECD) spectra. The carbon skeleton of 1214 was identified as the first example of isocoumarin coupled with phenylethylamine derivatives. All of these compounds were examined for antimicrobial activities against Candida albicans and Staphylococcus aureus. Both 1 and 6 showed antibacterial activity against S. aureus with MIC values of 12.5 μg/mL.

1. Introduction

The Paraphoma fungi are commonly isolated from soil samples or plants and recognized as soil-borne pathogens [1,2]. Strains belonging to this genus have been proven to degrade plastic films such as poly(butylene succinate-co-butylene adipate) and poly(butylene succinate) [3,4]. Some secondary metabolites, such as polyketides [5], phenol, latam [6], and isochromenones [7] have been identified in fungi of this genus. Our present chemical investigation on the marine-derived fungus Paraphoma sp. strain CUGBMF180003, isolated from a mud sample collected from Shenzhen, China, led to the identification of nine new secondary metabolites, including six isocoumarin analogues, namely, 7-hydroxyoospolactone (1), 7-methoxyoospolactone (2), 7-methoxy-9-hydroxyoospolactone (3), 10-acetoxy-9-hydroxyoospolactone (4), 6-dehydroxysescandelin (5), parapholactone (6), three compounds with a rare skeleton of isocoumarin coupled with phenylethylamine, namely, paraphamide A (12), paraphamide B (13), and paraphamide C (14), as well as five known compounds, oospolactone (7) [8], 8-O-methoxyoospolactone (8) [9], 10-hydroxyoospolactone (9) [10], 9,10-dihydroxyoospolactone (10) [10], and oospoglycol (11) [11]. Herein, we report the isolation, structure elucidation, and biological activities of these compounds.

2. Results

2.1. Structure Elucidation

Compound 1 was isolated as a light yellow powder. The molecular formula of 1 was determined to be C11H10O4 based on the HRESIMS spectrum (m/z [M + H]+ 207.0652, calcd. for C11H11O4, 207.0652), accounting for seven degrees of unsaturation (Figure S1). The 1H NMR data of 1 (Table 1, Figure S2) demonstrated two aromatic proton signals [(δH 6.93, d, J = 8.5 Hz, H-5), (δH 7.31, 1H, d, J = 8.5 Hz, H-6)], two methyl singlets at δH 2.24 (3H, s, H-9) and 2.06 (3H, s, H-10), and two phenolic hydroxyl groups at δH 9.69 (1H, brs, 7-OH) and 11.12 (1H, brs, 8-OH). The 13C and HSQC spectra of 1 (Figures S3 and S4) indicated 11 carbon signals (Table 1) which were categorized as one carboxyl at δC 166.2 (C-1), three oxygenated sp2 carbons at δC 146.7 (C-3), 143.8 (C-7), and 148.6 (C-8), two nonprotonated sp2 carbons at δC 129.6 (C-4a) and 105.9 (C-8a), and two protonated sp2 carbons at δC 113.3 (C-5) and 124.2 (C-6). Detailed analysis of the 2D NMR data (Figures S4–S6) revealed the existence of an isocoumarin skeleton for 1. The HMBC correlations from H-5 to C-7 and C-8a, from H-6 to C-4a, C-7 and C-8 revealed the o-dihydroxyl substituted benzene moiety. The long-range HMBC correlation from H-5 to C-1 indicated the presence of a carboxyl substituent on C-8a. Furthermore, the HMBC correlations from H-9 and H-10 to C-3 and C-4 indicated that the methyl groups were on C-3 and C-4. The connection from C-4 to C-4a was evidenced by the HMBC correlation from H-10 to C-4a. With the downfield chemical shifts of C-1 and C-3, it was revealed that C-1 and C-3 were connected by an oxygen atom. Therefore, the structure of 1 was assigned as shown in Figure 1 and named 7-hydroxyoospolactone.
Compound 2 was isolated as a light yellow powder. The molecular formula of 2 was determined to be C12H12O4 based on the HRESIMS spectrum (m/z [M + H]+ 221.0811, calcd. for C12H13O4, 221.0808), accounting for seven degrees of unsaturation (Figure S7). The 1H NMR data of 2 (Table 1, Figure S8) displayed similar signals to those of 1. Comparison of the NMR data of the two compounds revealed the presence of one methoxyl signal at δH 3.85, s (δC 56.1) in 2. The HMBC spectrum (Figure S12) exhibited correlations from H-5 and -OMe to C-7, indicating that the methoxyl group was on C-7. Therefore, the structure of 2 was elucidated as shown in Figure 1 and named 7-methoxyoospolactone.
Compound 3 was isolated as a light yellow powder. The molecular formula of 3 was determined to be C12H12O5 based on the HRESIMS spectrum (m/z [M + H]+ 237.0758, calcd. for C12H13O5, 237.0757), accounting for seven degrees of unsaturation (Figure S13). The 1H NMR data of 3 (Table 1, Figure S14) displayed similar signals to those of 2, except for the presence of the signal of hydroxymethyl protons δH 4.36 (2H, s, H-9; δC 57.6 C-9). Detailed analysis of 13C and 2D NMR data (Figures S15–S17) revealed the structure of 3. The HMBC spectrum (Figure 2, Figure S17) exhibited correlations from H-9 to C-3 and C-4, and from H-10 to C-3, C-4, and C-4a indicating that the hydroxymethyl group was on C-3. Therefore, the structure of 3 was elucidated as shown in Figure 1 and named 7-methoxy-9-hydroxyoospolactone.
Compound 4 was isolated as a light yellow powder. The molecular formula of 4 was determined to be C13H12O6 based on the HRESIMS spectrum (m/z [M + H]+ 265.0708, calcd. for C13H13O6, 265.0707), accounting for eight degrees of unsaturation (Figure S18). The 1H NMR data of 4 (Table 2, Figure S19) displayed signals of three aromatic protons at δH 7.33 (1H, d, J = 8.0 Hz, H-5), 7.70 (1H, dd, J = 8.0, 8.0 Hz, H-6), and 7.06 (1H, d, J = 8.0 Hz, H-7), two hydroxymethyl protons at δH 4.82 (2H, s, H-9), and two oxymethylene protons at δH 5.09 (2H, s, H-10), as well as one methyl singlet at δH 2.12 (3H, s, H-12). The 13C and HSQC spectra of 4 (Figures S20 and S21) showed 13 carbon signals, including those of the isocoumarin skeleton similar to those of oospolactone, and the two methyls in oospolactone were replaced by two hydroxymethyls at δC 57.1 (C-9) and 60.1 (C-10), as well as two signals for acetyl groups at δC 171.8 (C-11) and 21.0 (C-12). The presence of the hydroxymethyl group on C-3 was confirmed by the HMBC correlations (Figure S23) from H-9 to C-3 and C-4. Additionally, the HMBC correlations from H-10 to C-3, C-4, C-4a, and C-11 and from H-12 to C-11 revealed an acetoxy group on C-10. Thus, the structure of 4 was elucidated as shown in Figure 1 and named 10-acetoxy-9-hydroxyoospolactone.
Compound 5 was isolated as a light yellow powder. The molecular formula of 5 was determined to be C11H10O4 based on the HRESIMS spectrum (m/z [M + H]+ 207.0648, calcd. for C11H11O4, 207.0652), accounting for seven degrees of unsaturation (Figure S24). The 1H data of 5 (Table 2, Figure S25) displayed three aromatic proton signals at δH 7.13 (1H, d, J = 8.0 Hz, H-5), 7.66 (1H, dd, J = 8.0, 8.0 Hz, H-6), and 7.02 (1H, d, J = 8.0 Hz, H-7), one olefinic proton signal at 7.37 (1H, s, H-3), one methyl doublet at δH 1.60 (3H, d, J = 6.5 Hz, H-10), and one oxygenated sp3 methine at δH 5.06 (1H, q, J = 6.5 Hz, H-9). The 13C and HSQC spectra (Figures S26 and S27) presented 11 carbon resonances, including one carboxyl at δC 166.4 (C-1), four protonated sp2 at δC 141.2 (C-3), 113.4 (C-5), 137.4 (C-6), 116.0 (C-7), four nonprotonated sp2 carbon signals at δC 122.1 (C-4), 135.7 (C-4a), 162.4 (oxygenated, C-8), and 106.8 (C-8a), as well as one signal for oxygenated methine sp3 at δC 65.0 (C-9) and one methyl carbon at δC 23.3 (C-10). Detailed analysis of the 2D NMR data (Figures S27–S29) revealed that 5 is an analogue of the isocoumarin oospolactone. However, the methyl group at C-3 was replaced by a proton, and another methyl group at C-4 was replaced by a 1-hydroxyethyl group. The proposed structure was confirmed by the HMBC correlations from H-3 to C-1, C-4a, C-9, and C-10, and from H-10 to C-4 and C-9. Thus, the planar structure of 5 was elucidated. The absolute configuration of C-9 was assessed by comparison of experimental and calculated ECD spectra (Figure 3A), confirming the S configuration of C-9, and the compound was named 6-dehydroxysescandelin.
Compound 6 was isolated as a light yellow powder. The molecular formula of 6 was determined to be C12H8O5 based on the HRESIMS spectrum (m/z [M + H]+ 233.0443, calcd. for C12H9O5, 233.0444), accounting for nine degrees of unsaturation (Figure S30). The 1H NMR data of 6 (Table 2, Figure S31) displayed signals of three aromatic protons at δH 7.50 (1H, dd, J = 7.5, 1.0 Hz, H-5), 7.69 (1H, dd, J = 8.5, 7.5 Hz, H-6), and 7.04 (1H, dd, J = 8.5, 1.0 Hz, H-7), two methylene sp3 protons at δH 3.06 (1H, dd, J = 18.0, 6.0 Hz, H-10a) and 2.76 (1H, dd, J = 18.0, 3.0 Hz, H-10b), and one oxygenated methine sp3 proton at δH 5.83 (1H, dd, J = 6.0, 3.0 Hz, H-9). The 13C NMR and HSQC spectra (Figures S32 and S33) revealed twelve carbon resonances including one ketone carbonyl at δC 196.4 (C-11), one carboxyl at δC 163.2 (C-1), three protonated sp2 at δC 118.9 (C-5), 137.5 (C-6), 119.0 (C-7), three nonprotonated sp2 at δC 127.3 (C-4), 133.9 (C-4a), and 107.8 (C-8a), two oxygenated sp2 at δC 151.1 (C-3) and 163.2 (C-8), and one methylene sp3 at δC 39.9 (C-10) and one oxymethine sp3 at δC 75.3 (C-9). Detailed analysis of the 2D NMR data of 6 (Figures S33–S35) revealed an isocoumarin analogue. HMBC correlations from H-10 to C-3, C-4, and C-11, and from H-9 to C-3 and C-4 suggested that the 4-hydroxycyclopentenone ring was fused with the chromone ring through C-3 and C-4. Compound 6 showed weak optical rotation value of +0.91 (c 0.11, MeOH) and did not display ECD absorptions; therefore, 6 was elucidated as a racemic mixture. Therefore, the structure of 6 was defined as shown in Figure 1 and named parapholactone.
Compound 12 was isolated as a light yellow powder. The molecular formula of 12 was determined to be C19H15NO4 based on the HRESIMS spectrum (m/z [M + H]+ 322.1069, calcd. for C19H16NO4, 322.1074), accounting for thirteen degrees of unsaturation (Figure S36). The 1H and 13C NMR data of 12 (Table 3, Figures S37 and S38) displayed proton and carbon signals of isocoumarin moiety similar to those of oospolactone, as well as resonances for one phenylethyl group [δH 3.73, t, J = 7.5 Hz, H-1′, δC 43.7 C-1′; δH 2.93, t, J = 7.5 Hz, H-2′, δC 33.8 C-2′; δH 7.27, d, J = 7.0 Hz, H-4′/8′, δC 128.6 C-4′/8′; δH 7.30, dd, J = 7.0, 7.0 Hz, H-5′/7′, δC 128.4 C-5′/7′; δH 7.21, t, J = 7.0 Hz, H-6′, δC 126.3 C-6′], one methylene at δH 4.48 (s, H-9), δC 45.6 (C-9) and one conjugated amide carbonyl at δC 160.9 (C-10). Detailed analysis of 2D NMR data (Figures S39–S41) confirmed the connections of the phenylethyl moiety to the isocoumarin core. The molecular formula (C19H15NO4) of 12 and downfield shift of C-9 (δC 45.6), combined with the HMBC correlations from H-9 to C-3, C-4, C-10, and C-1′, and from H-1′ to C-9 and C-10 confirmed the connection of C-1′, C-9, and C-10 to N, forming a cyclopentenamide ring. Therefore, the structure of 12 was elucidated as shown in Figure 1 and named paraphamide A.
Compound 13 was isolated as a light yellow powder. The molecular formula of 13 was determined to be C19H15NO5 based on the HRESIMS spectrum (m/z [M + H]+ 338.1022, calcd. for C19H16NO5, 338.1023), accounting for thirteen degrees of unsaturation (Figure S42). The 1H and 13C NMR spectra of 13 (Table 3, Figures S43 and S44) resembled those of 12. Detailed analysis of the 1H and 13C NMR data (Figures S43 and S44) revealed that H-6′ of 12 was replaced by a hydroxyl group in 13. The structure of 13 was confirmed by the downfield shift of C-6′ (δC 155.8) and molecular formula. Thus, the structure of 13 was elucidated as shown in Figure 1 and named paraphamide B.
Compound 14 was isolated as a light yellow powder. The molecular formula of 14 was determined to be C21H17NO6 based on the HRESIMS spectrum (m/z [M + H]+ 380.1130, calcd. for C21H18NO6, 380.1129), accounting for fourteen degrees of unsaturation (Figure S48). The 1H and 13C NMR spectra of 14 (Table 3, Figures S49 and S50) resembled those of 12. Detailed analysis of 2D NMR spectra (Figures S51–S53) revealed that one of the protons attached to C-1′ of 12 was replaced by a methyl formate group with resonances at δC 171.1 (C-1″), δH 3.76 (3H, s, H-2″), and δC 52.9 (C-2″). This moiety was confirmed by HMBC correlations from H-1′, H-2′, and H-2″ to C-1″. The absolute configuration of C-1′ was also determined by comparison of experimental and calculated ECD spectra (Figure 3B), confirming the S configuration of C-1′. Thus, the structure of 14 was elucidated as shown in Figure 1 and named as paraphamide B.
Five known oospolactone analogues were isolated from Paraphoma sp. CUGBMF180003 and identified as oospolactone (7) [8], 8-O-methyloospolactone (8) [9], 10-hydroxyoospolactone (9) [10], 9,10-dihydroxyoospolactone (10) [10], and oospoglycol (11) [11], by comparing their spectroscopic data with the respective previously reported data.

2.2. Biological Activity

All of the isolated compounds were subjected to tests of antibacterial activities against Candida albicans ATCC 10231 and Staphylococcus aureus ATCC 25923. Both 1 and 6 showed an inhibitory effect against S. aureus with minimum inhibitory concentration (MIC) values of 12.5 μg/mL; however, none of the isolates inhibited the growth of C. albicans.

3. Materials and Methods

3.1. General Experimental Procedures

Optical rotations ( [ α ] D 25 ) were measured on an Anton Paar MCP 200 Modular Circular Polarimeter (Anton Paar GmbH, Graz, Austria) in a 100 × 2 mm cell. CD spectra were recorded on an Applied Photophysics Chirascan spectropolarimeter (Applied Photophysics Ltd., Leatherhead, UK). NMR spectra were obtained on a Bruker Avance 500 spectrometer (Bruker BioSpin Corp., Billerica, MA, USA) with residual solvent peaks as references (DMSO-d6: δH 2.50, δC 39.52; acetone-d6: δH 2.05, δC 29.84; CDCl3: δH 7.26, δC 77.16). High-resolution ESIMS measurements were obtained on an Accurate-Mass-Q-TOF LC/MS 6520 instrument (Agilent Technologies, Santa Clara, CA, USA) in positive ion mode. HPLC was performed using an Agilent 1200 Series separation module equipped with an Agilent 1200 Series diode array and Agilent 1260 Series fraction collector (Agilent Technologies, Santa Clara, CA, USA), and an Agilent ZORBAX SB-C18 column (250 × 9.4 mm, 5 µm).

3.2. Microbial Material, Fermentation, Extraction, and Purification

Strain CUGBMF180003 was isolated from a mud sample collected from the intertidal zones of Shenzhen, China, and grown on a potato dextrose agar plate at 28 °C. The genomic DNA of CUGBMF180003 was extracted using the GO-GPLS-100 kit (GeneOn BioTech, Changchun, China). The ITS region was amplified using a conventional primer pair of ITS4 (5′ -TCCTCCGCTTATTGATATGC -3′) and ITS5 (5′-GGAAGTAAAAGTCGTAACAAGG -3′). PCR products were sent to Beijing Qingke Biotechnology Co., Ltd. (Beijing, China) for DNA sequencing and deposited in GenBank (accession number, MZ268156). CUGBMF180003 was identified as Paraphoma sp. by sequence analysis of its internal transcribed spacer (ITS) region and comparison with sequences from the GenBank database, using the BLAST program to determine an approximate phylogenetic affiliation. Alignments and calculations of sequence similarity were carried out using CLUSTAL W [12]. A neighbor-joining (NJ) tree (Figure S54) was constructed using the software package Mega version 5 [13]. Bootstrap resampling method with 1000 replicates was used in evaluating the topology of the phylogenetic trees [14]. The fungus was assigned the accession number CUGBMF180003 in the culture collection at the China University of Geosciences, Beijing. The strain CUGBMF180003 was inoculated on a potato dextrose agar plate and cultured for 5 days. Subsequently, a slit of agar with fungus was cut from the plate and inoculated into 10 1 L conical flasks, each containing solid medium consisting of rice (200 g) and artificial seawater (3.5%; 200 mL), and the flasks were incubated under static conditions at 28 °C for 30 days. The cultures were extracted three times with a mixture of EtOAc:MeOH (80:20), and the combined extracts were evaporated to dryness in vacuo. The residue was suspended in distilled water and partitioned with EtOAc. The EtOAc layer was then dried in vacuo to yield a dark residue (17.25 g). The EtOAc fraction was fractionated via vacuum liquid silica gel chromatography (80 × 80 mm column, silica gel 60 H for thin-layer chromatography) using a stepwise gradient of 80–100% hexane/CH2Cl2 and then 0–90% MeOH/CH2Cl2 to afford 12 fractions. Fraction C was fractionated on a Sephadex LH-20 column using an isocratic elution of CH2Cl2:MeOH (2:1) to yield six subfractions (C1–C6), and subfraction C6 was further fractionated by HPLC (Agilent ZORBAX SB-C18, 250 × 9.4 mm, 5 μm column, 3.0 mL/min, elution with 40% to 100% acetonitrile/H2O) to yield 7 (46.9 mg). Fraction D was fractionated on a Sephadex LH-20 column using an isocratic elution of CH2Cl2:MeOH (2:1), to give four subfractions (D1–D4). Subfraction D3 was further fractionated by HPLC (Agilent ZORBAX SB-C18, 250 × 9.4 mm, 5 μm column, 3.0 mL/min, elution with 40% to 100% acetonitrile/H2O) to yield 1 (9.5 mg) and 2 (1.3 mg). Fraction F was fractionated on a Sephadex LH-20 column using an isocratic elution of CH2Cl2:MeOH (2:1) to give six subfractions (F1–F6). Subfraction F3 was further fractionated by HPLC (Agilent ZORBAX SB-C18, 250 × 9.4 mm, 5 μm column, 3.0 mL/min, with 30% to 70% acetonitrile/H2O) to yield 8 (3.1 mg), 12 (7.5 mg), and 14 (1.2 mg). Subfraction F5 was further fractionated by HPLC (Agilent ZORBAX SB-C18, 250 × 9.4 mm, 5 μm column, 3.0 mL/min, elution with 30% to 60% acetonitrile/H2O) to yield 4 (2.7 mg), 5 (2.3 mg), 6 (8.7 mg), and 9 (10.8 mg). Fraction M was fractionated on a Sephadex LH-20 column using an isocratic elution of CH2Cl2:MeOH (2:1) to give nine subfractions (M1–M9). Subfraction M7 was further fractionated by HPLC (Agilent ZORBAX SB-C18, 250 × 9.4 mm, 5 μm column, 3.0 mL/min, elution with 30% to 72% acetonitrile/H2O) to yield 3 (6.3 mg) and 13 (5.8 mg). Fraction N was fractionated on a Sephadex LH-20 column using an isocratic elution of CH2Cl2:MeOH (2:1) to give seven subfractions (N1–N7). Subfraction N7 was further fractionated by HPLC (Agilent ZORBAX SB-C18, 250 × 9.4 mm, 5 μm column, 3.0 mL/min, elution with 30% to 72% acetonitrile/H2O) to yield 10 (1.7 mg) and 11 (6.3 mg).
7-Hydroxyoospolactone (1): Light yellow powder; 1H and 13C NMR data, Table 1; HRESIMS m/z 207.0652 [M + H]+ (calcd. C11H11O4, 207.0652).
7-Methoxyoospolactone (2): Light yellow powder; 1H and 13C NMR data, Table 1; HRESIMS m/z 221.0811 [M + H]+ (calcd. for C12H13O4, 221.0808).
7-Methoxy-9-hydroxyoospolactone (3): Light yellow powder; 1H and 13C NMR data, Table 1; HRESIMS m/z 241.0705 [M + H]+ (calcd. for 237.0758, C12H13O5, 237.0757).
10-Acetoxy-9-hydroxyoospolactone (4): Light yellow powder; 1H and 13C NMR data, Table 2; HRESIMS m/z 265.0708 [M + H]+ (calcd. for C13H13O6, 265.0707).
6-Dehydroxysescandelin (5): Light yellow powder; [ α ] D 25 −16.5 (c 0.20, MeOH); 1H and 13C NMR data, Table 2; HRESIMS m/z 207.0648 [M + H]+ (calcd. for C11H11O4, 207.0652).
Parapholactone (6): Light yellow powder; [ α ] D 25 +0.91 (c 0.11, MeOH); 1H and 13C NMR data, Table 2; HRESIMS m/z 233.0443 [M + H]+ (calcd. for C12H9O5, 233.0444).
Paraphamide A (12): Light yellow powder; 1H and 13C NMR data, Table 3; HRESIMS m/z 322.1069 [M + H]+ (calcd. for C19H16NO4, 322.1074).
Paraphamide B (13): Light yellow powder; 1H and 13C NMR data, Table 3; HRESIMS m/z 338.1022 [M + H]+ (calcd. for C19H16NO5, 338.1023).
Paraphamide C (14): Light yellow powder; [ α ] D 25 +35.0 (c 0.06, MeOH); 1H and 13C NMR data, Table 3; HRESIMS m/z 380.1130 [M + H]+ (calcd. for C21H18NO6, 380.1129).

3.3. Biological Activity

Compounds 114 were evaluated for their antimicrobial activities in 96-well plates according to the antimicrobial susceptibility testing standards outlined by the Clinical and Laboratory Standards Institute document M07-A7 (CLSI) [15]. Briefly, C. albicans ATCC 10231 was inoculated on potato dextrose agar plate and cultured for 24 hours at 35 °C. Five colonies of about 1 mm in diameter were picked and suspended in 5 mL of physiological saline. The suspension was then adjusted to approximately 106 CFU/mL with RPMI 1640. For the antibacterial assay, S. aureus ATCC 25923 was inoculated on a Mueller–Hinton broth agar plate and cultured for 24 hours at 37 °C. Five colonies of about 1 mm in diameter were then picked and suspended in 5 mL of physiological saline. The suspension was then adjusted to approximately 106 CFU/mL with Mueller–Hinton broth and 2 μL of 2-fold serial dilution of each compound (in DMSO) was added to each row in the 96-well microplate, which contained 78 μL of microbe suspension in each well. Amphotericin B and vancomycin were used as positive controls for fungi and bacteria, respectively; DMSO was used as negative control. The 96-well plates were incubated at 35 °C aerobically for 24 hours. The MIC was defined as the minimum concentration of the compound that prevented visible growth of the microbes.

4. Conclusions

In summary, nine new secondary metabolites, including six oospolactone analogues, 7-hydroxyoospolactone (1), 7-methoxyoospolactone (2), 7-methoxy-9-hydroxyoospolactone (3), 10-acetoxy-9-hydroxyoospolactone (4), 6-dehydroxysescandelin (5), and parapholactone (6), three compounds with a rare skeleton of isocoumarin coupled with phenylethylamine, namely paraphamide A (12), paraphamide B (13), and paraphamide C (14), together with five known compounds, oospolactone (7), 8-O-methoxyoospolactone (8), 10-hydroxyoospolactone (9), 9,10-dihydroxyoospolactone (10), and oospoglycol (11), were isolated from the marine-derived fungus Paraphoma sp. CUGBMF180003. The carbon skeleton of 1214 was identified as the first example of a coupled structure of isocoumarin and phenylethylamine. Natural isocoumarin analogues display a variety of bioactivities, including inhibitory activity against α-glucosidase [16], cytotoxicity [17,18], antifungal [19] and antibacterial activities [20,21,22,23,24], and anti-influenza virus [25]. The new isocoumarin analogues 1 and 6 showed inhibitory activity against S. aureus with MIC values of 12.5 μg/mL, but were devoid of growth-inhibitory activity against C. albicans activity at a concentration of 200 μg/mL.

Supplementary Materials

The following are available online at https://www.mdpi.com/article/10.3390/md19060313/s1, Figures S1–S53: HRESIMS, 1D and 2D NMR for compounds 16 and 1214; Figure S54: Phylogenetic tree of strain CUGBMF180003.

Author Contributions

Data curation, X.X., J.L., K.Z. and R.L.; Funding acquisition, X.X. and F.S.; Investigation, X.X., J.L., K.Z., S.W., R.L. and N.Y.; Supervision, N.Y. and F.S.; Writing—original draft, X.X., N.Y. and F.S.; Writing—review & editing, X.X., J.L., K.Z., S.W., R.L., S.W.P., N.Y. and F.S. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by grants from the National Key R&D Program of China (2018YFC0311000), the Key Lab of Marine Bioactive Substance and Modern Analytical Technique, SOA (MBSMAT-2019-06), and the National Natural Science Foundation of China (81973204), and Research Foundation for Advanced Talents of Beijing Technology and Business University (No. 19008020158).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Data is contained within the article or supplementary material.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Moslemi, A.; Ades, P.K.; Crous, P.W.; Groom, T.; Scott, J.B.; Nicolas, M.E.; Taylor, P.W.J. Paraphoma chlamydocopiosa sp. nov. and Paraphoma pye sp. nov., two new species associated with leaf and crown infection of pyrethrum. Plant. Pathol. 2018, 67, 124–135. [Google Scholar] [CrossRef] [Green Version]
  2. Gomzhina, M.M.; Gasich, E.L.; Khlopunova, L.B.; Gannibal, P.B. Paraphoma species associated with Convolvulaceae. Mycol. Prog. 2020, 19, 185–194. [Google Scholar] [CrossRef]
  3. Sameshima-Yamashita, Y.; Koitabashi, M.; Tsuchiya, W.; Suzuki, K.; Watanabe, T.; Shinozaki, Y.; Yamamoto-Tamura, K.; Yamazaki, T.; Kitamoto, H. Enhancement of biodegradable plastic-degrading enzyme production from Paraphoma-like fungus, strain B47-9. J. Oleo. Sci. 2016, 65, 257–262. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  4. Koitabashi, M.; Sameshima-Yamashita, Y.; Koike, H.; Sato, T.; Moriwaki, J.; Morita, T.; Watanabe, T.; Yoshida, S.; Kitamoto, H. Biodegradable plastic-degrading activity of various species of Paraphoma. J. Oleo. Sci. 2016, 65, 621–627. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Li, L.Y.; Sun, B.D.; Zhang, G.S.; Deng, H.; Wang, M.H.; Tan, X.M.; Zhang, X.Y.; Jia, H.M.; Zhang, H.W.; Zhang, T.; et al. Polyketides with different post-modifications from desert endophytic fungus Paraphoma sp. Nat. Prod. Res. 2018, 32, 939–943. [Google Scholar] [CrossRef]
  6. Poluektova, E.; Tokarev, Y.; Sokornova, S.; Chisty, L.; Evidente, A.; Berestetskiy, A. Curvulin and phaeosphaeride a from Paraphoma sp. VIZR 1.46 isolated from Cirsium arvense as potential herbicides. Molecules 2018, 23, 2795. [Google Scholar] [CrossRef] [Green Version]
  7. El-Elimat, T.; Raja, H.A.; Figueroa, M.; Falkinham, J.O., 3rd; Oberlies, N.H. Isochromenones, isobenzofuranone, and tetrahydronaphthalenes produced by Paraphoma radicina, a fungus isolated from a freshwater habitat. Phytochemistry 2014, 104, 114–120. [Google Scholar] [CrossRef] [Green Version]
  8. Majetich, M.; Grove, J.L. Synthesis of 8-hydroxyisochromenes and 8-hydroxyisocoumarins from 3-ethoxycyclohex-2-en-1-one. Heterocycles 2012, 84, 983–1012. [Google Scholar] [CrossRef]
  9. Nitta, K.; Takura, C.; Yamamoto, I.; Yamamoto, Y.; Imai, J.; Yamatodani, S. Studies on the metabolic products of Oospora sp. (Oospora astringenes). Agr. Biol. Chem. 1963, 27, 813–827. [Google Scholar]
  10. Sonnenbichler, J.B.; Bliestle, I.M.; Peipp, H.; Holdenrieder, O. Secondary fungal metabolites and their biological activities, I. isolation of antibiotic compounds from cultures of Heterobasidion annosum synthesized in the presence of antagonistic fungi or host plant cells. Biol. Chem. Hoppe Seyler 1989, 370, 1295–1303. [Google Scholar] [CrossRef] [PubMed]
  11. Sonnenbichler, J.; Sonnenbichler, I.; Schwarz, D. Biosynthesis of oosponol and oospoglycol elucidated by 13C NMR. Phytochemistry 1997, 44, 267–269. [Google Scholar] [CrossRef]
  12. Thompson, J.D.; Higgins, D.G.; Gibson, T.J. Clustal-W-Improving the sensitivity of progressive multiple sequence alignment through sequence weighting, position-specific gap penalties and weight matrix choice. Nucleic. Acids. Res. 1994, 22, 4673–4680. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Tamura, K.; Peterson, D.; Peterson, N.; Stecher, G.; Nei, M.; Kumar, S. MEGA5: Molecular evolutionary genetics analysis using maximum likelihood, evolutionary distance, and maximum parsimony methods. Mol. Biol. Evol. 2011, 28, 2731–2739. [Google Scholar] [CrossRef] [Green Version]
  14. Felsenstein, J. Confidence-Limits on Phylogenies—An approach using the bootstrap. Evolution 1985, 39, 783–791. [Google Scholar] [CrossRef]
  15. Clinical and Laboratory Standards Institute. Methods for Dilution Antimicrobial Susceptibility Tests for Bacteria that Grow Aerobically, 7th ed.; Approved Standard; Clinical and Laboratory Standards Institute: Wayne, PA, USA, 2008. [Google Scholar]
  16. Liao, M.F.; Wang, K.; Ren, J.W.; Liu, L.; Cai, L.; Han, J.J.; Liu, H.W. 2H-Pyranone and isocoumarin derivatives isolated from the plant pathogenic fungus Leptosphaena maculans. J. Asian. Nat. Prod. Res. 2019, 21, 939–946. [Google Scholar] [CrossRef]
  17. Xin, Z.H.; Tian, L.; Zhu, T.J.; Wang, W.L.; Du, L.; Fang, Y.C.; Gu, Q.Q.; Zhu, W.M. Isocoumarin derivatives from the sea squirt-derived fungus Penicillium stoloniferum QY2-10 and the halotolerant fungus Penicillium notatum B-52. Arch. Pharm. Res. 2007, 30, 816–819. [Google Scholar] [CrossRef]
  18. Wu, Y.; Chen, S.; Liu, H.; Huang, X.; Liu, Y.; Tao, Y.; She, Z. Cytotoxic isocoumarin derivatives from the mangrove endophytic fungus Aspergillus sp. HN15-5D. Arch. Pharm. Res. 2019, 42, 326–331. [Google Scholar] [CrossRef] [PubMed]
  19. Song, R.Y.; Wang, X.B.; Yin, G.P.; Liu, R.H.; Kong, L.Y.; Yang, M.H. Isocoumarin derivatives from the endophytic fungus, Pestalotiopsis sp. Fitoterapia 2017, 122, 115–118. [Google Scholar] [CrossRef] [PubMed]
  20. Li, R.; Chen, S.; Niu, S.; Guo, L.; Yin, J.; Che, Y. Exserolides A–F, new isocoumarin derivatives from the plant endophytic fungus Exserohilum sp. Fitoterapia 2014, 96, 88–94. [Google Scholar] [CrossRef] [PubMed]
  21. Xu, Z.; Wu, X.; Li, G.; Feng, Z.; Xu, J. Pestalotiopisorin B, a new isocoumarin derivative from the mangrove endophytic fungus Pestalotiopsis sp. HHL101. Nat. Prod. Res. 2020, 34, 1002–1007. [Google Scholar] [CrossRef]
  22. Damasceno, J.P.L.; Rodrigues, R.P.; Gonçalves, R.C.R.; Kitagawa, R.R. Anti-Helicobacter pylori activity of isocoumarin paepalantine: Morphological and molecular docking analysis. Molecules 2017, 22, 786. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  23. Qi, J.; Shao, C.L.; Li, Z.Y.; Gan, L.S.; Fu, X.M.; Bian, W.T.; Zhao, H.Y.; Wang, C.Y. Isocoumarin derivatives and benzofurans from a sponge-derived Penicillium sp. fungus. J. Nat. Prod. 2013, 76, 571–579. [Google Scholar] [CrossRef] [PubMed]
  24. Shi, T.; Qi, J.; Shao, C.L.; Zhao, D.L.; Hou, X.M.; Wang, C.Y. Bioactive diphenyl ethers and isocoumarin derivatives from a gorgonian-derived fungus Phoma sp. (TA07-1). Mar. Drugs. 2017, 15, 146. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Gu, W.; Wang, W.; Li, X.N.; Zhang, Y.; Wang, L.P.; Yuan, C.M.; Huang, L.J.; Hao, X.J. A novel isocoumarin with anti-influenza virus activity from Strobilanthes cusia. Fitoterapia 2015, 107, 60–62. [Google Scholar] [CrossRef] [PubMed]

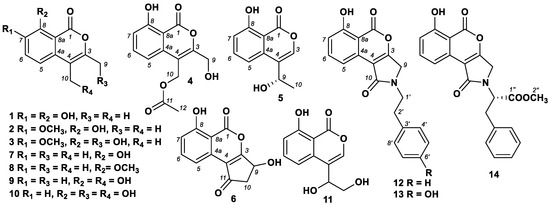

Figure 1. Chemical structures of 114.
Figure 1. Chemical structures of 114.
Marinedrugs 19 00313 g001

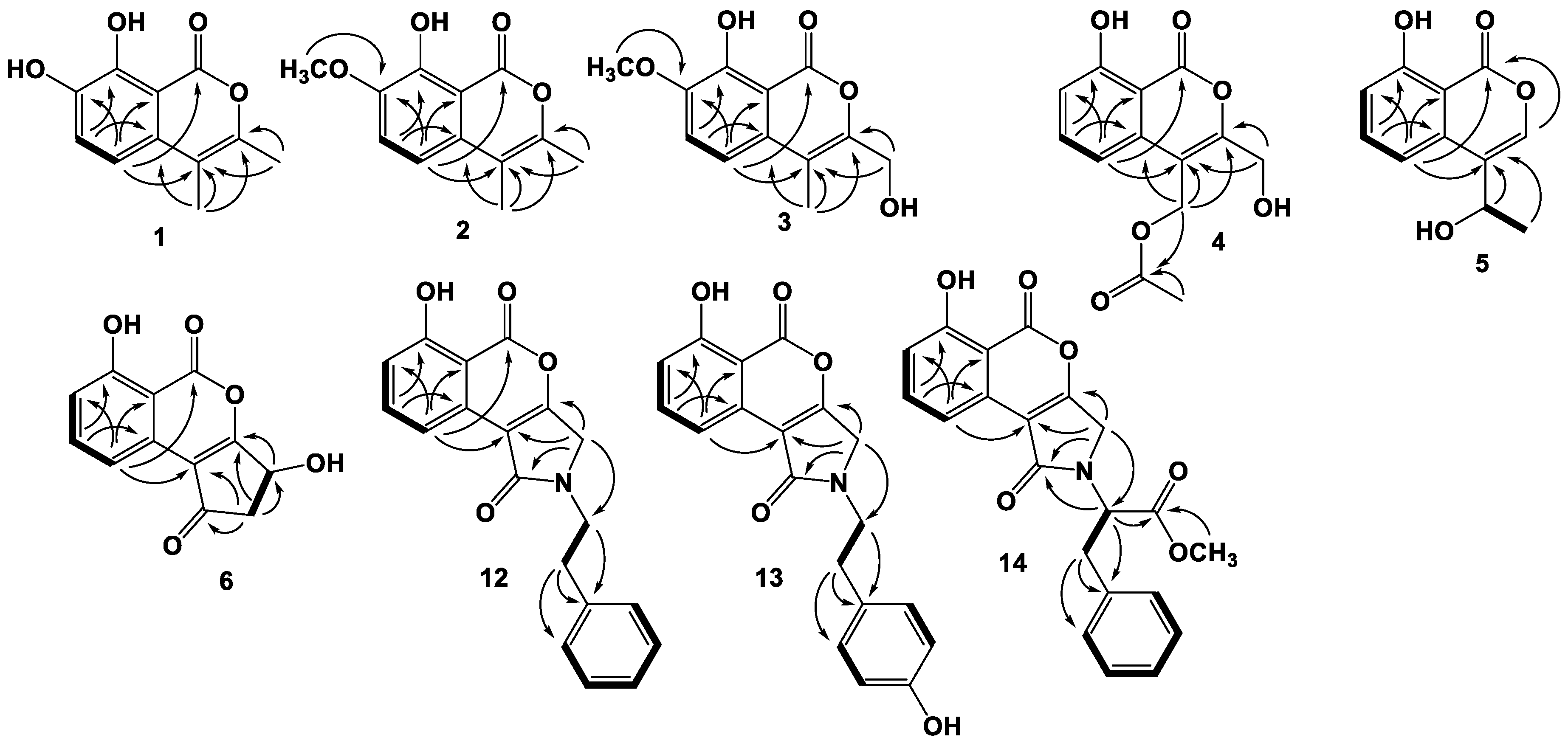

Figure 2. Key COSY (bold lines) and HMBC (arrows) correlations in 16 and 1214.
Figure 2. Key COSY (bold lines) and HMBC (arrows) correlations in 16 and 1214.
Marinedrugs 19 00313 g002

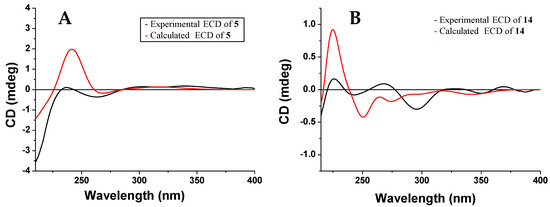

Figure 3. Calculated and experimental electronic circular dichroism (ECD) spectra of 5 (A) and 14 (B).
Figure 3. Calculated and experimental electronic circular dichroism (ECD) spectra of 5 (A) and 14 (B).
Marinedrugs 19 00313 g003
Table 1. 1H (500 MHz) and 13C NMR (125 MHz) NMR data of 13.
Table 1. 1H (500 MHz) and 13C NMR (125 MHz) NMR data of 13.
Position 1 (DMSO-d6)2 (DMSO-d6)3 (DMSO-d6)
δC, TypeδH (J in Hz)δC, TypeδH (J in Hz)δC, TypeδH (J in Hz)
1166.2, CO 166.2, CO 166.2, CO
3146.7, C 147.3, C 149.5, C
4108.7, C 108.6, C 110.5, C
4a129.6, C 130.4, C 130.0, C
5113.3, CH6.93, d (8.5)113.0, CH6.99, d (8.5)113.9, CH7.12, d (8.5)
6124.2, CH7.31, d (8.5)120.6, CH7.51, d (8.5)120.4, CH8.50, d (8.5)
7143.8, C 145.7, C 146.4, C
8148.6, C 150.2, C 150.2, C
8a105.9, C 105.6, C 106.0, C
916.5, CH32.24, s16.5, CH32.25, s57.6, CH24.36, s
1012.0, CH32.06, s11.9, CH32.07, s11.5, CH32.17, s
7-OH/-OMe 9.69, br s56.1, CH33.85, s56.1, CH33.87, s
8-OH 11.12, s 11.24, s
Table 2. 1H (500 MHz) and 13C NMR (125 MHz) NMR data of 46.
Table 2. 1H (500 MHz) and 13C NMR (125 MHz) NMR data of 46.
Position 4 (CDCl3)5 (CDCl3)6 (Acetone-d6)
δC, TypeδH (J in Hz)δC, TypeδH (J in Hz)δC, TypeδH (J in Hz)
1165.6, CO 166.4, CO 163.2, CO
3148.1, C 141.2, CH7.37, s151.1, C
4117.7, C 122.1, C 127.3, C
4a136.5, C 135.7, C 133.9, C
5114.9, CH7.33, d (8.0)113.4, CH7.13, d (8.0)118.9, CH7.50, dd (7.5, 1.0)
6137.8, CH7.70, dd (8.0, 8.0) 137.4, CH7.66, dd (8.0, 8.0)137.5, CH7.69, dd (8.5, 7.5)
7116.7, CH7.06, d (8.0)116.0, CH7.02, d (8.0)119.0, CH7.04, dd (8.5, 1.0)
8162.1, C 162.4, C 163.2, C
8a106.9, C 106.8, C 107.8, C
957.1, CH24.82, s65.0, CH5.06, q (6.5)75.3, CH 5.83, dd (6.0, 3.0)
1060.1, CH25.09, s23.3, CH31.60, d (6.5)39.9, CH23.06, dd (18.0, 6.0)
2.76, dd (18.0, 3.0)
11171.8, C 196.4, C
1221.0, CH32.12, s
8-OH 11.06, s 11.28, s
Table 3. 1H (500 MHz) and 13C NMR (125 MHz) NMR data of 1214.
Table 3. 1H (500 MHz) and 13C NMR (125 MHz) NMR data of 1214.
Position 12 (DMSO-d6)13 (DMSO-d6)14 (CDCl3)
δC, TypeδH (J in Hz)δC, TypeδH (J in Hz)δC, TypeδH (J in Hz)
1164.4, CO 164.4, CO 165.4, CO
3143.5, C 143.6, C 143.7, C
4122.9, C 122.9, C 123.7, C
4a132.4, C 132.4, C 132.2, C
5113.7, CH7.11, d ( 8.0)113.8, CH7.11, d, 8.0113.0, CH6.88, d (7.5)
6138.1, CH7.82, dd (8.0, 8.0)138.1, CH7.81, dd, 8.0, 8.0138.0, CH7.68, dd (8.0, 7.5)
7117.5, CH7.14, d (8.0)117.5, CH7.14, d, 8.0118.6, CH7.12, d (8.0)
8161.4, C 161.4, C 163.0, C
8a106.4, C 106.5, C 106.8, C
945.6, CH24.48, s45.6, CH24.45, s43.7, CH24.57, d (17.5)
4.24, d (17.5)
10160.9, CO 160.8, CO 162.1, CO
1′43.7, CH23.73, t (7.5)44.1, CH23.66, t, 7.555.0, CH5.34, dd (10.5, 5.5)
2′33.8, CH22.93, t (7.5)33.0, CH22.80, t (7.5)35.9, CH23.51, dd (14.5, 5.5)
3.19, dd (14.5, 10.5)
3′138.6, C 128.6, C 135.8, C
4′128.6, CH7.27, d (7.0)129.5, CH7.04, d (8.5)128.5, CH7.21, d (8.0)
5′128.4, CH7.30, dd ( 7.0, 7.0)115.3, CH6.67, d (8.5)129.1, CH7.28, dd (8.0, 8.0)
6′126.3, CH7.21, t (7.0)155.8, C 127.4, CH7.22, t (8.0)
7′128.4, CH7.30, dd (7.0, 7.0)115.3, CH6.67, d (8.5)129.1, CH7.28, dd (8.0, 8.0)
8′128.6, CH7.27, d (7.0)129.5, CH7.04, d (8.5)128.5, CH7.21, d (8.0)
1′ 171.1, CO
2″ 52.9, CH33.76, s
8-OH 10.92, s 11.04, s
