Enhanced In Vitro Anti-Photoaging Effect of Degraded Seaweed Polysaccharides by UV/H2O2 Treatment

by
Wanzi Yao
1,2,
Jiayu Yong
1,2,
Bingxue Lv
1,2,
Siyu Guo
1,2,
Lijun You
1,2,*,
Peter Chi-Keung Cheung
3 and
Viktoryia I. Kulikouskaya
4
1
School of Food Science and Engineering, South China University of Technology, Guangzhou 510640, China
2
Research Institute for Food Nutrition and Human Health (111 Center), Guangzhou 510640, China
3
Food & Nutritional Sciences Program, School of Life Sciences, Chinese University of Hong Kong, Hong Kong 999077, China
4
Institute of Chemistry of New Materials, National Academy of Sciences of Belarus, 36 Skaryna Str., 220141 Minsk, Belarus
*
Author to whom correspondence should be addressed.
Mar. Drugs 2023, 21(8), 430; https://doi.org/10.3390/md21080430
Submission received: 30 June 2023 / Revised: 26 July 2023 / Accepted: 28 July 2023 / Published: 29 July 2023
(This article belongs to the Section Structural Studies on Marine Natural Products)
Browse Figures
Versions Notes

Abstract

:
The high molecular weight and poor solubility of seaweed polysaccharides have limited their function and application. In this study, ultraviolet/hydrogen peroxide (UV/H2O2) treatment was used to prepare low-molecular-weight seaweed polysaccharides from Sargassum fusiforme. The effects of UV/H2O2 treatment on the physicochemical properties and anti-photoaging activity of S. fusiforme polysaccharides were studied. UV/H2O2 treatment effectively degraded polysaccharides from S. fusiforme (DSFPs), reducing their molecular weight from 271 kDa to 26 kDa after 2 h treatment. The treatment did not affect the functional groups in DSFPs but changed their molar percentage of monosaccharide composition and morphology. The effects of the treatment on the anti-photoaging function of S. fusiforme polysaccharides were investigated using human epidermal HaCaT cells in vitro. DFSPs significantly improved the cell viability and hydroxyproline secretion of UVB-irradiated HaCaT cells. In particular, DSFP-45 obtained from UV/H2O2 treatment for 45 min showed the best anti-photoaging effect. Moreover, DSFP-45 significantly increased the content and expression of collagen I and decreased those of pro-inflammatory cytokines, including interleukin-1β, interleukin-6, and tumor necrosis factor-α. Thus, UV/H2O2 treatment could effectively improve the anti-photoaging activity of S. fusiforme polysaccharides. These results provide some insights for developing novel and efficient anti-photoaging drugs or functional foods from seaweed polysaccharides.

Graphical Abstract

1. Introduction

China has a long coastline and abundant marine macroalgal/seaweed resources with a wide range of sources. As the leading producer globally, China’s seaweed cultivation output accounts for 72% of global production, ranking first in the world [1]. But only a small portion of marine macroalgae in China is consumed fresh or undergoes simple primary processing. Most of the seaweed resources have not been exploited and utilized, resulting in a serious waste problem. Seaweed contains a variety of bioactive components, of which polysaccharides have attracted particular attention because of their diverse health-promoting functions such as anti-inflammatory [2], anti-cancer [3,4], immunomodulatory [5], and gut microbiota regulatory [6,7,8,9,10] effects. However, seaweed polysaccharides have deficiencies such as a large molecular weight, poor solubility, and low bioavailability, limiting their application [11,12]. Therefore, it is necessary to find a way to effectively degrade seaweed polysaccharides and significantly improve their solubility and biological activity, which is of great significance for exploitation and utilization.
The current methods to degrade seaweed polysaccharides mainly include physical, chemical, and biological processes. Physical methods, such as microwave, ultrasound, irradiation, and pulsed electric field, are highly efficient and environmentally friendly, but their high cost and equipment requirements limit their widespread industrial application [13,14]. Chemical methods, such as acid and alkali treatment, are easy to operate but cause environmental pollution due to their use of chemical reagents [15,16]. Biological methods, such as enzymes and microorganisms, are gentle, non-toxic, and safe, but the cost is relatively high. In addition, it is difficult to find specific enzymes and microorganisms with excellent degradation effects because of the complex structure of seaweed polysaccharides [17,18]. In recent years, the free radical degradation method, as an emerging means of polysaccharide degradation, has attracted increasing interest because of its simple operation, high efficiency, environmentally friendly nature, and low cost [19,20]. Our research group innovatively used ultraviolet/hydrogen peroxide (UV/H2O2) treatment to degrade seaweed polysaccharides and found that this method significantly reduced the molecular weight of polysaccharides and increased their solubility and bioavailability [21,22]. UV/H2O2 treatment had excellent decolorization and deproteinization effects, and the degraded polysaccharides exhibited significant anti-inflammatory activity [23].
Photoaging, also known as extrinsic aging, is a complex and multifactorial process triggered by UV irradiation. Photoaging induces oxidative stress, upregulates the expression of matrix metalloproteinases, breaks down the extracellular matrix (ECM), and causes an inflammatory response, resulting in structural, morphological, and functional changes in the skin [24]. The incidence of skin photoaging has increased over the years due to the destruction of the ozone layer and the increase in UV irradiation. How to prevent and treat UV-induced photoaging damage to the skin has become a global public health problem that needs to be solved urgently. Anti-photoaging drugs can be effective in their intended purpose, but they may also have potential side effects. For example, retinoids, which are derivatives of vitamin A, can improve skin texture and reduce wrinkles, but they can also cause skin irritation, dryness, redness, and increased sensitivity to the sun [25,26]. Compared with chemicals and synthetic drugs, natural compounds are thought to be more efficient, less toxic, with fewer side effects [27,28,29]. The strategy of using natural bioactive substances such as anthocyanin [30], peptides [31], polyphenols [32], and polysaccharides [33] to alleviate photoaging and improve skin health has been discovered as an essential method for the prevention and treatment of photoaging. Polysaccharides exert a protective and therapeutic effect on skin photoaging [34]. Our previous study showed that water-extracted polysaccharides from S. fusiforme exhibited a potential anti-photoaging effect [35,36]. However, these polysaccharides have a high molecular weight and poor solubility and bioavailability, which limit their further application. In addition, the anti-photoaging mechanism of S. fusiforme polysaccharides remains unclear.
Therefore, this study used a UV/H2O2 method to degrade S. fusiforme polysaccharides. The effects of UV/H2O2 treatment on the physicochemical properties and anti-photoaging activity of S. fusiforme polysaccharides were studied. The degraded polysaccharides with the best anti-photoaging activity were screened out, and their anti-photoaging mechanism was investigated using photoaged HaCaT cells. The results would provide some important insights for enhancing the anti-photoaging activity of polysaccharides by UV/H2O2 treatment and promote the development and utilization of marine macroalgal resources.

2. Results and Discussion

2.1. Chemical Compositions of SFP and DSFPs

The effects of UV/H2O2 treatment on the chemical composition of S. fusiforme polysaccharides are shown in Table 1. The results showed that the contents of total carbohydrate, reducing sugar, and sulfate of DSFPs increased gradually with the treatment time, while the content of uronic acids gradually decreased. Furthermore, the content of protein did not change significantly. The increasing contents of total carbohydrate indicated that UV/H2O2 treatment might degrade pigments and other impurities in S. fusiforme polysaccharides and thus improve their purity [21]. The decreasing contents of uronic acids suggested that the treatment might lead to the removal of uronic acids in polysaccharides [22]. DSFP-90 obtained by UV/H2O2 treatment for 90 min had the highest content of total carbohydrate, 72.14 ± 3.96%. DSFP-120 obtained by UV/H2O2 treatment for 120 min had the highest contents of reducing sugar and sulfate (6.16 ± 0.25% and 8.81 ± 0.50%, respectively) and the lowest contents of uronic acids (19.46 ± 1.42%).
The main reason why UV/H2O2 treatment led to changes in the chemical composition of S. fusiforme polysaccharides was that UV activated the decomposition of H2O2 and generated a large number of free radicals such as hydroxyl radical, peroxy radical, and hydrogen radical, which then attacked the structure of polysaccharides, causing changes in their chemical composition [37,38,39]. The increase in the content of reducing sugar may be attributed to the increase in reducing sugar terminals caused by the breakage of glycosidic bonds during the treatment. The decrease in the content of uronic acids might be caused by the removal of uronic acids during oxidative degradation. The increase in the content of sulfate might be related to the absence of free radical attack on the sulfate group linking sites in polysaccharides [22].

2.2. Molecular Weights and Yields of SFP and DSFPs

The effects of UV/H2O2 treatment on the molecular weight of S. fusiforme polysaccharides are shown in Table 2 and Figure 1A. After the treatment, the molecular weights of DSFPs were significantly reduced compared with that of SFP (271 kDa), and the decrease in molecular weight gradually increased with the treatment time. The molecular weights of DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120 were 128, 59, 43, 36, 31, 28, 28, and 26 kDa, respectively. UV/H2O2 treatment effectively degraded S. fusiforme polysaccharides, most likely because the free radicals generated by UV-excited H2O2 decomposition attacked the structure of polysaccharides, causing their degradation and reducing their molecular weight. And as time went on, more free radicals were created, which increased the degree of glycosidic bond cleavage.
The yields of DSFPs shown in Table 2 reduced gradually with the treatment time. The yield of DSFP-15 obtained by UV/H2O2 treatment for 15 min was 65.7%, while the yield of DSFP-120 obtained by UV/H2O2 treatment for 120 min was 30.0%. This might be because the degraded polysaccharides were purified by dialysis after treatment. As the degradation time increased, S. fusiforme polysaccharides were broken down more finely, and more low molecular weight fragments were removed during dialysis, resulting in a gradual decrease in yield.

2.3. Monosaccharide Compositions of SFP and DSFPs

The effects of UV/H2O2 treatment on the monosaccharide composition of S. fusiforme polysaccharides are shown in Table 3 and Figure 1B. The results showed that seven monosaccharides were detected in SFP. Fucose, the most abundant monosaccharide of SFP, accounted for 35.58% of the total, followed by glucuronic acid, galacturonic acid, galactose, glucose, and xylose with respective amounts of 20.62%, 17.53%, 15.96%, 6.12%, and 4.19%. DSFPs had the same type of monosaccharide composition as SFP, indicating that UV/H2O2 treatment did not change the type of monosaccharide composition of S. fusiforme polysaccharides, which is consistent with the previous studies [40]. However, there were considerable changes in the molar percentages of their monosaccharide composition. With the increase in treatment time, the molar percentages of fucose increased steadily from 35.58% to 46.04%. The molar percentages of glucose, xylose, and galacturonic acid decreased gradually, from 4.19% to 2.20%, 6.12% to 4.11%, and 17.53% to 8.95%, respectively. The findings suggested that glucose, xylose, and galacturonic acid residues might be the main attach sites of free radicals during the treatment. The lack of a clear pattern in the molar percentages of the other monosaccharides might be attributed to the complex structure of S. fusiforme polysaccharides and the non-selectivity of free radicals’ attack sites.

2.4. Scanning Electron Microscope (SEM) Analysis

The effects of UV/H2O2 treatment on the surface morphology and microstructure of S. fusiforme polysaccharides are shown in Figure 2. SFP had a tight structure with a rough and uneven surface, exhibiting a thick sheet-like morphology. The structure of SFP was dense and compact, revealing that their sugar chains were tightly aggregated. After UV/H2O2 treatment, the apparent morphology of polysaccharides changed obviously. Although DSFP-15 obtained by the treatment for 15 min still displayed a sheet structure, its surface roughness and compactness were significantly reduced. In addition, the slight fragmentation of polysaccharides was observed, possibly due to the breakage of glycosidic bonds during UV/H2O2 treatment. DSFP-30 obtained by the treatment for 30 min still showed a flake-like structure with a smooth surface, but the fragmentation of DSFP-30 was more than that of DSFP-15. When the treatment time reached 45 min, the product DSFP-45 showed a broken and finely fragmented structure, and its surface changed from dense and tightly aggregated to a loosened form. When the treatment duration approached 60 min, the surface morphology of DSFP-60 was disrupted, and severe fragmentation of polysaccharides was observed. When the treatment time reached 105 min, the surface of DSFP-105 was destroyed, and many small irregular fragments were formed and aggregated together.
UV/H2O2 treatment disrupted the structure of S. fusiforme polysaccharides and caused significant changes in their apparent morphology. The surface of polysaccharides became finely crumbled, and the degree of fragmentation was positively correlated with the treatment time. These changes may be because the free radicals generated by UV/H2O2 treatment attacked the structure of polysaccharides, leading to the breakage of covalent bonds between polysaccharides, such as the glycosidic bonds connecting monosaccharides, which in turn reduced the size of particles, the degree of aggregation, and the intermolecular force of polysaccharides [41,42]. The main chain and substituent groups of polysaccharides were more easily degraded, and the degree of molecular crosslinking was reduced, eventually leading to significant changes in the morphology of polysaccharides [43].

2.5. Fourier Transform Infrared Spectroscopy (FT-IR) Spectra Analysis

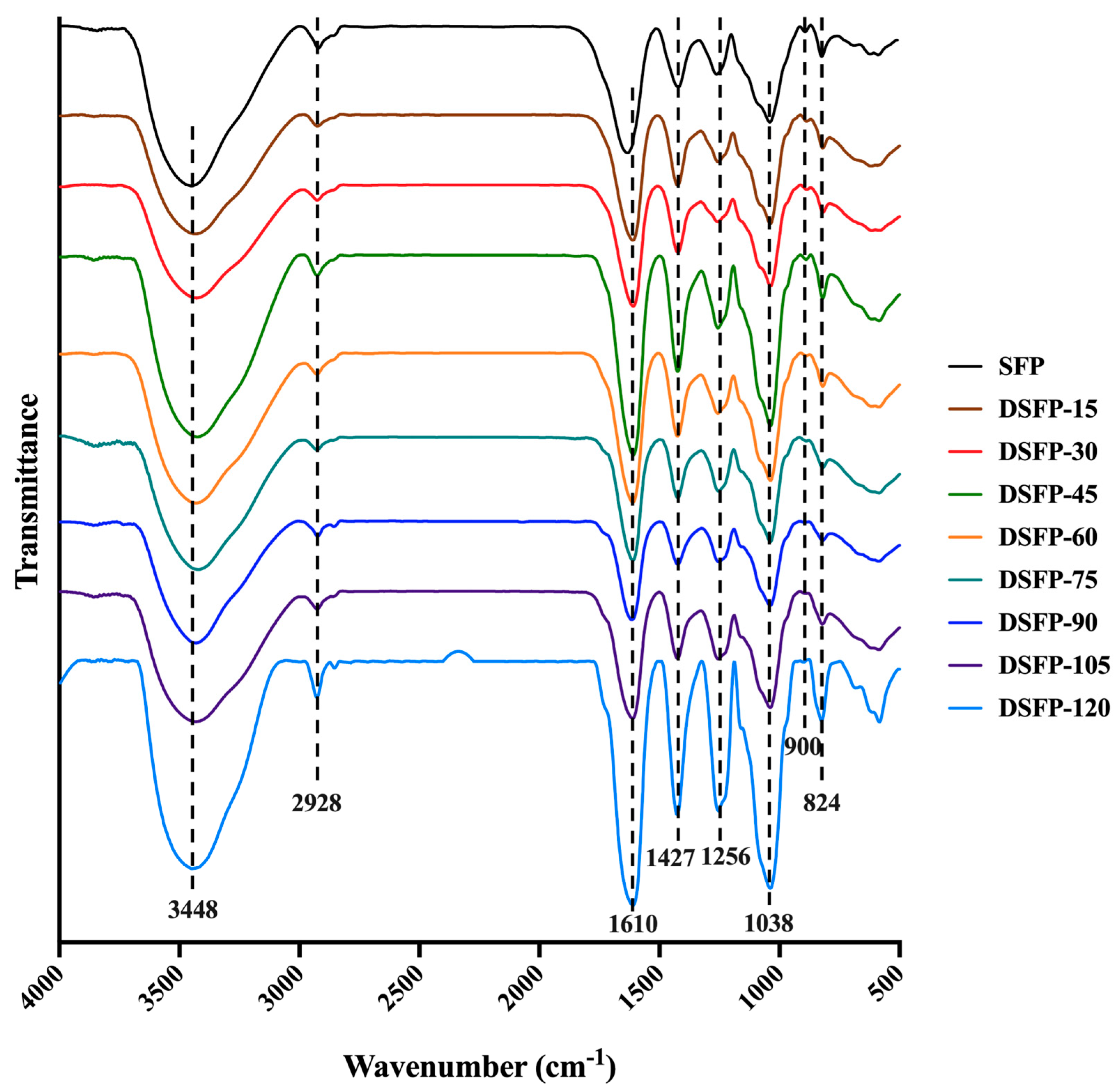

The effects of UV/H2O2 treatment on the main functional groups of S. fusiforme polysaccharides are shown in Figure 3. The FT-IR spectra showed that SFP and DSFPs had similar characteristic absorption peaks, indicating that the UV/H2O2 treatment did not change the major functional group types of polysaccharides. The broad absorption peak at 3448 cm−1 was a typical O–H stretching vibration, and the weak peak at 2928 cm−1 was attributed to a C–H stretching vibration, both of which are characteristic absorption peaks of polysaccharides [44]. The strong absorption peak at 1610 cm−1 was attributed to a C=O stretching vibration, and the absorption peak at 1427 cm−1 was due to C–O bending, indicating the existence of uronic acids [45], which was consistent with the results of chemical composition determination. The absorption band at 1256 cm−1 was ascribed to a S=O stretching vibration, and the weak absorption peak at 824 cm−1 was due to a C–O–S stretching vibration, revealing the presence of sulfate [46]. The strong signal at 1038 cm−1 was generated by a C–O–H stretching vibration, which was the characteristic peak of the pyranose ring [47]. The weak absorption peak at 900 cm−1 was the characteristic of β-type glycosidic linkages [44]. These results showed that SFP and DSFPs were typical sulfated polysaccharides containing pyranose rings and β-type glycosidic linkages. Therefore, UV/H2O2 treatment might only cleave the glycosidic bonds of polysaccharides without affecting most of the functional groups.

2.6. Effects of SFP and DSFPs on the Cell Viability of Photoaged HaCaT Cells

Photoaging is the external aging of human skin caused by UV exposure. When human skin is exposed to UVB light, UVB irradiation directly damages skin cells and destroys the structure and function of skin cells, resulting in skin photoaging [48]. In this study, HaCaT cells were pretreated with different concentrations of SFP and DSFPs. The cell viability of UVB-irradiated HaCaT cells was determined by the MTT method to investigate the in vitro anti-photoaging effects of SFP and DSFPs.
As shown in Figure 4A, after UVB irradiation, the cell viability of HaCaT cells in the Model group was significantly lower (p < 0.01) than that in the Control group, indicating that the cells were damaged by photoaging. The cell viability of HaCaT cells treated with hyaluronic acid, DSFP-30, and DSFP-45 significantly increased, revealing that the above three treatments all had significant anti-photoaging activity. Among them, DSFP-45 obtained from UV/H2O2 treatment for 45 min showed the best anti-photoaging effect on UVB-irradiated HaCaT cells, exhibiting significant anti-photoaging activity when its concentration was 250 μg/mL (p < 0.05). When the treated concentration of DSFP-30 and DSFP-45 reached 1000 μg/mL, the cell viability of HaCaT cells decreased, which may be due to the cytotoxicity induced by increased byproducts from oxidative degradation. SFP without UV/H2O2 treatment did not significantly increase the cell viability of photoaged HaCaT cells, indicating that UV/H2O2 treatment improved the in vitro anti-photoaging activity of S. fusiforme polysaccharides. DSFP-30 and DSFP-45 showed the strongest anti-photoaging effect at a concentration of 500 μg/mL. Therefore, the concentration of 500 μg/mL was selected as the test concentration for the following study.

2.7. Effects of SFP and DSFPs on the Level of Hydroxyproline (HYP)

HYP, a unique amino acid in collagen, is one of the main components of collagen tissue, accounting for 14% of collagen. HYP is an indicator of connective tissue synthesis and reflects collagen metabolism in connective-tissue diseases [49]. The level of HYP secreted by skin cells reflects the collagen synthesis and metabolism of skin cells. It can be used to screen anti-photoaging substances. In this study, HaCaT cells were pretreated with SFP and DSFPs at a concentration of 500 μg/mL. The HYP content of UVB-irradiated cells was measured to investigate the in vitro anti-photoaging activity of SFP and DSFPs.
As shown in Figure 4B, the HYP level of HaCaT cells in the Model group was significantly lower (p < 0.01) than that in the Control group, suggesting that the collagen synthesis of cells was inhibited by UVB irradiation. The HYP contents of HaCaT cells treated with hyaluronic acid, DSFP-15, DSFP-30, DSFP-45, DSFP-60, and DSFP-75 significantly increased, indicating that they all promoted collagen synthesis and metabolism of skin cells and exhibited significant anti-photoaging effects. Among them, DSFP-45 showed the best anti-photoaging activity, with an increase of 36.94% in the amount of HYP (2.15 μg/mL) compared to the Model group (1.57 μg/mL). SFP without UV/H2O2 treatment did not significantly increase the HYP level of photoaged HaCaT cells, indicating that the treatment could improve the anti-photoaging activity of S. fusiforme polysaccharides. UV/H2O2 treatment effectively degraded the polysaccharides, resulting in the formation of low molecular weight polysaccharides. This reduction in molecular weight potentially improved their bioavailability, solubility, and cellular uptake, enhancing their interaction with target cells and increasing their bioactivity [50,51]. Besides, UV/H2O2 treatment did not significantly alter the functional groups in DSFPs, ensuring that the essential chemical structures responsible for their biological effects remained intact. This preservation of functional groups facilitated their interaction with cellular receptors, signaling pathways, and target molecules involved in photoaging processes [52]. The results of both Section 3.6 and Section 3.7 showed that DSFP-45 obtained from UV/H2O2 treatment for 45 min had the strongest in vitro anti-photoaging activity. Therefore, DSFP-45 was selected for the subsequent study.

2.8. Effects of SFP and DSFP-45 on the Level and Expression of Collagen I

Collagen I, also known as type I collagen, is the most abundant collagen protein in the human body and also the most abundant structural protein in connective tissues such as skin, bones, ligaments, and tendons [53]. It belongs to the family of fibrillar collagens and is a major component of the ECM. It is a procollagen molecule that mainly consists of two structures: a heterotrimer composed of two α1 chains and one α2 chain and a homotrimer composed of three identical α1 chains [54]. The content of collagen I secreted by skin cells reflects the synthetic metabolism of the ECM and can be used as an important evaluation index of photoaging. In this study, HaCaT cells were pretreated with SFP and DSFP-45 (125, 250, and 500 μg/mL). The content of pro-collagen I α1 and the expression level of collagen I of UVB-irradiated cells were determined to investigate the in vitro anti-photoaging mechanisms of S. fusiforme polysaccharides.
As shown in Figure 5A, after UVB radiation, the content of pro-collagen I α1 in the Model group significantly decreased compared with that in the Control group (p < 0.01), indicating that UVB radiation induced collagen degradation. The level of pro-collagen I α1 of HaCaT cells treated with hyaluronic acid and SFP slightly increased but did not have significant difference from that in the Model group. The pro-collagen I α1 level of the cells treated with DSFP-45 significantly increased (p < 0.05). When the intervention concentration of DSFP-45 reached 500 μg/mL, the pro-collagen I α1 (33.93 pg/mL) increased 3.80 times compared to the Model group (7.07 pg/mL). As shown in Figure 6A, the expression level of collagen I in the Model group was significantly lower than that in the Control group (p < 0.05). DSFP-45 significantly upregulated the expression of collagen I in HaCaT cells (p < 0.05). Under the intervention of DSFP-45 at 125, 250, and 500 μg/mL, the relative expression levels of collagen I in HaCaT cells increased by 1.14 times, 2.42 times, and 2.80 times compared with those in the Model group. DSFP-45 increased the content and expression of collagen I, and this behavior was concentration-dependent, indicating that DSFP-45 exerted an anti-photoaging effect by promoting the synthesis of ECM. SFP without UV/H2O2 treatment did not significantly increase the content and expression of collagen I. Therefore, UV/H2O2 treatment for 45 min improved the antagonistic effect of S. fusiforme polysaccharides on skin damage.

2.9. Effects of SFP and DSFP-45 on the Levels and Expression of Pro-Inflammatory Cytokines

UV radiation can trigger a cellular inflammatory response by stimulating the release of cytokines, chemokines, and other inflammatory mediators in the epidermis [55]. The release of pro-inflammatory cytokines increases the permeability of cell capillaries, leads to the infiltration and activation of inflammatory cells such as macrophages and neutrophils, causes inflammatory damage to the skin, and ultimately results in skin photoaging [56]. Studies have shown that UV irradiation can induce the release of pro-inflammatory cytokines such as interleukin-1β (IL-1β), interleukin-6 (IL-6), and tumor necrosis factor-α (TNF-α) by keratinocytes, thereby disrupting collagen synthesis and interfering with ECM metabolism [57]. Pro-inflammatory cytokines can induce extracellular regulatory protein kinase pathway phosphorylation, promote matrix collagen degradation, and ultimately lead to cellular photoaging damage [58]. Moreover, pro-inflammatory cytokines also affect the function of Langerhans cells as antigen-presenting cells by reducing the number of Langerhans cells in the skin, increasing the tolerance of T lymphocytes, inhibiting the immune function of the body, weakening the body’s resistance to photoaging and aggravating photodamage [59]. In this study, HaCaT cells were pretreated with SFP and DSFP-45 (125, 250, and 500 μg/mL). The amounts and the expression levels of IL-1β, IL-6, and TNF-α of photoaged cells were measured to explore the mechanisms of the anti-photoaging action of S. fusiforme polysaccharides.
As shown in Figure 5B–D, the levels of IL-1β, IL-6, and TNF-α in the Model group were significantly higher than those in the Control group (p < 0.05), indicating that UVB radiation induced an inflammatory response in HaCaT cells. The amounts of IL-1β of cells treated with hyaluronic acid and DSFP-45 significantly decreased compared with the Model group (p < 0.05), demonstrating that hyaluronic acid and DSFP-45 inhibited the ability of cells to secrete IL-1β. The content of IL-1β of cells treated with SFP decreased slightly, but there was no significant difference, suggesting that UV/H2O2 treatment for 45 min could enhance the anti-inflammatory activity of S. fusiforme polysaccharides. After treatment with hyaluronic acid, SFP, and DSFP-45, the levels of IL-6 of HaCaT cells all significantly decreased (p < 0.01), indicating that hyaluronic acid, SFP, and DSFP-45 could inhibit the secretion of IL-6 and had significant anti-inflammatory activity. But the inhibitory effect of DSFP-45 on IL-6 secretion was better than that of SFP. Moreover, the content of TNF-α of the cells treated with DSFP-45 at 500 μg/mL significantly decreased when compared to the Model group (p < 0.05). The levels of TNF-α secreted by HaCaT cells treated with hyaluronic acid and SFP decreased slightly, but there was no significant difference. These results indicated that DSFP-45 exerted anti-photoaging effects by inhibiting the secretion of pro-inflammatory cytokines and reducing the damage of cellular inflammation. In addition, the effect of DSFP-45 was superior to that of SFP, indicating that UV/H2O2 treatment for 45 min improved the inhibitory effect of S. fusiforme polysaccharides on the cellular inflammatory response.
As shown in Figure 6B–D, the expression levels of IL-1β, IL-6, and TNF-α in the Model group were significantly higher than those in the Control group (p < 0.05), indicating that UVB irradiation triggered a cellular inflammatory response. Compared with the Model group, DSFP-45 significantly downregulated the expression levels of IL-1β, IL-6, and TNF-α in HaCaT cells (p < 0.05), with the regulatory effects showing concentration dependence. Under the intervention of DSFP-45 at doses of 125, 250, and 500 μg/mL, the relative expression levels of IL-1β in HaCaT cells decreased by 2.01%, 32.96%, and 54.73% compared with those in the Model group, respectively. The relative expressions of IL-6 declined by 15.33%, 39.09%, and 65.13%, respectively. The relative expressions of TNF-α dropped by 11.56%, 26.94%, and 56.50%, respectively. SFP without UV/H2O2 treatment also exhibited anti-photoaging activity at high doses. SFP significantly downregulated the expression of IL-1β, IL-6, and TNF-α (p < 0.05) at a concentration of 500 μg/mL, indicating that SFP also inhibited the cellular inflammatory response, demonstrating anti-photoaging activity. But SFP was not as effective in exerting anti-inflammatory effects as DSFP-45. Thus, UV/H2O2 treatment for 45 min significantly enhanced the in vitro anti-photoaging activity of S. fusiforme polysaccharide.
Many reports have shown the anti-inflammatory effects of seaweed polysaccharides in a UVB radiation-induced photoaging model. For example, a fucoidan isolated from the brown seaweed Turbinaria ornata attenuated UVB irradiation-induced in vivo photodamage via inhibiting oxidative stress and inflammatory response in zebrafish [60]. Gracilaria lemaneiformis polysaccharides inhibited the UVB-induced inflammatory response by restraining the upregulation of iNOS (UVB-induced inflammation marker) and suppressing the expression of P-ERK and NF-κB [61]. A low-molecular-weight fucoidan from Ecklonia cava exerted anti-photoaging effects by decreasing IL-1β and increasing IL-10 levels [62]. These studies provide a theoretical basis for using natural seaweed polysaccharides as anti-photoaging drugs or functional foods. Therefore, DSFP-45 has the potential to serve as an attractive candidate for therapeutic interventions against skin aging, particularly photoaging caused by UV radiation.

3. Materials and Methods

3.1. Materials and Chemicals

S. fusiforme was harvested (August 2020) from Wenzhou, Zhejiang Province, China. The collected seaweed samples were washed, sundried, and crushed into a fine powder using a grinder (FW135, Tianjin Taisite Instrument Co., Ltd., Tianjin, China) and shifted with a 40-mesh standard sieve. The fine powder was ground into ultra-micro powder using an ultra-micro pulverizer (XDW-6BI, Jinan Tatsu Micro Machinery Co. Ltd., Jinan, Shandong Province, China).
Dextran standards (4.66, 12.6, 63.3, 126, and 556 kDa) and monosaccharide standards (glucose, fucose, galactose, arabinose, xylose, fructose, galacturonic acid, and glucuronic acid) were purchased from Sigma-Aldrich Chemical Co. (St. Louis, MO, USA). Dulbecco’s Modified Eagle’s Medium (DMEM), penicillin-streptomycin, fetal bovine serum (FBS), phosphate-buffered saline (PBS), trypsin-ethylenediaminetetraacetic acid, and other reagents for cell culture were purchased from Gibco Biotechnology Co., Ltd. (Grand Island, NY, USA). Primers of genes were obtained from Sangon Biotech Co., Ltd. (Shanghai, China). All other reagents and chemicals used were of analytical grade.

3.2. Preparation and Degradation of S. fusiforme Polysaccharides

S. fusiforme crude polysaccharides (named SFP) were prepared using our previously reported method [63]. SFP was further degraded by UV/H2O2 treatment. SFP was dissolved in distilled water, and H2O2 was added, resulting in a final SFP concentration of 2.5 mg/mL and a final H2O2 concentration of 100 mM. Then, the solution was treated by UV radiation (HOPE-MED 8140, Tianjin Hepu Industry & Trade Co. Ltd., Tianjin, China) at an average irradiation power of 950 μW/cm2 for 15, 30, 45, 60, 75, 90, 105, and 120 min, respectively. After degradation, manganese dioxide (MnO2) was added immediately and stirred on a magnetic stirrer for 12 h to remove the residual H2O2. Then, the solution was concentrated at 60 °C to 1/5 of its initial volume by a reduced rotary evaporator (Hei-VAP Value Digital, Heidoph, Nuremberg, Germany). MnO2 was removed by centrifugation (12,000× g, 5 min), and the supernatant was purified by dialysis (3 kDa molecular weight cut-off) for 48 h. Finally, the retentate was collected, concentrated by evaporation, and lyophilized by vacuum freeze-drying (Alpha 1–2 LD Plus, Martin Christ Gefriertrocknungsanlagen GmbH, Osterode am Harz, Germany) to obtain degraded products, named DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120, respectively. The yield of degraded polysaccharides was calculated according to the following equation:
Yield   % = m x m 0 × 100
where m0 was the mass of dry SFP (g) and mx was the mass of dry DSFPs (g).

3.3. Determination of Chemical Composition of S. fusiforme Polysaccharides

The content of total carbohydrate was determined by the phenol-sulfuric acid method using fucose as the standard [64] since fucose was the most predominant monosaccharide in S. fusiforme polysaccharides [21,35]. The content of protein was measured using the Total Protein Assay Kit (A045-4, Nanjing Jiancheng Bioengineering Institute, Nanjing, China) according to the manufacturer’s protocol. The amount of reducing sugar was determined by the dinitrosalicylic acid method with glucose as the standard [65]. The content of uronic acids was measured using the carbazole-sulfuric acid method with glucuronic acid as the reference [66], since glucuronic acid was the most abundant uronic acid in S. fusiforme polysaccharides [67]. The content of sulfate was measured by the barium sulfate turbidimetry method using potassium sulfate as the standard [68].

3.4. Determination of Molecular Weight of S. fusiforme Polysaccharides

The molecular weight of polysaccharides was measured by high-performance gel permeation chromatography (HPGPC). The HPGPC system (Shimadzu LC-20A, Shimadzu Instrument Co., Ltd., Tokyo, Japan) was equipped with a TSK-GEL G-3000PWXL column (7.8 mm × 300 mm i.d., 7 μm, Tosoh Corporation, Tokyo, Japan) and a TSK-GEL G-6000 PWXL column (7.8 mm × 300 mm i.d.,13 μm, Tosoh Corporation, Tokyo, Japan) that were linked in series, eluted with 0.02 M potassium dihydrogen phosphate (KH2PO4) at a flow rate of 0.5 mL/min and detected by a Waters 2414 differential refractive index detector (Waters Co. Ltd., Milford, MA, USA). The column temperature was kept at 35 ± 1 °C. The polysaccharides were dissolved in 0.02 M KH2PO4 and filtered through a 0.22 µm filter membrane. An aliquot of 25 μL of the sample was injected into the system. The molecular weight of polysaccharides was determined by the calibration curve made from dextran standards with known molecular weights (4.66, 12.6, 63.3, 126, and 556 kDa).

3.5. Determination of Monosaccharide Composition of S. fusiforme Polysaccharides

The monosaccharide composition of polysaccharides was determined by ion chromatography (IC). The IC system (Dionex ICS-3000, Dionex Corp. Sunnyvale, CA, USA) was equipped with a CarboPacTM PA20 column (3 mm × 150 mm), eluted with water/NaOH at a flow rate of 0.5 mL/min, and detected with an electrochemical detector. The column temperature was maintained at 30 °C. The polysaccharides were hydrolyzed with 2 M trifluoroacetic acid at 105 °C for 6 h. The remaining acid was removed by evaporation under reduced pressure at 60 °C, and the methanol was added to dissolve the hydrolysate fully and evaporated again. The above step was repeated 5 times to obliterate the residual trifluoroacetic acid. The hydrolyzed product was re-dissolved in ultrapure water and filtered through a 0.22 µm filter membrane. An aliquot of 15 μL of the sample was injected into the system. The content of each monosaccharide in polysaccharides was calculated by reference to the calibration curve made from monosaccharide standards (fucose, rhamnose, arabinose, galactose, glucose, xylose, mannose, galacturonic acid, and glucuronic acid).

3.6. SEM Analysis of S. fusiforme Polysaccharides

The morphology and microstructure of polysaccharides were characterized by SEM (EVO 18, Carl Zeiss AG, Oberkohen, Baden-Wurttemberg, Germany). The lyophilized polysaccharides were coated with a thin film of gold, placed on the electron microscope stage, and observed under vacuum at an acceleration voltage of 10 kV. Micrographs were taken at magnifications of 500× and 2000×.

3.7. FT-IR Spectra Analysis of S. fusiforme Polysaccharides

The functional group type of polysaccharides was measured by FT-IR. Dried polysaccharides were crushed with potassium bromide powder, pressed into a pellet, and detected in a wavelength range from 4000 cm−1 to 500 cm−1 onto a FT-IR spectrophotometer (Tensor 27, Bruker Co. Ltd., Bergisch Gladbach, Germany).

3.8. Anti-Photoaging Activity of S. fusiforme Polysaccharides

3.8.1. Cell Culture and UVB Irradiation

Human immortalized keratinocyte cell line (HaCaT) was obtained from Cell Resource Center, IBMS, CAMS/PUMC (Beijing, China). HaCaT cells were cultured in DMEM containing 10% (v/v) FBS, 100 units/mL penicillin, and 100 μg/mL streptomycin at 37 °C in a humidified incubator with 5% CO2. UVB irradiation was performed according to the method previously reported by our group with some modifications [36].

3.8.2. Determination of Cell Viability

The effects of SFP and DSFPs (DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120) on cell viability of photoaged HaCaT cells were measured using 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide (MTT) assay. HaCaT cells were cultured for 24 h, washed with PBS, trypsinized with trypsin-EDTA, and seeded in 96-well plates at 2 × 104 cells per well. After incubating at 37 °C for 12 h, the medium was discarded, and the cells were washed with PBS and incubated for another 12 h with serum-free DMEM. Then, the cells were cultured in the serum-free medium with various concentrations (125, 250, 500, and 1000 μg/mL) of hyaluronic acid (Positive Control), SFP, and DSFPs at 37 °C for 24 h. After removing the medium, the cells were covered with PBS and exposed to 3 mJ/cm2 of UVB irradiation in a skin photoaging apparatus (HOPE-MED 8140, Tianjin Hepu Industry & Trade Co. Ltd., Tianjin, China). After UVB irradiation, PBS was replaced with DMEM, and the cells were incubated at 37 °C for 24 h. After removing the culture medium, the cell viability was measured using the MTT Cell Proliferation and Cytotoxicity Assay Kit (G020-1, Nanjing Jiancheng Bioengineering Institute, Nanjing, China) according to the manufacturer’s protocol. Wells without cells acted as the Blank group. Wells with cells but without UVB and drug exposure served as the Control group. Wells with cells and UVB exposure but without drug treatment acted as the Model group. The absorbance was measured at 570 nm using a microplate reader (SpectraMax 190, Molecular Devices, Sunnyvale, CA, USA). The absorbance of the Blank group was subtracted from all samples. The absorbance of the Control group was defined as 100% live cells.

3.8.3. Determination of HYP Level

The effects of SFP and DSFPs (DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120) on the HYP level of photoaged HaCaT cells were measured using HYP assay. HaCaT cells were seeded in 12-well plates at a concentration of 2.5 × 105 cells per well and treated according to Section 3.8.2. The cell-free culture supernatant was collected to measure the level of HYP using the HYP Assay Kit (A030-1-1, Nanjing Jiancheng Bioengineering Institute, Nanjing, China) in accordance with the manufacturer’s protocol.

3.8.4. Measurement of Pro-Collagen I α1 Content of HaCaT Cells

The effects of SFP and DSFP-45 on the pro-collagen I α1 content of photoaged HaCaT cells were studied by enzyme linked immunosorbent assay (ELISA). HaCaT cells were incubated in 6-well plates at a concentration of 6 × 105 cells per well and treated following Section 3.8.2. The cell-free culture supernatant was collected to measure the amount of pro-collagen I α1 using the Human Pro-collagen I α1 ELISA Kit (EHC083aQT.96, NeoBioscience Technology Co., Ltd., Shenzhen, China) according to the manufacturer’s instructions.

3.8.5. Measurement of Pro-Inflammatory Cytokines

The effects of SFP and DSFP-45 on the levels of pro-inflammatory cytokines, including IL-1β, IL-6, and TNF-α, were studied by ELISA. The level of IL-1β was measured using the Human IL-1β ELISA Kit (EHC002b.48, NeoBioscience Technology Co., Ltd., Shenzhen, China) according to the manufacturer’s protocol. The content of IL-6 was determined using the Human IL-6 ELISA Kit (70-EK106/2-96, Multi Sciences Biotech Co., Ltd., Hangzhou, China). The amount of TNF-α was detected by the Human TNF-α ELISA Kit (70-EK182-96, Multi Sciences Biotech Co., Ltd., Hangzhou, China).

3.8.6. Quantitative Reverse Transcription–Polymerase Chain Reaction (qRT-PCR) Analysis

The anti-photoaging mechanisms of SFP and DSFP-45 were studied by analyzing the miRNA expression of collagen and pro-inflammatory cytokines in photoaged cells. HaCaT cells were seeded in 6-well plates at 6 × 105 cells per well and treated according to Section 3.8.2. The cells were collected, and the qRT-PCR analysis was performed according to our previous method [67]. Briefly, the total RNA of the cells was extracted with a Trizol reagent (15596026, Invitrogen, Carlsbad, CA, USA). The extracted RNA was then purified and quantified using a micro-spectrophotometer (K5800C, Beijing Kaiao Technology Development Co., Ltd., Beijing, China). The purified RNA was converted into complementary DNA (cDNA) by reverse transcription, which was conducted using the RevertAid First Strand cDNA Synthesis Kit (K1622, Applied Biosystems, Foster City, CA, USA). The qRT-PCR reaction was performed on a CFD-3120 Real-Time PCR detection system (Bio-Rad Laboratories, Inc., Hercules, CA, USA). The gene expression was analyzed using the TSINGKE® Master qPCR Mix (SYBR Green I) (Tsingke Biotechnology Co., Ltd., Beijing, China) by a Mini OpticonTM Detector (CFD-3120, Bio-Rad). The primer sequences of genes are available in Table 4. GAPDH was used as an internal control. The relative fold change in gene expression was calculated using the 2−ΔΔCT method.

3.9. Statistical Analysis

Statistical analysis was conducted with GraphPad Prism version 8 (GraphPad Software, La Jolla, CA, USA). Means of multiple groups were compared using one-way analysis of variance (ANOVA). Means of two groups were compared using the Student t-test. p < 0.05 was the accepted significance level. Data were presented as the mean ± standard deviation.

4. Conclusions

This study investigated the effects of UV/H2O2 treatment on the structural characteristics and anti-photoaging activity of S. fusiforme polysaccharides. The treatment was an effective way to degrade polysaccharides and enhance their protective effects against UVB irradiation. Among the degraded products, DSFP-45, obtained from UV/H2O2 treatment for 45 min, exhibited the strongest anti-photoaging activity, improving the cell viability and hydroxyproline level of photoaged HaCaT cells. In addition, DSFP-45 exerted anti-photoaging effects by promoting the production and expression of collagen I and inhibiting the cellular inflammatory response. These findings suggest that UV/H2O2 treatment for 45 min effectively improved the antagonistic effects of S. fusiforme polysaccharides against skin photoaging, and DSFP-45 could be used as a potential therapeutic strategy for skin photoaging. However, the anti-photoaging mechanisms and structure information of DSFP-45 need to be further studied. In the follow-up study, we will investigate the preventive effects and mechanisms of DSFP-45 against skin photoaging in vivo and clarify the precise structure of DSFP-45.

Author Contributions

W.Y.: Conceptualization, methodology, investigation, data curation, software, formal analysis, writing—original draft; J.Y.: Investigation, data curation, software, writing—review and editing; B.L.: Investigation, data curation, software, writing—review and editing; S.G.: Investigation, data curation, writing—review and editing; L.Y.: Project administration, supervision, funding acquisition, writing—review and editing; P.C.-K.C.: Writing—review and editing; and V.I.K.: writing—review and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Natural Science Foundation of China (22278153, 31972011, and 3211101620), Excellent Youth Foundation of Guangdong Scientific Committee (2021B1515020037), Guangdong Basic and Applied Basic Research Foundation (2023B1515040014), the Fundamental Research Funds for the Central Universities (2022ZYGXZR012), Belarusian Republican Foundation for Fundamental Research (grant X22KI-11), and the 111 Project (B17018).

Institutional Review Board Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Zheng, L.; Liu, Y.; Tang, S.; Zhang, W.; Cheong, K.L. Preparation methods, biological activities, and potential applications of marine algae oligosaccharides: A review. Food Sci. Hum. Wellness 2023, 12, 359–370. [Google Scholar] [CrossRef]
  2. Li, X.; Gong, Y.; Yao, W.; Chen, X.; Xian, J.; You, L.; Fardim, P. Structural characterization and protective effects of polysaccharide from Gracilaria lemaneiformis on LPS-induced injury in IEC-6 cells. Food Chem. X 2021, 12, 100157. [Google Scholar] [CrossRef]
  3. Yao, W.; Qiu, H.; Cheong, K.L.; Zhong, S. Advances in anti-cancer effects and underlying mechanisms of marine algae polysaccharides. Int. J. Biol. Macromol. 2022, 221, 472–485. [Google Scholar] [CrossRef] [PubMed]
  4. Yao, W.; Veeraperumal, S.; Qiu, H.; Chen, X.; Cheong, K.L. Anti-cancer effects of Porphyra haitanensis polysaccharides on human colon cancer cells via cell cycle arrest and apoptosis without causing adverse effects in vitro. 3 Biotech 2020, 10, 386. [Google Scholar] [CrossRef] [PubMed]
  5. Yu, Y.; Zhang, Y.; Hu, C.; Zou, X.; Lin, Y.; Xia, Y.; You, L. Chemistry and immunostimulatory activity of a polysaccharide from Undaria pinnatifida. Food Chem. Toxicol. 2019, 128, 119–128. [Google Scholar] [CrossRef]
  6. Yao, W.; Gong, Y.; Li, L.; Hu, X.; You, L. The effects of dietary fibers from rice bran and wheat bran on gut microbiota: An overview. Food Chem. X 2022, 13, 100252. [Google Scholar] [CrossRef] [PubMed]
  7. Cheong, K.L.; Yu, B.; Chen, J.; Zhong, S. A Comprehensive Review of the Cardioprotective Effect of Marine Algae Polysaccharide on the Gut Microbiota. Foods 2022, 11, 3550. [Google Scholar] [CrossRef]
  8. Ge, Y.; Ahmed, S.; Yao, W.; You, L.; Zheng, J.; Hileuskaya, K. Regulation effects of indigestible dietary polysaccharides on intestinal microflora: An overview. J. Food Biochem. 2021, 45, e13564. [Google Scholar] [CrossRef]
  9. Yu, B.; Wang, M.; Teng, B.; Veeraperumal, S.; Cheung, P.C.K.; Zhong, S.; Cheong, K.L. Partially Acid-Hydrolyzed Porphyran Improved Dextran Sulfate Sodium-Induced Acute Colitis by Modulation of Gut Microbiota and Enhancing the Mucosal Barrier. J. Agric. Food Chem. 2023, 71, 7299–7311. [Google Scholar] [CrossRef]
  10. Malairaj, S.; Veeraperumal, S.; Yao, W.; Subramanian, M.; Tan, K.; Zhong, S.; Cheong, K.L. Porphyran from Porphyra haitanensis Enhances Intestinal Barrier Function and Regulates Gut Microbiota Composition. Mar. Drugs 2023, 21, 265. [Google Scholar] [CrossRef]
  11. Otero, P.; Carpena, M.; Garcia-Oliveira, P.; Echave, J.; Soria-Lopez, A.; Garcia-Perez, P.; Fraga-Corral, M.; Cao, H.; Nie, S.; Xiao, J.; et al. Seaweed polysaccharides: Emerging extraction technologies, chemical modifications and bioactive properties. Crit. Rev. Food Sci. Nutr. 2023, 63, 1901–1929. [Google Scholar] [CrossRef] [PubMed]
  12. Feng, Y.; Wassie, T.; Gan, R.; Wu, X. Structural characteristics and immunomodulatory effects of sulfated polysaccharides derived from marine algae. Crit. Rev. Food Sci. Nutr. 2022, 1–17. [Google Scholar] [CrossRef]
  13. Xu, S.; Chen, X.; Liu, Y.; Cheong, K.L. Ultrasonic/microwave-assisted extraction, simulated digestion, and fermentation in vitro by human intestinal flora of polysaccharides from Porphyra haitanensis. Int. J. Biol. Macromol. 2020, 152, 748–756. [Google Scholar] [CrossRef] [PubMed]
  14. Yuan, D.; Li, C.; Huang, Q.; Fu, X. Ultrasonic degradation effects on the physicochemical, rheological and antioxidant properties of polysaccharide from Sargassum pallidum. Carbohydr. Polym. 2020, 239, 116230. [Google Scholar] [CrossRef] [PubMed]
  15. Cheong, K.L.; Li, J.; Zhong, S. Preparation and structure characterization of high-value Laminaria digitata oligosaccharides. Front. Nutr. 2022, 9, 945804. [Google Scholar] [CrossRef]
  16. Zhang, X.; Aweya, J.J.; Huang, Z.; Kang, Z.; Bai, Z.; Li, K.; He, X.; Liu, Y.; Chen, X.; Cheong, K.L. In vitro fermentation of Gracilaria lemaneiformis sulfated polysaccharides and its agaro-oligosaccharides by human fecal inocula and its impact on microbiota. Carbohydr. Polym. 2020, 234, 115894. [Google Scholar] [CrossRef] [PubMed]
  17. Fleita, D.; El-Sayed, M.; Rifaat, D. Evaluation of the antioxidant activity of enzymatically-hydrolyzed sulfated polysaccharides extracted from red algae; Pterocladia capillacea. LWT Food Sci. Technol. 2015, 63, 1236–1244. [Google Scholar] [CrossRef]
  18. Imran, M.; Poduval, P.B.; Ghadi, S.C. Bacterial degradation of algal polysaccharides in marine ecosystem. In Marine Pollution and Microbial Remediation; Springer: Singapore, 2017; pp. 189–203. [Google Scholar]
  19. Chen, X.; Sun-Waterhouse, D.; Yao, W.; Li, X.; Zhao, M.; You, L. Free radical-mediated degradation of polysaccharides: Mechanism of free radical formation and degradation, influence factors and product properties. Food Chem. 2021, 365, 130524. [Google Scholar] [CrossRef]
  20. Zhu, B.; Chen, Y.; Chang, S.; Qiu, H.; You, L. Degradation kinetic models and mechanism of isomaltooligosaccharides by hydroxyl radicals in UV/H2O2 system. Carbohydr. Polym. 2023, 300, 120240. [Google Scholar] [CrossRef]
  21. Chen, X.; Zhang, R.; Li, Y.; Li, X.; You, L.; Kulikouskaya, V.; Hileuskaya, K. Degradation of polysaccharides from Sargassum fusiforme using UV/H2O2 and its effects on structural characteristics. Carbohydr. Polym. 2020, 230, 115647. [Google Scholar] [CrossRef]
  22. Gong, Y.; Ma, Y.; Cheung, P.C.K.; You, L.; Liao, L.; Pedisić, S.; Kulikouskaya, V. Structural characteristics and anti-inflammatory activity of UV/H2O2-treated algal sulfated polysaccharide from Gracilaria lemaneiformis. Food Chem. Toxicol. 2021, 152, 112157. [Google Scholar] [CrossRef]
  23. Chen, X.; Li, X.; Sun-Waterhouse, D.; Zhu, B.; You, L.; Hileuskaya, K. Polysaccharides from Sargassum fusiforme after UV/H2O2 degradation effectively ameliorate dextran sulfate sodium-induced colitis. Food Funct. 2021, 12, 11747–11759. [Google Scholar] [CrossRef]
  24. Rabe, J.H.; Mamelak, A.J.; McElgunn, P.J.S.; Morison, W.L.; Sauder, D.N. Photoaging: Mechanisms and repair. J. Am. Acad. Dermatol. 2006, 55, 1–19. [Google Scholar] [CrossRef] [PubMed]
  25. Beckenbach, L.; Baron, J.M.; Merk, H.F.; Loffler, H.; Amann, P.M. Retinoid treatment of skin diseases. Eur. J. Dermatol. 2015, 25, 384–391. [Google Scholar] [CrossRef] [PubMed]
  26. Stratigos, A.J.; Katsambas, A.D. The role of topical retinoids in the treatment of photoaging. Drugs 2005, 65, 1061–1072. [Google Scholar] [CrossRef] [PubMed]
  27. Pan, P.; Huang, Y.; Oshima, K.; Yearsley, M.; Zhang, J.; Arnold, M.; Yu, J.; Wang, L. The immunomodulatory potential of natural compounds in tumor-bearing mice and humans. Crit. Rev. Food Sci. Nutr. 2019, 59, 992–1007. [Google Scholar] [CrossRef]
  28. Singla, R.K.; Wang, X.; Gundamaraju, R.; Joon, S.; Tsagkaris, C.; Behzad, S.; Khan, J.; Gautam, R.; Goyal, R.; Rakmai, J.; et al. Natural products derived from medicinal plants and microbes might act as a game-changer in breast cancer: A comprehensive review of preclinical and clinical studies. Crit. Rev. Food Sci. Nutr. 2022, 1–45. [Google Scholar] [CrossRef]
  29. Kwon, N.; Vinayagam, R.; Do, G.S.; Lee, K.E.; Kang, S.G. Protective Effects of Fermented Houttuynia cordata Against UVA and H2O2-Induced Oxidative Stress in Human Skin Keratinocytes. Appl. Biochem. Biotechnol. 2023, 195, 3027–3046. [Google Scholar] [CrossRef] [PubMed]
  30. Zhi, Q.; Lei, L.; Li, F.; Zhao, J.; Yin, R.; Ming, J. The anthocyanin extracts from purple-fleshed sweet potato exhibited anti-photoaging effects on ultraviolent B-irradiated BALB/c-nu mouse skin. J. Funct. Foods 2020, 64, 103640. [Google Scholar] [CrossRef]
  31. Wei, M.; Qiu, H.; Zhou, J.; Yang, C.; Chen, Y.; You, L. The Anti-Photoaging Activity of Peptides from Pinctada martensii Meat. Mar. Drugs 2022, 20, 770. [Google Scholar] [CrossRef]
  32. Roh, E.; Kim, J.E.; Kwon, J.Y.; Park, J.S.; Bode, A.M.; Dong, Z.; Lee, K.W. Molecular mechanisms of green tea polyphenols with protective effects against skin photoaging. Crit. Rev. Food Sci. Nutr. 2017, 57, 1631–1637. [Google Scholar] [CrossRef] [PubMed]
  33. Wen, L.; Gao, Q.; Ma, C.-w.; Ge, Y.; You, L.; Liu, R.H.; Fu, X.; Liu, D. Effect of polysaccharides from Tremella fuciformis on UV-induced photoaging. J. Funct. Foods 2016, 20, 400–410. [Google Scholar] [CrossRef]
  34. Yao, W.; Chen, X.; Li, X.; Chang, S.; Zhao, M.; You, L. Current trends in the anti-photoaging activities and mechanisms of dietary non-starch polysaccharides from natural resources. Crit. Rev. Food Sci. Nutr. 2021, 62, 9021–9035. [Google Scholar] [CrossRef]
  35. Ye, Y.; Ji, D.; You, L.; Zhou, L.; Zhao, Z.; Brennan, C. Structural properties and protective effect of Sargassum fusiforme polysaccharides against ultraviolet B radiation in hairless Kun Ming mice. J. Funct. Foods 2018, 43, 8–16. [Google Scholar] [CrossRef]
  36. Ji, D.; You, L.; Ren, Y.; Wen, L.; Zheng, G.; Li, C. Protective effect of polysaccharides from Sargassum fusiforme against UVB-induced oxidative stress in HaCaT human keratinocytes. J. Funct. Foods 2017, 36, 332–340. [Google Scholar] [CrossRef]
  37. Acosta-Rangel, A.; Sánchez-Polo, M.; Polo, A.M.S.; Rivera-Utrilla, J.; Berber-Mendoza, M.S. Sulfonamides degradation assisted by UV, UV/H2O2 and UV/K2S2O8: Efficiency, mechanism and byproducts cytotoxicity. J. Environ. Manag. 2018, 225, 224–231. [Google Scholar] [CrossRef]
  38. Cheng, M.; Zeng, G.; Huang, D.; Lai, C.; Xu, P.; Zhang, C.; Liu, Y. Hydroxyl radicals based advanced oxidation processes (AOPs) for remediation of soils contaminated with organic compounds: A review. Chem. Eng. J. 2016, 284, 582–598. [Google Scholar] [CrossRef]
  39. Zhu, B.; Sun-Waterhouse, D.; You, L. Insights into the mechanisms underlying the degradation of xylooligosaccharides in UV/H2O2 system. Carbohydr. Polym. 2023, 317, 121091. [Google Scholar] [CrossRef]
  40. Hu, W.; Chen, S.; Wu, D.; Zheng, J.; Ye, X. Ultrasonic-assisted citrus pectin modification in the bicarbonate-activated hydrogen peroxide system: Chemical and microstructural analysis. Ultrason. Sonochemistry 2019, 58, 104576. [Google Scholar] [CrossRef]
  41. Shen, C.; Wen, Y.; Kang, X.; Liu, W. H2O2-induced surface modification: A facile, effective and environmentally friendly pretreatment of chitosan for dyes removal. Chem. Eng. J. 2011, 166, 474–482. [Google Scholar] [CrossRef]
  42. Zhu, Z.; Guo, M.; Liu, F.; Luo, Y.; Chen, L.; Meng, M.; Wang, X.; Zhang, Y. Preparation and inhibition on α-d-glucosidase of low molecular weight polysaccharide from Cordyceps militaris. Int. J. Biol. Macromol. 2016, 93, 27–33. [Google Scholar] [CrossRef]
  43. Liu, W.; Liu, Y.; Zhu, R.; Yu, J.; Lu, W.; Pan, C.; Yao, W.; Gao, X. Structure characterization, chemical and enzymatic degradation, and chain conformation of an acidic polysaccharide from Lycium barbarum L. Carbohydr. Polym. 2016, 147, 114–124. [Google Scholar] [CrossRef]
  44. Yu, Z.; Liu, L.; Xu, Y.; Wang, L.; Teng, X.; Li, X.; Dai, J. Characterization and biological activities of a novel polysaccharide isolated from raspberry (Rubus idaeus L.) fruits. Carbohydr. Polym. 2015, 132, 180–186. [Google Scholar] [CrossRef] [PubMed]
  45. Chen, J.; Zhang, X.; Huo, D.; Cao, C.; Li, Y.; Liang, Y.; Li, B.; Li, L. Preliminary characterization, antioxidant and α-glucosidase inhibitory activities of polysaccharides from Mallotus furetianus. Carbohydr. Polym. 2019, 215, 307–315. [Google Scholar] [CrossRef] [PubMed]
  46. Zheng, Y.; Zhang, S.; Wang, Q.; Lu, X.; Lin, L.; Tian, Y.; Xiao, J.; Zheng, B. Characterization and hypoglycemic activity of a β-pyran polysaccharides from bamboo shoot (Leleba oldhami Nakal) shells. Carbohydr. Polym. 2016, 144, 438–446. [Google Scholar] [CrossRef]
  47. Liu, P.; Xue, J.; Tong, S.; Dong, W.; Wu, P. Structure Characterization and Hypoglycaemic Activities of Two Polysaccharides from Inonotus obliquus. Molecules 2018, 23, 1948. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  48. Lim, G.E.; Park, J.E.; Cho, Y.H.; Lim, D.S.; Kim, A.J.; Moh, S.H.; Lee, J.H.; Lee, J.S. Alpha-neoendorphin can reduce UVB-induced skin photoaging by activating cellular autophagy. Arch. Biochem. Biophys. 2020, 689, 108437. [Google Scholar] [CrossRef]
  49. Colgrave, M.L.; Allingham, P.G.; Jones, A. Hydroxyproline quantification for the estimation of collagen in tissue using multiple reaction monitoring mass spectrometry. J. Chromatogr. A 2008, 1212, 150–153. [Google Scholar] [CrossRef]
  50. Chen, Y.; Wen, Y.; Zhu, Y.; Chen, Z.; Mu, W.; Zhao, C. Synthesis of bioactive oligosaccharides and their potential health benefits. Crit. Rev. Food Sci. Nutr. 2023, 1–13. [Google Scholar] [CrossRef]
  51. Xie, X.; Cheong, K.L. Recent advances in marine algae oligosaccharides: Structure, analysis, and potential prebiotic activities. Crit. Rev. Food Sci. Nutr. 2022, 62, 7703–7717. [Google Scholar] [CrossRef]
  52. Dicker, K.T.; Gurski, L.A.; Pradhan-Bhatt, S.; Witt, R.L.; Farach-Carson, M.C.; Jia, X. Hyaluronan: A simple polysaccharide with diverse biological functions. Acta Biomater. 2014, 10, 1558–1570. [Google Scholar] [CrossRef] [Green Version]
  53. Terraz, C.; Toman, D.; Delauche, M.; Ronco, P.; Rossert, J. δEF1 Binds to a Far Upstream Sequence of the Mouse Pro-α1(I) Collagen Gene and Represses Its Expression in Osteoblasts. J. Biol. Chem. 2001, 276, 37011–37019. [Google Scholar] [CrossRef] [Green Version]
  54. Unsöld, C.; Pappano, W.N.; Imamura, Y.; Steiglitz, B.M.; Greenspan, D.S. Biosynthetic Processing of the Pro-α1(V)2Pro-α2(V) Collagen Heterotrimer by Bone Morphogenetic Protein-1 and Furin-like Proprotein Convertases. J. Biol. Chem. 2002, 277, 5596–5602. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  55. Kim, Y.; Lee, S.K.; Bae, S.; Kim, H.; Park, Y.; Chu, N.K.; Kim, S.G.; Kim, H.R.; Hwang, Y.; Kang, J.S.; et al. The anti-inflammatory effect of alloferon on UVB-induced skin inflammation through the down-regulation of pro-inflammatory cytokines. Immunol. Lett. 2013, 149, 110–118. [Google Scholar] [CrossRef]
  56. Yao, W.; Kong, Q.; You, L.; Zhong, S.; Hileuskaya, K. Polysaccharides from brown seaweed: Physicochemical properties, absorption in the intestine, and beneficial effects on intestinal barrier. Food Frontiers 2023. [Google Scholar] [CrossRef]
  57. Li, L.; Hwang, E.; Ngo, H.T.T.; Seo, S.A.; Lin, P.; Gao, W.; Liu, Y.; Yi, T.H. Ribes nigrum L. Prevents UVB-mediated Photoaging in Human Dermal Fibroblasts: Potential Antioxidant and Antiinflammatory Activity. Photochem. Photobiol. 2018, 94, 1032–1039. [Google Scholar] [CrossRef]
  58. Xiao, T.; Chen, Y.; Song, C.; Xu, S.; Lin, S.; Li, M.; Chen, X.; Gu, H. Possible treatment for UVB-induced skin injury: Anti-inflammatory and cytoprotective role of metformin in UVB-irradiated keratinocytes. J. Dermatol. Sci. 2021, 102, 25–35. [Google Scholar] [CrossRef] [PubMed]
  59. Patriota, R.C.R.; Rodrigues, C.J.; Cuce, L.C. Intense pulsed light in photoaging: A clinical, histopathological and immunohistochemical evaluation. An. Bras. Dermatol. 2011, 86, 1129–1133. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  60. Wang, L.; Jayawardena, T.U.; Hyun, J.; Wang, K.; Fu, X.; Xu, J.; Gao, X.; Park, Y.; Jeon, Y.J. Antioxidant and anti-photoaging effects of a fucoidan isolated from Turbinaria ornata. Int. J. Biol. Macromol. 2023, 225, 1021–1027. [Google Scholar] [CrossRef]
  61. Ouyang, Q.; Li, Y.; Mei, S.; Zhang, Q.; Li, X.; Luo, H.; Zhu, Y.; Wu, K. Protective effects of GLHP from Gracilaria lemaneiformis against UVB-induced photodamage in human immortalized keratinocytes cells and BALB/c mice. Exp. Gerontol. 2021, 155, 111550. [Google Scholar] [CrossRef]
  62. Kim, Y.I.; Oh, W.S.; Song, P.H.; Yun, S.; Kwon, Y.S.; Lee, Y.J.; Ku, S.K.; Song, C.H.; Oh, T.H. Anti-Photoaging Effects of Low Molecular-Weight Fucoidan on Ultraviolet B-Irradiated Mice. Mar. Drugs 2018, 16, 286. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  63. Yao, W.; Liu, M.; Chen, X.; You, L.; Ma, Y.; Hileuskaya, K. Effects of UV/H2O2 degradation and step gradient ethanol precipitation on Sargassum fusiforme polysaccharides: Physicochemical characterization and protective effects against intestinal epithelial injury. Food Res. Int. 2022, 155, 111093. [Google Scholar] [CrossRef]
  64. DuBois, M.; Gilles, K.A.; Hamilton, J.K.; Rebers, P.A.; Smith, F. Colorimetric Method for Determination of Sugars and Related Substances. Anal. Chem. 1956, 28, 350–356. [Google Scholar] [CrossRef]
  65. Miller, G.L. Use of Dinitrosalicylic Acid Reagent for Determination of Reducing Sugar. Anal. Chem. 1959, 31, 426–428. [Google Scholar] [CrossRef]
  66. Bitter, T.; Muir, H.M. A modified uronic acid carbazole reaction. Anal. Biochem. 1962, 4, 330–334. [Google Scholar] [CrossRef] [PubMed]
  67. Chen, X.; You, L.; Ma, Y.; Zhao, Z.; Kulikouskaya, V. Influence of UV/H2O2 treatment on polysaccharides from Sargassum fusiforme: Physicochemical properties and RAW 264.7 cells responses. Food Chem. Toxicol. 2021, 153, 112246. [Google Scholar] [CrossRef]
  68. Dodgson, K.; Price, R. A note on the determination of the ester sulphate content of sulphated polysaccharides. Biochem. J. 1962, 84, 106–110. [Google Scholar] [CrossRef] [Green Version]
Marinedrugs 21 00430 g001 550

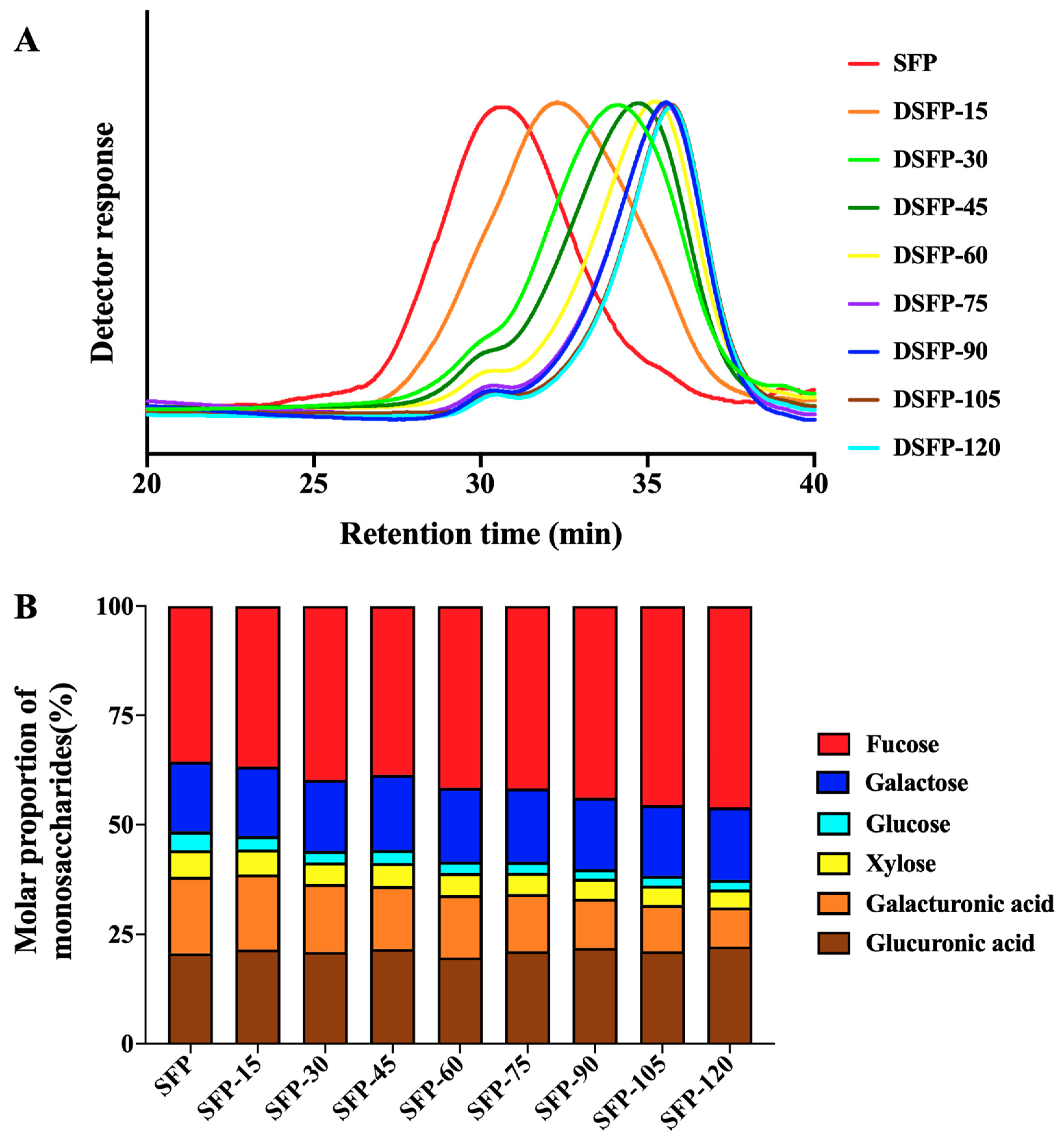

Figure 1. Molecular weights (A) and monosaccharide compositions (B) of SFP and DSFPs. Note: DSFPs include DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120.
Figure 1. Molecular weights (A) and monosaccharide compositions (B) of SFP and DSFPs. Note: DSFPs include DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120.
Marinedrugs 21 00430 g001
Marinedrugs 21 00430 g002 550
Figure 2. SEM spectra of SFP and DSFPs. Note: DSFPs include DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120.
Figure 2. SEM spectra of SFP and DSFPs. Note: DSFPs include DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120.
Marinedrugs 21 00430 g002
Marinedrugs 21 00430 g003 550
Figure 3. FT-IR spectra of SFP and DSFPs. Note: DSFPs include DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120.
Figure 3. FT-IR spectra of SFP and DSFPs. Note: DSFPs include DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120.
Marinedrugs 21 00430 g003
Marinedrugs 21 00430 g004 550
Figure 4. Effects of SFP and DSFPs on cell viability (A) and the level of HYP (B) of photoaged HaCaT cells. Note: DSFPs include DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120. * p < 0.05 or ** p < 0.01 vs. Model group.
Figure 4. Effects of SFP and DSFPs on cell viability (A) and the level of HYP (B) of photoaged HaCaT cells. Note: DSFPs include DSFP-15, DSFP-30, DSFP-45, DSFP-60, DSFP-75, DSFP-90, DSFP-105, and DSFP-120. * p < 0.05 or ** p < 0.01 vs. Model group.
Marinedrugs 21 00430 g004
Marinedrugs 21 00430 g005 550
Figure 5. Effects of SFP and DSFP-45 on the levels of pro-collagen I α1 (A), IL-1β (B), IL-6 (C), and TNF-α (D) of photoaged HaCaT cells. * p < 0.05 or ** p < 0.01 vs. Model group. # p < 0.05 or ## p < 0.01 vs. SFP group.
Figure 5. Effects of SFP and DSFP-45 on the levels of pro-collagen I α1 (A), IL-1β (B), IL-6 (C), and TNF-α (D) of photoaged HaCaT cells. * p < 0.05 or ** p < 0.01 vs. Model group. # p < 0.05 or ## p < 0.01 vs. SFP group.
Marinedrugs 21 00430 g005
Marinedrugs 21 00430 g006 550
Figure 6. Effects of SFP and DSFP-45 on the expression of collagen I (A), IL-1β (B), IL-6 (C), and TNF-α (D) of photoaged HaCaT cells. * p < 0.05 or ** p < 0.01 vs. Model group.
Figure 6. Effects of SFP and DSFP-45 on the expression of collagen I (A), IL-1β (B), IL-6 (C), and TNF-α (D) of photoaged HaCaT cells. * p < 0.05 or ** p < 0.01 vs. Model group.
Marinedrugs 21 00430 g006
Table
Table 1. Chemical compositions of SFP and DSFPs.
Table 1. Chemical compositions of SFP and DSFPs.
Total
Carbohydrate (%)		Protein (%)Reducing Sugar (%)Uronic Acids (%)Sulfate (%)
SFP50.42 ± 1.09 a2.72 ± 0.05 b1.29 ± 0.29 a35.52 ± 0.47 f6.14 ± 0.97 a
DSFP-1552.12 ± 2.64 ab2.56 ± 0.83 ab1.41 ± 0.18 a32.24 ± 0.19 d5.96 ± 0.47 a
DSFP-3062.04 ± 2.62 c1.54 ± 0.22 ab2.71 ± 0.75 b34.29 ± 0.35 def6.26 ± 0.67 ab
DSFP-4559.44 ± 2.95 bc1.87 ± 0.47 ab3.09 ± 0.66 bc33.70 ± 0.96 def5.76 ± 0.15 a
DSFP-6060.40 ± 2.83 bc1.30 ± 0.50 ab3.91 ± 0.50 c34.80 ± 1.80 ef6.41 ± 0.26 ab
DSFP-7560.82 ± 2.78 bc1.36 ± 0.25 ab5.16 ± 1.07 d32.92 ± 1.43 de7.12 ± 0.27 bc
DSFP-9072.14 ± 3.96 d1.80 ± 0.44 ab5.66 ± 0.48 d29.88 ± 1.16 c8.15 ± 0.30 de
DSFP-10571.47 ± 5.99 d1.31 ± 0.13 a5.86 ± 0.68 d22.51 ± 1.16 b7.46 ± 0.40 cd
DSFP-12066.51 ± 4.55 cd1.25 ± 0.27 ab6.16 ± 0.25 d19.46 ± 1.42 a8.81 ± 0.50 e
a–f Means in each column with different superscripts represent significant difference (p < 0.05).
Table
Table 2. Molecular weights and yields of SFP and DSFPs.
Table 2. Molecular weights and yields of SFP and DSFPs.
Molecular Weight (kDa)Yield (%)
SFP271-
DSFP-1512865.7
DSFP-305956.0
DSFP-454356.7
DSFP-603648.3
DSFP-753133.3
DSFP-902833.3
DSFP-1052838.3
DSFP-1202630.0
Table
Table 3. Monosaccharide compositions of SFP and DSFPs.
Table 3. Monosaccharide compositions of SFP and DSFPs.
Fraction Molar Proportion of Monosaccharides (%)
FucoseGalactoseGlucoseXyloseGalacturonic AcidGlucuronic Acid
SFP35.5815.964.196.1217.5320.62
DSFP-1536.7015.843.055.6917.2021.51
DSFP-3039.7316.162.674.9115.5820.95
DSFP-4538.6117.062.985.2614.4621.62
DSFP-6041.5016.862.605.0214.2919.73
DSFP-7541.7016.692.514.8913.1021.11
DSFP-9043.8416.242.204.5411.2721.91
DSFP-10545.4716.142.234.4410.5721.14
DSFP-12046.0416.462.204.118.9522.23
Table
Table 4. Primer sequences of genes in qRT-PCR.
Table 4. Primer sequences of genes in qRT-PCR.
GenePrimer (5′-3′)
GAPDHForwardTCCACTGGCGTCTTCACCACCAT
ReverseGGAGGCATTGCTGATGATCTTGAGG
collagen IForwardCAAGGTGTTGTGCGATGACG
ReverseTGGTTTCTTGGTCGGTGGG
IL-1βForwardCTGTACCTGTCCTGCGTGTT
ReverseAGACGGGCATGTTTTCTGCT
IL-6ForwardCTGACCCAACCACAAATGC
ReverseTCTGAGGTGCCCATGCTAC
TNF-αForwardGCTGCACTTTGGAGTGATCG
ReverseCTTGTCACTCGGGGTTCGAG
Disclaimer/Publisher’s Note: The statements, opinions and data contained in all publications are solely those of the individual author(s) and contributor(s) and not of MDPI and/or the editor(s). MDPI and/or the editor(s) disclaim responsibility for any injury to people or property resulting from any ideas, methods, instructions or products referred to in the content.

Share and Cite

MDPI and ACS Style

Yao, W.; Yong, J.; Lv, B.; Guo, S.; You, L.; Cheung, P.C.-K.; Kulikouskaya, V.I. Enhanced In Vitro Anti-Photoaging Effect of Degraded Seaweed Polysaccharides by UV/H2O2 Treatment. Mar. Drugs 2023, 21, 430. https://doi.org/10.3390/md21080430

AMA Style

Yao W, Yong J, Lv B, Guo S, You L, Cheung PC-K, Kulikouskaya VI. Enhanced In Vitro Anti-Photoaging Effect of Degraded Seaweed Polysaccharides by UV/H2O2 Treatment. Marine Drugs. 2023; 21(8):430. https://doi.org/10.3390/md21080430

Chicago/Turabian Style

Yao, Wanzi, Jiayu Yong, Bingxue Lv, Siyu Guo, Lijun You, Peter Chi-Keung Cheung, and Viktoryia I. Kulikouskaya. 2023. "Enhanced In Vitro Anti-Photoaging Effect of Degraded Seaweed Polysaccharides by UV/H2O2 Treatment" Marine Drugs 21, no. 8: 430. https://doi.org/10.3390/md21080430

APA Style

Yao, W., Yong, J., Lv, B., Guo, S., You, L., Cheung, P. C. -K., & Kulikouskaya, V. I. (2023). Enhanced In Vitro Anti-Photoaging Effect of Degraded Seaweed Polysaccharides by UV/H2O2 Treatment. Marine Drugs, 21(8), 430. https://doi.org/10.3390/md21080430

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
