Article

Macrolactin X, a Macrolactin Antibiotic from Marine Bacillus subtilis sp.18

Department of Biochemistry and Molecular Biology, College of Basic Medical Sciences, Naval Medical University, Shanghai 200433, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Mar. Drugs 2024, 22(8), 331; https://doi.org/10.3390/md22080331
Submission received: 18 June 2024 / Revised: 20 July 2024 / Accepted: 22 July 2024 / Published: 23 July 2024
(This article belongs to the Special Issue Bio-Active Products from Mangrove Ecosystems 2.0)

Abstract

:
Two new compounds, macrolactin X (1) and dihydroxylaureonitol (2), together with nine known compounds (311) were isolated from the marine Bacillus subtilis sp.18 by the OSMAC strategy. These compounds were evaluated for antibacterial activity against six tested microorganisms. Compounds 15 and 710 showed varied antibacterial activity, with the minimum inhibitory concentration (MIC) ranging from 3 to 12 μg/mL. Macrolactin X (1) was found to possess superior antibacterial activity, especially exhibiting significant effectiveness against Enterococcus faecalis. The antibacterial activity mechanism against E. faecalis was investigated. The mechanism may disrupt bacterial cell membrane integrity and permeability, and also inhibit the expression of genes associated with bacterial energy metabolism, as established by the experiments concerning cell membrane potential, SDS-PAGE electrophoresis, cell membrane integrity, and key gene expressions. This study offers valuable insights and serves as a theoretical foundation for the future development of macrolactins as antibacterial precursors.

1. Introduction

E. faecalis is a conditionally pathogenic bacterium that is commonly found in the normal flora of the intestinal tract and frequently implicated in hospital-acquired infections. Its clinical infections typically manifest as periodontitis, urinary tract infections, abdominal and pelvic trauma, and post-surgical infections [1,2,3]. Given its infectious nature and the extensive research conducted on its pathogenic mechanisms, E. faecalis serves as a valuable reference for diagnosing and treating various diseases. The current arsenal of medications used in treating E. faecalis infections primarily comprises penicillins and aminoglycoside antibiotics. Penicillins, the preferred drug for the treatment of E. faecalis infection, exhibit high sensitivity towards the pathogen, albeit with some resistance stemming from the bacterium’s robust cell walls [4,5]. Moreover, prolonged antibiotic usage can perturb the intestinal flora balance, manifesting in gastrointestinal symptoms like anorexia, nausea, and dyspepsia. When penicillins are ineffective, aminoglycosides can be administered in tandem, albeit with the caveat of potential side effects such as ototoxicity and nephrotoxicity [6,7], necessitating cautious use. In light of the current scarcity of targeted therapeutic medications, it is beneficial to explore these therapeutic alternatives.
Macrolactins are natural compounds that feature three distinct diene structures embedded within a 24-membered lactone ring. So far, over 50 macrolactin analogs have been isolated [8]. These compounds exhibit diverse biological activities, including antibacterial, anti-inflammatory, antitumor, and antiviral effects [9,10,11,12], offering a vast array of potential avenues for novel drug development. Antibacterial activity is one of the most superior bioactivities of macrolactins, and they showed a strong effect on Staphylococcus aureus, Bacillus subtilis, and Escherichia coli, which might become new antibacterial lead compounds.
In this study, eleven compounds were obtained from Bacillus subtilis sp.18 (Figure 1), including two new compounds (macrolactin X (1) and dihydroxylaureonitol (2)) and nine known compounds (311). Subsequently, the antibacterial activity of all compounds was evaluated, and it was found that the new compound, macrolactin X (1), showed significant activity against E. faecalis. Given the remarkable antibacterial activity of macrolactins, a preliminary investigation was conducted into its antibacterial mechanism using E. faecalis as an indicator bacterium.

2. Results and Discussion

2.1. Structural Analysis of Compounds

Compound 1 was isolated as a white powder. The molecular formula was determined to be C25H36O5 by HRESIMS, implying eight degrees of unsaturation. The UV spectrum exhibited absorption at λmax 228 and 262 nm (Figure S1). The 1H-NMR and 13C-NMR data are shown in Table 1 (Figures S2 and S3). The 1H-NMR data displayed two characteristic methyl proton signals at δH 3.30 (3H, s) and δH 1.29 (3H, d, J = 6.32 Hz). Analysis of the 13C-NMR data and DEPT spectrum revealed a total of twenty-five carbons, including two methyls, six methylenes, sixteen methines, and one quaternary carbon signal. Twelve double-bond carbon signals were found at δc 118.03, 142.84, 129.88, 139.51, 135.65, 125.02, 135.32, 130.00, 128.18, 133.20, 129.79, and 129.84. Four carbons connecting oxygen atoms at δC 69.29, 71.03, 71.29, and 80.25, and one methoxyl carbon signal at δC 56.27 could be observed from the 13C-NMR (Figures S4 and S6).
The COSY correlations of H-2/H-3, H-4/H-5, H-6/H-7, H-7/H-8, H-8/H-9, H-12/H-13, H-13/H-14, H-14/H-15, H-15/H-17, H-20/H-21, H-21/H-22, H-22/H-23, H-23/H-24, and H-24/H-25 revealed the presence of five isolated spin systems: C-2/C-3, C-4 and C-6, C-6/C-7/C-8/C-9, C-12/C-13/C-14/C-15 and C-17, and C-20/C-21/C-22/C-23/C-24/C-25 (Figure 2 and Figure S5). The diagnostic HMBC correlations from H-25 to C-24, H-24 to C-1 and C-22/C-23, H-3 to C-1 and C-5, H-9 to C-7 and C-10, H-16 to C-15, H-12 to C-10/C-11 and C-13/C-14, and H-18 to C-17 and C-19 and C-21 indicated a macrocycle with a 24-membered ring serving as its core structure (Figure S7). Due to the presence of three oxygenated carbon signals, the oxygenated carbons at C-7 and C-13 had to be substituted with a hydroxy group to satisfy the molecular formula, and the carbons at C-15 and C-24 were substituted with methoxyl and methyl, respectively (Figure 2). The 1H coupling constant between H-2 and H-3 was 11.6 Hz, while the coupling constant between H-4 and H-5 was 14.4 Hz, indicating that the geometries of C-2 and C-4 were Z and E configurations. The 1H coupling constant between H-8 and H-9 was 15.1 Hz, while the coupling constant between H-10 and H-11 was 17.0 Hz, indicating that the geometries of C-8 and C-10 were both E configurations. The 1H coupling constant between H-17 and H-18 was 15.2 Hz, while the coupling constant between H-19 and H-20 was 14.0 Hz, indicating that the geometries of C-17 and C-19 were both E configurations. Thus, a planar structure was indicated.
Once the planar structure was established, its relative configuration was addressed by NOESY experiments (Figure 3). The NOESY cross-peaks of H-7/H-11/H-24 and H-11/H-13 indicated the same orientation of these protons. Therefore, the relative structure was determined (Figure S8).
To ascertain the comprehensive absolute configurations of 1, the quantum chemical electronic circular dichroism (ECD) calculation method was utilized. The negative Cotton effect (CE) at 205 nm in the calculated spectrum of the 7R, 13R, 15S, 24R enantiomer approximately matched the CE observed in the experimental ECD spectrum of 1 (Figure 4), enabling the assignment of the absolute configuration of 1, as demonstrated. Finally, compound 1 was named as macrolactin X. Compared to the other macrolactins, the main difference between macrolactin X (1) and the others was that the latter were hydroxylated at C-15, whereas macrolactin X (1) was methoxylated.
Compound 2 was isolated as a yellow oil. The molecular formula was determined to be C11H18O3 by HRESIMS, implying three degrees of unsaturation. The UV spectrum exhibited absorption at λmax 226 nm (Figure S11). The 1H-NMR and 13C-NMR data are shown in Table 1 (Figures S12 and S13). The 1H-NMR data displayed one characteristic methyl proton signal at δH 1.14 (3H, d, J = 6.4 Hz); seven olefinic protons signals at δH 6.35 (1H, dt, J = 17.0, 10.3 Hz), 6.15 (1H, dd, J = 15.4, 10.4 Hz), 5.67 (1H, m), 5.13 (1H, m), 6.17 (1H, dd, J = 15.5, 10.5 Hz), 5.58 (1H, m), and 4.99 (1H, dd, J = 10.1, 1.8 Hz); one oxygen-bearing methylene proton signal at δH 3.53 (2H, d, J = 6.6 Hz); and three aliphatic methine signals, including two methine oxide signals at δH 3.86 (1H, m), 3.65 (1H, m), and one methine signal at δH 2.98 (1H, t, J = 6.9 Hz). Analysis of the 13C-NMR data and DEPT spectrum revealed a total of eleven carbons, including six double-bond carbon signals at δc 116.18, 138.47, 133.6, 135.1, 133.5, and 132.5, three methine carbon signals, one methylene carbon signal, and one methyl carbon signal. Its structural characteristics mean that it is a precursor to terpene synthetic substances, suggesting the potential of producing some terpenes in this strain (Figures S14 and S16).
The COSY correlations of H-1/H-2, H-2/H-3, H-3/H-4, H-4/H-5, H-5/H-6, H-5/H-7, H-7/H-8, H-8/H-9, H-9/H-10, and H-10/H-11 revealed the presence of two isolated spin systems: C-1/C-2/C-3/C-4/C-5/C-6 and C-5/C-7/C-8/C-9/C-10/C-11 (Figure 2 and Figure S15). The diagnostic HMBC correlations from H-1 to C-2/C-3, H-4 to C-2/C-3 and C-5/C-6, H-4 to C-7, H-8 to C-9/C-10, and H-11 to C-9/C-10 indicated the presence of a terminal double bond conjugated with a trans double bond, confirming that an oxygen-bearing methylene is linked to this conjugated double bond via a methine group (Figure S17). Due to the presence of three oxygenated carbon signals, C-6 and C-9/C-10 had to be substituted with a hydroxyl group to satisfy the molecular formula. The 1H coupling constant between H-3 and H-4 was 13.0 Hz, while the coupling constant between H-7 and H-8 was 13.0 Hz, indicating that the geometries of C-3 and C-7 were both E configurations. Thus, the planar structure was determined (Figure 2).
Once the planar structure was established, its relative configuration was addressed by NOESY experiments (Figure 3). The NOESY cross-peaks of H-9/H-10 and H-5/H-10 indicated the same orientation of these protons and that they were located on the same side of the molecule (Figure S18). Therefore, the relative structure was determined. To ascertain the comprehensive absolute configuration of 2, the quantum chemical electronic circular dichroism (ECD) calculation method was utilized. The negative Cotton effect (CE) at 205 nm in the calculated spectrum of the 5R, 9S, 10S enantiomer approximately matched the CE observed in the experimental ECD spectrum of 2 (Figure 4), enabling the assignment of the absolute configuration of 2, as demonstrated. Finally, compound 2 was named as dihydroxylaureonitol.
In addition, nine known compounds (311) were also isolated as metabolites of Bacillus subtilis sp.18 (Figure 1). These compounds were identified through a comparison of their spectral data with the spectroscopic data reported in the relevant literature, and all of them were classified as follows: macrolactin F (3), macrolactin A (4), cyclo(Benzyl-Gly) (5), cyclo(D)-Pro-(D)-Phe (6), Tyrosol (7), 3-propyl-indole (8), cyclo(D)-Pro-(D)-Leu (9), plancyindole D (10), and cyclo(S-Pro-S-Leu) (11).

2.2. Antibacterial Activity

2.2.1. Determination of MIC and MBC of Macrolactin X against Test Microorganisms

Compounds 111 exhibited inhibitory activity against a range of microorganisms, including S. aureus, B. subtilis, E. coli, E. faecalis, Vibrio traumaticus, and Vibrio parahaemolyticus. As shown in Table 2, compounds 15 and 710 showed varied antibacterial activity, with MICs ranging from 3 to 12 μg/mL. Among them, macrolactin X (1), macrolactin F (3), and macrolactin A (4) showed strong antibacterial effects, especially macrolactin X (1), demonstrating a significant inhibitory effect (MIC 3 μg/mL and MBC 12 μg/mL) on E. faecalis.
Among the three isolated macrolactins, macrolactin X (1) demonstrated superior activity compared to macrolactins A and F, particularly against E. faecalis. The analysis of known structure–activity relationships revealed that macrolactins exhibit great antibacterial activity when the C-15 position is linked to a hydroxyl group [8,13,14]. This suggests that the methoxyl group at the C-15 position contributes significantly to antibacterial effects, identifying the C-15 site as a crucial active site for the antibacterial activity of macrolactins.

2.2.2. Analysis of Bacterial Growth Curve

To further validate the antibacterial effect of macrolactin X (1) against E. faecalis, a detailed investigation on the impact of macrolactin X (1) on the specific growth rate of E. faecalis was conducted, as presented in Table 3. Additionally, a growth curve was plotted to illustrate the interaction between macrolactin X (1) and E. faecalis, as depicted in Figure 5.
Upon examination of the growth curves, it became evident that the OD values of the control group exhibited a rapid increase, particularly in comparison to the treated group, and stabilized after approximately 20 h. This observation was primarily attributed to the bacteria’s growth cycle. Notably, when the concentration of the sample solution was set at the MIC, bacterial growth was delayed over time. The resulting OD value was significantly lower than that of the control group (p < 0.05). Furthermore, the specific growth rate of E. faecalis decreased significantly (p < 0.05) with the effect of macrolactin X (1), indicating its inhibitory effect on bacterial growth.

2.3. Antibacterial Mechanism

2.3.1. Effect on Bacterial Cell Membrane Potential

As depicted in Figure 6a, alterations in the membrane potential of E. faecalis exerted a profound influence on the metabolic activity of the bacteria [15]. Specifically, a decrease in fluorescence intensity served as an indicator of a reduced potential difference between the intracellular and extracellular environments [16]. Notably, the mean fluorescence intensity decreased by 23.9% when the concentration of macrolactin X (1) approached the MIC level, compared to both the control and negative control groups. This decrement was statistically significant (p < 0.0001). In contrast, there was no significant difference between the control and negative control groups (p > 0.05), indicating that macrolactin X (1) specifically targets bacterial membrane potential, ultimately affecting metabolic activity.

2.3.2. Results of SDS-PAGE Electrophoresis of Bacterial Proteins

Proteins serve as the fundamental building blocks of all life, and are essential for maintaining normal metabolic processes and facilitating the transportation of diverse substances throughout the body. The expression level of proteins provides a valuable indicator of the state of cellular life [17]. Bacteria harbour numerous crucial macromolecular proteins, such as glucose transporters, a class of transmembrane protein situated on the bacterial cell membrane. These are vital regulators of glucose’s transmembrane transport, playing a pivotal role in bacteria’s energy acquisition and metabolic processes [18]. Other enzymes that are integral to the biosynthesis of peptidoglycan in the bacterial cell wall, like penicillin-binding proteins, participate in the synthesis and maintenance of cell membrane stability [19]. The SDS-PAGE electrophoresis results, depicted in Figure 6b, revealed notable differences in protein profiles between the MIC group and the control group. In the control group, the protein bands of E. faecalis appeared distinct and abundant. Conversely, the protein bands in the MIC group exhibited fainter colours, with some bands disappearing altogether. The macrolactin X-treated group showed predominantly lighter protein bands, indicating that macrolactin X (1) interfered with protein synthesis. This resulted in a decrease in the overall protein content of the bacteria, particularly affecting protein bands above 55 kDa, which nearly vanished. These observations suggest that macrolactin X (1) primarily impacted the synthesis of larger-molecular-weight proteins.

2.3.3. Effects on Cell Membrane Integrity

Cell membrane integrity is indicated by the leakage of nucleic acids from bacterial cells into the suspension [20]. As shown in Figure 6c, the nucleic acid content (measured as OD260nm) remained relatively stable and did not exhibit significant changes (p > 0.05) over time in both blank group and the negative control groups. However, a significant increase (p < 0.05) in nucleic acid content (OD260nm) was observed in the macrolactin X-treated group, peaking at 0.563 in the 16th hour and remaining relatively unchanged.

2.3.4. The Impact on the Expression of Genes Involved in Bacterial Energy Metabolism

Pyruvate kinase (PK) plays an important role in bacterial energy metabolism, serving as a crucial enzyme in the glycolytic pathway. It can catalyse the conversion of phosphoenolpyruvate to pyruvate, the process of which generates ATP, providing the necessary energy for bacteria. Furthermore, PK is involved in regulating the balance between glycogenolysis and gluconeogenesis to ensure that bacteria can flexibly adapt to changes in energy demand and maintain their normal life activities and physiological functions.
As shown in Figure 6d, it became evident that the expression of PK in E. faecalis was significantly downregulated (p < 0.0001) in the macrolactin X-treated group at the MIC compared to the control group. This reveals that macrolactin X modulates the transcript levels of genes encoding enzymes and proteins that play crucial roles in ATP synthesis, glycolysis, and other energy-producing processes.

3. Materials and Methods

3.1. General Experimental Procedures

NMR spectra were acquired using a Bruker AMX-500 spectrometer (Bruker Biospin Corp., Billerica, MA, USA), operating at 500 MHz for 1H-NMR and 125 MHz for 13C-NMR to ensure high-resolution and accurate spectral data. For HRESIMS analysis, an Agilent 6210 LC/MSD TOF mass spectrometer (Agilent Technologies Inc., Lake Forest, CA, USA) was employed, providing precise mass measurements. UV spectra were recorded on a UV-8000 spectrophotometer (Shanghai Metash instruments Co., Shanghai, China), ensuring the accurate quantification of absorbance values. Optical rotations were measured precisely using an Anton Paar MCP 5500 instrument (Anton Paar Co., Graz, Austria). Chromatographic separations were carried out on a Waters 1525 HPLC system (Waters Corp., Milford, MA, USA) equipped with a Waters 2996 photodiode array detector, utilizing YMC-Pack Pro C18 RS columns (5 µm) from YMC Co., Ltd. (Kyoto, Japan). Purifications were performed using an Agilent LC1263 Infinity II purification system (Agilent Technologies Inc., CA, USA). Thin-layer chromatography analysis was conducted on HSGF254-precoated silica gel plates (10–40 mm) from Yantai Chemical Plant (Yantai, China), ensuring the high-quality separation of analytes.

3.2. Bacterial Strain

The strain Bacillus subtilis sp.18 was isolated from a co-epidermal sample collected from a sponge dwelling in the waters of the South China Sea at a depth of 325 m. This strain was being maintained by the Department of Biochemistry and Molecular Biology at the Naval Military Medical University. To propagate the strain, individual colonies were inoculated into test tubes containing 10 mL of ISP2 liquid medium (10 g/L of malt extract, 4 g/L of yeast, and 4 g/L of glucose). These cultures were then incubated for three days at a constant temperature of 28 °C with shaking at 180 rpm to generate seed cultures (OSMAC strategy in previous studies).
The Department of Biochemistry and Molecular Biology at the Naval Military Medical University generously provided us with a range of bacterial strains, including E. faecalis (ATCC 29212), S. aureus (ATCC 27217), B. subtilis (ATCC 21951), E. coli (ATCC 25922), V. vulnificus (ATCC 27562), and V. parahaemolyticus (ATCC 17802). To prepare these strains for subsequent experiments, 100 μL of each test strain was inoculated into test tubes containing 5 mL of nutrient broth medium (18 g/L of nutrient broth medium). The cultures were then incubated at 28 °C with shaking at 180 rotations per minute for 12 h, ensuring optimal activation and proliferation before proceeding to the next step.

3.3. Fermentation

The seed culture was added to 500 mL of ISP2 medium at a ratio of 10% (v/v) and incubated for eight days at 28 °C, with shaking at 180 rpm to allow for optimal growth and metabolism.

3.4. Extraction and Isolation

The fermentation broth underwent a separation process where it was filtered through eight layers of gauze, resulting in two distinct fractions. The filtrate was thoroughly mixed with an equal volume of ethyl acetate, while the bacterial material was thoroughly macerated with a combination of equal volumes of petroleum ether and ethyl acetate. Following stratification, the organic phase layer was collected, and this entire procedure was repeated three times. The combined organic phase layers from both the filtrate and the bacterial fraction were then evaporated using a rotary evaporator to obtain the fermentation product.
The crude extract (14 g) underwent vacuum liquid chromatography on a silica gel column, utilizing a gradient elution method with a mixed-solvent system of petroleum ether and ethyl acetate (from a 10:1 to 0:1) to obtain 10 fractions (A–Z). The fractions C, F, J, O, and Q underwent further elution on a forward silica gel column separately, employing a gradient of the same mixed-solvent system (from 50:1 to 0:1), yielding 13 subfractions for C (C1–C13), 10 subfractions for F (F1–F10), 4 subfractions for J (J1–J4), 12 subfractions for O (O1–O12), and 12 subfractions for Q (Q1–Q12). The fractions C12, C13, F2, F4, J2, O7, O9, Q7, and Q8 were then purified using HPLC (MeOH/H2O, 2.0 mL/min) separately, resulting in the purification of compound 2 (1.3 mg in C12), compound 10 (1.6 mg in C13), compound 11 (2.1 mg in F2), compound 9 (1.3 mg in F4), compound 8 (1.3 mg in J2), compound 5 (1.3 mg in O7), compound 6 (1.1 mg in O9), compound 1 (1.1 mg in Q7), compound 3 (2.0 mg in Q7), compound 4 (1.1 mg in Q8), and compound 7 (1.2 mg in Q8). The detailed isolation process for the known compounds is omitted for brevity.
Macrolactin X (1): white powder; [α ] D 25 -93.90 (c 0.1, MeOH); UV (MeOH) λmax (log ε) 228 (3.68), 262 (3.36) nm; CD (MeOH) (∆ε) 233 (+13.16), 260 (−6.40); 1H-NMR and 13C-NMR data, see Table 1; HRESIMS m/z 439.2458 [M+Na]+ (calcd for C25H36O5Na, 439.2455) (Figures S9 and S10).
Dihydroxylaureonitol (2): yellow oil; [α ] D 25 -15.2785 (c 1.0, MeOH); UV (MeOH) λmax (log ε) 226 (3.89) nm; CD (MeOH) (∆ε) 204 (+10.46), 224 (−10.03); 1H-NMR and 13C-NMR data, see Table 1; HRESIMS m/z 221.1150 [M+Na]+ (calcd for C11H18O3Na, 221.11482) (Figures S19 and S20).

3.5. ECD Calculations

Initially, the conformational analyses for compounds 1 and 2 were conducted utilizing the Spartan’10 software (Wave-function, Inc., Irvine, CA, USA) within the MMFF94 force field. Later, conformers with a Boltzmann population of over 5% were refined at the B3LYP/6-31+G (d, p) level, employing the conductor-like polarizable continuum model (CPCM) in MeOH. The theoretical ECD calculations for compounds 1 and 2 were calculated using the time-dependent density functional theory (TDDFT) approach at the B3LYP/6-311++G (2d, 2p) level in MeOH, respectively. The ECD spectra were generated by SpecDis 1.6 (University of Würzburg, Germany) using a Gaussian band shape with an exponential half-width of 0.3 eV, derived from dipole-length dipolar and rotational strengths.

3.6. Antibacterial Activity

3.6.1. Determination of MIC and MBC in Macrolactin X against Test Microorganisms

E. faecalis was activated according to the operation in 3.2 (to an optical density at OD600 of 0.6–0.8) and diluted with sterilized medium at a ratio of 1:1000. The sample was dissolved in methanol and further diluted with sterile water to achieve a concentration of 64 μg/mL. This experiment was carried out using the micro-broth dilution method; first, a sterile 96-well plate was prepared by filling the outermost circle with 200 μL sterile water to prevent the bacterial solution from drying, and then the bacterial solution was added to the remaining wells. An amount of 10 μL sample solution (at a concentration of 64 μg/mL) was added to the first well, and then diluted to 0.5 μg/mL by the multiplicative dilution method to make the final concentration in the range of 0.5–64 μg/mL, and the negative (methanol) and positive controls (levofloxacin) were set. The 96-well plate was incubated in a constant-temperature incubator maintained at 28 °C for 12 h.

3.6.2. Analysis of Bacterial Growth Curve

E. faecalis was activated according to the operation in 3.2 (to an optical density at OD600 of 0.6–0.8) and the sample was dissolved in methanol and subsequently diluted with water to reach the MIC. To assess the growth curve, a sterile 96-well plate was prepared by leaving the outermost ring empty and filling each of the wells with 200 μL sterile water. In the remaining wells, 200 μL bacterial solution was dispensed, with 12 wells designated for each of the control and experimental groups. Then, 10 μL sample solution was received at the MIC of the experimental wells. The 9 plates were then incubated at 28 °C with agitation at 180 rpm. The optical density at 600 nm (OD600) of the wells was measured every two hours. This process was repeated three times, and the average value was recorded. Subsequently, the specific growth rate was computed for the logarithmic growth period using the formula ln(N2/N1) = μt (N2 and N1 represent the bacterial counts at different time points and μ is the specific growth rate).

3.7. Antibacterial Mechanism

3.7.1. Bacterial Cell Membrane Potential

E. faecalis was activated according to the operation in 3.2 (to an optical density at OD600 of 0.6–0.8), and then transferred to a 1.5 mL EP tube for the next step. The MIC of compound 1 was added into the bacterial suspension, serving as the experimental treatment. Concurrently, a suspension lacking the sample solution was utilized as the blank control, while the solvent utilized to dissolve the sample represented the negative control. Following an incubation period of 10 h, the bacterial suspension was centrifuged at 4000 rpm for 10 min, yielding a bacterial pellet, which was washed twice with phosphate-buffered saline (PBS, 0.1 M, pH 7.2). Subsequently, a rhodamine 123 dye solution (rhodamine 123 powder was dissolved in methanol to form a solution of 1.0 g/mL and then diluted to 2.0 mg/mL with PBS) was added into the pellet, and then the mixture was incubated for 30 min in a dark area. All of the mixture was transferred to a 96-well plate, and the fluorescence intensity was measured using a fluorescence spectrophotometer (SpectraMax M2e, Molecular Devices, Sunnyvale, CA, USA).

3.7.2. SDS-PAGE Electrophoresis of Bacterial Proteins

E. faecalis was activated according to the operation in 3.2 (to an optical density at OD600 of 0.6–0.8), and the bacterial solution was divided into two groups. One group (1 mL) served as the untreated control, while the other (1 mL) received 200 μL compound 1 at its MIC. Both groups were incubated for 10 h. After the incubation was completed, centrifugation was performed to remove most of the supernatant, and then an ultrasonic crusher (80% of maximum power, running for 15 s at 10 s intervals for 15 min) was used to crush the cells and release the proteins. The SDS-PAGE Gel Rapid Preparation Kit (Shanghai Yase Biotechnology Co., Ltd., Shanghai, China) was used to prepare the gel (loaded 10 μL protein sample). After electrophoresis was completed, Coomassie brilliant blue was applied to visualize the separated protein bands obtained after decolorization.

3.7.3. Effects on Cell Membrane Integrity

The disruption of cell membrane integrity was demonstrated by quantifying the concentration of nucleic acids present in the bacterial suspension. E. faecalis was activated according to the operation in 3.2 (to an optical density at OD600 of 0.6–0.8), then dispensed into a 96-well plate (200 μL in each well), setting the blank control and negative control. For the experimental group, 20 μL sample solution containing an MIC was added, while the control group remained untreated. The incubation was carried out in an incubator at 28 °C, and 200 μL of the bacterial suspension was removed every 4 h. The OD260 value was determined using a UV–Vis spectrophotometer to indicate the nucleic acid content in the bacterial suspension.

3.7.4. The Impact on the Expression of Genes Involved in Bacterial Energy Metabolism

Pyruvate kinase (PK), a crucial enzyme involved in bacterial energy metabolism, was chosen for further analysis. To design primers, the PK sequence of E. faecalis was retrieved through a database query. Additionally, the 16s rRNA gene was employed as an internal reference gene. E. faecalis was activated according to the operation in 3.2 (to an optical density at OD600 of 0.6–0.8). An amount of 2 mL bacterial suspension was removed and added to two EP tubes, respectively. For the experimental group, 200 μL of sample solution was added at an MIC, while the control group remained untreated and was incubated for 10 h for the next step. RNA extraction was carried out using the TransStart RNA Extraction Kit (Beijing Quan’s Gold Biological Company, Beijing, China), and reverse transcription was performed using the TransStart Top Green qPCR SuperMix Kit (Beijing Quan’s Gold Biological Company). The resulting cDNA was stored at −80 °C. Real-time fluorescence quantitative PCR (QuantStudio 5, Thermo Fisher Scientific, Waltham, MA, USA) was utilized for the analysis, and the CT values obtained were employed to assess the expression of pertinent genes using the 2-∆CT method. To guarantee the precision of the data, a minimum of three independent sets of experiments were conducted for each group.

3.8. Statistical Analysis

To ensure the accuracy and stability of the experimental data, all experiments were conducted in parallel groups and replicated three times. IBM SPSS Statistics 22.0 software (SPSS Inc., Armonk, NY, USA) was utilized for the analysis of the experimental data. One-way analysis of variance (ANOVA) was employed to determine significance levels, with p-values less than 0.05 considered statistically significant (* p < 0.05, ** p < 0.01, *** p < 0.001, **** p < 0.0001). To present the data in a more intuitive manner, GraphPad Prism was used for the statistical analysis of the experimental data.

4. Conclusions

In conclusion, eleven compounds, including two new compounds, were isolated from a fermentation broth of Bacillus subtilis sp.18 through the OSMAC strategy in this study. Notably, a novel compound, macrolactin X (1), demonstrated potent antibacterial activity against a diverse range of bacteria, particularly against E. faecalis, and its antibacterial mechanism was further investigated. Our findings suggest that the antibacterial mechanism of macrolactin X (1) involves the disruption of the bacterial cell membrane, leading to the leakage of biomolecules such as nucleic acids and proteins, which disrupts the metabolic activity of the bacteria, ultimately leading to cell death (Figure 7). Furthermore, the mechanism also inhibited the expression of PK genes associated with bacterial energy metabolism, which disrupted the bacterial energy production pathway. Notably, a reduction in energy availability might adversely impact the functionality of ATP-reliant transporter proteins embedded in the bacterial cell membrane, particularly ion pumps and active transporters [21]. This, in turn, could disrupt the bacterial cell’s material transport mechanisms and osmotic pressure regulation, potentially affecting its overall metabolic health and physiological state (Figure 7). Regrettably, owing to the limited quantity of our compounds, only a single pivotal gene pertaining to energy metabolism was analysed. This work has laid a solid foundation for future studies on the antibacterial mechanism of macrolactin X (1) and offers valuable insights for the development of macrolactins as potential antibacterial agents.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/md22080331/s1. Figure S1. Spectrogram of macrolactin X (1); Figure S2. 1H NMR of macrolactin X (1) in CDCl3; Figure S3. 13C NMR of macrolactin X (1) in CDCl3; Figure S4. DEPT135 of macrolactin X (1) in CDCl3; Figure S5. COSY of macrolactin X (1) in CDCl3; Figure S6. HSQC of macrolactin X (1) in CDCl3; Figure S7. HMBC of macrolactin X (1) in CDCl3; Figure S8. NOESY of macrolactin X (1) in CDCl3; Figure S9. HR-ESI-MS of macrolactin X (1); Figure S10. ORD of macrolactin X (1); Figure S11. Spectrogram of dihydroxylaureonitol (2); Figure S12. 1H NMR of dihydroxylaureonitol (2) in CDCl3; Figure S13. 13C NMR of dihydroxylaureonitol (2) in CDCl3; Figure S14. DEPT135 of dihydroxylaureonitol (2) in CDCl3; Figure S15. COSY of dihydroxylaureonitol (2) in CDCl3; Figure S16. HSQC of dihydroxylaureonitol (2) in CDCl3; Figure S17. HMBC of dihydroxylaureonitol (2) in CDCl3; Figure S18. NOESY of dihydroxylaureonitol (2) in CDCl3; Figure S19. HR-ESI-MS of dihydroxylaureonitol (2); Figure S20. ORD of dihydroxylaureonitol (2).

Author Contributions

Conceptualization, methodology, and writing—original draft preparation, Y.X. and Y.S.; software and validation, Y.N. and S.L.; methodology, Y.Q. and Y.X.; investigation and resources, Y.X. and Y.S.; writing—review and editing, B.J.; writing—review and editing, funding acquisition, X.L. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financially supported by the National Natural Science Foundation of China (82373786), Xiaoling Lu.

Institutional Review Board Statement

Not applicable.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Williamson, A.J.; Jacobson, R.; van Praagh, J.B.; Gaines, S.; Koo, H.Y.; Lee, B.; Chan, W.C.; Weichselbaum, R.; Alverdy, J.C.; Zaborina, O.; et al. Enterococcus faecalis promotes a migratory and invasive phenotype in colon cancer cells. Neoplasia 2022, 27, 100787. [Google Scholar] [CrossRef] [PubMed]
  2. Abat, C.; Huart, M.; Garcia, V.; Dubourg, G.; Raoult, D. Enterococcus faecalis urinary-tract infections: Do they have a zoonotic origin? J. Infect. 2016, 73, 305–313. [Google Scholar] [CrossRef] [PubMed]
  3. Ma, R.Y.; Deng, Z.L.; Du, Q.Y.; Dai, M.Q.; Luo, Y.Y.; Liang, Y.E.; Dai, X.Z.; Guo, S.M.; Zhao, W.H. Enterococcus faecalis Extracellular Vesicles Promote Apical Periodontitis. J. Dent. Res. 2024, 103, 672–682. [Google Scholar] [CrossRef] [PubMed]
  4. Cusumano, J.A.; Daffinee, K.E.; Ugalde-Silva, P.; Peti, W.; Arthur, M.; Desbonnet, C.; Rice, L.B.; LaPlante, K.L.; García-Solache, M. Penicillin-Binding Proteins and Alternative Dual-Beta-Lactam Combinations for Serious Enterococcus faecalis Infections with Elevated Penicillin MICs. Antimicrob. Agents Chemother. 2023, 67, e00871-22. [Google Scholar] [CrossRef] [PubMed]
  5. Herrera-Hidalgo, L.; Fernández-Rubio, B.; Luque-Márquez, R.; López-Cortés, L.E.; Gil-Navarro, M.V.; de Alarcón, A. Treatment of Enterococcus faecalis Infective Endocarditis: A Continuing Challenge. Antibiotics 2023, 12, 704. [Google Scholar] [CrossRef] [PubMed]
  6. Rivetti, S.; Romano, A.; Mastrangelo, S.; Attinà, G.; Maurizi, P.; Ruggiero, A. Aminoglycosides-Related Ototoxicity: Mechanisms, Risk Factors, and Prevention in Pediatric Patients. Pharmaceuticals 2023, 16, 1353. [Google Scholar] [CrossRef]
  7. Le, T.A.; Hiba, T.; Chaudhari, D.; Preston, A.N.; Palowsky, Z.R.; Ahmadzadeh, S.; Shekoohi, S.; Cornett, E.M.; Kaye, A.D. Aminoglycoside-Related Nephrotoxicity and Ototoxicity in Clinical Practice: A Review of Pathophysiological Mechanism and Treatment Options. Adv. Ther. 2023, 40, 1357–1365. [Google Scholar] [CrossRef] [PubMed]
  8. Ortiz, A.; Sansinenea, E. Macrolactin Antibiotics: Amazing Natural Products. Mini Rev. Med. Chem. 2020, 20, 584–600. [Google Scholar] [CrossRef] [PubMed]
  9. Ni, J.; Yu, L.; Li, F.; Li, Y.; Zhang, M.; Deng, Y.; Liu, X. Macrolactin R from Bacillus siamensis and its antifungal activity against Botrytis cinerea. World J. Microbiol. Biotechnol. 2023, 39, 117. [Google Scholar] [CrossRef]
  10. Sohn, M.J.; Zheng, C.J.; Kim, W.G. Macrolactin, S, a New Antibacterial Agent with FabG inhibitory Activity from Bacillus sp. AT28. J. Antibiot. 2008, 61, 687–691. [Google Scholar] [CrossRef]
  11. Dat, T.T.H.; Cuc, N.T.K.; Cuong, P.V.; Smidt, H.; Sipkema, D. Diversity and Antimicrobial Activity of Vietnamese Sponge-Associated Bacteria. Mar. Drugs 2021, 19, 353. [Google Scholar] [CrossRef] [PubMed]
  12. Bharadwaj, K.K.; Sarkar, T.; Ghosh, A.; Baishya, D.; Rabha, B.; Panda, M.K.; Nelson, B.R.; John, A.B.; Sheikh, H.I.; Dash, B.P.; et al. Macrolactin A as a Novel Inhibitory Agent for SARS-CoV-2 Mpro: Bioinformatics Approach. Appl. Biochem. Biotechnol. 2021, 193, 3371–3394. [Google Scholar] [CrossRef]
  13. Chakraborty, K.; Thilakan, B.; Raola, V.K. Polyketide Family of Novel Antibacterial 7-O-Methyl-5′-hydroxy-3′-heptenoate–Macrolactin from Seaweed-Associated Bacillus subtilis MTCC 10403. J. Agric. Food Chem. 2014, 62, 12194–12208. [Google Scholar] [CrossRef]
  14. Gustafson, K.; Roman, M.; William, F. The macrolactins, a novel class of antiviral and cytotoxic macrolides from a deep-sea marine bacterium. J. Am. Chem. Soc. 1989, 111, 7519–7524. [Google Scholar] [CrossRef]
  15. Novo, D.; Perlmutter, N.G.; Hunt, R.H.; Shapiro, H.M. Accurate flow cytometric membrane potential measurement in bacteria using diethyloxacarbocyanine and a ratiometric technique. Cytometry 1999, 35, 55–63. [Google Scholar] [CrossRef]
  16. Lin, L.; Mao, X.; Sun, Y.; Rajivgandhi, G.; Cui, H. Antibacterial properties of nanofibers containing chrysanthemum essential oil and their application as beef packaging. Int. J. Food Microbiol. 2019, 292, 21–30. [Google Scholar] [CrossRef] [PubMed]
  17. Wang, X.; Shen, Y.; Thakur, K.; Han, J.; Zhang, J.G.; Hu, F.; Wei, Z.J. Antibacterial Activity and Mechanism of Ginger Essential Oil against Escherichia coli and Staphylococcus aureus. Molecules 2020, 25, 3955. [Google Scholar] [CrossRef]
  18. Ismail, A.; Tanasova, M. Importance of GLUT Transporters in Disease Diagnosis and Treatment. Int. J. Mol. Sci. 2022, 23, 8698. [Google Scholar] [CrossRef]
  19. Martins, B.A.; Deffune, E.; Oliveira, O.N., Jr.; Moraes, M.L. Penicillin-binding proteins (PBPs) determine antibiotic action in Langmuir monolayers as nanoarchitectonics mimetic membranes of methicillin-resistant Staphylococcus aureus. Colloids Surf. B Biointerfaces 2022, 214, 112447. [Google Scholar] [CrossRef]
  20. Luo, K.; Zhao, P.; He, Y.; Kang, S.; Shen, C.; Wang, S.; Guo, M.; Wang, L.; Shi, C. Antibacterial Effect of Oregano Essential Oil against Vibrio vulnificus and Its Mechanism. Foods 2022, 11, 403. [Google Scholar] [CrossRef]
  21. S Hifnawy, M.; Hassan, H.M.; Mohammed, R.; M Fouda, M.; Sayed, A.M.; A Hamed, A.; F AbouZid, S.; Rateb, M.E.; Alhadrami, H.A.; Abdelmohsen, U.R. Induction of Antibacterial Metabolites by Co-Cultivation of Two Red-Sea-Sponge-Associated Actinomycetes Micromonospora sp. UR56 and Actinokinespora sp. EG49. Mar. Drugs 2020, 18, 243. [Google Scholar] [CrossRef] [PubMed]

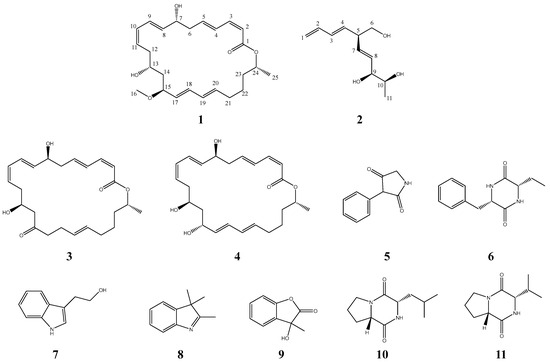

Figure 1. Structures of compounds 111.
Figure 1. Structures of compounds 111.
Marinedrugs 22 00331 g001

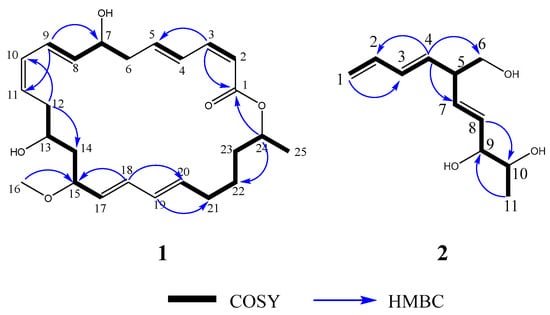

Figure 2. COSY and key HMBC correlations of compounds 1 and 2.
Figure 2. COSY and key HMBC correlations of compounds 1 and 2.
Marinedrugs 22 00331 g002

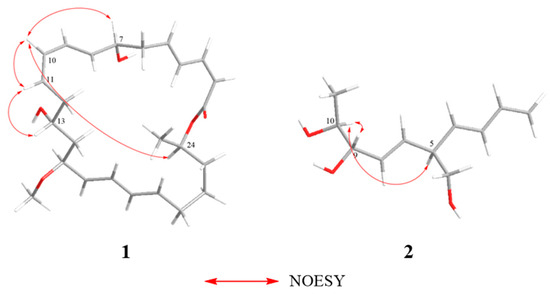

Figure 3. Key NOESY correlations of compounds 1 and 2.
Figure 3. Key NOESY correlations of compounds 1 and 2.
Marinedrugs 22 00331 g003

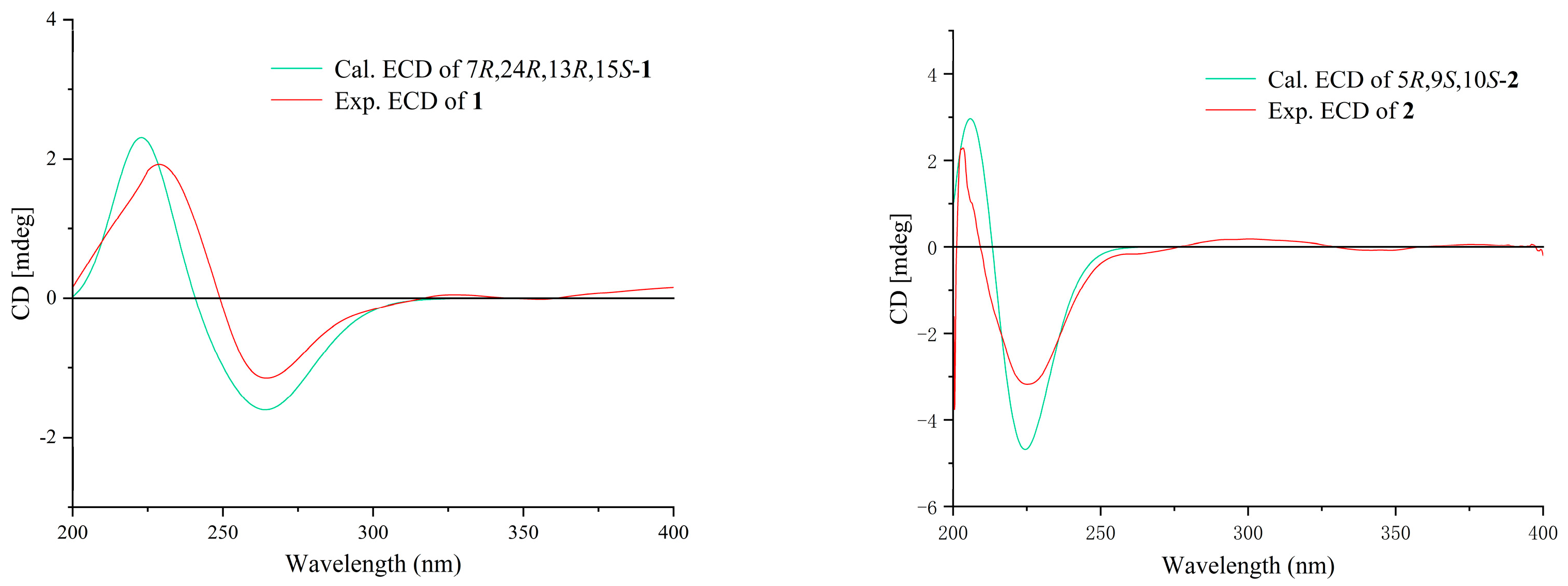

Figure 4. Calculated and experimental ECD spectra of compounds 1 and 2.
Figure 4. Calculated and experimental ECD spectra of compounds 1 and 2.
Marinedrugs 22 00331 g004

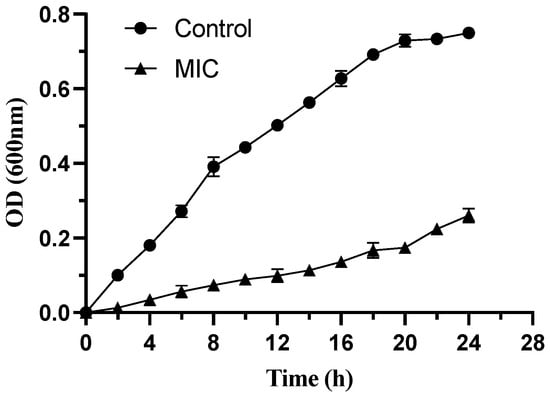

Figure 5. Growth curve of E. faecalis.
Figure 5. Growth curve of E. faecalis.
Marinedrugs 22 00331 g005

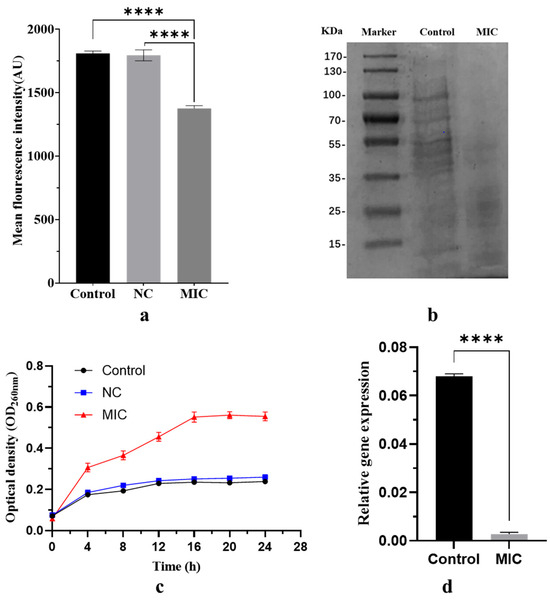

Figure 6. (a) Changes in fluorescence intensity of E. faecalis after addition of macrolactin X. “****” represents p < 0.0001. (b) The gel electrophoresis picture of E. faecalis intracellular proteins. (c) Effect of macrolactin X on cell membrane integrity of E. faecalis. (d) Relative expression of PK in E. faecalis following the action of macrolactin X.
Figure 6. (a) Changes in fluorescence intensity of E. faecalis after addition of macrolactin X. “****” represents p < 0.0001. (b) The gel electrophoresis picture of E. faecalis intracellular proteins. (c) Effect of macrolactin X on cell membrane integrity of E. faecalis. (d) Relative expression of PK in E. faecalis following the action of macrolactin X.
Marinedrugs 22 00331 g006

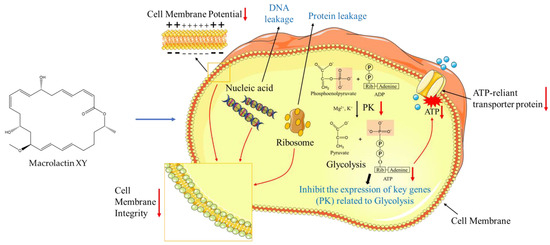

Figure 7. Possible antibacterial mechanism of action of macrolactin X.
Figure 7. Possible antibacterial mechanism of action of macrolactin X.
Marinedrugs 22 00331 g007
Table 1. 1H and 13C-NMR data of compounds 1 and 2 in CDCl3.
Table 1. 1H and 13C-NMR data of compounds 1 and 2 in CDCl3.
Position1 *2 *
δc, TypeδH, Mult. (J in Hz)δc, TypeδH, Mult. (J in Hz)
1a166.30, C 116.18, CH24.99, dd, (10.1, 1.8)
1b 5.13, dd, (14.3, 1.5)
2118.03, CH5.62, d, (11.57)138.47, CH6.35, dt, (14.2, 8.5)
3142.84, CH6.57, m133.6, CH6.15, dd, (13.0, 8.5)
4129.88, CH6.15, dd, (4.3, 14.4)135.1, CH5.67, m
5139.51, CH6.09, m49.7, CH2.98, t, (6.9)
641.55, CH22.49, d, (6.96)66.3, CH23.53, d, (6.6)
771.29, CH4.38, q, (6.86)133.5, CH5.62, m
8135.65, CH5.78, dd, (5.50, 15.10)132.5, CH5.58, dd, (5.5, 13.0)
9125.02, CH6.60, m77.9, CH3.86, m
10130.00, CH5.45, dd, (8.05, 15.24)71.5, CH3.65, m
11128.18, CH5.55, dd, (9.0, 17.0)18.7, CH31.14, d, (6.4)
1235.31, CH22.44, d, (5.01)
1369.29, CH3.93, m
14a40.32, CH21.79, m
14b 1.73, m
1580.25, CH3.99, m
1656.27, CH33.30, s
17133.20, CH6.18, d, (12.0)
18129.79, CH6.04, dd, (3.3, 15.2)
19129.84, CH6.10, m
20135.32, CH5.70, dd, (7.0, 14.0)
21a31.93, CH22.21, m
21b 2.11, m
2224.43, CH21.53, m
2334.91, CH21.66, m
2471.03, CH5.05, m
2519.92, CH31.29, d, (6.32)
* 500 MHz for 1H-NMR and 125 MHz for 13C-NMR.
Table 2. Bacteriostatic activity of compounds 111 against various indicator bacteria.
Table 2. Bacteriostatic activity of compounds 111 against various indicator bacteria.
CompoundMIC (μg/mL)
E. coliE. faecalisB. subtilisS. aureusV. traumaticusV. parahaemolyticus
1 *6366--
2 *6--6--
3--66--
4--66--
5---12--
66-----
7------
8--12---
912--6--
1012-----
11------
Levofloxacin0.50.50.50.50.50.5
Methanol------
“*” indicates new compound; “-” indicates inactive.
Table 3. Specific growth rate of E. faecalis in control and administered groups.
Table 3. Specific growth rate of E. faecalis in control and administered groups.
TimeControl GroupMIC Group
2 h1.29 ± 0.020.31 ± 0.02
4 h0.77 ± 0.030.39 ± 0.03
6 h0.61 ± 0.010.35 ± 0.01
8 h0.51 ± 0.020.29 ± 0.01
10 h0.42 ± 0.030.25 ± 0.02
12 h0.36 ± 0.020.22 ± 0.03
14 h0.31 ± 0.030.19 ± 0.02
16 h0.28 ± 0.010.18 ± 0.01
18 h0.26 ± 0.020.17 ± 0.02
20 h0.23 ± 0.020.16 ± 0.01
22 h0.21 ± 0.010.15 ± 0.02
24 h0.19 ± 0.010.14 ± 0.03
