Geochemical Assessment and Spatial Analysis of Heavy Metals in the Surface Sediments in the Eastern Beibu Gulf: A Reflection on the Industrial Development of the South China Coast
Abstract
:1. Introduction
2. Materials and Methods

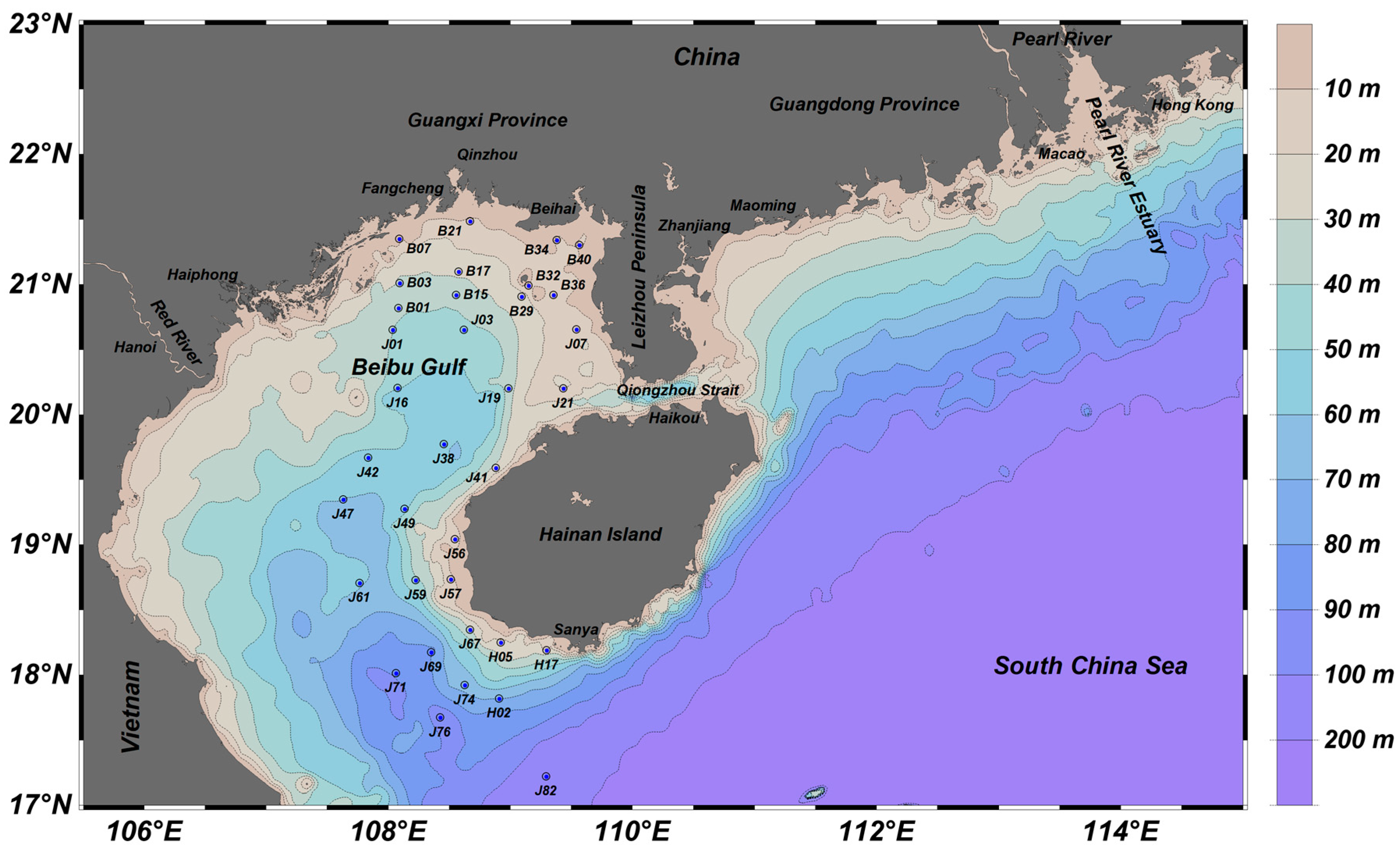

2.1. Study Area and Sample Collection
2.2. Sample Pretreatment and Analysis
2.3. Quality Control
2.4. Geoaccumulation Index
3. Results and Discussion
3.1. Granulometry and General Characteristics
3.2. Concentrations of Heavy Metals in the Sediments
3.3. Assessment of Trace Metal Pollution

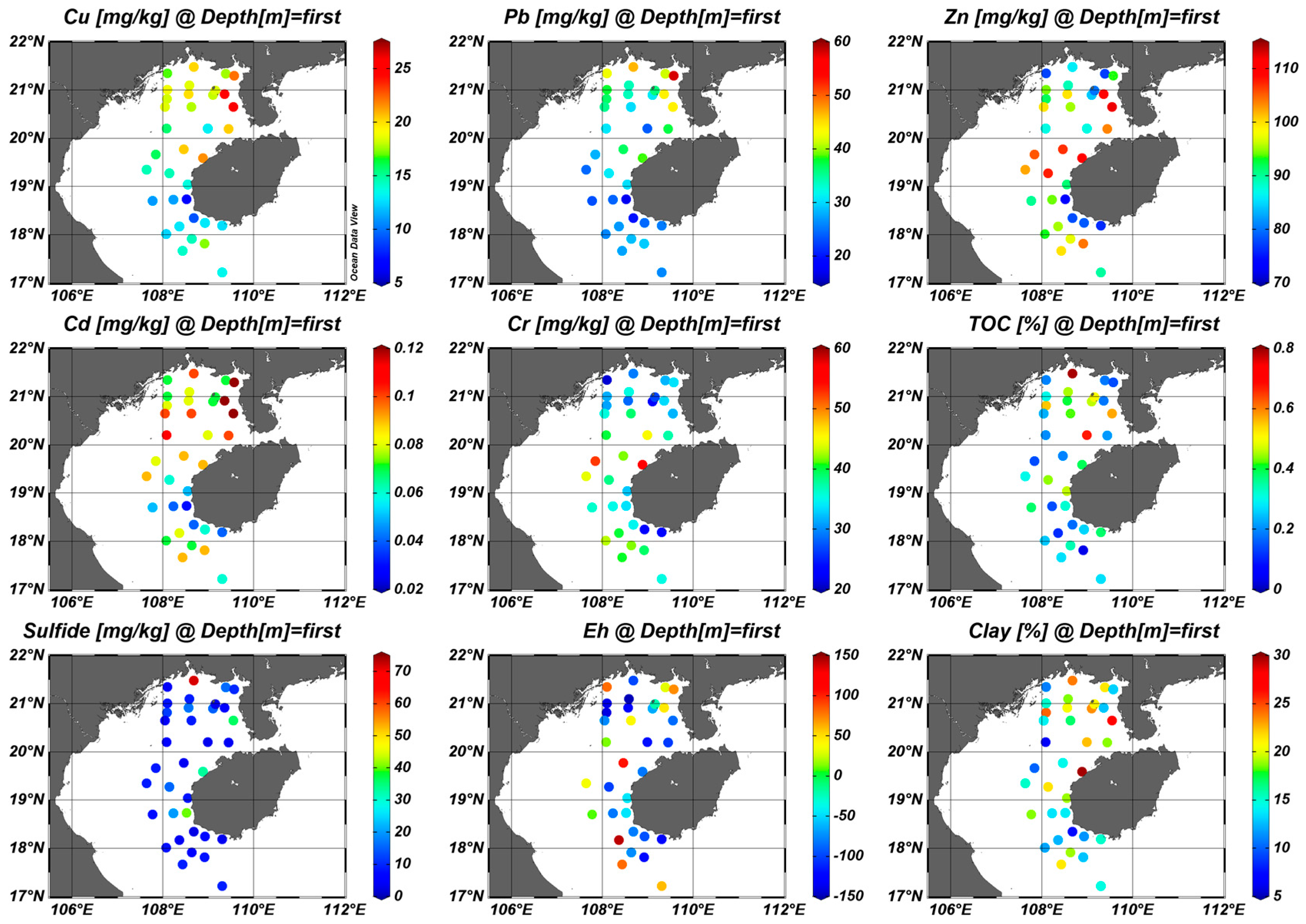

3.4. Spatial Distribution Patterns
3.5. Cluster and Correlation Analyses
4. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Gan, H.Y.; Lin, J.Q.; Liang, K.; Xia, Z. Selected trace metals (As, Cd and Hg) distribution and contamination in the coastal wetland sediment of the northern Beibu Gulf, South China Sea. Mar. Pollut. Bull. 2013, 66, 252–258. [Google Scholar] [CrossRef] [PubMed]
- Du, Q.; Zhang, C. Effects of Commercial Clamming on the Survival of Avicennia marina Seedlings in the Beibu Gulf, China. Wetlands 2016, 36, 1047–1053. [Google Scholar] [CrossRef]
- Kaiser, D.; Schulz-Bull, D.E.; Waniek, J.J. Profiles and inventories of organic pollutants in sediments from the central Beibu Gulf and its coastal mangroves. Chemosphere 2016, 153, 39–47. [Google Scholar] [CrossRef] [PubMed]
- Zhang, K.; Chen, Z.Z.; Wang, Y.Z.; Sun, D.R.; Qiu, Y.S. Population structure of Priacanthus macracanthus in the Beibu Gulf, and parameters for its growth, mortality and maturity. J. Trop. Oceanogr. 2016, 35, 20–28. (In Chinese) [Google Scholar]
- Chen, S.L.; Hu, J.Y.; Qi, Y.Q. Circulation in Beibu Gulf. In China Regional Oceanography; Su, J.L., Ed.; China Ocean Press: Beijing, China, 2011; p. 488. ISBN 978-7-5027-8254-2. (In Chinese) [Google Scholar]
- Li, L.; Wang, X.J.; Zhu, A.M.; Yang, G.; Liu, J.H. Assessing metal toxicity in sediments of Yellow River wetland and its surrounding coastal areas, China. Estuar. Coast. Shelf Sci. 2014, 151, 302–309. [Google Scholar] [CrossRef]
- Xiong, X.; Tang, Y. The Industrial Development of Beibu Gulf Economic Zone of Guangxi: Issues and Measures. In Proceedings of the Eighth International Conference on Management Science and Engineering Management, Lisbon, Portugal, 25–27 July 2014; Xu, J., Cruz-Machado, V., Lev, B., Nickel, S., Eds.; Springer: Berlin/Heidelberg, Germany, 2014; pp. 1257–1267, ISBN 978-3-642-55121-5. [Google Scholar]
- Cong, M.; Lü, J.S.; Wu, H.F.; Zhao, J.M. Effect of cadmium on the defense response of Pacific oyster Crassostrea gigas to Listonella anguillarum challenge. Chin. J. Oceanol. Limn. 2013, 31, 1002–1009. [Google Scholar] [CrossRef]
- Kishe, M.A.; Machiwa, J.F. Distribution of heavy metals in sediments of Mwanza Gulf of Lake Victoria, Tanzania. Environ. Int. 2003, 28, 619–625. [Google Scholar] [CrossRef]
- Marchand, C.; Lallier-Vergès, E.; Baltzer, F.; Albéric, P.; Cossa, D.; Baillif, P. Heavy metals distribution in mangrove sediments along the mobile coastline of French Guiana. Mar. Chem. 2006, 98, 1–17. [Google Scholar] [CrossRef] [Green Version]
- Yang, Z.F.; Wang, Y.; Shen, Z.Y.; Niu, J.F.; Tang, Z.W. Distribution and speciation of heavy metals in sediments from the mainstream, tributaries, and lakes of the Yangtze River catchment of Wuhan, China. J. Hazard. Mater. 2009, 166, 1186–1194. [Google Scholar] [CrossRef] [PubMed]
- Chen, Z.Y.; Saito, Y.; Kanai, Y.; Wei, T.Y.; Li, L.Q.; Yao, H.S.; Wang, Z.H. Low concentration of heavy metals in the Yangtze estuarine sediments, China: A diluting setting. Estuar. Coast. Shelf Sci. 2004, 60, 91–100. [Google Scholar] [CrossRef]
- Huang, D.K.; Du, J.Z.; Zhang, J. Particle dynamics of 7Be, 210Pb and the implications of sedimentation of heavy metals in the Wenjiao/Wenchang and Wanquan River estuaries, Hainan, China. Estuar. Coast. Shelf Sci. 2011, 93, 431–437. [Google Scholar] [CrossRef]
- Li, X.D.; Wai, O.W.H.; Li, Y.S.; Coles, B.J.; Ramsey, M.H.; Thornton, I. Heavy metal distribution in sediment profiles of the Pearl River estuary, South China. Appl. Geochem. 2000, 15, 567–581. [Google Scholar] [CrossRef]
- Liu, J.H.; Cao, L.; Huang, W.; Zhang, C.T.; Dou, S.Z. Zinc and copper bioaccumulation in fish from Laizhou Bay, the Bohai Sea. Chin. J. Oceanol. Limn. 2014, 32, 491–502. [Google Scholar] [CrossRef]
- Xu, Y.H.; Sun, Q.O.; Yi, L.; Yin, X.J.; Wang, A.J.; Li, Y.H.; Chen, J. The source of natural and anthropogenic heavy metals in the sediments of the Minjiang River Estuary (SE China): Implications for historical pollution. Sci. Total Environ. 2014, 493, 729–736. [Google Scholar] [CrossRef] [PubMed]
- Pan, K.; Wang, W.X. Trace metal contamination in estuarine and coastal environments in China. Sci. Total Environ. 2012, 421, 3–16. [Google Scholar] [CrossRef] [PubMed]
- Gavriil, A.M.; Angelidis, M.O. Metal and organic carbon distribution in water column of a shallow enclosed Bay at the Aegean Sea Archipelago: Kalloni Bay, island of Lesvos, Greece. Estuar. Coast. Shelf Sci. 2005, 64, 200–210. [Google Scholar] [CrossRef]
- Zheng, N.; Wang, Q.C.; Liang, Z.Z.; Zheng, D.M. Characterization of heavy metal concentrations in the sediments of three freshwater rivers in Huludao City, Northeast China. Environ. Pollut. 2008, 154, 135–142. [Google Scholar] [CrossRef] [PubMed]
- Wu, Z.; Xu, Y.; Cai, M.G.; Cheng, S.Y.; Chen, H.R.; Huang, D.R.; Chen, K.; Lin, Y.; Li, T.Y.; Liu, M.Y.; et al. Metals in Fishes from Yongshu Island, Southern South China Sea: Human Health Risk Assessment. J. Toxicol. 2017, 2017, 1–12. [Google Scholar] [CrossRef] [PubMed]
- Tang, D.L.; Kawamura, H.; Lee, M.A.; Van Dien, T. Seasonal and spatial distribution of chlorophyll-a concentrations and water conditions in the Gulf of Tonkin, South China Sea. Remote Sens. Environ. 2003, 85, 475–483. [Google Scholar] [CrossRef]
- Ergül, H.A.; Topcuoğlu, S.; Ölmez, E.; Kırbaşoğlu, Ç. Heavy metals in sinking particles and bottom sediments from the eastern Turkish coast of the Black Sea. Estuar. Coast. Shelf Sci. 2008, 78, 396–402. [Google Scholar] [CrossRef]
- Wang, Y.Q.; Yang, L.Y.; Kong, L.H.; Liu, E.F.; Wang, L.F.; Zhu, J.R. Spatial distribution, ecological risk assessment and source identification for heavy metals in surface sediments from Dongping Lake, Shandong, East China. Catena 2015, 125, 200–205. [Google Scholar] [CrossRef]
- Yu, R.L.; Yuan, X.; Zhao, Y.H.; Hu, G.R.; Tu, X.L. Heavy metal pollution in intertidal sediments from Quanzhou Bay, China. J. Environ. Sci. 2008, 20, 664–669. [Google Scholar] [CrossRef]
- Yang, J.C.; Wang, W.G.; Zhao, M.W.; Chen, B.; Dada, O.A.; Chu, Z.H. Spatial distribution and historical trends of heavy metals in the sediments of petroleum producing regions of the Beibu Gulf, China. Mar. Pollut. Bull. 2015, 91, 87–95. [Google Scholar] [CrossRef] [PubMed]
- Chen, Z.Z.; Xu, S.N.; Qiu, Y.S.; Lin, Z.J.; Jia, X.P. Modeling the effects of fishery management and marine protected areas on the Beibu Gulf using spatial ecosystem simulation. Fish. Res. 2009, 100, 222–229. [Google Scholar] [CrossRef]
- Cai, M.H.; Lin, J.; Hong, Q.Q.; Wang, Y.; Cai, M.G. Content and distribution of trace metals in surface sediments from the northern Bering Sea, Chukchi Sea and adjacent Arctic areas. Mar. Pollut. Bull. 2011, 63, 523–527. [Google Scholar] [CrossRef] [PubMed]
- Müller, G. Schwermetalle in den sedimenten des Rheins-Veränderungen seit 1971. Umschau 1979, 79, 778–783. [Google Scholar]
- Li, J.; Gao, J.H.; Wang, Y.P.; Li, Y.; Bai, F.L.; Cees, L. Distribution and dispersal pattern of clay minerals in surface sediments, eastern Beibu Gulf, South China Sea. Acta Oceanol. Sin. 2012, 31, 78–87. [Google Scholar] [CrossRef]
- Lian, X.Q.; Wang, Y.F.; Chen, Q.Y. Assessment on heavy metals in sea water, surface sediments and organisms at Guangxi inshore. Mar. Environ. Sci. 2001, 20, 59–62. (In Chinese) [Google Scholar]
- Ip, C.C.M.; Li, X.D.; Zhang, G.; Wai, O.W.H.; Li, Y.S. Trace metal distribution in sediments of the Pearl River Estuary and the surrounding coastal area, South China. Environ. Pollut. 2007, 147, 311–323. [Google Scholar] [CrossRef] [PubMed]
- Niu, H.Y.; Deng, W.J.; Wu, Q.H.; Chen, X.G. Potential toxic risk of heavy metals from sediment of the Pearl River in South China. J. Environ. Sci. 2009, 21, 1053–1058. [Google Scholar] [CrossRef]
- Wong, Y.S.; Tam, N.F.Y.; Lau, P.S.; Xue, X.Z. The toxicity of marine sediments in Victoria Harbour, Hong Kong. Mar. Pollut. Bull. 1995, 31, 464–470. [Google Scholar] [CrossRef]
- Buccolieri, A.; Buccolieri, G.; Cardellicchio, N.; Dell’Atti, A.; Di Leo, A.; Maci, A. Heavy metals in marine sediments of Taranto Gulf (Ionian Sea, Southern Italy). Mar. Chem. 2006, 99, 227–235. [Google Scholar] [CrossRef]
- Christophoridis, C.; Dedepsidis, D.; Fytianos, K. Occurrence and distribution of selected heavy metals in the surface sediments of Thermaikos Gulf, N. Greece. Assessment using pollution indicators. J. Hazard. Mater. 2009, 168, 1082–1091. [Google Scholar] [CrossRef] [PubMed]
- Williams, N.; Block, K.A. Spatial and vertical distribution of metals in sediment cores from Río Espíritu Santo estuary, Puerto Rico, United States. Mar. Pollut. Bull. 2015, 100, 445–452. [Google Scholar] [CrossRef] [PubMed]
- Lü, D.W.; Zeng, B.; Fang, Y.; Shen, G.; Liu, H.J. Distribution and pollution assessment of trace metals in seawater and sediment in Laizhou Bay. Chin. J. Oceanol. Limn. 2015, 33, 1053–1061. [Google Scholar] [CrossRef]
- Xu, G.; Liu, J.; Pei, S.F.; Gao, M.S.; Hu, G.; Kong, X.H. Sediment properties and trace metal pollution assessment in surface sediments of the Laizhou Bay, China. Environ. Sci. Pollut. Res. 2015, 22, 11634–11647. [Google Scholar] [CrossRef] [PubMed]
- Gu, Y.G.; Lin, Q.; Yu, Z.L.; Wang, X.N.; Ke, C.L.; Ning, J.J. Speciation and risk of heavy metals in sediments and human health implications of heavy metals in edible nekton in Beibu Gulf, China: A case study of Qinzhou Bay. Mar. Pollut. Bull. 2015, 101, 852–859. [Google Scholar] [CrossRef] [PubMed]
- Förstner, U.; Wittmann, G.T.W. Metal Pollution Assessment from Sediment Analysis. In Metal Pollution in the Aquatic Environment, 2nd ed.; Goldberg, E.D., Ed.; Springer: Berlin/Heidelberg, Germany, 1981; pp. 110–196. ISBN 978-3-540-12856-4. [Google Scholar]
- Müller, G. Die Schwermetallbelastung der sedimente des Neckara und seiner Nebenflüsse: Eine Bestandsaufnahme. Chemiker-Zeitung 1981, 105, 157–164. (In German) [Google Scholar]
- Dou, Y.G.; Li, J.; Zhao, J.T.; Hu, B.Q.; Yang, S.Y. Distribution, enrichment and source of heavy metals in surface sediments of the eastern Beibu Bay, South China Sea. Mar. Pollut. Bull. 2013, 67, 137–145. [Google Scholar] [CrossRef] [PubMed]
- Dou, Y.G.; Li, J.; Li, Y. Rare earth element compositions and provenance implication of surface sediments in the eastern Beibu Gulf. Geochimica 2012, 41, 147–157. (In Chinese) [Google Scholar]
- Ma, Z.K. Study on Speciation and Distribution of Heavy Metal in the Sediments from the Northern Beibu Gulf, China. Master’s Thesis, Xiamen University, Xiamen, China, 2009; p. 81. (In Chinese). [Google Scholar]
- Zhong, C.; Yang, Z.F.; Jiang, W.; Hu, B.Q.; Hou, Q.Y.; Yu, T.; Li, J. Ecological geochemical assessment and source identification of trace elements in atmospheric deposition of an emerging industrial area: Beibu Gulf economic zone. Sci. Total Environ. 2016, 573, 1519–1526. [Google Scholar] [CrossRef] [PubMed]
- Zhao, D.B.; Wan, S.M.; Yu, Z.J.; Huang, J. Distribution, enrichment and sources of heavy metals in surface sediments of Hainan Island rivers, China. Environ. Earth Sci. 2015, 74, 5097–5110. [Google Scholar] [CrossRef]
- Sarkar, S.K.; Favas, P.J.C.; Rakshit, D.; Satpathy, K.K. Geochemical speciation and risk assessment of heavy metals in soils and sediments. In Environmental Risk Assessment of Soil Contamination; Hernandez-Soriano, M.C., Ed.; InTech: London, UK, 2014; p. 918. [Google Scholar]
- Fernandes, M.C.; Nayak, G.N. Speciation of metals and their distribution in tropical estuarine mudflat sediments, southwest coast of India. Ecotoxicol. Environ. Saf. 2015, 122, 68–75. [Google Scholar] [CrossRef] [PubMed]
- Neto, J.A.B.; Gingele, F.X.; Leipe, T.; Brehme, I. Spatial distribution of heavy metals in surficial sediments from Guanabara Bay: Rio de Janeiro, Brazil. Environ. Geol. 2006, 49, 1051–1063. [Google Scholar] [CrossRef]
- Qiu, Y.W.; Yan, W.; Wang, Z.D.; Zhang, G. Distributions of heavy metals in seawater, sediments and organisms at Daya Bay and their ecological harm. J. Trop. Oceanogr. 2005, 24, 69–76. (In Chinese) [Google Scholar]
Element | Method Blank (μg/L) | Limit of Detection (μg/L) | Relative Standard Deviation (%) | Measured Value (mg/kg) | Assigned Value (mg/kg) |
---|---|---|---|---|---|
Cu | 1.23 | 0.04 | 1.6 | 27.00 ± 0.60 | 28 ± 2 |
Pb | 5.47 | 0.21 | 2.6 | 16.40 ± 0.60 | 23 ± 4 |
Zn | 7.00 | 1.41 | 1.2 | 80.10 ± 1.29 | 77 ± 6 |
Cd | 0.017 | 0.009 | 5.3 | 0.21 ± 0.015 | 0.17 ± 0.04 |
Cr | 2.60 | 0.08 | 0.9 | 46.2 ± 0.52 | 46 ± 8 |
Study Area | Cu | Pb | Zn | Cd | Cr | References |
---|---|---|---|---|---|---|
Eastern Beibu Gulf | 16.37 | 32.23 | 93.12 | 0.08 | 35.51 | This study |
Beibu Gulf | - | 36.22 | - | 0.12 | - | [25] |
Beibu Gulf | 27.07 | 46.56 | 73.6 | 0.16 | 59.50 | [39] |
Coastal sea area, Guangxi Province, China | 18.3 | 19 | - | 0.025 | - | [30] |
Pearl River Estuary, China | 46.8 | 47.9 | 140 | - | 87.6 | [31] |
Pearl River, South China | 348.0 | 102.6 | 383.4 | 1.72 | 93.1 | [32] |
Victoria Harbour | 45.2–3789.5 | 47.4–138.1 | 97.9–610.4 | 2.61–3.33 | 57.5–601.2 | [33] |
Taranto Gulf | 47.4 | 57.8 | 102.3 | - | 85.9 | [34] |
Puerto Rico | 106 | 11 | - | 0.13 | 55 | [35] |
Leizhou Bay | 4.51–30.5 | 8.94–32.2 | - | 0.18–0.67 | - | [37] |
22 | 21.9 | 60.4 | 0.12 | 60 | [38] | |
Thermaikos Gulf | 80 | 77 | 184 | - | 47 | [35] |
Primary standard criteria | 35.0 | 60.0 | 150.0 | 0.5 | 80 | a |
Station | Cu | Pb | Zn | Cd | Cr |
---|---|---|---|---|---|
B01 | −1.89 | 0.28 | −0.63 | −2.49 | −2.12 |
B03 | −1.84 | 0.33 | −0.60 | −2.68 | −2.11 |
B07 | −2.00 | 0.51 | −0.88 | −2.68 | −2.71 |
B15 | −1.76 | 0.17 | −0.52 | −2.49 | −2.25 |
B17 | −1.87 | 0.18 | −0.68 | −2.49 | −1.93 |
B21 | −1.74 | 0.63 | −0.73 | −2.17 | −2.21 |
B29 | −1.91 | 0.04 | −0.76 | −2.68 | −2.57 |
B32 | −1.88 | 0.26 | −0.83 | −2.68 | −2.34 |
B34 | −1.94 | 0.46 | −0.89 | −2.68 | −2.09 |
B36 | −1.43 | 0.55 | −0.39 | −1.91 | −2.02 |
B40 | −1.61 | 0.95 | −0.61 | −1.91 | −2.01 |
H02 | −1.96 | −0.04 | −0.45 | −2.32 | −1.79 |
H05 | −2.40 | −0.30 | −0.86 | −2.91 | −2.57 |
H17 | −2.42 | −0.24 | −0.90 | −3.49 | −2.54 |
J01 | −1.87 | 0.24 | −0.52 | −2.17 | −1.93 |
J03 | −1.93 | 0.00 | −0.58 | −2.17 | −1.79 |
J07 | −1.38 | 0.55 | −0.34 | −1.91 | −2.09 |
J16 | −2.11 | 0.03 | −0.71 | −2.03 | −1.76 |
J19 | −2.37 | −0.34 | −0.71 | −2.49 | −1.58 |
J21 | −1.73 | 0.32 | −0.46 | −2.17 | −1.85 |
J38 | −1.73 | 0.29 | −0.42 | −2.32 | −1.70 |
J41 | −1.65 | 0.36 | −0.36 | −2.32 | −1.26 |
J42 | −2.09 | −0.09 | −0.44 | −2.49 | −1.36 |
J47 | −2.22 | −0.30 | −0.48 | −2.32 | −1.61 |
J49 | −2.21 | 0.04 | −0.41 | −2.91 | −1.82 |
J56 | −2.30 | 0.01 | −0.64 | −3.17 | −2.06 |
J57 | −3.33 | −0.82 | −0.96 | −3.91 | −2.01 |
J59 | −2.60 | −0.32 | −0.60 | −3.49 | −1.94 |
J61 | −2.62 | −0.38 | −0.66 | −3.17 | −1.90 |
J67 | −2.89 | −0.60 | −0.87 | −3.49 | −1.96 |
J69 | −2.40 | −0.16 | −0.58 | −2.49 | −1.75 |
J71 | −2.45 | −0.21 | −0.61 | −2.68 | −1.66 |
J74 | −2.23 | −0.07 | −0.55 | −2.68 | −1.69 |
J76 | −2.25 | −0.13 | −0.52 | −2.32 | −1.74 |
J82 | −2.34 | −0.21 | −0.67 | −2.91 | −1.93 |
Cu | Pb | Zn | Cd | Cr | OC | Sulfide | Eh | Clay | |
---|---|---|---|---|---|---|---|---|---|
Cu | 1 | ||||||||
Pb | 0.859 ** | 1 | |||||||
Zn | 0.539 ** | 0.258 | 1 | ||||||
Cd | 0.812 ** | 0.681 ** | 0.579 ** | 1 | |||||
Cr | −0.038 | −0.191 | 0.589 ** | 0.236 | 1 | ||||
OC | 0.153 | 0.096 | −0.111 | 0.013 | −0.173 | 1 | |||
Sulfide | 0.173 | 0.243 | 0.009 | 0.080 | −0.037 | 0.503 ** | 1 | ||
Eh | −0.013 | 0.119 | 0.031 | 0.218 | 0.137 | −0.441 * | −0.230 | 1 | |
Clay | 0.390 * | 0.278 | 0.234 | 0.140 | 0.030 | 0.722 ** | 0.465 ** | −0.334 | 1 |
