Article

Study on Electrochemical Degradation of Nicosulfuron by IrO2-Based DSA Electrodes: Performance, Kinetics, and Degradation Mechanism

by
Rui Zhao
1,
Xuan Zhang
1,
Fanli Chen
2,
Xiaobing Man
3 and
Wenqiang Jiang
1,*
1
College of Environmental Science and Engineering, Qilu University of Technology (Shandong Academy of Sciences), Ji’nan 250353, China
2
Jinan Tianzheng Technology Co., Ltd., Ji’nan 250353, China
3
Shandong Bluetown Analysis and Testing Co., Ltd, Ji’nan 250353, China
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2019, 16(3), 343; https://doi.org/10.3390/ijerph16030343
Submission received: 6 December 2018 / Revised: 21 January 2019 / Accepted: 21 January 2019 / Published: 26 January 2019
Browse Figures
Versions Notes

Abstract

:
The widely used sulfonylurea herbicides have caused negative effects on the environment and human beings. Electrochemical degradation has attracted much attention in the treatment of refractory organic compounds due to its advantage of producing no secondary pollution. Three kinds of IrO2-based dimensionally stable anodes (DSAs) were used to degrade nicosulfuron by a batch electrochemical process. The results showed that a well-distributed crack network was formed on the Ti/Ta2O5-IrO2 electrode and Ti/Ta2O5-SnO2-IrO2 electrode due to the different coefficients of thermal expansion between the Ti substrate and oxide coatings. The oxygen evolution potential (OEP) increased according to the order of Ti/RuO2-IrO2 < Ti/Ta2O5-SnO2-IrO2 < Ti/Ta2O5-IrO2. Among the three electrodes, the Ti/Ta2O5-IrO2 electrode showed the highest efficiency and was chosen as the experimental electrode. Single factor experiments were carried out to obtain the optimum electrolysis condition, shown as follows: currency intensity 0.8 A; electrode spacing 3 cm, electrolyte pH 3. Under the optimum conditions, the degradation of nicosulfuron followed first-order kinetics and was mainly due to indirect electrochemical oxidation. It was a typical diffusion-controlled electrochemical process. On the basis of the intermediate identified by high performance liquid chromatograph-mass spectrometry (HPLC-MS), two possible degradation routes were proposed.

1. Introduction

Sulfonylurea herbicides have been considered as “new formulation pesticides” because of their high selectivity and low persistence in the environment. They have been widely used to control a variety of broad-leafed weeds and grasses [1,2]. In recent years, with high toxicity and high residue herbicides fading out of the market, the production and application of sulfonylurea herbicides have been developing more rapidly. Their sales have accounted for more than 11% of the global herbicide market [3,4]. Sulfonylurea herbicides are highly soluble in water and have moderate to high mobility. Some of the commonly used sulfonylurea herbicides are able to remain in natural environmental medium such as soil and water [5,6]. The residual sulfonylurea herbicides can be transmitted through drinking water, the atmosphere, and plants, causing negative effects to the environment and human beings [7,8,9]. With China’s accession to the World Trade Organization, a large number of agricultural products have been exported to the United States, the European Union, and other regions. However, due to pesticide residues, many products are not able to meet the export standards. Therefore, how to remove the residues of sulfonylurea herbicides has become an urgent problem in China [10].
Nicosulfuron, as one kind of widely used sulfonylurea herbicide, is characterized by the presence of the pyridine and pyrimidine rings connected with a sulfonylurea bridge in the molecule. It is a selective systemic herbicide and can be absorbed by the foliage and roots of plants and rapidly transferred to the meristematic tissues in xylem and phloem [11]. Nicosulfuron is classified as being low to moderately persistent in soil, with maximum residual levels between 0.01 and 0.02 [12]. Despite its low persistence, its residues have been reported in many matrices, such as soil [13,14], surface water [15,16], and some crops [17,18].
Many research studies have been carried out on the degradation of nicosulfuron. Sabadie indicated that hydrolysis of nicosulfuron principally involved the breakdown of the urea part of the molecule at 30 °C at pH values ranging from 4 to 11. Its rate constants decreased from 0.50 d−1 to 0.002 d−1 as pH increased from 4 to 8, then remained stable under alkaline condition [19]. Lu et al. isolated a strain of Aspergillus oryzae whose degradation efficiency could reach 98.8% in a basic medium containing 2 mg/L of nicosulfuron [20]. Zhang et al. reported that a strain of Serratia marcescens N80 could degrade 93.6% nicosulfuron at a concentration of 10 mg/L in 96 h [21]. Song et al. isolated a strain of Talaromyces flavus from activated sludge in the wastewater treatment system of nicosulfuron manufacturer. Under optimum conditions (pH 6.1, 29 °C), it could degrade 100% of the initially added nicosulfuron (100 mg/L) within 5 days [22]. Researchers have isolated a variety of microorganisms from soil and other environmental media that are capable of degrading nicosulfuron. However, most of them had poor adaptability and slow degradation rates to high concentrations of nicosulfuron. They could not completely mineralize the target compound and the intermediate product(s) might be more toxic, which limited the practical application of biological treatments in nicosulfuron treatments [23].
Electrochemical oxidation, a kind of advanced oxidation process, can effectively avoid secondary pollution and is highly controllable. Also, it shows good degradation effects on refractory organics. Thus, electrochemical oxidation is considered to be a kind of environmentally friendly technology [24,25]. Electrode material is the most important dominant factor in realizing electrocatalytic processes. Good electrode material usually shows high stability, high conductivity, high catalytic activity, good selectivity, and low cost.
Compared with metal electrodes, dimensionally stable anodes (DSAs), developed in the late 1960s and early 1970s, are less prone to creating pollutionand known as the “heart” of electrocatalytic oxidation [26]. The metal materials with strong corrosion resistance (such as Au, Pt, Ti, stainless steel, etc.) are used as the baseplate, and transition metal oxides, such as RuO2, IrO2, SnO2, TiO2, PbO2, MnO2, and Ta2O5, are used as coatings. The coating may be composed of one or more active metal oxides [27,28,29]. Due to the excellent performance of DSA electrodes, they have been extensively used in water electrolysis [30,31], the chlor-alkali industry [32,33], organic synthesis [34], and sewage treatment [35,36].
Up until present, studies on nicosulfuron degradation have mainly focused on biodegradation, especially at low concentrations. The electrochemical degradation of nicosulfuron has been less studied, and its electrochemical degradation mechanism is not yet clear.
In this paper, the effect and mechanism of nicosulfuron degradation by DSA electrode during electrochemical oxidation process were studied. Nicosulfuron was chosen as a model pollutant to explore three kinds of IrO2-based electrodes for their removal efficiency of toxic and recalcitrant organic compounds in aqueous solution. The surface morphology of the three IrO2-based electrodes were characterized by scanning electronic microscopy (SEM), linear sweep voltammetry (LSV), and cyclic voltammetry (CV) to select the best one. The selected electrode was used to study the electrochemical degradation of nicosulfuron. The effects of current intensity, electrolyte pH value, and electrode spacing on the degradation of nicosulfuron were investigated and the optimum condition was obtained. The degradation mechanism of nicosulfuron was proposed by identifying the intermediates. This experiment was expected to provide the theoretical basis and design ideas for the industrial design of the subsequent electrochemical degradation of nicosulfuron.

2. Experimental Materials and Methods

2.1. Experimental Materials

Nicosulfuron was obtained from Jingbo Agrochemicals Technology Co., LTD., Shandong, China, and used directly without any further purification. Its structural formula and general characteristics are shown in Table 1.
The methanol and acetic acid used in HPLC were of chromatographic grade. The other chemicals were of analytical grade and used without further purification. Solution was prepared using deionized water with the resistivity near to 18.3 MΩ⋅cm.
Three kinds of IrO2-based electrodes (Ti/RuO2-IrO2, Ti/Ta2O5-IrO2, Ti/Ta2O5-SnO2-IrO2) were provided by Suzhou Shude Industrial Machinery Co., Ltd., Jiangsu. Their sizes were 50 mm × 100 mm. The cathode was an electrode for titanium (Ti) with the same size.

2.2. Analytical Methods

The surface morphology and composition of the electrodes were characterized by a SEM (Regulus8220, Hitachi, Japan) and x-ray energy dispersive spectrometer (EDS, QUANTAX, Bruker, Germany). The electrochemical performance of the IrO2-based electrodes was executed using LSV and CV at room temperature. A computer-controlled electrochemical workstation (CHI 660C, Shanghai Chenhua, China) with a conventional three-electrode cell system was used. The fabricated electrode (5 mm × 5 mm) was used as the working electrode, and a platinum sheet (5 mm × 5 mm) was used as the counter electrode. The saturated calomel electrode (SCE) was employed as the reference electrode. Before each experiment, it was cleaned by flame annealing and quenching with pure water [33].
The concentrations of nicosulfuron were measured with a HPLC (LC-10ATvp, SHIMADZU Corporation, Japan), using a mobile phase of methanol/water/acetic acid of 60:40:2 (V/V/V). Before the analysis, the mobile phase was sonicated for 30 min to remove the dissolved gas. The separation was performed using an InertSustain C18 column (150 mm × 4.6 mm × 5 μm, SHIMADZU Corporation, Tokyo, Japan) at the flow rate of 0.8 mL/min and column temperature of 303 K. The detection wavelength was 254 nm.
The intermediate products of nicosulfuron degradation were identified by HPLC-MS (Agilent 6520B, Agilent Technologies, Santa Clara, CA, USA), equipped with an electrospray ionization source (ESI). As for the HPLC condition, methanol/water/acetic acid (60:40:2) was used as mobile phase and flow rate was set to 0.4 mL/min with a Shim-pack VP-ODS liquid chromatography column (150 mm × 4.6 mm × 5 μm, SHIMADZU Corporation, Tokyo, Japan). The injection volume was 1 μL and the column temperature was 303 K. The MS conditions were in positive ion detection mode and mass range was between 50 m/z and 1600 m/z. The following parameters were used: ion source temperature 373 K, dry gas flow rate 10 L/min, atomizer pressure 35 psig, capillary voltage 3500 V, capillary outlet voltage 120 V, cone voltage 65 V, and eight-pole RF voltage 750 V.

2.3. Electrolysis Experiment

Electrolysis experiments were performed by batch processes under galvanostatic condition to study the electrocatalytic performance of the electrodes (Figure 1). The IrO2-based electrodes were used as the anode accompanied with a Ti electrode of the same size as the cathode. To examine the influencing parameters, a volume of 400 mL nicosulfuron solution was used to conduct the electrolysis experiments. The reaction conditions included current intensity (0.3 A, 0.5 A, 0.8 A, and 1.0 A), pH value (1.0, 3.0, 6.0, and 9.0), and electrode spacing (1.5 cm, 3 cm, 4.5 cm, and 6 cm). For the supporting electrode, 0.1 M Na2SO4 was used. During the experiments, samples were drawn from the reactor at certain time intervals. The concentration of nicosulfuron was quantitatively analyzed by HPLC. Each experiment was conducted three times. The results used the average values and the relative standard deviations (RSDs) were less than 5%.

3. Results and Discussion

3.1. Characterization of IrO2-Based Electrodes

3.1.1. Structure and Morphology of the Electrode Coatings

The SEM micrographs of the IrO2-based electrodes as well as their EDS elemental analysis are shown in Figure 2. The three kinds of IrO2-based electrodes all showed “cracked” structures, which was a typical feature of oxide electrodes formed during heat-expansion and cold-contraction processes. The formation of the crack was due to the different coefficients of thermal expansion between the Ti substrate and oxide coatings [37,38]. The cracks connected with each other as networks. Especially, the networks were well-regulated and well-distributed on the surface of the Ti/Ta2O5-IrO2 electrode and Ti/Ta2O5-SnO2-IrO2 electrode, which helped to increase the real surface area of the electrode. Their corresponding EDS spectra displayed clear oxygen and iridium peaks for each electrode. The distinct additive metal peak was present for each of the binary oxide coatings. Further quantitative analysis showed that the metal oxide for each binary composition was present in approximately 20% wt.

3.1.2. Linear Sweep Voltammetry Measurement (LSV)

The oxygen evolution potential (OEP) can characterize the difficulty of the oxygen evolution reaction on the electrodes. A high OEP is advantageous for restraining the occurrence of side reactions, enhancing the organics degradation ability and weakening the influence of oxygen to peel the catalyst layer. Therefore, the OEP is positively correlated with the organics degradation ability of the anodes [39]. The performance of the electrodes varied with the baseplate composition and preparation method of the oxide film. Higher oxygen evolution potential can be obtained by improving the material and structure of electrodes [40,41]. In this paper, LSV curves were used to examine the OEPs of the three electrodes. As shown in Figure 3, the OEPs increased according to the order of Ti/RuO2-IrO2 < Ti/Ta2O5-SnO2-IrO2 < Ti/Ta2O5-IrO2. The Ti/Ta2O5-IrO2 electrode with higher OEP should have better degradation performance and lower power consumption during the electrochemical degradation process.

3.1.3. Cyclic Voltammetry (CV)

Figure 4 shows typical CV curves of three IrO2-based electrodes in the long potential range between −1.0 V and +1.8 V at a scan rate of 50 mV/s. The shape indicates that their initial OEP was about +1.3 V. When the applied potential was higher than +1.3 V, the current increased with increasing electrode potential. Thus, the CV curves were measured between −0.1 V and +1.0 V in the short potential region. The electrochemical effective surface areas of the three IrO2-based electrodes were estimated based on the CV curves recorded in the short potential, revealing that the electrochemical active surface areas reduced in the following order: Ti/Ta2O5-IrO2 > Ti/Ta2O5-SnO2-IrO2 > Ti/RuO2-IrO2. This was consistent with the SEM images shown in Figure 2.

3.2. The Effect of Electrode Material

Electrode materials are the most important part of electrochemical oxidation reactors. Therefore, the development of electrodes with good performance and high stability has become a major research focus [42]. Three kinds of IrO2-based electrodes were used as anodes to degrade nicosulfuron under the condition of current intensity 0.3 A, electrodes spacing 3 cm, and pH 6. The effects of different electrodes on the removal rate are shown in Figure 5.
Ti electrodes coated with transient metal oxides have been studied extensively due to their excellent electrocatalytic activities [43]. Electrodes with different coatings exhibit different electrocatalytic properties. As shown in the Figure 5, the catalytic performance of the Ti/Ta2O5-IrO2 electrode was better than that of the two other electrodes. The reason might be that the Ti/Ta2O5-IrO2 electrode could provide a larger surface area and higher OEP for the electrochemical reaction. In the following experiment, the Ti/Ta2O5-IrO2 electrode was chosen as the experimental electrode.

3.3. The Effect of Current Intensity

Current intensity is an important experimental parameter that affects the electrochemical oxidation process, as it determines the production capacity of hydroxyl radicals (·OH s) on the electrode, which decides the removal rate of organic matter in aqueous solutions [44]. However, the higher the current intensity is, the greater the power consumption is. Thus, it is extremely essential to choose an appropriate current intensity to achieve a high electrolysis efficiency along with a low energy consumption. A suitable current intensity is essential for achieving high electrolysis efficiency with low power consumption.
The effect of current intensity on nicosulfuron electrolysis is shown in Figure 6. The increase of current intensity had a positive influence on the degradation of nicosulfuron in the range of 0.3–1.0 A. When the current intensity was 0.8 A, nicosulfuron removal rate reached 83.3% after electrolysis for 7 h, which was almost the same as that of 1.0 A. The increase of current intensity had dual effects on electrolysis. The high current intensity helps to speed up the production rate of ·OH and then accelerate the oxidation rate of organic matter on the electrode surface [45]. However, the excessive current intensity was conducive to the occurrence of side reactions, consuming the formed ·OH and reducing its availability. The current intensity was too low to meet the energy requirement for electrolysis. The selected optimal current intensity in this experiment was 0.8 A.

3.4. The Effect of Electrode Spacing

Electrolytic experiments were performed at different spacings to study the influence on nicosulfuron degradation and results are shown in Figure 7. When the electrode spacing was 1.5 cm, the highest removal rate was obtained. In the same electrolyte system, the smaller the electrode spacing was, the shorter the distance the electrons were required to transfer, which was advantageous in terms of increasing energy transfer during the electrolysis process. Therefore, the short distance was helpful for increasing the electrolysis efficiency [19]. However, the excessively small electrode spacing would lead to a low treating volume between the electrodes, which was not beneficial to improving treatment efficiency. Herein, the electrode spacing of 3 cm was chosen for the rest of the experiments.

3.5. The Effect of Electrolyte pH

Solution pH is one of the most important factors that affects the performance of electrochemical processes. The effect of pH values ranging from 1 to 9 on the nicosulfuron degradation was investigated, and the results are presented in Figure 8. The removal rate of nicosulfuron was higher in acid conditions or in alkaline conditions than in neutral conditions. The maximum removal rates were obtained at pH 3, which was 86.6% at 7 h. The optimum reaction pH was 3.0 for nicosulfuron degradation.
Zhao et al. indicated that nicosulfuron could be degraded to some extent via chemical hydrolysis under natural conditions, especially under acidic pH conditions [46]. The low pH inhibited the oxygen evolution reaction and resulted in the improvement of nicosulfuron degradation efficiency [47]. This result was in agreement with that of Ruan et al. [48], who proved that the degradation rates of sulfonylurea herbicides were affected by pH and that acidic pH was beneficial to the degradation process.

3.6. Optimization Experiment

According to the results of the single factor experiments conducted above, the optimum conditions were obtained as follows: current intensity 0.8 A, electrode spacing 3 cm, and pH 3. An electrolysis experiment was conducted under the optimum conditions, and the variation of nicosulfuron concentration with time is shown in Figure 9. A kinetic equation was obtained by the least-square method, which is shown in Equation (1).
ln ( C 0 / C t ) = 0.2186 t − 0.0331
where C0 was the initial concentration of nicosulfuron, and Ct was the concentration of nicosulfuron at a given time (t). The equation indicated that the degradation of nicosulfuron under optimum conditions followed first-order kinetics.
Under the optimum conditions, the removal rate of nicosulfuron at 100 mg/L could exceed 80% by 7 h electrolysis, which indicated that electrochemical processes could complete the degradation process in a relatively short time. In comparison, biological treatments usually have taken several days to achieve more than an 80% removal rate. Zhao et al indicated that the strain ZWS11 adapted to the initial concentrations as high as 500 mg/L and degraded about 80% at initial concentration levels of 5–500 mg/L in 6 days [46]. Qi et al. suggested that B. subtilis could degrade approximately 80% of nicosulfuron at the initial concentration of 400 mg/L within 3 days [49]. Rapid degradation of nicosulfuron has been considered to be an urgent issue for controlling nicosulfuron contamination. The electrochemical method, as an advanced oxidation process, could provide suitable conditions for the rapid degradation of nicosulfuron.

3.7. Electrochemical Degradation Mechanism of Nicosulfuron on Ti/Ta2O5-IrO2 Electrode

3.7.1. Electrochemical Mechanism

The Ti/Ta2O5-IrO2 electrode was characterized by CV tests in 0.1 M Na2SO4 solution in the absence and in the presence of 100 mg/L nicosulfuron. Compared with that in the blank solution (Figure 10), no additional peak was found in the 100 mg/L nicosulfuron solution, which indicated that the direct electron transfer did not occur on the Ti/Ta2O5-IrO2 electrode. The electrochemical oxidation of organics on the surface of the anode was divided into direct oxidation and indirect oxidation. If there was no new anodic current peak during the positive sweep process, it meant that oxidization was not occurring directly on the surface of the anodes and the degradation of organics was mainly carried out by indirect oxidation. Thus, in this experiment, nicosulfuron was not oxidized directly on the surface of the anode but was decomposed by the oxidizing agent that existed in the solution, such as the hydroxyl radical (·OH). Equations (2) and (3) indicate the indirect oxidation process. MOx represents the metal oxide coating of Ti/Ta2O5-IrO2 electrode.
M O x + H 2 O → M O x ( ⋅ OH ) + H + + e −
M O x ( ⋅ OH ) → M O x + O 2 + 2 H + + 2 e −
The voltammetric response on the Ti/Ta2O5-IrO2 electrode at different scan rates is shown in Figure 11a. The CV curves at all scan rates remained closed, indicating that surface charge had enough time to access the entire solution at both high and low scan rates [50]. Due to pseudo-capacitive behavior, redox peaks were seen in the CV curves [51]. The redox couple in all CV curves exhibited an increased current response with the increase of the scan rate from 10 to 150 mV/s. It showed that the peak currents at different scan rates were directly proportional to the square root of the scan rates (v½) (Figure 11b), indicating that the redox reactions on the Ti/Ta2O5-IrO2 electrode were a typical diffusion-controlled electrochemical process [52,53].

3.7.2. Electrochemical Degradation Mechanism of Nicosulfuron

Many studies have proved that the new intermediate products, formed during the degradation process of nicosulfuron, might be more toxic and stable than the precursor herbicides [1,54,55]. Thus, it is necessary to identify the intermediate products and investigate their toxicity to the environment.
Nicosulfuron was electrolyzed under the optimum condition of current intensity 0.8 A, electrode spacing 3 cm, and pH 3, and the sample solution with the electrolysis removal rate of about 50% was subjected to HPLC-MS detection. Three peaks were obtained by LC separation, and their retention times were 4.767~4.850 min, 6.217~6.367 min, and 7.900~8.000 min, respectively.
According to the chemical structure and reported degradation pathway of nicosulfuron, the detected fragments were deduced and shown in Figure 12, Figure 13 and Figure 14. The ESI analysis showed the presence of the pseudo-molecular ion at m/z 411 ([M+H]+), and the speculative substance was nicosulfuron (C15H18N6O6S). The signal at m/z 843 was attributed to the sodium adduct of the dimeric form of the pseudo-molecular ion ([2M+Na]+) (Figure 12).
The intermediate product with retention time from 4.767 min to 4.850 min gave a molecular ion at m/z 213 ([M+H]+), derived from the cleavage of the C–N bond of sulfonylureic bridge and from the loss of the N–CH2–CH3 group. It was identified as 2-aminosulfonyl-N,N-dimethylnicotinamide (C8H11N3O3S)(Figure 13) and was considered to be the main product of nicosulfuron electrolysis.
The intermediate product with retention time from 7.192 min to 7.309 min gave a fragment ion at m/z 156, which was an indication of ([M+H]+). The speculative substance was identified as 4,5-dimethoxypyrimidin-2-amine (C6H9N3O2) (Figure 14). The other fragment at m/z 340 was derived from the opening of the pyridinic ring. The m/z 182 fragment (Figure 12) was derived from the cleavage of the C–N bond of the sulfonylureic bridge.

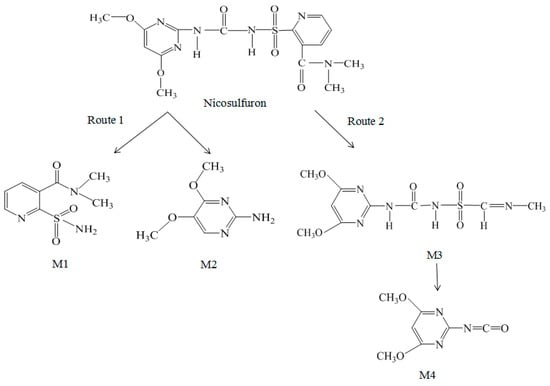

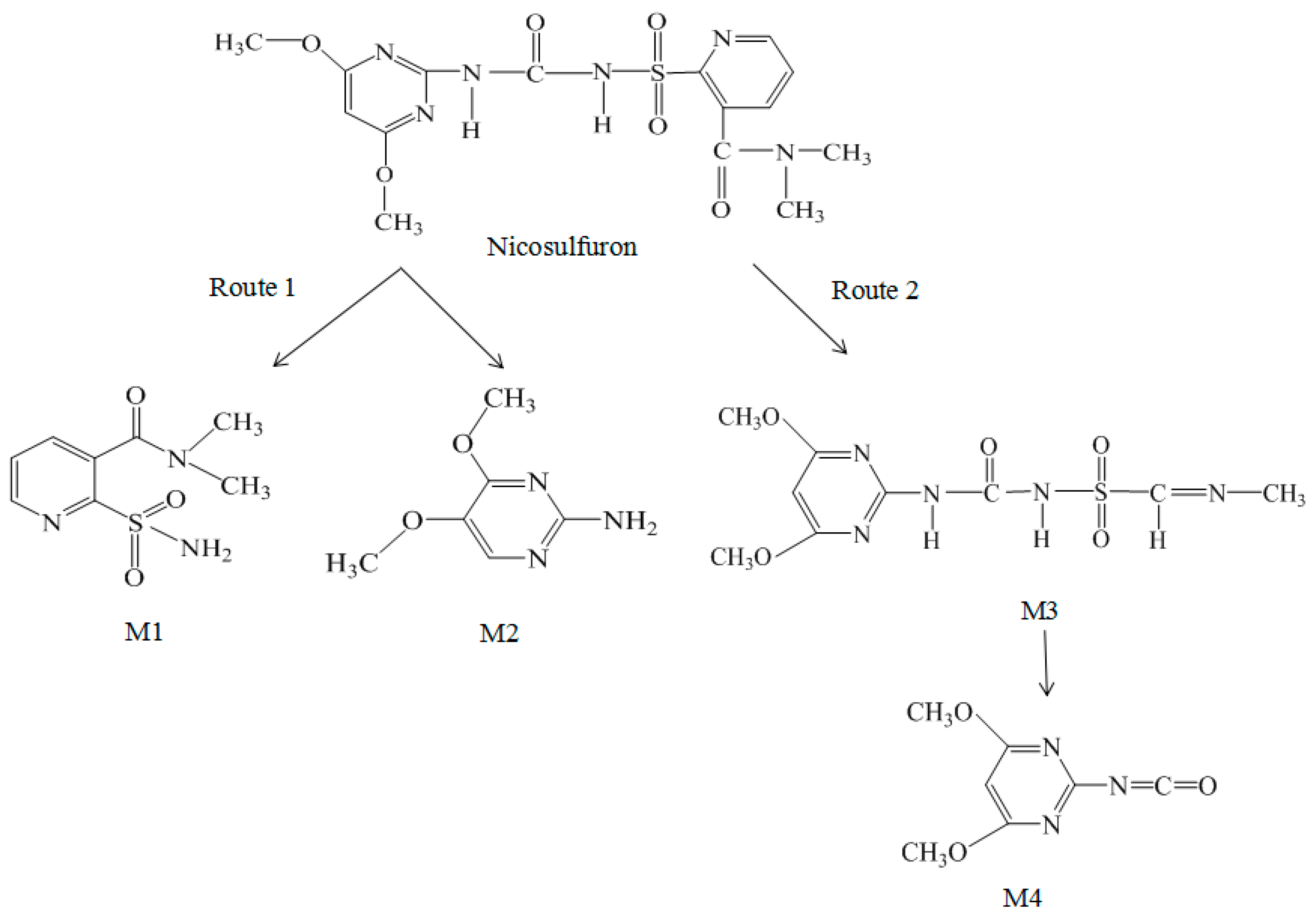

From the speculated degradation product information, two degradation pathways of nicosulfuron under the electrolysis conditions were proposed, as shown in Figure 15. Route 1 was the cleavage of the C–N bond of the sulfonylureic bridge and produced M1 and M2, which were the two most important intermediates during the nicosulfuron synthesis process. M1 and M2 have also been reported as degradation products by microorganisms [10,22,44]. Sabadie reported that the hydrolysis of nicosulfuron under acidic conditions was also carried out in accordance with route 1 [19]. Route 2 was the opening of the pyridinic ring and formed M3, which was also found by Benzi et al. during the photoinduced gradation process using a xenon lamp [1]. M4 was produced through the further cleavage of the C-N bond in the side chain of M3. The different results were due to the different reactive conditions, indicating that the reactive condition would influence the degradation pathway of nicosulfuron [19].

4. Conclusions

The electrochemical method was chosen to degrade nicosulfuron due to its controllability and environmental friendliness. Three kinds of IrO2-based DSA electrodes were used to electrolyze nicosulfuron by a batch process. A well-distributed crack network was formed on the Ti/Ta2O5-IrO2 electrode and Ti/Ta2O5-SnO2-IrO2 electrode. Their OEPs increased according to the order of Ti/RuO2-IrO2 < Ti/Ta2O5-SnO2-IrO2 < Ti/Ta2O5-IrO2. Nicosulfuron was used as the model pollutant to choose the electrode with the highest performance. The Ti/Ta2O5-IrO2 electrode showed the highest efficiency and was chosen for use as the anode in the electrochemical experiment. The obtained optimum electrolysis conditions were: currency intensity 0.8 A, electrode spacing 3 cm, electrolyte pH 3. Under the optimum conditions, the degradation of nicosulfuron followed first-order kinetics and was mainly due to indirect oxidation. The redox reaction on the Ti/Ta2O5-IrO2 electrode was a typical diffusion-controlled electrochemical process. On the basis of the intermediates identified by HPLC-MS, two possible degradation routes of nicosulfuron were proposed, including the cleavage of the C–N bond of the sulfonylureic bridge and the opening of the pyridinic ring.

Author Contributions

Data curation: X.M.; Formal analysis: R.Z. and X.Z.; Project administration: F.C. and W.J.; Resources: F.C.; Validation: X.M.; Writing—original draft: R.Z., X.Z., and W.J.; Writing—review and editing: R.Z., X.Z., and W.J.

Funding

This research received no external funding.

Acknowledgments

This work was supported by the Natural Science Foundation of Shandong Province, China (Grant No. ZR2014CM032).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Benzi, M.; Robotti, E.; Gianotti, V. HPLC-DAD-MSn to investigate the photodegradation pathway of nicosulfuron in aqueous solution. Anal. Bioanal. Chem. 2011, 399, 1705–1714. [Google Scholar] [CrossRef] [PubMed]
  2. Sarmah, A.K.; Sabadie, J. Hydrolysis of sulfonylurea herbicides in soils and aqueous solutions: A review. J. Agric. Food Chem. 2002, 50, 6253–6265. [Google Scholar] [CrossRef] [PubMed]
  3. Jesus Lerma-Garcia, M.; Simo-Alfonso, E.F.; Zougagh, M.; Rios, A. Use of gold nanoparticle-coated sorbent materials for the selective preconcentration of sulfonylurea herbicides in water samples and determination by capillary liquid chromatography. Talanta J. 2013, 105, 372–378. [Google Scholar] [CrossRef] [PubMed]
  4. Overview the Global Market of Sulfonylurea and Imidazoline Ketones Herbicides[DB/OL]. Available online: www.agrichem.cn/news/2014/1/15/201411510334746965.shtml (accessed on 15 January 2014).
  5. Trigo, C.; Spokas, K.A.; Cox, L.; Koskinen, W.C. Influence of soil biochar aging on sorption of the herbicides MCPA, nicosulfuron, terbuthylazine, indaziflam, and fluoroethyldiaminotriazine. J. Agric. Food Chem. 2014, 62, 10855–10860. [Google Scholar] [CrossRef] [PubMed]
  6. Senguin, F.; Druart, J.C.; Le Cohu, R. Effects of atrazine and nicosulfuron on periphytic diatom communities in freshwater outdoor lentic mesocosms. Int. J. Limnol. 2001, 37, 3–8. [Google Scholar] [CrossRef] [Green Version]
  7. Reemtsma, T.; Alder, L.; Banasiak, U. Emerging pesticide metabolites in groundwater and surface water as determined by the application of a multimethod for 150 pesticide metabolites. Water Res. 2013, 47, 5535–5545. [Google Scholar] [CrossRef] [PubMed]
  8. Wang, B.N.; Kong, D.Y.; Lu, J.H.; Zhou, Q.S. Transformation of sulfonylurea herbicides in simulated drinking water treatment processes. Environ. Sci. Pollut. Res. 2015, 5, 3847–3855. [Google Scholar] [CrossRef]
  9. Petric, I.; Karpouzas, D.G.; Bru, D.; Udikovic-Kolic, N.; Kandeler, E.; Djuric, S.; Martin-Laurent, F. Nicosulfuron application in agricultural soils drives the selection towards NS-tolerant microorganisms harboring various levels of sensitivity to nicosulfuron. Environ. Sci. Pollut. Res. Int. 2016, 23, 4320–4333. [Google Scholar] [CrossRef]
  10. Zhang, H.; Mu, W.; Hou, Z.; Wu, X.; Zhao, W.; Zhang, X.; Pan, H.; Zhang, S. Biodegradation of nicosulfuron by the bacterium Serratia marcescens N80. J. Environ. Sci. Health B 2012, 47, 153–160. [Google Scholar] [CrossRef]
  11. MacBean, C. The Pesticide Manual, 16th ed.; BCPC: Hampshire, UK, 2012; pp. 10–15. ISBN 9781901396867. [Google Scholar]
  12. European Food Safety Authority. Conclusion regarding the peer review of the pesticide risk assessment of the active substance nicosulfuron. EFSA J. 2008, 6, 1–91. [Google Scholar] [CrossRef]
  13. Wu, Q.; Chen, X.X.; Xu, Y.J.; Han, L.J. Dissipation and residues of nicosulfuron in corn and soil under field conditions. Bull. Environ. Contam. Toxicol. 2010, 85, 79–82. [Google Scholar] [CrossRef] [PubMed]
  14. Freitas, M.A.M.D.; Silva, D.V.; Guimarães, F.R.; Leal, P.L.; Moreira, F.M.D.S.; Silva, A.A.D. Biological attributes of soil cultivated with corn intercropped with Urochloa brizantha in different plant arrangements with and without herbicide application. Agric. Ecosyst. Environ. 2018, 254, 35–40. [Google Scholar] [CrossRef]
  15. Yang, Y.J.; Tao, B.; Zhang, W.H.; Zhang, J.L. Isolation and screening of microorganisms capable of degrading nicosulfuron in water. Front. Agric. China 2008, 2, 224–228. [Google Scholar] [CrossRef]
  16. Louis, C.; Florent, R.; Muriel, J.; Pascale, B.H.; Isabelle, B.; Joan, A. Biotransformation of herbicides by aquatic microbial communities associated to submerged leaves. Environ. Sci. Pollut. Res. 2017, 24, 3664–3674. [Google Scholar] [CrossRef]
  17. Ahonsi, M.O.; Berner, D.K.; Emechebe, A.M.; Lagoke, S.T. Effects of ALS-inhibitor herbicides, crop sequence, and fertilization on natural soil suppressiveness to Striga hermonthica. Agric. Ecosyst. Environ. 2004, 104, 453–463. [Google Scholar] [CrossRef]
  18. Freitas, M.A.M.; Valadao, S.D.V.; Souza, M.F.; Silva, A.A.; Saraiva, D.T.; Freitas, M.M.; Cecon, P.R.; Feerreira, L.R. Levels of nutrients and grain yield of maize intercropped with signalgrass (Brachiaria) in different arrangements of plants. Planta Daninha 2015, 33, 49–56. [Google Scholar] [CrossRef] [Green Version]
  19. Sabadie, J. Nicosulfuron: Alcoholysis, chemical hydrolysis, and degradation on various minerals. J. Agric. Food Chem. 2002, 50, 526–531. [Google Scholar] [CrossRef]
  20. Lu, X.H.; Kang, Z.H.; Tao, B.; Wang, Y.N.; Dong, J.G.; Zhang, J.L. Degradation of nicosulfuron by Bacillus subtilis YB1 and Aspergillus niger YF1. Appl. Biochem. Microbiol. 2012, 48, 510–515. [Google Scholar] [CrossRef]
  21. Zhang, S.; Yin, X.; Yang, Q.; Wang, C.; Wang, Z. Determination of some sulfonylurea herbicides in soil by a novel liquid-phase microextraction combined with sweeping micellar electrokinetic chromatography. Anal. Bioanal. Chem. 2011, 401, 1071–1081. [Google Scholar] [CrossRef]
  22. Song, J.L.; Gu, J.G.; Zhai, Y.; Ruan, Z.Y.; Shi, Y.H.; Yan, Y.C. Biodegradation of nicosulfuron by a novel fungal strain, LZM1, with potential for biocontrolling corn diseases. Bioresour. Technol. 2013, 140, 243–248. [Google Scholar] [CrossRef]
  23. Zhao, W.S.; Qiu, L.H.; Guo, Q.G.; Li, S.Z.; Ma, P. Research progress on microbial degradation of nicosulfuron. Chin. J. Pestic. Sci. 2016, 18, 676–685. [Google Scholar] [CrossRef]
  24. Yuan, M.M.; Xu, H.; Yan, W. Advances in the study of electrochemical oxidation reactor for organic compounds. Environ. Eng. 2018, 36, 1–6. [Google Scholar] [CrossRef]
  25. Kobya, M.; Hiz, H.; Senturk, E.; Aydiner, C.; Demirbas, E. Treatment of potato chips manufacturing wastewater by electrocoagulation. Desalination 2006, 190, 201–211. [Google Scholar] [CrossRef]
  26. Zhou, N.N.; Zhang, W.; Zhao, J.L.; Li, K.; Chen, Y.W.; Shen, S.B. DSA anode electric catalytic oxidation technology and research progress of phenol containing wastewater treatment. Mod. Chem. Ind. 2017, 37, 29–32. [Google Scholar] [CrossRef]
  27. Zhang, Z.X. Techniques of Titanium Electrodes, 2nd ed.; Metallurgical Industry Press: Beijing, China, 2003; pp. 56–68. ISBN 9787502432232. [Google Scholar]
  28. Nonato, T.C.M.; Alves, A.A.D.; Broock, W.F.; Dalsasso, R.L.; Sens, M.L. The optimization of the electroflotation process using DSA® electrodes for treating the simulated effluent of produced water from oil production. Desalin. Water Treat. 2017, 70, 139–144. [Google Scholar] [CrossRef]
  29. Trasatti, S. Electrocatalysis: Understanding the success of DSA. Electrochim. Acta 2000, 45, 2377–2385. [Google Scholar] [CrossRef]
  30. Kwangseok, M.; Daewon, P. The characteristics of hydrogen production according to electrode materials in alkaline water electrolysis. J. Energy Eng. 2015, 24, 34–39. [Google Scholar] [CrossRef]
  31. SánchezPadilla, N.M.; Montemayor, S.M.; Rodríguez Varela, F.J. An easy route to synthesize novel Fe3O4@Pt core-shell nanostructures with high electrocatalytic activity. J. New Mater. Electr. Syst. 2012, 15, 171. [Google Scholar] [CrossRef]
  32. Zafar, M.S.; Tausif, M.; Zia, U.H.; Ashraf, M.; Hussain, S. New development of anodic electro-catalyst for chlor-alkali industry. Port. Electrochim. Acta 2016, 34, 257–266. [Google Scholar] [CrossRef]
  33. Trieu, V.; Schley, B.; Natter, H.; Kintrup, J.; Bulan, A.; Hempelmann, R. RuO2-based anodes with tailored surface morphology for improved chlorine electro-activity. Electrochim. Acta 2012, 78, 188–194. [Google Scholar] [CrossRef]
  34. Nagai, K.; Nagasawa, K.; Mitsushima, S. Oer activity of Ir-Ta-Zr composite anode as a counter electrode for electrohydrogenation of toluene. Electrocatalysis 2016, 7, 441–444. [Google Scholar] [CrossRef]
  35. Montiel, V.; Garcia-Garcia, V.; Gonzalez-Garcia, J.; Perez-Mallol, J.R.; Sanchez-Cano, G.; Aldaz, A. Viability of the electrochemical treatment of industrial effluents. J. New Mater. Electr. Syst. 2000, 3, 269–274. [Google Scholar]
  36. Rathinakumaran, K.; Meyyappan, R.M. Electrochemical degradation of dye effluents using mixed oxide coated DSA electrode-a kinetic study. Int. J. Chem. Sci. 2015, 13, 1401–1409. [Google Scholar]
  37. Herrada, R.A.; Acosta-Santoyo, G.; Sepúlveda-Guzmánc, S.; Enric, B.; Sirés, I.; Buotos, E. IrO2-Ta2O5|Ti electrodes prepared by electrodeposition from different Ir:Ta ratios for the degradation of polycyclic aromatic hydrocarbons. Electrochim. Acta 2018, 263, 353–361. [Google Scholar] [CrossRef]
  38. Cuevas, O.; Herrada, R.A.; Corona, J.L.; Olvera, M.G.; Sepúlveda-Guzmán, S.; Sirés, I.; Bustos, E. Assessment of IrO2-Ta2O5|Ti electrodes for the electrokinetic treatment of hydrocarbon-contaminated soil using different electrode arrays. Electrochim. Acta 2016, 208, 282–287. [Google Scholar] [CrossRef]
  39. Xu, Q.T.; Song, X.L.; Li, X. A novel high-performance Ti/ATONPs-MWCNTs electrode based on screen printing technique for degradation of C.I. Acid Red 73. Int. J. Electrochem. Sci. 2018, 13, 119–135. [Google Scholar] [CrossRef]
  40. Tehare, K.K.; Zate, M.K.; Navale, S.T.; Bhande, S.S.; Gaikwad, S.L.; Patil, S.A.; Gore, S.K.; Naushad, M.; Alfadul, S.M.; Mane, R.S. Electrochemical supercapacitors of cobalt hydroxide nanoplates grown on conducting cadmiumoxide base-electrodes. Arab. J. Chem. 2017, 10, 515–522. [Google Scholar] [CrossRef]
  41. Ekar, S.U.; Shekhar, G.; Khollam, Y.B.; Wani, P.N.; Jadkar, S.R.R.; Naushad, M.; Chaskar, M.G.; Jadhav, S.S.; Fadel, A.; Jadhav, V.V. Green synthesis and dye-sensitized solar cell application of rutile and anatase TiO2 nanorods. J. Solid State Electr. 2017, 21, 2713–2718. [Google Scholar] [CrossRef]
  42. Kong, D.S. Advances and some problems in electrocatalysis of DSA electrodes. Prog. Chem. 2009, 21, 1107–1117. [Google Scholar] [CrossRef]
  43. Kan, L.B.; Zhong, S.Q.; Wang, M. Preparation of modified titanium based DSA electrode and research progress in treatment of organic wastewater with the electrode. Contemp. Chem. Ind. 2015, 44, 2246–2249. [Google Scholar] [CrossRef]
  44. Wei, J.; Furrer, G.; Schulin, R. Kinetics of carbosulfan degradation in the aqueous phase in the presence of a cosolvent. J. Environ. Qual. 2000, 29, 1481–1487. [Google Scholar] [CrossRef]
  45. Wan, L.; Hou, Z.G.; Li, L.C.; Ma, X.L.; Ma, T.D.; Lu, Z.B. Effects of pH and initial concentration on hydrolysis of nicosulfron. J. Anhui Agric. Sci. 2011, 39, 15580–15581. [Google Scholar] [CrossRef]
  46. Zhao, W.S.; Wang, C.; Xu, L.; Zhao, C.Q.; Liang, H.W.; Qiu, L.H. Biodegradation of nicosulfuron by a novel Alcaligenes. faecalis strain ZWS11. J. Environ. Sci. 2015, 35, 151–162. [Google Scholar] [CrossRef] [PubMed]
  47. Zhao, J.; Zhu, C.Z.; Lu, J.; Hu, C.J.; Peng, S.C.; Chen, T.H. Electro-catalytic degradation of bisphenol A with modified Co3O4/b-PbO2/Ti electrode. Electrochim. Acta 2014, 118, 169–175. [Google Scholar] [CrossRef]
  48. Ruan, Z.Y.; Zhou, S.; Jiang, S.H.; Sun, L.; Zhai, Y.; Wang, Y.W. Isolation and characterization of a novel cinosulfuron degrading Kurthia sp. from a methanogenic microbial consortium. Bioresour. Technol. 2013, 147, 477–483. [Google Scholar] [CrossRef]
  49. Qi, M.; Zhao, B.; Dong, J.G.; Zhang, J.L. Isolation, identification and characterization of an Bacillus subtilis strain capable of degrading nicosulfuron. Chin. J. Pestic. Sci. 2014, 16, 330–336. [Google Scholar] [CrossRef]
  50. Al-Osta, A.; Jadhav, V.V.; Saad, N.A.; Mane, R.S.; Naushad, M.; Hui, K.N.; Han, S.H. Diameter-dependent electrochemical supercapacitive properties of anodized titantium oixde nanotubes. Scripta Mater. 2015, 104, 60–63. [Google Scholar] [CrossRef]
  51. Zate, M.K.; Jadhav, V.V.; Gore, S.K.; Shendkar, J.H.; Ekar, S.U.; Al-Osta, A.; Naushad, M.; Mane, R.S. Structural, morphological and electrochemical supercapacitive properties of sprayed manganese ferrite thin film electrode. J. Anal. Appl. Pyrol. 2016, 122, 224–229. [Google Scholar] [CrossRef]
  52. Ansari, A.; Nematollahi, D. A comprehensive study on the electrocatalytic degradation, electrochemical behavior and degradation mechanism of malachite green using electrodeposited nanostructured β-PbO2 electrodes. Water Res. 2018, 144, 262–473. [Google Scholar] [CrossRef]
  53. Chen, J.M.; Xia, Y.J.; Dai, Q.Z. Electrochemical degradation of chloramphenicol with a novel Al doped PbO2 electrode: Performance, kinetics and degradation mechanism. Electrochim. Acta 2015, 165, 277–287. [Google Scholar] [CrossRef]
  54. Dang, J.J.; Yang, D.C.; Zhang, Z.; Wang, Z.M.; Zhang, J.L. Degradation of nicosulfuron by Bacillus cereus and toxicity of the degradation product 2-amino-4,6-dimethoxy pyrimidine to environmental organisms. Chin. J. Pestic. Sci. 2018, 20, 652–660. [Google Scholar] [CrossRef]
  55. Carles, L.; Joly, M.; Bonnemoy, F.; Leremboure, M.; Batisson, I.; Besse-Hoggan, P. Identification of sulfonylurea biodegradation pathways enabled by a novel Nicosulfuron transforming strain Pseudomonas fluorescens SG-1: Toxicity assessment and effect of formulation. J. Hazard. Mater. 2017, 324, 184–193. [Google Scholar] [CrossRef] [PubMed]
Ijerph 16 00343 g001 550

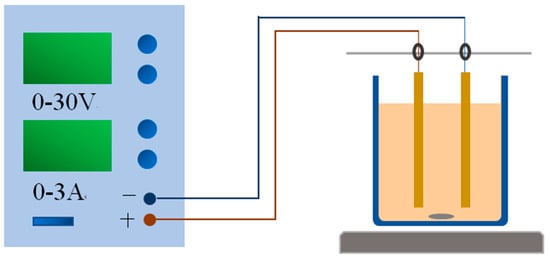

Figure 1. Electrolysis setup.
Figure 1. Electrolysis setup.
Ijerph 16 00343 g001
Ijerph 16 00343 g002 550

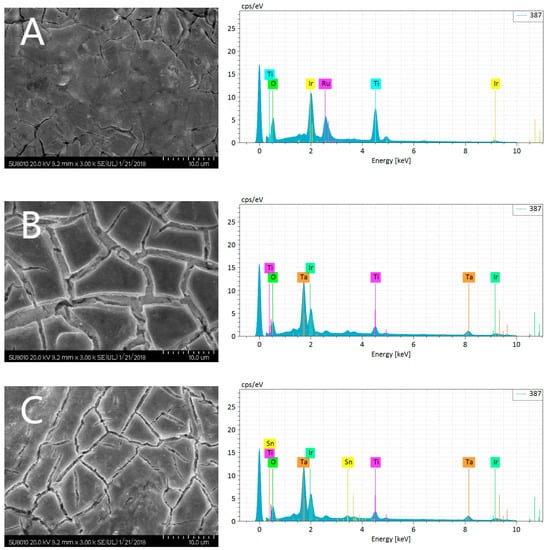

Figure 2. SEM images and energy dispersive spectrometer (EDS) spectra of Ti/RuO2-IrO2 (A), Ti/Ta2O5-IrO2, (B) and Ti/Ta2O5-SnO2-IrO2 (C).
Figure 2. SEM images and energy dispersive spectrometer (EDS) spectra of Ti/RuO2-IrO2 (A), Ti/Ta2O5-IrO2, (B) and Ti/Ta2O5-SnO2-IrO2 (C).
Ijerph 16 00343 g002
Ijerph 16 00343 g003 550

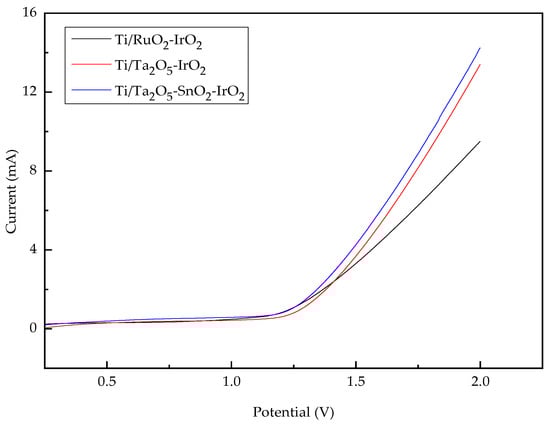

Figure 3. Linear sweep voltammetry (LSV) curves of three electrodes at scan rate of 50 mV/s.
Figure 3. Linear sweep voltammetry (LSV) curves of three electrodes at scan rate of 50 mV/s.
Ijerph 16 00343 g003
Ijerph 16 00343 g004 550

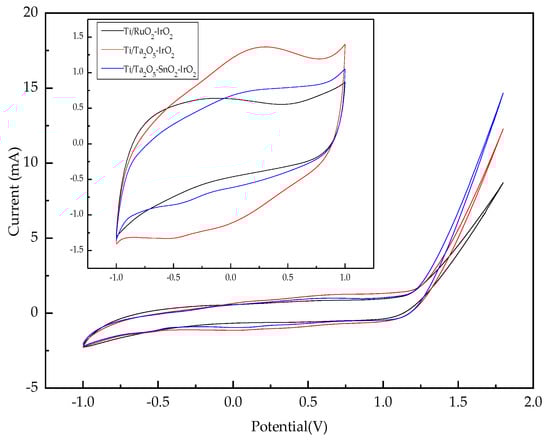

Figure 4. Cyclic voltammetry (CV) curves of three electrodes at a scan rate of 50 mV/s.
Figure 4. Cyclic voltammetry (CV) curves of three electrodes at a scan rate of 50 mV/s.
Ijerph 16 00343 g004
Ijerph 16 00343 g005 550

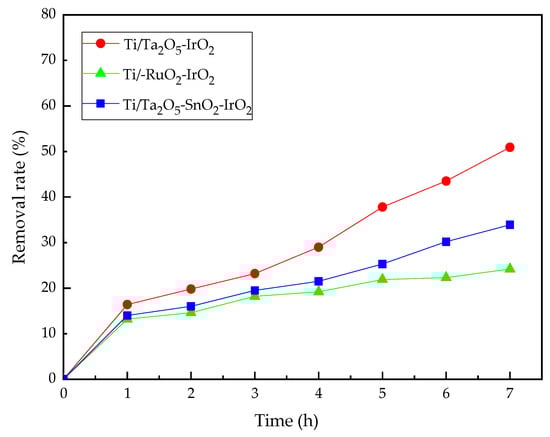

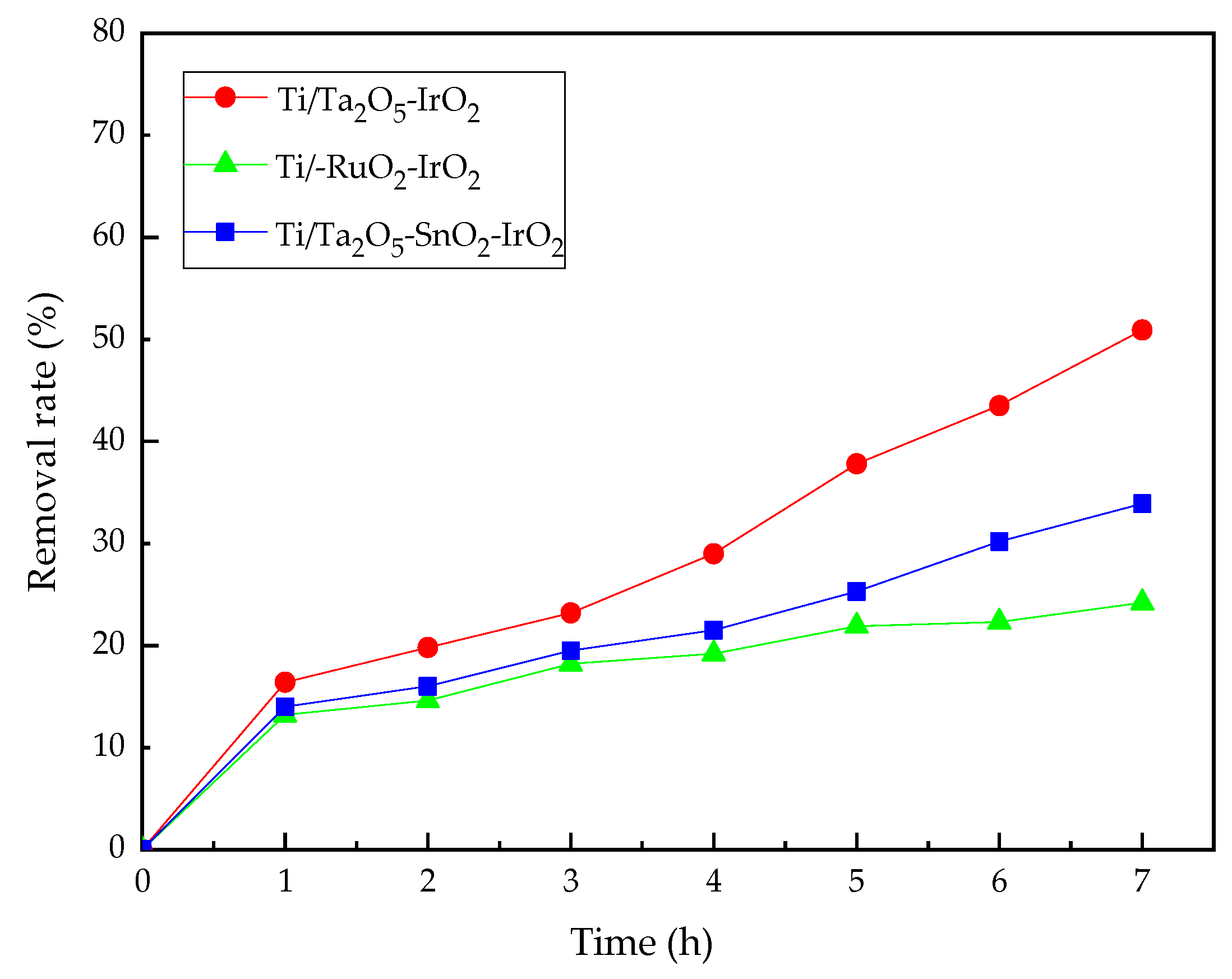

Figure 5. Effect of different electrodes on the degradation of nicosulfuron.
Figure 5. Effect of different electrodes on the degradation of nicosulfuron.
Ijerph 16 00343 g005
Ijerph 16 00343 g006 550

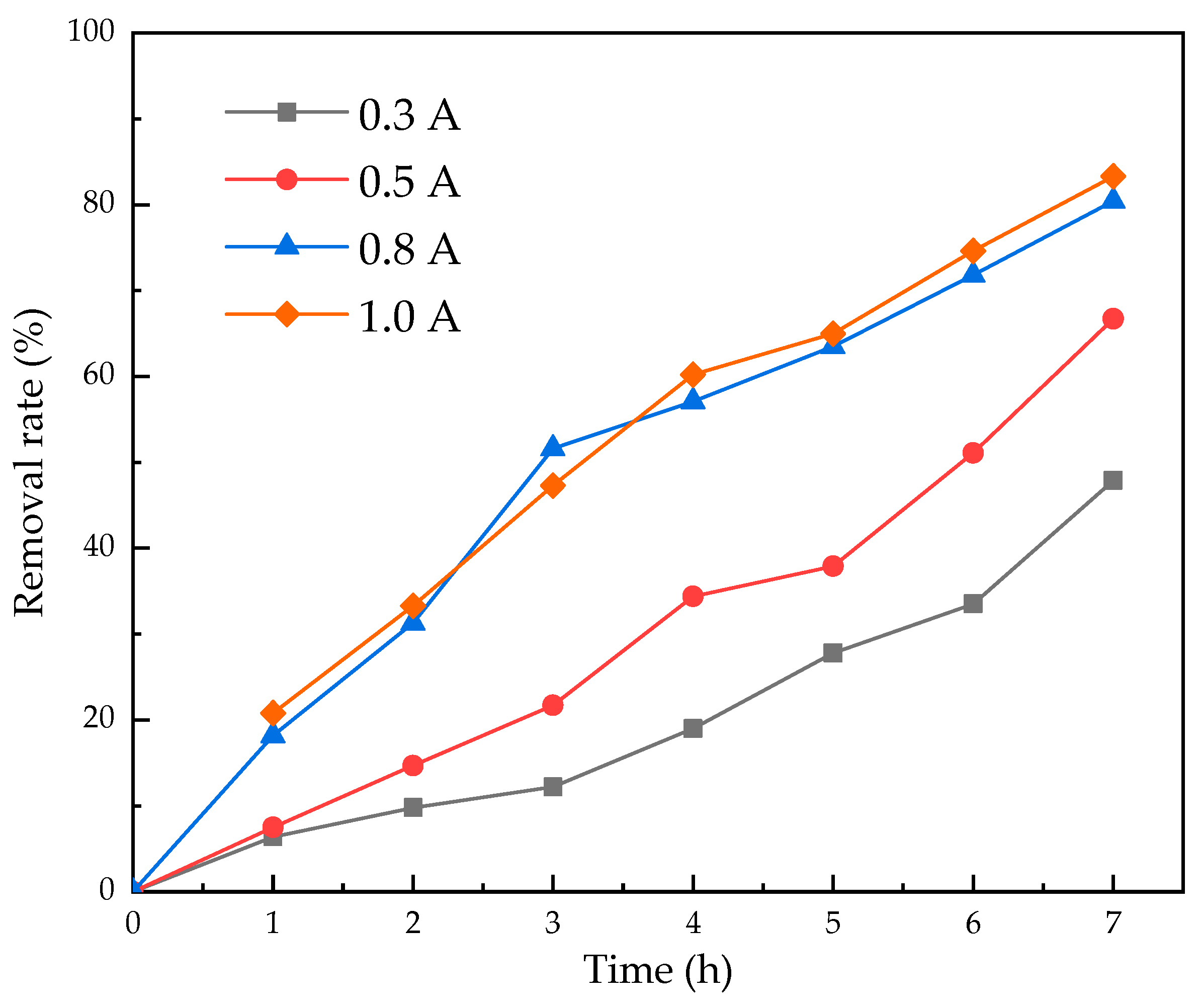

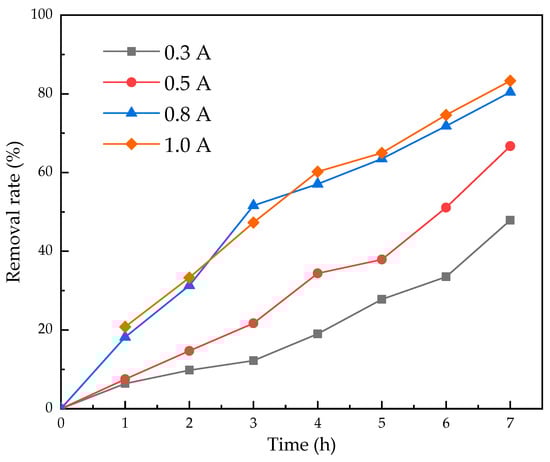

Figure 6. Effect of current intensity on the electrolysis of nicosulfuron.
Figure 6. Effect of current intensity on the electrolysis of nicosulfuron.
Ijerph 16 00343 g006
Ijerph 16 00343 g007 550

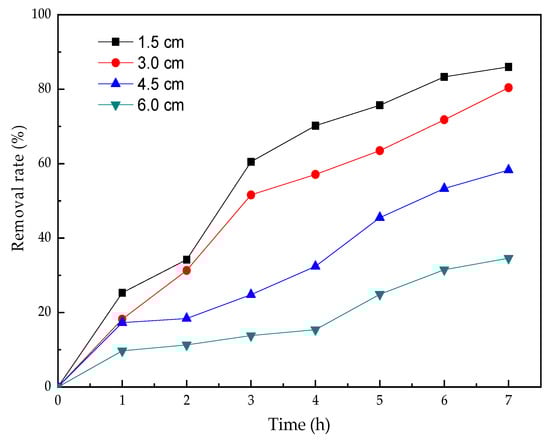

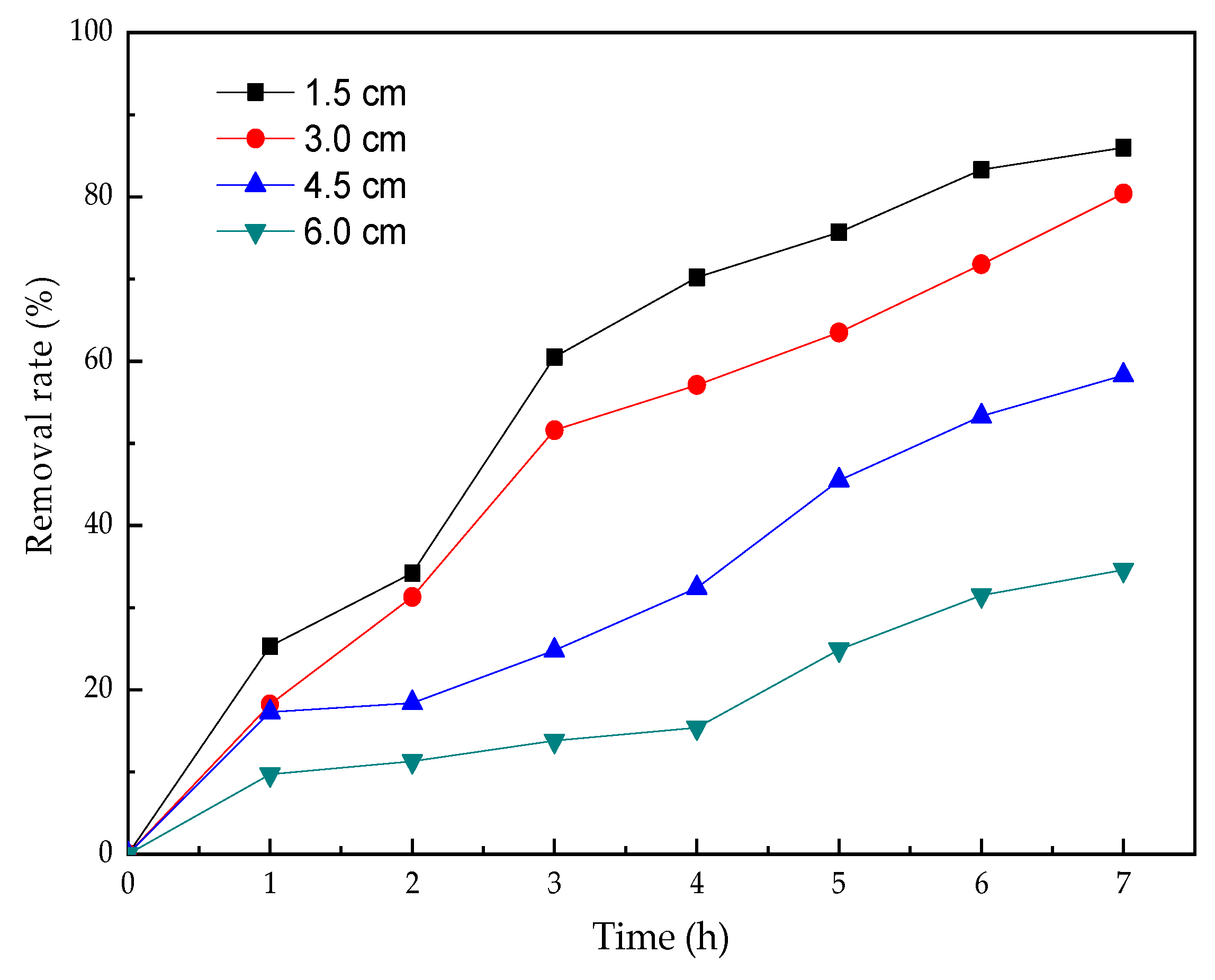

Figure 7. Effect of electrode spacing on the electrolysis of nicosulfuron.
Figure 7. Effect of electrode spacing on the electrolysis of nicosulfuron.
Ijerph 16 00343 g007
Ijerph 16 00343 g008 550

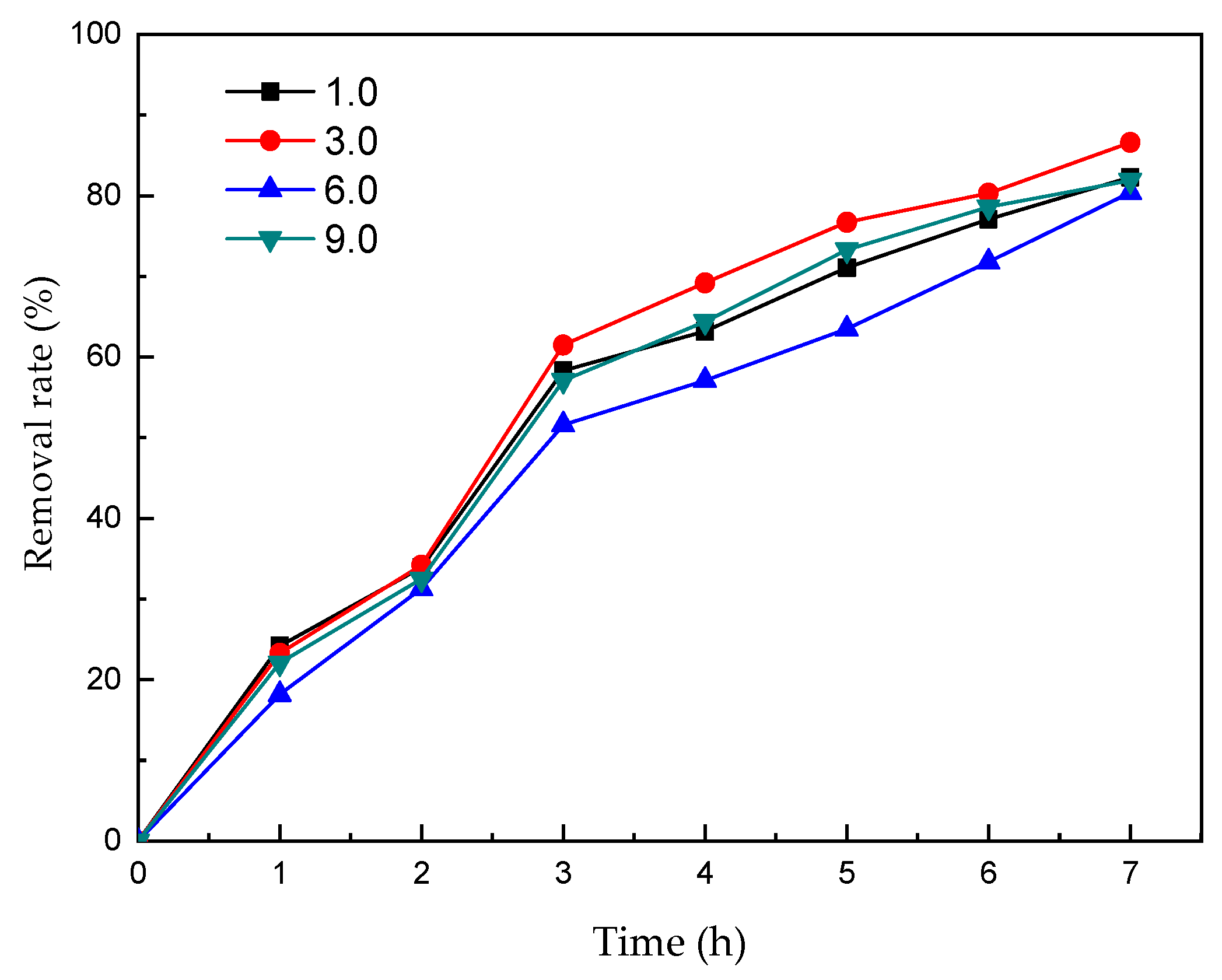

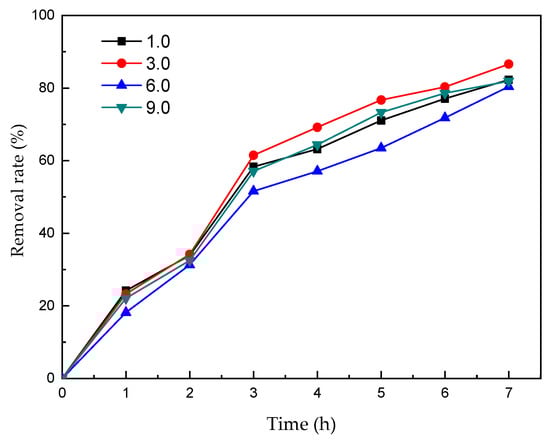

Figure 8. Effect of pH on the degradation of nicosulfuron.
Figure 8. Effect of pH on the degradation of nicosulfuron.
Ijerph 16 00343 g008
Ijerph 16 00343 g009 550

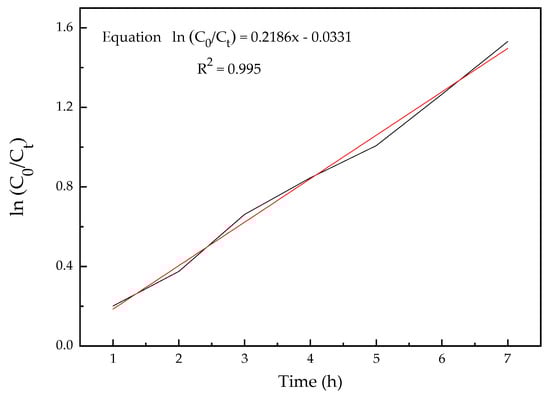

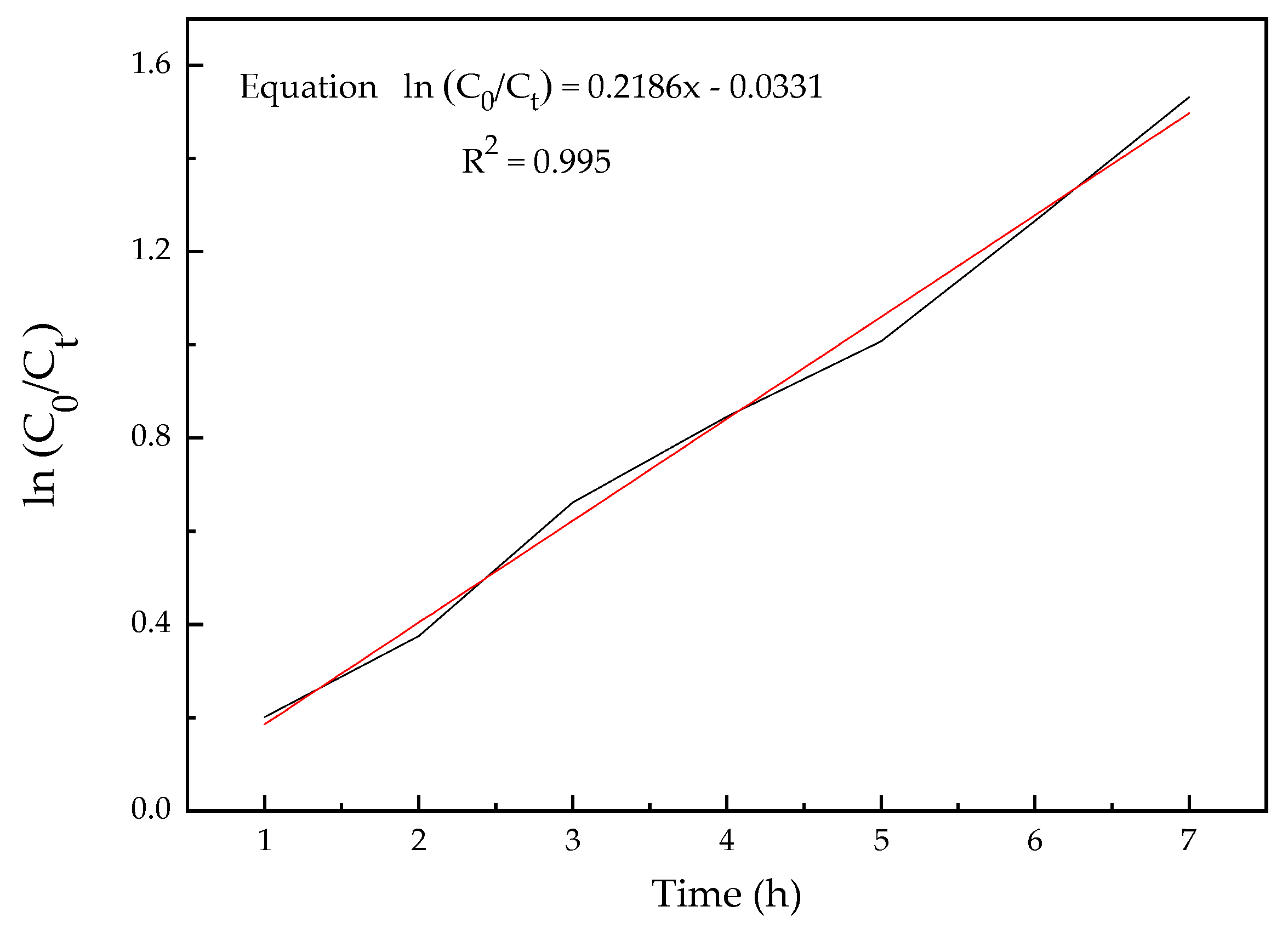

Figure 9. Fitting kinetic curve under optimal electrolysis conditions.
Figure 9. Fitting kinetic curve under optimal electrolysis conditions.
Ijerph 16 00343 g009
Ijerph 16 00343 g010 550

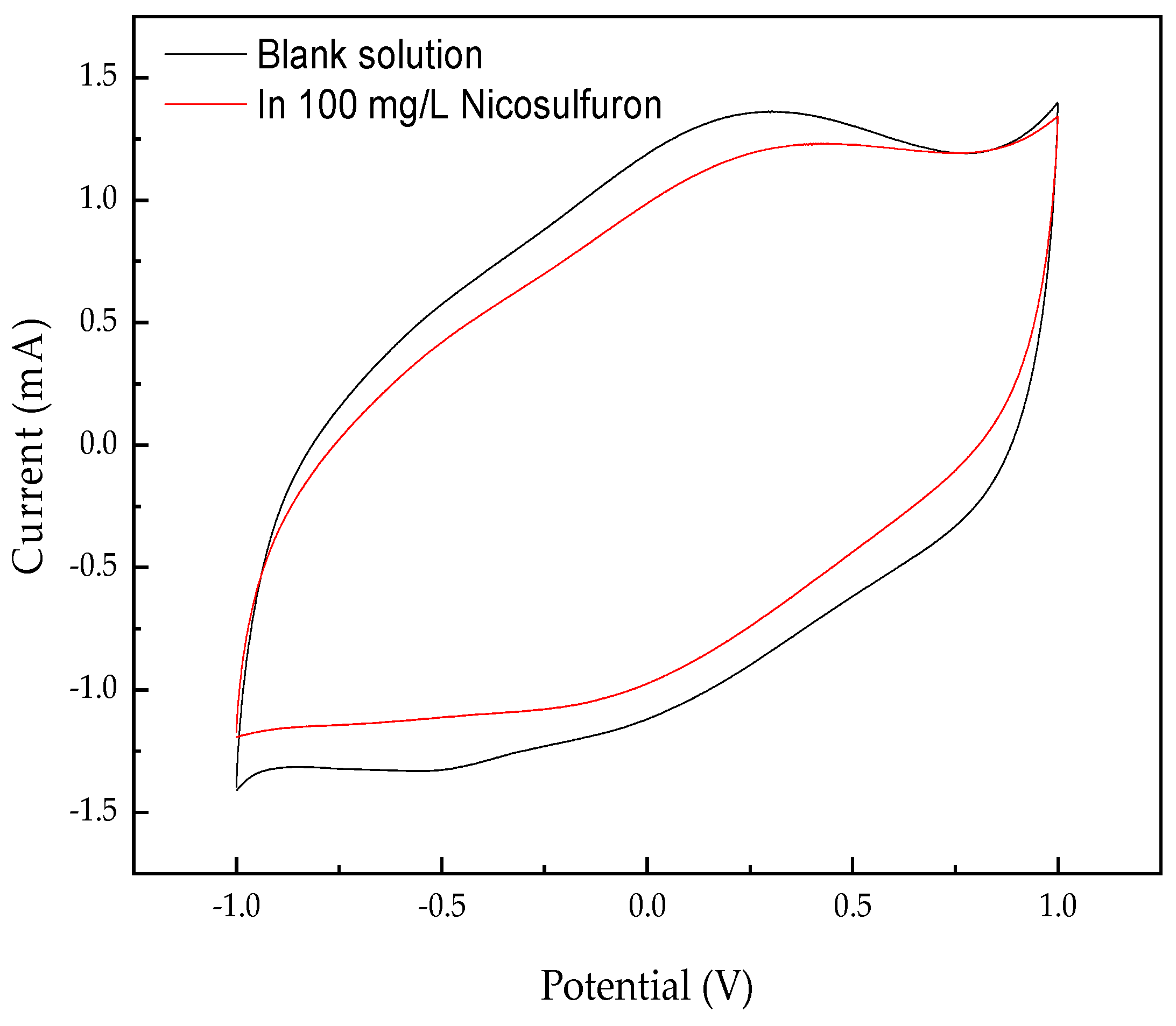

Figure 10. CV curves of the Ti/Ta2O5-IrO2 electrode in the absence and in the presence of nicosulfuron.
Figure 10. CV curves of the Ti/Ta2O5-IrO2 electrode in the absence and in the presence of nicosulfuron.
Ijerph 16 00343 g010
Ijerph 16 00343 g011 550

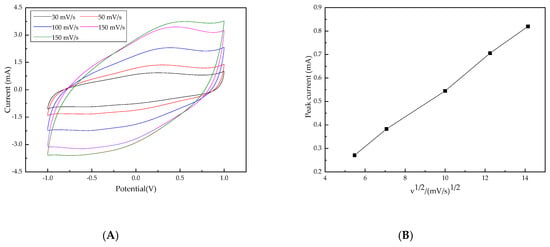

Figure 11. CV curves of the Ti/Ta2O5-IrO2 electrode at different scan rates. (A) CV curves at different scan rates; (B) The plots of peak current vs. the square root of scan rate.
Figure 11. CV curves of the Ti/Ta2O5-IrO2 electrode at different scan rates. (A) CV curves at different scan rates; (B) The plots of peak current vs. the square root of scan rate.
Ijerph 16 00343 g011
Ijerph 16 00343 g012 550

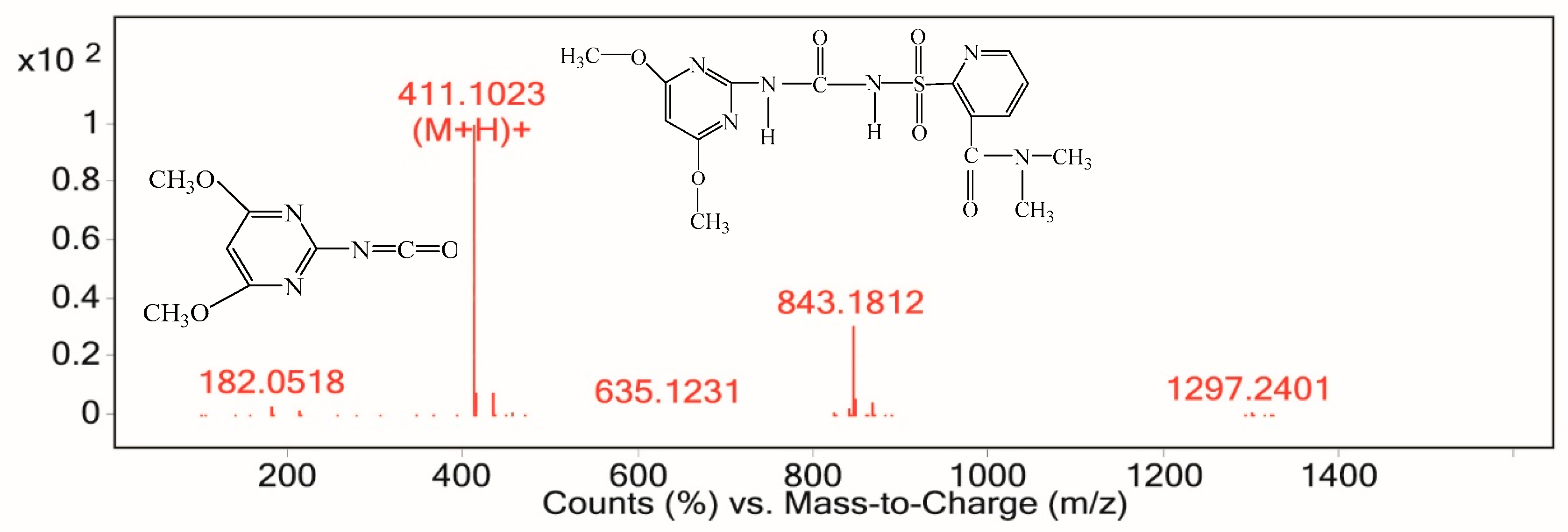

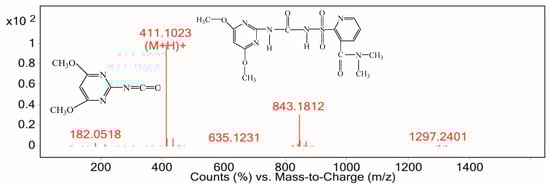

Figure 12. Electrospray ionization source (ESI) spectrum from 6.217 min to 6.367 min.
Figure 12. Electrospray ionization source (ESI) spectrum from 6.217 min to 6.367 min.
Ijerph 16 00343 g012
Ijerph 16 00343 g013 550

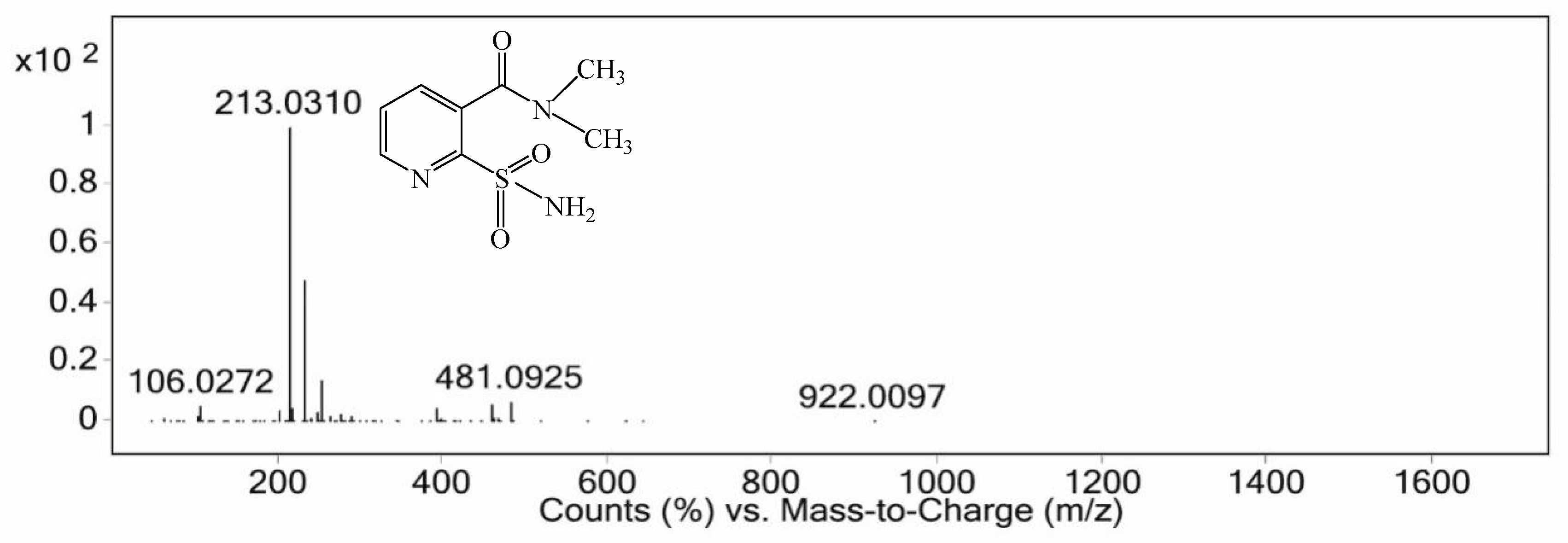

Figure 13. ESI spectrum from 4.767 min to 4.850 min.
Figure 13. ESI spectrum from 4.767 min to 4.850 min.
Ijerph 16 00343 g013
Ijerph 16 00343 g014 550

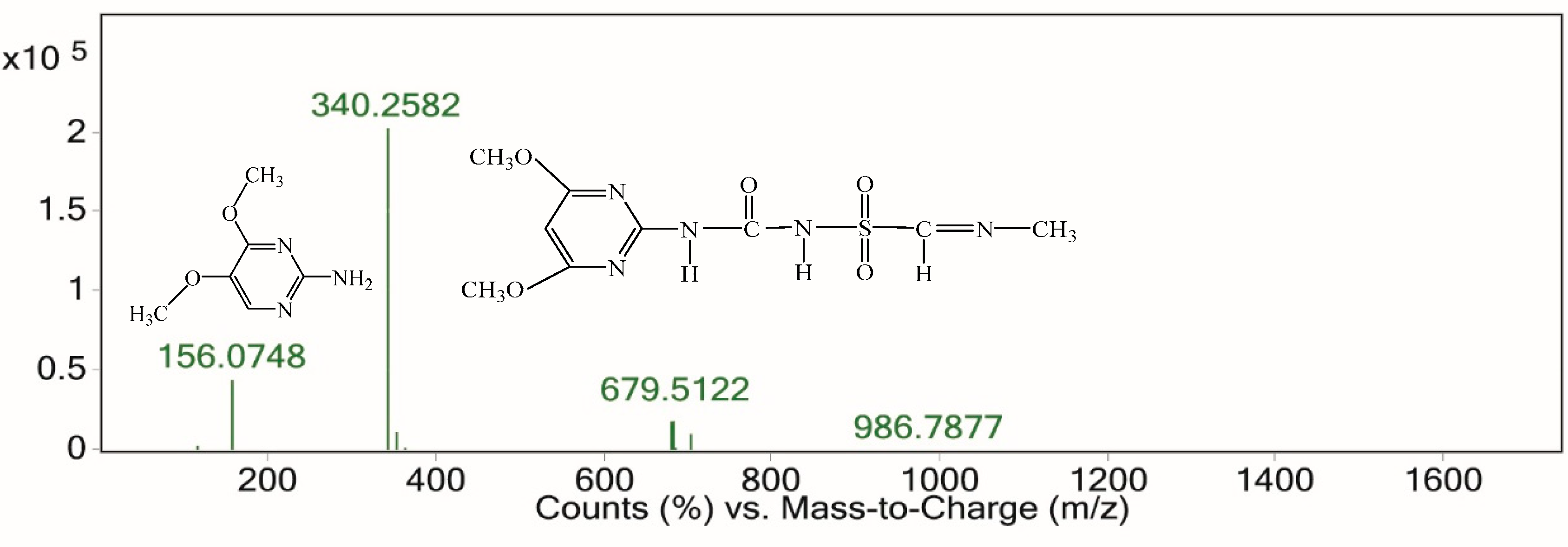

Figure 14. ESI spectrum from 7.192 min to 7.309 min.
Figure 14. ESI spectrum from 7.192 min to 7.309 min.
Ijerph 16 00343 g014
Ijerph 16 00343 g015 550
Figure 15. Degradation mode under the conditions of nicosulfuron electrolysis.
Figure 15. Degradation mode under the conditions of nicosulfuron electrolysis.
Ijerph 16 00343 g015
Table
Table 1. General characteristics of nicosulfuron.
Table 1. General characteristics of nicosulfuron.
NameNicosulfuron
Chemical structure Ijerph 16 00343 i001
Molecular FormulaC15H18N6O6S
CAS Number111991-09-4
Molecular mass410.41 g/mol
Solubilityacetonitrile 2.3%, acetone 1.8%, ethanol 0.45%, water 12%
CAS: Chemical Abstracts Service.

Share and Cite

MDPI and ACS Style

Zhao, R.; Zhang, X.; Chen, F.; Man, X.; Jiang, W. Study on Electrochemical Degradation of Nicosulfuron by IrO2-Based DSA Electrodes: Performance, Kinetics, and Degradation Mechanism. Int. J. Environ. Res. Public Health 2019, 16, 343. https://doi.org/10.3390/ijerph16030343

AMA Style

Zhao R, Zhang X, Chen F, Man X, Jiang W. Study on Electrochemical Degradation of Nicosulfuron by IrO2-Based DSA Electrodes: Performance, Kinetics, and Degradation Mechanism. International Journal of Environmental Research and Public Health. 2019; 16(3):343. https://doi.org/10.3390/ijerph16030343

Chicago/Turabian Style

Zhao, Rui, Xuan Zhang, Fanli Chen, Xiaobing Man, and Wenqiang Jiang. 2019. "Study on Electrochemical Degradation of Nicosulfuron by IrO2-Based DSA Electrodes: Performance, Kinetics, and Degradation Mechanism" International Journal of Environmental Research and Public Health 16, no. 3: 343. https://doi.org/10.3390/ijerph16030343

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
