Activity-Based Exposure Levels and Cancer Risk Assessment Due to Naturally Occurring Asbestos for the Residents Near Abandoned Asbestos Mines in South Korea

by
Seungho Lee
1,
Dongmug Kang
1,2,3,
Youngki Kim
1,2,3,
Yoon-Ji Kim
2,3 and
Se-Yeong Kim
1,2,*
1
Department of Occupational and Environmental Medicine, Pusan National University Yangsan Hospital, Yangsan 50612, Korea
2
Department of Preventive and Occupational & Environmental Medicine, Medical College, Pusan National University, Yangsan 50612, Korea
3
Environmental Health Center of Asbestos, Pusan National University Yangsan Hospital, Yangsan 50612, Korea
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2021, 18(10), 5225; https://doi.org/10.3390/ijerph18105225
Submission received: 23 March 2021 / Revised: 10 May 2021 / Accepted: 10 May 2021 / Published: 14 May 2021
(This article belongs to the Special Issue Asbestos and Cancers: Exposure from Neighboring Factories and Mines, Contaminated Soil, and Slate Roofs)
Browse Figures
Review Reports Versions Notes

Abstract

:
This study aims to evaluate the overall asbestos exposure intensity and assess the health risk to residents due to naturally occurring asbestos (NOA) near abandoned asbestos mines in South Korea. Of 38 mines, we found 19 with measured concentrations of NOA. We evaluated the average of airborne NOA concentrations according to the environmental exposure category. When evaluated regionally by dividing into two clusters, the mean concentrations in activity-based sampling (ABS) scenarios exceeded the Korean exposure limit (0.01 f/cc) in both clusters. Moreover, airborne NOA concentrations in agricultural activity (5.49 × 10−2 f/cc) and daily activity (6.95 × 10−2 f/cc) had the highest values for clusters A and B, respectively. The excess lifetime cancer risk of one region (cluster A) by the ABS scenarios did not exceed the Korean Ministry of the Environment’s criteria for soil purification (1 × 10−4). However, one of the ABS scenarios—the daily life activity of clusters centered on Chungcheongbuk-do (cluster B)—showed an exposure of 1.08 × 10−4, greater than the limit (1 × 10−4). This indicates non negligible health damage to residents living near the abandoned asbestos mines, and it is necessary to continuously monitor and clean up the asbestos contamination.

1. Introduction

Asbestos generally refers to six regulated fibrous minerals—chrysotile, anthophyllite, actinolite, tremolite, amosite, and crocidolite. However, from a public health perspective, naturally occurring asbestos (NOA) refers to asbestos and asbestos-like minerals that are unintentionally mined or used, whose disturbance in the environment could cause exposure and possibly asbestos-related diseases (ARDs) [1,2]. Environmental exposure to NOA occurs due to a natural process or human activities in daily life settings, such as farming, transportation, and recreational exposures [1,2].
There are prior studies on health hazards due to environmental exposure, but not to occupational asbestos exposure. In Canada, it has been shown that the estimated lifetime mortality risk of lung cancer and mesothelioma combined varied between 1.4 and 4.9 per 100,000 persons continuously environmentally exposed to asbestos for 80 years in a mining town [3]. In addition, a study on the malignant mesothelioma of residents living near abandoned factories using asbestos in Japan showed a risk of environmental exposure [4]. Similarly, a study near an asbestos production plant in Egypt reported a high incidence of malignant mesothelioma due to environmental exposure and showed that many asbestos fibers were measured in the atmosphere, even after the plant was shut down [5]. In the province of Diyarbakir in Turkey, the incidence of malignant mesothelioma was higher in areas near NOA and aligned with the dominant wind direction [6]. Likewise, it was reported that environmental exposure to Libby vermiculite in Minnesota increased the incidence and mortality of ARDs, including malignant disease [7]. Numerous studies have also shown that there is a relationship between the onset of malignant mesothelioma and environmental asbestos (whether NOA or not) exposure [8,9,10,11,12]. These studies emphasized the health risk assessment to prevent ARDs due to environmental asbestos exposure.
In South Korea, asbestos mining began in the 1930s and was temporarily stopped after World War II in 1945. Mining commenced for the slate industry again from the 1950s and was stopped once more due to productivity problems in 1983. [13]. Even after asbestos mining was stopped in South Korea, abandoned asbestos mines have been considered a major environmental exposure sources of asbestos [14]. In an epidemiological survey of four towns in Chungcheongnam-do, which has the largest asbestos mine in Asia, more than 50 out of about 200 people were diagnosed with asbestosis. As most of the people diagnosed with asbestosis did not have a history of working in asbestos mines professionally, it is thought that their condition was due to environmental exposure [15]. In 2009, the Korean Ministry of the Environment (KME) determined that asbestos contamination was serious and initiated a survey of abandoned asbestos mines [16], followed by precision investigations and restoration projects. Subsequently, several studies have been published and reported in South Korea [17,18,19,20,21,22,23,24,25,26,27,28,29,30,31]. These studies measured the concentration of NOA and assessed attendant health risks. However, most of them only contained scattered data for a small number of subjects and defined data centered on a single mine. Therefore, they were limited for the evaluation of the overall extent of exposure to NOA near abandoned asbestos mines in South Korea. These limitations made it difficult to use the data in victim compensation policies for NOA exposure. To address these limitations, in this study, we collected all possible data of environmental NOA exposure near abandoned asbestos mines and assessed the overall value of NOA exposure in South Korea. Further, we evaluated the health risk of residents living near the abandoned asbestos mines with the excess lifetime Cancer Risk (ELCR).

2. Materials and Methods

2.1. Source of Data, Data Extraction

We conducted an integrated literature review of surveys covering the concentration of NOA exposure of residents living near abandoned asbestos mines in South Korea through a literature search in the Korean journal database and internet-based academic reports related to asbestos mines, asbestos-like mines, and NOA. We also collected data on abandoned asbestos mines in South Korea from the Asbestos Environmental Health Center of Yangsan Pusan National University Hospital and Soonchunhyang University Hospital and KME. We found 2194 articles from the search, of which 2158 were excluded on the basis of their titles and abstracts. There were 2103 irrelevant and 55 duplicated studies. Next, we additionally excluded 21 studies after reading the full texts. In this step, studies where asbestos concentrations were neither expressed in f/cc nor analyzed by transmission electron microscopy (TEM), or asbestos measurement did not follow the “2010 Soil Environment Management Guidelines for Asbestos Generating Area such as Asbestos Mine” of the KME [32], were excluded. These guidelines are based on the United States Environmental Protection Agency (USEPA) guide, covering asbestos-contaminated sites [33]. Finally, we short-listed 15 studies to be included in this pooled analysis. The procedure for literature selection is shown in Figure 1, and the characteristics of the studies selected are shown in Table 1.
Through the 15 selected studies, we identified the abandoned asbestos mines and their locations in South Korea. We then collected the measured concentration data of NOA near these mines. There were 38 mines with a history of mining activity in South Korea. We found that measurements of NOA concentrations were available for 19 of the 38 mines. NOA concentrations were measured within 4 km2 of the mine development area according to the KME guidelines. For 19 mines without airborne NOA concentration measurements, asbestos detection was within 0.25% of the soil in a basic survey, or there were no residential areas near the mine development area [32]. As mentioned, only the concentration values expressed in units of f/cc and analyzed via a TEM were extracted. There were two types of concentration data: one, a raw measurement, and the other measured using activity-based sampling (ABS). The ABS method was used to measure the concentration of asbestos scattered through the soil disturbance activity in a specific scenario and determine the effect of asbestos scattering on the human body, as in reference [34]. These asbestos exposure concentration scenarios included outdoor, indoor, and 11 ABS methods (bicycle, car, motorcycle, cultivator, walking, weeding, weed whacking, digging, field sweeping, physical training, and children playing in the dirt) suggested in the KME guidelines [32]. We extracted the information necessary to determine the frequency and duration of asbestos exposure activities among residents living near the abandoned asbestos mines. This was obtained from a survey of residents living near these mines and included daily activity (exposure) hours, annual activity (exposure) days, first activity (exposure) age, and duration of activity (exposure).

2.2. Calculation of Airborne NOA Concentration

All data were merged to calculate airborne NOA concentrations near the abandoned asbestos mines. When merging data, divisions according to measurement seasons were ignored to arrive at a large sample size of combined data. We grouped the 11 ABS methods into three categories (Table 2). The 11 ABS methods covered here are based on the guidelines of the KME [32]. These scenarios are almost similar to USEPA standard operating procedures. The type of scenario used is site-specific [35]. The results were expressed as the arithmetic means. The data expressed as the geometric means were included in the calculation after conversion to the arithmetic means, assuming a log-normal distribution. Next, we classified the mines into two, according to geopolitical location (areas near Chungcheongnam-do and Chungcheongbuk-do) and calculated each average.

2.3. ELCR

To assess the risk of residents living near the abandoned asbestos mine due to NOA, we calculated the ELCR, which is an estimation of the risk of developing cancer due to site-related exposure. ELCR can be used for determining whether airborne concentrations of asbestos are associated with unacceptable risks to human bodies at specific sites, which is based only on the prediction of excess cancer risk through respiratory exposure [33]. The ELCR formula given by the USEPA [33] is as follows:
ELCR = EPC × TWF × IUR
where exposure point concentration (EPC) is the concentration of asbestos fibers in the air (f/cc) for the specific activity being assessed, time weighting factor (TWF) is the factor accounting for less-than-continuous exposure during a one-year exposure, and inhalation unit risk (IUR) is a value of (f/cc)−1 given by the USEPA [33].
TWF   =   Exposure   Time   ( hours day ) 24 × Exposure   Frequency   ( days years ) 365
Exposure time corresponds to daily activity (exposure) hours, and exposure frequency corresponds to annual activity (exposure) days in the survey of residents living near the abandoned asbestos mines.

3. Results

3.1. Abandoned Asbestos Mines in South Korea

Based on the integrated literature review, there were 38 abandoned asbestos mines in South Korea with a history of asbestos mining and availability of an accurate location. Of these, 19 mines had measured concentrations of airborne NOA in the vicinity. We have mapped these 19 mines in the NOA geological map released by the KME in 2019. The map (Figure 2) shows a regional distribution that is likely to contain NOA on a 1:50,000 scale and was drawn through a review of geological evidence and literature data by the KME. Many abandoned asbestos mines were clustered in rock distribution areas with a high likelihood of NOA concentrations. Both amphibole and serpentine bearing rocks are found in Hongseong-gun, Chungcheongnam-do, whereas both metamorphic sedimentary rocks, including dolomite, siliceous limestone, and lime sedimentary rocks bearing rocks are found in Jecheon-si, Chungcheongbuk-do [36]. We classified these abandoned asbestos mines into two clusters, centered on Chungcheongnam-do (cluster A) and Chungcheongbuk-do (cluster B) (Table 3).

3.2. Airborne NOA Concentrations Near Abandoned Asbestos Mines in South Korea

We calculated the arithmetic mean of the airborne NOA concentration values of the two clusters (Figure 3). The airborne NOA concentration was classified into outdoor, indoor, transportation activity, agricultural activity, and daily life activity according to the type of environmental exposure. The mean airborne NOA concentration of agricultural activity (5.49 × 10−2 f/cc) was the highest in cluster A, whereas that of daily life activity (6.95 × 10−2 f/cc) was the highest in cluster B. The mean airborne NOA concentration of the ABS scenario (transportation/agricultural/daily life activity) exceeded the South Korean exposure limit (dash line, 0.01 f/cc) in both clusters [15]. The mean airborne NOA concentrations of cluster A were higher than those of cluster B, except for daily life activity (TEM).

3.3. Survey of Residents Near the Abandoned Asbestos Mines in South Korea

We calculated the average of the results of surveys of residents living near the abandoned asbestos mines through a pooled analysis. Similar to the concentration data, we classified the data (daily activity hours, annual activity days, first activity age, and duration of activity) into two clusters and calculated the TWF and IUR (Table 4). The values related to ABS are the average of the individual survey response values in the literature. Those surveys for which the number of respondents was not mentioned were excluded from the calculation process. There were no distinct differences between the two clusters. In the ABS scenarios, the TWF was ranked in descending order of transportation, agricultural, and daily life activities in both clusters.

3.4. Health Risk Assessment of Residents Near the Abandoned Asbestos Mines in South Korea

Using the above data, we calculated the ELCR to assess the health risk of residents living near the abandoned asbestos mines (Figure 4). As described above, ELCR can be calculated by multiplying the concentration, TWF, and IUR corresponding to each type of environmental asbestos exposure (transportation, agricultural, and daily life activities). The difference in ELCR between the two clusters showed similar results to those seen for NOA concentrations. The ELCRs of cluster A were higher than those of cluster B, except for daily life activity. The ELCR of agricultural activity (9.71 × 10−5) was highest in cluster A, whereas that of daily life activity (1.08 × 10−4) was highest in cluster B. The ELCR exceeded the KME’s criteria for soil purification (0.0001) for the daily life activity of cluster B [32].

4. Discussion

In this study, we identified abandoned asbestos mines in South Korea and calculated the average airborne NOA concentrations, divided into two representative regions (clusters A and B). The results showed that the mean airborne NOA concentration of several ABS scenario categories (transportation, agricultural, and daily life activities) in both clusters exceeded the environmental exposure limit (0.01 f/cc) in South Korea [15]. We also found that the airborne NOA concentration was higher in the ABS scenarios than the others (outdoor and indoor), which may be because much NOA was scattered when there was soil disturbance. The dispersion of asbestos in soil positively and negatively correlated with wind velocity and water content, respectively [37]. Therefore, the measured NOA concentration with human activities that cause soil disturbance was higher than the measured airborne NOA concentrations in the outdoor and indoor scenarios. There are few detailed prior studies on the difference in airborne NOA concentrations between ABS scenarios. We found that airborne NOA concentrations in agricultural and daily life activities in clusters A and B, respectively, had the highest values. It is speculated that agricultural or daily life activity may cause stronger soil disturbances than transportation activity [36]. When comparing the two clusters, the airborne NOA concentrations in cluster A were generally higher than those in cluster B, which may be due to differences in the mineral properties of asbestos and the mechanism of NOA formation in the clusters. According to the report from the KME, serpentine asbestos (chrysotile) and amphibole asbestos (tremolite and actinolite asbestos) occurred in the Hongseong-eup area of Hongseong-gun (cluster A). Whereas, in the Susan-myeon/Deoksan-myeon area of Jecheon-si (cluster B), amphibole asbestos (tremolite and actinolite asbestos) occurred in metamorphic sedimentary rocks. Serpentine rock has a higher probability of NOA occurrence than metasedimentary rock [36].
Considering global studies of environmental asbestos exposure to residents living near asbestos mines, the concentrations near the mines in Italy and France were 2.5 and 1–17 f/L, respectively. For Canadian mines, the concentration was 46 and 10 f/L in 1974 and 1984, respectively [38]. In the Thetford mine area—the world’s largest asbestos mine in Canada—from 1905 to 1965, an annual average of above 200 f/L was reported [39]. Comparing these concentrations with the results of this study, we found that outdoor results are similar to concentrations near asbestos mines in Italy and France. There are few reports of airborne NOA concentrations for the ABS scenarios used in this study near the abandoned asbestos mines in other countries. The airborne NOA concentrations measured during simulated agricultural activities near the abandoned asbestos mine in Balangero, Italy, ranged within 16–26 f/L with a maximum of 25–40 f/L [40].
Whether through occupational or environmental exposure, asbestos affects human health through inhalation. Inhaled asbestos fibers affect the human body through cellular and molecular effects, such as mechanical damage, the production of reactive oxygen and nitrogen species, change of cellular signal transduction, activation of oncogenes, loss of tumor suppressor genes, and DNA mutation [41]. The ABS guidelines from KME and USEPA consider only the effects of asbestos on the human body through inhalation [32,33]. Therefore, we calculated ELCR to assess the health risks for respiratory carcinogenicity of residents living near the abandoned asbestos mines. The highest ELCR values in the ABS scenarios were agricultural activity (9.71 × 10−5) in cluster A and daily life activity (1.08 × 10−4) in cluster B. ELCR refers to the number of cancer cases that are expected to additionally develop for a given number of people when exposed to a dose specified for carcinogen [42]. The reference value for the airborne NOA concentration was presented from the malignant risk level of 1 in 1,000,000 to 1 in 10,000 people [43]. When ELCR exceeds 0.0001, soil purification in that area is required according to KME [32]. In our results, the ELCR did not exceed this limit for transportation, agricultural, and daily life activities in cluster A. However, it exceeded the KME’s criteria for soil purification (0.0001) for daily life activity in cluster B. Considering this, the risk of carcinogenicity due to NOA near the abandoned asbestos mines is not negligible, and soil restoration work may be required in some areas in South Korea.
It was reported that the incidence rate of malignant mesothelioma was 0.89 per 1000 person-years for residents living near the abandoned asbestos mines in Hongseong-gun (the region in cluster A), Chungcheongnam-do, South Korea, based on the National Health Insurance Database from 2007 to 2018 [44]. The increased risk of mesothelioma in residents living near the asbestos mines has been reported in other countries [7]. In a study of 4768 residents of the Wittenoom town in Australia, the hazard ratio was reported to be 3.88 among those whose age at first residence ≥15 years [45]. Although it was not limited to the vicinity of the mine, in a population-based case-control study in France, the non-occupational asbestos population-attributable risks of pleural mesothelioma were 20.0% (99%; CI: 33.5–73.5%) for men and 38.7% (99%; CI: 8.4–69.0%) for women [46].
As the first limitation of this study, it is difficult to generalize our results to calculations of all abandoned asbestos mines in South Korea. We could only use airborne NOA concentration measurements from 19 of the 38 identified abandoned asbestos mines. However, the mines without measurements were excluded from the precision investigation because the risk of exposure to NOA was low or there was no residential area near it, according to KME guidelines. Therefore, the pooled analyzed measurements are somewhat representative of the airborne NOA exposure concentration near the South Korean abandoned asbestos mines with risk of environmental NOA exposure. The second limitation is that we ignored the individual characteristics of each measurement data (weather, season, etc.) and differences in geological properties between the two clusters. The weather or season in which the airborne NOA concentrations were measured is relevant because the degree of scattering of asbestos in the soil is affected by the wind velocity and humidity in the soil. Similarly, the specific ABS results cannot be generalized to other scenarios, as environmental exposure concentrations due to asbestos depend on both the asbestos soil content in the area and activities performed on it [33]. However, in this study, we tried to ascertain and present the overall intensity of exposure to NOA near the abandoned asbestos mines in South Korea. Therefore, we had to include as much measurement data as possible. The third limitation is that ELCR calculated in this study was simplified; hence, it was difficult to apply to other situations. It was applicable only to specially defined ABS scenario settings. In addition, it did not consider the differences among adults, children, and adolescents, which affected IUR and height of exposure to dispersed NOA. Thus, it is difficult to determine which ABS scenario category is more dangerous by comparing the ELCR in this study. To accurately estimate asbestos exposure considering this aspect, gathering data on NOA in various ABS scenarios [47] and individual history of asbestos exposure is necessary.
Despite these limitations, we attempted to collect almost available data related to environmental asbestos exposure intensity near the abandoned asbestos mines in South Korea. Since 2011, the KME has been compensating environmental asbestos victims by implementing the asbestos damage relief system. The results of this study will help to evaluate the overall asbestos exposure intensity and assess the health risk to residents due to NOA near abandoned asbestos mines in South Korea.

5. Conclusions

We calculated the average airborne NOA concentrations by collecting as much published data as possible and evaluated the health risk via ELCR in South Korea. The results indicated that the estimated exposure measurements via the ABS method of NOA exceeded the current environmental exposure limits in South Korea, and health damage to residents living near the abandoned asbestos mines was not negligible. Therefore, there is a requirement for continuous monitoring and cleanup work for asbestos contamination near the abandoned asbestos mines.

Author Contributions

Conceptualization, S.L., S.-Y.K. and D.K.; methodology, D.K.; software, S.L.; validation, S.-Y.K.; formal analysis, S.L. and Y.-J.K.; investigation, D.K.; resource, D.K.; data curation, S.L, S.-Y.K. and D.K.; visualization, S.L. and Y.-J.K.; supervision, Y.K.; project administration, D.K.; writing—original draft, S.L.; writing—review and editing, S.-Y.K.; All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by The Ministry of Environment of Korea, grant number 2019100E667.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data of published paper used in this study is available from reference [21,22,24,25,29]. The data of report is available from the Korean Ministry of the Environment (KME). However, this data is available with the approval of the KME.

Acknowledgments

This research was supported by a grant from The Ministry of Environment of Korea titled “Estimation method development of asbestos exposure intensity in Korea”.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dyken, J.J.; Wheeler, J.S. ATSDR’s Experience with Community Exposure to “Naturally Occurring Asbestos”. J. Environ. Health 2008, 70, 74–76. Available online: http://www.jstor.org/stable/26327638 (accessed on 28 April 2021).
  2. Baumann, F.; Ambrosi, J.P.; Carbone, M. Asbestos is not just asbestos: An unrecognised health hazard. Lancet Oncol. 2013, 14, 576–578. [Google Scholar] [CrossRef]
  3. Bourgault, M.H.; Gagné, M.; Valcke, M. Lung cancer and mesothelioma risk assessment for a population environmentally exposed to asbestos. Int. J. Hyg. Environ. Health 2014, 217, 340–346. [Google Scholar] [CrossRef]
  4. Kurumatani, N.; Kumagai, S. Mapping the risk of mesothelioma due to neighborhood asbestos exposure. Am. J. Respir. Crit. Care Med. 2008, 178, 624–629. [Google Scholar] [CrossRef] [PubMed]
  5. Awad, A.H.A. Airborne asbestos fibres and mesothelioma in the last 20 years in Egypt: A review. Atmos. Pollut. Res. 2011, 2, 445–451. [Google Scholar] [CrossRef] [Green Version]
  6. Abakay, A.; Tanrikulu, A.C.; Ayhan, M.; Imamoglu, M.S.; Taylan, M.; Kaplan, M.A.; Abakay, O. High-risk mesothelioma relation to meteorological and geological condition and distance from naturally occurring asbestos. Environ. Health Prev. Med. 2016, 21, 82–90. [Google Scholar] [CrossRef]
  7. Konen, T.; Johnson, J.E.; Lindgren, P.; Williams, A. Cancer incidence and mortality associated with non-occupational and low dose exposure to Libby vermiculite in Minnesota. Environ. Res. 2019, 175, 449–456. [Google Scholar] [CrossRef] [PubMed]
  8. Krówczyńska, M.; Wilk, E. Asbestos exposure and the mesothelioma incidence in Poland. Int. J. Environ. Res. Public Health 2018, 15, 1741. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  9. Noonan, C.W. Environmental asbestos exposure and risk of mesothelioma. Ann. Transl. Med. 2017, 5, 234–244. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  10. Vimercati, L.; Cavone, D.; Lovreglio, P.; De Maria, L.; Caputi, A.; Ferri, G.M.; Serio, G. Environmental asbestos exposure and mesothelioma cases in Bari, Apulia region, southern Italy: A national interest site for land reclamation. Environ. Sci. Pollut. Res. Int. 2018, 25, 15692–15701. [Google Scholar] [CrossRef] [Green Version]
  11. Visonà, S.D.; Villani, S.; Manzoni, F.; Chen, Y.; Ardissino, G.; Russo, F.; Moretti, M.; Javan, G.T.; Osculati, A. Impact of asbestos on public health: A retrospective study on a series of subjects with occupational and non-occupational exposure to asbestos during the activity of Fibronit plant (Broni, Italy). J. Public Health Res. 2018, 7, 1519–1524. [Google Scholar] [CrossRef] [Green Version]
  12. Xu, R.; Barg, F.K.; Emmett, E.A.; Wiebe, D.J.; Hwang, W.T. Association between mesothelioma and non-occupational asbestos exposure: Systematic review and meta-analysis. Environ. Health 2018, 17, 90–103. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  13. Yoon, Y.R.; Kwak, K.M.; Choi, Y.; Youn, K.; Bahk, J.; Kang, D.M.; Paek, D. The asbestos ban in Korea from a grassroots perspective: Why did it occur? Int. J. Environ. Res. Public Health 2018, 15, 198. [Google Scholar] [CrossRef] [Green Version]
  14. Kang, D.M.; Kim, J.E.; Kim, J.Y.; Lee, H.H.; Hwang, Y.S.; Kim, Y.K.; Lee, Y.J. Environmental asbestos exposure sources in Korea. Int. J. Occup. Environ. Health 2016, 22, 307–314. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Kim, H.R. Overview of asbestos issues in Korea. J. Korean Med. Sci. 2009, 24, 363–367. [Google Scholar] [CrossRef] [Green Version]
  16. Lee, M.H. Study on the evaluation standards for the ranking of the precise investigation to asbestos asbestos-contaminated abandoned mines, Korea. Econ. Environ. Geol. 2010, 43, 393–400. (In Korean) [Google Scholar]
  17. Kim, H.W.; Paik, N.W.; Song, S.H.; Kim, H.R.; Lee, S.C.; Lee, Y.G.; Kim, Y.G.; Pi, Y.G.; Kang, D.M.; Lim, Y. Basic Research to Investigate the Health Effects of Asbestos Exposure of Neighboring Residents Such as Asbestos Factories and Mines; Lee, S., Translator; National Institute of Environmental Research: Incheon, Korea, 2009. (In Korean) [Google Scholar]
  18. Korean Ministry of the Environment. Investigation of Asbestos-Containing Soil, Groundwater near the Abandoned Asbestos Mine; Lee, S., Translator; Korean Ministry of the Environment: Sejong, Korea, 2010. (In Korean) [Google Scholar]
  19. Korean Ministry of the Environment. Investigation of Asbestos-Containing Soil, Groundwater near the Abandoned Asbestos Mine in 2010; Lee, S., Translator; Korean Ministry of the Environment: Sejong, Korea, 2010. (In Korean) [Google Scholar]
  20. Korean Ministry of the Environment. Investigation of Asbestos-Containing Soil, Groundwater near the Abandoned Asbestos Mine in 2011; Lee, S., Translator; Korean Ministry of the Environment: Sejong, Korea, 2011. (In Korean) [Google Scholar]
  21. Shin, J.H.; Lee, S.C.; Chung, S.N.; Oh, S.R.; Kim, N.J.; Hwang, S.Y.; Kim, J.H.; Nam, E.J.; Eom, S.W.; Chae, Y.Z. Asbestos investigation of an inactive mine in Chungbuk, Korea. J. Environ. Anal. Health Toxicol. 2011, 14, 110–119. (In Korean) [Google Scholar]
  22. Yoon, Y.S. Comparison of Asbestos Exposure and Risk Assessment According to the Type of Asbestos Mine in Korea. Master’s Thesis, Catholic University Graduate School of Public Health, Seoul, Korea, 2011. (In Korean). [Google Scholar]
  23. Korean Ministry of the Environment. Investigation near the Abandoned Asbestos Mine in 2012; Lee, S., Translator; Korean Ministry of the Environment: Sejong, Korea, 2012. (In Korean) [Google Scholar]
  24. Shin, J.H.; Oh, S.R.; Hwang, S.Y.; Chung, S.N.; Kim, J.H.; Nam, E.J.; Lee, J.H.; Choi, H.J.; Eom, S.W.; Chae, Y.Z.; et al. Asbestos exposure and health risk asessment for the residents near the abandoned mining area in Chungbuk, Korea. J. Korean Soc. Environ. Eng. 2012, 34, 345–350. (In Korean) [Google Scholar] [CrossRef]
  25. Shin, J.H.; Park, C.H. A Study on Risk Assessment and Management Plan of Abandoned Asbestos Mine in Korea. Ph.D. Thesis, University of Seoul, Seoul, Korea, 2012. (In Korean). [Google Scholar]
  26. Korean Ministry of the Environment. Investigation near the Abandoned Asbestos Mine in 2013; Lee, S., Translator; Korean Ministry of the Environment: Sejong, Korea, 2013. (In Korean) [Google Scholar]
  27. Korean Ministry of the Environment. Investigation near the Abandoned Asbestos Mine in 2014; Lee, S., Translator; Korean Ministry of the Environment: Sejong, Korea, 2014. (In Korean) [Google Scholar]
  28. Korean Ministry of the Environment. Investigation near the Abandoned Asbestos Mine in 2015; Lee, S., Translator; Korean Ministry of the Environment: Sejong, Korea, 2015. (In Korean) [Google Scholar]
  29. Lee, J.H.; Kim, D.J.; Choi, S.W.; Kim, H.W. Asbestos exposure and risk assessment by ABS (activity based sampling) for former asbestos mining areas in Korea. J. Korean Soc. Occup. Environ. Hyg. 2015, 25, 72–81. (In Korean) [Google Scholar] [CrossRef] [Green Version]
  30. Geum-River Basin Environmental Office. Investigation of the Impact of Post-Environmental Pollution near the Abandoned Asbestos Mine in 2018; Lee, S., Translator; Geum-River Basin Environmental Office: Daejeon, Korea, 2018. (In Korean) [Google Scholar]
  31. Wonju Regional Environmental Office. Investigation of the Impact of Post-Environmental Pollution near the I-Hwa Asbestos Mine in 2019; Lee, S., Translator; Wonju Regional Environmental Office: Gangwon-do, Korea, 2019. (In Korean) [Google Scholar]
  32. Ministry of the Environment Soil Environment Management Guidelines for Asbestos Producing Area Such as Asbestos Mine. Available online: http://www.me.go.kr/home/file/readDownloadFile.do?fileId=6430&fileSeq=1 (accessed on 1 February 2021). (In Korean).
  33. United States Environmental Protection Agency (EPA) Framework for Investigating Asbestos-Contaminated Superfund Sites. Available online: https://semspub.epa.gov/work/03/2218796.pdf (accessed on 1 February 2021).
  34. Januch, J.; Brattin, W.; Woodbury, L.; Berry, D. Evaluation of a fluidized bed asbestos segregator preparation method for the analysis of low-levels of asbestos in soil and other solid media. Anal. Methods. 2013, 5, 1658–1668. [Google Scholar] [CrossRef]
  35. United States Environmental Protection Agency (EPA) Standard Operating Procedures for Activity-Based Air Sampling for Asbestos (SOP 2084). Available online: https://semspub.epa.gov/work/HQ/174392.pdf (accessed on 1 February 2021).
  36. Korean Ministry of the Environment. A Study on the Preparation of Naturally Generated Asbestos Precision Geological Map (III); Lee, S., Translator; Korean Ministry of the Environment: Sejong, Korea, 2016. (In Korean) [Google Scholar]
  37. Kim, I.J.; Kim, J.W.; Ryu, H.S.; Jung, M.C. Friable test and risk assessment for asbestos in soils using the releasable asbestos sampler (RAS). J. Soil Groundw. Environ. 2012, 17, 68–74. (In Korean) [Google Scholar] [CrossRef]
  38. Kang, D.M. Health effects of environmental asbestos exposure. J. Environ. Health Sci. 2009, 35, 71–77. (In Korean) [Google Scholar] [CrossRef]
  39. Camus, M.; Siemiatycki, J.; Meek, B. Nonoccupational exposure to chrysotile asbestos and the risk of lung cancer. N. Engl. J. Med. 1998, 338, 1565–1571. [Google Scholar] [CrossRef]
  40. Turci, F.; Favero-Longo, S.E.; Gazzano, C.; Tomatis, M.; Gentile-Garofalo, L.; Bergamini, M. Assessment of asbestos exposure during a simulated agricultural activity in the proximity of the former asbestos mine of Balangero, Italy. J. Hazard. Mater. 2016, 308, 321–327. [Google Scholar] [CrossRef]
  41. Solbes, E.; Harper, R.W. Biological responses to asbestos inhalation and pathogenesis of asbestos-related benign and malignant disease. J. Investig. Med. 2018, 66, 721–727. [Google Scholar] [CrossRef]
  42. Pawełczyk, A.; Božek, F. Health risk associated with airborne asbestos. Environ. Monit. Assess. 2015, 187, 428–438. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. United States Environmental Protection Agency (EPA) Intergrated Risk Information System (IRIS), Chemical Assessment Summary, Asbestos; CASRN 1332-21-4. Available online: https://cfpub.epa.gov/ncea/iris/iris_documents/documents/subst/0371_summary.pdf (accessed on 1 February 2021).
  44. Kwak, K.; Zoh, K.; Paek, D. Incidence of cancer and asbestos-related diseases among residents living near abandoned asbestos mines in South Korea: A retrospective cohort study using National Health Insurance Database. Int. J. Environ. Res. Public Health 2021, 18, 875. [Google Scholar] [CrossRef]
  45. Reid, A.; Berry, G.; de Klerk, N.; Hansen, J.; Heyworth, J.; Ambrosini, G.; Fritschi, L.; Olsen, N.; Merler, E.; Musk, A.W. Age and sex differences in malignant mesothelioma after residential exposure to blue asbestos (crocidolite). Chest 2007, 131, 376–382. [Google Scholar] [CrossRef] [Green Version]
  46. Lacourt, A.; Gramond, C.; Rolland, P.; Ducamp, S.; Audignon, S.; Astoul, P.; Chamming’s, S.; Gilg Soit Ilg, A.; Rinaldo, M.; Raherison, C.; et al. Occupational and non-occupational attributable risk of asbestos exposure for malignant pleural mesothelioma. Thorax 2014, 69, 532–539. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  47. Cely-García, M.F.; Lysaniuk, B.; Pasetto, R.; Ramos-Bonilla, J.P. The challenges of applying an activity-based sampling methodology to estimate the cancer risk associated with asbestos contaminated landfilled zones. Environ. Res. 2020, 181, 108893. [Google Scholar] [CrossRef] [PubMed]
Ijerph 18 05225 g001 550

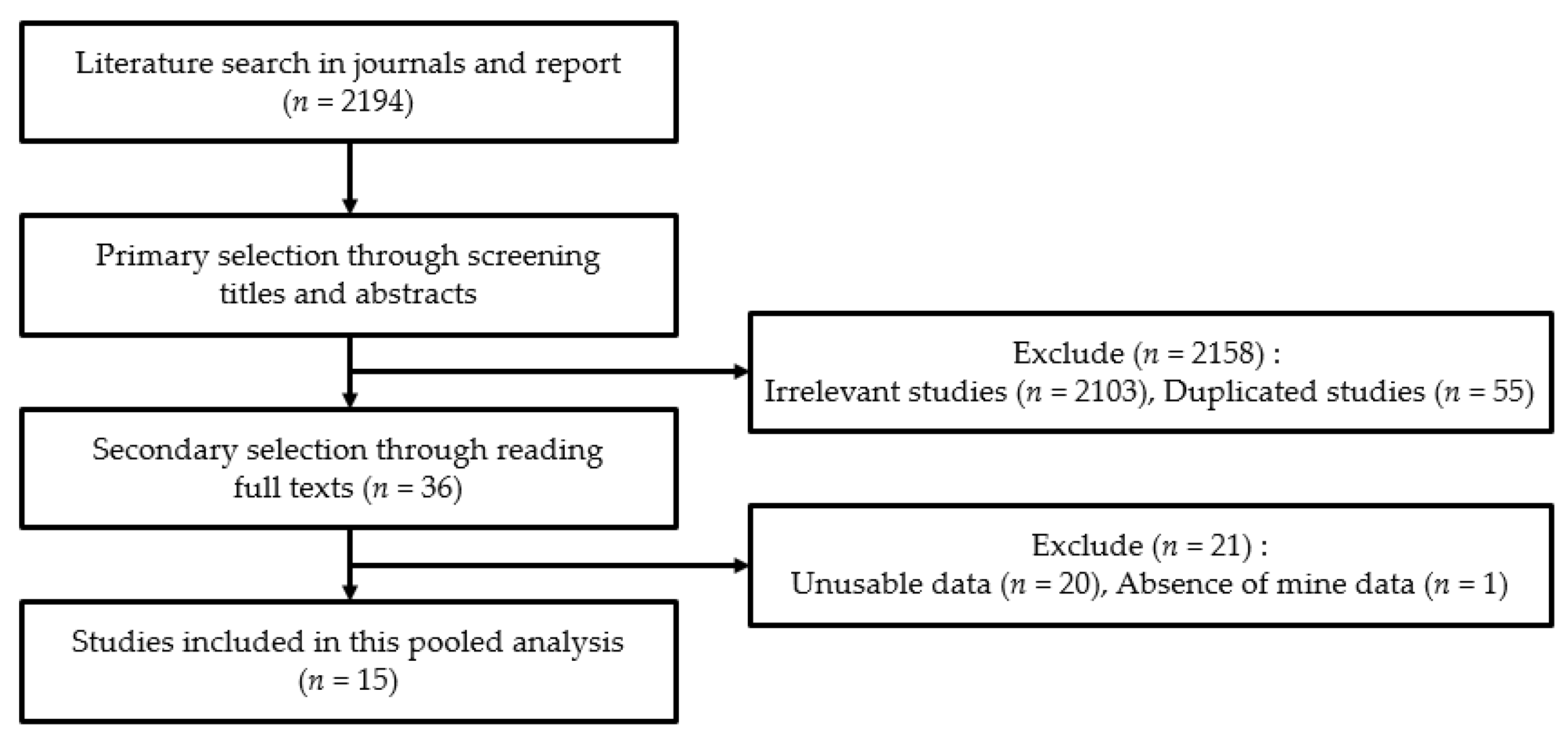

Figure 1. Literature selection procedure.
Figure 1. Literature selection procedure.
Ijerph 18 05225 g001
Ijerph 18 05225 g002 550

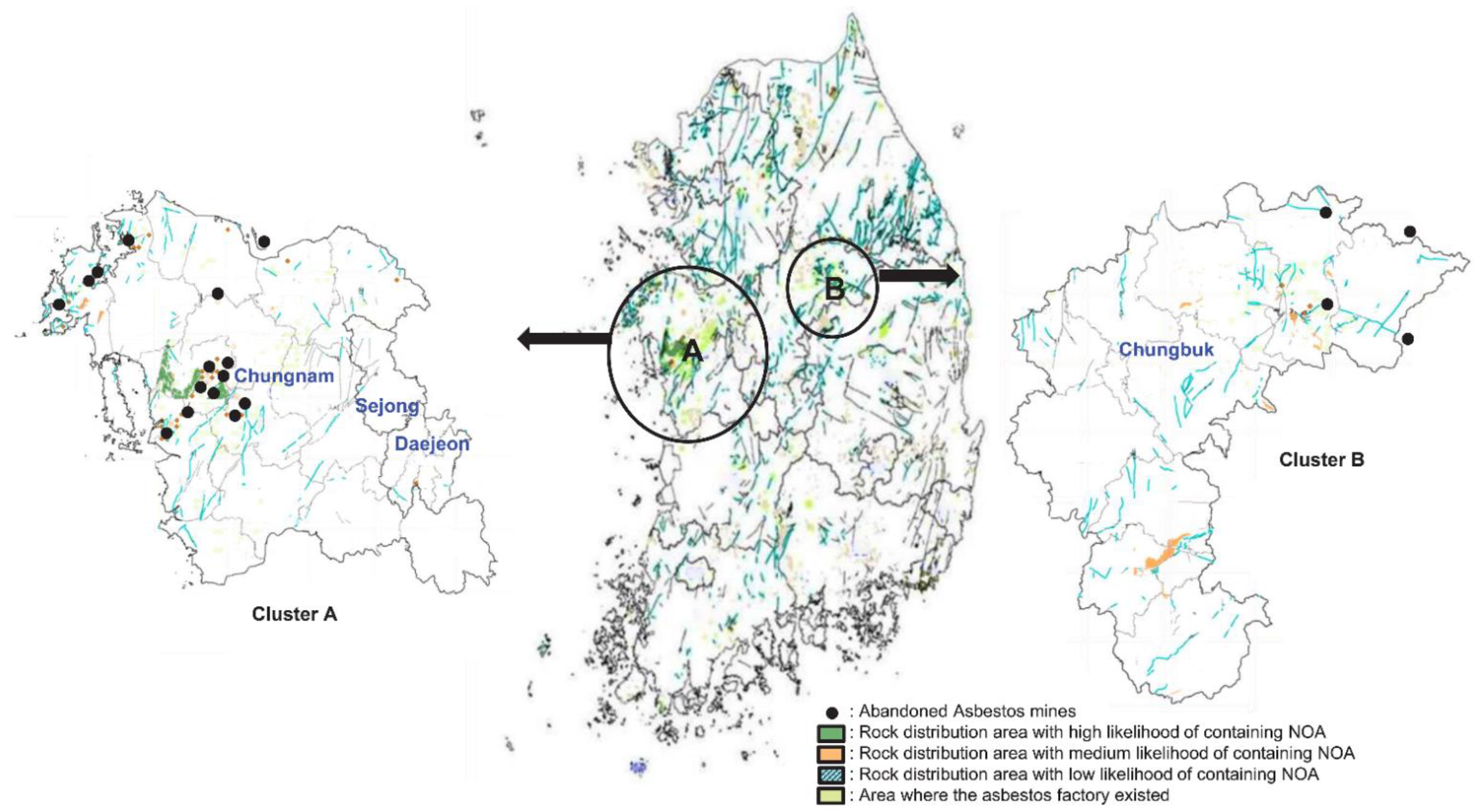

Figure 2. Location map of abandoned asbestos mines included in the pooled analysis in South Korea. (Map source: Asbestos Management Comprehensive Information Network; https://asbestos.me.go.kr, accessed on 22 April 2021).
Figure 2. Location map of abandoned asbestos mines included in the pooled analysis in South Korea. (Map source: Asbestos Management Comprehensive Information Network; https://asbestos.me.go.kr, accessed on 22 April 2021).
Ijerph 18 05225 g002
Ijerph 18 05225 g003 550

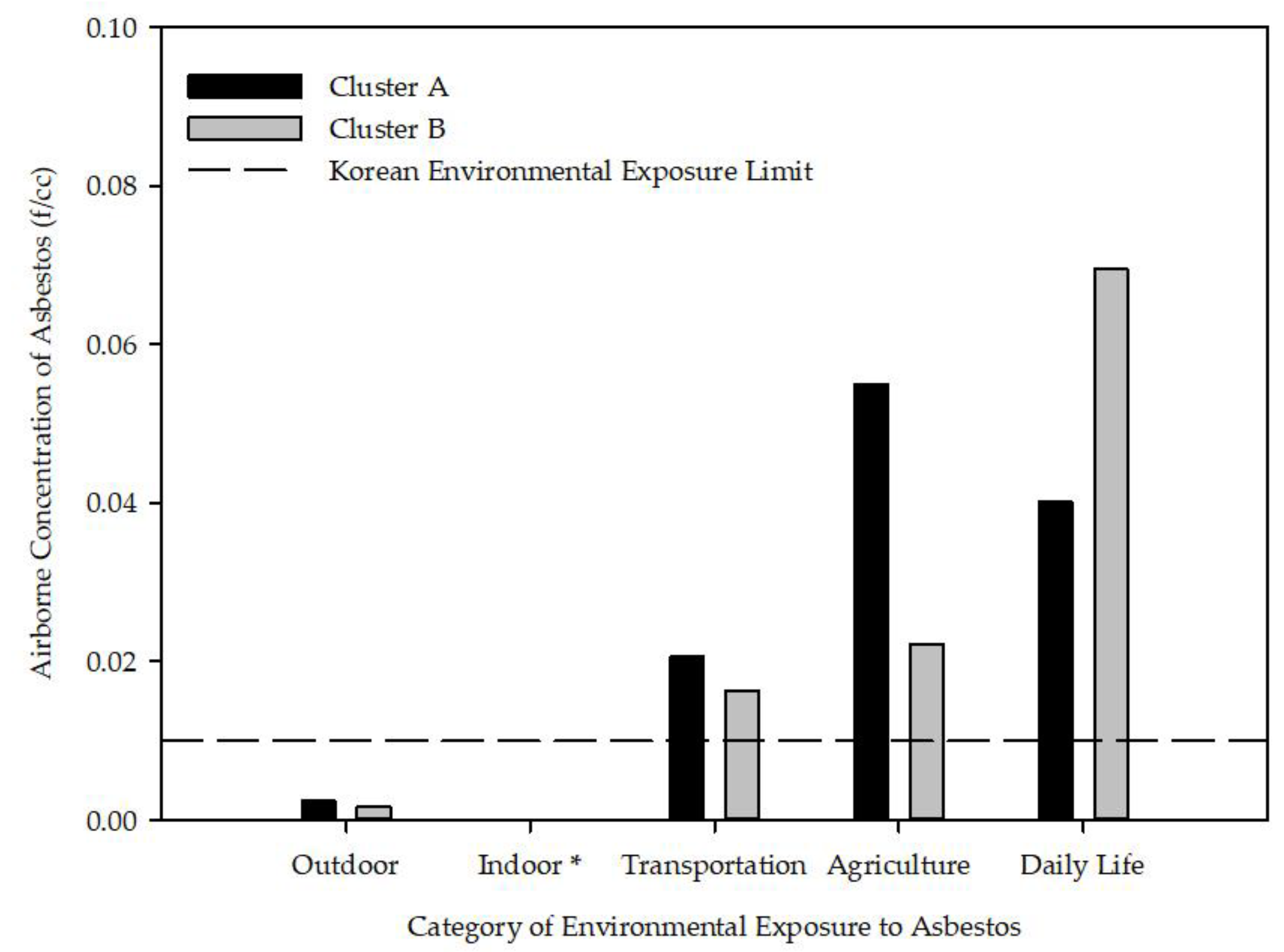

Figure 3. Airborne NOA concentrations of the abandoned asbestos mines in South Korea. * Airborne NOA concentration for indoor was too low to show in this figure (<0.0001 f/cc).
Figure 3. Airborne NOA concentrations of the abandoned asbestos mines in South Korea. * Airborne NOA concentration for indoor was too low to show in this figure (<0.0001 f/cc).
Ijerph 18 05225 g003
Ijerph 18 05225 g004 550

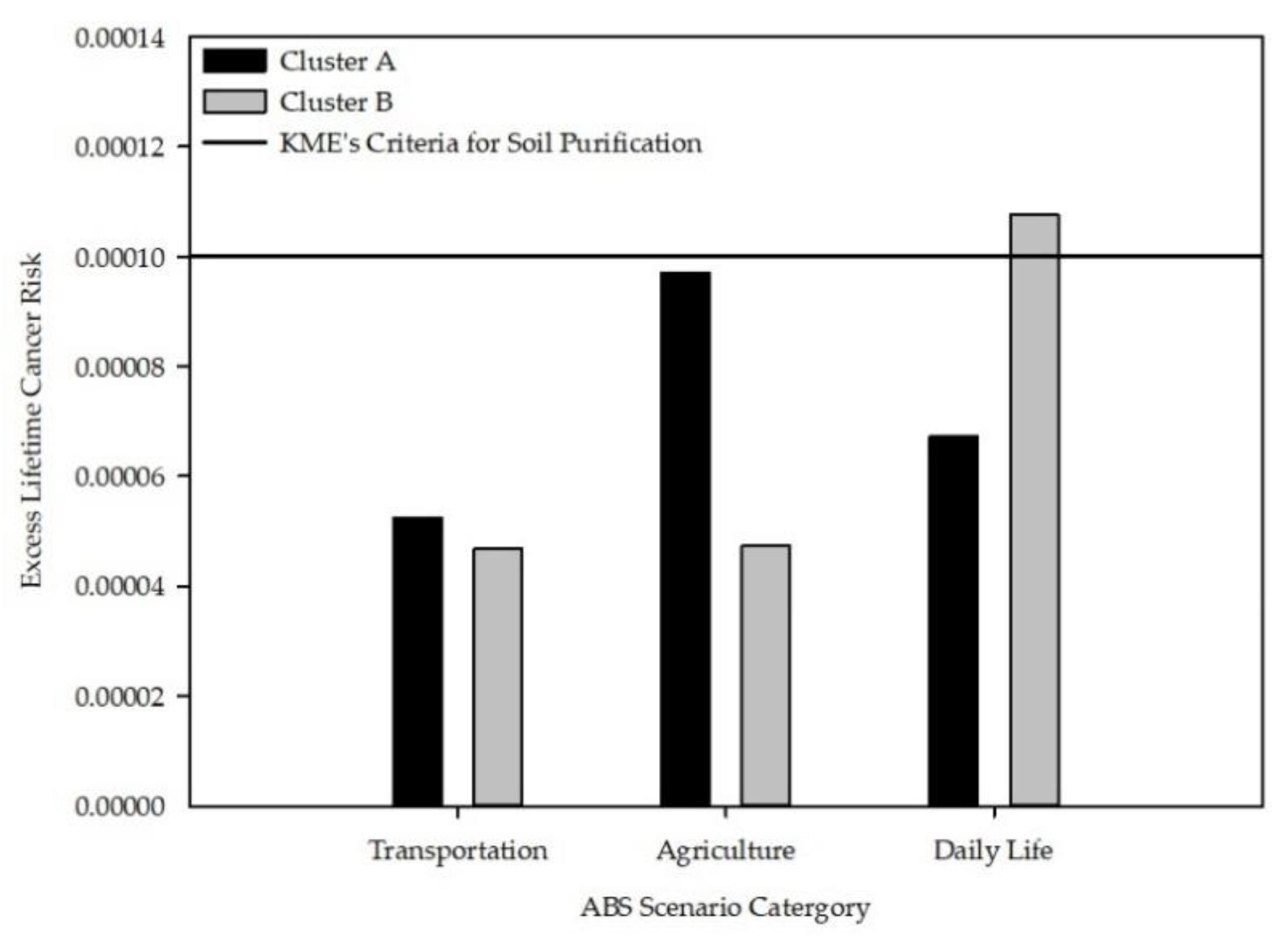

Figure 4. ELCR for health risk assessment of residents near abandoned asbestos mines in South Korea.
Figure 4. ELCR for health risk assessment of residents near abandoned asbestos mines in South Korea.
Ijerph 18 05225 g004
Table
Table 1. The characteristics of studies included in the pooled analysis.
Table 1. The characteristics of studies included in the pooled analysis.
No.Author or Publisher/YearMineEnvironmental Exposure TypeSurvey *
1Kim et al., 2009 [17]Gwang-Cheon 1Outdoor, WalkingNo
2Korean Ministry of the Envrionment, 2010a [18]Gwang-Cheon 1, Sin-Seog, Dong-AOutdoor, Indoor, Bicycle, Motorcycle, Car, Cultivator, Walking, Weeding, Weed whacking, Digging, Field sweeping, Physical training, Children playing in the dirtYes
3Korean Ministry of the Envrionment, 2010b [19]Dong-A, Hong-Dong-Baek-Dong, Hong-Dong-Gwang-SiOutdoor, Indoor, Bicycle, Motorcycle, Cultivator, Walking, Weeding, Weed whacking, Digging, Field sweeping, Physical training,Yes
4Korean Ministry of the Envrionment, 2011 [20]Bi-Bong, Yang-Sa, Shin-DeokOutdoor, Bicycle, Motorcycle, Car, Cultivator, Walking, Weeding, Weed whacking, Digging, Field sweeping, Physical training,Yes
5Shin et al., 2011 [21]Dong-AOutdoorYes
6Yoon, 2011 [22]Gwang-Cheon 1, Sin-Seog, Dong-AOutdoor, Motorcycle, Cultivator, Walking, Weeding, Digging, Field sweepingYes
7Korean Ministry of the Envrionment, 2012 [23]Bong-Hyun, Wol-Rim, Dae-Heung-Hong-Dong, Sin-Gok-Ri, Hyun-DeokOutdoor, Indoor, Bicycle, Motorcycle, Car, Cultivator, Walking, Weeding, Weed whacking, Digging, Field sweeping, Physical training, Children playing in the dirtYes
8Shin et al., 2012a [24]Dong-AOutdoor, Bicycle, Car, Weeding, Weed whacking, Field sweepYes
9Shin et al., 2012b [25]Dong-A, Shin-DeokOutdoor, Bicycle, Car, Weeding, Weed whacking, Digging, Field sweepingYes
10Korean Ministry of the Envrionment, 2013 [26]Cheong-San-Ri, Dae-Cheon-Ri, Hong-SeongOutdoor, Indoor, Bicycle, Motorcycle, Car, Cultivator, Walking, Weeding, Weed whacking, Digging, Field sweepingYes
11Korean Ministry of the Envrionment, 2014 [27]Gwang-Cheon 2, Jae-JeongOutdoor, Indoor, Bicycle, Motorcycle, Car, Cultivator, Walking, Weeding, Weed whacking, Digging, Field sweepingYes
12Korean Ministry of the Envrionment, 2015 [28]Young-Jin, Sin-SeonOutdoor, Indoor, Bicycle, Motorcycle, Car, Cultivator, Walking, Weeding, Weed whacking, Digging, Field sweeping, Physical trainingYes
13Lee et al., 2015 [29]Gwang-Cheon 1, Sin-SeogOutdoor, Bicycle, Motorcycle, Car, Cultivator, Walking, Weeding, Weed whacking, Digging, Field sweeping, Physical training, Children playing in the dirt Yes
14Geum-River Basin Environmental Office, 2018 [30]Sin-SeogOutdoor, Indoor, Bicycle, Motorcycle, Cultivator, Walking, Weeding, Digging, Field sweepingYes
15Wonju Regional Environmental Office, 2019 [31]I-WhaOutdoor, Indoor, Bicycle, Motorcycle, Car, Cultivator, Waling, Weeding, Weed whacking, Digging, Field sweeping, Physical trainingYes
* Survey including daily activity (exposure) hours, annual activity (exposure) days, first activity (exposure) age, and duration of activity (exposure) of residents living near abandoned asbestos mines in South Korea.
Table
Table 2. ABS method classification in this study.
Table 2. ABS method classification in this study.
ABS Scenario CategoryABS Method
Transportation ActivityBicycle, Motorcycle, Car, Cultivator, Walking
Agricultural ActivityWeeding, Weed whacking, Digging
Daily Life ActivityField sweeping, Physical training, Children playing in the dirt
Table
Table 3. Location and number of survey respondents of the abandoned asbestos mines in South Korea.
Table 3. Location and number of survey respondents of the abandoned asbestos mines in South Korea.
ClusterAdministrative DistrictAsbestos MineNumber of Survey Respondents
Province (do)City (Si), County (Gun)ABS Scenario Category
Transportation ActivityAgricultural ActivityDaily Life Activity
AChungcheongnam-doBoryeong-siJae-Jeong342716
Sin-Seog16317786
Cheongyang-gunBi-Bong
Yang-Sa		1048126
Godeok-myeonDae-Cheon-Ri867113
Hongseong-gunDae-Heung-Hong-Dong
Wol-Rim		1118250
Gwang-Cheon1216203157
Hong-Dong-Baek-Dong366361
Hong-Seong864013
Seosan-siGwang-Cheon2342716
Taean-gunCheong-San-Ri755214
Shin-Deok917326
Young-Jin864013
Gyeonggi-doPyeongtaek-siHyun-Deok674530
BChungcheongbuk-doJecheon-siDong-A192276113
Sin-Seon1158231
Gangwon-doYeongwol-gunI-WhaNot mentioned in the literature *
Gyeongsangbuk-doYeongju-siBong-Hyun936129
* Number of survey respondents was not found in the literature.
Table
Table 4. TWF and IUR based on survey results of residents near the abandoned asbestos mines in South Korea.
Table 4. TWF and IUR based on survey results of residents near the abandoned asbestos mines in South Korea.
Cluster ABS Scenario Category
Transportation Activity (Value/n *)Agricultural Activity (Value/n *)Daily Life Activity (Value/n *)
ATWF0.0412470.0310950.02568
IUR0.0570.0570.083
BTWF0.054000.044190.02173
IUR0.0570.060.069
* = number of respondents.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Lee, S.; Kang, D.; Kim, Y.; Kim, Y.-J.; Kim, S.-Y. Activity-Based Exposure Levels and Cancer Risk Assessment Due to Naturally Occurring Asbestos for the Residents Near Abandoned Asbestos Mines in South Korea. Int. J. Environ. Res. Public Health 2021, 18, 5225. https://doi.org/10.3390/ijerph18105225

AMA Style

Lee S, Kang D, Kim Y, Kim Y-J, Kim S-Y. Activity-Based Exposure Levels and Cancer Risk Assessment Due to Naturally Occurring Asbestos for the Residents Near Abandoned Asbestos Mines in South Korea. International Journal of Environmental Research and Public Health. 2021; 18(10):5225. https://doi.org/10.3390/ijerph18105225

Chicago/Turabian Style

Lee, Seungho, Dongmug Kang, Youngki Kim, Yoon-Ji Kim, and Se-Yeong Kim. 2021. "Activity-Based Exposure Levels and Cancer Risk Assessment Due to Naturally Occurring Asbestos for the Residents Near Abandoned Asbestos Mines in South Korea" International Journal of Environmental Research and Public Health 18, no. 10: 5225. https://doi.org/10.3390/ijerph18105225

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
