Article

Evidence-Based Design for Waiting Space Environment of Pediatric Clinics—Three Hospitals in Shenzhen as Case Studies

Department of Architecture, School of Architecture and Urban Planning, Shenzhen University, Shenzhen 518060, China
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2021, 18(22), 11804; https://doi.org/10.3390/ijerph182211804
Submission received: 28 September 2021 / Revised: 3 November 2021 / Accepted: 5 November 2021 / Published: 11 November 2021

Abstract

:
This study explores the waiting space environment of pediatric clinics in general hospitals and the relationships between the use of space, behavioral activities and overall satisfaction. Patients often spend a lot of time waiting for doctors, and child patients waiting to be seen are particularly likely to feel bored, depressed and anxious, which negatively affects their overall experience of seeking medical attention. Since the launch of China’s second-child policy, the number of children born in China has surged. As medical resources for children are in short supply and of uneven quality, it is urgently necessary to carry out research on optimizing the design of children’s waiting space in Chinese hospitals to improve their medical environment and experience. Method: This study identified four first-level indicators and twenty-seven second-level indicators in four dimensions: functional layout (layout and area), flow organization, supporting facilities and environmental details (physical and landscape environment). The research combined subjective and objective methods, including comprehensive observation, a questionnaire survey and interviews, taking three hospitals in Shenzhen as case studies. Results: The study found that the waiting space in pediatric clinics currently fails to meet key patient needs in areas such as mother and infant rooms, children’s play areas and drinking water facilities, and there are widespread problems with the creation of natural environments, such as views of natural scenery from windows and indoor green plants. Six factors were found to significantly positively influence overall satisfaction with waiting space, describing 69.76% of the changes in the respondents’ degree of satisfaction with the waiting environment. Supporting facilities and aspects of the physical environment had the greatest influence on overall satisfaction with the waiting space. Conclusion: Optimizing the design of the waiting space in pediatric clinics, with a focus on functional layout, flow organization, supporting facilities and environmental details, can improve overall satisfaction with pediatric waiting rooms. The results are preliminary; they need to be further tested in practice to complete the process of evidence-based design. This will lead to suggestions for refining the design of pediatric waiting units which can be used by architects and hospital administrators.

1. Background and Research Goals

1.1. Evidence-Based Design

Evidence-based design originated from evidence-based medicine and is now a mature theoretical system. The basic goal of evidence-based design is to prudently use the best available evidence from multiple sources or parties to make design decisions. According to supportive design theory, a good medical environment design can alleviate patients’ pressure [1]. Design goals include exposure to nature and art and appropriate ceiling design, acoustics and color. Supportive design theory is applicable to childcare settings [2]. Providing positive resources and conditions, such as control, distraction and social interaction, can reduce or even prevent children’s environmental stress [3]. A well-designed physical environment can help patients achieve better treatment results [4].
(1)
Functional layout
A large and spacious waiting room may increase patients’ perceptions of care quality and comfort, as well as their overall satisfaction [5]. Conversely, a crowded waiting room can increase patients’ annoyance and degree of pain [6]. However, privacy is also a crucial element of waiting room design. When social interaction is not required, a large space may seem to lack privacy [7]. Studies have shown that users prefer waiting rooms with self-help family resource centers [8] and children’s play spaces, to help meet children’s psychological needs [9].
(2)
Flow organization
While waiting for medical attention in a pediatric department, patients may need to use the restrooms, drinking water facilities, spaces for children and other supporting functional facilities. The ideal hospital layout minimizes patients’ transfer distance [10]. Space syntax is one of the most widely used design toolkits in this context; it aims to simplify users’ wayfinding in healthcare centers [11]. The distance from the waiting area to the consulting room and the number of intersections are important determinants of wayfinding. Design elements such as symbols, permanent signage, printed materials, landmarks and architectural features provide assistance for wayfinding [12,13]. Rich colors may also help users to identify specific parts of the building [14] and flowline the organization of space.
(3)
Supporting facilities
When waiting for medical attention, being able to sit next to one’s companions, such as friends or family members, is extremely important [15]. In the wayfinding system, signs, maps, display boards, information desks, furniture, color-coded pathfinding designs, etc., all play positive roles [8,16]. Visual art (especially paintings) also plays an important role in medical space design and atmosphere creation [17]. In terms of decorations, the presence of artwork can enhance the overall satisfaction of patients through its impact on their mood, stress, comfort and expectations [18]. In addition, soothing music can reduce the stress associated with waiting and improve the overall waiting experience for patients [5].
(4)
Environmental Details
Relevant environmental details include windows and natural lighting and aspects of the physical indoor environment (indoor plants, light sources, sounds, odors, colors), which affect the perceptions of patients, staff and caregivers of the waiting room environment [19]. Windows and natural lighting: A sufficient number of windows is correlated with patient well-being [20]. Natural light and a quiet environment have a significant positive correlation with children’s satisfaction with space [21]. The degree of transparency of the indoor–outdoor boundary is significantly positively correlated with patients’ preferences [22]. The access of nursing staff to natural scenery and natural lighting may have a direct or indirect impact on the effectiveness of patient treatment [23]. Indoor physical environment: If real plants cannot be installed indoors, artificial plants can improve patients’ perceptions of the space [19]. Patients prefer warm artificial light sources [24]. In addition, high-intensity light can relieve patients’ depression [25]. The presence of either music or pleasant odors in the environment has been found to significantly reduce patients’ anxiety [26]. Safety, elegance, comfort, spaciousness, simplicity and brightness are the six factors affecting the perceived comfort of a room for mothers and infants. Users have been found to give higher comfort scores to rooms in warm colors such as orange or yellow [27].

1.2. Pediatric Waiting Rooms

In terms of architectural design, functionality and connectivity are the most important elements of the waiting space in pediatric clinics [8]. As noise made by children, such as crying, may affect other patients [28], it is vital to offer an appealing environment that holds the attention of child patients [29]. For example, the use of an interactive media display may improve the waiting experience for child patients and other visitors [30]. It has been reported that passive distraction can reduce patients’ anxiety and pain and reduce perceived waiting time [31]. In a study conducted at the Royal Children’s Hospital in Melbourne, environmental characteristics were found to enhance patients’ willingness to visit the hospital and even improve their health [32]. Exposure to nature, music and art, as well as uncrowded and peaceful environments, can enhance the pediatric healthcare building environment [33]. Meanwhile, teenage patients preferred bright colors [34] and emphasized their need for privacy in waiting rooms [35].

1.3. Research Question and Purpose

The literature [5,33] has demonstrated the effectiveness of evidence-based design as a scientific method of studying medical buildings. However, most recent research [17,19,36] has focused on emergency departments, nursing units, functional spaces and natural landscapes, rather than waiting spaces. There has been no clear account of specific factors in the pediatric waiting environment that can improve patients’ waiting experience and increase their satisfaction with the waiting process. Therefore, based on the method of evidence-based design, this study used a combination of subjective and objective methods to examine pediatric waiting spaces, collect users’ preferences and analyze the correlation between spatial elements and waiting satisfaction in pediatric clinics.
Based on evidence-based design theory, the key research question was as follows: What factors can make the pediatric waiting space environment more attractive to users? Based on the results of pre-investigation experiments, this key question was transformed into researchable questions via a dendritic structure. As a result, multiple questions emanated from one question, leading to four first-level indicators and twenty-seven second-level indicators as the evidence-based elements of this research (Figure 1).

2. Method

2.1. Observation

The research objects in this study were the pediatric waiting areas of three general hospitals in Shenzhen, China: The University of Hong Kong (HKU) Shenzhen Hospital, Shenzhen University (SZU) General Hospital and the Huazhong University of Science and Technology (HUST) Union Shenzhen Hospital (Table 1).
This study observed the specific content of 27 elements in each of the three hospitals from 08:30 to 17:30 in November 2020, using the field survey template shown in Table 2. The behavior patterns of the people waiting were also recorded.

2.2. Questionnaire

After the participants had signed an informed consent form, they completed a questionnaire evaluating their satisfaction with the waiting space and a questionnaire measuring their subjective preferences regarding the function layout, flowline organization, supporting facility and environmental details. Further explanations were offered to any participants who expressed uncertainty about one or more of the questions. In addition, interviews were carried out at the end of the survey process to ensure the validity of the research.
Satisfaction evaluation questionnaire: This questionnaire comprised 34 questions and had 3 sections: basic information, satisfaction evaluation and importance ranking. The basic information section comprised four questions collecting information on the age of the child patient, the age of the person/parent accompanying the child, the relationship between the child and their companion (e.g., parent–child) and the number of doctors involved in the child’s treatment. All of the data were kept anonymous. In the section on satisfaction, five levels (1 = lowest; 5 = highest), were used to evaluate the 27 indicators in Table 2 and overall satisfaction. In the importance ranking, respondents needed to rank four first-level indicators (function layout, flowline organization, supporting facility and environmental details) and 27 second-level indicators from the list provided
Subjective preference evaluation questionnaire: There were 30 questions in this questionnaire, including 27 preference choices (function layout, the width of the corridor and the material and color of the chairs, etc.) and 3 open questions regarding design suggestions for the waiting area.

3. Results and Discussion

3.1. Functional Layout

(1)
Observation results
Layout of the waiting area: The survey at HKU Shenzhen Hospital (Figure 2) revealed that the pediatric department has an outdoor landscaped garden, close to the semi-outdoor public corridor (point A in Figure 2). Such a landscape has a soothing effect on patients while also maximizing natural lighting and ventilation. However, according to on-site observations, the seating is positioned away from the garden (point B in Figure 2) and the window facing the back of the seating was not open at the time of the study, so the overall environment in the waiting area was humid and heavy (Figure 3). Therefore, some people preferred to wait for their diagnostic results in semi-outdoor space C (Figure 4).
Inadequate divisions between waiting spaces: The survey in HUST revealed that four groups of families were required to gather at the entrance of the clinic. Unpredictable noise can be distracting for doctors, which may even trigger inaccurate diagnosis or medication advice (Ulrich et al., 2008). According to Hall’s theory of interpersonal communication distance, the social distance required by ordinary people is 1.22 m–3.66 m. The distance between waiting families in HUST was less than 1 m, intensifying the anxiety associated with receiving medical treatment. The solution offered by SZU General Hospital also failed to achieve the target effect due to mixed use of waiting spaces.
Waiting space occupied by strollers: All of the pediatric waiting areas were found to have problems with stroller obstruction. SZU General Hospital has the widest waiting corridor, at 3.5 m. However, when patients were seated on both sides, strollers still caused congestion in the corridor.
(2)
Subjective preference results
Waiting area and corridor width: In the survey, 30.8% of the respondents preferred a waiting area larger than 80 square meters, which was larger than the existing waiting spaces in the three hospitals. Layout of waiting area: 45.1% of the respondents preferred a combined hallway waiting space; only 11.3% of the respondents chose an enclosed inner hallway, which was the least popular option. Size of mother and infant room: The expected area of the mother and infant room was 6–20 square meters. Size of children’s play area: 16.9% of the respondents felt that there was no need for a play area, mainly because they were worried about “insecurity” and “physical discomfort”. However, 30.8% of the respondents thought that the children’s play area should be 21–30 square meters and that diversified play facilities should be provided.

3.2. Flow Organization

(1)
Observation results
Crossflow: The pediatric department of the HUST Union Shenzhen Hospital was found to have a crossflow problem. The pediatric department is adjacent to the general hospital lobby, which provides seating in a rest area. As a result, the waiting room is divided into two areas and the entrance to the pediatric department is between the two areas. The flow of people about to enter the pediatric department crosses the flow of people returning to the lobby’s rest seats (Figure 5). People gathering at the reception table also causes traffic congestion.
Waiting area too far from drinking water and bathroom facilities: There is a need for drinking water to make up milk for infants in a pediatric waiting area. At the HKU Shenzhen Hospital, the nearest drinking water and bathroom facilities are located 64 m away from the pediatric department. At the SZU General Hospital, the nearest drinking water and bathroom facilities are located in the pediatric department, parallel with the treatment rooms. However, to access these facilities, visitors have to travel 32 m along a narrow corridor with three turning points. The pediatric department at the HUST Union Shenzhen Hospital has two drinking water supplies, inside and outside the waiting area, which is very convenient. The nearest bathroom is also relatively close, at only 20 m away; it is accessed via a shared hallway with only two corners (Figure 6).
(2)
Subjective preference results
The number and distance of crossing points from the waiting area to the clinic: 43.6% of the respondents expected there to be only one crossing point; 29.2% expected there to be no crossing point. In addition, 87.7% of the respondents expected the distance from the waiting area to the consulting room to be less than 20 m. The respondents thus preferred to wait in a space with few turning points and facilities nearby. In terms of the distance from the waiting area to drinking water and bathroom facilities, 55.4% of the respondents expected these facilities to be less than 10 m away, while 41% preferred the distance between the waiting area and the toilet to be 11–20 m.

3.3. Supporting Facilities

(1)
Observation results
Lack of child-friendly facilities: The pediatric waiting area of the HKU Shenzhen Hospital does not have special entertainment facilities (such as televisions) or toys for children. The HUST Union Shenzhen Hospital has TVs for entertainment and vertical electronic screens in the waiting space, but it also lacks children’s play facilities. The SZU General Hospital performs well in this regard. It has a dedicated children’s activity area, a large area of crawl mats for children and toys such as wooden horses.
(2)
Subjective preference results
Amount, location, combination and material of rest area seating: 54.4% of the respondents expected there to be more than 30 rest seats, 62.6% preferred a combination of multiple and single row seating, 40.5% preferred to sit near the window and 67.2% favored leather seats. Calling number display and informational signs: 52.3% of the respondents preferred multiple dispersed call numbering display screens. Regarding guide signs, 46.7% of the respondents preferred the wall-mounted type, while 37.4% chose the hanging type to avoid problems such as “obstruction of sight”.

3.4. Environmental Details

(1)
Observation results
Lack of natural environment: At the HKU Shenzhen Hospital, the observation revealed a landscaped garden outside the waiting space, far away from the seating area. Distance from nature reduces its therapeutic effect. Some of the people waiting chose to wait near the garden, but this put them at risk of not hearing their names being called. In the HUST Union Shenzhen Hospital, the waiting space is enclosed by multiple walls and lacks natural scenery. The environment in the SZU General Hospital is the best, with large windows on the long side of the waiting space. There are no buildings outside the windows to block the line of sight. The view is wide and there is some natural scenery.
Inadequate child-friendly design: Some aspects of the design were found to fail to meet children’s usage requirements in the surveyed hospitals. The waiting areas have colorful cartoon decorations. Although the waiting area of the SZU General Hospital is equipped with child safe handrails, and its fire extinguisher facilities are equipped with anti-collision bars, the other two hospitals lack similar environmental considerations.
(2)
Subjective preference results
View outside the window: 22.1% of the respondents believed that a pediatric waiting area must offer a view out of a window, and 38.5% of the respondents believed that such a view may be necessary. Number of indoor green plants: 43.6% of the respondents expected there to be 3–5 indoor green plants. Warm and cold colors: 67.2% of the respondents preferred warm colors such as red, yellow and orange. Anti-slip surface: 64.1% of the waiting patients thought that an anti-slip surface is necessary. Sound, light and ventilation: 57.9% of the respondents preferred a quiet environment, 65.1% preferred a brightly lit environment and 64.6% preferred natural ventilation.

3.5. Analysis

(1)
Sample Validation and Reliability Analysis
A total of 240 questionnaire copies were distributed. HKU, SZU and HUST received 67, 74 and 68 valid questionnaires, with a recovery rate of 93%. To keep the same sample size, each hospital randomly selected 65 sample questionnaires by Excel for data analysis, and 195 questionnaires were selected for data analysis (Table 3). Due to the limitations imposed by the children’s age on their cognitive abilities, the main questionnaires and interviews focused on the accompanying people/parents. Similar studies have focused on parents as the object of information collection (e.g., Cartland et al., 2018). In this study, children aged 3 and under accounted for 49.7% of the sample, children aged 4–6 accounted for 34.4% and preschool children were the main waiting population. The companions were mostly the children’s parents, of which fathers accounted for 41% and mothers accounted for 55.4%. The number of accompanying people ranged from 1 to 2, with an average of 1.6.
The Cronbach’s alpha coefficients for the total data and the grouped data of the three hospitals were 0.948, 0.960, 0.937 and 0.946, respectively. As these values are all greater than 0.8, the questionnaire results were assumed to reflect the subjective satisfaction status of the waiting population.
(2)
Validity analysis and factor analysis
Kaiser–Meyer–Olkin (KMO) is a coefficient that reflects the validity of data, ranging from 0 to 1. A larger value indicates a higher correlation between variables, which is suitable for factor analysis. In general, the actual threshold is greater than 0.7. Validity analysis results showed that KMO was 0.914, greater than 0.7, indicating that the sample data were valid. Significance level was <0.001, indicating that the data is valid and suitable for factor analysis.
In the component matrix obtained by rotation, principal factors could generalize second-level indexes, and a correlation value that exceeds 0.5 is considered as a main factor. Thus, the 27 indicators are reduced to 6 main factors, which belong to 4 categories: (1). Functional layout: layout and area; (2) Flow organization; (3) Supporting facilities; and (4) Environmental details: physical environment and landscape environment.
Of the six main factors, the first factor related to supporting facilities. The second related to flow organization. The third and fourth factors can be summed up as functional layout and site area. The fifth factor related to light and dark, ventilation and acoustics, which can be summarized as the physical environment in the environmental details. The sixth factor was related to the landscape outside the window and the type(s) and quantity of indoor green plants. This factor can be summarized as landscape environment in the environmental details. Total analysis of variance revealed that the six factors had an explanatory ability of 69.762% (Table 4). The selected factors showed a high level of representativeness and were able to explain users’ subjective satisfaction evaluation of the waiting space well.
(3)
Regression analysis
In regression analysis, it is assumed that the independent variable has no significant effect on the dependent variable, ANOVA is used to analyze whether the hypothesis is valid and less than 0.01 would overturn the hypothesis. Table 5 indicates that at least one of the six factors could have a significant impact on the satisfaction of waiting space.
Regression analysis of the six factors showed that the overall regression effect was strong. The linear regression equation showed that the significance of the six factors was 0.000 (less than 0.05), indicating that all six factors had a significant positive correlation with the dependent variable (Table 6). The results indicate that supporting facilities and environmental details (physical environment) have the closest relationship with satisfaction with the waiting space.
In general, satisfaction with environmental details (physical environment), supporting facilities and waiting space led to a higher satisfaction rate than the other factors. Environmental details (landscape environment), functional layout and the humanization of functional requirements also had an impact on satisfaction evaluation.
(4)
Satisfaction analysis
Spearman correlation analysis showed that all p values were 0.000, indicating that each index was correlated with satisfaction. As shown in Table 7, all 27 second-level indicators are positively correlated with satisfaction.
Analysis of the average values of the first-level indicators (functional layout, flow organization, supporting facilities, environmental details) revealed similar levels of satisfaction with the waiting space at the HKU Shenzhen Hospital and the SZU General Hospital. At these hospitals, users’ satisfaction with the functional layout and environmental details was high, and the difference between the numerical values was less than 0.22. At HUST Union Shenzhen Hospital, users were more satisfied with the flow organization and supporting facilities, with the largest gap between the four numerical values being 0.35; satisfaction with environmental details was only 3.55, which is lower than the values for the other first-level indicators.
In the analysis of the average values of the secondary indicators (Figure 7), satisfaction with indoor green plants (types and quantity) was low, indicating that the waiting areas fail to meet the human need for a view of nature. In addition, the size of children’s play areas should be increased.
The overall satisfaction value for the three hospitals was between 3.90 and 4.08 (Figure 8). The satisfaction ratings for SZU General Hospital and HKU Shenzhen Hospital were 4.08 and 4.05, respectively, higher than the satisfaction rate for HUST Union Shenzhen Hospital (3.9).
(5)
Importance Analysis
This study collected the subjective importance rankings of the questionnaire subjects for the four first-level indicators. The ranking by importance to the waiting population of the spatial elements was D—environmental details > B—flow organization > C—supporting facilities > A—functional layout (Figure 9). In general, environmental details were the most important, flow organization and supporting facilities were the second most important and the functional layout was the least important. From the ranking of the importance of secondary indicators, it can be seen that the respondents emphasized objective elements of the waiting space that meet basic waiting needs (Figure 10), such as a well-ventilated environment, call number display screens and guide signs. Factors such as the layout of the waiting space and distance from the clinic were also key elements.

4. Conclusions

Based on the basic process of evidence-based design, this study took pediatric waiting space as the research object and developed appropriate design strategies, based on extensive research, for four dimensions of waiting space: functional layout, flow organization, supporting facilities and environmental details.
(1)
Functional layout
There was a significant positive correlation between the functional layout of a pediatric waiting area and overall satisfaction with the waiting area. The waiting areas surveyed showed considerable differences in their size. The respondents preferred a larger space—larger than 80 square meters. The waiting area should be appropriately divided to give families a sense of privacy. The waiting people regarded layout as one of the most important factors in the waiting space. The waiting area should have a dedicated stroller parking area. It should be a combination of halls and corridors or an external corridor, and corridors should be between 3 m and 4.2 m wide. There was a positive correlation between the enclosure of the waiting space and satisfaction. Waiting people tended to prefer a semi-open and semi-private waiting space. In the current waiting areas, satisfaction with the size of mother and infant rooms and children’s play area was low. The respondents preferred mother and infant rooms to be 11–20 square meters and children’s play spaces to be 21–30 square meters.
(2)
Wayfinding
There was a positive correlation between the flow organization of a pediatric waiting area and overall satisfaction with the waiting area. The surveyed people awaiting diagnosis thought that the distance from the waiting area to the consulting room was one of the most important factors. It should be less than 20 m, with no more than one turning point. Currently, the waiting spaces are far away from drinking water and bathroom facilities. The respondents preferred to be less than 10 m away from drinking water facilities and less than 11–20 m away from bathrooms.
(3)
Supporting facilities
There was a significant positive correlation between the supporting facilities in the pediatric waiting areas and overall satisfaction with the waiting areas. The surveyed people awaiting diagnosis believe that the number of rest seats, the nature of the call number display and the form of the guide sign were important elements of the space. They preferred leather seats, proximity to windows, and multiple row and single row seating, and they thought that more than 30 seats should be available. Satisfaction with the existing table and chair materials was high. The respondents preferred call number display screens to be arranged in a dispersed manner. They favored wall-mounted guide signs, cartoon wall decorations, decentralized direct drinking water facilities and suspended TVs.
(4)
Environmental details
There was a significant positive correlation between the environmental details of the pediatric waiting areas and overall satisfaction with the waiting areas. According to principal factor analysis, the environment was divided into landscape environment and physical environment. The overall satisfaction level increased with the score for the physical environment.
In terms of landscape environment, the current waiting areas do not make full use of natural environmental resources and lack views of natural scenery outdoors. The surveyed people awaiting diagnosis preferred to see three to five indoor green plants, either hanging or in miniature beds. The color of the waiting space had a significant positive correlation with satisfaction. The respondents were satisfied with the current color environment. They preferred warm colors such as red, yellow and orange. An anti-skid surface was regarded as one of the most important elements of the waiting space. The respondents were highly satisfied with the clinics’ current anti-skid measures.
In terms of the physical environment, acoustics, light and ventilation all had significant positive correlations with overall satisfaction. A ventilated environment was regarded as one of the most important elements of waiting space. The respondents were satisfied with the existing lighting. They preferred an environment that is quiet, bright and naturally ventilated.
(5)
Limitations and Future Research
Limitations:
(1)
The COVID-19 pandemic posed several potential problems. The number of hospitals available for research was limited; the size and composition of the sample may not have been representative;
(2)
The research focused on large-scale general hospitals in Shenzhen. Therefore, the design strategies summarized here may not be generalizable. Future research should consider how to eliminate the influence of regional factors on the design of children’s waiting space.
Future research:
(1)
Although this study administered two questionnaires to a large number of participants, the conclusions drawn from the survey represent personal opinions, which require further validation. The findings of the survey should be compared with the opinions of expert practitioners and scholars to improve the scientific rationality and credibility of this paper.
(2)
Evidence-based design involves not only the initial search for evidence, analysis of evidence and extraction of evidence, but also the application of evidence in actual projects. The whole process, combining design with practice, eventually leads to a cyclic evidence-based design theory. However, this study did not explore the application of the proposed design strategy in practice. This strategy should be applied to design practice in the future to form a circular interactive relationship between evidence and practice.

Author Contributions

Conceptualization, Y.Q. and Y.Y.; methodology, S.S.L.; software, Y.Y.; validation, Y.Y.; formal analysis, Y.T.; investigation, Y.Y.; resources, Y.Q.; data curation, Y.Q. and Y.Y.; writing—original draft preparation, Y.Q. and Y.Y.; writing—review and editing, S.S.L. and Y.T.; visualization, Y.T.; supervision, S.S.L.; project administration, Y.Q. and Y.T.; funding acquisition, Y.Q. and Y.T. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by National Natural Science Foundation of China, grant number 51908360 and 52108018, Industry-Academy Cooperative Education Project from Ministry of Education, grant number 202101126047, Shenzhen Science and Technology Innovation Committee, grant number 20200814153705001, and Natural Science Foundation of SZU, grant number QNJS0196.

Institutional Review Board Statement

Ethical review and approval were waived for this study by the university, for the reasoning that the study was targeted at the impression of the space, without involving the further personal information of the respondents.

Informed Consent Statement

Informed consent was obtained from all subjects involved in the study.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

We thank Qi Yi’s students, including Meng Zhou and Qiong Zhou, for providing help during the investigation. This study was conducted as part of a master’s thesis in evidence-based design for pediatrics waiting space.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Ulrich, R.S.; Simons, R.F.; Losito, B.D.; Fiorito, E.; Miles, M.A.; Zelson, M. Stress recovery during exposure to natural and urban environments. J. Environ. Psychol. 1991, 11, 201–230. [Google Scholar] [CrossRef]
  2. Cartland, J.; Ruch-Ross, H.S.; Carr, L.; Hall, A.; Olsen, R.; Rosendale, E.; Ruohonen, S. The Role of Hospital Design in Reducing Anxiety for Pediatric Patients. HERD Health Environ. Res. Des. J. 2018, 11, 66–79. [Google Scholar] [CrossRef] [PubMed]
  3. Andrade, C.A.; Devlin, A.S. Stress reduction in the hospital room: Applying Ulrich’s theory of supportive design. J. Environ. Psychol. 2015, 41, 125–134. [Google Scholar] [CrossRef] [Green Version]
  4. Ulrich, R.S.; Zimring, C.; Zhu, X.; DuBose, J.; Seo, H.-B.; Choi, Y.-S.; Quan, X.; Joseph, A. A Review of the Re-search Literature on Evidence-Based Healthcare Design. HERD Health Environ. Res. Des. J. 2008, 1, 61–125. [Google Scholar] [CrossRef]
  5. Xuan, X.; Li, Z.; Chen, X.; Cao, Y.; Feng, Z. Study of the Physical Environment of Waiting Areas and Its Effects on Patient Satisfaction, Experience, Perceived Waiting Time, and Behavior in China. HERD Health Environ. Res. Des. J. 2021, 14, 108–123. [Google Scholar] [CrossRef]
  6. Shulman, L.S.; Carey, N.B. Psychology and the limitations of individual rationality: Implications for the study of reasoning and civility. Rev. Educ. Res. 1984, 54, 501–524. [Google Scholar] [CrossRef]
  7. Halpern, D. Mental Health and The Built Environment: More Than Bricks and Mortar? Taylor and Francis: London, UK, 1995. [Google Scholar]
  8. Cunningham, C.E.; Rimas, H.; Robicheau, R.; Anderson, C.; Devries, B.; Niccols, A. Using a Discrete Choice Conjoint Experiment to Engage Stakeholders in the Design of an Outpatient Children’s Health Center. HERD Health Environ. Res. Des. J. 2017, 10, 12–27. [Google Scholar] [CrossRef]
  9. NACHRI. Evidence for Innovation, National Association of Children’s Hospitals and Related Institutions (NA-CHRI). Retrieved 12 September 2021. Available online: http://www.healthcaredesignmagazine.com (accessed on 4 November 2021).
  10. Karvonen, S.; Nordback, I.; Elo, J.; Havulinna, J.; Laine, H.-J. The Elimination of Transfer Distances Is an Important Part of Hospital Design. HERD Health Environ. Res. Des. J. 2017, 10, 142–151. [Google Scholar] [CrossRef] [PubMed]
  11. Tao, Y.; Gou, Z.; Lau, S.S.-Y.; Lu, Y.; Fu, J. Legibility of floor plans and wayfinding satisfaction of residents in Care and Attention homes in Hong Kong. Australas. J. Ageing 2018, 37, E139–E143. [Google Scholar] [CrossRef] [PubMed]
  12. Lee, S.; Dazkir, S.S.; Paik, H.S.; Coskun, A. Comprehensibility of universal healthcare symbols for wayfinding in healthcare facilities. Appl. Ergon. 2014, 45, 878–885. [Google Scholar] [CrossRef]
  13. Lee, E.; Daugherty, J.; Selga, J.; Schmidt, U. Enhancing Patients’ Wayfinding and Visitation Experience Improves Quality of Care. J. Perianesth. Nurs. 2020, 35, 250–254. [Google Scholar] [CrossRef]
  14. Wagenaar, C.; Mens, N.; Manja, G.; Niemeijer, C.; Guthknecht, T. Hospitals—A Design Manual; Katja, J., Amelie, S., Eds.; Birkhäuser: Berlin, Germany, 2018; pp. 158–185. [Google Scholar]
  15. Jafarifiroozabadi, R.; Joseph, A.; Joshi, R.; Wingler, D. Evaluating Care Partner Preferences for Seating in an Outpatient Surgery Waiting Area Using Virtual Reality. HERD Health Environ. Res. Des. J. 2021, 14, 210–223. [Google Scholar] [CrossRef] [PubMed]
  16. Pati, D.; Harvey, T.E.; Willis, D.A.; Pati, S. Identifying Elements of the Health Care Environment That Contribute to Wayfinding. HERD Health Environ. Res. Des. J. 2015, 8, 44–67. [Google Scholar] [CrossRef]
  17. Ullán, A.M.; Belver, M.H. Visual Arts in Children’s Hospitals: Scoping Review. HERD Health Environ. Res. Des. J. 2021, 29, 19375867211003494. [Google Scholar] [CrossRef]
  18. Karnik, M.; Printz, B.; Finkel, J. A Hospital’s Contemporary Art Collection: Effects on Patient Mood, Stress, Comfort, and Expectations. HERD Health Environ. Res. Des. J. 2014, 7, 60–77. [Google Scholar] [CrossRef]
  19. Blaschke, S.; O’Callaghan, C.C.; Schofield, P. “Artificial but Better Than Nothing”: The Greening of an Oncology Clinic Waiting Room. HERD Health Environ. Res. Des. J. 2017, 10, 51–60. [Google Scholar] [CrossRef] [PubMed]
  20. Verderber, S.; Reuman, D. Windows, views, and health status in a hospital therapeutic environment. J. Archit. Plan. Res. 1987, 4, 120. [Google Scholar]
  21. Kotzer, A.M.; Zacharakis, S.K.; Raynolds, M.; Buenning, F. Evaluation of the Built Environment: Staff and Family Satisfaction Pre- and Post-Occupancy of the Children’s Hospital. HERD Health Environ. Res. Des. J. 2011, 4, 60–78. [Google Scholar] [CrossRef]
  22. Jiang, S.; Powers, M.; Allison, D.; Vincent, E. Informing Healthcare Waiting Area Design Using Transparency Attributes: A Comparative Preference Study. HERD Health Environ. Res. Des. J. 2017, 10, 49–63. [Google Scholar] [CrossRef]
  23. Pati, D.; Harvey, J.T.E.; Barach, P. Relationships between Exterior Views and Nurse Stress: An Exploratory Examination. HERD Health Environ. Res. Des. J. 2008, 1, 27–38. [Google Scholar] [CrossRef]
  24. Trujillo, J.L.H.; Aviñó, A.M.I.; Millán, C.L. User Evaluation of Neonatology Ward Design: An Application of Focus Group and Semantic Differential. HERD Health Environ. Res. Des. J. 2017, 10, 23–48. [Google Scholar] [CrossRef]
  25. Joseph, A. The Impact of Light on Outcomes in Healthcare Settings. The Center for Health Design, Issue Paper 2. 2006. Available online: https://www.researchgate.net/publication/238623009_The_Impact_of_Light_on_Outcomes_in_Healthcare_Settings (accessed on 4 November 2021).
  26. Fenko, A.; Loock, C. The Influence of Ambient Scent and Music on Patients’ Anxiety in a Waiting Room of a Plastic Surgeon. HERD Health Environ. Res. Des. J. 2014, 7, 38–59. [Google Scholar] [CrossRef] [PubMed]
  27. López-Tarruella, J.; Llinares Millán, C.; Serra Lluch, J.; Iñarra Abad, S.; Wijk, H. Influence of Color in a Lactation Room on Users’ Affective Impressions and Preferences. HERD Health Environ. Res. Des. J. 2019, 12, 55–70. [Google Scholar] [CrossRef] [PubMed]
  28. Minckley, B.B. A study of noise and its relationship to patient discomfort in the recovery room. Nurs. Res. 1968, 17, 247–249. [Google Scholar] [CrossRef]
  29. Pati, D.; Nanda, U. Influence of Positive Distractions on Children in Two Clinic Waiting Areas. HERD Health Environ. Res. Des. J. 2011, 4, 124–140. [Google Scholar] [CrossRef] [PubMed]
  30. Biddiss, E.; McPherson, A.; Shea, G.; McKeever, P. The Design and Testing of Interactive Hospital Spaces to Meet the Needs of Waiting Children. HERD Health Environ. Res. Des. J. 2013, 6, 49–68. [Google Scholar] [CrossRef]
  31. Robinson, P.S.; Green, J. Ambient Versus Traditional Environment in Pediatric Emergency Department. HERD Health Environ. Res. Des. J. 2015, 8, 71–80. [Google Scholar] [CrossRef]
  32. McLaughlan, R.; Sadek, A.; Willis, J. Attractions to Fuel the Imagination: Reframing Understandings of the Role of Distraction Relative to Well-Being in the Pediatric Hospital. HERD Health Environ. Res. Des. J. 2019, 12, 130–146. [Google Scholar] [CrossRef] [Green Version]
  33. Gaminiesfahani, H.; Lozanovska, M.; Tucker, R. A Scoping Review of the Impact on Children of the Built Environment Design Characteristics of Healing Spaces. HERD Health Environ. Res. Des. J. 2020, 13, 98–114. [Google Scholar] [CrossRef]
  34. Blumberg, R.; Devlin, A. Design Issues in HospitalsThe Adolescent Client. Environ. Behav. 2006, 38, 293–317. [Google Scholar] [CrossRef]
  35. Wolfe, M.; Langer, R. The concept of privacy in childhood and adolescence. Conf. Environ. Des. Res. Assoc. EDRA 1974, 5, 29–54. [Google Scholar]
  36. Pearson, M.; Gaines, K.; Pati, D.; Colwell, M.; Motheral, L.; Adams, N.G. The Physiological Impact of Window Murals on Pediatric Patients. HERD Health Environ. Res. Des. J. 2019, 12, 116–129. [Google Scholar] [CrossRef] [PubMed]
Figure 1. Evidence-based elements investigated in this study (source: self-drawn).
Figure 1. Evidence-based elements investigated in this study (source: self-drawn).
Ijerph 18 11804 g001

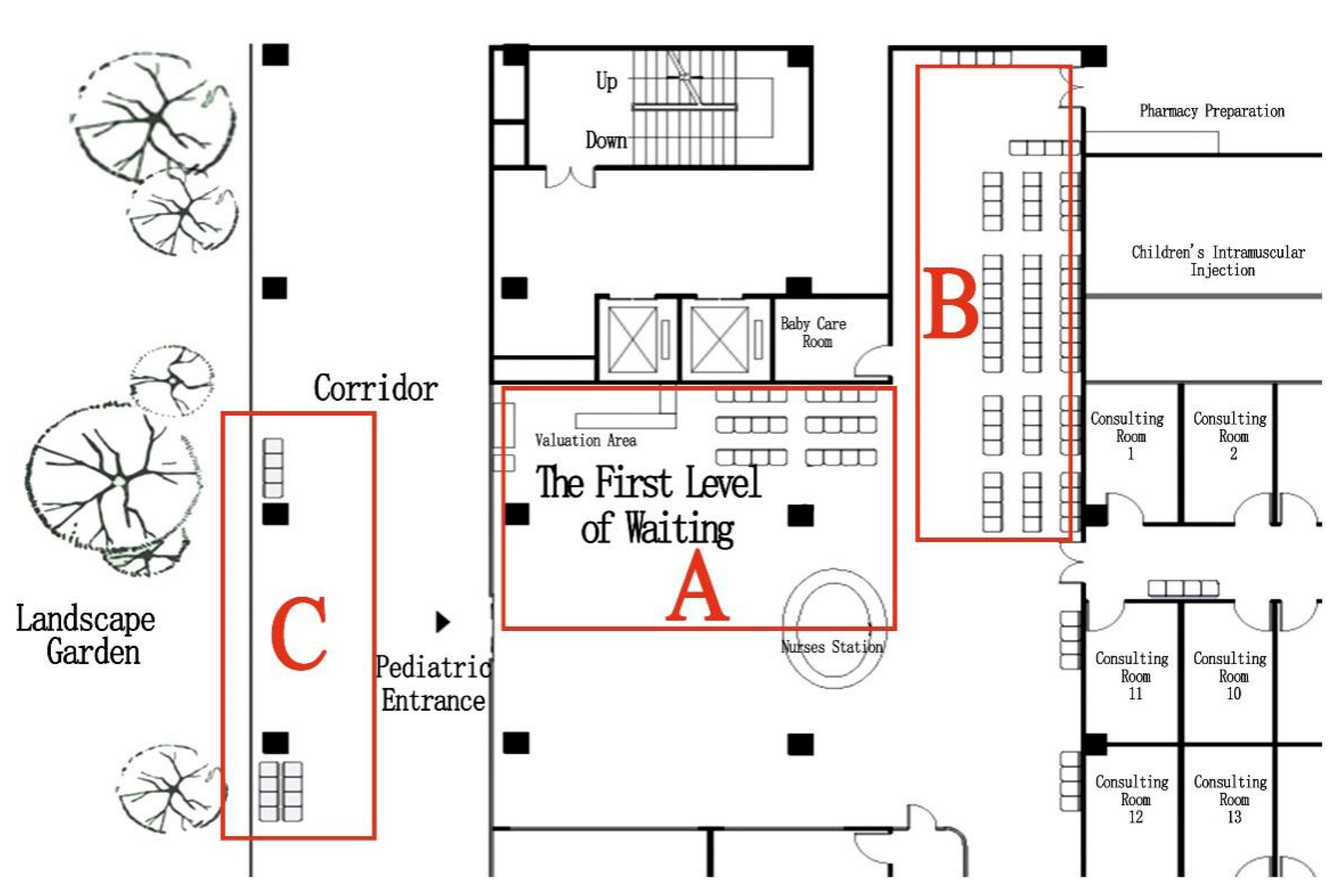

Figure 2. Layout of waiting space (A) waiting space near the garden; (B) waiting space away from the garden; (C) waiting space next to the garden (source: self-drawn).
Figure 2. Layout of waiting space (A) waiting space near the garden; (B) waiting space away from the garden; (C) waiting space next to the garden (source: self-drawn).
Ijerph 18 11804 g002

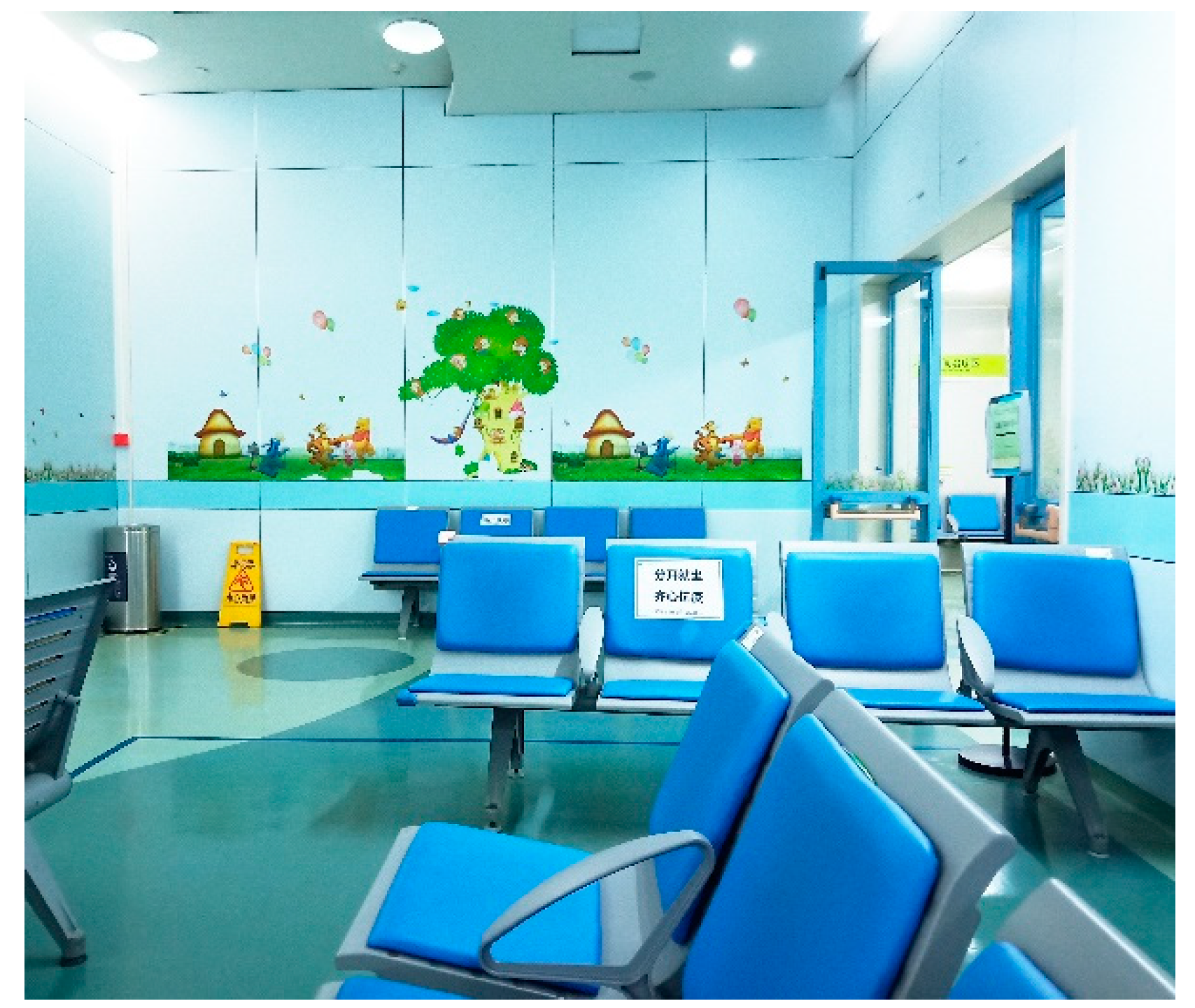

Figure 3. Waiting area B (source: self-photographed).
Figure 3. Waiting area B (source: self-photographed).
Ijerph 18 11804 g003

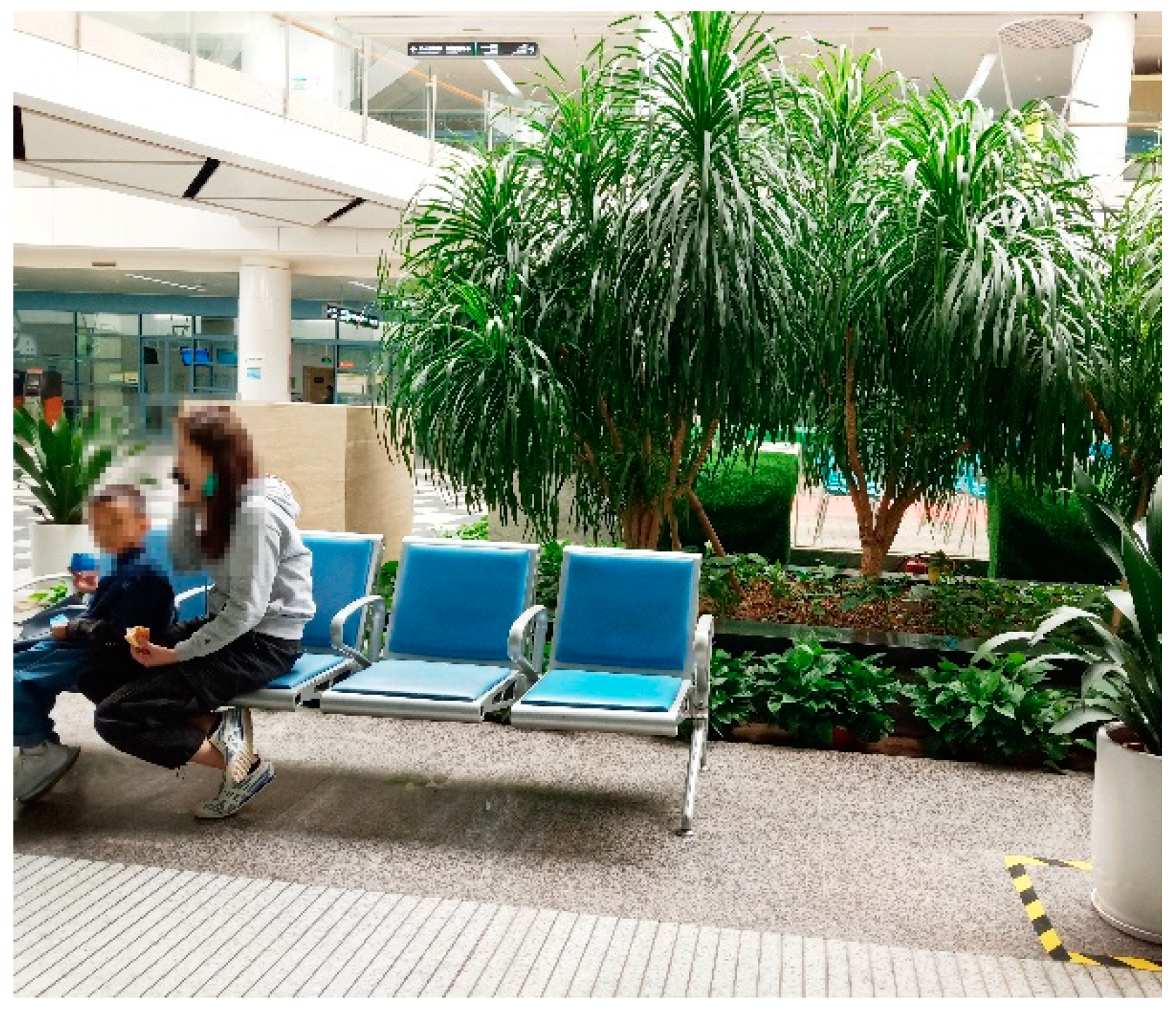

Figure 4. Non-waiting area C (source: self-photographed).
Figure 4. Non-waiting area C (source: self-photographed).
Ijerph 18 11804 g004

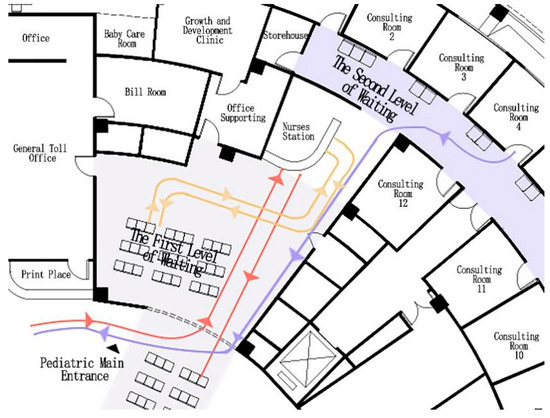

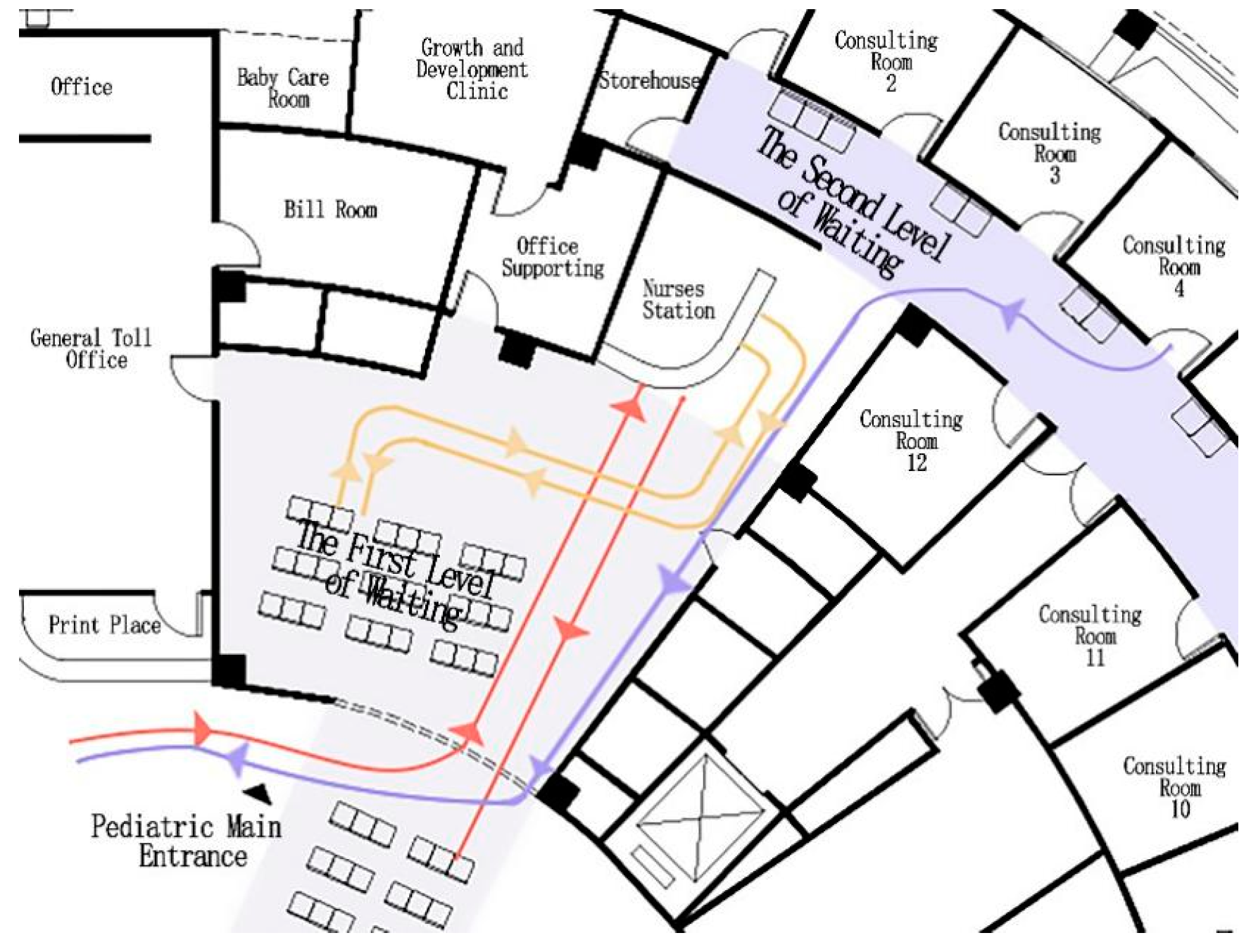

Figure 5. Area around reception table is crowded (source: self-drawn).
Figure 5. Area around reception table is crowded (source: self-drawn).
Ijerph 18 11804 g005

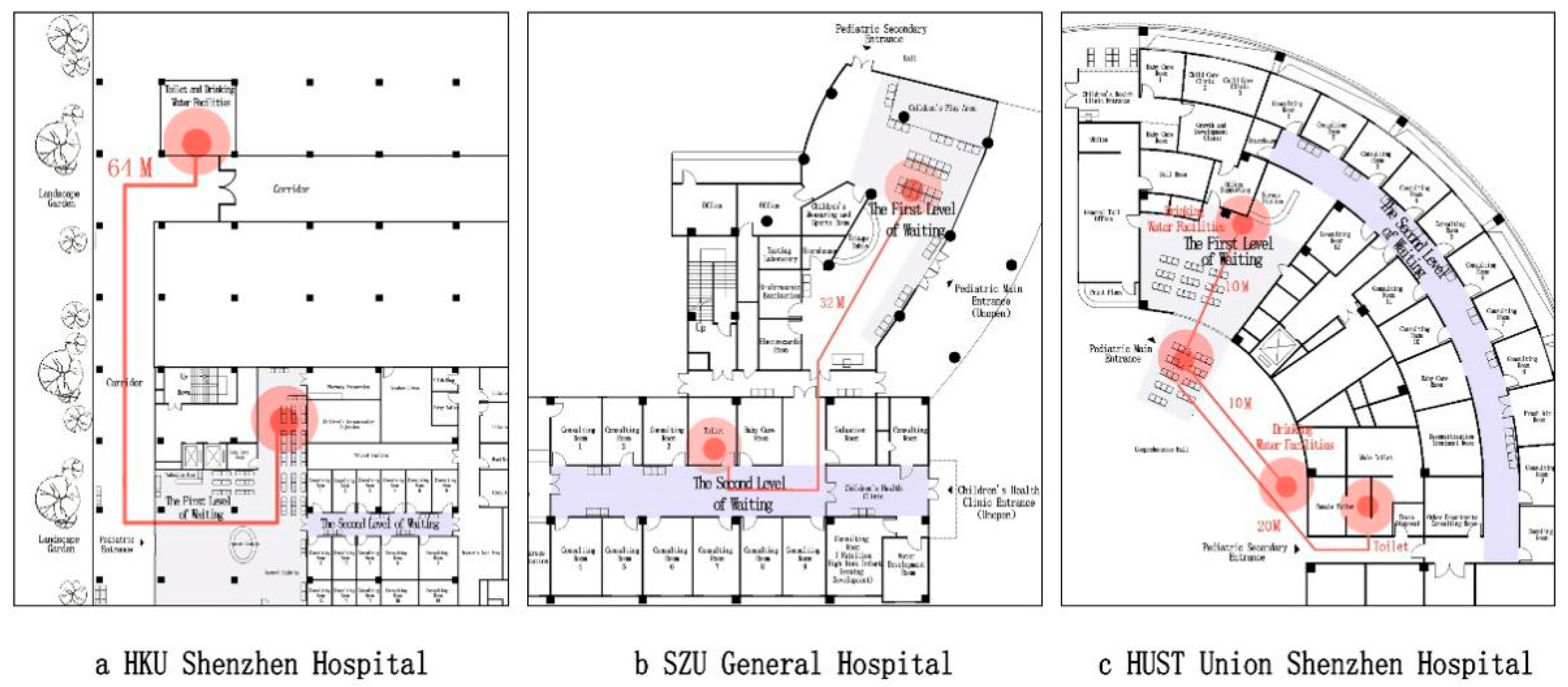

Figure 6. Distance between waiting room and drinking water and bathroom facilities (source: self-drawn). (a) HKU Shenzhen Hospital; (b) SZU General Hospital; (c) HUST Union Shenzhen Hospital.
Figure 6. Distance between waiting room and drinking water and bathroom facilities (source: self-drawn). (a) HKU Shenzhen Hospital; (b) SZU General Hospital; (c) HUST Union Shenzhen Hospital.
Ijerph 18 11804 g006
Figure 7. Average values for secondary indicators at three hospitals. (source: self-drawn based on compiled data.)
Figure 7. Average values for secondary indicators at three hospitals. (source: self-drawn based on compiled data.)
Ijerph 18 11804 g007

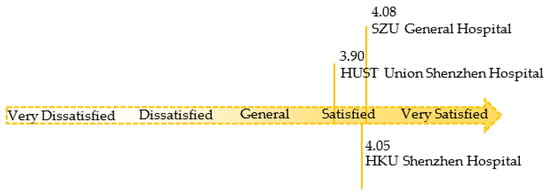

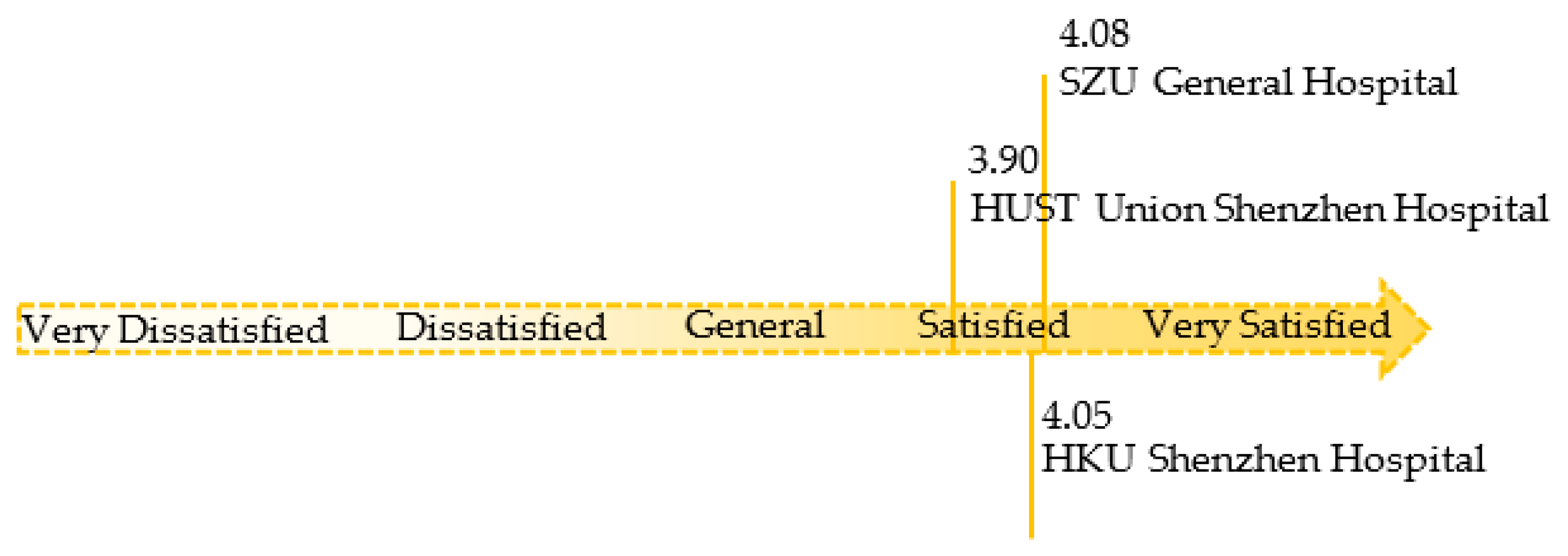

Figure 8. Overall satisfaction with waiting at the three hospitals (source: self-drawn).
Figure 8. Overall satisfaction with waiting at the three hospitals (source: self-drawn).
Ijerph 18 11804 g008

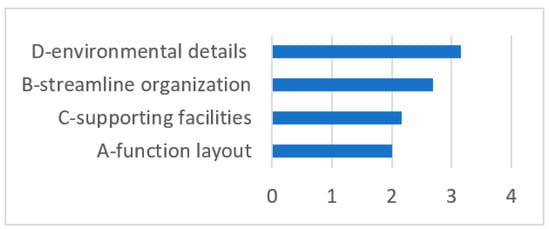

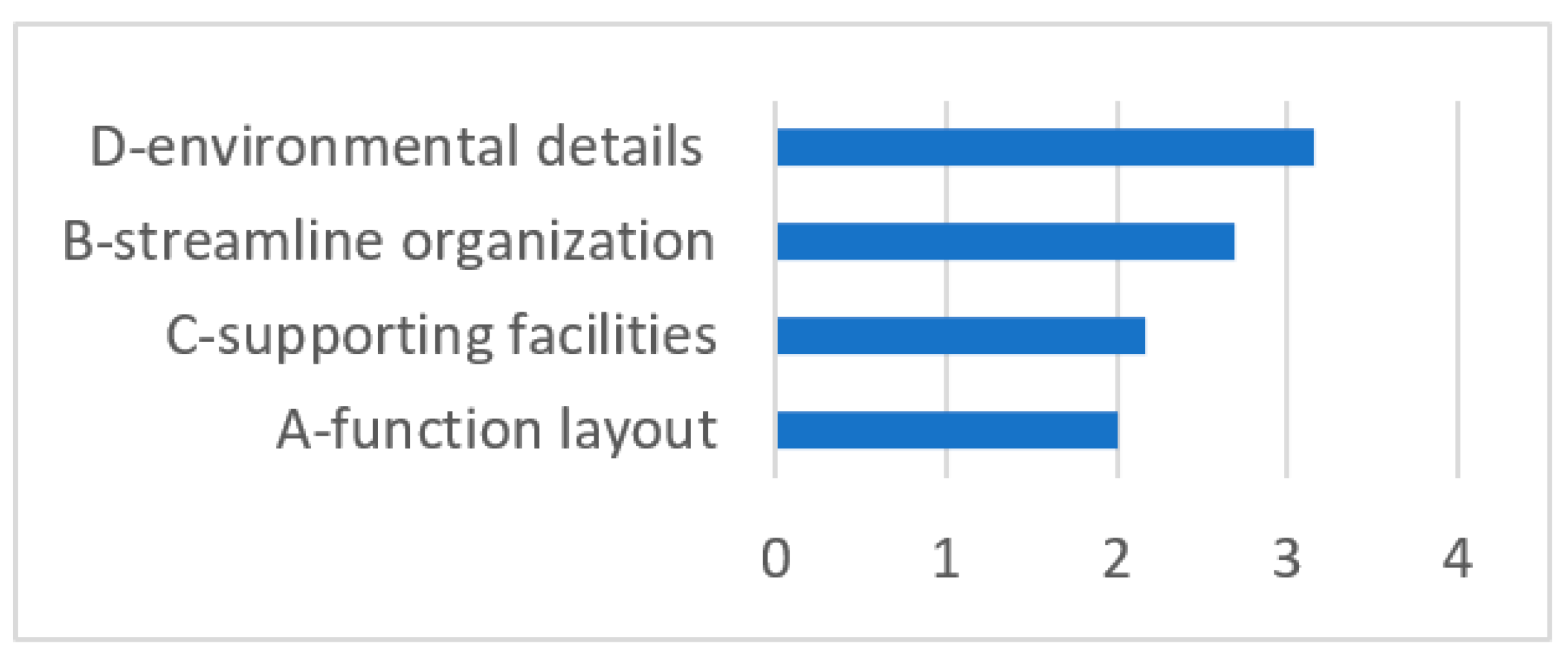

Figure 9. Ranking by importance of the first-level indicators (source: self-drawn).
Figure 9. Ranking by importance of the first-level indicators (source: self-drawn).
Ijerph 18 11804 g009

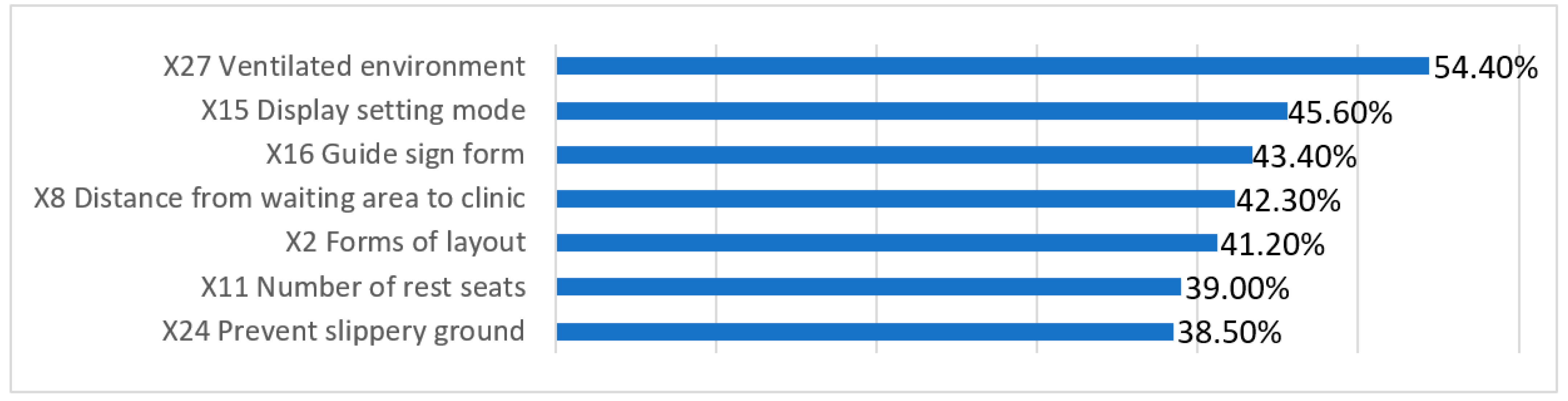

Figure 10. Ranking of the importance of secondary indicators (source: self-drawn).
Figure 10. Ranking of the importance of secondary indicators (source: self-drawn).
Ijerph 18 11804 g010
Table 1. Survey of the investigated hospitals (source: self-drawn).
Table 1. Survey of the investigated hospitals (source: self-drawn).
HospitalHKUSZUHUST
Land area192,001 m289,800 m254,400 m2 (86,800 m2)
Construction area352,478 m2135,000 m2101,600 m2 (592,800 m2)
Number of beds2000800900
Photograph of waiting area Ijerph 18 11804 i001 Ijerph 18 11804 i002 Ijerph 18 11804 i003
Table 2. Template for hospital field survey (source: authors).
Table 2. Template for hospital field survey (source: authors).
Location:Date:Time:Interviewer:
AreaLayoutCorridor widthEnclosed spaceMother and infant room areaPlay areaWaiting areaSeating
Number of crossing pointDistance from consulting roomDistance from drinking waterDistance to bathroomQuantitypositionCombinationMaterial
Calling number displayInformational signWall decorationsDrinking water supplyTelevisionNatural landscapeWarm and cold colorsNon-slip surfaceAcoustic environmentLight and darkVentilationOther
Outdoor environmentNumber of indoor plantsType(s) of indoor greenery
Table 3. Questionnaire (source: authors).
Table 3. Questionnaire (source: authors).
Name of HospitalDistributedReceivedValidSamples for Analysis
HKU80746765
SZU80777465
HUST80726865
Total240223209195
Table 4. Total Variance (source: self-drawn using SPSS).
Table 4. Total Variance (source: self-drawn using SPSS).
Total Variance Explained
ComponentInitial Eigenvalues Rotation Sums of Squared Loadings
Total% of VarianceTotal% of VarianceTotal% of Variance
111.84943.88443.8844.33016.03816.038
21.8937.01250.8953.57913.25529.293
31.4735.45756.3533.35712.43341.726
41.4395.33161.6842.5499.44251.169
51.1794.36666.0512.5429.41760.585
61.0023.71269.7622.4789.17769.762
Extraction Method: Principal Component Analysis.
Table 5. ANOVA (source: self-drawn using SPSS).
Table 5. ANOVA (source: self-drawn using SPSS).
ANOVA a
ModelSum of SquaresdfMean SquareFSig.
Regression37.63066.27255.8330.000 b
Residual21.1181880.112
Total58.749194
a Dependent Variable: Overall satisfaction with waiting space. b Predictors:(Constant), Environmental details (physical environment), Supporting facilities, Environmental details (landscape environment), Functional layout (layout), Functional layout (area), Flow organization.
Table 6. Coefficients for the factors influencing waiting space satisfaction a (source: self-drawn using SPSS).
Table 6. Coefficients for the factors influencing waiting space satisfaction a (source: self-drawn using SPSS).
ModelBSignificance Level
(constant)4.0360.000
1Environmental details (physical environment)0.2460.000
2Supporting facilities0.2180.000
3Environmental details (landscape environment)0.1750.000
4Functional layout (layout)0.1480.000
5Functional layout (area)0.1440.000
6Flow organization0.1120.000
a Dependent variable: overall satisfaction with the waiting space.
Table 7. Results of Spearman correlation analysis (Source: Self-drawn according to SPSS).
Table 7. Results of Spearman correlation analysis (Source: Self-drawn according to SPSS).
Level 1 Evaluation IndexLevel 2 Evaluation IndexCorrelation CoefficientThe p-ValueN
A Functional layout1. Area of waiting area0.481 **0.000195
2. Layout of waiting area0.553 **0.000195
3. Corridor width of waiting area0.445 **0.000195
4. Way of enclosing the waiting area0.528 **0.000195
5. Size of maternity room0.363 **0.000195
6. Size of children’s play area0.391 **0.000195
B Streamline organization7. Number of corners from waiting area to consulting room0.474 **0.000195
8. Distance from waiting area to consulting room0.353 **0.000195
9. Distance from waiting area to drinking facility0.319 **0.000195
10. Distance from waiting area to toilet0.277 **0.000195
C Supporting facilities11. Number of rest seats0.446 **0.000195
12. Position of rest seats0.461 **0.000195
13. Combination of l rest seats0.431 **0.000195
14. Material of rest seats0.490 **0.000195
15. Setting mode of display0.487 **0.000195
16. Form of guide design0.489 **0.000195
17. Content of wall decorations0.469 **0.000195
18. Drinking water facilities0.355 **0.000195
19. Setting mode of TVs0.466 **0.000195
D Environmental details20. Landscape outside of window0.444 **0.000195
21. Amount of indoor plants0.490 **0.000195
22. Form of indoor plants0.460 **0.000195
23. Warm and cool colours0.556 **0.000195
24. Anti-skid flooring0.493 **0.000195
25. Sound environment0.543 **0.000195
26. The lighting conditions0.555 **0.000195
27. Ventilation environment0.609 **0.000195
** indicates significance level p < 0.01, and correlation coefficient > 0.5 is displayed in bold.
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Qi, Y.; Yan, Y.; Lau, S.S.; Tao, Y. Evidence-Based Design for Waiting Space Environment of Pediatric Clinics—Three Hospitals in Shenzhen as Case Studies. Int. J. Environ. Res. Public Health 2021, 18, 11804. https://doi.org/10.3390/ijerph182211804

AMA Style

Qi Y, Yan Y, Lau SS, Tao Y. Evidence-Based Design for Waiting Space Environment of Pediatric Clinics—Three Hospitals in Shenzhen as Case Studies. International Journal of Environmental Research and Public Health. 2021; 18(22):11804. https://doi.org/10.3390/ijerph182211804

Chicago/Turabian Style

Qi, Yi, Yan Yan, Siuyu Stephen Lau, and Yiqi Tao. 2021. "Evidence-Based Design for Waiting Space Environment of Pediatric Clinics—Three Hospitals in Shenzhen as Case Studies" International Journal of Environmental Research and Public Health 18, no. 22: 11804. https://doi.org/10.3390/ijerph182211804

APA Style

Qi, Y., Yan, Y., Lau, S. S., & Tao, Y. (2021). Evidence-Based Design for Waiting Space Environment of Pediatric Clinics—Three Hospitals in Shenzhen as Case Studies. International Journal of Environmental Research and Public Health, 18(22), 11804. https://doi.org/10.3390/ijerph182211804

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
