Ozone Concentration Levels in Urban Environments—Upper Silesia Region Case Study

by
Joanna Kobza
1,*,
Mariusz Geremek
1 and
Lechosław Dul
2
1
Department of Public Health, School of Health Sciences, Medical University of Silesia, Piekarska 18, 41-902 Bytom, Poland
2
Department of Epidemiology and Biostatistics, School of Health Sciences, Medical University of Silesia, Piekarska 18, 41-902 Bytom, Poland
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2021, 18(4), 1473; https://doi.org/10.3390/ijerph18041473
Submission received: 22 January 2021 / Accepted: 27 January 2021 / Published: 4 February 2021
(This article belongs to the Section Environmental Health)
Browse Figures
Review Reports Versions Notes

Abstract

:
Although ozone (O3) plays a crucial role in screening the Earth’s surface and lower atmosphere layers from the ultraviolet radiation, troposphere ozone is proven to have negative health effects on the human body and is one of the greenhouse gases. The objective of this study was to perform a measurement-based assessment for determining whether the concentration of ozone is within admissible limits, or exceeded, in Silesia Province and does not pose a threat to the local population. The data provided by the Voivodship Inspectorate for Environmental Protection in Katowice were used in the analysis. The received data constitute the result of 8-h measurements of concentrations of ozone at selected air monitoring stations of the Silesian province. The locations of three monitoring stations were found to be useful for the aim of this research; one site is situated in a rural background area; another one is located in a medium-sized city and the Katowice station is representative for an urban background situation. We used cluster analysis, weighted pair group method using arithmetic averages (WPGMA) and Chebyshev distances to test the hypothesis and compare empirical distributions in the general population. The alarm level has not been exceeded in indicated measurements stations in Silesian Voivodship in the period 2015–2017 (averaging time 1 h: 240 µg/m3 for 3 h). The target level was exceeded in 2015 at all three measurements stations and in the following years at one station (in Zloty Potok, 2016, and in Katowice, 2017). Each year, the largest number of exceedances occurred in August. The results clearly indicate a lack of hazards for the general population’s health in terms of increased concentrations of ozone in the city centers and outside. The results confirm that environmental conditions (i.e., landform, the area surrounding monitoring station) have a significant influence on the ozone level.

1. Introduction

Air pollution is a leading environmental factor that influences human life; therefore, negative health consequences of the low quality of air are cited as main public health concerns [1,2]. Long-term exposure to a higher ozone concentration is related to a decrease in life expectancy [3]. Recent research highlighted that in 2013, exposure to ozone resulted in 16,000 premature deaths and 192,000 years of life lost (YLL) [4]. Stricter national and international air quality guidance could reduce ozone-related premature mortality [5]. Although ozone (O3) plays a crucial role in screening the Earth’s surface and lower atmosphere layers from ultraviolet radiation, troposphere ozone is proven to have adverse health effects on the human body and is one of the greenhouse gases [1,2]. Ozone is an allotropic form of oxygen; it consists of three oxygen atoms (O3). The third atom of oxygen makes ozone a firm photochemical oxidant. Ozone in the upper stratum of the atmosphere—the stratosphere—arises as a result of the interaction of solar radiation with oxygen molecules (O2). Due to the interaction of the sun, these molecules break down into two oxygen atoms (O). Then, the oxygen atoms react with molecular oxygen and form ozone molecules (O3) [6]. This ozone is called stratospheric ozone or the ozone layer. Ozone in the stratosphere almost completely absorbs ultraviolet radiation with a wavelength below 295 nm, which is harmful to living organisms [5]. Due to the ozone layer, only a small percentage of biologically active UV radiation reaches the Earth’s surface [7]. Tropospheric ozone is an effect of the chemical reaction of volatile organic compounds (VOCs) such as nitrogen oxide (NOx) [2]. There is an important role of the process of photochemical oxidation of hydrocarbons, carbon monoxide and other ozone precursors in the presence of nitrogen oxide in the ozone formation process [8]. Photochemical reaction of nitrogen oxides and volatile organic compounds is accelerated by the high temperature of air and sunshine. The highest concentrations of ozone at the surface of the Earth occur in spring and summer, outside the city or suburbs. The release of ozone precursors into the atmosphere is mostly the effect of industrialization and other anthropogenic sources (i.e., vehicle traffic and combustion processes) [9].
The levels of tropospheric ozone could also depend on meteorological or climatic changes [10]. At both the national and regional scales, meteorological conditions are the dominant drivers of ozone production [11]. Long-range transport of tropospheric ozone and its precursors can occur [12,13,14]. Its concentrations in Poland largely depend on ozone concentrations in the air, mainly from southern and southwestern Europe [6]. The highest ozone levels in Poland are reported in the Upper Silesia agglomeration and the Sudetes and Tatra Mountains in the southern part of the country. On hot, sunny days, the highest concentrations of ozone occur during the afternoons [7]. Ozone is one of three key pollutants taken into account in when calculating the Common Air Quality Index (CAQI), which is used for comparison and classification of the air quality in European Union countries.

2. Aim

The aim of the study was to assess whether the ozone concentration level was within admissible limits or was in excess in the industrial agglomeration of Silesian Voivodship (with a population of about five million inhabitants) and, therefore, poses a threat to the local population together with the levels of PM2.5 and PM10, significantly exceeded at the same time. Data have been compiled to describe trends of ozone concentration level for the period of 2015–2017.

3. Methodology

The ozone concentration levels were collected within the project of State Environmental Monitoring and provided by the Voivodship Inspectorate for Environmental Protection in Katowice. Based on one-hour concentrations, mean values of three fields—daily average, the highest 8-h moving average (normalized value) and the highest one-hour value of ozone concentrations during the day—were calculated for each day (for 24-, 48- and 72-h periods).
The 8-h ozone concentration was measured at 3 air monitoring stations located in different parts of the Silesian Voivodship (Katowice, Bielsko-Biała and Złoty Potok). The air monitoring stations collected data, with referential methods specified in the domestic law, on the assessment of levels of substances in the air [15]. The descriptions of measurement methods applied for the registration of ozone are presented below in the part on the measurement stations. In Poland, there are approximately 100 ground-level ozone measurement stations located throughout the country. Ground-level ozone measurements are based on ultraviolet photometry using automatic analyzers. The air intakes for sampling the air are usually located at the height of 2.5 to 4 m above the ground. Ozone analyzers are located in special air-conditioned containers with a constant temperature of approximately 20–23 °C. The ultraviolet photometry method is the reference method for measuring ozone in the air. The locations of the 3 monitoring stations were found to be useful for this research; one site is situated in a rural background area; another one is located in a medium-sized city and the Katowice station is representative of the urban background situation. We used cluster analysis, weighted pair group method using arithmetic averages (WPGMA) and Chebyshev distances to verify the relationship between the area surrounding the location of the monitoring stations and the number of days on which ozone concentrations exceeded the regulatory standards. We also identified the main sources of ozone and the levels of ozone precursors emissions in the period 2015–2018 in the Upper Silesia urban area.

3.1. Measuring Stations

The measurements were carried out in the measuring stations, which are part of the net of the measuring stations of the State Environmental Protection program in Poland. The measurements were carried out from 1 January 2015 to 31 July 2017 (Figure 1).
The first station was located in Katowice, 40-844, Kossutha Street 6. Measurement type: automatic and manual. Name: SL09KA. International code: PL0008A. Type: Urban background station. Measurement zone: Silesian agglomeration. Measurement target: human health protection.
The second station was located in Złoty Potok, near Częstochowa. Measurement type: automatic and manual. Name: SL03ZP. International code: PL0243A Urban background station. Measurement zone: Silesian agglomeration. Measurement target: plant protection.
The third station was located in Bielsko-Biała, 43-300, Kossak-Szczuckiej Street 19. Measurement type: automatic and manual. Name: SL15BB. International code: PL0234A Urban background station. Measurement zone: Silesian agglomeration. Measurement target: human health protection.

3.2. Health Risk

Exposure to ozone is a significant health issue in both developed and developing countries. In 2015, ozone exposure caused 254,000 premature deaths globally and 16,400 in the EU [16,17]. Even short-term exposure to ozone within values of air quality standards could lead to increased risk of mortality among older adults [18]. Ozone is a significant oxidant, which could interact with cells of different human systems (i.e., the respiratory system and lungs, the cardiovascular system and eye tissues) [11].
Higher concentrations of ozone in the air could lead to presbyopia among old adults, the inflammation of eye tissues and could also exacerbate the negative effects of allergic reactions on the ocular surface [19,20].
Ozone exposure is also a risk factor for respiratory diseases (including the worsening of asthma symptoms and reduced lung function). In 2015, 9–23 million emergency room visits due to asthma (which is the most common chronic respiratory disease in the world with about 358 million people affected) were attributable to ozone [4,21]. Long-lasting exposure to ozone could also increase asthma hospital admissions among children [22,23]. Young children and those coming from lower socioeconomic groups had a higher risk of asthma than other children at the same level of ozone [24]. Exposure to ozone increases the burden of chronic obstructive pulmonary disease (COPD) [25]. It is estimated that in 2015 exposure to ozone resulted in 4.1 million DALYs from COPD [17]. Exposure to ozone could also influence the incidence of different respiratory system symptoms such as coughing, throat irritation and chest tightness [26].
As an effect of exposure to ozone, the human body defends itself against high concentrations of ozone by reducing the amount of inhaled oxygen, which could affect the severity of cardiovascular diseases [5]. According to the American Cancer Society cohort study, summer ozone levels were associated with both total and cardiopulmonary mortality [27]. Oxidative stress, increased level of inflammatory cytokines and endothelial dysfunction could influence the risk of cardiovascular diseases as an effect of ozone exposure [28]. Short-term exposure to ozone was connected with a higher risk of out-of-hospital cardiac arrest, cardiovascular and respiratory mortality and a higher possibility of death in patients previously hospitalized due to myocardial infarction and those with their first manifestation of this disease [29,30]. Ozone exposure was also associated with increased number of years of life lost (YLL) from hypertension. The association was higher in elderly individuals born in the months of higher ozone concentration [31]. Although the increase in cancer risk differs due to weight, age, sex and health-related behaviors, long-term exposure to ozone increases cancer risk (especially lung cancer) [32,33]. Ozone can also cause somnolence, headaches and tiredness as well as decreases in blood pressure [6]. Recent studies suggest that there is a connection between exposure to ozone and preterm birth and low birth weight of newborns [34,35]. Ozone could also cause the onset of infantile eczema [36]. Maternal exposure to ozone was associated with the development of hypertensive disorders in pregnancy [37].

3.3. WHO Recommendations

According to WHO guidelines, the daily concentration of ozone should not exceed the level of 100 µg/m3 (daily maximum 8-h mean) (Table 1). Time-series studies show a 0.3–0.5% rise in daily mortality for every 10 µg/m3 increase in 8-h ozone concentrations above an approximate level of 70 µg/m3 [38]. It is worth noting that the European Union ozone concentration standards are less restrictive than the recommendations contained in the WHO guidelines.

3.4. National Policy

According to the regulation by the Minister of Environment on 24 August 2012 on the levels of certain substances in the air [13], the following definitions of the levels of concentrations for ozone were adopted in this paper.
Target level—The level of substance in the air which is to be achieved within a certain time using economically justified technical and technological measures; it is determined to avoid, prevent or limit the harmful effects of the substance on the health of the population or the environment. The target level for ozone is 120 µg/m3 (maximum daily 8-h mean), the target value to be met as of 01.01.2010. Permitted exceedance each year is 25 days.
Information level—The concentration level of certain substances in the air proven to be a threat to the health of the people whose health could be at risk after short-term exposure; thus, adequate information is required. Information level for ozone is 180 µg/m3 (1-h average).
Alarm level—The concentration level of certain substances in the air proven to be a threat to the health of the whole community after short-term exposure; thus, immediate action must be undertaken by EU member states. Alarm level for ozone is 240 µg/m3 (1-h average).
Occurrence in the air of ozone at a concentration exceeding the alarm level negatively affects the entire population. In this case, people from vulnerable groups, i.e., sick people, especially those with respiratory diseases, children and the elderly, should avoid being in the open, and other persons should limit being outside to the minimum necessary.

3.5. European Standards of the Ozone Concentration

The ozone concentration level accepted in the European Union is 120 µg/m3 (maximum daily 8-h mean), with permitted exceedances on 25 days averaged over 3 years (target value to be met as of 1.1.2010) [39]. The European ozone regulation No. 1005/2009 on substances that deplete the ozone layer constitutes the legal basis for the protection of the ozone layer within the European Union [40]. The rule has two purposes: to execute the obligations of the Montreal Protocol (1987) on substances that deplete the ozone layer, which all EU member states have made a formal commitment to respect, and to ensure a higher level of protection in some areas in the European Union than adopted in the protocol [41]. In 2017, the European Commission started an evaluation of the Ozone Regulation to investigate its implementation and execution in member states, which is due to be completed in 2019. The Ozone Regulation is the basis for other EU regulations concerning limitation of substances that deplete the ozone layer, i.e., Commission Regulation No. 537/2011 [42], Commission Regulation No. 291/2011 [43] and Commission Decision No. 2010/372/EU [44]. The European Commission is responsible for not only monitoring but also reporting the data to the United Nations Environment Program (UNEP) Ozone Secretariat on the utilization of ozone-depleting substances in all EU member states according to the Montreal Protocol recommendations. The rules concerning the number and location of sampling points for the assessment of ambient air quality, data validation and reference methods for the measurement of ozone are regulated by Directive 2015/1480/EC of 28 August 2015 [45]. The questions of the reciprocal exchange of information and reporting on ambient air quality are regulated by the Commission Implementing Decision of 12 December 2011, which put into effect Directives 2004/107/EC and 2008/50/EC of the European Parliament and of the Council (No C(2011) 9068) [46] (Table 2).

4. Results

4.1. Measurement Station in Bielsko-Biała SL15BB

Statistical analyses indicated exceedances of the target level of ozone (maximum daily 8-h mean equal or more than 120.4 μg/m3) 32 times (days) registered at the measurement station in 2015.
Statistical analyses indicated exceedances of the target level of ozone (maximum daily 8-h mean equal or more than 120.4 μg/m3) eight times (days) registered at the measurement station in 2016.
Statistical analyses indicated exceedances of the target level of ozone (maximum daily 8-h mean equal or more than 120.4 μg/m3) 15 times (days) registered at the measurement station in 2017 (Figure 2, Figure 3 and Figure 4).

4.2. Measurement Station in Katowice SL09KA

Statistical analyses indicated exceedances of the target level of ozone (maximum daily 8-h mean equal or more than 120.4 μg/m3) 32 times (days) registered at the measurement station in 2015.
Statistical analyses indicated exceedances of the target level of ozone (maximum daily 8-h mean equal or more than 120.4 μg/m3) 15 times (days) registered at the measurement station in 2016; according to the law, we did not observe exceedances of the target level of ozone in 2016.
Statistical analyses indicated exceedances of the target level of ozone (maximum daily 8-h mean equal or more than 120.4 μg/m3) 32 times (days) registered at the measurement station in 2017 (Figure 5, Figure 6 and Figure 7).

4.3. Measurement Station in Zloty Potok SL03ZP

Statistical analyses indicated exceedances of the target level of ozone (maximum daily 8-h mean equal or more than 120.4 μg/m3) 61 times (days) registered at the measurement station in 2015.
Statistical analyses indicated exceedances of the target level of ozone (maximum daily 8-h mean equal or more than 120.4 μg/m3) 30 times (days) registered at the measurement station in 2016.
Statistical analyses indicated exceedances of the target level of ozone (maximum daily 8-h mean equal or more than 120.4 μg/m3) 25 times (days) registered at the measurement station in 2017. According to the law, we did not observe exceedances of the target level of ozone in 2017.
The alarm level was not exceeded at the indicated measurement stations in Silesian Voivodship in the period 2015–2017 (averaging time 1 h: 240 μg/m3 for 3 h). The target level was exceeded in 2015 at all three measurement stations and in the following years at one station (in Zloty Potok in 2016 and in Katowice in 2017). Each year, the largest number of exceedances occurred in August (Figure 8, Figure 9 and Figure 10).
The results indicate a relationship between the area surrounding and the location of monitoring stations and the number of days on which ozone concentrations exceeded the regulatory standards. The year of measurement also affects the number of days exceeding the target ozone level.
In 2015, the highest number of days exceeding the O3 target level was observed for all air quality monitoring stations, with a certain exception being the SL09KA measuring station. In 2016, for all monitoring stations, there was a clear decrease in the number of days exceeding the O3 target level. The year 2017 shows an approx. two-fold increase in the number of days exceeding the O3 target level compared to 2016 for the SL15BB and SL09KA measuring stations. For the SL03ZP measuring station, in 2017, the number of days exceeding the O3 target level decreased from 30 days to 25 days (Table 3).
We used cluster analysis, weighted pair group method using arithmetic averages (WPGMA) and Chebyshev distances to test this hypothesis and compare empirical distributions in general population (Table 4 and Table 5).
The obtained results confirmed that environmental conditions (i.e., landform, the area surrounding monitoring station) have a significant influence on the ozone level. The results also showed that the ozone concentration level was less dependent from PM10 or PM2.5. The PM10 and PM2.5 levels in the area surrounding the monitoring station in Złoty Potok were significantly lower than in the area surrounding the Katowice measuring station. Nevertheless, the number of days on which ozone concentrations exceeded the regulatory standards at the Złoty Potok measuring station was much higher than in the Katowice measuring station.
In the Upper Silesia urban area, the main sources of ozone are industrial point sources (i.e., factories and coal-planted power plants), burning coal for heating of households (residential plants), transportation (especially road vehicles) and agricultural activities (emissions from manure management, application of fertilizers, field burning of agricultural residues). Forest areas, especially dominated by conifer forests, are also natural sources of biogenic emissions of volatile organic compounds (i.e., terpenes and isoprene). We compared the levels of ozone-forming gas (ozone precursors) emissions in the period 2015–2018 (Table 6, Table 7, Table 8, Table 9 and Table 10). An increase in NOx and CO emissions between 2015 and 2018 was observed as well as a decrease in SO2, NH3 and non-NH3 volatile organic compound emissions at the same time [47,48].
The classification used to assess emission of ground level ozone precursors in the Silesian voivodship in 2018 was defined within the framework of the Selected Nomenclature for sources of Air Pollution (SNAP) 97 [49].

5. Discussion

Ozone is formed near the surface of the Earth, in particular in periods of high temperatures and in high insolation in the presence of other substances such as PM, NO and CO, which may have synergistic effects and negatively affect the health of the population [50,51]. The current climate change context is also crucial [52,53,54]. In recent years, we have observed a rise in the average air temperature, which may cause concern regarding increased exposure to ozone emissions [55]. At all three monitoring stations, the hottest month in the year was July, and the average temperature during this month differs; for Katowice, it is 19 degrees; for Zloty Potok, it is 16.7 degrees; and for Bielsko-Biała, it is 18.6 degrees. Here, 2015 was the warmest year in the period under review, while the average annual temperature exceeded 10 degrees, which could partly explain why we noted that year as having the most exceedances in all three measurement stations [56].
Furthermore, the growth in the number of vehicles, especially in bigger cities, and the corresponding emissions create challenges for improving air quality. According to the report of UN-Habitat, cities produce more than 60% of greenhouse gas emissions and consume 78% of the world’s energy; nevertheless, they are responsible for less than 2% of the Earth’s surface [57]. Some research indicated that people are more exposed to high levels of O3 in rural areas than citizens living in cities [58]. Other research also confirmed new factors such as sex, obesity and socioeconomic status, which may also increase the risk of O3-related health effects [59,60].
Although the alarm level was not exceeded at all three monitoring stations in the period of 2015–2017, the target level (120 µg/m3) was exceeded many times every year during the summer. The improvement of air quality could provide significant health benefits. Experts estimate that limitations of O3 levels to 98 µg/m3 would prevent approximately 400 annual deaths, and the greatest health impact was observed in the age group over 65 and in mortality due to cardiovascular and cardiopulmonary diseases [61].
It is also important to note that over the past 20 years, the threat to the population decreased in many European countries, including France in the period between 1999 and 2012, demonstrating the effectiveness of European control strategies and regulations [57]. The air in Poland is significantly more polluted than that in most of the European Union countries [62]; therefore, changes in meteorological conditions, especially to temperature and humidity anticipated in the nearest future, should be taken into account. That is why it is necessary to define more restrictive standards concerning ozone for human health and environmental protection in Poland.
Further and more extensive research in the region is also recommended, using, for example, machine learning techniques, as they can be useful in achieving high prediction accuracy of ground-level ozone (i.e., to predict the period of the year with the highest ozone concentration in a defined geographical area) [63,64,65].

6. Conclusions

Providing evidence-based information which could serve policy-making and be accessible by the media and the general public seems to be essential from the public health point of view. The results of this study provide such evidence in the territory of the Silesian Voivodship (population of five million people). The results clearly indicate no hazards for the health of the general population in terms of increased concentrations of ozone in the city centers and the surrounding areas. The results confirm that environmental conditions (i.e., landform, the area surrounding monitoring station) have a significant influence on the ozone level. Concerning ozone-forming gases’ emission, an increase in NOx and CO emissions in the period 2015–2018 and, at the same time, a decrease in SO₂, NH3 and non-NH3 volatile organic compound emissions were observed. We identified the main sources of ozone in the Upper Silesia urban area, which are residential plants and point sources. NOx and CO control would reduce the risk of high ozone concentration in the summer, especially in the central and southern parts of the country (including Upper Silesia).

Author Contributions

Conceptualization, J.K. and M.G.; methodology, J.K. and L.D.; software, L.D.; validation, L.D.; formal analysis, J.K.; investigation resources, J.K. and L.D.; data curation, L.D. and M.G.; writing—original draft preparation, J.K. and M.G.; writing—review and editing, J.K. and M.G.; project administration, J.K.; funding acquisition, J.K. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. World Health Organization. Ambient Air Pollution: A Global Assessment of Exposure and Burden of Disease. 2016. Available online: https://apps.who.int/iris/handle/10665/250141 (accessed on 10 January 2021).
  2. World Health Organization. Ambient (Outdoor) Air Quality and Health. 2018. Available online: https://www.who.int/news-room/fact-sheets/detail/ambient-(outdoor)-air-quality-and health (accessed on 10 January 2021).
  3. Li, C.; Balluz, L.S.; Vaidyanathan, A.; Wen, X.J.; Hao, Y.; Qualters, J.R. Long-Term Exposure to Ozone and Life Expectancy in the United States, 2002 to 2008. Medicine 2016, 95, e2474. [Google Scholar] [CrossRef]
  4. Nuvolone, D.; Petri, D.; Voller, F. The effects of ozone on human health. Environ. Sci. Pollut. Res. 2018, 25, 8074–8088. [Google Scholar] [CrossRef] [PubMed]
  5. Vicedo-Cabrera, A.M.; Sera, F.; Liu, C.; Armstrong, B.; Milojevic, A.; Guo, Y.; Tong, S.; Lavigne, E.; Kyselý, J.; Urban, A.; et al. Short term association between ozone and mortality: Global two stage time series study in 406 locations in 20 countries. BMJ 2020, 368. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  6. Chief Inspectorate for Environmental Protection. What Is Ozone and How Does It Affect Life on Earth. 2015. Available online: http://powietrze.gios.gov.pl/pjp/content/show/1000577?lang=en (accessed on 10 January 2021).
  7. Amman, M.; Derwent, D.; Forsberg, B.; Hanninen, O.; Hurley, F.; Krzyzanowski, M.; De Leeuw, F.; Liu, S.J.; Mandin, C.; Schneider, J.; et al. Health Risks of Ozone from Long-Range Transboundary Air Pollution; WHO Regional Office Europe: Copenhagen, Denmark, 2008. [Google Scholar]
  8. Chattopadhyay, G.; Midya, S.K.; Chattopadhyay, S. Information Theoretic Study of the Ground-Level Ozone and Its Precursors Over Kolkata, India, During the Summer Monsoon. Iran. J. Sci. Technol. Trans. Sci. 2020, 45, 201–207. [Google Scholar] [CrossRef]
  9. Chattopadhyay, G.; Chattopadhyay, S. Spectral analysis approach to study the association between total ozone concentration and surface temperature. Int. J. Environ. Sci. Technol. 2020, 17, 4353–4358. [Google Scholar] [CrossRef]
  10. Lu, X.; Zhang, L.; Shen, L. Meteorology and Climate Influences on Tropospheric Ozone: A Review of Natural Sources, Chemistry, and Transport Patterns. Curr. Pollut. Rep. 2019, 5, 238–260. [Google Scholar] [CrossRef] [Green Version]
  11. Liu, P.; Song, H.; Wang, T.; Wang, F.; Li, X.; Miao, C.; Zhao, H. Effects of meteorological conditions and anthropogenic precursors on ground-level ozone concentrations in Chinese cities. Environ. Pollut. 2020, 262, 114366. [Google Scholar] [CrossRef]
  12. Reid, N.; Yap, D.; Bloxam, R. The potential role of background ozone on current and emerging air issues: An overview. Air Quality. Atmos. Health 2008, 1, 19–29. [Google Scholar] [CrossRef] [Green Version]
  13. Gong, C.; Liao, H.; Zhang, L.; Yue, X.; Dang, R.; Yang, Y. Persistent ozone pollution episodes in North China exacerbated by regional transport. Environ. Pollut. 2020, 265 Pt A, 115056. [Google Scholar] [CrossRef]
  14. Zeng, P.; Lyu, X.P.; Guo, H.; Cheng, H.R.; Jiang, F.; Pan, W.Z.; Wang, Z.W.; Liang, S.W.; Hu, Y.Q. Causes of ozone pollution in summer in Wuhan, Central China. Environ. Pollut. 2018, 241, 852–861. [Google Scholar] [CrossRef]
  15. Ministry of Environment. The Act of 13 August 2012 on the assessment of levels of substances in the air. J. Laws 2012, 217, 1032. (In Polish) [Google Scholar]
  16. Cohen, A.J.; Brauer, M.; Burnett, R.; Anderson, H.R.; Frostad, J.; Estep, K.; Balakrishnan, K.; Brunekreef, B.; Dandona, L.; Dandona, R.; et al. Estimates and 25-year trends of the global burden of disease attributable to ambient air pollution: An analysis of data from the Global Burden of Diseases Study 2015. Lancet 2017, 389, 1907–1918. [Google Scholar] [CrossRef] [Green Version]
  17. European Environment Agency Website. 2020. Available online: https://www.eea.europa.eu (accessed on 10 January 2021).
  18. Di, Q.; Dai, L.; Wang, Y.; Zanobetti, A.; Choirat, C.; Schwartz, J.D.; Dominici, F. Association of Short-term Exposure to Air Pollution with Mortality in Older Adults. JAMA 2017, 318, 2446–2456. [Google Scholar] [CrossRef]
  19. Lin, H.; Guo, Y.; Ruan, Z.; Yang, Y.; Chen, Y.; Zheng, Y.; Cummings-Vaughn, L.A.; Rigdon, S.E.; Vaughn, M.G.; Sun, S.; et al. Ambient PM2.5 and O3 and their combined effects on prevalence of presbyopia among the elderly: A cross-sectional study in six low- and middle-income countries. Sci. Total Environ. 2018, 655, 168–173. [Google Scholar] [CrossRef]
  20. Lee, H.; Kim, E.K.; Kim, H.Y.; Kim, T.I. Effects of Exposure to Ozone on the Ocular Surface in an Experimental Model of Allergic Conjunctivitis. PLoS ONE 2017, 12, e0169209. [Google Scholar] [CrossRef]
  21. Anenberg, S.C.; Henze, D.K.; Tinney, V.; Kinney, P.L.; Raich, W.; Fann, N.; Malley, C.S.; Roman, H.; Lamsal, L.; Duncan, B.; et al. Estimates of the Global Burden of Ambient PM2.5, Ozone, and NO2 on Asthma Incidence and Emergency Room Visits. Environ. Health Perspect. 2018, 126, 107004. [Google Scholar] [CrossRef] [Green Version]
  22. Tzivian, L. Outdoor Air Pollution and Asthma in Children. J. Asthma 2011, 48, 470–481. [Google Scholar] [CrossRef]
  23. Luong, L.M.T.; Phung, D.; Dang, T.N.; Sly, P.D.; Morawska, L.; Thai, P.K. Seasonal association between ambient ozone and hospital admission for respiratory diseases in Hanoi, Vietnam. PLoS ONE 2018, 13, e0203751. [Google Scholar] [CrossRef]
  24. Zhang, K.; Batterman, S. Air pollution and health risks due to vehicle traffic. Sci. Total Environ. 2013, 450–451, 307–316. [Google Scholar] [CrossRef] [Green Version]
  25. Li, H.; Wu, S.; Pan, L.; Xu, J.; Shan, J.; Yang, X.; Dong, W.; Deng, F.; Chen, Y.; Shima, M.; et al. Short-term effects of various ozone metrics on cardiopulmonary function in chronic obstructive pulmonary disease patients: Results from a panel study in Beijing, China. Environ. Pollut. 2018, 232, 358–366. [Google Scholar] [CrossRef]
  26. Lin, S.; Liu, X.; Hwang, S. Chronic exposure to ambient ozone and asthma hospital admissions among children. Environ. Health Perspect. 2008, 116, 1725–1730. [Google Scholar] [CrossRef]
  27. WHO Regional Office for Europe. Review of Evidence on Health Aspects of Air Pollution-REVIHAAP Project; WHO Regional Office for Europe: Copenhagen, Denmark, 2013. [Google Scholar]
  28. Srebot, V.; Gianicolo, E.A.; Rainaldi, G.; Trivella, M.G.; Sicari, R. Ozone and cardiovascular injury. Cardiovasc. Ultrasound 2009, 7. [Google Scholar] [CrossRef] [Green Version]
  29. Raza, A.; Dahlquist, M.; Lind, T.; Ljungman, P.L.S. Susceptibility to short-term ozone exposure and cardiovascular and respiratory mortality by previous hospitalizations. Environ. Health 2018, 17, 37. [Google Scholar] [CrossRef] [Green Version]
  30. Raza, A.; Dahlquist, M.; Jonsson, M.; Hollenberg, J.; Svensson, L.; Lind, T.; Ljungman, P.L.S. Ozone and cardiac arrest: The role of previous hospitalizations. Environ. Pollut. 2019, 245, 1–8. [Google Scholar] [CrossRef]
  31. Huang, J.; He, T.; Li, G.; Guo, X. How Birth Season Affects Vulnerability to the Effect of Ambient Ozone Exposure on the Disease Burden of Hypertension in the Elderly Population in a Coastal City in South China. Int. J. Environ. Res. Public Health 2020, 17, 824. [Google Scholar] [CrossRef] [Green Version]
  32. Kim, K.J.; Shin, J.; Choi, J. Cancer Risk from Exposure to Particulate Matter and Ozone According to Obesity and Health-Related Behaviors: A Nationwide Population-Based Cross-Sectional Study. Cancer Epidemiol. Biomark. Prev. 2019, 28, 357–362. [Google Scholar] [CrossRef] [Green Version]
  33. Guo, Y.; Zeng, H.; Zheng, R.; Li, S.; Barnett, A.G.; Zhang, S.; Zou, X.; Huxley, R.; Chen, W.; Williams, G. The association between lung cancer incidence and ambient air pollution in China: A spatiotemporal analysis. Environ. Res. 2016, 144, 60–65. [Google Scholar] [CrossRef]
  34. Stieb, D.M.; Lavigne, E.; Chen, L.; Pinault, L.; Gasparrini, A.; Tjepkema, M. Air pollution in the week prior to delivery and preterm birth in 24 Canadian cities: A time to event analysis. Environ. Health 2019, 18. [Google Scholar] [CrossRef] [PubMed]
  35. Chen, G.; Guo, Y.; Abramson, M.J.; Williams, G.; Li, S. Exposure to low concentrations of air pollutants and adverse birth outcomes in Brisbane, Australia, 2003–2013. Sci. Total Environ. 2018, 622–623, 721–726. [Google Scholar] [CrossRef]
  36. Belugina, I.N.; Yagovdik, N.Z.; Belugina, O.S.; Belugin, S.N. Outdoor environment, ozone, radionuclide-associated aerosols and incidences of infantile eczema in Minsk, Belarus. J. Eur. Acad. Dermatol. Venereol. 2018, 32, 1977–1985. [Google Scholar] [CrossRef]
  37. Cao, W.; Dong, M.; Sun, X.; Liu, X.; Xiao, J.; Feng, B.; Zeng, W.; Hu, J.; Li, X.; Guo, L.; et al. Associations of maternal ozone exposures during pregnancy with maternal blood pressure and risk of hypertensive disorders of pregnancy: A birth cohort study in Guangzhou, China. Environ. Res. 2020, 183, 109207. [Google Scholar] [CrossRef]
  38. World Health Organization. Air Quality Guidelines for, Particulate Matter, Ozone, Nitrogen Dioxide and Sulfur Dioxide. Global Update 2005; WHO Regional Office for Europe: Copenhagen, Denmark, 2005. [Google Scholar]
  39. European Commission. Directive 2008/50/EC of the European Parliament and of the Council of 21 May 2008 on Ambient Air Quality and Cleaner Air for Europe. 2008. Available online: https://eur-lex.europa.eu/legal-content/EN/ALL/?uri=CELEX%3A32008L0050 (accessed on 10 January 2021).
  40. European Commission. The European Ozone Regulation No 1005/2009 on Substances that Deplete the Ozone Layer Constitutes the Legal Basis for the Protection of the Ozone Layer within the European Union. 2009. Available online: https://eurlex.europa.eu/LexUriServ/LexUriServ.douri=OJ:L:2009:286:0001:0030:EN:PDF (accessed on 10 January 2021).
  41. The Montreal Protocol on Substances That Deplete the Ozone Layer. 1987. Available online: https://www.unenvironment.org/ozonaction/who-we-are/about-montreal-protocol (accessed on 10 January 2021).
  42. European Commission. Commission Regulation (EU) No 537/2011 of 1 June 2011 on the Mechanism for the Allocation of Quantities of Controlled Substances Allowed for Laboratory and Analytical Uses in the Union under Regulation (EC) No 1005/2009 of the European Parliament and of the Council on Substances That Deplete the Ozone Layer. 2011. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A32011R0537 (accessed on 10 January 2021).
  43. European Commission. Commission Regulation (EU) No 291/2011 of 24 March 2011 on Essential Uses of Controlled Substances Other Than Hydrochlorofluorocarbons for Laboratory and Analytical Purposes in the Union under Regulation (EC) No 1005/2009 of the European Parliament and of the Council on Substances That Deplete the Ozone Layer. 2011. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX:32011R0291 (accessed on 10 January 2021).
  44. European Commission. Commission Decision of 18 June 2010 on the Use of Controlled Substances as Process Agents under Article 8(4) of Regulation (EC) No 1005/2009 of the European Parliament and of the Council (Notified under Document C 2010 3847). 2010. Available online: https://publications.europa.eu/en/publication-detail/-/publication/89eee2c0-f009-4d28- 9c84a6750dbe3752/language-en (accessed on 10 January 2021).
  45. European Commission. Commission Directive (EU) 2015/1480 of 28 August 2015 Amending Several Annexes to Directives 2004/107/EC and 2008/50/EC of the European Parliament and of the Council Laying down the Rules Concerning Reference Methods, Data Validation and Location of Sampling Points for the Assessment of Ambient air Quality. 2015. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/PDF/?uri=CELEX:32015L1480 (accessed on 10 January 2021).
  46. European Commission. Commission Implementing Decision of 12 December 2011 Which put into Effect Directives 2004/107/EC and 2008/50/EC of the European Parliament and of the Council as Regards the Reciprocal Exchange of Information and Reporting on Ambient Air Quality (Notified under Document C2011 9068). 2011. Available online: https://eur-lex.europa.eu/legal-content/EN/TXT/?uri=CELEX%3A32011D0850 (accessed on 10 January 2021).
  47. The Silesian Regional Assembly. Program Ochrony Powietrza dla Terenu Województwa Śląskiego Mający na celu Osiągnięcie Poziomów Dopuszczalnych Substancji w Powietrzu Oraz Pułapu Stężenia Ekspozycji. 2017. Available online: https://www.slaskie.pl/download/content/67243 (accessed on 10 January 2021). (In Polish).
  48. The Silesian Regional Assembly. Program Ochrony Powietrza dla Województwa Śląskiego. 2020. Available online: https://www.dzienniki.slask.eu/WDU_S/2020/5070/akt.pdf (accessed on 10 January 2021). (In Polish).
  49. European Environment Agency. EMEP/CORINAIR Emission Inventory Guidebook. Available online: https://www.eea.europa.eu/publications/EMEPCORINAIR5/page002.html (accessed on 10 January 2021).
  50. Hwang, B.F.; Chen, Y.H.; Lin, Y.T.; Wu, X.T.; Leo, Y.L. Relationship between exposure to fine particulates and ozone and reduced lung function in children. Environ. Res. 2015, 137, 382–390. [Google Scholar] [CrossRef]
  51. Turner, M.C.; Jerrett, M.; Pope, C.A.; Krewski, D.; Gapstur, S.M.; Diver, W.; Beckerman, B.S.; Marshall, J.D.; Su, J.; Crouse, D.L.; et al. Long-Term Ozone Exposure and Mortality in a Large Prospective Study. Am. J. Respir. Crit. Care Med. 2016, 193, 1134–1142. [Google Scholar] [CrossRef] [Green Version]
  52. Breitner, S.; Schneider, A.; Devlin, R.B.; Ward-Caviness, C.K.; Diaz-Sanchez, D.; Neas, L.M.; Cascio, W.E.; Peters, A.; Hauser, E.R.; Shah, S.H.; et al. Associations among plasma metabolite levels and short-term exposure to PM2.5 and ozone in a cardiac catheterization cohort. Environ. Int. 2016, 97, 76–84. [Google Scholar] [CrossRef] [Green Version]
  53. Dionisio, K.L.; Nolte, C.G.; Spero, T.L.; Graham, S.; Caraway, N.; Foley, K.M.; Isaacs, K.K. Characterizing the impact of projected changes in climate and air quality on human exposures to ozone. J. Expo. Sci. Environ. Epidemiol. 2017, 27, 260–270. [Google Scholar] [CrossRef]
  54. Chen, K.; Fiore, A.M.; Chen, R.; Jiang, L.; Jones, B.; Schneider, A.; Peters, A.; Bi, J.; Kan, H.; Kinney, P.L. Future ozone-related acute excess mortality under climate and population change scenarios in China. PLoS Med. 2018, 15, e1002598. [Google Scholar] [CrossRef]
  55. Malig, B.J.; Pearson, D.L.; Chang, Y.B.; Broadwin, R.; Basu, R.; Green, R.S.; Ostro, B. A Time-Stratified Case-Crossover Study of Ambient Ozone Exposure and Emergency Department Visits for Specific Respiratory Diagnoses in California (2005–2008). Environ. Health Perspect. 2016, 124, 745–753. [Google Scholar] [CrossRef] [Green Version]
  56. Climate-Data.org. 2019. Available online: http://pl.climate-data.org/europa/polska/silesian-voivodeship/katowice-736 (accessed on 10 January 2021).
  57. UN Habitat. 2019. Available online: www.un.org/en/climatechange/cities-pollution.shtml (accessed on 10 January 2021).
  58. Sicard, P.; Serra, R.; Rossello, P. Spatiotemporal trends in ground-level ozone concentrations and metrics in France over the time period 1999–2012. Environ. Res. 2016, 149, 122–144. [Google Scholar] [CrossRef]
  59. Bravo, M.A.; Anthopolos, R.; Bell, M.L.; Miranda, M.L. Racial isolation and exposure to airborne particulate matter and ozone in understudied US populations: Environmental justice applications of downscaled numerical model output. Environ. Int. 2016, 92–93, 247–255. [Google Scholar] [CrossRef]
  60. Cakmak, S.; Hebbern, C.; Vanos, J.; Crouse, D.L.; Burnett, R. Ozone exposure and cardiovascular-related mortality in the Canadian Census Health and Environment Cohort (CANCHEC) by spatial synoptic classification zone. Environ. Pollut. 2016, 214, 589–599. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Alexis, N.E.; Carlsten, C. Interplay of air pollution and asthma immunopathogenesis: A focused review of diesel exhaust and ozone. Int. Immunopharmacol. 2014, 23, 347–355. [Google Scholar] [CrossRef]
  62. Kobza, J.; Geremek, M.; Dul, L. Characteristics of air quality and sources affecting high levels of PM10 and PM2.5 in Poland, Upper Silesia urban area. Environ. Monit. Assess. 2018, 190, 515. [Google Scholar] [CrossRef] [Green Version]
  63. Liu, R.; Ma, Z.; Liu, Y.; Shao, Y.; Zhao, W.; Bi, J. Spatiotemporal distributions of surface ozone levels in China from 2005 to 2017: A machine learning approach. Environ. Int. 2020, 142, 105823. [Google Scholar] [CrossRef]
  64. Mohan, S.; Saranya, P. A novel bagging ensemble approach for predicting summertime ground-level ozone concentration. J. Air Waste Manag. Assoc. 2019, 69, 220–233. [Google Scholar] [CrossRef]
  65. Ren, X.; Mi, Z.; Georgopoulos, P.G. Comparison of Machine Learning and Land Use Regression for fine scale spatiotemporal estimation of ambient air pollution: Modeling ozone concentrations across the contiguous United States. Environ. Int. 2020, 142, 105827. [Google Scholar] [CrossRef] [PubMed]
Ijerph 18 01473 g001 550
Figure 1. Map. The locations of measurement sites in Bielsko-Biała, Katowice and Zloty Potok in the Upper Silesian agglomeration used in the study.
Figure 1. Map. The locations of measurement sites in Bielsko-Biała, Katowice and Zloty Potok in the Upper Silesian agglomeration used in the study.
Ijerph 18 01473 g001
Ijerph 18 01473 g002 550

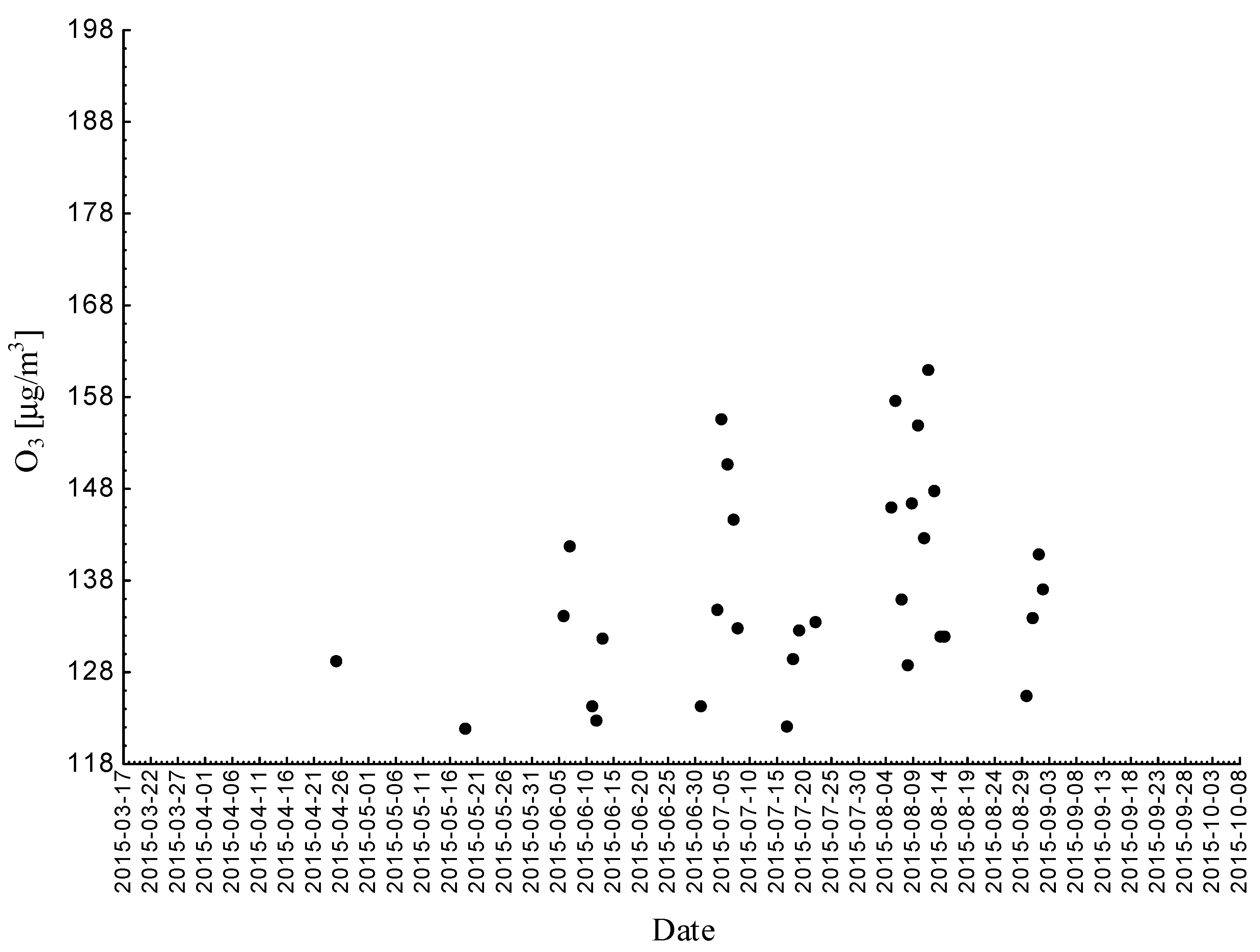

Figure 2. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Bielsko-Biała (SL15BB) in 2015.
Figure 2. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Bielsko-Biała (SL15BB) in 2015.
Ijerph 18 01473 g002
Ijerph 18 01473 g003 550

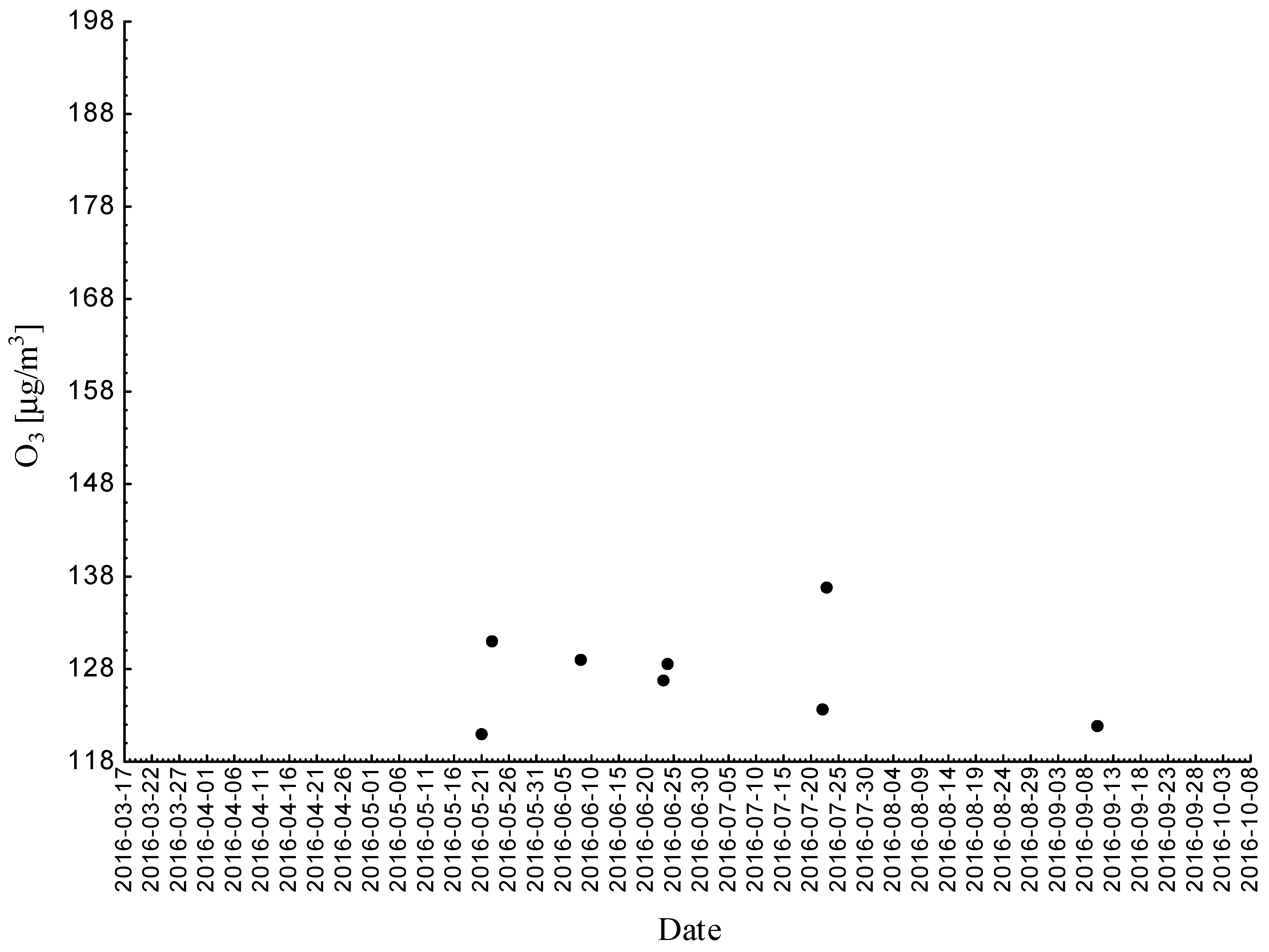

Figure 3. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Bielsko-Biała (SL15BB) in 2016.
Figure 3. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Bielsko-Biała (SL15BB) in 2016.
Ijerph 18 01473 g003
Ijerph 18 01473 g004 550

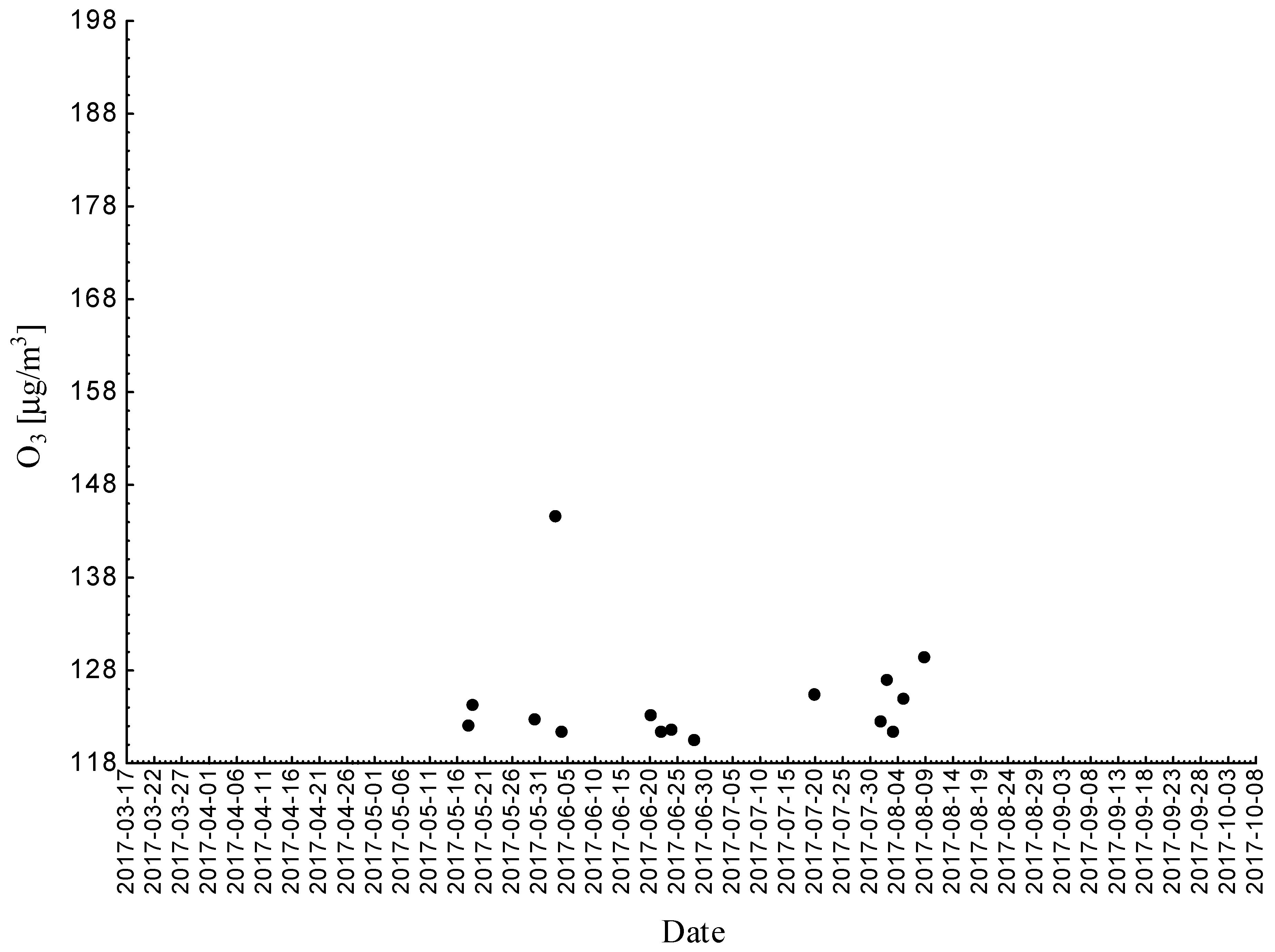

Figure 4. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Bielsko-Biała (SL15BB) in 2017.
Figure 4. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Bielsko-Biała (SL15BB) in 2017.
Ijerph 18 01473 g004
Ijerph 18 01473 g005 550
Figure 5. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Katowice (SL09KA) in 2015.
Figure 5. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Katowice (SL09KA) in 2015.
Ijerph 18 01473 g005
Ijerph 18 01473 g006 550
Figure 6. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Katowice (SL09KA) in 2016.
Figure 6. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Katowice (SL09KA) in 2016.
Ijerph 18 01473 g006
Ijerph 18 01473 g007 550

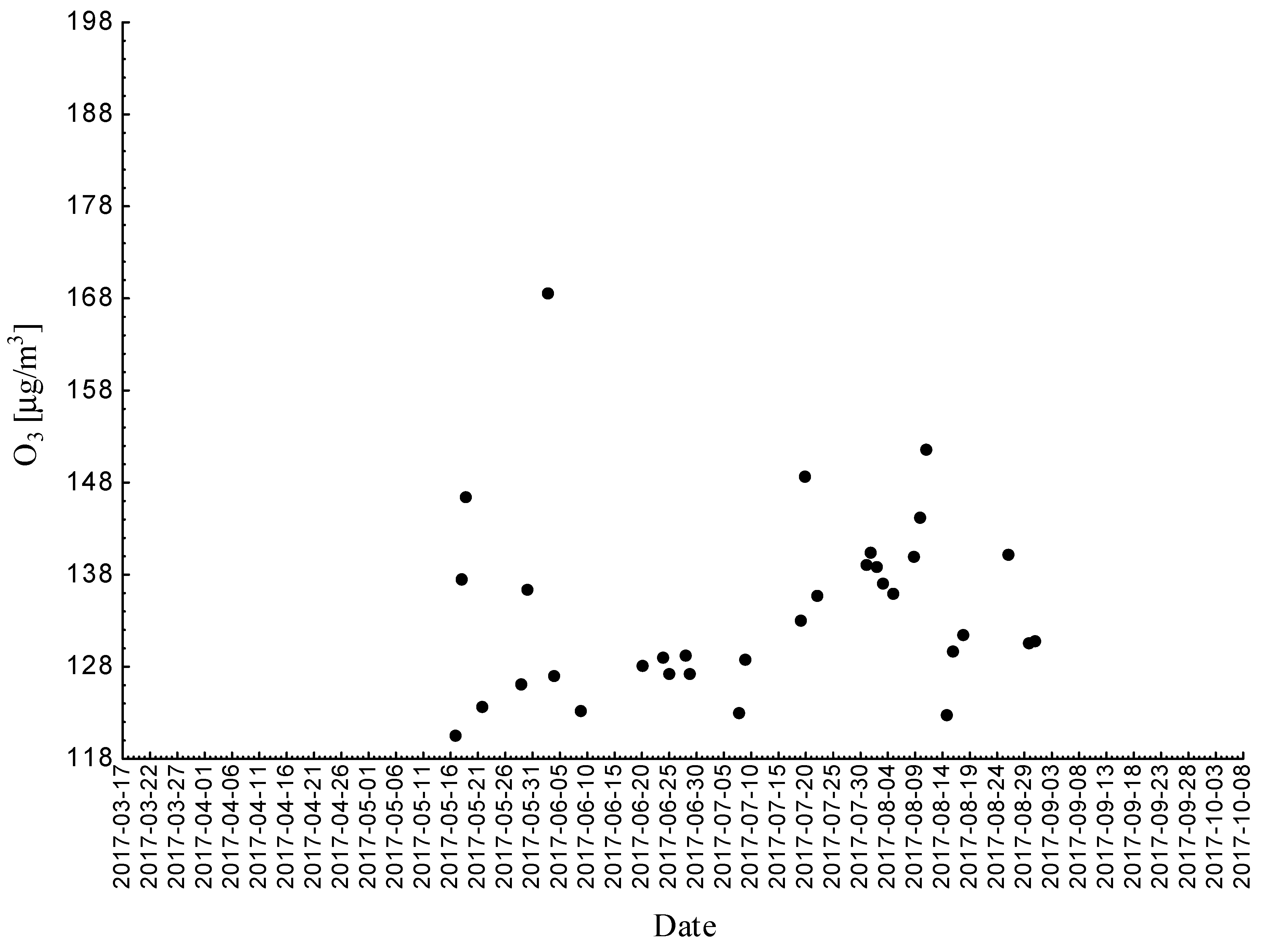

Figure 7. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m registered at the measurement station in Katowice (SL09KA) in 2017.
Figure 7. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m registered at the measurement station in Katowice (SL09KA) in 2017.
Ijerph 18 01473 g007
Ijerph 18 01473 g008 550

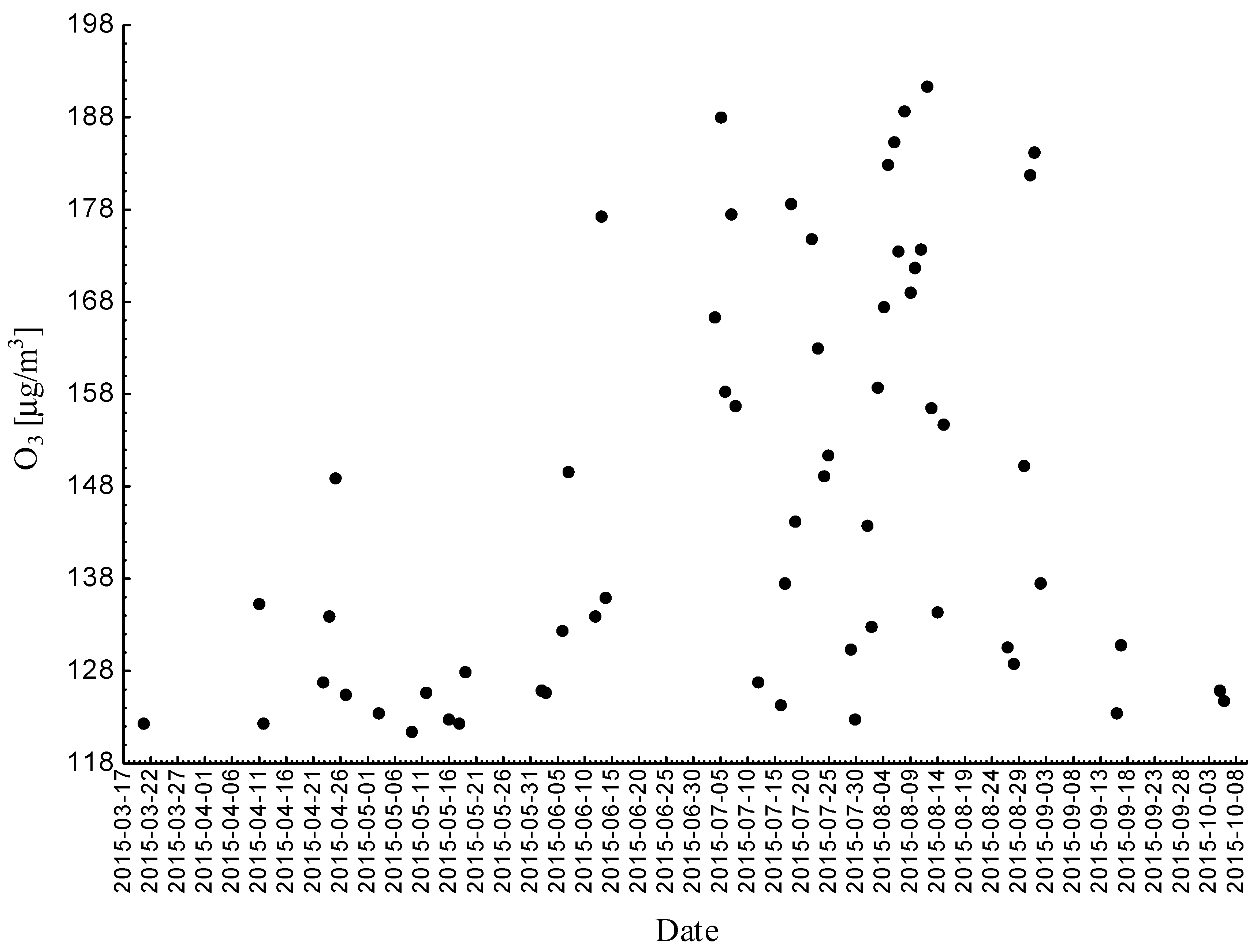

Figure 8. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Zloty Potok (SL03ZP) in 2015.
Figure 8. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Zloty Potok (SL03ZP) in 2015.
Ijerph 18 01473 g008
Ijerph 18 01473 g009 550

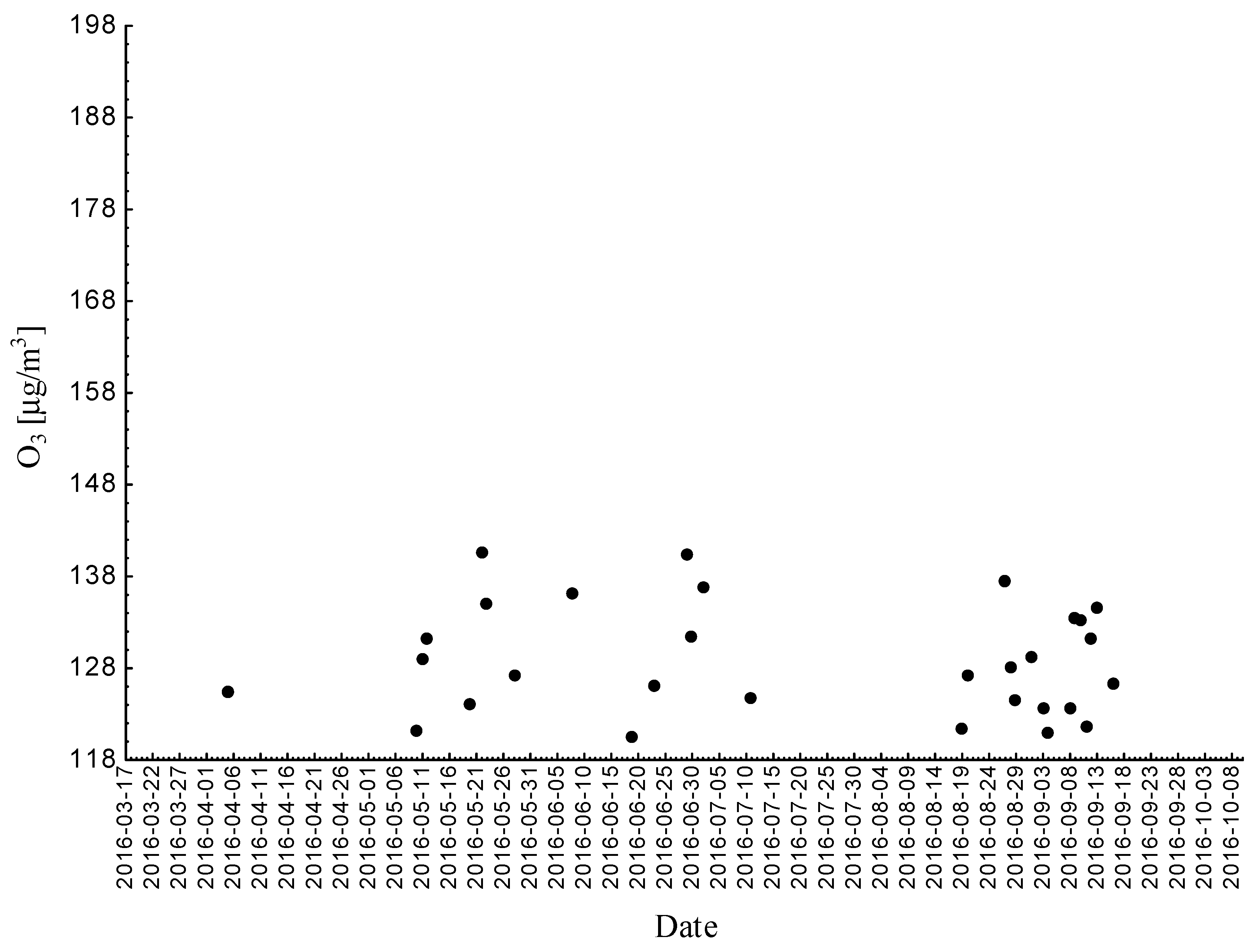

Figure 9. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Zloty Potok SL03ZP in 2016.
Figure 9. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m3 registered at the measurement station in Zloty Potok SL03ZP in 2016.
Ijerph 18 01473 g009
Ijerph 18 01473 g010 550

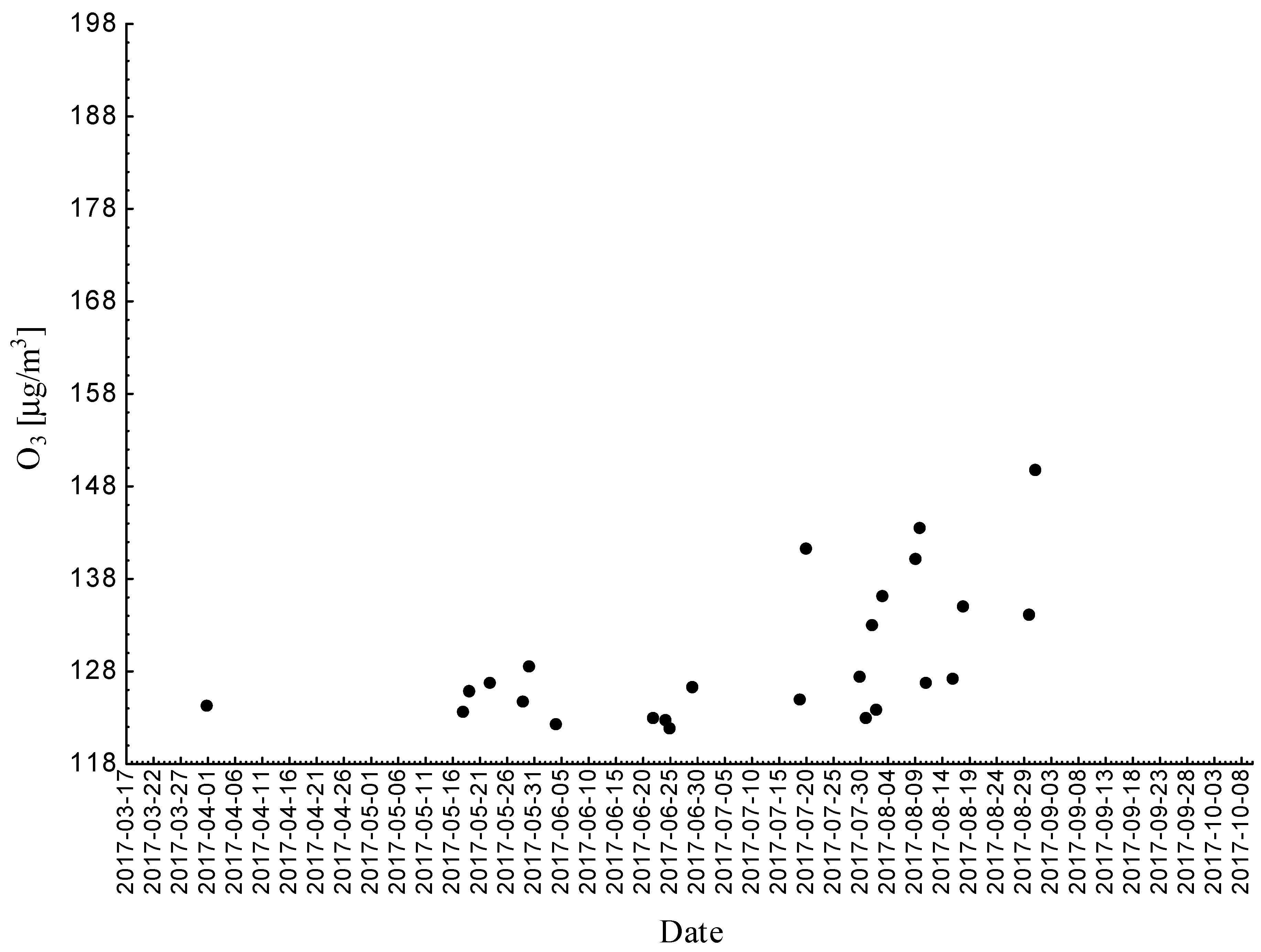

Figure 10. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m registered at the measurement station in Zloty Potok SL03ZP in 2017.
Figure 10. Maximum daily 8-h mean ozone concentration not less (equal to or more than) than 120.4 μg/m registered at the measurement station in Zloty Potok SL03ZP in 2017.
Ijerph 18 01473 g010
Table
Table 1. WHO air quality guidelines for ozone (8-h concentrations) based on time-series research [38].
Table 1. WHO air quality guidelines for ozone (8-h concentrations) based on time-series research [38].
Daily Maximum 8-h Mean Health Effects for Selected Level Exposure
High/alarm level240 µg/m3Acute health effects mainly affect vulnerable populations
Interim target160 µg/m3Significant health effects; does not provide sufficient protection for the general population
Exposure to this level of ozone is related to:
  • Inflammatory and physiological lung effects in healthy exercising young adults exposed for 6.6 h
  • Health effects in children
  • An estimated 3–5% increase in daily mortality
Air quality recommendation100 µg/m3Ensures sufficient protection for the general population although some health effects may occur below this level.
Exposure to this level of ozone is related to:
  • An assessed 1–2% rise in daily mortality
  • Probability that real exposure can be repeated
  • Health effects in children and highly sensitive and clinically endangered persons
  • Probability that ambient ozone is a criterion for related oxidants
Table
Table 2. Ozone concentration standards (in μg/m3) based on national and EU legislation, WHO and EPA recommendation.
Table 2. Ozone concentration standards (in μg/m3) based on national and EU legislation, WHO and EPA recommendation.
TimeWHOEPAEU Poland
Ozone concentration admissible limitsMaximum daily 8-h mean100 µg/m30.070 ppm *120 µg/m3, 25 days averaged over 3 years120 µg/m3, not to be exceeded more than 25 times a calendar year
* The EPA standard for ozone is based on ppm (1 ppm = 1000 mg/m3 100 µg = 0.10000 mg).
Table
Table 3. Exceedances of the target level of ozone (maximum daily 8-h mean equal to or more than 120 μg/m3) in period 2015–2017—number of days.
Table 3. Exceedances of the target level of ozone (maximum daily 8-h mean equal to or more than 120 μg/m3) in period 2015–2017—number of days.
Years201520162017
Measuring stations and number of days with exceedances
SL15BB32815
SL09KA321532
SL03ZP613025
Table
Table 4. (a) The Chebyshev distances between the features O3 (μg/m3), max 8 h, for period 2015–2017. (b) The Chebyshev distances between the features O3 (μg/m3), max 8 h, for years 2015, 2016 and 2017.
Table 4. (a) The Chebyshev distances between the features O3 (μg/m3), max 8 h, for period 2015–2017. (b) The Chebyshev distances between the features O3 (μg/m3), max 8 h, for years 2015, 2016 and 2017.
(a)
VariableChebyshev Distances in Period 2015–2017
SL15BB (O3) (μg/m3)-Max 8 hSL09KA (O3) (μg/m3)-Max 8 hSL03ZP (O3) (μg/m3)-Max 8 h
SL15BB (O3) (μg/m3)-Max 8 h0.055.473.8
SL09KA (O3) (μg/m3)-Max 8 h55.40.078.4
SL03ZP (O3) (μg/m3)-Max 8 h73.878.40.0
(b)
VariableChebyshev Distances in 2015
SL09KA (O3) (μg/m3)-Max 8 hSL09KA (O3) (μg/m3)-Max 8 hSL03ZP (O3) (μg/m3)-Max 8 h
SL15BB (O3) (μg/m3)-Max 8 h0.047.973.8
SL09KA (O3) (μg/m3)-Max 8 h47.90.078.4
SL03ZP (O3) (μg/m3)-Max 8 h73.878.40.0
VariableChebyshev distances in 2016
SL15BB (O3) (μg/m3)-Max 8 hSL09KA (O3) (μg/m3)-Max 8 hSL03ZP (O3) (μg/m3)-Max 8 h
SL15BB (O3) (μg/m3)-Max 8 h0.049.848.2
SL09KA (O3) (μg/m3)-Max 8 h49.80.041.0
SL03ZP (O3) (μg/m3)-Max 8 h48.241.00.0
VariableChebyshev distances in 2017
SL15BB (O3) (μg/m3)-Max 8 hSL09KA (O3) (μg/m3)-Max 8 hSL03ZP (O3) (μg/m3)-Max 8 h
SL15BB (O3) (μg/m3)-Max 8 h0.055.470.6
SL09KA (O3) (μg/m3)-Max 8 h55.40.076.2
SL03ZP (O3) (μg/m3)-Max 8 h70.676.20.0
Table
Table 5. (a) Cluster analysis for period 2015–2017. (b) Cluster analysis for year 2015. (c) Cluster analysis for year 2016. (d) Cluster analysis for year 2017.
Table 5. (a) Cluster analysis for period 2015–2017. (b) Cluster analysis for year 2015. (c) Cluster analysis for year 2016. (d) Cluster analysis for year 2017.
(a)
Cluster NumberDistance Euclidean Clusters—2015–2017 Distance under Diagonal Square Distance above Diagonal
No 1No 2
No 10.0313.3
No 217.70.0
Variable—2015–2017Elements cluster number 1 and distance from center right cluster. Cluster has 1 variable
Distance
SL03ZP (O3) (μg/m3)-Max 8 h0.0
Variable—2015–2017Elements cluster number 2 and distance from center right cluster. Cluster has 2 variables
Distance
SL15BB (O3) (μg/m3)-Max 8 h7.1
SL09KA (O3) (μg/m3)-Max 8 h7.1
(b)
Cluster NumberDistance Euclidean Clusters—2015 Distance under Diagonal Square Distance above Diagonal
No 1No 2
No 10.0491.6
No 222.20.0
Variable—2015Elements cluster number 1 and distance from center right cluster. Cluster has 1 variable
Distance
SL03ZP (O3) (μg/m3)-Max 8 h0.0
Variable-2015Elements cluster number 2 and distance from center right cluster. Cluster has 2 variables
Distance
SL15BB (O3) (μg/m3)-Max 8 h7.6
SL09KA (O3) (μg/m3)-Max 8 h7.6
(c)
Cluster NumberDistance Euclidean Clusters—2016 Distance under Diagonal Square Distance above Diagonal
No 1No 2
No 10.0206.5
No 214.40.0
Variable—2016Elements cluster number 1 and distance from center right cluster Cluster has 1 variable
Distance
SL03ZP (O3) (μg/m3)-Max 8 h0.0
Variable—2016Elements cluster number 2 and distance from center right cluster. Cluster has 2 variables
Distance
SL15BB (O3) (μg/m3)-Max 8 h6.5
SL09KA (O3) (μg/m3)-Max 8 h6.5
(d)
Cluster NumberDistance Euclidean Clusters-2017 Distance under Diagonal Square Distance above Diagonal
No 1No 2
No 10.0248.3
No 215.80.0
Variable—2017Elements cluster number 1 and distance from center right cluster. Cluster has 1 variable
Distance
SL03ZP (O3) (μg/m3)-Max 8 h0.0
Variable—2017Elements cluster number 2 and distance from center right cluster. Cluster has 2 variables
Distance
SL15BB (O3) (μg/m3)-Max 8 h7.2
SL09KA (O3) (μg/m3)-Max 8 h7.2
Table
Table 6. Emission of ozone precursors in Silesian Voivodship in 2015 based on the Silesian Regional Assembly 2016 [47].
Table 6. Emission of ozone precursors in Silesian Voivodship in 2015 based on the Silesian Regional Assembly 2016 [47].
Type of EmissionEmissions of Ozone-Forming Gases (Ground-Level Ozone Precursors) in Tons
COSO₂Non-NH3 Volatile Organic Compounds NH3
Burning coal for heating of households (residential plants)255,499.186 26,308.687 26,448.750 153.928
Transportation18,579.824 156.445 2236.275
Point sources16,351.951 64,336.607 2516.725 441.240
Agricultural activities988.525 2.151 3990.702 8389.749
Natural sources (forests) 13,282.668 1504.178
Total439,419.486 90,803.890 48,475.120 10,489.095
Table
Table 7. Emission of NOx in 2015 [47].
Table 7. Emission of NOx in 2015 [47].
Type of EmissionNOx
Burning coal for heating of households9145.177
Transportation7296.671
Point sources46,893.604
Agricultural activities1855.560
Total65,191.012
Table
Table 8. Selected Nomenclature for sources of Air Pollution (SNAP) 97 classification groups [49].
Table 8. Selected Nomenclature for sources of Air Pollution (SNAP) 97 classification groups [49].
SNAP97 GroupsSources of Emission
SNAP 01Combustion in energy and transformation industries
SNAP 02Non-industrial combustion plants
SNAP 0202 subgroupResidential plants
SNAP 03Combustion in manufacturing energy
SNAP 04Production processes
SNAP 05Extraction and distribution of fossil fuels and geothermal energy
SNAP 06Solvent and other product use
SNAP 07Road transport
SNAP 08Other mobile sources and machinery
SNAP 09Waste treatment and disposal
SNAP 10Agriculture
SNAP 11Other sources and sinks
Table
Table 9. Emission of ozone precursors in Silesian voivodships in 2018 based on [48].
Table 9. Emission of ozone precursors in Silesian voivodships in 2018 based on [48].
Source of EmissionSNAP97 GroupsEmissions of Ozone-Forming Gases (Ground-Level Ozone Precursors) in tones
COSO₂Non-NH3 Volatile Organic Compounds NH3
Residential plants0202264,356.5922,469.0028,118.42
Manufacturing and energetics0110 934.0133,835.3790.9932.24
022005.06627.00224.79
033149.242644.5341.26250.01
04148,768.178954.021817.6728.25
0538.7576.86155.08
06284.343.051916.112.68
0986.035.5412.227.86
Road transport0754,724.6252.697753.86446.85
Agricultural tractors and other agricultural machinery083156.586.86243.060.55
Rail transport0869.750.6530.310.05
Airports 0838.6010.155.17
Spoil tips and excavatability05
Waste storage09
Agriculture10 2673.936305.08
Forestry and grounds11
Total 487,611.74 68,685.7243,127.877073.57
Table
Table 10. Emission of NOx in 2018 [48].
Table 10. Emission of NOx in 2018 [48].
Type of EmissionSNAP97 GroupsNOx
Residential plants02027167.04
Manufacturing and energetics0130,325.00
02546.42
034732.41
049380.07
0552.25
0693.10
0940.73
Road transport0728,671.47
Agricultural tractors and other agricultural machinery082364.48
Rail transport08341.59
Airports 08127.75
Spoil tips and excavatability05
Waste storage09
Agriculture10
Forestry and grounds11
Total 83,842.31
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Kobza, J.; Geremek, M.; Dul, L. Ozone Concentration Levels in Urban Environments—Upper Silesia Region Case Study. Int. J. Environ. Res. Public Health 2021, 18, 1473. https://doi.org/10.3390/ijerph18041473

AMA Style

Kobza J, Geremek M, Dul L. Ozone Concentration Levels in Urban Environments—Upper Silesia Region Case Study. International Journal of Environmental Research and Public Health. 2021; 18(4):1473. https://doi.org/10.3390/ijerph18041473

Chicago/Turabian Style

Kobza, Joanna, Mariusz Geremek, and Lechosław Dul. 2021. "Ozone Concentration Levels in Urban Environments—Upper Silesia Region Case Study" International Journal of Environmental Research and Public Health 18, no. 4: 1473. https://doi.org/10.3390/ijerph18041473

APA Style

Kobza, J., Geremek, M., & Dul, L. (2021). Ozone Concentration Levels in Urban Environments—Upper Silesia Region Case Study. International Journal of Environmental Research and Public Health, 18(4), 1473. https://doi.org/10.3390/ijerph18041473

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
