Comparative Analysis of Emergency Planning Zone and Control Room Habitability for Potential Nuclear Reactor Deployment in Ghana
Abstract
:1. Introduction
2. Materials and Methods
2.1. SNAP/RADTRAD Model
- (X/Q)LPZ: ADF at LPZ, s/m3;
- wb: whole body;
- X/Q: atmospheric dispersion;
- (X/Q)EAB: Atmospheric Dispersion Factor (ADF) at EAB, s/m3;
- BR: Breathing rate, m3/s;
- Q: release activity, Ci;
- DCF: Decontamination Factor (rem/Ci);
- i: isotope;
- thy: thyroid;
- D: Dose;
- BR = (3.47 × 10 m3/s)
- () = control room atmospheric diffusion factor;
- Ri = release rate of radionuclide i from the pool;
- GF = 1173/V0.338;
- Occ = Control Room Occupancy;
- VCR = Volume of Control Room;
- ACR = Average Activity in Control Room;
2.1.1. Rod Ejection Accident Model
2.1.2. Fuel Handling Accident Model
2.2. RASCAL Model on Long-Term Station Blackout
The Long-Term Station Blackout Accident
3. Results
3.1. The RADTRAD Analysis Results

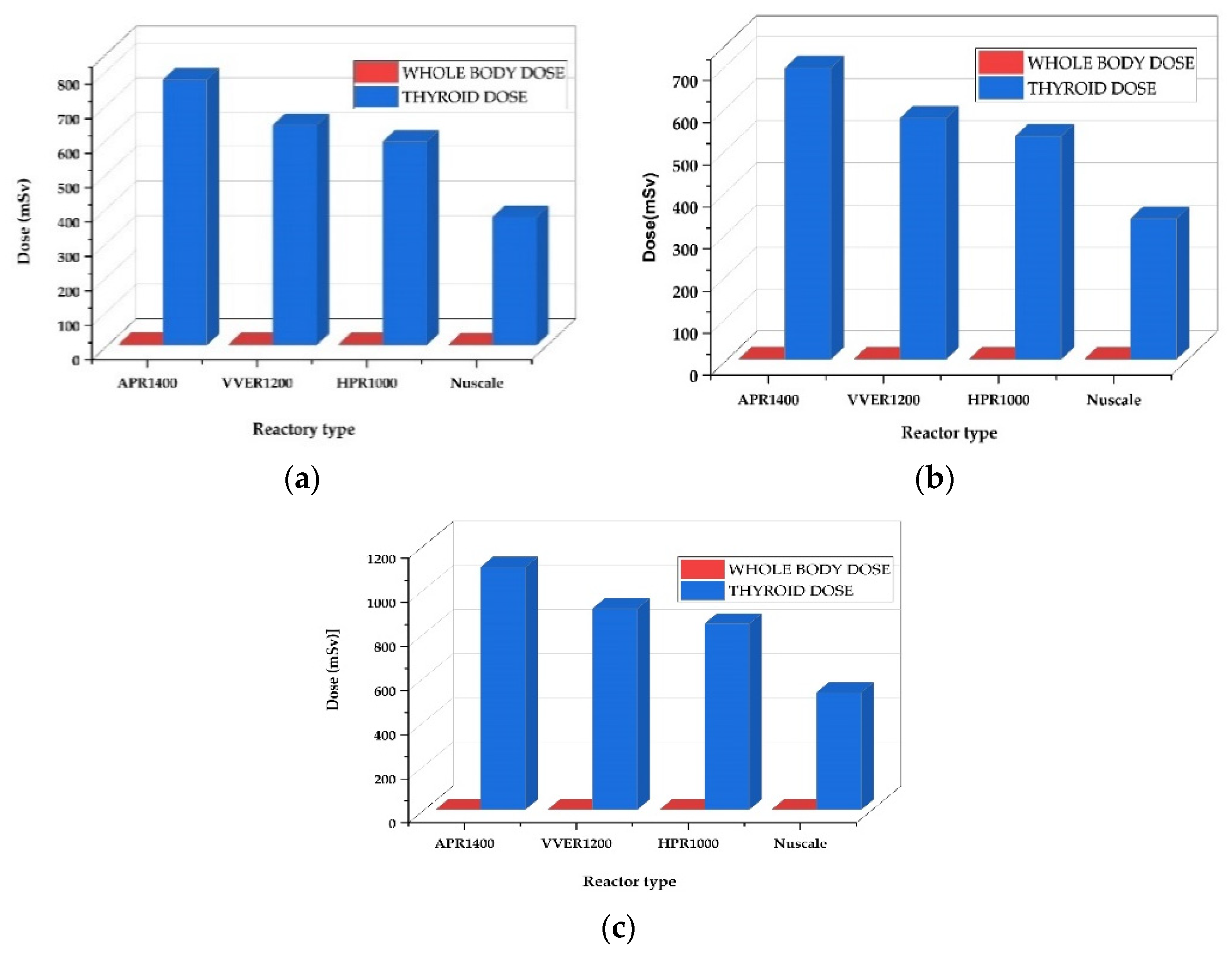

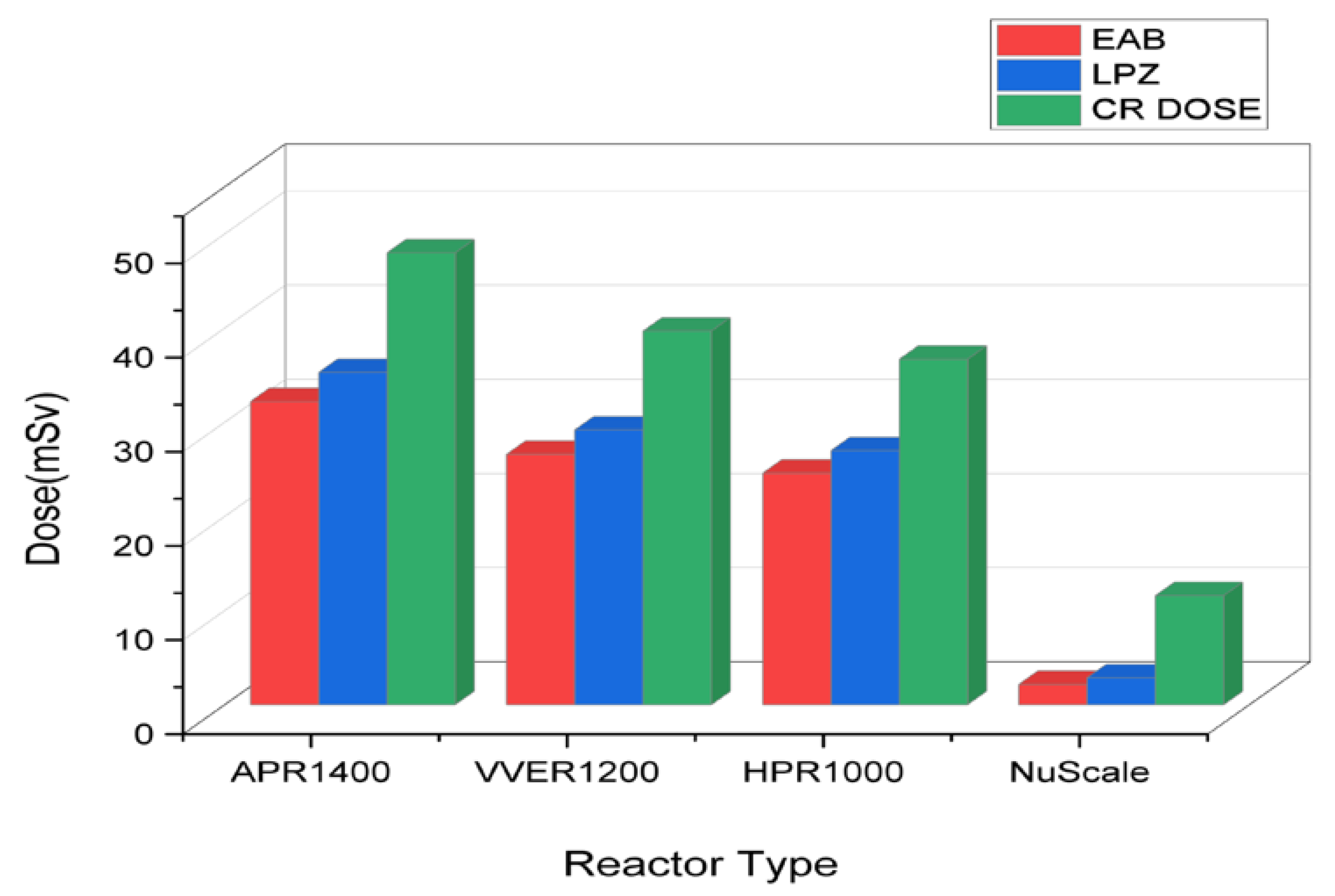

3.1.1. The Analysis of Rod Ejection Accident

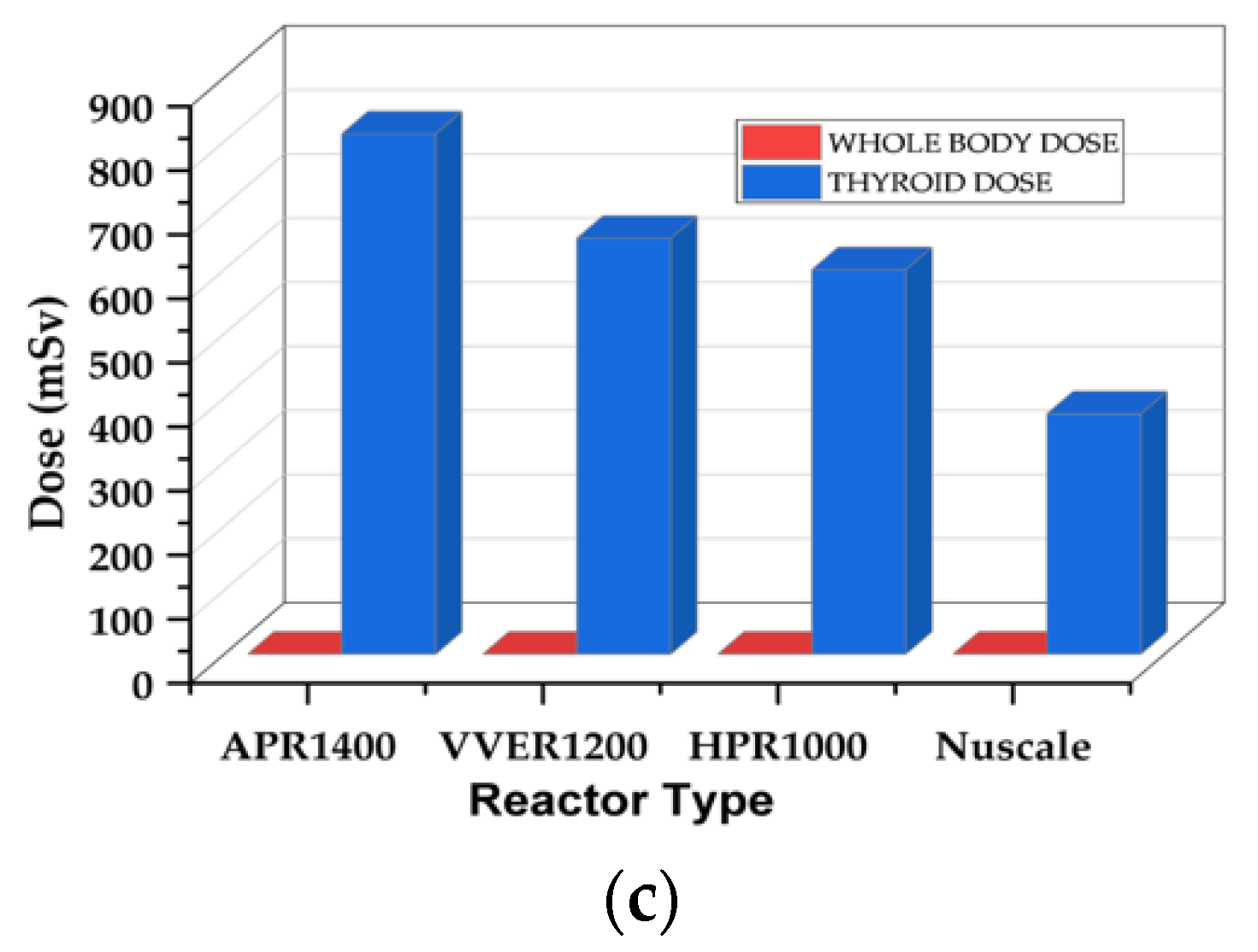

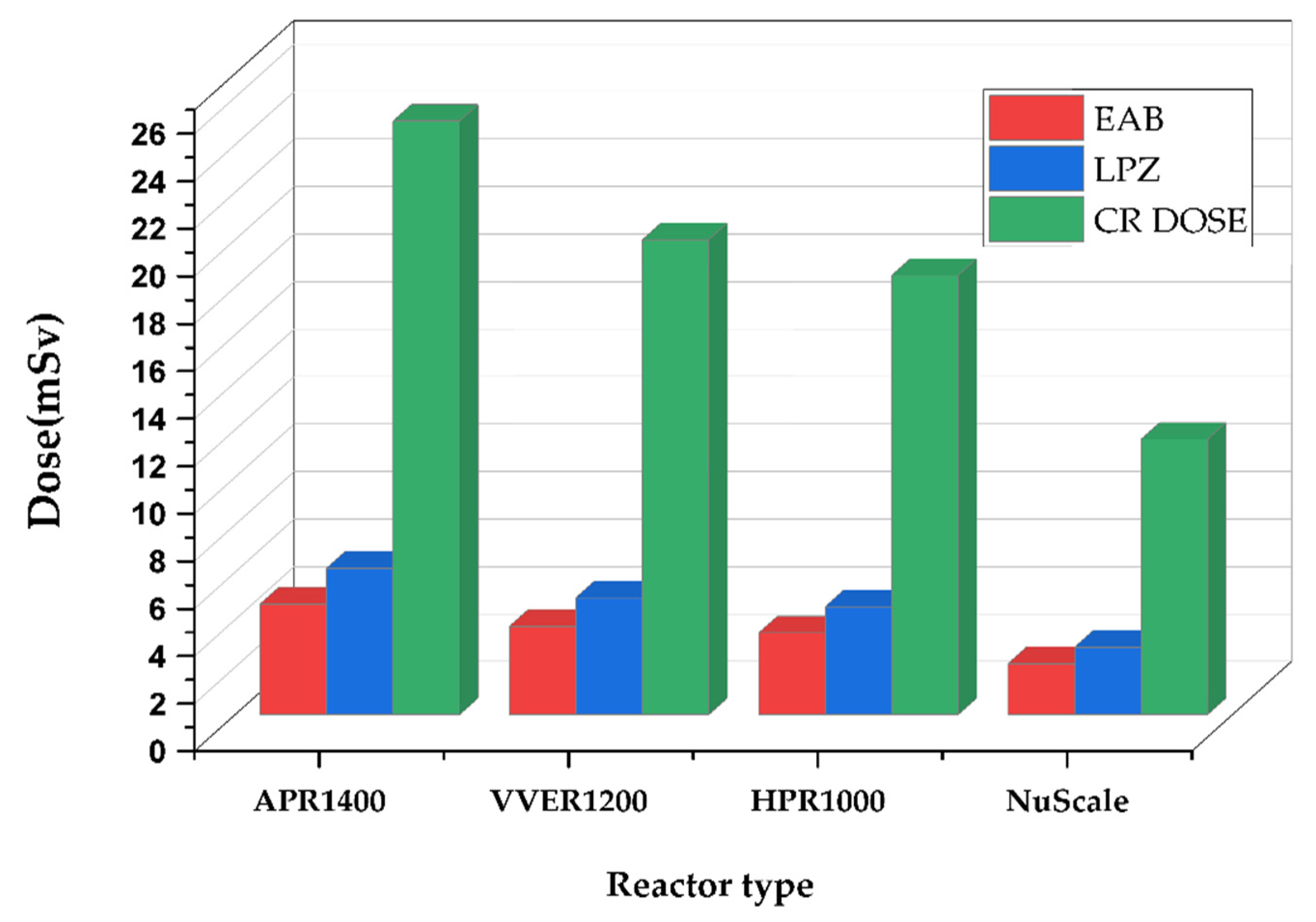

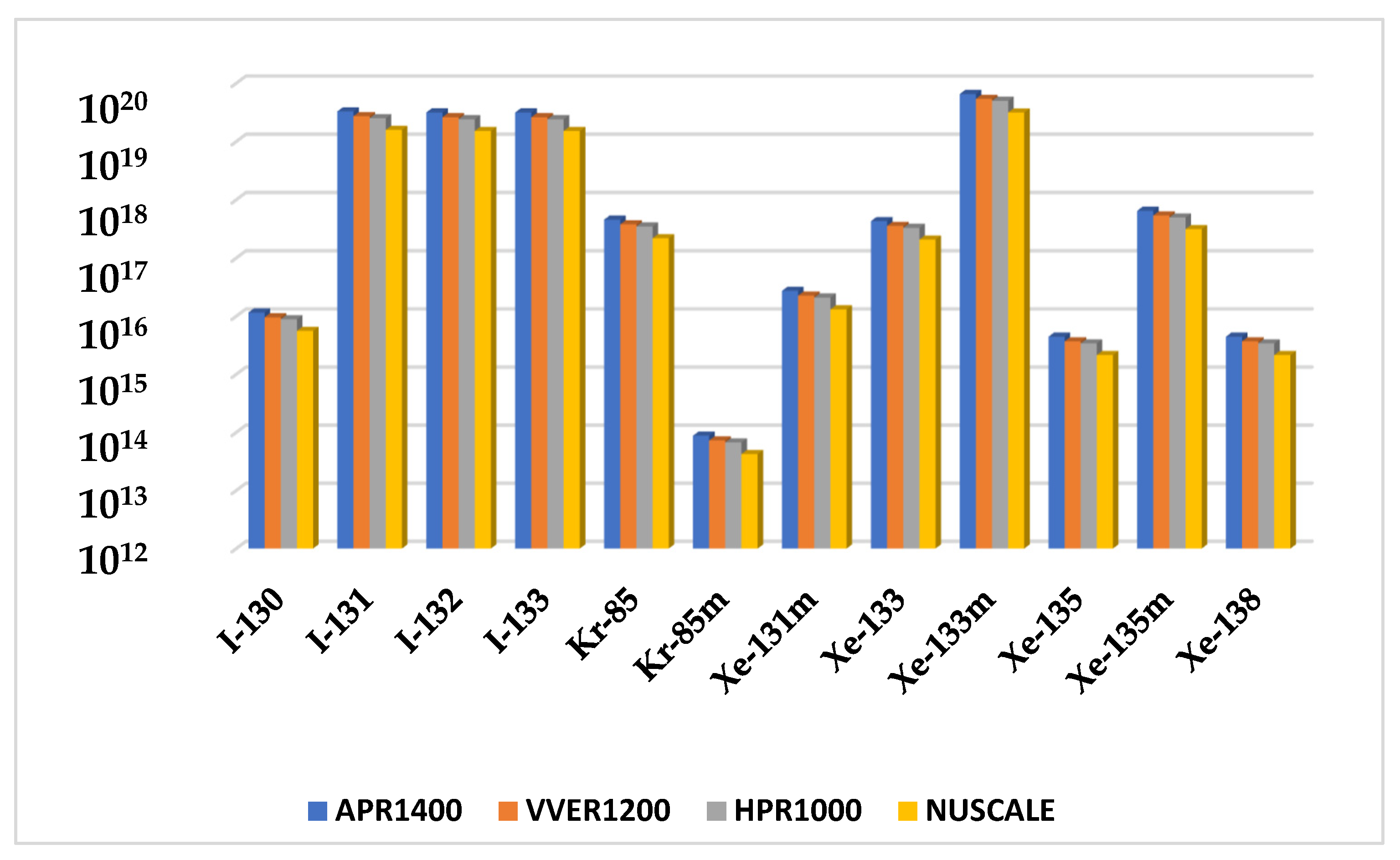

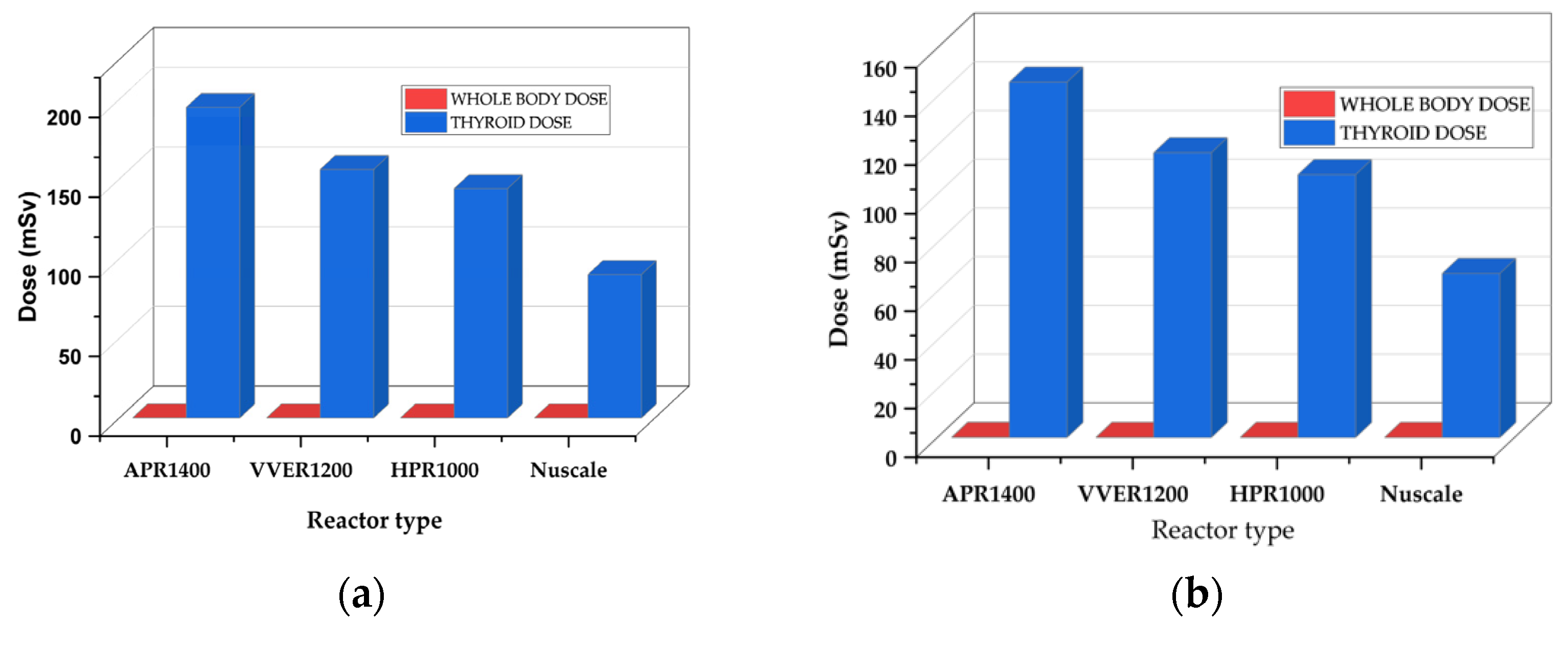

3.1.2. Analysis of Fuel Handling Accident

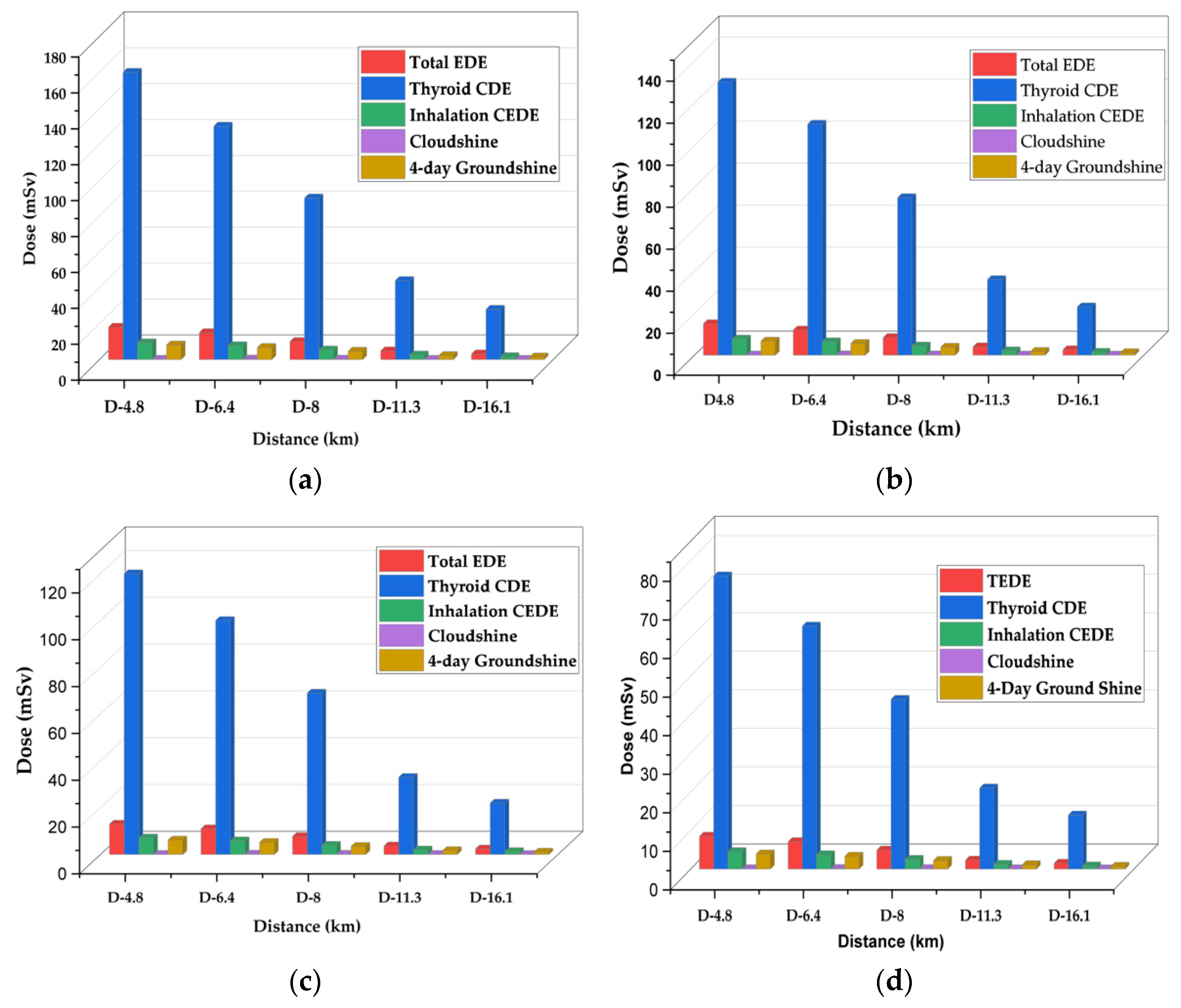

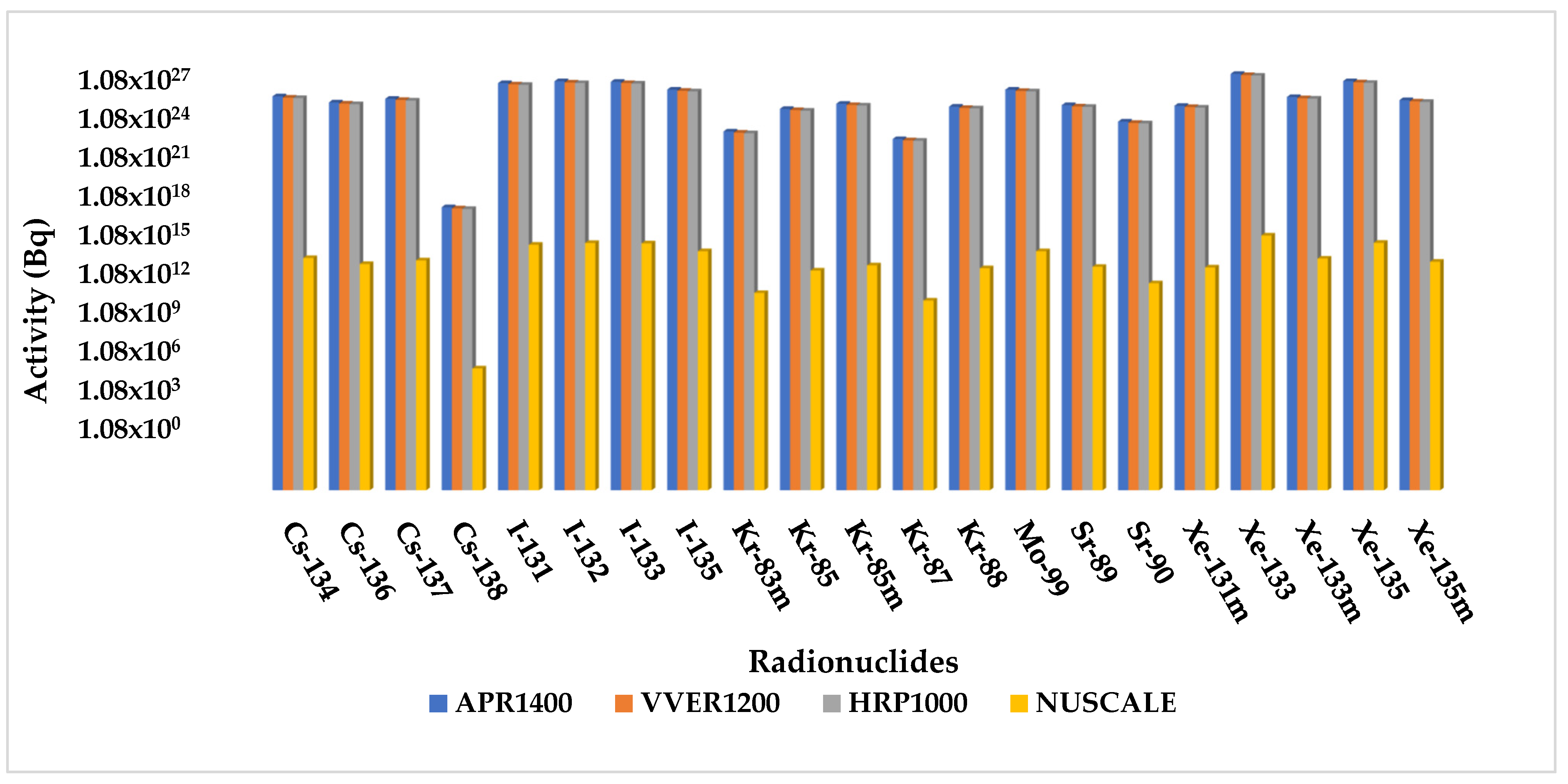

3.2. The RASCAL Results
4. Discussion
4.1. The Analysis of Rod Ejection and Fuel Handling Using the SNAP/RADTRAD Code
4.2. The Analysis of Long-Term Station Blackout Using the RASCAL Code
5. Conclusions
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Conflicts of Interest
References
- Ryan, O. Market Intelligence Brief for Ghana Now Available|British Council—Collaborate and Recruit Internationally. 2020. Available online: https://education-services.britishcouncil.org/insights-blog/market-intelligence-brief-ghana-now-available (accessed on 14 June 2022).
- Macrotrends. Ghana GDP 1960–2022|MacroTrends. 2020. Available online: https://www.macrotrends.net/countries/GHA/ghana/gdp-gross-domestic-product (accessed on 14 June 2022).
- Ministry of Energy. Sector Overview. Available online: https://www.energymin.gov.gh/sector-overview (accessed on 14 June 2022).
- Blix, H. Inauguration of Ghana Research Reactor 1|IAEA. 1995. Available online: https://www.iaea.org/newscenter/statements/inauguration-ghana-research-reactor-1 (accessed on 14 June 2022).
- KEPCO E&C—KEPCO Engineering & Construction Company, Inc. Available online: https://www.kepco-enc.com/eng/contents.do?key=1533 (accessed on 12 June 2022).
- Aaron, L. A Newcomer to Nuclear Power, UAE Has Showcase Facility in Barakah. Powermag. 2021. Available online: https://www.powermag.com/a-newcomer-to-nuclear-power-uae-has-showcase-facility-in-barakah/ (accessed on 13 June 2022).
- KEPCO. What is the APR1400 Reactor? Available online: https://home.kepco.co.kr/kepco/indi/foreign/en/html/G/B/ENGBHP00102.html (accessed on 13 June 2022).
- Rosatom, Evolution|Design|Safety the VVER Today. Available online: https://doczz.net/doc/7549984/the-vver-today-pdf--3.06-mb (accessed on 13 June 2022).
- Xing, J.; Song, D.; Wu, Y. HPR1000: Advanced Pressurized Water Reactor with Active and Passive Safety. Engineering 2016, 2, 79–87. [Google Scholar] [CrossRef]
- International Atomic Energy Agency. In Proceedings of the 6th International Conference on Topical Issues in Nuclear Installation Safety, Vienna, Austria, 6–9 June 2017.
- IAEA. What are Small Modular Reactors (SMRs)? Available online: https://www.iaea.org/newscenter/news/what-are-small-modular-reactors-smrs (accessed on 13 June 2022).
- Flour Technologies. NuScale—Small Modular Reactor (SMR) Nuclear Technology. Available online: https://www.fluor.com/projects/nuscale-power-small-modular-reactor-nuclear (accessed on 13 June 2022).
- Powermag. NuScale Power Announces an Additional 25 Percent Increase in NuScale Power ModuleTM Output; Additional Power Plant Solutions. Available online: https://newsroom.nuscalepower.com/press-releases/news-details/2020/NuScale-Power- (accessed on 13 June 2022).
- Nuscale. Protection against Extreme Events|NuScale Power. Available online: https://www.nuscalepower.com/benefits/safety-features/extreme-event-protection (accessed on 24 January 2022).
- Department of Energy. NUCLEAR 101: How Does a Nuclear Reactor Work? Available online: https://www.energy.gov/ne/articles/nuclear-101-how-does-nuclear-reactor-work (accessed on 2 September 2022).
- Leman, M. 6 Reasons Why Nuclear Energy is not the Way to a Green and Peaceful World—Greenpeace International 201. Available online: https://www.greenpeace.org/international/story/52758/reasons-why-nuclear-energy-not-way-green-and-peaceful-world/ (accessed on 14 June 2022).
- International Atomic Energy Agency (IAEA). IAEA Safety Standards for Protecting People and the Environment. 2011. Available online: http://www-ns.iaea.org/standards/ (accessed on 14 June 2022).
- U.S.NRC. Emergency Planning Zones|NRC.gov. Available online: https://www.nrc.gov/about-nrc/emerg-preparedness/about-emerg-preparedness/planning-zones.html (accessed on 14 June 2022).
- Paschal, W.B.; Knous, W.S. Nuclear power station main control room habitability. ASHRAE Trans. 1989, 95, 890609. [Google Scholar]
- U.S.NRC. Regulatory Guide Office of Nuclear Regulatory Research Regulatory Guide 1.196 Control Room Habitability at Light-Water Nuclear Power Reactors; NRC: Rockville, MD, USA, 2003. [Google Scholar]
- U.S.NRC. 100.11 Determination of Exclusion Area, Low Population Zone, And Population Center Distance.|NRC.gov. Available online: https://www.nrc.gov/reading-rm/doc-collections/cfr/part100/part100-0011.html (accessed on 2 September 2022).
- U.S. Nuclear Regulatory Commission. § 50.67 Accident Source Term.|NRC.gov. Available online: https://www.nrc.gov/reading-rm/doc-collections/cfr/part050/part050-0067.html (accessed on 14 June 2022).
- KEPCO and KHNP. APR1400 Design Control Document Tier 2 Chapter 15 Transient and Accident Design certification document, Revision 3. 2013. Available online: https://www.nrc.gov/docs/ML1328/ML13281A764.pdf (accessed on 14 June 2022).
- Rothstein, H.; Kennett, S. Calculation L-003067, Re-analysis of Fuel Handling Accident (FHA) Using Alternative Source Terms. Revision 1 for Exelon Nuclear, Jul. 8AD. Available online: https://www.nrc.gov/docs/ML0831/ML083100205.pdf (accessed on 13 June 2022).
- Broadbent, G.E. Attachment 6 Design Basis Fuel Handling Accident Radiological Analysis with Revised Source Terms. Design Engineering Calculation for Grand Gulf Nuclear Station Unit 1. 1999. Available online: https://www.nrc.gov/docs/ML0036/ML003679557.pdf (accessed on 14 June 2022).
- Arcieri, W.C.; Mlynarczyk, D.L.; Larsen, L. NUREG/CR-7220, SNAP/RADTRAD 4.0: Description of Models and Methods. Available online: https://www.nrc.gov/docs/ML1616/ML16160A019.pdf (accessed on 14 June 2022).
- NuScale Power. LLC—TR-0915-17565, Revision 0, Accident Source Term Methodology. 2015. Available online: www.nuscalepower.com (accessed on 12 June 2022).
- Prošek, A.; Cizelj, L. Long-Term Station Blackout Accident Analyses of a PWR with RELAP5/MOD3.3. Sci. Technol. Nucl. Install. 2013, 2013, 15. [Google Scholar] [CrossRef] [Green Version]
- Prošek, A.; Mavko, B.; Calvo, A. International Agreement Report RELAP5 Extended Station Blackout Analyses. Available online: http://www.nrc.gov/reading-rm.html (accessed on 19 June 2022).
- U.S.NRC. Appendix A To Part 50—General Design Criteria For Nuclear Power Plants|NRC.gov. Available online: https://www.nrc.gov/reading-rm/doc-collections/cfr/part050/part050-appa.html (accessed on 14 June 2022).
- U.S.NRC. Subpart D—Radiation Dose Limits for Individual Members of the Public|NRC.gov. Available online: https://www.nrc.gov/reading-rm/doc-collections/cfr/part020/part020-1301.html (accessed on 14 June 2022).
Parameters | HPR 1000 | VVER 1200 | APR 1400 | NUSCALE |
---|---|---|---|---|
Containment volume | ~73,500 m3/2,595,628 ft3 | 2917.82 m3/10,3041.8409 ft3 | 9000 m3/3,178,320 ft3 | 1791.428571 ft3 |
Control room volume | Assumed 5663 m3 (200,000 ft3) | Assumed 5663 m3 (200,000 ft3) | 5663 m3 (200,000 ft3) | Assumed 5663 m3 (200,000 ft3) |
Core Thermal Power | 3050 MWth | 3200–3300 MWth | 3983 MWth | 1920 MWth |
Fuel Assemblies | 117 (264 fuels in each assembly) | 163 assemblies (317 fuels in each) | 241 assemblies (236 rods in each assembly) | 17 × 17 (264) |
Fraction of Damage for FHA | 4.0 × 10−3 | 4.0 × 10−3 | 4.0 × 10−3 | 4.0 × 10−3 |
Fraction of clad breach for REA | 0.1 | 0.1 | 0.1 | 0.1 |
Fraction of breach > melt for REA | 2.5 × 10−3 | 2.5 × 10−3 | 2.5 × 10−3 | 2.5 × 10−3 |
Radial Peaking factor | 1.8 | 1.8 | 1.8 | 1.8 |
Type of Reactor | PWR | PWR | PWR | PWR |
Parameter | Value |
---|---|
Fraction of clad breached | Calculated from the fraction of breach and number of fuel assemblies |
Fraction of breach > melt | 2.5 × 10−3 |
Noble Gas | Gap 0.1; melt 1.0 |
Iodine | Gap 0.1; melt 0.5 |
Alkali metals | Gap 0.12; melt 0.5 |
Gap release duration | 1 × 10−4 h. |
Parameter | Value |
---|---|
Number of Assemblies damaged | Calculated from the fraction of breach and number of fuel assemblies |
Fraction of fuel damaged | 4.0 × 10−3 |
I-131 | 0.08 |
Kr-85 | 0.1 |
Other NG | 0.05 |
Other Iodine | 0.05 |
Alkali metals | 0.12 |
Gap release duration | 2 h |
Containment Leak Rate to Environment | 1.0 × 1012%/day for the duration of the accident |
Parameter | Value |
---|---|
Event type | Nuclear Power Plant |
City, Country | Ghana, Tema |
Time zone | Greenwich Meridian Time (GMT) |
Lat/Long/Elevation | 5.0000° N, 0.0000° E, 14 m |
Containment type | PWR Dry Ambient |
Leak rate | 2%/d |
Spray | off |
TEDE | EAB | LPZ | CR DOSE |
---|---|---|---|
APR1400 | 4.66 × 100 | 6.17 × 100 | 2.50 × 101 |
VVER1200 | 3.72 × 100 | 4.93 × 100 | 2.00 × 101 |
HPR1000 | 3.44 × 100 | 4.55 × 100 | 1.85 × 101 |
NuScale | 2.15 × 100 | 2.84 × 100 | 1.16 × 101 |
DCD for APR1400 | 6.30 × 101 | 6.30 × 101 | 6.25 × 100 |
Allowable TEDE limit | 5.00 × 101 | 6.30 × 101 | 6.30 × 101 |
