Article

Using the Countermovement Jump Metrics to Assess Dynamic Eccentric Strength: A Preliminary Study

by
Chien-Chun Chang
1 and
Chieh-Ying Chiang
2,*
1
Graduate Institute of Athletics and Coaching Science, National Taiwan Sport University, Taoyuan 333, Taiwan
2
Department of Sports Training Science-Combats, National Taiwan Sport University, Taoyuan 333, Taiwan
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2022, 19(23), 16176; https://doi.org/10.3390/ijerph192316176
Submission received: 20 October 2022 / Revised: 24 November 2022 / Accepted: 1 December 2022 / Published: 3 December 2022
(This article belongs to the Special Issue Ergonomic Assessment of Athletes' Performance and Health)
Browse Figures
Versions Notes

Abstract

:
Background: This study aimed to determine the validity and reliability of the countermovement jump (CMJ) as a dynamic eccentric (Ecc) strength test. Methods: Thirty-three college male student-athletes were recruited to participate in this study. The participants first performed CMJs with the second consisting of one repetition maximum back squat (1RM-BS) test. CMJ and 1RM-BS tests were performed on twin force plates. Results: The CMJ had significant correlations with the Ecc peak force (EccPF), and Ecc mean force (EccMF) of 1RM-BS, respectively (r = 0.61–0.69). Moreover, all parameters had a coefficient of variation (CV) < 10%. The intraclass correlation coefficient (ICC) values were moderate to excellent for each metric using the CMJ (0.94–0.97). The 1RM-BS and CMJ EccPF, EccMF Bland-Altman bias estimate variance ratio is 1.31–1.67, showing a moderate-large correlation in the Bland-Altman plot. Conclusions: CMJ ECC phase kinetics were associated with the 1RM-BS EccPF and EccMF. The CMJ can be an alternative tool for eccentric dynamic strength assessment.

1. Introduction

Strength assessment is crucial in understanding athletic performance. It is a measure of maximum force capability or production [1], and it also underpins many aspects of sports performance [2]. Dynamic strength tests using free weight exercises are the most commonly used in strength assessment due to their accessibility. Thus, one repetition maximum (1RM) load being lifted refers to athletes’ maximum dynamic strength [3]. The 1RM back squat (1RM-BS) assessment is a well-established, valid, and reliable method of determining maximal strength. The 1RM-BS measures the maximum amount of load lifted with proper form [1] and has consistently been shown to be a reliable test in a range of populations and exercises [4,5,6,7,8]. Muscle contractions can be divided into eccentric (ECC), isometric (ISO), and concentric (CON) contractions [9]. Ecc contractions produce greater levels of force than Iso and Con contractions [10,11]. Ecc strength is a critical aspect of the ability to change direction, stop, and decelerate [12,13,14,15,16], and it is important to decelerate at the end of the range of motion [13]. Many sports require the ability to tolerate large Ecc forces [17]. The relationship between Ecc strength characteristics and dynamic sports performance has been previously explored and may explain favorable changes in strength, jumping, and sprinting ability following Ecc-based training interventions [12,18,19]. Therefore, being able to assess Ecc strength can provide useful insights into sports performance. Measuring Ecc strength can also provide information about the responses to training adaptations [20,21]. Further, the Ecc phase of 1RM-BS has been reported as a useful testing tool to measure Ecc strength; specifically, the load being lifted and the kinetic and kinematic parameters were used to present the Ecc strength characteristics [1,13,19,22].
Ecc strength is critical for performing rapid stretch-shortening cycle (SSC) activities such as the countermovement jump (CMJ) [23,24]. The SSC is the physiological mechanism of an Ecc muscular and tissue stretch phenomenon in which elastic potential energy stored during the Ecc phase is reutilized to augment the subsequent Con action [25]. One of the reasons for this improved force production is an increase in the number of cross bridges, because Ecc strength is mechanical and thus a consequence of the number of cross-bridges formed [23,26,27]. Therefore, the relevance of the Ecc strength of athletes in sports performance to the assessment of the jumping Ecc phase characteristics of athletes would appear pertinent [21,24,28]. Ecc strength is typically assessed using isokinetic dynamometry, whereby the velocity is controlled during the task and the force is measured as it increases with velocity [29,30]. However, these assessments are limited to single-joint tasks [24]. Studies have suggested that single-joint isometric tests are poor predictors of performance in multipoint explosive movements such as a CMJ [31]. Through the use of force platform kinetics analysis technologies, it may be possible to assess the Ecc phase characteristics using CMJs. Force plates are considered the gold standard because they enable the acquisition of force-time data kinetics, and kinematic parameters can then be obtained by calculation. Thus, practitioners have the ability to quantify both outcome measures [4,32]. At present, there are limited Ecc strength testing options available to practitioners. Therefore, CMJ kinetics may provide valuable insight into the characteristics of an individual’s Ecc strength. This study aimed to use the CMJ to examine its relationship with the 1RM-BS and to analyze the validity and reliability of CMJ Ecc phase parameters, including PF and MF. This may lead to the validation of CMJ as an evaluation method for Ecc strength.

2. Materials and Methods

This study used a single-session design modified from the methods of a previously validated study for the 1RM-BS and CMJ [19,32]. Before the formal test, the participants performed a 5–10 min dynamic warm-up. The warm-up included 25 jumping jacks, 30 high knee runs, 15 bodyweight squats, 20 side lunges, and 5 practice trials of the CMJ at their perceived maximal effort. Subjects came to the laboratory to familiarize themselves with the process and understand and agree to the experimental risks and precautions. They performed the CMJ test first, with a 1–2 min interval for each test. After the CMJ test, the 1RM-BS test was performed after a 30 min seated rest, and each subject’s squat depth and load were recorded for formal experiments to preadjust the squat depth standard of each subject. Formal experiments were conducted at 3-day intervals. After a standardized warm-up, CMJ and 1RM-BS were sequentially performed on twin force plates (9260AA, Kistler Group, Winterthur, Switzerland) for data collection.

2.1. Participants

Thirty-three college male student-athletes (age: 20.24 ± 1.75 years; body height: 174.93 ± 9.87 cm; body mass: 78.43 ± 12.82 kg), who had been familiarized with the experimental content and procedures before the experiment, volunteered to participate in the present study. The qualification conditions were a minimum of 2 years of strength training experience and no lower extremity injuries within 1 month before the experiment. All subjects were required to provide written informed consent.

2.2. Countermovement Jump Assessment

Participants performed a CMJ on dual force plates (9260AA, Kistler Group, Winterthur, Switzerland) with sampling at 1000 Hz. The participants were instructed to step onto the force plates, stand with their feet shoulder-width apart, and remain motionless for 2 s so that the system weight could be accurately determined [33,34]. The participants positioned their hands on a polyvinyl chloride (PVC) bar that was placed across their shoulders [35]. Participants were instructed to get in the “ready position”, which consisted of the athlete firmly holding the PVC pipe (0 kg) and a countdown of “3, 2, 1, jump” was given. Participants performed each jump for maximal height, with the eccentric phase depth self-selected to avoid any alterations in their preferred jump strategy, and the legs were required to remain fully extended during the flight phase of the jump [18,34,36]. Ground reaction force (GRF) data were collected using a USB data acquisition system (Type 5695B, Kistler Group, Winterthur, Switzerland). Data were analyzed using Bioware software (Version 5.0.3; Bioware Software Type 2812A, Kistler Group, Winterthur, Switzerland) with the force (recorded in newtons [N]) determined in 2 CMJs [13]. The force value of the subject standing on the force plate for 1 s was defined as the stabilization phase, and the first 30 milliseconds was the time point for any first meaningful change in force value [37,38]. The eccentric phase of the CMJ was defined as occurring between peak negative and 0 center of mass velocity. The concentric phase of the CMJ was defined as occurring between the instant at which COM velocity exceeded 0.01 m·s−1 and the instant of take-off [34]. The recorded parameters included jump height (JH), which was determined from the flight time (FT); the formula is 1/2 × g × (t/2)2, where g = 9.81 m/s2. FT is determined from the time point when the force value is lower than 10 N before jumping off the ground until the time point when the first strength value is greater than 10 N when the subject touches the ground [39]. The eccentric peak force (EccPF) is determined from the maximum GRF generated during the Ecc phase, and the eccentric mean force (EccMF) is determined from the average GRF generated during the Ecc phase.

2.3. Back Squat Testing

Dynamic strength was assessed using a 1 repetition maximum back squat (1RM-BS) on dual force plates (9260AA, Kistler Group, Winterthur, Switzerland) with sampling at 1000 Hz. Before the formal test, participants were instructed to position their feet shoulder-width apart with an unloaded Olympic bar positioned across the top of their shoulders (trapezius muscle) and the depth of the BS was determined to descend and lower to at least a half squat position (90° knee angle) [13,40]. A goniometer measured the knee angle, and light gates (Fusion Sport Smart Speed Timing Gates, Brisbane, Australia) were placed outside the squat rack as an external reference for the required squat depth.
A warm-up following the guidelines from [41] consisted of 5 repetitions at 40% of the subjects’ perceived maximal effort. After a 3 min rest period, subjects performed 5 repetitions at 80% of their perceived maximal effort. After another 3 min rest period, the weight was increased, with subjects performing 1 repetition at the new load, resting another 3 min before increasing the load, and conducting formal testing. The loaded was continually increased (4–7 kg) for each trial, and a maximum of 5 attempts at any given load was permitted until the participants could not perform the repetition; the maximal load being lifted was recorded for the analysis [42]. Ground reaction force (GRF) data were collected using a USB data acquisition system (Type 5695B, Kistler Group, Winterthur, Switzerland). Data were analyzed using Bioware software (Version 5.0.3; Bioware Software Type 2812A, Kistler Group, Winterthur, Switzerland) with the force (recorded in newtons [N]) determined during 1RM-BS. The system velocity during 1RM-BS was calculated by integrating the acceleration data with the force-time data; the force value of the subject started when standing on the force plate to stabilize for 1 s, which was defined as the stabilization phase, and the onset of movement was defined as the time point at which the force value was reduced by more than 5 standard deviations of the system weight [37,43]. The time from the onset movement to a system velocity of zero was distinguished as the eccentric and concentric phase. The point at which the acceleration became lower than zero was considered the start of the eccentric phase [43,44,45]; the eccentric peak force (EccPF) was determined from the maximum GRF generated during the Ecc phase, and the eccentric mean force (EccMF) was determined from the average GRF generated during the Ecc phase.

2.4. Statistical Analysis

All data reported are the means ± SDs. Data normality was determined using the Kolmogorov-Smirnov test (p > 0.05). Within-session reliability was computed for both CMJ and 1RM-BS measurements using the coefficient of variation (CV), and CV values less than 10% were deemed acceptable [46]. CMJ was analyzed using a two-way random intraclass correlation coefficient (ICC). The ICC values were interpreted in accordance with guidelines where >0.90 = excellent, 0.75–0.90 = good, 0.50–0.74 = moderate, and <0.50 = poor [47]. Absolute agreement and 95% confidence intervals (CIs) were used [48]. The levels of agreement between the CMJ and the 1RM-BS eccentric parameters were determined from Bland-Altman plots with 95% upper and lower limits [49]. Correlations between the measured CMJ and 1RM-BS eccentric parameters were calculated using Pearson’s product-moment (r). The strength of the relationship was classified as small (0.10–0.29), moderate (0.30–0.49), large (0.50–0.69), very large (0.70–0.89), and nearly perfect (0.90–1.00) [50]. The suitability of the sample size to use partial correlation analysis was based on sample size tables suggested by [51,52]. Further, G-Power was used to assess the validity of the sample size to conduct a partial correlation analysis.

3. Results

In this study’s G-Power test results the minimum sample size for Pearson’s r method is 23 subjects, and according to previous research a sample size equal or superior to 25 suffices [51]. The CMJ and 1RM-BS data were determined to be normally distributed (p > 0.05), and reliability statistics with the mean ± SD data are shown in Table 1. Both CMJ and 1RM-BS EccPF and EccMF showed acceptable CV values for each test (CMJ ≤ 3.81%; 1RM-BS ≤ 9.75%). The ICC values were moderate to excellent for each metric when using CMJ (0.94–0.97). Pearson’s r values were as follows: the CMJ was significantly correlated with EccPF and EccMF of 1RM-BS at a high level (r = 0.69 ** p = 0.01; r = 0.61 ** p = 0.01) (Table 2).
Figure 1 and Figure 2 show Bland-Altman plots of the EccPF for the 1RM-BS and CMJ (ratio bias estimate, 1.31; lower and upper limits of agreement, 0.88 and 1.74) (Figure 1), and the EccMF for the 1RM-BS and CMJ (ratio bias estimate, 1.67; lower and upper limits of agreement, 1.01 and 2.33) (Figure 2).

4. Discussion

The present study aimed to establish the validity and reliability of the CMJ as a dynamic Ecc strength test. The results showed that the CMJ had large correlations with the EccPF and EccMF of the 1RM-BS, respectively (r = 0.61–0.69), and all CVs were <10%. The CMJ and 1RM-BS test Ecc phase parameters have acceptable reliability and validity and are significantly correlated. The Ecc strength measurement method and the correlation and consistency of the PF and MF parameters in the Ecc phase of the 1RM-BS and CMJ is worth further exploration. The findings of the current study suggest that the 1RM-BS or squat device analysis of EccPF has good reliability across loading conditions, and the EccMF has CV values under the commonly applied threshold of 10% [19,23]. Previous investigations have reported different methods of quantifying force-time variables, noting that peak values may be a more reliable measure [53]. Stock and Luera (2014) demonstrated moderate-to-high test-retest reliability for the EccPF and EccMF values obtained from maximal Con and Ecc squat testing [54]. McNeill et al. (2021) investigated the reliability of peak and mean force values during the Ecc phase of a back squat test in trained athletes (CV: 3.2%, 3.8%) [19]. There is currently research utilizing Ecc squat to determine maximal Ecc strength [12,13,55], but this is mainly considered dependent on the subjective determination of the failure threshold [19]. However, maximal Ecc strength testing typically relies on hefty loading and forces, which may limit the applicability in sports due to potential muscle damage, muscle soreness, decreased sports performance, and recovery [19,56]. This confirms that 1RM-BS can be used as a test standard for Ecc strength and establishes the feasibility of CMJ as a test method.
Previous studies have reported strong relationships between maximal squat strength and CMJ performance [57,58,59]. However, to the authors’ knowledge, this was the first study to separately investigate the relationships between the Ecc phase force value during a 1RM-BS and CMJ. As proposed in other studies, Ecc force production is mechanical and dependent on the number of active actin-myosin cross bridges [60,61]. The greater levels of Ecc strength during the squat resulted from maintaining a more significant number of cross-bridges throughout the movement [23]. In addition, the ability to produce greater levels of eccentric force when squatting may indicate that more cross bridges exist during a CMJ, which is a biomechanically similar exercise. Thus, there may be strong relationships between 1RM-BS and CMJ performance. Our final aim was to determine the validity of the CMJ as an Ecc strength assessment method. Previous studies have reported that CMJ has been established as a measure of neuromuscular fatigue and sport performance [62]. Among the CMJ parameters, the mean value with the best reliability may show the actual state [63,64]. In this study, the test data analysis referred to previous studies, and the results were close to the average of the two test parameters for statistical analysis to ensure data reliability [39,65]. The results show that the CV of the EccPF and EccMF indicators of the CMJ are less than 10%, which can be deemed acceptable [46]. Moir et al. (2018) reported that CMJs may provide a means of assessing the Ecc force characteristics [24].
The bias estimate of EccPF agreement between the CMJ and 1RM-BS was 1.31, and the bias estimate of EccMF agreement between the CMJ and 1RM-BS was 1.67. The bias estimate variance ratio is 1.31–1.67; if the ratio of variances is >1, this results in a moderate-large correlation in the Bland-Altman plot [66]. When there is a linear trend in the Bland–Altman plot the variability of the differences between methods increases as the magnitude of the measurement increases. In this case, the ratio of measurements on the y-axis of the Bland–Altman plot is used while retaining the same x-axis as the standard Bland–Altman plot [67]. This transformation is equivalent to the logarithmic transformation of data and is the recommended procedure when the assumption of homoscedasticity is violated [68,69].

Limitations of this Study

This is a cross-sectional study whose results are only inferred from an observational study that analyzes data from a population, or a representative subset, at a specific point in time. The maximal strength likely varied between individuals, and the extent to which strength levels played a role in the reliability of different measures is unclear [19]. However, in this study, EccPF and EccMF reliability was consistent between the 1RM-BS and CMJ. Furthermore, previous studies have shown good day-to-day reliability of the CMJ test [44].

5. Conclusions

The CMJ can be established as a dynamic Ecc strength assessment method, and future research can further verify the ECC force value with different equipment measurements (i.e., Sportesse custom-built 45° incline leg press machine, Exerbotics squat device) [23,70]. The combination of a CMJ and force plate measurement is a possible alternative assessment to detect lower extremity dynamic Ecc strength in terms of simplified time, equipment, and manpower. The Ecc peak and mean force values of the CMJ had good reliability and validity and were significantly correlated with the 1RM-BS. In the future, practitioners of related sports science in practical applications can use the CMJ as an Ecc dynamic muscle strength test as a reference for training plans.

Author Contributions

Conceptualization, C.-Y.C. and C.-C.C.; Formal analysis, C.-C.C.; Investigation, C.-C.C.; Methodology, C.-Y.C. and C.-C.C.; Software, C.-C.C.; Supervision, C.-Y.C.; Writing—original draft, C.-C.C. and C.-Y.C.; Writing—review and editing, C.-Y.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

The study was conducted according to the guidelines of the Declaration of Helsinki and approved by the research Ethics Committee at Fu Jen Catholic University (Application No: C110127).

Informed Consent Statement

All the participants involved in the study, or their parents, provided written informed consent.

Data Availability Statement

The data presented in this study are available on request from the corresponding author.

Acknowledgments

All authors deeply appreciate the contribution of the athletes who participated in this study. We also sincerely thank National Taiwan Sport University for providing us with the necessary resources and administrative support throughout the study.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. McGuigan, M. Testing and Evaluation of Strength and Power; Routledge: London, UK, 2019; pp. 77–86. [Google Scholar]
  2. Suchomel, T.J.; Nimphius, S.; Stone, M.H. The importance of muscular strength in athletic performance. Sports Med. 2016, 46, 1419–1449. [Google Scholar] [PubMed]
  3. Verdijk, L.B.; Van Loon, L.; Meijer, K.; Savelberg, H.H. One-repetition maximum strength test represents a valid means to assess leg strength in vivo in humans. J. Sports Sci. 2009, 27, 59–68. [Google Scholar] [CrossRef] [PubMed]
  4. Banyard, H.G.; Nosaka, K.; Sato, K.; Haff, G.G. Validity of various methods for determining velocity, force, and power in the back squat. Int. J. Sports Physiol. Perform. 2017, 12, 1170–1176. [Google Scholar] [CrossRef] [PubMed]
  5. Banyard, H.G.; Nosaka, K.; Haff, G.G. Reliability and validity of the load–velocity relationship to predict the 1RM back squat. J. Strength Cond. Res. 2017, 31, 1897–1904. [Google Scholar] [CrossRef]
  6. Engel, F.A.; Faude, O.; Kölling, S.; Kellmann, M.; Donath, L. Verbal encouragement and between-day reliability during high-intensity functional strength and endurance performance testing. Front. Physiol. 2019, 10, 460. [Google Scholar] [CrossRef] [Green Version]
  7. Turner, A.; Walker, S.; Stembridge, M.; Coneyworth, P.; Reed, G.; Birdsey, L.; Barter, P.; Moody, J. A testing battery for the assessment of fitness in soccer players. Strength Cond. J. 2011, 33, 29–39. [Google Scholar] [CrossRef] [Green Version]
  8. Jakovljević, S.; Karalejić, M.; Pajić, Z.; Janković, N.; Erčulj, F. Relationship between 1RM back squat test results and explosive movements in professional basketball players. Auc Kinanthropologica 2015, 51, 41–50. [Google Scholar] [CrossRef]
  9. Wilson, G.J.; Murphy, A.J.; Pryor, J.F. Musculotendinous stiffness: Its relationship to eccentric, isometric, and concentric performance. J. Appl. Physiol. 1994, 76, 2714–2719. [Google Scholar] [CrossRef]
  10. Lindstedt, S.L.; LaStayo, P.; Reich, T. When active muscles lengthen: Properties and consequences of eccentric contractions. Physiology 2001, 16, 256–261. [Google Scholar] [CrossRef] [Green Version]
  11. Franchi, M.V.; Reeves, N.D.; Narici, M.V. Skeletal muscle remodeling in response to eccentric vs. concentric loading: Morphological, molecular, and metabolic adaptations. Front. Physiol. 2017, 8, 447. [Google Scholar] [CrossRef]
  12. Spiteri, T.; Newton, R.U.; Binetti, M.; Hart, N.H.; Sheppard, J.M.; Nimphius, S. Mechanical determinants of faster change of direction and agility performance in female basketball athletes. J. Strength Cond. Res. 2015, 29, 2205–2214. [Google Scholar] [CrossRef]
  13. Spiteri, T.; Nimphius, S.; Hart, N.H.; Specos, C.; Sheppard, J.M.; Newton, R.U. Contribution of Strength Characteristics to Change of Direction and Agility Performance in Female Basketball Athletes. J. Strength Cond. Res. 2014, 28, 2415–2423. [Google Scholar] [CrossRef]
  14. Jones, P.A.; Thomas, C.; Dos’ Santos, T.; McMahon, J.J.; Graham-Smith, P. The role of eccentric strength in 180 turns in female soccer players. Sports 2017, 5, 42. [Google Scholar] [CrossRef] [Green Version]
  15. Smajla, D.; Kozinc, Ž.; Šarabon, N. Associations between lower limb eccentric muscle capability and change of direction speed in basketball and tennis players. PeerJ 2022, 10, e13439. [Google Scholar] [CrossRef]
  16. Jones, P.A.; Dos’Santos, T.; McMahon, J.J.; Graham-Smith, P. Contribution of eccentric strength to cutting performance in female soccer players. J. Strength Cond. Res. 2022, 36, 525–533. [Google Scholar] [CrossRef]
  17. Franchi, M.V.; Ellenberger, L.; Javet, M.; Bruhin, B.; Romann, M.; Frey, W.O.; Spörri, J. Maximal eccentric hamstrings strength in competitive alpine skiers: Cross-sectional observations from youth to elite level. Front. Physiol. 2019, 10, 88. [Google Scholar] [CrossRef] [PubMed]
  18. Laffaye, G.; Wagner, P.P.; Tombleson, T.I. Countermovement jump height: Gender and sport-specific differences in the force-time variables. J. Strength Cond. Res. 2014, 28, 1096–1105. [Google Scholar] [CrossRef] [PubMed]
  19. McNeill, C.; Beaven, C.M.; McMaster, D.T.; Gill, N. Eccentric force-velocity characteristics during a novel squat protocol in trained rugby union athletes—Pilot study. J. Funct. Morphol. Kinesiol. 2021, 6, 32. [Google Scholar] [CrossRef] [PubMed]
  20. Douglas, J.; Pearson, S.; Ross, A.; McGuigan, M. Chronic adaptations to eccentric training: A systematic review. Sports Med. 2017, 47, 917–941. [Google Scholar] [CrossRef]
  21. Douglas, J.; Pearson, S.; Ross, A.; McGuigan, M. Eccentric exercise: Physiological characteristics and acute responses. Sports Med. 2017, 47, 663–675. [Google Scholar] [CrossRef]
  22. Douglas, J.; Pearson, S.; Ross, A.; McGuigan, M. Reactive and eccentric strength contribute to stiffness regulation during maximum velocity sprinting in team sport athletes and highly trained sprinters. J. Sports Sci. 2020, 38, 29–37. [Google Scholar] [CrossRef] [PubMed]
  23. Bridgeman, L.A.; McGuigan, M.R.; Gill, N.D.; Dulson, D.K. Relationships between concentric and eccentric strength and countermovement jump performance in resistance trained men. J. Strength Cond. Res. 2018, 32, 255–260. [Google Scholar] [CrossRef] [PubMed]
  24. Moir, G.L.; Snyder, B.W.; Connaboy, C.; Lamont, H.S.; Davis, S.E. Using drop jumps and jump squats to assess eccentric and concentric force-velocity characteristics. Sports 2018, 6, 125. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  25. Komi, P.V. Stretch-shortening cycle: A powerful model to study normal and fatigued muscle. J. Biomech. 2000, 33, 1197–1206. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Cormie, P.; McGuigan, M.R.; Newton, R.U. Changes in the eccentric phase contribute to improved stretch-shorten cycle performance after training. Med. Sci. Sports Exerc. 2010, 42, 1731–1744. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  27. Sheppard, J.; Hobson, S.; Barker, M.; Taylor, K.; Chapman, D.; McGuigan, M.; Newton, R. The effect of training with accentuated eccentric load counter-movement jumps on strength and power characteristics of high-performance volleyball players. Int. J. Sports Sci. Coach. 2008, 3, 355–363. [Google Scholar] [CrossRef] [Green Version]
  28. Cowell, J.F.; Cronin, J.; Brughelli, M. Eccentric muscle actions and how the strength and conditioning specialist might use them for a variety of purposes. Strength Cond. J. 2012, 34, 33–48. [Google Scholar] [CrossRef]
  29. Drury, D.G.; Stuempfle, K.J.; Mason, C.W.; Girman, J.C. The effects of isokinetic contraction velocity on concentric and eccentric strength of the biceps brachii. J. Strength Cond. Res. 2006, 20, 390. [Google Scholar]
  30. Seger, J.; Thorstensson, A. Electrically evoked eccentric and concentric torque-velocity relationships in human knee extensor muscles. Acta Physiol. Scand. 2000, 169, 63–69. [Google Scholar] [CrossRef]
  31. Nuzzo, J.L.; McBride, J.M.; Cormie, P.; McCaulley, G.O. Relationship between countermovement jump performance and multijoint isometric and dynamic tests of strength. J. Strength Cond. Res. 2008, 22, 699–707. [Google Scholar] [CrossRef]
  32. Bishop, C.; Jarvis, P.; Turner, A.; Balsalobre-Fernández, C. Validity and reliability of strategy metrics to assess countermovement jump performance using the newly developed my jump lab smartphone application. J. Hum. Kinet. 2022, 83, 185–195. [Google Scholar] [CrossRef] [PubMed]
  33. Vanrenterghem, J.; De Clercq, D.; Cleven, P.V. Necessary precautions in measuring correct vertical jumping height by means of force plate measurements. Ergonomics 2001, 44, 814–818. [Google Scholar] [CrossRef] [PubMed]
  34. McMahon, J.J.; Rej, S.J.; Comfort, P. Sex differences in countermovement jump phase characteristics. Sports 2017, 5, 8. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  35. Mcbride, J.M.; Nimphius, S.; Erickson, T.M. The acute effects of heavy-load squats and loaded countermovement jumps on sprint performance. J. Strength Cond. Res. 2005, 19, 893–897. [Google Scholar]
  36. Ebben, W.; Flanagan, E.; Jensen, R. Gender similarities in rate of force development and time to takeoff during the countermovement jump. J. Exerc. Physiol. Online 2007, 10, 10–17. [Google Scholar]
  37. Owen, N.J.; Watkins, J.; Kilduff, L.P.; Bevan, H.R.; Bennett, M.A. Development of a criterion method to determine peak mechanical power output in a countermovement jump. J. Strength Cond. Res. 2014, 28, 1552–1558. [Google Scholar] [CrossRef] [Green Version]
  38. McMahon, J.J.; Suchomel, T.J.; Lake, J.P.; Comfort, P. Understanding the key phases of the countermovement jump force-time curve. Strength Cond. J. 2018, 40, 96–106. [Google Scholar] [CrossRef] [Green Version]
  39. Mundy, P.D.; Smith, N.A.; Lauder, M.A.; Lake, J.P. The effects of barbell load on countermovement vertical jump power and net impulse. J. Sports Sci. 2017, 35, 1781–1787. [Google Scholar] [CrossRef]
  40. Yarrow, J.F.; Borsa, P.A.; Borst, S.E.; Sitren, H.S.; Stevens, B.R.; White, L.J. Neuroendocrine responses to an acute bout of eccentric-enhanced resistance exercise. Med. Sci. Sports Exerc. 2007, 39, 941. [Google Scholar] [CrossRef]
  41. Haff, G.G.; Dumke, C. Laboratory Manual for Exercise Physiology; Human Kinetics: Champaign, IL, USA, 2021; pp. 398–416. [Google Scholar]
  42. Haff, G.G.; Triplett, N.T. Essentials of strength training and conditioning 4th edition. In Program Design for Resistance Training; Jeremy, M.S., Triplett, N.T., Eds.; Human Kinetics: Champaign, IL, USA, 2015; pp. 439–520. [Google Scholar]
  43. Kubo, T.; Hirayama, K.; Nakamura, N.; Higuchi, M. Influence of different loads on force-time characteristics during back squats. J. Sports Sci. Med. 2018, 17, 617. [Google Scholar]
  44. Lake, J.; Lauder, M.; Smith, N.; Shorter, K. A comparison of ballistic and nonballistic lower-body resistance exercise and the methods used to identify their positive lifting phases. J. Appl. Biomech. 2012, 28, 431–437. [Google Scholar] [CrossRef] [Green Version]
  45. Sanchez-Medina, L.; Perez, C.; Gonzalez-Badillo, J. Importance of the propulsive phase in strength assessment. Int. J. Sports Med. 2010, 31, 123–129. [Google Scholar] [CrossRef] [PubMed]
  46. Turner, A.; Brazier, J.; Bishop, C.; Chavda, S.; Cree, J.; Read, P. Data analysis for strength and conditioning coaches: Using excel to analyze reliability, differences, and relationships. Strength Cond. J. 2015, 37, 76–83. [Google Scholar] [CrossRef]
  47. Koo, T.K.; Li, M.Y. A guideline of selecting and reporting intraclass correlation coefficients for reliability research. J. Chiropr. Med. 2016, 15, 155–163. [Google Scholar] [CrossRef] [PubMed]
  48. Nevill, A.M.; Atkinson, G. Assessing agreement between measurements recorded on a ratio scale in sports medicine and sports science. Br. J. Sports Med. 1997, 31, 314–318. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  49. Bland, J.M.; Altman, D. Statistical methods for assessing agreement between two methods of clinical measurement. Lancet 1986, 327, 307–310. [Google Scholar] [CrossRef]
  50. Hopkins, W.G. A Scale of Magnitudes for Effect Statistics: A New View of Statistics. Available online: http://www.sportsci.org/resource/stats/effectmag.html (accessed on 13 June 2002).
  51. David, F.N. Tables of the Ordinates and Probability Integral of the Distribution of the Correlation Coefficient in Small Samples; Cambridge University Press: Cambridge, UK, 1938. [Google Scholar]
  52. Algina, J.; Olejnik, S. Sample size tables for correlation analysis with applications in partial correlation and multiple regression analysis. Multivar. Behav. Res. 2003, 38, 309–323. [Google Scholar] [CrossRef] [PubMed]
  53. Hansen, K.T.; Cronin, J.B.; Newton, M.J. Three methods of calculating force-time variables in the rebound jump squat. J. Strength Cond. Res. 2011, 25, 867–871. [Google Scholar] [CrossRef]
  54. Stock, M.S.; Luera, M.J. Consistency of peak and mean concentric and eccentric force using a novel squat testing device. J. Appl. Biomech. 2014, 30, 322–325. [Google Scholar] [CrossRef]
  55. Hollander, D.B.; Kraemer, R.R.; Kilpatrick, M.W.; Ramadan, Z.G.; Reeves, G.V.; Francois, M.; Hebert, E.P.; Tryniecki, J.L. Maximal eccentric and concentric strength discrepancies between young men and women for dynamic resistance exercise. J. Strength Cond. Res. 2007, 21, 37–40. [Google Scholar] [CrossRef]
  56. Nicol, C.; Avela, J.; Komi, P.V. The stretch-shortening cycle. Sports Med. 2006, 36, 977–999. [Google Scholar] [CrossRef] [PubMed]
  57. Comfort, P.; Stewart, A.; Bloom, L.; Clarkson, B. Relationships between strength, sprint, and jump performance in well-trained youth soccer players. J. Strength Cond. Res. 2014, 28, 173–177. [Google Scholar] [CrossRef] [PubMed]
  58. McGuigan, M.R.; Winchester, J.B. The relationship between isometric and dynamic strength in college football players. J. Sports Sci. Med. 2008, 7, 101. [Google Scholar]
  59. Sheppard, J.M.; Cronin, J.B.; Gabbett, T.J.; McGuigan, M.R.; Etxebarria, N.; Newton, R.U. Relative importance of strength, power, and anthropometric measures to jump performance of elite volleyball players. J. Strength Cond. Res. 2008, 22, 758–765. [Google Scholar] [CrossRef] [Green Version]
  60. Enoka, R.M. Eccentric contractions require unique activation strategies by the nervous system. J. Appl. Physiol. 1996, 81, 2339–2346. [Google Scholar] [CrossRef] [PubMed]
  61. Moore, C.A.; Schilling, B.K. Theory and application of augmented eccentric loading. Strength Cond. J. 2005, 27, 20. [Google Scholar] [CrossRef]
  62. Claudino, J.G.; Cronin, J.; Mezêncio, B.; McMaster, D.T.; McGuigan, M.; Tricoli, V.; Amadio, A.C.; Serrão, J.C. The countermovement jump to monitor neuromuscular status: A meta-analysis. J. Sci. Med. Sport 2017, 20, 397–402. [Google Scholar] [CrossRef]
  63. McLean, B.D.; Coutts, A.J.; Kelly, V.; McGuigan, M.R.; Cormack, S.J. Neuromuscular, endocrine, and perceptual fatigue responses during different length between-match microcycles in professional rugby league players. Int. J. Sports Physiol. Perform. 2010, 5, 367–383. [Google Scholar] [CrossRef] [Green Version]
  64. Mooney, M.G.; Cormack, S.; O’Brien, B.J.; Morgan, W.M.; McGuigan, M. Impact of neuromuscular fatigue on match exercise intensity and performance in elite Australian football. J. Strength Cond. Res. 2013, 27, 166–173. [Google Scholar] [CrossRef] [Green Version]
  65. Cormack, S.J.; Newton, R.U.; McGuigan, M.R.; Cormie, P. Neuromuscular and endocrine responses of elite players during an Australian rules football season. Int. J. Sports Physiol. Perform. 2008, 3, 439–453. [Google Scholar] [CrossRef] [Green Version]
  66. Mansournia, M.A.; Waters, R.; Nazemipour, M.; Bland, M.; Altman, D.G. Bland-Altman methods for comparing methods of measurement and response to criticisms. Glob. Epidemiol. 2021, 3, 100045. [Google Scholar] [CrossRef]
  67. Haghayegh, S.; Kang, H.-A.; Khoshnevis, S.; Smolensky, M.H.; Diller, K.R. A comprehensive guideline for Bland–Altman and intra class correlation calculations to properly compare two methods of measurement and interpret findings. Physiol. Meas. 2020, 41, 055012. [Google Scholar] [CrossRef]
  68. Bland, J.M.; Altman, D.G. Measuring agreement in method comparison studies. Stat. Methods Med. Res. 1999, 8, 135–160. [Google Scholar] [CrossRef] [PubMed]
  69. Bartlett, J.; Frost, C. Reliability, repeatability and reproducibility: Analysis of measurement errors in continuous variables. Ultrasound Obstet. Gynecol. Off. J. Int. Soc. Ultrasound Obstet. Gynecol. 2008, 31, 466–475. [Google Scholar] [CrossRef] [PubMed]
  70. Harden, M.; Wolf, A.; Haff, G.G.; Hicks, K.M.; Howatson, G. Repeatability and specificity of eccentric force output and the implications for eccentric training load prescription. J. Strength Cond. Res. 2019, 33, 676–683. [Google Scholar] [CrossRef] [PubMed]
Ijerph 19 16176 g001 550

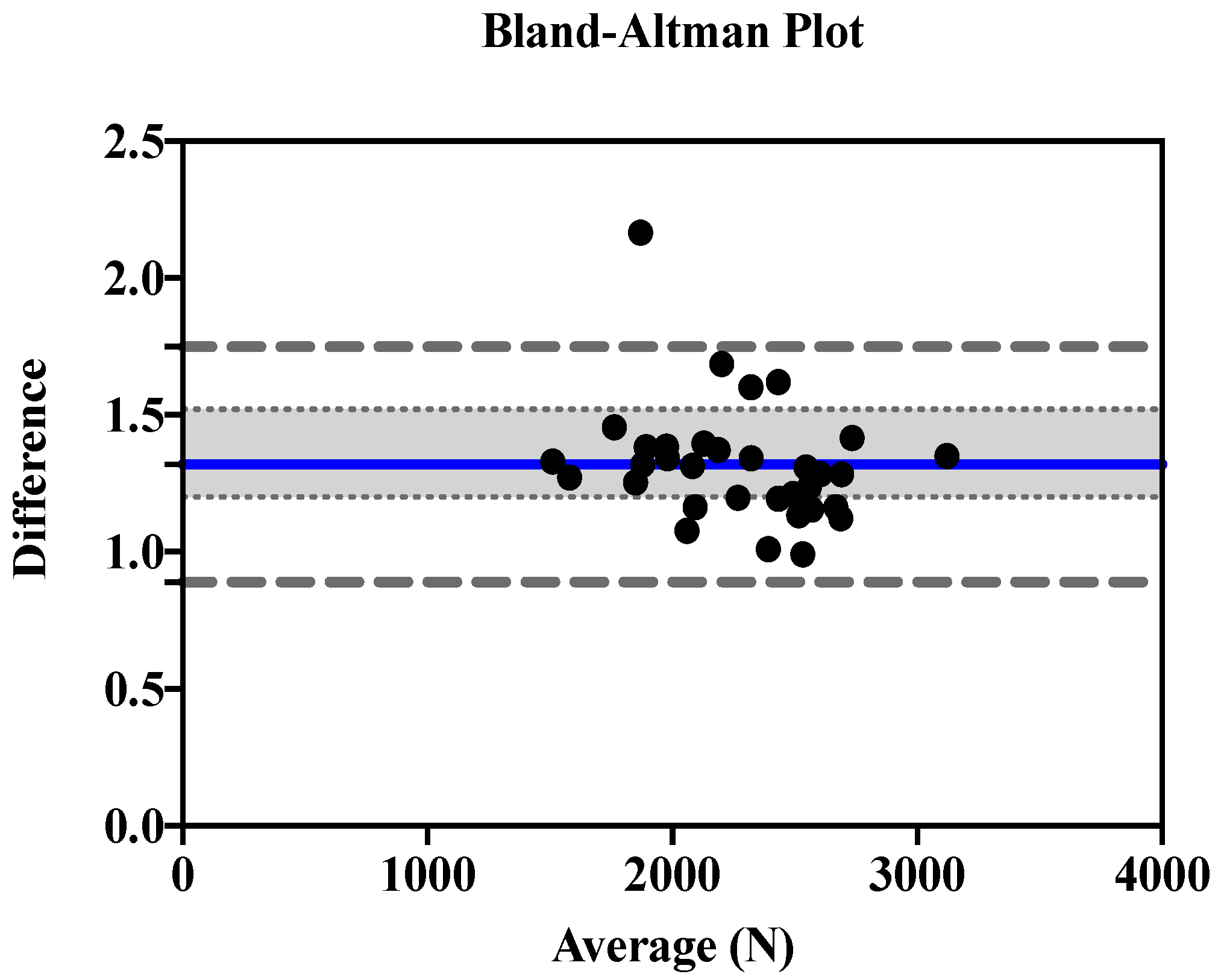

Figure 1. Bland-Altman plot depicting the levels of agreement for the EccPF of the 1RM-BS and CMJ, including bias estimate (1.31) and both lower (0.88) and upper (1.74) limits of agreement.
Figure 1. Bland-Altman plot depicting the levels of agreement for the EccPF of the 1RM-BS and CMJ, including bias estimate (1.31) and both lower (0.88) and upper (1.74) limits of agreement.
Ijerph 19 16176 g001
Ijerph 19 16176 g002 550

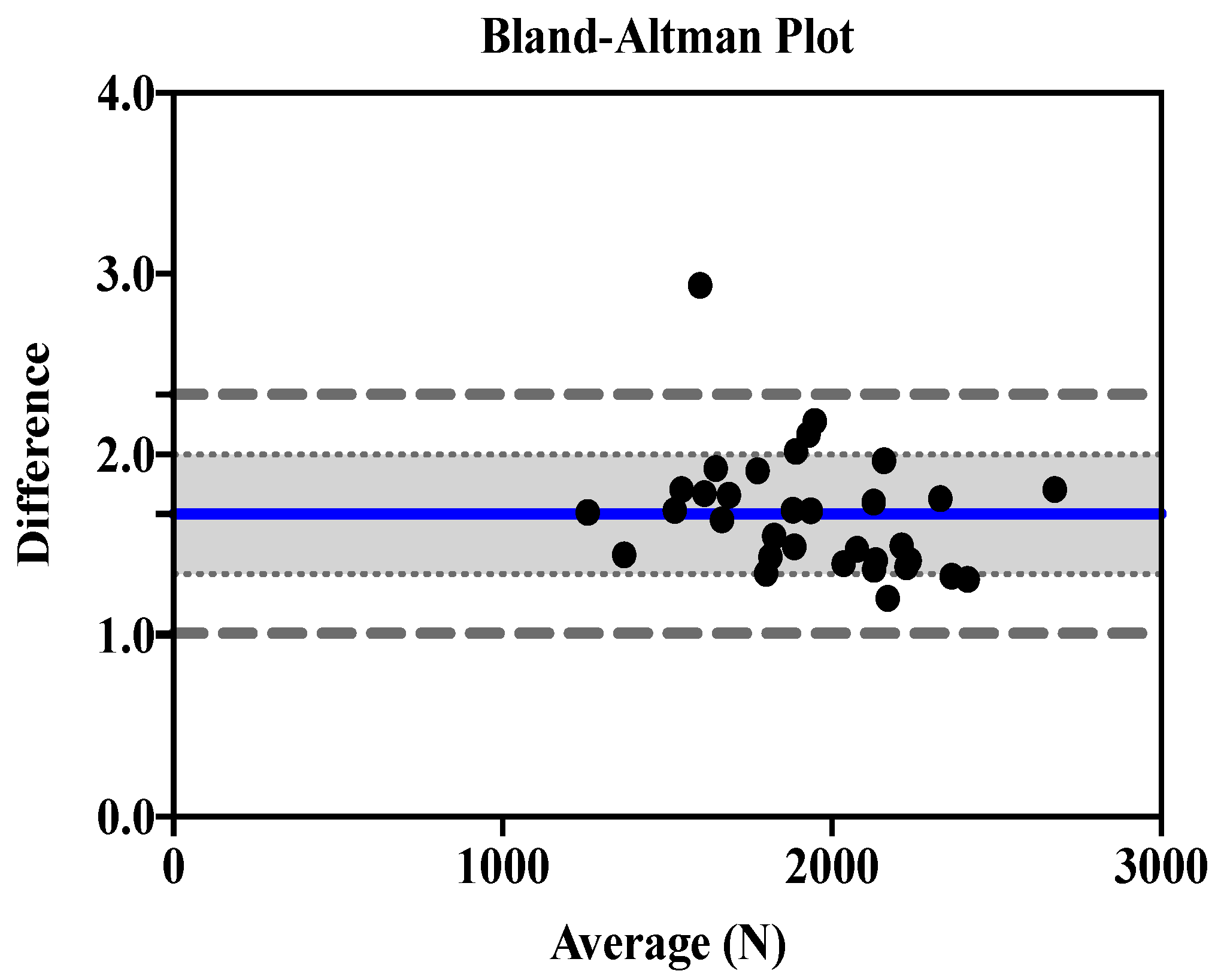

Figure 2. Bland-Altman plot depicting the levels of agreement for the EccMF of the 1RM-BS and CMJ, including bias estimate (1.67) and both lower (1.01) and upper (2.33) limits of agreement.
Figure 2. Bland-Altman plot depicting the levels of agreement for the EccMF of the 1RM-BS and CMJ, including bias estimate (1.67) and both lower (1.01) and upper (2.33) limits of agreement.
Ijerph 19 16176 g002
Table
Table 1. Mean ± standard deviations (SD), coefficients of variation (CV), Kolmogorov-Smirnov normally distributed CMJ and 1RM-BS measures, with 95% confidence intervals (CI), intraclass correlation coefficients (ICC) for the CMJ.
Table 1. Mean ± standard deviations (SD), coefficients of variation (CV), Kolmogorov-Smirnov normally distributed CMJ and 1RM-BS measures, with 95% confidence intervals (CI), intraclass correlation coefficients (ICC) for the CMJ.
VariableMean ± SDCV %ICC (95% CI)Kolmogorov-Smirnov p Value
CMJ
JH (cm)38.92 ± 5.943.810.9470.200 *
EccPF (N)1980.80 ± 394.343.140.9760.100
EccMF (N)1476.29 ± 331.763.310.9790.136
1RM-BS
Load (kg)159.54 ± 28.129.04-0.086
EccPF(N)2560.99 ± 403.729.75-0.200 *
EccMF (N)2393.98 ± 374.669.15-0.200 *
* Significance lower limit and all parameters p > 0.05 are normally distributed.
Table
Table 2. Correlations between the CMJ and 1RM-BS measurements for the EccPF and EccMF.
Table 2. Correlations between the CMJ and 1RM-BS measurements for the EccPF and EccMF.
VariableCMJ-EccPFCMJ-EccMFBS-loadBS-EccPFBS-EccMF
CMJ-JH0.2670.2320.3210.3250.274
CMJ-EccPF 0.939 **0.596 **0.694 **0.720 **
CMJ-EccMF 0.474 **0.578 **0.616 **
BS-load 0.955 **0.951 **
BS-EccPF 0.986 **
** indicates significant correlation (p < 0.01).
