Degradation of Dye Wastewater by a Novel mBT-MPR Visible Light Photocatalytic System

Abstract

The high efficiency and low consumption green wastewater treatment technology has important practical significance for the recycling of printing and dyeing wastewater. The efficiency of visible light catalytic degradation of organics is greatly affected by the performance of the catalyst and the photo reactor. Therefore, Bi₂WO₆/TiO₂/Fe₃O₄ (mBT) visible light photocatalyst was accurately prepared by the ammonia iron double drop method. In order to improve the photodegradation efficiency, a tubular magnetic field-controlled photocatalytic reactor (MPR) was developed. The novel mBT-MPR visible light photocatalytic system was proposed to treat RhB simulated wastewater. The experimental results showed that when the dosage of mBT catalyst was 1 g/L and visible light was irradiated for 60 min, the average removal rate of rhodamine B (RhB) with initial an concentration of 10 mg/L in the simulated wastewater for four times was 91.7%. The mBT-MPR visible light photocatalysis system is a green and efficient treatment technology for organic pollutants in water with simple operation, low energy consumption, and no need for catalyst separation.

1. Introduction

Various dyes and additives enter the surface water body due to the inadequate treatment of printing and dyeing wastewater, causing harm to aquatic ecology and human health. Therefore, it is particularly important to develop efficient, simple, and low-consumption treatment methods. The traditional printing and dyeing wastewater treatment methods mainly include physical treatment, chemical treatment, and biological treatment, but they all have problems of varying degrees, such as complex operation, high cost, and secondary pollution. In recent years, the application of photocatalysis technology to the degradation of pollutants has received extensive attention and can effectively alleviate environmental pollution [1,2,3]. Photocatalytic technology uses the energy of sunlight through various semiconductor materials, and the electrons and holes generated by it have strong reducibility and oxidizability, respectively [4,5,6,7].

Many photocatalysts with narrow band gaps have excellent photocatalytic activity under visible light irradiation, such as Bi₂WO₆ [8], BiOI [9], and g-C₃N₄ [10]. However, there are still some problems, such as the small response range of visible light and the high recombination rate of photogenerated carriers, which limit its application. Among these catalysts, Bi₂WO₆ (Eg = 2.7 eV) is the simplest perovskite sheet structure composed of a (Bi₂O₂)²⁺ layer and a (WO₄)²⁻ layer arranged alternately [11]. Bi₂WO₆ has a unique layered structure and a suitable band gap structure, making it a photocatalyst with a good response to visible light [12]. Bi₂WO₆ has excellent physical and chemical properties such as ferroelectric voltage, catalytic behavior, and nonlinear dielectric susceptibility that are non-toxic and harmless and can be used for organic matter degradation and oxygen release [13,14]. However, the fast recombination speed of photogenerated carriers inhibits their light energy conversion efficiency, so it is necessary to ameliorate them. As one of the most widely studied metal oxides, titanium dioxide (TiO₂) has the properties of relatively high quantum yield, low cost, easy to obtain and low toxicity, and is relatively stable under light. The biggest disadvantage is that only about 5% of the ultraviolet light can be used, and the utilization of solar light is very low.

Referring to the literature about Bi₂WO₆, there are two routes to improving the catalytic activity: expanding the light absorption range of the photocatalyst and improving the separation efficiency of photogenerated carriers. The specific methods are listed as follows: depositing precious metals on the surface of photocatalytic materials to change the surface properties and the electronic distribution [15]; doping ions to separate the electron hole pairs, to form the impurity energy levels, and more active centers [16,17,18,19]; compounding more than two different semiconductors to promote the separation of electron hole pairs [20]; controlling morphology and size to adjust the surface properties and the quantum size effect [21,22]. Therefore, in order to further improve the photocatalytic activity of Bi₂WO₆, it was coupled with the wide band gap semiconductor TiO₂ photocatalyst to form a heterojunction nanocomposite [23,24]. The synergistic effect between TiO₂ and Bi₂WO₆ can improve the light adsorption capacity and the separation efficiency of photogenerated electron hole pairs, prolonging the life of photogenerated carriers and enabling them to participate more in the photocatalytic reaction. In addition, the combination also effectively avoids the agglomeration of nano-titanium dioxide.

However, the recovery and separation of photocatalyst became the problem of wastewater treatment by photocatalysis. At present, there is little research on magnetic Bi₂WO₆/TiO₂ [25], and it still needs two sets of devices, namely, a photocatalysis reactor and a catalyst reclaimer. To establish a photocatalytic reactor with high mass transfer efficiency, simple operation, and no catalyst separation is significant for the application of photocatalysis in the field of wastewater treatment.

In this study, Bi₂WO₆/TiO₂ was synthesized by a simple microwave solvothermal method. Then, Bi₂WO₆/TiO₂ was magnetized by the ammonia-iron double-drop method. Furthermore, the photocatalytic activity of Bi₂WO₆/TiO₂/Fe₃O₄ (mBT) composite photocatalyst was evaluated by the novel mBT-MPR visible light catalytic system with 5.5 W, which was proposed to treat 220 mL of RhB simulated wastewater. The mBT-MPR visible light photocatalysis system is a green and efficient treatment technology for organic pollutants in water with simple operation, low energy consumption, and no need for catalyst separation.

2. Materials and Methods

2.1. Reagents and Instruments

The main analytically pure reagents include: Bi(NO₃)₃·5H₂O, Na₂WO₄·2H₂O, HNO₃, CH₃COOH, FeCl₃·6H₂O, FeCl₂·4H₂O, NH₃·H₂O, absolute ethanol, RhB (C₂₈H₃₁ClN₂O₃), and etc. Nanometer titanium dioxide (P25, Degussa AG, average particle size 21 nm, BET surface area 50 ± 15 m²/g, anatase/rutile = 80:20) was purchased from Lijie Chemical Co., Ltd., Shaoxing, China. The annular focusing microwave synthesizer (Discover, CEM, Matthews, NC, USA) was used to prepare the photocatalysts by the microwave solvothermal method. The concentration of RhB was analyzed by an ultraviolet-visible intelligent multiparameter tester (LH-3BA, Beijing Lianhua Technology, Peking, China). The scanning electron microscope-energy spectrometer (Regulus 8100, Hitachi, Tokyo, Japan) and field emission transmission electron microscope (Tecnai G2 F20, FEI, Columbia, MD, USA) were employed to analyze photocatalyst morphology and element composition. An X-ray diffractometer (D8 ADVANCE, Bruker, Salbruken, Germany) was used to observe the crystal structure of mBT. Elements and valence states were detected by X-ray photoelectron spectroscopy (ESCALAB 250XI, Thermo, Waltham, MA, USA).

2.2. Preparation of mBT Photocatalyst

Bi₂WO₆, a certain amount of Bi (NO₃)₃·5H₂O (5.4328 g) was dissolved into 10 mL of a 1 mol/L HNO₃ or a 17.5 mol/L CH₃COOH solution, and then stirred for 1 h until the white suspension became colorless, this was marked as solution A. Na₂WO₄·2H₂O (1.8472 g) was dissolved in 5 mL of deionized water and marked as solution B. Then, solution B was added into solution A slowly by a rubber tip, stirred for 1 h and marked as solution C, putting into the microwave synthesizer at 160 °C for 1 h reaction. Finally, the white sediment was cleaned with deionized water, followed by absolute ethanol more than three times.

Bi₂WO₆/TiO₂ (BT), the P25 (0.4473 g) was dispersed in 20 mL of an aqueous solution for 2 min by ultrasonic, and then added into solution C described above ultrasonic dispersed for 5 min, putting into the microwave synthesizer at 160 °C for 1 h. The cleaning process of white sediment was the same as mentioned above.

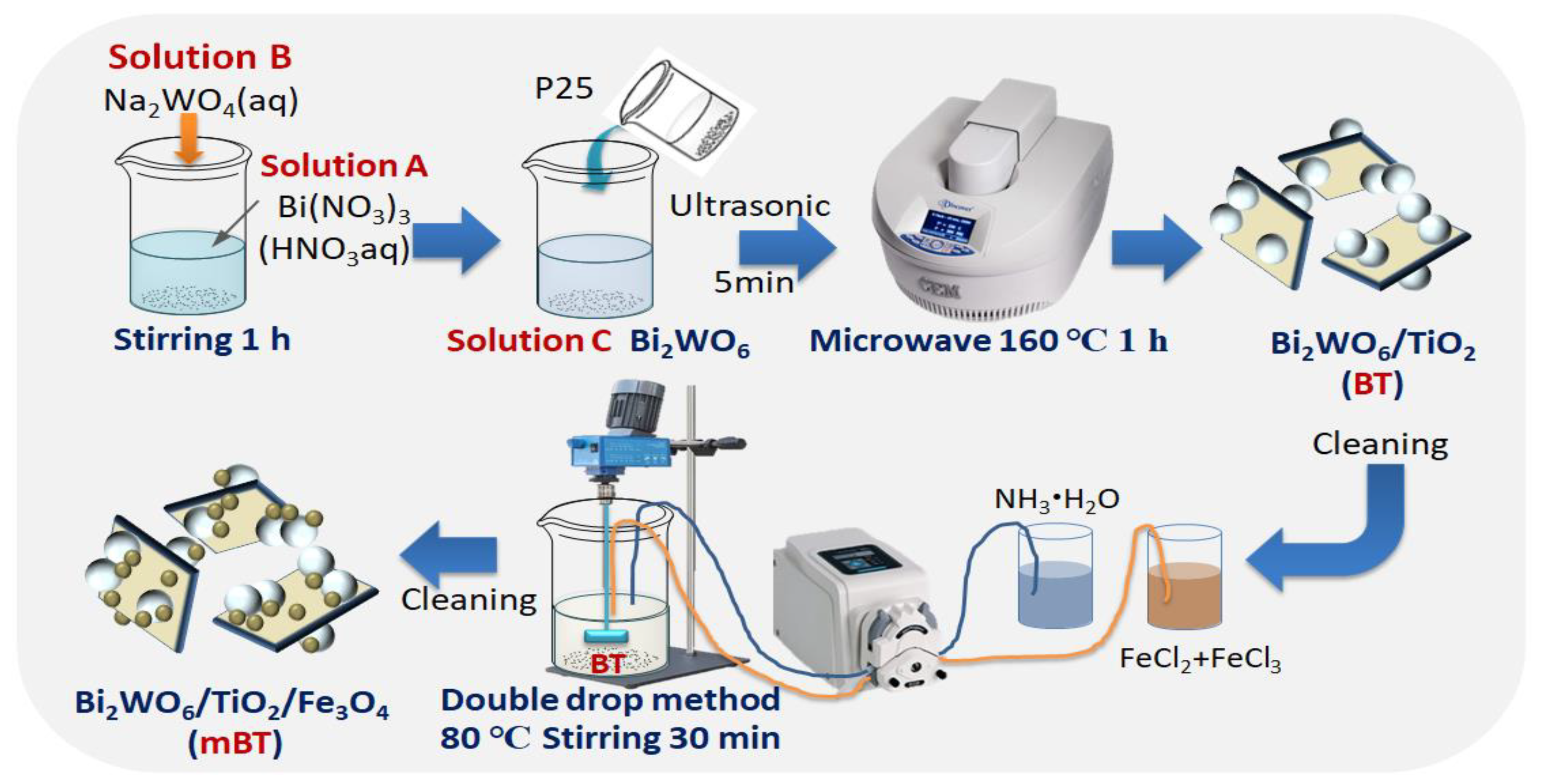

Bi₂WO₆/TiO₂/Fe₃O₄ (mBT), the synthesis process of mBT is shown in Figure 1. A certain amount of BT was magnetized by the ammonia-iron double-drop method. FeCl₂·4H₂O (0.5572 g) and FeCl₃·6H₂O (1.5148 g) (molar ratio Fe²⁺:Fe³⁺ = 1:2) were dissolved in 2.3 mL of deionized water, heated at 70 °C and mechanically stirred for 20 min to obtain a 3.75 mol/L iron ion solution. Then 2.3mL of the iron ion solution and ammonia (2.3 mL 13.3 mol/L) were simultaneously dropped into the above uniformly dispersed 40 mL Bi₂WO₆/TiO₂ aqueous solution by the peristaltic pump, and stirred for 30 min at 80 °C. Finally, the obtained mixed solution was heated and stirred for 30 min, and cross cleaned by deionized water and anhydrous ethanol three times.

2.3. mBT-MPR Visible Light Photocatalytic System Experiment

A tubular magnetic field-controlled photocatalytic reactor (MPR) was established, as referred to in the previous works [26]. The RhB simulated wastewater (220 mL) containing a certain amount of mBT photocatalyst was sent into the bottom of the MPR photoreactor by a peristaltic pump.

Firstly, a dark reaction lasting 20 min was carried out to demonstrate the adsorption equilibrium between the catalyst and RhB pollutant molecules. Then, the LED light belt (5.5 W) was turned on to perform photocatalytic degradation of Rhodamine B (RhB). Samples shall be taken every 10 min for 1 h degradation. Finally, the concentration of RhB in effluent was obtained by measuring the absorbance at 550 nm wavelength with an ultraviolet-visible spectrophotometer.

3. Results and Discussion

3.1. The Characterization of mBT

3.1.1. Surface Morphology and Internal Structure

The surface morphology, element composition, and internal structure of mBT were investigated by SEM, EDS, and HRTEM as shown in Figure 2.

Bi₂WO₆ was assembled from a large number of irregular two-dimensional nano-sheets with a length of 20 nm to 120 nm, and TiO₂ (25 nm) and Fe₃O₄ (6–12 nm) particles were distributed on its surface. Some particles were distributed on the two-dimensional Bi₂WO₆ surface as fish eggs due to magnetism, as shown in Figure 2c. Some particles combined well with Bi₂WO₆ and formed a stable heterojunction, as shown in Figure 2d. The element layering image of the composite was shown in Figure 2e, which was composed of Bi, W, Ti, and Fe elements; no other elements were detected, which was consistent with the characterization results of X-ray diffraction and X-ray photoelectron spectroscopy, further proving the successful preparation of mBT.

Analyzing the HRTEM images of Figure 2(a1–c1), TiO₂ and Fe₃O₄ nanoparticles were embedded in Bi₂WO₆ nanosheets. The Bi₂WO₆ lattice, TiO₂ lattice, and Fe₃O₄ lattice of this composite material are shown in Figure 2(d1). The crystal structure of the prepared samples was further understood by an X-ray diffractometer. The strong and sharp diffraction peaks showed that the prepared samples had high crystallinity. The X-ray diffraction spectrum of the composite material mBT is shown in Figure 2(e1). This composite material, mBT, havs diffraction peaks at 2θ = 28.6, 33.0, 47.3, and 56.0°, which correspond to the crystal planes of (103), (200), (220), and (303) of Bi₂WO₆ (JCPDS26-1044). The diffraction peaks at 2θ = 25.3 27.4, 36.1, 37.8, 48.0, 54.3, and 62.7° correspond to the crystal planes of (101), (110), (101), (004), (200), (211), and (204) of TiO₂ (JCPDS21-1276) and (JCPDS21-1272), respectively. The diffraction peaks at 2θ= 46.77, 57.18, and 76.88° correspond to the crystal planes of (311), (440), and (511) of Fe₃O₄ (JCPDS26-1136), indicating the successful preparation of mBT photocatalyst.

3.1.2. Elements and Valence States Analysis

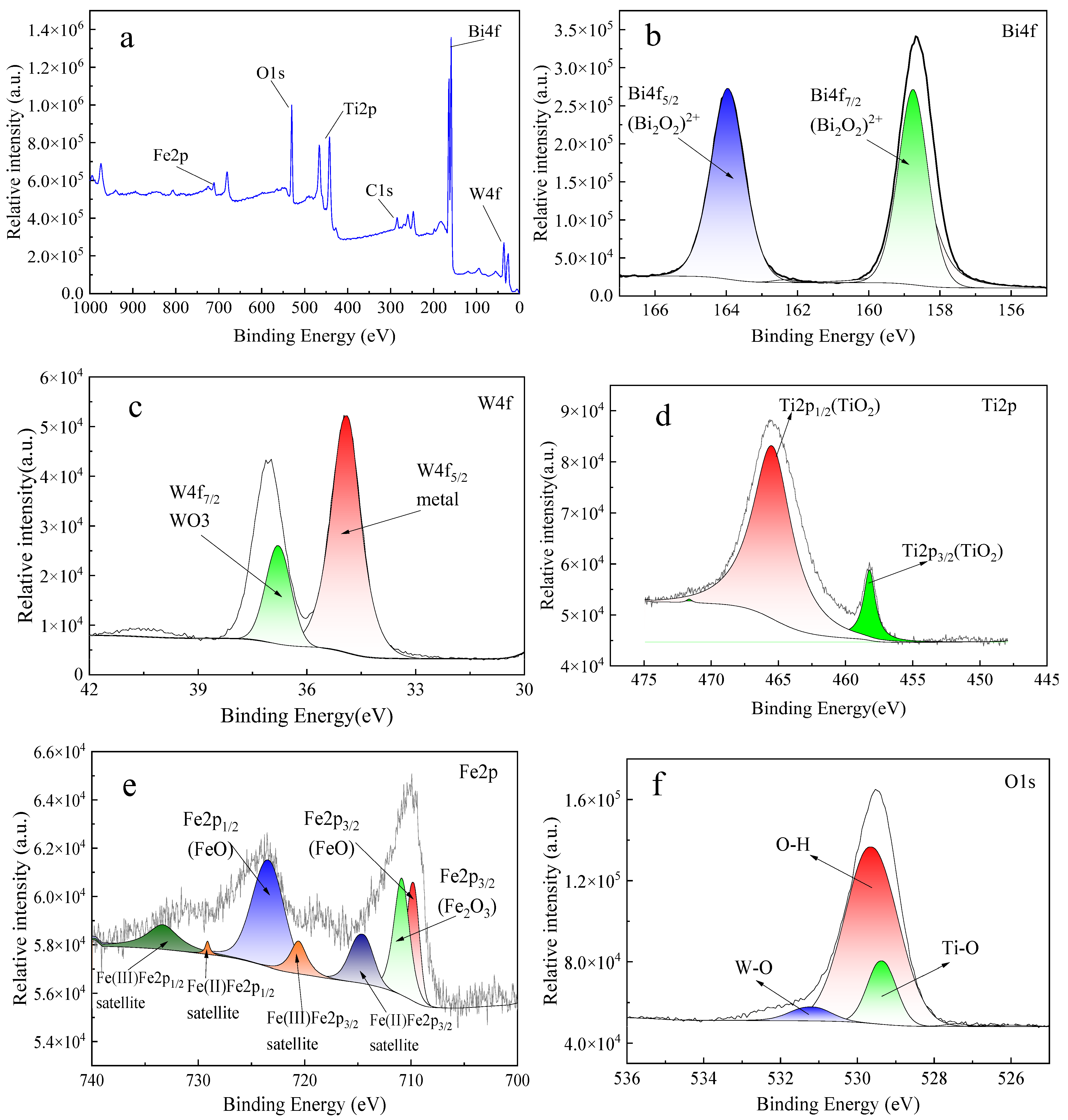

The chemical composition and electronic state of the mBT visible light photocatalyst were analyzed by XPS. As the results shown in Figure 3a indicate, the full spectrum indicates the material is mainly composed of bismuth, tungsten, oxygen, titanium, and iron. The presence of a C1S peak may be due to carbon dioxide in the air. Figure 3b–f shows the high-resolution XPS spectra of each element of the material. The peaks at 158.73 eV and 163.96 eV (Figure 3b) are attributed to Bi4f_7/2 and Bi4f_5/2, respectively, which are the characteristics of Bi³⁺ ions in Bi₂WO₆. The binding energies of the two peaks are 34.89 eV and 36.78 eV, respectively, (Figure 3c), which belong to W4f_5/2 and W4f_7/2, indicating that W exists in the form of +6 valence in this material. In Figure 3d, the two peaks of 458.22 and 465.47 eV correspond to Ti2p_3/2 and Ti2p_1/2, respectively. As shown in Figure 3e, the two peaks at 710.88 and 723.4 eV correspond to Fe2p_3/2 and Fe2p_1/2, respectively. The existing forms of Fe are FeO and Fe₂O₃, indicating the existence of Fe²⁺ and Fe³⁺ in the material and the synthesis of Fe₃O₄. As shown in Figure 3f, the binding energies of 529.63 eV and 529.35 eV correspond to the O-H bond in Bi₂WO₆ and the Ti-O bond in TiO₂, and 531.17 eV corresponds to the W-O bond in (WO4) ²⁻ [27,28,29].

3.2. Screening of Synthesis Methods for mBT

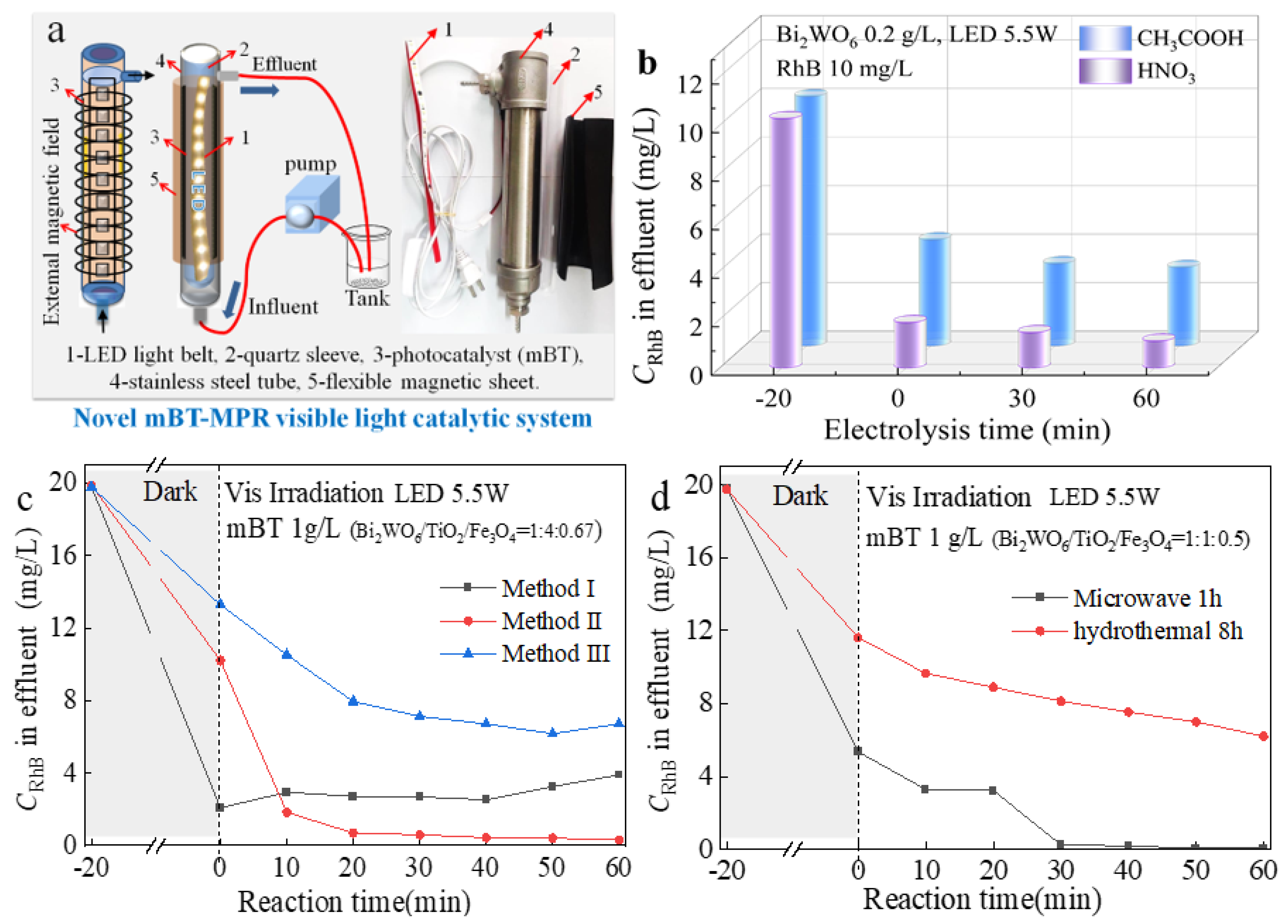

The mBT-MPR photocatalysis system shown in Figure 4a was established to treat RhB simulated wastewater to evaluate the photodegradation performance of visible light catalyst. As shown in Figure 4a, a visible light LED light belt (warm white light 3000–3500 k, 50 cm, 5.5 W, Yuexinguang Lighting, Shenzhen, China) was embedded in a quartz sleeve (Φ2.8 × 21 cm) as inner light source. The stainless-steel tube shell (Φ3.2 cm × 22 cm; effective volume 170 mL) was covered with a flexible magnetic sheet. The RhB solution was photodegraded by passing through the gap between the stainless-steel shell and the quartz sleeve.

Firstly, the influence of the solvent on the photocatalytic activity for Bi₂WO₆ was investigated in Figure 4b. The preparation process of Bi₂WO₆ is described in Section 2.2. The concentrations of CH₃COOH and HNO₃ were 1 mol/L and 17.5 mol/L (analytically pure), respectively. The adsorbed and photodegraded effect of Bi₂WO₆ prepared with different solvents was evaluated by the concentration of effluent. The prepared Bi₂WO₆ has a larger surface area using HNO₃ as solvent than CH₃COOH due to the more oxidative nature of the solvent, which results in a higher removal rate of RhB.

The three synthesis methods mentioned in Figure 4c are as follows. Method I: the dispersion of Fe₃O₄ (0.87 g), P25 (1.7891 g) and 50 mL of deionized water; the solution B (Na₂WO₄) was dropped into the solution A (Bi(NO₃)₃) to obtain mBT by microwave synthesis. Method II: P25 dispersion was added to solution C (Bi₂WO₆) to obtain BT by microwave synthesis. Then, the mBT was prepared using the ammonia-iron double-drop method shown in Section 2.2. Method III: Bi₂WO₆ was prepared by the microwave solvothermal method. Then, the ultrasonic dispersion of Bi₂WO₆ and P25 was magnetized by the ammonia-iron double-drop method.

As the results shown in Figure 4c show, the mBT obtained by method II has the best degradation effect. The difference in RhB degradation effects caused by mBT prepared using three methods was reflected in the construction process of the Bi₂WO₆/TiO₂ heterojunction. The presence of Fe₃O₄ in Method I will affect it. Method III cannot form heterojunction well, while Method II can better form it under the effects of microwave high temperature and high pressure, so it has a better photodegradation effect.

The comparison between microwave synthesis for 1 h and hydrothermal reactor synthesis for 8 h was investigated by method II (Figure 4d). The results indicated the advantages of green and efficient microwave synthesis. The mBT catalyst was successfully synthesized by a microwave synthesis instrument with a short preparation time, referring to our previous research results [26].

3.3. Determination of the mBTcomposite Ratio and the Photocatalytic Mechanism

Different mole ratios of Bi₂WO₆/TiO₂ will affect the heterojunction structure and result in a change in RhB degradation. In Figure 5a, properly increasing the TiO₂ ratio to 1:3 is conducive to the formation of more heterojunctions, thus improving the photocatalytic activity of BT. However, a too-high ratio of TiO₂ will reduce the visible light absorption efficiency of Bi₂WO₆, reducing the photocatalytic performance of BT. Therefore, a suitable ratio of Bi₂WO₆/TiO₂ will promote better transmission of electrons and holes by the heterojunction of the two.

Analyzing the results in Figure 5a,b, the presence of Fe₃O₄ was investigated to affsee how it affected the photocatalytic efficiency of mBT. When the molar ratio of Bi₂WO₆/TiO₂/ Fe₃O₄ was 1:4:1, compared with the molar ratio of Bi₂WO₆/TiO₂, the dark reaction adsorption decreased by about 4.7 mg/L and the photocatalytic degradation increased by 6 mg/L. This demonstrated that the presence of Fe₃O₄ will affect the adsorption by reducing the surface of Bi₂WO₆, but it inhibits the recombination of photogenerated carriers through participating heterojunction and improves photocatalytic efficiency. Continued increase in the proportion of Fe₃O₄ to 1:3:1 and 1:4:1.5, both the adsorption and the photocatalytic effect were obviously affected. It indicated that Fe₃O₄ would occupy the adsorption site and the photocatalytic active site. When the molar ratio of Bi₂WO₆/TiO₂/ Fe₃O₄ was 1:1:0.5, compared to a 1:1 molar ratio for Bi₂WO₆/TiO₂, the presence of Fe₃O₄ did not have an obvious impact on the adsorption and photocatalytic efficiency. Considering the coupling effect of adsorption and photodegradation, the synthesis scheme of mBT was adopted with a molar ratio of 1:1:0.5. After 40 min of light, the RhB degradation rate achieved 99.7%.

In order to verify the degradation mechanism of photocatalysts with different heterojunction types, the experiments shown in Figure 5c were carried out. The degradation effect of RhB was significantly improved using mBT compared with mB and mT. That demonstrated more heterojunction formed when Bi₂WO₆ contacted Fe₃O₄ and TiO₂ at the same time. The heterojunctions can greatly inhibit the recombination of photogenerated carriers, improving the photocatalytic performance of the photocatalyst.

The formation process of heterojunction and the principle of promoting RhB degradation are shown in Figure 5d–f. The heterojunction type of mT is the traditional type I shown in Figure 5d. The electrons transfer from the VB (valence band) to the CB (conduction band), resulting in electron hole pairs. The electrons of CB transfer from TiO₂ to Fe₃O₄, producing ∙O²⁻, while the holes accumulate in the VB of TiO₂ to generate a large amount of ∙OH. The generated ∙O²⁻ and ∙OH are the main oxidants that degrade RhB molecules [30].

As the process shown in Figure 5e shows, the heterojunction between Fe₃O₄ and Bi₂WO₆ is Z-type in Figure 5e,f. For two kinds of semiconductors, the heterojunction between TiO₂ and Bi₂WO₆ belongs to p-n type according to references [31,32]. Bi₂WO₆ and Fe₃O₄ first absorb visible light energy to produce abundant of e⁻ in the CB of Bi₂WO₆. Then, the electrons migrate to VB in Fe₃O₄ and recombine with h⁺, promoting the effective separation of electron hole pairs in Bi₂WO₆ or Fe₃O₄. The e⁻ of Fe₃O₄ returns O₂ to ∙O²⁻, the h⁺ of Bi₂WO₆ converts to ∙OH [33].

The RhB photodegradation mechanism by mBT was investigated and shown in Figure 5f. After Bi₂WO₆ and TiO₂ absorb visible light energy, e⁻ at the CB of TiO₂ is easily transferred to the CB of Bi₂WO₆, so that O₂ is reduced by e⁻ to produce ∙O²⁻. At the same time, h⁺ frm the VB of Bi₂WO₆ migrates to the CB of TiO₂, and h⁺ reacts with H₂O to produce ∙OH, ∙O²⁻ and ∙OH degrade RhB molecules into an intermediate product and h⁺ can also directly oxidize RhB molecules. The recombination rate of electrons and holes is greatly reduced, thereby improving the photocatalytic performance of the photocatalyst [33,34,35]. The N-ethyl group on the original RhB molecule is continuously attacked by the active radicals (∙OH, h⁺, and ∙O²⁻), the electronic delocalization of N-ethyl became weaker, the ethyl group detaches from different parts of RhB, and the opening-ring process continues with the continuous attack by active radicals [36].

3.4. The analysis of Cyclic Stability and Energy Consumption

As shown in Figure 6a–c, the mBT-MPR visible light catalytic system (LED 5.5 W) was used to treat 220 mL of RhB simulated wastewater with an initial concentration of 10 mg/L or 20 mg/L.

In Figure 6a, when the dosage of mBT is 0.5 g/L, the 10 m/L RhB wastewater is treated four times continuously, and the removal stability of the effluent is not satisfactory. It can be seen from the data in Figure 6a that the adsorption and photocatalytic performance of mBT decrease with the increase in use times. That indicates the amount of mBT is insufficient to fully degrade RhB at a concentration of 10 mg/L. Therefore, to investigate the relationship between the dosage of mBT and effluent stability, the dosage of mBT was increased to 1 g/L, as shown in Figure 6b. After two times of use, the adsorption effect of mBT obviously decreased, but the photocatalytic effect was improved, so that the stability of the effluent was better than in Figure 6a.

In order to further verify the relationship between mBT dosage and RhB photodegradative stability, the initial concentration of RhB was increased to 20 mg/L in Figure 6c. When the dosage of mBT was 1 g/L, the stability of the effluent decreased significantly as the influent concentration increased to 20 mg/L. In conclusion, at the novel mBT-MPR visible light catalytic system, the dosage of catalyst mBT is closely related to the concentration of influent RhB. Only when the dosage of mBT is sufficient, can better effluent stability be achieved.

In this study, an LED light belt was used to simulate visible light. To calculate the electric energy consumption, a parameter of electrical energy per order (E_EO, kWh/m³/order) can be defined as the electrical energy (kWh) for 90% removal by one order of magnitude per m³ of contaminated water. It combines light intensity, residence time, and volume with pollutant removal efficiency into a single measurement method [37,38,39,40]. The E_EO value is calculated using this expression:

$$E_{EO}=\frac{Pt}{V\mathit{log}\left(C_i/C_f\right)}$$

(1)

where P is the power of the LED light belt (kW, 0.0055 kW in this study), t is the irradiation time (H), V is the volume of simulated wastewater (m³, 220 mL in this study, 0.00022 m³), and C_i and C_f are the pollutant concentrations at the initial and final times (mg/L) respectively. Substitute the value to get E_EO. As shown in Figure 6d, the cumulative electric energy consumption value of the mBT-MPR system was described under the different dosages of mBT (0.5 g/L or 1 g/L). When the initial concentration of RhB was 10 mg/L and the dosage of mBT was 1 g/L, the effluent was relatively stable, and the mean value of energy consumption of four times was 22.8 kWh/m³/order, which was obviously lower than that of 0.5 g/L mBT. According to the results of

Table 1. Comparison of electrical energy consumption of different photocatalytic degradation systems.

Pollutants (Ci mg/L; V mL)	Removal (%)	Photocatalyst (Dosage g/L)	Photocatalysis Conditions	Energy (kWh/m3/Order)	Ref.
Rhodamine B 10 mg/L, 220 mL	91.7% 60 min	Bi2WO6/TiO2/Fe3O4 1 g/L	LED light belt 5.5 W	22.8 mean value	This study
Tetracycline 10 mg/L, 60 mL	68.4% 80 min	Ag3PO4 0.17 g/L	Blue-LEDs 2.6 W	113	[38]
Tetracycline 30 mg/L, 60 mL	49.3% 80 min	Ag3PO4 0.17 g/L	Blue-LEDs 2.8 W	212	[38]
Tetracycline 50 mg/L, 60 mL	45.2% 80 min	Ag3PO4 0.17 g/L	Blue-LEDs 5.2 W	239	[38]
methylene blue 10 mg/L, 200 mL	47% 180 min	ZnCoFe LDH 0.1 g/L	LED lamps 100 W	5410	[39]
Reactive Black 5 20 mg/L, 1 L	89.9% 120 min	Fe3O4-WO3-APTES 0.2 g/L	LED lamp 15 W	34.7	[40]

, the higher initial concentration and volume of organic pollutants will result in more difficulty with photocatalytic degradation, a longer degradation time, and a higher E_EO value.

4. Conclusions

Magnetic composite visible light catalyst mBT was successfully prepared by the ammonia-iron double-drop and microwave solvothermal methods. The optimal molar ratio of Bi₂WO₆, TiO₂, and Fe₃O₄ in the mBT photocatalyst was 1:1:0.5. The morphology results of mBT showed that TiO₂ and Fe₃O₄ particles were loaded on the surface of Bi₂WO₆ sheets. Heterojunction structures of mBT are constructed by Fe₃O₄, TiO₂, and Bi₂WO₆ in three parts, obviously improving the separation and transfer of photogenerated electron hole pairs at the heterojunction interface.

The novel mBT-MPR visible light catalytic system with 5.5 W was proposed to treat 220 mL of RhB simulated wastewater. The advantages of that system are simple operation, a good mass transfer effect, and the fact that no catalyst separation is required for the effluent. After 1 h of visible light irradiation, the average removal rate of RhB at an initial concentration of 10 mg/L for four times was 91.7%.

The removal effect of RhB by the mBT-MPR photocatalytic system was mainly due to the coupling effect of adsorption and photocatalysis by mBT. The dosage of mBT is correlated with the concentration of influent RhB. To obtain stable effluent, a reasonable mBT dosage should be chosen to match the corresponding influent pollutant concentration.
