The Analysis of 222Rn and 220Rn Natural Radioactivity for Local Hazard Estimation: The Case Study of Cerveteri (Central Italy)

by
Nunzia Voltattorni
*,
Andrea Gasparini
and
Gianfranco Galli
Istituto Nazionale di Geofisica e Vulcanologia, Via di Vigna Murata 605, 00143 Rome, Italy
*
Author to whom correspondence should be addressed.
Int. J. Environ. Res. Public Health 2023, 20(14), 6420; https://doi.org/10.3390/ijerph20146420
Submission received: 10 June 2023 / Revised: 18 July 2023 / Accepted: 18 July 2023 / Published: 20 July 2023
Browse Figures
Versions Notes

Abstract

:
Radon (222Rn) is the second most common cause of lung cancer after smoking. As radon poses a significant risk to human health, radon-affected areas should be identified to ensure people’s awareness of risk and remediation. The primary goal of this research was to investigate the local natural radioactivity (in soils, groundwater, and indoors) because of the presence of tuff outcrops (from middle–lower Pleistocene volcanic activity) that naturally produce radioactive gas radon at Cerveteri (Rome, Central Italy). The results of the radon survey highlighted moderate (>16,000 Bq/m3) but localized anomalies in soils in correspondence with a funerary site pertaining to the Etruscan Necropolis of Cerveteri, which extends over a volcanic rock plateau. Indoor radon measurements were performed at several tuff-made dwellings, and the results showed medium-low (<200 Bq/m3) values of indoor radon except for some cases exceeding the reference level (>300 Bq/m3) recommended by the 2013/59 Euratom Directive. Although no clinical data exist regarding the health effects of thoron (220Rn) on humans, the study of 220Rn average activity concentration in the soil gas survey reveals new insights for the interpretation of radon sources that can affect dwellings, even taking into account the considerable difference in the half-lives of 222Rn and 220Rn.

1. Introduction

The noble and radioactive gas radon has three isotopes: 222Rn (radon, in the decay chain of 238U, has a half-life of 3.8 days), 220Rn (thoron, in the decay chain of 232Th, has a relatively short half-life of 55 s), and 219Rn (actinon, in the decay chain of 235U). While the first two isotopes are largely studied in geochemical exploration, actinon is completely ignored because of its very short half-life (4 s) and low abundance.
222Rn is one of the main sources of environmental natural radioactivity [1,2] considering that this gas is created during the radioactive alpha decay of radium (226Ra) present in rock and soil. Being an inert gas, radon is ubiquitous in indoor and outdoor air. Further, due to its solubility, radon can be present in groundwaters and springs, meaning that drinking waters can be enriched with this gas. Natural 222Rn concentrations depend on many factors, including uranium mineralization in the soil [3] and chemical water parameters (pH, temperature, and salinity) that can cause seasonal variations in diluted radon [4]. Furthermore, the presence of fractures and/or faults in the soil can favor the upward motion of radon from bedrocks and buried deposits containing uranium [5].
The presence of 222Rn in indoor air can be due to the presence of fissures in walls or any other conduits that can facilitate the diffusion of the gas from the ground to closed spaces. Even dissolved radon in groundwaters that are used for domestic purposes can contribute to the indoor accumulation of this dangerous gas [6]. Therefore, it is very important to know the levels of radon in soil gas, the indoor environment, and water (e.g., from private wells) to keep people safe from excessive exposure to radon and, consequently, reduce the lung cancer risk.
In terms of radiation protection aspects, the indoor 220Rn level is attributed to the release of radon from the soil or building materials containing 232Th, and they vary depending on the distance from walls or floors [7]. For these reasons, it is difficult to estimate. Furthermore, after thoron decays, its progenies are formed. Most of these are positively charged, and they rapidly capture water molecules, thus forming clusters. They move so quickly in the air that some of them attach to ambient aerosols, while others deposit on the wall, ceiling, floor, and macro-surfaces [8]. Therefore, the distribution of progenies strongly varies and depends on many factors, including deposition velocities and air exchange rates. All these variables affect thoron progeny measurements, and hence the obtained value is only an indicator of its presence and not a quantitative measure of progeny concentrations [9]. By contrast, soil gas 220Rn, precisely for its short half-life, can provide significant information on the source of radon gas.
For this reason, 220Rn levels were measured in order to evaluate the superficial fracturing (besides the known faults) that allows for a diffusive radon migration. The present study focused on estimating the radon concentration in soil gas, the indoor environment, and groundwater in an area characterized by natural radioactivity due to both local volcanic outcrops emitting radon and the use of tuffs as building materials. Our primary goal was to raise public awareness of both radon presence and the consequent gas exposure risk [10] since the hazard of this gas is often ignored by local administrators.

2. Geological Overview

The investigated area is situated at the Italian Tyrrhenian margin, where large volcanic districts and thick continental crust (less than 25 km) are the main geological characteristics. After the last compressive tectonic phase, which started during the lower Pliocene, an extensional tectonic phase occurred along the Tyrrhenian margin, forming a system of NW–SE-trending basins mainly filled with marine sediments. At the same time, intense volcanic activity began to form the Roman Comagmatic Province, which includes the Sabatini Hills [11] the Tolfa–Cerveteri–Manziana volcanic complex (TVC) [12], and the Vico volcanic deposits.
The studied area belongs to the TVC and is located 45 km north of Rome. The TVC consists of a series of volcanic products (including Tufi stratificati varicolori di Sacrofano and Tufi rossi a scorie nere [13]) that form an NW–SE-trending hoisted structure. In the southern part of the tuff outcrop, over a volcanic rock plateau of about 100 hectares, there is an important Italian archeological site providing unique and exceptional evidence of the ancient Etruscan civilization, just a few kilometers far from Rome. There are necropolis rich in Etruscan frescoes that faithfully reproduce the daily lives of the disappeared culture. The Banditaccia necropolis, a UNESCO World Heritage since 2004, is by far the finest example of Etruscan funerary architecture, and large parts of this necropolis were dug in the tuff bedrock, either as subterranean grave chambers (hypogea) or as tumuli [14].

3. 222Rn and 220Rn Radiological Risk

Radon and its progeny are natural sources of radiation that can affect people’s health, contributing to around 50% of the radiation dose received by the general public [15,16]. According to several epidemiological studies, radon exposure increases the risk of lung cancer since radon progeny deposits on the bronchial epithelium damaging the respiratory system due to irradiation [17,18]. Even cellular DNA can be damaged by the alpha particles emitted by radon and its progeny [19]. The distribution of radon progeny and the breathing rate influence the trachea–bronchial tract [20], where the progeny concentration is deposited, thus affecting the lung’s radiation dose.
Since radon is very soluble (fifteen times more than helium or neon), it is possible to find high concentrations of this gas in waters that circulate through rocks and deposits rich in radium [21] and that can transport dissolved radon to the surface. Therefore, dissolved radon in water can enter dwellings by means of showers, laundry, and drinkable water [16]. Considering the harmful effects of this gas on human health, it is necessary to quantify the radiological hazard of radon from different potential sources: soils, water, and the indoor environment. Since radon is colorless, tasteless, and odorless, the long-term effects of exposure are generally underestimated. Furthermore, even when people are informed about the possibility that their dwellings can have dangerous radon levels and relative health effects, it is unlikely that appropriate remedies are adopted [22].

4. Materials and Methods

During the summer of 2017, detailed field surveys were carried out at Cerveteri (Rome, Central Italy), which included indoor, in-water, and in-soil 222Rn measurements (Figure 1).
Detailed radon gas surveys were carried out during the dry season (from June to September 2017), consisting of 75 measurements of radon activity, within an area of about 3 km2, with a sampling density of about 20 samples/km2. Soil gas radon (222Rn) concentrations were measured with a portable RAD7 Durridge® certified alpha spectrometer (Figure 2a). Once inside the detection chamber, radon particles produce positively charged 218Po ions, which are subsequently collected on the solid-state detector using an electric high-voltage field. In the sniff mode, suitable for fast measurements, only alpha decays from 218Po are counted; therefore, temporary radon concentrations were registered in 5 min intervals over a 15 min period (the time necessary for Po and Rn nuclei equilibrium, which is about 5 times the half-life of 218Po) by pumping the gas from a steel probe inserted at depth of at least 0.50 m into the soil. An inlet filter and a desiccant trap (drierite) were used to protect the detector from dust and soil moisture (relative humidity should be maintained below 10%). The detection limit was ±500 Bq/m3. The calibration and linearity of the employed RAD7s were verified using a radon chamber [23].
All the analytical data obtained were graphically processed to better define geochemical lineaments and anomalies. Statistical analyses were carried out using descriptive statistics (mean, median, variance, standard deviation, skewness, and kurtosis). The geostatistical treatment of gas distribution was performed using a variogram surface analysis to refine the assessment of the spatial continuity of gas concentration anomalies and determine useful parameters for plotting a contour map.
Measurements of indoor radon concentrations were performed in selected private and public dwellings using activated charcoal canisters (ACCs, Figure 2b) and cylindrical aluminum boxes (external diameter 6 cm) that contained activated charcoal. The ACC method is useful for taking measurements simultaneously, and they are reusable after regeneration at 125 °C for at least 10 h since residual radon is expelled. The calibration of activated carbon collectors (ACC) was performed by means of a radon chamber with a volume (V) into which radon activity (RN) was introduced, and the conditions of temperature (T) and relative humidity (RH) varied over time. The ACCs were exposed for a period of 48 h. A calibration factor valid for the specific type of ACCs used was obtained as a function of the parameters indicated above. The typical detection limit is 20 Bq/m3 [24].
The ACC passive method involved exposing the canister on the floor of a room for 48 h and keeping windows and doors shut in order to simulate the worst environmental conditions for air circulation. Afterward, the canisters were removed, and the activity of 222Rn adsorbed was determined with γ spectrometry. The main γ lines investigated (ROIs) were those emitted in the β decays of 214Pb (242, 295, and 352 keV) and 214Bi (609 keV). For calculations, it is necessary to (i) select an acquisition time (T) to cumulate counts in the selected ROIs; (ii) measure the background counts (B); (iii) measure the gross counts (G) from each exposed collector; (iv) measure counts (S) from a standard collector (identical in size and material and containing the same amount of activated charcoal) in which a known concentration (A) of 226Ra in equilibrium with 222Rn is dispersed; (v) calculate a factor (AF) for which the water gain (G) absorbed by the collector and its relation to the specific collector family and exposure time (ET) are assessed using the radon chamber; and (vi) calculate the decay factor (DF) accounting for radon decay from the median exposure time to the median measurement time. Then, these parameters are inserted into the following equation [25]:
Rn (Bq/m3) = [(G − B)/T]/[ET × AF(G, ET) × ((S−B)/T)/A) × DF]
In order to measure dissolved 222Rn concentrations, water from two private wells was collected in a bottle equipped with a watertight cap provided with an expansion chamber and inserted in a closed circuit (Figure 2c) with a pump and an activated charcoal collector (ACC). The air stripped from the water and aspirated from the expansion chamber was then adsorbed into the ACC [24]. The collectors were analyzed via γ spectrometry using a NaI(Tl) scintillator at the laboratory.

5. Results

5.1. Soil Gas 222Rn and 220Rn

The descriptive statistical results of 222Rn soil gas levels in the Cerveteri area are reported in Table 1. In an area of about 5 square kilometers, a total of 75 220Rn and 220Rn measurements were taken. Radon values ranged from 634 to 51,000 Bq/m3, and the mean (13,987 Bq/m3) and median (10,000 Bq/m3) values, as well as the standard deviation (SD, 11,661), were quite similar, indicating that the distribution of this gas was slightly skewed. The values of skewness (1.35) and kurtosis (2.13) confirmed the almost normal univariate distribution. In the framework of environmental studies, the identification of high anomalous values (outliers) plays a crucial role in the creation and interpretation of contour maps. The normal probability plot (NPP) is a valid statistical approach to display and investigate data variability and skewed distributions. This statistical method enables the identification of threshold values and multiple populations that correspond to relevant processes with their underlying probability density function due to natural processes.
The method requires estimating straight line segments (highlighting gaps or inflection points) on a probability curve and then selecting threshold values at the abscissa line [26]. Therefore, it is possible to distinguish populations such as background (natural concentration of soil), anomalous values (values > background), and outlier (extreme data points numerically distant from the rest of the data). Figure 3a shows the normal probability plot for radon values, where we can distinguish some outliers (>49,000 Bq/m3) and three sample populations separated by two threshold points: (i) background values up to 5000 Bq/m3; (ii) radon values ranging from 5200 to 15,000 Bq/m3, characteristic of a population at equilibrium with the 226Ra content of the local volcanic rocks [27]; and (iii) weak anomalies (>15,500 Bq/m3). The statistical threshold between normal and anomalous values was determined as 25,000 Bq/m3. According to Chen and Ford [28], high soil gas concentrations can yield indoor concentrations above the limit established by the 2013/59 Euratom Directive (300 Bq/m3) [29]. Only a few samples in our soil gas dataset had values so high to potentially result in high indoor radon concentrations, but those samples were collected from the tuff outcrop, where there is the Banditaccia necropolis and no dwellings. The descriptive statistical results of 220Rn soil gas levels in the Cerveteri area are reported in Table 1. Thoron values ranged from 848 to 312,000 Bq/m3. The mean (76,616 Bq/m3) and median (65,200 Bq/m3) values, as well as the standard deviation (SD, 65,533), were almost identical, indicating that the distribution of this gas was slightly skewed. The values of skewness (1.6) and kurtosis (3.1) confirmed the almost normal univariate distribution. The presence of outliers (high anomalous values) was determined using the mean of the NPP graph (Figure 3b), where we can distinguish three sample populations separated by two threshold values: (i) background values up to 70,000 Bq/m3; (ii) weak anomalous values ranging from 70,000 to 150,000 Bq/m3; (iii) anomalies (>150,000 Bq/m3). The anomaly threshold is at 155,000 Bq/m3.

5.2. Indoor 222Rn

A total of 24 charcoal canisters were arranged on the floor of 24 private locations where a room could be dedicated to indoor radon measurements. Canisters should be placed at the lower level of a building like cellars (i.e., storerooms) or basements (hobby rooms or workrooms), but this was not always possible because of the different types of available dwellings. For this reason, canisters were placed in seven cellars, seven basements, five ground floors, and five first floors. Every location was built with tuff and without crawl space or any modern aeration system for radon abatement. Table 2 shows the results of indoor radon measurements: Values ranged from 35 to 1144 Bq/m3. SD and mean values of basements were almost similar, suggesting an almost normal distribution (Gaussian distribution). However, the values of the coefficient of variation (CV = SD/mean) suggest that data variability for cellars, ground floors, and first floors (CV = 0.5, 0.6, and 0.5, respectively) but not for basements (CV = 1.1).
Figure 4 shows a comparison of indoor radon values from the four monitored levels. The box plots were drawn using lower and upper quartiles (box edges), the median (the line at the center of the box), whiskers (defined by the IQR factor), and outliers. This graphical representation of data provides a brief and concise summary of the variability of values, as shown with the median values estimated for the different levels: basements had the highest values, as expected.

5.3. Dissolved 222Rn in Water

Dissolved radon in water can be a serious problem, in terms of radiation dose, when groundwater is used for public services (e.g., food and domestic uses, sanitary fittings, and private wells). Radon dissolved in water may enter indoor air through de-emanation when the water is used, and its contribution to indoor Rn concentrations mainly depends on the dissolved radon concentration, the amount of water used, and the air exchange rate. The ratio of concentrations in the air and water was set at 10−4 [16] (i.e., a dissolved concentration of 100 Bq/L would cause an increase of 10 Bq/m3). Although this contribution to indoor radon is normally negligible, radon degassing from the water should not be underestimated.
Unfortunately, during the study period, only two private wells were investigated, both with very low radon concentrations, that is, <100 Bq/L (the reference radon level of drinking water according to the 2013/59 Euratom Directive). However, these low values are comparable with the results of a previous study by Cinti et al. [30] in the peri-Tyrrhenian sector of Central Italy, where there are sedimentary rock aquifers that generally have low dissolved Rn values (median value 6.9 Bq/L) probably due to low levels of U and Ra within the sedimentary deposits.

6. Discussion

A variogram model was built using radon data to quantitatively assess the spatial continuity of the values. An experimental variogram enables the comprehension of the geometry and continuity of one variable and can provide significant information on numerical model estimations. Variogram models estimate the experimental data, geological interpretation, and analog information [31]. Figure 5 shows the experimental variogram and the relative radon fitting model determined along the axes of anisotropy (45°) and an angular tolerance of 22°. The x-axis represents the lag distance (distances between pairs at which the variogram is calculated), and the y-axis refers to the equation for computing the variogram and depends on the variance of the variable as a function of the lag distance.
The appropriate model was a spherical function (Sph) in which sample pairs were autocorrelated up to the distance of 700 m; after that, the variogram reached the asymptotic threshold value of 0.16 γ. The nugget variance, representing the threshold value, was 0.08 γ. The variogram model and the calculated values were fundamental in the Kriging algorithm to perform the most accurate evaluation of the radon concentration’s contour map, especially in areas without sampling. Figure 6 shows the distribution of soil gas radon concentrations, which were very variable in the investigated area. The mean activity of the radon was about 14,000 Bq/m3, a value that is considered not harmful to human health. The maximum anisotropy orientation (NW–SE) is parallel to the tuff outcrop where the Banditaccia necropolis is located. Other spot anomalies (values > 25,000 Bq/m3) were found in the southeastern sector of the investigated area, where small tuff outcrops or Etruscan ruins are present. Furthermore, an elongated anomaly was found in the southwestern sector that is apparently not subject to either known faults or tuff outcrops. According to Torelli [32], there are several necropoles (behind the well-known Banditaccia) in the investigated area, and many of them are underground (hypogeal necropoles). This would explain the anomalous values in the southern sector of the studied area, although more detailed investigation (e.g., geoelectrical surveys) are needed to confirm whether there is an association between radon levels and buried necropoles.
The distribution of soil gas 220Rn shows (Figure 7) that the maximum anisotropy orientation (NE–SW) is orthogonal to the tuff outcrop. Other spot anomalies (values > 90,000 Bq/m3) were found in the southeastern sector of the investigated area in line with 222Rn anomalies and where small tuff outcrops or Etruscan ruins are present.
The short half-life of 220Rn (55 s) is long enough to suggest the primary source (U or Th) of radon anomaly. Therefore, the presence of mineralization close to the surface can cause high 220Rn levels due to the rapid transport of this gas. The calculation of the 220Rn/222Rn activity ratio allows us to investigate the actual permeability of the gas origin. A good correlation was observed (Pearson coefficient r = 0.6771) between the radon and thoron activities (Figure 8), indicating and confirming a mixing of deep (222Rn) and shallow (220Rn) gas sources [33]. According to Yang [34], thoron values associated with low radon values suggest a shallow gas source since the origin of thoron is almost entirely from diffusion from the top few centimeters of soil where this gas is emitted as a decay product of 232Th contained in soils and rocks. Furthermore, microfractures in the soil facilitate the migration and presence of this gas at the surface.
Since thoron is more sensitive to the shallow fracturing system, a high 220Rn/222Rn activity ratio suggests a high level of ground permeability, which enhances the thoron escape toward the surface.
Figure 9 shows the third-order polynomial regression of the 220Rn/222Rn activity ratios plotted along the A-B profile. The highest values of the regression curve are in the northwestern and central part of the studied area, where there is a correspondence between radon and thoron values. This correlation reflects the common physical factors affecting the transport of both, such as diffusivity, moisture, and the presence of gas sources and migration pathways not visible at the surface. The small areas where the 220Rn–222Rn correlation exists are characterized by the presence of argillaceous and alluvial deposits (without tuff outcrops). Therefore, it is reasonable to assume that the high activity ratios observed in these areas would be due to local hidden discontinuities (faults/fractures) and/or to unknown hypogeal necropoles.
Many studies [35,36,37] suggest a direct correlation between indoor radon and soil gas radon levels. The highest soil gas radon values were found in tuff outcrops where, unfortunately, no indoor radon measurements were taken because of the presence of Banditaccia necropolis. On the other hand, the highest indoor radon values were found in dwellings located on alluvial deposits, where soil gas radon concentrations were very low (<15,000 Bq/m3). Most parts of ACC were placed in dwellings located on argillaceous and alluvial deposits, which are well known for acting as barriers to the migration of gas and other substances of geological eras, as evidenced by the clay-capped deposits of hydrocarbons over the entire planet [38]. Only three samples had high indoor radon values (>300 Bq/m3), and they were measured in one cellar and two basements located on alluvial deposits, where soil gas radon concentrations were very low (Figure 6). The cause of high indoor radon levels may be attributed to the construction features of the dwellings and the materials used: According to Righi and Bruzzi [39], Central Italy is characterized by volcanic rocks (i.e., tuffs), which are used as building materials and are natural sources of radioactive emissions. Therefore, the natural radioactivity in tuff bricks plays an important role in indoor radon accumulation that should be determined for hazard estimation and land use planning. The results of indoor radon measurements confirm that dwellings built over volcanic tuffs can undergo harmful radon gas accumulation. An exception is the results from the first-floor level: Only two samples had values < 100 Bq/m3, while the remaining exceeded 160 Bq/m3, with one sample reaching 222 Bq/m3. However, these high values are below the radon threshold admitted for indoor radon exposure (<300 Bq/m3) by the 2013/59 Euratom Directive [29]. A possible explanation for the high values observed for the first floors is the “chimney effect” caused by temperature differences (between outside and inside a house), leading to a variation in radon concentrations due to airflow, especially in the winter season. All indoor measurements were taken in winter, during which, notoriously, maximum values of radon concentration are observed. This is because windows are usually closed during winter, causing scarce aeration in the indoor environment. Furthermore, winter variations in barometric pressure can have a positive effect on radon concentrations: an increase in barometric pressure causes an increase in radon concentration, especially if accompanied by windstorms and rain [40].
All the investigated cellars were used as stock rooms with no heating system, and, consequently, natural ventilation had a significant effect on the indoor radon concentration. In fact, when the ventilation rate in the cellar increased, the cellar became less depressurized, leading to a decrease in radon permeation into the cellar. Therefore, the concentration in the cellar decreased due to stronger dilution and the reduced level of the contaminant permeated into the cellar [41].

7. Conclusions

The multiple and simultaneous investigations conducted in this work proved to be a better approach for the accurate identification of radon natural radioactivity in terms of potential health risks due to exposure to this dangerous gas.
A detailed radon survey (with in-soil, indoor, and in-water measurements) was conducted in the Cerveteri area (50 km north of Rome, Central Italy), within a densely populated area, to identify the radon source and the main causes influencing the distribution of this gas. The contour maps of both 222Rn and 220Rn soil gas distribution were analyzed using variogram models established with the Kriging algorithm. In particular, the study of radon distribution highlighted an NW–SE anisotropy pattern, which was correlated to the limit of tuff outcrops, naturally producing radon. Lithology, therefore, is the main cause of the 222Rn distribution in soil, but other causes (e.g., the presence of necropolis), depending on location, were explored to explain the radon variation.
Exposure to indoor radon can pose a risk to human health, and the achieved results demonstrate that the risk is consistent in cellars/basements and, to a lesser extent, first floors of dwellings. It is worth noting that this gas accumulates in ground contact and poorly ventilated places. The absence of correlation between soil gas and indoor 222Rn levels highlights the importance of building materials, often the main reason for indoor radon levels in the study area.
Taken together, the obtained results show that the presence of degassing soils and building materials strongly contribute to the indoor Rn distribution, which should be determined for hazard estimation and land use planning. It is firmly recommended that local authorities and citizens be informed about the potential health risk of this toxic gas, and its origin, characteristics, and spatial distribution. Even though few houses had high indoor radon values above the radon reference level allowed for indoor radon exposure (300 Bq/m3) by the 2013/59 Euratom Directive, seasonal variations should be considered in order to calculate the annual effective dose equivalent. Meanwhile, more ventilated entry areas and the presence of air-conditioning with a regulated exchange of air would facilitate the radon escape from “contaminated” houses.

Author Contributions

N.V. performed sampling surveys and laboratory analysis, data organization, and statistical and graphical elaboration. A.G. contributed to the data acquisition. G.G. performed water and indoor radon analyses. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data cannot be made publicly available upon publication because they contain sensitive personal information. The data that support the findings of this study are available upon reasonable request from the authors.

Acknowledgments

The authors would like to thank the reviewers who devoted their time to reading and providing feedback on some critical points of the manuscript. Their comments, suggestions, and questions helped to improve the original version of this work.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Darby, S.; Hill, D.; Doll, R. Radon: A likely carcinogen at all exposures. Ann. Oncol. 2001, 12, 1341–1351. [Google Scholar] [CrossRef]
  2. Oh, S.S.; Koh, S.; Kang, H.; Lee, J. Radon exposure and lung cancer: Risk in nonsmokers among cohort studies. Ann. Occup. Environ. Med. 2016, 28, 11. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Jönsson, G.; Baixeras, C.; Devantier, R.; Enge, W.; Font, L.L.; Freyer, K.; Ghose, R.; Treutler, H.-C. Soil radon levels measured with SSNTD’s and the soil radium content. Radiat. Meas. 1999, 31, 291–294. [Google Scholar] [CrossRef]
  4. Cinelli, G.; Tositti, L.; Capaccioni, B.; Brattich, E.; Mostacci, D. Soil gas radon assessment and development of a radon risk map in Bolsena, Central Italy. Environ. Geochem. Health 2015, 37, 305–319. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  5. Pfanz, H.; Yüce, G.; Gulbay, A.H.; Gokgoz, A. Deadly CO2 gases in the Plutonium of Hierapolis (Denizli, Turkey). Archaeol. Anthr. Sci. 2018, 11, 1359–1371. [Google Scholar] [CrossRef]
  6. Ajiboye, Y.; Isinkaye, M.O.; Khanderkar, M.U. Spatial distribution mapping and radiological hazard assessment of groundwater and soil gas radon in Ekiti State, Southwest Nigeria. Environ. Earth Sci. 2018, 77, 1–15. [Google Scholar]
  7. Zhuo, W.; Lida, T.; Morizumi, S. Simulation of the concentration levels and distributions of indoor radon and thoron. Radiat. Prot. Dosim. 2001, 93, 357–368. [Google Scholar] [CrossRef]
  8. Tokonami, S. Characteristics of thoron (220Rn) and its progeny in the indoor environment. Int. J. Environ. Res. Public Health 2020, 17, 8769. [Google Scholar] [CrossRef]
  9. Mishra, R.; Sapra, B.K.; Mayya, Y.S. Multi-parametric approach towards the assessment of radon and thoron progeny exposures. Rev. Sci. Instrum. 2014, 85, 022105. [Google Scholar] [CrossRef]
  10. Voltattorni, N. Il radon e la radioattività ambientale: Risultati del progetto di Alternanza Scuola-Lavoro “Misure dell’attività del gas radon nei suoli e nelle acque nel territorio di Cerveteri (Roma, Italia centrale)”. Misc. INGV 2019, 47, 1–24. [Google Scholar] [CrossRef]
  11. Bertagnini, A.; De Rita, D.; Landi, P. Mafic inclusions in the silica-rich rocks of the Tolfa-Ceriti-Manziana volcanic district (Tuscan Province, Central Italy): Chemistry and mineralogy. Mineral. Petrol. 1995, 54, 261–276. [Google Scholar] [CrossRef]
  12. Pinarelli, L. Geochemical and isotopic (Sr, Pb) evidence of crust-mantle interaction in acidic melts—The Tolfa-Cerveteri-Manziana volcanic complex (central Italy): A case history. Chem. Geol. 1991, 92, 177–195. [Google Scholar] [CrossRef]
  13. Compagnoni, B.; Giardini, G.; Jacobacci, A.; Malatesta, A.; Molinari Paganelli, V.; Valletta, M. Note Illustrative del F° 373 Cerveteri; Servizio Geologico D’Italia—Istituto Poligrafico e Zecca dello Stato: Rome, Italy, 1986. [Google Scholar]
  14. Alfeld, M.; Baraldi, C.; Gamberini, M.C.; Walter, P. Investigation of the pigment use in the Tomb of the Reliefs and other tombs in the Etruscan Banditaccia Necropolis. X-Ray Spectrom. 2019, 48, 262–273. [Google Scholar] [CrossRef]
  15. Singla, A.K.; Kansal, S.; Rani, S.; Mehra, R. Radiological risk assessment due to attached/unattached fractions of radon and thoron progeny in Hanumangarh district, Rajasthan. J. Radioanalytic. Nucl. Chem. 2021, 330, 1473–1483. [Google Scholar] [CrossRef]
  16. UNSCEAR. Sources and effects of ionizing radiation. In United Nations Scientific Committee on the Effects of Atomic Radiation; Report to the General Assembly, with Scientific Annexes; United Nations: New York, NY, USA, 2000. [Google Scholar]
  17. World Health Organization. WHO Handbook on Indoor Radon: A Public Health Perspective; World Health Organization: Geneva, Switzerland, 2009. [Google Scholar]
  18. Chauhan, R.P.; Kumar, A.; Chauhan, N.; Joshi, M.; Aggarwal, P.; Sahoo, B.K. Ventilation effect on indoor radon–thoron levels in dwellings and correlation with soil exhalation rates. Indoor Built Environ. 2016, 25, 203–212. [Google Scholar] [CrossRef] [Green Version]
  19. Kansal, S.; Mehra, R.; Singh, N.P. Life time fatality risk assessment due to variation of indoor radon concentration in dwellings in western Haryana, India. Appl. Radiat. Isot. 2012, 70, 1110–1112. [Google Scholar] [CrossRef]
  20. Cavallo, A. The radon equilibrium factor and comparative dosimetry in homes and mines. Radiat. Prot. Dosim. 2000, 92, 295–298. [Google Scholar] [CrossRef]
  21. Fatima, I.; Zaidi, J.H.; Arif, M.; Tahir, S.N.A. Measurement of natural radioactivity in bottled drinking water in Pakistan and consequent dose estimates. Radiat. Prot. Dosim. 2007, 123, 234–240. [Google Scholar] [CrossRef]
  22. Hevey, D. Radon risk and remediation: A psychological perspective. Front. Public Health 2017, 5, 63. [Google Scholar] [CrossRef] [Green Version]
  23. Galli, G.; Cannelli, V.; Nardi, A.; Piersanti, A. Implementing soil radon detectors for long term continuous monitoring. Appl. Radiat. Isot. 2019, 153, 108813. [Google Scholar] [CrossRef]
  24. Galli, G.; Guadoni, C.; Mancini, C. Radon grab sampling in water by means of radon transfer in activated charcoal collector. Nuovo Cim. 1999, 22, 583–588. [Google Scholar]
  25. De Luca, A.; Mancini, C. The measurement system for 222Rn monitoring with charcoal adsorption collectors. Health Phys. 1991, 61, 543–546. [Google Scholar] [CrossRef]
  26. Sinclair, A.J. A fundamental approach to threshold estimation in exploration geochemistry: Probability plots revisited. J. Geochem. Expl. 1991, 41, 1–22. [Google Scholar] [CrossRef]
  27. Przylibski, T.A. Concentration of 226Ra in rocks of the southern part of Lower Silesia (SW Poland). J. Environ. Radioact. 2004, 75, 171–191. [Google Scholar] [CrossRef]
  28. Chen, J.; Ford, K.L. A study on the correlation between soil radon potential and average indoor radon potential in Canadian cities. J. Environ. Radioact. 2017, 166, 152–156. [Google Scholar] [CrossRef] [PubMed]
  29. Directive Council. Council Directive 2013/51/EURATOM of 22 October 2013. Laying down requirements for the protection of the health of the general public with regard to radioactive substances in water intended for human consumption. J. Eur. Union 2013, 7, 56. [Google Scholar]
  30. Cinti, D.; Vaselli, O.; Poncia, P.P.; Brusca, L.; Grassa, F.; Procesi, M.; Tassi, F. Anomalous concentrations of arsenic, fluoride and radon in volcanic-sedimentary aquifers from central Italy: Quality indexes for management of the water resource. Environ. Pollut. 2019, 253, 525–537. [Google Scholar] [CrossRef] [PubMed]
  31. Gringarten, E.; Deutsch, C.V. Teacher’s aide variogram interpretation and modeling. Math. Geol. 2001, 33, 507–534. [Google Scholar] [CrossRef]
  32. Torelli, M. The History. In Caere; University of Texas Press: Austin, TX, USA, 2021; pp. 5–14. [Google Scholar]
  33. Padilla, G.D.; Hernández, P.A.; Padrón, E.; Barrancos, J.; Pérez, N.M.; Melián, G.; Nolasco, D.; Dionis, S.; Rodríguez, F.; Calvo, D.; et al. Soil gas radon emissions and volcanic activity at El Hierro (Canary Islands): The 2011–2012 submarine eruption. Geochem. Geophys. Geosystems 2013, 14, 432–447. [Google Scholar] [CrossRef]
  34. Yang, T.; Walia, V.; Chyi, L.; Fu, C.; Chen, C.-H.; Liu, T.; Song, S.; Lee, C.; Lee, M. Variations of soil radon and thoron concentrations in a fault zone and prospective earthquakes in SW Taiwan. Radiat. Meas. 2005, 40, 496–502. [Google Scholar] [CrossRef]
  35. Friedmann, H.; Baumgartner, A.; Bernreiter, M.; Gräser, J.; Gruber, V.; Kabrt, F.; Kaineder, H.; Maringer, F.J.; Ringer, W.; Seidel, C.; et al. Indoor radon, geogenic radon surrogates and geology–Investigations on their correlation. J. Environ. Radioact. 2017, 166, 382–389. [Google Scholar] [CrossRef] [PubMed]
  36. Adelikhah, M.; Shahrokhi, A.; Imani, M.; Chalupnik, S.; Kovács, T. Radiological assessment of indoor radon and thoron concentrations and indoor radon map of dwellings in Mashhad, Iran. Int. J. Environ. Res. Public Health 2021, 18, 141. [Google Scholar] [CrossRef] [PubMed]
  37. Djeufack, L.B.; Kendjou, L.T.; Bineng, G.S.; Modibo, O.B.; Abba, H.Y.; Saïdou Zhukovsky, M. Study of correlation between radon (222Rn) gas in soil and indoor radon with dose assessment in the bauxite bearing area of Fongo-Tongo, Western Cameroon. Int. J. Environ. Anal. Chem. 2022, 1–21. [Google Scholar] [CrossRef]
  38. Voltattorni, N.; Lombardi, S.; Rizzo, S. 222Rn and CO2 soil–gas geochemical characterization of thermally altered clays at Orciatico (Tuscany, Central Italy). Appl. Geochem. 2010, 25, 1248–1256. [Google Scholar] [CrossRef]
  39. Righi, S.; Bruzzi, L. Natural radioactivity and radon exhalation in building materials used in Italian dwellings. J. Environ. Radioact. 2006, 88, 158–170. [Google Scholar] [CrossRef]
  40. Mentes, G.; Eper-Pápai, I. Investigation of temperature and barometric pressure variation effects on radon concentration in the Sopronbánfalva Geodynamic Observatory, Hungary. J. Environ. Radioact. 2015, 149, 64–72. [Google Scholar] [CrossRef] [Green Version]
  41. Wang, F.; Ward, I.C. Radon entry, migration and reduction in houses with cellars. Build. Environ. 2002, 37, 1153–1165. [Google Scholar] [CrossRef]
Ijerph 20 06420 g001 550

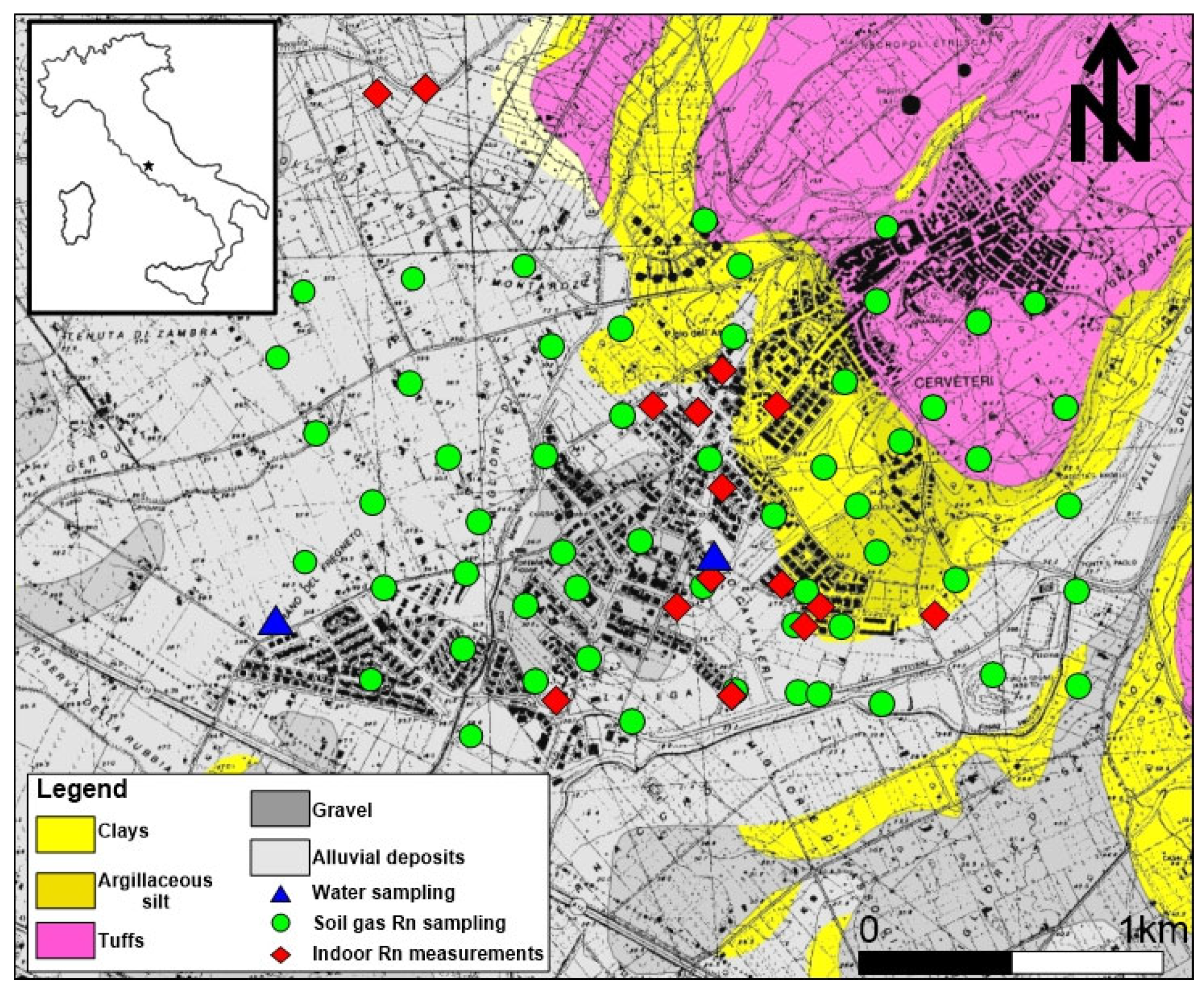

Figure 1. Geological sketch map of the Cerveteri study area (Rome, Central Italy) and radon investigations. Soil gas 222Rn and 220Rn, indoor radon, and dissolved radon in water are represented by green, red, and blue symbols, respectively.
Figure 1. Geological sketch map of the Cerveteri study area (Rome, Central Italy) and radon investigations. Soil gas 222Rn and 220Rn, indoor radon, and dissolved radon in water are represented by green, red, and blue symbols, respectively.
Ijerph 20 06420 g001
Ijerph 20 06420 g002 550

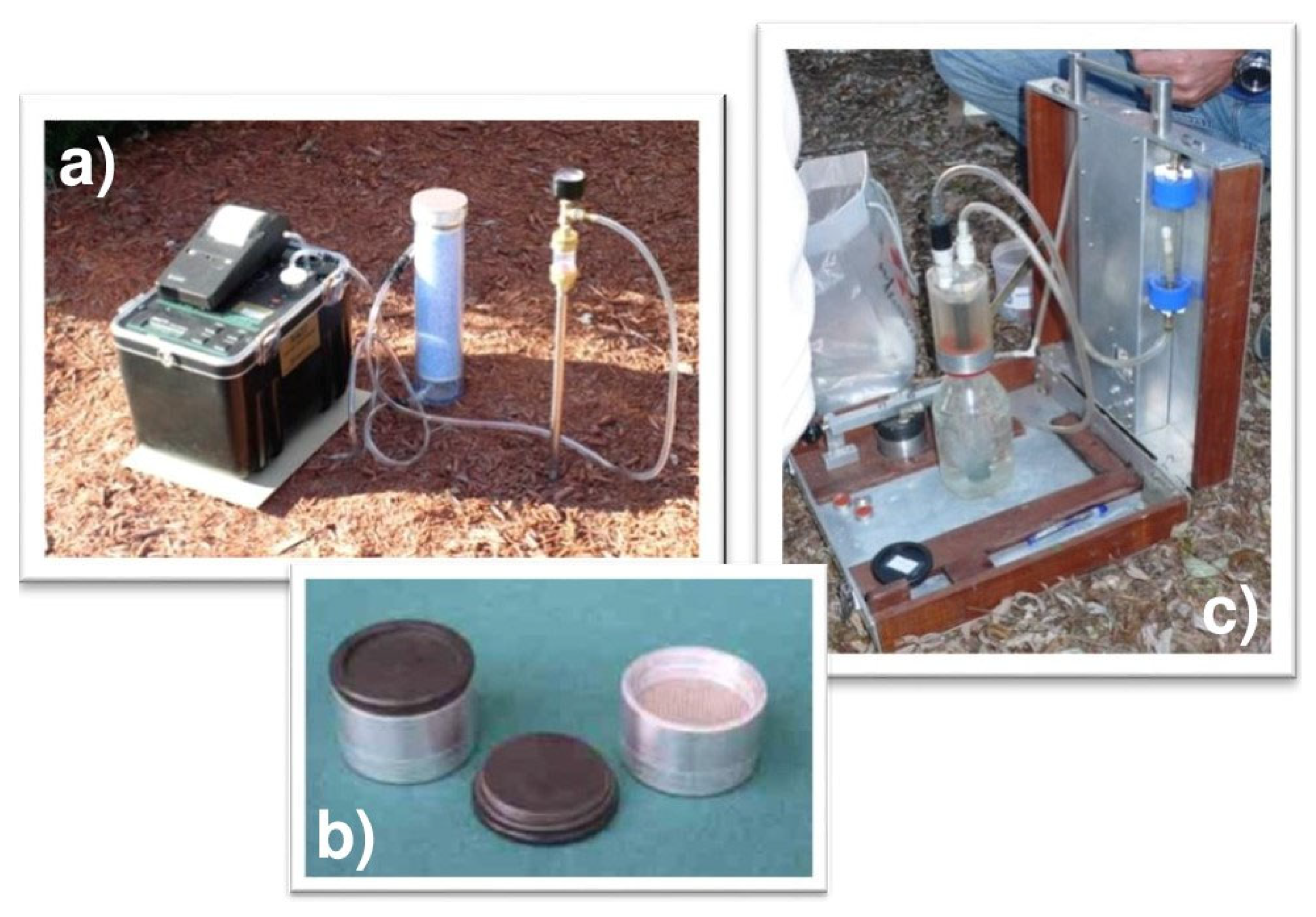

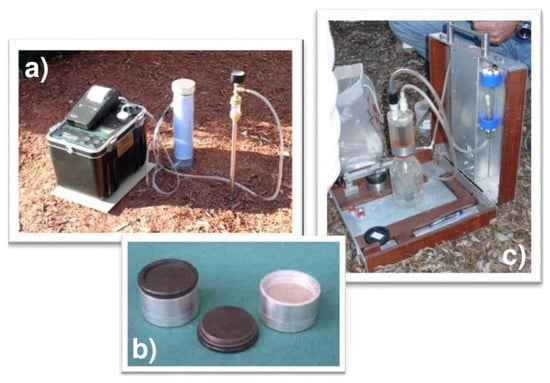

Figure 2. The instruments used for the experiments: (a) RAD7 Durridge® alpha spectrometer for 222Rn and 220Rn measurements in soil; (b) activated charcoal collector (ACC); (c) dissolved radon collector.
Figure 2. The instruments used for the experiments: (a) RAD7 Durridge® alpha spectrometer for 222Rn and 220Rn measurements in soil; (b) activated charcoal collector (ACC); (c) dissolved radon collector.
Ijerph 20 06420 g002
Ijerph 20 06420 g003 550

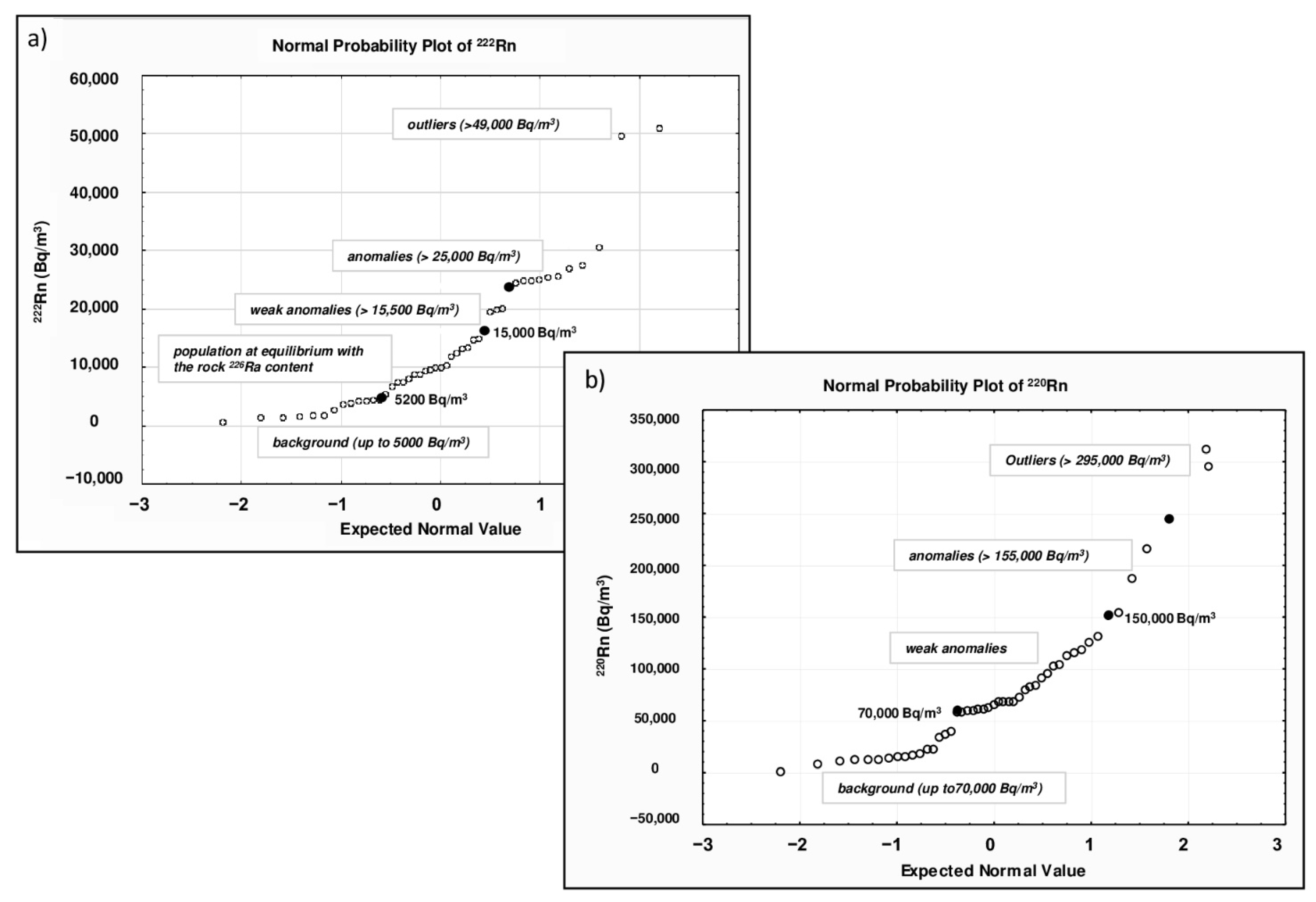

Figure 3. Normal probability plots of 222Rn (a) and 220Rn (b). Both plots show some outliers (222Rn values > 49,000 Bq/m3; 220Rn values > 300,000 Bq/m3) and different populations (i.e., background and anomalous values) along the probability curve.
Figure 3. Normal probability plots of 222Rn (a) and 220Rn (b). Both plots show some outliers (222Rn values > 49,000 Bq/m3; 220Rn values > 300,000 Bq/m3) and different populations (i.e., background and anomalous values) along the probability curve.
Ijerph 20 06420 g003
Ijerph 20 06420 g004 550

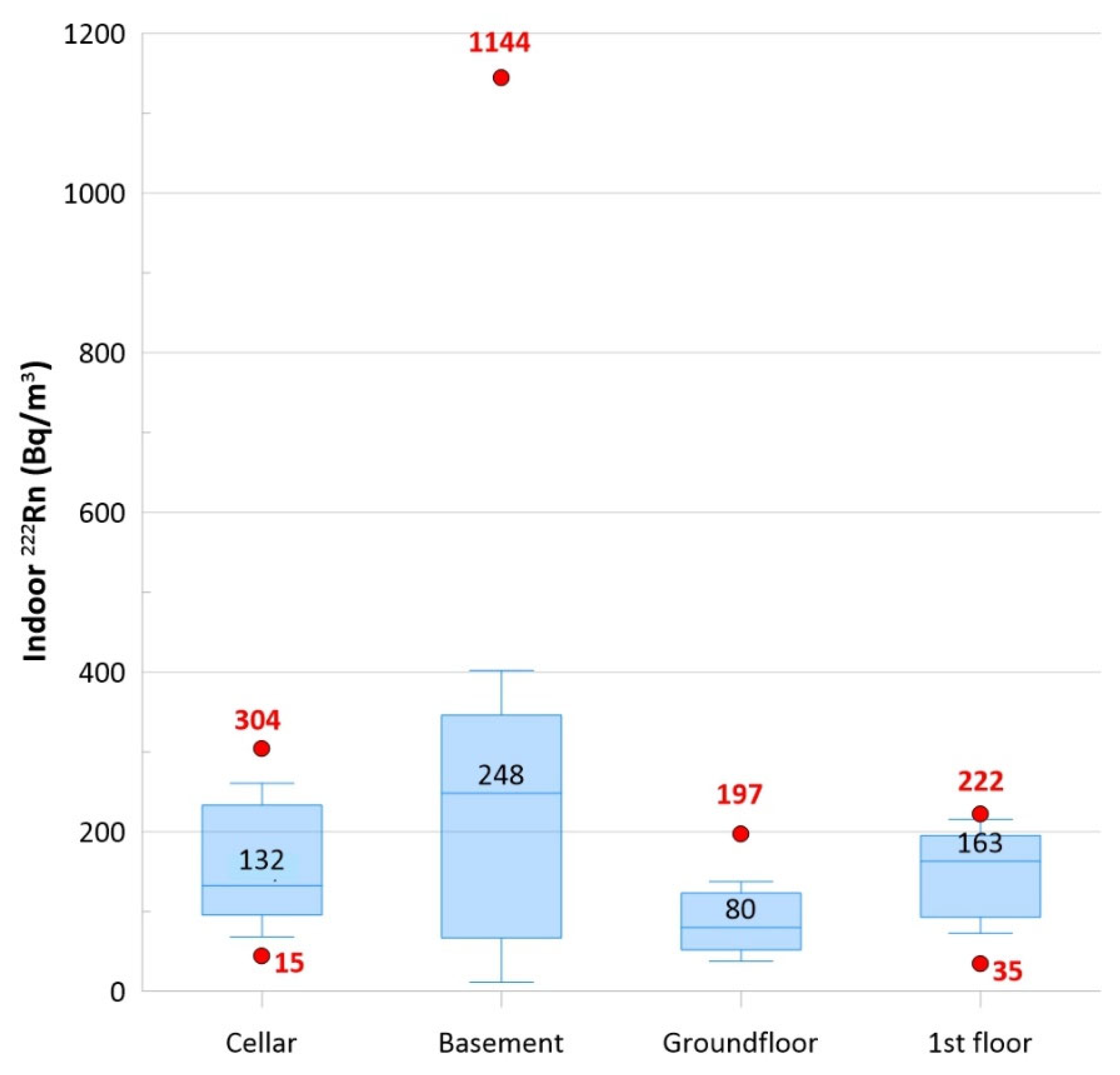

Figure 4. The box plots show a comparison of indoor radon values from the four monitored levels (cellars, basements, ground floors, and first floors). The boxes were plotted using lower and upper quartiles (edges of the box), the median (line and number at the center of the box), whiskers (defined by the IQR factor), and outliers (red dots and relative red numbers).
Figure 4. The box plots show a comparison of indoor radon values from the four monitored levels (cellars, basements, ground floors, and first floors). The boxes were plotted using lower and upper quartiles (edges of the box), the median (line and number at the center of the box), whiskers (defined by the IQR factor), and outliers (red dots and relative red numbers).
Ijerph 20 06420 g004
Ijerph 20 06420 g005 550

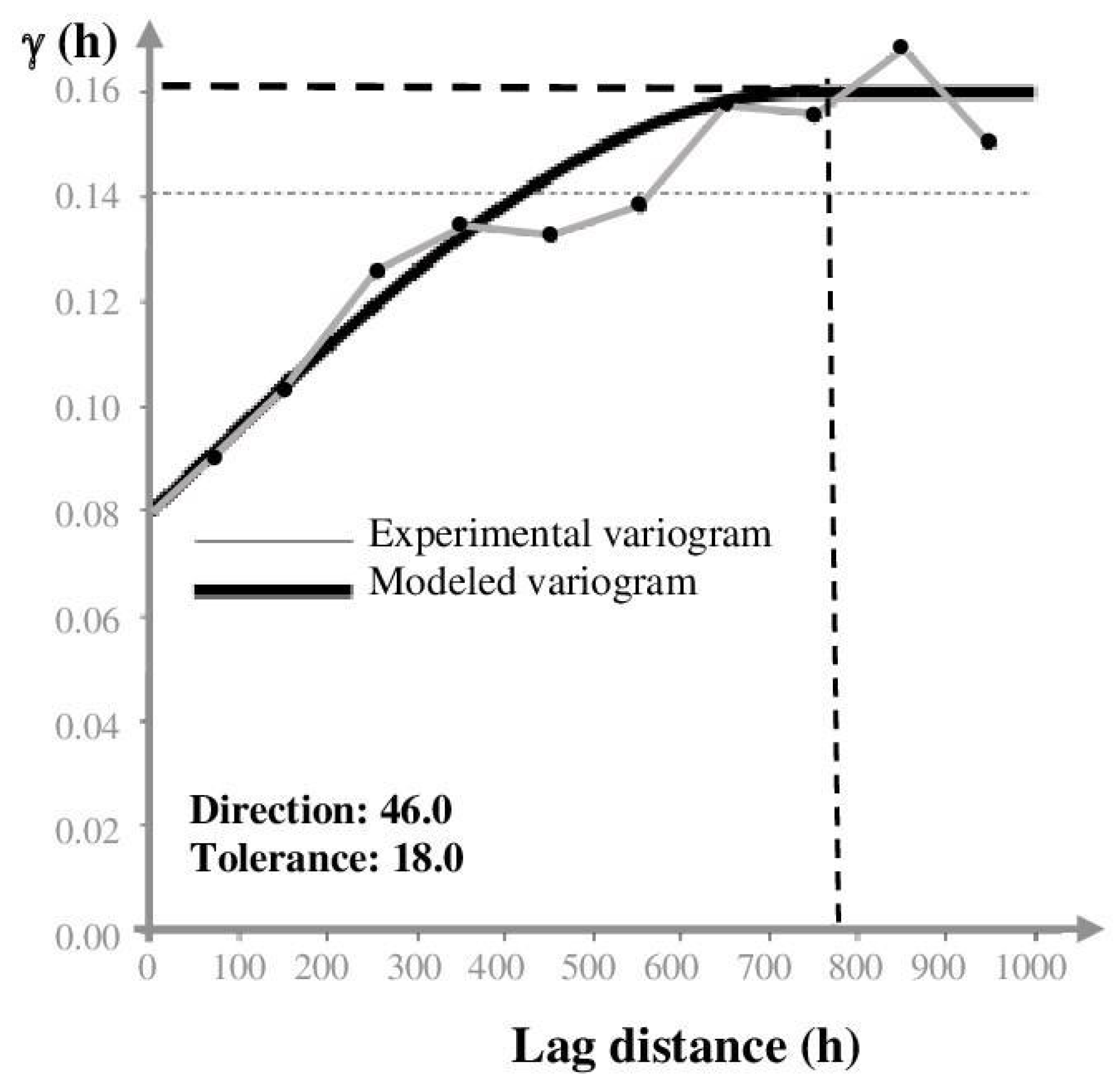

Figure 5. Experimental variogram and the relative fitting model for radon data. The fitted model is a spherical function for which at a distance greater than 700 m, sample pairs will no longer be autocorrelated, and thus the variogram reached the asymptotic threshold value of 0.16 γ (horizontal dashed line). Vertical dashed line indicates the sill, that is the variogram value where the variogram function flatten off at increasing distance.
Figure 5. Experimental variogram and the relative fitting model for radon data. The fitted model is a spherical function for which at a distance greater than 700 m, sample pairs will no longer be autocorrelated, and thus the variogram reached the asymptotic threshold value of 0.16 γ (horizontal dashed line). Vertical dashed line indicates the sill, that is the variogram value where the variogram function flatten off at increasing distance.
Ijerph 20 06420 g005
Ijerph 20 06420 g006 550

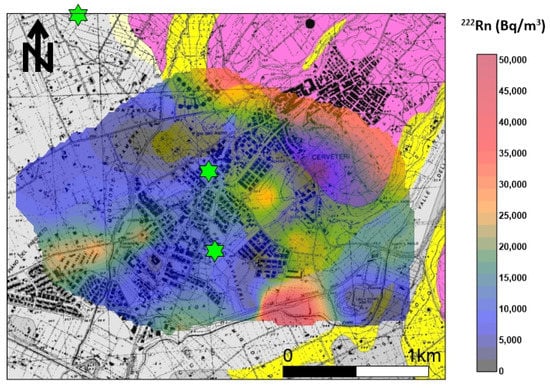

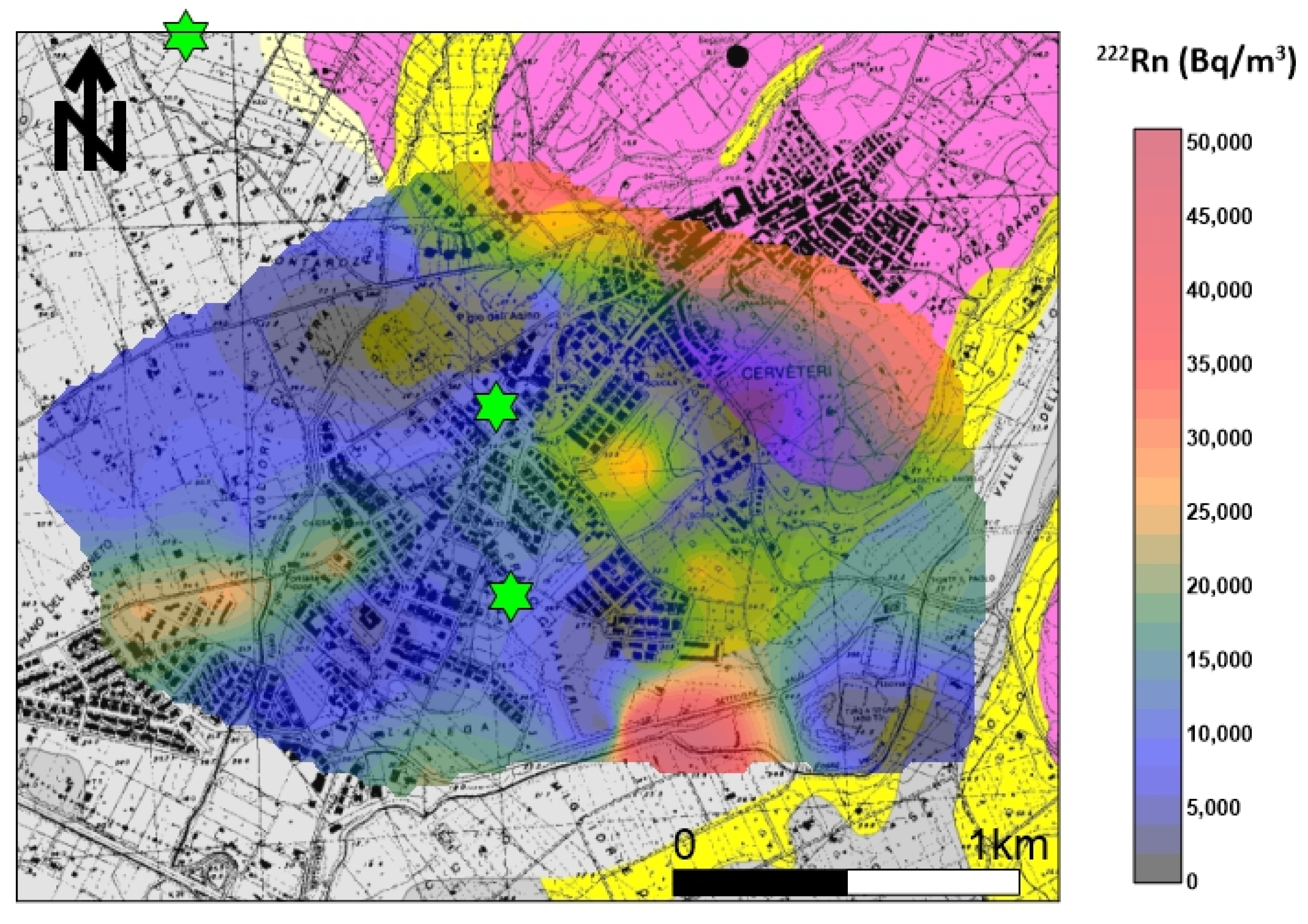

Figure 6. 222Rn soil gas concentration distribution. The maximum anisotropy orientation (NW–SE) is parallel to the tuff outcrop where the Banditaccia necropolis is located. Other spot anomalies (values > 25,000 Bq/m3) were found in the southeastern sector of the investigated area, where small tuff outcrops or Etruscan ruins are present. Green stars indicate indoor 222Rn values > 300 Bq/m3.
Figure 6. 222Rn soil gas concentration distribution. The maximum anisotropy orientation (NW–SE) is parallel to the tuff outcrop where the Banditaccia necropolis is located. Other spot anomalies (values > 25,000 Bq/m3) were found in the southeastern sector of the investigated area, where small tuff outcrops or Etruscan ruins are present. Green stars indicate indoor 222Rn values > 300 Bq/m3.
Ijerph 20 06420 g006
Ijerph 20 06420 g007 550

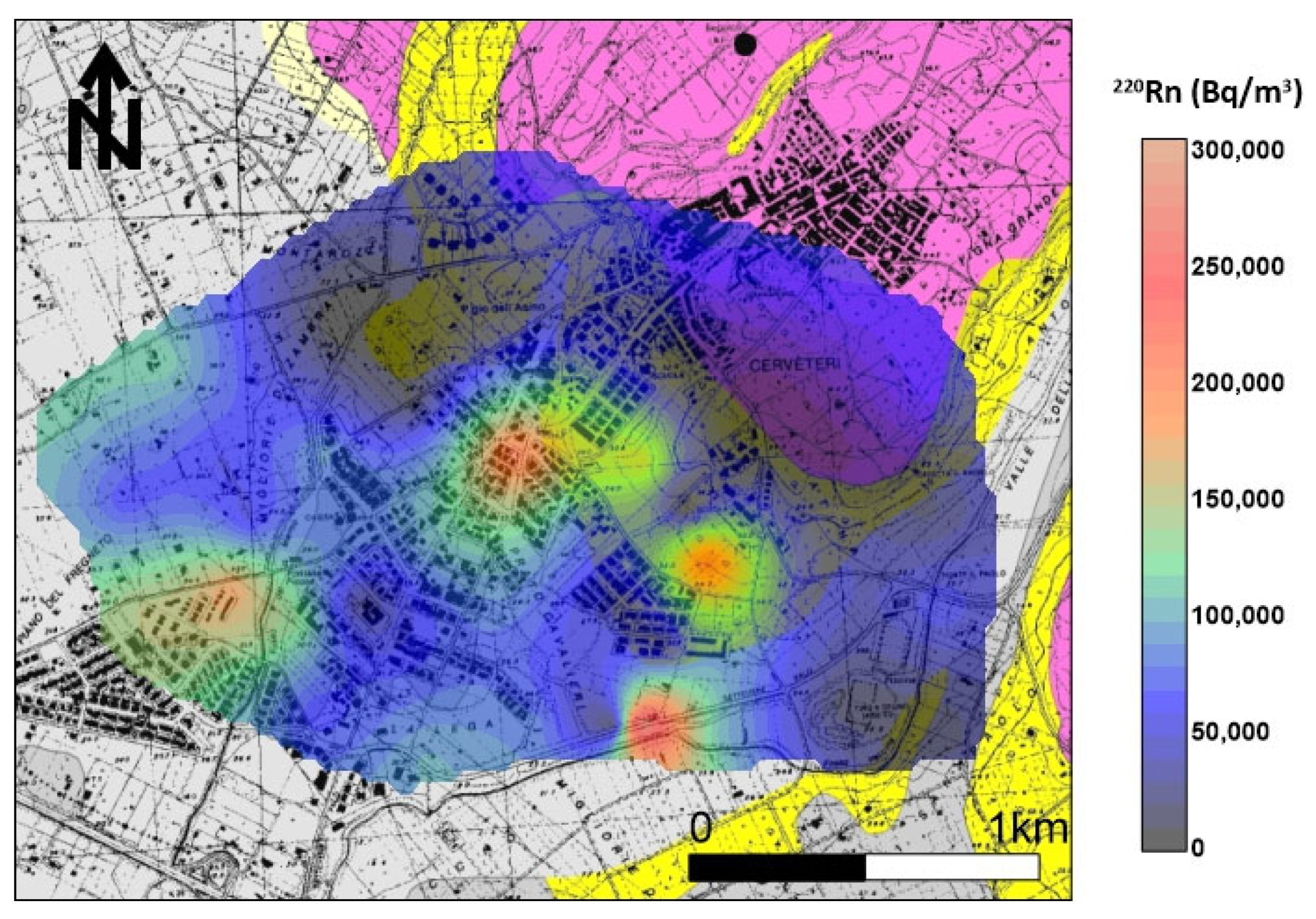

Figure 7. 220Rn soil gas concentration distribution. The maximum anisotropy orientation (NE–SW) is orthogonal to the tuff outcrop. Other spot anomalies (values > 90,000 Bq/m3) were found in the southeastern sector of the investigated area in line with 222Rn anomalies and where small tuff outcrops or Etruscan ruins are present.
Figure 7. 220Rn soil gas concentration distribution. The maximum anisotropy orientation (NE–SW) is orthogonal to the tuff outcrop. Other spot anomalies (values > 90,000 Bq/m3) were found in the southeastern sector of the investigated area in line with 222Rn anomalies and where small tuff outcrops or Etruscan ruins are present.
Ijerph 20 06420 g007
Ijerph 20 06420 g008 550

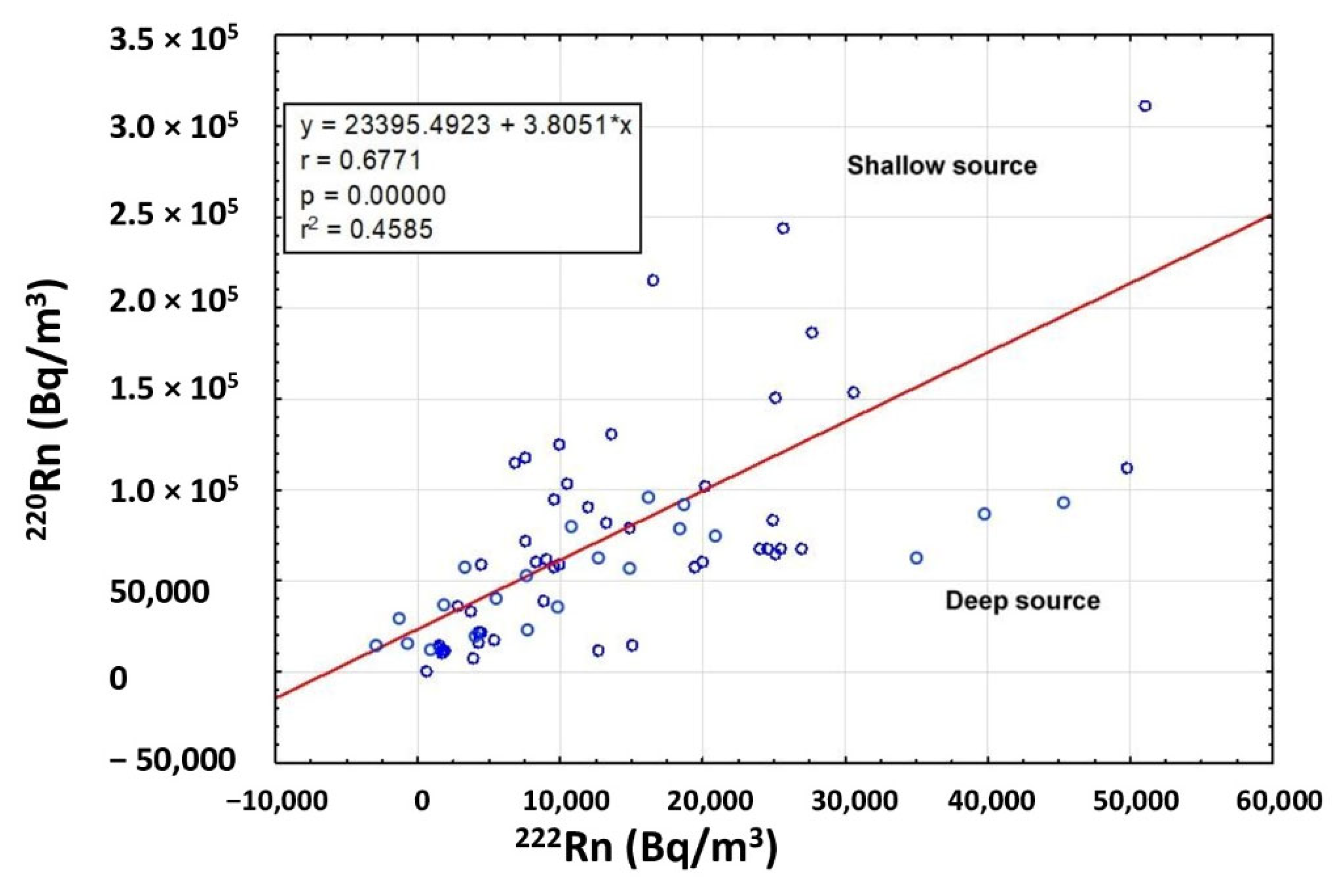

Figure 8. Correlation between 222Rn and 220Rn activity. The graph shows a good correlation (Pearson coefficient r = 0.6771) between the measured radon and thoron concentrations, indicating a mixing of deep and shallow gas sources.
Figure 8. Correlation between 222Rn and 220Rn activity. The graph shows a good correlation (Pearson coefficient r = 0.6771) between the measured radon and thoron concentrations, indicating a mixing of deep and shallow gas sources.
Ijerph 20 06420 g008
Ijerph 20 06420 g009 550

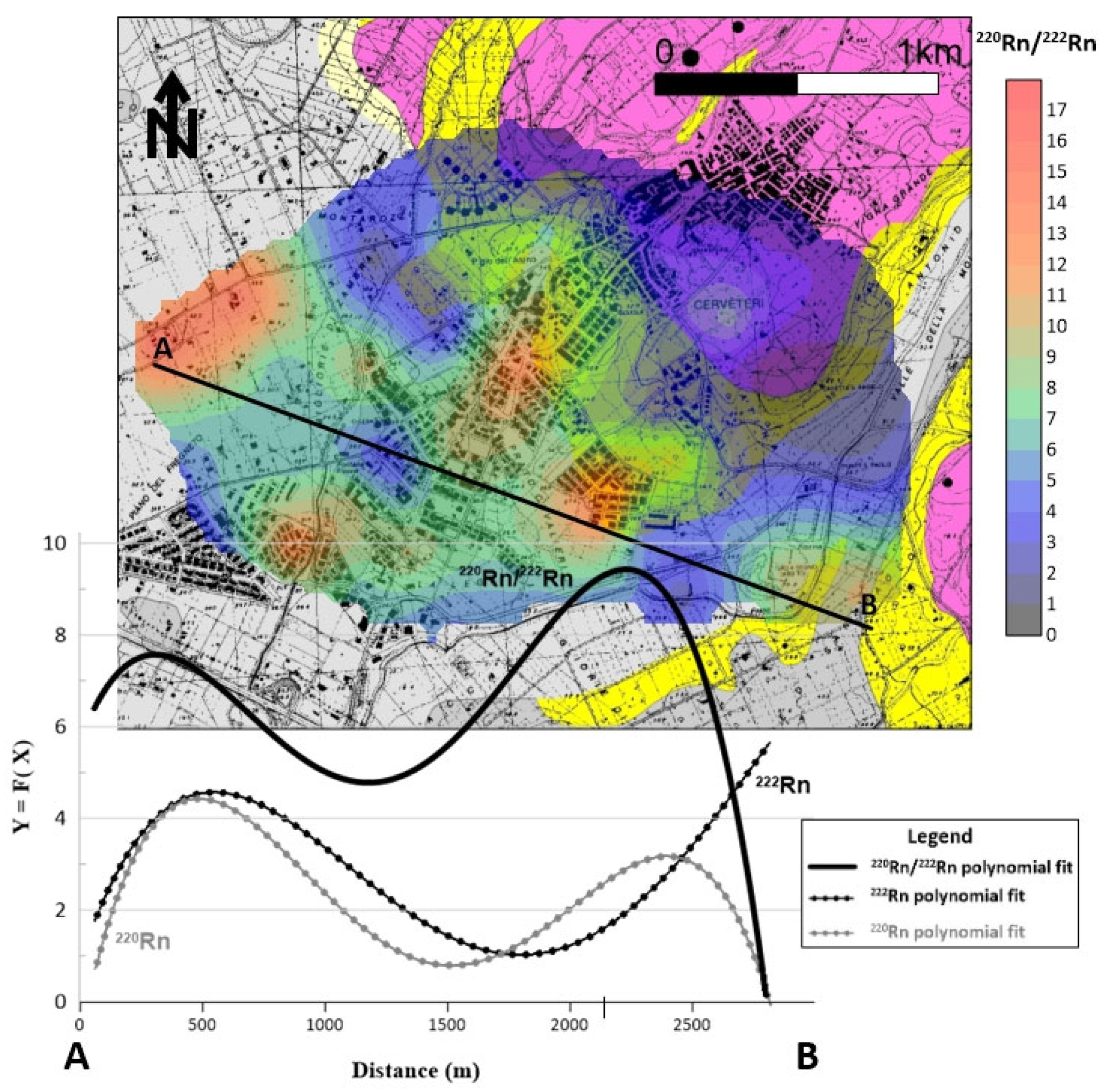

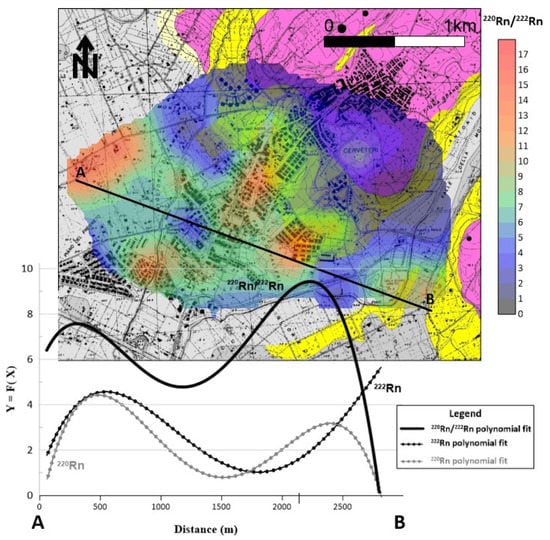

Figure 9. The third-order polynomial regression of 220Rn/222Rn activity ratios is plotted on A-B profile. The high activity ratios found in both the northwestern and central part of the investigated area suggest the presence of discontinuities (faults/fractures as well as hypogeal necropoles) not visible at the surface.
Figure 9. The third-order polynomial regression of 220Rn/222Rn activity ratios is plotted on A-B profile. The high activity ratios found in both the northwestern and central part of the investigated area suggest the presence of discontinuities (faults/fractures as well as hypogeal necropoles) not visible at the surface.
Ijerph 20 06420 g009
Table
Table 1. Descriptive statistical results of 222Rn and 220Rn soil gas levels in the studied Cerveteri area.
Table 1. Descriptive statistical results of 222Rn and 220Rn soil gas levels in the studied Cerveteri area.
222Rn (Bq/m3)220Rn (Bq/m3)
Samples7575
Min value634848
Max value51,000312,000
Mean13,98776,616
Median10,00065,200
Anomaly threshold17,000150,000
Variance1.36 × 1084.29 × 109
Standard deviation11,66165,533
Skewness1.41.6
Kurtosis2.13.1
Kolmogorov–Smirnov0.20.2
Table
Table 2. Descriptive statistical results of indoor radon levels in the studied Cerveteri area. N: number of samples, LQ: lower quartile, UQ: upper quartile, SD: standard deviation.
Table 2. Descriptive statistical results of indoor radon levels in the studied Cerveteri area. N: number of samples, LQ: lower quartile, UQ: upper quartile, SD: standard deviation.
Indoor Rn (Bq/m3)NMinMaxMedianMeanCVLQUQSD
Cellar7453041491570.510122789
1st floor5352221641420.57920277
Ground floor54319780990.65014263
Basement74911442483271.178341380
