A Fast Multi-Switched Inductor Balancing System Based on a Fuzzy Logic Controller for Lithium-Ion Battery Packs in Electric Vehicles
Abstract
:1. Introduction
2. Results Multi-Switched Inductor Balancing System

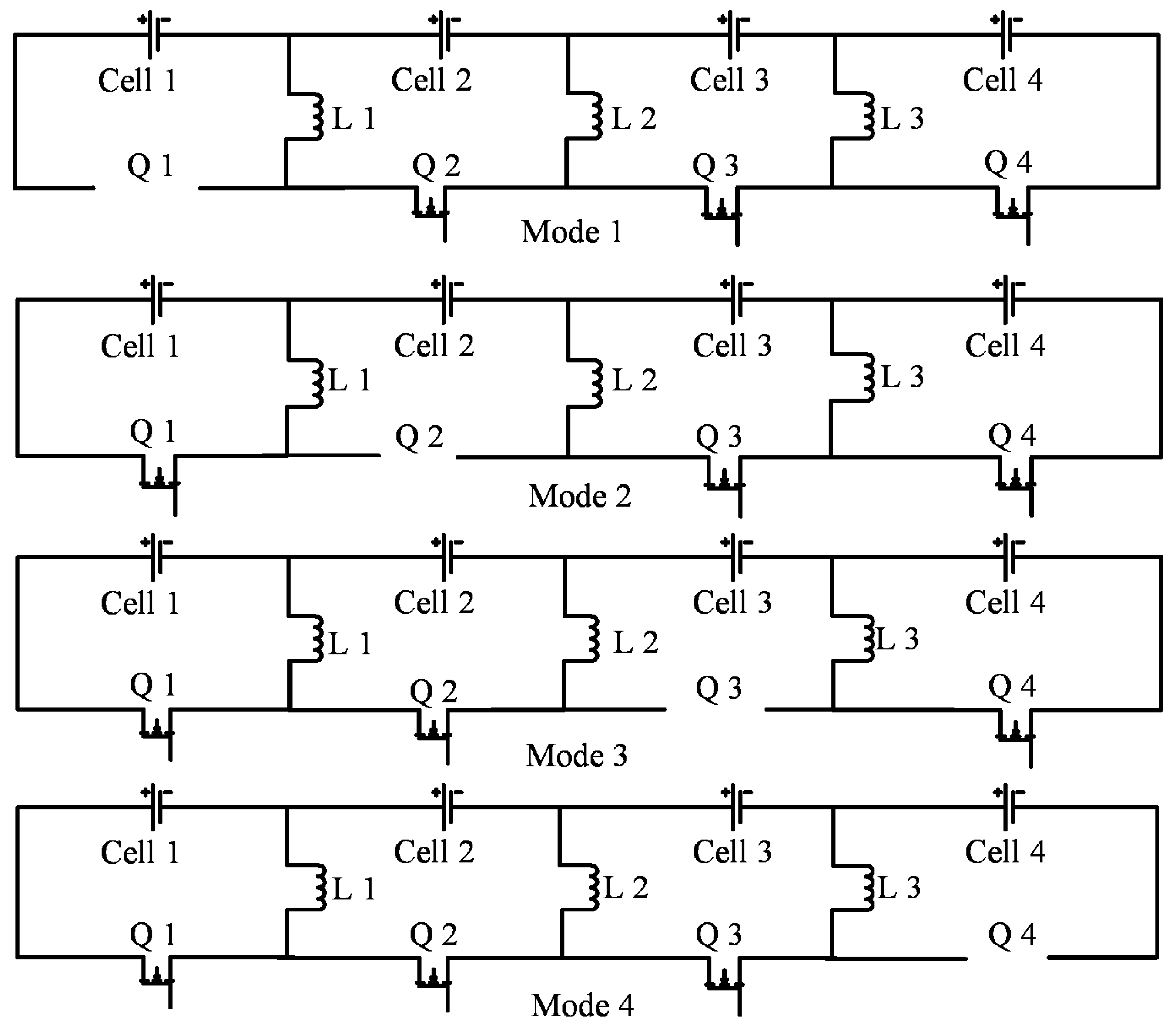

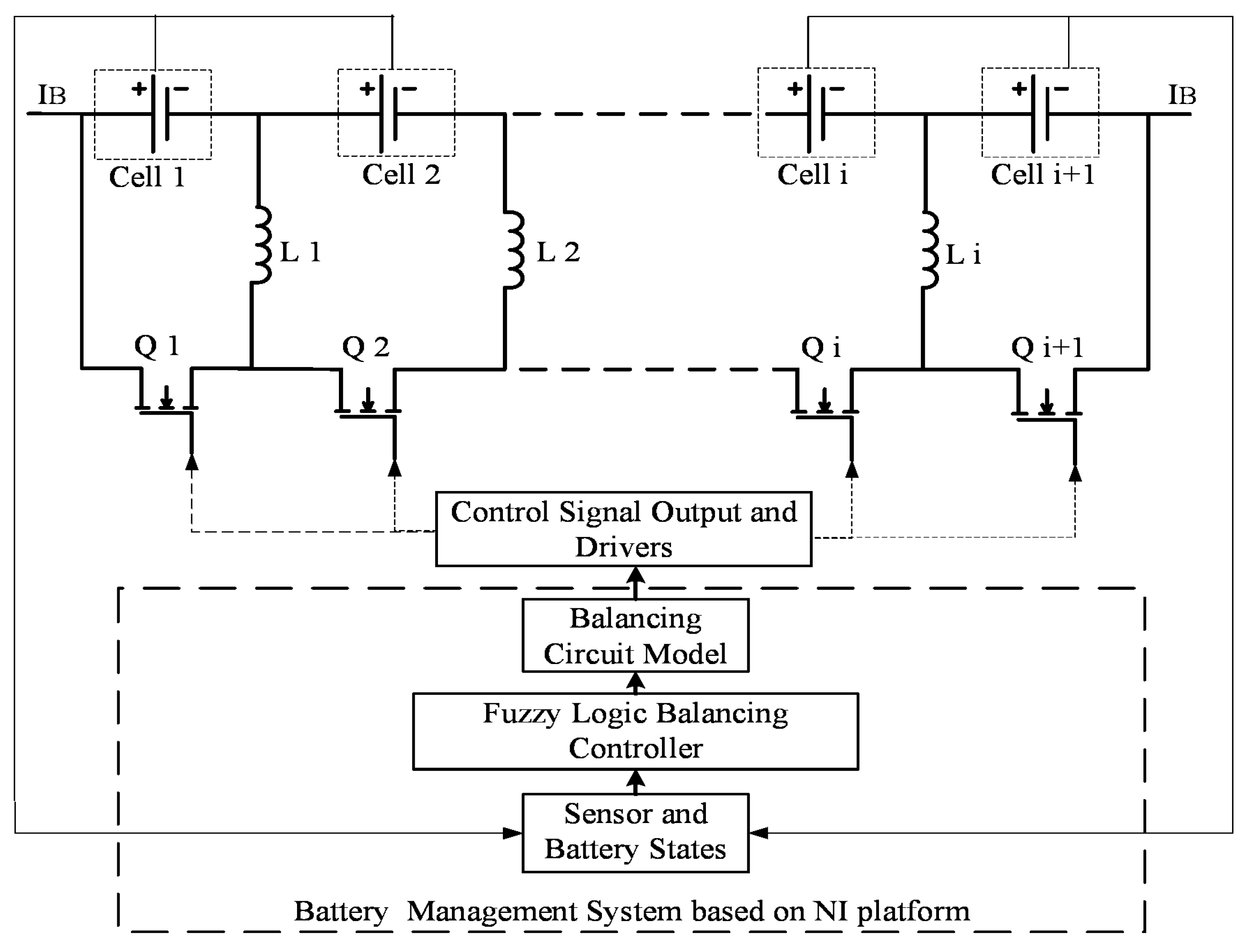

2.1. Multi-Switched Indictor Balancing Circuit

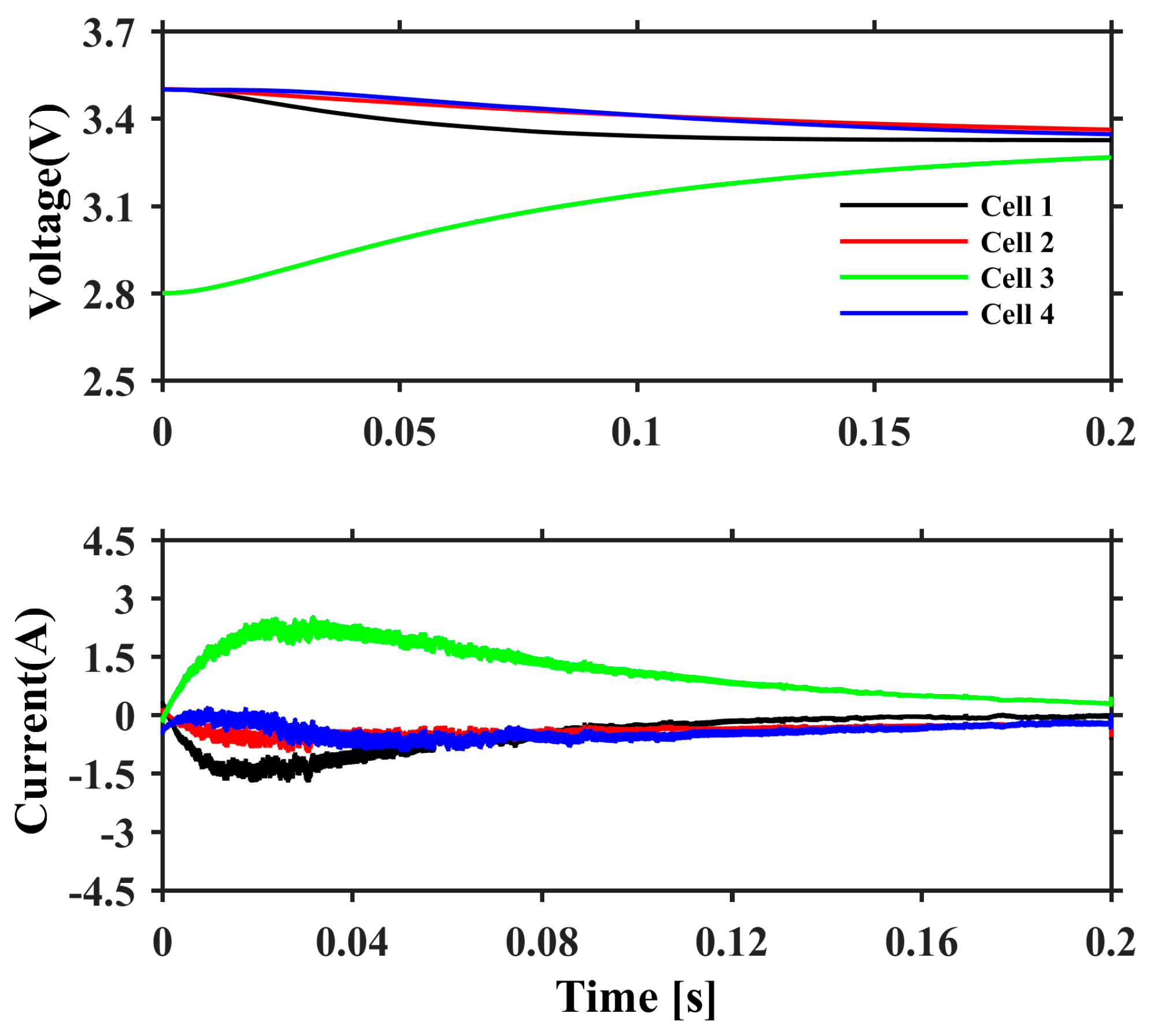

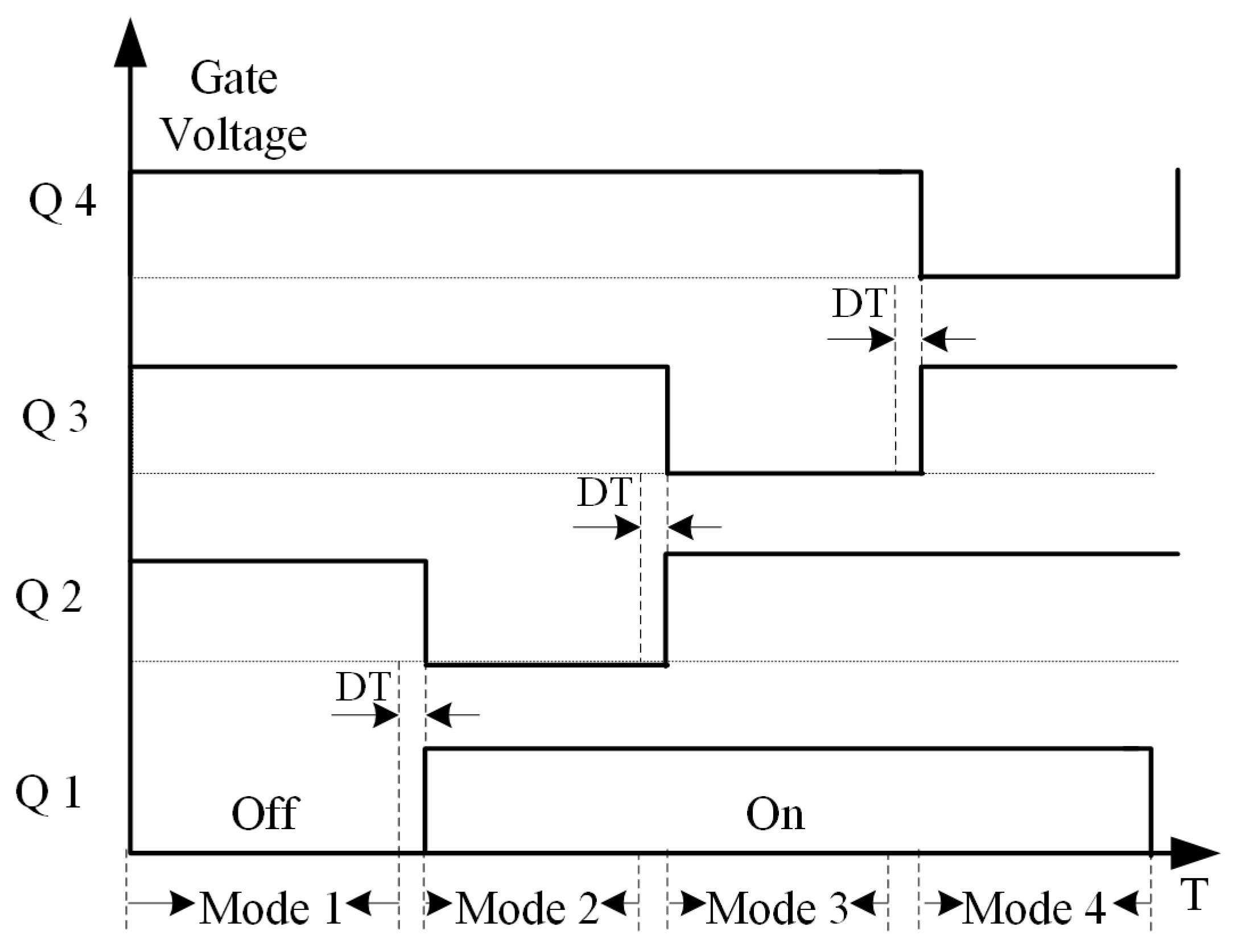

2.2. Balancing Principle

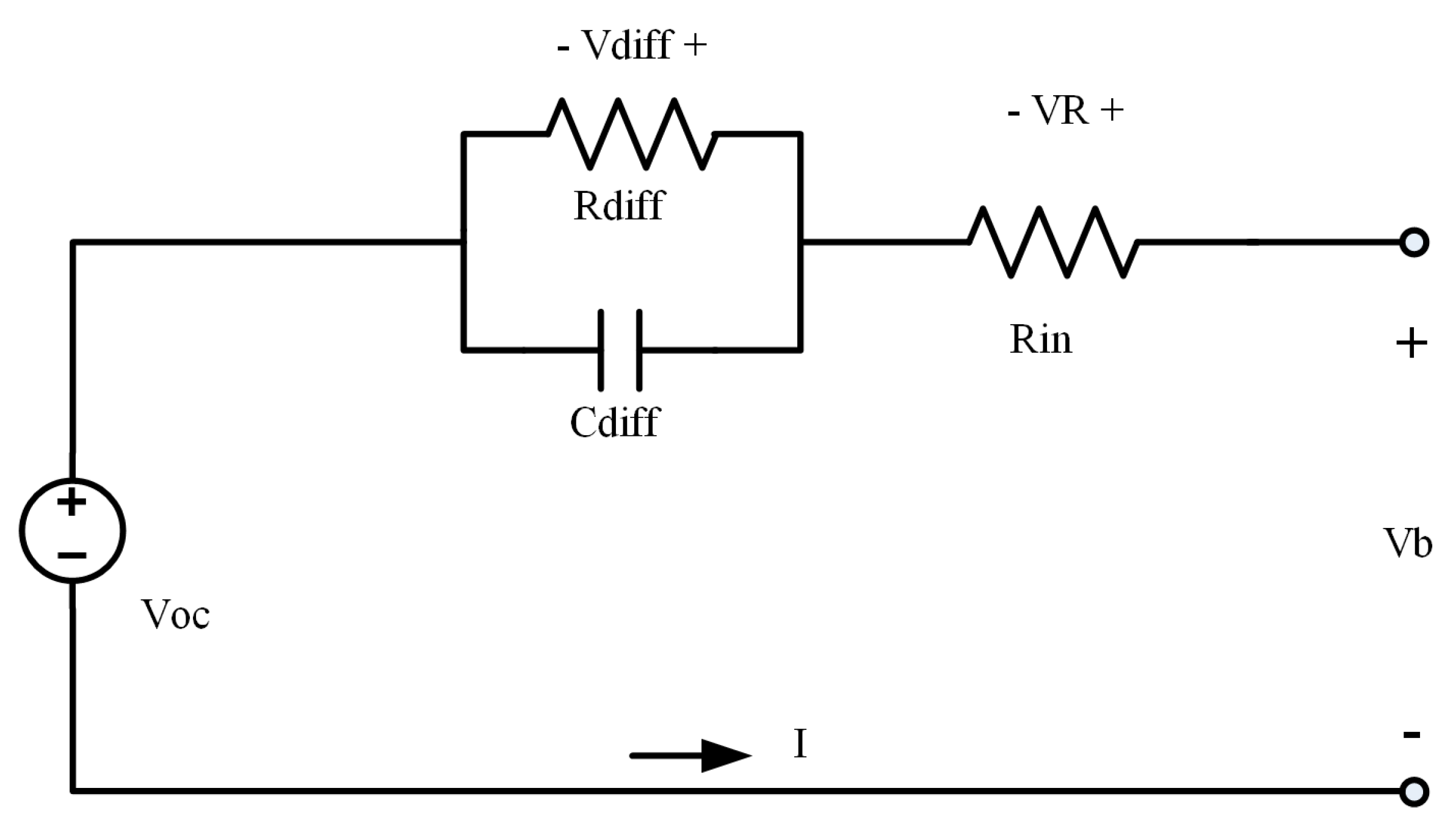

2.3. Balancing Criterion Estimation

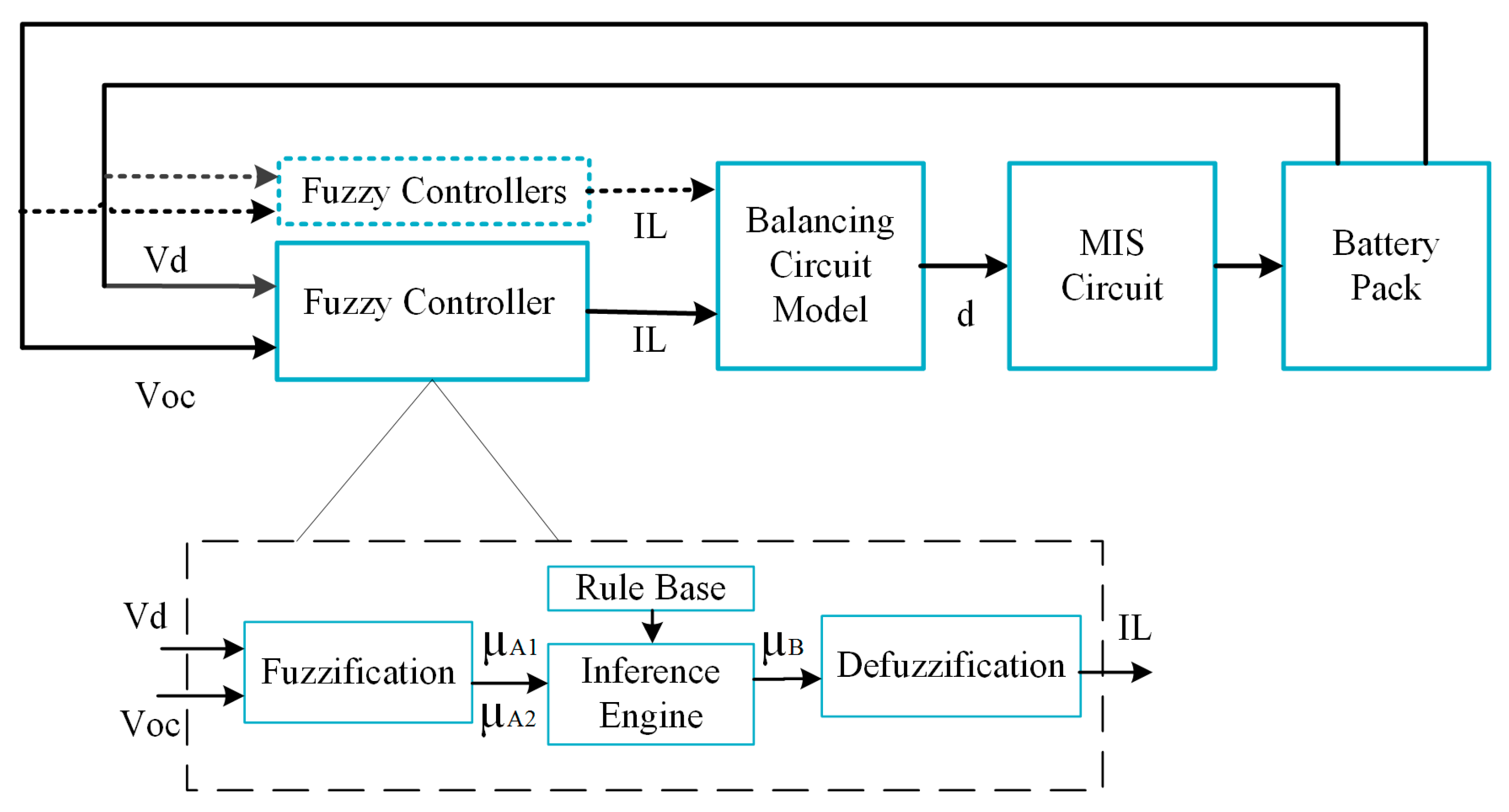

3. Fuzzy Logic Controller Design

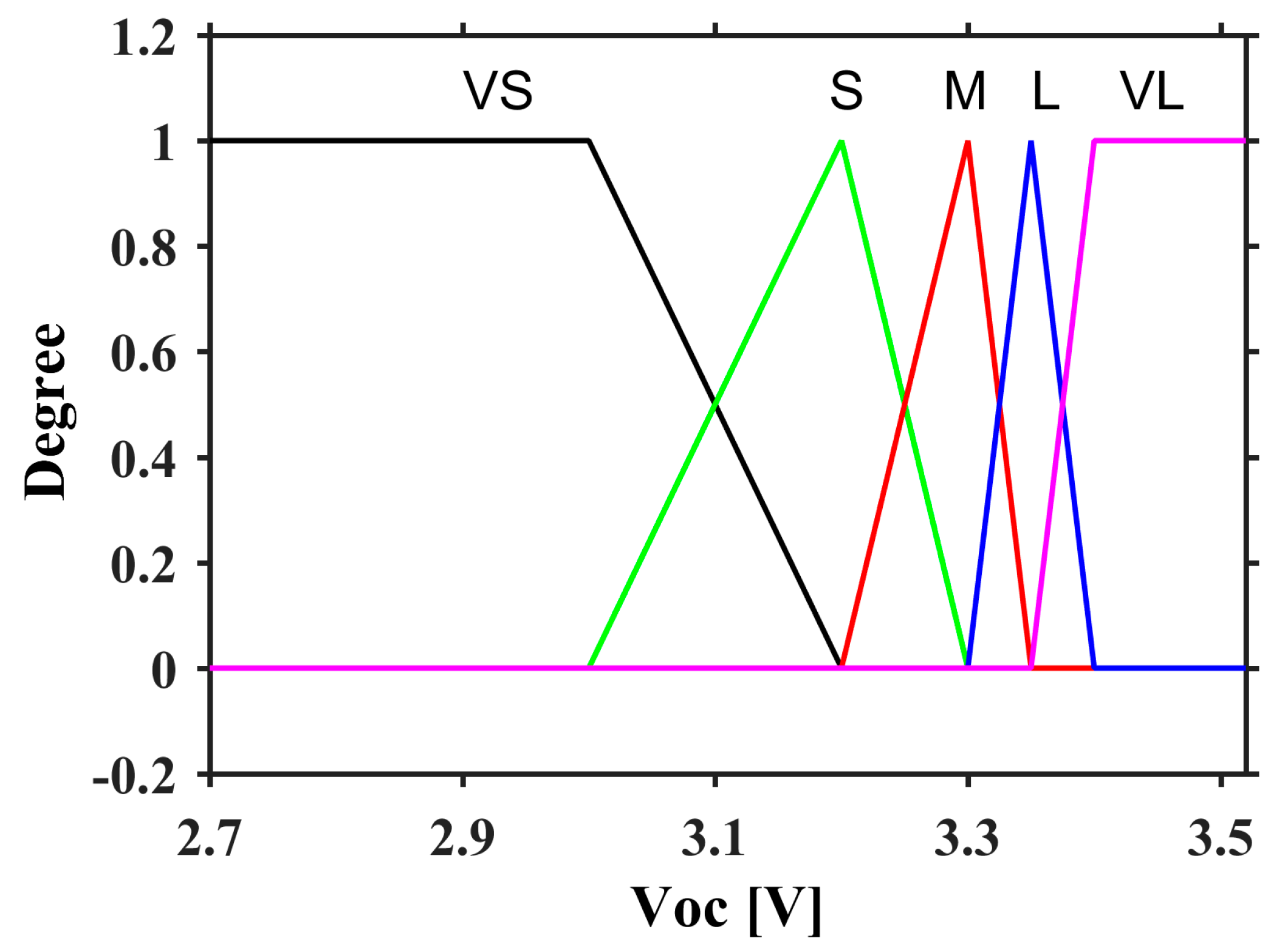

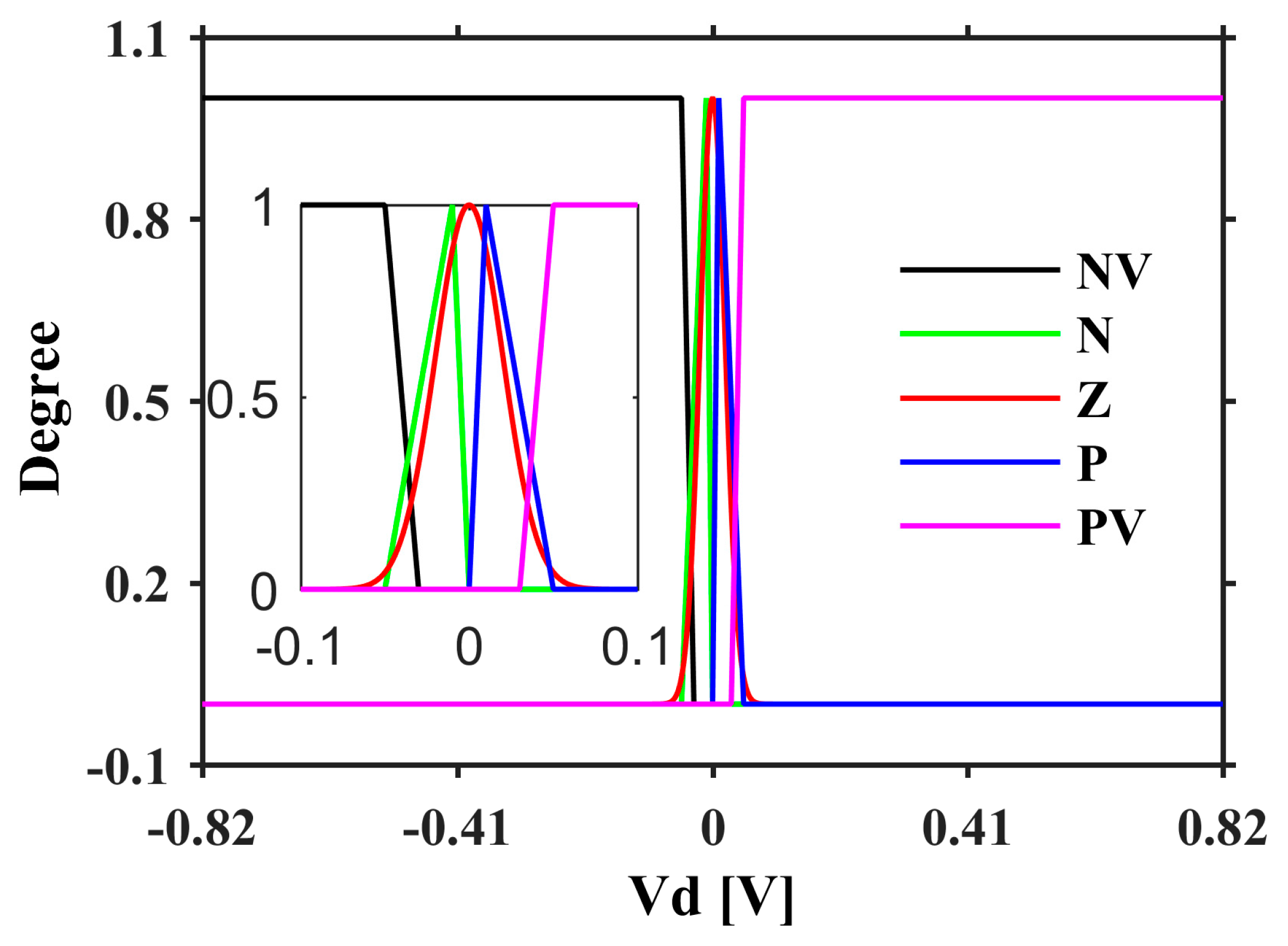

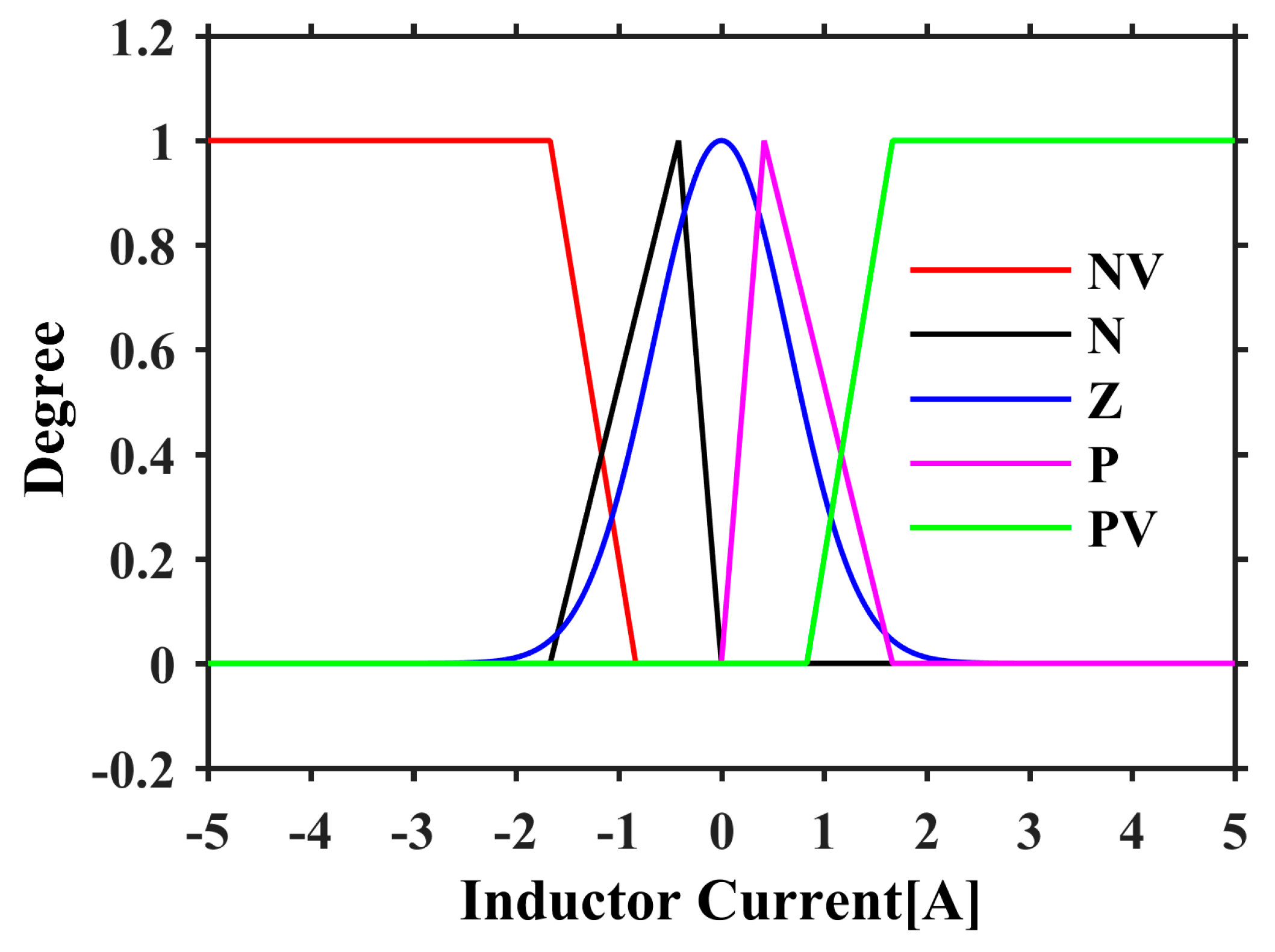

3.1. Membership Functions

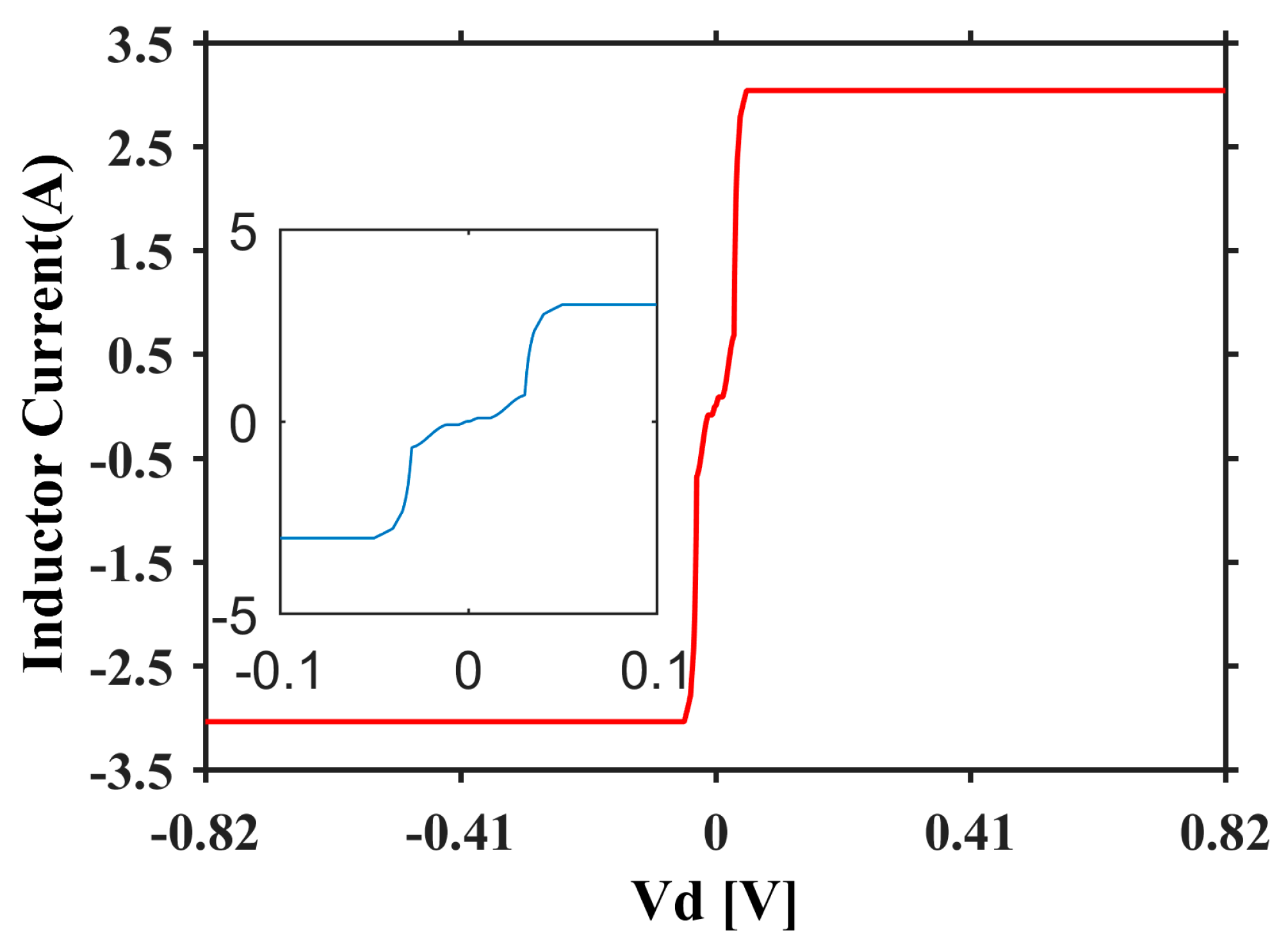

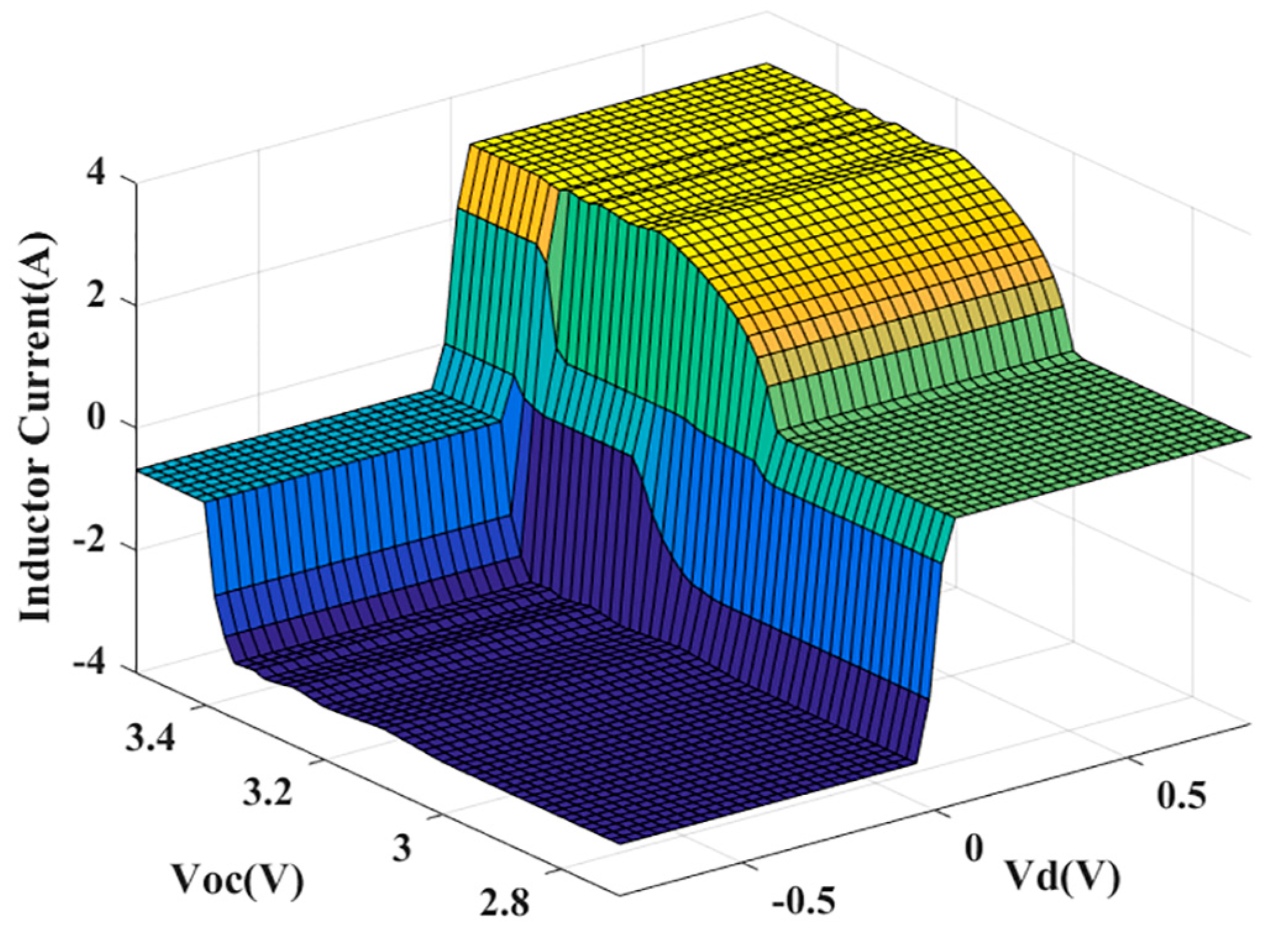

3.2. Fuzzy Logic Controller
- Rule 01: IF = NV and = VS THEN = NV;
- Rule 25: IF = PV and = VL THEN = PV.

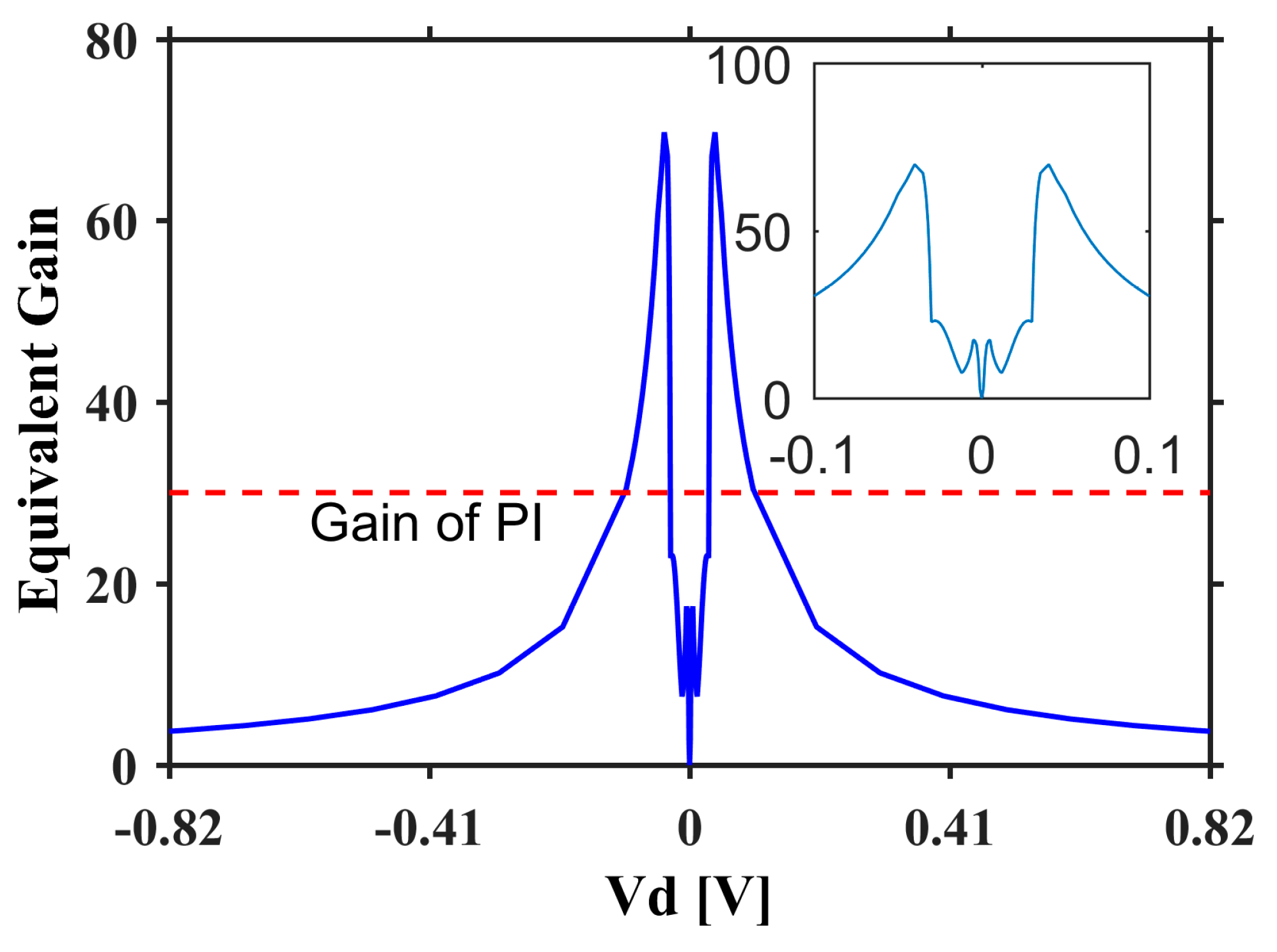

3.3. Adaptivity

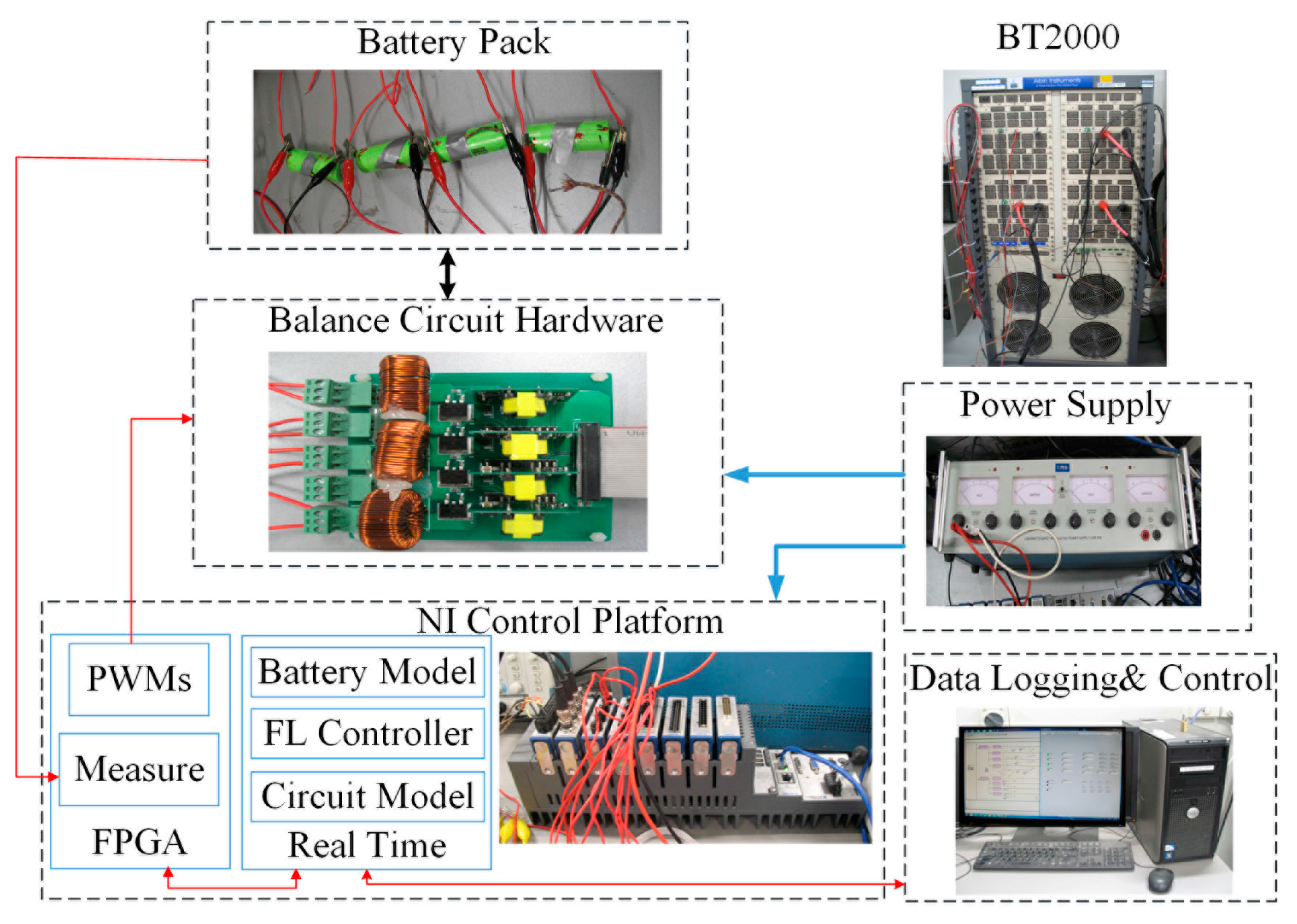

4. Experimental Results

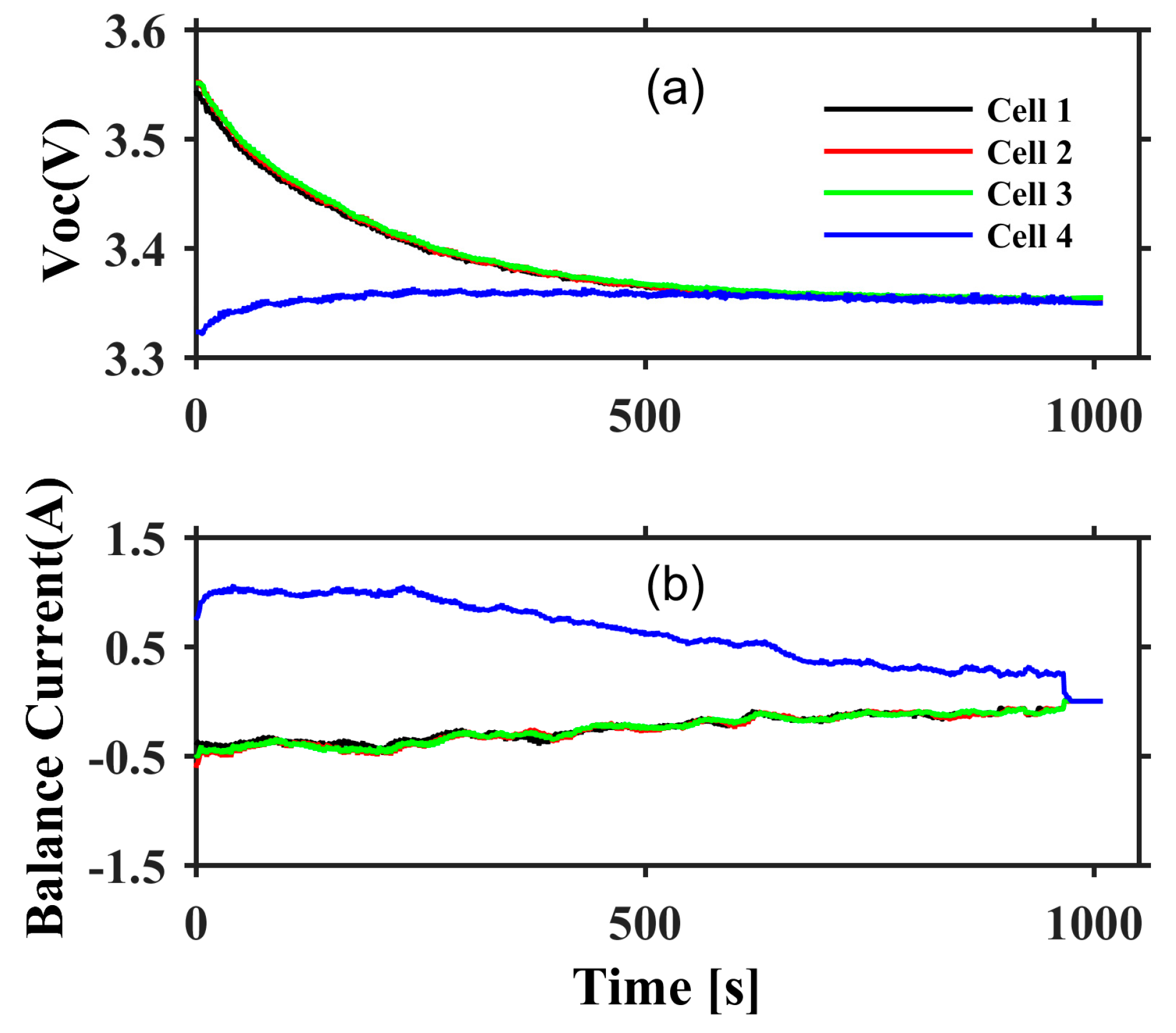

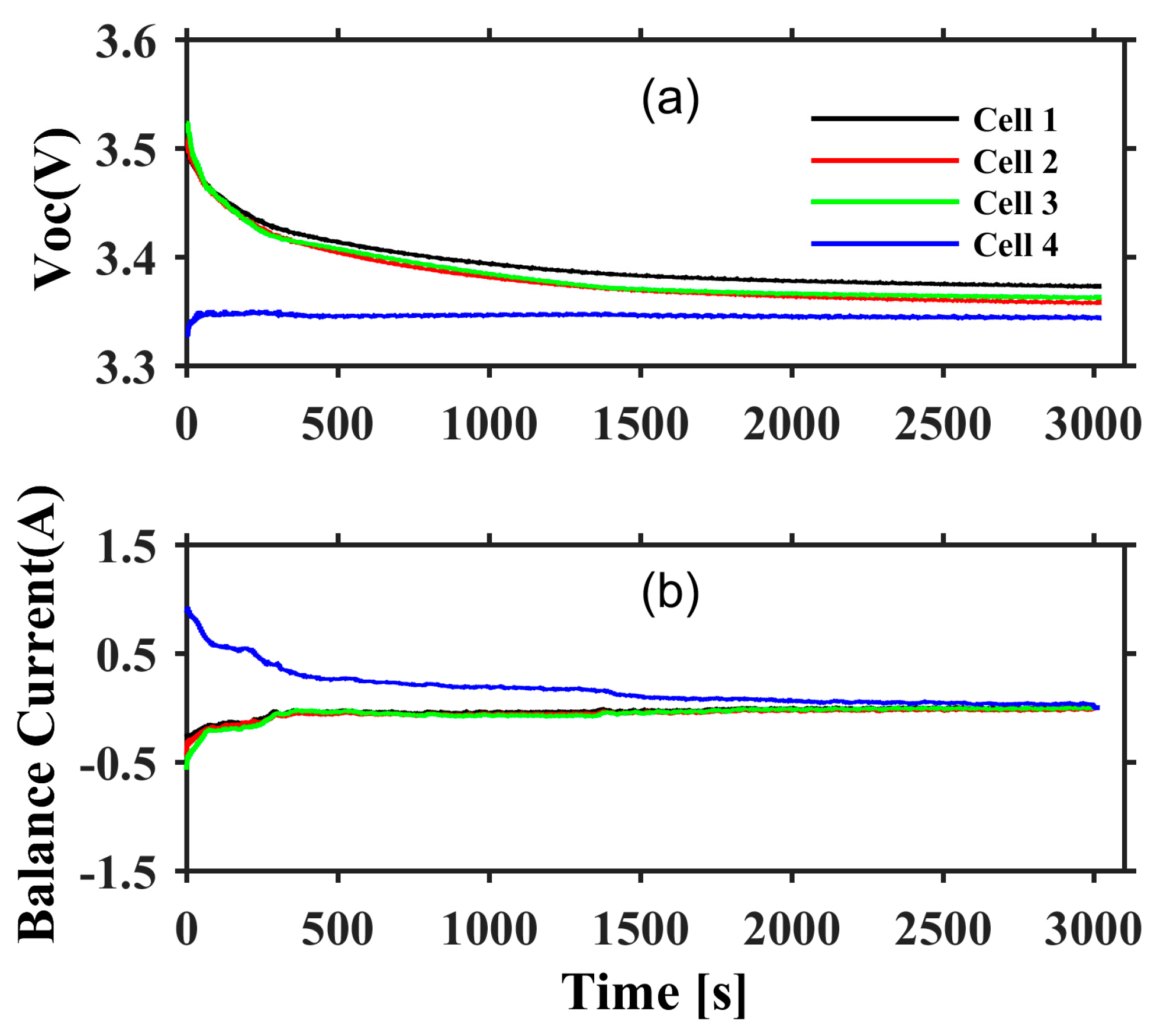

4.1. Experimental Results for LiFePO4 Battery Pack

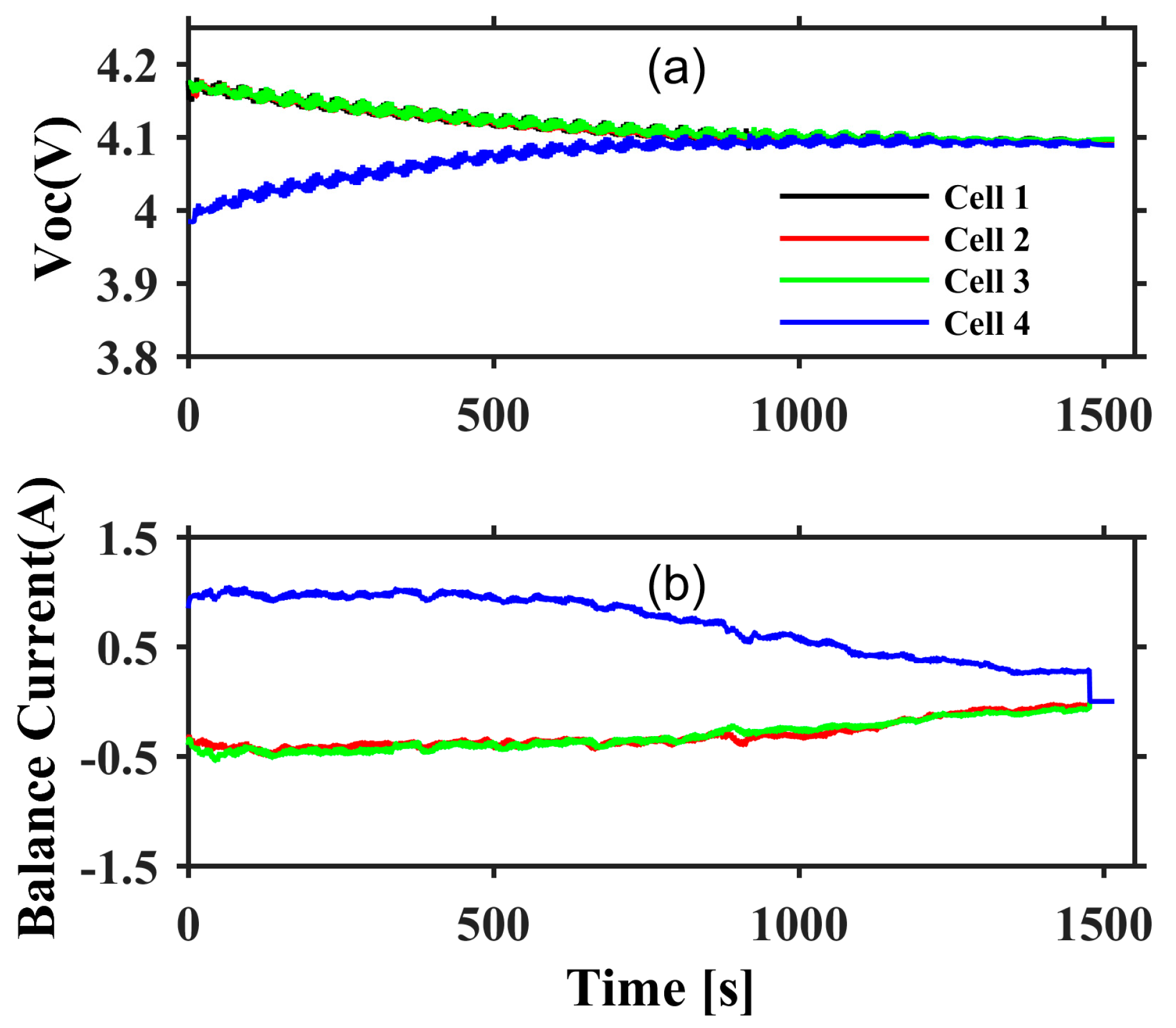

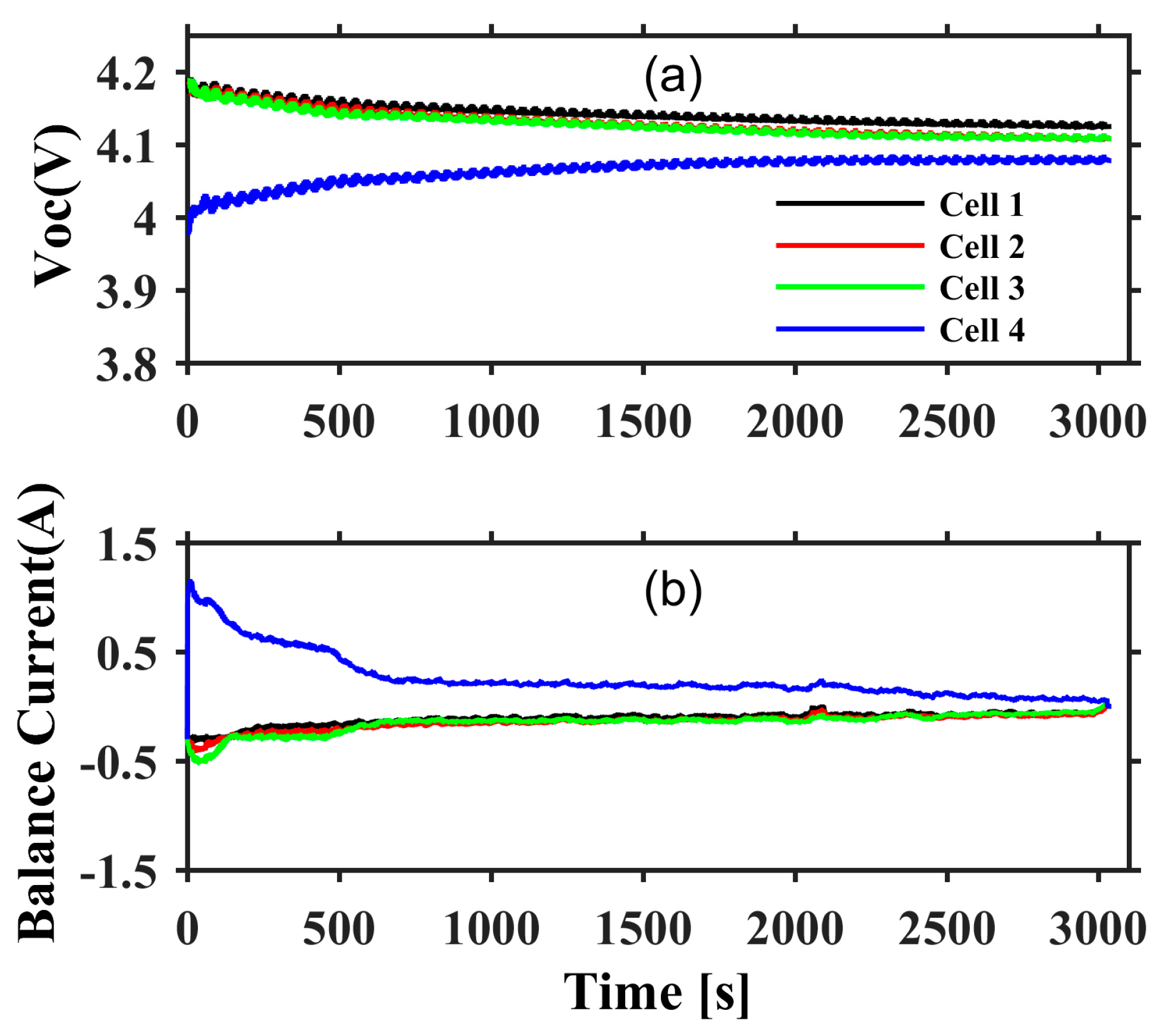

4.2. Experimental Results for NCA Battery Pack
5. Discussions
6. Conclusions
Acknowledgments
Author Contributions
Conflicts of Interest
References
