Research on an Integrated Hydrostatic-Driven Electric Generator with Controllable Load for Renewable Energy Applications
Abstract
:1. Introduction
2. Machine Description and Experimental Platform

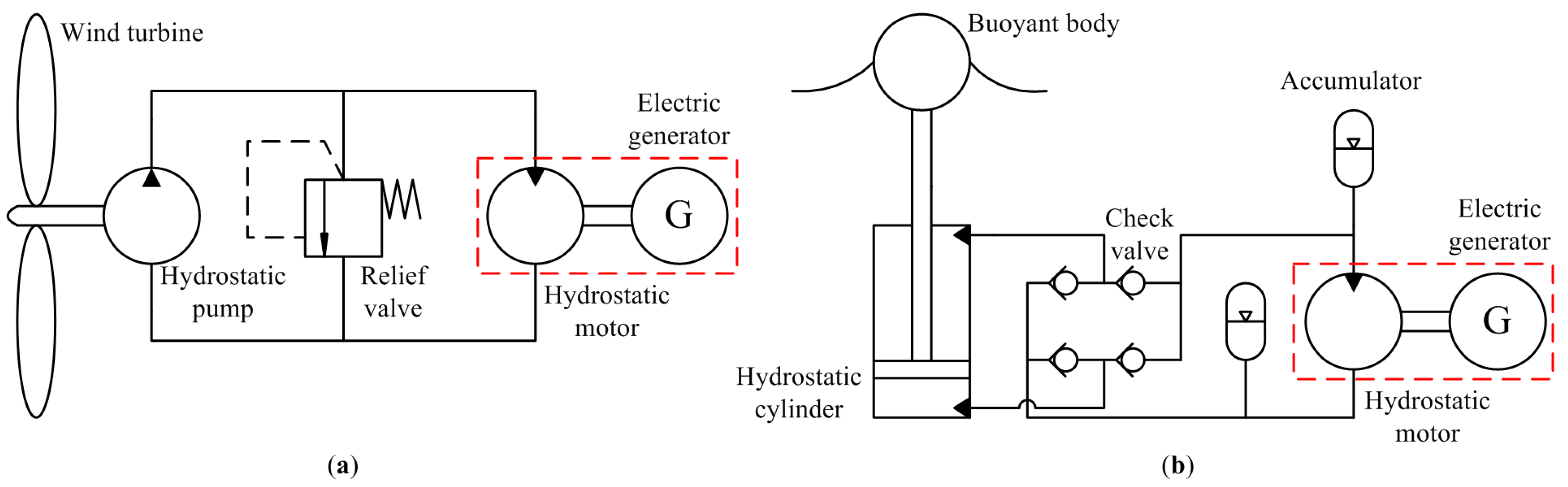

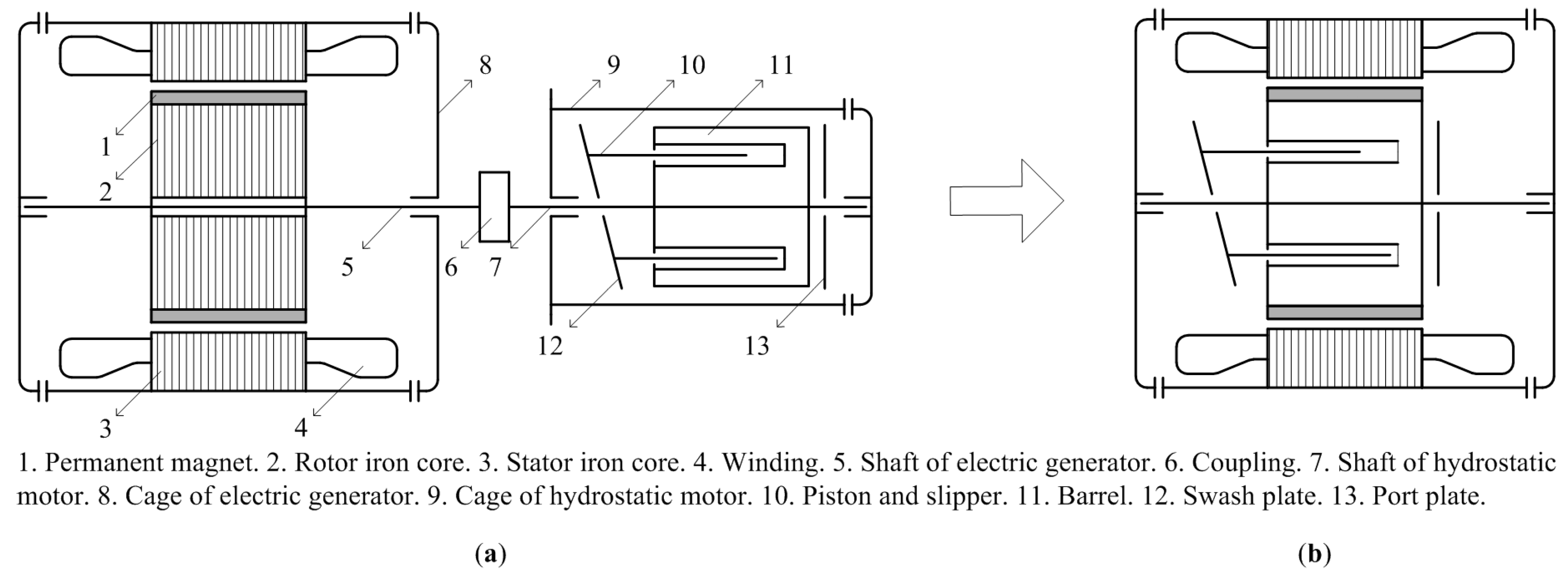

2.1. Structure and Principle

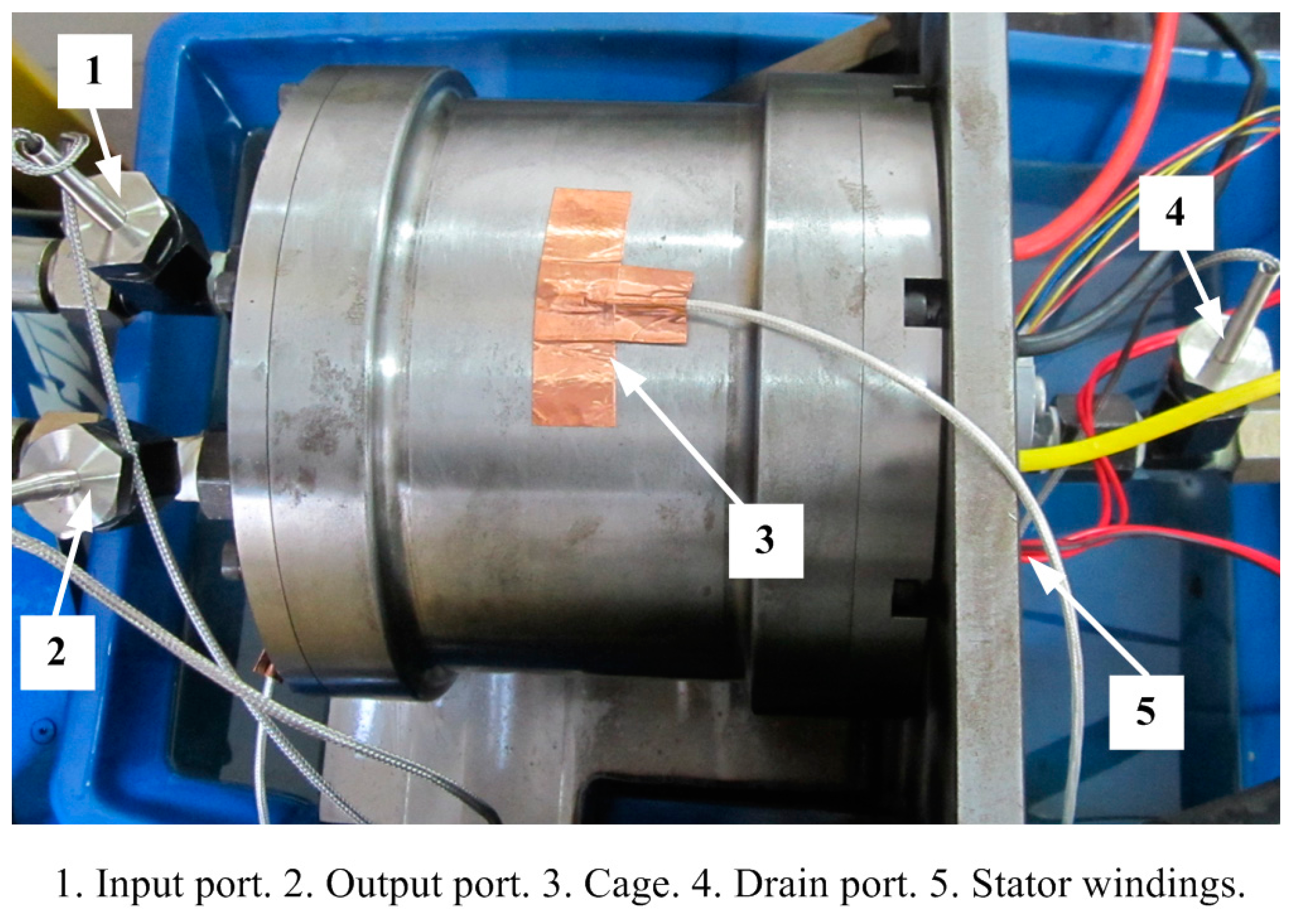

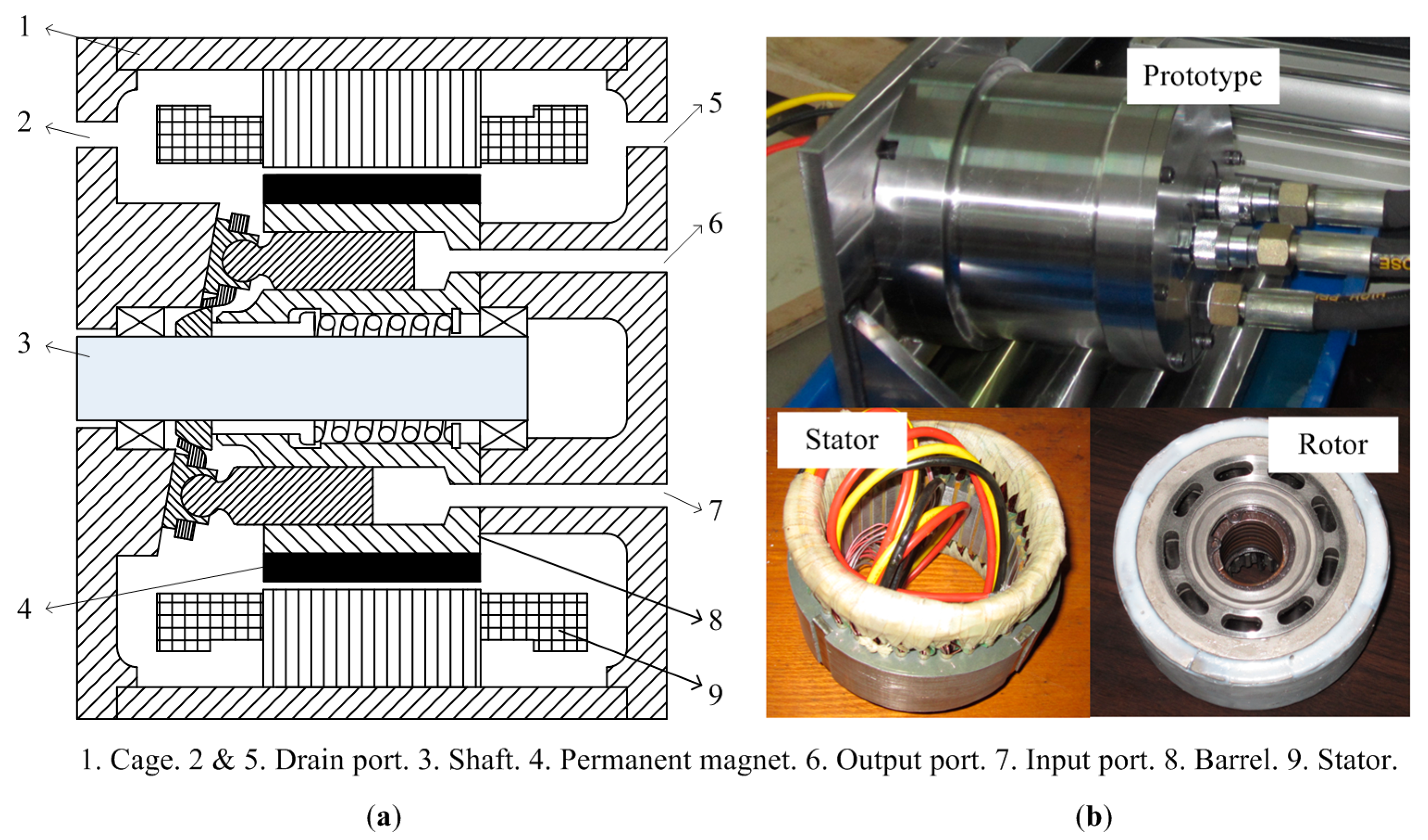

2.2. Prototype

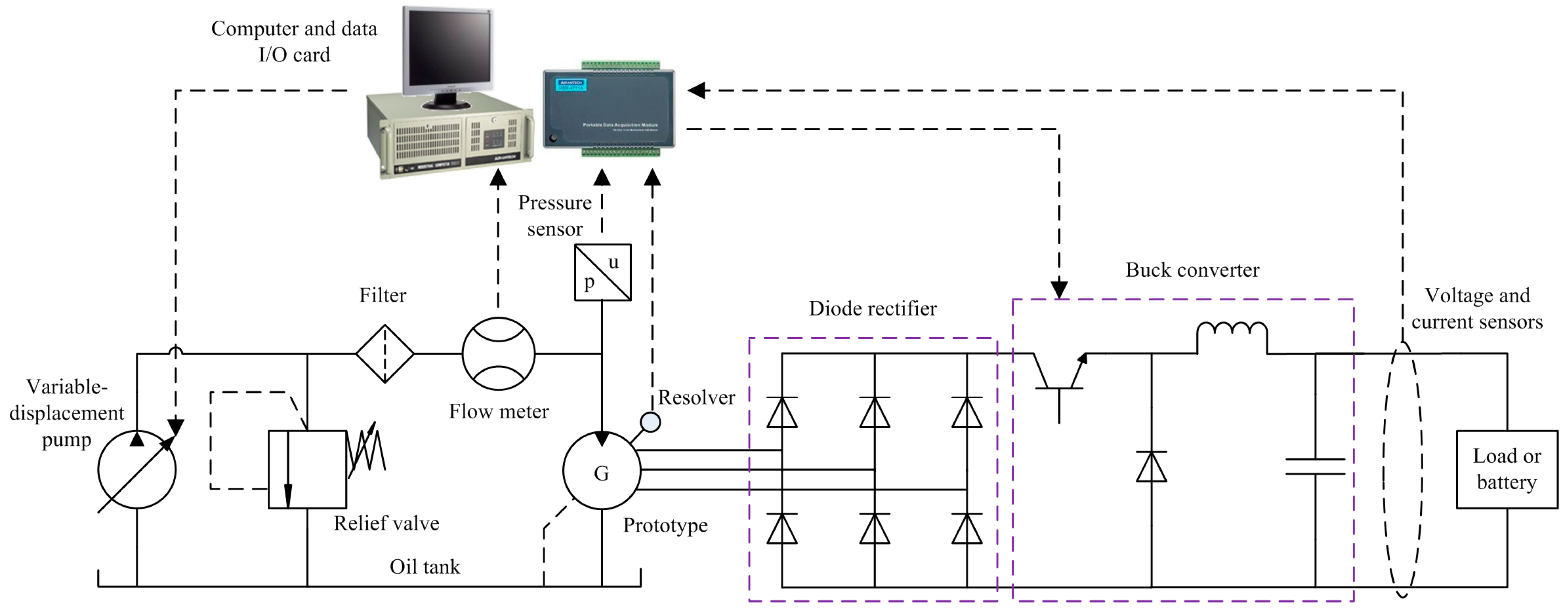

2.3. Experimental Platform
3. Energy Conversion Analysis

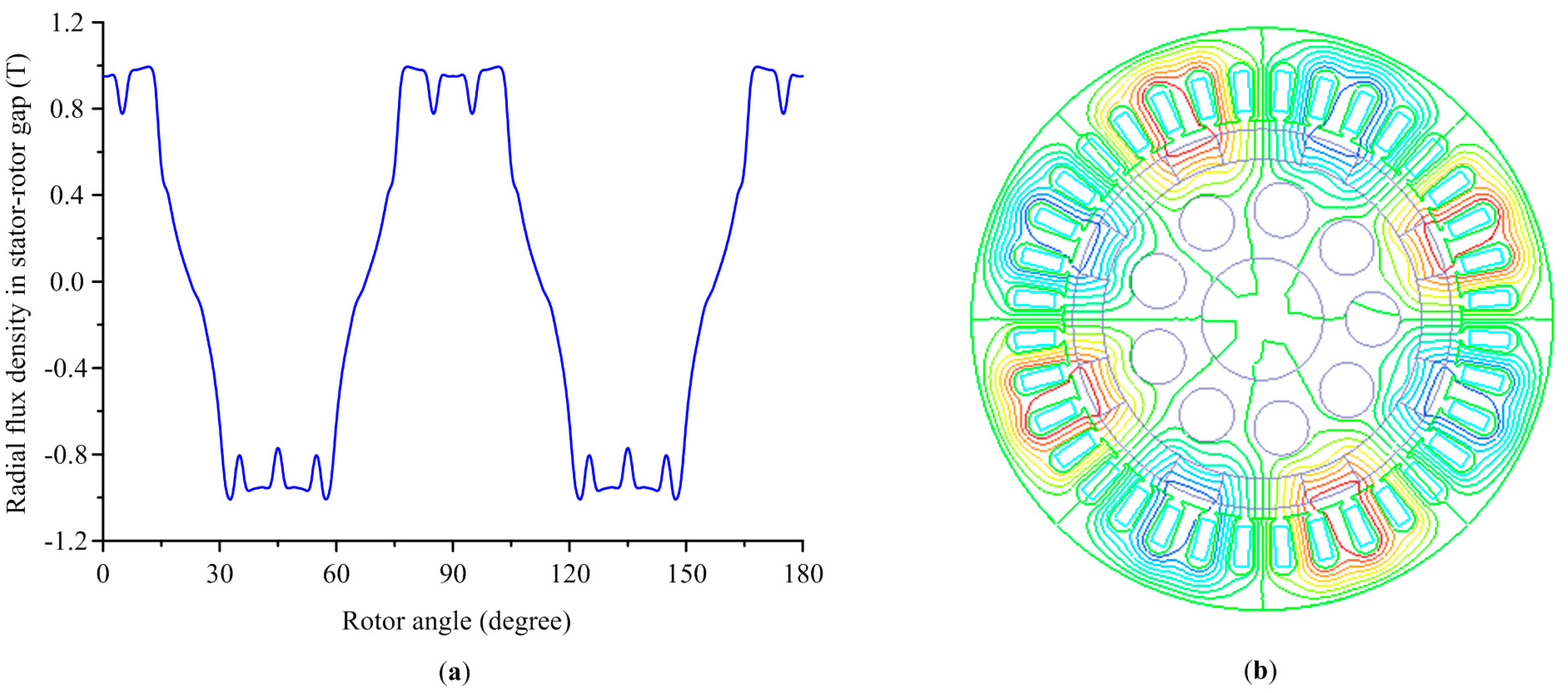

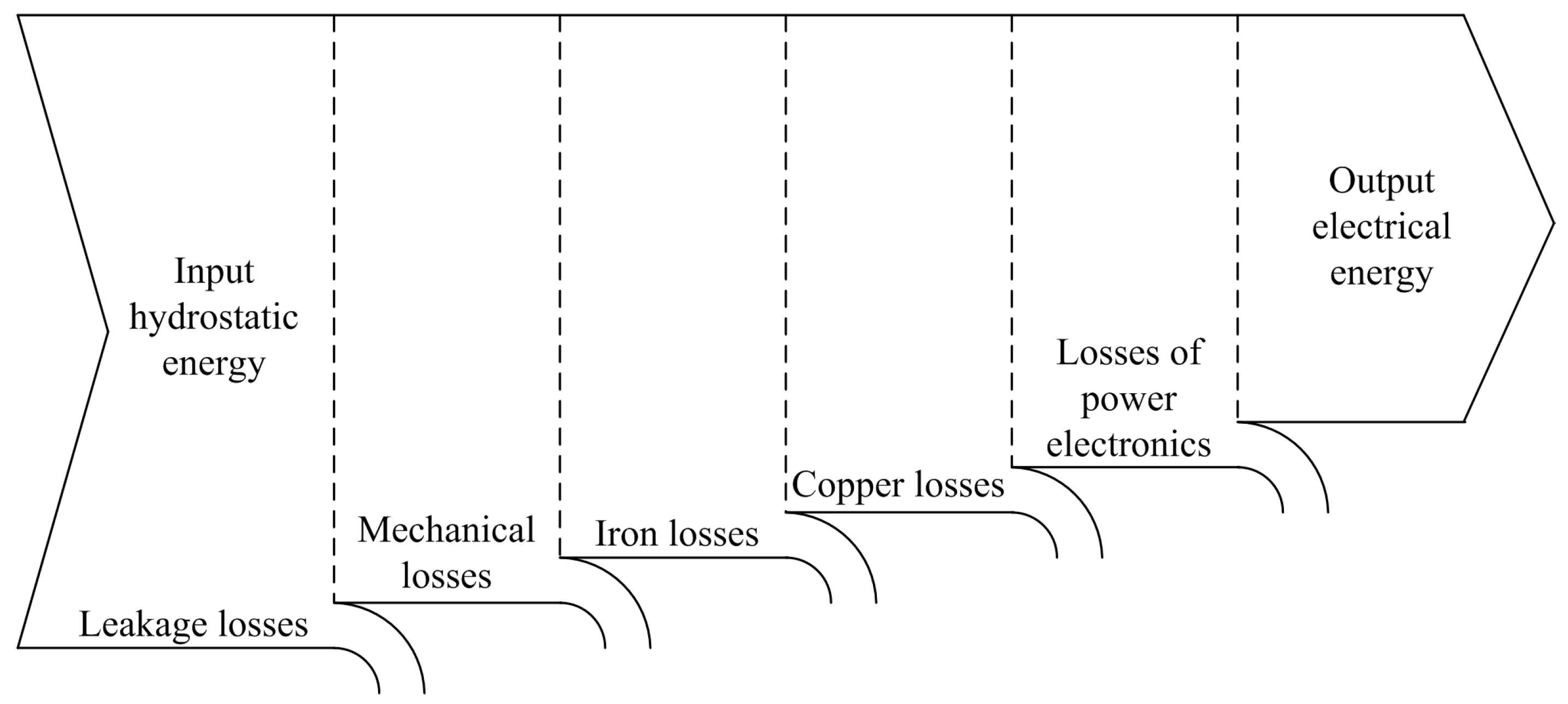

3.1. Losses in Energy Conversion

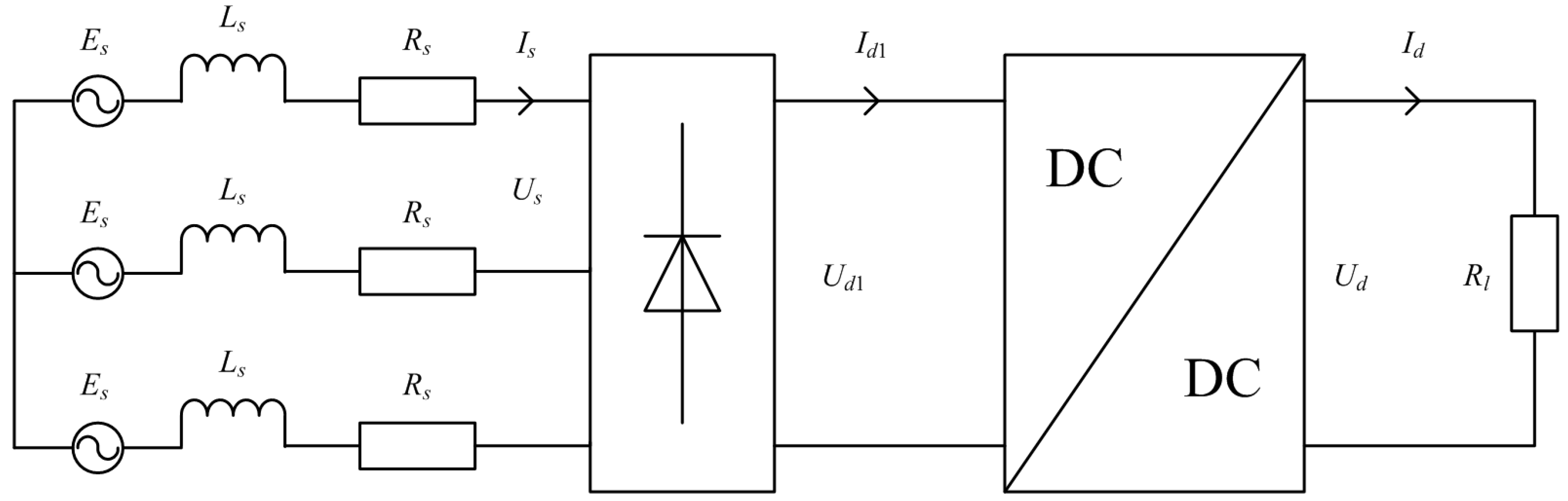

3.2. Effect of Controllable Electrical Load

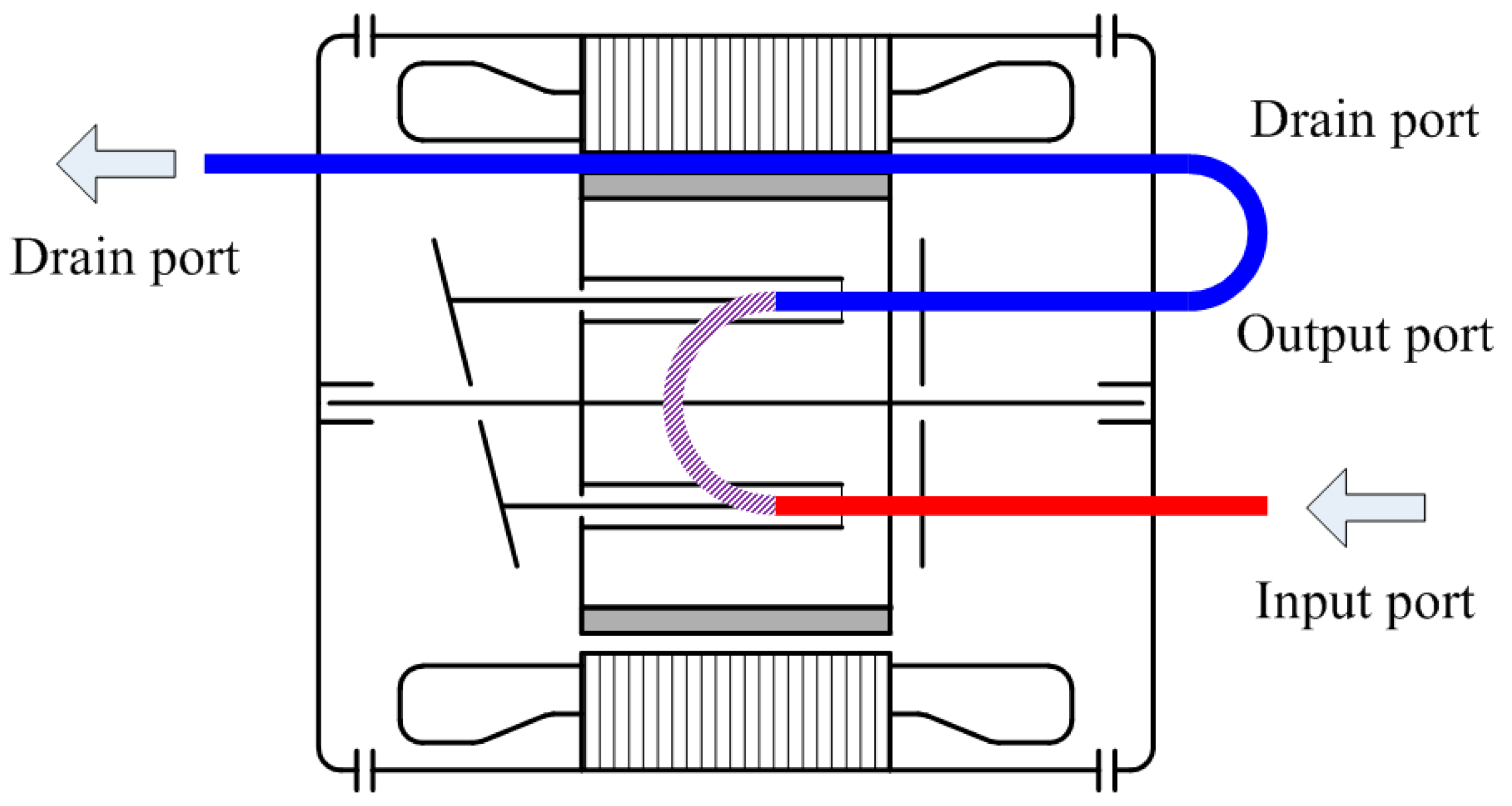

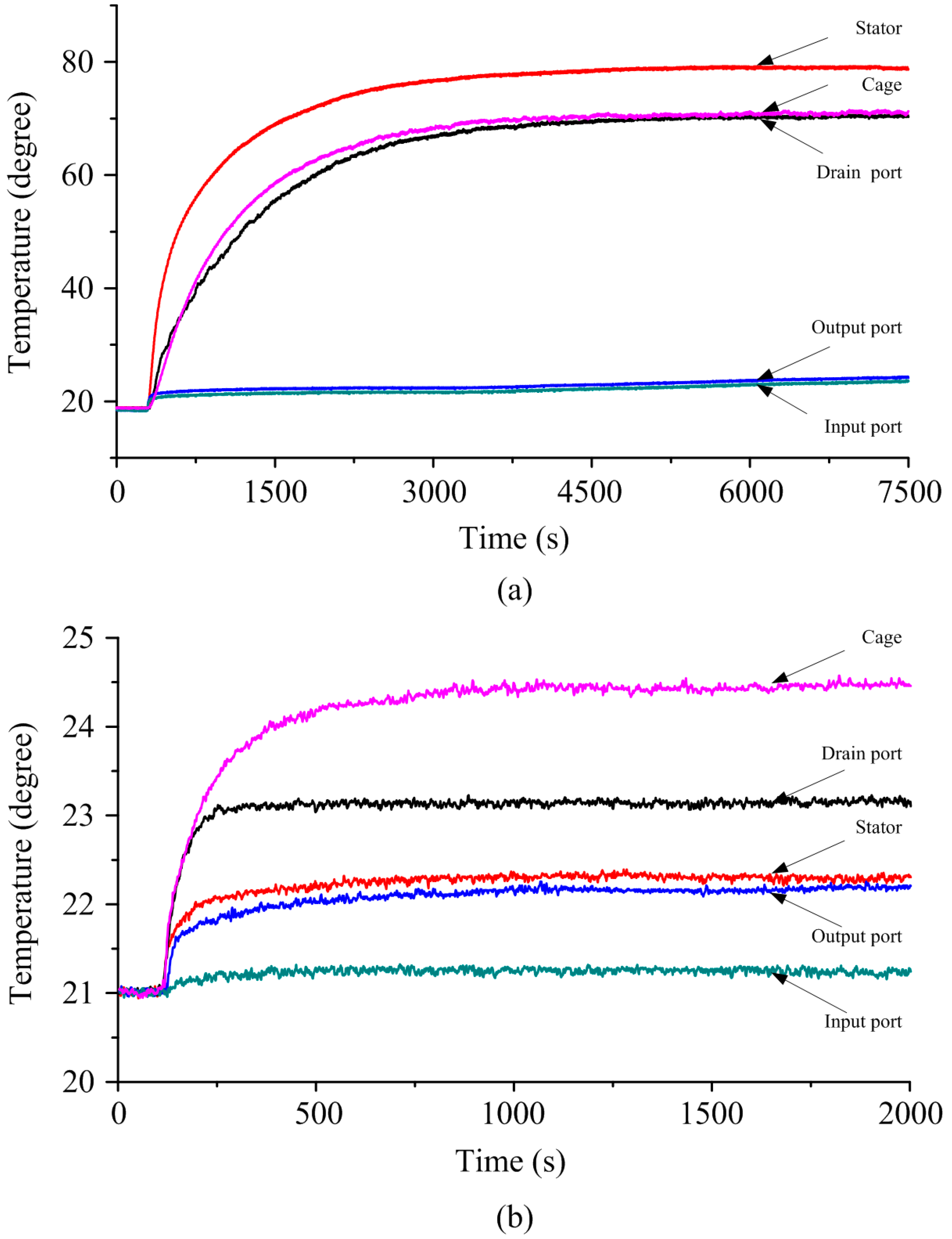

3.3. Cooling and Temperature Rise

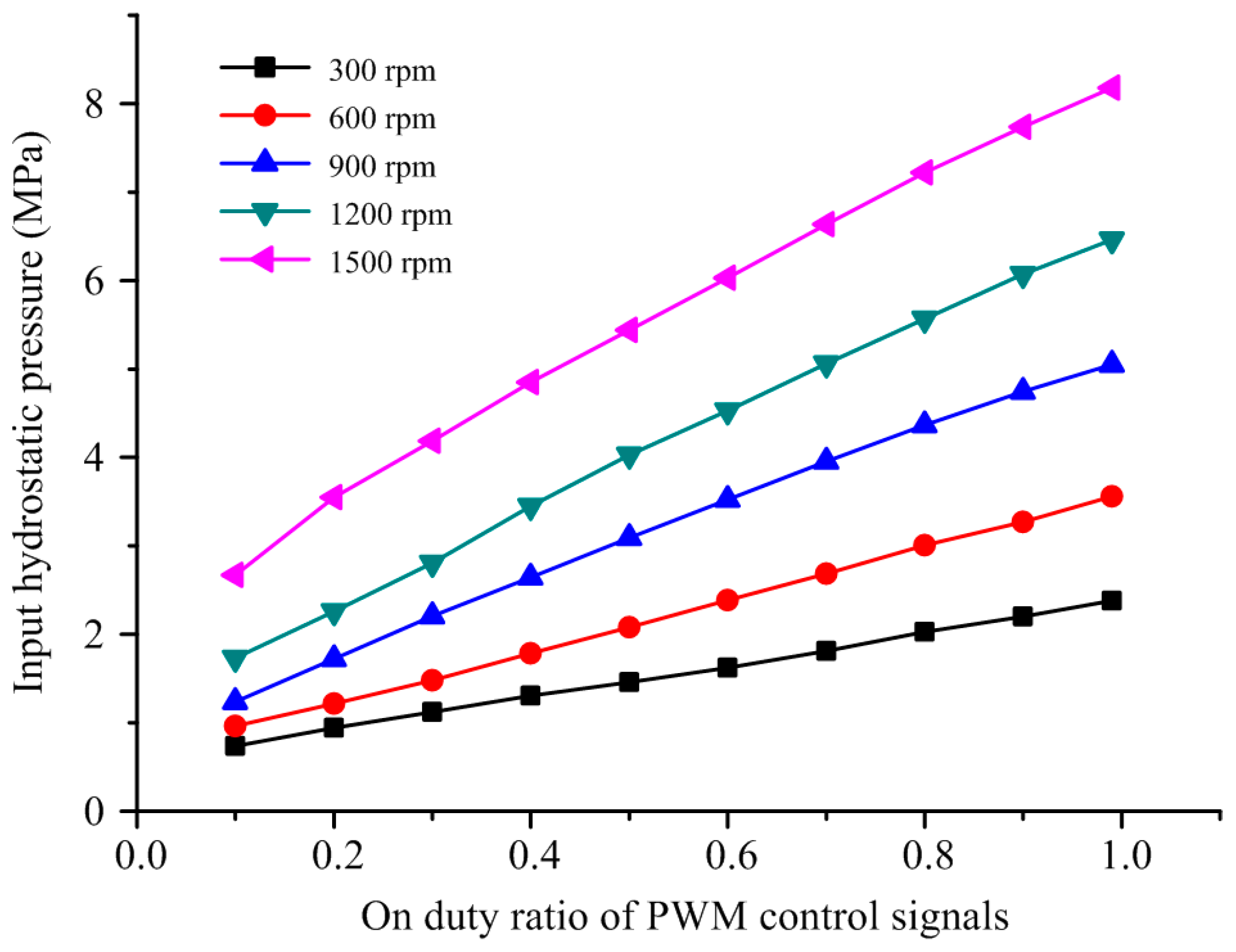

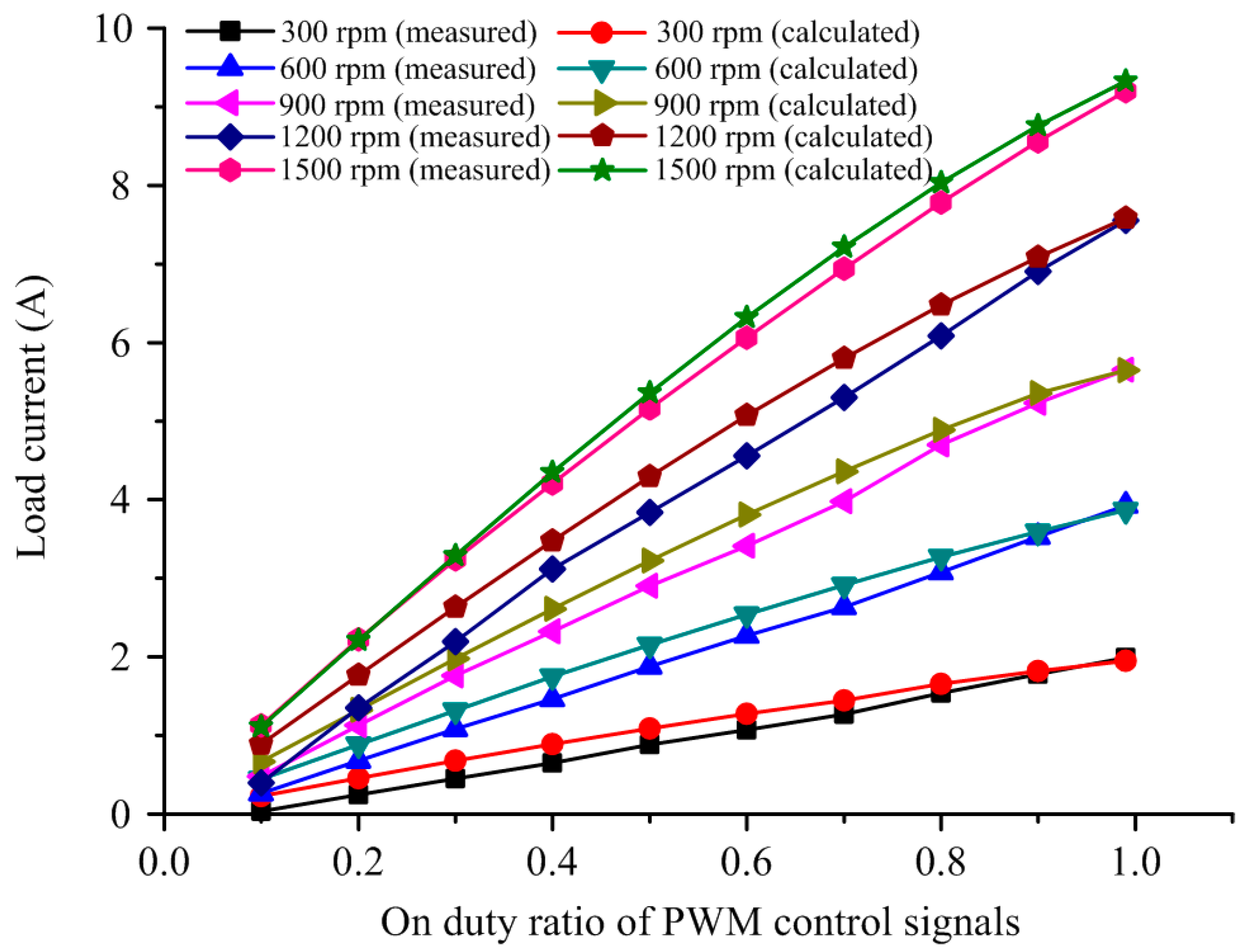

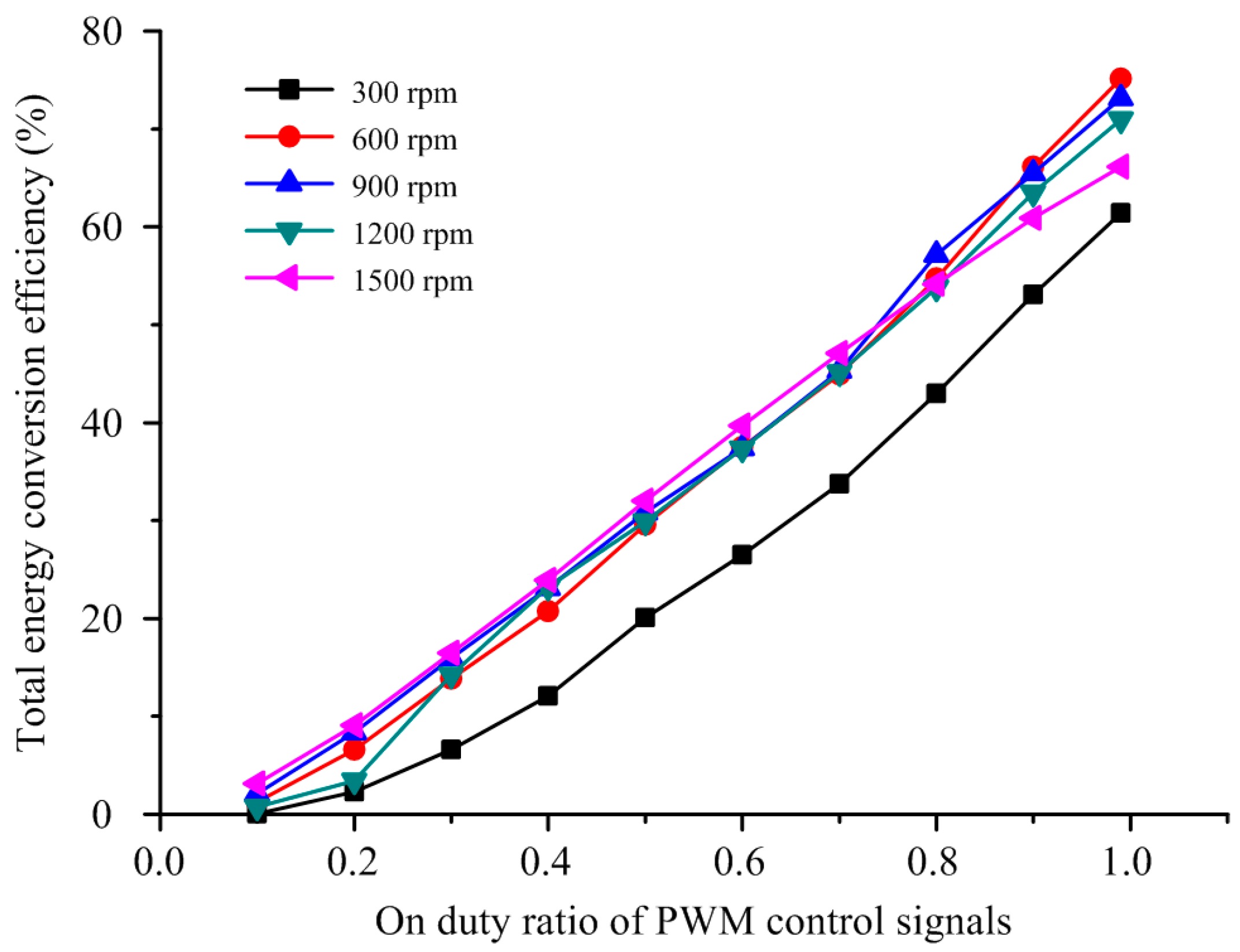

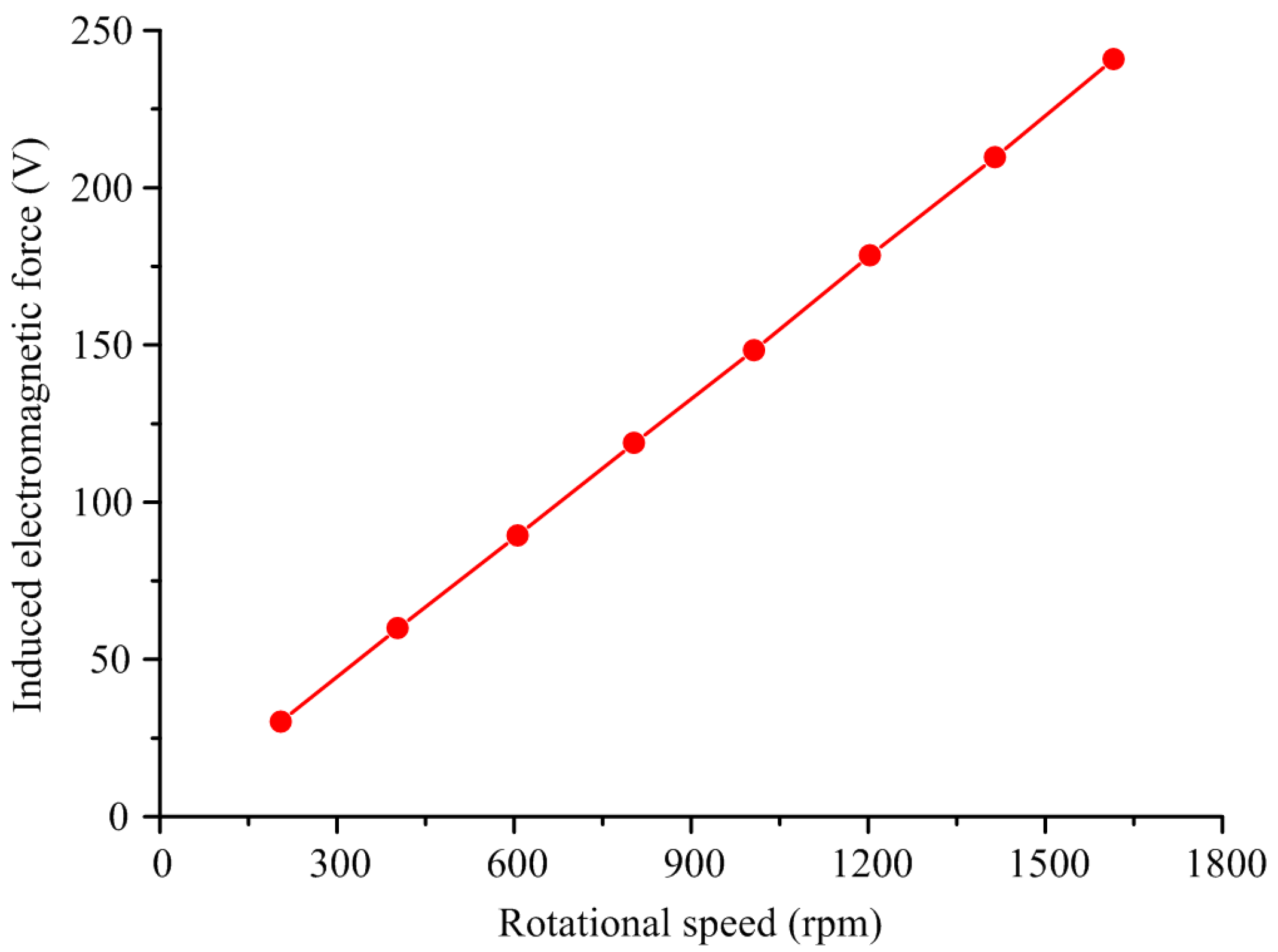

4. Experiments and Results
5. Conclusions and Future Work
Acknowledgments
Author Contributions
Conflicts of Interest
References
- Ellabban, O.; Abu-Rub, H.; Blaabjerg, F. Renewable energy resources: Current status, future prospects and their enabling technology. Renew. Sustain. Energy Rev. 2014, 39, 748–764. [Google Scholar] [CrossRef]
- Izadian, A.; Hamzehlouia, S.; Deldar, M.; Anwar, S. A hydraulic wind power transfer system: Operation and modeling. IEEE Trans. Sustain. Energy 2014, 5, 457–465. [Google Scholar] [CrossRef]
- Nikolić, V.; Sajjadi, S.; Petković, D.; Shamshirband, S.; Ćojbašić, Ž.; Por, L.Y. Design and state of art of innovative wind turbine systems. Renew. Sustain. Energy Rev. 2016, 61, 258–265. [Google Scholar] [CrossRef]
- Skaare, B.; Hörnsten, B.; Nielsen, F.G. Modeling, simulation and control of a wind turbine with a hydraulic transmission system. Wind Energy 2013, 16, 1259–1276. [Google Scholar] [CrossRef]
- Silva, P.; Giuffrida, A.; Fergnani, N.; Macchi, E.; Cantù, M.; Suffredini, R.; Schiavetti, M.; Gigliucci, G. Performance prediction of a multi-MW wind turbine adopting an advanced hydrostatic transmission. Energy 2014, 64, 450–461. [Google Scholar] [CrossRef]
- Polinder, H.; Ferreira, J.A.; Jensen, B.B.; Abrahamsen, A.B.; Atallah, K.; McMahon, R.A. Trends in wind turbine generator systems. IEEE J. Emerg. Sel. Top. Power Electron. 2013, 1, 174–185. [Google Scholar] [CrossRef]
- Qin, C.; Innes-Wimsatt, E.; Loth, E. Hydraulic-electric hybrid wind turbines: Tower mass saving and energy storage capacity. Renew. Energy 2016, 99, 69–79. [Google Scholar] [CrossRef]
- Dutta, R.; Wang, F.; Bohlmann, B.F.; Stelson, K.A. Analysis of short-term energy storage for midsize hydrostatic wind turbine. J. Dyn. Syst. Meas. Control 2014, 136, 011007. [Google Scholar] [CrossRef]
- Fan, Y.; Mu, A.; Ma, T. Study on the application of energy storage system in offshore wind turbine with hydraulic transmission. Energy Convers. Manag. 2016, 110, 338–346. [Google Scholar] [CrossRef]
- Lin, Y.; Tu, L.; Liu, H.; Li, W. Hybrid power transmission technology in a wind turbine generation system. IEEE/ASME Trans. Mechatron. 2015, 20, 1218–1225. [Google Scholar] [CrossRef]
- Schulte, H.; Gauterin, E. Fault-tolerant control of wind turbines with hydrostatic transmission using Takagi–Sugeno and sliding mode techniques. Annu. Rev. Control 2015, 40, 82–92. [Google Scholar] [CrossRef]
- Liu, H.; Lin, Y.; Shi, M.; Li, W.; Gu, H.; Xu, Q.; Tu, L. A novel hydraulic-mechanical hybrid transmission in tidal current turbines. Renew. Energy 2015, 81, 31–42. [Google Scholar] [CrossRef]
- Fan, Y.; Mu, A.; Ma, T. Modeling and control of a hybrid wind-tidal turbine with hydraulic accumulator. Energy 2016, 112, 188–199. [Google Scholar] [CrossRef]
- Gaspar, J.F.; Kamarlouei, M.; Sinha, A.; Xu, H.; Calvário, M.; Faÿ, F.X.; Robles, E.; Soares, C.G. Speed control of oil-hydraulic power take-off system for oscillating body type wave energy converters. Renew. Energy 2016, 97, 769–783. [Google Scholar] [CrossRef]
- António, F.D.O. Phase control through load control of oscillating-body wave energy converters with hydraulic PTO system. Ocean Eng. 2008, 35, 358–366. [Google Scholar] [CrossRef]
- Drew, B.; Plummer, A.; Sahinkaya, M.N. A review of wave energy converter technology. Proc. Inst. Mech. Eng. Part A J. Power Energy 2009, 223, 887–902. [Google Scholar] [CrossRef]
- Cargo, C.J.; Hillis, A.J.; Plummer, A.R. Optimisation and control of a hydraulic power take-off unit for a wave energy converter in irregular waves. Proc. Inst. Mech. Eng. Part A J. Power Energy 2014, 228, 462–479. [Google Scholar] [CrossRef] [Green Version]
- Lin, Y.; Bao, J.; Liu, H.; Li, W.; Tu, L.; Zhang, D. Review of hydraulic transmission technologies for wave power generation. Renew. Sustain. Energy Rev. 2015, 50, 194–203. [Google Scholar] [CrossRef]
- Ahn, K.K.; Truong, D.Q.; Tien, H.H.; Yoon, J.I. An innovative design of wave energy converter. Renew. Energy 2012, 42, 186–194. [Google Scholar] [CrossRef]
- Truong, D.Q.; Ahn, K.K. Development of a novel point absorber in heave for wave energy conversion. Renew. Energy 2014, 65, 183–191. [Google Scholar] [CrossRef]
- Hansen, R.H.; Kramer, M.M.; Vidal, E. Discrete displacement hydraulic power take-off system for the Wavestar wave energy converter. Energies 2013, 6, 4001–4044. [Google Scholar] [CrossRef]
- Penalba, M.; Sell, N.P.; Hillis, A.J.; Ringwood, J.V. Validating a wave-to-wire model for a wave energy converter—Part I: The Hydraulic Transmission System. Energies 2017, 10, 977. [Google Scholar] [CrossRef]
- Penalba, M.; Cortajarena, J.A.; Ringwood, J.V. Validating a wave-to-wire model for a wave energy converter—Part II: The electrical system. Energies 2017, 10, 1002. [Google Scholar] [CrossRef]
- Wang, T.; Wang, Q. Optimization design of a permanent magnet synchronous generator for a potential energy recovery system. IEEE Trans. Energy Convers. 2012, 27, 856–863. [Google Scholar] [CrossRef]
- Wang, T.; Wang, Q. An energy-saving pressure-compensated hydraulic system with electrical approach. IEEE/ASME Trans. Mechatron. 2014, 19, 570–578. [Google Scholar] [CrossRef]
- Li, C.; Zhu, R.; Liang, M.; Yang, S. Integration of shock absorption and energy harvesting using a hydraulic rectifier. J. Sound Vib. 2014, 333, 3904–3916. [Google Scholar] [CrossRef]
- Wang, R.; Gu, F.; Cattley, R.; Ball, A.D. Modelling, testing and analysis of a regenerative hydraulic shock absorber system. Energies 2016, 9, 386. [Google Scholar] [CrossRef]
- Ponomarev, P.; Åman, R.; Handroos, H.; Immonen, P.; Pyrhönen, J.; Laurila, L. High power density integrated electro-hydraulic energy converter for heavy hybrid off-highway working vehicles. IET Electr. Syst. Transp. 2014, 4, 114–121. [Google Scholar] [CrossRef]
- Ponomarev, P.; Polikarpova, M.; Heinikainen, O.; Pyrhonen, J. Design of integrated electro-hydraulic power unit for hybrid mobile working machines. In Proceedings of the 14th European Conference on Power Electronics and Applications, Birmingham, UK, 30 August–1 September 2011; pp. 1–10. [Google Scholar]
- Wang, T.; Wang, Q. Coupling effects of a novel integrated electro-hydraulic energy conversion unit. Int. J. Appl. Electromagn. Mech. 2015, 47, 153–162. [Google Scholar] [CrossRef]
- Ji, H.; Ding, D.; Wang, Z.; Wang, X.; Sun, L.; Hu, Q. Flow analysis and optimization of port-plate centrifugal pump in electric motor pump. J. Mech. Eng. 2009, 45, 199–205. [Google Scholar] [CrossRef]
- Wang, T.; Zhou, Z. A compact hydrostatic-driven electric generator: Design, prototype, and experiment. IEEE/ASME Trans. Mechatron. 2016, 21, 1612–1619. [Google Scholar] [CrossRef]
- Wang, T.; Wang, H.; Zhou, Z. Unbalanced magnetic torque in electrohydraulic energy conversion unit considering rotor axis deflection. IEEE Trans. Magn. 2016, 52, 1–6. [Google Scholar] [CrossRef]
- Markovic, M.; Perriard, Y. Optimization design of a segmented Halbach permanent-magnet motor using an analytical model. IEEE Trans. Magn. 2009, 45, 2955–2960. [Google Scholar] [CrossRef]
- Koutroulis, E.; Kalaitzakis, K. Design of a maximum power tracking system for wind-energy-conversion applications. IEEE Trans. Ind. Electron. 2006, 53, 486–494. [Google Scholar] [CrossRef]
- Gurumurthy, S.R.; Agarwal, V.; Sharma, A. A novel dual-winding BLDC generator–buck converter combination for enhancement of the harvested energy from a flywheel. IEEE Trans. Ind. Electron. 2016, 63, 7563–7573. [Google Scholar] [CrossRef]
- Wang, T.; Wang, Q. Efficiency analysis and evaluation of energy-saving pressure-compensated circuit for hybrid hydraulic excavator. Autom. Constr. 2014, 47, 62–68. [Google Scholar] [CrossRef]
- Eriksson, S.; Bernhoff, H. Loss evaluation and design optimisation for direct driven permanent magnet synchronous generators for wind power. Appl. Energy 2011, 88, 265–271. [Google Scholar] [CrossRef]
- Luo, F.L.; Ye, H. Energy factor and mathematical modelling for power DC/DC converters. IEE Proc. Electr. Power Appl. 2005, 152, 191–198. [Google Scholar] [CrossRef]
- Hsiao, C.Y.; Yeh, S.N.; Hwang, J.C. Design of high performance permanent-magnet synchronous wind generators. Energies 2014, 7, 7105–7124. [Google Scholar] [CrossRef]
- Huang, W.Y.; Bettayeb, A.; Kaczmarek, R.; Vannier, J.C. Optimization of magnet segmentation for reduction of eddy-current losses in permanent magnet synchronous machine. IEEE Trans. Energy Convers. 2010, 25, 381–387. [Google Scholar] [CrossRef]
- Chan, T.F.; Wang, W.; Lai, L.L. Analysis and performance of a permanent-magnet synchronous generator supplying an isolated load. IET Electr. Power Appl. 2010, 4, 169–176. [Google Scholar] [CrossRef]
- Lu, Q.; Zhang, X.; Chen, Y.; Huang, X.; Ye, Y.; Zhu, Z.Q. Modeling and investigation of thermal characteristics of a water-cooled permanent-magnet linear motor. IEEE Trans. Ind. Appl. 2015, 51, 2086–2096. [Google Scholar] [CrossRef]
Name | Value | Unit |
---|---|---|
Phase number | 3 | - |
Pole pair number | 4 | - |
Coil number per phase | 480 | - |
Stator outer diameter | 155 | mm |
Stator inner diameter | 106 | mm |
Stator iron core axial length | 48 | mm |
Stator-rotor gap length | 2 | mm |
Permanent magnet thickness | 7.5 | mm |
Swash plate angle | 10 | degree (°) |
Piston reference diameter | 60 | mm |
Nominal power | 2500 | W |
Nominal speed | 1500 | rpm |
Nominal frequency | 100 | Hz |
Nominal input flow rate | 23 | L/min |
Nominal phase current | 7 | A |
Nominal phase voltage | 127 | V |

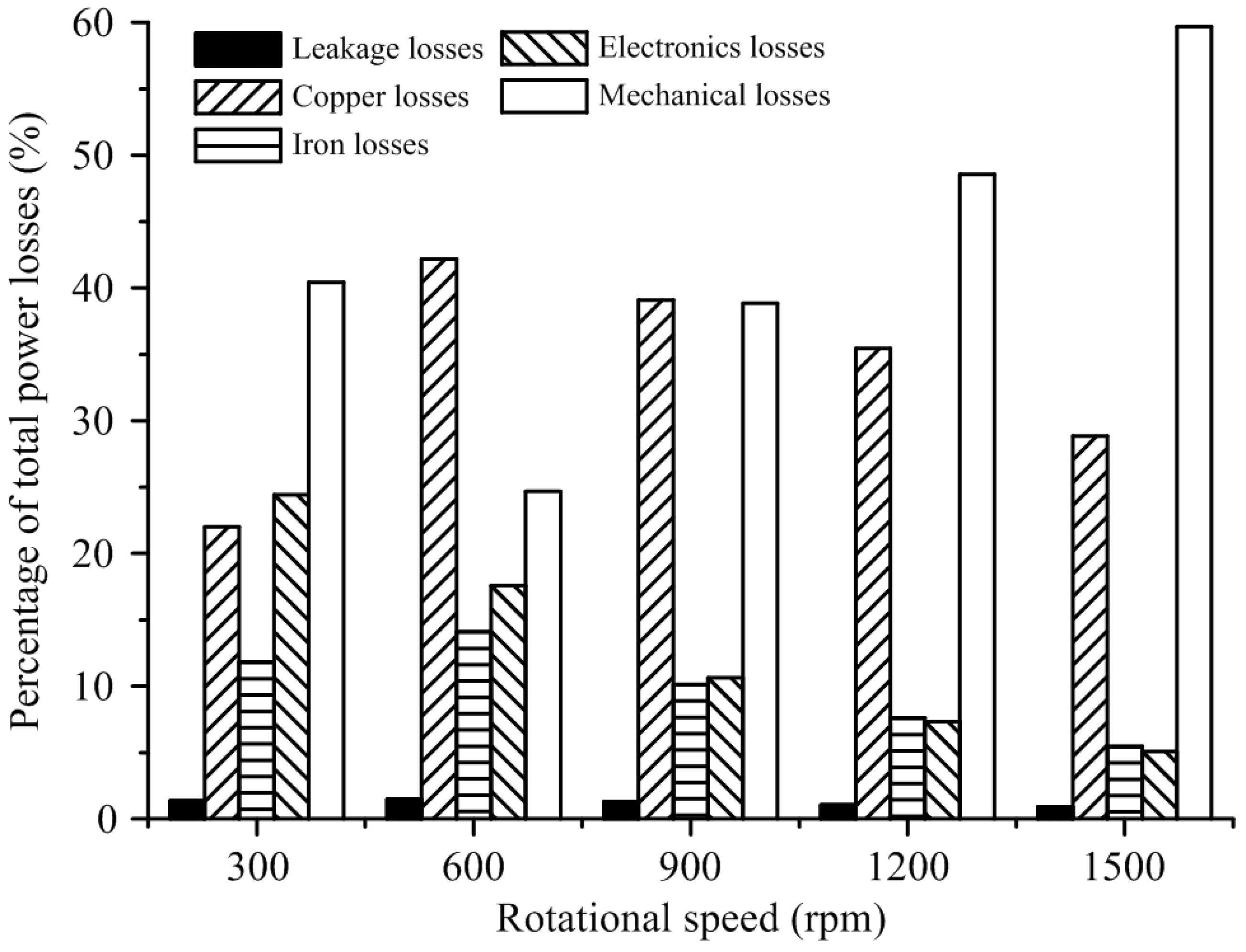

Rotational Speed | Input Power | Output Power | Total Losses | Leakage Losses | Copper Losses | Iron Losses | Losses of Power Electronics | Mechanical Losses |
---|---|---|---|---|---|---|---|---|
rpm | W | W | W | W | W | W | W | W |
300 | 161 | 99 | 62 | 1 | 14 | 7 | 15 | 25 |
600 | 513 | 386 | 128 | 2 | 54 | 18 | 22 | 31 |
900 | 1092 | 799 | 293 | 4 | 115 | 30 | 31 | 114 |
1200 | 2009 | 1426 | 583 | 6 | 207 | 44 | 43 | 283 |
1500 | 3200 | 2116 | 1084 | 10 | 313 | 59 | 55 | 647 |
