Article

The Multi-Objective Optimization Algorithm Based on Sperm Fertilization Procedure (MOSFP) Method for Solving Wireless Sensor Networks Optimization Problems in Smart Grid Applications

by
Hisham A. Shehadeh
,
Mohd Yamani Idna Idris
*,
Ismail Ahmedy
,
Roziana Ramli
and
Noorzaily Mohamed Noor
Department of Computer System and Technology, Faculty of Computer Science and Information Technology, University of Malaya, Kuala Lumpur 50603, Malaysia
*
Author to whom correspondence should be addressed.
Energies 2018, 11(1), 97; https://doi.org/10.3390/en11010097
Submission received: 7 November 2017 / Revised: 29 December 2017 / Accepted: 31 December 2017 / Published: 2 January 2018

Abstract

:
Prior studies in Wireless Sensor Network (WSN) optimization mostly concentrate on maximizing network coverage and minimizing network energy consumption. However, there are other factors that could affect the WSN Quality of Service (QoS). In this paper, four objective functions that affect WSN QoS, namely end-to-end delay, end-to-end latency, network throughput and energy efficiency are studied. Optimal value of packet payload size that is able to minimize the end-to-end delay and end-to-end latency, while also maximizing the network throughput and energy efficiency is sought. To do this, a smart grid application case study together with a WSN QoS model is used to find the optimal value of the packet payload size. Our proposed method, named Multi-Objective Optimization Algorithm Based on Sperm Fertilization Procedure (MOSFP), along with other three state-of-the-art multi-objective optimization algorithms known as OMOPSO, NSGA-II and SPEA2, are utilized in this study. Different packet payload sizes are supplied to the algorithms and their optimal value is derived. From the experiments, the knee point and the intersection point of all the obtained Pareto fronts for all the algorithms show that the optimal packet payload size that manages the trade-offs between the four objective functions is equal to 45 bytes. The results also show that the performance of our proposed MOSFP method is highly competitive and found to have the best average value compared to the other three algorithms. Furthermore, the overall performance of MOSFP on four objective functions outperformed OMOPSO, NSGA-II and SPEA2 by 3%, 6% and 51%, respectively.

1. Introduction

A Wireless Sensor Network (WSN) is a network formed by a large number of wireless sensors embedded with different kinds of devices to detect physical phenomena such as pressure, light, heat, etc. The first use of these sensors was in military applications such as video surveillance in conflict areas [1]. Today, there are many short-range communication technologies such as ZigBee, Wi-Fi, etc. which are used to support sensor-based devices. These technologies can operate on the license-free Industrial, Scientific, and Medical Band (ISM) [2,3] with different communication ranges. WSNs are quickly gaining popularity for sensing and monitoring with real applications in the building field. This is extended to many applications in industrial infrastructure, health, automation, traffic, and various consumer areas [4].
Sensor nodes that operate in these applications are often exposed to different challenges due to their limited capabilities, which include limited power (battery), limited memory size, and limited communication ranges [5]. The mismanagement and misuse of these devices will reduce the network lifetime and reduce the Quality of Service (QoS), especially in dense networks. For instance, if the packet payload size increases, the probability of dropping the packet will be increased, and the retransmission of these packets requires reallocation of the dropped packets in the memory and consumes more battery power. In addition, this procedure will take more time, which leads to increased network delay.
To mitigate the effect of the aforementioned challenges, various optimization methods have been used by prior researchers. These methods are typically used to optimize a set of mathematical features of the network such as throughput, network coverage, network energy consumption, etc. [6,7,8,9,10,11,12,13,14,15]. These features also include the effect of various network parameters such as packet payload size, frequency range, and the distance between sender and receiver. In addition, these features involve the parameters of interference such as Packet Error Rate (PER) based on the interference from other devices that operate on the same frequency band. Though the study of these features is important, prior works do not pay much attention to finding the optimum value for some parameters of a physical layer such as packet payload size. Packet payload size can affect some of the important network model features such as end-to-end delay, end-to-end latency, energy efficiency, and network throughput. The study of these features is very important, especially in WSN applications that can be affected by delays such as health monitoring networks, smart grid networks, and disaster monitoring networks. For this reason, optimization algorithms are important to determine the optimal value of the different parameters that affect network QoS.
We choose a smart grid as a case study to prove the ability of our algorithm in solving different kinds of real-life problems and also because the smart grid has problems that can be represented in objective functions similar to the aforementioned objective functions used in our Multi-Objective Optimization Algorithm Based on Sperm Fertilization Procedure (MOSFP) that has a higher efficiency and the ability of providing an optimal solution for them. Examples of these objective functions are end-to-end delay and end-to-end latency, where the latency is affected by the end-to-end delay results.
In this work, four complex computational algorithms known to date: Optimized Multi-Objective Particle Swarm Optimization (OMOPSO) [16], Non-Dominated Sorting Genetic Algorithm (NSGA-II) [17], Strength Pareto Evolutionary Algorithm 2 (SPEA2) [18], and our proposed MOSFP [19] are applied. The motivation of this paper is to find the optimal value of packet payload size that manages the trade-offs between objective functions. The optimal value considers four objective functions, which include energy efficiency, packet throughput, end-to-end delay, and end-to-end latency. The inclusion of these four objective functions is believed to improve QoS of a communication link in the smart grid network unlike most of the prior work that only focuses on maximizing network coverage and minimizing energy consumption. In this paper, we propose to apply our proposed MOSFP method that is inspired by sperm motility to fertilize the egg to find the optimal value of packet payload size based on the aforementioned objective functions.
The complexity of real life problems in WSN increases with time due to the limited power, memory size, and communication ranges of sensor nodes. Most of the available metaheuristic techniques suffer from slow convergence and bad local search ability. Therefore, solving the real life problems in WSN will require a more powerful metaheuristic-based technique. The advantages of MOSFP over the other algorithms are the ability of MOSFP to solve complex objective functions, such as Zitzler-Deb-Thiele 3 (ZDT3) and solve functions that contain more than two objective functions, such as Walking-Fish-Group 5 and 8 (WFG5 and WFG8) as proved in our prior paper [19]. Additionally, MOSFP has the advantages of finding a good approximation of Pareto front and attending a high amount of points of the true Pareto front for these objective functions [19]. In this paper, we choose a smart grid as a case study because smart grids have problems that can be represented by the objective functions similar to ZDT3, WFG5, and WFG8 in which MOSFP has a higher efficiency and ability to provide an optimal solution for them. This is because MOSFP has a higher convergence and spread of the results than OMOPSO, NSGA-II, and SPEA2 while solving these kinds of problems. Examples of these objective functions that have the same features of the aforementioned problems are end-to-end delay and end-to-end latency, where the latency is affected by the results of end-to-end delay.
In addition, the four aforementioned algorithms will be used to study the effect of packet payload size to the network QoS as well as how this parameter plays a significant role in minimizing both end-to-end delay and end-to-end latency and also in maximizing both energy efficiency and packet throughput. In the first stage, the four algorithms are evaluated to find the most efficient algorithm. This is followed by Pareto-optimal set analysis to find the optimal value of packet payload size that minimizes both end-to-end delay and end-to-end latency and maximizes both energy efficiency and packet throughput.
This paper is organized as follows: Section 2 presents a literature review. Section 3 shows the multi-objective optimization algorithms. Section 4 discusses the quality of service features of WSNs. Section 5 presents a case study. Section 6 presents the methodology and experimental setup. Section 7 presents our experimentation and results. We conclude the findings in Section 8.

2. Literature Review

This section gives a detail description of WSN challenges and reviews the related optimization methods.

2.1. Wireless Sensor Network Challenges

(1)
Network scalability: the nature of WSN based on a widespread deployment of sensors to cover the largest possible area for monitoring. This makes the whole system very sensitive to failure [20]. To diminish this challenge, the network coverage should be examined to ensure a high Quality of Service (QoS).
(2)
Energy management: the energy (power) is the biggest limitation in any wireless sensors capabilities. Power is one of the main reasons that sensors are subject to failure due to depletion of batteries [21]. Sensors are created to work autonomously for prolonged periods of time in months or years after deployment task. It is not easy to recharge or replace the sensors batteries [22]. Therefore, many aspects that affect the energy management should be examined to minimize the energy consumption of the sensor battery. This can be achieved by examining some issues of the physical layer and protocol layer of the network.
(3)
Limited storage and memory: the storage in any sensor mostly has the range from 32 KB to 2 GB while the memory (RAM) has the range from 2 KB to 256 KB. This limitation affects the throughput of the sensors [23]. Table 1 lists some available sensor nodes along with their respective storage and memory characteristics [5].
(4)
Delay of data aggregation: this challenge is crucial in many WSN applications [24], particularly when dealing with critical data that should be received without any delay. Examples of these data are heart pulses and electrocardiograms of patients [25], disaster detection alarms [26] and power supply requests in smart grids [27].
(5)
Interference and fading: wireless devices mostly operate on license-free bands such as 2.4 GHz ISM band [28]. There are many other devices operate in the same frequency band such as microwave ovens and Wi-Fi routers. This makes the system vulnerable to interference and intrusion by those devices that work on this band [29,30]. Based on these issues, the network topology planner should keep these aspects in mind.
(6)
Security: the wireless medium is open and accessible to anyone rather than the wired one. This makes transmissions over the wireless medium easily altered, replayed, or intercepted by an adversary. In addition, the intruders may have strong transmitters to block transition that comes from other devices by transmitting many packets through the network to make the network busy. The conflict may be occurred because of packet collaging through the transfer time, which leads to network failure. These issues should be solved using a load balancing technique [31].

2.2. Network Modeling

Network modeling is a process to simplify and represent different kinds of network problems or challenges as a form of mathematical models. These models are classified into two types: minimization models, and maximization models. The former models should have minimum results whereas the later models should have maximum results. The steps of network modeling procedure are shown in Figure 1 [32]. Accordingly, we can summarize the workflow of the network modeling as follows: at the beginning, the real problem should be determined, after that, by simplifying this problem and determining its limitations and quantifications, it can be written as a form of optimization models. Hence, the optimization algorithms come to take a place in the modeling process by optimizing these models to determine their optimal solution. At the end, the evaluation of the results is very important, which in case of the results not satisfy the requirements; the modification on the data entry of the optimization model could be happened until reaching the optimal result.
Based on Figure 1, the algorithm part is very important to find the result of different kinds of optimization models. There are many studies have been done in this area especially in the field of WSN. These studies use various optimization algorithms to get the optimal result on a wide variety of optimization problems related to WSN. This will be discussed further in the next subsection.

2.3. State of the Art

In this section, we will summarize a few studies that use a wide variety of heuristic-based algorithms to optimize different types of network features and then get an optimal QoS of the network. Jia et al. [6] have proposed a new algorithm called Energy-efficient Coverage Control Algorithm (ECCA) that works based on NSGA-II. This algorithm is used to optimize two conflict network features such as maximizing the network coverage and minimizing the network energy consumption. They have conducted different experiments to test the performance of this algorithm. In the first experiment, a total of 100 nodes was used to cover a topology size of 100 × 100 m whereas in the second experiment, a total of 200 nodes was used to cover a topology size of 200 × 200 m. Different test scenarios have been applied by changing the number of generations for each algorithm from 10 to 200 generations. The results showed that the algorithm is efficient in providing a good coverage with less energy consumption.
Yang et al. [7] have discussed a set of network features that affect QoS in the WSN to maximize the network lifetime and minimize task execution time. Yang et al. proposed a modified version of Binary Particle Swarm Optimization (MBPSO) and compared it with two different algorithms such as Binary Particle Swarm Optimization (BPSO) and Genetic Algorithm (GA). The network features were tested by varying the number of nodes from 0 to 60 nodes in a topology size equal to 500 × 500 and number of execution tasks for each node from 0 to 10 tasks. The results showed that MBPSO outperformed the other algorithms in term of optimizing the previously mentioned features. However, the coverage feature is not evaluated.
For this reason, Kukunuru et al. [8] have discussed the coverage problem of WSN. Particle swarm optimization algorithm (PSO) is used to maximize the network coverage based on the distance between nodes in the topology area of 50 × 50 m. They conducted different tests by changing the number of nodes up to 80 nodes. The results showed that the best coverage for 50 × 50 area is when the number of nodes is 40 nodes. However, network end-to-end delay and energy consumption are not tested in this study. The tests are important because a longer distance between nodes will increase the network delay, thus, increase the number of dropped packets in the network. The retransmission of these packets will consume more power consumption and time.
In a different study, Sagar et al. [9] have discussed the challenges in WSNs. A very important issue in WSN is network coverage, which is used to determine the optimal number of nodes that can cover all parts of the topology. They used two algorithms to maximize the network coverage and minimize the energy consumption. These algorithms are Optimal Geography Density Control (OGDC) and NSGA-II. Different tests were performed to find the optimal coverage ratio in a topology size equal to 100 × 100. The parameter settings of the algorithm were population size equal to 100, crossover rate equal to 0.9, and maximum iterations of the algorithm equal to 250. The Pareto-front figures showed the previous objectives under changing the number of nodes from 0 to 400 nodes. Furthermore, The results showed that the NSGA-II outperformed OGDC, which used 210 nodes to cover the topology while the OGDC algorithm used 327 nodes to cover the same topology area.
Chaudhuri et al. [10] further discussed a Coverage and Lifetime Optimization (CLOP) problem of WSNs. They optimized two features for CLOP problems such as maximizing coverage and minimizing network energy consumption. Chaudhuri et al. used two algorithms to optimize these features, including NSGA-II and SPEA2. The experiments were repeated 10 times by changing the population size for each algorithm from 300 to 5000 and the number of evaluations from 50,000 to 500,000. Moreover, the numbers of nodes were changed from 5 to 20 nodes. The results illustrated that NSGA-II outperformed SPEA2 in optimizing the CLOP problem.
In a later study, Sengupta et al. [11] have proposed a multi-objective optimization problem of WSN based on scheduling algorithm to control the node density. Their objective is to achieve the maximum coverage with a good life-time of the network. This algorithm is used to schedule the randomly deployed active nodes, in which, if any failure occurs the optimization algorithm will rearrange the network unless all nodes have lost their connectivity or energy. Sengupta et al., have compared between a set of algorithms to get the maximum coverage and minimum energy consumption. The first algorithm is Multi-objective Evolutionary Algorithm Based on Decomposition (MOEA/D), which is a GA framework that decomposes a multi-objective problem to a set of single objective problems. The second algorithm is NSGA-II. The results showed that MOEA/D outperformed NSGA-II in finding the optimal results for two objective functions. However, the node selection problem of WSN is not discussed in this study. For this reason, Naeem et al. [12] have proposed selecting a set of nodes rather than utilize all the nodes in the network, which will increase the network lifetime by reducing the power consumption in the whole network. The optimization algorithms such as GA, Convex Optimization Algorithms, Binary Particle Swarm Optimization (BPSO) and PSO-Cyclic Shift Population (CSP) algorithm are used to evaluate this problem. The results showed that BPSO outperformed the other algorithms in finding the optimal number of selected sensors.
Later, Liu et al. [13] have proposed an improvement on Multi-Objective Particle Swarm Optimization (MOPSO) using crowding factor and archive method. This algorithm is used to optimize two conflicting features in WSNs such as maximizing the node coverage and minimizing the energy consumption for each node. The efficiency of their algorithm was evaluated and compared with the original version of MOPSO. The simulation parameters were topology size equal to 20 × 20 m, number of sensors equal to 40 sensors. The parameter settings of the algorithms were the number of particles equal to 30, and the number of iterations equal to 300. The experimental results showed that the improved version of MOPSO outperformed MOPSO in terms of maximizing the network coverage and minimizing the network energy consumption.
Bara’a et al. [14] proposed a multi-objective optimization modeling of WSN network using NSGA-II and MOEA/D. Their work finds an efficient routing to the sink node to maximize the network coverage and minimize the energy consumption for each node. The simulation parameters were topology area equal to 100 × 100, number of sensors equal to 25. The parameter settings of the algorithms were the crossover probability equal to 0.6, mutation probability equal to 0.03, population size equal to 50, and the maximum number of generations equal to 50. The results showed that NSGA-II outperformed MOEA/D in both minimizing the energy consumption and maximizing the node coverage. However, the features that are affected by the interference resources are not examined. For this reason, Hamdan et al. [15] have discussed the challenges that faced by 2.4 GHz WSN. They have discussed a set of multi-objective features that are affected by the interference from other devices that operate on the same band such as microwave oven and Wi-Fi router. These features are packet throughput and energy efficiency. They also maximized these features using three optimization algorithms such as NSGA-II, OMOPSO, and SPEA2. These features were evaluated by changing the distances between both interference source and receiver, and also between transmitter and receiver. The results showed that the NSGA-II outperformed both SPEA2 and OMOPSO in maximizing the previously mentioned features.
Generally, some of the previous studies proposed the improved version of optimization algorithm and tested in optimizing problems related to WSN while the others used the exact optimization algorithm to optimize a set of features that affect the network QoS. From the summarization of the state of the arts in Table 2, we can notice that the evaluation of end-to-end latency and end-to-end delay of the network are not highlighted in the previous studies. These features are very important in determining the QoS of any types of wireless networks. If the network end-to-end delay is increased, the dropped packets will be increased and the retransmission of these packets will consume more energy and time. Therefore, we are going to fill the gap of the previous studies by using a set of multi-objective optimization algorithm to optimize the end-to-end latency, end-to-end delay model, energy consumption model, and packet throughput model of the wireless network.

3. Multi-Objective Optimization Algorithms

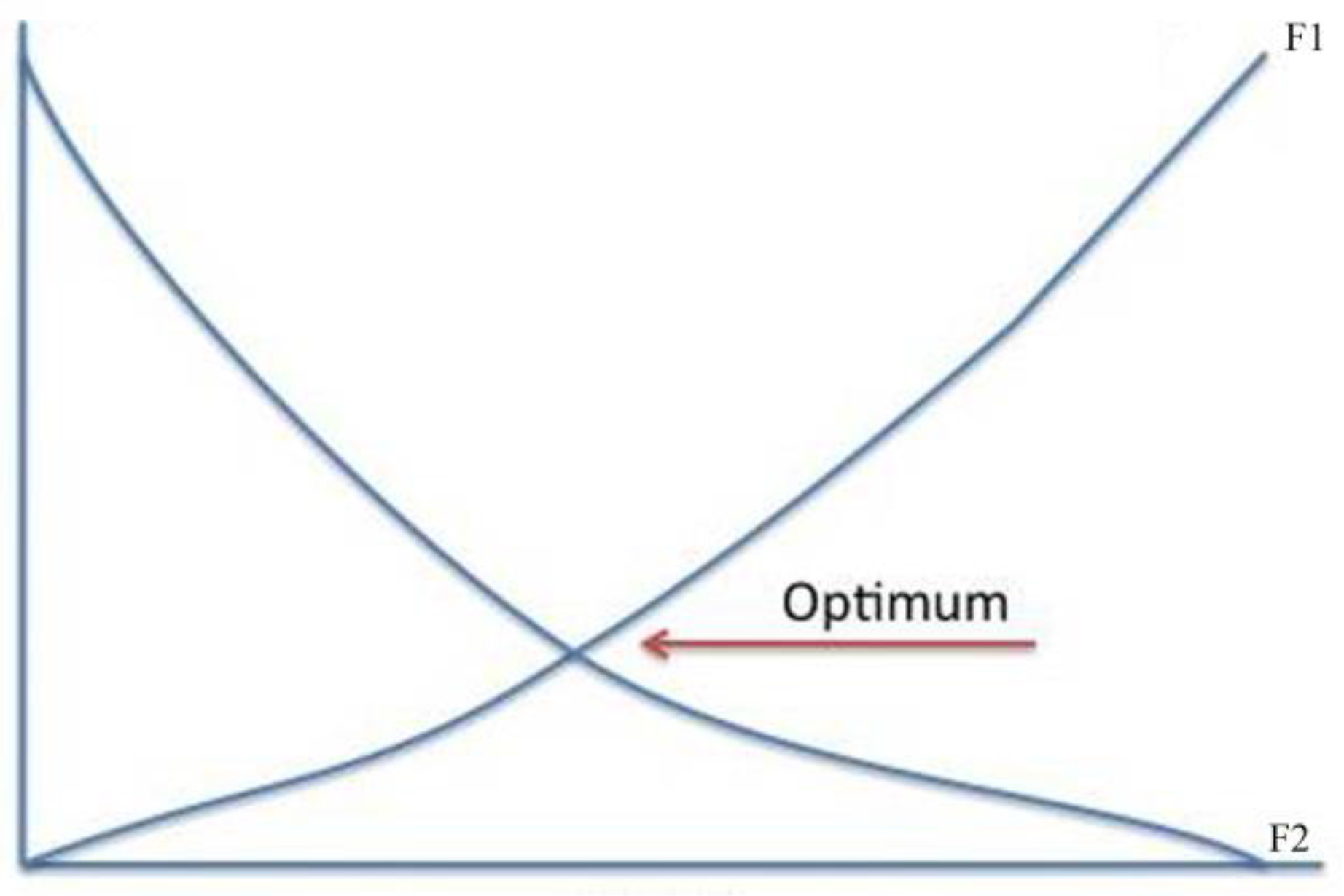

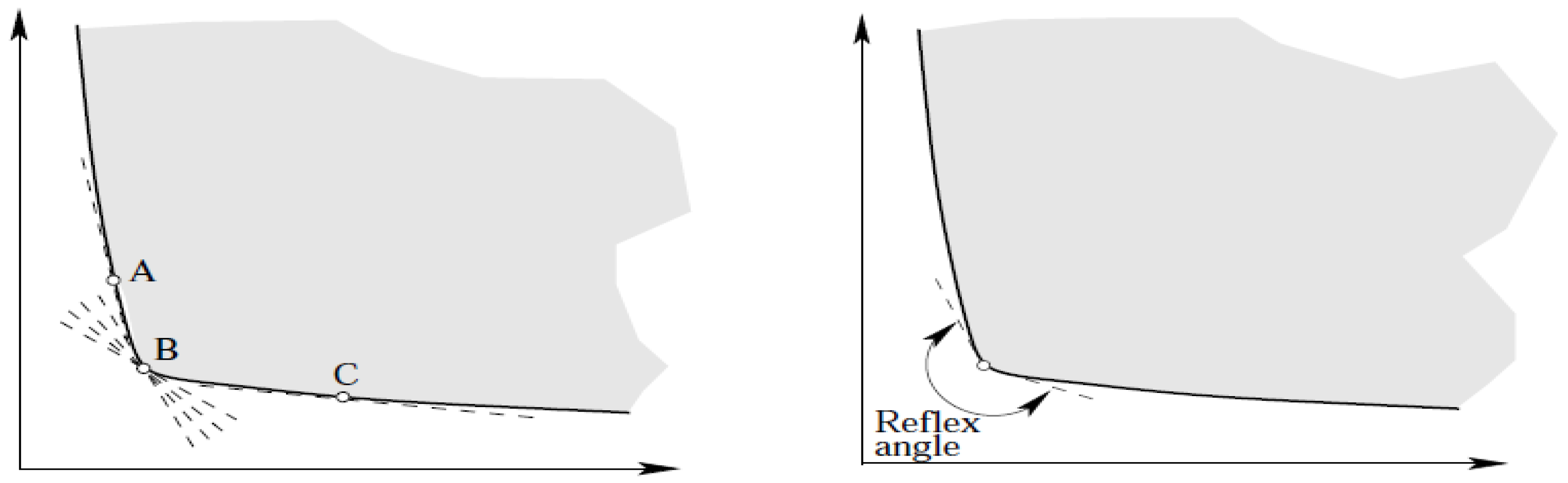

The aim of any multi-objective optimization algorithm is to search for a set of solutions that manages the trade-offs among a set of conflicting optimization features, such as minimization and maximization features [33]. In addition, multi-objective optimization algorithms help to determine an unconstrained maxima or minima, and the optimal solution of continuous or differentiable objective functions [34]. These algorithms use different strategies and techniques in finding the result. For instance, PSO algorithm proposed by Kennedy et al. [35], is based on social interaction and movement of a bird swarm in search for food. In each swarm, there is a bird called a leader, which gives orders to the other birds in the swarm to adjust their velocity and location. On the other hand, Genetic Algorithm (GA) is based on the Darwinian theory of evolution, which simulates the construction of chromosome and its evolution. Furthermore, it stimulates the natural process of selecting the most convenient chromosome from a wide set of populations to achieve the optimal solution for a wide variety of optimization problems [36]. The GA performs a set of natural operations, including, different types of natural selection, crossover, and mutation to create a better generation [36]. In a different view, our algorithm Sperm Swarm Optimization (SSO) algorithm is a novel single objective optimization algorithm developed based on a metaphor of a natural fertilization procedure, which simulates the motility of sperm swarm through the fertilization procedure [37]. SSO is inherently continuous technique of updating the position and velocity of each sperm on search space domain until reaching the optimal solution [19,37].
Due to the wide variety of optimization problems that need a solution at low cost in short time, many researchers have extended these algorithms to solve different kinds of multi-objective problem. Therefore, we propose to apply three optimization algorithms to determine the optimal solution of a set of features that affect the QoS of any WSN. These algorithms are OMOPSO [16], NSGA-II [17], and SPEA2 [18]. In addition, we use our multi-objective version of SSO algorithm, called MOSFP algorithm for this purpose [19]. The selection of these algorithms was not arbitrary, which study in [38] finds that OMOPSO is the most commonly use algorithm among the swarm intelligence algorithms. This is because OMOPSO has a higher quality of results and performance. Other studies in [15,39] show that both NSGA-II and SPEA2 are the most popular algorithms among the evolutionary algorithms. Accordingly, we chose these algorithms along with our algorithm (MOSFP) in this study. Furthermore, it is good to use more than one algorithm, which helps to confirm the optimal results of the proposed problem at the end of the test.
It should be noted that SSO, PSO and their extended versions such as MOSFP and OMOPSO are inherently continuous procedures, i.e., they use three steps to update the population until the maximum number of iterations is reached. First, the position and velocity of the population are generated. Second, the velocity is updated and finally, the position is updated. SPEA2 and NSGA-II (the extended version of GA) are inherently discrete procedures, which encode the population into 1’s and 0’s; therefore, it easily performs discrete design variables. In SPEA2 and NSGA-II, the procedures perform the natural selection, crossover, and mutation operation [40]. In OMOPSO, the new position of each individual is based on the past position, which the neighborhood and the global best position guide the search on the search space domain [16]. In MOSFP, the new position of each individual is based on the past position, which the global best solution (position of the winner) is used as a reference value for other members in the swarm to adjust their velocities on the search space domain [19]. In addition, we can notice that the genetic algorithms (i.e., GA, NSGA-II, and SPEA2) deal with each individual in the population independently, which perform ranking operation on solutions, after that, perform a selection operation to filter out the best solutions and eliminate the others. On the other hand, PSO and its extended version OMOPSO do not perform ranking and selection operations, which use the solution of swarm leader (best solution) to add it for other individual solutions. OMOPSO uses a set of mutation operations to increase the algorithm convergence such as uniform mutation and non-uniform mutation. In a different view, SSO and its extended version MOSFP use mutation operation to increase the algorithm convergence. However, they do not perform the GA operations such as crossover, ranking and selection operations, which use the best solution (the value of winner) as a reference value for other members in the swarm to adjust their velocities.
On the other hand, there are new types of optimization algorithms called a Memetic Algorithm (MA) or an advanced or Hybrid GA. This type of algorithm is inspired by Darwinian’s theory of natural evolution that simulates the construction of chromosome and its evolution as well as it uses Dawkin’s notion of a meme. Meme is considered as a unit of cultural evolution capable of individual learning. Through the algorithm evaluation, every meme earns some experience through a local search before going in to evolution of new generations. The Memetic Algorithms (MAs) use GA operations namely, ranking, natural selection, crossover, and mutation operations with the addition of local search [41,42]. The comparison between SSO, MOSFP, PSO, OMOPSO, GA, NSGA-II, SPEA2 and MA (Hybrid GA) are summarized in Table 3 [16,17,18,19,37,40,41,42,43].
(A) Optimized multi-Objective Particle Swarm Optimization (OMOPSO)

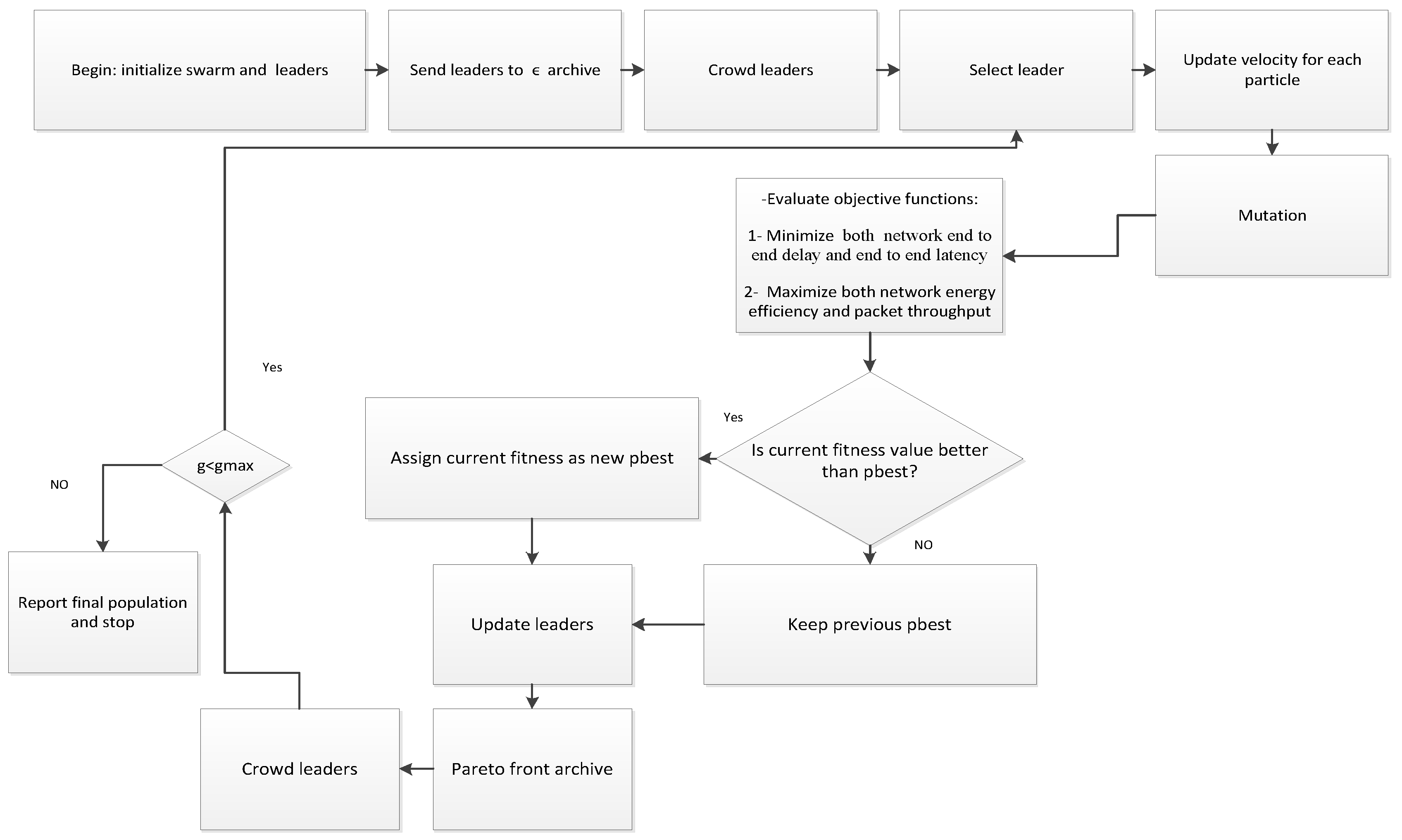

OMOPSO is one of the most popular algorithms in the area of multi-objective optimization that based on a set of operations such as crowding operation. Crowding operation is used to crowd the best global solutions that are known as leaders; archive operation, which is used to store the obtained best solutions; mutation operation, which is used to increase the coverage of the algorithm. The pseudo-code for this algorithm is summarized in Algorithm 1 [16].
Algorithm 1: Optimized Multi-Objective Particle Swarm Optimization (OMOPSO) [16]
1: Begin
2: Step 1: initialize swarm and leaders. Send leaders to ∈ −archive
3: Step 2: crowding(leaders), iteration (g = 0)
4: Step 3: while g < max number of iterations (gmax)
5: For <each particle> do
6: Select leader. Flight. Mutation. Evaluation. Update particle best value (pbest).
7: End for
8: Update leaders, Send leaders to ∈ −archive
9: Crowding (leaders), g++
10: End while
11: Step 4: Report results in ∈ −archive
12: End procedure
(B) Non-Dominated Sorting Genetic Algorithm (NSGA-II)

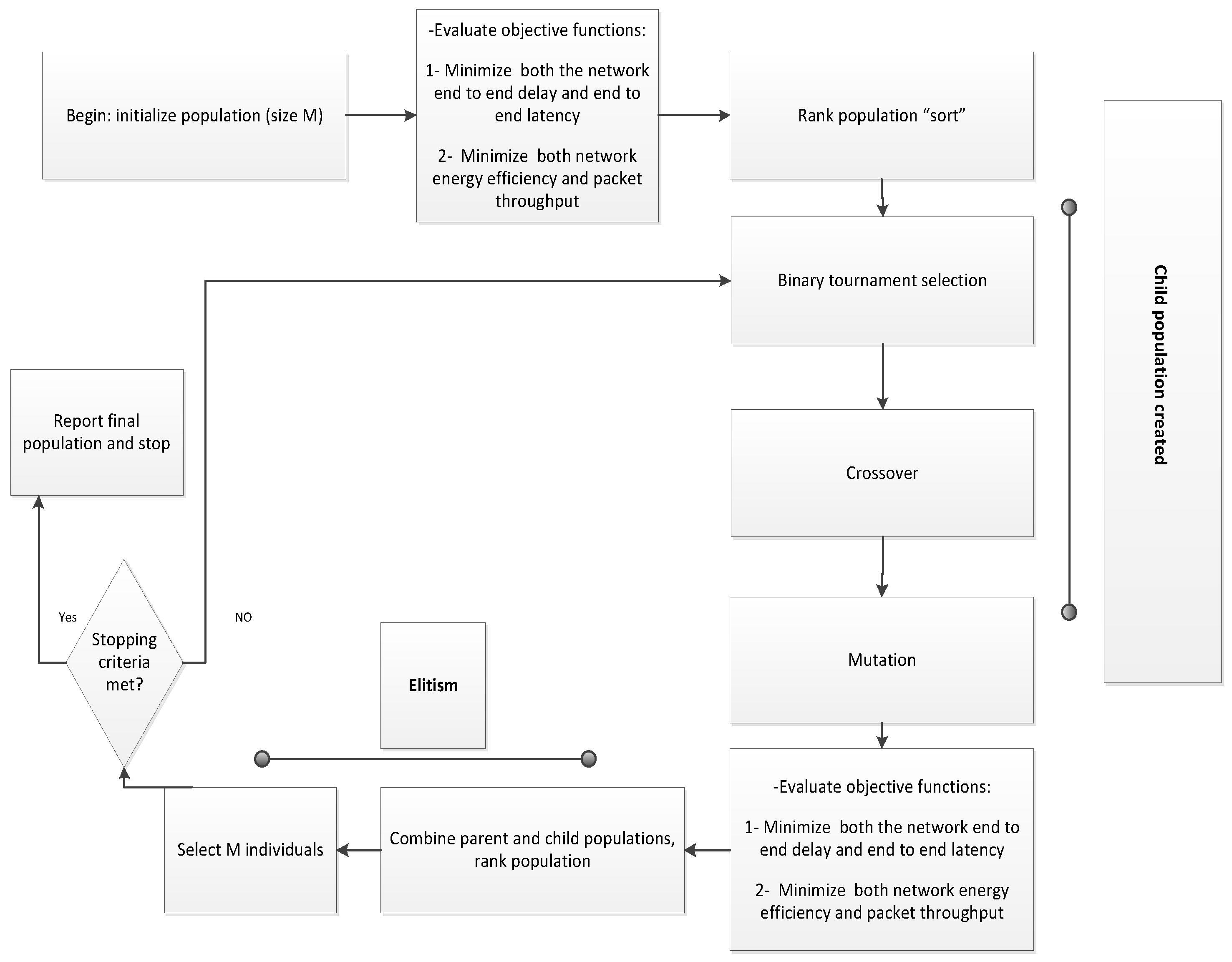

NSGA-II is a multi-objective version of the genetic algorithm [17] that performs a set of operation such as selection, mutation and classical crossover operation [44]. Algorithm 2 summarizes the pseudo-code of NSGA-II [45].
Algorithm 2: Non-dominated Sorting Genetic Algorithm (NSGA-II) [45]
1: Begin
2: Step 1: initialize Population
3: Generate random population—size M.
4: Step 2: evaluate objective values
5: Step 3: assign rank (level) based on Pareto dominance-“sort”
6: Step 4: generate child population
7: Step 5: binary tournament selection and crossover
8: Step 6: recombination and mutation
9: Step 7: for i = 1 to the number of generations do
10: With parent and child population
11: Assign rank (level) based on Pareto—“sort”
12: Generate sets on non-dominated fronts
13: Loop (inside) by adding solutions to next generation
14: Starting from the “first” front until M individuals found
15: Determine crowding distances between points on each front
16: Select points (elitist) on the lower front (with lower rank) and are outside a crowding
17: Distance
18: Create next generation
19: Binary tournament selection
20: Recombination and mutation
21: Increment generation index
22: End for
23: End procedure
(C) Strength Pareto Evolutionary Algorithm 2 (SPEA2)

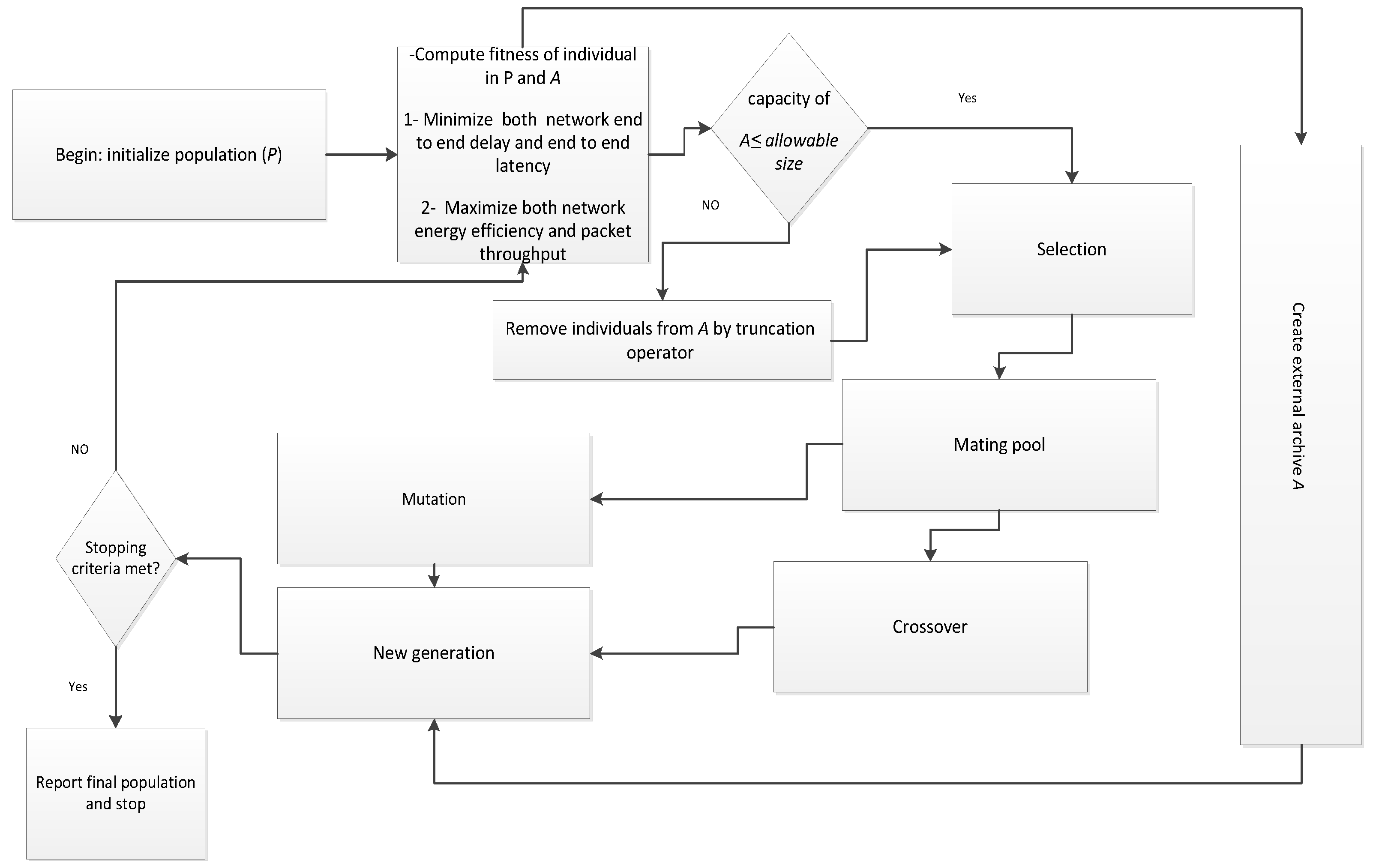

SPEA2 is a multi-objective optimization algorithm [18] and an improved version of SPEA algorithm [46]. Nearest neighbor technique is used to guide the search on a search space domain, which each individual in the population dominates or dominated by other solution. Furthermore, this algorithm uses the archive truncation procedure to maintain the obtained best solutions. The pseudo-code of this algorithm is summarized in Algorithm 3 [46].
Algorithm 3: Strength Pareto Evolutionary Algorithm 2 (SPEA2) [46]
1: Begin
2: Step 1: initialize population (P)
3: Step 2: evaluate objective functions
4: Step 3: create external archive (A)
5: Step 4: for i = 1 to the number of generations do
6: Compute fitness of individual in P and A
7: Add non-dominated individuals from P and A
8: If capacity of A is exceeded than allowable size then
9: Remove individuals from A by truncation operator
10: End if
11: Perform binary tournament selection to create mating pool
12: Perform crossover
13: Perform mutation
14: End for
15: End procedure
(D) Multi-Objective Optimization Algorithm Based on Sperm Fertilization Procedure (MOSFP)
MOSFP algorithm is our algorithm proposed in [19] that simulates sperm swarm motility when they fertilize the egg. This algorithm is a multi-objective version of SSO algorithm that proposed in [37]. MOSFP algorithm performs a set of operations to find a solution for multi-objective optimization problems. These operations are crowding, which is used to crowd the global best solutions that are known as winners, mutation, which divides the swarm into three equal parts, after that, performs uniform mutation on the first part and non-uniform mutation on the second part, and also it does not apply any mutation on the third part of the swarm. At the end, it performs archive on the winners. Algorithm 4 summarizes MOSFP procedure. In addition, Algorithm 5 summarizes the mutation part of MOSFP algorithm [19]. Appendix A demonstrates how the MOSFP algorithm works.
Algorithm 4: Multi-objective Optimization Algorithm based on Sperm Fertilization Procedure (MOSFP) [19]
1: Begin
2: Step 1: initialize positions for all sperms.
3: Step 2: initialize Winners.
4: Step 2: archive the Winners in ∈ −archive
5: Step 3: crowd the winners using crowding operation.
6: Step 4: define counter (i) and define number of maximum iterations (iMax).
7: Step 5: do//this do is a do—while
8: For <each sperm> do
9: Select winner from the sperm swarm
10: Update sperms positions using the predefined sperm velocity update rule (perform swim)
11: Perform mutation procedure (Algorithm 5)
12: Evaluate the fitness for each sperm
13: Update personal sperm current best solution
14: End if
15: Update Set of Winners (SoW)
16: Archive winner in ∈ −archive
17: Crowd the SoW using crowding operation
18: Update value of counter (i)
19: Step 6: while i < iMax
20: Step 7: archive results in ∈ −archive
21: End procedure
Algorithm 5: Mutation
1: Begin
2: Step 1: for i = 0 to population size do
3: If (i % 3 = = 0) then
4: Sperms_ mutated with a non-uniform mutation operator
5: Else if (i % 3 = = 1) then
6: Sperms_ mutated with a uniform mutation operator
7: Else
8: Sperms_ without mutation
9: End if
10: End for
11: End procedure
We have standardized all the symbols and the naming convention throughout the manuscript, which the abbreviation of these algorithms and their pseudocodes are kept as their resources [16,19,45,46] without any changes. The abbreviations of previous mentioned algorithms are summarized in the following Table 4:

The Crossover and Mutation of Algorithms

Based on the previous pseudocodes of the aforementioned algorithms, we can notice that NSGA-II and SPEA2 use both crossover and mutation operations while OMOPSO and MOSFP use different types of mutation operations. In this section, we review these operations based on the JMetal tool [47]. JMetal tool is considered as one of the most popular tool in the area of optimization, which contains many types of single-objective and multi-objective optimization algorithms.
Crossover operator is a genetic operator that changes a chromosome from one generation to the next to produce new results. NSGA-II and SPEA2 use Simulated Binary Crossover (SBX) [48]. The SBX of chromosome (X) can be calculated by:
{ Y 1 = 0.5 [ ( 1 β ) X 1 + ( 1 + β ) X 2 , Y 2 = 0.5 [ ( 1 + β ) X 1 + ( 1 β ) X 2 ,
where β is a random variable in the range of 0 and 1. X is the value of chromosome while Y is the value of chromosome after the crossover. The probability distribution of variable β can be calculated by:
{ P ( β ) = 0.5 ( η c + 1 ) β η c , 0 β 1 , p ( β ) = 0.5 ( η c + 1 ) 1 β η c + 2 , β > 1 ,
where ηc is the distribution index.
Mutation operator is any changes on the variable or gene of a chromosome that can produce better value. NSGA-II and SPEA2 use a polynomial mutation, while MOSFP and OMOPSO use uniform and non-uniform mutation.
(a) Polynomial mutation: this mutation is proposed by Deb et al. [49]. This mutation can be summarized via the following equation:
p = { p + δ L ( p x i , j ( L ) ) , f o r : u 0.5 , p + δ R ( x i , j ( U ) p ) , f o r : u > 0.5 ,
where p is the parent solution p ∈ [x(U),x(L)], where x(L) is the lower bound value, while x(U) is the upper bound value of a variable. The (U) symbol is a random number in the range of 0 and 1. The two parameters δL and δR are calculated as follows [49]:
{ δ L = ( 2 u ) 1 / ( 1 + n m ) 1 , f o r : u 0.5 , δ R = 1 ( 2 ( 1 u ) ) 1 / ( 1 + n m ) , f o r : u > 0.5 ,
The parent point p = 3.0 in a bounded range of 1 and 8 with nm = 20.
(b) Uniform mutation of value x used in MOSFP and OMOPSO can be summarized in the following equation [50]:
x i , j = x i , j ( L ) + u ( x i , j ( U ) x i , j ( L ) ) ,
where, xi,j is the position of sperm or particle, x(L) is the lower bound value, x(U) is the upper bound value of sperm or particle and (U) is a random number in the range of 0 and 1.
(c) Non-uniform mutation of value xi,j use in MOSFP and OMOPSO can be summarized in the following equation [51]:
x i , j = { x i , j + Δ ( t , x ( U ) x i , j ) , i f : u = 0 , x i , j + Δ ( t , x i , j x ( L ) ) , i f : u = 1 ,
where, x(L) is the lower bound value, x(U) is the upper bound value of sperm or particle, (u) is a random number in the range of 0 and 1. The function Δ(t,y) can be calculated as follows [51]:
Δ ( t , y ) = y ( 1 u ( 1 t T ) z ) ,
where, y is a variable with two cases; case 1 is the (x(U)xi,j); case 2 is the (xi,j x(L)), (U) is a random number in the range of 0 and 1, T is the maximum number of generations and (z) is a system parameter determining the degree of dependency on the iteration number.

4. Quality of Service Features of WSNs

This section describes important features that can be used to evaluate the quality of WSN communication links. These features are end-to-end delay, end-to-end latency, packet throughput, and energy efficiency.

4.1. End-to-End Delay Feature

This feature measures the time required to successfully transfer the data packet from the sensor node to sink node, including, the transmission time of packet (Tpacket), inter-frame space-time (TIFS), backoff time (Tbo), turnaround time of transceiver’s (TTA), and acknowledgment of receipt time (TACK). The end-to-end delay (Tl) can be expressed by the following formula [20]:
T l = T p a c k e t + T I F S + T b o + T T A + T A C K ,
Tpacket is a transmission time that is required for any data packet to reach the destination. It can be defined as follows:
T p a c k e t = L P H Y + L M H R + p a y l o a d + L M F R R d a t a ,
where:
  • LPHY is the size of physical header in byte;
  • LMHR is the size of MAC header in byte;
  • payload is the size of data in the packet in byte;
  • LMFR is the size of MAC footer in byte;
  • Rdata is the data transmission rate.
The second equation that should be defined is a backoff periods for the node that wants to transmit the data packet through the network. This can be calculated by determining the probability of any node (ps) of accessing the medium in a successful way. ps can be calculated by the following formula:
P s = a = 1 a = b P c ( 1 P c ) ( a 1 ) ,
where, pc is the assessment probability of the ideal channel that achieves by any node at the end of any backoff period while b is the maximum number of backoff periods. pc can be calculated by the following equation:
P c = ( 1 q ) n 1 ,
where, q is the transmit probability at any time that achieves by any node and n is the number of devices that operate on the network. The average of backoff periods (R) can be expressed as:
R = ( 1 P s ) b + a = 1 a = b a P c ( 1 P c ) ( a 1 ) ,
Hence, the total of backoff time (Tbo), can be calculated as:
T b o = F r a c t i o n a l P a r t [ R ] T b o p ( I n t e g e r P a r t [ R ] + 1 ) + a = 1 a = I n t e g e r P a r t [ R ] T b o p ( a ) ,
where, Tbop is the average backoff period, which can be calculated as:
T b o p ( a ) = 2 m a c M i n B e + a 1 1 R d a t a T b o s l o t ,
m a c M i n B e is the initial value of backoff, and Tboslot is the backoff time at one slot duration. For IEEE 802.15.4\Zigbee, one-slot-duration is equal to the duration of 20 symbols.

4.2. End-to-End Latency Feature

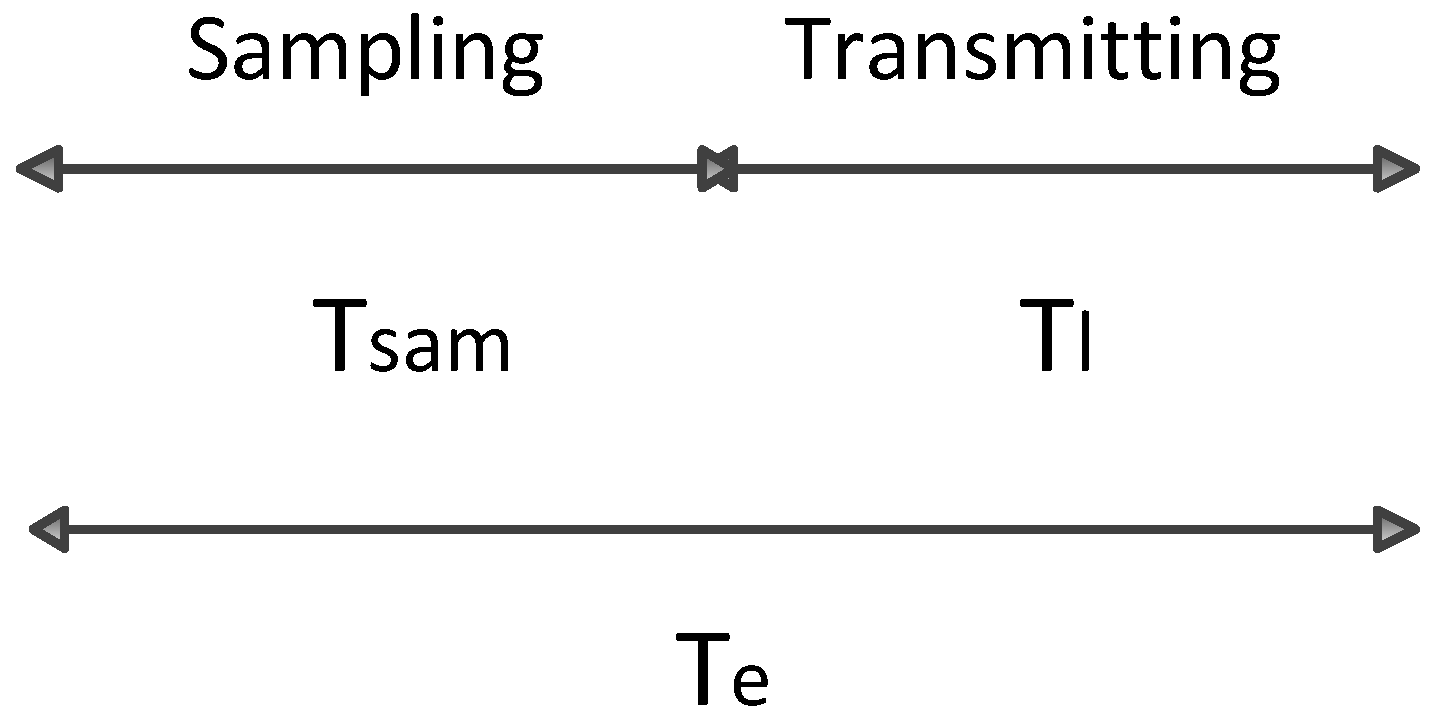

The output of any sensor node is typically an analog signal, which the sensor node digitizes the data and stores it in the buffer (memory) of a sensor node, and after that, these data will be packetized and transmitted periodically. The sampling cycle and transmitting cycle of the wireless sensor are depicted in Figure 2 [52]. The amount of time between the data packet is generated at the node and the packet is received by the coordinator node refers to the concept of end-to-end latency (Te). Te can be defined in the following equation [52]:
T e = T s a m + T l ,
where Tsam is the sampling time, which refers to the amount of time that sensor node samples the signal until the number of samples reaches a certain size, and Tl is the end-to-end delay. The parameters of Te are dependent on the parameters of end-to-end delay model. The results of end-to-end delay feature will play a significant role in determining the results of the Te feature.
The sampling time of IEEE 802.15.4 standard can be given as follows:
T s a m = p a y l o a d S a m p l i n g r a t e ,

4.3. Energy Efficiency Feature

The energy efficiency (η) feature is very important in estimating the lifetime of any type of network, especially for the networks that operate using batteries such as WSNs. This feature should be maximized to increase the QoS of the network. The energy efficiency feature is affected by two factors namely, packet payload length and packet error rate. This model is written as Equation (17) [53]:
η = E c p a y l o a d E c ( p a y l o a d + h ( L M H R + L M A C ) ) + E s ( 1 P E R ) ,
where,
  • Ec is the energy consumption through the communication;
  • Es is the energy consumption in start-up mode;
  • payload is the size of data in the packet in byte;
  • h(LMHR + LMAC) is the packet header length, which is the summation of both LPHY and LMHR. LPHY is the size of physical header in byte while LMHR is the size of MAC header in byte;
  • PER is the Packet Error Rate.

4.4. Network Throughput Feature

Network throughput (utput) is the rate of successful data packets that are transmitted over the communication medium. utput is very important to determine the QoS of any network, as in case of the utput increases, the network efficiency will be increased. This feature is affected by two factors, including packet payload length and packet error rate. The utput is given as follows [53]:
u t p u t = p a y l o a d ( 1 P E R ) T f l o w ,
where, payload is the size of data in the packet in byte, Tflow is the transmission latency, while the PER is the Packet Error Rate that can be calculated by the following equation [54]:
P E R = 1 ( 1 B E R ) ( L e n g t h o f p a c k e t i n b i t s ) ,
where, BER is the Bit Error Rate

5. Case Study

A smart grid [55] is considered in this paper as a case study. The smart grid is mostly considered to be the modern generation electricity grid [55]. This grid will be integrated with a wide variety of technologies allowing information technology to spread in the areas of broadband wireless communication, embedded sensing, adaptive control, and pervasive computing, to significantly improve the performance, stability, sustainability, and security of the electrical grid.

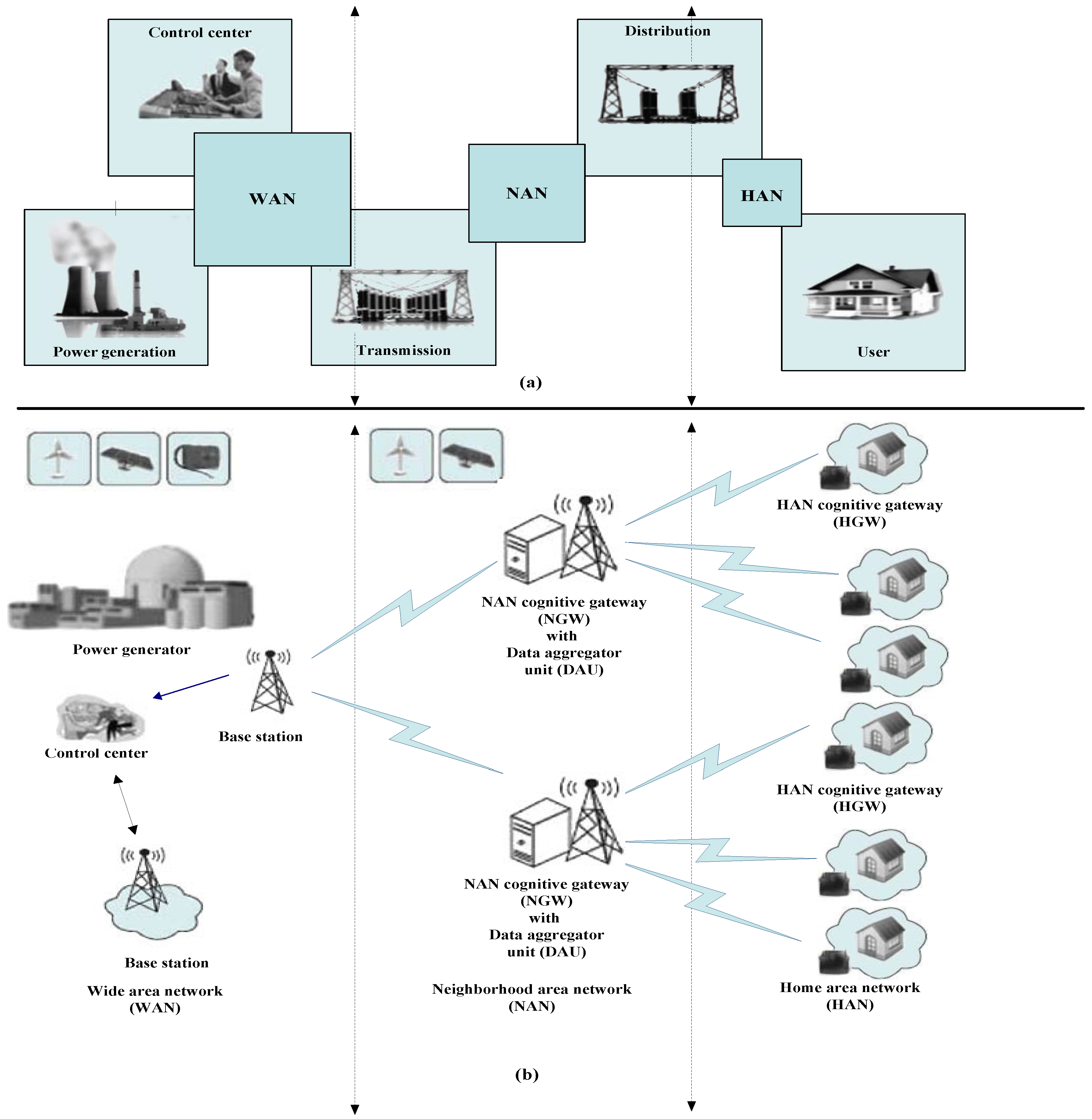

The communication infrastructure of the smart grid provides three fundamental functionalities, including, sensing, transmitting, and monitoring for control. The sensing functionality is carried out by different types of embedded sensors and smart meters to detect the status of different areas of the grid in a real-time manner. The smart grid should support the two-way data transmission links between the control centers and the sensors [56]. Control instructions are transmitted from/to sensors or smart meters fixed in different places to support reliable and stable access to grid components and also to guarantee the high-performance operations of the smart grid. To fulfill these issues, smart grid infrastructure consists of three parts different in their location and size [57]. These parts can be summarized in the following points:
(a)
Home Area Network (HAN): The HAN uses a local area wireless or short-range communication to support real-time data transmission of a smart meter, power load control, and dynamic pricing by connecting different kinds of devices with actuators, sensors, in-home display, and smart meter. Wireless technologies are the suitable choices for HANs because of their flexibility, high performance of control, and low installation cost. An example of this technology is ZigBee, which is a suitable for HANs due to high interoperability [58,59]. HAN gateway is used to transmit data to an external entity such as Data Aggregator Unit (DAU). DAU is used to collect the smart meters’ data and transfer these data to control center. The HAN gateway can be standalone within home devices (e.g., programmable thermostat or in-home display) or alternatively integrated with HAN smart meter.
(b)
Neighborhood Area Network (NAN): The NAN connects a set of HANs together and also connects HANs with the control center. As shown in Figure 3b the mission of the HAN gateway is to send meter data to a DAU through the NAN. The DAU communicates with the HAN gateway using network technologies such as 801.11 s, RF mesh, WiMAX, 3G, 4G, and LTE. DAU can operate as a NAN gateway to transfer the collected data to a Meter Data Management System (MDMS), which is a control center used to collect data, process the meter power consumption data, store these data, generate a report about power generation, and manage the place of power distribution [58,60].
(c)
Wide Area Network (WAN): The WAN connects remote systems together in a smart grid. Examples of these systems are MDMS, Advanced Metering Infrastructure (AMI), which is used to aggregate the data from the smart meter, and Synchronous Optical Network (SONET). The Wide-Area Measurement System (WAMS) in a WAN is responsible to manage the transmission and aggregate data for control purposes and power load measurement. The WAN supports a backhaul connection among distributed subsystems, power generators, customer premises, and the public utility. In this case, the backhaul can support different kinds of technologies (e.g., broadband wireless access or cellular network) to transmit the meter data from a NAN to the DAU, after that, from the DAU to MDMS at local offices. A WAN gateway supports broadband connection such as WiMAX, satellite, and 3G to collect the required data [58,61].
A smart grid uses a hierarchical communications infrastructure to increase the performance of the network. However, smart grids have as a main challenge the increasing number of smart meters [62]. This increases the network delay, especially in crowded cities. For this reason, in this paper, we are going to minimize the end-to-end delay of WSN to increase its QoS. The hierarchical communications infrastructure of the smart grid is shown in Figure 3 [63].
Table 5 summarizes the smart grid characteristics based on hierarchical communications infrastructure [63,64]. Based on these features, we can notice that HAN is the only part of the smart grid that used the short-range communication protocols such as IEEE 802.15.4/ZigBee. The features of IEEE 802.15.4 are summarized in the following subsections.

IEEE 802.15.4 Protocol

IEEE 802.15.4/ZigBee standard is a modern wireless communication protocol. This protocol has a set of features that make it convenient to use with smart grid, including cheap price, low power consumption, low complexity, and good data rate. This protocol supports Carrier Sense Multiple Access (CSMA), which is used to access the medium with no collision. IEEE 802.15.4/ZigBee standard can be operated on various license-free frequency bands. These bands support different numbers of channels, data transmission rate, and different frequency ranges [64]. The available radio frequency bands that are supported by IEEE 802.15.4/ZigBee standard [65] are summarized in Table 6 along with their characteristics. In this work, we choose the 2.4 GHz band because it can operate on 16 channels with a higher data transmission rate equal to 250 Kbps, and very important thing; this band is allowed to be applied in Asia [66,67].
Different types of network topologies can be supported by IEEE 802.15.4/ZigBee such as star topology, peer to peer (mesh topology), and cluster tree topology [68]. The data frame structure that is supported by IEEE 802.15.4/ZigBee is summarized in Table 7. This structure consists of four parts including, MAC command frame, data frame, beacon frame, and acknowledgment frame. Based on Table 7, the MAC packet size that is supported by IEEE 802.15.4/ZigBee is equal to 127 bytes. In addition, 114 bytes are the maximum packet payload size that is supported by IEEE 802.15.4/ZigBee [53].

6. Methodology and Experimental Setup

In this section, we focus on the HAN part of the smart grid. This part consists of IEEE 802.15.4/ZigBee smart sensors that embedded in different types of home appliances. These sensors operate based on MicaZ platform [69]. The characteristics of MicaZ platform are summarized in Table 8 [70].
The MicaZ platform is a good choice for the smart grid because it operates with low power consumption, works on the license-free band (ISM band), and covers up to 30 m of home or building area. However, this platform has limited energy resource, which operates based on 2× AA batteries. The misuse of the devices will deplete the battery power and decrease the node lifetime. On the other hand, the network delay will be increased with an increasing number of smart meters in HANs, especially in crowded cities. Therefore, if the delay increases, the number of dropped packets will be increased and retransmitting the dropped packets will consume more power and time. Therefore, we used four algorithms namely, the MOSFP, OMOPSO, NSGA-II, and SPEA2 algorithms, to maximize both the network energy efficiency and network throughput; in particular we use these algorithms to minimize both the network end-to-end delay and end-to-end latency.
We assume that the smart home consists of four sensors embedded in four appliances such as a smart refrigerator, smart light and air conditioner controller, smart washing machine and smart TV. These sensors operate over the 2.4 GHz ISM band to communicate with a smart home gateway that is integrated with the smart meter using a star topology. The proposed network is depicted in Figure 4. These sensors consume 8 mA in start-up mode and 19.7 mA when the sensor is in communication mode [70]. 802.15.4/ZigBee can support a low sampling rate from 0 to 250 Hz [71]. This can satisfy the requirements of the smart grid. The BER in normal status has a value of 0.0004 [72]. By knowing these values and the other values such as the IEEE 802.15.4 physical and MAC headers, we can measure the objective functions (Equations from (8) to (19)). We focused on minimizing both the network end-to-end delay and end-to-end latency and also maximizing both network energy efficiency and packet throughput by changing the packet payload size. Packet payload size plays a significant role in determining the optimal value of these features, which if the packet payload size increases, the network delay will be increased and the energy efficiency will be decreased.
We compile the JMetal 4.5 tool in NetBeans IDE 8.0.2 by using the Java version. The test environment is a 3 GB RAM, Intel dual-core CPU-T3200, running Windows 7. Table 9 summarizes the parameters of all the optimization algorithms that are used in this study. Most of these parameters and settings are assigned as recommended in [15,53]. On the other hand, Table 10 summarizes the parameters needed to evaluate the network modelling part. The procedure of maximizing both network energy efficiency and packet throughput, and minimizing both the network end-to-end delay and end-to-end latency are summarized for each algorithm in Figure 5, Figure 6, Figure 7 and Figure 8.
The procedure of OMOPSO, summarized in Figure 5, begins by initializing the parameter of packet payload size that varies from 0 to 114 bytes based on the IEEE 802.15.4 data frame. After that, the algorithm performs the archive on the leaders and crowding operator on the elected leaders. The algorithm checks the state of the size of the leaders in which, if their size greater than the required size, the algorithm keeps the best leaders and eliminates the others. Hence, the velocity update rule comes to take place on the procedure, where is applied to each member of the population, after that, it performs the mutation operation. Moreover, the algorithm evaluates the objective functions (Equations from (8) to (19)), which uses the population members to minimize both the network end-to-end delay and end-to-end latency and also to maximize both energy efficiency and network throughput. In addition, the algorithm compares the new fitness of each individual with its old fitness value. The algorithm stores the new fitness just in case of the new one is better than the old. Then, the algorithm updates the leaders of the new generation of the population follows by archiving and crowding operators on the leaders. Finally, the algorithm checks the number of iterations. If the maximum generations (the value of 250 generations as in Table 9) is reached the algorithm will terminate, otherwise, the algorithm will repeat the past steps.
The procedure of NSGA-II, depicted in Figure 6, begins by initializing the packet payload size parameter. The lower limit and upper limit of this parameter are 0 byte and 114 bytes based on the IEEE 802.15.4 data frame, respectively. Based on the first population of this parameter, the algorithm evaluates the objective functions (Equations from (8) to (19)), which minimizes both the network end-to-end delay and end-to-end latency, and also maximizes both power efficiency, and network throughput. Moreover, the algorithm ranks the population based on non-dominated solutions and performs selection, crossover, and mutation operations to generate new population (child population). Based on the results of the previous steps, the algorithm uses the child population to evaluate the same objective functions. After that, the algorithm combines the child population with the old population. Later, it ranks the produced populations from the best to worst results. At the end, the algorithm checks on the number of iterations, in case it more than the maximum number of iterations (the value of 250 generations as in Table 9), the algorithm will terminate.
Based on Figure 7, we can summarize the procedure of SPEA2 as follows: the algorithm begins the procedure by initializing the packet payload value, which is varied in the range of 0 to 114 bytes based on the IEEE 802.15.4 data frame. After that, SPEA2 uses the first population to evaluate the objective functions to minimize the network end-to-end delay and end-to-end latency and also maximize the network throughput and energy efficiency. Hence, the algorithm uses the values of the fitness function to perform the selection operator. After selection, the algorithm generates the mating pool. This pool is a set of population that both mutation and crossover operations are applied on them in order to generate a new population.
At the end, the algorithm checks the number of iterations, which in case it reaches the maximum generations (the value of 250 generations as in Table 9), the algorithm will terminate, and else, the algorithm will repeat the previous steps.
Like OMOPSO, NSGA-II and SPEA2, MOSFP begins the procedure by initializing the packet payload size parameter, which is varied in the range of 0 to 114 bytes based on the IEEE 802.15.4 data frame (see Figure 8). After that, the algorithm archives the required number of winners. Then, it groups the winners based on the crowding operation. In the case of the size of the winners is greater than the defined maximum size of winners, the algorithm keeps the best winners and eliminates the other winners. Hence, it applies the velocity update rule on each individual of the population. In addition, it performs mutation to prepare the population for evaluation. In the evaluation part, MOSFP uses the population to minimize both the end-to-end delay and end-to-end latency of the network and to maximize both the energy efficiency and packet throughput. The algorithm changes the fitness value of each individual just in the case of the new fitness value of the individual is better than the old one. Later on, the algorithm updates the set of winners, after that, it performs archiving and crowding operators on the winners. At the end, if the number of maximum generations is not reached (the value of 250 generations as in Table 9), the algorithm will repeat the prior steps, else, the algorithm will terminate.

7. Experimentation and Results

In this study, the experimental results are analyzed in two ways. First, the outcomes from each algorithm for four objective functions based on ten runs are analyzed using one-way ANOVA (Tukey’s test). In this test, the mean difference between the algorithms is significant if the p-value is smaller than 0.05.
Second, the Pareto front set that obtained by the four algorithms is analyzed for the four objective functions. The Pareto front is very important to illustrate the trade-offs between a set of optimization functions (objective functions). From the Pareto observation, we can know the optimal value of packet payload size that achieves the optimal values for a set of conflict objective functions.

7.1. Comparisons between the Four Algorithms Using Statistical Analysis

Table 11 summarizes the objective functions, namely, energy efficiency, packet throughput, end-to-end delay and end-to-end latency, from ten runs for each algorithm. The statistical analysis using one-way ANOVA (Tukey’s test) outlined in Table 12 shows that MOSFP significantly outperforms SPEA2 in which, MOSFP substantially increase the energy efficiency (0.116, p ≤ 0.001) and packet throughput (0.394, p ≤ 0.001), and decrease the end-to-end delay (−0.265, p ≤ 0.001) and end-to-end latency (−2.718, p ≤ 0.001) compared to SPEA2. These mean differences also represent that MOSFP outperforms SPEA2 by 41%, 99%, 24% and 41% in term of energy efficiency, packet throughput, end-to-end delay and end-to-end latency respectively. However, no significant mean difference is observed between MOSFP and the rest of the algorithms i.e., OMOPSO and NSGA-II for all objective functions. This indicates that MOSFP outperforms OMOPSO and NSGA-II with a small mean difference between them in the range of 2% to 9%.
Another aspect that will be highlighted in this sub-section is the consistency of the algorithm to perform between runs. A more stable algorithm will result in a smaller standard deviation of the objective function. From the experiments, SPEA2 has results in a more consistent performance for three objective functions between runs among the algorithms. The standard deviations of SPEA2 are approximately 3%, 23% and 7% much smaller compared to others for energy efficiency, packet throughput, and end-to-end delay respectively. In end-to-end latency, MOSFP has shown a more consistent performance where its standard deviations are 8%, 4% and 3% smaller than SPEA2, OMOPSO and NSGA-II, respectively.
Overall, the MOSFP algorithm obtained the best average of all objective functions while the OMOPSO algorithm is in the second, followed by NSGA-II and SPEA2. In terms of performance consistency, the SPEA2 results are shown to be more consistent in energy efficiency, packet throughput, and end-to-end delay whereas MOSFP is shown to be more consistent in end-to-end latency.

7.2. Analysis of Pareto-Optimal Set of the Four Algorithms

As we introduced previously, the multi-objective optimization problems are a set of conflict optimization objective functions that consist of minimization and maximization functions. Pareto optimality concept is emerged to manage the trade-offs between these objectives. This concept is proposed by Vilfredo Pareto in 1906 [73]. Pareto optimality operates mainly based on the Pareto front set, which is used to balance the conflict objective functions. Based on the Pareto front of each objective function, two concepts should be defined as follows:
(a)
The Marginal concept of optimality: the optimal value based on this concept can be illustrated by the intersection points between a set of objective functions, which some of them minimization and the others are maximization [74]. Figure 9 presents the optimum value based on the intersection between two objective functions [75].
(b)
The knee point: is a point on the Pareto front curve, which is referred to the most preferred solution. Knee point can be estimated by determining the greatest reflex angle that bends of the front from its left to its right or vice-versa. Based on Figure 10 [76], three points called A, B, and C are used to illustrate the knee point concept. The B point is considered as the knee point, which makes the greatest reflex angle between C point on the right side of the front and the A point on the left side of the front.
Figure 11, Figure 12, Figure 13 and Figure 14 show a sample of optimizing the four objective functions denoted by maximizing both energy efficiency and packet throughput and also minimizing both end-to-end delay and end-to-end latency using four algorithms. These algorithms are MOSFP, OMOPSO, NSGA-II, and SPEA2. From the results, the value of end-to-end latency decreases sharply and end-to-end delay decreases slightly until the value of packet payload size reaches 45 bytes, after that, both of them stabilize below 2 when the packet payload size is beyond 45 bytes. On the other hand, the packet throughput increases slightly until the value of packet payload size reaches 45 bytes, after that, it increases dramatically until the value of packet payload size reaches 114 bytes. Furthermore, the energy efficiency increases slightly until the value of packet payload size reaches 45 bytes, after that, it stabilizes above the 0.5 when the packet payload size increases more than 45 bytes. From the figures, we can notice that the optimum points are represented by different colors (i.e., green, red, yellow and blue), which are the intersection points of all the objective functions. These points are created when the packet payload size equal to 45 bytes.
Figure 15 presents the Pareto optimal front obtained from all the algorithms at the end of 250 generations where f1 represents the end-to-end delay, f2 represents the end-to-end latency, f3 represents the network throughput, and f4 represents the energy efficiency. Both MOSFP and OMOPSO produce 19 non-dominated solutions related to the Pareto front, while both NSGA-II and SPEA2 produce 18 non-dominated solutions for the same objective functions. This proves the ability of MOSFP which obtained 19 values of getting good results, compared to SPEA2 and NSGA-II. In addition, MOSFP has the best spread and distribution of solutions related to the true Pareto front while the OMOPSO is in the second followed by NSGA-II and SPEA2 as outlined in Figure 15.
Based on Figure 7, we can summarize the procedure of SPEA2 as follows: the algorithm begins the procedure by initializing the packet payload value, which is varied in the range of 0 to 114 bytes based on the IEEE 802.15.4 data frame. After that, SPEA2 uses the first population to evaluate the objective functions to minimize the network end-to-end delay and end-to-end latency and also maximize the network throughput and energy efficiency. Hence, the algorithm uses the values of the fitness function to perform the selection operator. After selection, the algorithm generates the mating pool. This pool is a set of population that both mutation and crossover operations are applied on them in order to generate a new population.

8. Conclusions

In this paper, we study the problems of smart grid applications, especially in HANs, which utilize a wide variety of sensor-based devices that operate using short-range communication technologies such as IEEE 802.15.4. In addition, these sensors operate using batteries. The misuse of these devices will decrease the lifetime of the network and lead to a rapid node death. For this reason, this paper uses a theoretical analysis to mitigate these problems using our proposed algorithm (MOSFP) along with three well-known algorithms in the multi-objective optimization field, namely OMOPSO, NSGA-II, and SPEA2. These algorithms have been used to optimize four network features that are used to evaluate the QoS of the network. These features consist of network end-to-end delay, end-to-end latency, network throughput, and energy efficiency. The parameter of a physical layer such as packet payload size is considered to maximize both network throughput and energy efficiency, and also to minimize both the network end-to-end delay and end-to-end latency. The results have been reported using two different ways. In a first way, the statistical analysis of one-way ANOVA (Tukey’s test) between the algorithms is conducted for each objective function based on ten-time runs. In a second way, a sample of the Pareto-optimal set of each algorithm has been analyzed using the knee point and intersection point concepts.
The mean difference from one-way ANOVA (Tukey’s test) indicates that our algorithm (MOSFP) significantly outperformed SPEA2 in optimizing the proposed features while no significant mean difference is observed between MOSFP and, OMOPSO and NSGA-II. However, the overall performance of MOSFP outperformed OMOPSO, NSGA-II and SPEA2 by 3%, 6% and 51%, respectively. Furthermore, MOSFP found the best average value of energy efficiency feature compared with the other algorithms, which is very important to increase the lifetime of the network. In the second test, the Pareto front results illustrated that MOSFP algorithm, which has a good spread and approximation of the true Pareto front of the proposed network features, outperformed the other algorithms. This is very clear with the Pareto front of MOSFP in Figure 15, which obtained on 19 non-dominated solutions related to Pareto front rather than NSGA-II, and SPEA2. Furthermore, we can notice that MOSFP has the best spread and distribution of solutions related to the true Pareto front while the OMOPSO is in the second, followed by NSGA-II and SPEA2, as summarized in Figure 15. Overall, the knee point and the intersection point of all the Pareto-optimal sets for all the algorithms illustrated that the optimal value of packet payload size is equal to 45 bytes, a value which manages a trade-off between the maximization and minimization objective functions. This paper takes the smart grid as the case study as this network is affected by end-to-end delay, especially in dense cities.
The objective functions in this paper may have their limitations. Other variables may exist in real implementation that may affect the outcome of the studies. Therefore, the value of the payload size resulting from the experiment should be tested in real environmenta in the future to ensure the reliability of the proposed method. Finally, one aspect that we would like to explore in the future is the hybridization between our algorithm (MOSFP) and other algorithms such as genetic algorithms to increase the algorithm convergence and we will use it to optimize some problems related to data aggregation [77,78] in WSNs.

Acknowledgments

The authors acknowledge University of Malaya for the financial support (University Malaya Research Grant (RP036 (A, B, C)-15AET)) and facilitating in carrying out the work.

Author Contributions

The concept, design and evaluation of MOSPF is done by Hisham A. Shehadeh, Mohd Yamani Idna Idris and Ismail Ahmedy structure the paper and device experiments with selected benchmarking; Roziana Ramli and Noorzaily Mohamed Noor contribute in the statistical evaluation.

Conflicts of Interest

The authors declare no conflict of interest.

Appendix A

In this section, we make an example on one objective function to illustrate how the MOSFP algorithm works. For this purpose, we chose the energy effacing model. Energy efficiency can be summarized as following:
η = E c p a y l o a d E c ( p a y l o a d + h ( L M H R + L M A C ) ) + E s ( 1 P E R ) ,
The variables of this feature based on Table 10 are as follows:
  • Ec is the energy consumption through the communication, which is equal to 19.9 mA;
  • Es is the energy consumption in start-up mode, which is equal to 8 mA;
  • l is packet payload length, which is varied from 0 to 114 bytes;
  • h is packet header length, which is the summation between PHY header (LPHY) and MAC header (LMHR). The LPHY is equal to 6 bytes while the LMHR is equal to 11 bytes. The summation of them is equal to 17 bytes;
  • PER is Packet Error Rate. This variable can be calculated as follows:
    P E R = 1 ( 1 B E R ) ( L e n g t h o f p a c k e t i n b i t s ) ,
    where BER is the Bit Error Rate, which equal to 0.0004 in normal status while the length of the packet is the summation between packet headers, footer and the packet payload size. To convert from byte to bit, we should multiply by 8.
We can summarise the steps of the MOSFP algorithm in the following points:
  • Initializing and archiving the sperms in the memory:
    The algorithm in this stage begins by initializing the swarms. Based on Table 9, the number of sperms is equal to 20 sperm. In this step the algorithm initializes a memory for each sperm in the population and gives it an initial value.
  • Crowding:
    In this stage, the algorithm crowd the winners in the Set of Winners (SoW) to prepare the swarm for swim using the velocity update rule.
  • Velocity update rule and mutation operation:
    In this stage the algorithm crowd the winners in the Set of Winners (SoW) to prepare the swarm for swim using the velocity update rule. The velocity update rule can be defined as follows [19]
    V i ( t ) = D L o g 10 ( p H _ R a n d 1 ) V i + L o g 10 ( p H _ R a n d 2 ) L o g 10 ( T e m p _ R a n d 1 ) ( x s b e s t i x i ( t ) ) + L o g 10 ( p H _ R a n d 3 ) L o g 10 ( T e m p _ R a n d 2 ) ( x s g b e s t x i ( t ) )
    where D is a velocity damping factor, which takes a random value in the range of (0, 1); pH_Rand1, pH_Rand2, and pH_Rand3 are the pH values of the visited regions, which take a value in the range of (7, 14). Temp_Rand1 and Temp_Rand2 are the temperature values of the visited regions, which take a value in the range of (35.1, 38.5). The process of updating the personal sperm current best solution is based on two cases; first, if the value of personal sperm current best solution is dominated by the new sperm; second, if the personal sperm current best solution with the new sperm value are non-dominated with respect to each other. For the mutation operations, MOSFP based on Algorithm 5 divides the swarm into three equal parts, after that, performs uniform mutation on the first part and non-uniform mutation on the second part, and also it does not apply any mutation on the third part of the swarm.
  • Evaluation objective functions:
    In this step, the algorithm will evaluate the objective function, which the sperm value of packet payload size will be used to evaluate the objective functions such as energy efficiency. The old fitness value of the sperm will be replaced by new value just in case of the new value is better than old value.
  • Updating, crowding, and checking the number of iterations:
    Later on, if all sperms have been updated, the SoW will be updated too, which the sperms that achieve the new positions that are better than the old positions will have the possibility to join the winner set. After that, the ∈ −archive will take the place on the procedure to be updated. Finally, the crowding values of SoW are processed to be updated, as many of the winners are eliminated in case of exceeding the determined size of the winners set. This process is repeated many times until it reached the determined number of iterations (imax). imax in this case is equal to 250 based on Table 9.

References

  1. Akyildiz, I.F.; Melodia, T.; Chowdury, K.R. Wireless multimedia sensor networks: A survey. IEEE Wirel. Commun. 2007, 14, 32–39. [Google Scholar] [CrossRef]
  2. Abu-Sharkh, O.M.; AlQaralleh, E.; Hasan, O.M. Adaptive device-to-device communication using Wi-Fi Direct in smart cities. Wirel. Netw. 2016, 22, 1–17. [Google Scholar] [CrossRef]
  3. Aguirre, E.; Lopez-Iturri, P.; Azpilicueta, L.; Astrain, J.J.; Villadangos, J.; Santesteban, D.; Falcone, F. Implementation and analysis of a wireless sensor network-based pet location monitoring system for domestic scenarios. Sensors 2016, 16, 1384. [Google Scholar] [CrossRef] [PubMed]
  4. Doudou, M.; Djenouri, D.; Barcelo-Ordinas, J.M.; Badache, N. Delay-efficient MAC protocol with traffic differentiation and run-time parameter adaptation for energy-constrained wireless sensor networks. Wirel. Netw. 2016, 22, 467–490. [Google Scholar] [CrossRef] [Green Version]
  5. Singh, R.; Singh, J. Security challenges in wireless sensor networks. Int. J. Comput. Sci. Inf. Technol. Secur. IJCSITS 2016, 6, 1–6. [Google Scholar]
  6. Jia, J.; Chen, J.; Chang, G.; Tan, Z. Energy efficient coverage control in wireless sensor networks based on multi-objective genetic algorithm. Comput. Math. Appl. 2009, 57, 1756–1766. [Google Scholar] [CrossRef]
  7. Yang, J.; Zhang, H.; Ling, Y.; Pan, C.; Sun, W. Task allocation for wireless sensor network using modified binary particle swarm optimization. IEEE Sens. J. 2014, 14, 882–892. [Google Scholar] [CrossRef]
  8. Kukunuru, N.; Thella, B.R.; Davuluri, R.L. Sensor deployment using particle swarm optimization. Int. J. Eng. Sci. Technol. 2010, 2, 5395–5401. [Google Scholar]
  9. Sagar, A.K.; Lobiyal, D. Coverage and lifetime maximization of wireless sensor network with multi-objective evolutionary algorithm. Int. J. Sci. Eng. Res. 2014, 5, 1194–1203. [Google Scholar]
  10. Chaudhuri, K.; Dasgupta, D. Multi-objective evolutionary algorithms to solve coverage and lifetime optimization problem in wireless sensor networks. In Proceedings of the International Conference on Swarm, Evolutionary, and Memetic Computing (SEMCCO), Chennai, India, 16–18 December 2010; pp. 514–522. [Google Scholar] [CrossRef]
  11. Sengupta, S.; Das, S.; Nasir, M.; Vasilakos, A.V.; Pedrycz, W. An evolutionary multiobjective sleep-scheduling scheme for differentiated coverage in wireless sensor networks. IEEE Trans. Syst. Man Cybern. Part C Appl. Rev. 2012, 42, 1093–1102. [Google Scholar] [CrossRef]
  12. Naeem, M.; Pareek, U.; Lee, D.C. Swarm intelligence for sensor selection problems. IEEE Sens. J. 2012, 12, 2577–2585. [Google Scholar] [CrossRef]
  13. Liu, K. Wireless sensor network target coverage algorithm based on energy saving. Acta Tech. 2016, 61, 49–62. [Google Scholar]
  14. Bara’a, A.A.; Khalil, E.A.; Cosar, A. Multi-objective evolutionary routing protocol for efficient coverage in mobile sensor networks. Soft Comput. 2015, 19, 2983–2995. [Google Scholar] [CrossRef]
  15. Hamdan, M.; Yassein, M.B.; Shehadeh, H.A. Multi-objective Optimization Modeling for the Impacts of 2.4-GHz ISM band Interference on IEEE 802.15.4 Health Sensors. In Information Innovation Technology in Smart Cities, 1st ed.; Ismail, L., Zhang, L., Eds.; Springer: Singapore, 2017; Volume 1, pp. 317–330. ISBN 978-981-10-1740-7. [Google Scholar]
  16. Sierra, M.R.; Coello, C.C. Improving PSO-based multi-objective optimization using crowding, mutation and e-dominance, Evolutionary multi-criterion optimization. In Proceedings of the International Conference on Evolutionary Multi-Criterion Optimization, Guanajuato, Mexico, 9–11 March 2005; pp. 505–519. [Google Scholar] [CrossRef]
  17. Deb, K.; Pratap, A.; Agarwal, S.; Meyarivan, T. A fast and elitist multiobjective genetic algorithm: Nsga-ii. IEEE Trans. Evolut. Comput. 2002, 6, 182–197. [Google Scholar] [CrossRef]
  18. Eckart, Z.; Marco, L.; Lothar, T. SPEA2: Improving the strength pareto evolutionary algorithm for multiobjective optimization. In Proceedings of the Eurogen, Evolutionary Method for Design: Optimization and Control for Industrial Problem (EUROGEN’2001), Barcelona, Spain, 19–21 September 2001; pp. 1–21. [Google Scholar] [CrossRef]
  19. Shehadeh, H.A.; ldris, M.Y.I.; Ahmedy, I. Multi-Objective Optimization Algorithm Based on Sperm Fertilization Procedure (MOSFP). Symmetry 2017, 9, 241. [Google Scholar] [CrossRef]
  20. Ahmedy, I.; Shehadeh, H.A.; Idris, M.Y.I. An estimation of QoS for classified based approach and nonclassified based approach of wireless agriculture monitoring network using a network model. Wirel. Commun. Mob. Comput. 2017, 2017, 1–14. [Google Scholar] [CrossRef]
  21. Yassein, M.B.; Hamdan, M.; Shehadeh, H.A.; Mrayan, L. A Novel approach for health monitoring system using wireless sensor network. Int. J. Commun. Antenna Propag. IRECAP 2017, 7, 271–285. [Google Scholar] [CrossRef]
  22. Jawad, H.M.; Nordin, R.; Gharghan, S.K.; Jawad, A.M.; Ismail, M. Energy-Efficient Wireless Sensor Networks for Precision Agriculture: A Review. Sensors 2017, 17, 1781. [Google Scholar] [CrossRef] [PubMed]
  23. Pinto, M.; Gámez, N.; Fuentes, L.; Amor, M.; Horcas, J.M.; Ayala, I. Dynamic reconfiguration of security policies in wireless sensor networks. Sensors 2015, 15, 5251–5280. [Google Scholar] [CrossRef] [PubMed]
  24. Yan, X.; Du, H.; Ye, Q.; Song, G. Minimum-delay data aggregation schedule in duty-cycled sensor networks. In Proceedings of the International Conference on Wireless Algorithms, Systems, and Applications, Bozeman, MT, USA, 8–10 August 2016; Springer International Publishing: New York, NY, USA, 2016; pp. 305–317. [Google Scholar] [CrossRef]
  25. Rout, D.K.; Das, S. Multiple narrowband interference mitigation using hybrid Hermite pulses for body surface to external communications in UWB body area networks. Wirel. Netw. 2017, 23, 387–402. [Google Scholar] [CrossRef]
  26. Chen, D.; Liu, Z.; Wang, L.; Dou, M.; Chen, J.; Li, H. Natural disaster monitoring with wireless sensor networks: A case study of data-intensive applications upon low-cost scalable systems. Mob. Netw. Appl. 2013, 18, 651–663. [Google Scholar] [CrossRef]
  27. Devidas, A.R.; Ramesh, M.V.; Rangan, V.P. High performance communication architecture for smart distribution power grid in developing nations. Wirel. Netw. 2016, 22, 1–18. [Google Scholar] [CrossRef]
  28. Li, X.; Li, D.; Wan, J.; Vasilakos, A.V.; Lai, C.-F.; Wang, S. A review of industrial wireless networks in the context of industry 4.0. Wirel. Netw. 2017, 23, 23–41. [Google Scholar] [CrossRef]
  29. Iturri, P.L.; Nazábal, J.A.; Azpilicueta, L.; Rodriguez, P.; Beruete, M.; Fernández-Valdivielso, C.; Falcone, F. Impact of high power interference sources in planning and deployment of wireless sensor networks and devices in the 2.4 GHz frequency band in heterogeneous environments. Sensors 2012, 12, 15689–15708. [Google Scholar] [CrossRef] [PubMed]
  30. Guo, W.; Healy, W.M.; Zhou, M. Impacts of 2.4-GHz ISM band interference on IEEE 802.15. 4 wireless sensor network reliability in buildings. IEEE Trans. Instrum. Meas. 2012, 61, 2533–2544. [Google Scholar] [CrossRef]
  31. Rajput, M.; Ghawte, U. Security Challenges in Wireless Sensor Networks. Int. J. Comput. Appl. 2017, 168, 24–29. [Google Scholar] [CrossRef]
  32. Andréasson, N.; Evgrafov, A.; Patriksson, M. An Introduction to Optimization: Foundations and Fundamental Algorithms; Chalmers University of Technology Press: Gothenburg, Sweden, 2005; Volume 1, pp. 1–205. [Google Scholar]
  33. Dreżewski, R.; Doroz, K. An Agent-Based Co-Evolutionary Multi-Objective Algorithm for Portfolio Optimization. Symmetry 2017, 9, 168. [Google Scholar] [CrossRef]
  34. Meetei, K.T. A Survey: Swarm Intelligence vs. Genetic Algorithm. Int. J. Sci. Res. 2014, 3, 231–235. [Google Scholar]
  35. Kennedy, J.; Eberhart, R. Particle swarm optimization. In Proceedings of the IEEE International Conference on Neural Networks, Perth, Australia, 27 November–1 December 1995; pp. 1942–1948. [Google Scholar] [CrossRef]
  36. Paulinas, M.; Ušinskas, A. A survey of genetic algorithms applications for image enhancement and segmentation. Inf. Technol. Control 2007, 36, 278–284. [Google Scholar]
  37. Shehadeh, H.A.; Ahmedy, I.; Idris, M.Y.I. Sperm swarm optimization algorithm for optimizing wireless sensor network challenges. In Proceedings of the ACM International Conference on Communications and Broadband Networking (ICCBN 2018), Singapore, 24–26 February 2018. in press. [Google Scholar]
  38. Acampora, G.; Ishibuchi, H.; Vitiello, A. A comparison of multi-objective evolutionary algorithms for the ontology meta-matching problem. In Proceedings of the IEEE Congress on Evolutionary Computation (CEC 2014), Beijing, China, 6–11 July 2014; pp. 413–420. [Google Scholar]
  39. Hamdy, M.; Nguyen, A.-T.; Hensen, J.L. A performance comparison of multi-objective optimization algorithms for solving nearly-zero-energy-building design problems. Energy Build. 2016, 121, 57–71. [Google Scholar] [CrossRef]
  40. Sörensen, K. Metaheuristics—The metaphor exposed. Int. Trans. Oper. Res. 2013, 22, 3–18. [Google Scholar] [CrossRef]
  41. Nalepa, J.; Kawulok, M. Adaptive memetic algorithm enhanced with data geometry analysis to select training data for SVMs. Neurocomputing 2016, 185, 113–132. [Google Scholar] [CrossRef]
  42. Sureja, N.M.; Chawda, B.V. Memetic Algorithm a metaheuristic approach to solve RTSP. Int. J. Comput. Sci. Eng. 2013, 3, 2249–6831. [Google Scholar]
  43. Kachitvichyanukul, V. Comparison of three evolutionary algorithms: GA, PSO, and DE. Ind. Eng. Manag. Syst. 2012, 11, 215–223. [Google Scholar] [CrossRef]
  44. Zhou, J.; Wang, C.; Zhu, J. Multi-Objective Optimization of a Spring Diaphragm Clutch on an Automobile Based on the Non-Dominated Sorting Genetic Algorithm (NSGA-II). Math. Comput. Appl. 2016, 21, 47. [Google Scholar] [CrossRef]
  45. Coello, C.; Lamont, G.; Van-Veldhuizen, D. Evolutionary Algorithms for Solving Multiobjective Problems, 2nd ed.; Lamont, G.B., Van Veldhuizen, D.A., Eds.; Springer: New York, NY, USA, 2013; pp. 1–800. ISBN 978-0-387-36797-2. [Google Scholar]
  46. Bandyopadhyay, S.; Bhattacharya, R. On some aspects of nature-based algorithms to solve multi-objective problems. In Artificial Intelligence, Evolutionary Computing and Metaheuristics; Yang, X., Ed.; Springer: Berlin/Heidelberg, Germany, 2017; Volume 1, pp. 477–524. ISBN 978-3-642-29694-9. [Google Scholar]
  47. JMetal Tool. Available online: http://jmetal.sourceforge.net/ (accessed on 2 December 2017).
  48. Kumar, K.D.A. Real-coded genetic algorithms with simulated binary crossover: Studies on multimodal and multiobjective problems. Complex Syst. 1995, 9, 431–454. [Google Scholar] [CrossRef]
  49. Deb, K.; Deb, D. Analysing mutation schemes for real-parameter genetic algorithms. Int. J. Artif. Intell. Soft Comput. 2014, 4, 1–28. [Google Scholar] [CrossRef]
  50. Shi, Y. (Ed.) Recent Algorithms and Applications in Swarm Intelligence Research; IGI Global: Hershey, PA, USA, 2012; pp. 1–315. ISBN 978-1-4666-2479-5. [Google Scholar]
  51. Zhao, X.; Gao, X.S.; Hu, Z.C. Evolutionary programming based on non-uniform mutation. Appl. Math. Comput. 2007, 192, 1–11. [Google Scholar] [CrossRef]
  52. Liang, X.; Balasingham, I. Performance analysis of the IEEE 802.15. 4 based ECG monitoring network. In Proceedings of the 7th IASTED International Conferences on Wireless and Optical Communications, Montreal, QC, Canada, 30 May–1 June 2007; pp. 99–104. [Google Scholar] [CrossRef]
  53. Hamdan, M.; Yassein, M.B.; Shehadeh, H.A. Multi-objective optimization modeling of interference in home health care sensors. In Proceedings of the 2015 11th International Conference on Innovations in Information Technology (IIT), Dubai, UAE, 1–3 November 2015; pp. 219–224. [Google Scholar] [CrossRef]
  54. Ganhão, F.; Vieira, J.; Bernardo, L.; Dinis, R. Type II hybrid-ARQ for DS-CDMA: A discrete time markov chain wireless MAC model. In Internet of Things, Smart Spaces, and Next Generation Networking, 1st ed.; Balandin, S., Andreev, S., Koucheryavy, Y., Eds.; Springer: Heidelberg, Germany, 2013; Volume 1, pp. 176–187. ISBN 978-3-642-40315-6. [Google Scholar]
  55. Kabalci, Y.A. Survey on smart metering and smart grid communication. Renew. Sustain. Energy Rev. 2016, 57, 302–318. [Google Scholar] [CrossRef]
  56. Joshi, H.I.; Pandya, V.J. Smart power scheduling to reduce peak demand and cost of energy in smart grid. World Acad. Sci. Eng. Technol. Int. J. Electr. Comput. Energ. Electron. Commun. Eng. 2016, 9, 1330–1338. [Google Scholar]
  57. Keyhani, A. (Ed.) Design of Smart Power Grid Renewable Energy Systems; John Wiley & Sons: Hoboken, NJ, USA, 2016; pp. 1–499. ISBN 978-1-118-97877-1. [Google Scholar]
  58. Niyato, D.; Wang, P. Cooperative transmission for meter data collection in smart grid. IEEE Commun. Mag. 2012, 50, 90–97. [Google Scholar] [CrossRef]
  59. Sethi, P.; Sarangi, S.R. Internet of things: Architectures, protocols, and applications. J. Electr. Comput. Eng. 2017, 2017, 1–25. [Google Scholar] [CrossRef]
  60. Cacciapuoti, A.S.; Caleffi, M.; Paura, L. On the probabilistic deployment of smart grid networks in TV white space. Sensors 2016, 16, 671. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  61. Jiang, J.; Qian, Y. Distributed communication architecture for smart grid applications. IEEE Commun. Mag. 2016, 54, 60–67. [Google Scholar] [CrossRef]
  62. Shandilya, S.; Thakur, T.; Nagar, A.K. (Eds.) Handbook of Research on Emerging Technologies for Electrical Power Planning, Analysis and Optimization; Engineering Science Reference (an Imprint of IGI Global); IGI Global: Hershey, PA, USA, 2016; pp. 1–410. ISBN 9781466699113. [Google Scholar]
  63. Yu, R.; Zhang, Y.; Gjessing, S.; Yuen, C.; Xie, S.; Guizani, M. Cognitive radio based hierarchical communications infrastructure for smart grid. IEEE Netw. 2011, 25, 6–14. [Google Scholar] [CrossRef]
  64. Ahmad, A.; Hassan, N.U. (Eds.) Smart Grid as a Solution for Renewable and Efficient Energy, Advances in Environmental Engineering and Green Technologies; IGI global: Hershey, PA, USA, 2016; pp. 1–415. ISBN 13 9781522500728. [Google Scholar]
  65. Nobre, M.; Silva, I.; Guedes, L.A. Routing and scheduling algorithms for wireless HART networks: A survey. Sensors 2015, 15, 9703–9740. [Google Scholar] [CrossRef] [PubMed]
  66. Dinh, N.; Lim, S. Performance evaluations for IEEE 802.15. 4-based IoT smart home solution. Int. J. Eng. Technol. Innov. 2016, 6, 274–283. [Google Scholar]
  67. Yassein, M.B.; Hamdan, M.; Shehadeh, H.A. Performance evaluation of health monitoring network for elderly patient in home. Asian J. Math. Comput. Res. 2016, 9, 108–118. [Google Scholar]
  68. Wang, J.; Ren, X.; Chen, F.J.; Chen, Y.; Xu, G. On MAC optimization for large-scale wireless sensor network. Wirel. Netw. 2016, 22, 1877–1889. [Google Scholar] [CrossRef]
  69. Martinez-Sandoval, R.; Garcia-Sanchez, A.J.; Garcia-Sanchez, F.; Garcia-Haro, J.; Flynn, D. A comprehensive WSN-based approach to efficiently manage a smart grid. Sensors 2014, 14, 18748–18783. [Google Scholar] [CrossRef] [PubMed]
  70. Datasheet, M. MICAz, Wireless Measurement System; Crossbow Technology Inc.: San Jose, CA, USA, 2006; Volume 1, pp. 1–20. [Google Scholar]
  71. Bhuiyan, M.Z.A.; Wu, J.; Wang, G.; Wang, T.; Hassan, M.M. e-Sampling: Event-Sensitive Autonomous Adaptive Sensing and Low-Cost Monitoring in Networked Sensing Systems. ACM Trans. Auton. Adapt. Syst. TAAS 2017, 12, 1–29. [Google Scholar] [CrossRef]
  72. Saadon, E.I.S.; Abdullah, J.; Ismail, N. Evaluating the IEEE 802.15. 4a UWB physical layer for WSN applications. In Proceedings of the IEEE Symposium on Wireless Technology and Applications (ISWTA), Kuching, Malaysia, 22–25 September 2013; pp. 68–73. [Google Scholar] [CrossRef]
  73. Engelbrecht, A.P. (Ed.) Fundamentals of Computational Swarm; John Wiley & Sons: New York, NY, USA, 2006; pp. 1–320. ISBN 0470091916. [Google Scholar]
  74. Bortolotti, B.; Fiorentini, G. (Eds.) Organized Interests and Self-Regulation: An Economic Approach; Oxford University Press: New York, NY, USA, 1999; pp. 1–274. ISBN 0-19-829652-5. [Google Scholar]
  75. Massiani, J.; Picco, G. The opportunity cost of public funds: Concepts and issues. Public Budg. Financ. 2013, 33, 96–114. [Google Scholar] [CrossRef] [Green Version]
  76. Deb, K.; Gupta, S. Understanding knee points in bicriteria problems and their implications as preferred solution principles. Eng. Optim. 2011, 43, 1175–1204. [Google Scholar] [CrossRef]
  77. Mahdi, O.A.; Abdul Wahab, A.W.; Idris, M.Y.I.; Abu Znaid, A.; Al-Mayouf, Y.R.B.; Khan, S. WDARS: A weighted data aggregation routing strategy with minimum link cost in event-driven WSNs. J. Sens. 2016, 2016, 1–12. [Google Scholar] [CrossRef]
  78. Mahdi, O.A.; Abdul Wahab, A.W.; Idris, M.Y.I.; Khan, S.; Al-Mayouf, Y.R.B.; Guizani, N. A comparison study on node clustering techniques used in target tracking WSNs for efficient data aggregation. Wirel. Commun. Mob. Comput. 2016, 16, 2663–2676. [Google Scholar] [CrossRef]
Figure 1. Modeling process [32].
Figure 1. Modeling process [32].
Energies 11 00097 g001
Figure 2. Sampling and transmitting cycle of a sensor node [52].
Figure 2. Sampling and transmitting cycle of a sensor node [52].
Energies 11 00097 g002
Figure 3. Infrastructure of hierarchical communication for smart grid. The figure is obtained from [62].
Figure 3. Infrastructure of hierarchical communication for smart grid. The figure is obtained from [62].
Energies 11 00097 g003
Figure 4. The proposed network.
Figure 4. The proposed network.
Energies 11 00097 g004
Figure 5. Procedure of the OMOPSO algorithm.
Figure 5. Procedure of the OMOPSO algorithm.
Energies 11 00097 g005
Figure 6. Procedure of the NSGA-II algorithm.
Figure 6. Procedure of the NSGA-II algorithm.
Energies 11 00097 g006
Figure 7. Procedure of the SPEA2 algorithm.
Figure 7. Procedure of the SPEA2 algorithm.
Energies 11 00097 g007
Figure 8. Procedure of the MOSFP algorithm.
Figure 8. Procedure of the MOSFP algorithm.
Energies 11 00097 g008
Figure 9. The optimum value based on the intersection between two objective functions [75].
Figure 9. The optimum value based on the intersection between two objective functions [75].
Energies 11 00097 g009
Figure 10. The knee point concept [76].
Figure 10. The knee point concept [76].
Energies 11 00097 g010

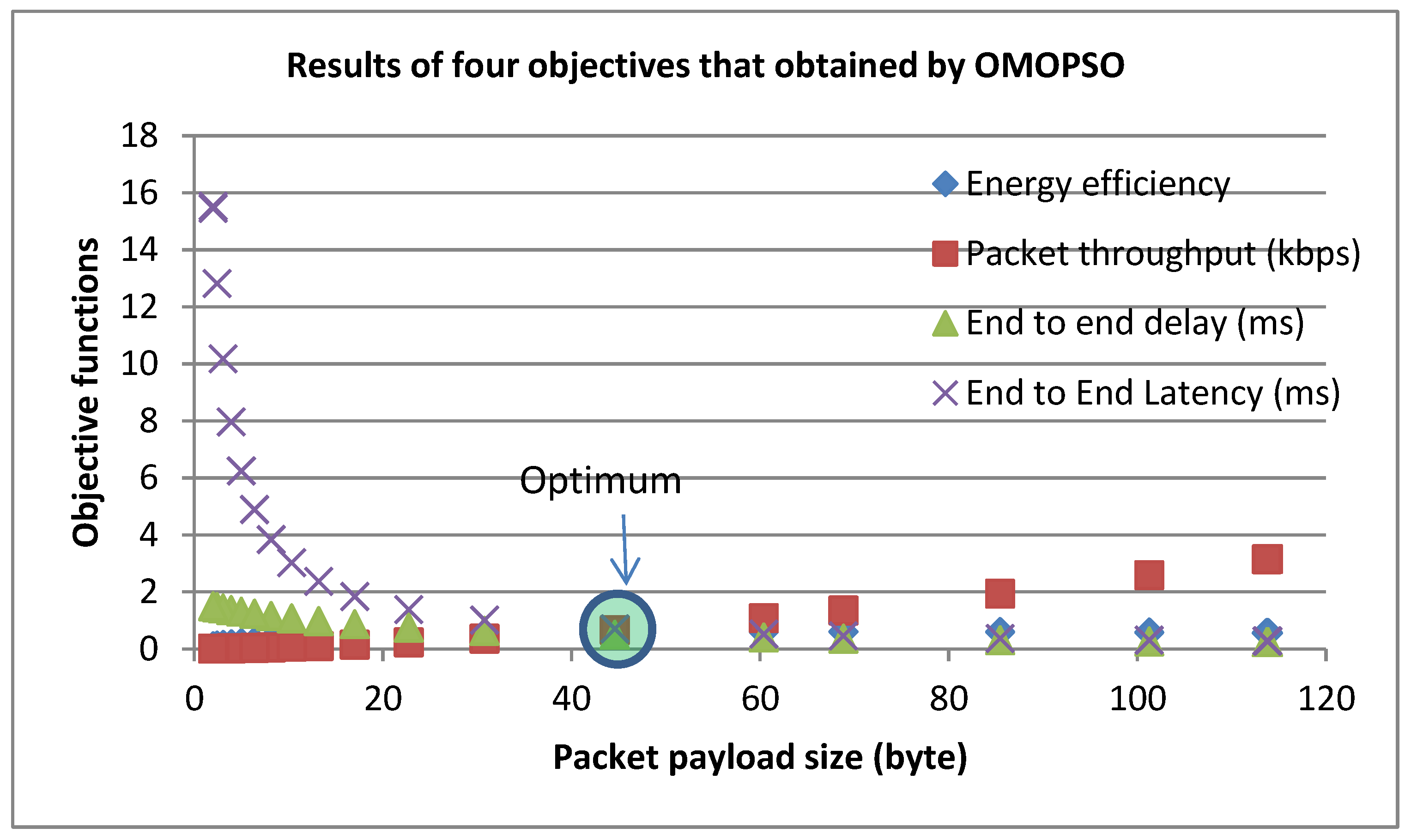

Figure 11. Minimizing both end-to-end latency and end-to-end delay and maximizing both network throughput and energy efficiency based packet payload size achieved by the OMOPSO algorithm.
Figure 11. Minimizing both end-to-end latency and end-to-end delay and maximizing both network throughput and energy efficiency based packet payload size achieved by the OMOPSO algorithm.
Energies 11 00097 g011

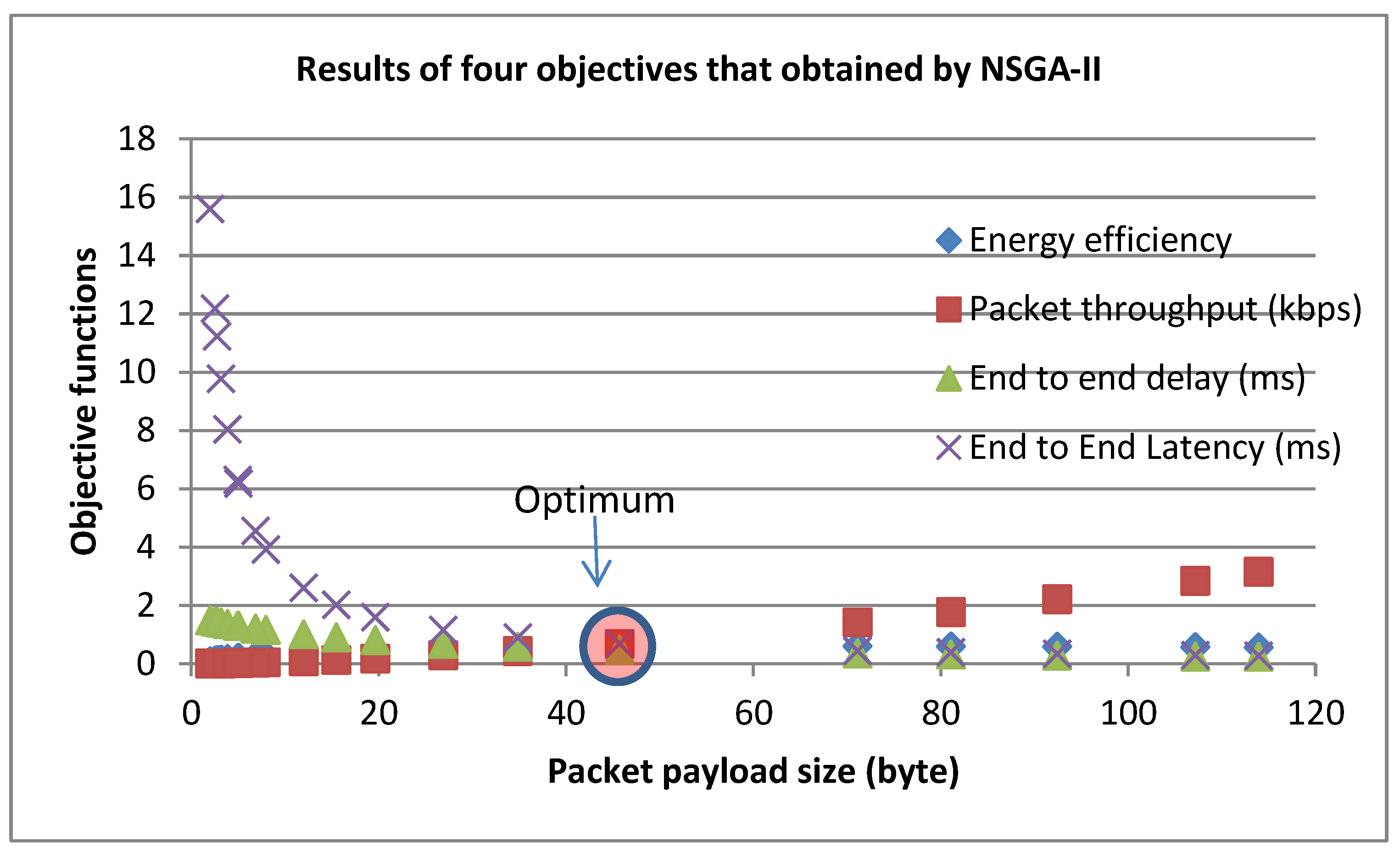

Figure 12. Minimizing both end-to-end latency and end-to-end delay and maximizing both network throughput and energy efficiency based packet payload size achieved by the NSGA-II algorithm.
Figure 12. Minimizing both end-to-end latency and end-to-end delay and maximizing both network throughput and energy efficiency based packet payload size achieved by the NSGA-II algorithm.
Energies 11 00097 g012

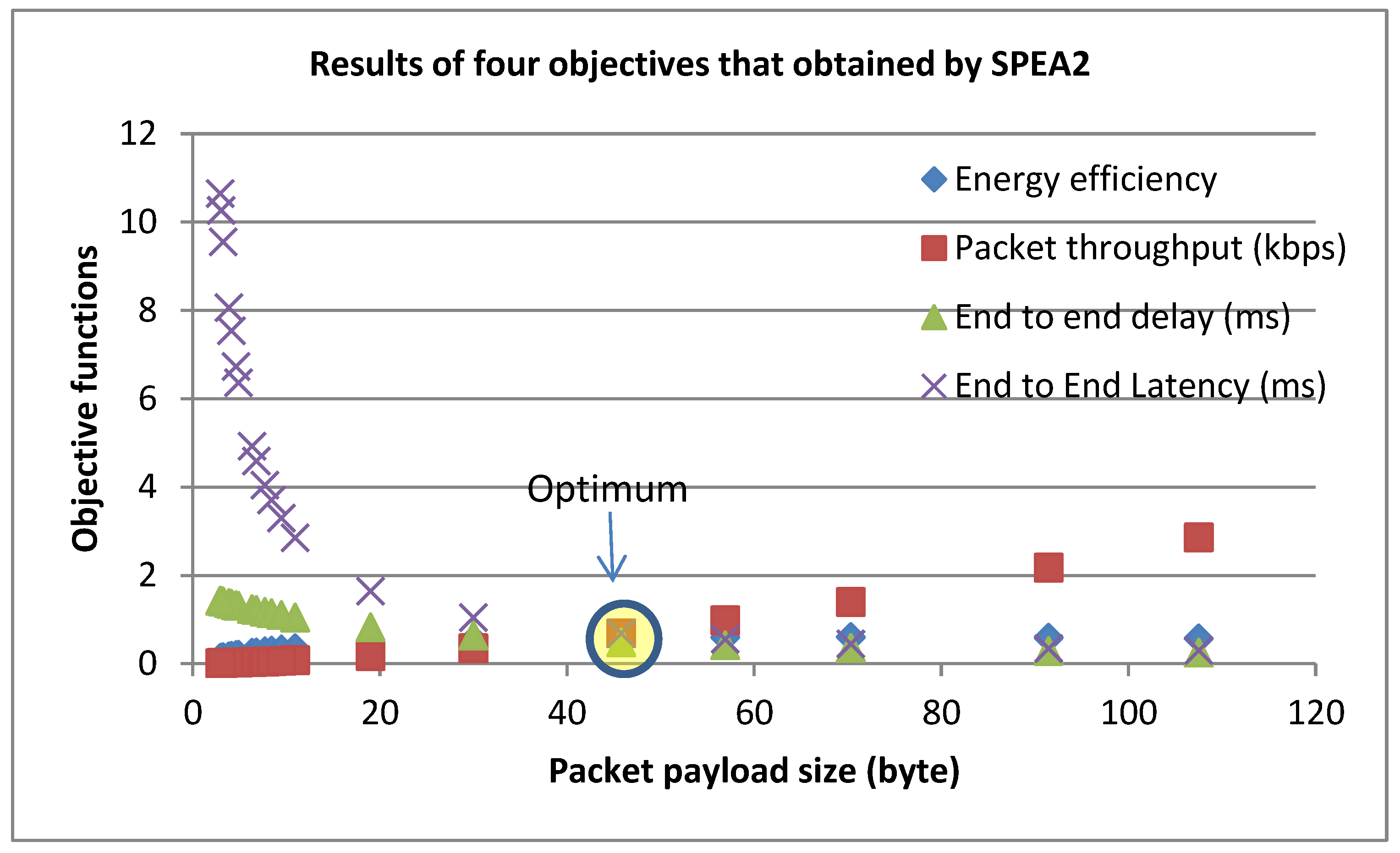

Figure 13. Minimizing both end-to-end latency and end-to-end delay and maximizing both network throughput and energy efficiency based packet payload size achieved by the SPEA2 algorithm.
Figure 13. Minimizing both end-to-end latency and end-to-end delay and maximizing both network throughput and energy efficiency based packet payload size achieved by the SPEA2 algorithm.
Energies 11 00097 g013
Figure 14. Minimizing both end-to-end latency and end-to-end delay and maximizing both network throughput and energy efficiency based packet payload size achieved by the MOSFP algorithm.
Figure 14. Minimizing both end-to-end latency and end-to-end delay and maximizing both network throughput and energy efficiency based packet payload size achieved by the MOSFP algorithm.
Energies 11 00097 g014

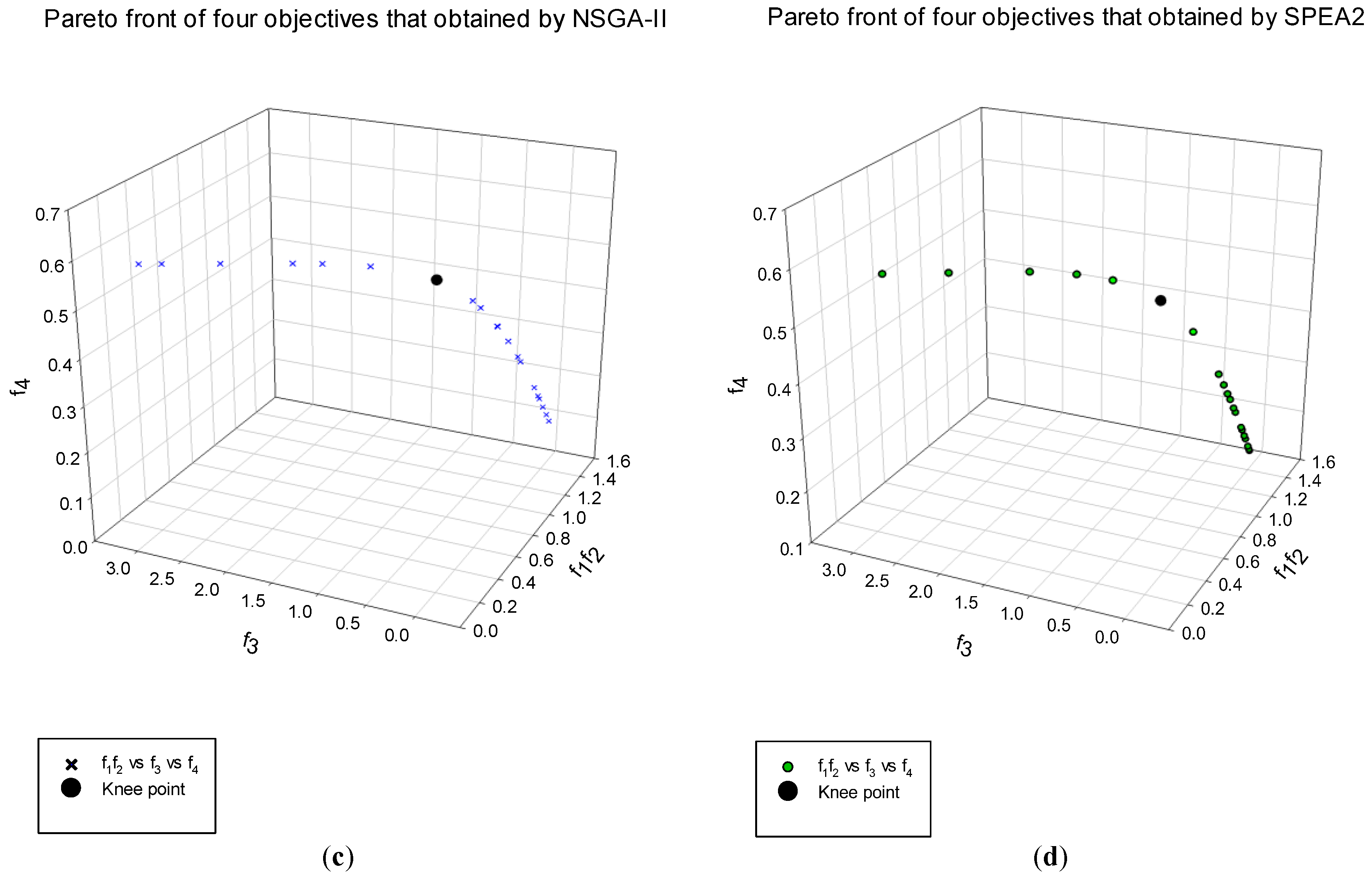

Figure 15. Pareto optimal front for end-to-end delay and end-to-end latency (f1 and f2) vs. network throughput (f3) vs. energy efficiency (f4) based on the results of all the algorithms, (a) Pareto front of four objectives that obtained by MOSFP; (b) Pareto front of four objectives that obtained by OMOPSO; (c) Pareto front of four objectives that obtained by NSGA-II; (d) Pareto front of four objectives that obtained by SPEA2
Figure 15. Pareto optimal front for end-to-end delay and end-to-end latency (f1 and f2) vs. network throughput (f3) vs. energy efficiency (f4) based on the results of all the algorithms, (a) Pareto front of four objectives that obtained by MOSFP; (b) Pareto front of four objectives that obtained by OMOPSO; (c) Pareto front of four objectives that obtained by NSGA-II; (d) Pareto front of four objectives that obtained by SPEA2
Energies 11 00097 g015aEnergies 11 00097 g015b
Table 1. Available sensor nodes along with their storage and memory characteristics [5].
Table 1. Available sensor nodes along with their storage and memory characteristics [5].
PlatformMicrocontroller Unit (MCU)RAMProgram and Data MemoryRadio Chip
BTnode3ATMega12864 KB128–180 KBCC1000/Bluth
CricketATMega1284 KB128–512 KBCC1000
Imote2Intel PXA271256 KB32–MBCC2420
MICA12ATMega1284 KB128–512 KBCC1000
MICAZATMega1284 KB128–512 KBCC2420
ShimmerTI MSP 43010 KB48KB-UP to 2 GBCC2420/Bluth
TelosATI MSP 4302 KB60–512 KBCC2420
TelosBTI MSP 43010 KB48 KB–1 MBCC2420
XYZARM 732 KB256 KBCC2420
Table 2. Comparison between state of arts.
Table 2. Comparison between state of arts.
AuthorAlgorithmsFeaturesStudy/FindingsLimitations
Jia et al. [6]ECCAMaximize network coverage & minimize network energy consumptionThe algorithm was tested by changing the number of sensor nodes and the topology sizes.Model of end-to-end latency is not evaluated.
Yang et al. [7]MBPSO, BPSO, GAMaximize network lifetime & minimize task execution timeMBPSO outperformed the other algorithms in term of optimizing the proposed features.The features of network coverage and throughput are not evaluated.
Kukunuru et al. [8]PSOMaximize network coverageThe best coverage for the area of 50 × 50 is when the number of nodes is equal to 40 nodes.The end-to-end delay and energy consumption are not evaluated.
Sagar et al. [9]OGDC, NSGA-IIMaximize network coverage & minimize network energy consumptionNSGA-II outperformed OGDC, which used 210 nodes to cover the topology while OGDC requires 327 nodes to cover the same topology area.Other features such as network throughput are not discussed.
Chaudhuri et al. [10]NSGA-II, SPEA2Maximize network coverage & minimize network energy consumptionNSGA-II outperformed SPEA2.Model of end-to-end latency model and end-to-end delay model are not proposed.
Sengupta et al. [11]MOEA/D, NSGA-IIMaximize network coverage & minimize network energy consumptionMOEA/D outperformed NSGA-II in finding the optimal results of the proposed objective functions.The node selection problem of WSN is not discussed.
Naeem et al. [12]GA, BPSO, CSPNode selection problem to achieve minimum energy consumption.BPSO outperformed other algorithms in finding the optimal number of selected sensors.Effect of node selection problem on network delay is not studied.
Liu et al. [13]Improved version of MOPSO, MOPSOMaximize network coverage & minimize network energy consumptionThe improved MOPSO outperformed the original MOPSO in maximizing the network coverage and minimizing the network energy consumption.Features that are affected by the interference resources are not examined.
Bara’a et al. [14]NSGA-II, MOEA/DMaximize network coverage & minimize energy consumptionNSGA-II outperformed MOEA/D in minimizing the energy consumption and maximizing the node coverage.Optimizing end-to-end delay model is not discussed.
Hamdan et al. [15]NSGA-II, OMOPSO, SPEA2Maximize packet throughput, energy efficiency & minimize interferenceNSGA-II outperformed both SPEA2 and OMOPSO in optimizing the proposed features.Network end-to-end delay is not evaluated.
Table 3. Comparisons between metaheuristic methods [16,17,18,19,37,40,41,42,43].
Table 3. Comparisons between metaheuristic methods [16,17,18,19,37,40,41,42,43].
Comparison CriteriaGA, NSGA-II, and SPEA2PSO and OMOPSOSSO and MOSFPMAs (Hybrid GAs)
Type of procedureDiscrete proceduresContinuous proceduresContinuous proceduresHybrid procedures
Type of a metaphorDarwinian’s theory of evolution applied to biology, which simulates the construction of chromosome and its evolution.Social interaction, which simulates the movement of birds flock while searching for food.Natural fertilization procedure, which simulates the motility of sperm swarm through the fertilization procedure.Darwinian’s theory of natural evolution that simulates the construction of chromosome and its evolution as well as it uses Dawkin’s notion of a meme.
Solutions need ranking and selectionSolutions will be ranked through the evaluations. Selection operator will filter out the population. Roulette wheel selection is an example of selection operator in GA.Solutions will not be ranked through the evaluations. There is no selection operation.Solutions will not be ranked through the evaluations. There is no selection operation.Solutions will be ranked through the evaluations. Selection operator will filter out the population. Roulette wheel selection is an example of selection operator in GA.
Use crossover operationUse different types of crossover operations such as Simulated Binary Crossover (SBX).Do not use crossover operations.Do not use crossover operations.Use different types of crossover operations such as Simulated Binary Crossover (SBX).
Use mutation operationUse different types of mutation such as polynomial mutation.OMOPSO uses different types of mutations such as uniform mutation and non-uniform mutation.MOSFP divides the swarm into three equal parts, after that, performs uniform mutation on the first part and non-uniform mutation on the second part, and also it does not apply any mutation on the third part of the swarm.Use different types of mutation such as polynomial mutation.
Influence of population size or swarm size on solution timeExponentialLinearLinearExponential
Population affected by best solutionDeal with each individual independently.Use the solution of swarm leader (best solution) to add it for other individual solutions.Use the best solution (the value of winner) as a reference value for other members in the swarm to adjust their velocities.Use local search to improve the results.
Average fitness value cannot get worseAverage fitness will not be worse because the individual will be ranked from the best to the worse. The best individuals will be reserved for next step while the worst will be eliminated.Average fitness will not be worse because the velocity of the leader of the swarm (best solution) will be added to all other velocities in the swarm.Average fitness will not be worse because all members in the swarm will use the velocity of a winner (optimal solution) as a reference value.Average fitness will not be worse because the individual will be ranked from the best to the worse. The best individuals will be reserved for next step while the worst will be eliminated.
ConvergenceLess than PSO, OMOPSO, SSO, and MOSFP.More than GA, NSGA-II, and SPEA2.More than GA, PSO, NSGA-II, OMOPSO, and SPEA2.More than GAs.
Ability to find good solution and approximation related to the Pareto frontNSGA-II finds good solution and approximation related to the Pareto front more than SPEA2.OMOPSO finds good solution and approximation related to the Pareto front more than SPEA2 and NSGA-II.MOSFP finds good solution and approximation related to the Pareto front more than OMOPSO, SPEA2 and NSGA-II.
Table 4. Abbreviations of previous mentioned algorithms based on their resources.
Table 4. Abbreviations of previous mentioned algorithms based on their resources.
AbbreviationMeans
OMOPSO [16]
gIteration number
gmaxMaximum number of iterations
Is the value of the bounding size of the ∈ −archive
NSGA-II [45]
MIs the size of random population
SPEA2 [46]
PPopulation
AExternal archive
MOSFP [19]
Is the value of the bounding size of the ∈ −archive
iIteration number
iMaxMaximum number of iterations
SoWSet of Winners
Table 5. Summary of the smart grid characteristics based on hierarchical communications infrastructure [62,63].
Table 5. Summary of the smart grid characteristics based on hierarchical communications infrastructure [62,63].
Cognitive Area NetworksWide Area Network (WAN)Neighborhood Area Network (NAN)Home Area Network (HAN)
Network topologyCentralizedCentralizedCentralized/decentralized
Spectrum bandLicensed bandLicensed bandUnlicensed band
Favorable network protocolWiMax, 3GPP, RF Mesh, and satellite801.11 s, RF mesh WiMax, 3 G, 4 G and LTEIEEE 802.15.4
Network usersSpectrum broker, NGWsHGWs, NGWSmart sensors/meters/actuators, HGW
Featured strategyOptimal spectrum leasingHybrid dynamic spectrum accessCross-layer spectrum sharing
ApplicationDemand Resource and load managementAdvanced metering infrastructure, demand resource, and load managementAdvanced metering infrastructure, demand resource, etc.
Key techniquesJoin spectrum managementSpectrum handoff, guard channelPower coordination, access control
Table 6. A set of radio frequency bands along with their characteristics that supported by IEEE 802.15.4/ZigBee standard [67].
Table 6. A set of radio frequency bands along with their characteristics that supported by IEEE 802.15.4/ZigBee standard [67].
Frequency BandsAreaData Rate (Kbps)Frequency Range (MHz)Number(s) of Channel
915 MHzAustralia, America40902–92810 channels
2.4 GHzAsia, Worldwide2502405–248016 channels
868 MHzEurope20868.31 channel
Table 7. Data frame structure of The IEEE 802.15.4 [53].
Table 7. Data frame structure of The IEEE 802.15.4 [53].
MAC Sublayer2 Bytes1 Byte0–20 BytesVariable2 Bytes
Frame ControlSequence NumberAddress FieldsData PayloadFrame Check Sequence
MAC HeaderMAC Service Data UnitMAC Footer
PHY layerSync HeaderPHY HeaderPHY Service Data Unit (PSDU)
5 bytes1 byte≤127 bytes
Table 8. Features of MicaZ platform [70].
Table 8. Features of MicaZ platform [70].
FeaturesValueRemarks
Frequency band2.4 GHz bandLicense-free band (ISM band)
Data rate250 kbps-
EEPROM4K bytes-
Operating systemTinyOSOpen-source
Battery2× AA batteriesAttached pack
Energy consumption in startup mode8 mA-
Energy consumption in communication mode19.7 mA-
User interface3 LEDsRed, green and yellow
Indoor range20 m to 30 m1/2 wave dipole antenna
Outdoor range75 m to 100 m1/2 wave dipole antenna
Table 9. Parameters of the algorithms.
Table 9. Parameters of the algorithms.
ParametersMOSFPOMOPSONSGA-IISPEA2
Population size20202020
Archive size(winner) 2020(Elite) 2020
Mating pool size---20
Maximum generation250250250250
Crossover probability--0.90.9
Mutation probability1/d where d is the variable code size
Table 10. Simulation parameters.
Table 10. Simulation parameters.
No.ParameterValues
0Time of interframe space (Tifs)192 μs
1Transceiver’s transmitting to receiving turnaround time (TTA)192 μs
2The duration of one backoff slot (Tboslot)320 μs
3Use of ACKsN0
4PHY header (LPHY)6 bytes
5MAC header (LMHR)11 bytes
6MAC footer (LMFR)2 bytes
7The default minimum value of backoff exponent (macMinBE)3
8The default maximum value of backoff exponent (aMaxBE)5
9Number of sensors (n)5
10Transceiver’s raw data rate (Rdata)250 kbps
11The energy consumption in startup mode (Es)8 mA
12Energy consumption through the communication (Ec)19.7 mA
13Sampling rate250 Hz
14Bit Error Rate (BER)0.0004
Table 11. Comparison between SPEA2, MOSFP, OMOPSO, and NSGA-II for four objective functions. The highlighted background with bold font represents the best average for the respective objective function.
Table 11. Comparison between SPEA2, MOSFP, OMOPSO, and NSGA-II for four objective functions. The highlighted background with bold font represents the best average for the respective objective function.
Objective FunctionsAlgorithmsMeanStd. Dev.Std. Error95% Confidence Interval for MeanMinMax
Lower BoundUpper Bound
Energy EfficiencySPEA20.2850.1810.0130.2600.3100.0960.602
MOSFP0.4010.1850.0130.3750.4270.0960.602
OMOPSO0.3920.1880.0130.3660.4180.0960.602
NSGA-II0.3870.1860.0130.3610.4130.0960.602
Packet ThroughputSPEA20.3980.8280.0590.2820.5130.0103.161
MOSFP0.7911.0740.0760.6420.9410.0103.154
OMOPSO0.7761.0790.0760.6260.9260.0103.154
NSGA-II0.7251.0540.0750.5780.8720.0103.158
End-to-End DelaySPEA21.1050.4220.0301.0471.1640.2401.493
MOSFP0.8400.4540.0320.7770.9030.2401.492
OMOPSO0.8580.4590.0320.7940.9220.2401.492
NSGA-II0.8740.4530.0320.8110.9370.2401.493
End-to-End LatencySPEA26.5974.9270.3485.9107.2840.27915.579
MOSFP3.8804.5390.3213.2474.5130.27915.533
OMOPSO4.1374.7410.3353.4764.7980.27915.535
NSGA-II4.1854.6730.3303.5344.8370.27915.601
Table 12. Analysis of one-way ANOVA (Tukey’s test) between SPEA2, MOSFP, OMOPSO and NSGA-II for four objective functions.
Table 12. Analysis of one-way ANOVA (Tukey’s test) between SPEA2, MOSFP, OMOPSO and NSGA-II for four objective functions.
Objective FunctionsAlgorithm (I)Algorithm (J)Mean Difference (I-J)Std. Errorp-Value95% Confidence Interval
Lower BoundUpper Bound
Energy
Efficiency
MOSFPSPEA20.1160.018<0.001 *0.0680.163
OMOPSO0.0090.0180.965−0.0390.056
NSGA-II0.0130.0180.888−0.0340.061
Packet
Throughput
MOSFPSPEA20.3940.101<0.001 *0.1330.655
OMOPSO0.0150.1010.999−0.2460.276
NSGA-II0.0660.1010.916−0.1950.327
End-to-End
Delay
MOSFPSPEA2−0.2650.045<0.001 *−0.380−0.150
OMOPSO−0.0180.0450.977−0.1330.097
NSGA-II−0.0340.0450.872−0.1490.081
End-to-End
Latency
MOSFPSPEA2−2.7180.472<0.001 *−3.933−1.502
OMOPSO−0.2570.4720.948−1.4730.958
NSGA-II−0.3060.4720.917−1.5210.910
* The mean difference is significant at the 0.05 level.

Share and Cite

MDPI and ACS Style

Shehadeh, H.A.; Idna Idris, M.Y.; Ahmedy, I.; Ramli, R.; Mohamed Noor, N. The Multi-Objective Optimization Algorithm Based on Sperm Fertilization Procedure (MOSFP) Method for Solving Wireless Sensor Networks Optimization Problems in Smart Grid Applications. Energies 2018, 11, 97. https://doi.org/10.3390/en11010097

AMA Style

Shehadeh HA, Idna Idris MY, Ahmedy I, Ramli R, Mohamed Noor N. The Multi-Objective Optimization Algorithm Based on Sperm Fertilization Procedure (MOSFP) Method for Solving Wireless Sensor Networks Optimization Problems in Smart Grid Applications. Energies. 2018; 11(1):97. https://doi.org/10.3390/en11010097

Chicago/Turabian Style

Shehadeh, Hisham A., Mohd Yamani Idna Idris, Ismail Ahmedy, Roziana Ramli, and Noorzaily Mohamed Noor. 2018. "The Multi-Objective Optimization Algorithm Based on Sperm Fertilization Procedure (MOSFP) Method for Solving Wireless Sensor Networks Optimization Problems in Smart Grid Applications" Energies 11, no. 1: 97. https://doi.org/10.3390/en11010097

APA Style

Shehadeh, H. A., Idna Idris, M. Y., Ahmedy, I., Ramli, R., & Mohamed Noor, N. (2018). The Multi-Objective Optimization Algorithm Based on Sperm Fertilization Procedure (MOSFP) Method for Solving Wireless Sensor Networks Optimization Problems in Smart Grid Applications. Energies, 11(1), 97. https://doi.org/10.3390/en11010097

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
