Robust Design of a Low-Cost Permanent Magnet Motor with Soft Magnetic Composite Cores Considering the Manufacturing Process and Tolerances

Abstract

This paper uses the Taguchi method to optimize the manufacturing process and robust design of a low-cost permanent magnet motor with soft magnetic composite (SMC) cores. For the manufacturing process, SMC cores are produced by using the molding technology without any wire cutting costs. To maximize the relative permeability and minimize the core loss, the Taguchi method is employed to identify the best control factor values for the heat treatment of SMC cores based on a series of experimental results. Due to the manufacturing tolerances, there are significant uncertainties in the core densities and motor dimensions, which will result in big performance variations for the SMC motors in the batch production. To obtain a robust design less sensitive to these tolerances, the conventional Taguchi parameter design method and a sequential Taguchi optimization method are presented to maximize the average torque and minimize the core loss of a low-cost PM motor. Through comparison, it is found that the proposed optimization method is efficient. It can provide an optimal design with better motor performance and manufacturing quality. The proposed method will benefit the industrial production of cost-effective PM-SMC motors with robust and compact designs.

1. Introduction

Soft magnetic composite (SMC), as a relatively new magnetic material, is a kind of iron powder made of fine particles (around 0.1 mm in diameter) with thin electrical insulation. Due to the powder nature, motor cores made of SMC have some advantages compared with cores made of silicon steel sheets, such as lower eddy current loss and isotropic electromagnetic and thermal properties. These advantages benefit the design of high-performance permanent magnet (PM) motors with 3D flux path, such as transverse flux machine, axial flux motor, linear brushless motor and claw pole motor [1,2,3,4,5,6].

Another important advantage of SMC cores is their low cost, including the manufacturing cost. The manufacturing process of SMC cores can be totally different from those cores made of steel sheets. Taking advantage of the powder metallurgy technology, the SMC cores can be produced by molding technology [1,7,8,9]. This kind of technology can be used to produce SMC cores with complex structures that may be hard or even impossible to manufacture by the traditional lamination method [10]. There are two main steps in this technology, powder compaction and heat treatment. In the first step, several stator/rotor core dies (made of tool steel) are employed to compact the SMC powder to form a 3D raw core by using a press. In the second step, the raw core will be cooked to complete the heat treatment process. The obtained SMC cores after the heat treatment can be used for the assembly directly. This kind of manufacturing method benefits the batch production of SMC cores and motors at low cost. This is very important for the low-cost applications of SMC motors, such as electric fans and compressors in air conditioners.

Regarding the low-cost applications of SMC motors, a major challenge is how to maintain good (at least satisfactory) performance and manufacturing quality of the motors with less material and manufacturing cost. Thus, there are two issues to address, low cost and good performance.

For the first issue, the cost of SMC motors mainly consists of two parts, material cost and manufacturing cost. High-performance NdFeB magnets have been used in many PM-SMC motors, such as transverse flux machine and axial flux motor to achieve good performance [1,2,3,4,5,6,7,8,9,11]. However, they are very expensive. To decrease the cost of SMC motors, ferrite magnets can be used to replace these expensive NdFeB magnets with a proper design of the motor topology, for example, the flux concentration design [12]. Meanwhile, transverse flux reluctance machine can be designed without the use of any magnets [1,13]. As this work focuses on the PM-SMC motors, ferrite magnets will be investigated in the following discussion. Regarding the manufacturing cost of PM-SMC motors, other parts except the SMC cores can be manufactured by the standard machining processes. For the manufacturing method of the SMC cores, there are two ways, wire cutting and molding technology. Wire cutting has been used for the manufacturing of SMC cores from big molded SMC blocks in most research work. Compared with the molding technology, wire cutting is expensive and small cracks can happen during the cutting process. These small cracks will affect the magnetic flux of the motors. Therefore, molding technology will be discussed in this work.

Regarding the molding technology for SMC cores, an important step is the heat treatment. This step cooks the raw core samples in a high-temperature furnace with several temperature control factors, such as the curing temperature and time. These control factors should be investigated and optimized to obtain an SMC core with good magnetic properties, such as higher permeability and lower core loss. To the best of the knowledge, this issue has not yet been investigated for the manufacturing of SMC cores for PM motors. To address it, the Taguchi method will be used to determine the best control factor values in this paper.

For the second issue, good performance and manufacturing quality of the SMC motors, they are related to the manufacturing tolerances. Due to the uncertain pressure employed in the powder compaction process, the densities of the SMC cores vary significantly, which will affect the magnetization curves of these cores and result in big variations to the motor performances [7,8,9]. There are some manufacturing tolerances for other parts of the PM-SMC motors as well, such as the dimension of the ferrite magnet and the length of the air gap. To obtain a robust motor design less sensitive to these variations, the SMC cores and the motor should be designed and optimized appropriately with the consideration of these manufacturing tolerances. In this work, the Taguchi parameter design method is first introduced to maximize the average torque and minimize the core loss of a low-cost PM-SMC motor. To further improve the motor performance, a sequential Taguchi optimization method will be presented as well.

The remainder of this paper is organized as follows: Section 2 introduces the structure and main dimensions of a PM-SMC motor that will be investigated in this work. Section 3 investigates the manufacturing process of the SMC cores with a focus on the heat treatment condition. The manufacturing tolerances of the SMC cores will be discussed as well. Section 4 conducts the optimization based on the Taguchi method and presents a new robust design method, sequential Taguchi optimization method, for the investigated PM-SMC motor. Section 5 compares the motor performances with different designs, followed by the conclusion.

2. Description for a PM-SMC Motor

Figure 1 illustrates the one-phase structure of the investigated PM-SMC motor. This is a 3D-flux flux-switching permanent magnet motor (FSPMM). The whole motor consists of three phases and there is a shift of 120 electrical degrees for two phases [12]. As shown, SMC cores are designed for both the stator and rotor of this motor. The stator consists of two parts, SMC cores and ferrite magnets. The rotor is made of SMC only, without any magnets or windings. Thus, the rotor has a robust mechanical structure, like the rotor of a normal FSPMM with NdFeB magnets [14]. For the flux in this motor, it goes through the ferrite magnet in the circumferential direction, the stator teeth in radial direction and the rotor in the axial direction. This motor is designed to provide an output torque of 2 Nm at rated speed 3600 rev/min for compressor application in a kind of air conditioner.

Table 1. Main dimensions of the FSPMM with SMC cores.

Parameter	Symbol	Value	Unit
Shaft radius	Rshaft	9.5	mm
Stator outer radius	Rso	50	mm
Stator inner radius	Rsi	25	mm
Height of stator yoke	Hsy	5	mm
Slot angle of stator teeth	θst	4.5	deg
Air gap length	Lgap	0.5	mm
Effective axial length	Laxial	31	mm
Length of rotor teeth	Lrt	6	mm
Angle of rotor pole	θrp	15	deg
Width of magnet	Wpm	5	mm
Number of turns	Nc	70	turns

lists some main dimensions of this machine.

For the magnetic field analysis, the magnetostatic model of MAXWELL 3D with the default boundary is adopted. Figure 2 shows the mesh and no-load flux density distribution of this FSPMM obtained from Maxwell. The total number of mesh elements is 341,526. The flux density on the stator teeth is about 1.2 T, this is high considering that ferrite magnets are employed for the PM field excitation.

3. Manufacturing Process and Tolerances of the SMC Cores for the FSPMM

3.1. Manufacturing Process of the SMC Cores

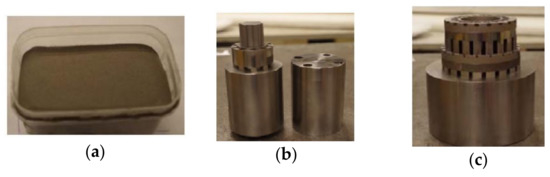

Figure 3 shows the manufacturing process and several manufactured SMC cores. There are two main steps in the manufacturing, powder compaction and heat treatment. In the first step, a hydraulic press (Figure 3d) is used to compact the SMC powder (Figure 3a) with several stator/rotor die tools (Figure 3b,c) to produce raw samples of the stator core (Figure 3g) and the rotor core (Figure 3i). In the second step, a high-temperature furnace (Figure 3e) is employed to cook the raw cores to produce the finished stator core (Figure 3h) and rotor core (Figure 3j). Figure 3k,l show two other cooked rotor cores with different heat treatment conditions. Both steps will affect the magnetic properties of the cores. The first step can be done by a standard machining process. Due to the uncertain pressure applied to the compacted cores, there are significant variations in the core densities in the batch production of the SMC cores. The second step can be implemented by using an auto-control high-temperature furnace. Figure 3f shows the temperature control panel of the used furnace in our laboratory.

Compared with the compaction step, the heat treatment step has more significant influence on the magnetic property variations of the SMC cores as there are more control factors in this step. Figure 3j–l show three cooked rotor cores obtained from different control factors for the heat treatment. As shown, they have different colours and the last one (Figure 3l) usually is not good as it is black due to the break of electrical insulation at high temperature. Thus, they should have different magnetic properties. To determine the best heat treatment condition, the control factors involved in the heat treatment process will be investigated and optimized by using the Taguchi method in the next subsection.

3.2. Analysis of the Best Heat Treatment Condition by Using Taguchi Method

Figure 4 shows a proposed heat treatment process for the SMC cores. As shown, there are four main steps, warning up, burn-off and curing, relaxation and cooling. Five factors as listed in

Table 2. Levels of control factors for the heat treatment of SMC cores.

Factor	Description	Unit	Levels
			1	2	3
Te1	Warming up temperature	°C	25	100	200
Te2	Burn-off and curing temperature	°C	420	450	480
Ti1	Burn-off and curing time	min	30	60	90
Te3	Relaxation temperature	°C	500	550	600
Ti2	Relaxation time	min	10	30	50

are used to control this process. They are warming up temperature (Te1), burn-off and curing temperature (Te2) and time (Ti1), and relaxation temperature (Te3) and time (Ti2). Temperature Te2 aims to ensure the mechanical strength of the compacted SMC core. Temperature Te3 targets to eliminate the stress and improve the magnetic performance [9]. All these factors will affect the magnetic properties of the SMC cores, such as permeability and core loss. To identify the optimal values for these control factors, the Taguchi method will be investigated. Taguchi method has been widely employed in experimental designs for problems with multiple factors. By using orthogonal arrays, it is able to search in the parameter space with a small number of experiments [15,16,17,18,19,20,21,22].

Table 3. An orthogonal array and experimental results for the heat treatment of SMC cores.

No.	Te1	Te2	Ti1	Te3	Ti2	µr	Core Loss	Objective (y)
1	1	1	1	1	1	210.72	10.87	1.45
2	1	2	2	2	2	239.76	14.73	1.43
3	1	3	3	3	3	192.10	66.21	3.24
4	2	1	1	2	2	243.34	67.48	3.02
5	2	2	2	3	3	197.12	70.42	3.33
6	2	3	3	1	1	261.68	7.56	1.13
7	3	1	2	1	3	249.63	5.71	1.12
8	3	2	3	2	1	265.92	14.57	1.33
9	3	3	1	3	2	206.15	67.48	3.19
10	1	1	3	3	2	222.22	48.72	2.54
11	1	2	1	1	3	273.33	7.42	1.09
12	1	3	2	2	1	274.41	15.13	1.32
13	2	1	2	3	1	202.56	83.40	3.69
14	2	2	3	1	2	226.28	5.94	1.22
15	2	3	1	2	3	250.75	14.90	1.39
16	3	1	3	2	3	271.49	13.59	1.28
17	3	2	1	3	1	183.11	74.40	3.54
18	3	3	2	1	2	267.10	4.48	1.02

lists an orthogonal array to determine the best heat treatment condition for the SMC cores. As shown, only 18 SMC cores are required for the analysis of magnetization curves and core losses of them. These magnetic properties are very important for the SMC cores and have been discussed in many research papers [1,22,23,24]. To conduct the experiment, 18 samples have been fabricated and three of them (the first three samples listed in Table 3) are shown in Figure 3. To determine their magnetic properties, all these samples are tested with an experimental platform as shown in Figure 5a. In the figure, the digital multimeter 1 (type: GDM-8045G, manufacturer: Good Will Instrument CO. LTD.) is used to measure the input current, the digital multimeter 2 (type: Agilent 34401A) is used to measure the input resistance for the calculation of copper loss, and the digital oscilloscope (type: Tektronix DPO 2024) is used to record the data of the magnetization curves.

Figure 5b–d show the measured magnetization curves (with hysteresis loops) for the first three samples listed in Table 3. Meanwhile, a clamp meter (type: Fluke 345) is used to measure the input power. Based on the experimental results, the values of relative permeability (µ_r) and core loss (unit: W/kg) of these 18 samples can be estimated, as listed in Table 3.

To identify the best combination of the control factor values (or levels), an objective function is defined as follows to maximize the relative permeability and minimize the core loss (P_core):

$$y(i)=\frac{{\mu }_{r\_ave}}{{\mu }_r(i)}+\frac{P_{core}\left(i\right)}{P_{core\_\mathrm{ave}}},$$

(1)

where i (1, 2, …, 18) is the number of experiments, and the subscript ave means average. To identify the best level of each control factor, averages of the relative permeability, core loss and objective are calculated for all control factors, as listed in

Table 4. Averages of motor performance and design objectives for all control factors.

Factor	Level	µr	Core loss	Objective (y)
Te1	1	235.42	27.18	1.84
	2	230.29	41.62	2.30
	3	240.57	30.04	1.91
Tr2	1	233.33	38.30	2.18
	2	230.92	31.25	1.99
	3	242.03	29.29	1.88
Ti1	1	227.90	40.43	2.28
	2	238.43	32.31	1.98
	3	239.95	26.10	1.79
Te3	1	248.12	7.00	1.17
	2	257.61	23.40	1.63
	3	200.54	68.44	3.26
Ti2	1	233.07	34.32	2.08
	2	234.14	34.81	2.07
	3	239.07	29.71	1.91

. As an example to show the calculation method, the average objective for the level 1 of factor Te3 is computed as follows:

$$y_{ave}(\mathrm{Te}3,\mathrm{level}1)=\frac{y(1)+y(6)+y(7)+y(11)+y(14)+y(18)}{6}=1.17,$$

(2)

where 1, 6, 7, 11, 14 and 18 are the numbers of experiments with 1 as the level of the factor Te3, as listed in Table 3.

According to the Taguchi method, the level that can provide the smallest objective should be chosen as the best level for each factor [15,16,17,18,19,20,21,22]. To clearly show the selection process, Figure 6 shows the average objectives for all levels of those five factors. As shown, the best combination of the control factor levels is 1, 3, 3, 1, 3.

In addition, as shown in Figure 6, the fourth factor (Te3) has the highest influence on the magnetic properties of these SMC cores as its average varies significantly in terms of different design levels. The best level for this factor is 1, meaning that the relaxation temperature should be 500 °C. If the temperature is over 500 °C, the electrical insulation of the iron powder may be destroyed, which will result in bigger core loss.

3.3. Variations of the Core Densities and Magnetization Curves

It is found that there are significant variations in the core densities. Figure 7a shows the measured core densities for those SMC cores. As shown, the standard deviation (STD) of the densities is 0.05 g/cm³. These variations will affect the magnetization curves of SMC cores. Figure 7b illustrates three magnetization curves for three different core densities in the range of [6.77 7.07]. The difference between the mean core density (6.92 g/cm³) and the lower/upper boundary of the range is 0.15 g/cm³ (three times of the STD). As shown, significant differences can be observed, which will result in big variations for the magnetic field distribution in the motor, and consequently, the motor performance.

Therefore, to improve the performance and manufacturing quality of the investigated FSPMM, robust design optimization is needed and will be discussed in the next section.

4. Motor Performance Optimization by Using Taguchi Method

4.1. Taguchi Parameter Design Method

In general, to improve the performance of electrical machines, many optimization methods can be employed, such as the intelligent optimization algorithms, multilevel, multiobjective and multidisciplinary optimization methods [25,26,27,28,29,30,31,32,33]. For the optimization of the investigated FSPMM under manufacturing variations, this is a kind of robust design optimization problem. To solve this problem, Taguchi parameter design, worst case design and design for six-sigma (DFSS) are three normally used methods [26,32,33,34,35,36,37,38]. Among them, Taguchi parameter design method requires the least simulation cost.

For the investigated FSPMM, 3D finite element model (FEM) as shown in Figure 2a is required as this is a 3D flux machine. The simulation time of one design with Maxwell is around 25 min on a PC with 3.2 GHz CPU and 8 GB RAM. This is a huge computation cost if several thousand FEM samples are required. Therefore, to decrease the computation cost, the Taguchi parameter design method will be employed to optimize the investigated FSPMM in this work. In the implementation, two types of factors, control and noise factors, are required to define for this motor. The control factors are the design parameters that will be optimized, whereas the noise factors are parameters that characterize the manufacturing tolerances. An orthogonal array consisting of an inner array and an outer array will be generated to conduct the simulations. Based on that, the signal/noise (S/N) ratio, as an index of motor quality, is used to determine the best combination of the control factor values that make the motor robust to those manufacturing tolerances [34,35,36,37,38].

For this motor, five parameters (θ_st, L_gap, L_rt, W_pm, and θ_rp) as shown in Figure 8 are crucial to its performance, where W_pm is the width of the ferrite magnet in the direction of magnetization, L_gap is the length of the air gap, and the others are three parameters for SMC cores.

Table 5. Design parameters and ranges for the FSPMM.

Control Factor	Unit	min	max
θst	deg	4	7
Lgap	mm	0.45	0.75
Lrt	mm	5	8
Wpm	mm	4	7
θrp	deg	10	17

lists the initial design ranges of them. These parameters are considered as the control factors for the Taguchi parameter design of this motor.

Table 6. Control factors and levels for the FSPMM.

Control Factor	Unit	Levels
		1	2	3	4
θst	deg	4.5	5	5.5	6
Lgap	mm	0.45	0.5	0.55	0.6
Lrt	mm	5.5	6	6.5	7
Wpm	mm	5	5.5	6	6.5
θrp	deg	12	13	14	15

tabulates the levels for these five control factors. As shown, each factor has four levels.

Table 7. Noise factors and levels for the FSPMM.

Noise Factor	Unit	Levels
		1	2
∆ρ	g/cm3	−0.15	+0.15
∆Lgap	mm	−0.05	+0.05
∆LWpm	mm	−0.05	+0.05

lists three noise factors and their levels. These factors are related to the manufacturing tolerances of the ferrite magnets, SMC cores and the air gap. They account for the main performance variations for this FSPMM, and they are hard to control in the manufacturing. As listed in the table, each noise factor has two levels. For example, the two levels for the core density (ρ) are −0.15 and 0.15 g/cm³, meaning that the practical core densities in the manufacturing are 6.77 and 7.07 g/cm³, respectively. They are calculated by 6.92 − 0.15 and 6.92 + 0.15, respectively, where 6.92 is the core density of the initial design.

Based on these control and noise factors,

Table 8. An orthogonal array for the output torques and core losses of the FSPMM.

No.	Control Factor Levels					Noise Factor Levels and Values for Torque				Noise Factor Levels and Values for Core Loss
	1	2	3	4	5	111	122	212	221	111	122	212	221
1	1	1	1	1	1	2.08	2.08	2.42	2.42	117.31	116.16	130.21	128.92
2	1	2	2	2	2	1.88	1.87	2.10	2.09	110.54	109.27	123.48	121.81
3	1	3	3	3	3	1.72	1.70	1.93	1.91	102.81	101.45	114.75	113.25
4	1	4	4	4	4	1.56	1.53	1.70	1.67	93.57	92.10	105.03	103.43
5	2	1	2	3	4	1.93	1.91	2.09	2.06	111.77	110.23	124.41	122.73
6	2	2	1	4	3	1.71	1.68	1.92	1.89	99.49	97.786	110.41	108.56
7	2	3	4	1	2	1.82	1.82	2.05	2.06	109.12	108.16	122.84	121.77
8	2	4	3	2	1	1.80	1.79	2.13	2.12	100.97	99.91	112.55	111.35
9	3	1	3	4	2	1.82	1.79	2.01	1.97	96.68	95.19	108.43	106.77
10	3	2	4	3	1	1.88	1.86	2.22	2.20	97.31	96.12	109.33	108.00
11	3	3	1	2	4	1.90	1.89	2.05	2.04	114.43	113.03	126.51	124.97
12	3	4	2	1	3	1.81	1.80	2.02	2.01	113.42	112.34	125.83	124.61
13	4	1	4	2	3	1.98	1.97	2.20	2.19	110.23	109.07	123.84	122.55
14	4	2	3	1	4	2.00	2.00	2.16	2.15	118.81	117.71	132.61	131.38
15	4	3	2	4	1	1.74	1.72	2.07	2.04	90.50	89.02	100.66	99.036
16	4	4	1	3	2	1.75	1.73	1.93	1.90	98.55	97.16	108.05	106.46

lists an orthogonal array for the robust design and analysis of this motor. As shown, there are 16 rows, meaning that 16 combinations of the control factors are required to form the inner array. For the noise factors, four combinations are needed to form the outer array, and they are listed as 111, 122, 212 and 221 in the table. 1 or 2 means the level of the control factor. For example, 122 represents the combination of levels 1, 2, and 2 for these three noise factors, respectively. Therefore, 64 (16 × 4) combinations (FEM samples) will be required for the simulation in Maxwell. Table 8 lists the average torques and core losses of these 64 samples.

For the performance optimization of this motor, there are two objectives, maximizing the average torque (T_ave) and minimizing the core loss (P_core). Based on them, an objective function is defined as follows to determine the best combination of control factor values:

$$y(i,j)=\frac{T_{ave\_initial}}{T_{ave}(i,j)}+\frac{P_{core}\left(i,j\right)}{P_{core\_initial}},$$

(3)

where i (1, 2, …, 16) and j (1, 2, 3, 4) are the numbers of experiments for the inner and outer arrays, respectively.

Table 9. S/N ratios of the objective for the 16 experiments of the control factors.

No.	SN/dB	No.	SN/dB	No.	SN/dB	No.	SN/dB
1	−5.33	5	−5.62	9	−5.32	13	−5.40
2	−5.62	6	−5.67	10	−5.03	14	−5.73
3	−5.77	7	−5.71	11	−5.77	15	−5.09
4	−6.03	8	−5.35	12	−5.90	16	−5.53

lists the S/N ratios for all 16 rows of the control factors. The calculation method can be briefly summarized as follows:

First, use (3) to compute the objective of all 64 samples listed in Table 8.

Second, calculate the S/N ratio for each row in the table. According to the Taguchi parameter design method (with a target as the smaller the better), the calculation equation is:

$$SN(i)=-10\times \lg \left[\frac{1}{4}\times {\displaystyle \sum _{j=1}^4{y}^2(i,j)}\right].$$

(4)

Third, compute the average S/N ratio for each level of all control factors. For example, for the third level of the second control factor L_gap, it average S/N ratio can be calculated by:

$$R(\mathrm{factor}=L_{gap},\mathrm{level}=3)=\frac{SN(3)+SN(7)+SN(11)+SN(15)}{4},$$

(5)

the numbers 3, 7, 11 and 15 can be found from the orthogonal array.

To identify the best combination of the control factor values, Figure 9 illustrates the average S/N ratios for all five factors. The best level of each factor can be obtained by selecting a level with the highest S/N ratio. As shown, levels 4, 1, 4, 3, and 1 should be chosen for these five control factors, respectively. Their corresponding values can be found from Table 6.

4.2. Sequential Taguchi Optimization Method

For the optimal design obtained from Taguchi parameter design, the motor average torque is torque 2.01 Nm and core loss is 104.07 W. They are better than those of the initial design (2.00 Nm and 129.24 W). However, the improvements are not significant. The main reason is that only 64 samples and 4 levels have been considered for the control factors in the optimization process. There are big step sizes for different levels. To overcome this disadvantage and further improve the motor performance, a sequential Taguchi optimization method (STOM) is proposed as follows. Figure 10 illustrates the flowchart of the proposed STOM. There are five main steps:

Step 1: Problem definition. This step defines the design objectives, control and noise factors of the motor.

Step 2: Taguchi parameter design. This step conducts the analysis of the Taguchi parameter design discussed in Section 4.1. First, define an orthogonal array for the control and noise factors. Second, simulate the motor performance. Third, calculate the S/N ratios of each factor at different levels and determine the best level combination.

Step 3: Motor performance evaluation. This step evaluates the motor performance of the obtained optimal design, including average torque and core loss, and calculates the objective.

Step 4: Determination of the convergence. Compare the objectives obtained from this step and the last step. If the relative error is less than ε (a positive value like 1%), terminate the optimization process and output the optimal design. Otherwise, go to next step.

Step 5: Updating the design space. For most engineering optimization problems, the optimal point should be located in a small subspace compared with the initial big design space. Therefore, if that subspace can be found, the optimum should be better than the initial one. Following this idea, the design space will be reduced in this step by using a sequential optimization strategy [39,40]. In the implementation, the step size of each control factor will be halved in this step. For example, for the fourth control factor (W_pm), the best level is 3 given by the Taguchi design, meaning that its value is 6 mm. As the initial step size is 0.5 mm, the next one is 0.25 mm. Thus, the next four levels of this control factor will be 5.625, 5.875, 6.125 and 6.375, respectively. As shown, 6 is the mean of the second and third levels (mean of 5.875 and 6.125). If the best level is the lower or upper limit of the design space, the next design levels will start from or end with that level. For example, for the second control factor (L_gap), the best level is 1 given by the Taguchi design. Its value is 0.45 mm, which is the lower limit of its design space. Therefore, the next four levels will start from it and the step size for any two levels is 0.025 mm, and they are 0.45, 0.475, 0.5 and 0.525, respectively. Based on these updated design levels, the Taguchi parameter design should be conducted again until the convergence criterion is met.

Figure 11 shows the objectives obtained from the proposed STOM with ε = 1%. As shown, four Taguchi parameter design processes (k = 1, 2, 3, 4) are required for the proposed optimization method. The objectives for these design processes are 1.800, 1.657, 1.631, and 1.627 respectively. Meanwhile, a total of 256 samples are required for the performance simulation as 64 FEM samples are needed for each design process. Therefore, this method is efficient. The detailed optimal control factors and motor performance will be given in the next section.

5. Comparison of Motor Performance with Different Designs

Table 10. Performance comparison for FSPMM with four designs.

Parameter	Unit	Initial	Taguchi	STOM	DFSS
θst	deg	4.5	6	6.66	7.0
Lgap	mm	0.5	0.45	0.45	0.45
Lrt	mm	6	5.5	7.53	7.50
Wpm	mm	5	5.5	6.16	6.34
θrp	deg	15	12	10.69	10.50
Torque	Nm	2.00	2.01	2.25	2.20
Core loss	W	129.24	104.07	95.28	91.02
Objective	-	2.00	1.80	1.63	1.61
Ferrite PM cost	AUD	6.09	7.31	7.50	7.72
SMC cost	AUD	2.61	2.26	2.16	2.11
Cost (PM + SMC)	AUD	8.70	9.57	9.66	9.83
FEM samples	-	-	64	256	9375

lists the optimal parameter values and the corresponding motor performance given by four different designs. Figure 12 and Figure 13 compare the curves of the motor torque and core loss for these designs. The first one is the initial design. The second one is the optimal design provided by the Taguchi parameter design as discussed in Section 4.1. The third one is the optimal design given by the proposed STOM as discussed in Section 4.2. The last one is obtained from the DFSS method based on the following robust optimization model:

$$\begin{array}{cc}\min :& {\mu }_f(x)\hfill \\ s.t.& g_i[{\mu }_f(x),{\sigma }_f(x)]\le 0, i=1,2\end{array}$$

(6)

where $f(x)=\frac{T_{ave\_initial}}{T_{ave}(x)}+\frac{P_{core}(x)}{P_{core\_initial}}$ is an objective function for the deterministic optimization model, g₁(x) and g₂(x) are two constraints, and given by $g_1(x)=2-T_{ave}(x)\le 0$, $g_2(x)=P_{core}(x)-130\le 0$, x is a vector of the five parameters listed in Table 5, μ and σ are the mean and standard deviation of the corresponding terms which are estimated by using the Monte Carlo analysis method. DFSS is a popular robust design method and has been successfully employed for the robust design optimization of PM-SMC motors [25,26,32,33]. The following conclusions can be drawn from the table and figures.

Firstly, the average torque and core loss given by the Taguchi parameter design are 2.01 Nm and 104.07 W, respectively, which are better than those of the initial design (2.00 Nm and 129.24 W). However, they are obviously worse than those of the STOM (2.25 Nm and 95.28 W) and DFSS (2.20 Nm and 91.02 W). Compared with the initial and Taguchi designs, the motor’s average torque given by the optimal STOM design has been increased by 12.5% and 12.0%, respectively, while the core loss has been decreased by 26.28% and 8.44%, respectively. Regarding the objective, the value of STOM is 1.63, which is lower than those of the initial design (2.00) and Taguchi design (1.80), but is slightly higher than that of the DFSS (1.61). The difference between STOM and DFSS is small as the relative error is only 1.23%.

Secondly, considering the computation cost, the required FEM samples will be compared as the FEM simulation accounts for the most computation time of this motor. The Taguchi and STOM designs require 64 and 256 FEM samples, respectively. However, DFSS requires about 9375 (3 × 5⁵ = 9375) FEM samples if a surrogate model is employed with 5 levels for each of the five control parameters and 3 levels for the noise factor of core density. The computation cost of the STOM is only about 2.73% of that required by the DFSS. Therefore, the proposed STOM is efficient.

Thirdly, regarding the material cost of the ferrite PMs and SMC, the cost required by the STOM design is AUD 9.66, which is higher than those needed by the initial design (AUD 8.70) and the Taguchi design (AUD 9.57), and slightly lower than that required by the DFSS (AUD 9.83). However, the differences between them are small, and all are less than AUD 10.00. This confirms the low cost of this kind of motor.

Finally, considering the manufacturing quality of this motor in batch production, performance variations in terms of manufacturing tolerances (noise factors) are conducted for these four designs. Figure 14 and Figure 15 illustrate the distributions of average torque and core loss given by the Monte Carlo analysis, respectively. As shown, the STOM and DFSS designs can ensure that all samples satisfy the two requirements, i.e., average torque higher than 2 Nm and core loss lower than 130 W. For the Taguchi parameter design, the minimal torque is less than 2 Nm, meaning that some (a small percentage) motors cannot meet this requirement in the batch production. Therefore, the motor performance and manufacturing quality of the FSPMM have been improved significantly by using the proposed STOM.

6. Conclusions

This work investigated the optimization of the manufacturing process and robust design of a low-cost FSPMM with SMC cores based on the Taguchi method. For the heat treatment in the manufacturing process, the Taguchi method was employed to identify the best combination of control factor levels. The relaxation temperature was found to be the most significant control factor to the magnetic properties of the SMC cores, and its best value is 500 °C. This manufacturing method will benefit the low-cost batch production of SMC cores by using the molding technology. For the robust design of the FSPMM, manufacturing tolerances related to the ferrite PMs, SMC cores and the air gap were considered in the analysis. To obtain a robust design, Taguchi method was first employed, then a STOM was presented to further improve the motor performance and manufacturing quality. The STOM design was compared to the initial design, Taguchi design and DFSS design in terms of the motor performance, FEM computation cost, material cost and performance distributions considering manufacturing tolerances. It was found that the motor performance and manufacturing quality given by the optimal STOM design are close to those of the optimal DFSS design and are much better than those of the initial and Taguchi designs. Moreover, the required FEM computation cost of the STOM is less than 3% of that needed by the DFSS. Therefore, the proposed STOM is efficient.

The proposed method can be applied to other PM-SMC motors for low-cost applications. It can also be used as an effective method to improve the performance and manufacturing quality of other kinds of electrical machines. In the future work, several prototypes will be fabricated for this FSPMM with consideration of the manufacturing tolerances. Furthermore, more factors and their variations including material diversities will be investigated in the robust design of SMC and other kinds of motors.
