Research on the Lightning Intruding Overvoltage and Protection Measures of 500 kV AC Fault Current Limiter

Abstract

As one of the key technologies to solve the problem of high short-circuit current, the fault current limiter (FCL) has become a research hotspot in China and abroad. The overvoltage and protection measures of the FCL are the key technologies for its application. Therefore, this paper studies the lightning intruding overvoltage and protection measures for a 500 kV FCL based on a high coupled split reactor (HCSR). Firstly, according to the main topology of the system and the 500 kV HCSR-FCL structure, the lightning intruding overvoltage simulation model of the 500 kV station, including the nearby transmission lines, is established on the PSCAD (Power Systems Computer Aided Design) program. Secondly, the lightning overvoltage of the equipment in the station and the components of the HCSR-FCL are simulated and analyzed when the transmission lines nearby are subjected to lightning shielding failure and back flashover. Meanwhile, the influence of the HCSR-FCL on the lightning overvoltage of the equipment in the station are compared and analyzed before and after the HCSR-FCL is installed. The simulation results show that the overvoltage of the equipment in the station and the components of the HCSR-FCL is more serious when the shielding failure occurs in the transmission lines nearby. The HCSR-FCL can reduce the lightning overvoltage of the equipment in the station, but the maximum inter-terminal and inter-arm lightning overvoltage of the HCSR can reach 1064 kV and 790 kV, respectively, under the current limiting state and the current sharing state. Finally, methods of increasing the arresters on the transmission lines side of the HCSR-FCL and shunt capacitor between each module of the HCSR-FCL are proposed to reduce the lightning overvoltage. The lightning impulse withstand voltage of each component of the HCSR is also proposed: The inter-terminal lightning impulse withstand voltage of HCSR is 170 kV. The inter-arm lightning impulse withstand voltage of HCSR is 200 kV. The terminal-to-ground lightning impulse withstand voltage of the HCSR-FCL is 1550 kV.

1. Introduction

The short-circuit fault current of the 500 kV power grid is becoming higher due to the increase of power grid capacity and density [1,2]. Traditional current-limiting methods will reduce the security margin and reliability of the power grid and endanger the safe and stable operation of the power grid [3].

As one of the effective measures to limit the short-circuit current, the fault current limiter (FCL) has been widely considered by researchers. At present, superconducting FCL, power electronic FCL, and economical FCL based on conventional equipment are the research hotspots [4,5,6,7]. However, superconducting FCL is expensive [8]. Power electronics FCL need complex bypass devices and a large space; hence, they cannot be widely used in a 500 kV AC power grid [9]. The FCL based on a high coupled split reactor (HCSR) has become an important choice to limit the short-circuit current in a power grid due to its high technical and economic efficiency. The HCSR consists of two reverse coupled inductors, and the two reverse coupled inductors show low reactance when the power grid system is in a normal operation mode, during which the HCSR is working in a current sharing state. When a short-circuit fault occurs in the power grid system, the circuit breaker of one arm in the HCSR breaks, and the HCSR presents a high reactance, during which the HCSR is working in a current limiting state [10]. At present, research on HCSR is carried out on the theory, design, insulation, and current sharing in China and abroad [11,12,13,14,15]. HCSR-FCL research and engineering demonstration applications were also carried out for 220 kV power grids in China [16]. However, as the short-circuit fault current of the 500 kV power system is much higher than that of 220kV power system and the design structure of the 500 kV HCSR and the 220 kV HCSR are different, there are many practical problems in 500 kV HCSR-FCLs to be solved for their application, such as current limiting depth, insulation design, and coordination with 500 kV power grid equipment. Therefore, as the first application of the 500 kV HCSR-FCL used in the 500 kV power grid, it is necessary to study the influence of the HCSR-FCL on the lightning overvoltage and insulation coordination of the original 500 kV system equipment and to propose the lighting impulse withstand voltage of the HCSR-FCL.

This paper aims to study the influence on other equipment in the 500 kV power grid when the incoming transmission lines are subjected to lightning shielding failure and back flashover after a 500 kV HCSR-FCL connects to a 500 kV power grid. Furthermore, the lightning overvoltage of each component of the HCSR-FCL are studied under different working conditions, and protection measures are proposed. Finally, the lightning impulse withstand voltages of the HCSR-FCLs are proposed when the HCSR-FCL is applied in a demonstration project.

2. The Topology and Parameters of the 500 kV Power System

The main topology of a 500 kV power system to be connected with a 500 kV HCSR-FCL is shown in Figure 1, in which the HCSR-FCL will be installed on the side of the Shunde-Guangnan transmission line near Guangnan station. Considering the future development of the power grid and the requirement of the current limiting ratio, the inductance of one arm of each module is 4.1 mH, the coupling coefficient is 0.977, and topology of the HCSR-FCL is shown in Figure 2. The HCSR-FCL consists of two identical modules, and each module includes one HCSR, four voltage-equalizing capacitors, four fast switches, and their stray capacitors to the ground. Among them, C1 is a voltage-equalizing capacitor, and C2 and C3 are stray capacitors to the ground of the fast switches. The parameters of C1, C2, and C3 are shown in

Table 1. Parameters of the capacitors.

Device	C1/pF	C2/pF	C3/pF
Capacitor	1000	40	100

.

The working principles of the HCSR-FCL are as follows: When the power system is in normal operation, the eight fast switches are closed, and the HCSR-FCL is in the current sharing state; when a fault occurs, the eight fast switches are disconnected, and the HCSR-FCL is in the current limiting state. Therefore, it is necessary to separately analyze the lightning overvoltage of each component of the HCSR-FCL under the states of current sharing and current limiting after the HCSR-FCL is connected to the 500 kV power system.

3. Implementation Cost of the HCSR-FCL

The HCSR-FCL consists of two HCSRs, eight fast switches, their voltage-equalizing capacitors, and matching equipment in its practical application. The costs of each part of the HCSR-FCL which have been stated by the consulted equipment manufacturers are shown in

Table 2. Cost of the HCSR-FCL.

Device	Cost/$	Total Cost of Single-Phase HCSR-FCL/$	Total Cost of Three-Phase HCSR-FCL/$
Two HCSR	360,000	610,000	1,830,000
Eight fast switches and their voltage-equalizing capacitors	210,000
Matching equipment	40,000

. The costs of other types of FCLs and the HCSR-FCL are shown in

Table 3. Costs of the FCLs.

Device	HCSR-FCL	Series-Resonant FCL	Superconducting FCL
Cost/$	1,830,000	11,400,000	over 14,300,000

.

Compared with other type FCLs, the cost of the HCSR-FCL is much lower. Furthermore, one branch of the HCSR-FCL only flows through half of the short-circuit current when a short-circuit fault occurs, so that common equipment can be adopted as maintenance equipment, and maintenance is simple, which can also reduce the cost of the HCSR-FCL in practical engineering.

4. Modeling Methods

4.1. Lightning Parameters

4.1.1. Lightning Current Waveform

The lightning current waveform is simulated by a 2.6/50 µs double exponential wave. The impedance of the lightning current channel is related to the magnitude of lightning current [17], and therefore, the impedance of the lightning current channels is selected to be 300 Ω and 800 Ω, respectively, during back flashover and shielding failure.

4.1.2. Lightning Point

It is supposed that the lightning strikes on the nearest six towers of Guangnan station. The back flashover and shielding failure of the incoming transmission lines will cause the intruding overvoltage to the station.

4.1.3. Lightning Current Amplitude

The lightning withstand level of back flashover and shielding failure is calculated by the simulation, and the maximum shielding current is calculated by electrical geometry model [18]. In the subsequent simulations, the magnitude of lightning current of back flashover and shielding failure is considered comprehensively.

4.2. Line Model

The length of the transmission line from Guangnan station to Shunde station is 67 km. The conductor adopts a four-split structure. The conductor type is JNRLH60X/LB14-350/35, the splitting distance and the DC resistance of the conductor are 450 mm and 0.0818 Ω/km, respectively. The overhead ground line is in JLB40-150 type, and the DC resistance is 0.2952 Ω/km. A frequency-dependent (phase) model of the transmission lines is used in the PSCAD program. This paper does not consider the effect of corona on the lightning intruding overvoltage.

4.3. Tower Model

The tower model adopts the multi-conductor layered wave impedance model proposed by Yamada and Hara [19,20]. The model takes into account the variation of tower parameters with height, and also includes the propagation characteristics of wave on tower and cross-arm. In this paper, the parameters of the tower are shown in

Table 4. Parameters of the towers.

Tower Number	Tower Type	Span/m	Gap Distance/m
#1	SJCD344-30	342	4.3
#2	SJC343-33	289	4.3
#3	SZC344-56	334	3.7
#4	SZC343-36	287	3.7
#5	SZC341-31	272	3.7
#6	SJC341-21	242	4.3

, and the multi-wave impedance model of the tower is shown in Figure 3.

4.4. Insulator String Flashover Criterion

The FXBW-500/240D insulator is used in Guangnan station. The ideal controllable switch is used to model the insulator. The leader propagation method is chosen as the flashover criterion of the insulators, and the leader velocity adopts the equation proposed by CIGRE Working Group [21]. The gap distance of the flashover criterion is shown in Table 4.

4.5. Equipment Model of The Station

Because of the high equivalent frequency of lightning intruding overvoltage, the equipment in the station, such as the transformers, disconnectors, circuit breakers, hybrid gas insulated switchgear bushings, etc., can be equivalent to the impulse capacitor [22,23,24,25]. There are distributed parameter lines between them. The equivalent capacitance of some equipment is shown in

Table 5. Equivalent capacitor of some equipment.

Device	TR1/pF	CVT/pF	DS/pF	CT/pF	HGIS Bushing/pF
Capacitor	5000	5000	150	1000	200

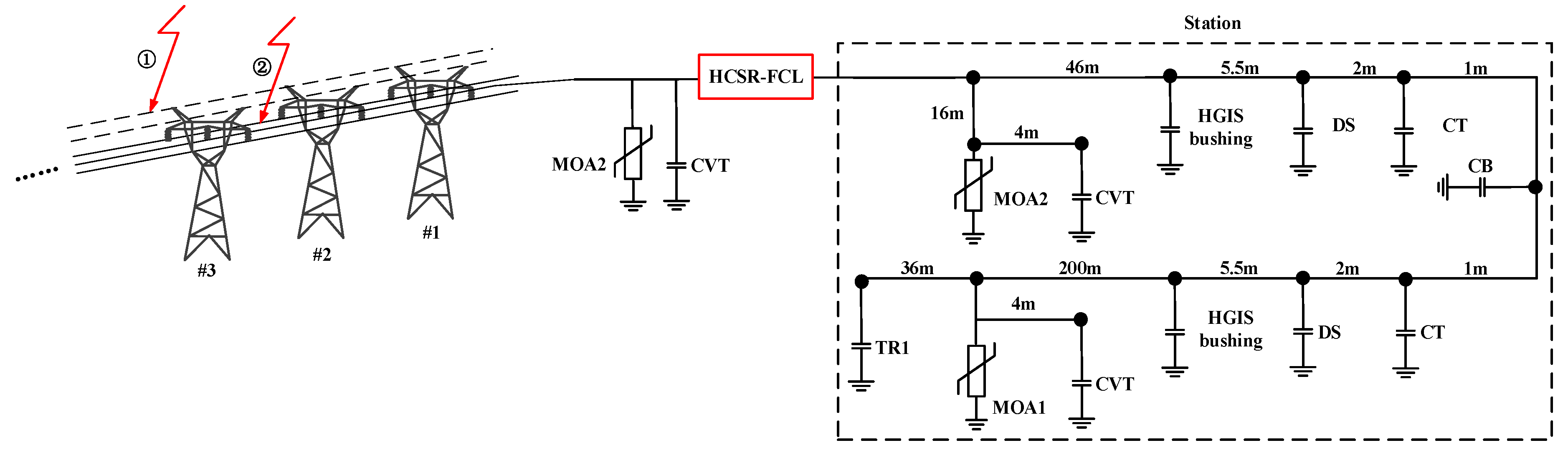

. The equivalent circuit of the station connected with the HCSR-FCL is shown in Figure 4. TR1 is main transformer, CVT is capacitive voltage transformer, HGIS bushing is hybrid gas insulated switchgear bushing, DS is disconnector, CT is current transformer, CB is circuit breaker, and MOA is metal oxide arrester. The arrester type near the main transformer in the station is Y20W1-420/1046 (MOA1) and the arrester type near the incoming line is Y20W1-444/1063 (MOA2). The single-column measured U-I characteristics of the arresters are shown in

Table 6. U-I characteristics of the arresters.

Y20W1-420/1046		Y20W1-444/1063
I/kA	U/kV	I/kA	U/kV
0.000001	596	0.000001	630
0.001	641	0.001	677
0.1	727	0.1	769
0.5	763	0.5	807
1	772	1	816
5	870	5	920
10	918	10	971
20	972	20	1027
30	1038	30	1098

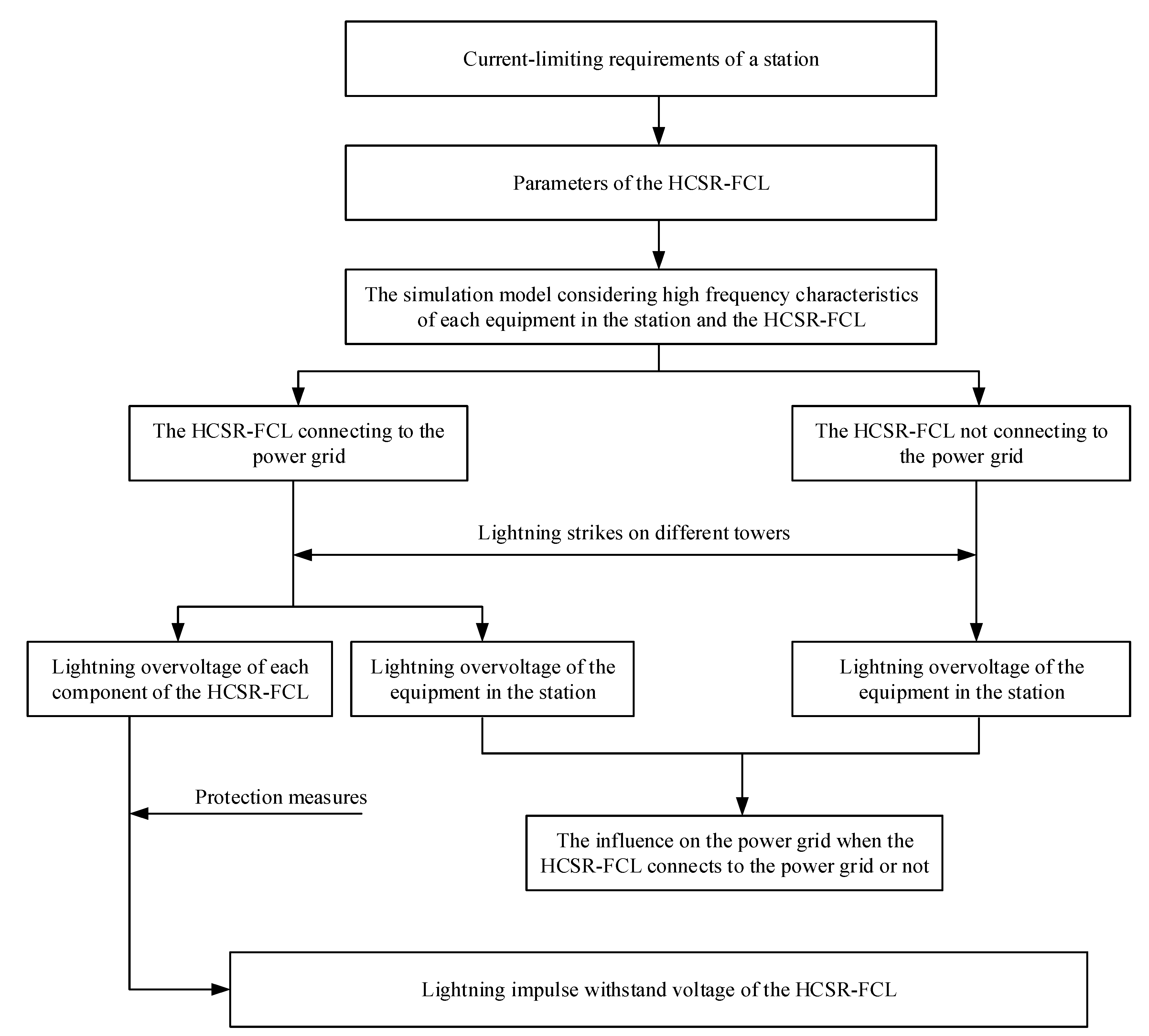

. Appendix A shows how to study the lightning overvoltage and insulation design of the HCSR-FCL when the HCSR-FCL is applied to a station.

5. Simulation Results and Analysis

According to the above modeling method, a simulation model for lightning intruding overvoltage of the 500 kV HCSR-FCL is established in the PSCAD/EMTDC program, and the simulation step is 0.002 µs.

5.1. Back Flashover

In order to improve the reliability of the equipment, this paper calculates the lightning intruding overvoltage based on the once-in-a-century lightning current. According to the cumulative probability distribution of lightning current amplitude and the ground lightning density in Guangdong Province from 2008 to 2017, the amplitude of the once-in-a-century lightning current of the incoming line can be calculated. The calculation method is shown in Equation (1).

$$L\times N_{\mathrm{L}}\times P=\frac{1}{100}$$

(1)

where L is the length of the incoming line, km; N_L is the flashes/100 km/a; P is the cumulative probability distribution function of lightning current amplitude. N_L and P are calculated by Equations (2) and (3), respectively.

$$N_{\mathrm{L}}=N_{\mathrm{g}}(\frac{28h_{}^{0.6}+d}{10})$$

(2)

$$P\left(i\ge I\right)=\frac{1}{1+{(I/a)}^b}$$

(3)

where N_g is the ground flash density (GFD), which takes 8.13 flashes/km²/a; h is the tower height, which takes 56 m; d is the overhead ground wire (OHGW) separation distance, which takes 15 m; a = 28.96; and b = 3.4.

From Equations (1)–(3), the lightning current amplitude of the incoming transmission lines that may be struck once in a hundred years is 177 kA.

The lightning voltage across the insulator was simulated and analyzed when the incoming transmission lines caused the lightning back flashover and shielding failure, and Figure 5 shows the typical lightning voltage across the insulator. In order to analyze the influence of the HCSR-FCL on the overvoltage of the equipment in the station, the overvoltage of the equipment in the station were analyzed with the HCSR-FCL connected and not connected.

5.1.1. Without the HCSR-FCL

Table 7. Voltage of the equipment.

Tower Number	CVT/kV	HGIS Bushing/kV	TR1/kV
#1	1019	1186	968
#2	998	1139	917
#3	1140	1223	798
#4	1060	1008	808
#5	1048	990	800
#6	943	1095	910

shows the statistical calculation results of the maximum lightning overvoltage of the equipment in the station when the back flashover occurs on the incoming transmission lines. The maximum stress (voltage, current, energy) of the CVT arrester is 934 kV/6.33 kA/16 kJ, which is within the rating value of the arrester.

5.1.2. With the HCSR-FCL

The configurations and equipment in the station are kept unchanged, and the lightning overvoltage of the HCSR-FCL under two working conditions of current limiting and current sharing are simulated and calculated respectively.

(1) The HCSR-FCL works in the current sharing state

Eight fast switches are closed when the HCSR-FCL works in the current sharing state, and the voltage-equalizing capacitor (C1) and the fast switching capacitor (C2 and C3) are approximately short-circuited to the ground. As a result, both arms of the HCSR coils can pass lightning current, and the lightning currents passed by the two arms are basically equal. Figure 6 shows the voltage of inter-terminal and inter-arm overvoltage of the HCSR during the back flashover of the transmission lines.

Table 8. Overvoltage of the equipment in current sharing state.

Tower Number	Station		HCSR
	CVT/kV	HGIS Bushing/kV	TR1/kV	Inter-Terminal/kV	Inter-Arm/kV	Terminal-to-Ground/kV
#1	824	789	867	577	577	955
#2	824	855	857	548	548	1045
#3	788	863	810	537	537	1073
#4	789	842	825	536	536	1008
#5	787	755	833	536	536	1006
#6	828	842	864	533	533	944

shows the overvoltage calculation results of each equipment in the station and the components of the HCSR.

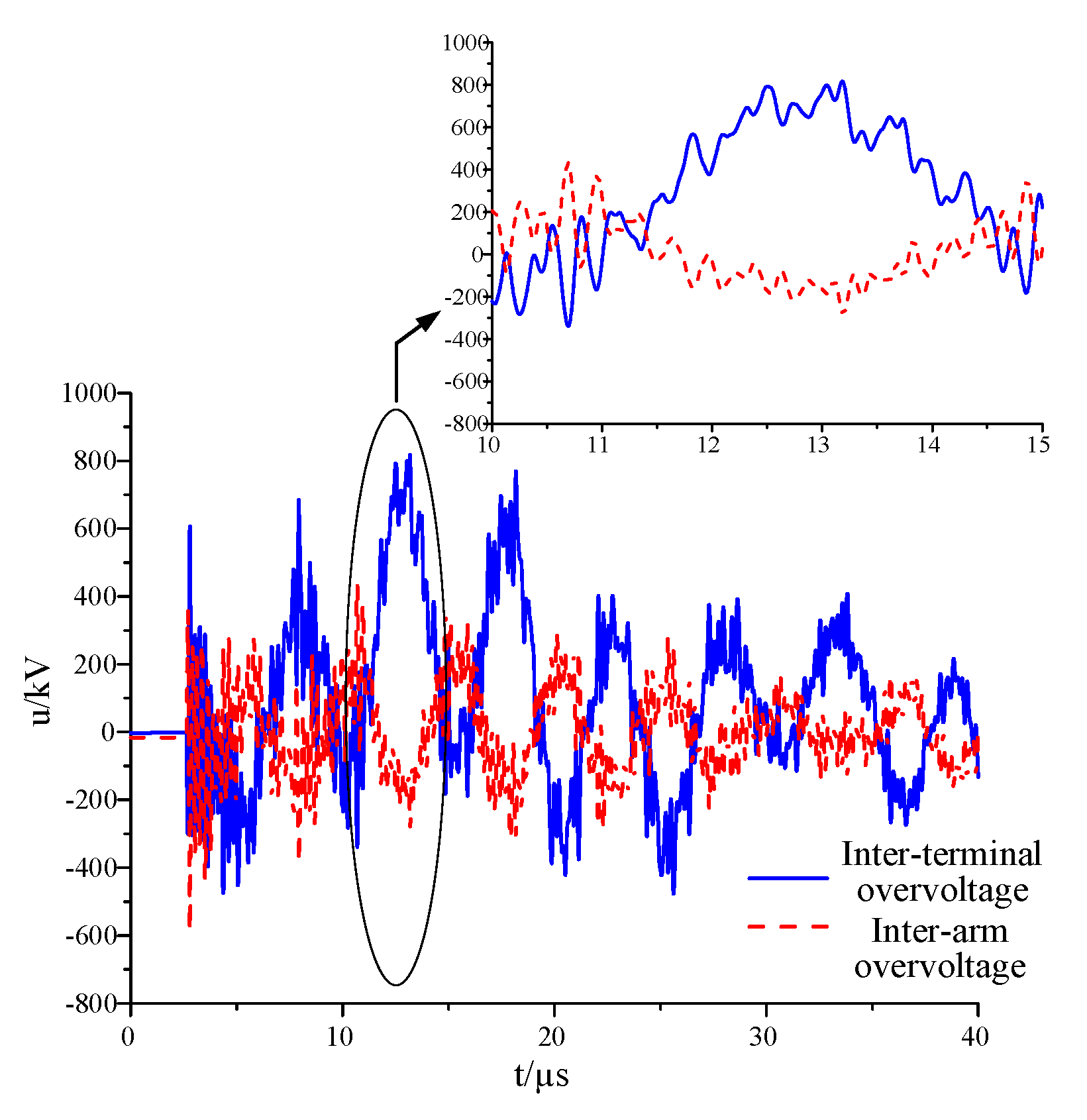

Figure 6 shows that the inter-terminal and inter-arm overvoltage of HCSR is generally attenuated when the lightning overvoltage spreads to the HCSR. Table 8 shows that the maximum overvoltage of the equipment in the station is 867 kV, which is lower than the lightning impulse withstand voltage of the equipment considering a 1.25 times insulation margin [21]. The inter-terminal and inter-arm overvoltage of the HCSR is equal, and the maximum terminal-to-ground overvoltage of the HCSR is 1073 kV. The maximum stress of the arrester at the incoming terminal of the HCSR-FCL is 931 kV/6.051 kA/3 kJ, which is within its rated values.

(2) The HCSR-FCL works in the current limiting state

When the HCSR-FCL works in the current limiting state, the eight fast switches are disconnected, and the voltage-equalizing capacitors are connected in series with one arm inductor. The topology of the HCSR-FCL circuit is changed, resulting in the different overvoltage between the inter-terminal and inter-arm overvoltage of the HCSR. Figure 7 shows the overvoltage simulation results when lightning strikes on tower #3.

Table 9. Overvoltage of the equipment in current limiting state.

Tower Number	Station		HCSR
	CVT/kV	HGIS Bushing/kV	TR1/kV	Inter-Terminal/kV	Inter-Arm/kV	Terminal-to-Ground/kV
#1	630	640	696	657	629	1077
#2	673	678	687	620	598	1239
#3	787	755	660	817	586	1189
#4	625	585	630	628	586	1063
#5	628	587	649	821	586	1059
#6	737	724	756	607	582	1030

shows the overvoltage of each part of the equipment in the station and the components of the HCSR.

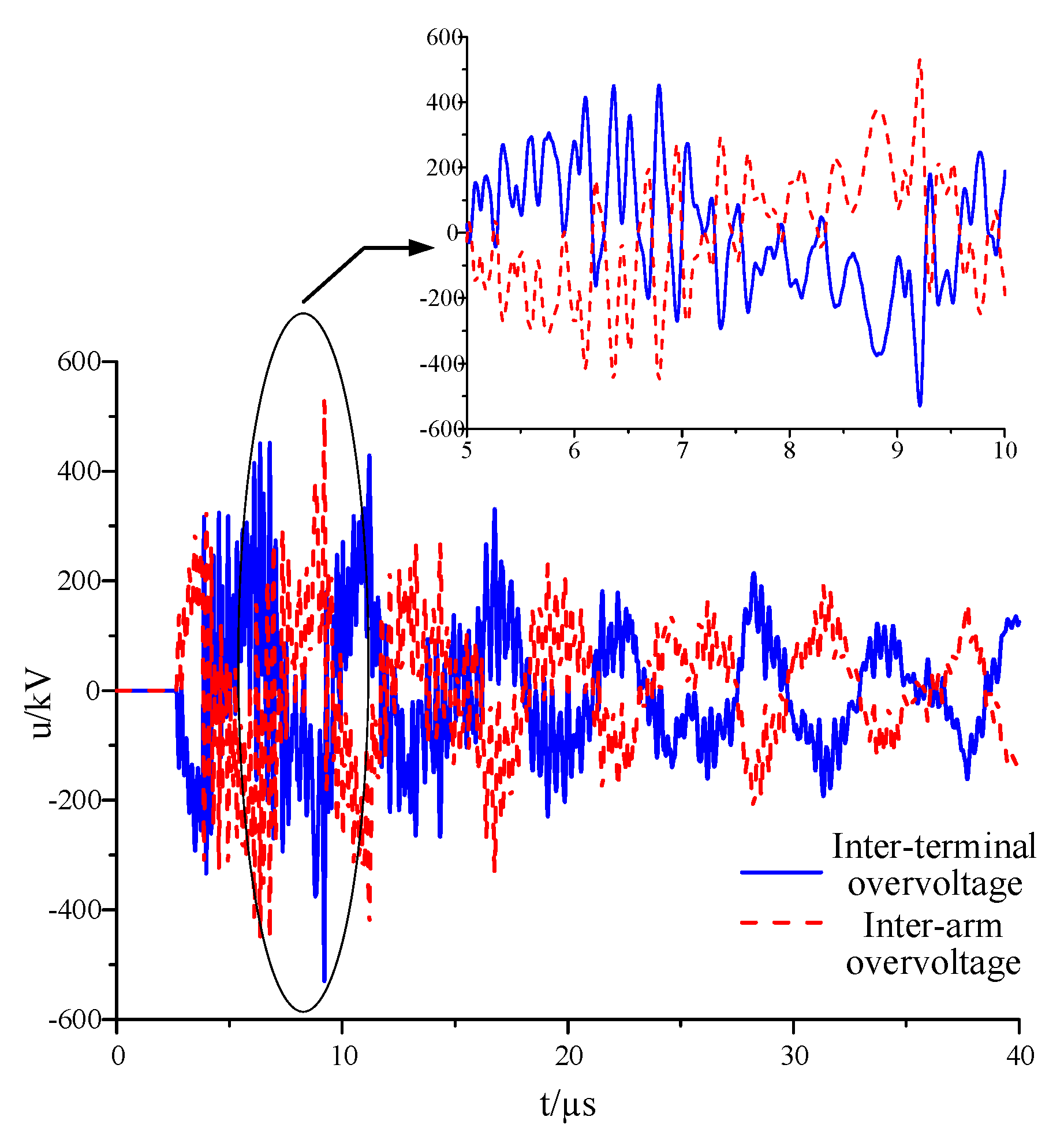

Figure 7 shows that the inter-terminal and inter-arm overvoltages of HCSR are different. The maximum inter-terminal voltage appears at 13 µs and then attenuates rapidly. The maximum inter-arm voltage appears at the initial moment of the lightning intrusion and attenuates rapidly. Table 9 shows that the maximum overvoltage of the equipment in the station is 787 kV, which is lower than the lightning impulse withstand voltage of the equipment. However, the maximum inter-terminal overvoltage, the maximum inter-arm overvoltage, and the maximum terminal-to-ground overvoltage of HCSR are up to 821 kV, 629 kV, and 1239 kV, respectively, and the high voltage will increase the manufacturing difficulties for HCSRs. The maximum stress of the arrester at the incoming transmission lines side of the HCSR-FCL is 938 kV/6.769 kA/4 kJ, which is within its protection level.

The above simulation results show that the maximum overvoltage of the equipment in the station is lower than the lightning impulse withstand voltage when the incoming transmission line is subjected to lightning back flashover, no matter if the HCSR-FCL is connected to the system or not. However, the inter-terminal overvoltage and inter-arm overvoltage of the HCSR are higher, i.e., 821 kV and 629 kV, respectively. In order to reduce the design difficulty of the HCSR, it is necessary to take restraint measures to reduce the lightning overvoltage of the components in the HCSR and thus reduce the insulation requirements.

5.2. Shielding Failure

The maximum shielding failure current can be calculated by the electrical geometry model (EGM) of each tower on the incoming side of the station [17], and the lightning withstand level of each tower can be simulated and calculated. The calculation results are shown in

Table 10. The maximum shielding failure current and the lightning withstand level of each tower.

Tower Number	The Maximum Shielding Failure Current/kA	The Lightning Withstand Level/kA
#1	26	40
#2	28	21
#3	48	15
#4	30	14
#5	21	14
#6	11	19

.

When the lightning withstand level is greater than the maximum shielding failure current, the maximum shielding failure current is adopted in the simulation; otherwise, the maximum shielding failure current and the lightning withstand level are both adopted. The maximum overvoltage of each part of the equipment during lightning shielding failure on each tower are recorded and analyzed.

5.2.1. Without the HCSR-FCL

The maximum overvoltage of the equipment in the station is shown in

Table 11. Simulation results of the maximum voltage on the equipment.

Tower Number	CVT/kV	HGIS Bushing/kV	TR1/kV	Lightning Impulse Withstand Voltage/kV
#1	1110	1421	1107	1550
#2	1222	1642	1109	1550
#3	1275	1886	1091	1550
#4	1130	1787	1093	1550
#5	1046	1290	1053	1550
#6	932	1010	955	1550

, in which the lightning shielding failure occurs and the HCSR-FCL is not connected in the station.

Table 11 shows that the lightning overvoltage of some equipment exceeds the lightning impulse withstand voltage, and it is necessary to increase the arresters near the incoming transmission lines of the station to reduce the overvoltage. Therefore, two-column arresters are added to the CVT in the simulation, and

Table 12. Maximum voltage of the equipment when the two-column arrester is added.

Tower Number	CVT/kV	HGIS Bushing/kV	TR1/kV	Lightning Impulse Withstand Voltage/kV
#1	1002	1127	983	1550
#2	1007	1119	983	1550
#3	1049	1152	947	1550
#4	1009	1235	938	1550
#5	1034	1091	942	1550
#6	904	973	874	1550

shows the maximum overvoltage of the equipment. The simulation results show that the overvoltage is apparently decreased, and the equipment can work in a safe condition.

5.2.2. With the HCSR-FCL

(1) The HCSR-FCL works in the current sharing state

The overvoltage of the HCSR is shown in Figure 8 when the 48 kA lightning current strikes on the transmission line near tower #3. Figure 8 shows that the maximum inter-terminal and inter-arm overvoltages of the HCSR appear at 9 µs, and the overvoltage is generally attenuated.

Table 13. Overvoltage of the equipment in current sharing state.

Tower Number	Station		HCSR
	CVT/kV	HGIS Bushing/kV	TR1/kV	Inter-Terminal/kV	Inter-Arm/kV	Terminal-to-Ground/kV
#1	935	1030	901	198	198	1129
#2	915	971	896	420	420	1280
#3	921	949	895	530	530	1343
#4	898	930	895	623	623	1157
#5	912	925	896	627	627	1040
#6	884	890	894	119	119	984

shows the detailed simulation results.

Table 13 shows that the maximum overvoltage of the equipment in the station is 1030 kV, which is lower than the insulation level of the equipment. However, both the maximum inter-terminal overvoltage of the HCSR and the maximum inter-arm overvoltage of the HCSR are 627 kV, and the maximum terminal-to-ground overvoltage of the HCSR is 1343 kV. The maximum stress of the arrester near the incoming transmission line side of the HCSR-FCL is 1075 kV/26.756 kA/28 kJ, which is beyond its rated values. Hence, further lightning protection measures are needed.

(2) The HCSR-FCL works in the current limiting state

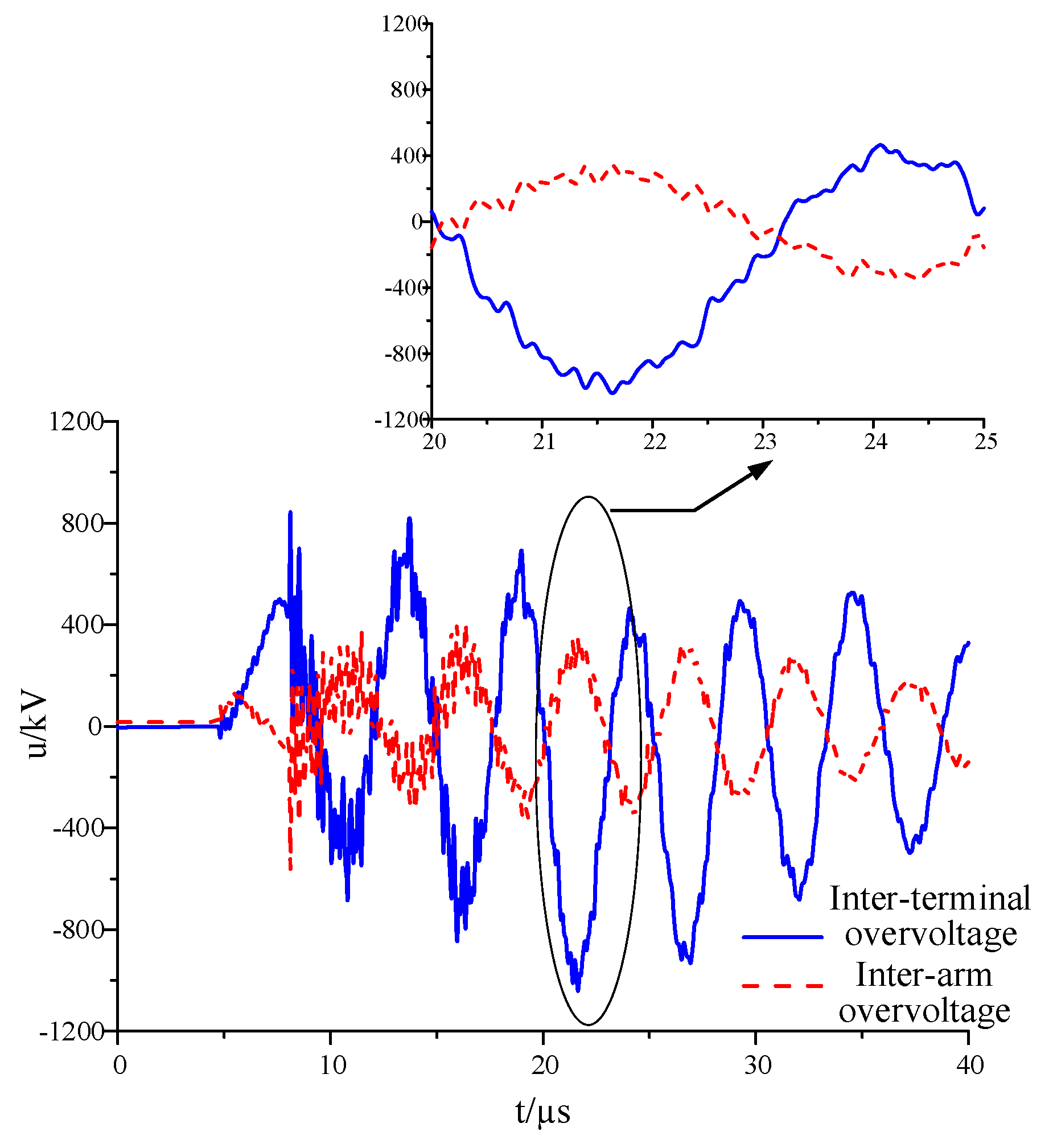

Figure 9 shows the inter-terminal and inter-arm overvoltages of the HCSR when the lightning current with an amplitude of 21 kA strikes on the conductor of tower #5. Figure 9 shows that the maximum inter-terminal overvoltages of the HCSR appears at 22 µs and the maximum inter-arm voltage appears at 8 µs when the lightning overvoltage spreads to the HCSR. This is due to the different topology of the two arms of the HCSR. The voltage-equalizing capacitors and stray capacitors to the ground of the fast switches in the current limiting state affect the high frequency transient process of lightning current spreading to the HCSR.

Table 14. Overvoltage of the equipment in current limiting state.

Tower Number	Station		HCSR
	CVT/kV	HGIS Bushing/kV	TR1/kV	Inter-Terminal/kV	Inter-Arm/kV	Terminal-to-Ground/kV
#1	844	885	804	556	197	1227
#2	760	777	760	928	543	1247
#3	845	862	788	914	712	1475
#4	815	853	787	1064	633	1262
#5	901	853	787	1041	567	1253
#6	810	837	783	413	126	993

shows the lightning overvoltage of each part of the equipment in the station and the components of the HCSR.

Table 14 shows that the maximum overvoltage of the equipment in the station is 901 kV, which is lower than the lightning impulse withstand voltage of the equipment. However, the maximum inter-terminal overvoltage, the maximum inter-arm overvoltage, and the maximum terminal-to-ground overvoltage of HCSR are up to 1064 kV, 712 kV, and 1475 kV respectively. The maximum stress of the arrester near the incoming side of the HCSR-FCL is 1075 kV/26.756 kA/28 kJ, which is beyond its rated values. So further lightning protection measures are needed.

The above simulation results show that the maximum overvoltage of the equipment in the station is lower than the lightning impulse withstand voltage when the incoming transmission line is subjected to lightning shielding failure, no matter if the HCSR-FCL is connected to the system or not. However, the inter-terminal and inter-arm overvoltage of the HCSR is very high, and the maximum stress of the arrester near the incoming side of the HCSR-FCL is beyond its rated value. In order to reduce the design difficulty of the HCSR and the residual voltage of the arrester, it is necessary to take effective measures to reduce the lightning overvoltage and thus reduce the insulation requirements.

6. Protection Measures and the Lightning Impulse Withstand Overvoltage of HCSR-FCL

The above simulation analysis shows that the lightning overvoltage of equipment in the station under shielding failure is more serious than that under back flashover of the incoming transmission lines, and the maximum stress of the arrester near the incoming side of the HCSR-FCL is beyond its rated value.

This section studies lightning overvoltage protection measures for the HCSR-FCL. Based on the lightning overvoltage protection measures for the FCLs, such as adding an arrester across the FCL, adding a ground capacitor in the terminals of the FCL, adding a shunt capacitor across of the FCL, etc. [26,27,28], three protection measures for the HCSR-FCL are proposed and shown in Figure 10, Figure 11 and Figure 12. When the capacitor takes 1200 nF, the maximum inter-terminal and inter-arm overvoltage of the HCSR in the first protection measures are 512 kV and 205 kV, the maximum inter-terminal and inter-arm overvoltage of the HCSR in the second protection measures are 354 kV and 185 kV, and the maximum inter-terminal and inter-arm overvoltage of the HCSR in the third protection measures are 123 kV and 147 kV. Comparing the three protection measures, the overvoltage of the third protection measure shown in Figure 12 is much lower. Therefore, the third protection measures are proposed. The proposed protection measures include increasing the two-column arrester MOA2 on the incoming side and adding a shunt capacitor C4 across each module of HCSR at the same time. The topology of the HCSR-FCL with the proposed protection measures is shown in Figure 12, and the simulation results under these measures are shown in

Table 15. Maximum overvoltage of the equipment with the HCSR-FCL working in current sharing state.

Shunt Capacitor/nF	Station		HCSR
	CVT/kV	HGIS Bushing/kV	TR1/kV	Inter-Terminal/kV	Inter-Arm/kV	Terminal-to-Ground/kV
400	1080	1120	956	99	99	1171
800	1081	1133	960	93	93	1168
1200	1079	1136	961	72	72	1163

and

Table 16. Maximum overvoltage of the equipment with the HCSR-FCL working in current limiting state.

Shunt Capacitor/nF	Station		HCSR
	CVT/kV	HGIS Bushing/kV	TR1/kV	Inter-Terminal/kV	Inter-Arm/kV	Terminal-to-Ground/kV
400	1074	1131	959	151	157	1170
800	1082	1127	961	129	151	1156
1200	1082	1127	962	123	147	1164

.

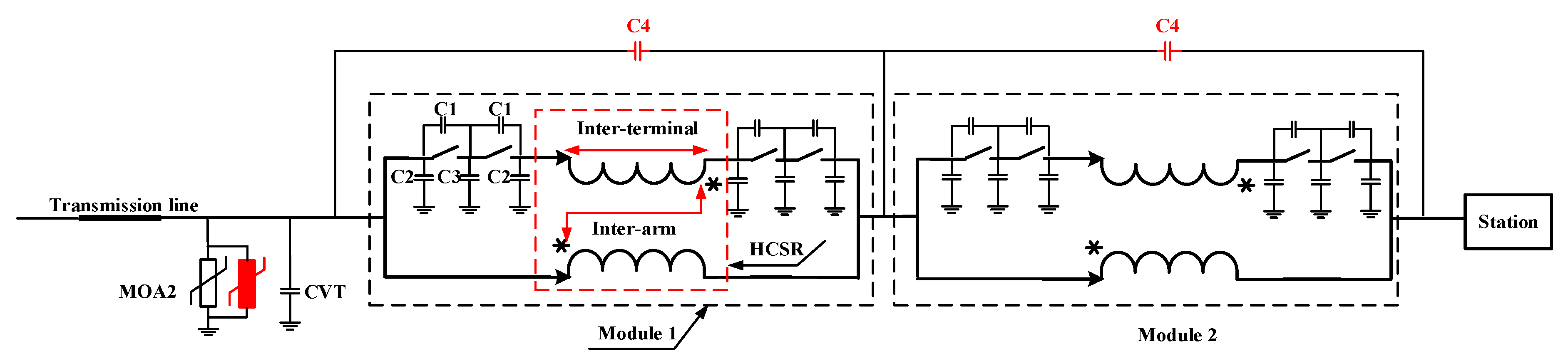

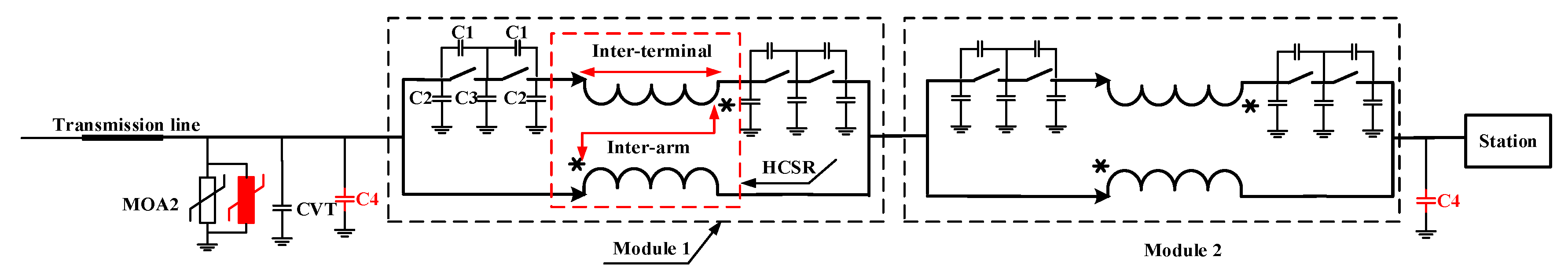

After two modules of the HCSR-FCL are both connected with a same shunt capacitor (C4), the equivalent impedance of the shunt capacitor is much lower. Therefore, most lightning current flows from the shunt capacitor, so the amplitude and steepness of the lightning current flowing through the HCSR decrease, resulting in reducing the amplitude and steepness of the inter-terminal and inter-arm overvoltage of HCSR greatly. Table 15 shows the lightning overvoltage of the equipment in the station when the HCSR-FCL is working in current sharing state, and Table 16 shows the lightning overvoltage when the HCSR-FCL is working in current limiting state.

Comparing Table 13 and Table 14 to Table 15 and Table 16, it can be seen that the overvoltage of the equipment in the station increases to some extent. This is because the lightning current that flows into the station increases by passing the shunt capacitors, but the lightning overvoltage is still lower than the lightning impulse withstand voltage of the equipment in the station. However, the inter-terminal and inter-arm overvoltage of the HCSR decreases greatly, and the larger the shunt capacitor, the smaller the lightning overvoltage between terminals and arms of HCSR.

In summary, after adding two-column arresters and two shunt capacitors, the overvoltage of the equipment in the station and the HCSR are both decreased to reasonable values. The lightning impulse withstand voltage of each component of HCSR is also proposed, that is, the inter-terminal lightning impulse withstand voltage of HCSR is 170 kV, the inter-arm lightning impulse withstand voltage of HCSR is 200 kV, and the terminal-to-ground lightning impulse withstand voltage of HCSR is 1550 kV.

7. Conclusions

In this paper, the lightning intruding overvoltage of a 500 kV AC power station with or without an HCSR-FCL is simulated and analyzed, and the lightning protection measures of the HCSR-FCL and lightning impulse withstand voltage of the HCSR are proposed. The main conclusions are as follows:

(1)

The simulation model of the lightning intruding overvoltage of the 500 kV AC station with or without an HCSR-FCL is established.

(2)

The simulation results show that the lightning overvoltage of the equipment in the station is decreased by connecting an HCSR-FCL, but the overvoltage of the HCSR-FCL is very high because of the high impedance of the HCSR, and the inter-arm and inter-terminal voltages also need to be decreased. The lightning intruding overvoltage is higher in shielding failure than the back flashover of the incoming transmission lines.

(3)

The inter-terminal overvoltage of the HCSR is the same as the inter-arm overvoltage of the HCSR when it works in the current sharing state, while the inter-terminal overvoltage of the HCSR is lower than the inter-arm overvoltage of the HCSR when it works in the current limiting state.

(4)

Protection measures of adding arresters and shunt capacitors are proposed, and the simulation results show that the measures are effective. Moreover, it is proposed that each shunt capacitor is 1200 nF, the inter-terminal lightning impulse withstand voltage of the HCSR is 170 kV, the inter-arm lightning impulse withstand voltage of the HCSR is 200 kV, and the terminal-to-ground lightning impulse withstand voltage of the HCSR is 1550 kV.

(5)

The high frequency equivalent models of the equipment in the station are classical, but the high frequency equivalent model of the HCSR-FCL is unique, and it will be validated by the lighting impulse experiments after the HCSR-FCL is constructed.
