Active Power Dispatch for Supporting Grid Frequency Regulation in Wind Farms Considering Fatigue Load

Abstract

This paper proposes an active power control method for supporting grid frequency regulation in wind farms (WF) considering improved fatigue load sensitivity of wind turbines (WT). The control method is concluded into two parts: frequency adjustment control (FAC) and power reference dispatch (PRD). On one hand, the proposed Fuzzy-PID control method can actively maintain the balance between power generation and grid load, by which the grid frequency is regulated when plenty of winds are available. The fast power response can be provided and frequency error can be reduced by the proposed method. On the other hand, the sensitivity of the WT fatigue loads to the power references is improved. The explicit analytical equations of the fatigue load sensitivity are re-derived to improve calculation accuracy. In the process of the optimization dispatch, the re-defined fatigue load sensitivity will be used to minimize fatigue load. Case studies were conducted with a WF under different grid loads and turbulent wind with different intensities. By comparing the frequency response of the WF, rainflow cycle, and Damage Equivalent Load (DEL) of the WT, the efficacy of the proposed method is verified.

1. Introduction

Wind energy is one of the rapidly growing renewable energy sources [1,2,3,4]. By far largest wind power market, China installed an additional capacity of 19 Gigawatts, and continues its undisputed position as the world’s wind power leader [5,6,7,8]. With the rapid growth of installed wind power capacity, its proportion in the power grid continues to increase. Wind power generally does not participate in frequency regulation due to the decoupling of the WT rotor and the grid frequency, so large-scale wind power access to the grid will significantly weaken the frequency regulation capability of the grid [9,10]. With the continuous increase of the wind power penetration rate, the influence of wind power volatility and uncertainty on the frequency regulation of power systems is also increasing [11,12,13,14,15]. In order to meet grid frequency requirements, active power control (APC) method for wind power is critical to actively maintaining a balance between power generation. However, the power reference is frequently changed by the FAC to adapt to changes in the grid frequency when the WF participates in frequency regulation. The frequent action of the pitch angle of the WT and the torque of the generator is caused by this change, resulting in an increase in the fatigue loads of WTs [16,17,18,19]. Therefore, it is necessary to study which control methods support grid frequency regulation without affecting or even reducing the fatigue loads of WTs.

In recent research, some methods for supporting grid frequency regulation have been proposed. An approach for participation of doubly fed induction generator (DFIG) based wind farms in power system short-term frequency regulation to simplify the high-order average frequency models of bulk power systems was proposed in [20,21]. In [22,23], the inertia constant and primary power reserve for a variable speed wind turbine that operates at derated conditions were formulated in a wind farm to support short-term frequency control in power systems. Reference [24] presents a model-based control method based on Model Predictive Control (MPC) method and on a Kalman-like estimation algorithm to improve the contribution of wind power generators to short-time primary frequency regulation in electric power systems. A frequency control support function responding proportionally to frequency deviation is proposed to take out the kinetic energy of wind turbine for improving the frequency response of the system in reference [25]. However, the grid frequency is only stabilized in a short period of time using these methods. Reference [26] presented two APC methods that are developed based on adaptive pole placement control (APPC) and fuzzy proportional-integral (PI) control approaches to provide rapid power response. The grid frequency can be stabilized for a long time by WF power reduction. However, it can be seen from the DELs results that the fatigue load of WT has been increased using this method. For wind farm power distribution, as long as the power scheduling requirements are met, the fatigue load can be minimized by coordination between the WTs [27]. In [28,29], a distributed MPC based APC method of WFs was presented to reduce the fatigue loads of WTs. In [30], a load sensitivity based optimal active power dispatch algorithm is proposed for wind farms. The explicit analytical equations of the load sensitivity are derived to improve the computational efficiency of controller. Two fatigue loads experienced by shaft torque and tower bending moment are considered.

An APC method is proposed in this paper. This method is used to provide fast power response while minimizing fatigue loading on the WT, which is used to overcome the above problems. The frequency adjustment control of WF was developed based on the Fuzzy-PID control method. The method is designed to track various forms of load while maintaining grid frequency stability when plenty of wind is available. The total active power obtained by the FAC is proportionally distributed to the wind farms. The fast power response can be provided and frequency error can be reduced by the proposed method compared with traditional methods. Based on the resulting power reference value, the PRD adjusts the power reference of WT within the WF to track power. The model of the WT is improved and the analytical equation for fatigue load sensitivity is re-derived. Compared with the original method, the calculation accuracy is improved by the improved method. Meanwhile, PRD minimizes fatigue loads of tower thrust and shaft torque variations based on the improved fatigue load sensitivity model. Following this, a complete system simulation model is built in MATLAB to verify the effectiveness of the proposed method.

The main contributions of this work are described as follows: A control structure support frequency adjustment for large-scale WF is proposed in Section 2. Section 3 designs a Fuzzy-PID controller to respond and recover grid frequencies more quickly. The fatigue load sensitivity model of the wind turbine is improved and the explicit analytical equations of the fatigue load sensitivity are re-derived in Section 4. The improved model can adapt to wind conditions with different turbulence intensity to minimize the shaft torque and tower bending moment fatigue loads. The simulation results demonstrate the effectiveness of the method in Section 5. Section 6 concludes the paper.

2. Control Structure of WF Participates in Frequency Regulation

The proposed WF control architecture proposed in the paper is shown in Figure 1. The control architecture is mainly divided into two parts.

The first part is FAC of the WF. The measured grid frequency f_meas is used as a feedback signal to set up active power control in real-time and maintain the balance between power generation and grid loads. The demanded power of WF $P_{\mathrm{demand}}^{\mathrm{WF}}$ is calculated by FAC and delivered to the PRD. The grid frequency is regulated by FAC to its rated value despite a changing grid load. The second part is PRD of the WF. This part takes all the WTs as the unit and performs power tracking on the power value assigned by the superior to realize the active power adjustment of the WT in the area under his jurisdiction. The fatigue load sensitivity $\frac{\partial \mathrm{L}}{\partial {\mathrm{P}}_{\mathrm{demand}}^{\mathrm{WT}}}$ is calculated by PRD using a and b obtained by the wind turbine generator (WTG) controller. The details of $\frac{\partial \mathrm{L}}{\partial {\mathrm{P}}_{\mathrm{demand}}^{\mathrm{WT}}},$ a and b are described in Section 4. Then the local WTG controller does not need to be changed.

3. Fuzzy-PID Control Method of Supporting Grid Frequency Regulation for WF

The frequency fluctuation of the power system is caused by the imbalance of the generation and consumption of active power. In order to maintain the frequency stability of the power system, the system frequency must be maintained by active power control. The greater the balance between power generation and consumption, the smaller the frequency fluctuations, and the higher the electricity quality. This paper considers active power control at an entire WF level within the general structure shown in Figure 1. A typical large-scale WF including N wind turbines is included.

When the penetration of wind power in the power grid is relatively low, the impact of wind power participation in frequency regulation is minimal, so the wind farm frequency regulation method uses open-loop control. However, with the increase of wind power penetration rate, this open-loop control method cannot adapt to this situation and will cause the frequency to produce steady-state error. Traditional proportion-integral-derivative (PID) controllers are one of the most widely used controllers in industrial applications, and they can eliminate the steady-state error of the frequency [31,32,33]. However, it is difficult to adapt to a wind power conversion system with strong nonlinear dynamic characteristics, which needs to be improved.

The fuzzy control system establishes a fuzzy rule table suitable for the actual production process by summarizing expert knowledge and operational experience. It not only reduces the rise time and overshoot of the output response, but also reduces the sensitivity of the system to interference and increases the stability of the system [34]. Fuzzy-PID can adjust the size of the parameters for P, I, and D online, and it can adapt well to dynamic systems [35,36]. In this paper, the Fuzzy-PID controller is used to regulate the grid frequency. In the APC architecture proposed in this paper, the input of the fuzzy controller is the frequency deviation f_error of the grid, and the output is the demanded power of WF $P_{\mathrm{demand}}^{\mathrm{WF}}$. The demanded power is then sent to PRD.

As it is shown in Figure 2, grid frequency error f_error is calculated by

$$f_{\mathrm{error}}=f_{\mathrm{meas}}-f_{\mathrm{N}}$$

(1)

The APC control method determines the WF power demand $P_{\mathrm{demand}}^{\mathrm{WF}}$ for adjusting the grid frequency through input $f_{\mathrm{error}}$. ${\dot{f}}_{\mathrm{error}}$ is a nonlinear differential approximation. K_P, K_I and K_D are calculated by

$$K_{\mathrm{P}}(P)=a_{\mathrm{P}}P+b_{\mathrm{P}}$$

(2)

$$K_{\mathrm{I}}(I)=a_{\mathrm{I}}I+b_{\mathrm{I}}$$

(3)

$$K_{\mathrm{D}}(D)=a_{\mathrm{D}}D+b_{\mathrm{D}}$$

(4)

The constants b_P, b_I, and b_D represent a conventional PID controller that provides a good but not optimum system response. These constants can be obtained using any conventional methods for PID controllers. In (2), (3), and (4), the coefficients a_P, a_I, and a_D are obtained according to simulation results to determine the relevant ranges of variations for b_P, b_I, and b_D, respectively. The parameters of P, I, and D onlines are determined by the fuzzy rules in Figure 3. Membership functions for inputs and outputs are shown in Figure 3. The vertical axes represent the degree of membership that is within the range of [0, +1].

The meaning of the linguistic variables is listed in

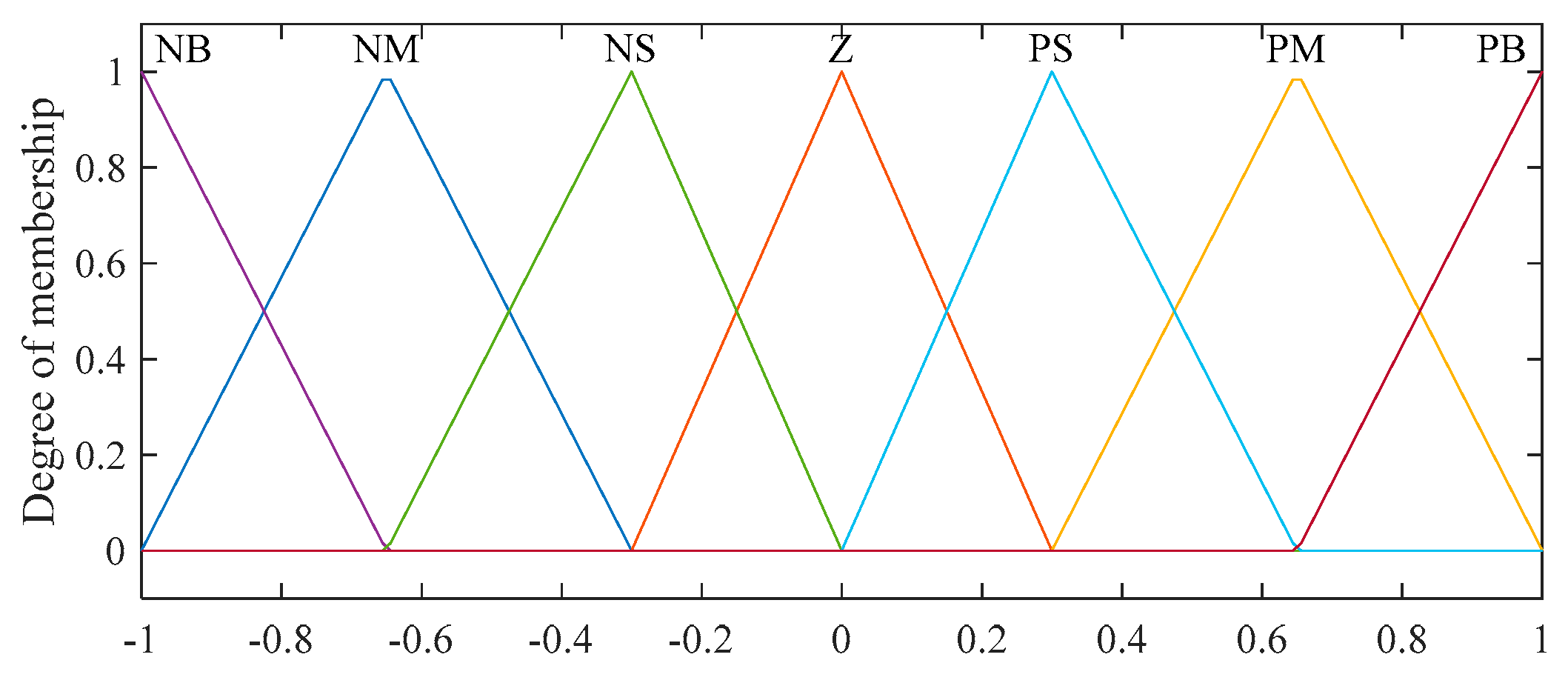

Table 1. Linguistic variables of membership functions.

Linguistic Variables	Meaning
NB	Negative big
NM	Negative medium
NS	Negative small
Z	Zero
PS	Positive small
PM	Positive medium
PB	Positive big

.

The input parameters are blurred and then defuzzified, the explicit control signal obtained after defuzzification is shown in Figure 4. Note that the inputs $f_{\mathrm{error}}$ and ${\dot{f}}_{\mathrm{error}}$ of fuzzy rules need to be normalized within the range [−1, +1] before being processing in Figure 4, where e represents $f_{\mathrm{error}}$; de represents ${\dot{f}}_{\mathrm{error}}$.

4. PRD Method for WT Based on Fatigue Load Sensitivity Using Quadratic Programming Algorithm

In the wind farm power reference dispatch section, the power reference dispatch controller regulates all the WT active outputs of the wind farm. The controller aims to minimize the fatigue load of WT and track the active power allocated by the frequency adjustment controller. Typically, the sampling time of the wind farm controller is in seconds [28]. Therefore, the rapid dynamics of generators and pitch actuators can be ignored [37]. In addition, shaft torsion and tower point oscillations are ignored to reduce the complexity of the model.

The fatigue loads of WTs can be divided into two parts: one is aerodynamic loads and gravity loads (external), and the other is structural loads (internal) [38]. In this paper, the fatigue loads mainly focus on the loads of the drive train due to the torsion of the shaft and the loads of the tower structure due to the tower deflection. Compared with static loads, the dynamic stress causing structural damage of WTs is a much bigger issue. By reducing the fluctuations of low-speed shaft torque T_s and thrust force F_t, the related fatigue loads can be reduced. $\frac{\partial \mathrm{L}}{\partial {\mathrm{P}}_{\mathrm{demand}}^{\mathrm{WT}}}$ can be represented by a combination of $\frac{\partial {\mathrm{T}}_{\mathrm{s}}}{\partial {\mathrm{P}}_{\mathrm{demand}}^{\mathrm{WT}}}$ and $\frac{\partial {\mathrm{F}}_{\mathrm{t}}}{\partial {\mathrm{P}}_{\mathrm{demand}}^{\mathrm{WT}}}$ when the drive train and tower structure loads are considered.

4.1. Improved Model of Fatigue Load Sensitivity

The WT (NREL 5 MW) developed by the National Renewable Energy Laboratory (NREL) is used in this paper [39,40]. The oscillations in the shaft torsion and tower nodding are disregarded, the fluctuations of wind speed are ignored based on the previous report [30]. In order to better optimize the calculation, the equations of fatigue load sensitivity are re-derived. In the process of the optimization dispatch, the redefined fatigue load sensitivity will be used. The active power of the WT output is still controlled by adjusting the pitch angle and torque.

The equivalent mass J_t of drive train system is described by [41]

$$J_{\mathrm{t}}=J_{\mathrm{r}}+{\eta }_{\mathrm{g}}^2{J}_{\mathrm{g}}$$

(5)

where J_r is the rotor mass; J_g is the generator mass; η_g is the gear box ratio.

The low-shaft motion equation is described by

$${\dot{\omega }}_{\mathrm{r}}\approx \frac{1}{J_{\mathrm{t}}}(T_{\mathrm{rot}}-{\eta }_{\mathrm{g}}{T}_{\mathrm{g}})$$

(6)

where ω_r is the measured rotor speed; T_rot is the aerodynamic torque; T_g is the generator torque;

The measured generator speed ω_g is filtered by a low-pass filter and the filtered speed ω_f is

$${\omega }_{\mathrm{f}}=\frac{1}{1+s\cdot {\tau }_{\mathrm{f}}}{\omega }_{\mathrm{g}}$$

(7)

where τ_f is time constant of the filter of ω_g.

According to the deviation of ω_f from generator rated speed ω_g-rated, pitch angle reference θ_ref can be obtained by the PI controller.

$${\theta }_{\mathrm{ref}}=\frac{1}{k_{\mathrm{a}}}[k_{\mathrm{p}}+\frac{k_{\mathrm{i}}}{s}]({\omega }_{\mathrm{f}}-{\omega }_{\mathrm{g}-\mathrm{rate}})$$

(8)

where k_p is the proportional gain; k_i is the integral gain; k_a is a function of θ_ref, defined by $k_{\mathrm{a}} \triangleq k_{\mathrm{a}1}+k_{\mathrm{a}2}{\theta }_{\mathrm{ref}}$. Where k_a1 and k_a2 are the constants.

By defining

$$\beta \triangleq k_{\mathrm{a}}{\theta }_{\mathrm{ref}}$$

(9)

(8) is transformed into

$$\beta =k_{\mathrm{p}}({\omega }_{\mathrm{f}}-{\omega }_{\mathrm{g}-\mathrm{rate}})+k_{\mathrm{i}}\frac{({\omega }_{\mathrm{f}}-{\omega }_{\mathrm{g}-\mathrm{rate}})}{s}$$

(10)

According to the motion equation of shaft torque T_s, $\dot{{\omega }_{\mathrm{r}}}$, and $\dot{{\omega }_{\mathrm{g}}}$ can be described by

$${\dot{\omega }}_{\mathrm{r}}\approx \frac{1}{J_{\mathrm{r}}}(T_{\mathrm{rot}}-T_{\mathrm{s}}-B({\omega }_{\mathrm{r}}-\frac{{\omega }_{\mathrm{g}}}{{\eta }_{\mathrm{g}}}))$$

(11)

$${\dot{\omega }}_{\mathrm{g}}\approx \frac{1}{J_{\mathrm{g}}}(\frac{1}{{\eta }_{\mathrm{g}}}(T_{\mathrm{s}}+B({\omega }_{\mathrm{r}}-\frac{{\omega }_{\mathrm{g}}}{{\eta }_{\mathrm{g}}}))-T_{\mathrm{g}})$$

(12)

where ω_g is the measured generator speed; B is the main shaft viscous friction coefficient.

According to (11) and (12), $\dot{{\omega }_{\mathrm{g}}}$ can be expressed by

$${\dot{\omega }}_{\mathrm{g}}\approx \frac{1}{J_{\mathrm{g}}}(\frac{1}{{\eta }_{\mathrm{g}}}(T_{\mathrm{rot}}-J_{\mathrm{r}}{\dot{\omega }}_{\mathrm{r}})-T_{\mathrm{g}})=\frac{1}{J_{\mathrm{g}}}(1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})(\frac{T_{\mathrm{rot}}}{{\eta }_{\mathrm{g}}}-T_{\mathrm{g}})$$

(13)

The time of the operating point is assumed to be k. The wind speed v is a variable that can be estimated or measured [42]. In this study, v is estimated. The value at t = k is v₀ and is assumed to be constant over a short control period. The measured power output, generator speed, filtered speed, and pitch angle are defined as P_g0, ω_g0, ω_f0, and θ₀ at t = k, respectively. The T_rot and T_g at t = k can be defined as T_rot0 and T_g0, respectively.

Based on (6), (7), (10), and (13), the incremental form can be obtained as

$$\Delta {\dot{\omega }}_{\mathrm{r}}=\frac{1}{J_{\mathrm{t}}}(\Delta T_{\mathrm{rot}}-{\eta }_{\mathrm{g}}\Delta T_{\mathrm{g}})+\frac{1}{J_{\mathrm{t}}}(T_{\mathrm{rot}0}-{\eta }_{\mathrm{g}}\Delta T_{\mathrm{g}0})$$

(14)

$$\Delta {\dot{\omega }}_{\mathrm{f}}=-\frac{1}{{\tau }_{\mathrm{f}}}\Delta {\omega }_{\mathrm{f}}+\frac{1}{{\tau }_{\mathrm{f}}}\Delta {\omega }_{\mathrm{g}}$$

(15)

$$\Delta \dot{\beta }=\frac{k_{\mathrm{p}}}{{\tau }_{\mathrm{f}}}\Delta {\omega }_{\mathrm{g}}+(-\frac{k_{\mathrm{p}}}{{\tau }_{\mathrm{f}}}+k_{\mathrm{i}})\Delta {\omega }_{\mathrm{f}}+k_{\mathrm{i}}({\omega }_{\mathrm{f}0}-{\omega }_{\mathrm{g}-\mathrm{rate}})$$

(16)

$$\Delta {\dot{\omega }}_{\mathrm{g}}=\frac{1}{J_{\mathrm{g}}}(1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})(\frac{\Delta T_{\mathrm{rot}}}{{\eta }_{\mathrm{g}}}-\Delta T_{\mathrm{g}})+\frac{1}{J_{\mathrm{g}}}(1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})(\frac{T_{\mathrm{rot}0}}{{\eta }_{\mathrm{g}}}-T_{\mathrm{g}0})$$

(17)

The aerodynamic torque T_rot is calculated by

$$T_{\mathrm{rot}}=\frac{0.5\pi R^2\rho v^3{C}_{\mathrm{p}}(\lambda ,\theta )}{{\omega }_{\mathrm{r}}}$$

(18)

where R is the length of the blade; ρ is the air density; v is the wind speed on the rotor; C_p is the power coefficient; λ is the tip speed ratio, defined by $\lambda \triangleq \frac{{\omega }_{\mathrm{r}}R}{v}$; In order to simplify the expression, P_sim is defined by $P_{\mathrm{sim}}\triangleq 0.5\pi R^2\rho v^3$.

According to (18), ΔT_rot can be calculated by

$$\Delta T_{\mathrm{rot}}\approx \frac{\partial T_{\mathrm{rot}}}{\partial {\omega }_{\mathrm{r}}}\Delta {\omega }_{\mathrm{r}}+\frac{\partial T_{\mathrm{rot}}}{\partial \beta }\Delta \beta +\frac{\partial T_{\mathrm{rot}}}{\partial v}\Delta v$$

(19)

$$\frac{\partial T_{\mathrm{rot}}}{\partial {\omega }_{\mathrm{r}}}=-\frac{P_{\mathrm{sim}}{C}_{\mathrm{p}}}{{\omega }_{\mathrm{r}0}^2}+\frac{P_{\mathrm{sim}}}{{\omega }_{\mathrm{r}0}}\cdot \frac{\partial C_{\mathrm{p}}}{\partial {\omega }_{\mathrm{r}}}$$

(20)

$$\frac{\partial T_{\mathrm{rot}}}{\partial \beta }=\frac{\partial T_{\mathrm{rot}}}{\partial \theta }\frac{\partial \theta }{\partial \beta }=\frac{\partial T_{\mathrm{rot}}}{\partial \theta }\cdot \frac{1}{k_{\mathrm{a}1}+2k_{\mathrm{a}2}{\theta }_0}$$

(21)

$$\frac{\partial T_{\mathrm{rot}}}{\partial v}=\frac{0.5\rho \pi R^2\cdot 3v_0^2\cdot C_{\mathrm{p}0}}{{\omega }_{\mathrm{r}0}}$$

(22)

where C_p is described in a lookup table derived from the inputs λ and θ, as is shown in

Table 2. Lookup table of C_p (λ, θ).

	λ	λmin	λmin + Δλ	…	λmax
θ
θmin		0.0005	0.001	…	−0.8478
θmin + Δθ		0.0005	0.001	…	−0.8637
…		…	…	…	…
θmax		−0.0012	−0.0036	…	−207.6793

. Where n and m are the corresponding rows and columns, respectively.

The generator torque reference T_{g_ref} is filtered by a low-pass filter and the generator torque T_g is derived by,

$$T_{\mathrm{g}}=\frac{1}{1+s\cdot {\tau }_{\mathrm{g}}}{T}_{\mathrm{g}\_\mathrm{ref}}$$

(23)

where τ_g is the time constant of the filter of T_{g_ref}. T_{g_ref} is calculated by

$$T_{\mathrm{g}-\mathrm{ref}}=\frac{P_{\mathrm{ref}}^{\mathrm{wt}}}{{\omega }_{\mathrm{g}}}$$

(24)

According to (23) and (24), ΔT_g and ΔT_{g_ref} can be calculated by

$$\Delta T_{\mathrm{g}}\approx \frac{1}{{\tau }_{\mathrm{g}}}(\frac{\partial T_{\mathrm{g}}}{\partial t}\Delta t+\frac{\partial T_{\mathrm{g}}}{\partial T_{\mathrm{g}\_\mathrm{ref}}}\Delta T_{\mathrm{g}\_\mathrm{ref}})=-\frac{1}{{\tau }_{\mathrm{g}}}\cdot T_{\mathrm{g}0}\cdot \Delta t+\frac{T_{\mathrm{g}0}}{T_{\mathrm{g}\_\mathrm{ref}0}}\cdot \Delta T_{\mathrm{g}\_\mathrm{ref}}$$

(25)

$$\Delta T_{\mathrm{g}\_\mathrm{ref}}\approx -\frac{P_{\mathrm{ref}0}^{\mathrm{wt}}}{{\omega }_{\mathrm{g}0}^2}\Delta {\omega }_g+\frac{1}{{\omega }_{\mathrm{g}0}}\Delta P_{\mathrm{ref}}^{\mathrm{wt}}$$

(26)

where Δt is the control cycle.

According to (14)–(17), the continuous state space model for WT is formulated as

$$\dot{x}\approx Ax+J\Delta P_{\mathrm{ref}}^{\mathrm{wt}}+E$$

(27)

where $\mathrm{x} \approx [\Delta {\omega }_{\mathrm{g}}, \Delta \beta , \Delta {\omega }_{\mathrm{f}}, \Delta {\omega }_{\mathrm{r}}]$, and the state space matrices are

$$A=\left[\begin{array}{cccc}\frac{1}{J_{\mathrm{g}}}(1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})\frac{T_{\mathrm{g}0}}{{\omega }_{\mathrm{g}0}}& \frac{1}{J_{\mathrm{g}}}(1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})\frac{1}{{\eta }_{\mathrm{g}}}\frac{\partial T_{\mathrm{rot}}}{\partial \beta }& 0& \frac{1}{J_{\mathrm{g}}}(1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})\frac{1}{{\eta }_{\mathrm{g}}}\frac{\partial T_{\mathrm{rot}}}{\partial {\omega }_{\mathrm{r}}}\\ \frac{k_{\mathrm{p}}}{{\tau }_{\mathrm{f}}}& 0& -\frac{k_{\mathrm{p}}}{{\tau }_{\mathrm{f}}}+k_{\mathrm{i}}& 0\\ \frac{1}{{\tau }_{\mathrm{f}}}& 0& -\frac{1}{{\tau }_{\mathrm{f}}}& 0\\ \frac{{\eta }_{\mathrm{g}}}{J_{\mathrm{t}}}\frac{T_{\mathrm{g}0}}{{\omega }_{\mathrm{g}0}}& \frac{1}{J_{\mathrm{t}}}\frac{\partial T_{\mathrm{rot}}}{\partial \beta }& 0& \frac{1}{J_{\mathrm{t}}}\frac{\partial T_{\mathrm{rot}}}{\partial {\omega }_{\mathrm{r}}}\end{array}\right]$$

$$J=\left[\begin{array}{c}\frac{1}{J_{\mathrm{g}}}(1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})\frac{T_{\mathrm{g}0}}{{\omega }_{\mathrm{g}0}}\\ 0\\ 0\\ -\frac{{\eta }_{\mathrm{g}}{T}_{\mathrm{g}0}}{J_{\mathrm{t}}{P}_{\mathrm{ref}0}^{\mathrm{wt}}}\end{array}\right]$$

$$E=\left[\begin{array}{c}\frac{1}{J_{\mathrm{g}}}(1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})(\frac{T_{\mathrm{g}0}}{{\tau }_{\mathrm{g}}}\cdot \Delta t+\frac{T_{\mathrm{rot}0}}{{\eta }_{\mathrm{g}}}-T_{\mathrm{g}0})\\ K_{\mathrm{i}}({\omega }_{\mathrm{f}0}-{\omega }_{\mathrm{g}-\mathrm{rated}})\\ 0\\ \frac{1}{J_{\mathrm{t}}}\frac{\partial T_{\mathrm{rot}}}{\partial v}\Delta v+\frac{{\eta }_{\mathrm{g}}}{J_{\mathrm{t}}}\frac{T_{\mathrm{g}0}}{{\tau }_{\mathrm{g}}}\cdot \Delta t+\frac{1}{J_{\mathrm{t}}}(T_{\mathrm{rot}0}-{\eta }_{\mathrm{g}}{T}_{\mathrm{g}0})\end{array}\right]$$

These matrices change every other dispatch cycle. Then, the continuous state space model is discretized with the sampling period t_s, which is

$$x(k+1)\approx Gx(k)+H\Delta P_{\mathrm{ref}}^{\mathrm{wt}}+M$$

(28)

with

$$G=e^{A{t}_s}$$

$$H={\displaystyle {\int }_0^{t_{\mathrm{s}}}{e}^{A{t}_s}J}dt$$

$$M={\displaystyle {\int }_0^{t_{\mathrm{s}}}{e}^{A{t}_s}E}dt$$

Substituting (6) and (11), the shaft torque T_s can be calculated by

$$T_{\mathrm{s}}=T_{\mathrm{rot}}-J_{\mathrm{r}}{\dot{\omega }}_{\mathrm{r}}-B({\omega }_{\mathrm{r}}-\frac{{\omega }_{\mathrm{g}}}{{\eta }_{\mathrm{g}}})=(1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})T_{\mathrm{rot}}+\frac{{\eta }_{\mathrm{g}}{J}_{\mathrm{r}}}{J_{\mathrm{t}}}{T}_{\mathrm{g}}-B({\omega }_{\mathrm{r}}-\frac{{\omega }_{\mathrm{g}}}{{\eta }_{\mathrm{g}}})$$

(29)

Accordingly,

$$\Delta T_{\mathrm{s}}=(1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})\Delta T_{\mathrm{rot}}+\frac{{\eta }_{\mathrm{g}}{J}_{\mathrm{r}}}{J_{\mathrm{t}}}\Delta T_{\mathrm{g}}-B(\Delta {\omega }_{\mathrm{r}}-\frac{\Delta {\omega }_{\mathrm{g}}}{{\eta }_{\mathrm{g}}})$$

(30)

Based on (19) and (25), (30) can be transformed into

$$\Delta T_s(k)\approx C^{Ts}x(k)+D^{Ts}\Delta P_{\mathrm{ref}}^{\mathrm{wt}}+F^{Ts}$$

(31)

with

$$C^{Ts}=\left[\begin{array}{cccc}\frac{B}{{\eta }_{\mathrm{g}}}-\frac{{\eta }_{\mathrm{g}}{J}_{\mathrm{r}}}{J_{\mathrm{t}}}\frac{T_{\mathrm{g}0}}{{\omega }_{\mathrm{g}0}}& (1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})\frac{\partial T_{\mathrm{rot}}}{\partial \beta }& 0& (1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})\frac{\partial T_{\mathrm{rot}}}{\partial {\omega }_{\mathrm{r}}}-B\end{array}\right]$$

$$D^{Ts}=\frac{{\eta }_{\mathrm{g}}{J}_{\mathrm{r}}}{J_{\mathrm{t}}}\frac{T_{\mathrm{g}0}}{P_{\mathrm{ref}0}^{\mathrm{wt}}}$$

$$F^{Ts}=(1-\frac{J_{\mathrm{r}}}{J_{\mathrm{t}}})\frac{\partial M_{\mathrm{rot}}}{\partial v_{\mathrm{rot}}}\Delta v_{\mathrm{rot}}-\frac{{\eta }_{\mathrm{g}}{J}_{\mathrm{r}}}{J_{\mathrm{t}}}\frac{T_{\mathrm{g}0}}{{\tau }_{\mathrm{g}}}\Delta t$$

Based on (28) and (31)

$$\Delta T_s(k+1)=C^{Ts}x(k+1)+D^{Ts}\Delta P_{\mathrm{ref}}^{\mathrm{wt}}+F^{Ts}$$

(32)

Hence

$$\Delta T_s(k+1)=(C^{Ts}H+D^{Ts})\Delta P_{\mathrm{ref}}^{\mathrm{wt}}+C^{Ts}Gx(k)+C^{Ts}M+F^{Ts}$$

(33)

In order to simplify the expressions, $a_{T_{\mathrm{s}}}^i$ and $b_{T_{\mathrm{s}}}^i$ are defined by

$$a_{T_{\mathrm{s}}}^i\triangleq C^{Ts}H+D^{Ts}$$

(34)

$$b_{T_{\mathrm{s}}}^i\triangleq C^{Ts}Gx(k)+C^{Ts}M+F^{Ts}$$

(35)

Therefore, the fatigue load sensitivity of the drive train can be expressed as

$$\frac{\partial T_{\mathrm{s}}^i}{\partial P_{\mathrm{demand}}^{WTi}}\approx \frac{\Delta T_{\mathrm{s}}^i}{\Delta P_{\mathrm{ref}}^{wti}}=a_{T_{\mathrm{s}}}^i+\frac{b_{T_{\mathrm{s}}}^i}{\Delta P_{\mathrm{ref}}^{wti}}$$

(36)

According to [43], The tower dynamics is not included in the simplified WT model. According to, it is assumed the tower base overturning moment M_t can be approximately derived by

$$M_{\mathrm{T}}\approx H·F_{\mathrm{T}}$$

(37)

where H is the tower height. F_t is thrust force.

The thrust force F_t is calculated by

$$F_{\mathrm{T}}=0.5\pi R^2\rho v^2{C}_{\mathrm{t}}(\lambda ,\theta )$$

(38)

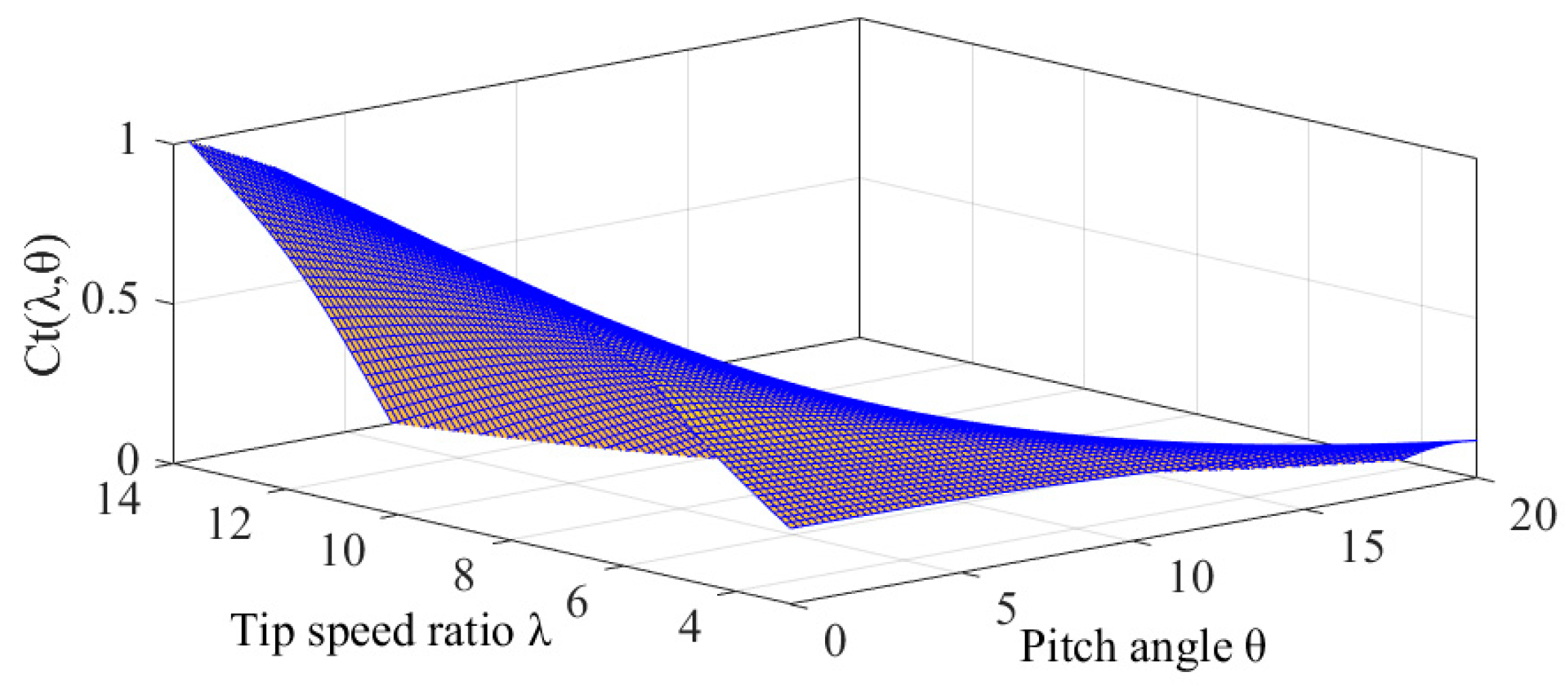

where C_t is the thrust coefficient.

Accordingly

$$\Delta F_{\mathrm{t}}=\frac{\partial F_{\mathrm{t}}}{\partial {\omega }_{\mathrm{g}}}\Delta {\omega }_{\mathrm{g}}+\frac{\partial F_{\mathrm{t}}}{\partial \beta }\Delta \beta +\frac{\partial F_{\mathrm{t}}}{\partial v}\Delta v$$

(39)

$$\frac{\partial F_{\mathrm{t}}}{\partial v}=0.5\rho \pi R^2\cdot 2v_0\cdot C_{\mathrm{t}0}$$

(40)

Similar to (31),

$$\Delta F_{\mathrm{t}}(k)\approx C^{Ft}x(k)+F^{Ft}$$

(41)

with

$$C^{Ft}=\left[\begin{array}{cccc}0& \frac{\partial F_{\mathrm{t}}}{\partial \beta }& 0& \frac{\partial F_{\mathrm{t}}}{\partial {\omega }_{\mathrm{g}}}\end{array}\right]$$

$$F^{Ft}=\frac{\partial F_{\mathrm{t}}}{\partial v}\Delta v$$

Based on (28) and (41)

$$\Delta F_{\mathrm{t}}(k+1)\approx C^{Ft}x(k+1)+F^{Ft}$$

(42)

Hence

$$\Delta F_{\mathrm{t}}(k+1)=C^{Ft}H\Delta P_{\mathrm{ref}}^{\mathrm{wt}}+C^{Ft}Gx(k)+C^{Ft}M+F^{Ft}$$

(43)

Similar to (34) and (35),

$$a_{F_{\mathrm{t}}}^i=C^{Ft}H$$

(44)

$$b_{F_{\mathrm{t}}}^i=C^{Ft}Gx(k)+C^{Ft}M+F^{Ft}$$

(45)

Therefore, the fatigue load sensitivity of the tower structure can be expressed as

$$\frac{\partial F_{\mathrm{T}}^i}{\partial P_{\mathrm{demand}}^{WTi}}\approx \frac{\Delta F_{\mathrm{T}}^i}{\Delta P_{\mathrm{ref}}^{wti}}=a_{F_{\mathrm{T}}}^i+\frac{b_{F_{\mathrm{T}}}^i}{\Delta P_{\mathrm{ref}}^{wti}}$$

(46)

The fatigue load sensitivities considered in the paper are dynamic loads causing structural damage. The equation shown in (33) and (42) are not equations for calculating a fatigue load, but equations for calculating the change in the shaft torque ΔM_s and the tower bending moment ΔM_t associated with the fatigue load. The parameters in the equation are changing at different times. By reducing ΔM_s and ΔM_t, the corresponding fatigue load can be reduced. The calculations are carried out by this law of effect. Reductions on the changes of the moments ΔM_s and ΔM_t are highly corelated to reductions in the damage equivalent fatigue load [44]. ΔM_s and ΔM_t are related to changes in power reference. ΔM_s and ΔM_t can be reduced by properly distributing the active power. ΔM_s and ΔM_t are reduced for each sampling period, so the fatigue loads are reduced.

4.2. Cost Function and Constraints

In Figure 1, every individual WT is equipped with an exclusive control system that can follow the power references provided by the frequency adjustment controller.

The controller minimizes the variation of shaft torque T_s and thrust force F_t to reduce the fatigue load. Accordingly, the cost function is expressed as

$$\min {\displaystyle \sum _{i=1}^n[{(\frac{\partial F_{\mathrm{T}}^i}{\partial P_{\mathrm{demand}}^{WTi}})}^2+\xi \cdot {(\frac{\partial M_{\mathrm{s}}^i}{\partial P_{\mathrm{demand}}^{WTi}})}^2]}$$

(47)

For the convenience of calculation, the equivalent calculation formula is expressed as

$$\min {\displaystyle \sum _{i=1}^n[{(a_{T_{\mathrm{s}}}^i\Delta P_{\mathrm{ref}}^i+b_{T_{\mathrm{s}}}^i)}^2+\xi \cdot {(a_{F_{\mathrm{t}}}^i\Delta P_{\mathrm{ref}}^i+b_{F_{\mathrm{t}}}^i)}^2]}$$

(48)

where ξ is the weight coefficient.

$$\Delta P_{\mathrm{ref}}^i=P_{\mathrm{ref}}^i-P_{\mathrm{k}}^i$$

(49)

The constraints are expressed by

$${\displaystyle \sum _{i=1}^n{P}_{\mathrm{ref}}^i}=P_{\mathrm{demand}}^{\mathrm{WF}}$$

(50)

$$10\%P_{\mathrm{available}}^{WTi}\le P_{\mathrm{ref}}^{WTi}\le P_{\mathrm{available}}^{WTi}$$

(51)

where $P_{\mathrm{demand}}^{\mathrm{WF}}$ is the demanded power of WF; $P_{\mathrm{available}}^{WTi}$ is the maximum available power of WT-i, it can be estimated by

$$P_{\mathrm{available}}^{WTi}=\min (P_{\mathrm{rated}}^i,0.5\pi R_i^2{v}_{\mathrm{nac}}^3{C}_{\mathrm{p}}^i)$$

(52)

where $P_{\mathrm{rated}}^i$ is the rated power of WT; v_nac is the nacelle wind speed of WT. The corresponding data of C_p and C_t for this study can be accessed in the wind turbine model of SimWindFarm. The plot of C_p(λ, θ) and C_t(λ, θ) based on the lookup table is shown in Appendix A.

The presented problems can be expressed as standard quadratic programming (QP) issues [45,46]. It can be effectively solved by a commercial solver. This optimization problem can be solved by different optimization methods. Group intelligent algorithms such as particle swarm optimization (PSO) and genetic algorithm (GA) have good search performance for solving complex problems, but the calculation time is long and is not suitable for real-time online optimization [47,48,49,50]. The programming algorithm has a good ability to search for non-complex solving problems, and the calculation time is short, which is suitable for online optimization. The model proposed in this paper belongs to the non-complex online solution model.

Then, the matrix H and the matrix f of QP can be expressed as

$$H=diag\{2{(a_{T_{\mathrm{s}}}^1)}^2+2\xi {(a_{F_{\mathrm{t}}}^1)}^2,2{(a_{T_{\mathrm{s}}}^2)}^2+2\xi {(a_{F_{\mathrm{t}}}^2)}^2,\cdots ,2{(a_{T_{\mathrm{s}}}^n)}^2+2\xi {(a_{F_{\mathrm{t}}}^n)}^2\}$$

(53)

$$f=\left[\begin{array}{c}2a_{T_{\mathrm{s}}}^1(b_{T_{\mathrm{s}}}^1-a_{T_{\mathrm{s}}}^1{P}_0^1)+2\xi a_{F_{\mathrm{t}}}^1(b_{F_{\mathrm{t}}}^1-a_{F_{\mathrm{t}}}^1{P}_0^1)\\ 2a_{T_{\mathrm{s}}}^2(b_{T_{\mathrm{s}}}^2-a_{T_{\mathrm{s}}}^2{P}_0^2)+2\xi a_{F_{\mathrm{t}}}^2(b_{F_{\mathrm{t}}}^2-a_{F_{\mathrm{t}}}^2{P}_0^2)\\ ⋮\\ 2a_{T_{\mathrm{s}}}^n(b_{T_{\mathrm{s}}}^n-a_{T_{\mathrm{s}}}^n{P}_0^n)+2\xi a_{F_{\mathrm{t}}}^n(b_{F_{\mathrm{t}}}^n-a_{F_{\mathrm{t}}}^n{P}_0^n)\end{array}\right]$$

(54)

If the available power of WF does not meet the demand, the following procedure is available.

$$if:{\displaystyle \sum _{i=1}^n{P}_{\mathrm{available}}^{WTi}}\le P_{\mathrm{demand}}, P_{\mathrm{ref}}^i=P_{\mathrm{available}}^{WT\mathrm{i}}$$

(55)

5. Case Study

5.1. System Setup

The WF control architecture illustrated in Figure 1 is used to test the performance of control. Figure 1 shows the typical configuration of a WF, which consists of 10, 5 MW WTs. The simulation model is based on SimWindFarm [40] developed in the EU-FP7 project by AEOLUS. The SimWindFarm model allows the real time simulation of flows in the wind field and includes the main aerodynamic effects of the wind farm in MATLAB/Simulink. It consists of four elementary components: wind turbine dynamics, wind field interactions and dynamics, wind farm controller, and electrical network operator. It can represent the main dynamics of a wind farm. The model toolbox includes a wind field generator where mean wind speed, turbulence intensity, and grid resolution can be specified. Furthermore, a number of post-processing tools are included for performance, such as a rain-flow counting algorithm and wake animation. Simulations are conducted for WF over 200 s of run time.

In the test system, the frequency adjustment controller of WF sends instructions every 0.5 s. 0.5 s is to match the wind farm dispatch algorithm and faster to achieve frequency regulation. The parameters of frequency adjustment controller are shown in

Table 3. Parameters of Fuzzy-PID controller.

Parameter	Value
fN	50 Hz
aP	1 × 108
bP	3 × 108
aI	5 × 106
bI	5 × 107
aD	5 × 107
bD	2 × 108

. The PRD optimization (OPT) controllers send instructions every 0.5 s. The detailed WT parameters are listed in

Table 4. Parameters of WT.

Parameter	Value
Rotor inertia: Jr	3.54 × 107 (kg∙m2)
Generator inertia: Jg	5.34 × 102 (kg∙m2)
Gear box ratio: ηg	97
Filter time constant of ωg: τf	10
Proportional gain: kp	0.2143
Integral gain: ki	0.0918
Gain coefficient: ka1	2.1323
Gain coefficient: ka2	1
Generator rated speed: ωg-rated	122.91 (rad/s)
Main shaft viscous friction coefficient: B	6.22 × 106 (Nm∙s/rad)
Sir density: ρ	1.22 (kg/m3)
Length of the blade: R	63 (m)
Filter time constant of Tg_ref: τg	0.1

. The typical turbulent winds with different intensities generated by the Aeolus toolbox with same average wind speed of 12 m/s are shown in Figure 5.

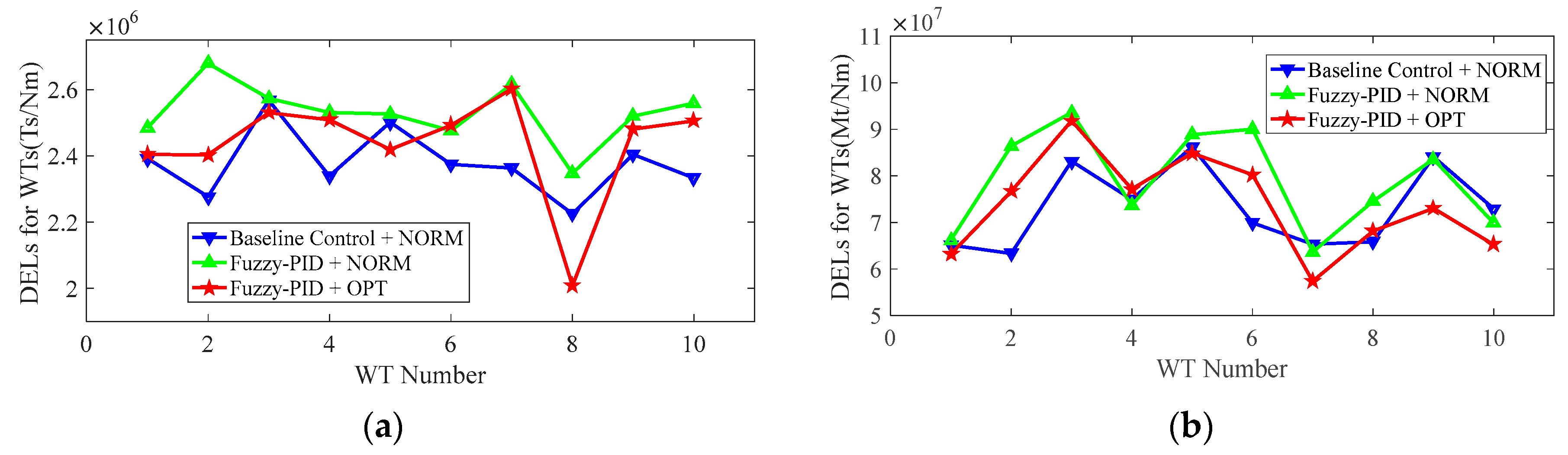

Through post-processing, the fatigue cycles based on the rainflow counting method are derived to evaluate the performance of the proposed method. Furthermore, the damage equivalent load (DEL) is based on the Miner’s rule and depends on the material properties specified by the slope of the S–N curve for quantizing the load minimization. In this study, the relevant calculations are performed by MCrunch developed by NREL [51].

5.2. Wind Farm Controller Performance

5.2.1. Performance for the Improved Model of Fatigue Load Sensitivity

In the simple WT model, the drive train can be considered to be rigid if the fatigue load is ignored. However, the drive train is a flexible system. A comparison of measured ω_r and $\frac{{\omega }_{\mathrm{g}}}{{\eta }_g}$ is shown in Figure 6. As shown in Figure 6, ω_r ≠ $\frac{{\omega }_{\mathrm{g}}}{{\eta }_{\mathrm{g}}}$. So Δω_g(k) and Δω_r(k) are calculated separately in the improved models, and the calculation formula of ${\omega }_{\mathrm{g}}{ = \eta }_{\mathrm{g}}{\omega }_{\mathrm{r}}$ is not used.

The wind speed of the WF is 12 m/s with 0.1 turbulence intensity. The values of Δω_g(k + 1) and Δω_r(k + 1) obtained by calculating WT1 are shown in Figure 7 and Figure 8. Note that x(k + 1) is obtained by discretizing x(k). Figure 7, Figure 8, Figure 9 and Figure 10b are enlarged image of the inside of the dashed box in Figure 7, Figure 8, Figure 9 and Figure 10a, which will not be described in detail in the following paper.

As is shown in Figure 7b and Figure 8b, The values of Δω_g and Δω_r after 0.5 s can be accurately calculated using the improved model. A better basis for optimizing results is provided by this precise calculation.

The effect of changes in wind speed is considered when calculating ΔT_rot. Comparison of the case of adding $\frac{\partial {\mathrm{T}}_{\mathrm{rot}}}{\partial \mathrm{v}}\Delta \mathrm{v}$ and not adding is shown in Figure 9.

The model is simulated based on SimWindFarm. Since the control time is 0.5 s, sampling is performed every 0.5 s. Because T_rot is cube of v, even small changes of v can have a big impact on ΔT_rot. As is shown in Figure 9b, in the vicinity of 154 s, there is a big step in the measured value, which is caused by the change in wind speed. Mutations in ΔT_rot caused by sudden changes in wind speed can still be accurately calculated by the improved model. However, the original models that did not consider $\frac{\partial {\mathrm{T}}_{\mathrm{rot}}}{\partial \mathrm{v}}\Delta \mathrm{v}$ cannot adapt to this mutation. The value of ΔT_rot after 0.5 s is accurately calculated.

After a detailed improvement, the ΔF_t calculation is more accurate. The comparison between the improved value and the measured value is shown in Figure 10.

As is shown in Figure 10b. In the vicinity of 82 s, there is a big step in the measured value, which is caused by the change in wind speed. The improved model can better adapt to the ΔF_t mutation like ΔT_rot. This improvement makes the calculation of the optimization target more accurate and the optimization effect is better. The re-derived fatigue load sensitivity equations can improve the calculation accuracy very well.

5.2.2. Performance for Different Turbulence Intensity

The normal PRD controller uses a proportional distribution method (NORM). The reference power is assigned to the WT in the available power ratio. As is calculated by

$$P_{\mathrm{ref}}^{WTi}=\frac{P_{\mathrm{available}}^{WTi}}{{\displaystyle \sum _{i=1}^n{P}_{\mathrm{available}}^{WTi}}}{P}_{\mathrm{demand}}^{\mathrm{WF}}$$

(56)

In order to test the efficacy of the improved model, the operation of wind farm under different turbulence intensity were studied and the FAC is not used. The average wind speed of the test wind is 12 m/s, and the turbulence intensity is 0.1, 0.2, and 0.3 respectively. The results of OPT and NORM are compared under different turbulence intensities. The tower bending moment was mainly considered in this paper, so the weight coefficient ξ to 3000 is selected.

Scenario 1: The turbulence intensity is 0.1. The wind farm reference power $P_{\mathrm{demand}}^{\mathrm{WF}}$ is 35 MW under this scenario. The calculated DELs of T_s and M_t for all WTs are listed in

Table 5. DELs of T_s and F_t for Scenario 1.

No.	DELs for WTs (Ts/MNm)			DELs for WTs (Mt/MNm)
	NORM	OPT	Percentage	NORM	OPT	Percentage
1	1.94	2.06	6.13%	50.48	44.96	−10.93%
2	1.94	1.76	−9.38%	57.48	57.92	0.77%
3	1.82	1.77	−2.26%	62.68	60.90	−2.83%
4	1.82	1.70	−6.73%	54.19	47.86	−11.68%
5	1.85	2.28	23.39%	42.83	40.86	−4.59%
6	1.86	1.66	−11.04%	59.97	58.95	−1.71%
7	1.74	1.55	−10.86%	65.75	64.67	−1.64%
8	1.83	1.45	−20.89%	48.69	40.87	−16.05%
9	1.87	2.08	11.01%	42.00	38.29	−8.83%
10	1.80	1.76	−2.48%	58.64	58.56	−0.15%
summary	18.47	18.07	−2.21%	542.76	513.90	−5.32%

. As shown in Table 5, some of the WTs have more growth in DELs for T_s, but this growth will be offset as the simulation time increases. The total DELs of wind farms using OPT is still lower than NORM. From the whole WF point of view, the reductions of the total DEL for T_s is 2.21%.

Compared with the NORM, most DELs of M_t except for NO.2 are reduced. The reduction values are from 0.15% to 16.05%. From the whole WF point of view, the total DEL of Mt is reduced by 5.32%.

Scenario 2: The turbulence intensity is 0.2. The wind farm reference power is 20 MW under this scenario. Scenario 3: The turbulence intensity is 0.3. The wind farm reference power is 15 MW under this scenario. The calculated DELs of T_s and M_t for the sum of all WTs are listed in

Table 6. DELs of T_s and F_t for Scenario 2 and 3.

Turbulence Intensity	DELs for WTs (Ts/MNm)			DELs for WTs (Mt/MNm)
	NORM	OPT	Percentage	NORM	OPT	Percentage
0.2	15.78	14.97	−5.13%	616.40	577.77	−6.28%
0.3	14.63	14.27	−2.46%	646.93	611.33	−5.50%

.

As shown in Table 6, the DELs of both T_s and M_t with the OPT are reduced compared with NORM.

When the turbulence intensity is 0.2, a more detailed cumulative rainflow cycle is shown in Figure 11. A representative WT (WT09) is used as an example. Compared with the NORM, less cycles are found for OPT, which implies less fatigue loads experienced by the WT.

When the turbulence intensity is 0.3, a more detailed cumulative rainflow cycle is shown in Figure 12. A representative WT02 is used as an example. Compared with the NORM, less cycles are found for OPT, which implies less fatigue loads experienced by the WT.

Fatigue load optimization results with three different turbulence intensities were obtained. It can be seen from the results that the improved model can optimize the fatigue load well under different turbulence intensities.

5.3. Overall Performance

5.3.1. WF Controller Performance

In order to prove the performance of the frequency control of the developed solution, the wind farm is assumed to be able to get enough power from the wind. When the WF is operating in the frequency regulation mode, the measured grid frequency is used as a feedback signal to establish real-time active power control. The baseline model for electrical network operator in SimWindFarm can function in different power command modes such as: absolute, delta, and frequency regulation modes. Basically, baseline control scheme in frequency regulation mode can maintain the necessary balance between power generation and loads. The demand power of the baseline control is calculated by

$$P_{\mathrm{demand}}^{\mathrm{WF}}=\{\begin{array}{cc}0.5\times P_{\mathrm{up}}& -t_{\mathrm{d}}\le f_{\mathrm{error}}\le t_{\mathrm{d}}\\ 0.5\times (P_{\mathrm{up}}-P_{\mathrm{down}})& t_{\mathrm{c}}\le f_{\mathrm{error}}\\ 0.5\times (P_{\mathrm{up}}+P_{\mathrm{down}})& f_{\mathrm{error}}\le -t_{\mathrm{c}}\\ 0.5\times P_{\mathrm{up}}-0.5\times P_{\mathrm{down}}(\frac{f_{\mathrm{error}}-t_{\mathrm{d}}}{t_{\mathrm{c}}-t_{\mathrm{d}}})& t_{\mathrm{d}}<f_{\mathrm{error}}<t_{\mathrm{c}}\\ 0.5\times P_{\mathrm{up}}-0.5\times P_{\mathrm{down}}(\frac{f_{\mathrm{error}}+t_{\mathrm{d}}}{t_{\mathrm{c}}-t_{\mathrm{d}}})& -t_{\mathrm{c}}<f_{\mathrm{error}}<-t_{\mathrm{d}}\end{array}$$

(57)

where t_d and t_c are two constants (t_c > t_d) of dead bands and control bands, defined by t_d = 0.002 and t_c = 0.02 which can enable the baseline control to function optimally. Moreover, P_up and P_down are defined by

$$P_{\mathrm{up}}=P_{\max }+P_{\min }$$

(58)

$$P_{\mathrm{down}}=P_{\max }+P_{\min }$$

(59)

where P_min and P_max are the prescribed minimum and maximum limits for the total power of WF.

In order to verify the performance of the control method, different functions of the grid load are defined and used for WF testing. Baseline control is compared to Fuzzy-PID. NORM dispatch method is compared to OPT method. The initial frequency is assumed to be 50 Hz. The test wind is 12 m/s with 0.3 turbulence intensity. Figure 13a and Figure 14a show the performance of the active power control method for the WF in response to the different loads considered, respectively. Figure 13b and Figure 14b show the grid frequency responses with respect to the different loads, respectively. The power and frequency responses of Fuzzy-PID and baseline control are compared in Figure 13 and Figure 14, respectively. The power curve of the wind farm output is the same whether the WF dispatch method uses NORM or OPT.

As shown in Figure 13a, the grid load A is a step variable. As is shown in Figure 13b, the baseline control cannot achieve a frequency of 50 Hz, and there is still an error of 0.004 Hz as the control time increases. The frequency error of the Fuzzy-PID control method is smaller than that of the baseline control. As the control time increases, the frequency gradually approaches 50 Hz and the error disappears. The Fuzzy-PID control method can quickly track the frequency so that the error is approximately zero at the 100 s. Therefore, the Fuzzy-PID method has better control effects than the baseline control.

As is shown in Figure 14a, grid load B is the varying load. Baseline control failed to track the grid load during the initial phase of 20–50 s, which also caused a relatively large frequency fluctuation of 20–50 s as shown in Figure 14b. Fuzzy-PID control can track grid load very well by compared to baseline control. As is shown in Figure 14b, Fuzzy-PID can track the frequency very well, and the frequency error of Fuzzy-PID is smaller. As are shown in Figure 13 and Figure 14, less power fluctuations make power tracking better.

To check the tracking accuracy of APC methods, the normalized root-mean-squared error (NRMSE) is defined as

$$NRMSE=\frac{\sqrt{\frac{1}{N}{\displaystyle \sum _{i=1}^N{(P_{\mathrm{L}}-P_{\mathrm{out}})}^2}}}{\overline{P_{\mathrm{out}}}}$$

(60)

To illustrate the ability of Fuzzy-PID methods in the regulation of the grid frequency,

Table 7. Quantitative comparison of Fuzzy-PID methods in terms of accuracy of response for active power and frequency.

Control Method	NRMSE for Power Responses		SD for grid Frequency Responses
	Grid Load A	Grid Load B	Grid Load A	Grid Load B
Baseline Control	0.017545	0.104380	0.002845	0.007423
Fuzzy-PID	0.021409	0.012052	0.000764	0.001345

quantitatively compares the obtained grid frequency responses in terms of standard deviation (SD) and NRMSE of power responses.

For a step grid load like A, compared to baseline control, NRMSE for power responses increased by 22.02%, and SD for grid frequency responses is reduced by 88.45%. For a varying grid load like B, compared to baseline control, NRMSE for power responses is reduced by 73.15% and SD for grid frequency responses is reduced by 81.88%.

By testing the control method of the WF with different loads, the Fuzzy-PID control has a good performance regardless of the speed or error of the tracking frequency.

5.3.2. Fatigue Loads Performance

The fatigue load results of the WTs using Baseline Control + NORM, Fuzzy-PID + NORM and Fuzzy-PID + OPT are shown in Figure 15 when load B is used to test the overall controller.

As is shown in Figure 15, the frequency adjustment effect by the Fuzzy-PID is better, but the DELs of T_s is significantly larger than Baseline Control + NORM. The specific results are shown in Table 7, the fatigue load using Fuzzy-PID + NORM increased by 6.47% compared with the fatigue load using Baseline Control + NORM. The fatigue load using Fuzzy-PID + OPT still increased by 2.44% compared with Baseline Control + NORM, but decreased by 3.79% compared with Fuzzy-PID + NORM.

The fatigue load of M_t using Fuzzy-PID + NORM was significantly higher than that of Baseline Control + NORM, and the specific results were increased by 8.15% as shown in

Table 8. Total DELs of WTs for three different controllers.

	DELs for WTs (Mt/MNm)		DELs for WTs (Ts/MNm)
	Values	Percentage	Values	Percentage
Baseline Control + NORM	730.68		23.77
Fuzzy-PID + NORM	790.23	8.15%	25.31	6.47%
Fuzzy-PID + OPT	733.01	0.32%	24.35	2.44%

. The fatigue load using Fuzzy-PID + OPT is 0.32% higher than Baseline Control + NORM and 7.24% lower than Fuzzy-PID + NORM.

The fatigue load of the WT will increase since the WF needs to frequently change the pitch angle and reference power when participating in frequency regulation. The better the frequency adjustment effect, the more frequent this change, the greater the fatigue load caused. The overall fatigue load of the WT is reduced, DELs of M_t is hardly affected especially after considering the fatigue load.

6. Conclusions

In this paper, an APC method for supporting grid frequency regulation in WFs considering fatigue load of WT is proposed. The Fuzzy-FID control is used for a frequency adjustment controller to maintain the balance between power generation and grid load. The equations of fatigue load sensitivity are re-derived. The calculation accuracy is improved by the re-derived equations. The re-derived equations are used for PRD to minimize the fatigue load for all the WTs. Case studies show that the frequency adjustment control method based on Fuzzy-PID can respond to and recover grid frequency deviations more quickly. Less power fluctuations make power tracking better. Compared to baseline control, NRMSE for power responses and SD for grid frequency of Fuzzy-PID are reduced by 81.45% and 81.88%, separately. In addition, the explicit analytical equations of fatigue load sensitivity are re-derived to improve the calculation accuracy of the fatigue loads. DELs for T_s reduced by 2.21% to 5.13%, DELs for M_t reduced by 5.32% to 7.32%. This improvement minimizes fatigue loads for wind farms under different turbulent wind and different loads. The proposed solution is suitable for real-time control of large-scale WF.

Since this study is mainly focused on the wind farm control level, some of the dynamics of WTs are ignored. Rainflow counting is applied to the time histories of thrust and torque from the simulation results, so the evaluation of fatigue load cannot be fully reflected. Quantitative conclusions are uncertain and can only represent trends in fatigue load changes. Since this study is a simulation based on SimWindFarm, the study cannot consider all practical engineering problems. Verifying this method in engineering is what we will do next.
