Investigation of Ultra-High Pressure Gas Control System for Hydrogen Vehicles

Abstract

With the increasing demand to find new energy resources instead of using fossil fuels, for the protection of the environment, one of most attractive areas in renewable energy is hydrogen. Hydrogen gas has high energy efficiency, generates the least greenhouse gases and produces no noise. Moreover, overland transportation industries have been researching and developing hydrogen gas storage systems worldwide. Such a manner of fuel system consists of a hydrogen gas tank, high pressure regulator and solenoid valve, etc. In this paper, a test bed is suggested for ultra-high pressure systems integrating a valve and regulator with precision control. We carried out performance tests by applying voltage with wide ranges of input pressure, response time and output flow rate and pulsation repetition tests considering increases in temperature, etc. Moreover, the results indicated good potential for application in fuel charging and transporting commercial hydrogen vehicles.

1. Introduction

Worldwide greenhouse gas emission regulation has brought new energy sources into practical consideration, such as wind power, solar cells, natural gas, chemical cells etc. Hydrogen gas related technology has become one of the most attractive and has great potential in next generation vehicles. Much researches have been carried out in order to verify the basic behavior and performance of the pneumatic parts used in hydrogen cells [1]. The conventional states of hydrogen in which it is normally stored are compressed hydrogen, liquid hydrogen and cryo-compressed hydrogen with a storage pressure of 350 to 700 bar [2,3]. Nevertheless, considering expansion due to temperature increases, the pressure of the reservoir needs to be able to rise to 1050 bar (700 bar, Nominal Working Pressure) safely [4]. Moreover, the development of a hydrogen cell system including a control valve is difficult in ensure safety [5,6] and stability, and little research into testing systems has been reported. The solenoid valve controls the amount of ultra-high pressure hydrogen gas released from storage and sends the gas to the depressurizing valve to charge. The malfunction of any valve and leakage can cause explosion, container rupture, fires, loss of power and sudden acceleration [7,8]. Furthermore, increasing the distance of gas passage increases pulsation and reduces durability due to the increasing probability of leakage points [9,10]. In this investigation, an ultra-high-pressure (up to 1050 bar) test bed is suggested, which controls the state of the hydrogen gas, and the performance was test and analyzed to determine the possibility of applying it in conventional vehicles.

2. Solenoid Valve

The duplicated plunger valve has been designed for stability under high pressure operation. In the case of the single type, the internal spring and diaphragm have to endure the maximum input pressure of 1050 bar for the performance test. Additionally, a high stiffness spring is not applicable due to the difficulties in precisely controlling the flow rate with a fast response time. The solenoid valve is constructed with a coil generating an electromagnetic force with an electrical circuit consisting of a disk, a yoke for attracting the plunger, a pilot and a main plunger for opening the gas pass, a restitution spring, and an O-ring for sealing, among others. Figure 1 shows a schematic diagram of the solenoid valve developed in this paper.

3. Performance Test and Evaluation

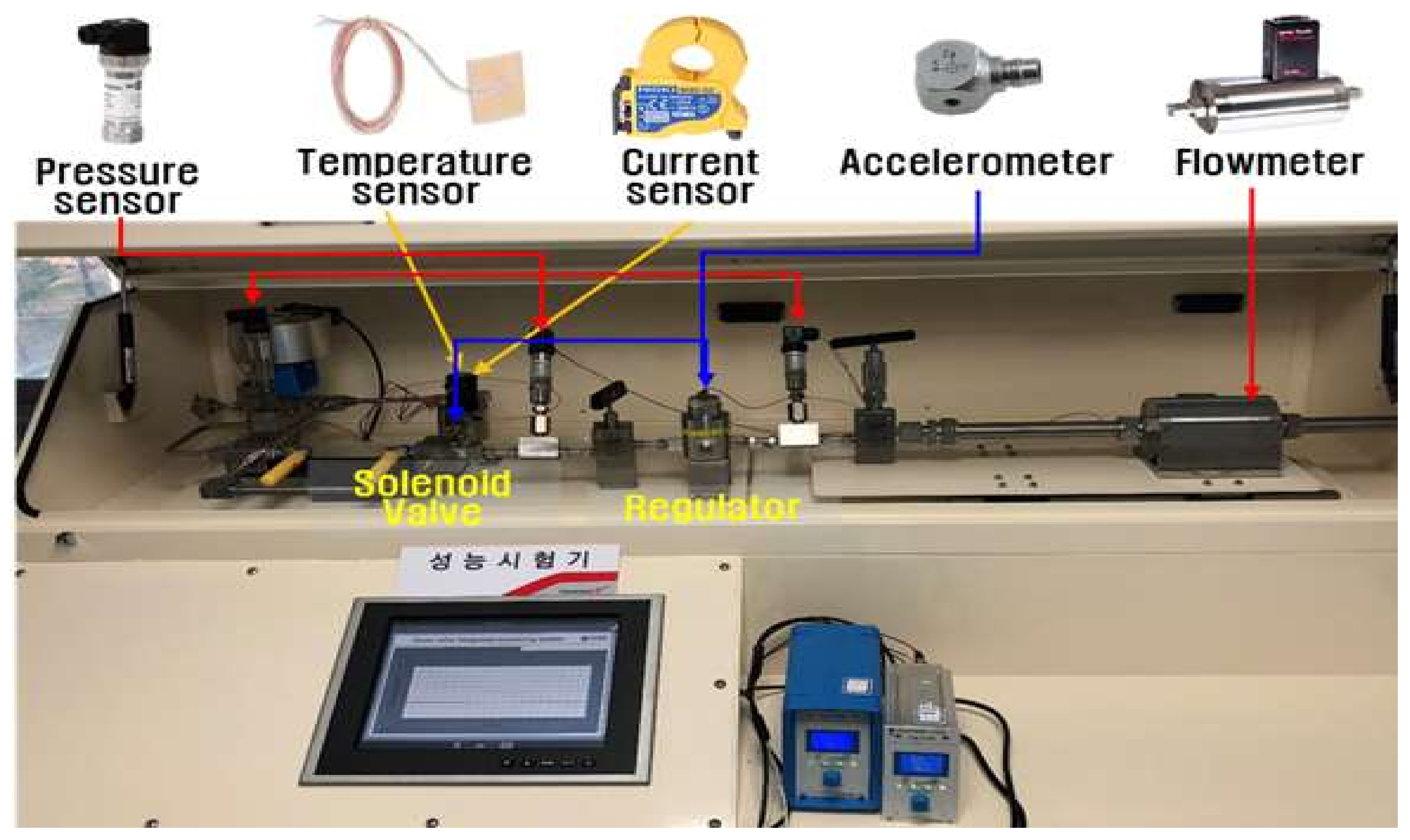

Shown in Figure 2, comprehensive test equipment has been developed for measuring the various performances of solenoid valves such as the response time according to input pressure, temperature increases upon repetition, pulsation under operation, the output flow rate, etc. The regulator and solenoid valve characteristics are measured and evaluated from an embedded controller (NI 9039) for multiple data acquisition.

3.1. Regulator Characteristics

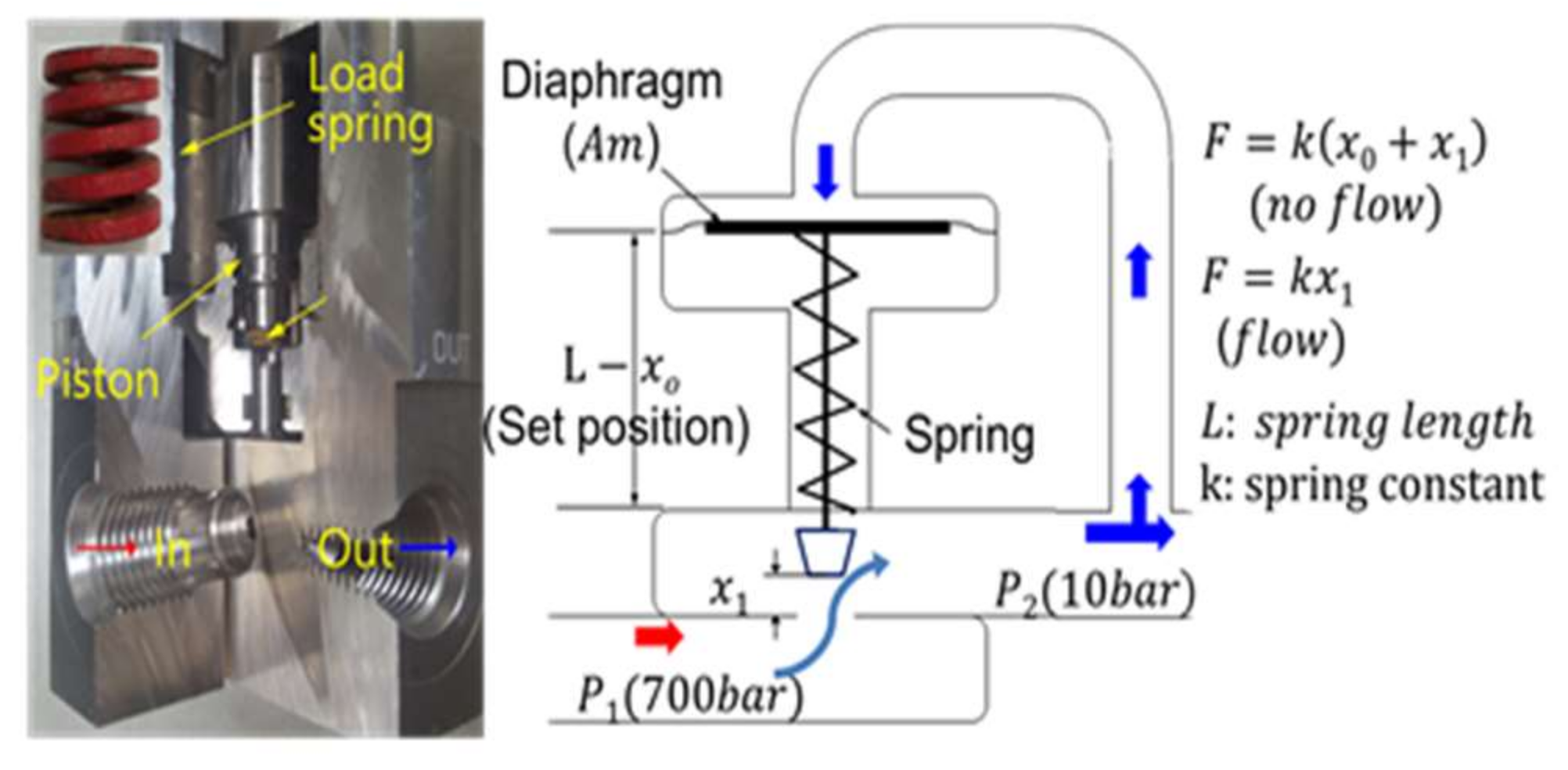

The input/output pressure, flow rate response and depressurization characteristics are measured as follows, and a schematic diagram of the regulator is shown in Figure 3. The depressurization is measured from the output pressure compared with an increasing input pressure from 700 to 1000 bar, increasing in increments of 100 bar, respectively. The results (input(output)) were 9.078(700), 9.085(800), 9.091(900) and 9.092(1000) bar, as shown in Figure 4 and satisfied the 1%±0.2% output ranges with no pressure pulsation.

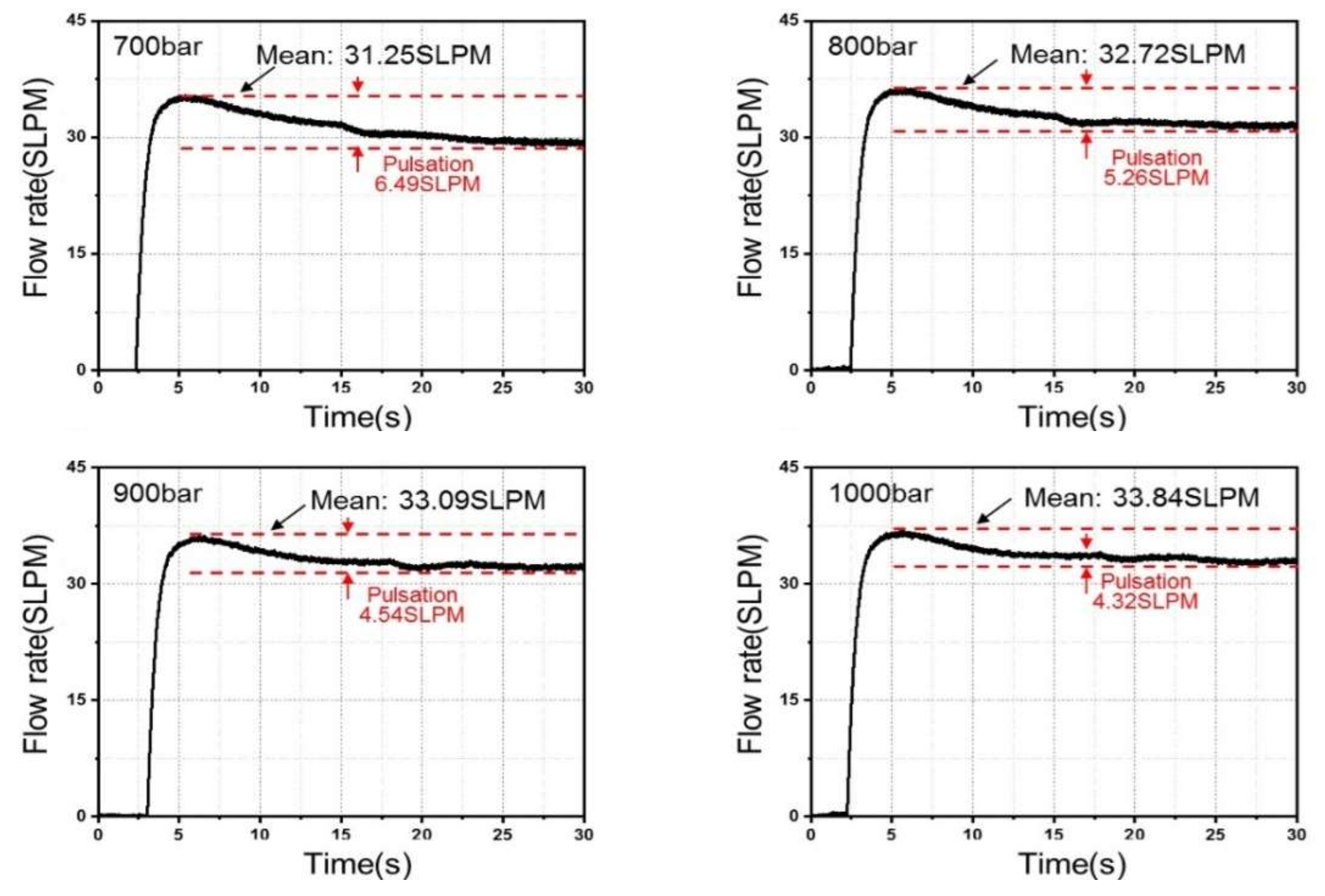

Moreover, the output flow rate of the regulator was measured at 31.25 SLPM (700 bar), 32.72 SLPM (800 bar), 33.09 SLPM (900 bar) and 33.84 SLPM (1000 bar) with decreasing flow pulsation as shown in Figure 5. According to the results for the characteristics, the regulator maintains the pressure and flow rate for various input pressures with allowable pulsation. Furthermore, the demanded discharge flow of regulator has no loss of flow compared with the input flow rate and satisfied 2000–2200 SLPM with regard to the hydrogen flow rate and the cross-sectional areas of the valve. In order to evaluate the pulsation characteristics of the smart valve, the pulsation range has to be measured according to the opening valve pressure variation. The pulsation increase appears as the input pressure of the solenoid valve is increased. Nevertheless, the pulsation decreases after passing through the regulator.

3.2. Solenoid Valve Characteristics

The solenoid valve dynamic characteristics evaluation was performed with the valve opening voltage with various input pressure conditions. The main plunger must be operated in harsh conditions in terms of applying the voltage to the solenoid coil, and determining whether the valve open or not, with an appropriate response time, is a prerequisite.

Therefore, evaluating the dynamic characteristics of the smart valve was carried out by varying various parameters such as the applied voltage, amount of current in the coil, temperature, pressure of the input/output, flow rate of the gas and pulsation of the valve. Moreover, the test equipment consisted of a DC power supply; a current, pressure and temperature sensor; and a flow meter. The accelerometer attached at the solenoid valve for measuring the vibration since the operation of the valve and the specification of the test equipment with a controller (NI 9039) is shown in

Table 1. Specification of the test equipment with controller.

Sensor	Specification
Pressure	Measuring range: 0–1600 bar, 0–60 bar Accuracy: ±0.5% Response: 1 ms
Temperature	Measuring range: 0–400 °C
Current	Measuring range: 50 mA–100 A
Accelerometer	Measuring range: 10, 50 g Accuracy: ±5%
Flow	Measuring range: 0–3000 SLPM Accuracy: ±1%
GAS(Leak)	Measuring range: 0–1000 ppm
Embedded controller (NI 9039)	Embedded controller 1.91 GHz processor 16 GB nonvolatile storage

.

The primary parameters for performance evaluation, including the applied voltages for operating the plunger under valve opening conditions, are listed in

Table 2. The valve opening conditions.

Parameter	Conditions
Input voltage (V)	7, 8, 9, 10, 11, 12
Input pressure (bar)	700, 800, 900, 1000
Gas	Nitrogen
Sampling rate	100 Hz

. The operating gas used nitrogen instead of hydrogen due to the safety matters concerns regarding explosion.

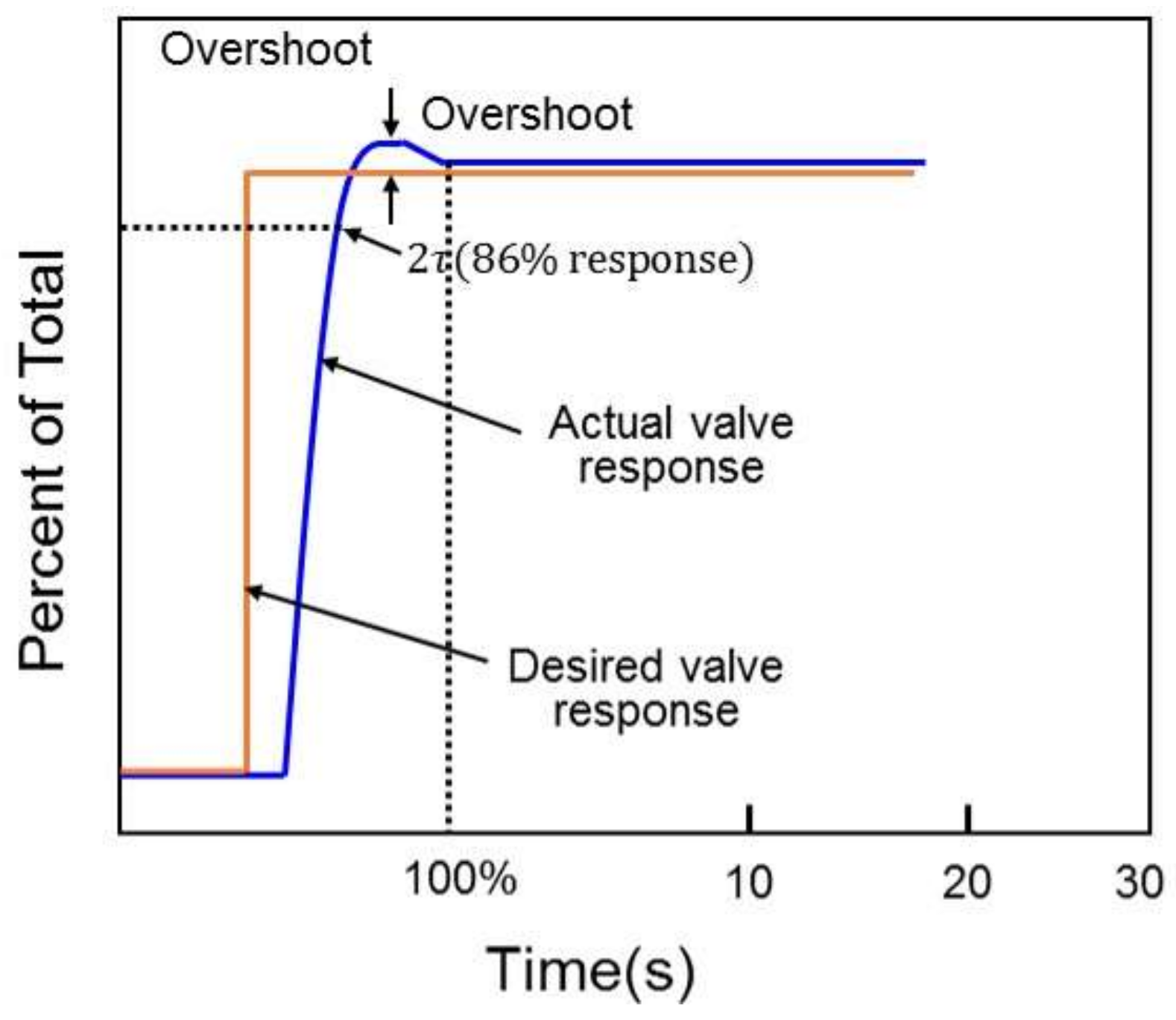

In order to verifying the response characteristics of the smart valve, the opening time according to the input pressure and applied voltage was measured. Generally, the time constant τ is the time dimension, which indicates the time elapsed upon reaching 63.2% of the steady state. Nevertheless, in this research, two times the time constant τ, which shows 86% of the steady state pressure, would be regarded as the fully open valve time, as shown in Figure 6.

Table 3. The results for the response time.

Input Pressure	Applied Voltage (V)
	7 V	8 V	9 V	10 V	11V	12 V
700 bar	1.03	1.03	1.03	1.01	1.00	0.97
800 bar	X	1.03	0.99	0.98	0.98	0.96
900 bar	X	0.99	0.97	0.97	0.97	0.93
1000 bar	X	1.45	0.96	0.96	0.91	0.91

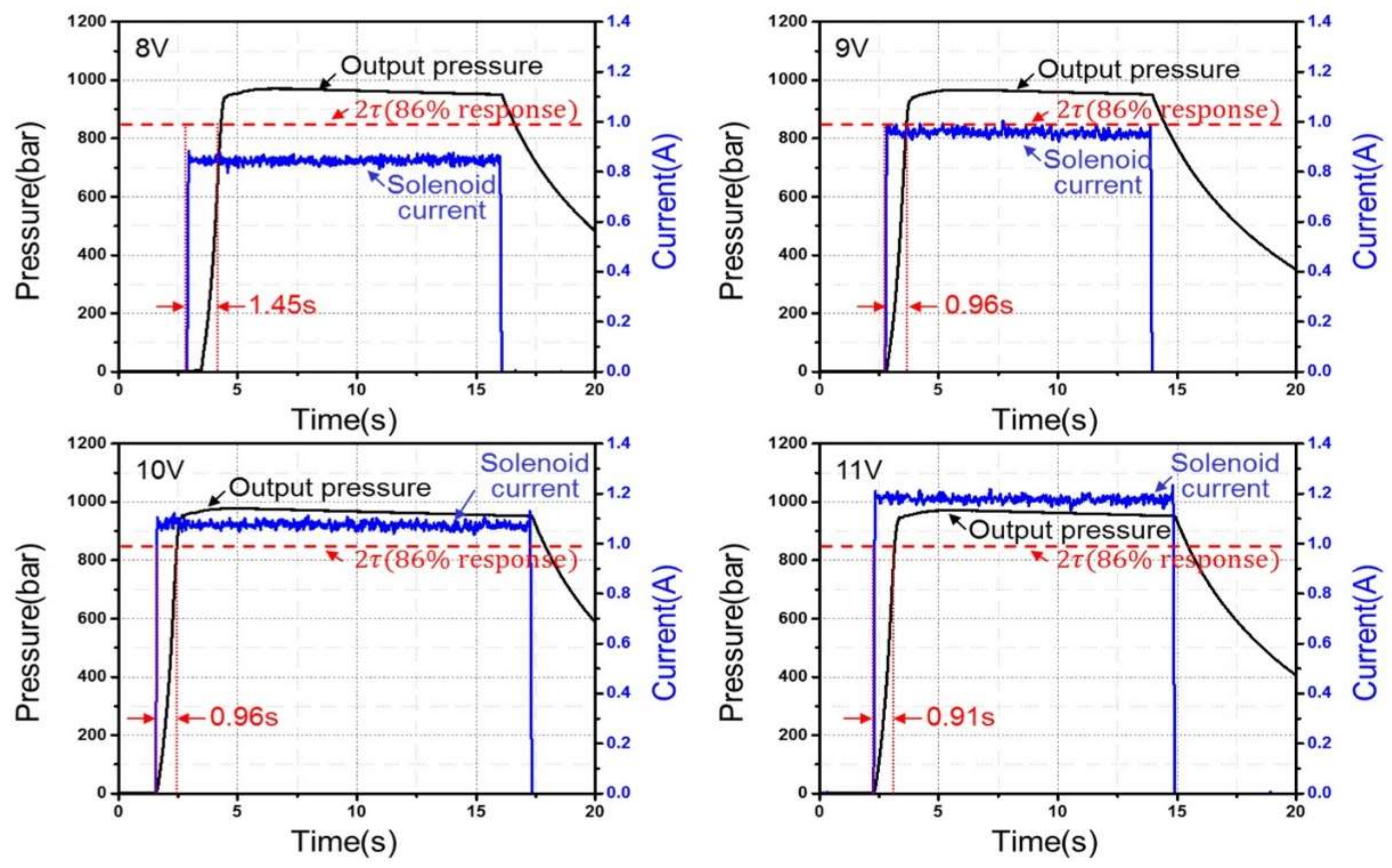

shows the results of the opening test, increasing the pressure and applying the voltages of 7 to 12 V. The temperature was 25 °C in every test, and the results show that the valve does not work with an input voltage of 7 V up to 800 bar pressure. Therefore, the minimum input voltage is 8 V for operating under ultra-high pressure. Moreover, the fully open response time was measured as 1 s on average, with a minimum of 0.91 s at 12 V and maximum of 1.45 s at 8 V. When the applied voltage was 8 V, a time delay occurred due to insufficient pressure at 1000 bar, and the response time was shortened by increasing the pressure. The response time of the solenoid valve is shown in Figure 7. The valve fully opened appropriately in the voltage range of stable vehicle driving, 9–12 V. Moreover, the valve reaction time increased at less than 8 V.

3.3. Evaluation of PulsationCharacteristics

The pulsation range increases as the output pressure increases from 700 to 1000 bar and as the pulsation increases from 3.21 to 6.53 bar. Nevertheless, pulsation decreased after passing through the regulator, as shown in Figure 8. The output pressure and flow rate are stable up to the maximum pressure.

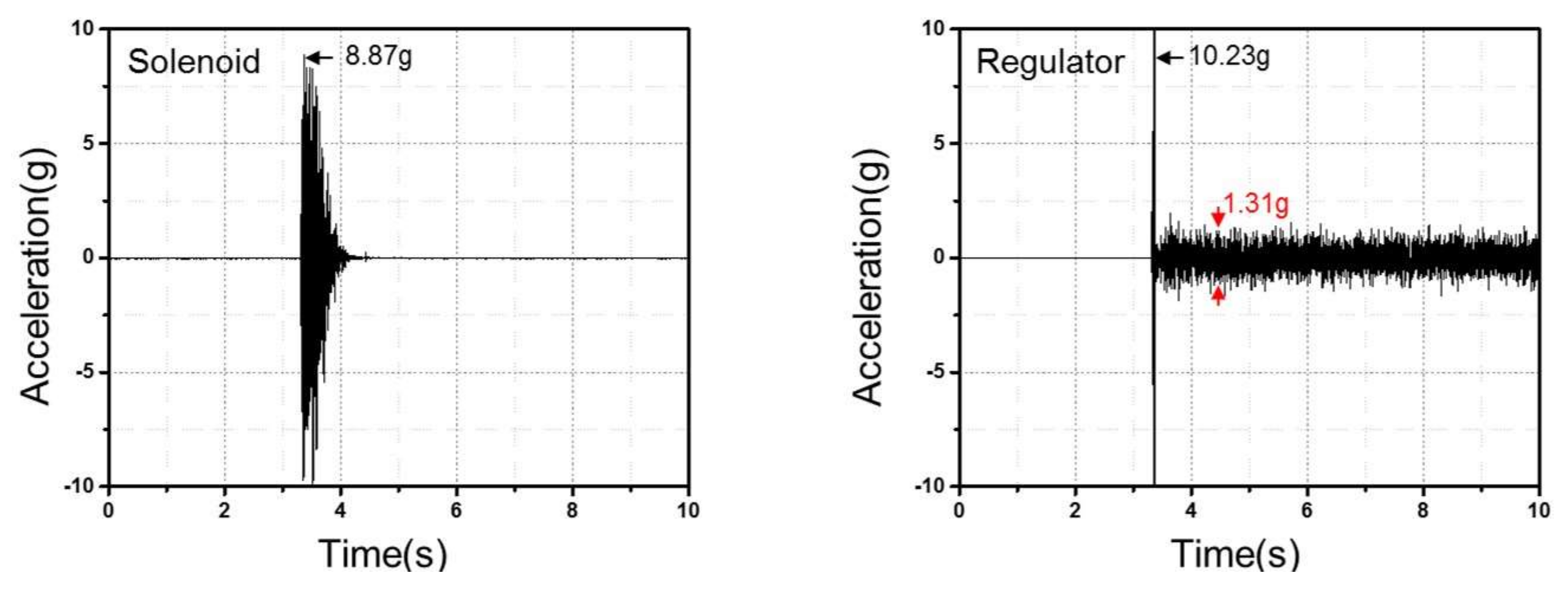

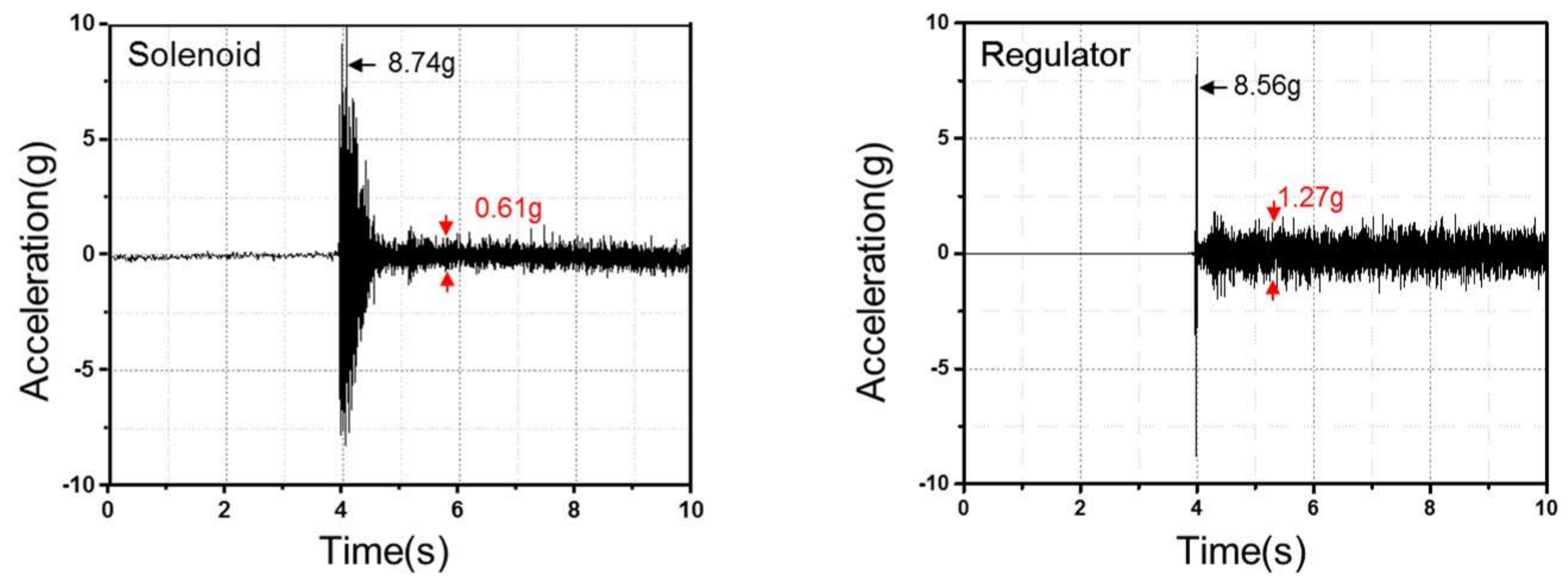

Moreover, to measure the output vibration of the regulator, an accelerometer was attached as shown in Figure 2. The vibration after opening the solenoid valve measured 8.87 g and was 10.23 g at the beginning of the regulator under normal operating conditions at the maximum pressure of 1000 bar. Furthermore, the vibration was constant at 1.31 g, and the input pressure and output flow rate were at a steady state as shown in Figure 9. In the case of the unstable state, which is when the solenoid valve has not been fully opened, 1.27 g vibration occurred and the vibration was lower than at steady state due to depressurization from the solenoid valve (Figure 10). The test result for vibration under high pressure conditions is fairly good when compared with the results for commercial valves.

3.4. EnduranceEvaluation

The principle of the operating regulator is the balance between the diaphragm and the spring to open the channel. Therefore, the constant of the spring is a significant parameter for regulator performance. To evaluate the spring’s durability, test apparatus was designed. The spring durability test was performed with five thousand cycles with 400 N forces. The spring constant decreased from 62.516 to 60.348 N/mm. The endurance test for the smart valve, which was designed in this research, was performed and evaluated. Durability tests were done according to repetition time at the valve opening voltage under ultra-high pressure. The allowable valve open voltages of 8 and 9 V were applied and maintained for 10 minutes for measuring the opening time to determine the decrease in the intensity of the magnetic field under continuous operation due to the temperature increasing in the solenoid coil. In case of the input voltage being 8 V, a delay appeared, at the opening valve maximum, of 14.03 s, due to insufficient force to transport the plunger.

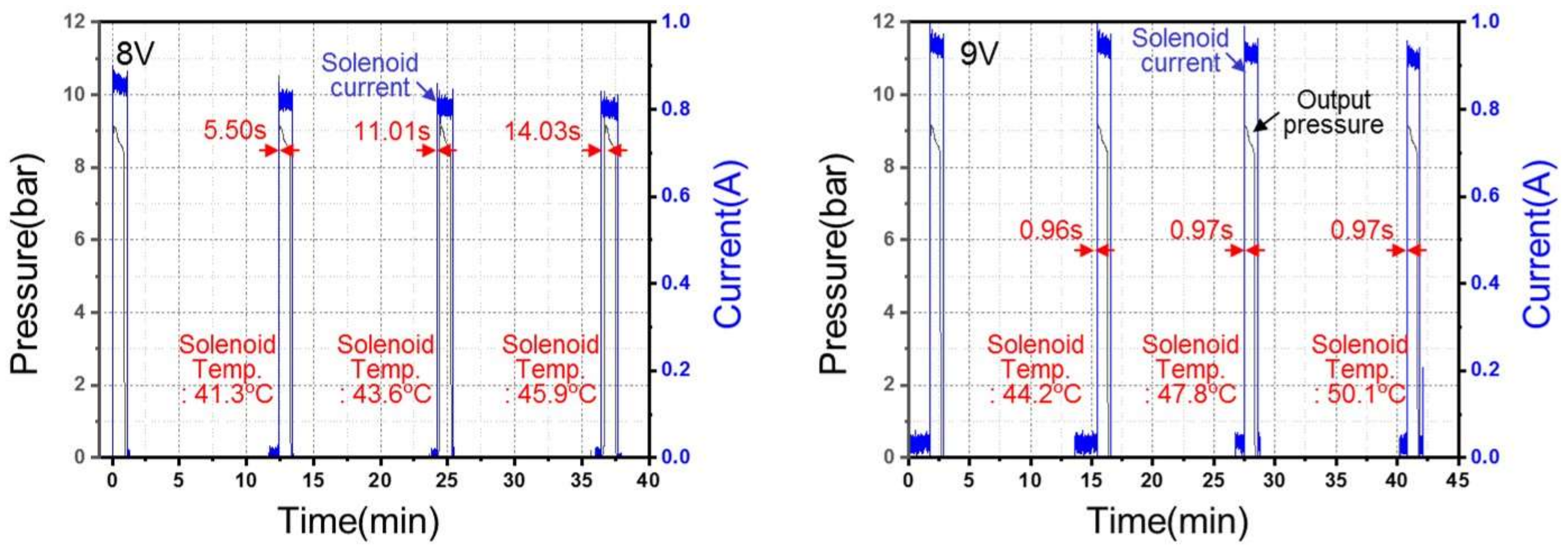

Nevertheless, when applying 9 V to the solenoid, 0.97 s of delay occurred over 30 minutes of operation time at 50.1 °C, as shown in Figure 11. Therefore, the minimum voltage to apply to the solenoid valve could be determined as 9 V for normal operation. Moreover, increases in temperature according to operating time were negligible, as the results show temperatures for the solenoid lower than the maximum allowable [10].

4. Conclusions

In this paper, an ultra-high pressure test bed has been developed for a hydrogen charging and transportation system with an integrated solenoid valve and regulator operating with precision control. Performance was tested and evaluated under various conditions such as various applied voltages, ranges of input pressure, operation times, output flow rates, amounts of pulsation, and repetition test for ensuring the safety, including considering the increases in temperature, the response time, the minimum voltage to be applied, etc. The results of the experiments show good potential for application in fuel charging and transporting commercial hydrogen vehicles. Moreover, comprehensive test equipment for the solenoid valve for ultra-high pressure hydrogen gas has been designed and described. The next stage of this research will be a field test, attaching the system in an actual vehicle for improving performance and efficiency.
