Article

Water Network-Failure Data Assessment

by
Katarzyna Pietrucha-Urbanik
1,*,
Barbara Tchórzewska-Cieślak
1 and
Mohamed Eid
2
1
Department of Water Supply and Sewerage Systems, Environmental Engineering and Architecture, Faculty of Civil, Rzeszow University of Technology, Aleja Powstancow Warszawy 6, 35-959 Rzeszow, Poland
2
National Institute of Applied Sciences of Rouen-LMN, INSA-Rouen, 685 avenue de l’Université-BP 8, 76801 Saint Etienne du Rouvray CEDEX, France
*
Author to whom correspondence should be addressed.
Energies 2020, 13(11), 2990; https://doi.org/10.3390/en13112990
Submission received: 11 April 2020 / Revised: 3 June 2020 / Accepted: 5 June 2020 / Published: 10 June 2020
(This article belongs to the Special Issue A New Water-Energy Nexus: The Transition to Sustainable Energy)

Abstract

:
The water-supply system is one of the basic and most important critical infrastructures. Water supply service disruption (water quality or quantity) may have serious consequences in modern societies. Water supply service is subject to various failure modes. Failure modes are specified by their degradation mechanisms, criticality, occurrence frequency and intensity. These failure modes have a random nature that impacts on the network disruption indicators, such as disruption frequency, network downtime, network repair time and network back-to-service time, i.e., the network resilience. This paper focuses on the water leakage failure mode. The water leakage failure mode assessment considers the unavoidable annual real water losses and the infrastructure leakage index recommended by the International Water Association’s Water Loss Task Force specialist group. Probabilistic statistical modelling was implemented to assess the seasonal index, the failure rates and the expectation value of the “mean time between failures.” The assessment is based on real operational data of the network. Specific attention is paid to the sensitivity of failures to seasonal variations. The presented methodology of the analysis of the water leakage failure mode is extendable to other failure modes and can help in developing new strategies in the management of the water-supply system in normal operation and crisis situations.

1. Introduction

The network must supply consumers with a required amount of water of a specific quality at an acceptable price. The requirements of the Drinking Water Directive (Council Directive 98/83/EC of 3 November 1998 on the quality of water intended for human consumption) should be fulfilled with its latest amendments including the EU Commission Directive (EU) 2015/1787 of 6 October 2015. In addition, the World Health Organization published guidelines (2004) for the application of water safety plans in which it recommends the analysis of the supply chain underpinning the water intended for human consumption. The water supply service disruption can cause a crisis with the consequence of a “loss of safety for consumers” [1,2].
This explains the critical importance of the development of emergency plans to manage the continuity of the drinking water supply in various critical situations. In addition, detailed analyses of potential risks leading to the water supply service disruption must be carried out in order to construct a comprehensive programme of system safety management [3,4]. The water-distribution network consists mainly of the pipe network, with mains, distribution pipes, service connections, and such specific fittings as gate valves, check valves, hydrants, drainage, aeration and flow meters.
The complexity of the distribution system, as well as the interactions between different physical, chemical and biological processes, and the lack of failure data, make the analyses of failure events very challenging [5,6,7]. Regarding the specific character of the water-pipe network operation, the procedure of failure repair is strongly connected with the maintenance of the network with the priority of providing consumers with water of suitable quality [8]. As far as water-pipe network failure is concerned, the failure data exist but contain only data that do not allow full identification of failure modes and mechanisms. However, questions about failures related to corrosion processes, transverse cracking or longitudinal cracking [9,10,11] can possibly be answered.
It should be recalled that variations in pressure and flow parameters in the network are mainly driven by the demand. In many urban water-pipe networks, pressure and flow variations can be the result of the re-dimensioning of the pipes. That results in a drop in the velocity of the water flow and consequently increases the risk of deterioration in the quality of water [12,13,14].
Failures of the water-pipe network and its fittings are random events that can arise in connection with groundworks (e.g., when a pipe is damaged mechanically by an excavator), the technical state of pipes, sudden changes in temperature, etc. [15,16,17]. The causes of a high failure rate in a water-pipe network can often be due to structural conceptual errors or wrong hydraulic operating conditions. Various failure modes can cause water leakage and losses, secondary water pollution or water supply service disruption. From the producers’ point of view, water losses due to so-called hidden failures are a serious issue. The volume of the water leakage depends on the type and the extent of the pipes damage, the duration of the outflow and the pressure at the damaged section. In such cases, the District Metered Areas distribution systems can help in leakage detection and monitoring [18,19], as well as leakage reduction through pressure control [20,21]. This requires developing classifying algorithms (classifiers), enabling online real-time processing and analysis of pressure data streams. The implementation of classifiers can improve the accurate localisation of leakage [21,22]. The sensitivity matrices regarding the pipe flow to nodal pressure and pipe flow can also be applied to fit the leakage detection of water distribution systems [23]. The implementation of the correlation ratio matrix obtained from the fault state and the normal state is effective in improving the utilization rate of water networks [24,25].
The main objective of this work is to contribute to the development of the failure data dynamic modelling that serves as the basic layer in the development of classifiers for water network management. The work is described in the following sections: the methods, the studied case characterisation, the failure data & statistical analyses, the results and discussion, and the conclusions and perspective.

2. The Assessment Method

The assessment method is built upon five sequential tasks: characterisation of the network, failure data statistical analysis, water loss assessment, network failure seasonal trends and network development perspective.
A generic assessment framework is schematically described in Figure 1.

3. Studied Case Characterisation

The selected water-supply system is located in Poland’s Podkarpackie province, with a population of 9000 inhabitants. The city has a population density of 642 inhabitant∙km−2. The analysis was performed using a stream of daily operational failure data covering a four-year operating period. The network pipe structural specifications are mains: 1.7 km, distribution pipes: 21.1 km, and service connections: 41 km. Originally, water pipes were built of grey cast iron or galvanised steel, but along with the continuous expansion and modernisation of the network, more modern materials such as polyvinyl chloride and polyethylene are increasingly used. The examined network is branching, so the pipes run parallel to the main streets, with the most concentrated in the center where the buildings are the densest. The average daily water demand equals to 1337 m3∙d−1 and the maximum hour demand is 134 m3∙h−1. Galvanised steel pipes constitute the largest part of the water supply network, accounting for about 56.43%. Grey cast-iron pipes account for 4.55%, while almost 39.02% of all pipelines are polyvinyl chloride and polyethylene.

4. Failure Data & Statistical Analyses

The leakage failure assessment is based on an available failure database that includes the following classes of data [26,27]:
  • General; general identifications information (addresses, dates, etc.)
  • Technical; technical data about the objects (type, functionality, construction, technology, etc.)
  • Qualitative; qualitative data on failures (mode, mechanism, effect, criticality, consequences, etc.)
  • Quantitative; quantitative data on failures (occurrence date, repair/replacement date, back to service dates, etc.)
  • Other; additional information
If there is any ageing effect, it can be determined by comparing between the monthly number of failures n(i) for month i in the following way:
  • If n(i) > n(i − 1) ==> there is ageing,
  • If n(i) = n(i − 1) ==> no ageing,
  • If n(i) < n(i − 1) ==> there is a regeneration (improvement).
We are interested in working out leakage failure rates per unit time and per km, λ ( t ) , based on the available data. The standard procedures for processing failure data are proposed in [27,28]. We are applying the following classification for failure rate critical values and their correspondent reliability levels [27]:
  • Low reliability level when failure rate λ is higher than 0.5 failures/km/year,
  • High reliability level when failure rate λ is less than 0.1 failures/km/year,
  • Medium reliability level when failure rates are between 0.1 and 0.5 failures/km/year.
To carry on this statistical analysis and modelling we are exploring three directions: direct statistical averaging, deseasonalised averaging & linear regression and mean time-to-fail (MTTF) data fitting to the Poisson Stochastic Process.

4.1. Direct Statistical Analyses

The values of failure rates are calculated according to Equation (1) [26]:
λ j = n j ( t , t + Δ t ) L j   ·   Δ t
where nj(t, t + Δt) is the number of all failures in the time interval Δt for the j part of the network; Lj is the length of the j part of the network [km], and j is a given part of the water supply network.
In the analysis of the degree of failure of the water supply network, an important parameter is the standard deviation of the failure rates, which is calculated according to the formula:
σ = 1 n λ i 2 n ( 1 n λ i n ) 2 = ( λ 2 ) ¯ ( λ ¯ ) 2

4.2. Deseasonalisalisation Linear Regration

Regarding seasonal impact, we applied a method based on the average identical period comparative analysis [29] in order to isolate seasonal fluctuations.
A seasonal index Si is calculated according to:
S i = y i ¯ ( ( i = 1 d y i ¯ ) d ) = y i ¯ ( i = 1 d y i ¯ ) d
where d is equal to 4 (over the four seasons).
The mean values of failures y i ¯ over homonymous subperiods (quarters) is calculated by:
y i ¯ = i = 1 4 k i ¯ 4
where k i ¯ is the average number of failures in quarter i.
The deseasonalised average number of failures g i ¯ considering the seasonal fluctuations is calculated using the following formula:
g i ¯ = k i ¯ / S i
where g i ¯ is expressed in the same units as the examined phenomenon.
Once the deseasonalised number of failures is determined, we can determine the trend of the number of failures with the time using linear regression.

4.3. MTTF Fitting to Poisson Stochastic Process

Keeping the assumption of a time-constant failure rate in mind, we will then fit the failure data with a Poisson Stochastic Process. That means admitting the absence (/the insignificance) of ageing effects over the short interval of 16 months. The adjustment criteria will then be the conservation of the expectation value of the time between successive failures over the corresponding intervals.
Now, we did not count “failures/month” but the “Time to Fail” within a given interval of time. The expectation value of the time between successive failures E ( T ) over the interval T is called the “Mean Time-To-Fail” (MTTF) and determined for the Poisson Stochastic Process by:
E ( T ) = T ¯ = 0 T o ξ . λ e λ ξ d ξ
giving:
λ T ¯ T = ( 1 e λ T o ) λ T o e λ T o
where; T ¯ is the MTTF, T o is the interval of interest and λ is the failure rate to be determined. E ( T ) is called the “1st moment,” as well.
Considering the available data, one may statistically estimate a MTTF, T * , that will be called the statistical MTTF and determined by:
T * = 1 n i = 1 n t i
It is largely called the “Estimator,” as well. One should always distinguish between the “Expectation” value and the “Estimated” one.
Where t i are the times to fail observed within the corresponding interval and n is the number of the observations within the interval, knowing that the statistical MTTF tends to the expectation value if the size of the sample is big enough (the law of large number):
l i m n T * = l i m n   1 n i = 1 n t i         T ¯
then, combining with Equation (10), one can write:
λ T *             λ T ¯ = ( 1 e λ T o ) λ T o e λ T o
and then expressing the failure rate by:
λ = ( 1 e λ T o ) λ T o e λ T o T *
where T * is the statistically estimated MTTF from the database.
To solve the equation, one will define two functions. The failure moment function ( F M F ) and the failure rate function ( F R F ) are respectively defined as:
F M F = ( 1 e λ T o ) λ T o e λ T o T *
F R F = λ
The adjustment criteria will then be the conservation the expectation value of the time between successive failures.

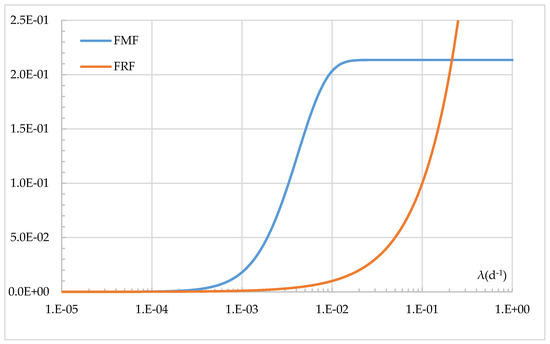

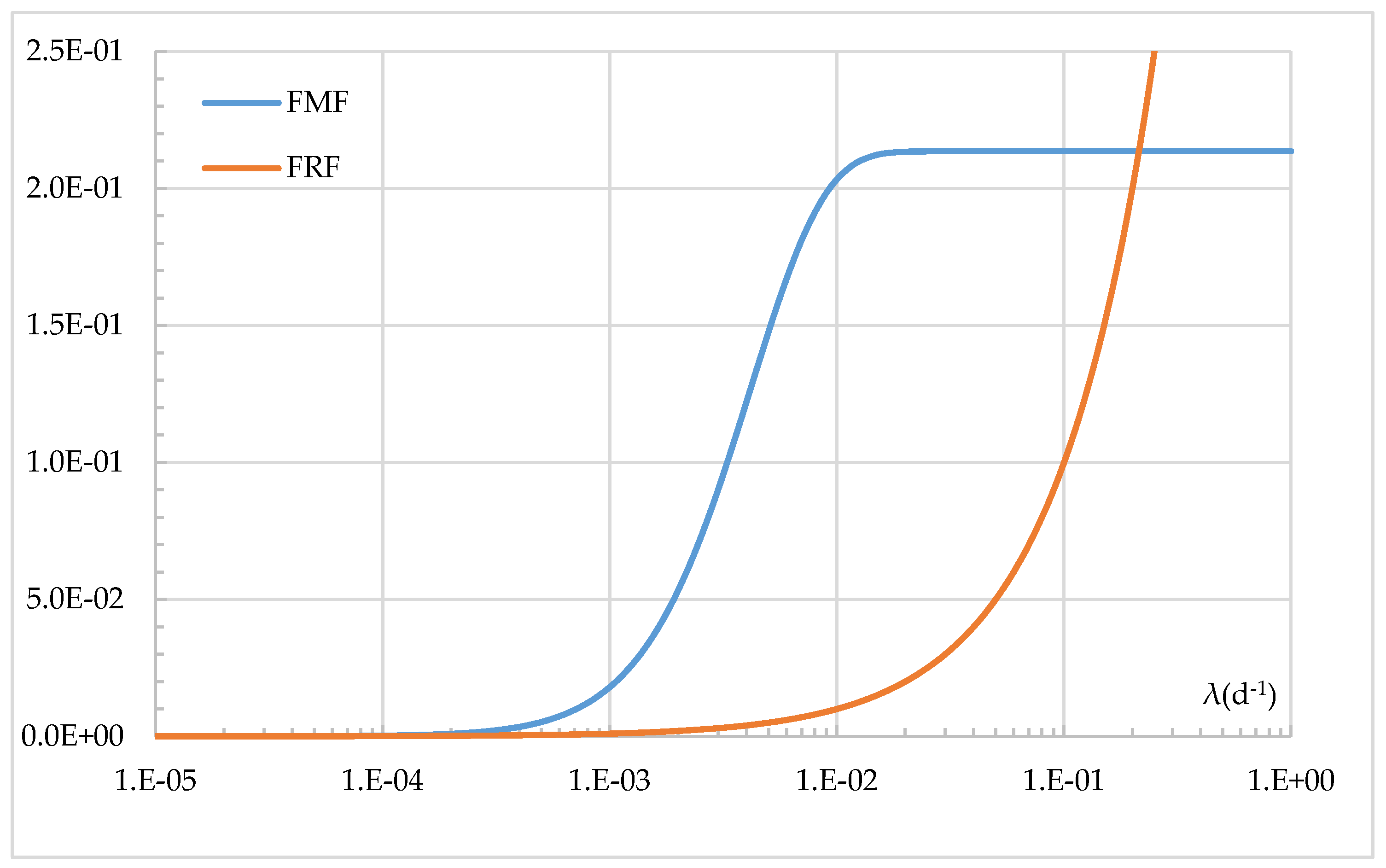

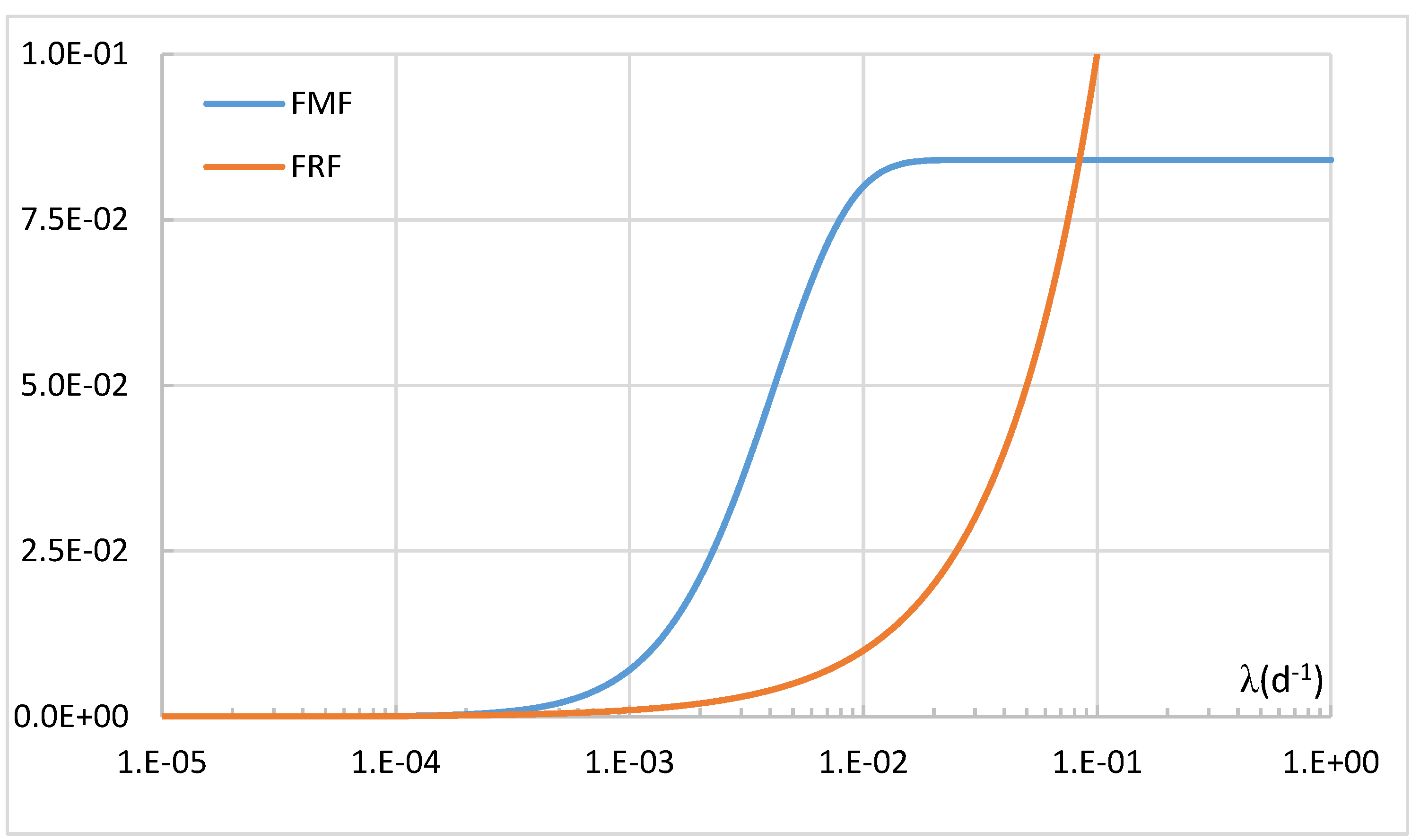

Solutions exist at the intersection of both functions as demonstrated in Figures 9 and 10.

5. Water Loss Assessment

The unavoidable Annual Real Loss (UARL) is the annual volume of the inevitable loss and is economically viable. This means that the economic losses due to the leakages are lesser than the expenses of repairing/reducing the leakages through technical design solutions. The indicator is determined from the relation:
UARL = [18 (M + R) + 25 PW + 0.8 LPW] 0.365 p
where M is the length of the main network [km], R is the length of the distribution network [km], PW is the water supply connections length [km], LPW is the number of water connections [–], p is the average amount of pressure in the present measurement zone [mH2O], and 0.365 is the conversion factor for a year and m3.
Equation (13) takes into account the following unavoidable leaks:
  • On main and distribution pipes: 18 dm3/km·d·1 m H2O pressure height,
  • On the water connection pipes: 25 dm3/1 m of connection·d·1 m H2O pressure height,
  • Related to the number of water supply, it is assumed 0.8 dm3/1 connection·d·H2O pressure level.
Infrastructure Leakage Index (ILI) is the ratio of the annual volume ratio of losses to UARL, which is described by the relationship:
ILI = Vloss/UARL
where Vloss is the annual volume of water unsold, [m3∙year−1], UARL are the unavoidable losses, [m3∙year−1].
Real Loss Benchmark is the indicator that enables the assessment of the technical condition of the water supply system. If the number of connections per kilometer of water pipe network is at least 20, the RLB is obtained through relationship:
RLB = Vloss 1000/Lpw 365
where Lpw is the number of water connections, [m3∙year−1].

6. Results and Discussion

6.1. General View Water Losses Analysis

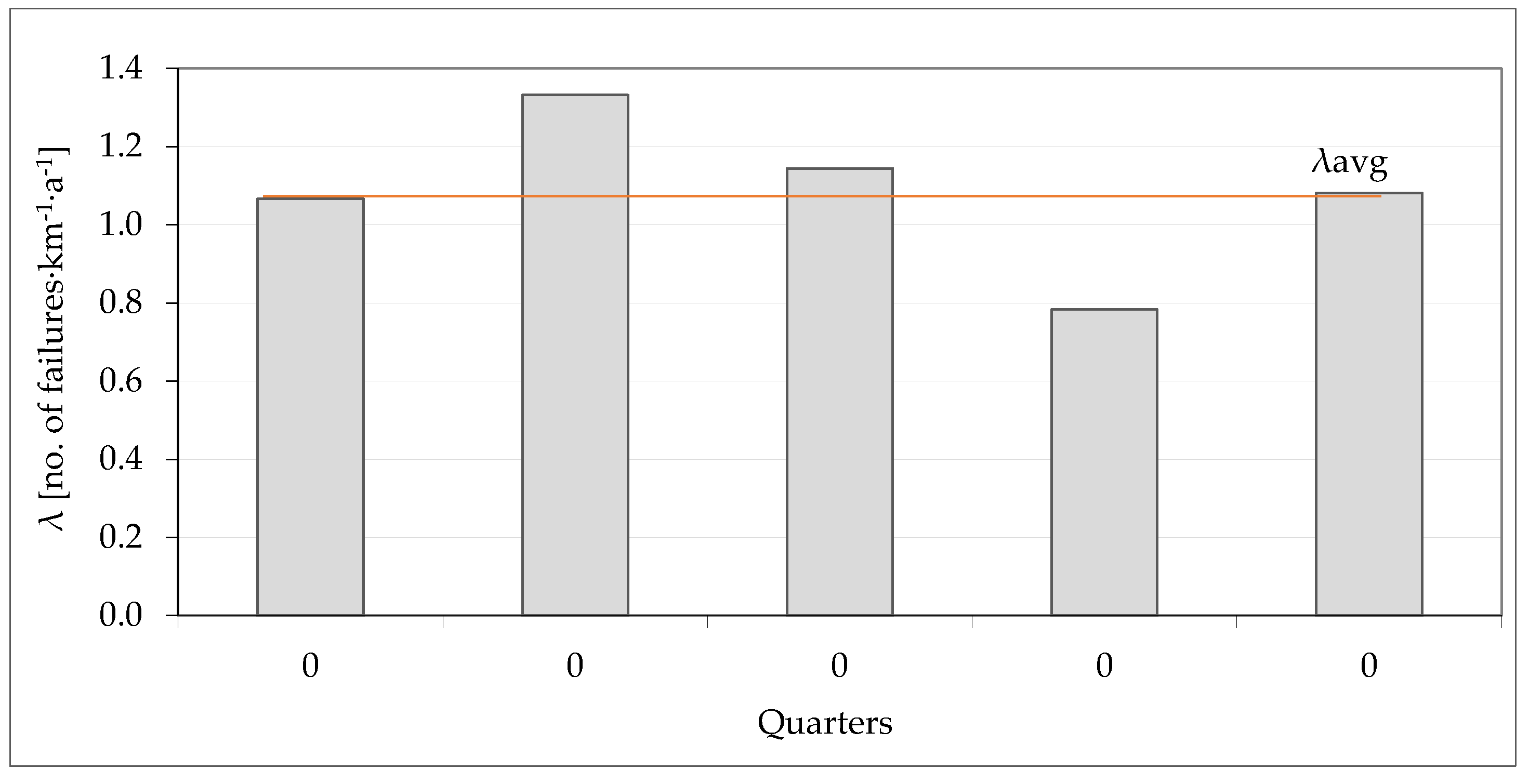

In Figure 2, the average values of the failure rate in the examined interval of time for the whole water network are presented.
In each of the examined years, the water supply network is characterized by a high failure rate. However, we can notice that the number of annual failures decreases significantly in the last two years. Comparing the obtained values during the first two years with the criteria proposed in [23], λ > 0.5 failures/y/km, it was decided to renovate the network pipelines. A summary of failure rates due to their cause is presented in Figure 3.
The most common failure modes include connection failure (97 cases, 35.14% of all failures). This type of failure is mainly the result of design errors or improper operation conditions. Other frequent failure modes are water meter failures and corrosion-stress cracking (in both cases these were the causes of 44 failures, 15.94%). The other category includes leaks or pipe cracking due to excavation work. Steel pipes corrosion-stress cracking constituted more than 50% of all pipes in the entire network, while water meter failures were mainly observed at customer’s residences and caused by improper use or ageing.
The repair/replace time is one of the most important indicators we examined. It is determined by the number of hours needed to repair a failure or replace damaged equipment. It depends on many factors such as the size of the maintenance brigade, the extent of the failure, the accessibility to the location of the failure or the pipe diameter. The classification of failure modes by repair time is shown in Figure 4.
The most frequent repair time varies from six to eight hours (about 25.7% of all occurring failures). The least frequent took more than 10 h (<3%).
The Unavoidable Annual Real Losses has an upward trend that equals to 41,525 m3∙a−1. The same situation occurs with the water supply leakage indicator, which remains at a stable level not exceeding the value of two. The previous indicators classify the water supply network state as good, according to IWA’s criteria. A downward trend of RLB was observed, ranging from 258.48 to 122.16 dm3∙d−1 per water connection. It should be noted that the resulting value of the ILI indicates the appropriate state of the water supply system and compensates the unsold water volume. This is due to the substantial length of the network in relation with the volume of sold water and the high rate of unavoidable losses.

6.2. Overview on Failure Data Deseasonalisation

The failure rate of the water network in the subsequent quarters of the analysed period to show the seasonal fluctuations is presented in Figure 5.

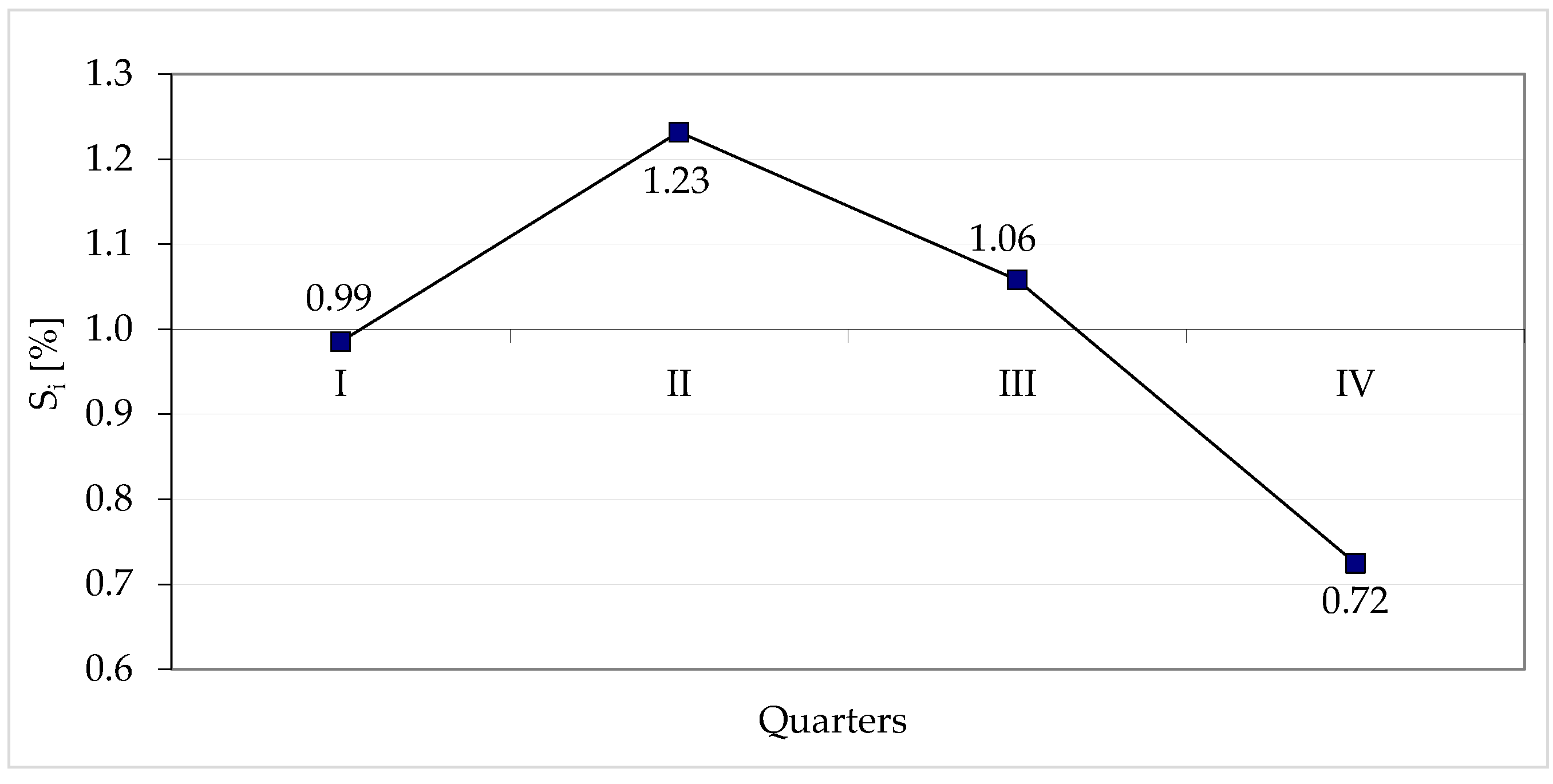

The highest failure rate, and hence the lowest reliability, occurred in the second quarter (1.332 no. of failures∙km−1∙a−1). The lowest failure rate was observed in the fourth quarter (0.784 no. of failures∙km−1∙a−1).
Seasonal fluctuations, whose characteristic parameter is the annual fluctuation cycle, are an important factor that allows for a more accurate analysis and trend prediction of the water supply network failures. Considering the seasonal fluctuations, the total number of failures was higher than the quarterly average (1.0) by approximately 0.23 in the second quarter of the year, 0.06 in the third quarter, and was greatly lower than the monthly average by 0.28 in the fourth quarter (Figure 6).
The absolute seasonal fluctuation of gi shows that, in the fourth quarter, the total number of failures was lower than the average monthly ( y ¯ = 17.25 failures∙quarter−1) by 4.75 failures and, in the second quarter, was higher than the average by 4.0 failures/quarter. The standard deviation for the analysed, used to assess degrees of variation, was equal to 3.63.

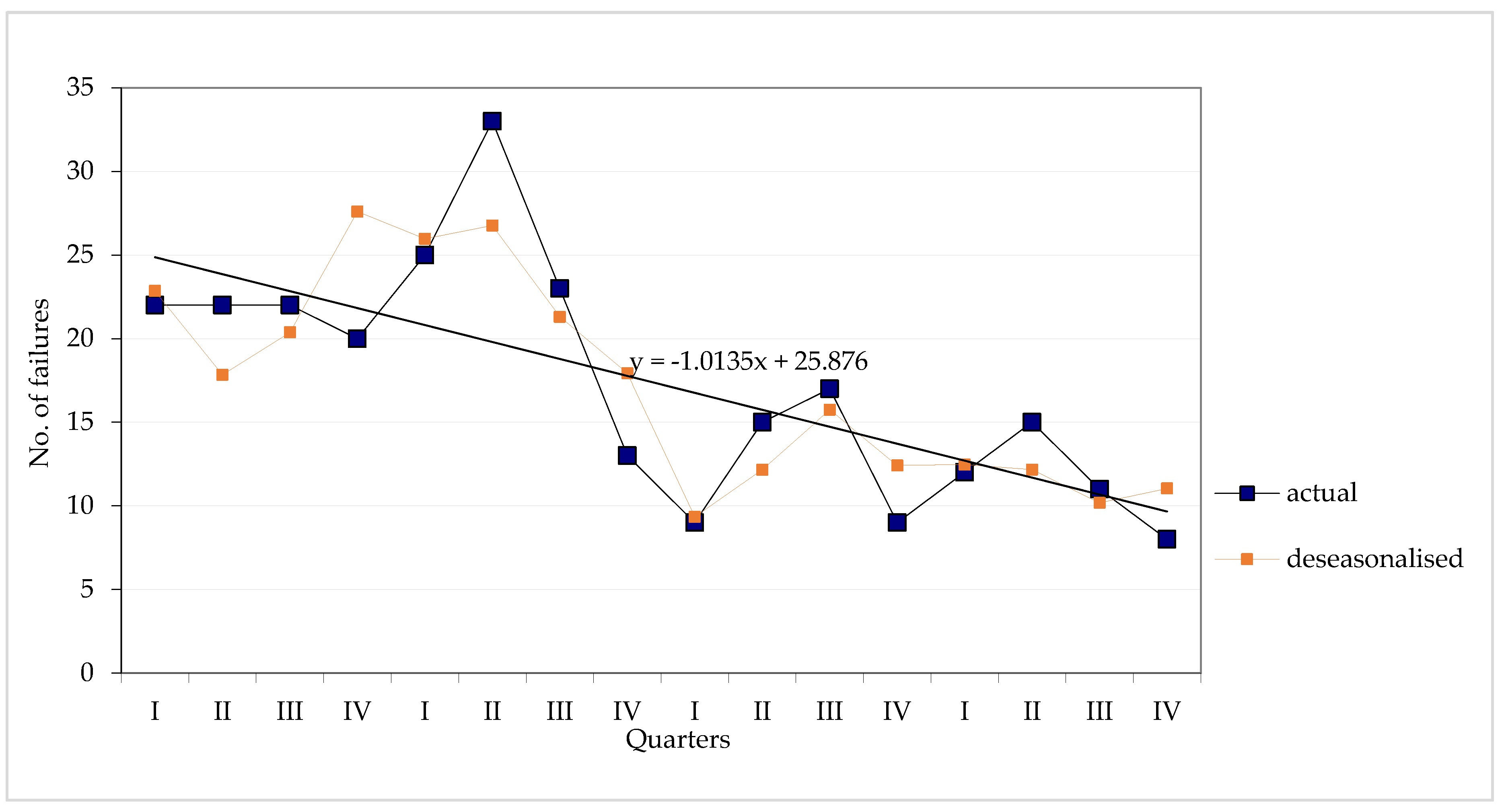

To smooth fluctuations and remove seasonality, the deseasonalised index was calculated by the division of the actual data concerning failures by a seasonal index Si, which is presented in Figure 7.
The deseasonalisation helps to remove some peaks. The down trend shows that the number of failures decreases slightly. By implementation of presented deseasonalised failure prediction, the actual number of failures in the next quarter of the following year can be estimated according to the least square trend line, which equals to nine failures per quarter. Such an approach can be helpful in the prediction of water pipe failure.

6.3. Network Global Failure Rate Assessment

The straightforward statistical approach was applied to process failure data from the database. The database comprises 276 recorded failure events cumulated over four years. Recorded failures cover six types of failure categories: corrosion, cracks, service connections damage, valves damage, water-meters damage and others. The monthly failures histogram is presented in Figure 8.
Assuming that the whole network is characterised by a constant failure rate over the four years, the statistical analysis of the whole interval of 48 months with its 276 recorded failures resulted in a failure rate of 9 × 10 2 per month per kilometer ( 3 × 10 3   d 1 k m 1 ) with a standard deviation ( σ ) of 57.8 % , Table 1. This large dispersion, despite of the relatively good size of the database, advocated for some additional finer analyses.

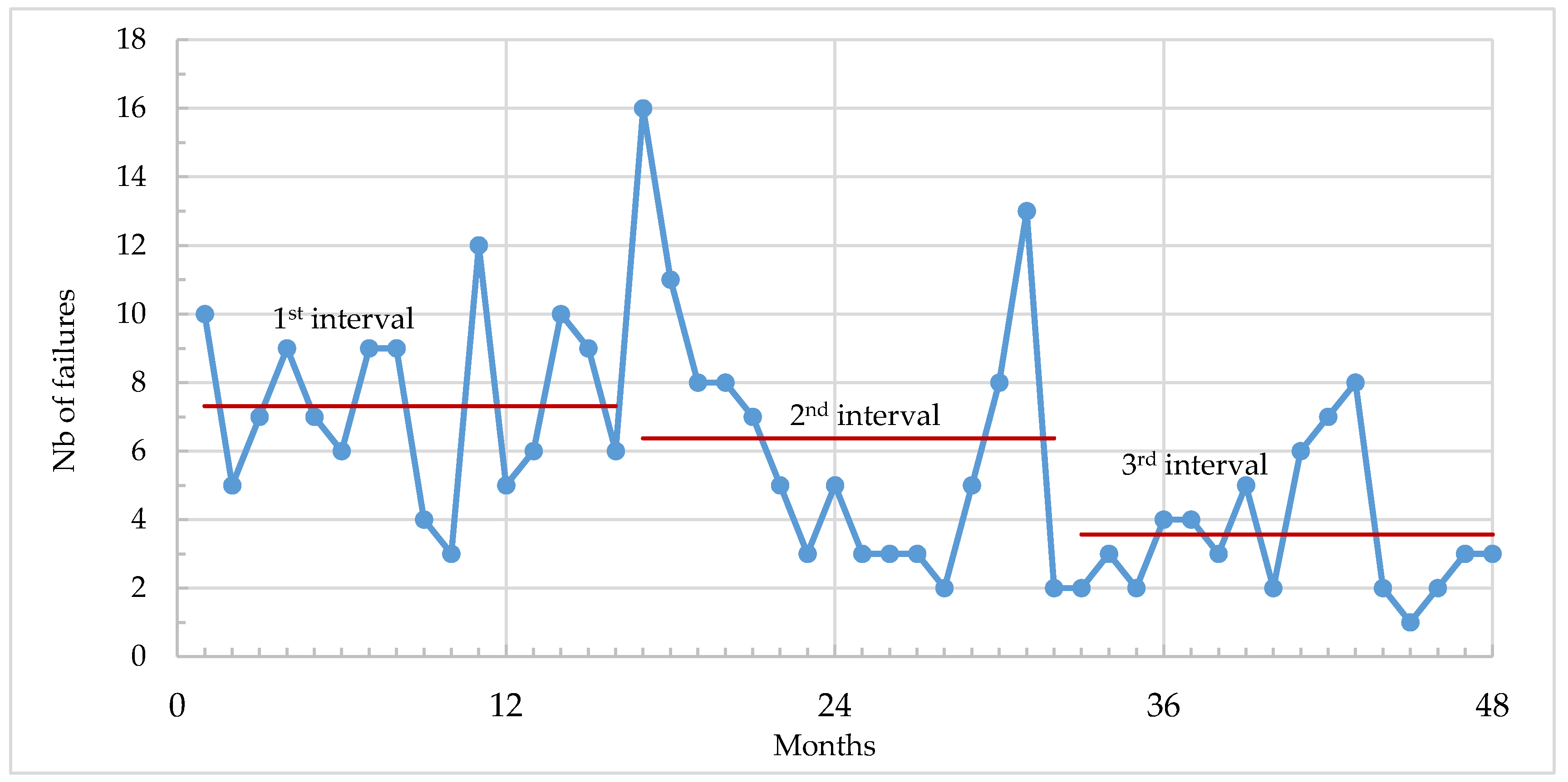

The observed visual topology of the histogram in Figure 8 suggested the discrimination of three equal sub-intervals within the total 48 month-interval. The failure rate and the correspondent standard deviation of each of these three sub-intervals are given in Table 1. Considering the values of the failure rates and the correspondent standard deviations, one may conclude that:
  • The global set (over 48 months) and the first and the second sets are not very discriminated based on the correspondent failure rates and standard deviations. The failure rates of each is in the uncertainty region of the other because of the relatively high standard deviations of each.
  • The third subset is clearly well discriminated by the values of its corresponding failure rate and standard deviation.
We will then consider only the first and the third subsets for a finer statistical analysis, see Figure 8.
The mean value of the monthly failures is determined to be around 5.75 failures/month with a standard deviation equal to 3.33 which represents about 57.8% of the mean value. This standard deviation represents a relatively large uncertainty. That corresponds to a global constant failure rate equal to 9.01 × 10−2/month.
On the histogram, one can visually identify three intervals measured in months: interval 1 [1–16 month], interval 2 [17–32 month] and interval 3 [33–48 month].
For interval 1, one can also determine a mean value of the monthly failures (over 16 months) and its standard deviation. The mean value of the monthly failures is found to be around 7.82 failures/month with a standard deviation equal to 3.11 which represents about 39.8% of the mean value. That corresponds to a global constant failure rate equal to 1.23 × 10−1/month.
For interval 3, one can also determine a mean value of the monthly failures (over the last 16 months) and its standard deviation. The mean value of the monthly failures is found to be around 3.47 failures/month with a standard-deviation equal to 1.91 which represents about 55.1% of the mean value. That corresponds to a global constant failure rate equal to 5.44 × 10−2/month.
Obviously, the network reliability was much better within the last 16 months than the first 16 months.
Regarding the intermediate interval between 17 and 32 months, something indicates a very rapid (almost linear) decrease of the failure rate. That could be due to a radical improvement in maintenance or a large replacement of the old network by a new one.

6.4. Failure Data Fitting to Poisson Stochastic Process

Keeping the assumption of a time-constant failure rate in mind, we adjusted the failure data of the first sub-interval (over 16 months) and of the third sub-interval (over 16 months) to fit with a Poisson Stochastic Process, Figure 8. That means admitting the absence (/the insignificance) of ageing effects over the short interval of 16 months. The adjustment criteria is the conservation of the expectation value of the time between successive failures (MTTF) over 16 months.
Regarding the first interval, the estimated failure rate is 2.14 × 10 1 d 1 or 3.35 × 10 3 d 1 k m 1 if one considers a network size of 63.8 km, Figure 9.
Regarding the third interval, the estimated failure rate is 8.04 × 10 2 d 1 or 1.32 × 10 3 d 1 k m 1 if one considers a network size of 63.8 km, Figure 10.
A comparison between the failure rates estimated by the direct statistical approach and those estimated using the conservation of the first moment of a Poisson Stochastic Process is given, Table 2.
One may distinguish two different phases, the first 16 months and the last 16 months, within the total 48 months of the available data. The difference may be due to changes in the network itself (structural, technological, or organisational) or changes in the data collection and recording process. In both phases of 16 months, the network can be considered non-ageing. Or, one could consider that the ageing process is insignificant over the short period of 16 months. The straightforward approach is more conservative and results in slightly higher failure rates.

7. Conclusions and Perspectives

Due to major water losses and frequent pipe failures in the examined network, recommendations are to improve the network control and monitoring system as well as to use more accurate measuring devices. The paper treated only the water leakage failure mode. However, the demarche is generic and can be applied to all other failure modes in a straightforward manner. Actions to be recommended would entail the development of an online detection and monitoring algorithm (classifiers) and tools. That includes the design of an active leak-control system and the development of a comprehensive information technology system with intelligent communication modules, telecommunications infrastructure and an automatic database management system.
Governments, citizen and other stakeholders require a higher quality of drinking water and higher level of water supply service continuity. National concerned institutions and global legal regulations require the adaptation and the development of scientific and technical research to enhance the safety and the resilience of the water supply systems. Such exigences can become even critical societal concerns, especially in the case of some extraordinary unprecedented terrorist or epidemiological threats. Conclusions from the history of individual failures involving mass contamination of tap water in urban agglomerations offer a signpost where active risk-based water supply management is concerned. In this situation, it is important to develop risk-management procedures and smart decision-support tools. The risk-based management of water supply services allows the integration of sustainable development principles.
Water supply service stakeholders should be able to estimate risk, inform users about the service quality, take appropriate actions to minimise the risk and initiate actions necessary to mitigate threats in crisis situations. In normal operation situations, risk-based management is required to optimise maintenance, periodic testing and inspection, and diagnostic and prognostic activities.

Author Contributions

All authors equally contributed to the development of this manuscript. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by subsidies for statutory activity by Faculty of Civil and Environmental Engineering and Architecture, Rzeszow University of Technology, 35-959 Rzeszow, Poland.

Acknowledgments

We thank the reviewers for their feedback, which helped to improve the manuscript quality.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Puri, D.; Borel, K.; Vance, C.; Karthikeyan, R. Optimization of a Water Quality Monitoring Network Using a Spatially Referenced Water Quality Model and a Genetic Algorithm. Water 2017, 9, 704. [Google Scholar] [CrossRef] [Green Version]
  2. Rak, J.R.; Pietrucha-Urbanik, K. An Approach to Determine Risk Indices for Drinking Water–Study Investigation. Sustainability 2019, 11, 3189. [Google Scholar] [CrossRef] [Green Version]
  3. Bogardi, I.; Fülöp, R.A. Spatial probabilistic model of pipeline failures. Period Polytech. Civ. Eng. 2011, 55, 161–168. [Google Scholar] [CrossRef] [Green Version]
  4. D’Ercole, M.; Righetti, M.; Raspati, G.S.; Bertola, P.; Ugarelli, R.M. Rehabilitation Planning of Water Distribution Network through a Reliability-Based Risk Assessment. Water 2018, 10, 277. [Google Scholar] [CrossRef] [Green Version]
  5. Barton, N.A.; Farewell, T.S.; Hallett, S.H.; Acland, T.F. Improving pipe failure predictions: Factors affecting pipe failure in drinking water networks. Water Res. 2019, 164, 114926. [Google Scholar] [CrossRef] [PubMed]
  6. Roccetti, M.; Delnevo, G.; Casini, L.; Cappiello, G. Is bigger always better? A controversial journey to the center of machine learning design, with uses and misuses of big data for predicting water meter failures. J. Big Data 2019, 6, 70. [Google Scholar] [CrossRef] [Green Version]
  7. Vališ, D.; Hasilova, K.; Forbelská, M.; Vintr, Z. Reliability modelling and analysis of water distribution network based on backpropagation recursive processes with real field data. Measurement 2020, 149, 107026. [Google Scholar] [CrossRef]
  8. Hotloś, H. Quantitative Assessment of the Effect of Some Factors on the Parameters and Operating Costs of Water-Pipe Networks; Wrocław University of Technology Publishing House: Wrocław, Poland, 2007. [Google Scholar]
  9. Królikowska, J. Application of PHA Method for Assessing Risk of Failure on the Example of Sewage System in the City of Krakow. Rocz. Ochr. Srodowiska 2011, 13, 693–710. Available online: http://www.ros.edu.pl/images/roczniki/archive/pp_2011_042.pdf (accessed on 15 January 2020).
  10. Słyś, D.; Stec, A. Centralized or Decentralized Rainwater Harvesting Systems: A Case Study. Resources 2020, 9, 5. [Google Scholar] [CrossRef] [Green Version]
  11. Rak, J.R.; Tchórzewska-Cieślak, B.; Pietrucha-Urbanik, K. A Hazard Assessment Method for Waterworks Systems Operating in Self-Government Units. Int. J. Environ. Res. Public Health 2019, 16, 767. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  12. Kowalski, D.; Kowalska, B.; Kwietniewski, M. Monitoring of water distribution system effectiveness using fractal geometry. Bull. Pol. Acad. Sci. Tech. Sci. 2015, 63, 155–161. [Google Scholar] [CrossRef] [Green Version]
  13. Robles-Velasco, A.; Cortés, P.; Muñuzuri, J.; Onieva, L. Prediction of pipe failures in water supply networks using logistic regression and support vector classification. Reliab. Eng. Syst. Saf. 2020, 196, 106754. [Google Scholar] [CrossRef]
  14. Urbanik, M.; Tchórzewska-Cieślak, B.; Pietrucha-Urbanik, K. Analysis of the Safety of Functioning Gas Pipelines in Terms of the Occurrence of Failures. Energies 2019, 12, 3228. [Google Scholar] [CrossRef] [Green Version]
  15. Kutyłowska, M. Comparison of two types of artificial neural networks for predicting failure frequency of water conduits. Period. Polytech. Civ. Eng. 2017, 61, 1–6. [Google Scholar] [CrossRef] [Green Version]
  16. Harbulakova, V.O.; Estokova, A.; Kovalčíková, M. Correlation Analysis between Different Types of Corrosion of Concrete Containing Sulfate Resisting Cement. Environments 2017, 4, 44. [Google Scholar] [CrossRef]
  17. Zimoch, I. Pressure control as part of risk management for a water-pipe network in service. Ochr. Srodowiska 2012, 34, 57–62. [Google Scholar]
  18. Ciaponi, C.; Murari, E.; Todeschini, S. Modularity-Based Procedure for Partitioning Water Distribution Systems into Independent Districts. Water Resour. Manag. 2016, 30, 2021–2036. [Google Scholar] [CrossRef]
  19. Thornton, J. Managing leakage by managing pressure: A practical approach. Water 2003, 6, 43–44. [Google Scholar]
  20. AL-Washali, T.; Sharma, S.; AL-Nozaily, F.; Haidera, M.; Kennedy, M. Modelling the Leakage Rate and Reduction Using Minimum Night Flow Analysis in an Intermittent Supply System. Water 2019, 11, 48. [Google Scholar] [CrossRef] [Green Version]
  21. Geng, Z.Q.; Hu, X.; Han, Y.; Yanhua, Z. A Novel Leakage-Detection Method Based on Sensitivity Matrix of Pipe Flow: Case Study of Water Distribution Systems. J. Water Resour. Plan. Manag. 2019, 145, 04018094. [Google Scholar] [CrossRef]
  22. Sun, C.; Parellada, B.; Puig, V.; Cembrano, G. Leak Localization in Water Distribution Networks Using Pressure and Data-Driven Classifier Approach. Water 2020, 12, 54. [Google Scholar] [CrossRef] [Green Version]
  23. Geng, Z.Q.; Chen, N.; Han, Y.M.; Ma, B. An improved intelligent early warning method based on MWSPCA and its application in complex chemical processes. Can. J. Chem. Eng. 2020, 98, 1307–1318. [Google Scholar] [CrossRef]
  24. Geng, Z.Q.; Wang, Z.; Hu, H.X.; Han, Y.M.; Lin, X.Y.; Zhong, Y.H. A fault detection method based on horizontal visibility graph-integrated complex networks: Application to complex chemical processes. Can. J. Chem. Eng. 2019, 97, 1129–1138. [Google Scholar] [CrossRef]
  25. Cai, W.; Ma, B.; Zhan, L.; Han, Y. A pointer meter recognition method based on virtual sample generation technology. Measurement 2020, 163, 107962. [Google Scholar] [CrossRef]
  26. Kwietniewski, M.; Roman, M.; Kłos-Trębaczkiewicz, H. Reliability of Water Supply and Sewage Systems; Arkady: Warsaw, Poland, 1993. [Google Scholar]
  27. Kwietniewski, M. Failure of water supply and wastewater infrastructure in Poland based on the field tests. In Proceedings of the XXV Scientific-Technical Conference, Międzyzdroje, Poland, 24–27 May 2011; pp. 12–140. [Google Scholar]
  28. Rak, J. Bases of Water Supply System Safety; Polish Academy of Science: Lublin, Poland, 2005. [Google Scholar]
  29. Sobczyk, M. Statistics: Theoretical and Practical Aspects; Maria Curie-Skłodowska University: Lublin, Poland, 2006. [Google Scholar]

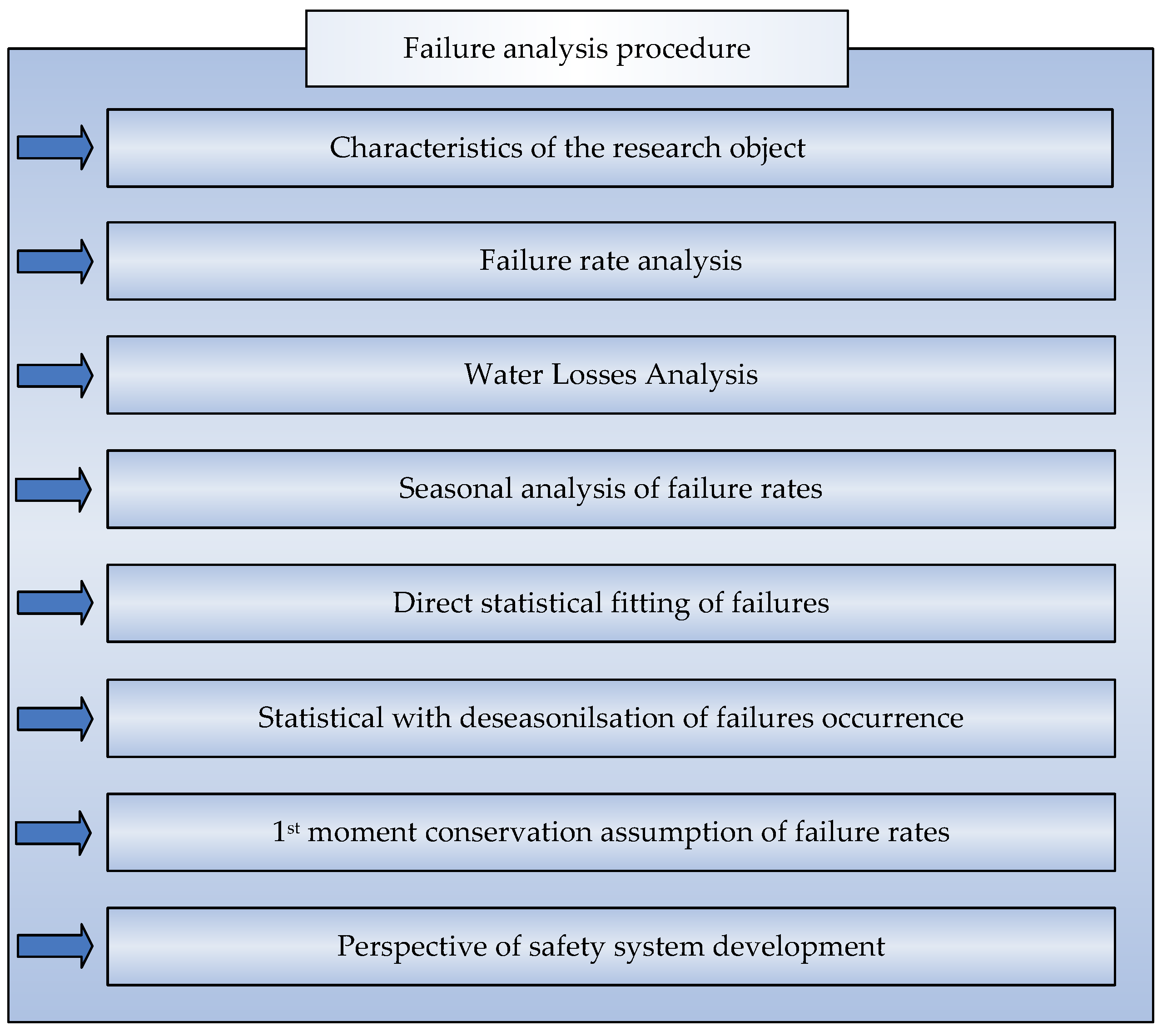

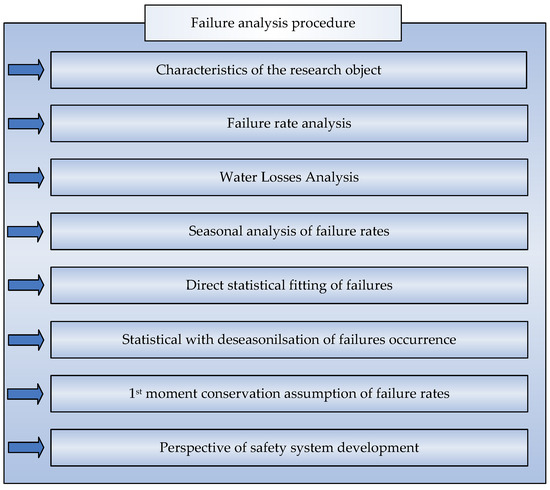

Figure 1. The failure analysis framework of the performed research.
Figure 1. The failure analysis framework of the performed research.
Energies 13 02990 g001

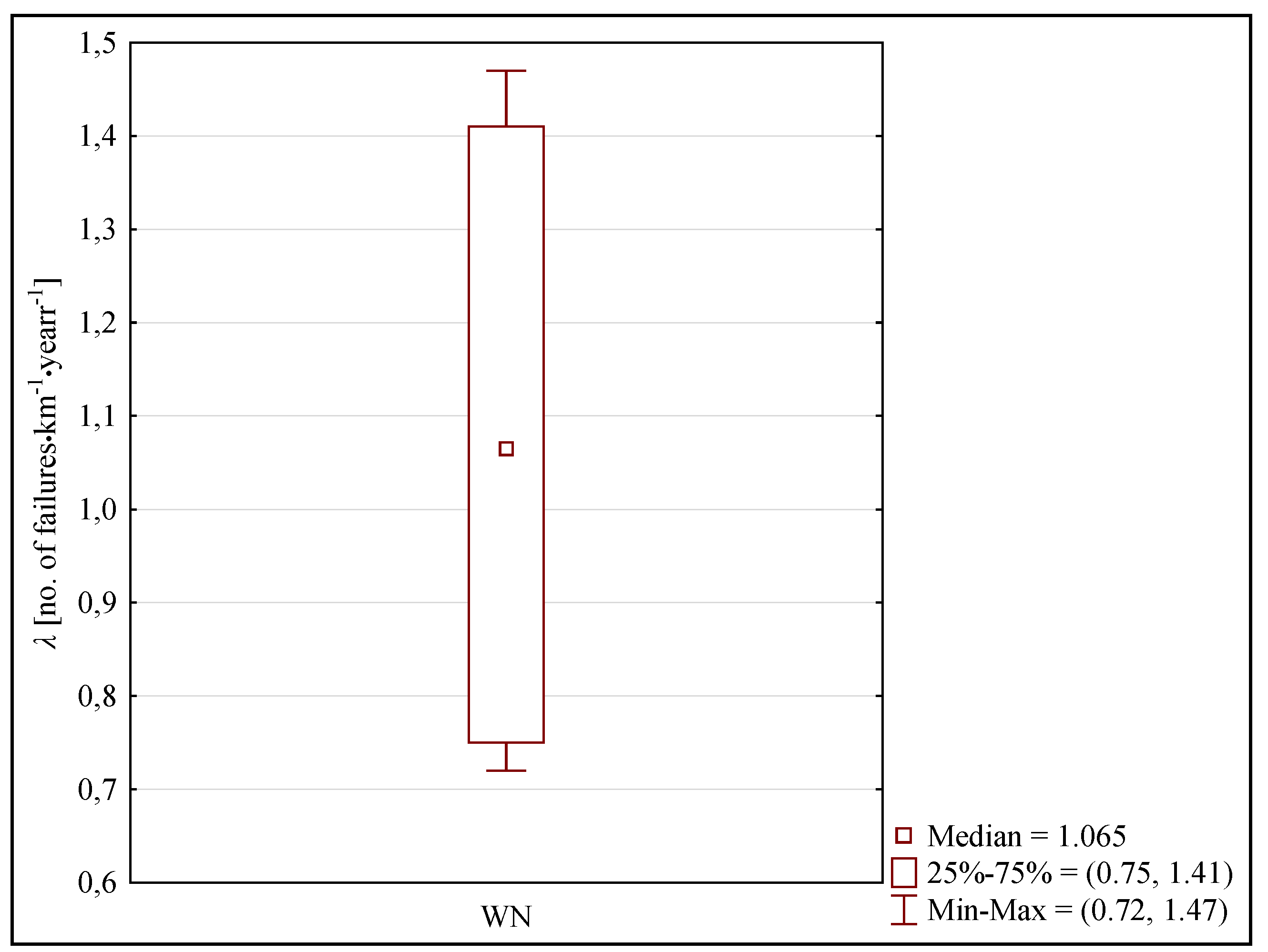

Figure 2. The failure rate for the whole water network (WN).
Figure 2. The failure rate for the whole water network (WN).
Energies 13 02990 g002

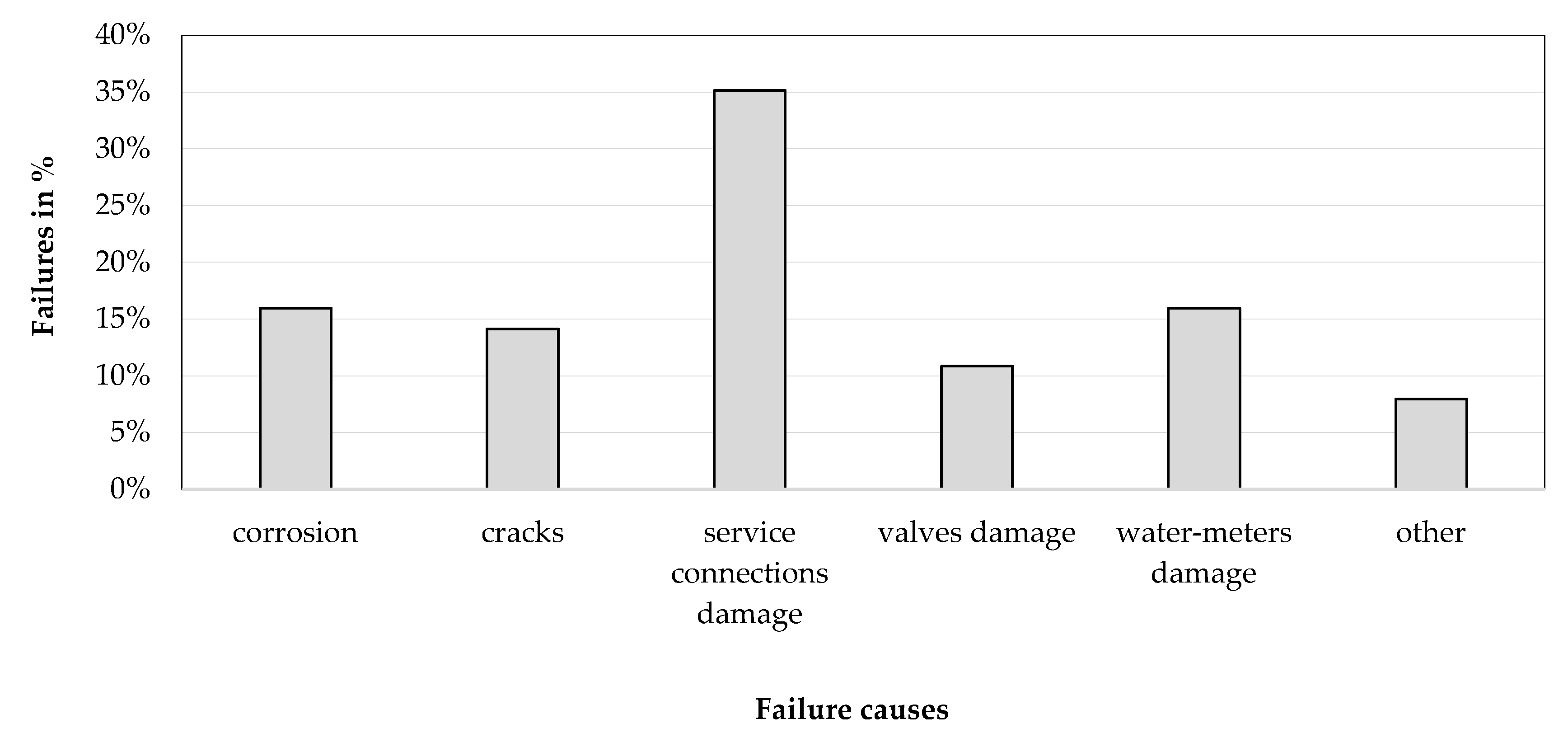

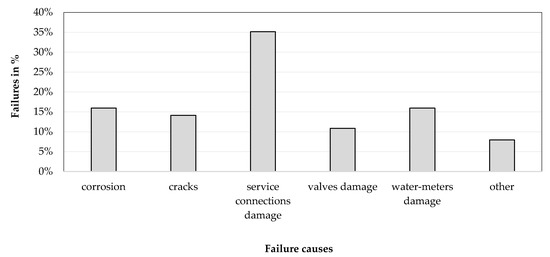

Figure 3. Percentage of the failure cause in the water supply network.
Figure 3. Percentage of the failure cause in the water supply network.
Energies 13 02990 g003

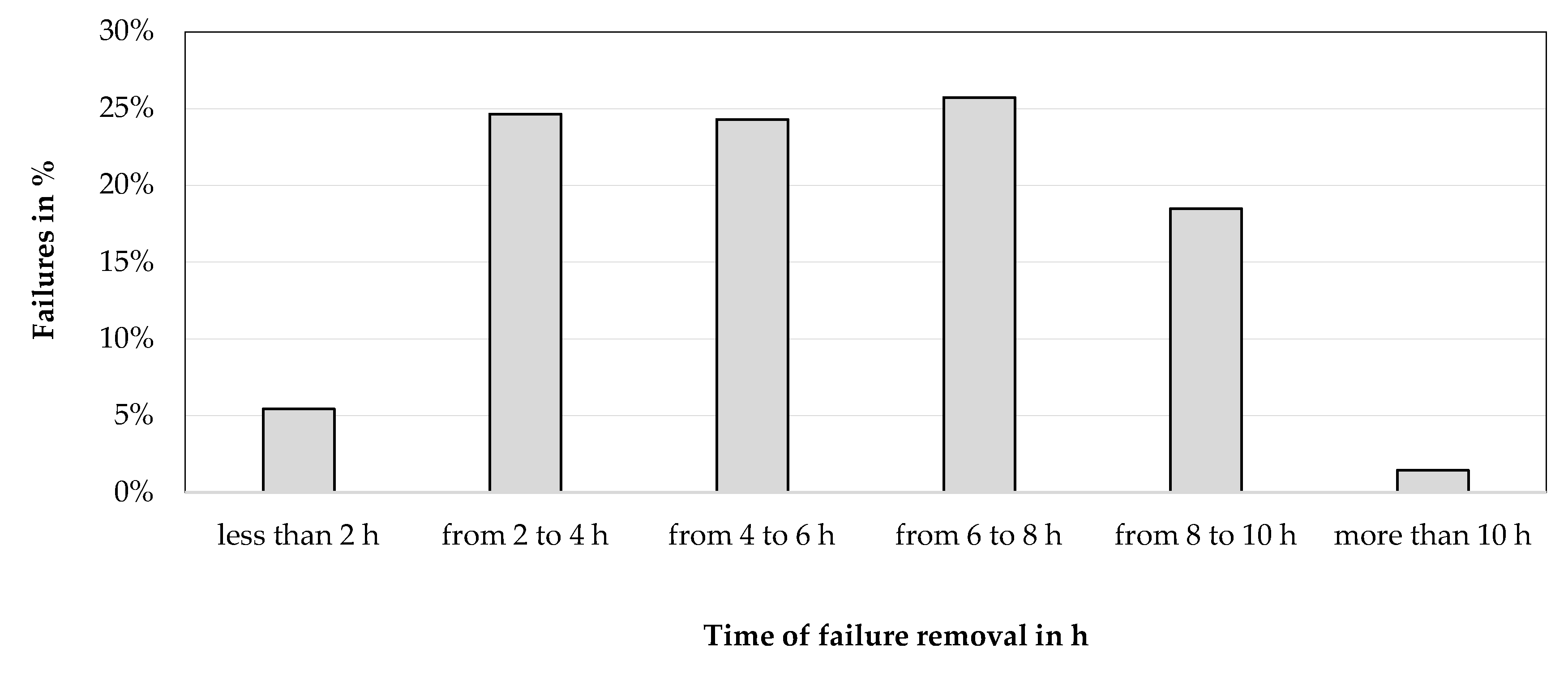

Figure 4. Failure modes classification according to their repair time.
Figure 4. Failure modes classification according to their repair time.
Energies 13 02990 g004
Figure 5. The failures in the water network.
Figure 5. The failures in the water network.
Energies 13 02990 g005
Figure 6. Relative seasonal fluctuations in number of failures in the water network.
Figure 6. Relative seasonal fluctuations in number of failures in the water network.
Energies 13 02990 g006

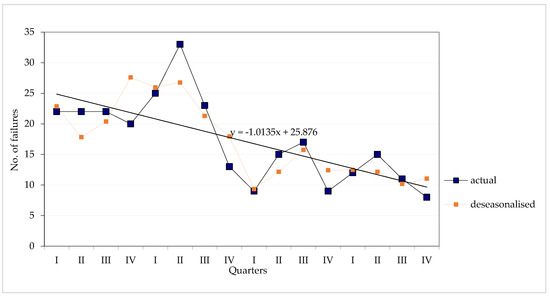

Figure 7. Actual and deseasonalised fluctuations in number of failures in the water network.
Figure 7. Actual and deseasonalised fluctuations in number of failures in the water network.
Energies 13 02990 g007
Figure 8. Histogram of failures per month and the estimated mean values per interval.
Figure 8. Histogram of failures per month and the estimated mean values per interval.
Energies 13 02990 g008
Figure 9. The first interval of 16 months ( λ = 2.14 × 10 1 d 1 ).
Figure 9. The first interval of 16 months ( λ = 2.14 × 10 1 d 1 ).
Energies 13 02990 g009
Figure 10. The third interval of 16 months ( λ = 8.40 × 10 2 d 1 ).
Figure 10. The third interval of 16 months ( λ = 8.40 × 10 2 d 1 ).
Energies 13 02990 g010
Table 1. Failures occurrence statistical data: global and by interval.
Table 1. Failures occurrence statistical data: global and by interval.
Global
(1st–48th)
1st Interval
(1st–16th)
2nd Interval
(17th–32nd)
3rd Interval
(33rd–48th)
Nb of months48161616
Nb of failures27611710257
Failures/month5.757.316.383.56
Standard-deviation ( σ )3.332.424.001.74
Standard-deviation%57.8%33.0%62.7%48.7%
failure rate/month/km9.01 × 10−21.15 × 10−19.99 × 10−25.58 × 10−2
failure rate/day/km3.00 × 10−33.82 × 10−33.33 × 10−31.86 × 10−3
Table 2. Comparison between the straightforward estimations and the first moment conservation.
Table 2. Comparison between the straightforward estimations and the first moment conservation.
ParameterGlobal
(1st–48th)
1st Interval
(1st–16th)
3rd Interval
(33rd–48th)
Interval length (months)481616
Nb of failures27611757
Failure rate ( d 1 k m 1 )
(straightforward approach)
3.00 × 10 3 3.82 × 10 3 1.86 × 10 3
Failure rate ( d 1 k m 1 )
(1st moment conservation assumption)
2.06 × 10 3 3.35 × 10 3 1.32 × 10 3
Failure rate ( d 1 )
(1st moment conservation assumption)
1.32 × 10 1 2.14 × 10 1 8.40 × 10 2
Estimated MTTF ( d )
(directly from the database)
7.59 4.68 11.90

Share and Cite

MDPI and ACS Style

Pietrucha-Urbanik, K.; Tchórzewska-Cieślak, B.; Eid, M. Water Network-Failure Data Assessment. Energies 2020, 13, 2990. https://doi.org/10.3390/en13112990

AMA Style

Pietrucha-Urbanik K, Tchórzewska-Cieślak B, Eid M. Water Network-Failure Data Assessment. Energies. 2020; 13(11):2990. https://doi.org/10.3390/en13112990

Chicago/Turabian Style

Pietrucha-Urbanik, Katarzyna, Barbara Tchórzewska-Cieślak, and Mohamed Eid. 2020. "Water Network-Failure Data Assessment" Energies 13, no. 11: 2990. https://doi.org/10.3390/en13112990

APA Style

Pietrucha-Urbanik, K., Tchórzewska-Cieślak, B., & Eid, M. (2020). Water Network-Failure Data Assessment. Energies, 13(11), 2990. https://doi.org/10.3390/en13112990

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
