3.1. Influence of Temperature and Catalyst on Product Yield
The temperature played an important role and was considered as one of the main factors in the HTL process. The process conditions are reported as 350/400 °C NC/CAT for the non-catalyst and catalyst respectively. The effect of process temperature on product yields is illustrated in

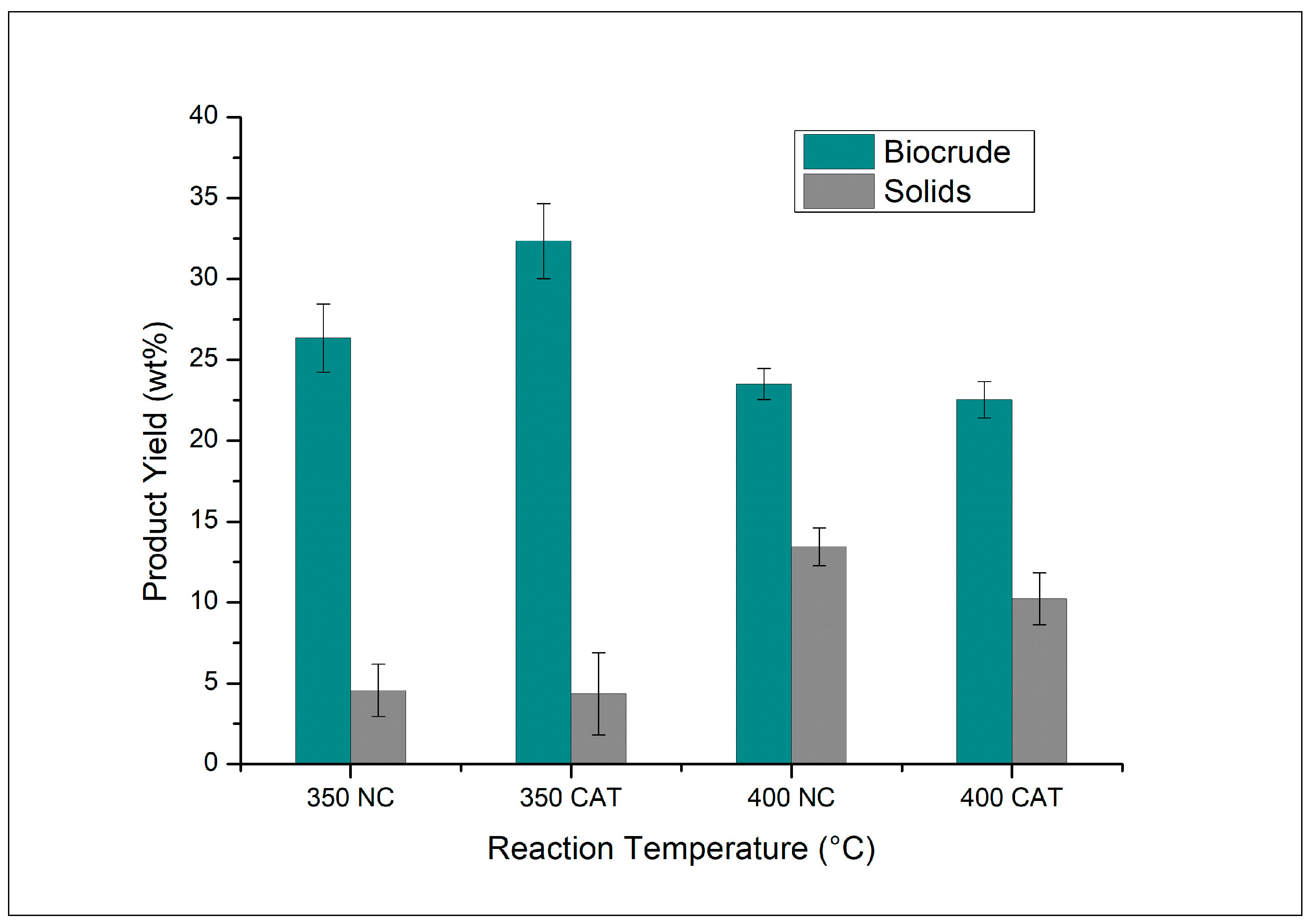

Figure 1. It can be observed that temperature has a significant effect on product yield. The maximum biocrude yield was 32.34 wt. % obtained at 350 °C CAT condition and comparatively decreased (23.50 wt. %) with the increasing of temperature at 400 °C. The decreasing of biocrude yield at a higher temperature may be due to thermal cracking of biocrude compounds into gas phase or water-soluble products.
Generally, the biocrude yield is also affected by the concentration of carbohydrates available in biomass used; however, for the thermal stability of liquid fuel; cellulose and hemicellulose primarily contribute their part. Whereas process temperature and pressure are the main responsible factors for changing the assembly of the long-chain polymers by altering carbon, hydrogen, and oxygen into small chain hydrocarbons [
22]. As compared to lignin, cellulose demonstrated higher biocrude conversion due to the molecular chain of lignin is difficult to liquefy while the cellulose and hemicellulose have weak bonding force [
23,
24,
25]. The decreasing of biocrude yield at supercritical condition might be due to water critical point (373.74 °C) because the increasing temperature could be responsible for the polymerization of macromolecules of biocrude into gaseous formation or production of solid residue [
26]. Additionally, another reason for decreasing of biocrude yield is occurrence of the condensation reaction to the solid residue.
Accompanied by biocrude, the observed trend is different for solid residue. The solid yield was increased as the temperature increased. It indicates a higher degree of repolymerization. The maximum solid residue was obtained at the supercritical as 10.22–13.46 wt. % while 4.34–4.57 wt. % at the subcritical condition. Wang et al. also reported the maximum solid formation for the deoxy-liquefaction of WS at 400 °C [
27]. It was reported that the utilization of the catalyst reduces the tar formation for the thermochemical process [
28].The previous studies of lignocellulosic biomass through HTL route have also reported the increasing of solid yield with respect to temperature [
29,
30,
31].
In HTL process, the addition of catalyst plays a vital role as literature supports that alkali catalysts (K
2CO
3 and KOH) performed well as compared to other catalysts to improve the biocrude yield and reduces the char formation [
32,
33,
34,
35,
36]. According to findings of this study, it was observed that the addition of alkali catalyst (K
2CO
3) enhances the biocrude yield at subcritical temperature as shown in
Figure 1. The biocrude yield improved approximately 5.99% from 26.35 to 32.34 wt. % in catalyst run, while solid yield remains almost the same at 350 °C.
However, catalyst did not increase biocrude yield at supercritical temperature. It can be hypothesized that at supercritical conditions, catalyst might accelerate the cracking reactions, which results in higher formation of the gaseous, or aqueous phase as maximum value for TOC was observed at 400 CAT (33.52 g/L).
By the addition of the catalyst, hydroxide and bicarbonate were formed due to the reaction of catalyst with warm water which results in increasing the liquefaction process in the form of increasing biocrude yield [
37]. Furthermore, the employment of the catalyst may reduce the condensation and repolymerization of the intermediate products made by the decomposition of lignin content, which leads to enhance the biocrude yield. Zhu et al. conducted a detailed study on the influence of alkali catalysts on the product yield of barley straw through HTL route at subcritical condition and concluded that K
2CO
3 can efficiently enhance the biocrude yield as well as the quality of biocrude [
15].
In conclusion, with the addition of the catalyst, no major effect was observed on solid yield at subcritical condition. However, at supercritical, catalyst reduced the formation of solid residue in this study. Additionally, the biocrude yield was increased at the subcritical condition with catalyst run, whereas no significant increase of biocrude yield was observed at supercritical.
3.2. Analysis of Biocrude
Generally, biomass contains 30–50% oxygen and HTL aims to produce the biocrude with less oxygen content. This can happen by the two pathway reactions, i.e., dehydration (removal of oxygen in the form of H
2O) and decarboxylation (removal of oxygen in the form of CO
2). Mostly in HTL, high temperature and pressure are responsible for the removal of oxygen through dehydration of biomass, while decarboxylation and breaking of long-chain carboxylic acids through which oxygen content decreases in the form of CO
2 [
38].
Table 2 represents the elemental analysis of biocrude produced at the sub and supercritical along with higher heating value (HHV), energy recovery (ER), hydrogen-carbon (H/C), and oxygen-carbon (O/C) ratios. Additionally, the values of WS are also listed to get an idea for the conversion of biomass to biofuel.
The carbon content of biocrude was slightly increased (from 70.77 to 74.21%) with increase of temperature. As temperature increased, oxygen concentration declined from 19.65 to 16.27%. Oxygen content was reported by Cheng et al. [
39] for the HTL of pine sawdust as 33.99 ± 0.14 and 29.32 ± 0.07 for non-catalyst and with K
2CO
3 respectively. By the HTL of oak wood at subcritical condition, Caprariis et al. [
40] also found the oxygen content of 24.2 wt. %, which is significantly more than we experienced in this study for dealing with lignocellulosic biomass.
The range for hydrogen and nitrogen was found almost the same for all experimental runs. Additionally, HHV of all biocrude was also found with a minor difference in range between 35.25 and 35.97 (MJ/kg). A greater heating value of the biocrude indicates that a major part of the oxygen has been shifted into other products, i.e., gases or aqueous phase. Even though the addition of catalyst contributed to enhancing the biocrude yield, it did not have so much of an impact on the quality of the biocrude. Along with maximum biocrude yield, maximum energy recovery of 69.53% was also observed at catalytic 350 °C and minimum 48.38% at supercritical condition. In conclusion, it was observed that catalyst did not significantly affect the overall biocrude quality or HHV.
It was also experienced that the nitrogen content remained in the range of 1.14–1.64% irrespective of the process conditions. The mass of carbon in biocrude was observed in the range between 44.24 and 55.72% of the carbon available in the biomass. The lower concentration of oxygen in the biocrude was detected with respect to the original biomass. The reduction in oxygen content takes place due to dehydration and decarboxylation reactions. Furthermore, this is also the case in the form of water phase and carbon dioxide. The increase of carbon content and oxygen reduction results in the higher HHV in the biocrude as compared to the biomass. The details of carbon and nitrogen recovery in HTL products during sub and supercritical conditions are presented in
Section 3.5. The H/C and O/C atomic ratios for biocrude were also calculated in range between 1.31 and 1.39 and 0.16–0.21 respectively. The range of O/C ratios in biocrudes was lower as compared to feedstock, which could improve the viscosity of biocrude. Furthermore, it will result in reduction of hydrogen requirement for upgrading of biocrude. However, HTL biocrude required the upgrading process to make higher H/C ratio to compare with the petroleum fuel.
3.2.1. Thermal Behavior of Biocrude
The thermogravimetric (TG) technique was used to evaluate the weight loss during the thermal decomposition of the biocrude. Here only non-catalytic biocrudes 350NC and 400NC were taken for the analysis as demonstrated in

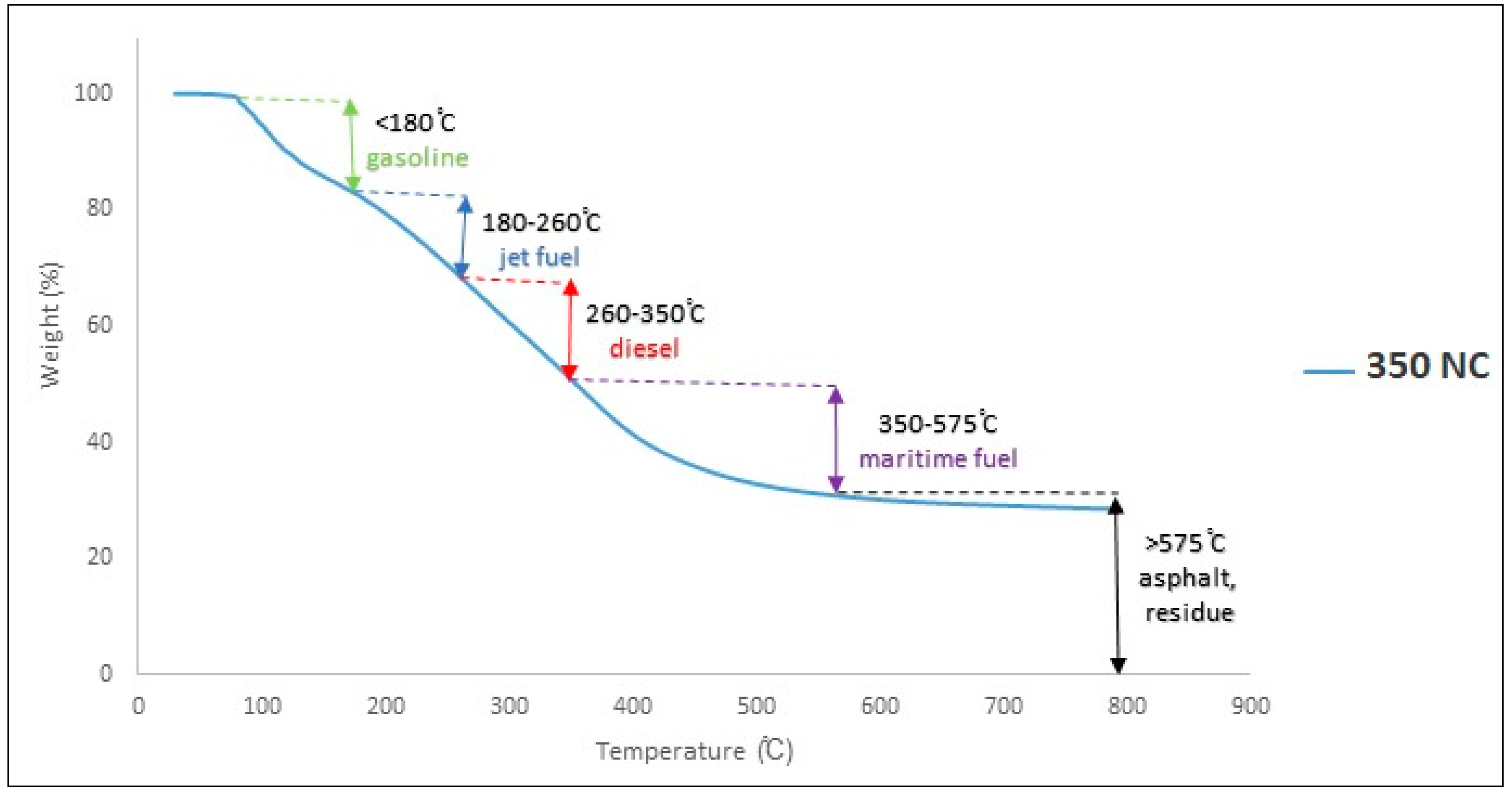

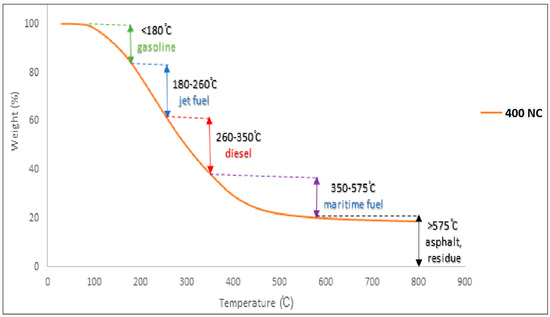

Figure 2 and
Figure 3, respectively, reflecting the biocrude fractions.
The volatility curves of both biocrude samples show that almost 55 to 60% of the weight of the biocrude contained volatile components, which denotes the segments of gasoline, diesel, and jet fuel. The temperature has some influence on the overall thermal behavior of biocrude obtained at different temperature conditions. It was verified from the volatilities curve that under nitrogen atmosphere, 30 and 20% of heavy residue were left for 350NC and 400NC respectively after heating the biocrudes at 800 °C.
3.2.2. Organic Compounds Composition of Biocrude
The organic compounds present in biocrude were recognized by using Gas Chromatography-Mass Spectrometry (GCMS) technique with a boiling point under 300 °C. The detailed information about the obtained compounds name, retention time (RT), and peak area contribution is provided in
Table 3.
From the GCMS outcomes, the biocrude compounds were categorized into six main classes named as ketones, acids, oxygen aromatics, hydrocarbons, alcohols, and nitrogen-containing compounds. From the elemental analysis, it was observed that WS contains 50.82% oxygen, which may result in a higher number of ketones and alcohols as also observed by Patil et al. for the HTL of WS [
14]. It was also observed that the addition of catalyst slightly enhances the peak area of ketones at 350 °C. Among ketones, [2-Pentanone, 4-hydroxy-4-methyl-] and [2-Cyclopenten-1-one, 2,3-dimethyl-] covered the greater area.
From the carbohydrates available in WS, the hemicellulose is the first element that starts to decompose due to its greatly oxygenated branches, which are easier to break down. The destruction of hemicellulose produces acetic acid and other organic acids [
41]. Acids were found at all reaction conditions including short-chain acids and long-chain fatty acids. [n-Hexadecanoic acid] has major contribution in all four conditions. Acetic acid and Octadecanoic acid slightly reduced at catalytic run. The presence of high acid content is not favorable for the biocrude quality.
The thermal decomposition of lignin produces phenolic compounds and their derivatives, which then convert into gaseous form. However, lignin also plays an important role to produce low and high molecular weight molecules known as tar or char [
42]. Oxygen aromatics were also detected in all biocrude samples, among them [Phenol, 3-ethyl-], [Phenol, 4-ethyl-2-methoxy-], and [Phenol, 2,6 dimethoxy-] were major contributors. The increasing peak of Phenol compound was observed from 1.75 to 5.06% at subcritical catalytic condition.
Biocrude obtained at 350 °C has higher hydrocarbons as compared to 400 °C mainly [Hexadecane], [Octadecane, 3-ethyl-5-(2-ethylbutyl)-], and [1-Methylcyclooctene]. This might be due to the cracking of long-chain aliphatic compounds into short ones or the formation of other cyclic compounds at the higher temperature [
43]. Alcohols were only detected at 350 °C NC while the [cis-4-Decenal] was identified at all four conditions. The result showed that the fact that the biocrude had a much lower concentration of nitrogen compounds may be due to a much smaller percentage of N in WS. The nitrogenous compounds [9-Octadecenamide] were only found at subcritical condition. The lower concentration of nitrogenous compounds shows one of the quality parameters of HTL biocrude. The high nitrogen-containing compounds at one end contaminate the atmosphere by the emissions of NO
X during combustion, and on the other end, it leads to high viscosity and instability of biocrude. Therefore, biocrude needs to be upgraded by hydrotreating for the removal of heteroatoms to convert the biocrude into drop-in fuel.
3.3. Analysis of Solid Residue
Solid residue, also known as biochar, is one of the byproducts of the HTL process. The char is rich in inorganics formed by the HTL process that can be refined for effective utilization as a fertilizer in agricultural sector [
44,
45,
46] or as a raw material for gasification process [
47]. The elemental analysis (dry-ash free basis), HHV, and atomic ratios of biochar samples are summarized in
Table 4. It was experienced that, with increasing temperature from 350 to 400 °C, the carbon content was increased in solids from 54.56 to 58.66%. Additionally, the oxygen concentration was decreased from lower temperature to higher temperature. It was observed that by the addition of the catalyst, the carbon content decreased in solid residue. The carbon reduced due to lower solid product yields as shown in
Figure 1 and a greater amount of carbon was also experienced in biocrudes at catalytic conditions. Shah et al. also reported the declining trend of carbon content in solid residue by the addition of catalyst at sub-supercritical HTL for sewage sludge [
19]. While nitrogen almost remains the same in all conditions. The temperature does not have as much influence on heating values of solids. The lower H/C ratios in solid residue show the consumption of hydrogen that might be responsible for the formation of unsaturated and aromatic compounds in solids residue [
15]. However, O/C was high in the range between 0.47 and 0.71; this may be due to a high degree of deoxygenation.
In continuous scale-up HTL plant, coke and char formation is common. The increase of char and coke formation is undesirable for the HTL plant because they result in the decrease of biocrude yield and may cause blockage of the plug-flow reactor. However, the catalyst can be used to reduce the char formation in general, but the recovery of catalyst is a challenging task in HTL process which can also be tackled by increasing the biocrude yield via fast heating system as discussed by researchers [
38,
48]. It can be concluded from the results that temperature has less impact on the quality of solid residue during the HTL process. Whereas the catalyst prevented the transference of carbon to solid residue.
3.4. Aqueous Phase Analysis
HTL is famous for the utilization of water as a reaction medium, which is obtained at the outlet end of the HTL process and can be termed as the aqueous phase.
Table 5 reflects the different parameters of the aqueous phase generated by the HTL of WS at the sub and supercritical conditions. It was observed that the pH of aqueous phase is affected by both temperature and catalyst. The acidic nature of aqueous phase was experienced at all conditions. From 350 to 400 °C, the pH increased from 3.87 to 4.19 while with the addition of catalyst it increases from 5.43 to 6.82. The acidic range of resulted aqueous phase may be due to the formation of monomeric sugars by the hydrolysis of available sugar compounds, which degraded and converted into organic acids. The variation in pH mainly depends upon the process operating conditions and feedstock composition [
49,
50]. Total organic carbon (TOC) was also affected by temperature and catalyst. At both subcritical conditions, the high concentration of TOC was observed by addition of catalyst from 25.94 to 30.67 g/L, while it slightly increased at both supercritical conditions from 28.62to 33.52 g/L. The increase of TOC by the addition of alkali catalyst was also experienced by Shah et al. and other researchers [
19,
51,
52]. Pedersen et al. also experienced higher concentration of organic carbon in the water phase by the co-liquefaction of lignocellulosic biomass with glycerol for continuous HTL plant [
53].
Total nitrogen (TN) was found in small concentration in aqueous phase in the range between 0.26 and 0.58 g/L; it was discussed earlier that WS has lower nitrogen content. It was experienced that both temperature and catalyst impact the nitrogen recovery in aqueous phase. TN increased from 0.26 g/L to 0.37 g/L by the addition of the catalyst at subcritical and from 0.45 g/L to 0.58 g/L at supercritical conditions. At catalytic conditions, TN increased as 0.1 g/L.
For the HTL plant at large scale, it is a kind of essential and economical aspect to recover the energy from water phase. The aqueous phase is identified as an energy source due to the energy contained in the form of organic carbon, phosphorus, nitrogen, and other nutrients that need to be addressed in an efficient way. Pacific Northwest National Laboratory (PNNL) has suggested the effective application of aqueous phase by recirculation for HTL that improves the carbon efficiency, biocrude yield, and quality. At the other end, aqueous phase recirculation may reduce the process cost due to the saving of freshwater consumption and wastewater treatment from the HTL process [
54]. Owing to this perspective, the recirculation of the aqueous phase has been applied in this study (
Section 3.7) to explore the impact of aqueous phase on the overall energy recovery of biocrude.
3.5. Carbon and Nitrogen Recoveries in HTL Products
The Carbon Recovery (CR) and Nitrogen recovery (NR) of all product phases from the HTL process were calculated on a dry ash-free basis as shown in

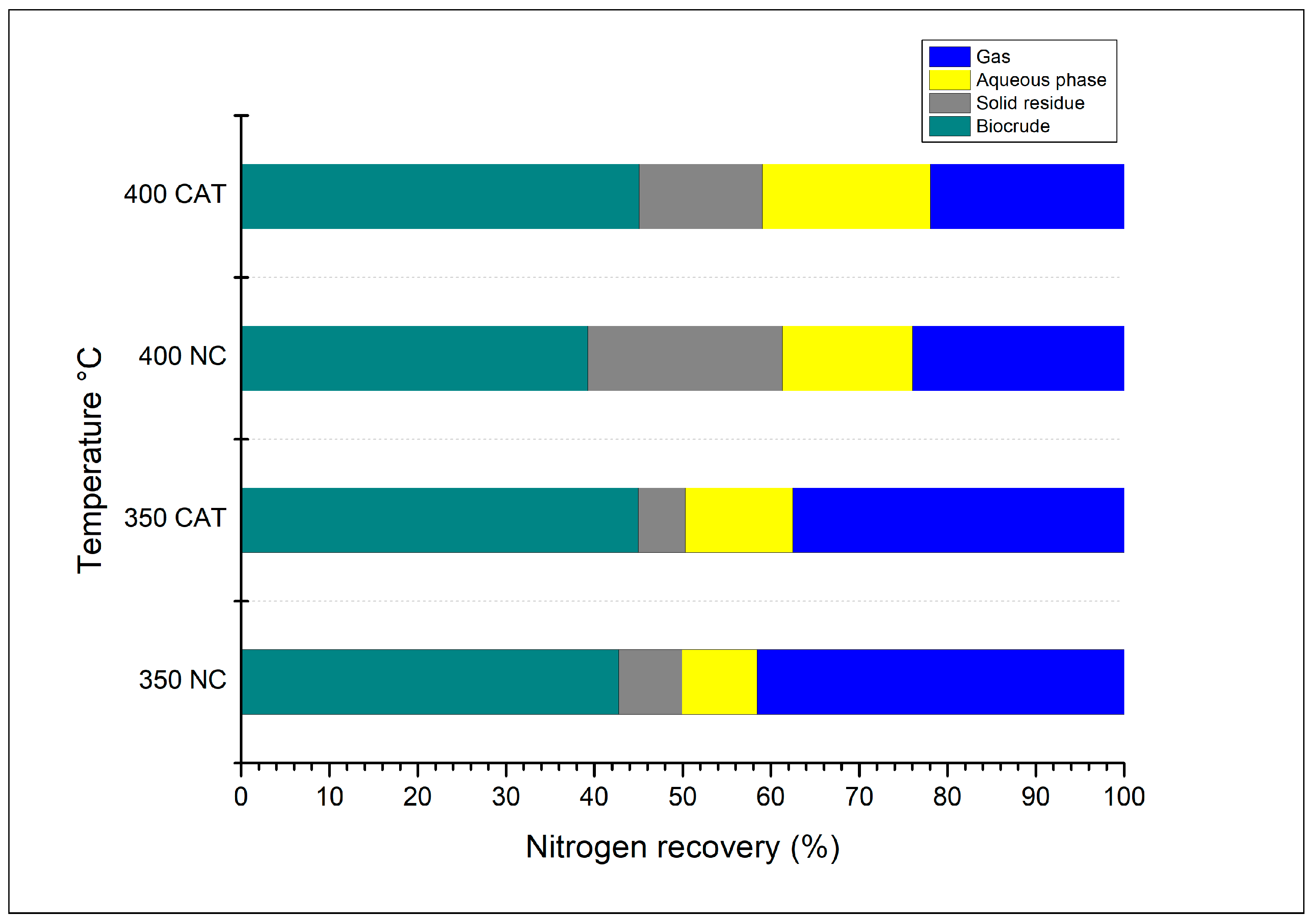

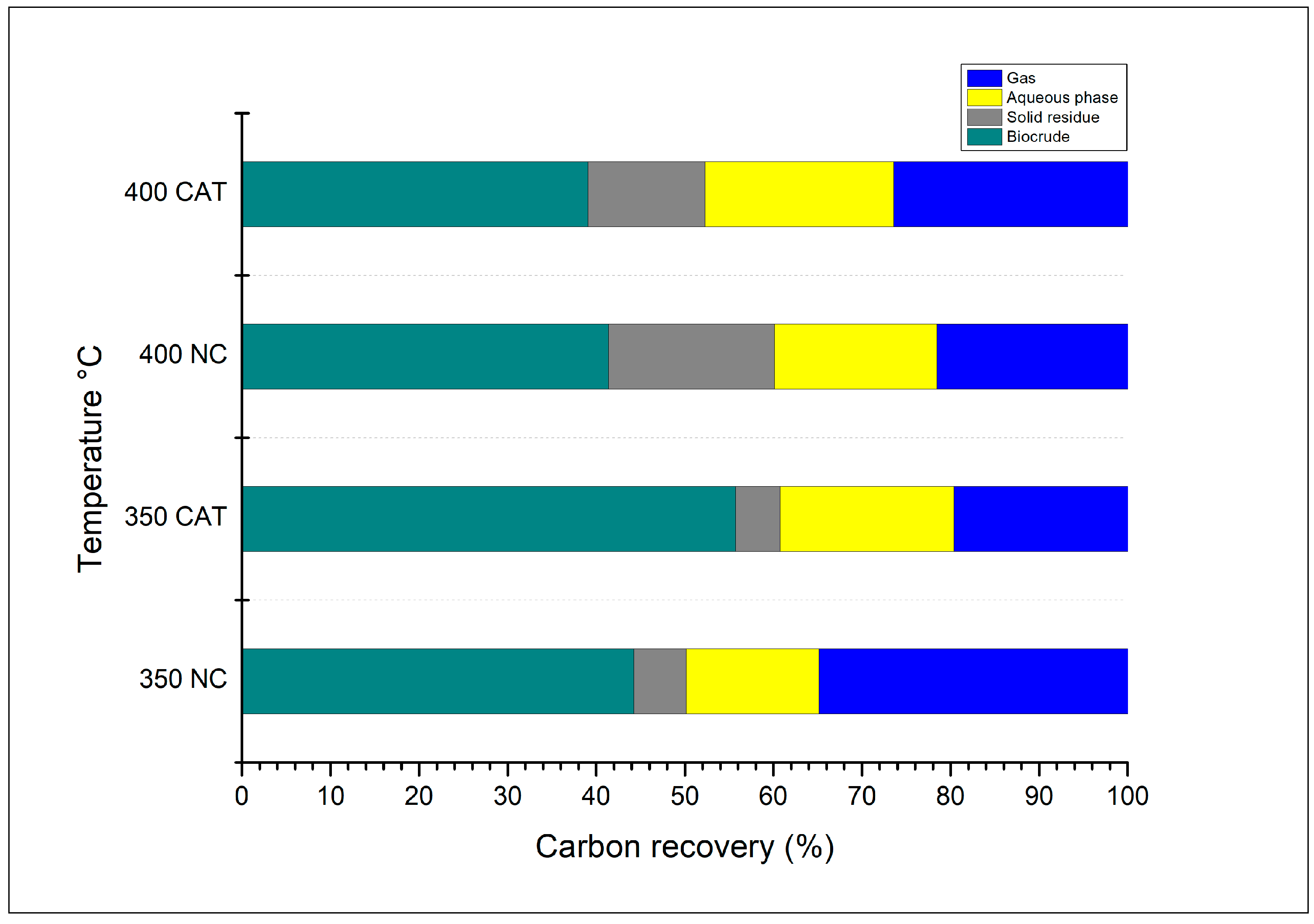

Figure 4 and
Figure 5 respectively. Based upon the equations mentioned by Shah et al. [
19], recoveries in products were calculated. The CR and NR for the aqueous phase were determined by the measurement of TOC and TN respectively.
From the experimental results of this study, it was observed that in non-catalyst conditions, the variation in temperature did not affect more CR in biocrude. The approximately same trend was observed at 350 NC and 400 NC for CR in biocrude. While by the addition of the catalyst, CR was highly increased in biocrude from 44.24 to 55.72% at the subcritical condition. The catalyst decreased the CR in solid residue while remaining approximately the same in biocrude at supercritical condition.
Interestingly, it was noted that temperature has a high impact on CR in the case of solid residue and increased from 5.92 to 18.73% and maximum at supercritical non-catalytic due to higher solid yield. Lower carbon concentration in solids was observed at a lower temperature. Due to slightly higher TOC of aqueous phase at catalyst run, it was noticed that catalyst has more influence on CR in aqueous phase. The carbon and nitrogen recoveries for the gaseous product were calculated by difference on the basis of mass balance. For all four conditions, maximum CR in biocrude was obtained at 350 °C catalytic run, which was also observed by Zhu et al. for the liquefaction of barley straw [
29].
The temperature did not influence on the NR of biocrude and almost the same trend was found at sub/supercritical condition, while addition of catalyst slightly increases the transformation of nitrogen to biocrude. Additionally, in the case of solids, maximum nitrogen recovery was obtained at the non-catalytic supercritical condition, which was about 21.99%. A very small amount of nitrogen was shifted to the aqueous phase in range 5.35–7.19% at subcritical temperature.
3.6. Inorganic Elements in HTL Products
During the HTL of WS at the desired temperature, the inorganic elements present in the feedstock were transferred to different phases of products. The available concentration of inorganic elements in biocrude, solid, and aqueous phase were explored. It was observed that the concentration of inorganic elements mainly transferred to a solid residue. The distribution of each inorganic element is given on the basis of its concentration and the weight of the product phase obtained during the HTL. Whereas the relative percentage of each inorganic element was calculated by dividing the sum of the total concentrations of the all detected inorganic elements.

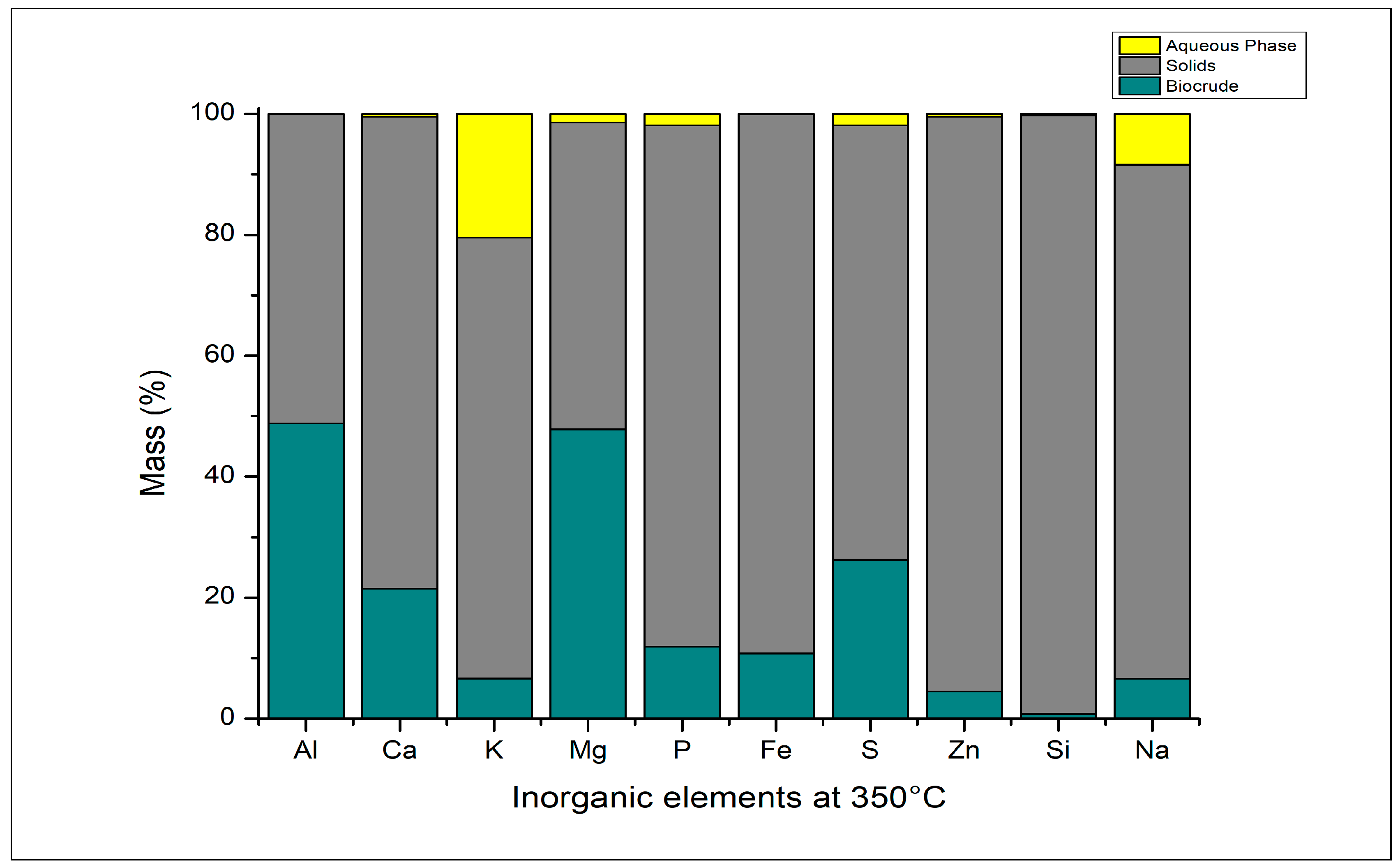

The mass distribution of inorganic elements at the sub and the supercritical temperature are shown in

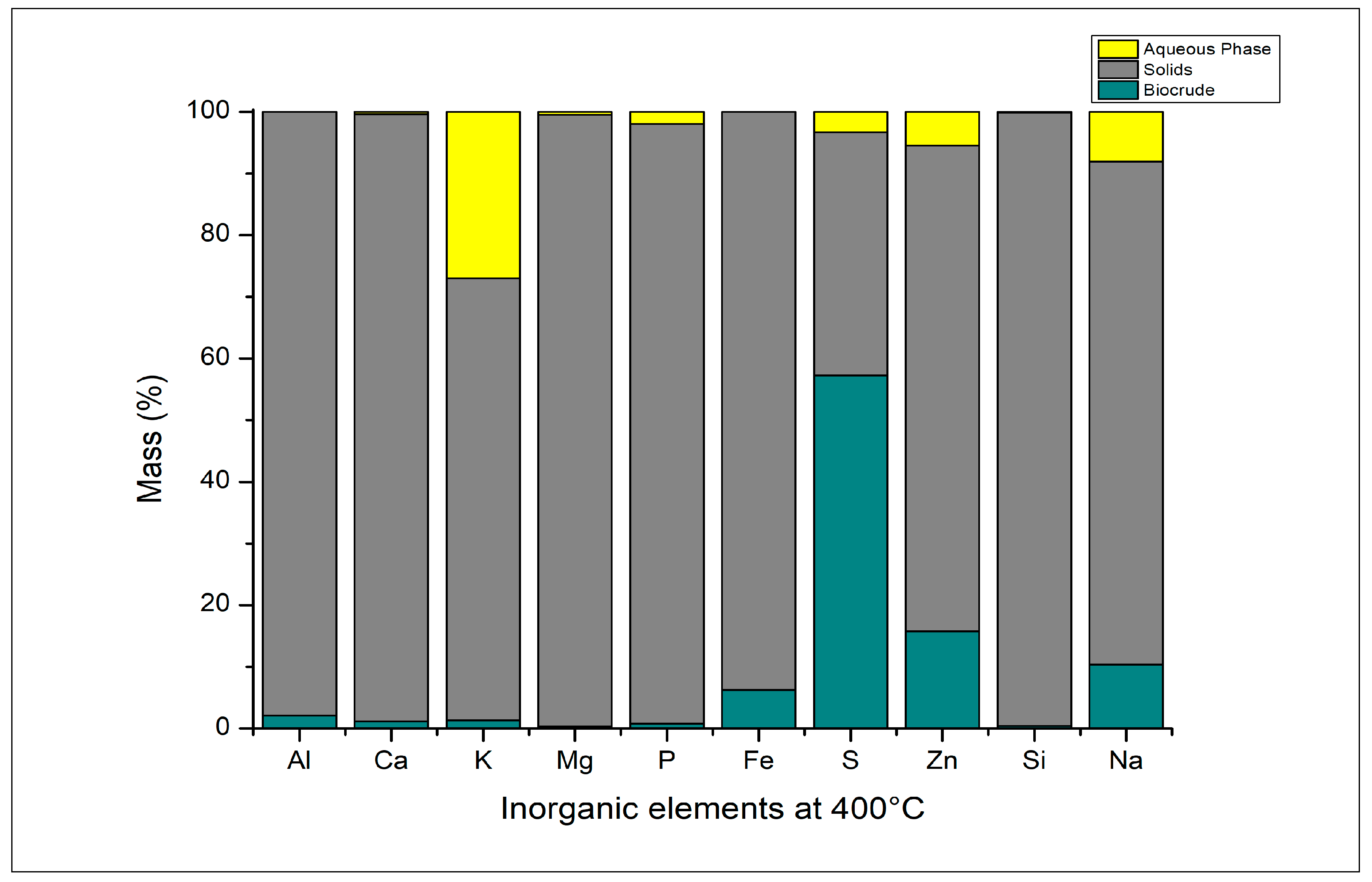

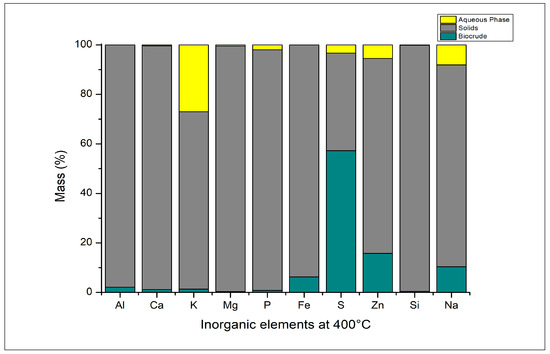

Figure 6 and
Figure 7, respectively. The trend of the shifting of inorganic compounds was quite different at both temperature conditions. Only catalytic samples were tested for the ICP-AES.
At 350 °C catalytic condition, aluminum (Al) and Magnesium (Mg) had approximately the same distribution in biocrude and solids, while a small amount of Mg was also observed in aqueous phase. A different behavior was observed for potassium (K) and sodium (Na), those were getting more occupied in aqueous phase as compared to other detected inorganic elements. This trend of shifting of K and Na to water phase was also observed by Conti et al. [
55] for the HTL of wastewater-irrigated willow at supercritical condition.
The presence of K in the aqueous phase could be beneficial for recirculation of aqueous phase at continuous HTL plant. It may reduce the catalyst K2CO3 dosage quantity. Except Al and Mg, for most inorganics, the mass recovery in the solids was more than 70%. Silicon was almost recovered in the solid residue. Furthermore, the high concentration of phosphorus (P), approximately 86%, was found in solids residue, which may be available in the form of phosphates with their associated alkali elements like sodium, calcium, etc. Due to the existence of these treasured nutrients, HTL solid residue can be employed as a fertilizer for soil improvement and as farming fertilizer.
At 400 °C catalytic condition, the trend was different as compared to subcritical condition. Aluminum, calcium, magnesium, phosphorus, and silicon were mostly transferred to a solid residue while the considerable amount of potassium and some amount of sodium and sulfur were transferred into the aqueous phase. One of the possible reasons behind this trend may be a high degree of solubilization of these compounds at the higher temperature (400 °C) and pressure (350 bar) which increase the ionic product of the water, which results in the high concentration of these inorganic compounds into HTL water phase [
56]. Furthermore, it was noted that at higher reaction temperature, the total content of heavy metals was accumulated in solid residue, which was also indicated by Huang et al. [
57].
Sulfur was the only compound found maximum around 60% in biocrude at supercritical temperature. The heavy metals like Zn and Fe were detected at both temperature conditions in the biocrude with some variation.
Based on these outcomes, it can be concluded that the presence of nutrients like macronutrients (P), secondary macronutrients (Ca, Mg), and micronutrients (Fe, Zn) are mainly observed in the solid residue. At the downstream of HTL, nutrient enrich solids can be fruitfully implemented as soil fertilizer. For the scale-up continuous HTL plant, the presence of high concentration solid residue, inorganic waste at down streams may result in the reactor blockage in the system due to solid deposition. The issue can be rectified by adopting the hot filter system next to the process reactor, as also suggested by the PNNL for continuous HTL plant [
58].
3.7. Aqueous Phase Recirculation
To keep in consideration the continuous HTL plant, aqueous phase was recirculated to analyze the effect of aqueous phase recirculation on product yield, as shown in

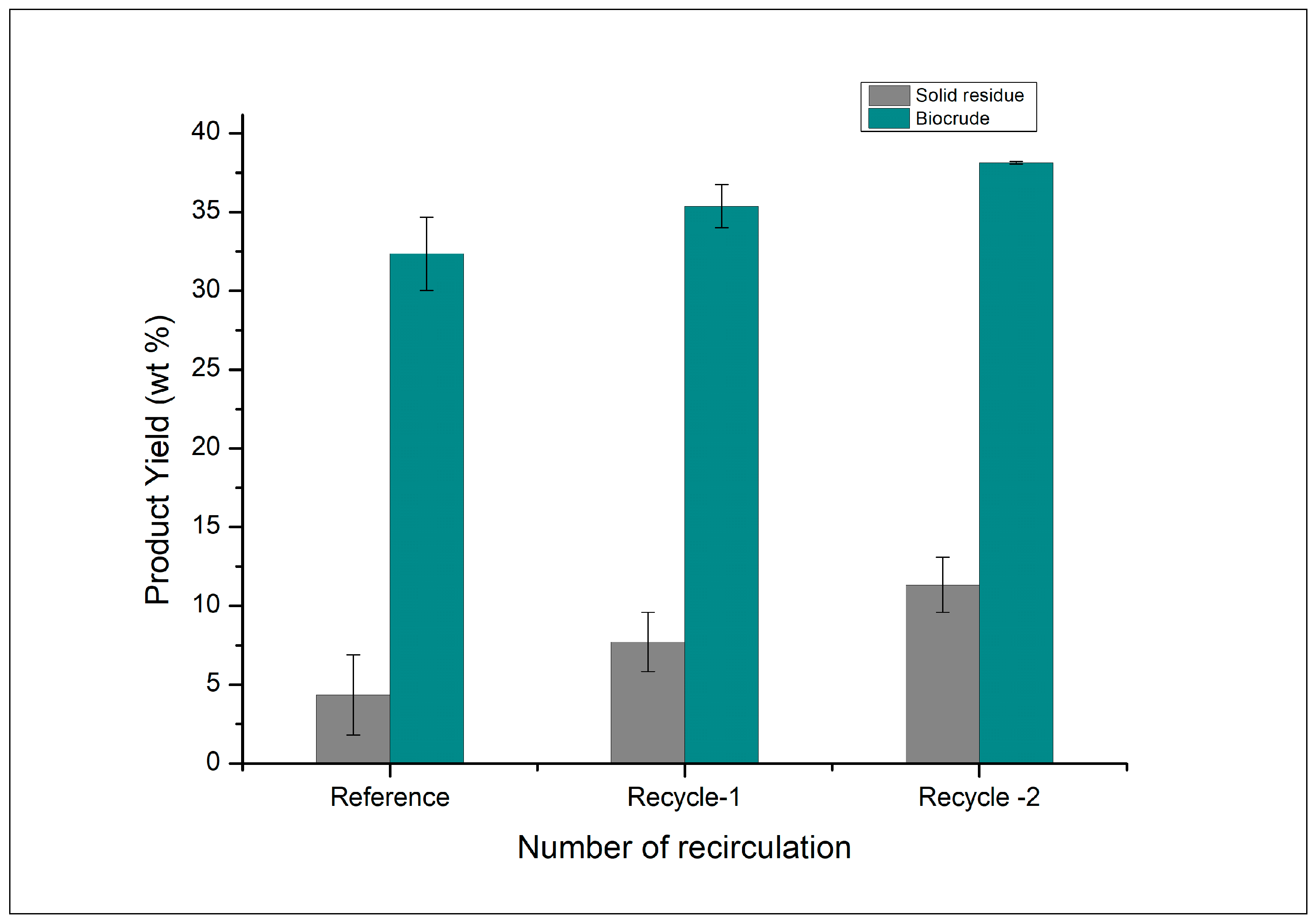

Figure 8. Additionally, it will also reduce the consumption of fresh water for large-scale continuous plant.
The product yield is compared with the reference case (350 °C CAT), which was the optimum case of this study. It was observed that by the recycling of aqueous phase into the system, the biocrude yield was increased from 32.34 to 38.12% after two rounds of recycling. The organic compounds, particularly acids, present in aqueous phase may be responsible for enhancing the biocrude yield via rapid degradation of organic matter. Additionally, a significant increase of solid residue yield was observed from 4.34 to 11.33% after two cycles, which is almost more than double as compared to fresh run. This may be due to the reactive substances present in the aqueous phase that polymerize to form solid residue. Recently, Shah et al. conducted the detailed study on aqueous phase recirculation by using sewage sludge for HTL and got successive increment in biocrude yield [
59].
Table 6 shows the elemental analysis (daf basis) of the biocrude and solid residue, along with their HHVs obtained after aqueous phase recirculation.
The HHV of biocrude obtained by recirculation of aqueous phase was almost stable as 35 MJ/kg due to the almost same number of carbon and other elements in biocrude. While the heating value of solid residue slightly decreased from 25.62 to 23.35 MJ/kg after two cycles. Furthermore, energy recovery was increased after each cycle from reference condition (69.53%) to recycle-2 (81.31%) in biocrude, which may enhance after increasing the number of cycles. The detailed investigation of aqueous phase recirculation for HTL process for the betterment of quality and quantity of biocrude may be a case for future work.
From this study, it can be concluded that the recirculation of the aqueous phase from HTL process of WS does not improve the biocrude quality but certainly increases the biocrude quantity. Furthermore, hydrotreating or upgrading can play a vital role in the betterment of biocrude quality. In summary, this study recommends that the aqueous phase generated from HTL process can be recycled and reprocessed as an active reaction medium for the process to enhance the biocrude yield while reducing the overall waste generation and make the HTL an economical process.
