The Influence of Artificial Lighting Systems on the Cultivation of Algae: The Example of Chlorella vulgaris

by
Beata Brzychczyk
,
Tomasz Hebda
* and
Norbert Pedryc
Department of Mechanical Engineering and Agrophysics, Faculty of Production and Power Engineering, University of Agriculture in Krakow, ul. Balicka 120, 30-149 Krakow, Poland
*
Author to whom correspondence should be addressed.
Energies 2020, 13(22), 5994; https://doi.org/10.3390/en13225994
Submission received: 21 July 2020 / Revised: 3 November 2020 / Accepted: 9 November 2020 / Published: 17 November 2020
Browse Figures
Versions Notes

Abstract

:
Microalgae are a practical source of biological compounds for biodiesel production. This study examined the influence of three different light-emitting diode (LED) systems on the biomass production of green algae Chlorella vulgaris BA0002a. The cultivation was carried out in a photobioreactor illuminated from the bottom with a single side light jacket (PBR I), in a photobioreactor illuminated from the bottom with a double side light jacket (PBR II) and in a photobioreactor illuminated only from the top (PBR III). Research has shown that the intensification of algae cell production and growth depends on the light distribution and exposure time of a single cell to radiation. In the experiment, the highest growth of algae cells was obtained in the photobioreactor with double jacket and lower light panel. The lowest cell growth was observed in the photobioreactor illuminated only from above. For cultures raised in the PBR I and PBR II photobioreactors, increased oxygen production was observed, which was directly related to the increased production of biomass, which in turn was dependent on the increased amount of radiant energy.

1. Introduction

Biomass (energy willow, forest waste) or waste from agri-food processing (straw or fruit marc) is currently a cheap and renewable energy source [1,2,3]. Specially cultivated algae represent one of the promising sources of such energy [4,5]. Biomass derived from algae can be used to produce energy as a raw material for combustion or co-incineration with other waste fuels or through the production of biofuels [6,7,8,9,10,11,12,13,14]. Biofuels derived from algae can take the form of pyrolytic solid fuels [15], flammable gases (hydrogen and methane) [16] or liquid hydrocarbons and biodiesel [17,18]. Since photosynthetic organisms consume carbon dioxide in photosynthesis, algae cultivation is also a desirable side effect of carbon sequestration [19,20].
Algae are a diverse group of photosynthetic organisms that play an important role in the biosphere. They are characterized by a high growth rate potential compared to typical energy crops [21]. They are increasingly used in agriculture, environmental protection, medicine and energy. There are many known systems for the reproduction of algae, which often have different yields.
The high productivity of good-quality algae and their optimal growth rate depends on a number of factors [22]. The most important factors are the distribution and availability of light with the appropriate wavelength [23] and intensity and the temperature and geometry of the vessels [24]. In addition, in the breeding of algae, the parameters of the production process, such as nutrients supplied during reproduction or the concentration of CO2, are important.
The dynamics of aeration is another key parameter for improving the growth of microalgae cells. Aeration promotes pH regulation, aids mixing, and allows the elimination of nutrient concentration gradients. It promotes the even exposure of all cells to light radiation and helps to release the oxygen produced to reduce its toxic effect on microalgae. Improper balance of individual elements of the breeding environment may result in the inhibition of growth and reproduction [25,26].
Algae are undoubtedly a potential source of renewable energy and a raw material for the production of biofuels, but unfortunately, their production is very energy-intensive [16,26]. Additional challenges in the conventional method of algae production are their collection and separation [17].
As mentioned above, light energy significantly determines the growth rate of photosynthetic organisms, and its influence is different for different processes and species production [26,27,28]. Both excessive and insufficient lighting have a negative impact on the amount of biomass [29,30,31,32]. When cultivating algae in photobioreactors, the conversion of the available light depends on the degree of biomass concentration and thus on the optimal distribution of radiation energy, so that all cells receive the right amount of it. According to various authors, the optimum photon flux density value for algae is in the range of 50–200 µmol·m−2·s−1 [15,33,34] and is characteristic not only for a given species but even for a given varietas.
When choosing a photobioreactor for the production of algae, care must be taken that all algae, regardless of their distance from the light source, can receive the same amount of radiation, which will ensure a constant growth rate. Attention should also be paid to the effect called shading [12]. With the growth of algae, i.e., with the density of cells, the light intensity in the reactor is suppressed, forcing an increase in the intensity of lighting in order to maintain the growth rate. Unfortunately, such a procedure may have the opposite effect, causing photoinhibition, i.e., a situation in which the photosynthetic microorganism is exposed to a greater amount of radiant energy than it needs to develop. It leads to damage of the second-order photositemator [35,36,37].
For cultures using artificial lighting, light-emitting diodes (LEDs) are most often used to illuminate photobioreactors. LEDs emit radiation with narrow wavelength ranges and offer the possibility of easily selecting the light color. Research suggests that algal growth is greatly influenced by the red light spectrum, which promotes faster multiplication and growth. On the other hand, the blue light spectrum causes cell growth [38].
The influence of light energy varies in different processes and for different species. Knowledge of radiation energy density distribution in photobioreactor (PBR) and energy absorption by algae biomass is essential for PBR analysis, modeling and design.
The aim of the study was to investigate the influence of three different artificial lighting systems on the cultivation of Chlorella vulgaris (C. vulgaris) algae.

2. Materials, Methods and Methodology

2.1. Characterization of Biological Material Chlorella vulgaris

The studies used the C. vulgaris type BA0002a inoculum from the Culture Collection of Baltic Algae (CCBA) in the Institute of Oceanography at the University of Gdańsk. These algae belong to the group of green algae; they inhabit a brackish water environment and are one of the most widespread algae species in the Baltic Sea.

2.2. Characteristics of the Test Stand

The research stand consisted of three identical cylindrical glass photobioreactors, designated as PBR I, PBR II and PBR III, with an active capacity of 1.79 dm3 (Figure 1). Each of the photobioreactors was equipped with an artificial lighting system based on RGB LEDs (LED RGBW).
The PBR I reactor was equipped with LED directional lighting, in the form of a bottom panel that illuminated the conducted culture through the bottom of the glass reactor and a single, cylindrical RGB LED. The bottom panel had 18 W of power and contained 30 points of light with a luminous flux of 1100 lm and a color temperature of 3000 K (warm white color), while the cylindrical mantle consisted of 150 light points with a total power of 36 W.
The PBR II reactor was equipped with LED directional lighting which came from the bottom of the reactor and had 18 W of power. The bottom panel contained 30 lighting points with a luminous flux of 1100 lm and a color temperature of 3000 K (warm white color) and a double, cylindrical LED light jacket. The double light jacket consisted of 150 RGB LED light spots with 36 W of power and 150 lighting points with 18 W of power and a 950 lm luminous flux with a color temperature of 3100 K (warm white).
The PBR III reactor was equipped with directional lighting on the upper surface (seminar), with a power of 13.5 W, a flux of 1200 lm and a color temperature of 6500 K. In all the reactors, the cultures were illuminated in the 14/10 system.
The geometric dimensions of the cylindrical light sheaths of the PBR I and PBR II reactors were the same: diameter 24.5 cm ± 1.0 mm, height 19.5 cm ± 1.0 mm.
In addition, each reactor was equipped with the same mixing systems (circulating pumps with an average capacity of 80.0 L·h−1), temperature and pH measurement meters, probes for measuring photosynthetically active radiation (PAR) (Quantum MQ-100) and CO2 feeding systems. Figure 2 presents a cross-section of an example photobioreactor (PBR I).
Breeding of C. vulgaris BA0002a microalgae was carried out in cylindrical glass reactors with module L·day−1 equal to 0.985 and capacity 1072.0·10−3 m3, including working capacity 1.79·10−3 m3. The glass cylinders were sterilized before the start of cultivation in an autoclave at 120 °C for 20 min. The studies were carried out in a 14/10 batch culture system (day/night) of C. vulgaris BA0002a inoculated on a medium of the general composition (Table 1).
Determination of the basic components of the medium was carried out by means of tube colorimetric tests using a single-beam NANOCOLOR PF-12 PLUS photometer, with autocalibration and self-control functions in the spectral range of 340–860 nm. The main methods of determination are summarized in Table 2. The NANOCOLOR VARIO C2 M thermostat for chemical mineralization was also used. Wherever the range of the method did not allow for direct determination, the sample was diluted and the result recalculated. Other determinations were also carried out according to the reference methods enclosed in accordance with the device data.
During the tests, the following measurements were recorded: temperature (T), using PT100 resistance sensors, and pH, conductivity, oxygen content and salinity, using a multifunctional CX-401 meter. In addition, the concentration of carbon dioxide (CO2) was measured by colorimetric tests. The optical density was determined using a DEN-1B densitometer with a wavelength of l = 565 ± 15 nm and a measurement range of 0.00 to 15.00 McF. Biomass increment was assessed by the direct method of counting the cells and measuring their size under the Motic RED 233 optical microscope using the Thoma chamber, three times a day at regular intervals. The results (in the graphs) are given as the arithmetic mean of these measurements.
In each bioreactor, 2 mL of C. vulgaris BA0002a inoculum was inoculated in an amount of 1.79 × 10−3·m3. Each inoculum contained on average 2.7 × 106 cells·mL−1.

3. Results

Measurements of the cultivation reaction with the CX-401 multimeter showed that the pH of the crop was 6.5 ± 0.2. It maintained the same level for all lighting systems. The reason for the lower pH could be the excessive distribution of carbon dioxide using a gas diffuser. The pH distribution over time is shown in Figure 3.
The graph in Figure 4 contains the distribution of oxygen content over time. The concentration of oxygen, except between days 11 to 14, for all lighting systems was maintained in the range of 5 to 15 mg·dm−3. Between days 11 and 14, oxygen concentration was observed to rapidly increase by over 100% for both PBR I and PBR II, which correlated fully with the maximum increase in the number of cells for these photobioreactors at that time. Increased oxygen production was observed for PBR I and PBR II photobioreactors.
The average temperature of the culture ranged between 25 and 35 °C, although in extreme cases it reached 40 °C. The optimal temperature depends on a given species, although many authors state that for most representatives of this species it is between 20 and 30 °C [19,26,31]. Temperature fluctuations were related to the heat generated by the lighting during its operation in the 14/10 system. The stabilization problem will be eliminated in subsequent tests by removing heat from lighting systems and stabilizing the process temperature. Figure 5 contains a graph of the temperature distribution in the three photobioreactors during cultivation. The highest temperatures were obtained by photobioreactors equipped with cylindrical coats of light and lighting from the bottom panel rather than the photobioreactor illuminated only by light from above.
Optical density measurements were carried out using a densitometer operating in the range of λ = 565 nm ± 15. The absorbance results are shown in Figure 6. From the changes in optical density for different lighting systems, it can be concluded that the largest increase in biomass occurred in the PBR I photobioreactor, which was equipped with a single cylindrical mantle and a lighting panel on the lower surface. The smallest increase was visible for PBR III, which had a single light source on the upper surface. This suggests that, despite the provision of identical conditions of nutrition and mixing, the distribution of available radiant energy translates into the rate of its conversion into biomass and the productivity of the farm.
To determine the correlation between the number of cells and the optical density, the algae cells were counted under the microscope using the Thoma chamber. Next, the correlation between the optical density and the number of cells obtained from the cultures bred in reactors with different lighting systems was determined (Figure 7).
Mathematical models were selected for the plotted characteristics. Table 3 contains the most accurate adjustment of the correlation models of the amount of C. vulgaris BA0002a algae cells contained in 1 mL of culture, obtained under different light distribution conditions as a function of optical density. There were similar results from the direct determination of the number of cells in Thoma chambers, although in different conditions they received [32] comparable ranges of optical density.
During experiments, the growth of algae biomass was studied over time. Figure 8 shows the increase in the number of algae cells of C. vulgaris BA0002a over time with respect to 0.001 dm3. The maximum daily increase in the number of cells for PBR I (the reactor in which a double light jacket and lighting from the bottom were used), which took place on the 13th day after inoculation of the culture, amounted to 2.93 × 1010 dm−3. For PBR II (with a single cylindrical mantle and lower lighting), the maximum daily increase in the number of cells was 6.48 × 1010 per dm3 and also took place on the 13th day of breeding. It was 50% higher than the results for PBR I. For PBR III, which was lit from the top, the maximum daily growth only took place on the 20th day after the establishment of the farm and was the lowest relative to the other two photobioreactors 1.13 × 1010 dm−3. The highest productivity of the algae cultures was obtained for integrated lighting in which the double light jacket and the bottom panel (PBR II) were placed.
The mean diameter of the obtained cells on the last day of cultivation, measured with a Motic Red 233 optical microscope, was 9.75 µm (Figure 9).
The growth of algae is dependent on many factors [39], including temperature, pH, CO2 concentration, type and chemical composition of the nutrients and the intensity and color of light. The structure of the photobioreactor also significantly influences the growth of algae biomass [40].
Li et al. [28] and Hu et al. [41] consider that light intensity and color are among the most important factors influencing algae cultivation, including biomass composition and production volume. As stated in [15,30,42,43,44], light intensity influences the process of photosynthesis and, consequently, the rate of growth.
For the production of ATP and NADPH and the synthesis of particles needed for growth, algae need light of appropriate wavelength and color temperature [45,46,47]. It would seem that since the light intensity improves the growth rate of the algae, the bioreactors should be illuminated as intensely as possible. However, as reported in [29,33], too high levels of light intensity can cause photoinhibition, which reduces the growth rate of microalgae [48]. Also, cultivation under stress conditions caused by poorly chosen lighting of the bioreactor leads to a decrease in the growth rate and the production of algal biomass [31,32].
Chávez-Fuentes and others [34] used fluorescent lamps (60 W) in the range of 70 to 140 mE.m−2 s−1 for the continuous illumination of the bioreactor. The highest growth of C. vulgaris was observed at 140 mE.m−2 s−1 for cold white light and blue light. Khalili et al. [33] studied the influence of different light intensities on the growth of C. vulgaris. Of the selected intensities (50, 80 and 100 μmol.m−2·s−1) and wavelengths corresponding to red, blue and natural and warm white, 80 μmol.m−2·s−1 and warm white proved to be the best for algae cultivation.
George et al. [46], for the example of Ankistrodesmus falcatus cultivation, found that low light intensity caused an increase in lipid content; for Monoraphidium sp. and Botryococcus braunia, they found that the increase in lipids took place at higher light intensities. For C. vulgaris cultures, the increase in lipids occurred with blue and white light [49,50]. Slightly different results were obtained by Zhang et al. in a C. vulgaris lipid yield study using LED lights [44]. The authors obtained the maximum value of lipids by illuminating the cultures with blue, then red and, lastly, white light. Different results in both of the above-mentioned experiments may be because of the use of lamps with different spectra. The positive influence of the change of blue light intensity from 100 to 200 μmol.m−2·s−1 on the growth of lipids in C. vulgaris was also confirmed by studies of Atta et al. [51].
However, the effect of light intensity on protein content is ambiguous. This may be due to different experimental procedures and different test facilities [52,53]. For example, Kendirlioglu and Cetin [54] studied the growth rate and protein amounts of C. vulgaris grown at different light wavelengths (blue, red and white light) and found that the best results were obtained by illuminating the crop with red, then white and, finally, blue light. Asuthkar et al. [55] studied the effect of light wavelengths (blue, white and red LED lamps) on the growth and protein content of C. pyrenoidosa. They found that the fastest growth occurred with blue light (μ = 0.51 day−1) and the slowest growth occurred with red light (μ = 0.22 day−1). The protein content was also highest when the culture was lit with blue light.
According to [56], an increase in the closed bioreactor lighting ratio from a range of 420–520 nm to a range of 580–680 nm resulted in an increase in algal biomass productivity. The authors also observed an increase in the specific growth rate. This effect observed in the range of 420–520 nm could be explained by auxiliary pigments (carotenoids) also absorbing photons during photosynthesis and transferring part of the absorbed light to chlorophylls.

4. Conclusions

  • Studies have shown that the intensification of culture and the increase in the content of C. vulgaris cells is closely related to the distribution of lighting and the time of exposure of a single cell to radiation.
  • The best outcome was observed with the PBR II photobioreactor, which was equipped with a double light jacket and a lower lighting panel. The least favorable was the reactor with the only light source located above the sample (PBR III).
  • For PBR II, the maximum daily increase in the number of cells was 6.48 × 1010 per dm3. It also took place on the 13th day of breeding and was 50% higher than in the case of PBR I.
  • Between days 11 and 14, the oxygen concentration was observed to rapidly increase by over 100% for both PBR I and PBR II, which correlated fully with the maximum increase in the number of cells for these photobioreactors at that time.
  • For photobioreactors PBR I and PBR II, an increased production of oxygen was observed, which was directly related to the increased production of biomass and was dependent on a larger amount of radiant energy.

Author Contributions

Conceptualization, B.B.; data curation, B.B. and T.H.; formal analysis, T.H.; methodology, N.P.; project administration, B.B.; resources, N.P.; writing—original draft, B.B.; writing—review & editing, T.H. and N.P. All authors have read and agreed to the published version of the manuscript.

Funding

This research was financed by the Ministry of Science and Higher Education of the Republic of Poland.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Karbowniczak, A.; Hamerska, J.; Wróbel, M.; Jewiarz, M.; Nęcka, K. Evaluation of Selected Species of Woody Plants in Terms of Suitability for Energy Production; Springer: Cham, Switzerland, 2018; pp. 735–742. [Google Scholar]
  2. Pořízka, P.; Prochazková, P.; Prochazka, D.; Sládková, L.; Novotný, J.; Petrilak, M.; Brada, M.; Samek, O.; Pilát, Z.; Zemánek, P.; et al. Algal biomass analysis by laser-based analytical techniques—A review. Sensors 2014, 14, 17725–17752. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  3. Wróbel, M.; Mudryk, K.; Jewiarz, M.; Głowacki, S.; Tulej, W. Characterization of Selected Plant Species in Terms of Energetic Use; Springer: Cham, Switzerland, 2018; pp. 671–681. [Google Scholar]
  4. Ahorsu, R.; Medina, F.; Constantí, M. Significance and challenges of biomass as a suitable feedstock for bioenergy and biochemical production: A review. Energies 2018, 11, 3366. [Google Scholar] [CrossRef] [Green Version]
  5. Saad, M.G.; Dosoky, N.S.; Zoromba, M.S.; Shafik, H.M. Algal Biofuels: Current Status and Key Challenges. Energies 2019, 12, 1920. [Google Scholar] [CrossRef] [Green Version]
  6. Amaro, H.M.; Macedo, Â.C.; Malcata, F.X. Microalgae: An alternative as sustainable source of biofuels? Energy 2012, 44, 158–166. [Google Scholar] [CrossRef]
  7. Williams, P.J.L.B.; Laurens, L.M.L. Microalgae as biodiesel & biomass feedstocks: Review & analysis of the biochemistry, energetics & economics. Energy Environ. Sci. 2010, 3, 554–590. [Google Scholar]
  8. Jia, F.; Kacira, M.; Ogden, K.L. Multi-wavelength based optical density sensor for autonomous monitoring of microalgae. Sensors 2015, 15, 22234–22248. [Google Scholar] [CrossRef] [Green Version]
  9. Harun, R.; Singh, M.; Forde, G.M.; Danquah, M.K. Bioprocess engineering of microalgae to produce a variety of consumer products. Renew. Sustain. Energy Rev. 2010, 14, 1037–1047. [Google Scholar] [CrossRef]
  10. Samek, O.; Jonáš, A.; Pilát, Z.; Zemánek, P.; Nedbal, L.; Tríska, J.; Kotas, P.; Trtílek, M. Raman microspectroscopy of individual algal cells: Sensing unsaturation of storage lipids in vivo. Sensors 2010, 10, 8635–8651. [Google Scholar] [CrossRef]
  11. Wiltshire, K.H.; Boersma, M.; Möller, A.; Buhtz, H. Extraction of pigments and fatty acids from the green alga Scenedesmus obliquus (Chlorophyceae). Aquat. Ecol. 2000, 34, 119–126. [Google Scholar] [CrossRef]
  12. Chisti, Y. Biodiesel from microalgae. Biotechnol. Adv. 2007, 25, 294–306. [Google Scholar] [CrossRef]
  13. Radakovits, R.; Jinkerson, R.E.; Darzins, A.; Posewitz, M.C. Genetic engineering of algae for enhanced biofuel production. Eukaryot. Cell 2010, 9, 486–501. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  14. Richmond, A.; Cheng-Wu, Z. Optimization of a flat plate glass reactor for mass production of Nannochloropsis sp. outdoors. J. Biotechnol. 2001, 85, 259–269. [Google Scholar] [CrossRef]
  15. Kumar, A.; Ergas, S.; Yuan, X.; Sahu, A.; Zhang, Q.; Dewulf, J.; Malcata, F.X.; van Langenhove, H. Enhanced CO2 fixation and biofuel production via microalgae: Recent developments and future directions. Trends Biotechnol. 2010, 28, 371–380. [Google Scholar] [CrossRef]
  16. Ding, L.; Chan Gutierrez, E.; Cheng, J.; Xia, A.; O’Shea, R.; Guneratnam, A.J.; Murphy, J.D. Assessment of continuous fermentative hydrogen and methane co-production using macro- and micro-algae with increasing organic loading rate. Energy 2018, 151, 760–770. [Google Scholar] [CrossRef]
  17. Markou, G.; Angelidaki, I.; Nerantzis, E.; Georgakakis, D. Bioethanol Production by Carbohydrate-Enriched Biomass of Arthrospira (Spirulina) platensis. Energies 2013, 6, 3937–3950. [Google Scholar] [CrossRef]
  18. Islam, M.A.; Magnusson, M.; Brown, R.J.; Ayoko, G.A.; Nabi, M.N.; Heimann, K. Microalgal species selection for biodiesel production based on fuel properties derived from fatty acid profiles. Energies 2013, 6, 5676–5702. [Google Scholar] [CrossRef] [Green Version]
  19. Ferreira, L.S.; Rodrigues, M.S.; Converti, A.; Sato, S.; Carvalho, J.C.M. Arthrospira (Spirulina) platensis cultivation in tubular photobioreactor: Use of no-cost CO2 from ethanol fermentation. Appl. Energy 2012, 92, 379–385. [Google Scholar] [CrossRef]
  20. Frac, M.; Jezierska-Tys, S.; Tys, J. Microalgae for Biofuels Production and Environmental Applications: A Review. Available online: https://www.cabdirect.org/cabdirect/abstract/20113034153 (accessed on 4 September 2020).
  21. Brzychczyk, B.; Hebda, T.; Fitas, J.; Gieł, J. The Follow-up Photobioreactor Illumination System for the Cultivation of Photosynthetic Microorganisms. Energies 2020, 13, 1143. [Google Scholar] [CrossRef] [Green Version]
  22. Zhang, Y.; Bao, K.; Wang, J.; Zhao, Y.; Hu, C. Performance of mixed LED light wavelengths on nutrient removal and biogas upgrading by different microalgal-based treatment technologies. Energy 2017, 130, 392–401. [Google Scholar] [CrossRef]
  23. Hosseini, N.S.; Shang, H.; Scott, J.A. Optimization of microalgae-sourced lipids production for biodiesel in a top-lit gas-lift bioreactor using response surface methodology. Energy 2018, 146, 47–56. [Google Scholar] [CrossRef]
  24. Chiu, S.Y.; Kao, C.Y.; Tsai, M.T.; Ong, S.C.; Chen, C.H.; Lin, C.S. Lipid accumulation and CO2 utilization of Nannochloropsis oculata in response to CO2 aeration. Bioresour. Technol. 2009, 100, 833–838. [Google Scholar] [CrossRef] [PubMed]
  25. Dragone, G.; Fernandes, B.D.; Abreu, A.P.; Vicente, A.A.; Teixeira, J.A. Nutrient limitation as a strategy for increasing starch accumulation in microalgae. Appl. Energy 2011, 88, 3331–3335. [Google Scholar] [CrossRef] [Green Version]
  26. Mata, T.M.; Martins, A.A.; Caetano, N.S. Microalgae for biodiesel production and other applications: A review. Renew. Sustain. Energy Rev. 2010, 14, 217–232. [Google Scholar] [CrossRef] [Green Version]
  27. Metsoviti, M.N.; Papapolymerou, G.; Karapanagiotidis, I.T.; Katsoulas, N. Effect of light intensity and quality on growth rate and composition of Chlorella vulgaris. Plants 2020, 9, 31. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  28. Li, Y.; Zhou, W.; Hu, B.; Min, M.; Chen, P.; Ruan, R.R. Effect of light intensity on algal biomass accumulation and biodiesel production for mixotrophic strains Chlorella kessleri and Chlorella protothecoide cultivated in highly concentrated municipal wastewater. Biotechnol. Bioeng. 2012, 109, 2222–2229. [Google Scholar] [CrossRef] [PubMed]
  29. Difusa, A.; Talukdar, J.; Kalita, M.C.; Mohanty, K.; Goud, V.V. Effect of light intensity and pH condition on the growth, biomass and lipid content of microalgae Scenedesmus species. Biofuels 2015, 6, 37–44. [Google Scholar] [CrossRef]
  30. Lee, E.; Jalalizadeh, M.; Zhang, Q. Growth kinetic models for microalgae cultivation: A review. Algal Res. 2015, 12, 497–512. [Google Scholar] [CrossRef]
  31. Minhas, A.K.; Hodgson, P.; Barrow, C.J.; Adholeya, A. A review on the assessment of stress conditions for simultaneous production of microalgal lipids and carotenoids. Front. Microbiol. 2016, 7, 546. [Google Scholar] [CrossRef] [Green Version]
  32. Wijffels, R.H.; Barbosa, M.J.; Eppink, M.H.M. Microalgae for the production of bulk chemicals and biofuels. Biofuels Bioprod. Biorefining 2010, 4, 287–295. [Google Scholar] [CrossRef] [Green Version]
  33. Khalili, A.; Najafpour, G.D.; Amini, G.; Samkhaniyani, F. Influence of nutrients and LED light intensities on biomass production of microalgae Chlorella vulgaris. Biotechnology and Bioprocess. Engineering 2015, 20, 284–290. [Google Scholar]
  34. Chávez-Fuentes, P.; Ruiz-Marin, A.; Canedo-López, Y. Biodiesel synthesis from Chlorella vulgaris under effect of nitrogen limitation, intensity and quality light: Estimation on the based fatty acids profiles. Mol. Biol. Rep. 2018, 45, 1145–1154. [Google Scholar] [CrossRef] [PubMed]
  35. Carvalho, A.P.; Meireles, L.A.; Malcata, F.X. Microalgal reactors: A review of enclosed system designs and performances. Biotechnol. Prog. 2006, 22, 1490–1506. [Google Scholar] [CrossRef] [PubMed]
  36. Vass, I.; Cser, K.; Cheregi, O. Molecular Mechanisms of Light Stress of Photosynthesis. Ann. N. Y. Acad. Sci. 2007, 1113, 114–122. [Google Scholar] [CrossRef] [PubMed]
  37. Pupo, O.R.; García, S.; Valencia, G.; Bula, A. Conceptual design of photobioreactor for algae cultivation. In Proceedings of the ASME 2011 International Mechanical Engineering Congress and Exposition, IMECE 2011, Denver, CO, USA, 11–17 November 2011; American Society of Mechanical Engineers (ASME): New York, NY, USA, 2011; Volume 4, pp. 197–203. [Google Scholar]
  38. Chen, P.; Min, M.; Chen, Y.; Wang, L.; Li, Y.; Chen, Q.; Wang, C.; Wan, Y.; Wang, X.; Cheng, Y.; et al. Review of the biological and engineering aspects of algae to fuels approach. Int. J. Agric. Biol. Eng. 2009, 2, 1–30. [Google Scholar]
  39. Pruvost, J.; Van Vooren, G.; Le Gouic, B.; Couzinet-Mossion, A.; Legrand, J. Systematic investigation of biomass and lipid productivity by microalgae in photobioreactors for biodiesel application. Bioresour. Technol. 2011, 102, 150–158. [Google Scholar] [CrossRef] [Green Version]
  40. Metsoviti, M.N.; Papapolymerou, G.; Karapanagiotidis, I.T.; Katsoulas, N. Comparison of growth rate and nutrient content of five microalgae species cultivated in greenhouses. Plants 2019, 8, 279. [Google Scholar] [CrossRef] [Green Version]
  41. Xu, Y.; Ibrahim, I.M.; Harvey, P.J. The influence of photoperiod and light intensity on the growth and photosynthesis of Dunaliella salina (chlorophyta) CCAP 19/30. Plant Physiol. Biochem. 2016, 106, 305–315. [Google Scholar] [CrossRef] [Green Version]
  42. Singh, S.P.; Singh, P. Effect of temperature and light on the growth of algae species: A review. Renew. Sustain. Energy Rev. 2015, 50, 431–444. [Google Scholar] [CrossRef]
  43. Seyfabadi, J.; Ramezanpour, Z.; Khoeyi, Z.A. Protein, fatty acid, and pigment content of Chlorella vulgaris under different light regimes. J. Appl. Phycol. 2011, 23, 721–726. [Google Scholar] [CrossRef]
  44. Zhang, Y.; Dong, F.; Jin, P. Effects of Light-emitting Diodes (LEDs) on the Accumulation of Lipid Content in Microalgae. DEStech Trans. Environ. Energy Earth Sci. 2017. [Google Scholar] [CrossRef] [Green Version]
  45. Gouveia, L.; Oliveira, A.C. Microalgae as a raw material for biofuels production. J. Ind. Microbiol. Biotechnol. 2009, 36, 269–274. [Google Scholar] [CrossRef] [PubMed]
  46. George, B.; Pancha, I.; Desai, C.; Chokshi, K.; Paliwal, C.; Ghosh, T.; Mishra, S. Effects of different media composition, light intensity and photoperiod on morphology and physiology of freshwater microalgae Ankistrodesmus falcatus—A potential strain for bio-fuel production. Bioresour. Technol. 2014, 171, 367–374. [Google Scholar] [CrossRef] [PubMed]
  47. Gaytán-Luna, D.E.; Ochoa-Alfaro, A.E.; Rocha-Uribe, A.; Pérez-Martínez, A.S.; Alpuche-Solís, Á.G.; Soria-Guerra, R.E. Effect of green and red light in lipid accumulation and transcriptional profile of genes implicated in lipid biosynthesis in Chlamydomonas reinhardtii. Biotechnol. Prog. 2016, 32, 1404–1411. [Google Scholar] [CrossRef] [PubMed]
  48. Khoeyi, Z.A.; Seyfabadi, J.; Ramezanpour, Z. Effect of light intensity and photoperiod on biomass and fatty acid composition of the microalgae, Chlorella vulgaris. Aquac. Int. 2012, 20, 41–49. [Google Scholar] [CrossRef]
  49. Ruangsomboon, S. Effect of light, nutrient, cultivation time and salinity on lipid production of newly isolated strain of the green microalga, Botryococcus braunii KMITL 2. Bioresour. Technol. 2012, 109, 261–265. [Google Scholar] [CrossRef]
  50. Wong, Y.K.; Ho, Y.H.; Ho, K.C.; Leung, H.M.; Chow, K.P.; Yung, K.K.L. Effect of Different Light Sources on Algal Biomass and Lipid Production in Internal Leds-Illuminated Photobioreactor. J. Mar. Biol. Aquac. 2016, 2, 1–8. [Google Scholar] [CrossRef]
  51. Atta, M.; Idris, A.; Bukhari, A.; Wahidin, S. Intensity of blue LED light: A potential stimulus for biomass and lipid content in fresh water microalgae Chlorella vulgaris. Bioresour. Technol. 2013, 148, 373–378. [Google Scholar] [CrossRef]
  52. He, Q.; Yang, H.; Wu, L.; Hu, C. Effect of light intensity on physiological changes, carbon allocation and neutral lipid accumulation in oleaginous microalgae. Bioresour. Technol. 2015, 191, 219–228. [Google Scholar] [CrossRef]
  53. Baiee, M.A.; Salman, J.M. Effect of phosphorus concentration and light intensity on protein content of microalga Chlorella vulgaris. Mesop. Environ. J. 2016, 2, 75–86. [Google Scholar]
  54. Kendirlioglu, G.; Kadri Cetin, A. Effect of different wavelengths of light on growth, pigment content and protein amount of chlorella vulgaris. Fresenius Environ. Bull. 2017, 25, 7974–7980. [Google Scholar]
  55. Asuthkar, M.; Gunti, Y.; Rao, R.; Rao, C.S.; Yadavalli, R. Effect of different wavelengths of light on the growth of chlorella pyrenoidosa. Int. J. Pharm. Sci. Res. 2016, 7, 1000–1005. [Google Scholar]
  56. Lichtenthaler, H.K. Chlorophylls and Carotenoids: Pigments of Photosynthetic Biomembranes. Methods Enzymol. 1987, 148, 350–382. [Google Scholar]
Energies 13 05994 g001 550

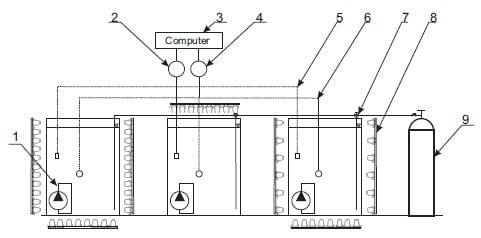

Figure 1. Scheme of the test bench: (1) circulation pump, (2) temperature meter, (3) computer, (4) photosynthetically active radiation (PAR) meter, (5) thermocouple, (6) PAR probe, (7) dosing regulator CO2, (8) lighting system, (9) CO2 feeding system. Source: own work.
Figure 1. Scheme of the test bench: (1) circulation pump, (2) temperature meter, (3) computer, (4) photosynthetically active radiation (PAR) meter, (5) thermocouple, (6) PAR probe, (7) dosing regulator CO2, (8) lighting system, (9) CO2 feeding system. Source: own work.
Energies 13 05994 g001
Energies 13 05994 g002 550

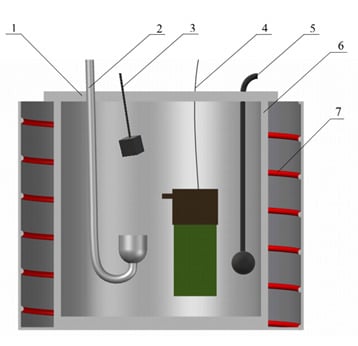

Figure 2. Technical illustration through a cross-section of an example PBR: (1) reactor cover, (2) diffuser feeding system, (3) temperature sensor PT100, (4) circulating pump Eden 128, (5) PAR probe, (6) glass reactor, (7) cylindrical LED light jacket. Source: own study.
Figure 2. Technical illustration through a cross-section of an example PBR: (1) reactor cover, (2) diffuser feeding system, (3) temperature sensor PT100, (4) circulating pump Eden 128, (5) PAR probe, (6) glass reactor, (7) cylindrical LED light jacket. Source: own study.
Energies 13 05994 g002
Energies 13 05994 g003 550

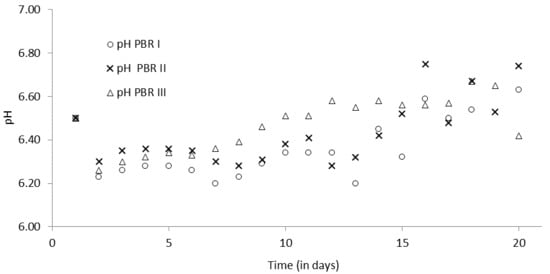

Figure 3. Distribution of acidity over time, depending on the type of lighting system. Source: own study.
Figure 3. Distribution of acidity over time, depending on the type of lighting system. Source: own study.
Energies 13 05994 g003
Energies 13 05994 g004 550

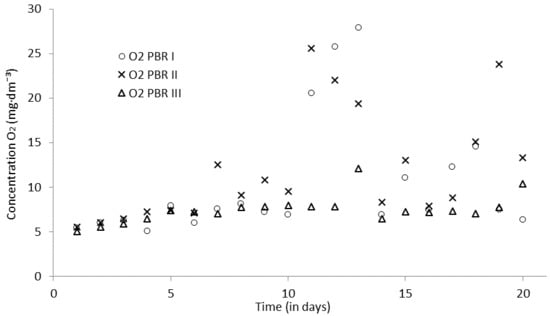

Figure 4. The distribution of oxygen over time, depending on the type of illumination system. Source: own study.
Figure 4. The distribution of oxygen over time, depending on the type of illumination system. Source: own study.
Energies 13 05994 g004
Energies 13 05994 g005 550

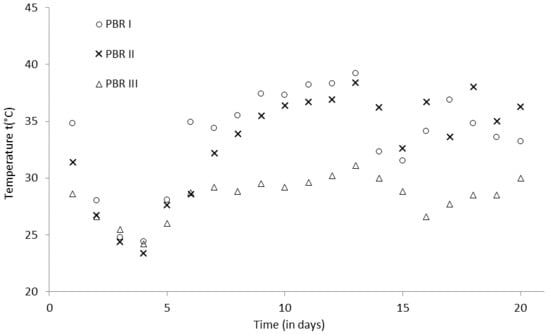

Figure 5. Temperature distribution over time, depending on the type of lighting system. Source: own study.
Figure 5. Temperature distribution over time, depending on the type of lighting system. Source: own study.
Energies 13 05994 g005
Energies 13 05994 g006 550

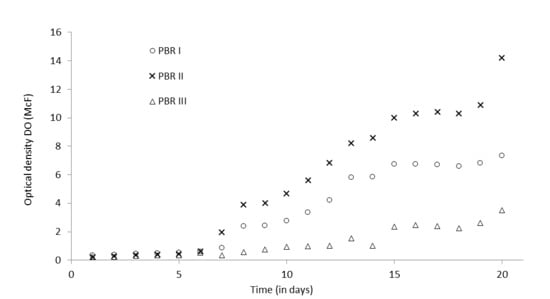

Figure 6. Changes in the optical density of Chlorella vulgaris cultures conducted in photobioreactors with various lighting systems. Source: own study.
Figure 6. Changes in the optical density of Chlorella vulgaris cultures conducted in photobioreactors with various lighting systems. Source: own study.
Energies 13 05994 g006
Energies 13 05994 g007 550

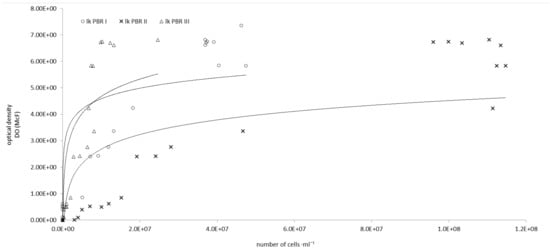

Figure 7. Correlation of the optical density of C. vulgaris cultures and number of cells for different lighting systems. Source: own study.
Figure 7. Correlation of the optical density of C. vulgaris cultures and number of cells for different lighting systems. Source: own study.
Energies 13 05994 g007
Energies 13 05994 g008 550

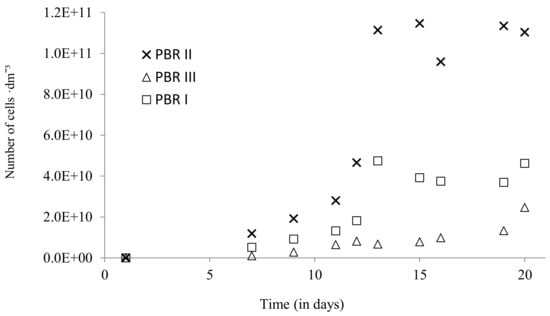

Figure 8. Increase in the number of cells over time, calculated on dm−3 culture of C. vulgaris BA0002a. Source: own study.
Figure 8. Increase in the number of cells over time, calculated on dm−3 culture of C. vulgaris BA0002a. Source: own study.
Energies 13 05994 g008
Energies 13 05994 g009 550
Figure 9. Measurement of the diameter of cultured cells on the 20th day. Source: own study.
Figure 9. Measurement of the diameter of cultured cells on the 20th day. Source: own study.
Energies 13 05994 g009
Table
Table 1. Composition of culture medium.
Table 1. Composition of culture medium.
ComponentConcentration, mg·dm−3
total nitrogen concentration184.5
nitrate nitrogen84.0
ammonium nitrogen52.0
urea nitrogen49.0
total concentration of phosphorus (soluble in neutral ammonium citrate and in water)49.2
total potassium concentration (water-soluble)192.0
water-soluble magnesium3.0
water-soluble sulfur2.5
boron0.025
copper EDTA0.010
iron EDTA0.070
manganese0.040
molybdenum0.004
zinc EDTA0.025
pH6.4
salinity5.84 g NaCl dm−3
oxygen content6.93
oxygen content including salinity7.77
Table
Table 2. List of measurement methods.
Table 2. List of measurement methods.
Designation,
mg.dm−3		Description of the MethodRef:
total nitrogen Nog
scope: 5–220
wavelength: 385 nm		mineralization in a thermostat with compensation of interfering substances and photometric determination with 2.6-dimethylphenol in a mixture of sulfuric and phosphoric acid985083
nitrate nitrogen N-NO3
scope: 4–140
wavelength: 365 nm		a color reaction with 2.6-dimethylphenol in a mixture of sulfuric acid and phosphoric acid91865
ammonium nitrogen
N-NH4
scope: 30–160
wavelength 585 nm		determination of blue indophenol dye on the basis of reactions with hypochlorite and salicylate at pH 12.6 in the presence of sodium nitroprusside985006
phosphorus P 50
scope: 10.0–50.0
wavelength: 436 nm		photometric determination as molybdenum blue after acid hydrolysis and oxidation at 100–120 °C985079
O2 oxygen
range: 0.5–12.0
wavelength: 445 nm		determination of dissolved oxygen content in water by Winkler method, color reaction with free iodine985082
potassium K 50
scope: 2.0–50.0
wavelength: 690 nm		determination of the turbidity caused by the formation of potassium tetraphenyl borate985045
iron Fe
range 0.01–2.00
wavelength: 470 nm		color reaction with 1.10-phenanthroline91836
copper Cu2+
range 0.01–2.00
wavelength: 585 nm		color reaction with cuprizone (oxalic acid bis(cyclohexylidene hydrazide))
sulfur S
range: 0.1–3.0
wavelength: 660 nm		color reaction with N,N-dimethyl-1,4-phenylenediamine91888
zinc Zn2+
range: 0.20–6.0
wavelength: 490 nm		determination of the concentration of zinc ions in aqueous samples by complexing the contained metal ions with cyanide, followed by selective release of zinc ions by addition of chloral hydrate, by reaction with 4-(2-pyridylazo) resorcin (PAR) to form an orange complex whose color intensity is proportional to that of zinc ions985042
manganese Mn
range: 0.10–3.00
wavelength: 436 nm		photometric determination of manganese content by TMB method according to Serrat918126
Table
Table 3. Mathematical form of the approximate number of cells per mL read from the densitometer indications for C. vulgaris BA0002a, carried out under strictly defined conditions.
Table 3. Mathematical form of the approximate number of cells per mL read from the densitometer indications for C. vulgaris BA0002a, carried out under strictly defined conditions.
Type of PhotobioreactorModel Number of Cells mL−1R2
PBR Iy = 0.7971ln(x) − 10.1670.50
PBR IIy = 0.5731ln(x) − 4.6490.73
PBR IIIy = 0.9429ln(x) − 10.5210.61
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Brzychczyk, B.; Hebda, T.; Pedryc, N. The Influence of Artificial Lighting Systems on the Cultivation of Algae: The Example of Chlorella vulgaris. Energies 2020, 13, 5994. https://doi.org/10.3390/en13225994

AMA Style

Brzychczyk B, Hebda T, Pedryc N. The Influence of Artificial Lighting Systems on the Cultivation of Algae: The Example of Chlorella vulgaris. Energies. 2020; 13(22):5994. https://doi.org/10.3390/en13225994

Chicago/Turabian Style

Brzychczyk, Beata, Tomasz Hebda, and Norbert Pedryc. 2020. "The Influence of Artificial Lighting Systems on the Cultivation of Algae: The Example of Chlorella vulgaris" Energies 13, no. 22: 5994. https://doi.org/10.3390/en13225994

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
