1. Introduction
The issue of energy efficiency and energy saving is becoming more and more topical in the modern world [
1]. These two concepts are united by a common goal-energy conservation and its correct use. Energy efficiency is the use of certain technologies, which make it possible to reduce the amount of energy consumed, without changing the rules of its use by the consumer [
2,
3]. Energy-saving, in its turn, is a series of measurements aimed at saving energy and its rational use.
Up to the present time, telecommunications equipment consumes approximately 5% of electricity from total electricity output [
4,
5]. Scaling up the network infrastructure to maintain a constant demand for telecommunications services is not in itself a simple task, but its solution, while trying to minimize the environmental impact and reduce the amount of electricity consumed by these telecommunications networks by an order of magnitude increases the complexity of the rapidly developing telecommunications industry [
6]. Sequentially, demand for information services continues to increase, leading to an increase in this indicator.
There are a number of reasons for the decline in telecom energy consumption [
7]. Due to the growing number of subscribers and the demand for telecommunication services, the bandwidth requirements for networks are increasing [
8,
9]. However, the proper energy consumption of networks is a more important problem than the required bandwidth, since energy consumption alone limits its growth. In addition, high-speed transport optical networks require reliable data processing devices at both the edge and the border nodes [
10]. With increased data rates, the energy consumption of the network nodes increases significantly due to the higher load of their processors [
11]. These problems can be one of the major operational obstacles and, in the worst-case scenario, may prevent the delivery of new services and applications [
12,
13,
14].
To provide the required quality of service, higher demands are placed on the switching elements of the network, thereby causing an increase in the control voltages of these devices, which leads to the increased energy consumption of these networks [
15]. In addition, an increase in these voltages leads to a shortening of the reliable life of the devices. It is forcing the search and development of new methods, criteria, elements and devices of the network to provide its required operating parameters, with low capital and operating costs for the operator and high quality of service (QoS) for subscribers [
16,
17,
18]. Network equipment designers pay great attention to the energy efficiency of systems, as this factor has a significant impact on the cost of their operation and often determines the choice of specific equipment [
19].
The simulation tools can significantly reduce the effort and time required to select the right solution. The existing simulators provide varying degrees of analysis for the communication, application and energy fields [
20]. However, they do not provide enough flexibility to estimate energy consumption for a wide range of network hardware platforms. None of them presents how the energy consumption of the network as a whole should be determined, and the energy consumption values are approximate and do not take into account equipment of different vendors and the power that is consumed during the downtime of the equipment, in the processing of service data blocks.
Thus, the urgent task is to develop a universal methodology of determining the energy consumption parameter automated in the form of a software product, which will allow obtaining this parameter for any architecture of the information communication network, the configuration of network devices and for equipment from different vendors.
This paper is organized as follows. In
Section 2, previous related studies about different strategies to tackle the problem of energy consumption evaluation and optimization in telecommunication networks are discussed. Then,
Section 3 introduces the proposed methodology for calculating the energy consumption of a multilayer telecommunications network.

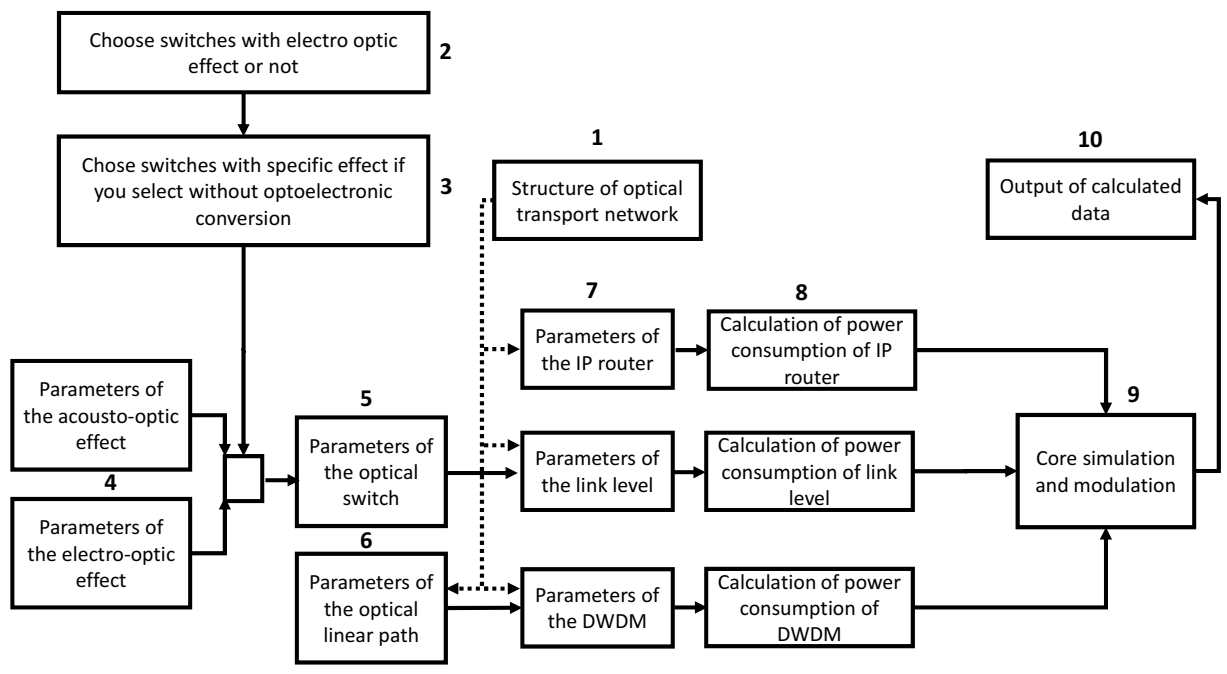

Section 4 describes the development of a simulation tool for studying energy consumption in multilayer communication networks. The simulation strategies and the obtained results are presented and analyzed in
Section 5.
Section 6 introduces the discussion. Finally,
Section 7 concludes this work.
To facilitate understanding following formulations,
Table 1 clarifies all mathematical notations throughout this paper.
2. Related Work
Optical transmission technologies make it possible to significantly reduce the overall energy consumption of communication networks [
21]. For this reason, there is growing interest in how to take advantage of the energy-saving opportunities offered by optical networks. In addition, parallel research is being conducted to improve the energy efficiency of optical networks themselves.
In [
22] authors present a brief overview of the general model of the energy consumption of telecommunications networks, built on the principle of “bottom-up”. The purpose of this paper is to provide an intuitive introduction to telecommunications networks and to model the energy consumption of services without having to rely on detailed information about network equipment, which is usually very difficult to obtain. The model presented in this paper is therefore based on typical equipment data (available from vendor equipment data) and simple network architecture parameters (such as the number of jumps). The model presented in this paper is tested to provide energy consumption estimates for a wide range of network scenarios, among others: customer premises equipment, access networks, edge and core networks, and services provided via the network.
A new method for evaluating network energy consumption on a national scale is presented in [
23]. In the proposed method, energy overheads are quantified and introduced as overhead costs by comparing the energy consumption estimated from network configuration models (bottom-up methods) with reports on actual energy consumption (top-down methods). The proposed “unified” method is able to provide long-term forecasts of future technological trends, including changes in network architecture.
In work [
24] the authors presented a network model of the energy consumption in optical IP networks and used this model to estimate the energy consumption of the Internet. The model includes the core, metro and edge networks, access and video distribution networks, and takes into account the energy consumption in switching and transmitting equipment.
Ward Van Heddeghem and Filip Idzikowski [
25] proposed a simplified analytical model for estimating energy consumption in multilayer telecommunications networks, which can be used for large networks where modeling is expensive or computationally impossible.
Today, there are techniques that can be used to determine and evaluate the energy consumption parameter. For example, the Telecommunication Energy Consumption Center at the University of Melbourne identifies four approaches for improving network energy consumption [
26]: architectural, technological, protocol, and cloud. This paper also presents the approximate cost of electricity for devices for both electrical and optical domains when processing one bit of information (the approximate values of which are presented in the section “Investigating the bottlenecks of transport optical networks” that affect energy consumption). However, this model does not show how the power consumption of the network as a whole should be determined, and the given power consumption values are approximate and do not take into account equipment from different manufacturers. Thus, the proposed model by the University of Melbourne envisages a number of approaches for reducing the power consumption of transport optical networks, using approximately found energy values of devices in this network.
Another model was developed by the Milan Polytechnic [
27]. This model is based on the multilevel structure of transport optical networks. It considers methods for determining the energy consumption of the boundary and intermediate nodes. Additionally, this model takes into account different types of equipment transfer from different manufacturers and data transfer rates. However, this model does not take into account the power consumed during downtime in the processing of service data blocks, which is important enough to improve the accuracy of energy consumption determination. Hence, it is an important scientific and practical task to develop the most accurate universal methodology for calculating the energy consumption of information and communication networks in order to optimally select the necessary network equipment for the construction of energy-efficient telecommunication systems.
The research work [
28] is aimed at reducing the power consumption of IP over the WDM backbone network. Already known strategies of light path bypass and traffic cleaning are used. While the previously proposed schemes based on approaches to bypassing light routes and traffic cleaning capabilities have been implemented and, therefore, can reduce the overall power consumption of the optical backbone network, they do not take into account, firstly, the number of installed light traces in the virtual topology and, secondly, the use of residual bandwidth of existing light traces. The present study overcomes the above disadvantages by introducing three new heuristic schemes that allow to significantly reduce the number of established light paths in the virtual topology and use the residual capacity of optical paths through more efficient use of light path resources. These heuristic schemes will focus on energy efficiency issues related to the design and operation of the length division multiplexing (WDM) optical network.
In article [
29] the authors pay special attention to the sleep mode of the guard dog with different periods of sleep change for several optical network devices (ONU). This is due to the fact that in the traditional ONU mode, optical line terminal (OLT) traffic must be constantly monitored and checked, and therefore always remain active even in the absence/light traffic, which leads to a loss of most of the power Passive optical network (PON). The authors first simulated a sleep mode based on the Markov chain model to analyze the impact of each key parameter on system performance in terms of energy efficiency and packet latency. Since sleep mode is the key to saving energy, we developed four different variants of sleep period variations (e.g., constant, linear_1, linear_2, and exponential models) to study the effect of these different models on integrated performance in terms of normalized costs. Using extensive simulations, the author found that in a guard dog’s sleep mode the effect of the number (n) of state pairs (sleep, listening) would be negligible and the effect of other parameters on performance would be analyzed in a comprehensive manner. The minimal normalized cost can be calculated from four different variations of the sleep period, which represent the optimal compromise between the two conflicting performance parameters listed above.
In work [
30], the authors claim that spatial analysis of the indicative surfaces thus yields a set of the optimized sample geometries recommended for designers who develop electro-optic modulators or deflectors. Just by switching from the standard cell geometry to the optimized cell geometry, as determined in the present work, one may improve almost three times the modulation efficiency of electro-optic devices based on lithium niobate crystals. This results in a corresponding reduction of their driving voltages being evidently of great practical importance for many applications. We based our work on this work, because it was our author Kaidan M. V. who found the necessary value of control voltage, which significantly reduces the energy consumption of a network device with electro-optical modulator.
Therefore, the purpose of the work is to develop a universal methodology for calculating energy consumption in infocommunication systems, taking into account their heterogeneity and multilayer, as well as the power parameter that is consumed when network equipment is idle during the processing of service data blocks and finding the necessary value of control voltage, which significantly reduces the energy consumption of a network device with electro-optical modulator.
Generalizations of the main works listed above are shown in
Table 2.
3. Methodology for Calculating the Energy Consumption of Multilayer Telecommunications Network
One of the key parameters in the field of telecommunications energy is the energy consumption parameter [
31]. This parameter refers to the amount of electricity consumed in transmitting one bit of information between two nodes [
32,
33,
34]. Determining this parameter is an important task not only for reducing the required amount of energy for telecommunication networks, but also for the network as a whole.
Based on the analysis of works [
35] for calculation the complex parameter of energy consumption, the authors determined the main criteria that affect the energy consumption of information and communication systems: namely, the number and structure of nodes involved, type of transport technology, network architecture, size of the data block channel level, type of equipment used, number of intermediate optoelectronic transformations, type of switching, use of wave converters, number and type of regeneration points, number of WDM systems. On the basis of these criteria, a complex parameter of energy consumption of Formula (1) for homogeneous networks and Formula (2) for heterogeneous multilayer network was formed. Depending on the type of information network under study, each criterion included in Formulas (1) and (2) will be calculated using certain mathematical expressions. The sequence of mathematical actions aimed at solving the problems of studying the energy consumption of the information and communication network form a universal method of calculating energy consumption.
In the process of building a homogeneous network, the complex parameter of energy consumption is determined by:
where
Pp.c.—general energy consumption of the network in the transmission of information data,
PEdge—power consumption of the edge node,
PO i PE—energy consumption of intermediate nodes without and with intermediate optoelectronic conversion, respectively,
N and
K—number of nodes without and intermediate optoelectronic conversion,
M—number of data blocks,
Ptransp—power consumption for open through channels,
PROE—power consumption for regeneration equipment,
Pd_time—power consumed in equipment idle time, hereinafter unit the power consumption parameter is presented in Watts (W).
Modern information communication networks have the property of heterogeneity and multilayer. The multilayer structure of the transport infocommunication network with intermediate optoelectronic transformation and without intermediate optoelectronic conversion is depicted in

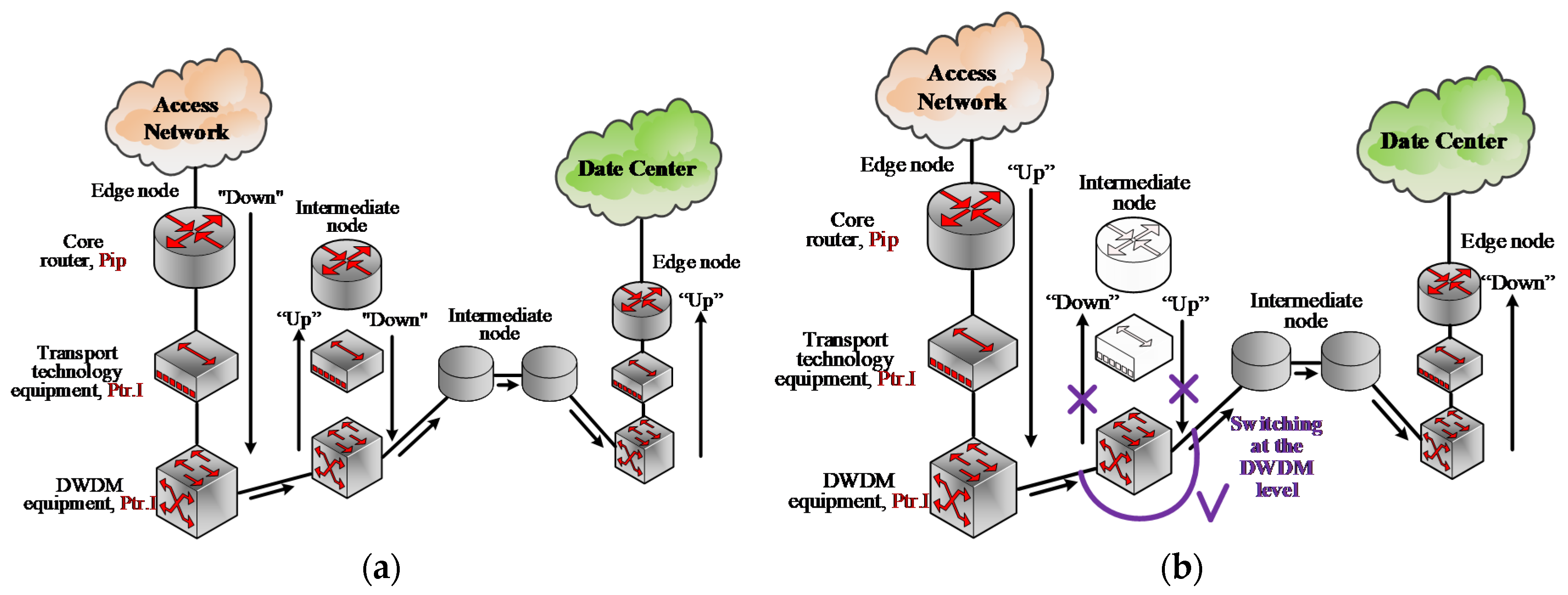

Figure 1.
The complex energy parameter for these systems can be defined as the total electricity consumption of each of the levels, which is an alternative to Formula (1)
where
is the total electricity consumption of the network layer devices of the OSI (Open Systems Interconnection) model,
—the electricity consumption of the data link layer of the OSI model,
—the total electricity consumption of the Dense Wavelength Division Multiplexing (DWDM) equipment at the physical layer of the OSI model from end to end of the network.
The value of the power consumption parameter (W/bit) is relatively small, so it should be determined which data block will be used to determine this parameter. In order to improve accuracy, the energy efficiency parameters are determined by taking into account the signal load of the channel and network level, so the calculation of this parameter is relative to the data block of the channel level. It also takes into account the energy consumption parameter during the downtime of the network equipment in the process of processing the signal data blocks, which is quite an important task for improving the accuracy of energy consumption at the stage of implementing the energy-saving network. We suggest calculating for the link-level data block, since the calculation for the Internet Protocol (IP) packet will not allow taking into account the second level signaling information, which will affect the calculation of the power consumption parameter. As a result, the formula should be used to determine this parameter.
where
Lblock—the length of the link-layer data block (the number of block bits).
To determine the energy consumption of the devices shown in Formula (3), the technique proposes to separate the energy consumption of the devices of the electric and optical domains. Domain allocation is based on the type of signal the device is working with. For example, if the device works with an optical signal then it refers to the optical domain, if the electrical signal then to the electrical domain. Accordingly, for the electric domain of the network, the electricity costs for processing one data block will be:
where
Pmax is the power consumption of the network device at its maximum load (W/s),
Nb is the number of data blocks that the device can process (per 1 s).
For network devices (router), the
Pmax power consumption parameter is defined as
where
—the type of chassis, controller, installed linear cards, configuration and traffic profile of the device, depending on the data rate in the components of the router. Function
PChas(
v) determines the energy consumption of the chassis,
Uproc—the number of controllers used,
Pproc(
vu)—the energy consumption of a particular type of controller,
NLC—the number of linear cards used,
PLC(
vi)—determines the energy consumption of all linear cards in the basic configuration (physical interfaces), port adapters, switch factories, and control modules). The amount of
PLC(
vi) is represented as
where
PPLIM(
vj)—power consumption of interface modules and port adapters PLIM (Physical Layer Interface Module),
PSW(
vm)—power consumption of switching factories SW (Switch Fabric),
PMSC(
vk)—power consumption of control modules MSC (Modular Services Card).
Accordingly, the function that determines the power consumption of the network-level device is represented as
Increasing transmission speed requires more productive and high-speed elements. As the transmission speed increases, there is a significant increase in the power consumption of the controller and line cards of the router. For the optical domain, the power required to process a single data block is determined by the formula:
where
Pequip.op(
t) is the power consumption of the device level link per unit time,
V is the speed of transmission of the optical signal in the network (in bits per second).

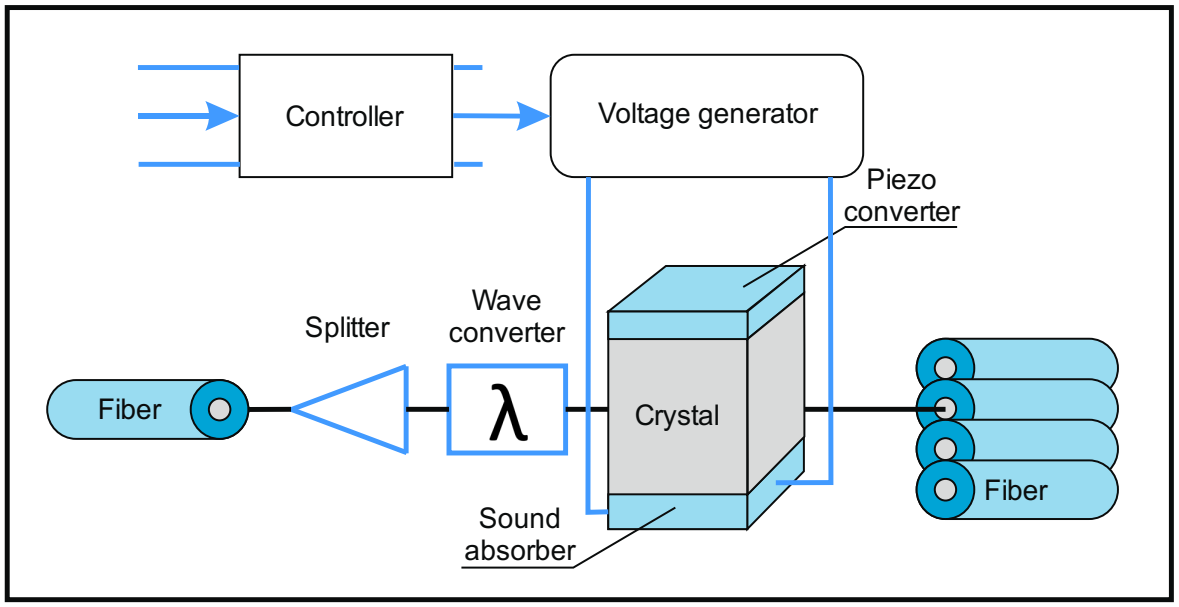

Figure 2 shows the structure of the acousto-optic switch according to which the formula for calculation of energy consumption is given.
The power consumption of the proposed device architecture is determined by the following formula:
where
Pproc(
v) is the controller’s power consumption,
PgenV(
v) is the power consumption of the voltage generator,
Pwave(
v) is the energy consumed by the wave conversion,
Pcool(
v) is the energy consumed by the cooling of the switch and is determined by:
In [
36] it is noted that when a switch consuming 1 W of electricity, it consumes up to 1 W of electricity for its cooling. We accept the parameter
ke within 0.5
≤ ke ≤ 1, which determines the fraction of electricity that falls on cooling from the total power consumption of the switch.
The power consumption of the
PgenV(
v) generator is determined from the general definition of power—the output of voltage and current
where
Umanag is the control voltage applied to the switch, the value of the control voltage of the acousto-optic switch changes in the range
0 < Umanag < Uacous. The maximum allowable control voltage of the
Uacous generator required to ensure the Bragg mode is determined by the formula
where
i—the width and length of the sound column,
—the acoustic resistance of the sound material,
—the resonant frequency of the piezoelectric transducer,
—piezo-module of the material,
—the piezoelectric material of the piezoelectric transducer,
—the length of the acousto-optic interaction,
—the AO coefficient,
—the width p converter.
In the next stage of the technique, the energy consumption of the boundary and intermediate nodes is determined. At the border nodes, the information processing process is carried out in one direction, respectively, the energy consumption is determined at the input
and output
nodes according to the formulas
where
is the electricity consumption of the electro-optical modulator,
—the energy consumption of the photodetector.

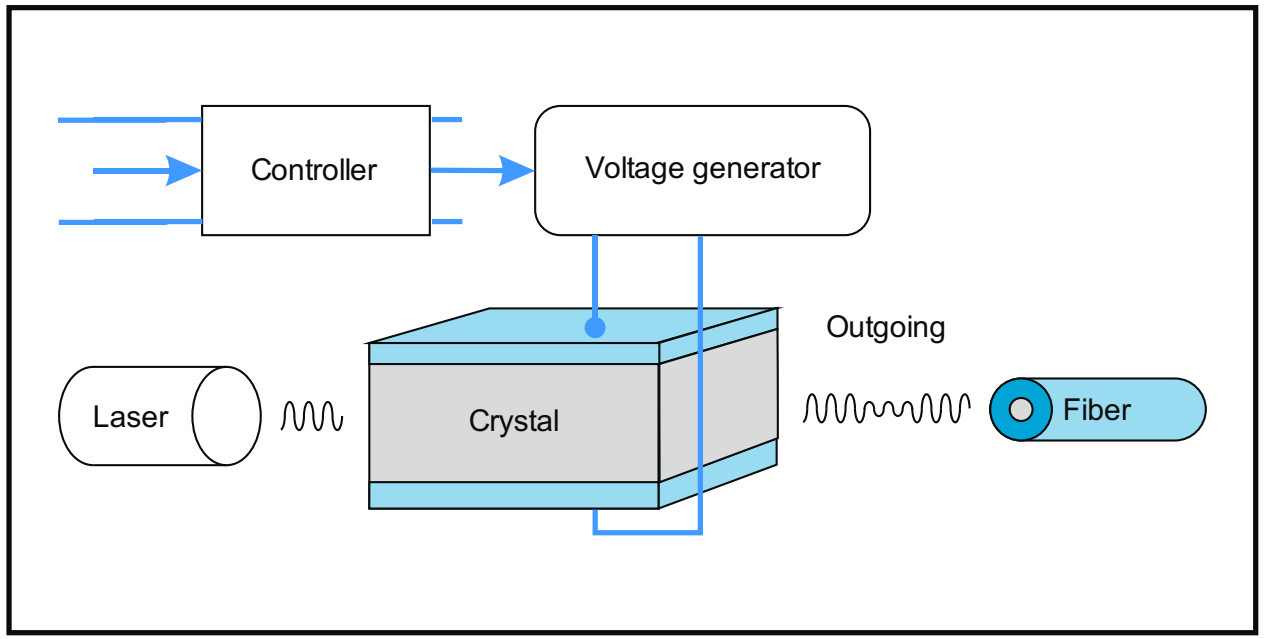

Based on the structure of the electro-optical modulator (
Figure 3), the energy consumption of the electro-optical module-torus will be
where
Pproc(
v) is the energy consumption of the controller, which is determined by the energy consumption of the controller,
PgenV(
v) is the energy consumption of the electrical signal,
Pcool(
v) is the energy consumed to cool the modulator and is determined
Substituting formulas, the modulator’s power consumption will be determined
The instantaneous power consumption of the
PgenV(
v) generator is equal to the product of instantaneous values of voltage and current. The control voltage is the maximum value of the control voltage
Umanag(
t) for the symmetric structure of the electro-optical modulator. The total energy consumption of the generator for the structure of the electro-optical voltage modulator is determined by the following formula:
where 0 <
Umanag <
Uλ/2.
For intermediate nodes, the determination of the power consumption parameter depends on the type of switching at the DWDM level and the mode of data transmission. If such a node uses an electrical switching matrix at the DWDM level, then usually it also involves the transmission of all data to the upper level for processing. In this case, the energy consumption of the intermediate node with intermediate opto-electronic conversion is
From Formula (19), it follows
where
n is the number of transit nodes;
—power consumption of amplifiers, isolators, converters and other devices used in the network, excluding the power consumption of modulators and receivers.
The absence of intermediate optoelectronic conversion at such nodes indicates the use of an optical switching matrix at the DWDM level. For example, for fully optical networks, this requires opening through-channels between the originator node and the recipient node. Accordingly, data blocks do not come from the optical domain. Opening such a channel requires redundancy of time and spectral resources of the network. To open it, a certain number of service data blocks (
Nsignal.) are sent, for which
Ptransp power is consumed, which is taken into account in certain energy consumption parameters (Formula (3)). These blocks reserve the spectral and frequency resources of the network. Accordingly, the energy consumed at the site without optoelectronic conversion will be:
where
Psw is the energy consumed by an optical switch,
—is the energy consumed by equipment, including attenuators, filters and other devices besides switches and devices associated with it.
As described above, the energy consumption of fully optical switches is determined by the energy consumption of the optical switching matrix, the use of wave convectors and optical amplifiers. Accordingly, the energy consumption of such devices is determined.
where
Ps is the power consumption of the optical switch,
Pwc is the power consumption of the optical wave converter as the wavelength changes,
POA is the power consumption of the optical amplifier,
V is the transmission rate.
Energy consumption of regeneration equipment is based on the use of optical amplifiers as well as 3
R regenerators. From here, we determine the electricity consumption per unit of data.
where
Q is the number of optical amplifiers used from point A to point B,
T is the number of 3
R regenerators used from point A to point B,
POA is the power consumption of the optical amplifier per time unit,
P3R is the electricity consumption of the electric regenerator.
To determine the total power consumption of the infocommunication network, it is necessary to calculate the control voltage for the electro-optical modulator and acousto-optic switch.
To determine the total power consumption of the infocommunication network, it is necessary to calculate the control voltage for the electro-optical modulator and acousto-optic switch. The control voltage is selected from
0 < Umanag < Uλ/2. For electro-optical materials, the control voltage is determined by the half-wave voltage at which the change in transmittance is achieved [
37].
where
λ is wavelength,
d is sample thickness,
n is refractive index,
rij electro-optical coefficient,
L crystal length, where
0 < Umanag < Uλ/2.
As can be seen from Formula (25), with a larger value of the electro-optical coefficient, less voltage is required to achieve the required change in the transmittance coefficient. In [
29], a study was conducted to find the geometries of the orientations of a sample with experimental values. For the values of the electro-optical coefficients and for the one found, a half-wave voltage parameter was calculated for a lithium niobate crystal. The initial data for the calculation are
d = 13.4 mm,
L = 18.5 mm.
In [
29] for
rij = 3.4·10
−12 m/V the half-wave voltage parameter
Uλ/2 = 5588 V. The electro-optical coefficient
rij = 39.7·10
−12 m/V at
found in [
29] allows to obtain a value
Uλ/2 = 510.9 V that is 90.8% less than the previous value, which significantly reduces the energy consumption of such a device.
For acousto-optic devices, the parameter that determines the power consumption is, which also determines the transmission ratio [
38]
where
λ is the wavelength,
M2 is the parameter of acousto-optic quality,
L is the length of acoustic interaction,
H is the height of the ultrasonic piezo converter,
Pa is the acoustic power. Accordingly, the parameter is determined by
where
b·
i·
l—the width and length of the sound column,
Zзв—the acoustic resistance of the material of the conductor,
fp—the resonant frequency of the piezoelectric transducer,
dij—the piezo-module of the piezoelectric material,
Qm — the mechanical quality of the piezoelectric transducer,
U—the control voltage.
From Formulas (26) and (27) it is easy to see that with a larger value of the acousto-optical quality parameter
M2, less acoustic power and, correspondingly, less control voltage are required to achieve the required level of transmission coefficient of the device. Based on Formulas (26) and (27), the control voltage of the acousto-optic switch is obtained
5. Results
The proposed software tool makes it possible to determine the energy efficiency value at various network operating parameters. In real-time, it is possible to change the data rate, the length of the working data blocks, the energy capacity of the equipment, modes of transmission, the parameters of electro-and acousto-optical to achieve the required value of energy efficiency.

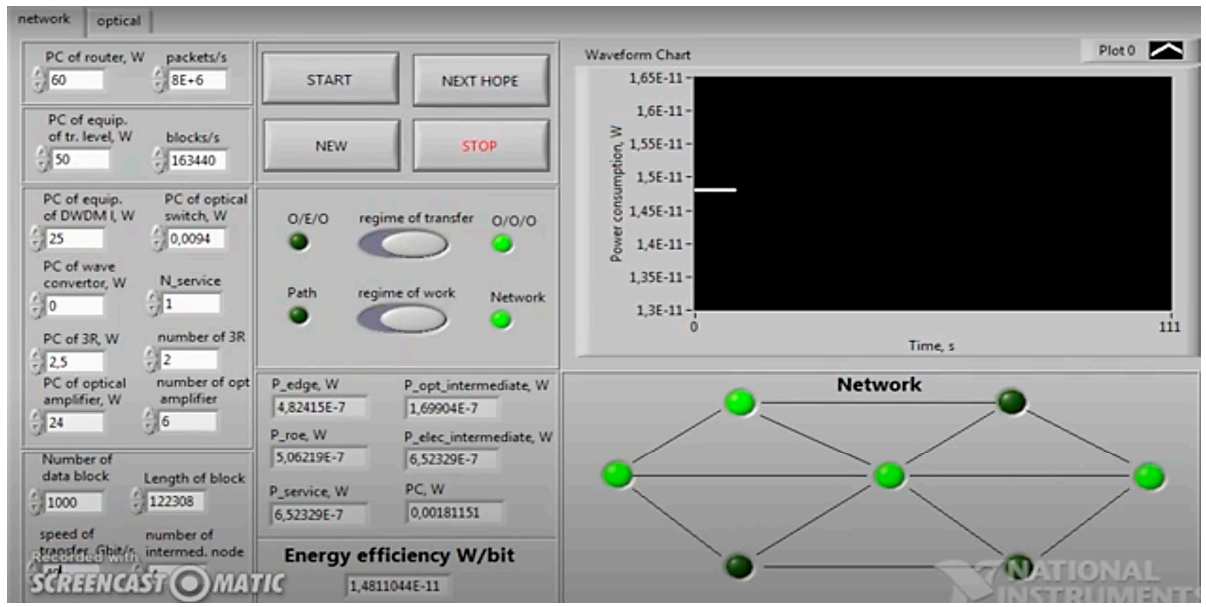

We obtain a basic setup for the measurement of (power) energy consumption of the optical transport network. Energy consumption is 14.8·10
−12 w/bit for basic configuration (
Figure 5).

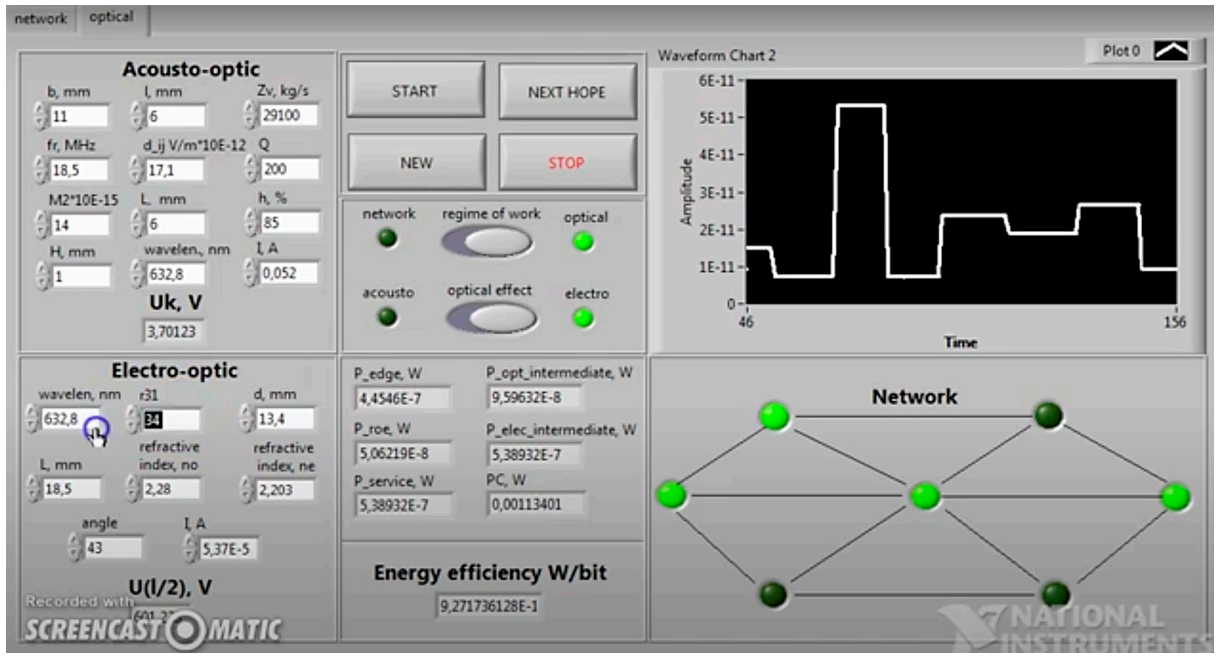

We increase the speed of transfer of the optical channel from 10 to 40 Gbps. In this case, energy consumption is decreased from 14.8·10
−12 w/bit to 8.58·10
−12 w/bit (

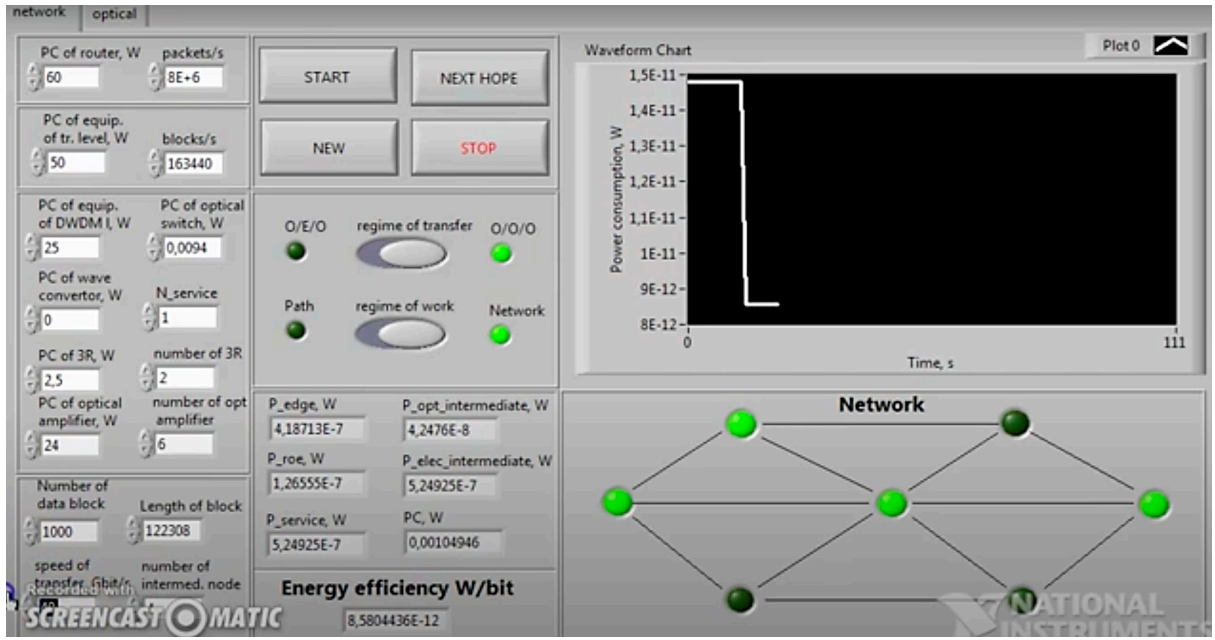

Figure 6). Equipment of link-level consumes a lot of energy even when the switching matrix does not perform any action for CPU, cooling, etc. For 100 Gbps, energy consumption is 7.33·10
−12 w/bit. This means that increasing the speed of transfer can decrease the energy consumption of the link level. All this manipulation is made without using an optoelectronic conversion on the intermediate nodes of the link level.

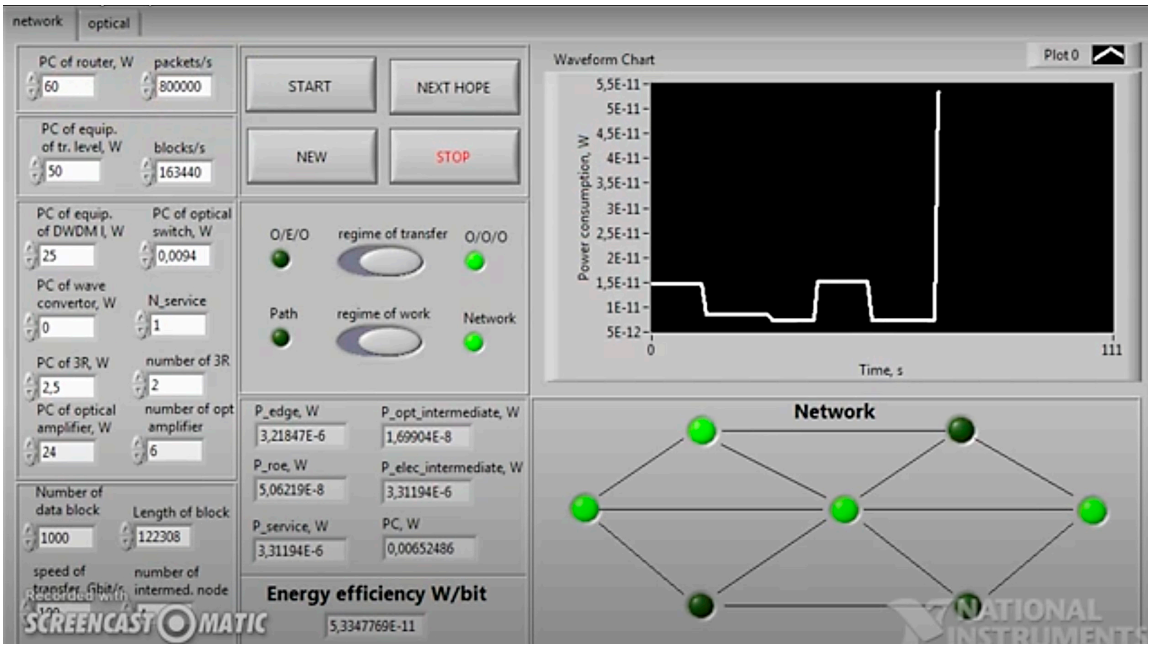

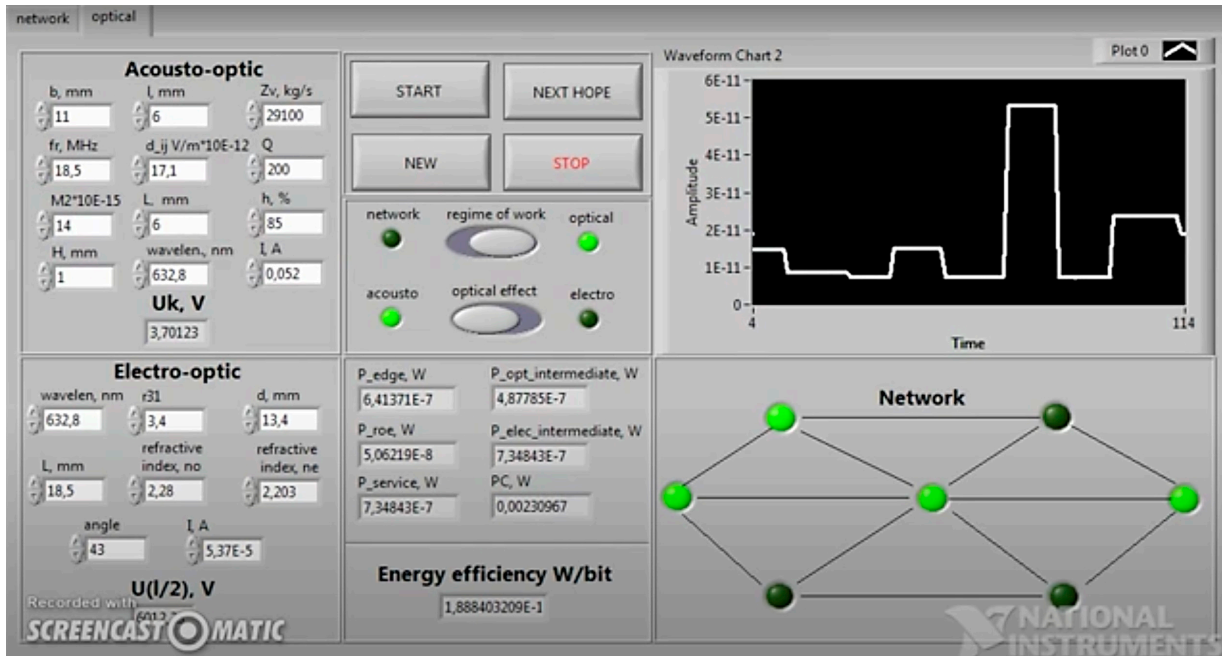

Then, we switch to the mode with opto-electronic conversion on the intermediate nodes of the link level. It increases energy consumption from 7.33·10
−12 w/bit to 15.2·10
−12 w/bit (

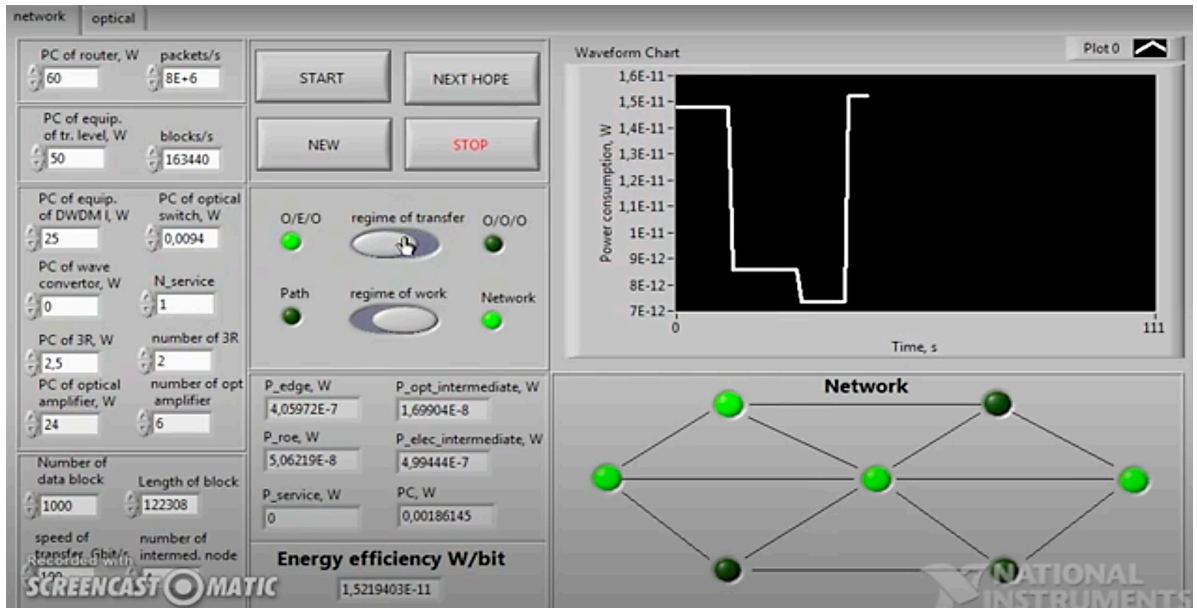

Figure 7). Opto-electronic conversion is almost 90% of energy consumption switches of link level.
Equipment at the network-level consumes the biggest part of the optical transport network. This experiment presents that when we decrease the number of packages from 8,000,000 to 800,000, energy efficiency changes from 15.2·10
−12 w/bit to 53.33·10
−12 w/bit (
Figure 8). Package aggregation is an important part of decreasing the energy consumption of an optical transport network.
We also present the influence of optical parameters of switching matrix all-optical switches. For example, if we use acousto-optic switches and change parameter M
2 from 7·10
−15 to 14·10
−15, there is an energy consumption decrease from 23.6·10
−12 w/bit to 18.8·10
−12 w/bit (
Figure 9). This happens because we need less energy for switching optical flow if we use material where parameter
M2 is bigger.
This is the same when we use electro-optic switches. For example, when we change parameter r31(
rij) from 3.4·10
−12 to 34·10
−12, it means that we use a specific cut of Lithium Niobate crystal which allows us to obtain an electro-optic effect with less energy (

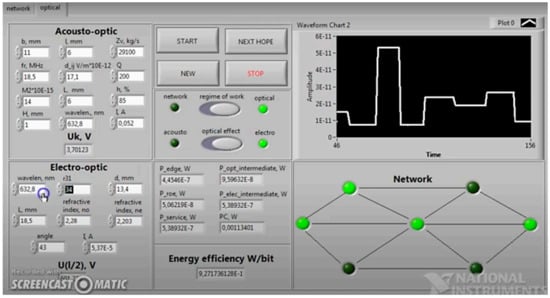

Figure 10).
It is observed that at
rij = 3.4·10
−12 m/V and
M2 = 7·10
−15 s
3/kg, the parameter of energy consumption makes 1,2832 pW, and at
rij = 39.7·10
−12 m/V,
M2 = 15.9·10
−15 s
3/kg found in work [
30], energy consumption parameter is 0.8195 pW. Accordingly, the reduction of the energy consumption parameter is observed by 36.1% for the network as a whole, which is quite a lot for a telecommunications operator.
The software product makes it possible to recreate the network architecture and for it to determine this complex energy consumption parameter on the basis of multi-criteria optimization. Moreover, the software product is suitable for testing scientific research in the direction of reducing the power consumption of transport optical networks. It is shown on the basis of electro-and acousto-optical devices and their corresponding electro-optical coefficient rij and acousto-optical quality parameter M2.
