Article

An Implementation Method for an Inductive Proximity Sensor with an Attenuation Coefficient of 1 †

by
Yuyin Zhao
,
Yu Fang
*,
Jiajun Yang
,
Weixuan Zhang
,
Xiaoxing Ge
,
Songyin Cao
and
Xiaonan Xia
School of Information Engineering, Yangzhou University, Yangzhou 225100, China
*
Author to whom correspondence should be addressed.
†
This paper is an extended version of our paper published in Proceedings of 2020 Chinese Intelligent Systems Conference, Shenzhen, China, 24–26 October 2020; pp. 455–463.
Energies 2020, 13(24), 6482; https://doi.org/10.3390/en13246482
Submission received: 15 October 2020 / Revised: 3 December 2020 / Accepted: 3 December 2020 / Published: 8 December 2020
Browse Figures
Versions Notes

Abstract

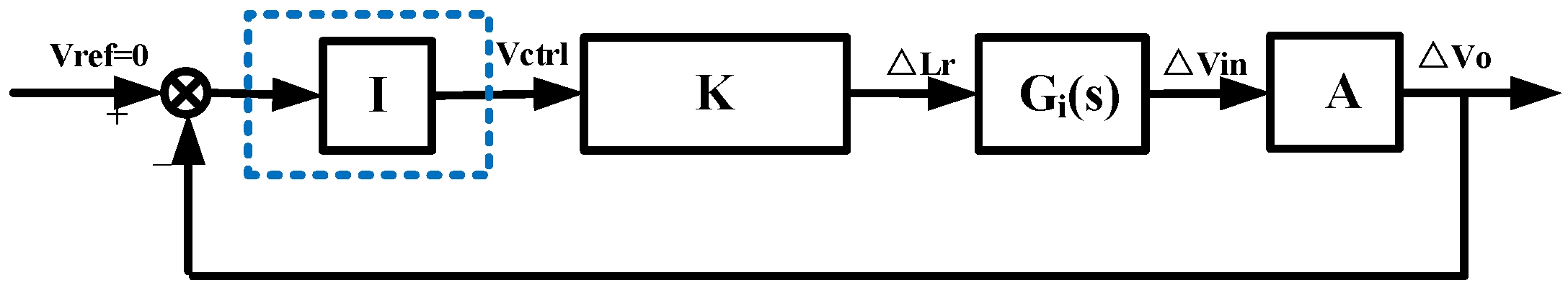

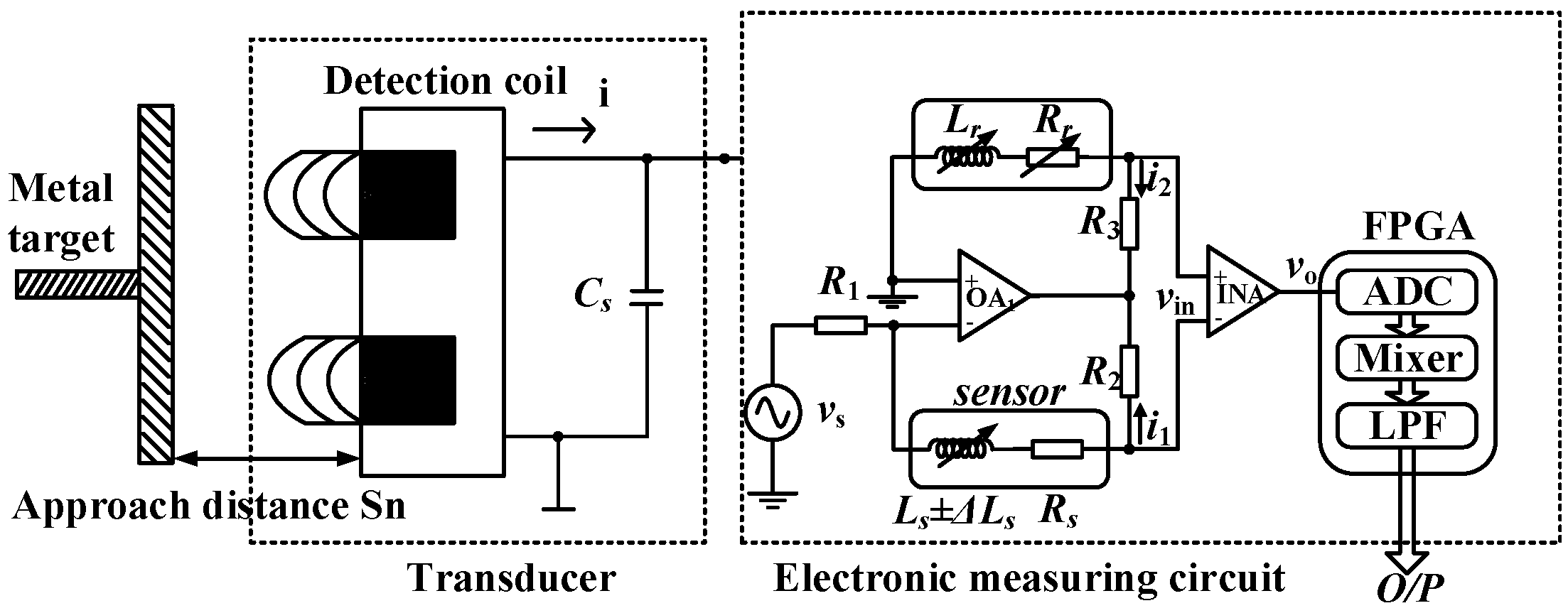

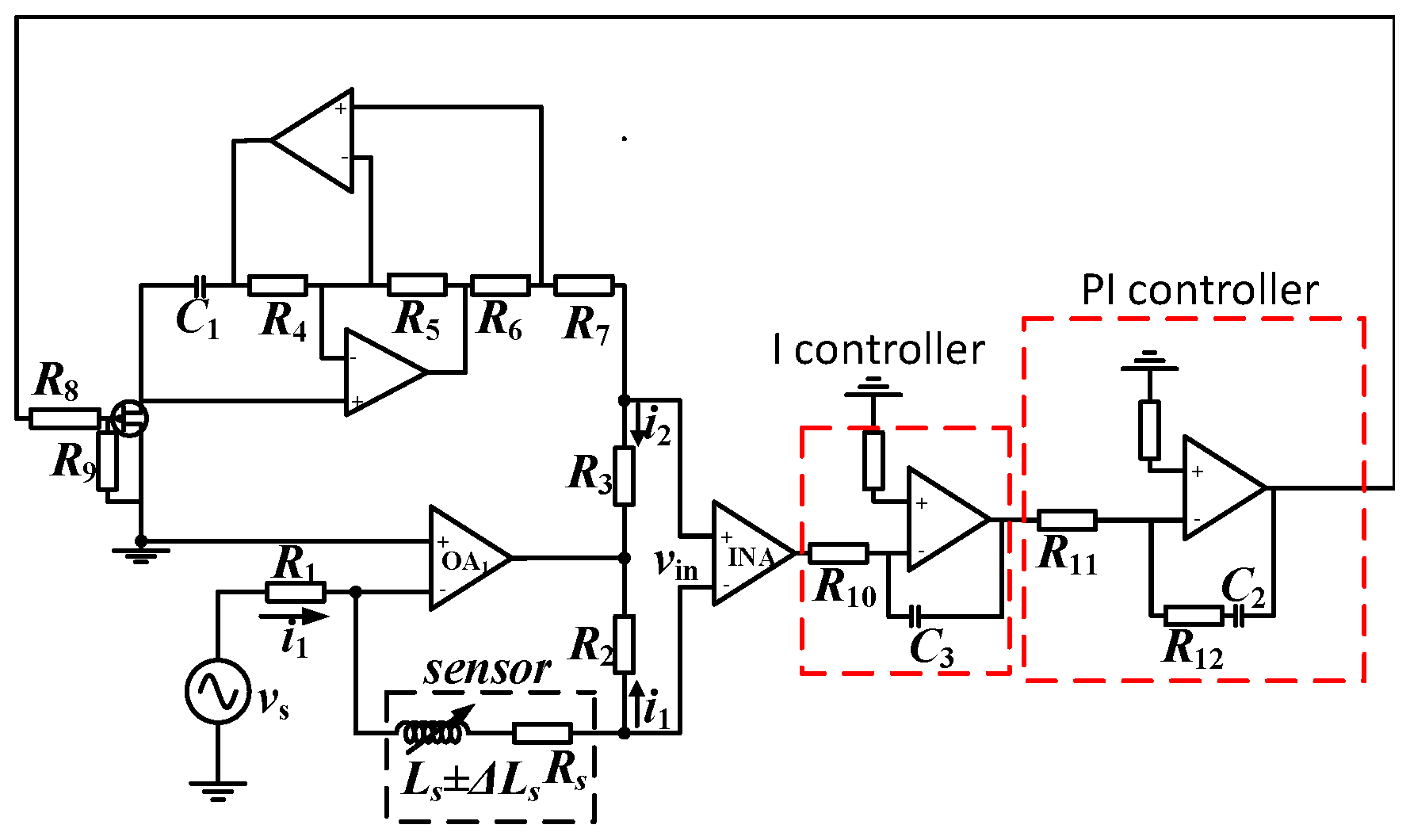

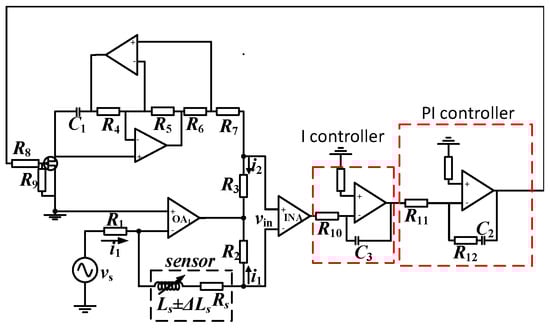

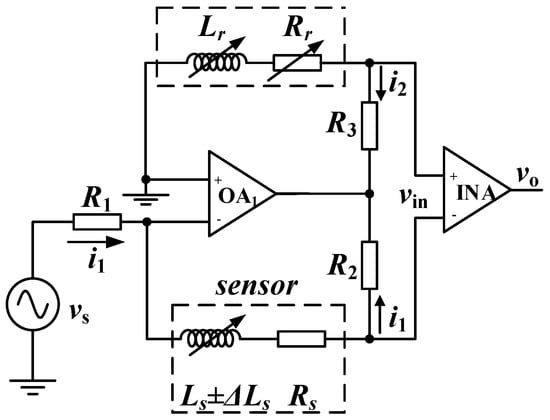

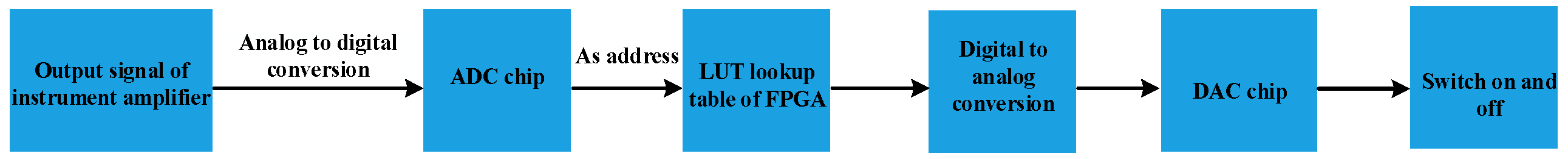

In order to achieve long-distance measurement, a bridge differential inductance detection circuit is employed; on this basis, an automatic zero adjustment technique for sensors using an integral–proportional-integral controller is proposed in this work to achieve consistent product production and efficient installation and debugging, and the mathematical model of the bridge differential inductance detection circuit is established to effectively design the controller parameters. Furthermore, an implementation method for an inductive proximity sensor with an attenuation coefficient of 1 is also proposed based on the bridge differential inductance detection circuit by querying the proximity distance table in the field-programmable gate array (FPGA) to detect multiple target metal objects at the same inductive distance. Simulation and experimental results show that the proposed method is correct and effective.
Keywords: inductive proximity sensor; integral–proportional-integral controller; automatic zero adjustment technique inductive proximity sensor; integral–proportional-integral controller; automatic zero adjustment technique
