1. Introduction
As a two-phase passive device, the thermosyphon has a wide-range of various industrial applications, for instance, electronic equipment [
1], heat-recovery systems [
2], solar water heater systems [
3] and space applications [
4] due to the simple structure, reliability, high efficiency and low cost. The basic concept of heat pipes was first proposed by Gaugler in 1944 [
5]. A thermosyphon is a gravity-assisted heat pipe without wicks that depends on phase-change heat transfer in both the evaporator and condenser sections to transfer large amounts of heat with relatively small temperature difference [
6] and low thermal resistance [
7].

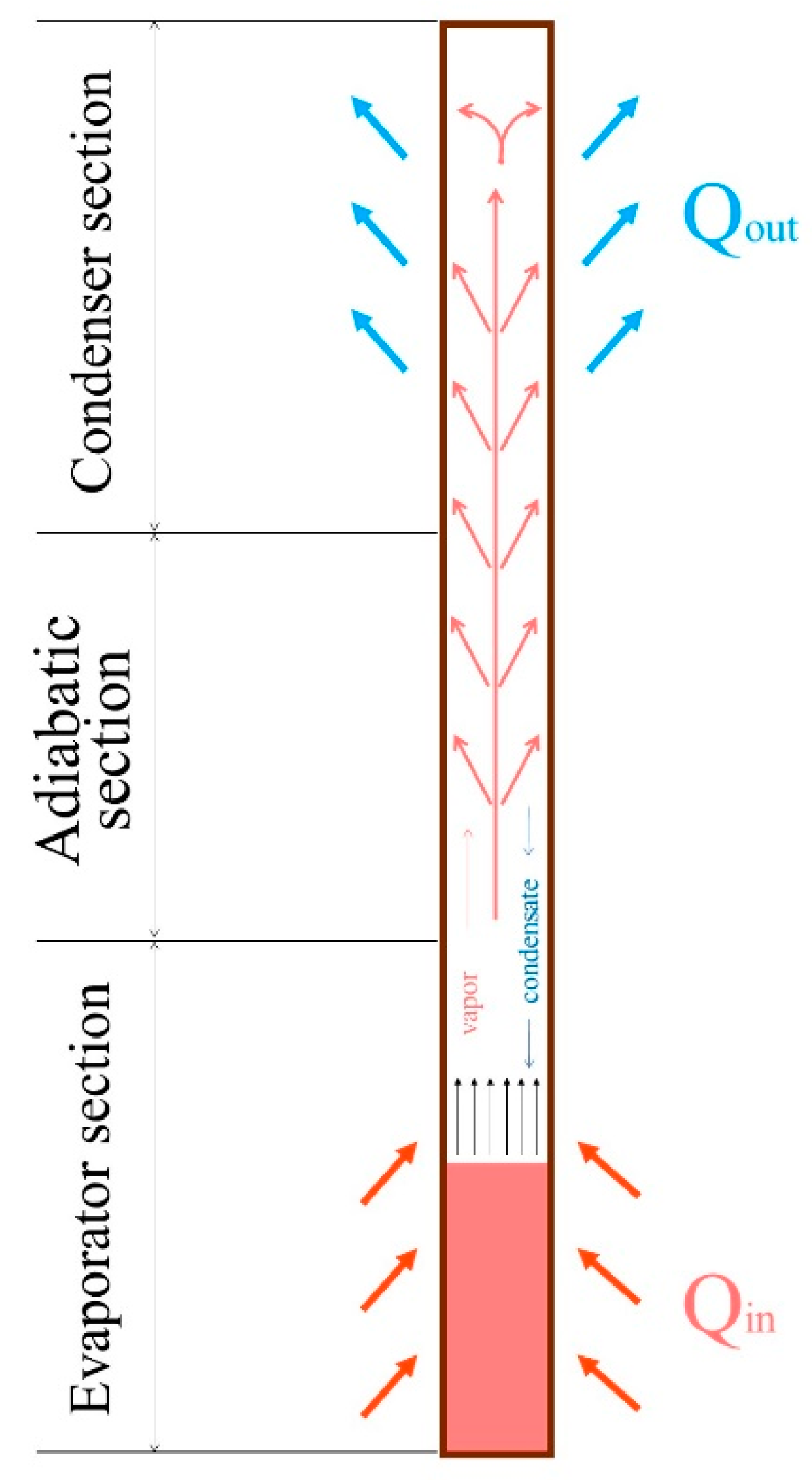

Figure 1 shows the schematic diagram of the cross section and working principle of a two-phase closed thermosyphon (TPCT). A TPCT is composed of evaporator, adiabatic and condenser sections. The operating process begins with a certain volume of working fluid in the evaporator section, which is then heated by a source of heat, such as a heating element or a thermal bath. The heating converts the saturated liquid into vapor that rises to the condenser section. Afterwards, the vapor condenses into liquid, which flows back down to the evaporator section by gravity, in the process transferring heat to the heat sink, such as cold water [
8].
At present, the investigation of thermosyphons mainly includes the analysis of the thermal performance and start-up characteristics. In recent years, the thermal performance of thermosyphons in the aspects of filling ratio and surface modifications have been experimentally studied. Lataoui and Jemni [
10] conducted an experimental study on a stainless steel thermosyphon to assess the influence of filling ratio, input power and the temperature of the cooling fluid on its thermal performance. Alireza Moradikazerouni et al. [
11,
12] investigated the effects of surface modifications on the heat sink, and the results found that different structural shapes on the heat surface have various heat transfer mechanisms. Rahimi et al. [
13] modified the condenser and evaporator of a thermosyphon and compared the heat performance and resistance of a modified thermosyphon at different input powers with a flat thermosyphon. They found that the average thermal performance at tested heat loads was increased by 15.27% and the average thermal resistance of the thermosyphon was decreased by 2.35 times. Singh et al. [
14] investigated the effect of surface modification on the thermal performance in an evaporator and condenser for flat thermosyphons with and without an anodized surface. Solomon et al. [
15] studied the heat performance of thermosyphons with surface modifications at diverse inclination angles and input powers. The surface modifications significantly reduce the wall temperature of the evaporator and increase the heat-transfer coefficient. Solomon et al. [
16] also analyzed the thermal performance of an anodized surface with a porous structure and observed a 15% reduction in the thermal resistance and 15% increase in the heat-transfer coefficient of the evaporator.
Additionally, Noie [
17] investigated the effects of aspect ratio on the thermal performance of a thermosyphon and achieved heat performances of 60%, 90% and 30% for aspect ratios of 11.8, 7.45 and 9.8, respectively. Gedik [
18] reported the influence of various operating conditions, such as heat input, inclination angle and the flow rate of cooling water on the heat-transfer characteristics of a TPCT. Moreover, the method whereby a nanofluid was used as working fluid in a thermosyphon has been theoretically and experimentally studied. Ma et al. [
19] found that the heat-transfer rate of a nanofluid can rise to 3.11 times in an inclined square enclosure which indicates that the nanofluid is a potential choice as working fluid. Besides, the nanoadditives of various shapes on the fluid flow and heat transfer aspects of a nanofluid have different influences [
20]. Hence, the parameters of surface modifications, operating conditions, working fluid and filling ratio have a great effect on the thermal performance of thermosyphons. Similarly, the start-up performance of the thermosyphon will also be affected by these factors.
The reliable operation of thermosyphons requires good start-up performance. The start-up of thermosyphon is a complex, transient process that is affected by several parameters. Sun et al. [
21] studied the effects of filling ratio and heat input levels on the start-up characteristics of micro-oscillating heat pipes and observed two different start-up behaviors, start-up processes with and without bubble nucleation, depending principally on the spatial distribution of slugs/plugs in the micro-oscillating heat pipes. Guo et al. [
22,
23] found that the inclination angle is one of the factors that affect the start-up characteristics of thermosyphon. Then the influence of evaporator length on the start-up performance of a sodium-potassium alloy heat pipe was tested and obtained a uniform temperature distribution by increasing the evaporator section length. The Na-K heat pipe had excellent start-up performance, and the increase of inclination angle raised the temperature of the condenser. Wang et al. [
24] analyzed the influence of inclination angle, heat input and flow rate of cooling water on the start-up properties of a thermosyphon with small diameter. Huang et al. [
25] introduced the non-condensable gas used for regenerative building heating exchangers in a gravity loop thermosyphon and investigated its effect on the start-up time. They found that the non-condensable gas extended the start-up time of the thermosyphon, with a higher level corresponding to a longer time. Joung et al. [
26] observed that a large amount of heat leakage increased the operating temperature and the start-up time of a loop heat pipe. In addition, Singh et al. [
27] studied the start-up characteristics of a loop heat pipe and found that the start-up time increased with decreasing the applied heat load. Ji et al. [
28] designed a loop heat pipe with composite porous wicks, and studied its heat transfer and start-up characteristics. Huang et al. [
29] experimentally and mathematically analyzed the start-up process of a loop heat pipe. They concluded that the start-up process was closely subject to the structural parameters and environment of the loop heat pipe.
Although the thermal performance of a thermosyphon has been well studied from different aspects mentioned above, the start-up characteristics of a thermosyphon have been rarely investigated due to its complex and transient process. The start-up characteristics of a thermosyphon is in an unstable state. How to shorten the start-up time and make the thermosyphon quickly reach a stable state has an important impact on the operation of some equipment. Furthermore, the combination of hydrophilic and hydrophobic properties on the inner surfaces of a thermosyphon is barely investigated. As a high-efficiency heat-transfer device, the start-up characteristics of a thermosyphon is an important index to measure the reliability of the thermosyphon, which must be completed quickly and smoothly. Therefore, it is of great significance to investigate the start-up characteristics of a thermosyphon. In this paper, the effect of wettability properties on the start-up characteristics of TPCTs is fully investigated. Chemical coating and etching techniques are employed to manufacture surface wettability with different contact angles (CAs) at the inner wall of the thermosyphon. The influence of the surface with different CAs on the start-up time and wall superheat degrees of the evaporator section under different input power was compared and analyzed.
3. Results

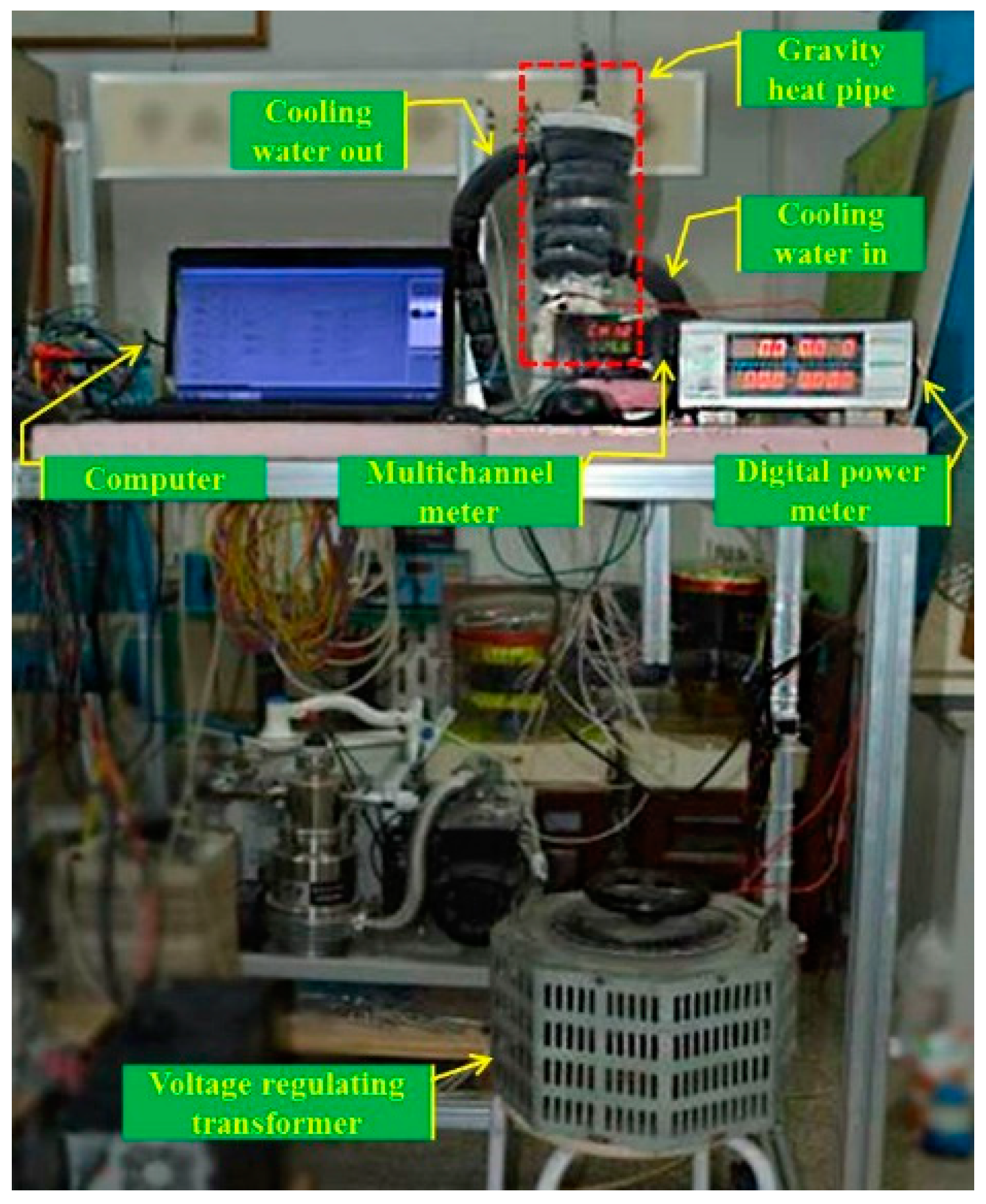

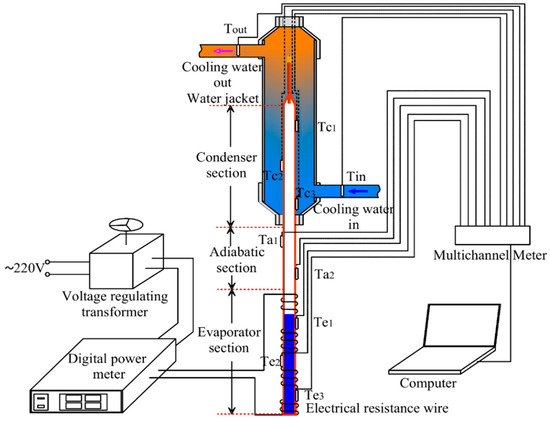

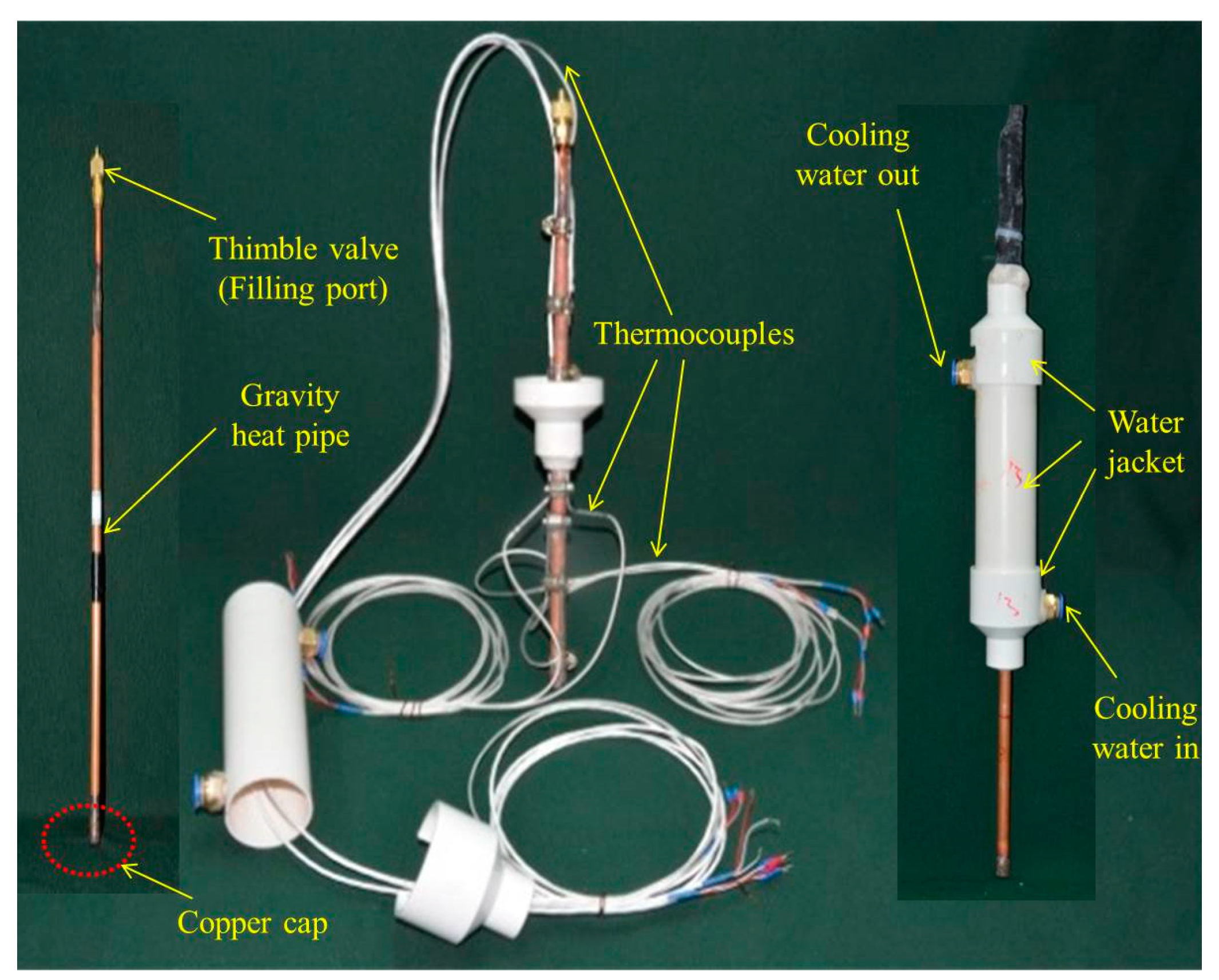

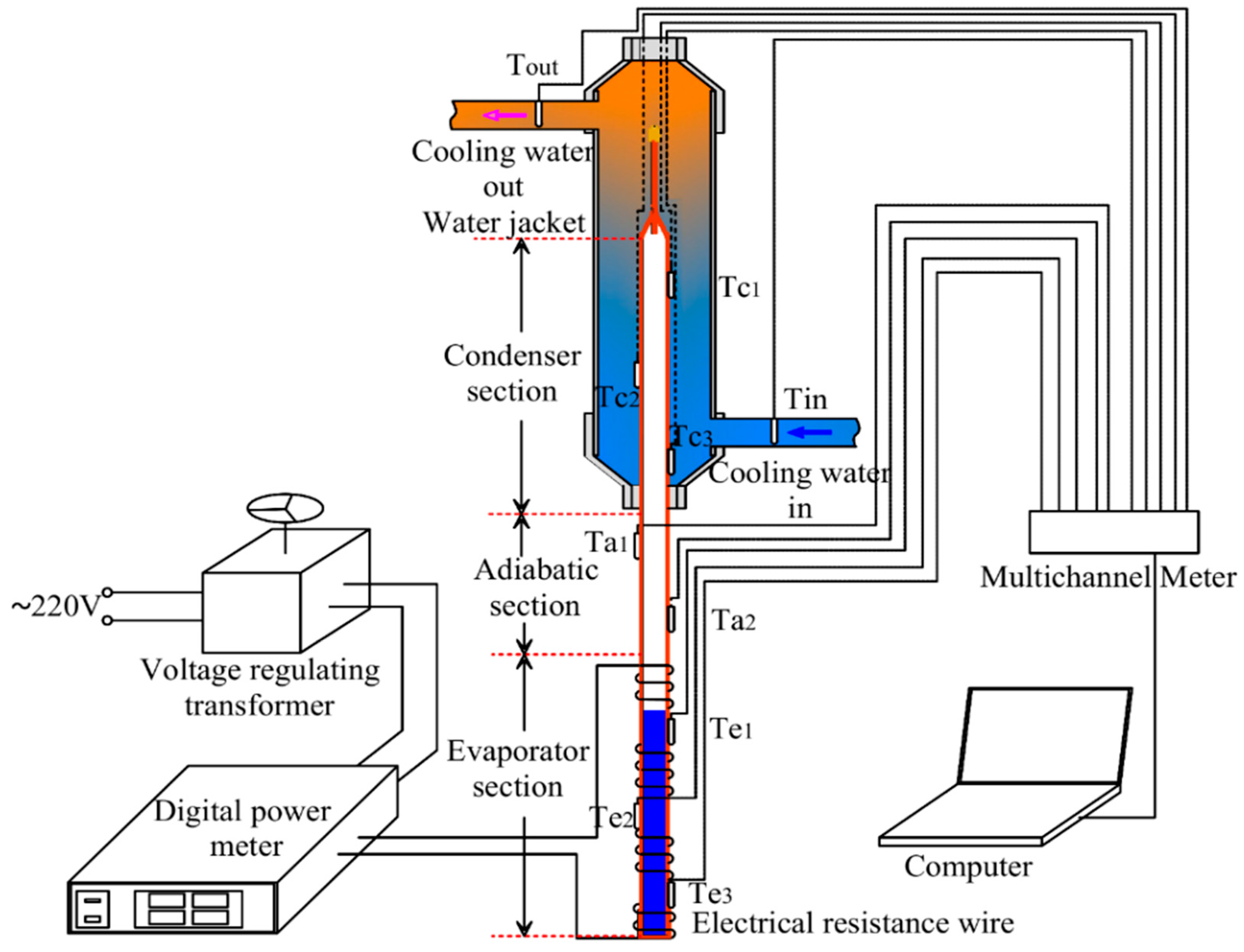

The start-up performance is a crucial indicator of the thermosyphon operation. To enhance the overall performance of the thermosyphon, the start-up process in which the evaporator is heated to a steady state must be completed quickly and stably. In order to evaluate the influence of wettability on the start-up performance of the thermosyphon, the start-up times and two typical temperatures, i.e., the average temperatures of evaporator (average of points Te1-Te3) and condenser (average of points Tc1-Tc3), are selected and measured by thermocouples. In addition, all data are recorded every 5s through a multichannel meter and saved in the computer through Monitor and Control Generated System (MCGS) software.

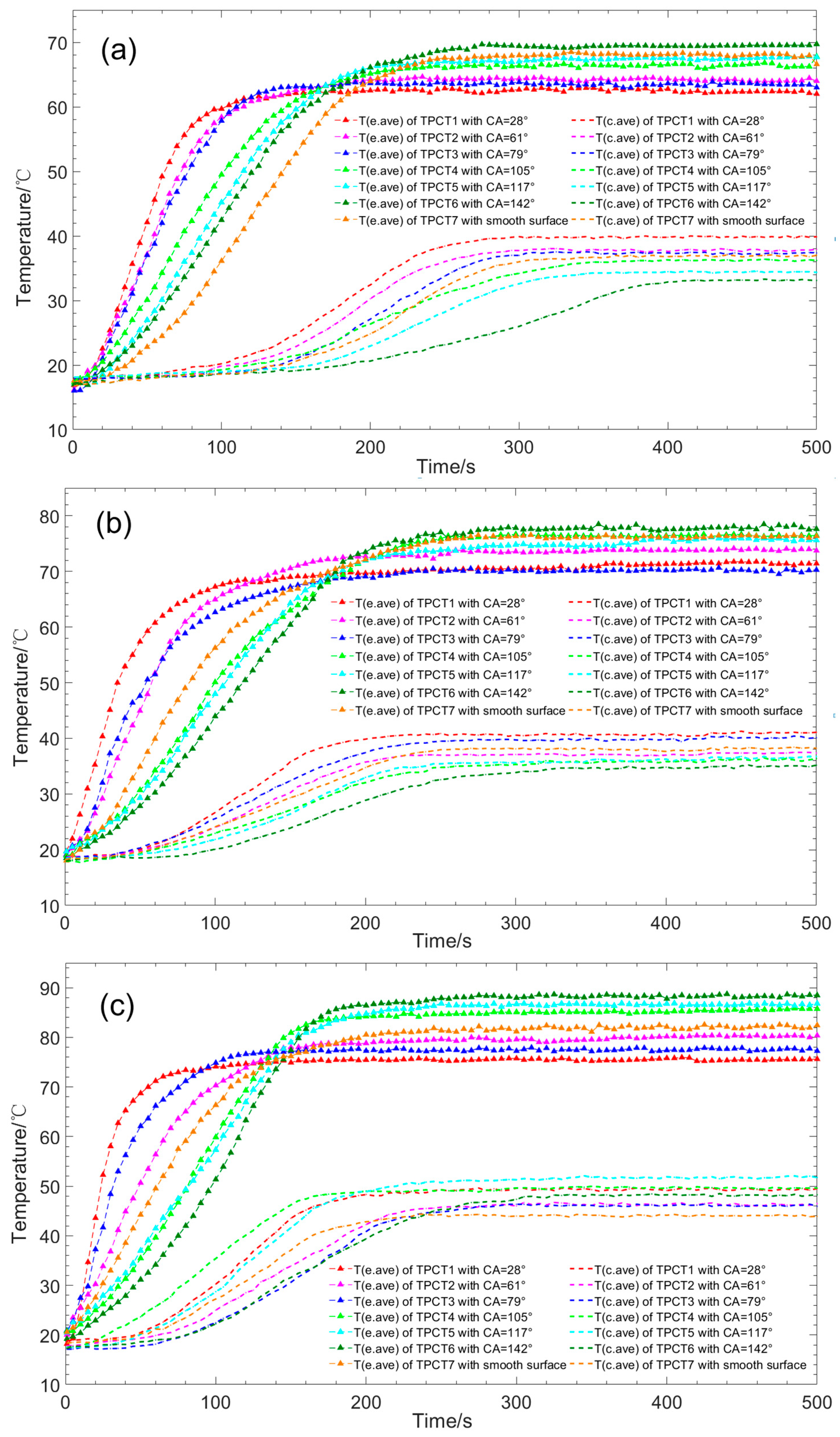

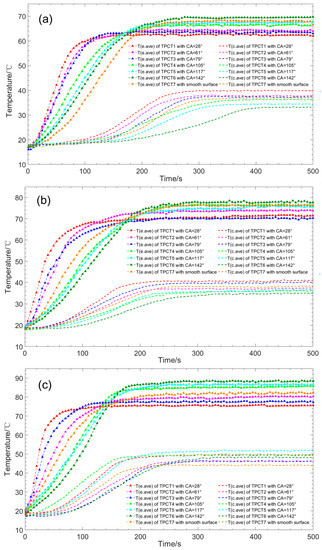

Figure 6 shows the start-up processes of thermosyphons from TPCT1 to TPCT7 at different input powers: 40 W, 60 W and 80 W. It can be seen from the figure that
and
increase first and then maintain two different stable conditions, and all thermosyphons had a successful start-up. After the heat input power is imposed,
rapidly increases with extended heating process before the start-up is completed, implying that the working fluid is heated at the initial moment, then boiled and evaporated, after which the vapor reaches the condenser section and releases the latent heat. However,
does not rise at the early stage and the increase in the temperature on the condenser section is slower in the start-up process due to the heat-transfer delay. As
rises, the process whereby the working fluid is boiled into steam is accelerated by increasing the input power. For example, at the input powers of 40 W, 60 W and 80 W, the
values of TPCT1–TPCT7 increase sharply at 125 s, 70 s and 45 s, respectively. The generated vapor from the evaporator section is not condensed in the condenser section due to the heat is not taken away rapidly by the external environment and that is why the temperature of the condenser keeps increasing continuously. Once the working fluid cycle is completed, the system enters a steady state.

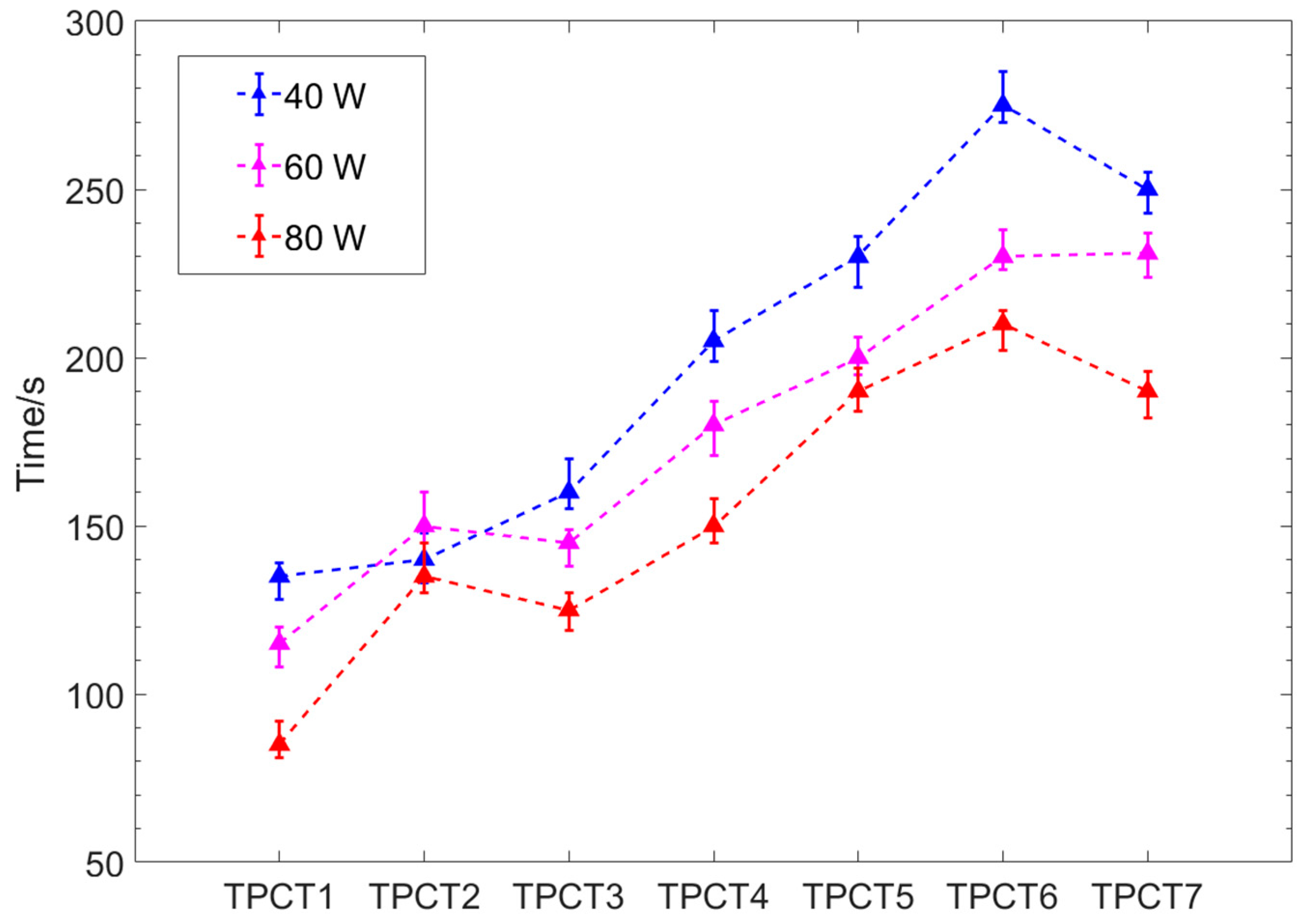

Figure 7 shows the start-up time taken by the average evaporator temperatures of TPCT1–TPCT7 to stabilize at different input powers with different CAs on the evaporator sections. At the same input power, the TPCT with hydrophobic properties need longer start-up time than those with hydrophilic properties do at different input powers. The start-up times of the evaporator sections of TPCT4–TPCT6 with hydrophobic properties are all longer than those of TPCT1-TPCT3 with hydrophilic properties at 40 W, 60 W and 80 W. The bubbles on both hydrophilic and hydrophobic surfaces go through the entire process of bubble formation, growth, coalescence and separation which reflects the complete cycle inside the thermosyphons. The hydrophilic surface has a more complex microstructure than the hydrophobic surface as shown in
Figure 5. The smaller bubble diameters are generated on the hydrophilic surface due to the rapid replenishment of fresh liquid backflow on the hydrophilic surface being faster than that of the hydrophobic surface, which further promotes the heat transfer of the thermosyphon. In contrast, the bubbles produced by the hydrophobic surface could form the gas film with the other bubbles before leaving the hydrophobic surface. Thus, the evaporator with the hydrophobic surface takes longer to start up.
The TPCT1 responds more quickly than TPCT2–TPCT7 do when the thermosyphons enter the steady state at different input powers. Thus, TPCT1 has the best start-up for thermosyphons with the same wettabilities on the evaporator and the condenser sections among TPCT1–TPCT6, while the start-up time of TPCT1 at 40 W, 60 W and 80 W is 46%, 50% and 55% faster than that of TPCT7 (smooth surface). The reason is that the hydrophilic surfaces have more compact structures with stronger tension forces between pore and water, which is conducive to a smaller bubble diameter speeding up the departure frequency of the bubbles [
32] and promotes the heat transfer of nucleate pool boiling. Conversely, the bubbles join together to form an air blanket in a very limited time before fleeing the hydrophobic surface [
33,

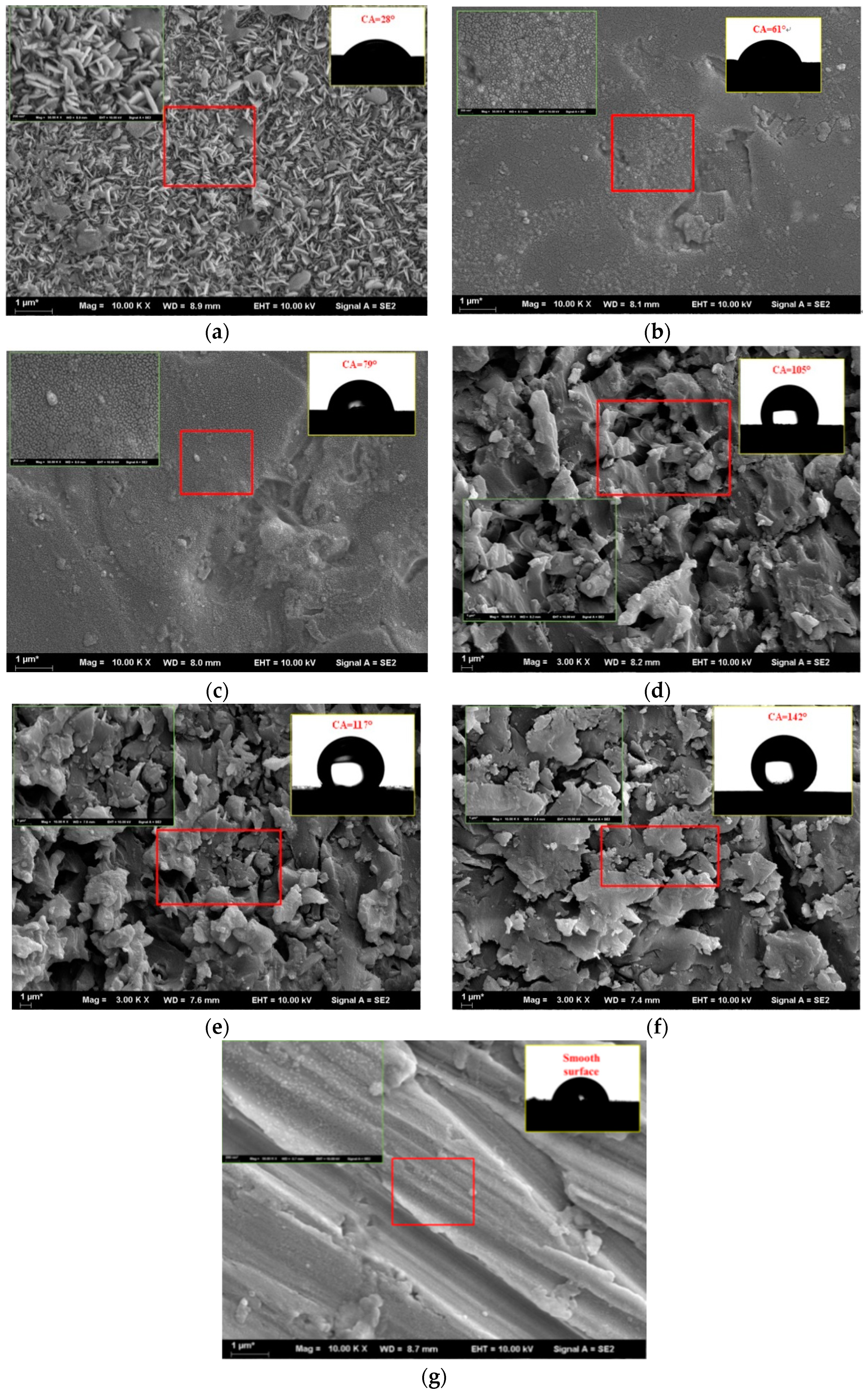

34]. The SEM images with different CAs presented in
Figure 5 indicate that the pore diameter enlarges with increasing CA. Moreover, the relationship between the CA and the pore diameter is the same as the previous research result [
35]. The short knife-like nanostructure coated on the surface with CA of 28° (
Figure 5a) increase the heat-transfer area of phase transition and nucleation sites. Meanwhile, the nanostructure above enhances the hydrophilicity characteristics and improved the heat transfer of pool boiling [
36], producing smaller bubbles. In consequence, the process of the heat transfer of pool boiling is significantly disturbed prompting more vapor to reach the condenser section to release more latent heat. Thus, the start-up performance of the thermosyphon is enhanced.
Generally, the start-up time is prolonged as the CA on the evaporator sections of TPCT1–TPCT6 increase at the same input power. The time of TPCT2 is shorter than that of TPCT3 at the input power of 40 W. However, the time of TPCT2 takes longer at the input powers of 60 W and 80 W. One of the reasons is that the accuracy of CA can affect the experimental results. The CA is the average value that may slightly change in the process of heat transfer. The calculation results show that the CA error of samples is within 4.2%, causing the start-up time of TPCT3 to be shorter than that of TPCT2. In addition, both the wettability’s and the roughness of the thermosyphon surface are different, which could lead to different processes of bubble generation, growth and departure. It can be observed from
Figure 5b,c that the surface structure is similar, but the grooves and gaps where it is easy to generate nucleation sites density on the surface of TPCT3 are lower than TPCT2. Therefore, the sub-cooled water in the thermosyphon is in full contact with the surface of TPCT3. There are more nucleation sites on the surface of TPCT2, resulting in more bubbles. Adjacent bubbles tend to merge and form large bubbles, which are trapped on the surface of the evaporator section. Thus, the start-up speed of TPCT2 is slower. At low heat flux, the bubble number is less and could not lead to merging of a large number of bubbles. At high heat flux, the surface of TPCT2 has more bubbles that makes merging easier for bubbles. The bubble departure diameter increases and the bubble departure frequencies decrease, so the start-up time of TPCT3 is less than that of TPCT2 at the input power of 60 W and 80 W.

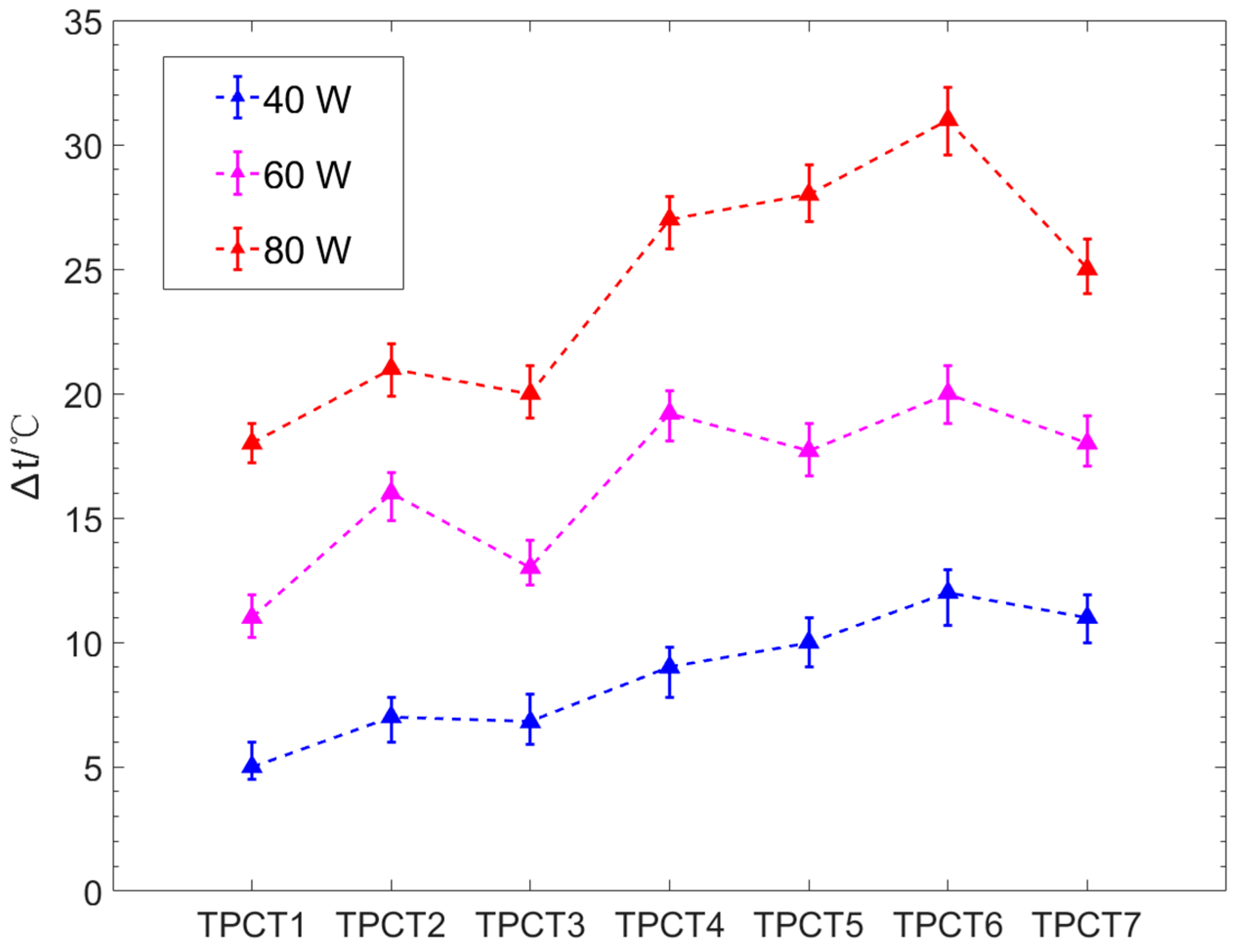

Figure 8 shows the plots of TPCTs with various wettabilities on evaporator sections versus the wall superheat degree at 40 W, 60 W and 80 W. The thermosyphons with hydrophilic surfaces (CA
) have not only a short start-up time, but also a low wall superheat degree. The wall superheat degree (
,
: wall temperature,
: saturated temperature) of evaporator sections for thermosyphons is an important factor to quantify the characteristics of thermosyphons. Since the heat exchange mechanism of the evaporator section is pool boiling heat transfer, the most important parameter to evaluate the heat-transfer characteristics of pool boiling is the wall superheat degree. The lower wall superheat degree at the same heat power means higher heat-exchange efficiency. As a result, the wall superheat degrees
of evaporator sections for TPCT1–TPCT7 were compared. The saturated pressure of each thermosyphon is 0.017212
, and the corresponding saturated temperature is about 57 °C. The TPCT1 not only significantly reduces the start-up time, but also decreases the evaporator wall superheat degrees
compared with those of other TPCTs at the same input power. The wall superheat degrees
of TPCT1 at 40 W, 60 W and 80 W are 55%, 39% and 28% lower than that of TPCT7. Similarly, it has previously been reported that the modified surfaces with different CAs influence the pool boiling in the thermosyphon [
37]. In the process of boiling heat transfer, the surfaces with hydrophobic properties produce a large bubble at low heat flux [
38]. There are larger and deeper pores on the hydrophobic surfaces (
Figure 5d–f) than those on the hydrophilic surfaces (
Figure 5a–c). Thus, some air and gas film exist, which increase the thermal resistance and inhibit the heat transfer. Besides, the hydrophobic surface is close to the gas and then the bubble is easy to polymerize into a gas film, which prevents the liquid from replenishing to the heating wall. Therefore, the heat transfer is impeded and the boiling heat transfer performance begins to deteriorate. As a result, the superheat degrees of hydrophobic surfaces (CAs: 105°, 117° and 142°) surpass those of hydrophilic surfaces (CAs: 28°, 61°and 79°) and a smooth surface.
Furthermore,
Figure 8 demonstrates that the wall superheat degree
gradually increases with rising CA under the same power. As the input power increased,
of the hydrophobic evaporator section rises more evidently than that of the hydrophilic evaporator section. For example, the wall superheat degree of TCPT1 increases 13 °C from the input power of 40 W to 80 W while TCPT6 increases 19 °C. Since the hydrophobic surface produces more gas film as the power increases, the resulting large bubbles limit the heat transfer to the working fluid [
39]. Thus, the superheat degree is augmented for hydrophobic surface. In contrast, the bubbles on the hydrophilic surface are smaller and quickly departs from the heating surface. Once the bubble departed, the surrounding working fluid quickly fills the remaining area and prevents the formation of large gas films with high thermal resistance. However,
of the evaporator of TPCT2 is higher than that of the evaporator of TPCT3 which is consistent with the start-up time due to the inhomogeneous structures as shown in
Figure 5b,c. This gives a higher wall superheat degree to the evaporator of TPCT2 than that of the evaporator of TPCT3.

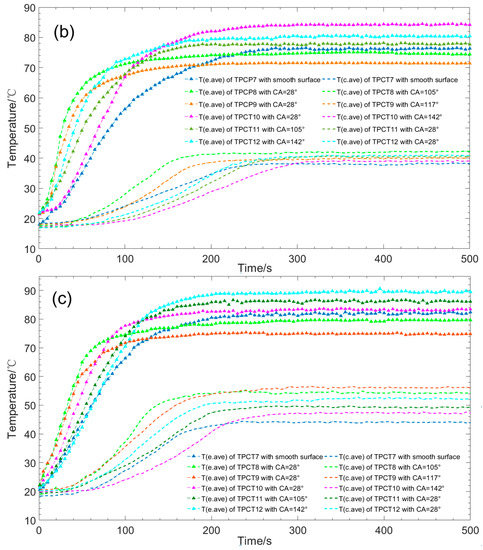

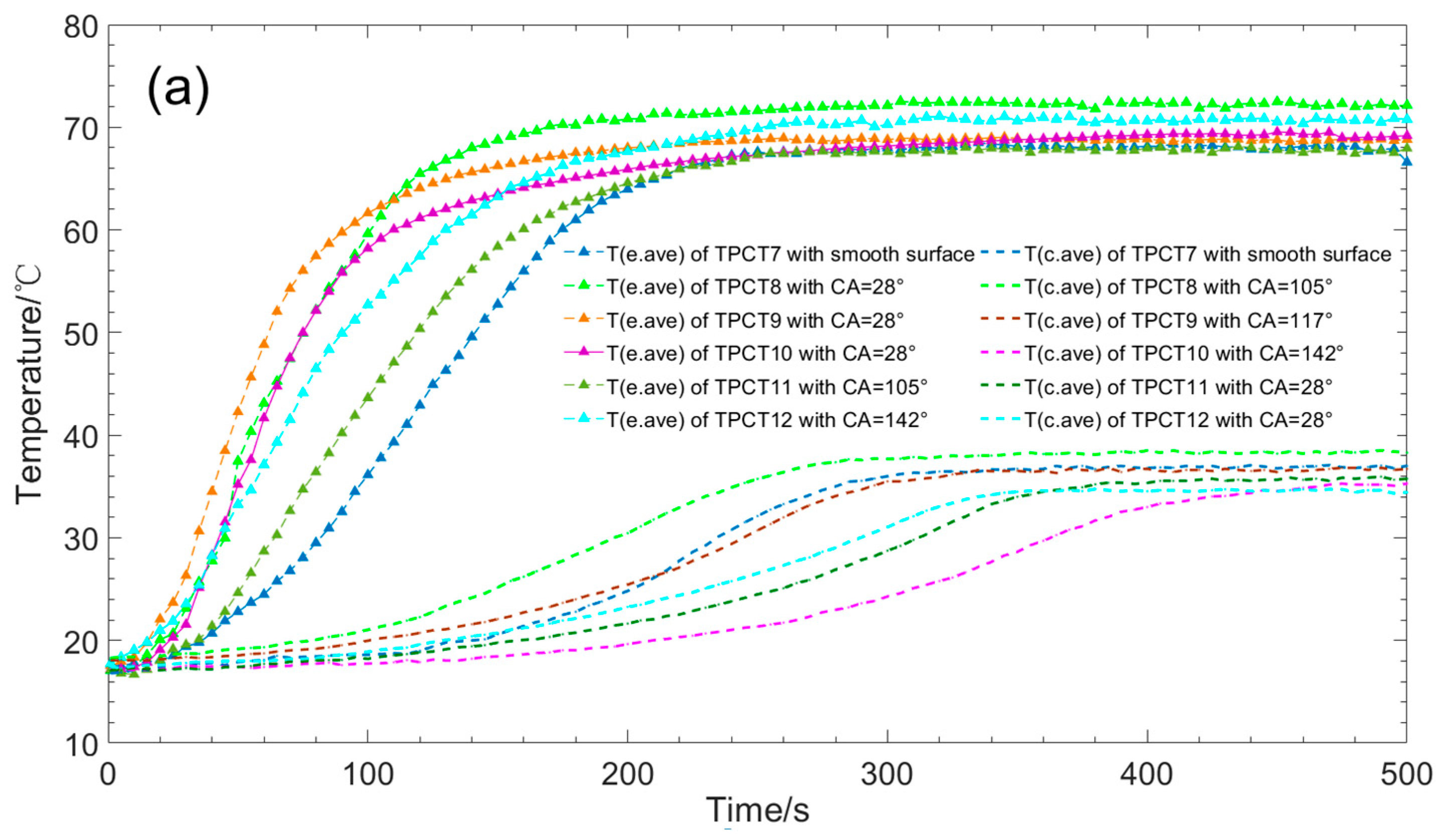

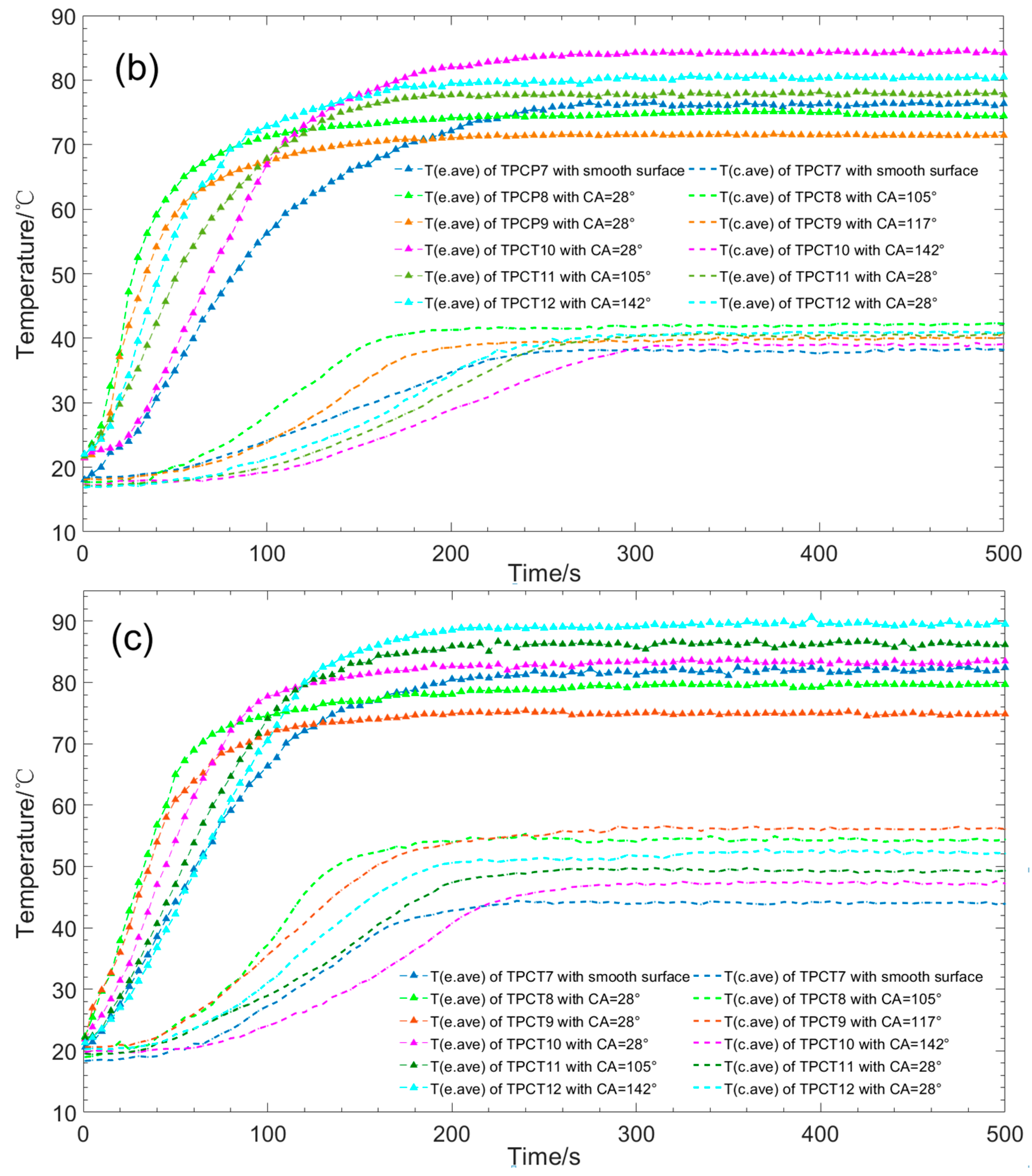

Figure 9 illustrates the start-up processes of TPCT7-TPCT12 modified with a combination of hydrophilic and hydrophobic properties at the input powers of 40 W, 60 W and 80 W. For TPCT8, TPCT9 and TPCT10 with hydrophilic inner surfaces on the evaporator sections, the start-up time is shorter than that of TPCT11 and TPCT12 with hydrophobic inner surfaces, which is consistent with the above discussion. With rising CA for TPCT7–TPCT9 on condenser sections, the start-up process on the evaporator section of TPCT8 is faster than those of TPCT9 and TPCT10. For TPCT8, the difference between the start-up time of the evaporator and the time reaching the stable state of the condenser is gradually decreased from 200 s to 150 s with the increase from 40 W to 80 W, which enhances the evaporator-condenser phenomenon induced by combined hydrophilic and hydrophilic properties. The addition of a hydrophilic surface to the surface of the evaporator section can quickly induce the sub-cooled water after the formation of bubbles, which can quickly take away the heat of the surface of the evaporator section. Thus, the stable temperature reduces. The addition of a hydrophobic surface on the surface of the condenser section rapidly reduces the water droplets in the condenser section, which indirectly speeds up the recycle of working fluid inside the thermosyphon. As the input power increased, TPCT8 and TPCT9 both have almost the same start-up times of 180 s and 200 s at input power of 60 W and 80 W, respectively. However, TPCT8 has a higher average temperature of 2 °C on the evaporator than that of TPCT9. Furthermore, the average temperature on the condenser section of TPCT9 (CA: 117°) gradually approaches that on the condenser section of TPCT8 (CA: 105 °C) with increasing input power at an average temperature of 54 °C.
For TPCT11 and TPCT12 with hydrophilic inner surfaces on the condenser sections (both with CA 28°), the condenser sections require shorter times to stabilize than that of TPCT7 with a smooth surface with increasing input power. Although the evaporator sections are hydrophobically modified, the steam still sufficiently releases heat on the inner surface of hydrophilically modified condenser sections, and the condensate fully contacts with the hydrophilic surface to release latent and sensible heats. Furthermore, it is found that the temperature difference between the evaporator (CA: 28°) and condenser (CA: 105 °C) of TPCT8 gradually decreases with increase in the input power, thus surpassing those of TPCT9–TPCT12 concerning isothermal properties. As a result, TPCT8 has the best start-up characteristics among TPCT8–TPCT12 under the same input power. It is postulated that the interaction between the liquid drops and the wall is attenuated with an increase in the CA, and the condensate falls down more easily as smaller drops and fast reflux to the evaporator section, which may suppress the release of latent and sensible heats in the condenser.
