Production and Characterization of Biodiesel Derived from a Novel Source Koelreuteria paniculata Seed Oil

Abstract

Biodiesel is a clean and renewable fuel, which is considered as the best alternative to diesel fuel, but the feedstock contributes more than 70% of the cost. The most important constituent essential for biodiesel development is to explore cheap feedstock with high oil content. In this work, we found novel non-edible plant seeds of Koelreuteria paniculata (KP) with high oil contents of 28–30 wt.% and low free fatty acid contents (0.91%), which can serve as a promising feedstock for biodiesel production. KP seed oil can convert into biodiesel/fatty acid methyl esters (FAMEs) by base-catalyzed transesterification with the highest biodiesel production of 95.2% after an optimization process. We obtained the optimal transesterification conditions, i.e., oil/methanol ratio (6:1), catalyst concentration (0.32), reaction temperature (65 °C), stirring rate (700 rpm), and reaction time (80 min). The physico-chemical properties and composition of the FAME were investigated and compared with mineral diesel. The synthesized esters were confirmed and characterized by the application of NMR (¹H and ¹³C), FTIR, and GC-MS. The biofuel produced from KP seed oil satisfies the conditions verbalized by ASTM D6751 and EN14214 standards. Accordingly, KP source oil can be presented as a novel raw material for biofuel fabrication.

1. Introduction

With the rising demand for energy, attention has been focused on alternate renewable fuel resources besides fossil fuels [1]. The research impetus of renewable fuel resources is on reduced net CO₂ emission, thus controlling air, soil, and water pollution, and ultimately minimizing the well-being threat [2,3,4]. Biomass is the plant material derived from the reaction between CO₂ in the air, water, and sunlight, via photosynthesis to produce carbohydrates that convert solar energy to chemical energy. About 170 billion tons of biomass produces every year on earth [5]. Biomass has always been a major source of energy for mankind; more than 90% of the living energy of about 2.5 billion people in the world is biomass energy. Biomass energy has the advantages of easy combustion, less pollution, and lower ash content, it has been the main source of human energy. The currently accounts for an estimated 10%–14% of the world’s energy supply and more than 60% in underdeveloped regions, more than 90% of the living energy of about 2.5 billion people in the world is biomass energy [6,7,8]. However, the biomass energies are low calorific value and thermal efficiency, large volume, not easy to transport, and the thermal efficiency of direct combustion biomass is as low as 10% to 15%. To increase the utilization of energy and make it more valuable, biomass energy can be converted into liquid and gaseous fuels as biodiesel through chemical routes [9,10,11]. The biodiesel fuels are oil esters [9] which have been an auspicious substitute source to fossil fuels because it is biodegradability, renewable nature, low emission lethal and good storing and transportation properties [2,12]. In recent years, the exploration and development of valuable energy plant seeds as high-efficiency biodiesel sources have become a research hotspot [13].

Currently, more than 95% of biodiesel is produced from edible oils, which seriously comprising deforestation and damage to wildlife [14] and reducing essential oil resources for the growing human population. Even though edible oils give enormous biodiesel production and easily transesterified because of their less free fatty acid contents [12,15,16]. However, they are reducing essential oil resources for the growing human population in many countries and regions; the use of edible oils for biodiesel production will direct competition with food uses [17]. The high cost of the raw material of biodiesel is the major barrier for its commercialization [18]. To control this situation, it is important to explore non-edible oil resources, which can be proved as cost-effective as well as resolving the food concerns [19]. In addition, the production of non-edible oils does not require ideal conditions [13]. Even non-fertile land, uncultivated land, road/field boundaries, disgraced forests, and irrigation canals can be used to produce non-edible oil crops [20]. Considering cost effectiveness, non-edible oil raw materials have been used in the production of biodiesel in various studies, including Croton megalocarpus [21], Prunus dulcis [22], Prunus sibirica [18], Rhazya stricta Decne [23], rubber seed oil [24], Silybum marianum L. [25], wild Brassica Juncea L. [26], etc. However, the challenge remains to produce high-quality biodiesel from cheap and available non-edible sources [27].

Koelreuteria paniculata (KP) belongs to the family Sapindaceae is a novel non-edible seed oil source that can be explored for biodiesel production. KP is rarely attacked by pests and grows in a wide range of soils, including high pH soils. The inflorescences are very remarkable and contain ellipsoid pods, which can produce huge amounts of seeds. A single average plant produces 15–20 kg seeds annually. Four to five hundred of KP trees can be planted per hectare area. Approximately one-hectare area will produce 115,000 kg seeds, the productivity of oil is about 30,000 kg per hectare area. KP species are originally from China, Japan, and Korea. It’s been used as an ornamental plant and has no further uses. The KP tree is considered invasive in several areas due to the prolific seed production and bazillions of offspring. Due to all such characteristics, it is best suits to grown in waste and barren lands and use its seeds for alternative energy, which have 28%–30% oil contents (detailed descriptions are present in Supplementary Materials). However, to the best of our knowledge, the investigating KP seeds is a potential novel source of biodiesel.

In this work, we explored the efficacy of KP for the production and assessment of seed oil as biodiesels through a small budget and easy technique base-catalyzed transesterification method. The important parameters and their effects on the production and the fatty acid methyl ester (FAMEs) contents were optimized, comprising the oil to methanol molar ratio, KOH conc., temperature, time, and stirring intensity. The ester conversion and fatty acid composition were confirmed by Fourier transform infrared spectroscopy (FTIR), nuclear magnetic resonance (NMR) and gas chromatography-mass spectrometry (GC-MS). Its physical and chemical properties (density, kinematic viscosity, cloud point, cloud point, flash point, ignition point, etc.) were studied and compared with ASTM D6751 and EN14214. ICP-OES (inductively coupled plasma atomic emission spectrometry) and elements analyzer (EA) were used for elemental analysis, and the results showed that biodiesel was environmentally friendly.

2. Materials and Methods

2.1. Materials

Koelreuteria paniculata seeds used in the current research work were collected from the wild field in Binhai new area near Nankai University’s new campus Tianjin, China, during months in November 2018. To remove the foreign matter, such as dirt, dust, chaff, and stones, as well as broken and immature seeds; the seeds were clean manually. As per instruction to control its original form and quality before any conditioning sealed in plastic bags at an ambient temperature of 25 ± 3 °C.

2.2. Chemicals

Methanol 99–100%, ethanol 99.8%, ethanol 99%–100%, hydrochloric acid 37%, n-hexane 96% (Sinopharm Chemical Reagent Co., Ltd., Shanghai, China), cyclohexane (Macklin), ≥99.9%, chloroform-d (Fluorochem, Hadfield, UK), acetonitrile, petroleum ether, phenolphthalein pH 8.2–9.8 (Sigma Aldrich, St. Louis, MO, USA), sodium hydroxide pellets ≥98%, potassium hydroxide pellets 99.99%, starch, acetone (99%), sodium thiosulphate (99.0%), sulphuric acid 98%, (Aladdin, Shanghai, China), isopropanol, and bromine were obtained from Merck, Darmstadt, Germany.

2.3. Preparation of Feedstock’s/Soxhlet Extraction

Solvent extraction is the process in which the oil is removed from seed through a liquid solvent, known as leaching. The KP were dried at 45 °C for 22 h after washing with deionized water to remove the dust (to completely finish the moisture), then ground with electrical grinder machine (XIANTAOPAI XTP-10000A, China). The oil was extracted by petroleum ether in a Soxhlet apparatus for 8 h [28], and the solvent was distilled under vacuum by a rotary evaporator (TOKYO RIKAKIKAI Co. Ltd., Tokyo, Japan, N-1210B). To remove the remaining moisture the obtained oil was dried with anhydrous sodium sulfate; then, for supplementary calculation and consumption, the obtained oil was filtered and put in a wrapped container at 5 °C.

2.4. Experimental Procedure of Transesterification

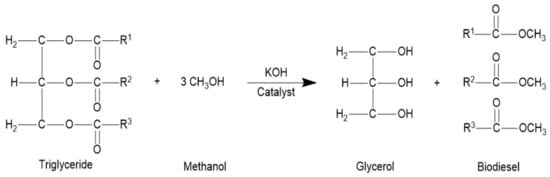

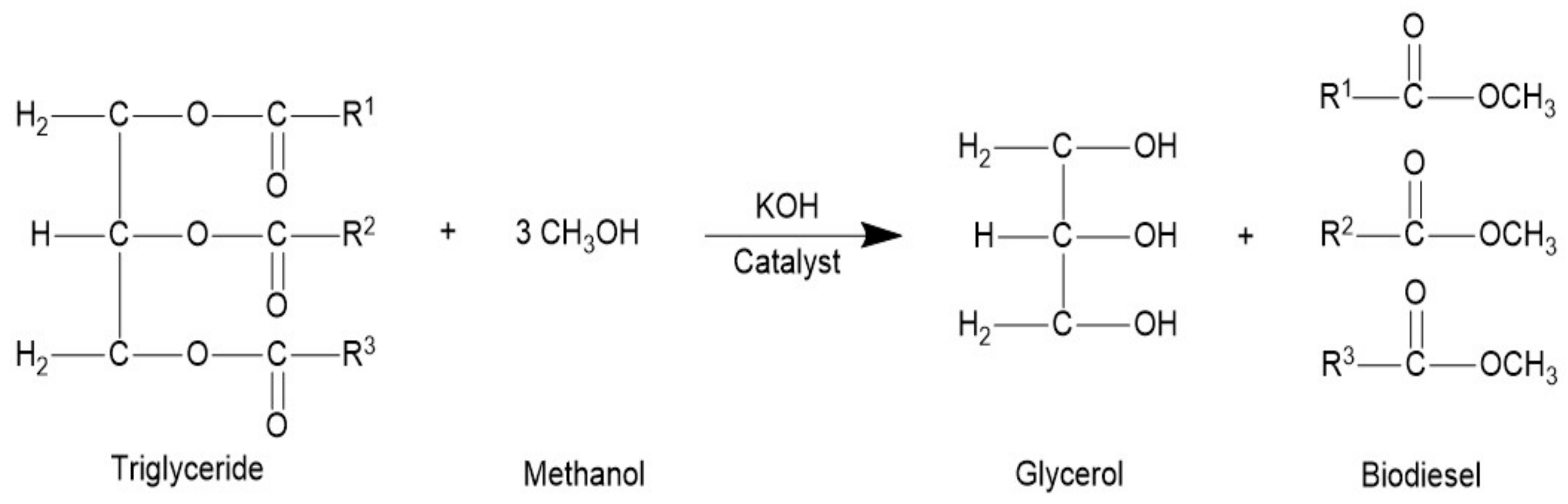

The transesterification (Figure 1) was done in a round bottom 2 L flask furnished with a magnetic stirrer, reflux condenser, sampling outlet, and thermometer. Before started the reaction, 500 mL seed oil was hated at 70 °C. The reaction was done with a catalyst conc. (KOH) 0.32% w/w of the oil and oil to methanol molar ratio was 6:1. The freshly prepared 83.33 mL potassium methoxide solution was added in oil at 70 °C temperature and a constant stirring speed of 700 rpm [29]. To confirm the comprehensive transformation of TAG to FAMEs, the stirring was continued for 80 min. The mixture was relocated in a separatory tube funnel to separate the biodiesel and glycerin layers. The dense glycerin layer was detached. The upper biodiesel layer was then washed two to three times with hot distilled water to make it clean and clear. The product was dried through anhydrous sodium sulfate and evaporated the remaining methanol at 50 °C.

The product yield was premeditated by Equation (1),

$$\mathrm{Yield}\%=\frac{\mathrm{Gram}\mathrm{of}\mathrm{biodiesel}\mathrm{produced}}{\mathrm{Gram}\mathrm{of}\mathrm{oil}\mathrm{used}}\times 100$$

(1)

2.5. Analytical Study of KP Biodiesel

The KP biodiesel (KPBD) produced through transesterification was examined for its eventual study using an EA (Vario EL CUBE, Hanau, Germany), which delivers C, H, and N outcomes, whereas the O value was examined from the difference. When the summation of C, H, and N values is deducted from 100, it gives the O proportion, and for complete element, a study has been used ICP-OES (Spectro-blue, Kleve, Germany). The procedure is presented in Supplementary Materials Figure S3. The produced biodiesel was checked and verified with the Fourier transformed infrared spectrophotometer (Bruker vertex 70 FT-IR Spectrometer, Karlsruhe, Germany) with a resolution of 1 cm⁻¹ and 15 scans, in the spectra range of 400–4000 cm⁻¹. To describe various functional groups that originate in the found biodiesel, Nujol mull was used as a reference. NMR spectra were obtained with CDCl₃ as a solvent on a (Bruker Avance Ш 400 NMR Spectrometer, Karlsruhe, Germany) operating at 400 MHz (¹H-NMR) or 100 MHz (¹³C-NMR) [30,31]. Fatty acid composition of the prepared methyl esters was studied through GCMS (QP2010SE SHIMADZU, Kyoto, Japan). GC-MS conditions are listed in

Table 1. Gas chromatograph conditions.

Parameter	Descriptions
Column	QP2010SE, Shimadzu, PEG-20M Length: 30 m, Internal diameter: 0.32 mm Film thickness: 1 um
Injector temperature	220 °C
Detector temperature (EI 250)	210 °C
Carrier gas	Helium, flow rate = 1.2 mL min−1
Injection	V = 1 uL
Split ratio	Flow rate = 40:1
Temperature program	Initial temperature = 100 °C Rate of progression = 10 °C min−1 Final temperature = 210 °C, 20 min

. The complete procedure is presented in Supplementary Materials Table S4.

2.6. Fuel Properties of KP Biodiesel

Once the pure form of biodiesel was obtained, its physico-chemical characterization was evaluated through American standard testing material (ASTM) and European norm (EN). Moreover, the oil characterization of KP biofuel was matched to those of petro-diesel. The physiochemical characterization contains kinematic viscosity at 40 °C (ASTM D445), density at 40 °C (ASTM D4052), flash point (ASTM D93), cloud point (ASTM D6751), pour point (ASTM D6751), acid value (ASTM D664), iodine value, oxidation stability at 110 °C (EN 14112), ash content (ASTM D874), saponification value, sulfur content (ASTM D5459), fire point and specific gravity were calculated and matched with standards. The higher heating value (HHV) of KP biodiesel was also resolute based on the eventual study [32].

3. Results and Discussion

To make biodiesel from inedible KP seed (Plant photographs are present in Figure 2a,b), we first extract the oil from the seed of KP, which has an oil content of 28–30% by Soxhlet extraction (calculated based on dry seeds), as presented in Supplementary Materials Table S1. Then transesterification occurs to covert the crude oil to biodiesel with methanol using KOH as a catalyst. When the reaction of transesterification was completed, the catalyst was removed by washing and centrifugation, and the final process mixture was put in a separatory glass funnel tube (Figure 2c). Two different layers appeared in a separatory glass funnel, the upper layers contain biodiesel, methanol, and glycerin, and the lower layer contains glycerides, methanol, glycerol, and catalyst. We carried out three to four times deionized hot water washing to remove the excess methanol and glycerol from biodiesel. Finally, dry cleaning was done with silica gel to remove the leftover water in the final biodiesel product (Figure 2d) [33].

3.1. Koelreuteria Paniculata FAMEs Process of Optimizations

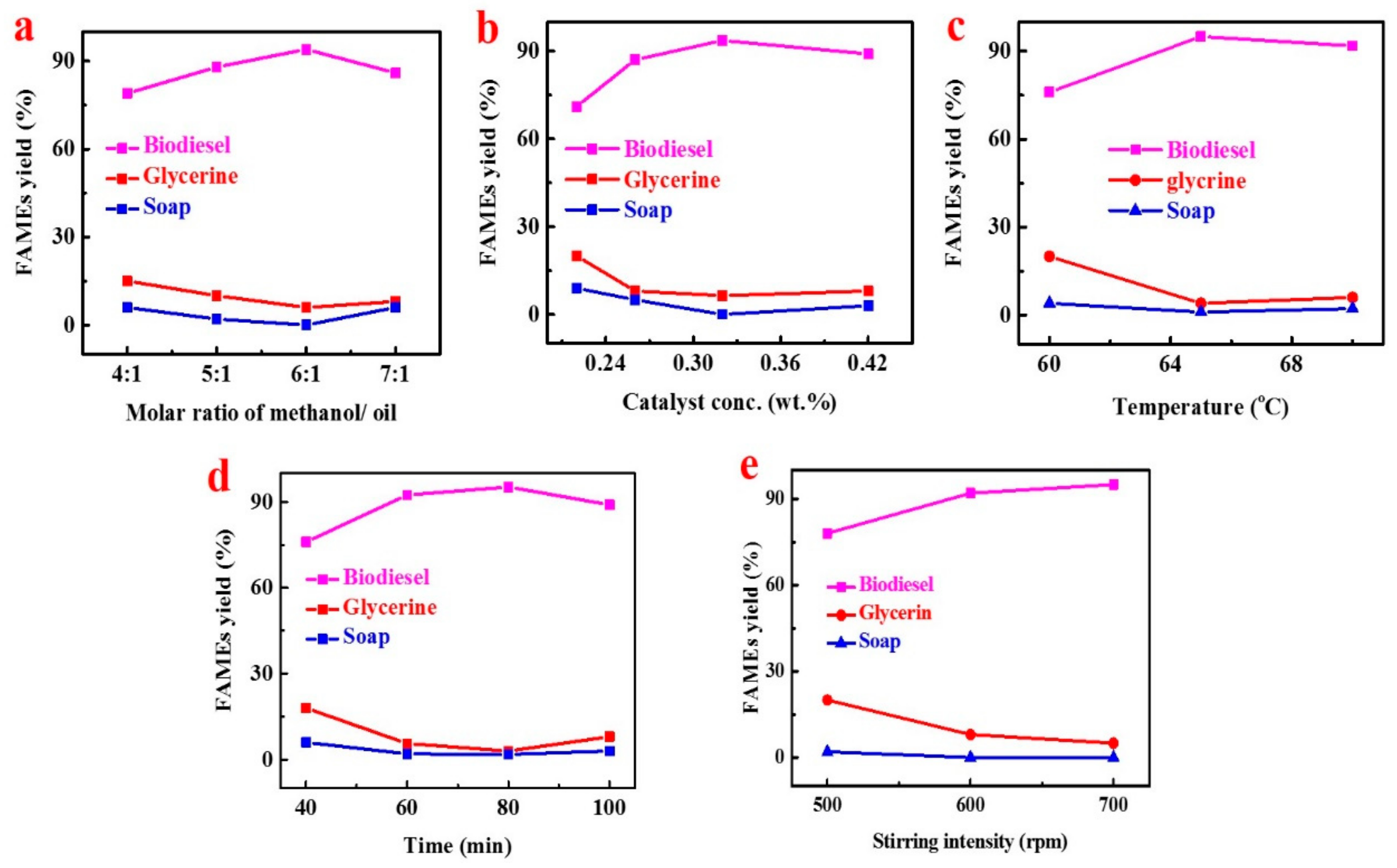

To obtain the maximum biodiesel yield, we studied different parameters of the transesterification process, i.e., methanol to oil molar ratio, KOH concentrations, temperature, time, and stirring rate. Detailed processes of the optimization were listed in Supplementary Materials Table S2. The initial yield of FAMEs was only 89%, which may have increased to 95.2% after the optimization. Five parameters were studied and analyzed under three or four different conditions to find out the optimal yield range of KP FAMES. The reason for using different parameters in different conditions is to check their best fit for the conditions to get the highest results. These five important variables and their analyses are explained respectively.

3.1.1. Effect of Methanol to Oil Molar Ratio

In both catalytic and non-catalytic reactions, the methanol/oil ratio is an important factor for the yield of methyl esters. Typically, transesterification (hydrolysis) needed 3 moles of alcohol for 1 mole of triglyceride to form 3 moles of fatty acid ester and 1 mole of glycerol. To obtained and evaluate the optimum molar ratio of methanol to oil, a range of ratios we have applied (4:1, 5:1, 6:1, and 7:1) in the experimentation (Figure 3a), while keeping other variables constant, such as temperature, stirring intensity and time. When the molar ratio was 6:1, the highest KPOB (KP oil biodiesel) yield was 94%. A stoichiometric ratio of 4:1 provides the lowest oil conversion to biodiesel (79%). It was further observed that if the methanol to oil ratio was lowered below the optimal range, no substantial conversion occurs in biodiesel production. The results showed that the overuse of methanol reduced FAMEs yield by 7:1 (86%); because of the additional use of methanol, the separation of esters and glycerol’s becomes more complicated.

3.1.2. Impact of Catalyst Concentration on FAMEs Production

For the transesterification of triglycerides, various types of catalysts have been used, such as bases, acids, enzymes, or mixed catalysts. In the present study, KOH has been used as a base catalyst to convert the crude oil into fatty acid methyl ester. We achieved the highest biodiesel yield of 93.6%. The influence of catalyst concentration ratio on the FAMEs production was assessed (Figure 3b), whereas the additional operative settings of the transesterification process were kept constant. It was noted that the highest KP oil biodiesel (KPOB) product yield was achieved at a catalyst concentration of 0.32 wt.%. Additionally, it was witnessed that no important conversion occurred when the catalyst amount was higher than the optimal range.

3.1.3. Influence of Temperature on Yield

The reaction proportion was greatly affected by temperature. Usually, the reaction is carried out at a boiling point close to methanol (60–70 °C) at atmospheric pressure. The transesterification reaction was carried out at three different temperatures (60, 65, and 70 °C) depending on the oil type. The methanol boiling point is 64.7 °C. Temperatures higher than the boiling point will burn alcohol, resulting in lower yields. Correspondingly, to evaluate the optimum temperature range regarding the highest FAMEs production, the different reaction temperature was used to get maximum KPOB biodiesel yield during the present experiment. It is clear from the result (Figure 3c) that at 65 °C, maximum biodiesel production was achieved.

3.1.4. Influence of Reaction Time on FAMEs Yield

Transesterification reaction was carried out at an optimum reaction temperature (65 °C) for different periods from 40 min to 100 min. It was detected that the reaction time was an important parameter which had a direct influence on the product yield. To get a higher yield and fully convert crude oil to biodiesel, the reaction time played a very important role [34]. As shown in (Figure 3d), the biodiesel conversion and reaction time were directly proportional to each other. At 80 min, the highest biodiesel production (95.2%) was obtained, while at 40 min, the lowest biodiesel conversion was occurring (76%). It has been further observed from work in the experiment that after 80 min, the opposite reaction of hydrolysis started, and the FAMEs conversion ratio started decreasing, and longer reaction time resulted in a decrease in yield, which resulted in producing more soap and less FAMEs.

3.1.5. Influence of Agitation Rate on Biodiesel Yield

It was noticed through the transesterification process that the agitation rate could influence KPOB production, as shown in Figure 3e. The oil and fat were immiscible with the potassium hydroxide–methanol solution, so it was very important to mix by stirring during the transesterification reaction process. The reaction can become diffusion-controlled due to the slow rate of diffusion between the phases. Here we determined the direct relation between the KPOB production and the agitation strength, as with the increase in the stirring intensity, the biodiesel production increased. We evaluated that the 700 rpm was the optimum stirring rate for the higher production of biodiesel (95%) from KP seed oil to FAMEs. Though it was the same with the studies above [35] in which the authors concluded that a higher stirring intensity rate mixed the reaction well and gave the higher yield of methyl ester creations because elevated stirring strength promoted the homogenization of the reaction, which increased the yield of methyl ester.

3.2. KP FAMEs Characterizations

The physicochemical characterizations of the KP FAMEs were individually characterized (

Table 2. Physiochemical characterizations of KP seed oil biodiesel (KPSOB) in comparison with standards and plant fatty acid methyl esters (FAMEs).

Parameters	EN 14214	ASTM D-6751	Pedro-diesel	Present Results/KPOB	DPSOME [36]	SBOME [37]	DSOME [38]
Oil contents (wt.%)	−	−	−	28–30	10.50 ± 1.50	15–20	21.4
Density @ 15 °C (g/cm3)	0.86–0.90	0.86–0.90	0.809	0.879	0.8781 ± 0.0012	−	0.882
Kinematic viscosity @ 40 °C (mm2/s)	3.5–5.0	1.9–6.0	1.3–4.1	6.21	3.91 ± 0.25	4.50	4.33
Flashpoint (°C)	Min. 120	Min. 130	60–80	147	141	160	161.5
Ignition value	−	−	−	175	−	−	−
Acid value (mg KOH/g−1)	Max. 0.50	Max. 0.5	−	0.07	0.10 ± 0.02	0.15	0.10
Saponification value (mg KOH/g−1)	−	−	−	176.4	224	−	−
Iodine value (g I2/100 mg)	Max. 120	Max. 120	−	80.7	48.51	−	−
Refractive index @ 20 °C	−	−	−	1.4901	1.4544	−	−
Cloud point (°C)	−	−	−15–5	2	3	4	−
Pour point (°C)	−	−	−2.0	−30	−1	−7	−
Cetane number	Min. 51	Min. 47	49.7	51	59.75	58.1	51.9
Free fatty acid (%)	−	−	−	0.91	−	−	−
HHV	−	−	−	23.39	39.52	−	−
Ash content	−	−	−	0.002	−	−	< 3
Specific gravity @15 (°C)	−	−	−	0.88	−	−	−
Cold filter plug point (°C)	Max. 19	Max. 19	−16	−18	−	−	−5
Sulphated ash content (wt.%)	Max. 0.02	−	−	0.003	−	0.008	0.004

). The KP non-edible seed oil FAMEs had the following characteristics: viscosity 6.21 mm²/s, density 0.879 g/cm³, flashpoint 147 °C, ash content 0.002%, cloud point 2 °C and pour point −30 °C, flaming point 175 °C, saponification value 176.4 mg/g, specific gravity 0.88, and cold filter plugging point −18 °C.

3.3. Physical and Fuel Characterizations

The fuel and physicochemical properties of the produced KPOB were characterized by ASTM and EN standards. The results, as shown in Table 2, compared with the mentioned biofuel standards as ASTM D-6751 EN14214 and petrodiesel. The density of the KPBD at 40 °C was 0.879 g/cm³, equivalent to the limits for petrodiesel (0.834 g/cm³) and ASTM D-6751. The KPBD specific gravity value (0.88) determined in this analysis was comparable to the ASTM value of petro-diesel. The most imperative stuff of biodiesel was viscosity since it distressed the action of fuel inoculation apparatus, mostly at the temperatures less than 15 °C (viscosity affects fuel flow). The determined KPBD viscosity was 6.21 cps, somewhat higher than the ASTM D6751 rate of biodiesel and the ASTM rate of petroleum fuel, which needs further modification and improvement.

The pour point and cloud point dignified values for KPSO biodiesel KP seed oil (KPSO) biodiesel were −30 and 2 °C, respectively, which met the diesel fuel limits specified in ASTM (Table 2). Flashpoints are parameters deliberated in the management, packing, and protection of fuels and combustible ingredients. The detected KPSO biodiesel flash point (147 °C) was higher than petroleum diesel and was within the ASTM range. This shows that KPBD is more safe and secure than fossil fuels. Though, a higher flash point may result in a lower capability of the compression ignition engine to burn than petroleum diesel. The quantity of FFA in the biodiesel fuel indicates acid value. The quantity higher than 0.50 mg KOH g⁻¹ may cause engine deterioration, 0.07 mg KOH g⁻¹ is the identified KPBD acid value, which was expressively less than the ASTM standard diesel fuel (Table 2).

3.4. NMR Spectroscopy Analysis of Biodiesel

3.4.1. ¹H NMR Spectrum Analysis

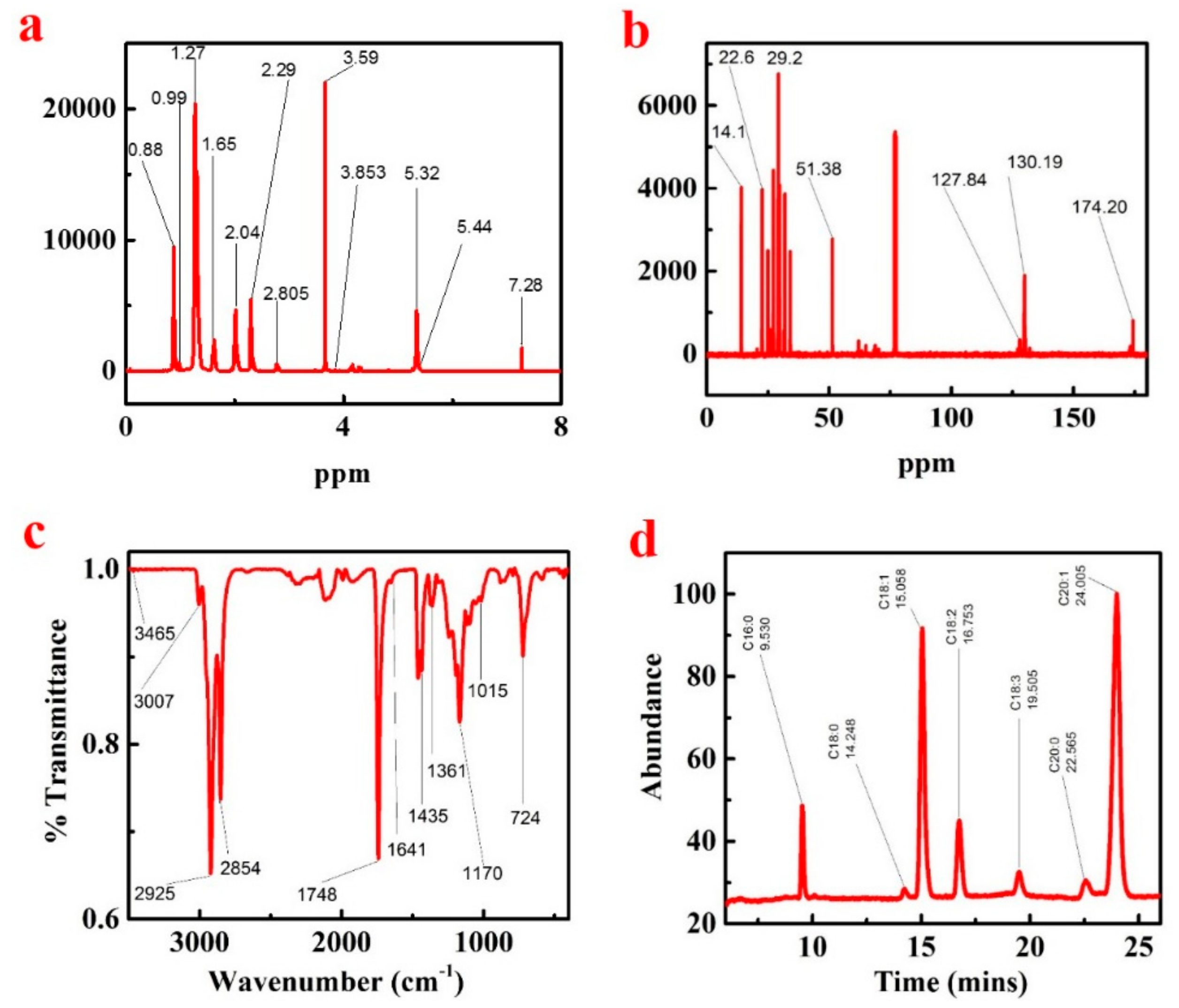

The KP FAMEs were characterized by ¹H NMR; the KP ¹H NMR spectrum is presented in Figure 4a and Supplementary Materials Table S4. In the ¹H NMR spectrum, the terminal methyl proton (C-CH₃) appearance signals were detected between 0.88 and 0.90 ppm, and the aliphatic chain (-(CH₂) n-) associated signals were observed between 1.25 and 1.31 ppm. The β-methylene ester (CH₂-C-CO₂Me) bands appearance signals were detected around 1.58–1.65 ppm correspondingly, the methylene proton peaks near the base (-CH₂-C = C-) appear between 2.00 and 2.07 ppm attached to the allylic group. The methylene proton peaks signal were attributed between 2.27 and 2.31 ppm existing near the carbonyl group proton (-CH₂-COOMe), the existence of a methylene proton (-C = C-CH₂-C = C-) between the allylic groups associated between 2.75–2.80 ppm, and the single sharp peak at 3.59 ppm is expressed the ester bond (CH₃COO-CH) linked CH₃ group. The proton (-CH = CH-) from the glycerol moiety appears between 5.32–5.44 ppm.

3.4.2. ¹³C NMR Spectrum Analysis

The KP biodiesel ¹³C NMR spectrum is shown in Figure 4b and Supplementary Materials Table S5. A signal which shows the occurrence of an ester carbonyl carbon (-COO-) was observed at 174.20 ppm. The band’s signals were observed in the spectrum between 127.84 and 130.19 ppm indicating the existence of unsaturation in the methyl ester. The occurrence of ester (C-O) methoxy carbon was observed at 51.38 ppm, due to the long carbon chain methylene carbon of the fatty acid methyl ester. The band’s occurrence detected between 29.02 and 29.07 ppm, and the terminal carbon of the methyl group peaks was observed at 14.1 ppm, respectively.

3.5. KP FAMEs FT-IR Spectroscopy Analysis

To identify the functional groups and the bands corresponding to various stretching and bending vibrations in KP biodiesel samples, the FT-IR spectroscopy of the mid-infrared region has been used, as presented in Figure 4c and the Supplementary Materials Table S3. The two resilient ester representative absorption bands were detected from carbonyl (νC = O) around 1750–1730 cm⁻¹ and C-O at 1300–1000 cm⁻¹ [39]. The stretching vibrations and bending vibrations (ρCH₂) of CH₃, CH₂, and CH appeared at 2980–2950, 2950–2850, 3050–3000 cm⁻¹, and at 1475–1350, 1350–1150, 722 cm⁻¹, correspondingly [40]. The absorption peaks of the sample were detected in KP biodiesel to be 3465, 3007, 2925, 2854, 1748, 1641, 1435, 1361, 1175, 1015, and 724 cm⁻¹, respectively. The peaks presence in KP FAMEs at 1435 and 1170 cm⁻¹ specifies the conversion of crude oil to biodiesel. Figure 4c shows the KPME FTIR spectrum, and the strong absorption peak at 2854 cm⁻¹ and 2925 cm⁻¹ is just because of the alkane group of C-H stretching vibration. The C-H bending vibration appears at 1435 cm⁻¹ due to strong absorption. All of the single bands symbolize saturated functional groups. The C=O stretching frequency peak at 1748 cm⁻¹ is due to strong absorption, which is composed of an unsaturated functional group and is called an ester. Further, due to the C-O stretching vibration of the ester, the strong band appeared at 1015 cm⁻¹ and 1170 cm⁻¹.

3.6. GC/MS Analysis

The biodiesel of KP crude oil modified by methyl ester was evaluated by gas chromatography and mass spectrometry. The GCMS spectral data are shown in Figure 4d. The NIST-14 library matching software was used to identify the peaks. After evaluation, each single peak was matched with fatty acid methyl ester [18]. The retention time and position of the determined peaks are presented in

Table 3. Koelreuteria paniculata seed oil biodisel fatty acid composition.

S/ No	Fatty Acids	Retention Time	Number of Carbons	Fatty Acids (%)	Chemical Name	Chemical Structure	Molecular Weight
1	Palmitic acid	9.530	C16:0	9.7	Hexadecanoic acid, methyl ester		270
2	Stearic acid	14.248	C18:0	1.8	Methyl stearate		298
3	Oleic acid	15.058	C18:1	25.5	9-Octadecenoic acid (Z)-, methyl Ester		296

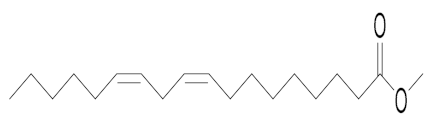

4	Linoleic acid	16.753	C18:2	8.5	9, 12-Octadecadienoic acid (Z, Z)-, methyl ester		294
5	α-Linolenic acid	19.505	C18:3	3.6	α-Linolenic acid		292
6	Arachidic acid	22.565	C20:0	2.4	Eicosanoic acid, methyl ester		326
7	Gondoic acid	23.005	C20:1	48.5	Cis-11-Eicosenoic acid, methyl ester		324

.

3.7. ICP-OES and Elemental Analyzer (EA) Study

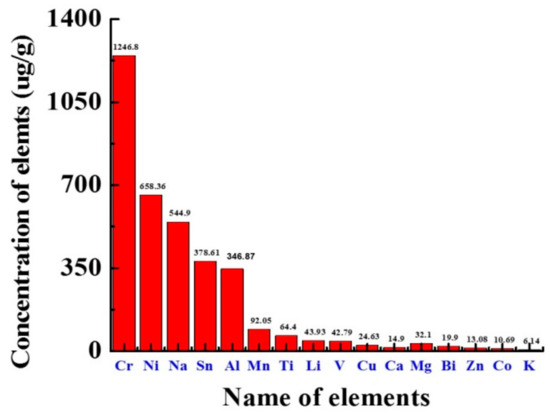

The elements present in fuels are harmful because they cause many difficulties, such as promoting fuel degradation, corrosion of machinery, operational problems, environmental pollution and other social problems, as well as harmful effects on health [41]. The fundamentals whose quantity in biodiesel requires to be controlled are sodium (Na) and potassium (K) are important limiting quantities in the production mechanism of biodiesel, while phosphorus (P) comes from raw materials and its controlling quantities are very important. The element concentration of Koelreuteria pniculata oil biodiesel (KPOBD) and HSD (high speed diesel) was compared. KP results confirm that the concentration of many base metals in KPOBD is lower than that in HSD. Elements such as Ca, Mg, Na and K in biodiesel directly enter the injector, and locomotive sediments stimulate the drainage and piston and pass through the filter plug [42]. K, Na, Mg, and Ca are present in Supplementary Materials Table S6. The KPOBD (6.14, 544.9, 32.10, 14.90 µg/g) was lower as compared to HSD (213.3, 868.3, 35.6 and 21.4 µg/g). The highest acceptable concentration of Na and K in biodiesel was 5 mg kg⁻¹, while P was 10 mg kg⁻¹ (Figure 5).

A detailed discussion of N, H, C, and O is shown in

Table 4. Elemental analyzer study of KPBD and their comparison with other plant biodiesel.

Ultimate Analysis	KP-BD	Pistachio Shell [48]	Peach Stones [49]	Apricot Kernel Shells [50]	Cherry Stones [51]	Mahua Seed [52]
C%	72.54	42.41	45.92	47.33	52.48	61.24
H%	12.73	5.64	6.09	6.37	7.58	8.40
N%	2.73	0.070	0.580	0.370	4.54	4.12
O%	12	51.87	47.38	45.93	35.30	25.50
HHV (MJ/kg)	23.39	22.21	24.07	24.29	24.11	25.30

and Supplementary Materials Figure S1. The petrodiesel has no oxygen, while biodiesel has oxygen, which is the main difference between biodiesel and petrodiesel. The main advantage of the presence of oxygen is that it can reduce ignition delay, increase combustion, and come entirely from fuel combustion, a purposeful cause that will reduce exhaust emissions, CO, and particulate matter. Therefore, several scientists [43,44] have proposed that biodiesel with higher oxygen content can significantly reduce particulate emissions from fuel engines. Table 4 specifies KP B100 as 12%, whereas KP B100 for most biodiesel is approximately 10% [45,46]. The higher hydrogen content (12.73%) of biodiesel utilization makes KP biodiesel more attractive [47]. In gaseous and liquid fuels, hydrogen burns faster and hydrogen carbon is higher, which means the fuel has a higher molecular content of hydrogen, better combustion capacity and cleaner. Since hydrogen has a higher calorific value than carbon, the calorific value must increase as the ratio of hydrogen to carbon atoms increases.

4. Conclusions

A novel plant seed of Koelreuteria paniculata was explored to produce biodiesel effectively with a simple, cheap, and energy-saving base-catalyzed methanol transesterification process. Through the optimization transesterification conditions: oil to methanol ratio (6:1), catalyst concentration (0.32 g wt.%), temperature (65 °C), stirring rate (700 rpm) and time (80 min), the highest biodiesel yield of 95.2% was obtained, which is favorable for commercial application. The physico-chemical characterizations of the biodiesel, i.e., flash point, pour point, cloud point, and density, are within the ASTM (D6751) and (EN14214) standards, the values of fuel properties were found to be comparable with mineral diesel, which is good for engine application. FTIR, NMR, and GC-MS analysis confirmed the complete conversion of crude oil to FAMEs. Finally, we used elements analysis ensured the environmentally friendly of biodiesel. Based on these analyses, it is stated that the biodiesel derived from KP seeds is considered to be an alternative and renewable source of fuel for energy production, which could be a promising substitute for petroleum diesel.
