Sequence Impedances of Land Single-Core Insulated Cables: Direct Formulae and Multiconductor Cell Analyses Compared with Measurements

Abstract

The paper deals with the sequence impedances (positive/negative and zero sequences) of high- and extra-high-voltage land single-core insulated cables. In particular, it presents the comparisons between sequence impedance measurements and computations. The computations of the sequence impedances are carried out by means of the most important international normative and council references (IEC/Cigré) and of multiconductor cell analysis which is a consolidated and powerful tool developed by University of Padova in order to analyse power frequency regimes of multiconductor asymmetric power systems. The comparisons are presented with reference to four high- and extra-high voltage insulated cables, even if the available ones are much higher: however, the conclusions derived from these four reference cases are general and can be useful for transmission system operators and for power electric system engineers involved in insulated cables. The paper demonstrates, for the first time in technical literature, that direct formulae cannot correctly evaluate the sequence impedances of installed single-core land cable systems. Extensive on-field measurement campaigns have served to this purpose.

1. Introduction

In 2012, the first author presented a conference paper with a comparison between analytical formulae of insulated cable sequence impedances and the results of two measurement campaigns [1]. At that time, high-voltage (HV) cables in Italy were short in length, and the experience with such systems was limited. That paper [1] dealt with two HV insulated cables of medium length (6–8 km). After 8 years, the cable lengths installed in the Italian high and extra-high voltage (EHV) grid have strongly increased: therefore, the amount of experience has also increased thanks to more measurement campaigns. The measurement campaigns have the aim of obtaining on-field sequence impedance values. Once the measurements are available, a comparison with formulae is always performed. Italian Academia, together with Terna, which is the Italian transmission system operator (TSO) and owner, have decided to give electrical engineers a wide account on these comparisons, i.e., sequence impedance measurements compared with analytical and procedural computations. Since it is not possible to present the comparisons for all installed HV and EHV cables, a selection of the more meaningful cases is made in this paper, aiming at covering all the Italian high and extra-high voltage levels (132–380 kV). The importance of the exact knowledge of the sequence impedances of an electric line is paramount both for planning and operating activities: it is worth noting that power flow and short circuit studies are always based on them. Furthermore, the correct behaviour of distance relays is strictly dependent upon their correct settings, which are based on the sequence impedances. Also, the assessment of a new insulated cable insertion into the grid needs to know the sequence impedances. Theoretically, the use of zero, positive–negative sequence impedances is only exact if the system is symmetric, since the application of voltage phasors of a sequence causes the circulation only of the same sequence current phasors so that it is possible to compute the ratios between voltage and current phasors (i.e., the impedances). For cable lines, this assumption is only true if the insulated cables are cross-bonded with phase transpositions or if they are cross-bonded in trefoil arrangement [1]. In all other cases, the use of the sequence impedances would be theoretically wrong. However, the error is small for engineering purposes. Even if an insulated cable is cross-bonded with phase transpositions (or in trefoil laying) there could be many causes of asymmetry:

• Different lengths in the minor sections provoke not zeroed induced currents in the screens;
• Joint chambers and terminals which force a flat arrangement with a consequent asymmetry;
• The crossings of interfering services or natural obstacles, if any, usually overcome by directional drillings which may introduce a great cable spacing;
• That the as-built installation is always different from the project.

The presence of these causes has a lower impact for long cables but they would, theoretically, always result in an asymmetric system.

The two most important references for the computation of insulated cable sequence impedances are the IEC 60909-2 [2] and the Cigré Technical Brochure #531 “Cable Systems Electrical Characteristics” [3]. Other interesting calculation approaches are proposed in [4,5]. Moreover, multiconductor cell analysis (MCA) was presented in the technical literature 10 years ago [6]. It has been applied successfully to the analysis of a great number of asymmetrical/multiconductor systems from overhead lines with one or more ground wires to single-core ac and dc cables with screens and armour, gas insulated lines, and distribution line carriers. Papers [7,8,9,10,11,12,13] give some suggestions to deepen such applications, and [14] deals with the validation of the MCA method by exploiting the comparison with experimental measurements. MCA is based on the subdivision of the system into n elementary cells: the model type for the computation of elementary cell impedances can be chosen between Carson theory [15,16], Carson-Clem simplified formulae [17] or Schelkunoff/Wedepohl [18,19] formulae: at power frequency, all the formulations give the same results. With regard to other literature contributions similar to this paper, the authors want to remember the following contributions: [20] is devoted to the measurements of sequence impedances of a 150 kV three-core submarine cable; [21] deals with only one cable systems at 345 kV; [22] is a very interesting measurement campaign on a 400 kV cross-bonded cable devoted more to transient behaviour than to power frequency sequence impedances. There are some books [23,24,25] on cable sequence impedances but none of them expounds comparisons with measurements.

The focus of the paper is to compare the sequence impedance values obtained by applying the IEC/Cigrè and MCA approaches with the experimental measurements performed on real cable installations. The aim of this work is to highlight the accuracy of each estimation method in different installation conditions. In particular, since the IEC/Cigrè formulations do not allow considering the presence of the cable metallic screens in the case of cross-bonding arrangement, the effect of this simplifying hypothesis in the sequence impedance estimation is investigated.

Furthermore, because of the wide carried out measurement campaign performed for different installation scenarios, this paper aims at giving an idea of how the installation area significantly affects the zero sequence impedance of cable lines.

2. Normative and Council Direct Formulae for Computing Cable Sequence Impedances

The proposed direct formulae for the computation of sequence impedances (Z₁–Z₂ and Z₀) held in [2] and [3] seem different but it could be demonstrated, by means of simple mathematical passages, that they are exactly the same. IEC 60909-2 [2] gives (1) and (2), i.e., the p.u.l. sequence impedances of three single-core cables (in trefoil or flat arrangement but with phase transpositions) without metallic screens:

$${\underset{\_}{z}}_1={\underset{\_}{z}}_{1Cross-bond.}=R_c+j\omega \frac{{\mu }_0}{2\pi }\left[\frac{1}{4}+\ln \left(\frac{D_m}{r_c}\right)\right]\left[\frac{\mathsf{\Omega }}{\mathrm{m}}\right]$$

(1)

$${\underset{\_}{z}}_0=R_c+3\omega \frac{{\mu }_0}{8}+j\omega \frac{{\mu }_0}{2\pi }\left[\frac{1}{4}+3\ln \left(\frac{\delta }{\sqrt[3]{r_c{D}_m^2}}\right)\right]\left[\frac{\mathsf{\Omega }}{\mathrm{m}}\right]$$

(2)

where R_c is the conductor ac p.u.l. resistance (including the skin and proximity effects) [Ω/m]; μ₀ is the soil magnetic permeability = $4\cdot \pi \cdot {10}^{-7}$ [H/m]; D_m is the geometrical mean distance (GMD) between phases [m], and r_c is the phase conductor radius [m]; $\delta =1.851/\sqrt{\frac{\omega {\mu }_0}{{\rho }_t}}$ is the equivalent earth penetration depth (Equation (36) of [26]) in m (which coincides with Carson distance D_Carson of conductor from the earth return currents usually written as $658\cdot \sqrt{{\rho }_t/f}$ [m]), with ρ_t soil resistivity in [Ω∙m] and ω = 2 π f angular frequency in [rad/s] (f = power frequency in [Hz]).

Equation (1) can be used only for three single-core cables where there are no induced currents in the screens: this is the case of positive sequence supply with perfectly cross-bonded screens. As it will be shown in Section 7 and Section 8 and has already been highlighted in the Introduction, in real installations, this is never verified (perfect cross-bonding does not exist) so that non-null induced currents flow in the metallic screens. In case of solid-bonded screens, (1) and (2) serve as a basis for (3) and (4):

$${\underset{\_}{z}}_{1_{Solid-bonding}}={\underset{\_}{z}}_1+\frac{{\left[\omega \frac{{\mu }_0}{2\pi }\ln \left(\frac{D_m}{r_{sm}}\right)\right]}^2}{R_s+j\omega \frac{{\mu }_0}{2\pi }\ln \left(\frac{D_m}{r_{sm}}\right)}\left[\frac{\mathsf{\Omega }}{m}\right]$$

(3)

$${\underset{\_}{z}}_{0_{Cross-bond.}}={\underset{\_}{z}}_{0_{Solid-bond.}}={\underset{\_}{z}}_0-\frac{{\left[3\frac{\omega {\mu }_0}{8}+j3\frac{\omega {\mu }_0}{2\pi }\ln \left(\frac{D_{Carson}}{\sqrt[3]{r_{sm}{D}_m^2}}\right)\right]}^2}{R_s+3\frac{\omega {\mu }_0}{8}+j3\frac{\omega {\mu }_0}{2\pi }\ln \left(\frac{D_{Carson}}{\sqrt[3]{r_{sm}{D}_m^2}}\right)}\left[\frac{\mathsf{\Omega }}{m}\right]$$

(4)

where z₁ must be computed as in (1); z₀ must be computed as (2); r_sm is the mean screen radius [m] = $\frac{\left(r_{si}+r_{se}\right)}{2}$, with r_si and r_se inner and outer screen radii [m]; R_s is the ac screen p.u.l. resistance [Ω/m] (for the usual thicknesses of the screens the current can be considered as uniformly distributed so that dc and ac resistances are equal).

With regard to the zero sequence, it is worth remembering that (4) is valid for both solid-bonding and cross-bonding: the cross-bonding screen arrangement has the same effect of the solid-bonding one since the zero sequence currents are in phase such that the screen transpositions do not cancel the induced voltages along a major section.

3. MCA for Evaluating Sequence Impedances of Cable Systems

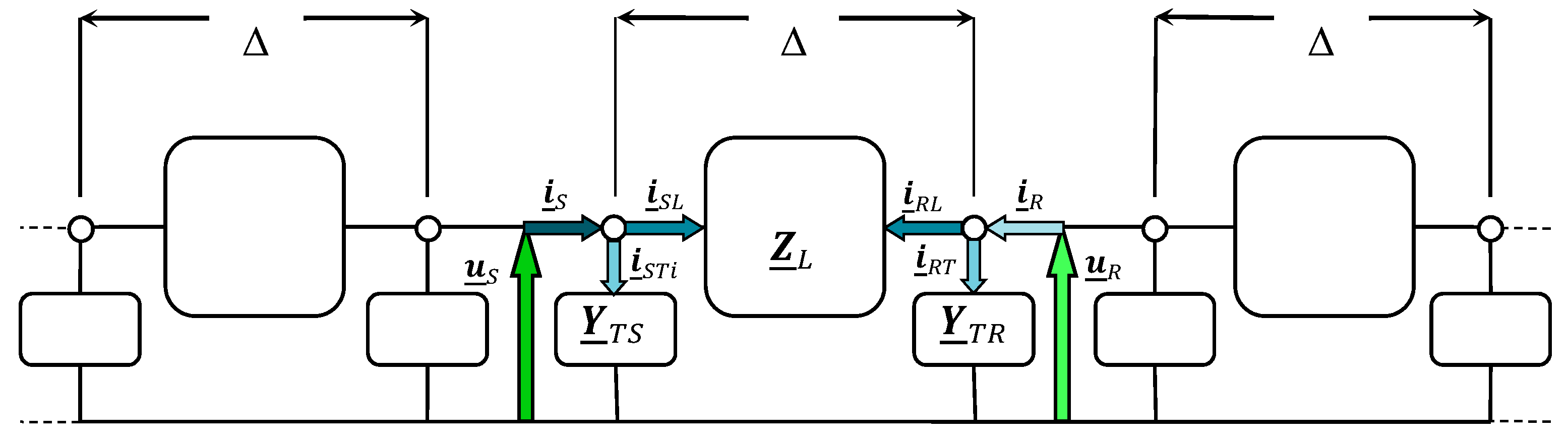

The MCA is based on the principle that the multiconductor system which constitutes a power transmission line can be represented as a cascade of m elementary cells of length Δℓ. Each cell is modelled by a lumped PI-circuit where the voltage column vectors u_S, u_R, and the current column vectors i_S, i_SL, i_ST, and i_R have a number of elements equal to n, with n the number of the conductive elements of the system. Figure 1 shows the cell cascade where S and R stand for sending and receiving ends respectively. Being that Δℓ is sufficiently small, it is possible to lump the uniformly distributed shunt admittances at both ends of the cell (transverse blocks TS and TR) and to consider separately the longitudinal elements in the block L (where i_RL ≡ i_SL) [6,7,8,9,10,11,12,13,14]. By applying this modelling approach, it is possible to compute the currents and voltages along the cable length for each conductive element of the multiconductor system, i.e., phase conductors, screens, and armour (if present).

With regard to the computations of sequence impedances by means of MCA, it is possible to apply three voltage generators, u₁, u₂, u₃, of the involved sequence and, once the power frequency regime is solved by knowing the currents i₁, i₂, i₃ circulating into the phase conductors, to compute the following positive sequence impedances:

$$\begin{array}{c}{{\underset{\_}{z}}_{1\_MCA}|}_{ph1}=\frac{{\underset{\_}{u}}_1}{{\underset{\_}{i}}_1}with{\underset{\_}{u}}_1=1\end{array}$$

(5a)

$$\begin{array}{c}{{\underset{\_}{z}}_{1\_MCA}|}_{ph2}=\frac{{\underset{\_}{u}}_2}{{\underset{\_}{i}}_2}with{\underset{\_}{u}}_2={\alpha }^2\end{array}$$

(5b)

$$\begin{array}{c}{{\underset{\_}{z}}_{1\_MCA}|}_{ph3}=\frac{{\underset{\_}{u}}_3}{{\underset{\_}{i}}_3}with{\underset{\_}{u}}_3=\alpha .\end{array}$$

(5c)

If the considered power system is asymmetrical, the three impedances in (5) have different values so that, even with a “theoretical stretch”, it is possible to compute a unique sequence impedance meant as an average value, i.e.,

$${\underset{\_}{z}}_{1\_MCA}=\frac{\left({{\underset{\_}{z}}_{1\_MCA}|}_{ph1}+{{\underset{\_}{z}}_{1\_MCA}|}_{ph2}+{{\underset{\_}{z}}_{1\_MCA}|}_{ph3}\right)}{3}.$$

(6)

Analogously with regard to the zero sequence, this yields

$$\begin{array}{c}{{\underset{\_}{z}}_{0\_MCA}|}_{ph1}=\frac{{\underset{\_}{u}}_0}{{\underset{\_}{i}}_1}with{\underset{\_}{u}}_0=1;\end{array}$$

(7a)

$$\begin{array}{c}{{\underset{\_}{z}}_{0\_MCA}|}_{ph2}=\frac{{\underset{\_}{u}}_0}{{\underset{\_}{i}}_2}with{\underset{\_}{u}}_0=1;\end{array}$$

(7b)

$$\begin{array}{c}{{\underset{\_}{z}}_{0\_MCA}|}_{ph3}=\frac{{\underset{\_}{u}}_0}{{\underset{\_}{i}}_3}with{\underset{\_}{u}}_0=1\end{array}$$

(7c)

whose average value is given by

$${\underset{\_}{z}}_{0\_MCA}=\frac{\left({{\underset{\_}{z}}_{0\_MCA}|}_{ph1}+{{\underset{\_}{z}}_{0\_MCA}|}_{ph2}+{{\underset{\_}{z}}_{0\_MCA}|}_{ph3}\right)}{3}.$$

(8)

4. Description of the Four Reference Cable Systems

The first insulated cable line is the so-called “SE Calenzano-SE Rifredi RT” with a total length of 8.325 km and phase-to-phase nominal voltage of 132 kV.

Table 1. Three single-core insulated cables of 132 kV in SE Calenzano-SE Rifredi RT.

Line Geometrical Characteristics
Total length	km	8.325
Trefoil laying length	km	6.495
Flat laying (spacing =1 m) length	km	1.785
Trefoil in ducts length (duct spacing = 0.150 m)	km	0.045
Conductor cross section and material	mm2	1000 Al
Screen Arrangement	cross-bonding
Conductor diam. (dc)	mm	38.4
Conductor semic. screen diameter (d0)	mm	42.3
Insulating material diameter (d1)	mm	83.1
Insulating semic. screen diam.	mm	85.3
Metallic screen diameter	mm	87.5
Screen cross-section	mm2	85
External jacket diameter	mm	96

reports both the laying and single-core cable characteristics. The line is located in a highly urbanised area near Firenze and the soil resistivity is equal to 100 Ωm. The second insulated cable line is the so-called “CP San Giuseppe-CP Portoferraio” with a total length of 5.87 km and phase-to-phase nominal voltage of 132 kV.

Table 2. Three single-core insulated cables of 132 kV in CP San Giuseppe-CP Portoferraio.

Line Geometrical Characteristics
Total length	km	5.868
Trefoil laying length	km	4.743
Open trefoil length (spacing = 0.225 m)	km	0.886
Flat laying (spacing = 0.35 m) length	km	0.239
Conductor cross section and material	mm2	1600 Al
Screen Arrangement	cross-bonding
Conductor diameter (dc)	mm	47.5
Conductor semic. screen diameter (d0)	mm	52.9
Insulating material diameter (d1)	mm	86.9
Insulating semic. screen diam.	mm	90.7
Equivalent metallic screen diameter	mm	91.93
Copper screen cross-section	mm2	140
Aluminium screen cross-section	mm2	60
External jacket diameter	mm	106

reports both the laying and single-core cable characteristics. The line is located in the Elba Island in a rural and natural area with a soil resistivity of 700 Ωm. The third insulated cable line is the so-called “SE Camin-CP Bassanello” with a total length of 10.851 km and phase-to-phase nominal voltage of 132 kV.

Table 3. Three single-core insulated cables of 132 kV in SE Camin-CP Bassanello.

Line Geometrical Characteristics
Total length	km	10.851
Trefoil laying length	km	9.831
Flat laying (spacing = 0.25 m) length	km	0.204
Trefoil in ducts length (duct spacing = 0.180 m)	km	0.267
FlowMole (guide drill system) length (spacing = 0.5 m)	km	0.549
Conductor cross section and material	mm2	1600 Al
Screen Arrangement	cross-bonding
Conductor diameter (dc)	mm	49.1
Conductor semic. screen diameter (d0)	mm	51.1
Insulating material diameter (d1)	mm	89.1
Insulating semic. screen diam.	mm	93.1
Copper screen inner diameter	mm	93.9
Copper screen cross-section	mm2	70
Copper screen thickness	mm	1.35
Aluminium foil inner diameter	mm	97.4
Aluminium foil cross-section	mm2	61.3
Aluminium foil thickness	mm	0.2
External jacket diameter	mm	105.8

reports both the laying and single-core cable characteristics. The line is located in Veneto Region in rural/urban areas with soil resistivity of 100 Ωm. The fourth insulated cable line is the so-called “SE Ferrara Nord-C.le SEF” with a total length of 2.05 km and phase-to-phase nominal voltage of 380 kV.

Table 4. Three single-core insulated cables of 380 kV in SE Ferrara Nord-C.le SEF.

Line Geometrical Characteristics
Total length	km	2.05
Trefoil laying length	km	1.695
Open trefoil laying length (spacing = 0.20 m)	km	0.045
Flat laying (spacing = 0.60 m) length	km	0.310
Conductor cross section and material	mm2	1600 Cu
Screen Arrangement	cross-bonding
Conductor diameter (dc)	mm	49.4
Conductor semic. screen diameter (d0)	mm	53.8
Insulating material diameter (d1)	mm	107.8
Insulating semic. screen diameter	mm	110.8
Equivalent metallic screen diameter	mm	115.3
Copper screen cross-section	mm2	122
Lead screen outer diameter	mm	121.8
Lead screen cross-section	mm2	748
External jacket diameter	mm	132

reports both the laying and single-core cable characteristics. The line is located in the industrialised area of Ferrara with soil resistivity of 100 Ωm.

Table 5. Electrical characteristics of the four reference cables.

Electrical Quantity	#1 1000 Al	#2 1600 Al	#3 1600 Al	#4 2500 Cu
DC p.u.l. conductor resistance at 20 °C in Ω/km	0.0291	0.0186	0.0186	0.0113
AC p.u.l. conductor resistance at 20 °C in Ω/km	0.0323	0.0227	0.0224	0.0162
Screen or equiv. screen p.u.l. resistance at 20 °C in Ω/km	0.216	0.0977	0.162	0.0946
Relative permittivity of insul.	2.7	2.5	2.3	2.3

reports the dc and ac conductor p.u.l. resistances and other electrical parameters useful in the computations of the four land cable systems.

5. Measurement Campaigns

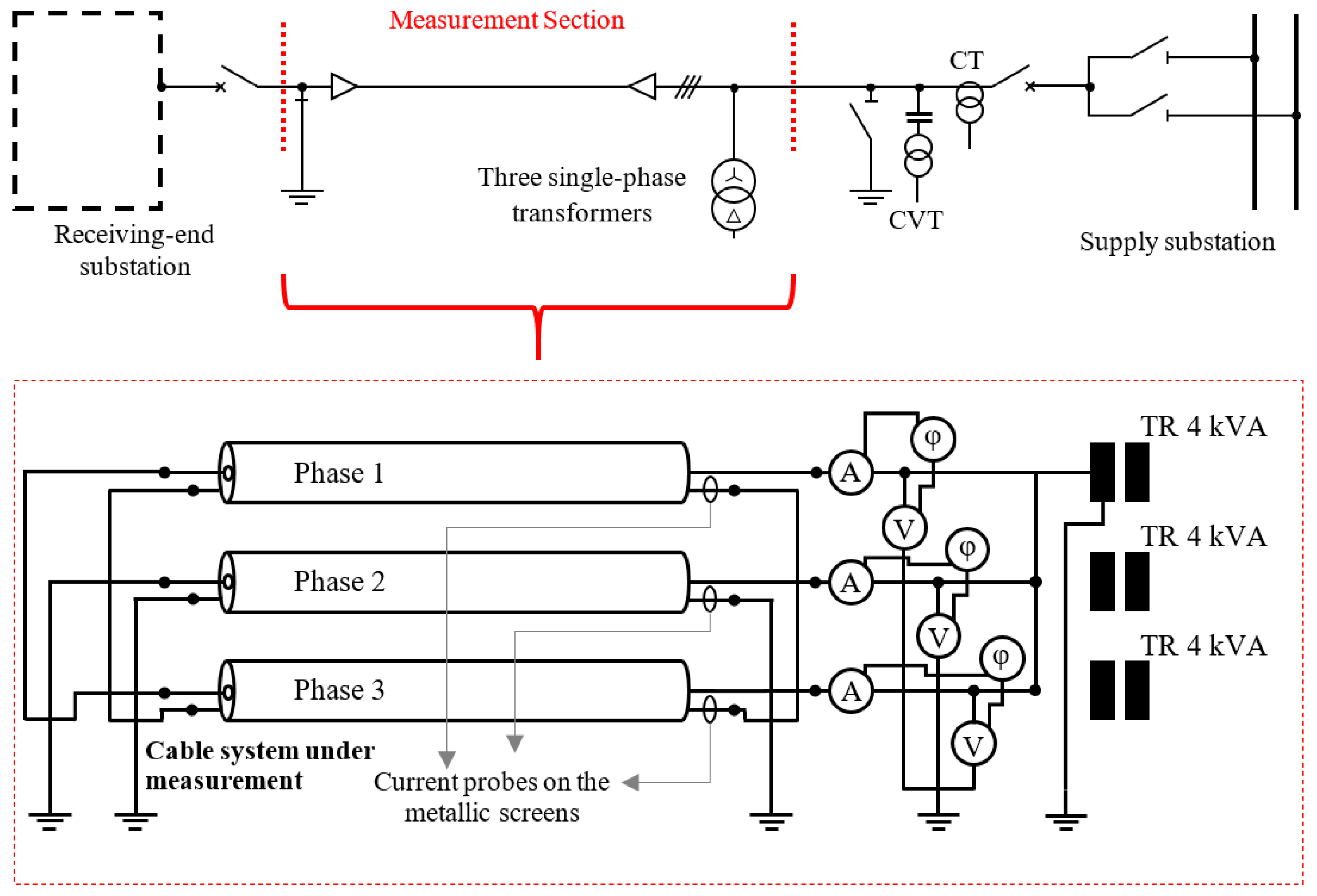

As soon as a new underground installation is realised, TERNA can decide to perform a measurement campaign before cable operation into the grid. The accuracy class of the used measurement transformers is 0.2 and their characteristics are consistent with [27,28]. These campaigns aim at verifying the shunt parameters (chiefly, the phase-to-screen capacitance) and the sequence impedance. The used method is four-wire voltamperometric [29]. In Figure 2, the usual arrangement for the shunt parameter measurements is shown. The phase conductors are open at the receiving end and are energised with the phase-to-ground nominal voltages. The current and voltage magnitudes (by means of current transformers (CTs) and capacitor voltage transformers (CVTs), respectively) and the active power absorbed by the cable together with angles (by means of Ws) allow for the measurement of real and imaginary parts of the shunt admittance. Figure 3 gives the scheme for measuring the positive sequence impedance: the three phases are short-circuited and earthed at the receiving end. In order to perform the sequence impedance measurements, three dry-type single-phase delta-wye transformers with rated power of 4 kVA are used. Their transformation ratios are 380/25–100 V/V, 50 Hz; the maximum currents for each voltage tap are 25–40, 50–80, 75–120, and 100–160 A. The star point (neutral point) is unearthed in order to avoid zero sequence current circulation. The measurements of voltage and current magnitudes and of the angles allow for the computation of positive sequence impedances of the three phases and then their average value. It is worth noting that the scheme also foresees the presence of current probes installed on the metallic screens in order to measure the induced current magnitudes.

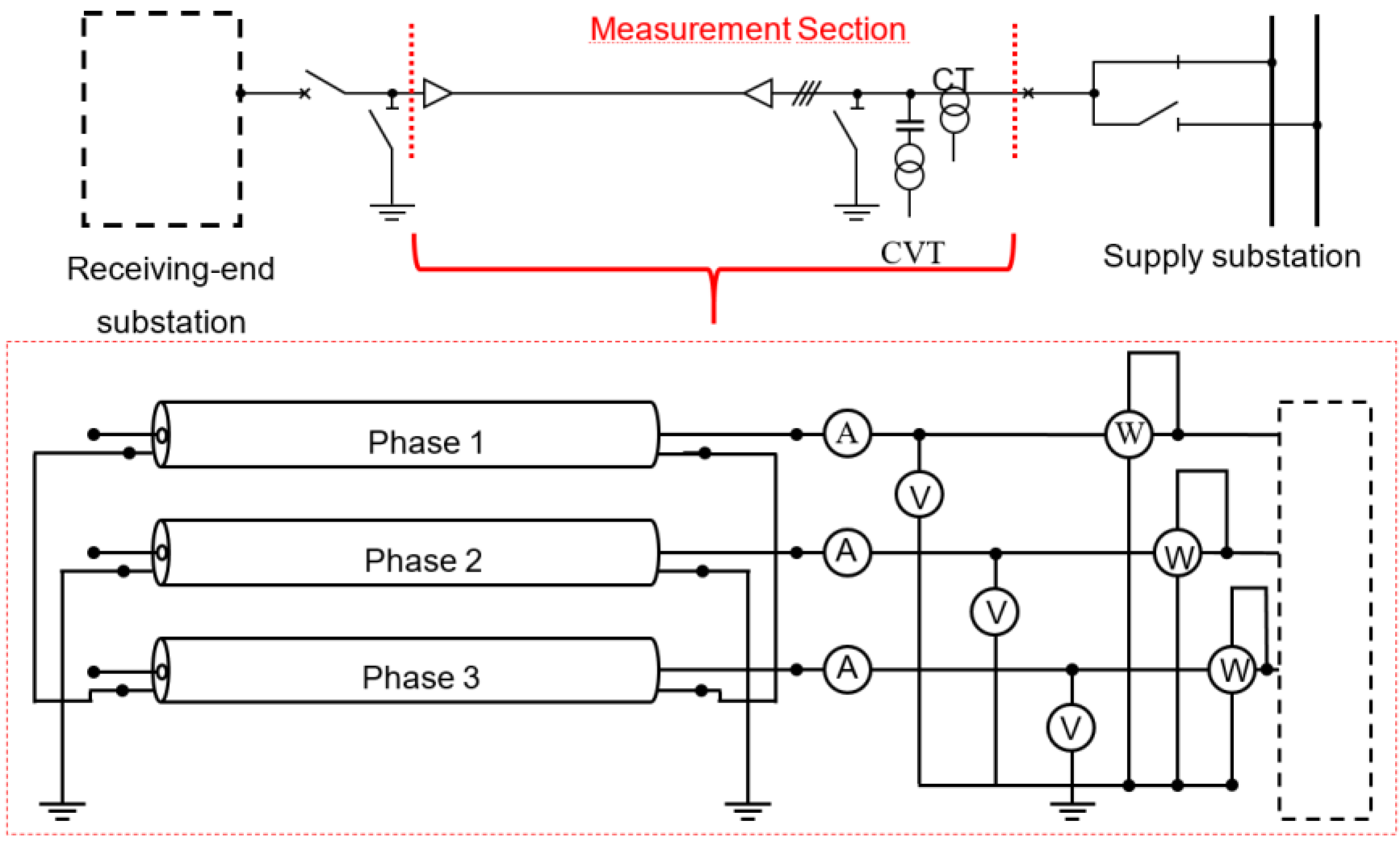

Figure 4 shows the scheme for measuring the zero sequence impedance. The behaviour of the current ground return path in this specific installation condition is investigated in detail in [7]. In order to supply the cable system with three equal voltages, only one transformer is used. Of course, the star point is earthed, and also in this case, the presence of current probes in the metallic screens allows the measurement of currents flowing in the screens.

The measured values of the p.u.l. capacitances are reported in

Table 6. Measured p.u.l. capacitances of the four cases in μF/km.

	Case #1	Case #2	Case #3	Case #4
Shunt capacitance c	0.22	0.2755	0.2320	0.1889

, whereas

Table 7. Measured positive and zero sequence impedances in Ω.

Sequence Impedances	Z1= R1+ jX1	Z0= R0+ jX0
Case #1	0.3074 + j1.2548	1.9549 + j1.0452
Case #2	0.1588 + j0.7623	0.6832 + j0.3699
Case #3	0.2685 + j1.3882	2.0252 + j1.0054
Case #4	0.0479 + j0.2864	0.2435 + j0.1913

reports the measured positive and zero sequence impedances. Only for the case #1,

Table 8. Measured imposed voltage magnitudes, current magnitudes and angles in the phases and the induced current magnitudes in the metallic screens for case #1.

Phase Number	1	2	3
Phase voltage magnitudes V	52.27	52.03	52.05
Phase current magnitudes A	40.51	39.91	40.61
Phase current angles °	76.5	76.1	76.1
Screen current magnitudes A	1.30	1.70	1.40

reports the measured imposed voltage magnitudes, the current magnitudes and angles in the phases and the induced current magnitudes in the metallic screens. This will serve as a comparison with the MCA results (see Section 7).

6. IEC/Cigré Computations

With regard to the computation of p.u.l. phase-to-screen capacitance, the IEC formula gives:

$$c=\frac{{\epsilon }_r}{18\cdot \ln \left(\frac{d_1}{d_0}\right)}\left[\frac{\mu F}{km}\right]$$

(9)

where ε_r = relative permittivity of the insulating material; d₁ = outer diameter of insulating medium excluding semiconductive screen or layer; d₀ = conductor diameter including semiconductive screen or layer, if any.

The presence of semiconductive layers (around the phase conductors and the insulations) is taken into account by considering them as part of the conductors in the diameters d₁ and d₀.

Table 9. Capacitances in p.u.l. of the four cases in μF/km with IEC.

	Case #1	Case #2	Case #3	Case #4
Shunt capacitance c	0.2225	0.2802	0.2301	0.1842

reports the computed values of shunt p.u.l. capacitances for the four cases.

For each case #1–#4, by means of (1) and (4), the positive and zero sequence impedances are computed. The results are reported in

Table 10. Positive and zero sequence impedances in Ω with IEC.

Sequence Impedances	Z1= R1+ jX1	Z0= R0+ jX0
Case #1	0.2821 + j1.2626	2.0243 + j0.7733
Case #2	0.1405 + j0.7070	0.7101 + j0.3634
Case #3	0.2627 + j1.2509	1.9925 + j0.7874
Case #4	(0.0311 – 0.035) + j0.2832	(0.2235 – 0.2274) + j0.1523

. With regard to the case #4, the presence of a Milliken-type conductor makes the positive sequence resistance computation difficult (i.e., the R_ac/R_dc ratio) since it is not known the exact realization of Milliken conductor: therefore, the computation of skin and proximity effects are obtained with a range in the parameters k_s and k_p (responsible for ac resistance increase due to skin and proximity effects [26]) given by

$$\{\begin{array}{l}{k}_s=0.7-1\\ k_p=0.37-1\end{array}.$$

(10)

It is worth remembering that the IEC/Cigré formulae for cross-bonded cables implies the complete absence of induced currents in the metallic screens. This hypothesis is never verified in the real installations due to resulting asymmetry as outlined in the Introduction.

In particular, the possibility of minor sections of different lengths is considered in another IEC standard (i.e., IEC 60287-1-1 clause 2.3.6.2 [30]) not for the computation of the sequence impedances but only for the circulating current losses with the aim of ampacity evaluation. As will be demonstrated by the measurements and by the MCA, this implies an underestimation of the positive sequence resistance and an overestimation of the positive sequence reactance.

7. Some Notes on MCA Results

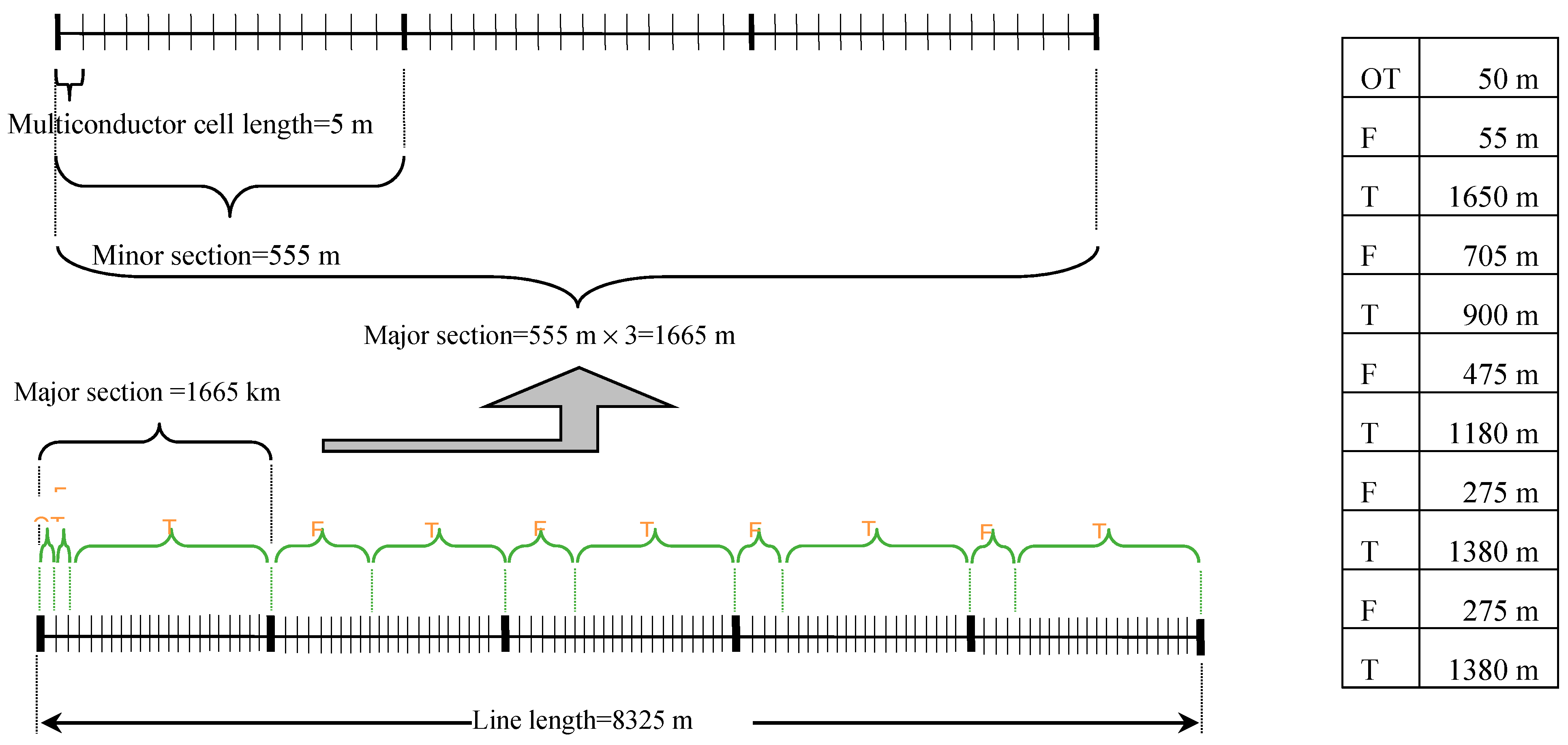

Figure 5 shows the subdivision of the cable system into elementary cells necessary for MCA application. This Figure is also very useful to have an immediate view of the different layings (trefoil, open trefoil, flat, etc.) along the route. The very short cell length (5 m in both case #1 and #4, and in the other two cases, ranging from 3.62 to 10 m) implies knowledge of the electric quantities with a great detail along the entire route. For the sake of brevity, it is impossible to show all the electric quantities for all the four cases.

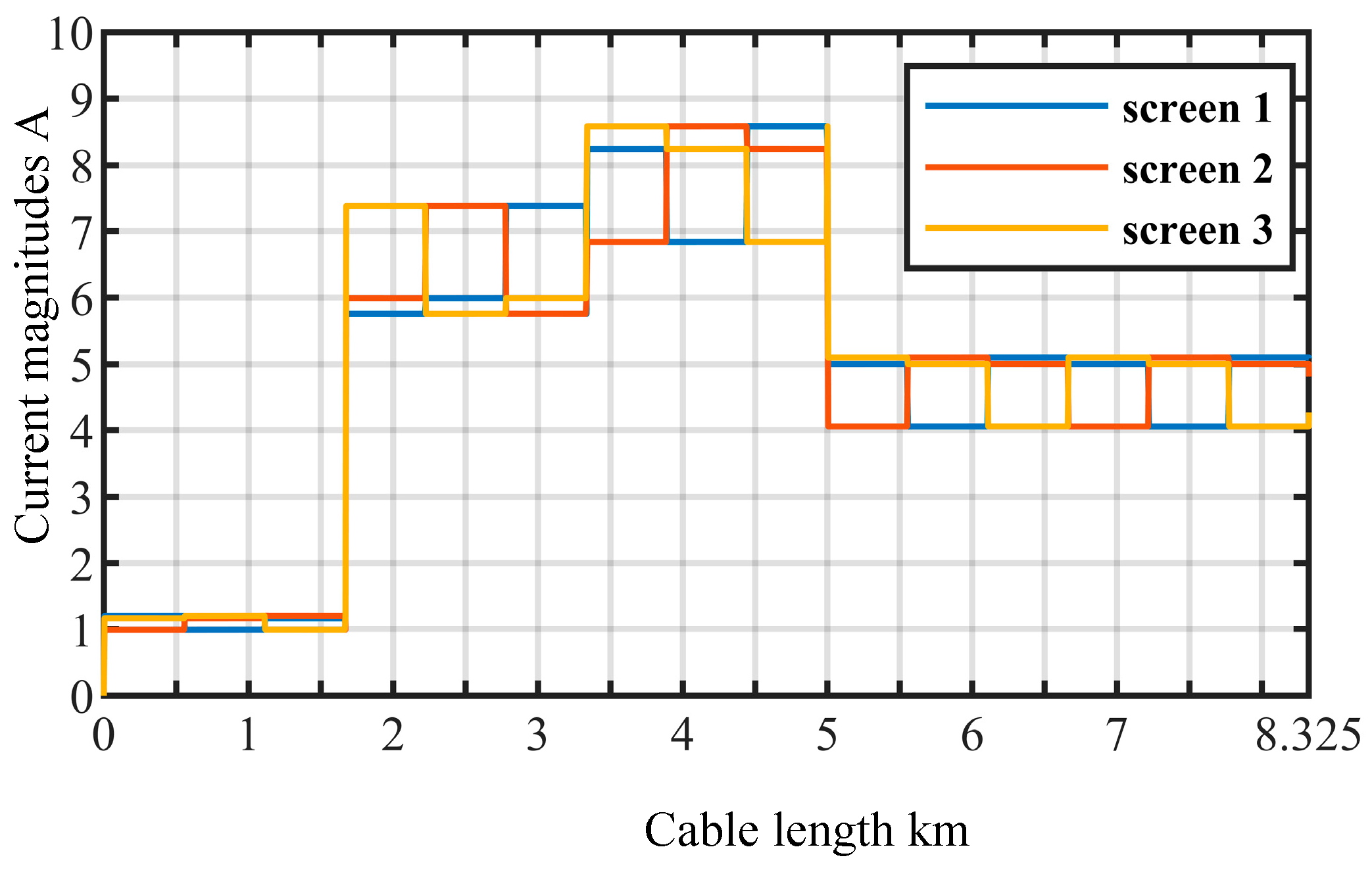

Since the errors in the evaluation of positive sequence impedances by means of IEC/Cigré depend upon the existence of induced screen currents even if the screens are cross-bonded, Figure 6 shows the inducing currents in the phases, and Figure 7 the induced currents in the metallic screens. The current magnitudes in Figure 6 are obtained by imposing the same voltage generators of the corresponding measurement campaign (see Table 8 first row) such as to compare the phase and the induced screen currents. It is impressive how the measured current magnitudes induced in the screens (see Table 8 last row) at the sending end present a slight difference compared to the values at the beginning (i.e., x = 0 km) of the x-axes of Figure 7. The screen current magnitudes vary along the route of the cable due to the different lengths in the cross-bonding minor sections which determine the non-zero induced currents in the screens, which reach almost 9 A (or about 40 A in the phases). This demonstrates the influence of circulating currents in the screens on the positive sequence parameters.

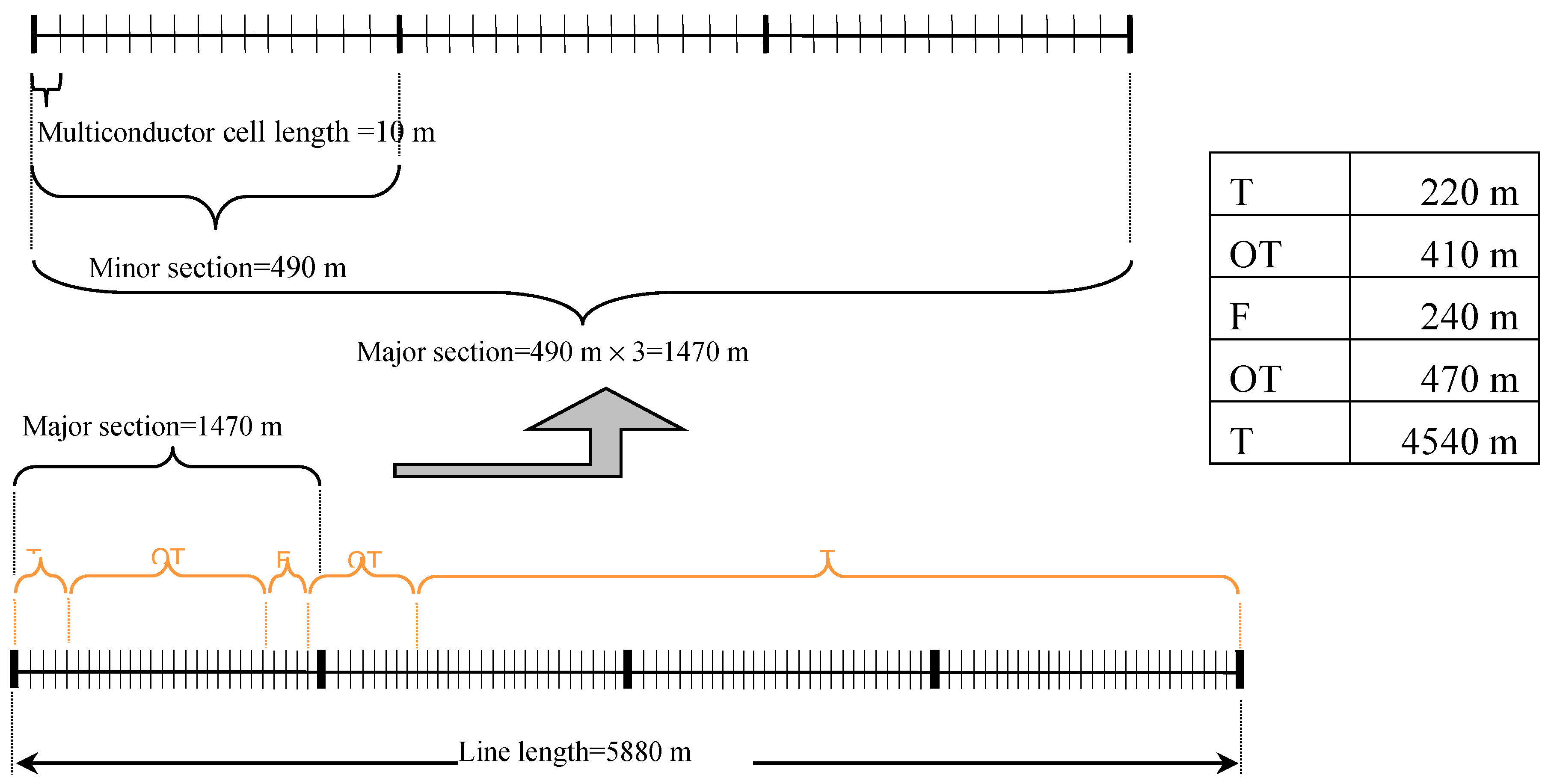

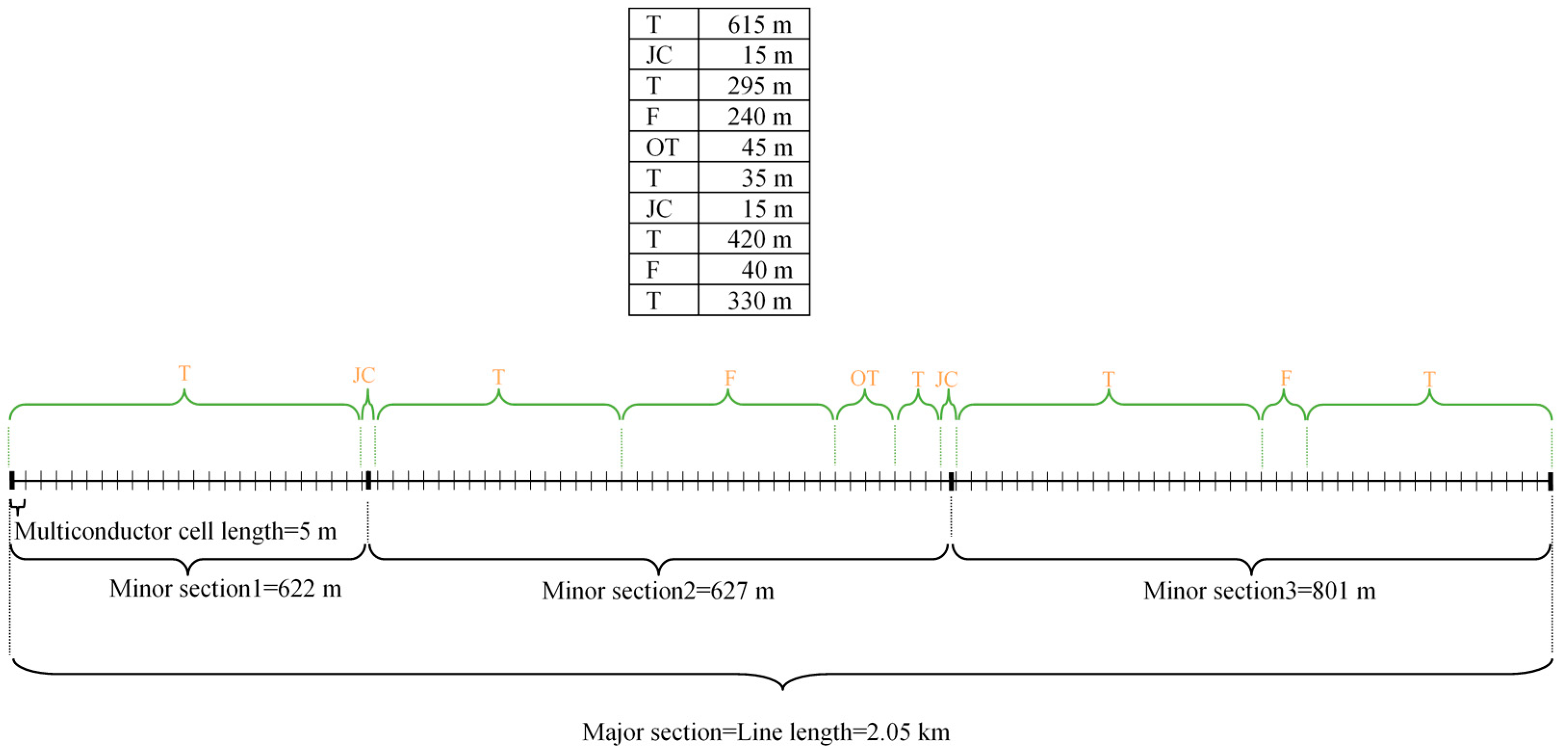

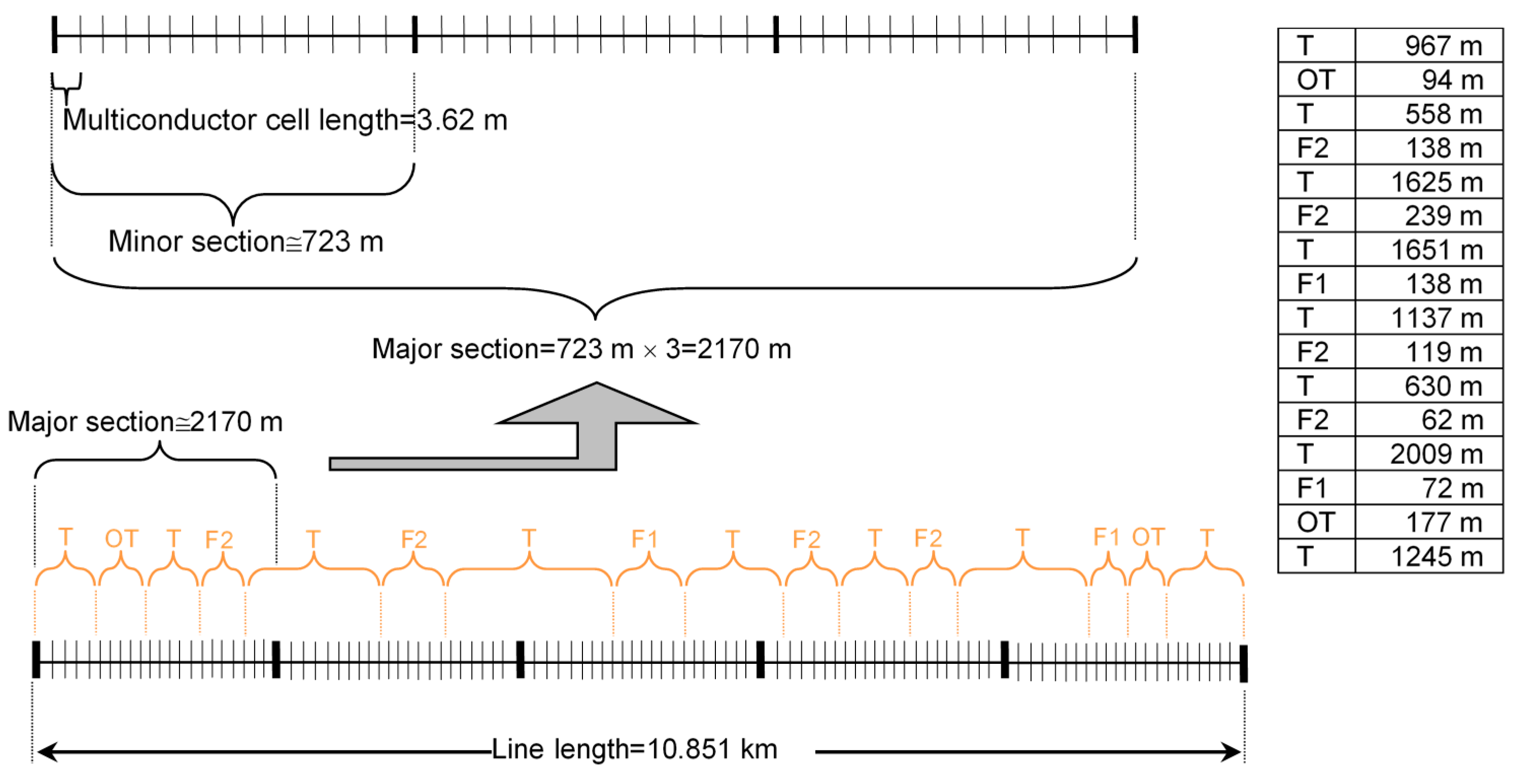

Figure 8, Figure 9 and Figure 10 give the subdivision into elementary cells performed for cases #2–#4.

Table 11. The p.u.l. capacitances of the four cases in μF/km with multiconductor cell analysis (MCA).

	Case #1	Case #2	Case #3	Case #4
Shunt p.u.l. capacitance c	0.2225	0.2802	0.2301	0.1842

reports the computations of p.u.l. shunt capacitance taking into account the semiconductive layers, but the results are practically identical to those obtained with IEC formula in (9).

It is worth noting that also commercial software as EMTP-RV or DigSilent Power Factory can reach the same precision of MCA.

The advantage of MCA is that it is a free self-made matrix algorithm whose inner characteristics are not hidden but available in the technical literature.

For each case #1–#4, by means of (6) and (8), the positive and zero sequence are computed. The results are reported in

Table 12. The p.u.l. posit. and zero sequence impedances in Ω with MCA.

Sequence Impedances	Z1= R1+ jX1	Z0= R0+ jX0
Case #1	0.3064 + j1.2446	2.1911 + j0.819
Case #2	0.1558 + j0.7027	0.7256 + j0.3587
Case #3	0.2767 + j1.3694	1.9991 + j0.7672
Case #4	(0.0432 – 0.0451) + j0.277	(0.2807 – 0.2827) + j0.1518

.

It is worth noting that the results of commercial power systems software as EMTP-RV would give the same results of MCA. For power frequency analysis, the authors prefer to use MCA since it is an open-source algorithm and allows knowing all the hypotheses and assumptions which are the basis of computations. By contrast, the commercial software are black boxes.

8. Final Comparisons of MCA and IEC/Cigrè with Measurements

In order to have a general overview of the differences between the two computation methods and the measurements,

Table 13. Final comparisons of the measurements with MCA and IEC/Cigré computations.

COMPARISON BETWEEN THE DIFFERENT METHODS APPLIED TO THE ANALYSED CASE STUDIES
		Case #1 SE Calenzano-SE Rifredi RT			Case #2 CP S. Giuseppe-CP Portoferraio			Case #3 SE Camin-CP Bassanello			Case #4 CP Ferrara Nord-C.le SEF
		IEC Cigré	MCA	Mea.	IEC Cigré	MCA	Mea.	IEC Cigré	MCA	Mea.	IEC Cigré	MCA	Mea.
c	μF/km	0.2224	0.2224	0.2200	0.2802	0.2802	0.2755	0.2301	0.2301	0.2320	0.1842	0.1842	0.1889
Δe	%	−1.09	−1.09		−1.71	−1.71		0.82	0.82		2.49	2.49
R1	Ω	0.2821	0.3064	0.3074	0.1405	0.1558	0.1588	0.2627	0.2767	0.2865	0.0311 ÷ 0.0350	0.0432 ÷ 0.0451	0.0479
Δe	%	8.23	0.33		11.52	1.89		8.31	3.42		35 ÷ 26.9	9.3 ÷ 5.9
X1	Ω	1.2626	1.2446	1.2548	0.7069	0.7063	0.7623	1.2509	1.3694	1.3882	0.2832	0.2769	0.2864
Δe	%	−0.62	0.81		7.27	7.35		9.89	1.35		1.12	3.32
R0	Ω	2.0243	2.0239	1.9549	0.7101	0.7256	0.6832	1.9925	1.9991	2.0252	0.2235 ÷ 0.2274	0.2406 ÷ 0.2434	0.2435
Δe	%	−3.55	−3.53		−3.94	−6.21		1.61	1.29		8.2 ÷ 6.6	−1.19 ÷ −0.04
X0	Ω	0.7733	0.7711	1.0452	0.3634	0.3587	0.3699	0.7847	0.7672	1.0054	0.1523	0.1470	0.1913
Δe	%	26.01	26.22		1.76	3.03		21.95	23.69		20.39	23.16

reports the percentage errors of MCA and of IEC/Cigré with respect to the measurement values. For example, the error of MCA with respect to the measurements (acronym MEA) are expressed by

$$\Delta e_c=\frac{c_{MEA}-c_{MCA}}{c_{MEA}}\cdot 100;$$

(11)

$$\Delta e_{R1}=\frac{R_{1\_MEA}-R_{1\_MCA}}{R_{1\_MEA}}\cdot 100;\Delta e_{X1}=\frac{X_{1\_MEA}-X_{1\_MCA}}{X_{1\_MEA}}\cdot 100;$$

(12)

$$\Delta e_{R0}=\frac{R_{0\_MEA}-R_{0\_MCA}}{R_{0\_MEA}}\cdot 100;\Delta e_{X0}=\frac{X_{0\_MEA}-X_{0\_MCA}}{X_{0\_MEA}}\cdot 100.$$

(13)

The cell colours help to immediately visualise the error ranges with the following choices:

• RED for errors greater than 15 %;
• YELLOW for errors ranging between 7.5% and 15%;
• GREEN for errors smaller than 7.5%.

The first important outcome of this research is that the precision in the computation of shunt capacitance of land single-core cables is very high both with IEC formula and with MCA which also considers semiconductive layers: the measures confirm that, at power frequency, the effects of semiconductive layers can surely be neglected.

The second result is the strong underestimation (up to 35%) of IEC/Cigré positive sequence resistances due to the already highlighted wrong hypothesis of null screen circulating currents.

The third note deals with the great errors in the zero sequence reactance (always about 20% both for MCA and IEC/Cigré) in all the cases (#1, #3, and #4) of cable located in industrialised and urbanised areas. This is due to the fact that the repartition of the currents between screens and earth is influenced by the presence of underground metallic pipes which are not known.

The demonstration of this fact is that for case #2, located in a natural area, the errors are wholly negligible (about 3%). In any case, since the calculated value is lower than that measured, this is on the safe side for the calculation of the short circuit currents but may lead to an error in the setting of the distance relays and consequent untimely tripping.

9. Conclusions

The formula IEC/Cigré for the computation of the phase-to-screen capacitance (equal for both positive and zero sequences) gives extremely precise values in full agreement with measurements when the relative permittivity and the semiconductive screen thicknesses are known. The maximum error is smaller than 2.5%. The same error is given by MCA even if it considers the relative permittivities of semiconductive layers. All the direct formulae of the positive sequence impedance hypothesise that the screen arrangements completely zero the induced currents in the screens. This would be true in real installations only if:

(1)

The minor section lengths are exactly equal (practically impossible);

(2)

There is perfect laying symmetry along the route (trefoil laying or any laying performed with phase transpositions: both very difficult to obtain).

In engineering practice (very often, the “as-built” differs from the project specifications) one or both the conditions cannot be satisfied. This gives errors between 8% and 35% for the real part of positive sequence impedance and up to 8% in the imaginary part.

In these cases, the hypotheses for Carson theory applications fail so that the ground return current uses different metallic paths and, therefore, nor analytical formulae neither matrix procedures can give exact impedance values.

MCA, together with commercial software as DigSilent PowerFactory or EMTP-RV, is the only computation approach able to obtain zero and positive sequence impedances in tune with the measurements when the exact laying conditions, homogeneous stretch per homogeneous stretch, are known. This is demonstrated by the fact that an error greater than 20% is given only in presence of unknown metallic return path for the currents.

Hence, the paper demonstrates, for the first time in the technical literature, that direct formulae cannot correctly evaluate the sequence impedances of installed single-core land cable systems. Extensive on-field measurement campaigns have served to this purpose.

Only by considering all the conductors (active and passive ones) in their real arrangement, it is possible to have reliable and correct sequence impedance values. The authors have extensively used their open-source algorithm, i.e., MCA, in order to demonstrate that the differences with on-field measurements are always negligible. The only difference between measurements and MCA results persists in the zero sequence reactance but only when cable systems are installed in urban or industrialised areas. This is not due to MCA limitations but only to the presence of different underground subservices (e.g., gas metallic pipes, etc.) in urbanised or industrialised areas, which alter the current return path. The final scientific demonstration of this important conclusion comes from the measurements of zero sequence in the cable system installed in Elba Island Island (CP S. Giuseppe-CP Portoferraio, i.e., case #3) where there is no congestion of underground subservices which lead to errors in determination the current return path. Hence, MCA can correctly evaluate also the zero sequence reactance with a difference of about 3% compared to measurements.

In conclusion, in this paper, we aim to help the entire insulated cable community to become aware of and pay attention to the issues in computation of sequence impedances with simplified analytic direct formulae: they can give high errors, which jeopardise the evaluations and the settings involving sequence impedance values.
