1. Introduction
Climate change and the greenhouse effect are becoming an increasingly major threat to human life and the environment worldwide. Although fossil fuels are exhaustible and contribute greatly to greenhouse emissions, oil remains a primary energy source. With the increasing need to reduce greenhouse emissions and continued growth of energy demand, energy development will face even more severe challenges. At this critical moment in the global energy transition, renewable green energy development will play a key role in leading the third industrial revolution by replacing fossil-fuel-based energy to reduce environmental pollution and promote economic development [
1].
Green energy is severely affected by environmental factors. For example, solar power generation systems are often affected by the time, intensity, and angle of incident sunshine; these factors affect the stability of power supply and, in turn, power generation. Therefore, although green energy is a relatively clean energy source, it is inconvenient and unstable to use.
Three-port bidirectional converters are appealing alternatives.

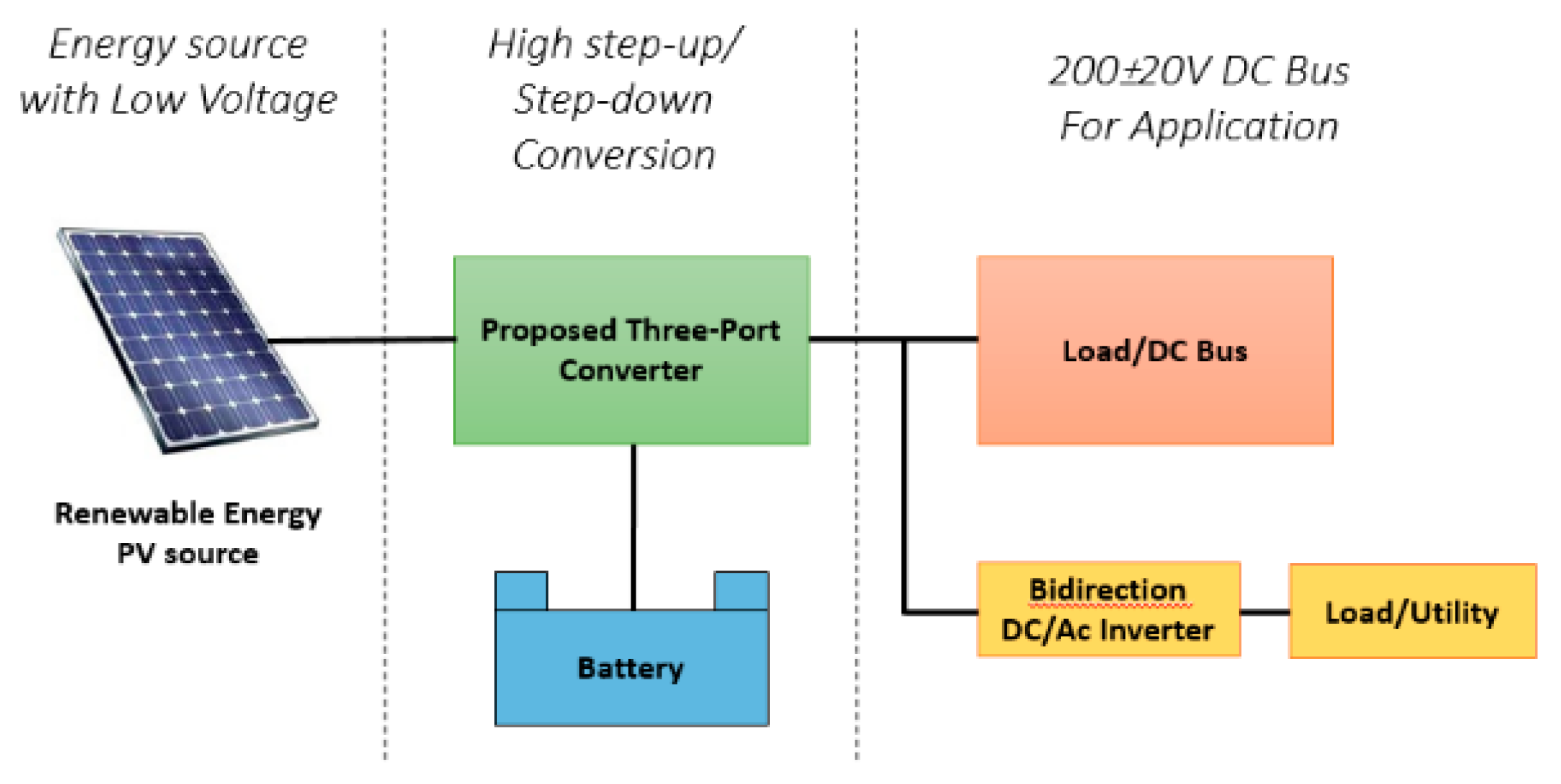

Figure 1 illustrates the general application diagram of a three-port bidirectional converter. Taking the solar power generation system as the starting point, we consider how to make the best use of the green energy produced. Solar power systems use solar energy for energy production, therefore the lack of sunshine would lead to inadequate energy. Therefore, an energy storage system must be developed to store more energy during the day or to satisfy excess energy demands through a battery. When a solar system generates insufficient or no energy owing to environmental factors or at night, energy will be supplied by a battery, thereby considerably improving the stability of the energy system [
2,
3,
4,
5,
6].
In general, the output voltage of a green energy source must be converted by a dc/dc converter for applying to a dc bus or dc loads. A conventional isolated converter [
7,
8,
9], such as a flyback converter, forward converter, and push-pull converter, is widely used for this purpose because it improves safety and noise immunity, provides galvanic isolation, and enables adding more windings on the transformer to output multiple voltage values. In recent years, switches shared in the circuit have reached the same topology as the step-up/step-down function of bidirectional converters [
9,
10,
11,
12,
13,
14]. A common nonisolated bidirectional converter such as a buck/boost bidirectional converter has also been widely used [
15]; such a converter has the advantages of a relatively low component count and cost but the disadvantage of a poor voltage conversion ratio. In high-efficiency bidirectional conversion executed using a coupled inductor converter [
16] and a bidirectional Sepic-Zeta converter [
17], a clamp capacitor can be applied to reduce the voltage stress and recover stray energy; however, such converters do not have an electrical isolation function, making the circuit and switch control signals susceptible to interference. In addition, many isolated bidirectional converters have been proposed recently. For example [
18,
19,
20] proposed a high-efficiency single-input multiple-output bidirectional isolated converter in which the leakage inductance energy of the coupled inductor is recovered through the clamp capacitor to the power supply terminal and zero-voltage switching (ZVS) is implemented in the converter switch to reduce the switching loss; however, the auxiliary power supply terminal cannot be stepped down/stepped up to other power supply terminals in this topology. Another study [
21] proposed a high-conversion-ratio isolated bidirectional converter with a half-bridge LLC topology and dc-blocking capacitor on the high-voltage side. This converter reduces the voltage on the transformer and uses a current multiplying circuit on the low-voltage side to reduce the output ripple current; however, its component count is large and the magnetizing inductance has an energy release problem in high-power applications.
Therefore, this study proposes a three-port bidirectional converter with three-winding coupled inductors. To satisfy the demands of green energy applications, the converter has three operating stages. When the energy supplied from the photovoltaic (PV) modules is sufficient, the converter operates in Stage 1. The PV modules provide energy to the dc bus and simultaneously charge the battery. However, when the energy supplied by the PV modules is insufficient, the converter operates in Stage 2. The battery steps up energy to the dc bus. When the energy supplied from the PV modules cannot charge the battery, the converter operates in Stage 3; the dc bus steps down to the battery.
2. Proposed Converter and Operating Principles

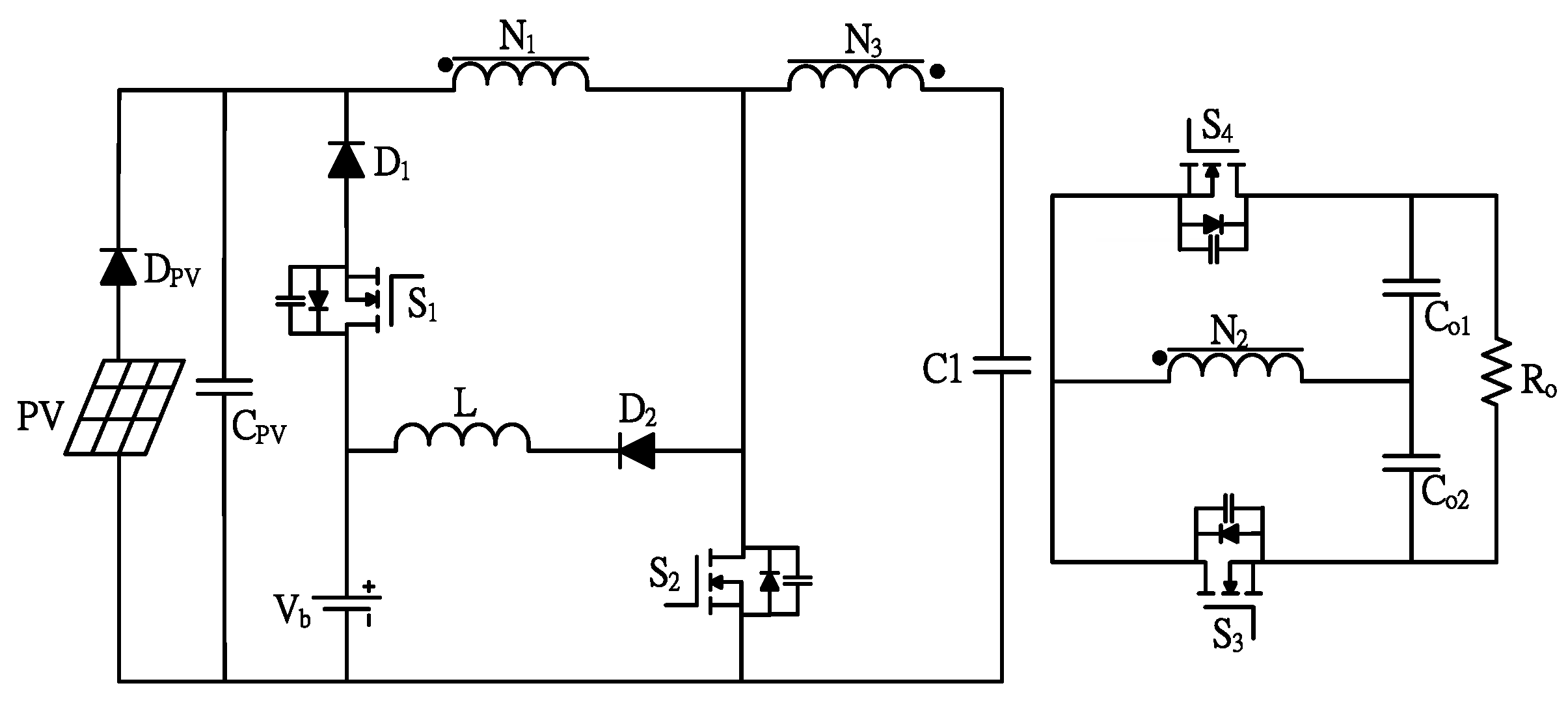

This study proposes a three-port bidirectional converter with three-winding coupled inductors (
Figure 2). A three-winding common core coupled inductor is designed and adopted in the proposed converter, and full-wave voltage doubler rectification is used on the high-voltage side to achieve a high step-up effect. The power switches and diodes in the circuit are shared to achieve bidirectional operation. The output capacitor can recover the secondary-side leakage inductance energy in the step-up mode, and the third winding can be used to recover the primary-side leakage inductance energy to reduce the surge voltage on the switch; thus, the converter can achieve improved conversion efficiency and the charging inductance of the battery side can modify the output voltage value to the battery and protect the battery from the inrush current, thereby extending the battery’s lifetime.
This converter has three operating stages. In Stage 1, when the energy supplied from the PV modules is sufficient, the PV module is stepped up to the dc bus and charges the battery, and when the battery is fully charged, the energy is independently supplied to the dc bus. In Stage 2, when the energy supplied from the PV modules is insufficient, the battery is independently stepped up to the dc bus. In Stage 3, when no solar energy is incident or the battery needs to be charged, the dc bus is stepped down to charge the battery. To simplify the circuit analysis, the following conditions are assumed:
- (1)
Switches S1–4 and diodes D1–2 are ideal components.
- (2)
Capacitances CPV, Co1, and Co2 are sufficiently large to be considered a constant voltage source.
- (3)
Each magnetizing inductance of the transformer is much larger than its leakage inductance.
A. Stage 1: PV Output Voltage is stepped up to DC Bus and Charges the Battery
When the energy supplied from the PV modules is sufficient, the PV module voltage is stepped up to the dc bus and charges the battery.

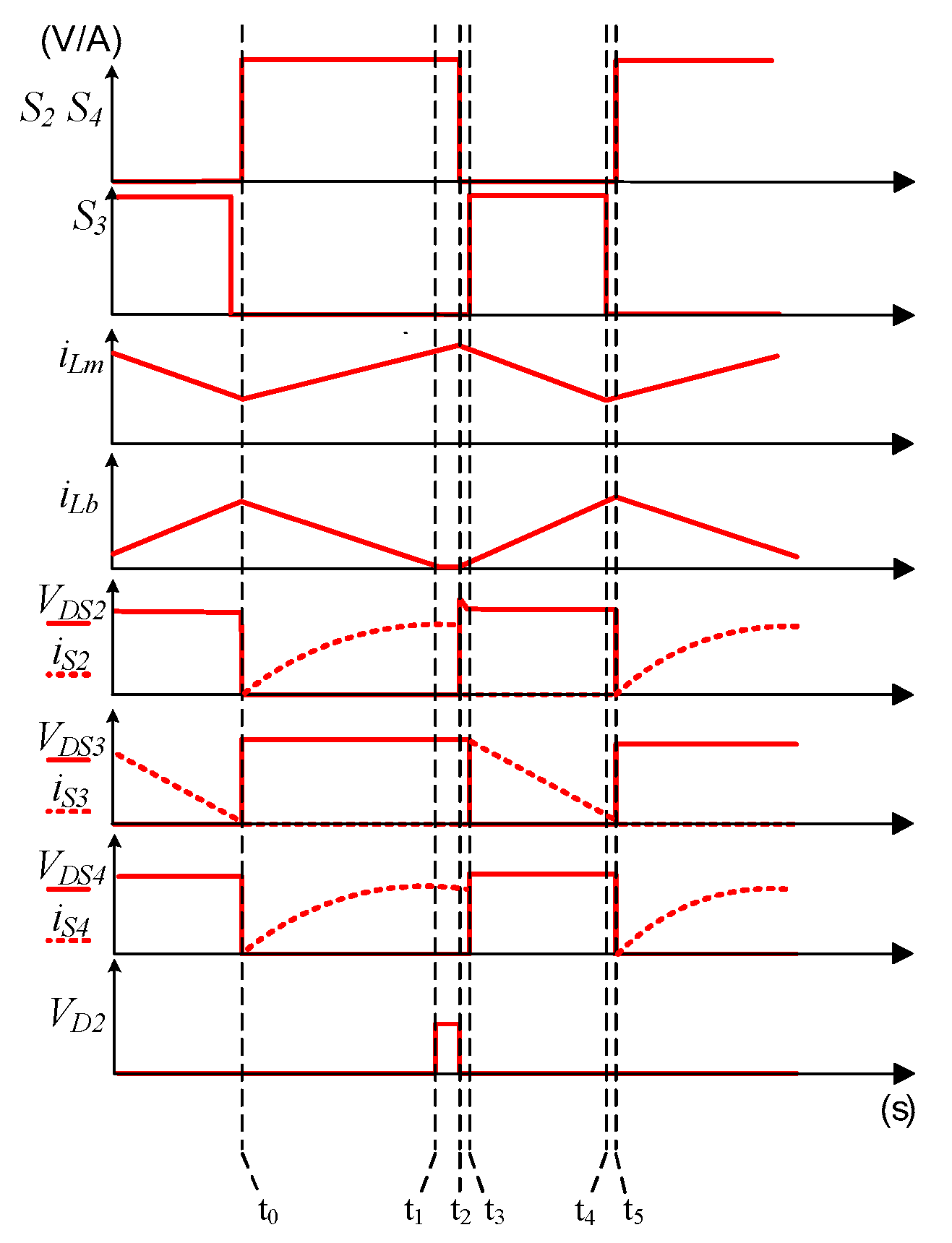

Figure 3 illustrates the waveform diagram of main component operation in Stage 1.
(1) Mode I (t0-t1):

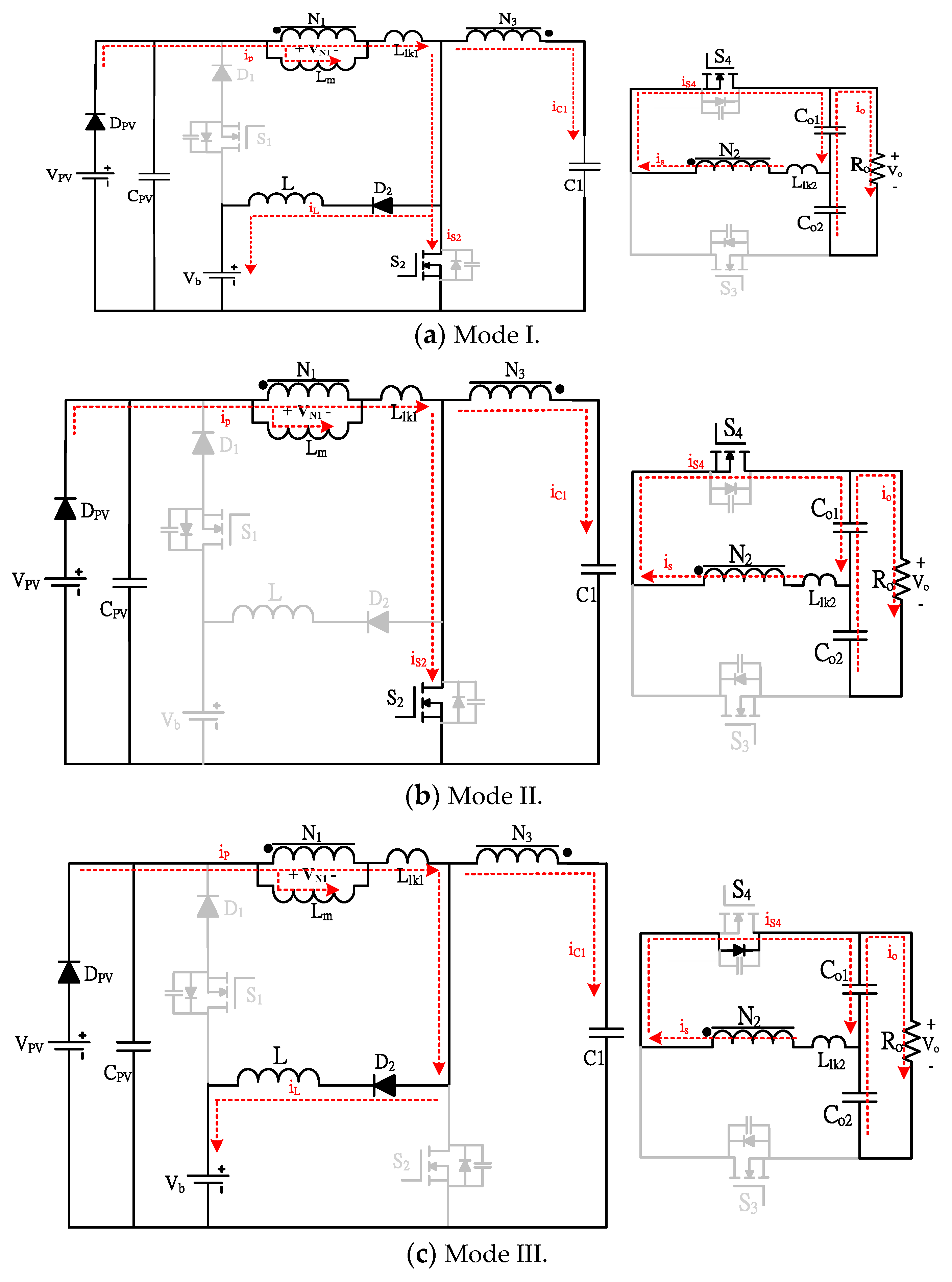

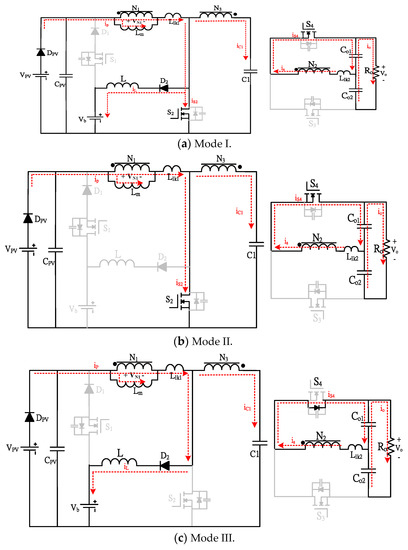

As displayed in
Figure 4a, in this mode, switches
S2 and
S4 are turned on, the other switches are turned off, and the diode
D2 is turned on. The switch
S4 performs synchronous rectification, and the PV module voltage
VPV stores energy in the magnetizing inductance
Lm and charges the capacitor
C1 through the third winding; energy is transmitted to the secondary side in the forward direction and charges the capacitor
Co1 through the switch
S4. The output capacitors
Co1 and
Co2 supply energy to the load
Ro. The charging inductor L releases energy to the battery. When the current of the charging inductor i
L is equal to zero, this mode ends.
(2) Mode II (t1-t2):
As presented in
Figure 4b, in this mode, the switches
S2 and
S4 are turned on, the other switches are turned off, and the diode
D2 is turned off. The circuit operates in the same manner as in Mode I. The PV module voltage
VPV continuously stores energy in the magnetizing inductance
Lm, charges the capacitor
C1 through the third winding, and simultaneously transmits the energy to the secondary side and charges the capacitor
Co1 through the switch
S4. The output capacitors
Co1 and
Co2 supply energy to the load Ro.
(3) Mode III (t2-t3):
As shown in
Figure 4c, in this mode, the parasitic diode of the switch
S4 is turned on, the other switches are turned off, and the diode
D2 is turned on. The switch
S4 ends the synchronous rectification, and the primary-side leakage inductance releases energy to inductor L and charges the capacitor
C1 through the third winding. The secondary-side leakage inductance L
lk2 continues to flow and charges the capacitor
Co1 with the secondary-side energy through the parasitic diode of the switch
S4. The energy is supplied to the load Ro at the same time as
Co1 and
Co2.
(4) Mode IV (t3-t4):

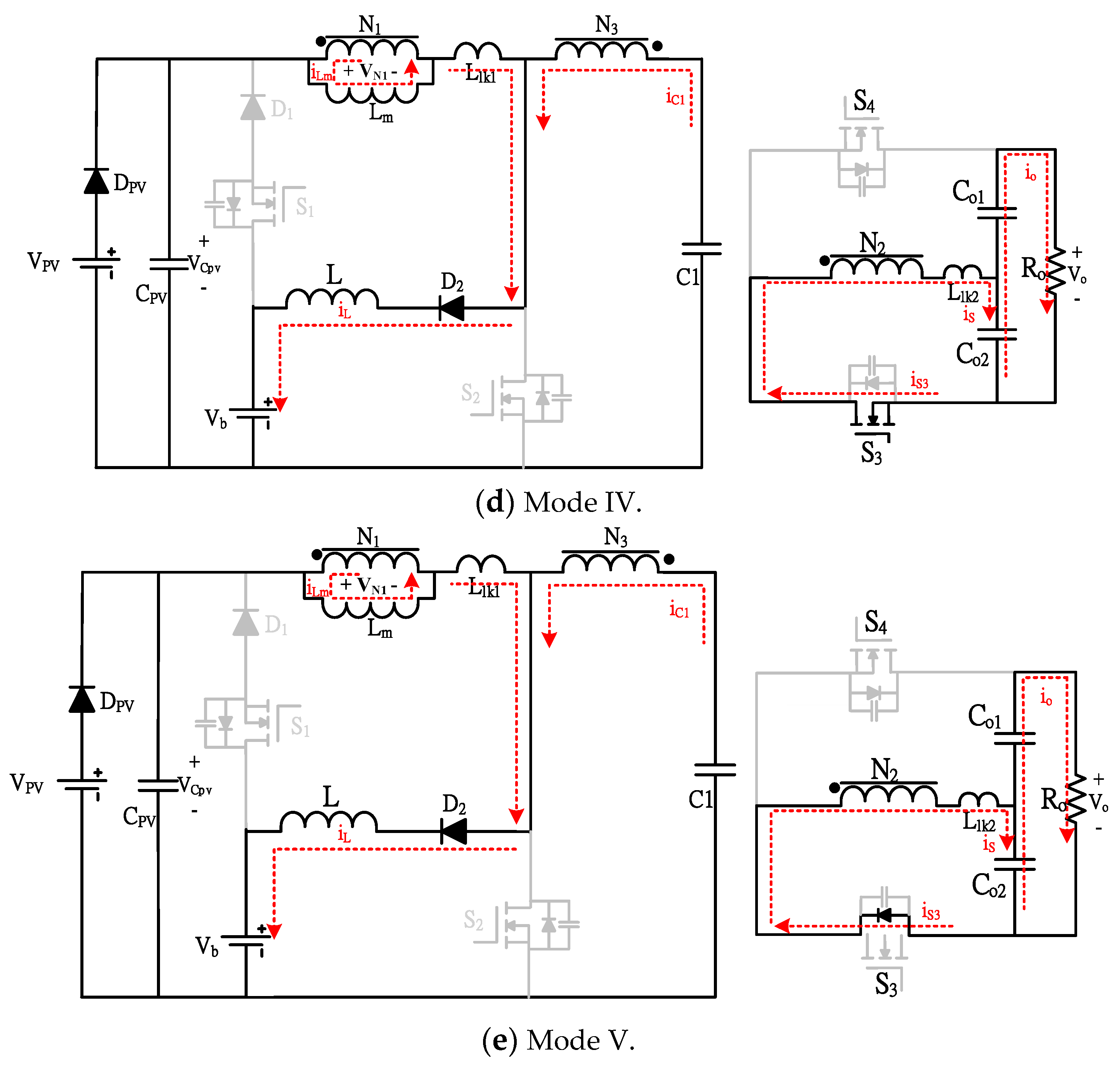

As illustrated in
Figure 4d, in this mode, the switch
S3 is turned on for synchronous rectification, the other switches are turned off, and the diode
D2 is turned on. The magnetizing inductance
Lm can be reversely transmitted to the secondary side through the transformer and charges the capacitor
Co2 through the switch
S3. The capacitor
C1 is discharged through the third winding. Part of the energy of the magnetizing inductance and the capacitor
C1 is released to the battery and the charging inductor L. The output capacitors
Co1 and
Co2 provide energy to the load
Ro.
(5) Mode V (t4-t5):
As displayed in
Figure 4e, in this mode, the parasitic diode of the switch
S3 is turned on, the other switches are turned off, and the diode
D2 is turned on. The switch
S3 ends synchronous rectification, and the rest of the circuit operates in the same manner as in Mode IV. Magnetizing inductance
Lm continuously releases energy to the secondary side through the transformer and charges the capacitor
Co2 through the parasitic diode of the switch
S3. Part of the energy of the magnetizing inductance is stored in the charging inductor
L and charges the battery. The secondary-side leakage inductance L
lk2 freewheels and charges the capacitor
Co2. The output capacitors
Co1 and
Co2 provide energy to the load Ro.
B. Stage 2: Battery Provides Energy to DC Bus
When the energy supplied from the PV modules is insufficient, the battery is independently stepped up to the dc bus.

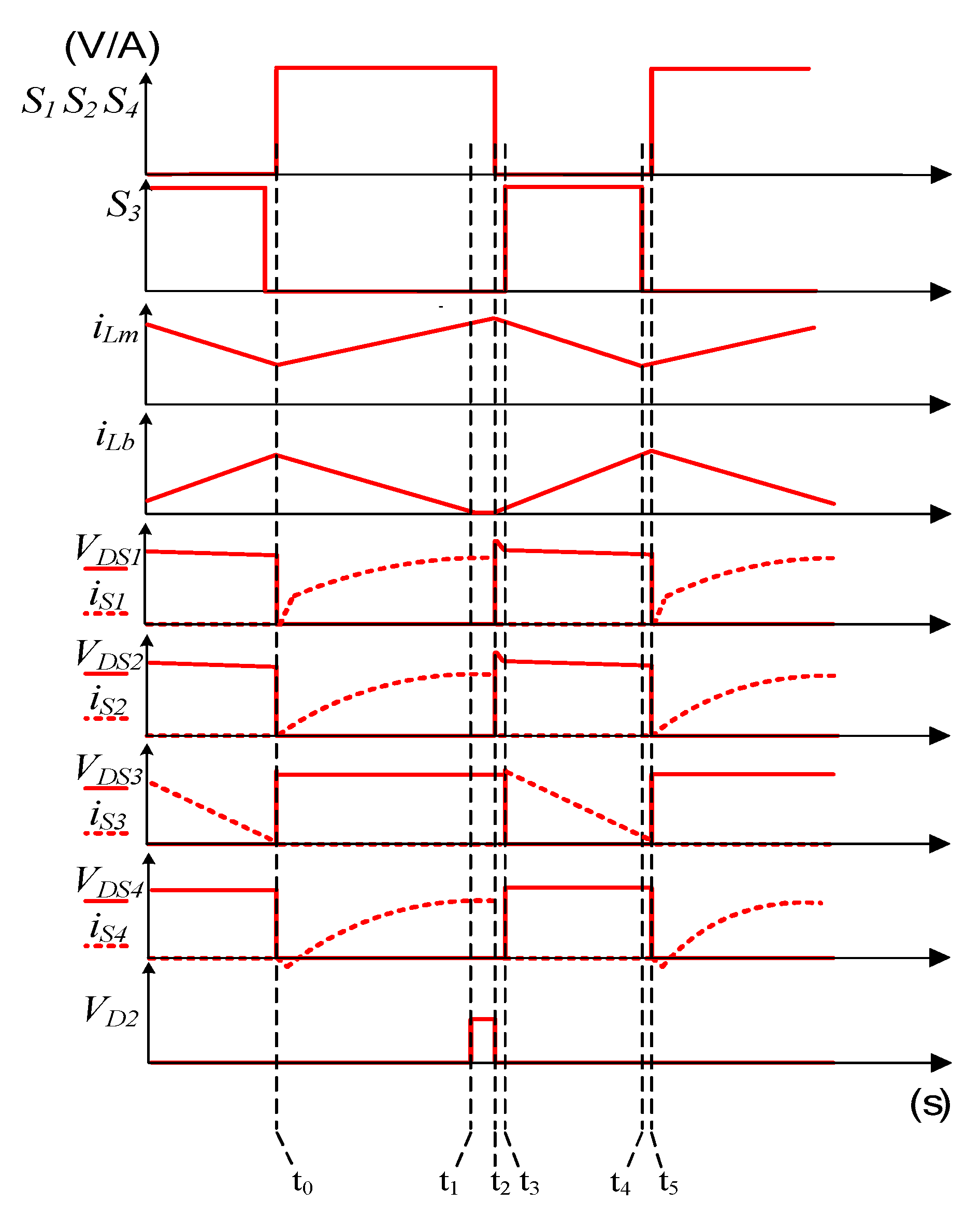

Figure 5 presents the waveform diagram for the operation of the main components in Stage 2.

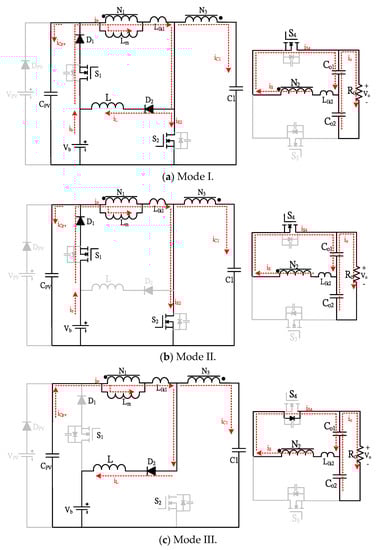

(1) Mode I (t0-t1):
As shown in

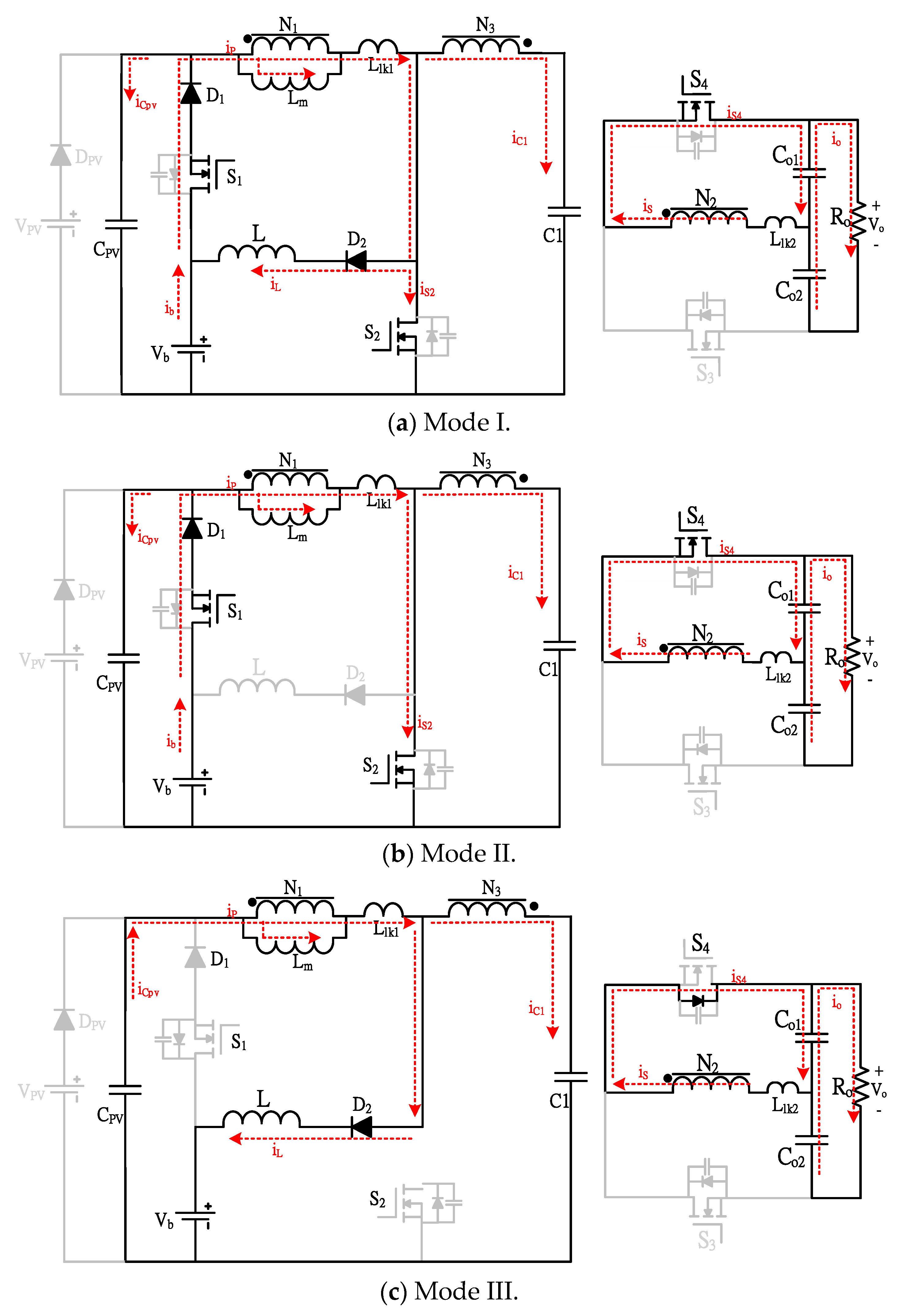

Figure 6a, in this mode, the switches
S1,
S2, and
S4 are turned on; the other switches are turned off; and the diodes
D1 and
D2 are turned on. The battery voltage
Vb stores energy in the magnetizing inductance
Lm and charges the capacitors
CPV and
C1. The output capacitors
Co1 and
Co2 supply energy to the load
Ro. The charging inductor L releases energy to the battery. When the current of the charging inductor
iL is equal to zero, this mode ends.
(2) Mode II (t1-t2):
As illustrated in
Figure 6b, in this mode, the switches
S1,
S2, and
S4 are turned on; the other switches are turned off; the diode
D1 is turned on; and the diode
D2 is turned off. The circuit operates in the same manner as in Mode I. The battery input voltage
Vb continuously stores energy in the magnetizing inductance
Lm and charges the capacitor
C1 through the third winding. Concurrently, energy is induced to the secondary side and charges the capacitor
Co1 through the switch
S4. The output capacitors
Co1 and
Co2 supply energy to the load
Ro.
(3) Mode III (t2-t3):
As displayed in
Figure 6c, in this mode, the parasitic diode of the switch
S4 is turned on, the other switches are turned off, the diode
D2 is turned on, and the diode
D1 is turned off. The switch
S4 ends the synchronous rectification. The primary-side leakage inductance L
lk1 releases energy to the inductor
L and charges the capacitor
C1 through the third winding. The secondary-side leakage inductance
Llk2 continues to flow and charges the capacitor
Co1 with the secondary-side energy through the parasitic diode of the switch
S4. The output capacitors
Co1 and
Co2 simultaneously supply energy to the load
Ro.
(4) Mode IV (t3-t4):

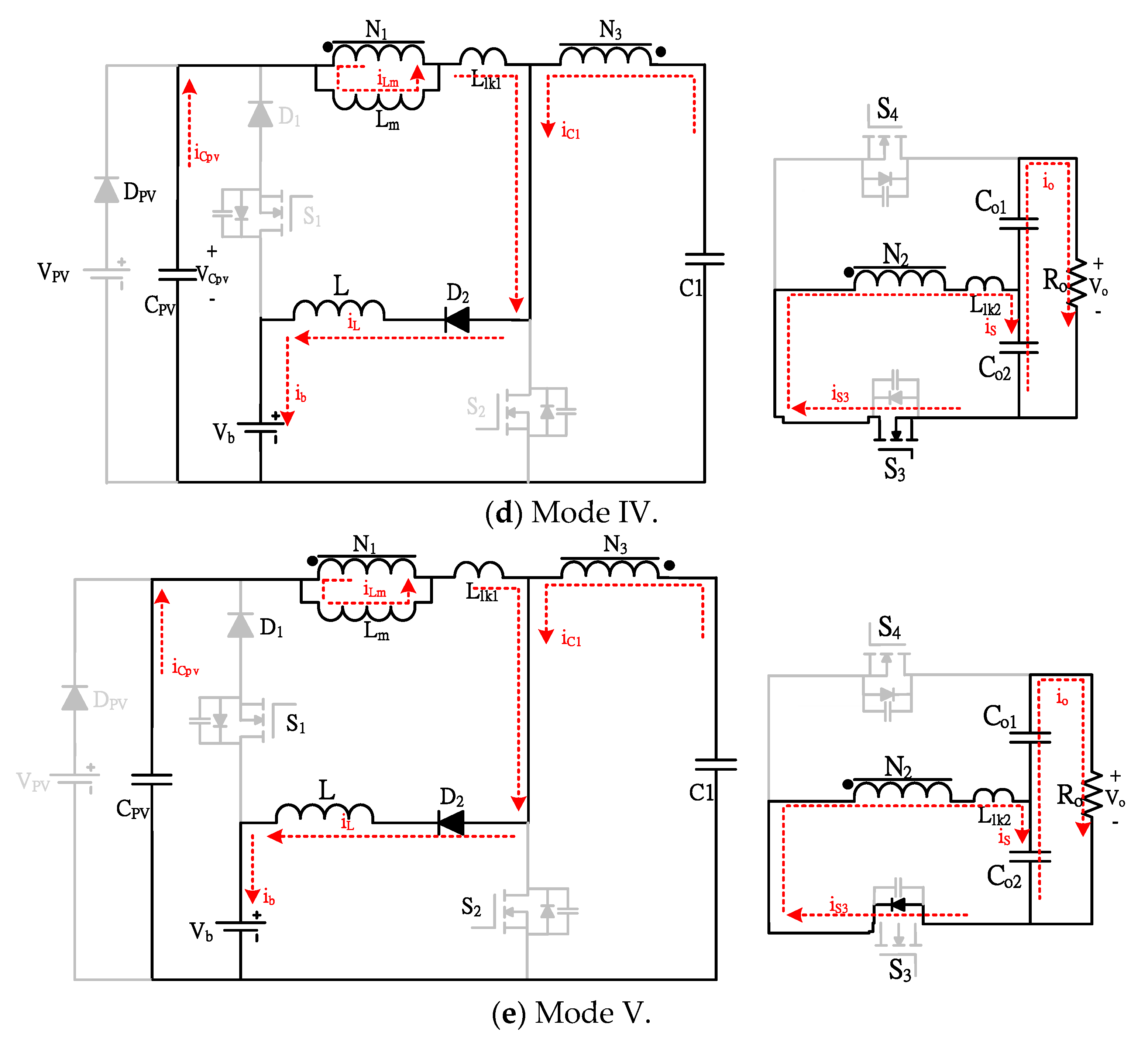

As presented in

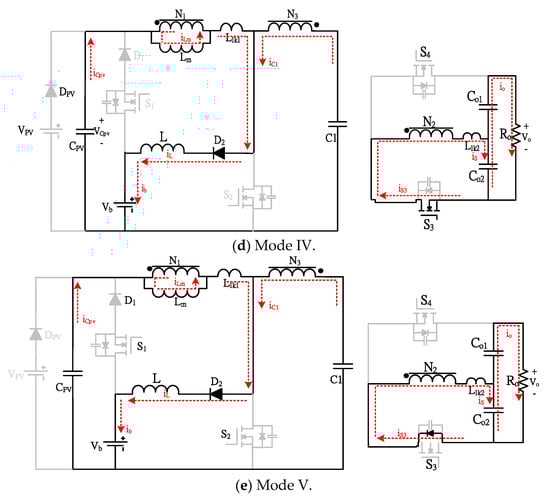

Figure 6d, in this mode, the switch
S3 is turned on for synchronous rectification, the other switches are turned off, and the diode
D2 remains on. The magnetizing inductance
Lm induces the secondary side through the transformer in the reverse direction and charges the capacitor
Co2 through the switch
S3. The capacitor
C1 is discharged through the third winding and stores energy in the battery and the charging inductor
L along with part of the energy of the magnetizing inductance. The output capacitors
Co1 and
Co2 provide energy to load
Ro.
(5) Mode V (t4-t5):
As shown in
Figure 6e, in this mode, the parasitic diode of the switch
S3 is turned on, the other switches are turned off, and the diode
D2 remains on. The switch
S3 ends the synchronous rectification, and the rest of the circuit operates in the same manner as in Mode IV. The magnetizing inductance
Lm continuously releases energy to the secondary side and charges the capacitor
Co2 through the parasitic diode of switch
S3. Part of the energy of the magnetizing inductance continues to charge the battery and store energy in the charging inductor
L. The secondary-side leakage inductance
Llk2 freewheels and charges the capacitor
Co2. The capacitors
Co1 and
Co2 supply energy to the load
Ro.
C. Stage 3: DC Bus Step Down for Battery Charging
When no solar energy is incident or the battery needs to be charged, the output voltage of the dc bus is stepped down to charge the battery.

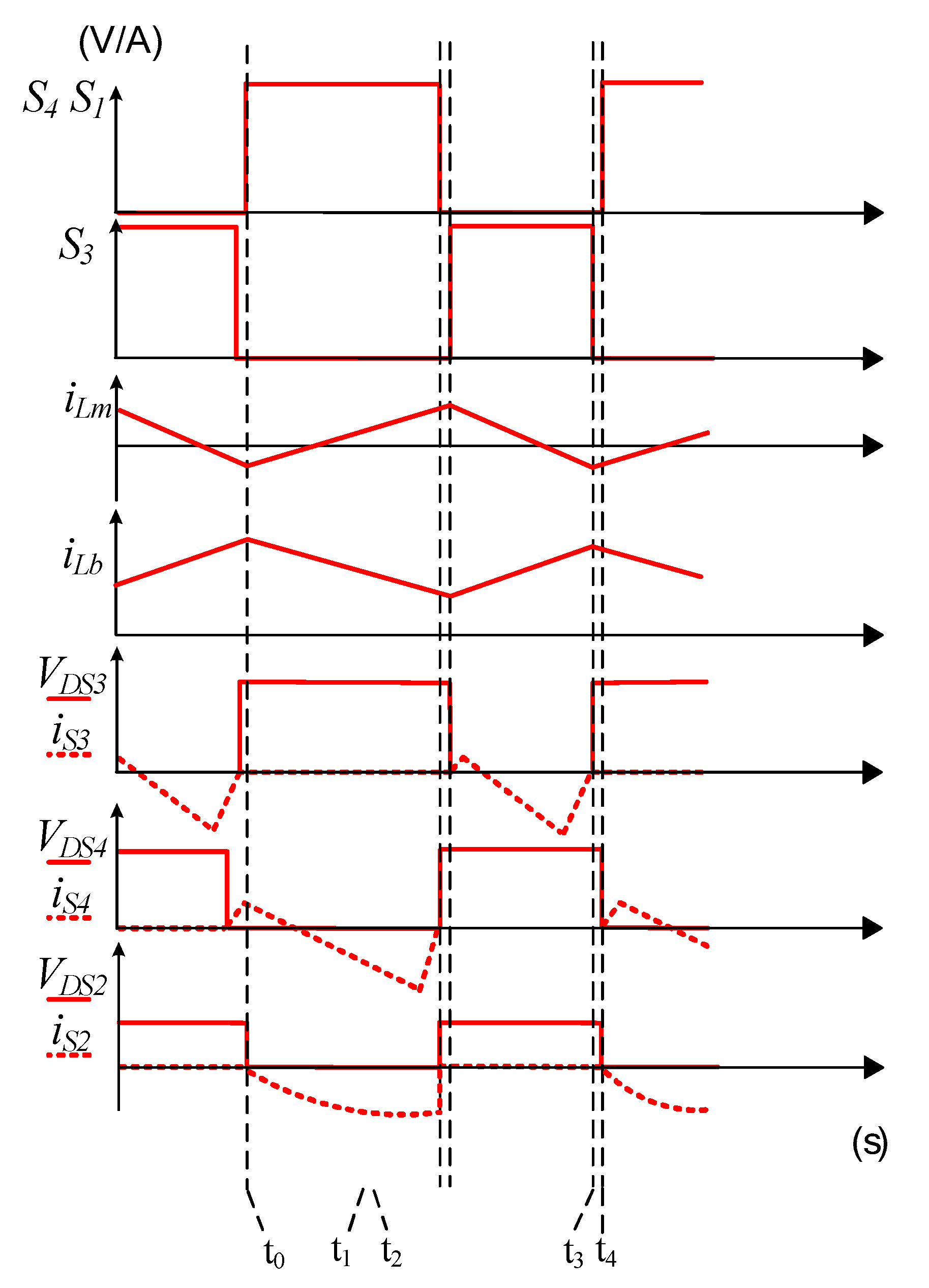

Figure 7 presents the waveform diagram of the operation of the main components in Stage 3.
(1) Mode I (t0-t1):

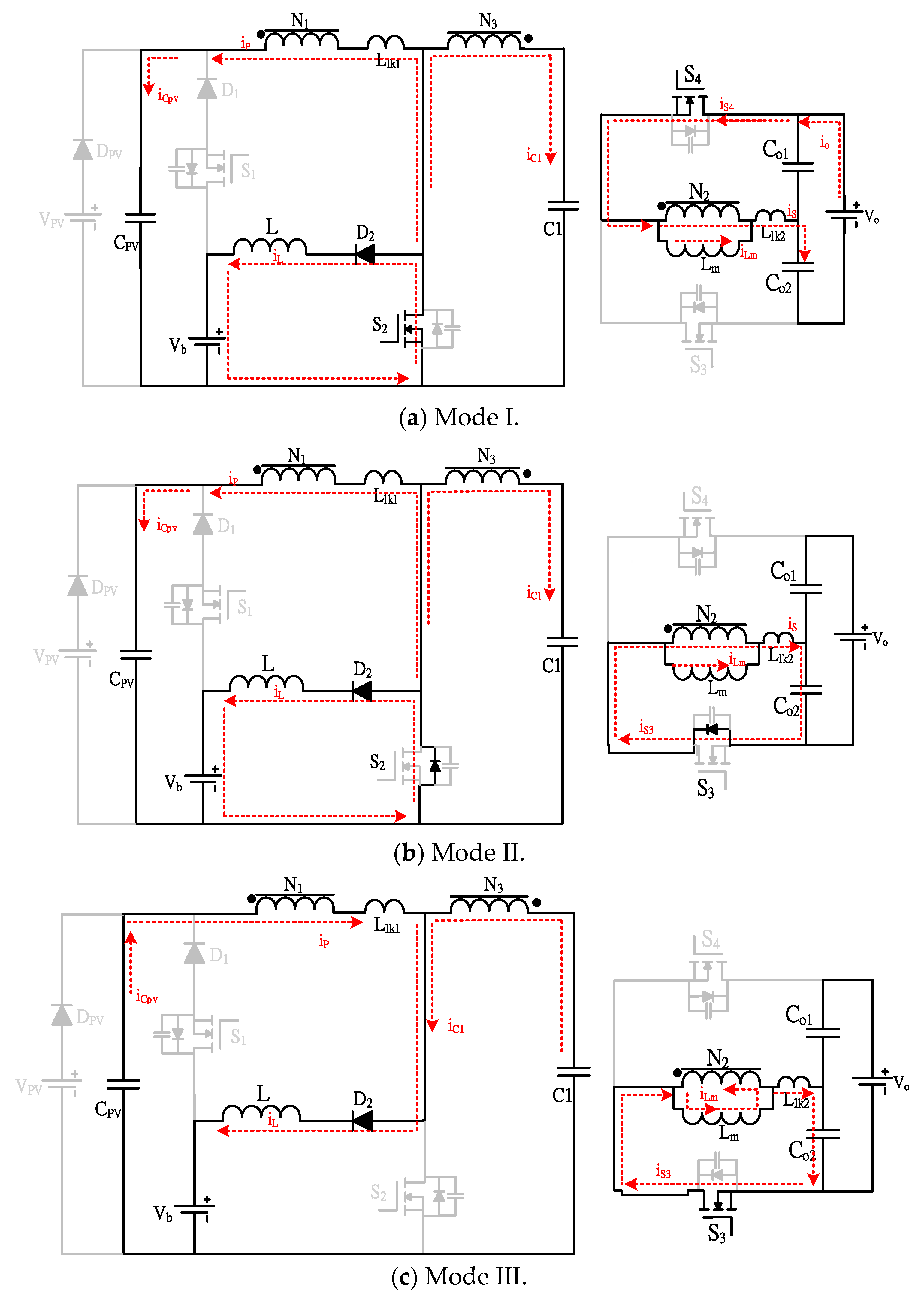

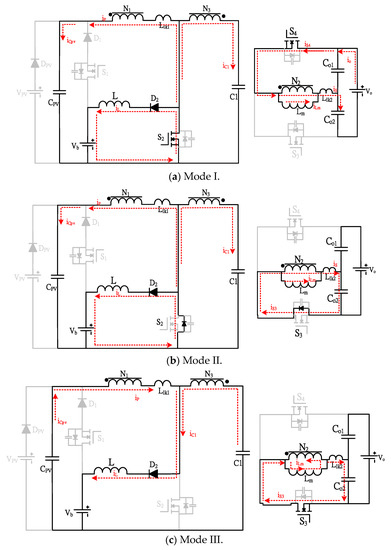

As shown in
Figure 8a, in this mode, the switch
S4 and switch
S2 are turned on for synchronous rectification, the other switches are turned off, and the diode
D2 is turned on. The voltage of the dc bus stores energy in the magnetizing inductance
Lm and charges the output capacitor
Co2. The energy induced by the transformer charges the solar input capacitor
CPV through the winding
N1 and charges the capacitor
C1 through winding
N3. The charging inductor
L is discharged to the battery through the switch
S2.
(2) Mode II (t1-t2):
As illustrated in
Figure 8b, in this mode, the parasitic diode of the switch
S3 is turned on, the other switches are turned off, the diode
D2 is turned on, and the switch
S2 ends the synchronous rectification. The leakage inductance of the transformer L
lk2 continues to flow and charges the output capacitor
Co2 through the parasitic diode of the switch
S3. The current induced by the transformer charges the solar input capacitor
CPV through the winding
N1 and charges capacitor
C1 through the winding
N3. The charging inductor is continuously discharged to the battery through the parasitic diode of the switch
S2.
(3) Mode III (t2-t3):
As displayed in
Figure 8c, in this working interval, the switch
S3 is turned on, the other switches are turned off, and the diode
D2 remains on. The magnetizing inductance
Lm releases energy to the output capacitor
Co2 through the switch
S3 and induces the winding
N1 through the transformer. The induced current stores energy in the charging inductor
L and charges the battery. The capacitor
C1 is discharged to the battery through the winding
N3.
(4) Mode IV (t3-t4):

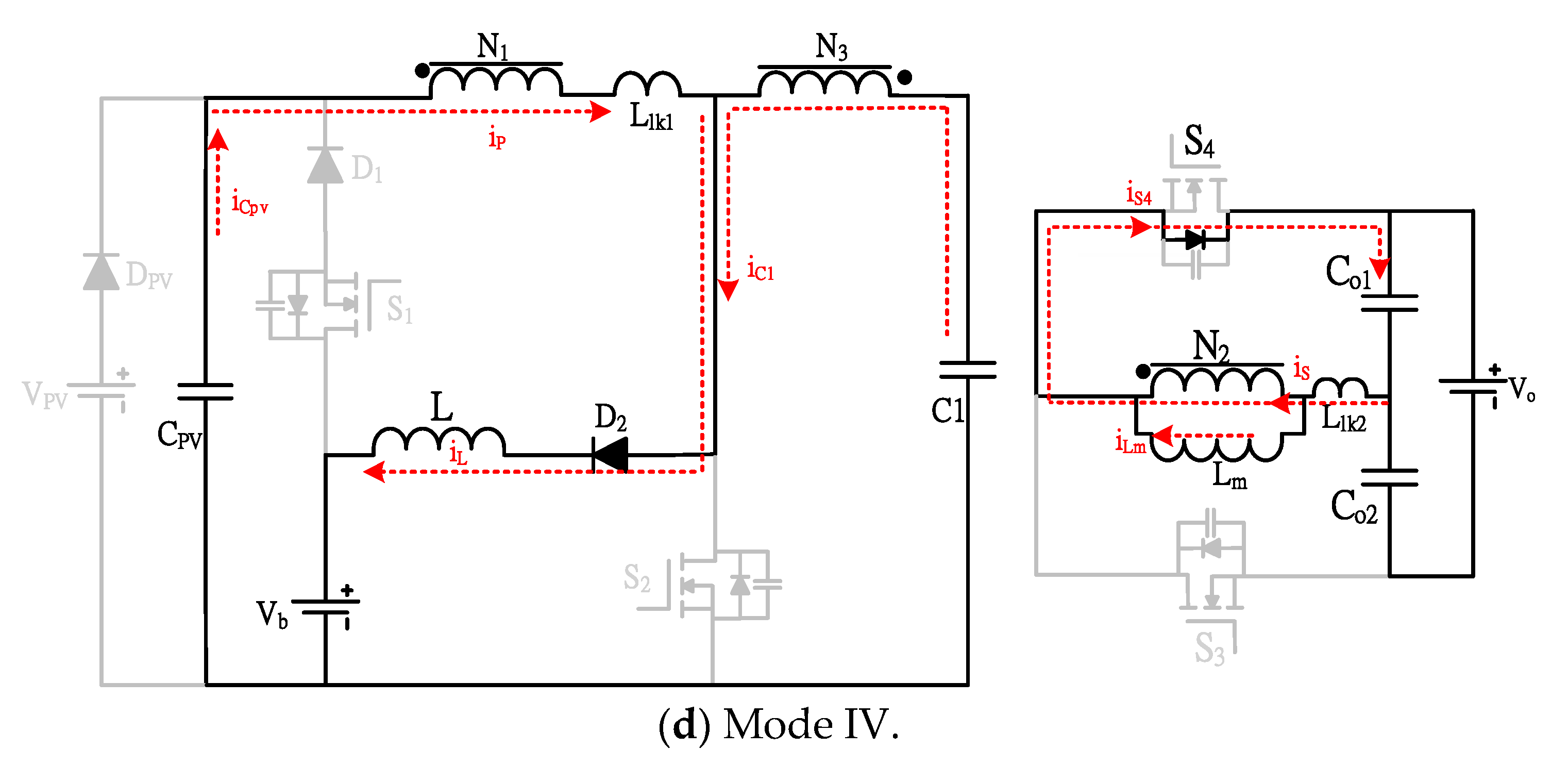

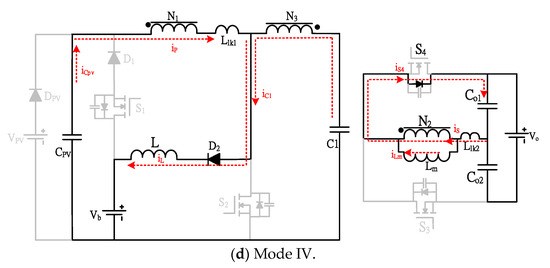

As presented in
Figure 8d, in this mode, the parasitic diode of the switch
S4 is turned on, the other switches are turned off, and the diode
D2 remains on. The leakage inductance of the transformer
Llk2 charges the output capacitor
Co1 through the parasitic diode of the switch
S4 and induces the winding
N1 through the transformer. The induced current stores energy in the charging inductor and charges the battery. The capacitor
C1 is discharged to the battery through the winding
N3, and the mode ends for one cycle.
3. Steady-State Analysis
This section focuses on the mathematical derivation of the voltage conversion ratio and voltage stress of components. First, some assumptions are made to simplify the analysis:
- (1)
All components in the proposed topology are considered ideal components.
- (2)
The capacitance is sufficiently large to maintain a constant voltage.
- (3)
Each winding’s magnetizing inductance is much larger than its leakage inductance.
A. Voltage Conversion Ratio
Stage 1 is derived such that when solar energy is available, the PV module is stepped up to the dc bus and charges the battery. When the switches
S2 and
S4 are turned on and the other switches are turned off, the voltage on the magnetizing inductance
Lm is expressed as
The variation of current on the magnetizing inductance
Lm is expressed as
When the switch
S3 is turned on and the other switches are turned off, the voltage on the magnetizing inductance
Lm is expressed as
The variation of current on the magnetizing inductance
Lm is expressed as
According to the voltage-second balance principle, the variation of current on the magnetizing inductance
Lm is constant. Accordingly, the voltage gain of
Vo is expressed as
Stage 3 is derived such that when solar energy is unavailable or the battery’s power is insufficient, the battery is charged by the dc bus. When the switches
S2 and
S4 are turned on and the other switches are turned off, the voltage on the charging inductor
L is expressed as
The variation of current on the charging inductor
L is expressed as
When the switch
S3 is turned on and the other switches are turned off, the voltage on the charging inductor
L is expressed as
The variation of current on the charging inductor
L is expressed as
In this mode, the voltage
VN1 on the winding
N1 is expressed as
According to the voltage–second balance principle, the variation of current on the charging inductor
L is constant. Accordingly, the voltage gain of
Vb is expressed as
B. Voltage Stress of Components
The voltage stress of the circuit components can be derived by analyzing their states under on and off operating conditions. The voltage stress of the switch
S2 can be derived from the turned-on state presented in
Figure 5a. The switching stress at this time is expressed as
According to the voltage–second balance principle, the voltage stress of the switch
S2 is expressed as
When the diode
D1 is assumed to be an ideal component and the switch
S1 is turned off, the voltage stress on the switch is expressed as
When the switch
S3 is turned off, its voltage stress is obtained from Mode I of Stage 3 illustrated in
Figure 8a:
When the switch
S4 is turned off, its voltage stress is obtained from Mode III of Stage 3 presented in
Figure 8c:
In Stage 2, the voltage stress of diode
D1 is the same as that of switch
S1.
When the switch
S2 is turned on, the voltage stress of the diode
D2 is obtained from Mode II of Stage 1 shown in
Figure 4b:
The voltage stress of the output capacitors
Co1 and
Co2 is expressed as
4. Performance Comparison and Experimental Results
To demonstrate the performance and feasibility of the proposed converter and understand the advantages and disadvantages of its architecture, this section presents a comparison of the proposed converter with those in the literature. As presented in
Table 1, the proposed converter is separately compared with a bidirectional converter [
17,
21,
22] and a three-port converter [
23,
24,
25]. The bidirectional converter in [
17] uses a clamp capacitor to reduce the voltage stress and recover stray energy, thereby improving the efficiency of the conversion circuit. However, some switches do not perform synchronous rectification, reducing the overall efficiency. The bidirectional converter in [
21] is based on a half-bridge LLC topology, and its transformer is considered an ideal transformer; it is used to provide energy to the output load in the forward direction. The dc-blocking capacitor on the high-voltage side reduces the voltage on the transformer, and the current multiplying circuit on the low-voltage side reduces the output ripple current. However, the component count is excessively high, and the output power of this converter is only 200 W. In [
22], this topology consists of the voltage doubler circuit, the low-side inductor combined with the transformer to increase power density. The current ripple of this topology is large, therefore the LC filter is added to the voltage ports to reduce the current ripple. This technology not only increases the cost, but also increases the conduction loss.
Table 2 shows a comparison of the proposed converter with other three-port converters [
23,
24,
25]. The converter in [
23] includes an interleaved step-up full-bridge conversion circuit in which switches and diodes are shared to achieve three conversion modes. The converter in [
24] uses two inductors to charge the battery in an interleaved manner; the high-voltage side performs full-bridge rectification using switches, and all switches can enable ZVS. However, the number of components such as switches and diodes is excessively high in the converts proposed in [
23] and [
24], resulting in a significant increase in cost and volume. Owing to output diode blocking, the battery cannot be charged from the output load to achieve bidirectional function. In [
25], this topology is composed of two sets of high step-up converter and a buck converter to achieve the function of a three-port converter. The advantage is that the power can be supplied to the DC bus independently or in parallel. It increases the number of components and the overall volume of the circuit.
The feasibility of the proposed three-port bidirectional converter with a three-winding coupled inductor is verified through simulations. Next, a 500-W circuit is implemented to verify the study assumptions.
Table 3 and
Table 4 list the electrical and component specifications of the circuit, respectively. Simulated waveforms are evaluated to identify directions for future research. Finally, the voltage and current waveforms of individual components of the implemented circuit are measured to verify its integrity.

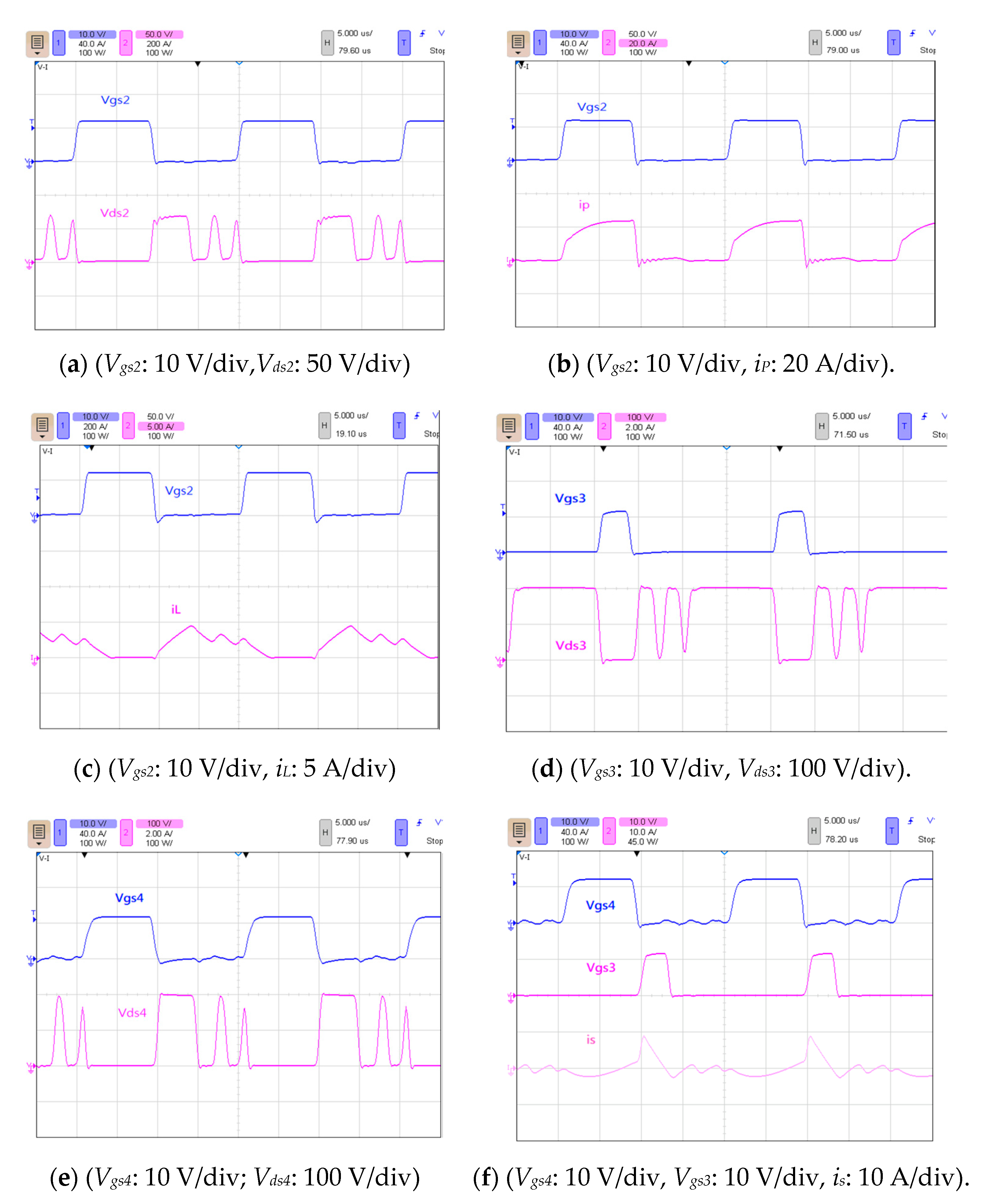

In Stage 1, the 24-V PV module supply power is stepped up to a 200-V dc bus and 24-V the battery power, and the waveforms of each component are measured at half load, as illustrated in
Figure 9. After the switch is turned off, the switching voltage waveform oscillates because the resonance of the switching parasitic capacitance
Cds causes magnetizing and leakage inductances.
Figure 9a displays the switch
S2 waveform of the control signal
Vgs2 and switching voltage
Vds2, and the voltage stress of
S2 is approximately 80 V.
Figure 9b presents the control signal
Vgs2 and the primary-side current waveform of the transformer
iL. Energy storage is performed when the switch
S2 is turned on.
Figure 9c shows the control signal
Vgs2 and the current waveform of the charging inductor
iL. When the switch
S2 is turned off, the charging inductor recovers the magnetizing inductance energy for energy storage.
Figure 9d illustrates the switch
S3 waveform of the control signal
Vgs3 and switching voltage
Vds3. The voltage stress of
S3 is nearly 200 V of the secondary-side output voltage.
Figure 9e shows the switch
S4 waveform of the control signal
Vgs4 and switching voltage
Vds4, and the voltage stress of
S4 is approximately 200 V.
Figure 9f presents the control signals
Vgs4 and
Vgs3 and the secondary-side current waveform of the transformer
iS. The secondary side stores energy in the output capacitor when the switches
S3 and
S4 are respectively turned on.
In Stage 1, the waveforms of each component operating at full load are measured (
Figure 10).
Figure 10a shows the switch
S2 waveform of the control signal
Vgs2 and switching voltage
Vds2, and its switching voltage stress is approximately 80 V.
Figure 10b illustrates the control signal
Vgs2 and primary-side current waveform of the transformer
iL. Energy storage is performed when the switch
S2 is turned on.
Figure 10c displays the control signal
Vgs2 and current waveform of the charging inductor
iL. When the switch
S2 is turned off, the charging inductor recovers the magnetizing inductance energy for energy storage.
Figure 10d presents the switch
S3 waveform of the control signal
Vgs3 and switching voltage
Vds3. The switching voltage stress is nearly 200 V.
Figure 9e shows the switch
S4 waveform of the control signal
Vgs4 and switching voltage
Vds4, and its switching voltage stress is approximately 200 V.
Figure 10f illustrates the control signals
Vgs4 and
Vgs3 and secondary-side current waveform of the transformer
iS. The secondary side stores energy in the output capacitor when the switches
S3 and
S4 are respectively turned on.

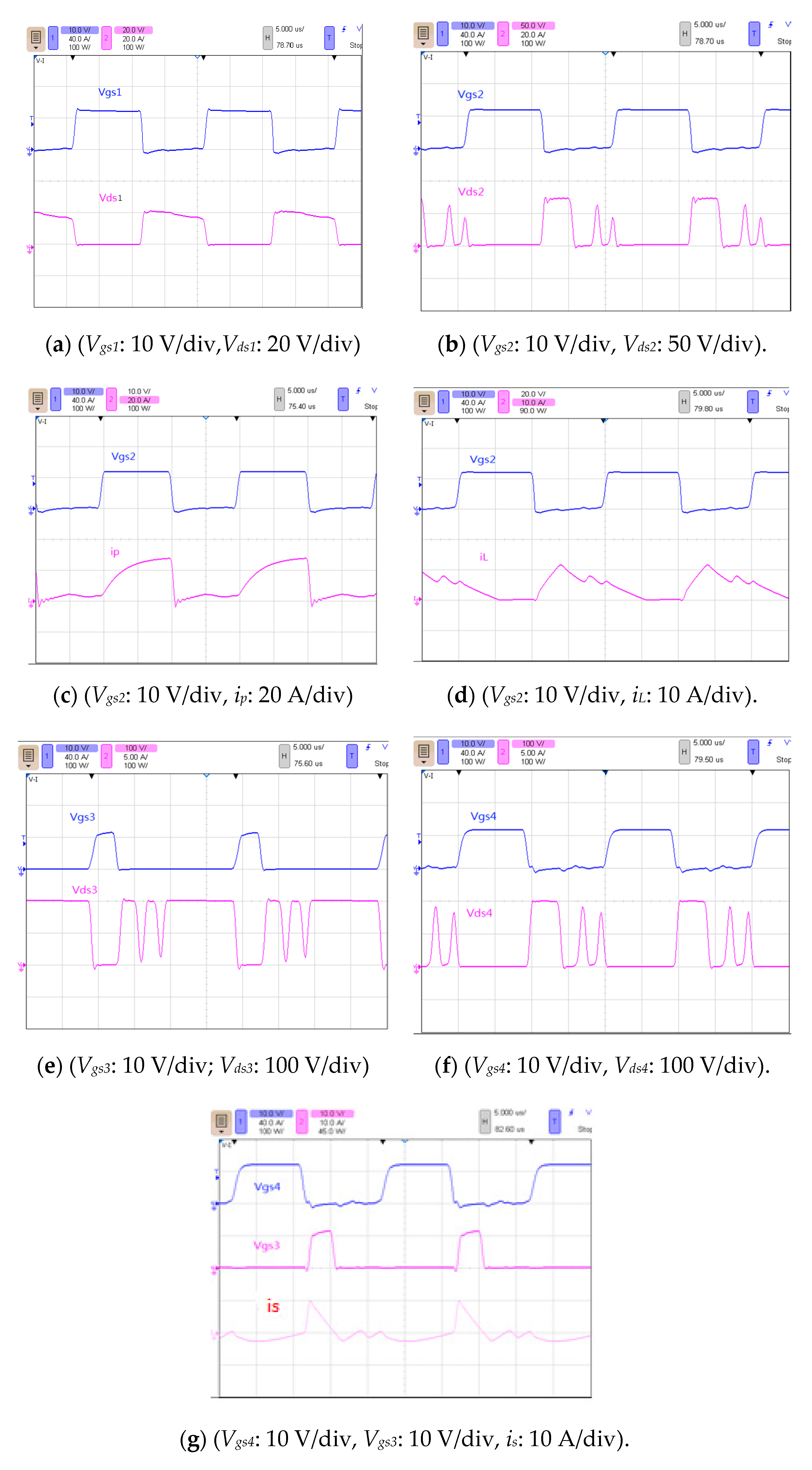

Figure 11 shows the measured waveforms of each component in Stage 2 when the battery of 24 V is stepped up to 200 V corresponding to the dc bus at half load. After the switch is turned off, the switching voltage waveform oscillates the resonance of the switching parasitic capacitance
Cds causes magnetizing and leakage inductances.

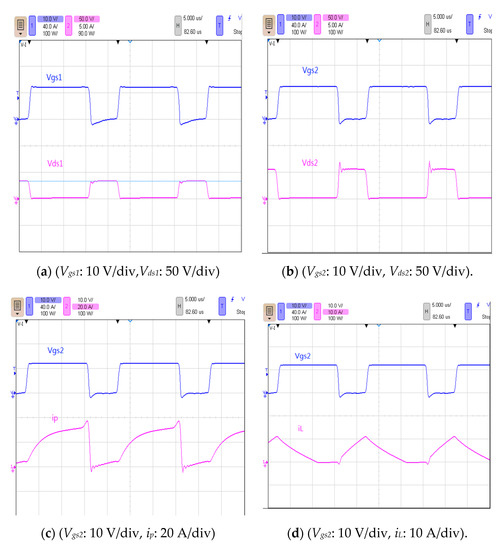

Figure 11a illustrates the switch
S1 waveform of the control signal
Vgs1 and switching voltage
Vds1, and its switching voltage stress is approximately 20 V.
Figure 11b displays the switch
S2 waveform of the control signal
Vgs2 and switching voltage
Vds2, and its switching voltage stress is nearly 80 V.
Figure 11c presents the control signal
Vgs2 and primary-side current waveform of the transformer
iL. Energy storage is performed when the switch
S2 is turned on.
Figure 11d shows the control signal
Vgs2 and current waveform of the charging inductor
iL. When the switch
S2 is turned off, the charging inductor recovers the magnetizing inductance energy for energy storage.
Figure 11e illustrates the switch
S3 waveform of the control signal
Vgs3 and switching voltage
Vds3. The switching voltage stress is nearly 200 V.
Figure 11f shows the switch
S4 waveform of the control signal
Vgs4 and switching voltage
Vds4, and its switching voltage stress is approximately 200 V.
Figure 11g presents the control signals
Vgs4 and
Vgs3 and secondary-side current waveform of the transformer
iS. The secondary side stores energy in the output capacitor when the switches
S3 and
S4 are respectively turned on.

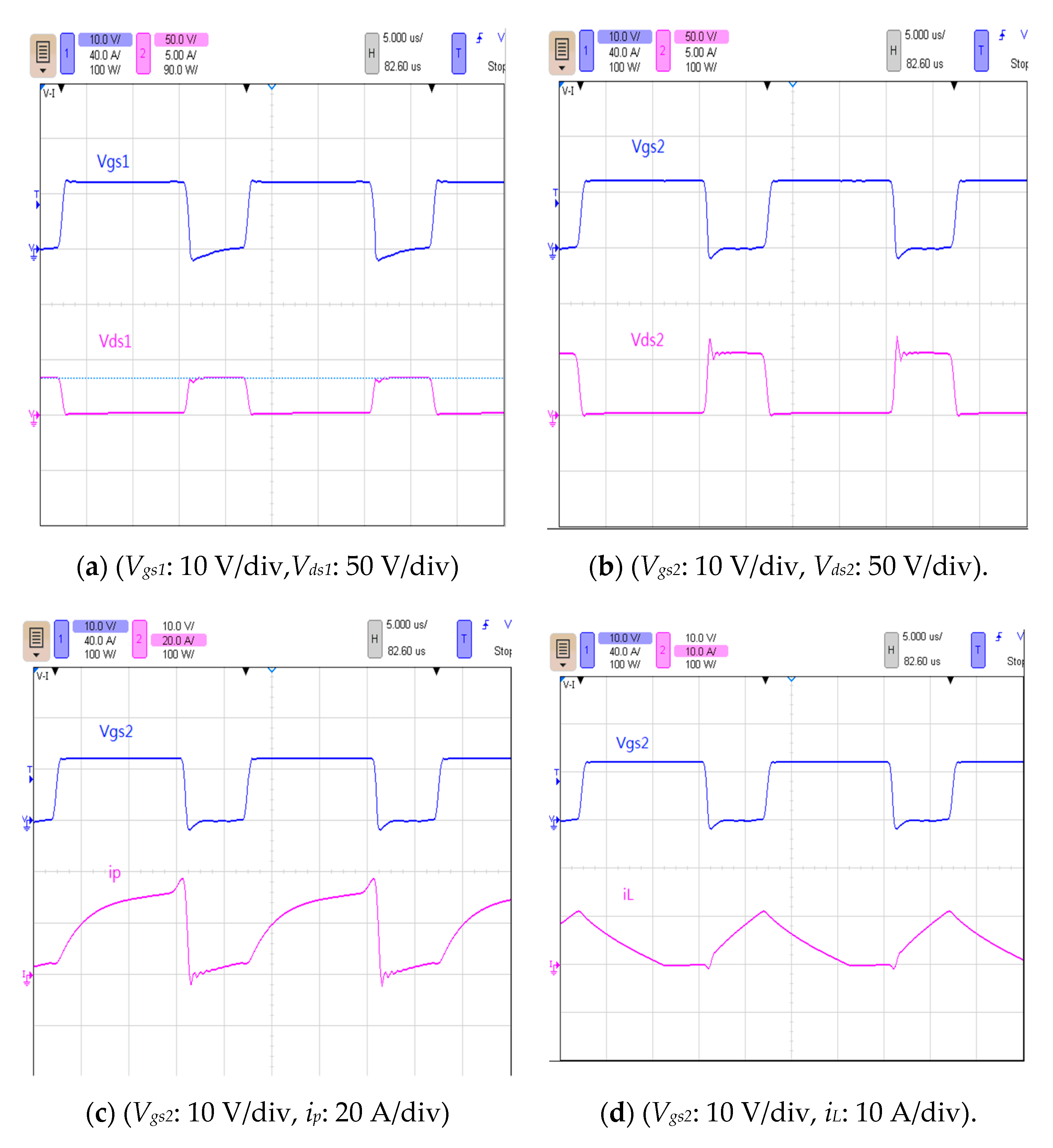

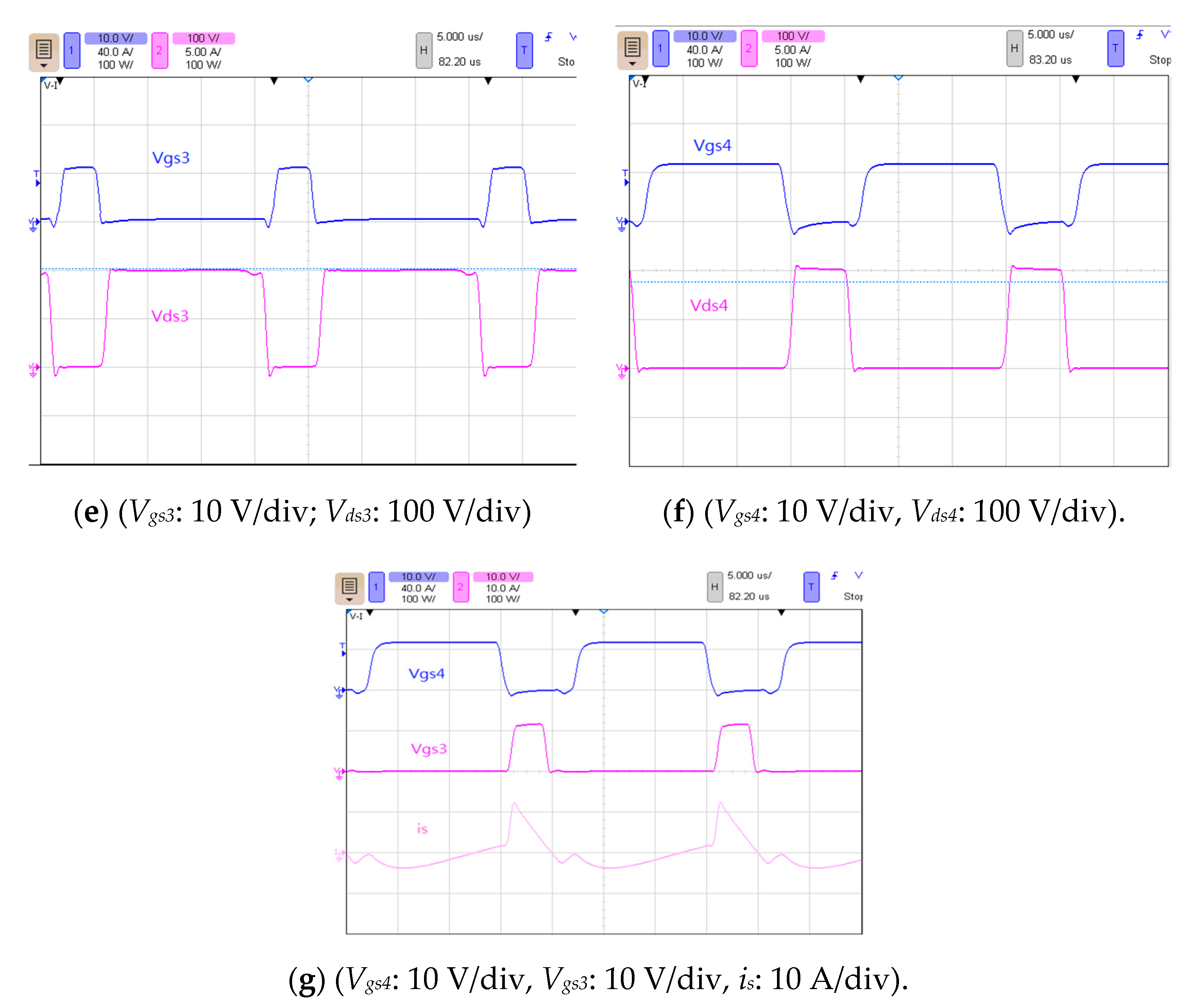

In Stage 2, the waveforms of each component operating at full load are measured (
Figure 12).
Figure 12a shows the switch
S1 waveform of the control signal
Vgs1 and switching voltage
Vds1, and its switching voltage stress is approximately 30 V.
Figure 12b displays the switch
S2 waveform of the control signal
Vgs2 and switching voltage
Vds2, and its switching voltage stress is nearly 80 V.
Figure 12c illustrates the control signal
Vgs2 and primary-side current waveform of the transformer
iL. Energy storage is performed when the switch
S2 is turned on.
Figure 12d presents the control signal
Vgs2 and current waveform of the charging inductor
iL. When the switch
S2 is turned off, the charging inductor recovers the magnetizing inductance energy for energy storage.
Figure 12e shows the switch
S3 waveform of the control signal
Vgs3 and switching voltage
Vds3. The switching voltage stress is approximately 200 V.
Figure 12f shows the switch
S4 waveform of the control signal
Vgs4 and switching voltage
Vds4, and its switching voltage stress is nearly 200 V.
Figure 12g displays the control signals
Vgs4 and
Vgs3 and secondary-side current waveform of the transformer
iS. The secondary side stores energy in the output capacitor when the switches
S3 and
S4 are respectively turned on.

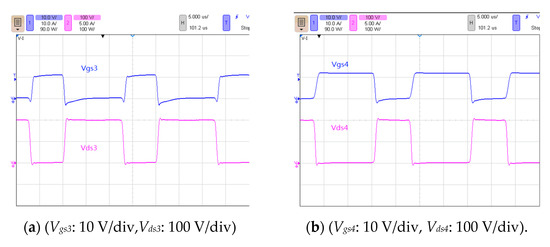

Figure 13 presents the measured waveforms of each component in Stage 3 when the 200-V dc bus power is stepped down to the 24-V battery power at half load. This mode of operation is equivalent to the reverse circuit, and the switches
S3 and
S4 are used as complementary control signals.
Figure 13a displays the switch
S3 waveform of the control signal
Vgs3 and switching voltage
Vds3, and the switching voltage stress is approximately 200 V.
Figure 13b illustrates the switch
S4 waveform of the control signal
Vgs4 and switching voltage
Vds4, and the switching voltage stress is nearly 200 V.

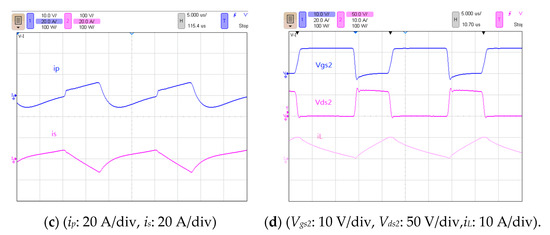

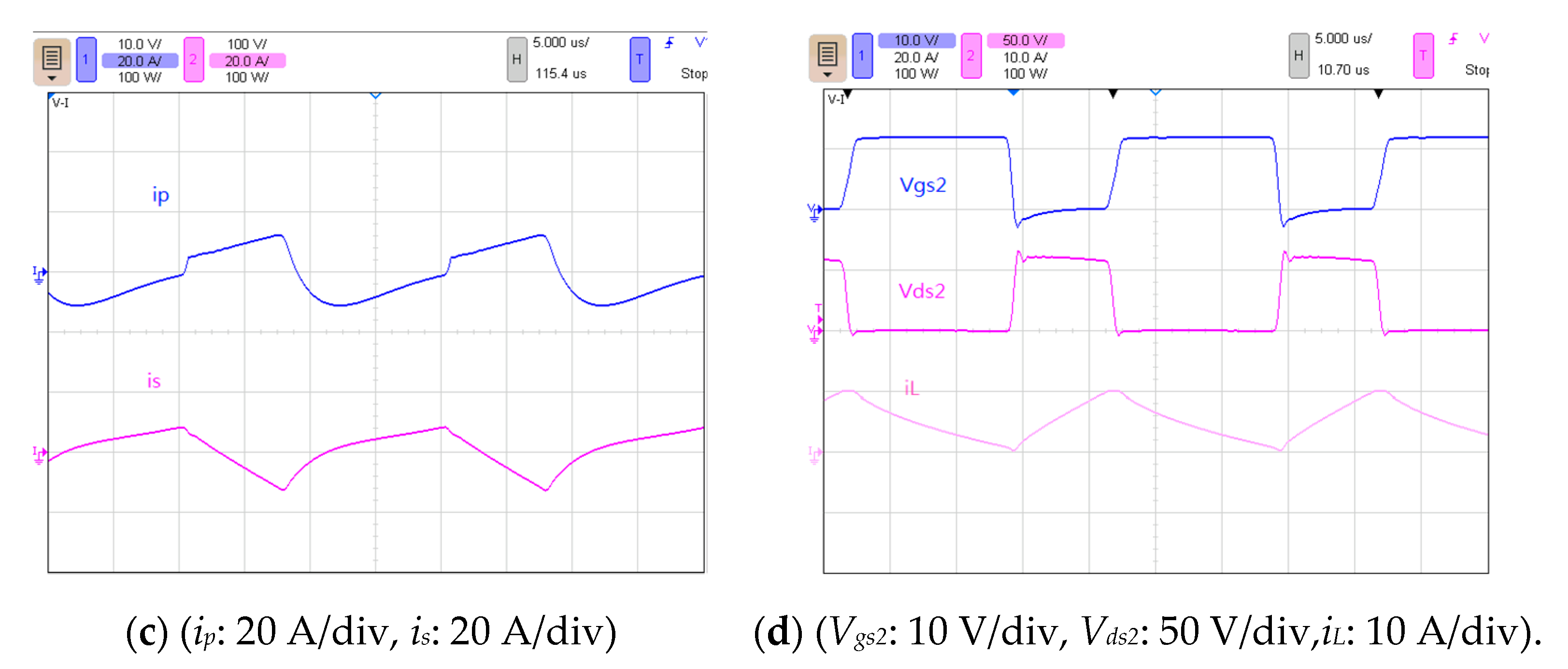

Figure 13c shows the current waveforms of the transformers
iP and
iS.
Figure 13d shows the switch
S2 waveform of the control signal
Vgs2, switching voltage
Vds2, and inductor current waveform
iL. The switches
S2 and
S4 are synchronously rectified, and the switching voltage stress is approximately 70 V. The charging inductor is discharged when the switch
S2 is turned on.
Figure 14 illustrates the measured waveforms of each component in Stage 3 at full load.
Figure 14a shows the switch
S3 waveform of the control signal
Vgs3 and switching voltage
Vds3, and the switching voltage stress is approximately 200 V.
Figure 14b shows the switch
S4 waveform of the control signal
Vgs4 and switching voltage
Vds4, and the switching voltage stress is nearly 200 V.
Figure 14c presents the current waveform of the transformers
iP and
iS.
Figure 14d shows the switch
S2 waveform of the control signal
Vgs2, switching voltage
Vds2, and inductor current waveform
iL. The switches
S2 and
S4 are synchronously rectified, and the switching voltage stress is approximately 80 V. The charging inductor is discharged when the switch
S2 is turned on.

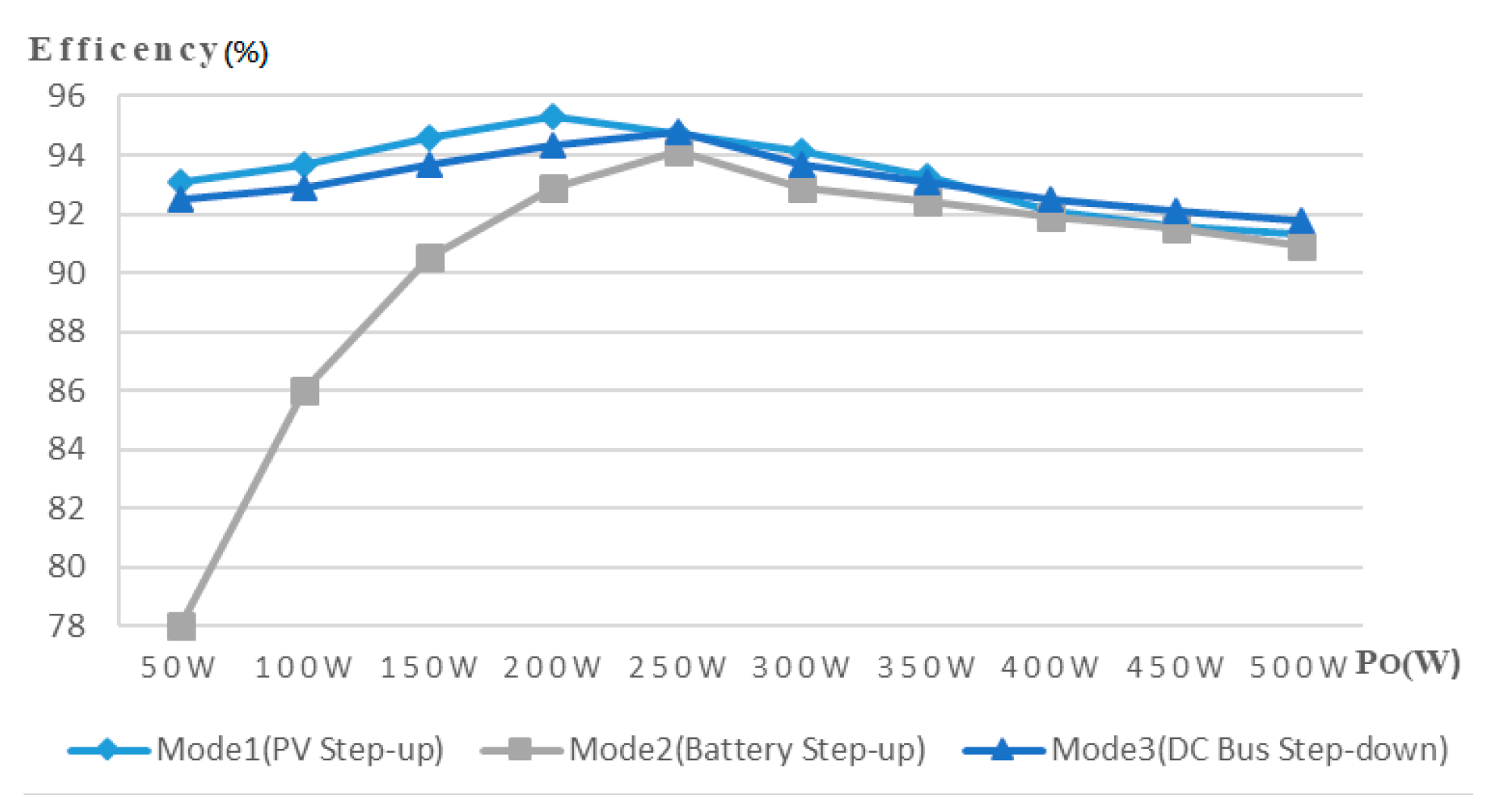

Figure 15 illustrates efficiency diagrams of the three modes of the proposed three-port bidirectional converter. In Stage 1, when the output power is 200 W, the highest efficiency is 95.3%; when the output power is 500 W, the efficiency is 91.3%. In Stage 2, when the output power is 250 W, the highest efficiency is 94.1%; when the output power is 500 W, the efficiency is 90.9%. In Stage 3, when the output power is 250 W, the highest efficiency is 94.8%; when the output power is 500 W, the efficiency is 91.8%.

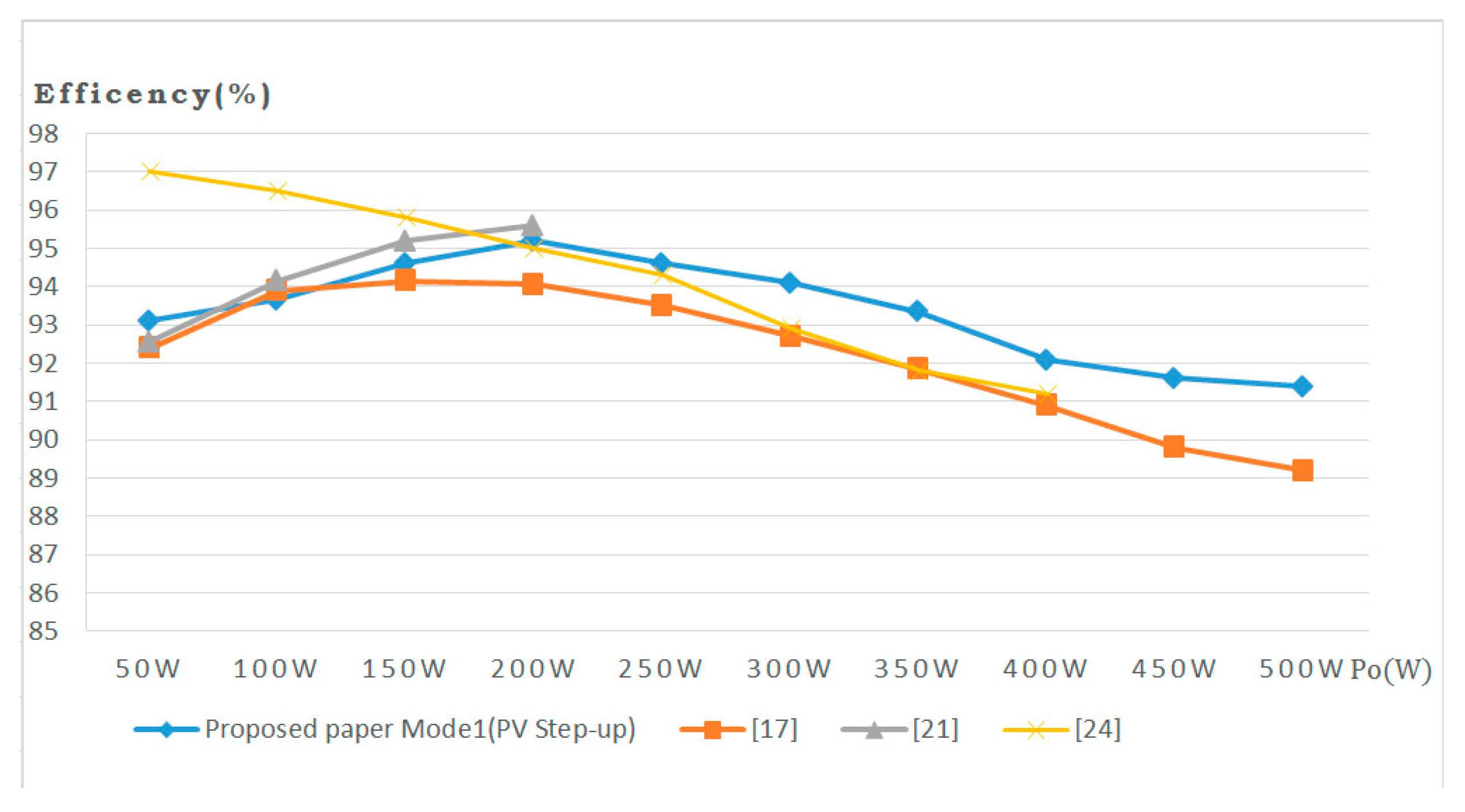

Figure 16 shows a comparison of the measured PV step-up efficiency of the proposed converter with those of the converters proposed in [
17,
21,
22]. This figure indicates that the efficiency of the proposed converter is higher than that of the converter in [
17] but lower than that of the converter in [
21] and [
22] under light load. However, the converter proposed in [
21] has only two modes, whereas the proposed topology herein has three modes and a relatively large output power. Although the converter proposed in [
22] has higher efficiency at light load, the efficiency decreases rapidly at more than half load, which is worse than the proposed topology.

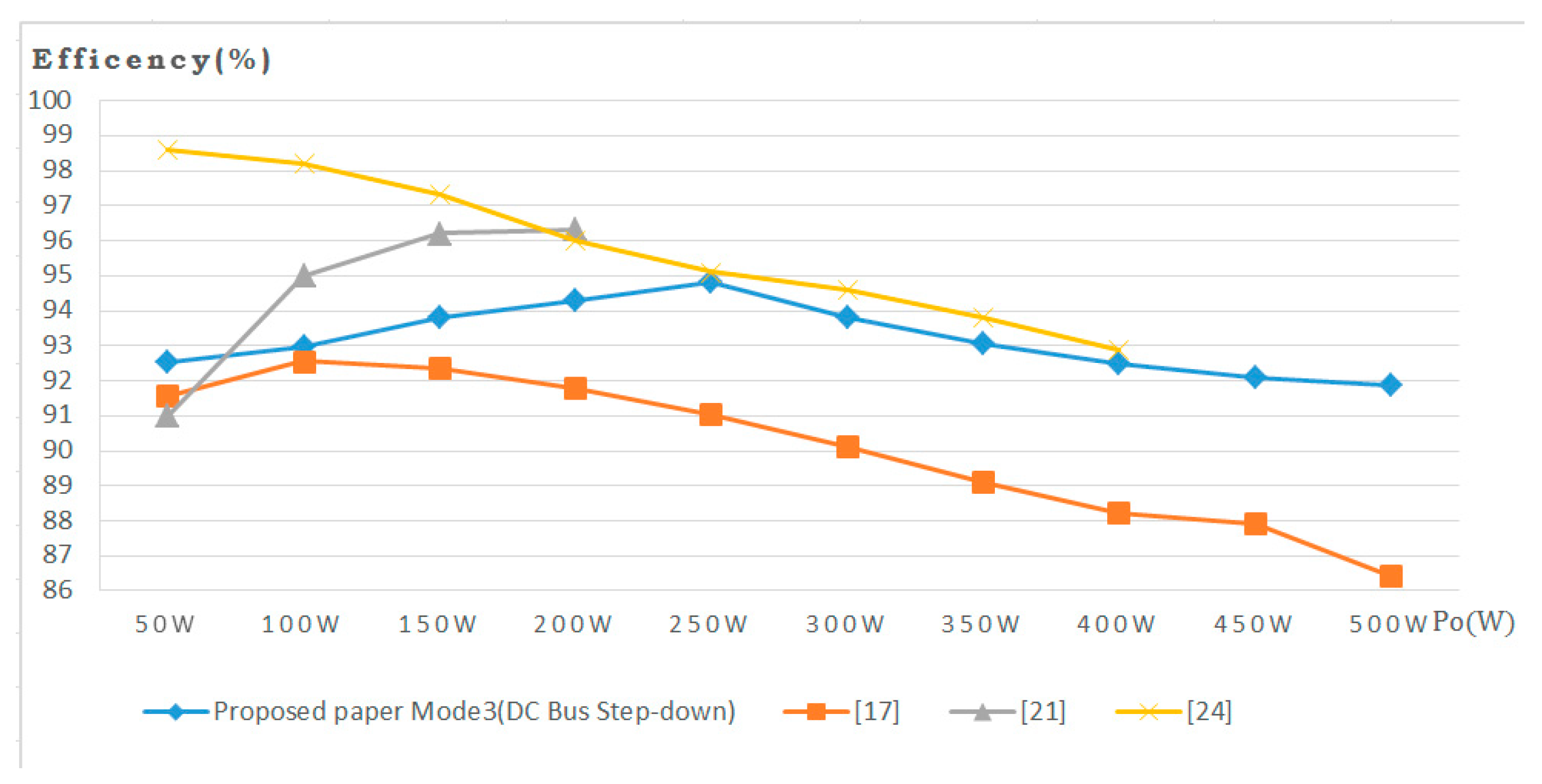

Figure 17 shows a comparison of the measured dc bus step-down efficiency of the proposed converter what those of the converters proposed in [
17,
21,
22]. This figure indicates that the efficiency of the proposed converter is higher than that of the converter in [
17] but lower than that of the converter in [
21]. However, the converter proposed in [
21] has only two modes and a lower output power than does the proposed converter. Although the converter proposed in 24 has higher efficiency, its step-down ratio is only twice, which is lower than the proposed topology.
In
Figure 18, the measured efficiency of PV step up to dc bus stage observed for the proposed converter is compared with those observed for the converters proposed in [
23,
24,
25]. This figure indicates that the light and half load efficiency is higher than those obtained in [
23] and [
24] and that the number of components is lower; therefore, the cost is low. The converter proposed in [
25] consists of two sets of independent high step-up converter, the conversion efficiency is higher, but its power implemented is only 150 W and cost is also relatively higher.

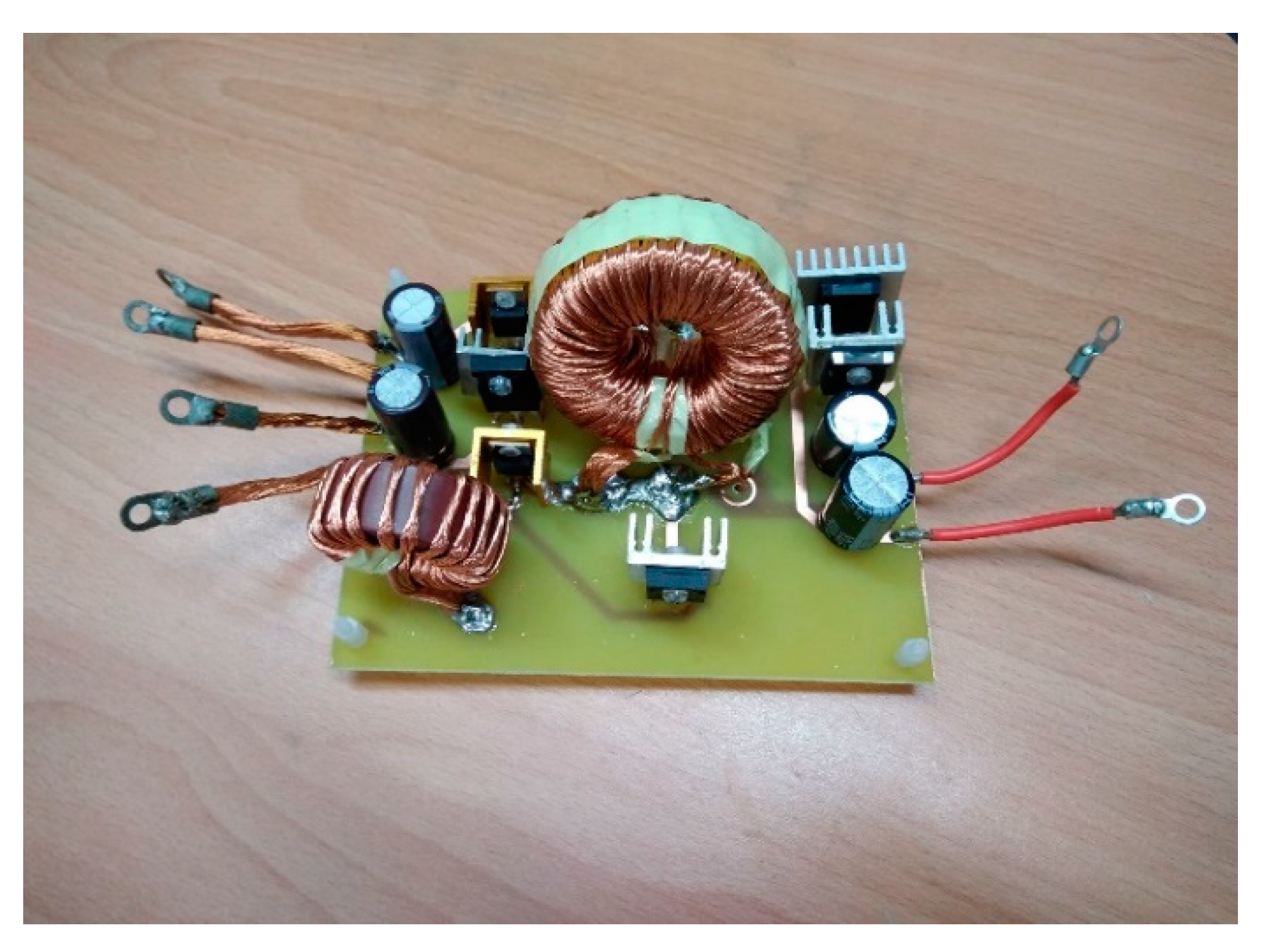

Figure 19 depicts the printed circuit board layout of the proposed three-port bidirectional converter.
