Underground Pumped-Storage Hydropower (UPSH) at the Martelange Mine (Belgium): Interactions with Groundwater Flow
Abstract
:1. Introduction
2. Materials and Methods

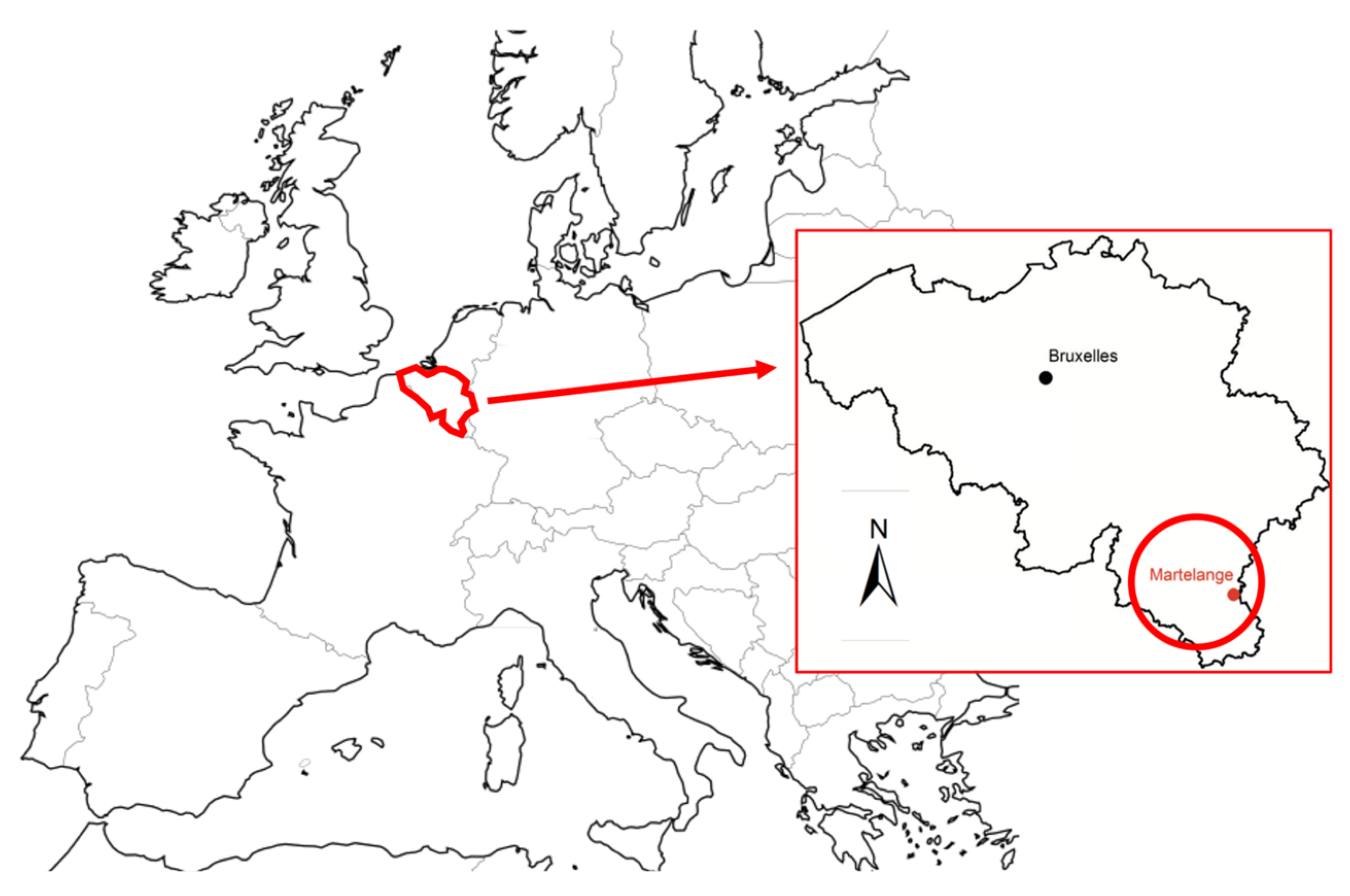

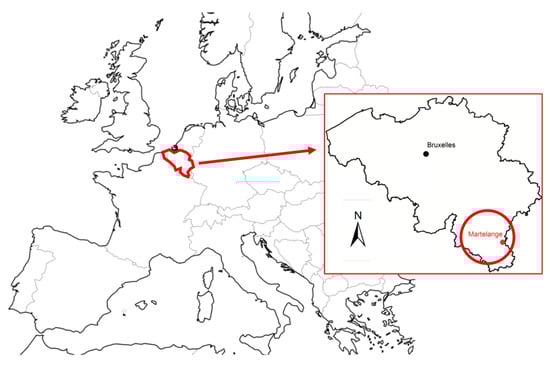

2.1. Problem Statement
2.2. Numerical Model
2.2.1. Code
2.2.2. Model Characteristics

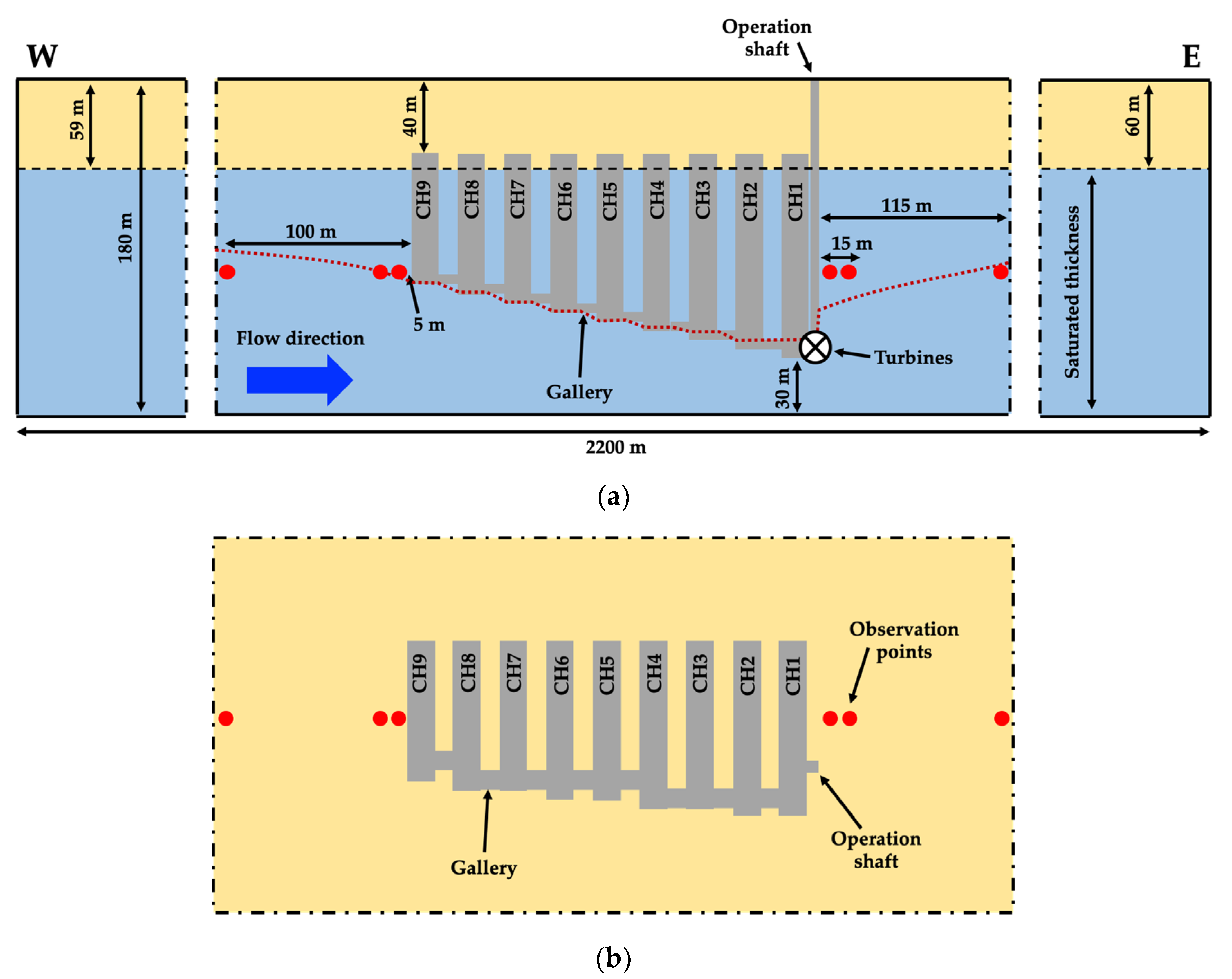

- Underground reservoir: The underground reservoir consists of nine underground chambers (CH1 to CH9) linked by galleries located at their bottoms. Each pair of contiguous chambers are linked with one gallery. In addition, a rectangular prism, which links the underground reservoir to the surface, is added adjacent to the CH1 (Figure 2 and Figure 3) to conceptually represent the shaft through which water is pumped and discharged (from now called operation shaft).

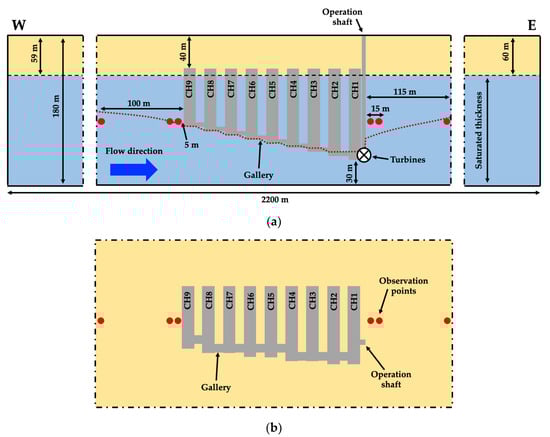

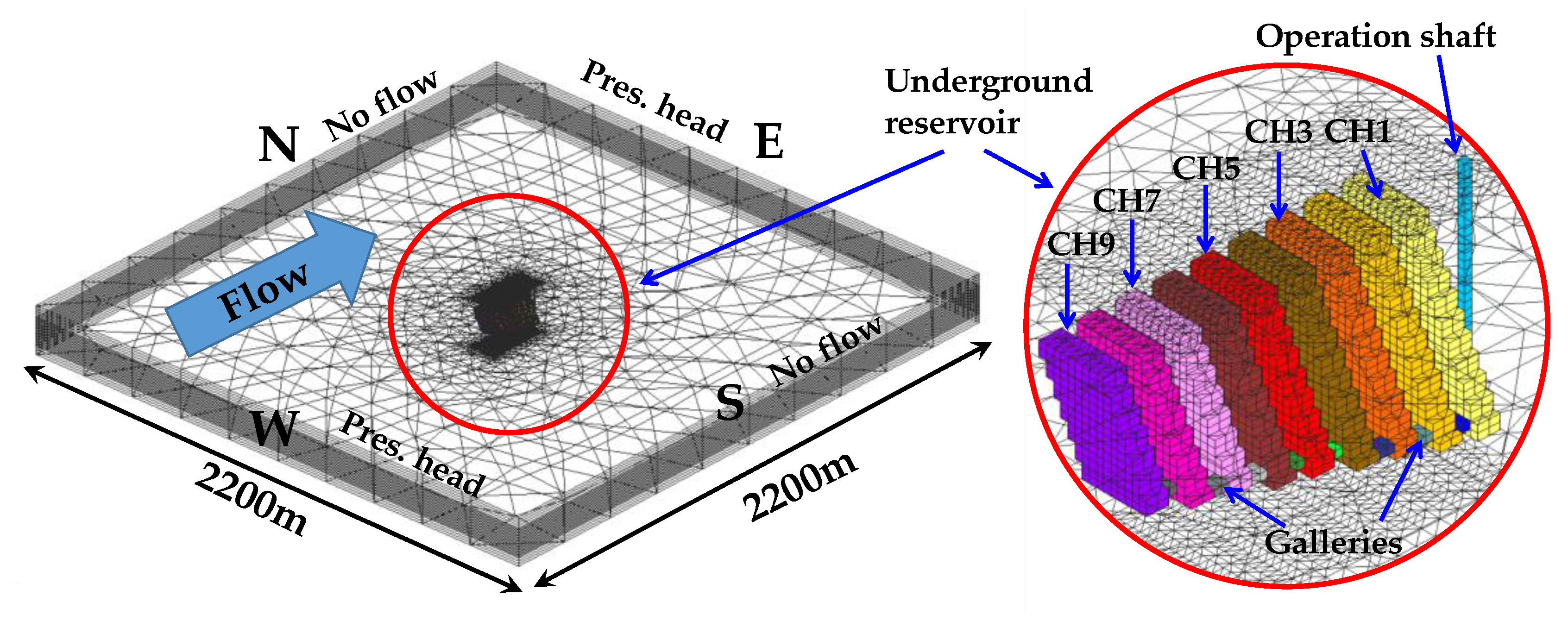

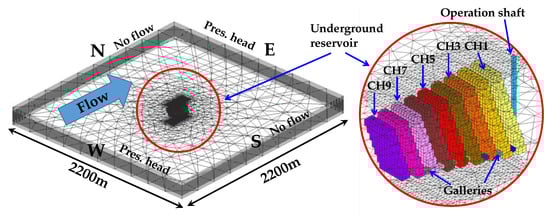

- Model dimensions: The modeled domain consists in a square with a side of 2200 m and a height of 180 m (Figure 2 and Figure 3). The chambers (i.e., the underground reservoir) are located in the middle of the domain, approximately, at a distance of 1000 m from the external boundaries of the model. This distance is enough to minimize the influence of the external boundaries on the groundwater dynamics around the underground reservoir.
- Spatial discretization: The mesh is made up of prismatic 3D elements and is divided vertically in 29 layers. The horizontal size of the elements decreases towards the underground reservoir (from 150 m near the external boundaries to 5 m in the center of the domain) (Figure 3). The number of elements and nodes is 64,844 and 38,680, respectively.
- Temporal discretization: The simulation period covers one year and the simulation time step is 15 min. Induced piezometric head oscillations are relatively large and convergence problems arise in the limit between the saturated and unsaturated zone if time steps are larger than 15 min.
- Hydraulic parameters: The hydraulic parameters used in the model are typical of slate mines and are representative of the known underground properties at the considered mine site [44,45]. The hydraulic conductivity is 10−7 m/s, the specific storage coefficient is 10−4 m−1, the saturated water content is 0.05 and the residual water content is 0.01.
- Boundary conditions (BCs): Pumping from and discharge into the underground reservoir are simulated by prescribing the flow at the bottom of the operation shaft (Neuman BC). An internal dynamic Fourier BC, which is head-dependent [35], is implemented to simulate the groundwater exchanges between the underground reservoir (chambers and operation shaft) and the surrounding medium. Regarding the external boundaries, the piezometric head is prescribed (Dirichlet BC) at an elevation with respect the bottom of the model of 121 and 120 m on the upgradient (W) and downgradient (E) sides, respectively. As a result, the underground reservoir is practically flooded (saturated) in natural conditions and groundwater flows from W to E with a hydraulic gradient of 4.6·10−4. The boundary conditions adopted at the external boundaries are maintained constant through the simulations. This fact is a simplification since the piezometric head at the Martelange site oscillates slightly seasonally [46]. However, seasonal oscillations are small enough to not alter the results noticeably. Finally, no-flow BCs are adopted at the top and the bottom of the model and at the N and S boundaries.
- Modeling approach: The domain, except the linear reservoir, is modeled as a porous medium, thus the fractured medium is replaced by an Equivalent Porous Medium (EPM) approach. Although the EPM approach does not allow modelling individual fractures [47] it is suitable for estimating the global behaviour of such a system and computing the main trends. Several studies have demonstrated the efficiency of the EPM approach for modelling fractured aquifers, among others, [48,49]. In addition, the presence of multiple fractures in the study site induces the continuity of the groundwater behavior like in a porous medium.
2.2.3. Initial Conditions—Scenarios

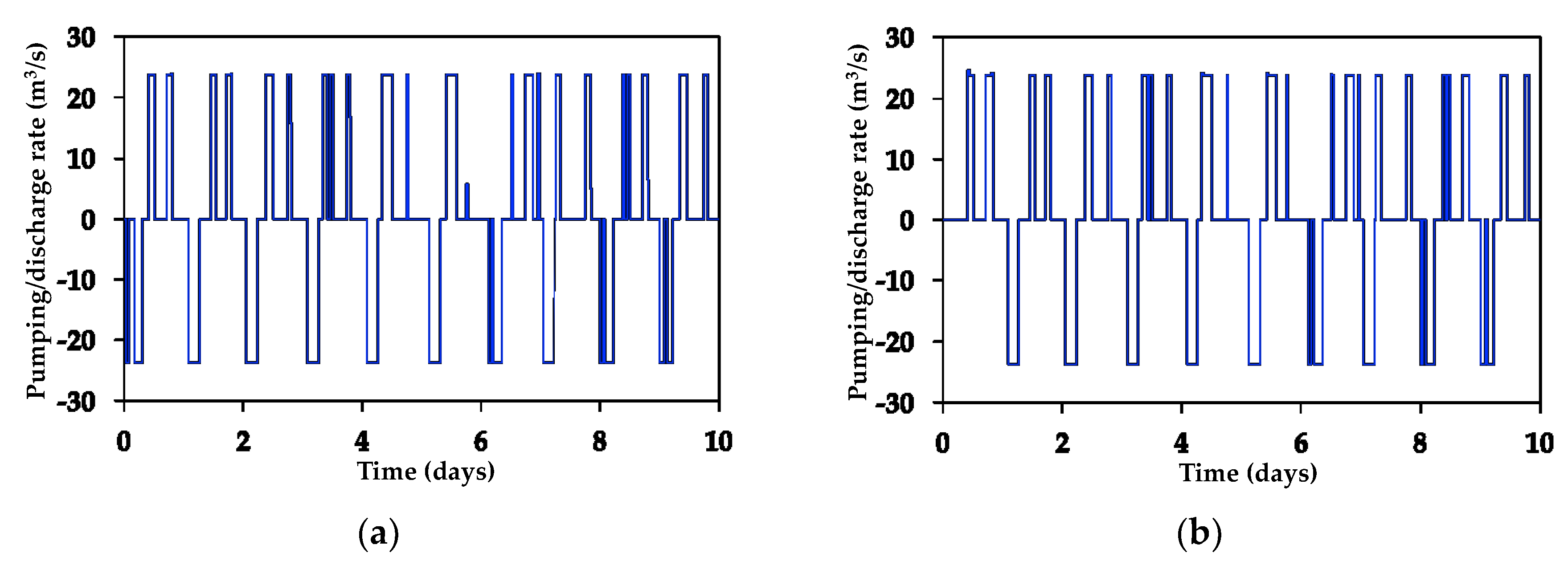

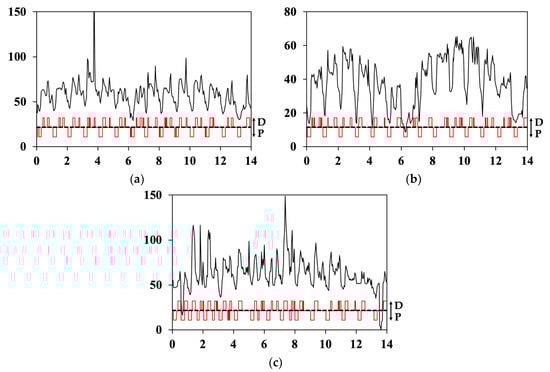

2.2.4. Operation Scenario
- Two realistic constraints were adopted. These consisted of (1) establishing the duration of pumping and discharge phases to 5 h, and (2) assuming that the usable volume of the underground reservoir is completely emptied and filled once a day. Therefore, there are 14 h per day during in which no operations are carried out and the system is in the same condition at the beginning of every day (underground reservoir filled at maximum).

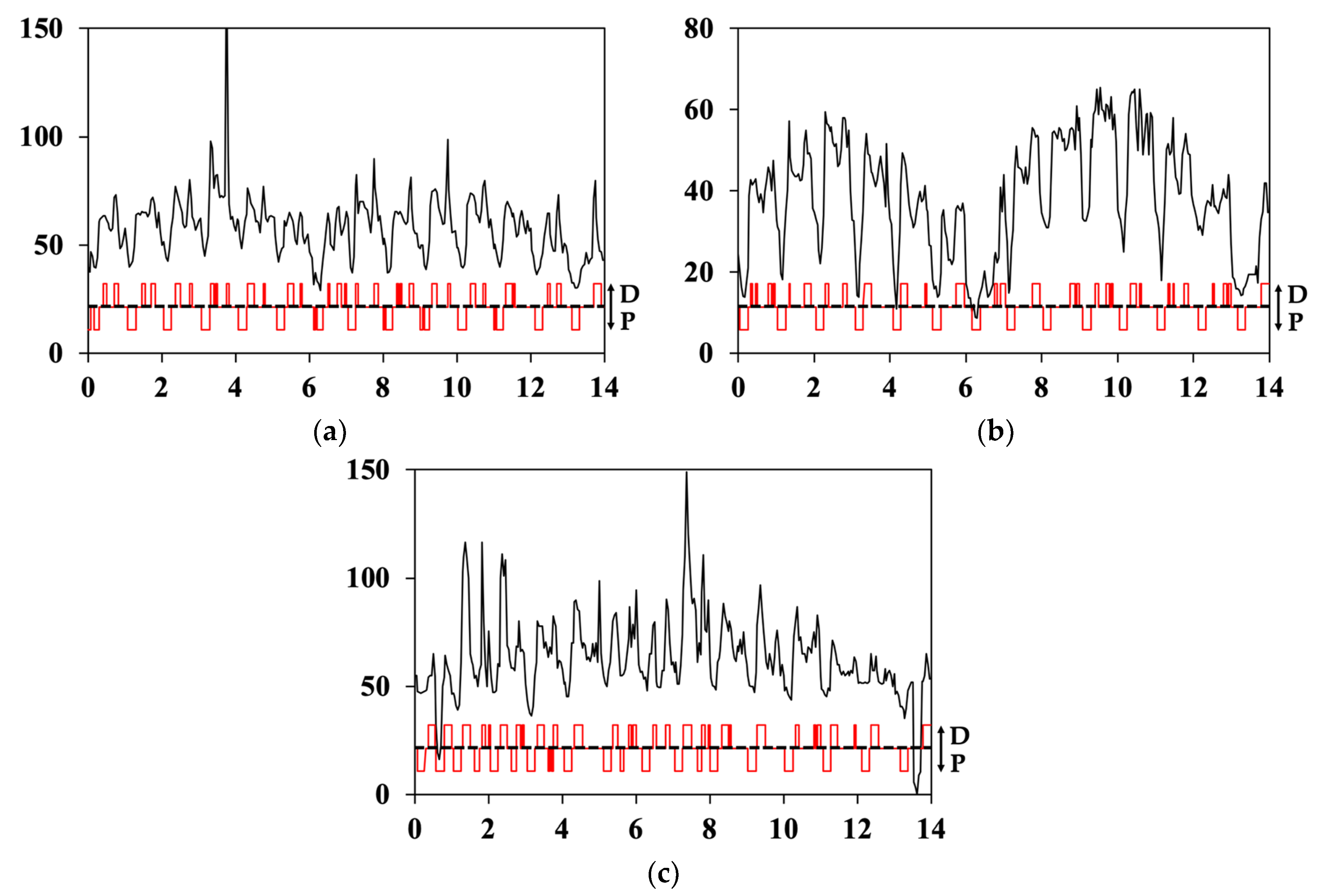

- Frequencies were defined on an hourly basis to maximize economic benefit of the plant operation, i.e., to maximize the balance between electricity cost during pumping and money income when discharging. Every hour, a choice was made between three possibilities (pumping, discharge or no-operation) in order to get at the end of the day 5 h of pumping, then 5 h of discharge and 14 h of no-operation. Pumping, discharge or no-operation hours are not necessary consecutive. For each day, the cheapest 5 h are selected for pumping, and the most expensive 5 h for discharge.
- The underground reservoir is filled faster than when water exchanges are neglected, and therefore, water cannot be discharged despite it is required given the defined pumping–discharge frequency.
- The underground reservoir is emptied faster than when water exchanges are neglected. In this case, water cannot be pumped despite it is required by the defined pumping–discharge frequency. In the modeled case, this situation only arises at the beginning of the scenario E-CI when an initial pumping is not allowed because the underground reservoir is totally filled. During the rest of the simulations, this situation never arises again since inflows of water from the surrounding medium into the underground reservoir are always higher than outflow.
3. Results and Discussion

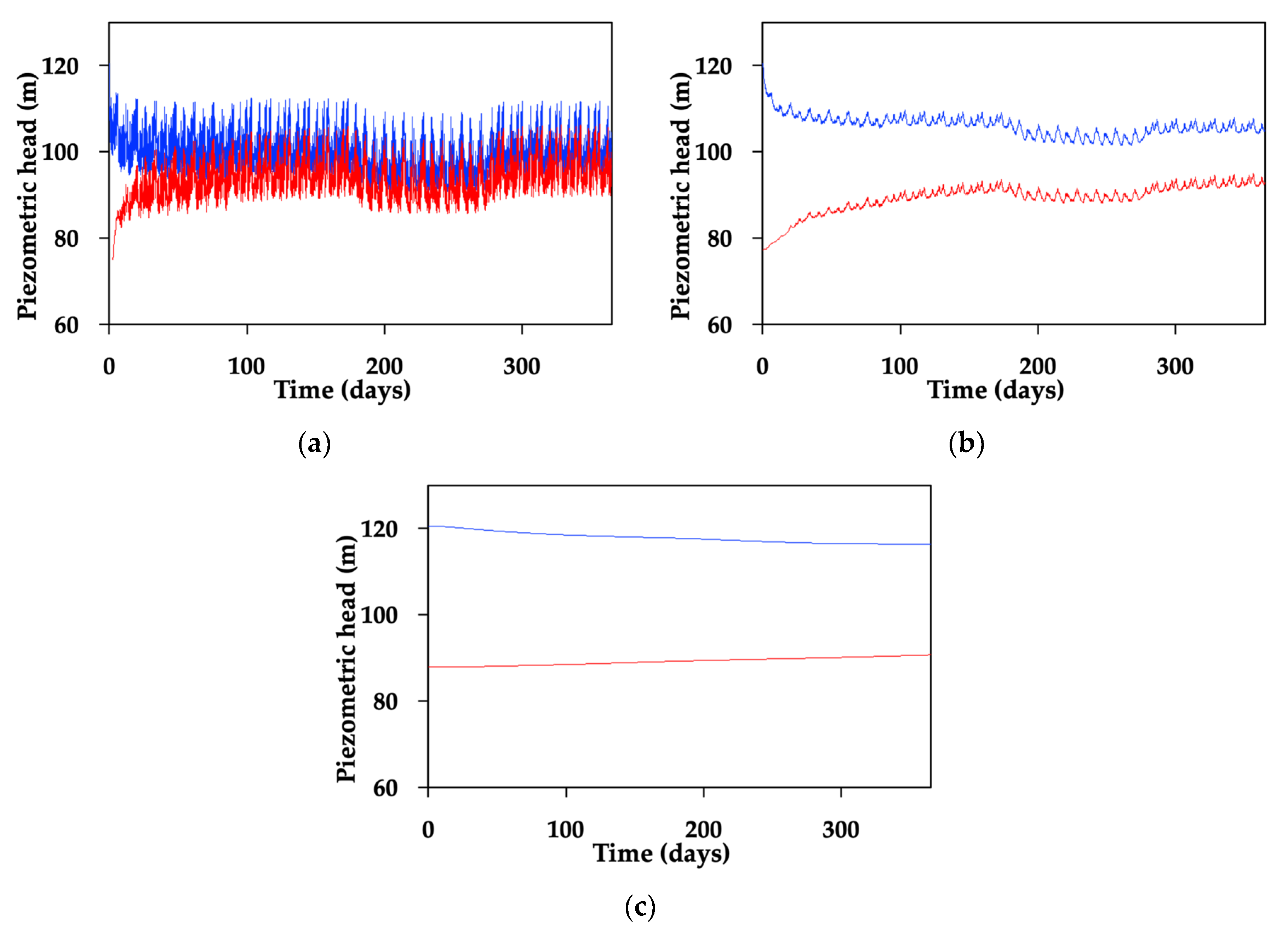

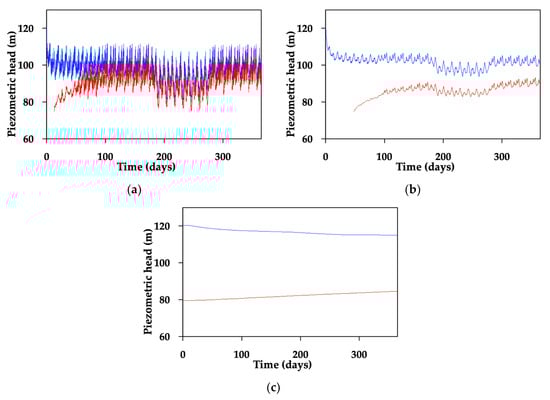

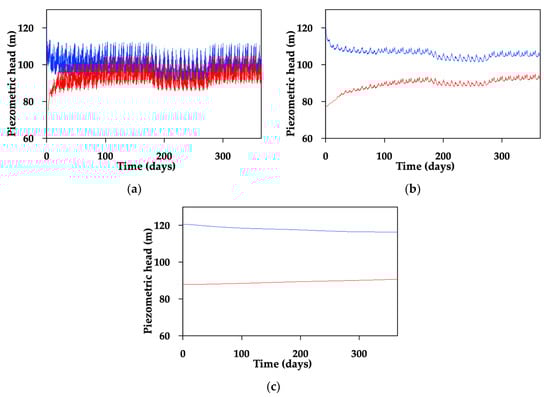

3.1. Piezometric Head Evolution

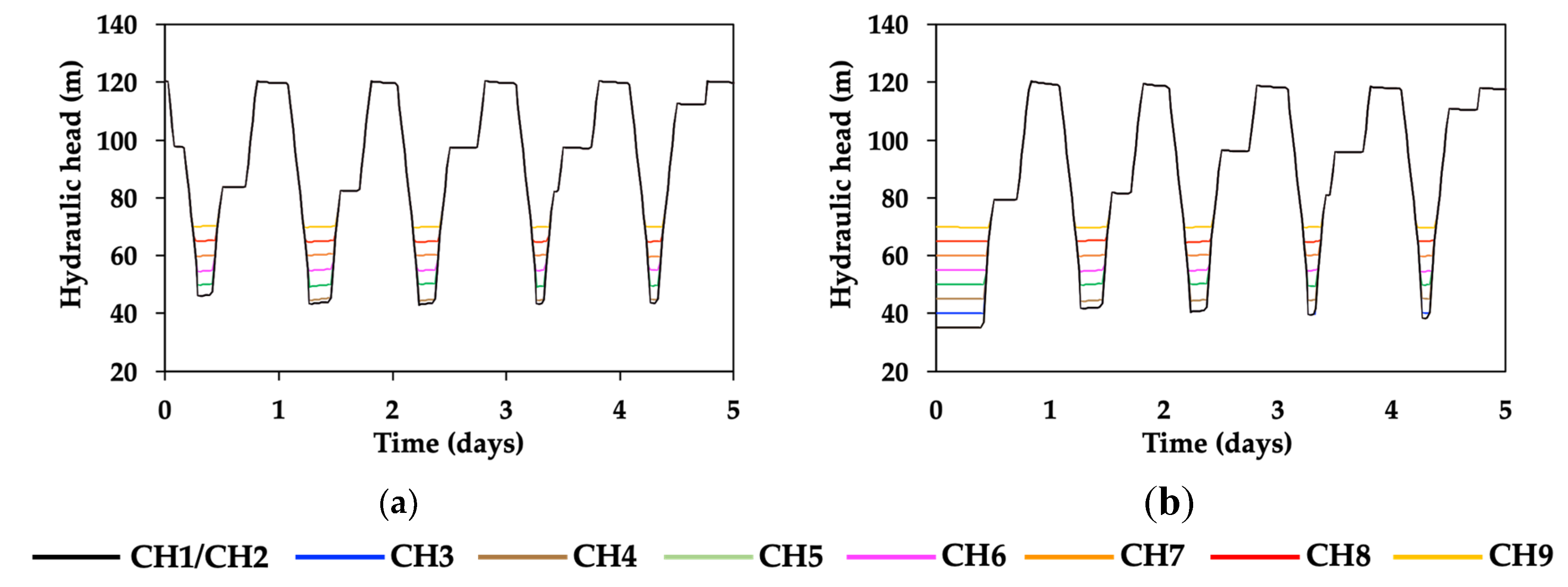

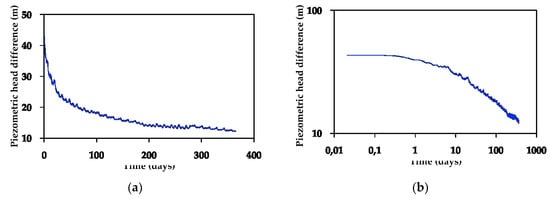

3.2. Hydraulic Head Evolution

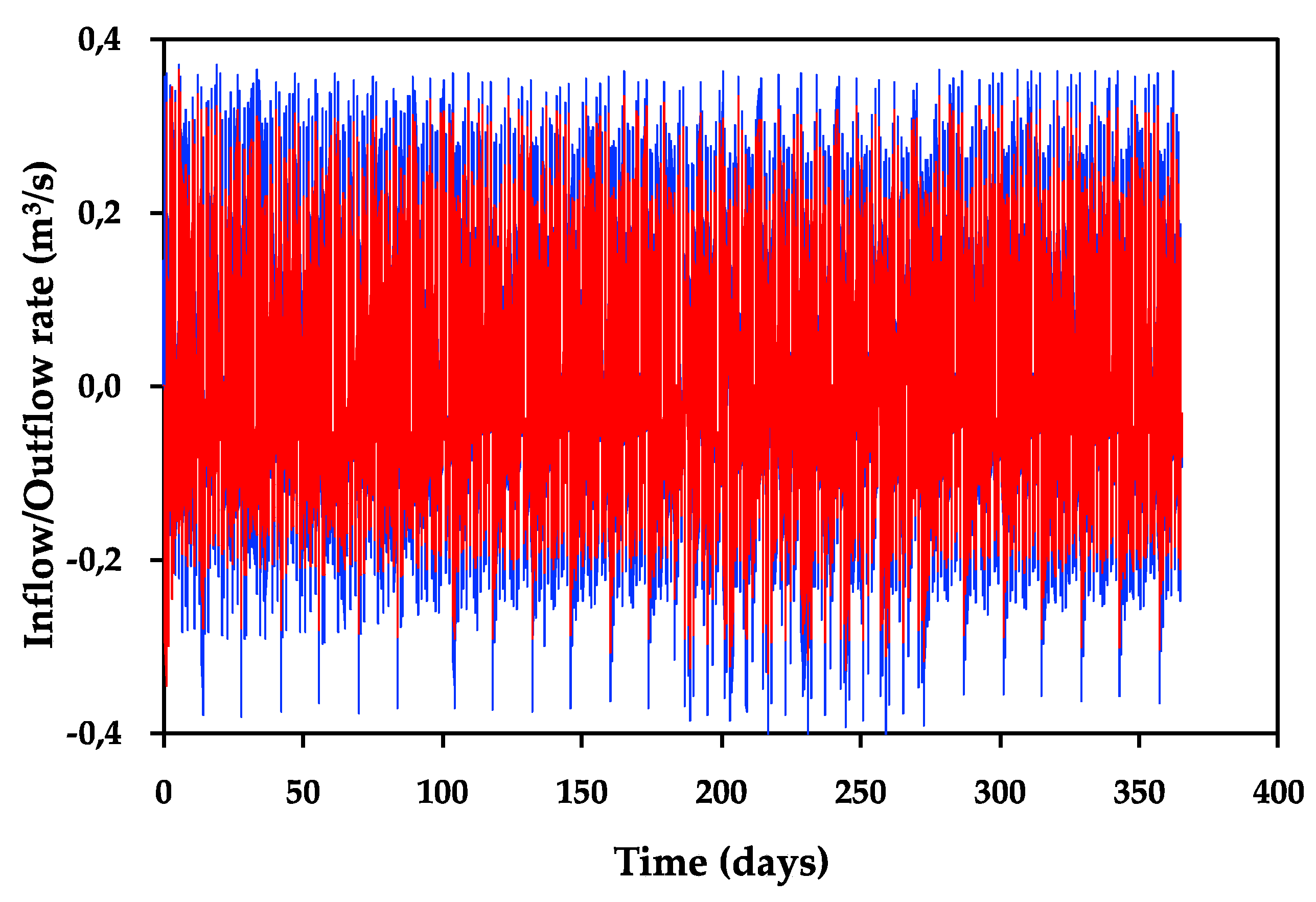

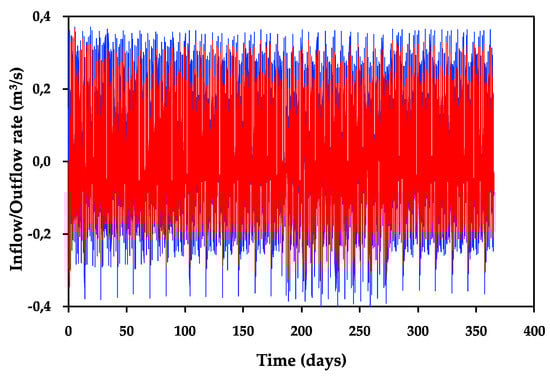

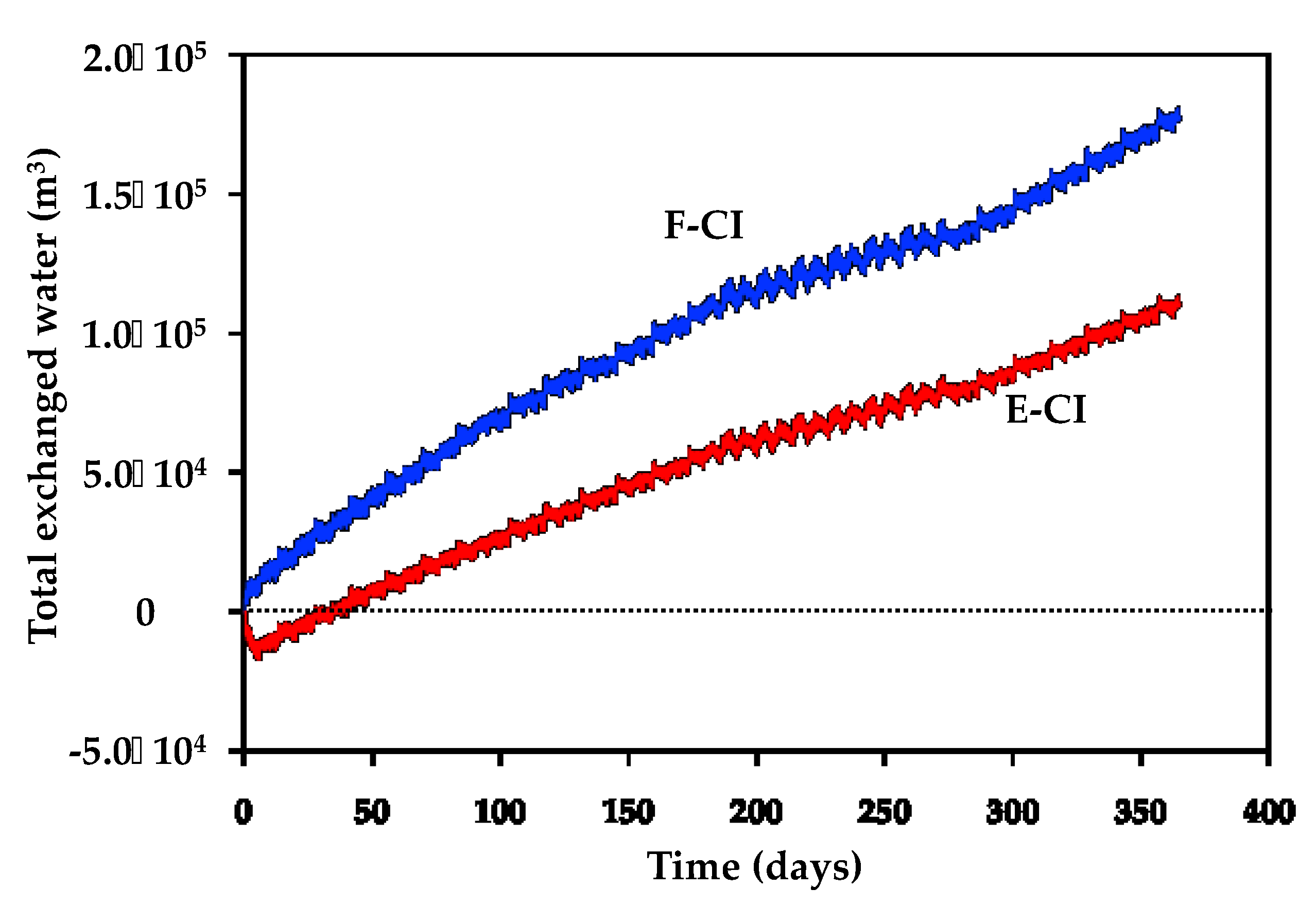

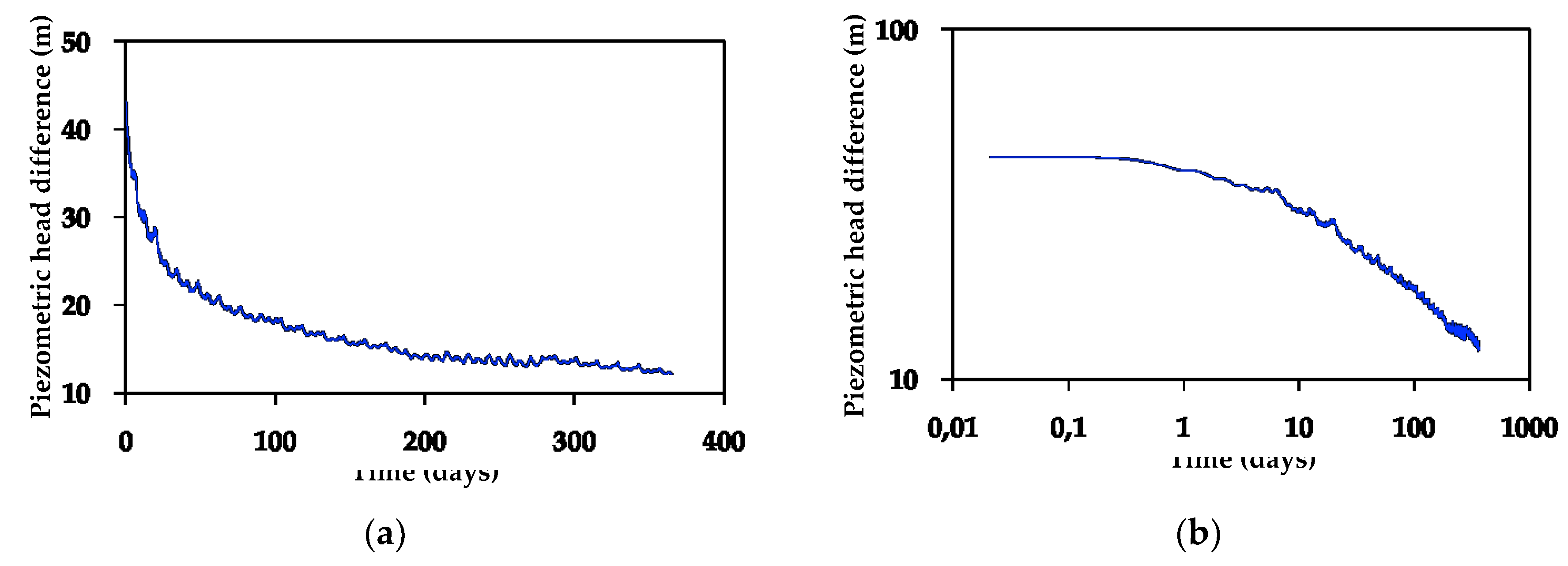

3.3. Water Exchanges
4. Conclusions
Author Contributions
Funding
Conflicts of Interest
References
- Rogelj, J.; Den Elzen, M.; Höhne, N.; Fransen, T.; Fekete, H.; Winkler, H.; Schaeffer, R.; Sha, F.; Riahi, K.; Meinshausen, M. Paris Agreement climate proposals need a boost to keep warming well below 2 °C. Nature 2016, 534, 631–639. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Rugolo, J.; Aziz, M.J. Electricity storage for intermittent renewable sources. Energy Environ. Sci. 2012, 5, 7151–7160. [Google Scholar] [CrossRef] [Green Version]
- Gebretsadik, Y.; Fant, C.; Strzepek, K.; Arndt, C. Optimized reservoir operation model of regional wind and hydro power integration case study: Zambezi basin and South Africa. Appl. Energy 2016, 161, 574–582. [Google Scholar] [CrossRef] [Green Version]
- Delfanti, M.; Falabretti, D.; Merlo, M. Energy storage for PV power plant dispatching. Renew. Energy 2015, 80, 61–72. [Google Scholar] [CrossRef]
- Mason, I.G. Comparative impacts of wind and photovoltaic generation on energy storage for small islanded electricity systems. Renew. Energy 2015, 80, 793–805. [Google Scholar] [CrossRef]
- Zhang, N.; Lu, X.; McElroy, M.B.; Nielsen, C.P.; Chen, X.; Deng, Y.; Kang, C. Reducing curtailment of wind electricity in China by employing electric boilers for heat and pumped hydro for energy storage. Appl. Energy 2016, 184, 987–994. [Google Scholar] [CrossRef] [Green Version]
- Wong, I.H. An underground pumped storage scheme in the Bukit Timah Granite of Singapore. Tunn. Undergr. Space Technol. 1996, 11, 485–489. [Google Scholar] [CrossRef]
- Kucukali, S. Finding the most suitable existing hydropower reservoirs for the development of pumped-storage schemes: An integrated approach. Renew. Sustain. Energy Rev. 2014, 37, 502–508. [Google Scholar] [CrossRef]
- Barnes, F.S.; Levine, J.G. Large Energy Storage Systems Handbook. Available online: https://www.crcpress.com/Large-Energy-Storage-Systems-Handbook/Barnes-Levine/p/book/9781138071964 (accessed on 18 January 2020).
- Tam, S.W.; Blomquist, C.A.; Kartsounes, G.T. Underground Pumped Hydro Storage—An Overview. Energy Sources 1979, 4, 329–351. [Google Scholar] [CrossRef]
- Fosnacht, D.R. Pumped Hydro Energy Storage (PHES) Using Abandoned Mine Pits on the Mesabi Iron Range of Minnesota—Final Report; University of Minnesota Duluth: Duluth, MN, USA, 2011. [Google Scholar]
- Severson, M.J. Preliminary Evaluation of Establishing an Underground Taconite Mine, to be Used Later as a Lower Reservoir in a Pumped Hydro Energy Storage Facility, on the Mesabi Iron Range, Minnesota; University of Minnesota Duluth: Duluth, MN, USA, 2011. [Google Scholar]
- Winde, F.; Stoch, E.J. Threats and opportunities for post-closure development in dolomitic gold mining areas of the West Rand and Far West Rand (South Africa)—A hydraulic view part 1: Mining legacy and future threats. Water SA 2010, 36, 69–74. [Google Scholar] [CrossRef] [Green Version]
- Winde, F.; Stoch, E.J. Threats and opportunities for post-closure development in dolomitic gold-mining areas of the West Rand and Far West Rand (South Africa)—A hydraulic view Part 2: Opportunities. Water SA 2010, 36. [Google Scholar] [CrossRef] [Green Version]
- Khan, S.Y.; Davidson, I.E. Underground Pumped Hydroelectric Energy Storage in South Africa using Aquifers and Existing Infrastructure. In NEIS Conference 2016; Schulz, D., Ed.; Springer Fachmedien: Wiesbaden, Germany, 2017; pp. 119–122. [Google Scholar]
- Winde, F.; Kaiser, F.; Erasmus, E. Exploring the use of deep level gold mines in South Africa for underground pumped hydroelectric energy storage schemes. Renew. Sustain. Energy Rev. 2017, 78, 668–682. [Google Scholar] [CrossRef]
- Min, A.P.N. Ondergrondse Pomp Accumulatie Centrale: Effectiviteitsverbetering d.m.v. Verschillende Pomp-Turbinevermogens. 1984. Available online: https://repository.tudelft.nl/islandora/object/uuid:a87a1047-fbed-4f39-9c86-7e829980a216 (accessed on 23 March 2020).
- Braat, K.B.; Van Lohuizen, H.P.S.; De Haan, J.F. Underground pumped hydro-storage project for the Netherlands. Tunn. Tunn. 1985, 17, 19–22. [Google Scholar]
- Beck, H.-P.; Schmidt, M. Windenergiespeicherung Durch Nachnutzung Stillgelegter Bergwerke; University Library Clausthal: Clausthal-Zellerfeld, Germany, 2011; ISBN 978-3-942216-54-8. [Google Scholar]
- Luick, H.; Niemann, A.; Perau, E.; Schreiber, U. Coalmines as Underground Pumped Storage Power Plants (UPP)—A Contribution to a Sustainable Energy Supply? Geophys. Res. Abstr. 2012, 14, 4205. [Google Scholar]
- Zillmann, A.; Perau, E. A conceptual analysis for an underground pumped storage plant in rock mass of the Ruhr region. In Geotechnical Engineering for Infrastructure and Development; Conference Proceedings; ICE Publishing: London, UK, 2015; Volume 1–7, pp. 3789–3794. ISBN 978-0-7277-6067-8. [Google Scholar]
- Poulain, A.; Goderniaux, P.; de dreuzy, J.-R. Study of groundwater-quarry interactions in the context of energy storage systems. Geophys. Res. Abstr. 2016, 18, EPSC2016-9055. [Google Scholar]
- Bodeux, S.; Pujades, E.; Orban, P.; Brouyère, S.; Dassargues, A. Interactions between groundwater and the cavity of an old slate mine used as lower reservoir of an UPSH (Underground Pumped Storage Hydroelectricity): A modelling approach. Eng. Geol. 2017, 217, 71–80. [Google Scholar] [CrossRef] [Green Version]
- Menéndez, J.; Loredo, J.; Galdo, M.; Fernández-Oro, J.M. Energy storage in underground coal mines in NW Spain: Assessment of an underground lower water reservoir and preliminary energy balance. Renew. Energy 2019, 134, 1381–1391. [Google Scholar] [CrossRef]
- Menéndez, J.; Fernández-Oro, J.M.; Galdo, M.; Loredo, J. Efficiency analysis of underground pumped storage hydropower plants. J. Energy Storage 2020, 28, 101234. [Google Scholar] [CrossRef]
- Menéndez, J.; Fernández-Oro, J.M.; Galdo, M.; Loredo, J. Pumped-storage hydropower plants with underground reservoir: Influence of air pressure on the efficiency of the Francis turbine and energy production. Renew. Energy 2019, 143, 1427–1438. [Google Scholar] [CrossRef]
- Pummer, E.; Schüttrumpf, H. Reflection Phenomena in Underground Pumped Storage Reservoirs. Water 2018, 10, 504. [Google Scholar] [CrossRef] [Green Version]
- Menéndez, J.; Schmidt, F.; Konietzky, H.; Fernández-Oro, J.M.; Galdo, M.; Loredo, J.; Díaz-Aguado, M.B. Stability analysis of the underground infrastructure for pumped storage hydropower plants in closed coal mines. Tunn. Undergr. Space Technol. 2019, 94, 103117. [Google Scholar] [CrossRef]
- Pujades, E.; Willems, T.; Bodeux, S.; Orban, P.; Dassargues, A. Underground pumped storage hydroelectricity using abandoned works (deep mines or open pits) and the impact on groundwater flow. Hydrogeol. J. 2016, 24, 1531–1546. [Google Scholar] [CrossRef] [Green Version]
- Pujades, E.; Orban, P.; Jurado, A.; Ayora, C.; Brouyère, S.; Dassargues, A. Water chemical evolution in Underground Pumped Storage Hydropower plants and induced consequences. Energy Procedia 2017, 125, 504–510. [Google Scholar] [CrossRef]
- Pujades, E.; Jurado, A.; Orban, P.; Ayora, C.; Poulain, A.; Goderniaux, P.; Brouyère, S.; Dassargues, A. Hydrochemical changes induced by underground pumped storage hydropower and their associated impacts. J. Hydrol. 2018, 563, 927–941. [Google Scholar] [CrossRef] [Green Version]
- Pujades, E.; Jurado, A.; Orban, P.; Dassargues, A. Parametric assessment of hydrochemical changes associated to underground pumped hydropower storage. Sci. Total Environ. 2019, 659, 599–611. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Pujades, E.; Orban, P.; Bodeux, S.; Archambeau, P.; Erpicum, S.; Dassargues, A. Underground pumped storage hydropower plants using open pit mines: How do groundwater exchanges influence the efficiency? Appl. Energy 2017, 190, 135–146. [Google Scholar] [CrossRef]
- Erpicum, S.; Archambeau, P.; Dewals, B.; Pirotton, M.; Pujades, E.; Orban, P.; Dassargues, A.; Cerfontaine, B.; Charlier, R.; Poulain, A.; et al. Underground pumped hydro-energy storage in Wallonia (Belgium) using old mines—Potential and challenges. In Proceedings of the Hydro 2017 conference: Shaping the Future of Hydropower, Seville, Spain, 9–11 October 2017. [Google Scholar]
- Brouyère, S.; Orban, P.; Wildemeersch, S.; Couturier, J.; Gardin, N.; Dassargues, A. The Hybrid Finite Element Mixing Cell Method: A New Flexible Method for Modelling Mine Ground Water Problems. Mine Water Environ. 2009, 28, 102–114. [Google Scholar] [CrossRef] [Green Version]
- Wildemeersch, S.; Brouyère, S.; Orban, P.; Couturier, J.; Dingelstadt, C.; Veschkens, M.; Dassargues, A. Application of the Hybrid Finite Element Mixing Cell method to an abandoned coalfield in Belgium. J. Hydrol. 2010, 392, 188–200. [Google Scholar] [CrossRef] [Green Version]
- Celia, M.A.; Bouloutas, E.T.; Zarba, R.L. A general mass-conservative numerical solution for the unsaturated flow equation. Water Resour. Res. 1990, 26, 1483–1496. [Google Scholar] [CrossRef]
- Dassargues, A. Hydrogeology: Groundwater Science and Engineering; CRC Press: Boca Raton, FL, USA, 2018; ISBN 0-429-89440-6. [Google Scholar]
- Yeh, G.T.; Cheng, J.R.; Cheng, H.P. 3DFEMFAT: A 3-Dimensional Finite Element Model of Density-Dependent Flow and Transport through Saturated-Unsaturated Media; Version 2.0, Technical Report; Pennsylvania State University: University Park, PA, USA, 1994. [Google Scholar]
- Brouyère, S. Etude et Modélisation du Transport et du Piégeage des Solutés en Milieu Souterrain Variablement Saturé. Evaluation des Paramètres Hydrodispersifs par la Réalisation et L’interprétation D’essais de Traçage In Situ. Ph.D. Thesis, Université de Liège, Sart Tilman, Belgique, 2001. [Google Scholar]
- Brouyère, S.; Carabin, G.; Dassargues, A. Climate change impacts on groundwater resources: Modelled deficits in a chalky aquifer, Geer basin, Belgium. Hydrogeol. J. 2004, 12, 123–134. [Google Scholar] [CrossRef] [Green Version]
- Carabin, G.; Dassargues, A. Modeling groundwater with ocean and river interaction. Water Resour. Res. 1999, 35, 2347–2358. [Google Scholar] [CrossRef]
- Orban, P.; Brouyère, S. Groundwater Flow and Transport Delivered for Groundwater Quality Trend Forecasting by TREND T2; University of Liège: Liège, Belgium, 2006. [Google Scholar]
- Bear, J.; Cheng, A.H.-D. Modeling Groundwater Flow and Contaminant Transport; Theory and Applications of Transport in Porous Media; Springer: Dordrecht, Netherlands, 2010; ISBN 978-1-4020-6681-8. [Google Scholar]
- DGO3. Code Wallon de Bonnes Pratiques—CWBP. Available online: https://sol.environnement.wallonie.be/home/sols/sols-pollues/code-wallon-de-bonnes-pratiques--cwbp-.html (accessed on 26 January 2020).
- Piez’eau. Available online: http://piezo.environnement.wallonie.be/login.do?time=1587036029703# (accessed on 16 April 2020).
- Shapiro, A.; Andersson, J. Steady state fluid response in fractured rock: A boundary element solution for a coupled, discrete fracture continuum model. Water Resour. Res. 1983, 19, 959–969. [Google Scholar] [CrossRef]
- Scanlon, B.R.; Mace, R.E.; Barrett, M.E.; Smith, B. Can we simulate regional groundwater flow in a karst system using equivalent porous media models? Case study, Barton Springs Edwards aquifer, USA. J. Hydrol. 2003, 276, 137–158. [Google Scholar] [CrossRef]
- Hassan, S.M.T.; Lubczynski, M.W.; Niswonger, R.G.; Su, Z. Surface–groundwater interactions in hard rocks in Sardon Catchment of western Spain: An integrated modeling approach. J. Hydrol. 2014, 517, 390–410. [Google Scholar] [CrossRef]
- Kitsikoudis, V.; Archambeau, P.; Dewals, B.; Pujades, E.; Orban, P.; Dassargues, A.; Pirotton, M.; Erpicum, S. Underground pumped-storage hydropower (UPSH) at the Martelange mine (Belgium): Underground reservoir hydraulics. Energies 2020. Submitted. [Google Scholar]
- Asta, M.P.C.; Acero, P. Dissolution kinetics of marcasite at acidic pH. Eur. J. Mineral. 2010, 49–61. [Google Scholar] [CrossRef]
- Banks, D.; Younger, P.L.; Arnesen, R.-T.; Iversen, E.R.; Banks, S.B. Mine-water chemistry: The good, the bad and the ugly. Environ. Geol. 1997, 32, 157–174. [Google Scholar] [CrossRef]
- Robb, G.A. Environmental Consequences of Coal Mine Closure. Geogr. J. 1994, 160, 33–40. [Google Scholar] [CrossRef]
Location | Upgradient | Downgradient | ||
---|---|---|---|---|
Distance from the reservoir | 5 m | 15 m | 5 m | 15 m |
Winter | 17.82 m | 3 m | 18.7 m | 5 m |
Spring/Autumn | 17.2 m | 3 m | 19.2 m | 6 m |
Summer | 18.27 m | 4 m | 29.3 m | 8 m |
