Soft Switching of Non-Isolated Buck-Type Converter with Common-Ground Switch

Abstract

A non-isolated buck converter, together with resonance and zero voltage transition to achieve zero voltage switching (ZVS) and zero current switching (ZCS), is presented herein to upgrade the conversion efficiency. In this circuit, the main switch and the auxiliary switch are connected to the common ground so as to make the two switches easily driven. Furthermore, these two switches take time division multiplexing operation. In addition, the pulse width modulation (PWM) control technique is utilized so as to render the output inductor and capacitor easily designed. In this paper, the theoretical derivation is first introduced, and secondly, some experimental results are provided to demonstrate the effectiveness of the proposed topology.

1. Introduction

The traditional electronic equipment mostly uses the linear power supply, whose large size and poor efficiency performance have been criticized by the world. Therefore, the switching power supply [1,2] has been developed to improve efficiency as well as to reduce the component size by increasing the switching frequency. Generally, the switching power supply uses hard switching, leading to switching loss and noise. In addition, the switch has to withstand relatively great voltage stress, leading to additional switching loss and conduction loss. Since the switching loss is proportional to the switching frequency, the problem becomes worse. As generally acknowledged, the snubber circuits used in the past are connected in series or in parallel with the switch, which can only reduce the noise when the switch is switched and cannot effectively improve the efficiency. Therefore, the soft switching technology was born to improve the efficiency [3,4].

As for the load-resonant converter [5], this converter includes an inductor-capacitor resonance tank, which is connected in series or in parallel with the load terminal. Resonance elements participate in the energy conversion process of the converter throughout the entire process. The resonance voltage or current generated by the resonance tank is used to achieve zero voltage or current switching. The current and power of the load can be adjusted by the resonance tank circuit, and the capacity of the load can be adjusted by the ratio of the switching frequency to the resonance frequency. This load-resonant converter is also called a full resonance converter and is mostly used in half-bridge or full-bridge converters, suitable for high-power applications [6].

As to the switch-resonant converter [7], the converter only uses the resonance generated by resonant elements to provide the voltage or current required for zero voltage or current switching when the switch is switched. Resonant elements only partially participate in the energy conversion process of the converter, which is also called a semi-resonant converter or quasi-resonant converter [8,9].

As for the zero voltage/current switching, it can be subdivided into two types, full wave and half wave [10], depending on the circuit topology. Since the resonance is in the full wave type, the zero time is short, and it is not easy to accurately control the switch to switch under zero voltage or zero current. If the switch is cut off at the resonant negative current, an auxiliary circuit must be added to keep the current continuous to avoid voltage surges that may damage the switch. In addition, the reverse current flows through the body diode of the switch, causing the conduction loss to be increased. Although the half-wave type does not have this problem, additional components are required, leading to an increase in cost. Currently, diodes are often added to eliminate negative currents, and the length of time, used for zero-voltage, or zero-current switching is increased. At present, most of these converters have been developed to add auxiliary switches, and their working time is shorter than the turn-on time of the main switch, generally about 1/10~1/5 times of t, the turn-on time of the main switch, which is used to control the resonance process of resonant elements so as to achieve soft switching as well as to realize pulse width modulation (PWM) control [11,12].

As to the zero voltage/current transition, the converter is featured by working under PWM control, and the auxiliary circuit work before or after the main switch is turned on. The auxiliary circuit mainly transfers the voltage or current stress that the switch bears to other places to realize the soft switching of the switch, but it stops working at other times to reduce the loss of the auxiliary circuit. According to its operation behavior, it can be divided into zero voltage transition [13,14] and zero current transition [15,16]. These two methods can transfer energy without resonance to achieve zero voltage/current switching of the switch, so that the switching components are free from the high voltage or current stress due to resonance, but an auxiliary switch must be added to help achieve this goal and the auxiliary switch still has switching loss. Therefore, if the zero voltage or current switching is applied to the auxiliary switch, then additional components must be used, leading to an increase in cost.

In the traditional buck converter, the main switch is floating and does not share the ground with the system, making it need an isolated driver. Furthermore, the resonant circuit plus the auxiliary circuit becomes more and more complicated, and even more switches or diodes are added, thereby increasing the cost of components and not effectively improving the efficiency.

In this paper, the proposed auxiliary resonant circuit, with a small number of components, is applied to a traditional buck converter, which is improved by connecting the main switch to the common ground, thereby making the main switch driven relatively easily. Furthermore, the auxiliary switch is also connected to the common ground. In addition, two switches adopt the time division multiplexing operation and the PWM control scheme, thus rendering the circuit components design relatively easily. Above all, both the main switch and the auxiliary switch have ZVS turn-on and ZCS turn-off.

2. Basic Operating Principle

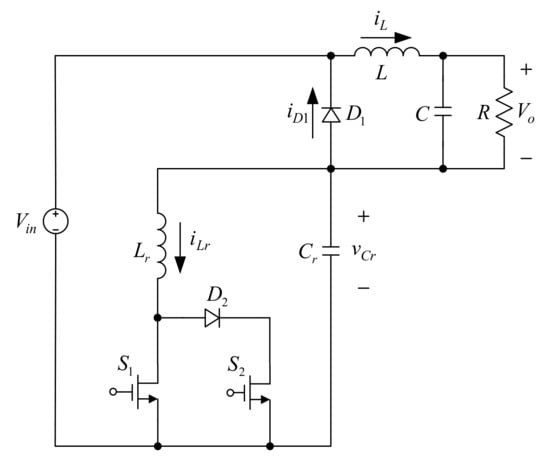

Figure 1 shows the proposed circuit, including the main power stage and the auxiliary stage, and these two stages are controlled by time division multiplexing. The main power stage is constructed by a buck converter with a main switch S₁ having a common ground, an output diode D₁, an output capacitor C, and an output resistor R. The auxiliary power stage is built up by an auxiliary switch S₂, an auxiliary diode D₂, a resonant inductor L_r, and a resonant capacitor C_r. The auxiliary diode D₂ makes the current flow through the auxiliary switch S₂ in a half-wave form. There are six operating states, and Figure 2 shows the relevant waveforms for the circuit operating.

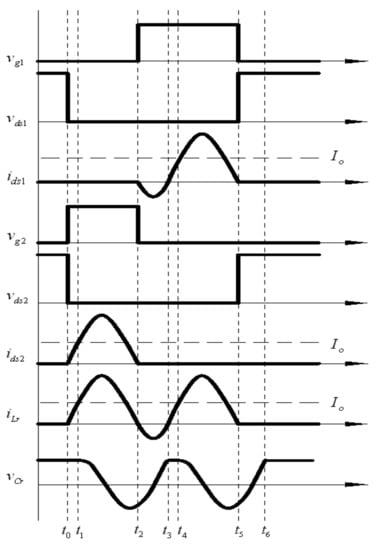

State 0 ($t\le t_0$): As shown in Figure 1and Figure 2, before the switch S₂ is turned on, the current I_o flows through the diode D₁. During this state, the voltage across C_r is the input voltage V_in. Once the switch S₂ is turned on, the operation goes to state 1. The corresponding equations are shown as follows:

$$\left\{\begin{array}{l}{i}_{Lr}(t)=0\\ v_{Cr}(t)=V_{in}\end{array}\right.$$

(1)

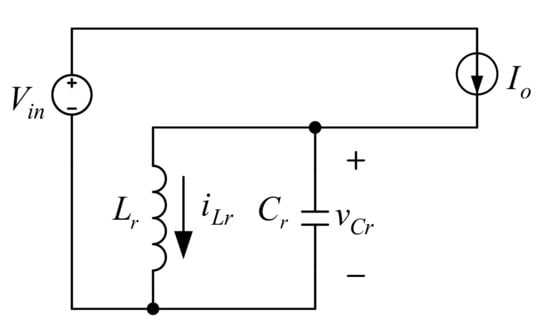

State 1 ($t_0\le t\le t_1$): As shown in Figure 1, Figure 2and Figure 3, the main switch S₁ is off but the auxiliary switch S₂ is on, whereas the output diode D₁ and the auxiliary diode D₂ both are on. After the voltage drop across S₂ reaches zero, the current flowing through S₂ gradually rises and, hence, S₂ has ZVS turn-on. Since the resonant voltage v_Cr is clamped at the input voltage V_in and the output diode D₁ is still not cut off, making the resonant capacitor C_r open-circuited, the inductor current i_Lr rises linearly. As soon as i_Lr rises to I_o, D₁ is cut off and the operation proceeds to state 2.

The corresponding initial condition is

$$\left\{\begin{array}{l}{i}_{Lr}(t_0)=0\\ v_{Cr}(t_0)=V_{in}\end{array}\right.$$

(2)

The corresponding equation based on Figure 3 and Equation (1) can be described as

$$i_{Lr}(t)=i_{Lr}(t_0)+\frac{1}{L_r}{\int }_{t_{{}_0}}^t{V}_{in}d\tau =\frac{V_{in}}{L_r}(t-t_0)$$

(3)

At the time instant of t₁, the result is

$$i_{Lr}(t_1)=I_o$$

(4)

Therefore, based on Equations (3) and (4), the corresponding time elapsed is

$$T_a=t_1-t_0=\frac{I_o{L}_r}{V_{in}}$$

(5)

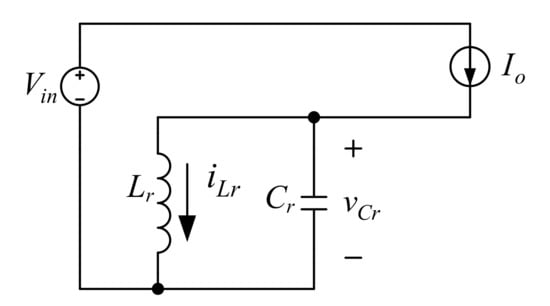

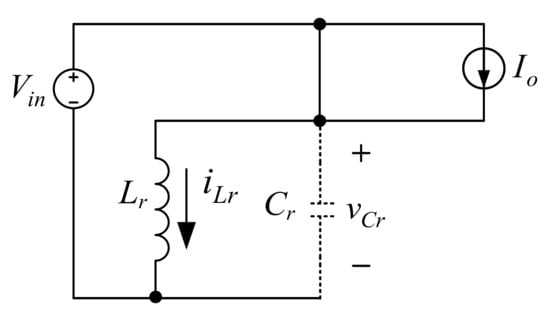

State 2 ($t_1\le t\le t_2$): As shown in Figure 1, Figure 2, and Figure 4, the main switch S₁ is off but the auxiliary switch S₂ is on, whereas the output diode D₁ is off but the auxiliary diode D₂ is on. Since S₂ continues to conduct, the resonance between the resonant capacitor C_r and the resonant inductor L_r begins to occur. Therefore, C_r begins to send out energy to L_r, making the resonant voltage v_Cr drop and the resonant current i_Lr rise.

The corresponding initial conditions are

$$\left\{\begin{array}{c}{\mathrm{i}}_{\mathrm{Lr}}(t_1)=I_o\\ {\mathrm{v}}_{\mathrm{Cr}}(t_1)=V_{\mathit{in}}\end{array}\right.$$

(6)

The corresponding equations based on Figure 4 can be described as

$$\left\{\begin{array}{l}{i}_{Lr}(t)=I_o-i_{Cr}(t)=I_o-C_r\frac{d{v}_{Cr}(t)}{dt}\\ v_{Cr}(t)=L_r\frac{d{i}_{Lr}(t)}{dt}\end{array}\right.$$

(7)

By taking the Laplace transform of Equation (7), the resulting equations can be shown in Equation (8):

$$\left\{\begin{array}{l}{i}_{Lr}(s)=\frac{I_o}{s}-V_{in}{C}_r-s{C}_r{v}_{Cr}(s)\\ v_{Cr}(s)=s{i}_{Lr}(s)L_r-I_o{L}_r\end{array}\right.$$

(8)

By solving Equation (8) and then taking the inverse Laplace transform of this solution, the resulting time-domain equations can be obtained as

$$\left\{\begin{array}{l}{i}_{Lr}(t)=I_o+\left[i_{Lr}(t_1)-I_o\right]\cos {\omega }_0(t-t_1)+\frac{v_{Cr}(t_1)}{Z_0}\sin {\omega }_0(t-t_1)\\ v_{Cr}(t)=Z_0\left[I_o-i_{Lr}(t_1)\right]\sin {\omega }_0(t-t_1)+v_{Cr}(t_1)\cos {\omega }_0(t-t_1)\end{array}\right.$$

(9)

By substituting the initial values of Equation (6) into (9), the following equations simplified can be obtained as

$$\left\{\begin{array}{l}{i}_{Lr}(t)=I_o+\frac{V_{in}}{Z_0}\sin {\omega }_0(t-t_1)\\ v_{Cr}(t)=V_{in}\cos {\omega }_0(t-t_1)\end{array}\right.$$

(10)

where

$$\left\{\begin{array}{l}{Z}_0=\sqrt{\frac{L_r}{C_r}}\\ {\omega }_0=\frac{1}{\sqrt{L_r{C}_r}}\end{array}\right.$$

(11)

As the resonance starts at the time of t₁, i_Lr continues to rise. When all the energy stored in C_r is sent to L_r, the maximum value of i_Lr is I_o + V_in/Z₀. After this peak value, the energy stored in L_r is transferred back to C_r to make V_Cr rise in the opposite direction and i_Lr fall. As soon as i_Lr drops to zero, S₂ is turned off, reaching ZCS turn-off. On the other hand, after S₂ is turned on in state 1, the voltage across S₂ is continuously maintained at zero in state 2, so as soon as the switch S₂ is turned off, the switch S₁ is turned on immediately, making S₁ have ZVS turn-on, and then the operation enters state 3.

At the time instant of t₂, the result is

$$i_{Lr}(t_2)=0$$

(12)

Therefore, based on Equation (10), (11), and (12), the corresponding time elapsed is

$$T_b=t_2-t_1=\frac{{\sin }^{-1}\left(\frac{Z_0{I}_o}{V_{in}}\right)}{{\omega }_0}$$

(13)

State 3 ($t_2\le t\le t_3$): As shown in Figure 1, Figure 2, and Figure 5, the main switch S₁ is on and the auxiliary switch S₂ is off, whereas the output diode D₁ and the auxiliary diode D₂ both are off. S₁ is turned on, taking the role of S₂ to continue the resonance, and L_r continues to transfer energy to C_r so that the resonant current i_Lr goes in the negative direction, and the minimum value of this negative current is I_o-V_in/Z₀. At the same time, C_r is charged, making v_Cr continues to rise. Once v_Cr reaches the input voltage V_in, the operation goes to state 4.

The corresponding initial conditions are

$$\left\{\begin{array}{l}{i}_{Lr}(t_2)=0\\ v_{Cr}(t_2)=V_{in}\cos {\omega }_0(t_2-t_1)\end{array}\right.$$

(14)

The corresponding equations based on Figure 5 can be described as

$$\left\{\begin{array}{l}{i}_{Lr}(t)=I_o-i_{Cr}(t)=I_o-C_r\frac{d{v}_{Cr}(t)}{dt}\\ v_{Cr}(t)=L_r\frac{d{i}_{Lr}(t)}{dt}\end{array}\right.$$

(15)

By taking the Laplace transform of Equation (15), the resulting equations can be shown in Equation (16):

$$\left\{\begin{array}{l}{i}_{Lr}(s)=\frac{I_o}{s}-V_{in}{C}_r-s{C}_r{v}_{Cr}(s)\\ v_{Cr}(s)=s{i}_{Lr}(s)L_r-I_o{L}_r\end{array}\right.$$

(16)

By solving Equation (16) and then taking the inverse Laplace transform of this solution, the resulting time-domain equations can be obtained as

$$\left\{\begin{array}{l}{i}_{Lr}(t)=I_o+\left[i_{Lr}(t_2)-I_o\right]\cos {\omega }_0(t-t_2)+\frac{v_{Cr}(t_2)}{Z_0}\sin {\omega }_0(t-t_2)\\ v_{Cr}(t)=Z_0\left[I_o-i_{Lr}(t_2)\right]\sin {\omega }_0(t-t_2)+v_{Cr}(t_2)\cos {\omega }_0(t-t_2)\end{array}\right.$$

(17)

By substituting the initial values of Equation (14) into (17), the following equations simplified can be obtained as

$$\left\{\begin{array}{l}{i}_{Lr}(t)=I_o\left[1-\cos {\omega }_0(t-t_2)\right]+\frac{v_{Cr}(t_2)}{Z_0}\sin {\omega }_0(t-t_2)\\ v_{Cr}(t)=Z_o{I}_o\sin {\omega }_0(t-t_2)+v_{Cr}(t_2)\cos {\omega }_0(t-t_2)\end{array}\right.$$

(18)

At the time instant of t₃, the result is

$$\left\{\begin{array}{l}{i}_{Lr}(t_3)=0\\ v_{Cr}(t_3)=V_{in}\end{array}\right.$$

(19)

Therefore, based on Equations (18) and (19), the corresponding time elapsed is

$$T_c=t_3-t_2=\frac{{\sin }^{-1}\left[\frac{V_{in}-v_{Cr}\left(t_2\right)}{Z_0{I}_o+\frac{{\left[v_{Cr}\right(t_2\left)\right]}^2}{Z_0{I}_o}}\right]}{{\omega }_0}$$

(20)

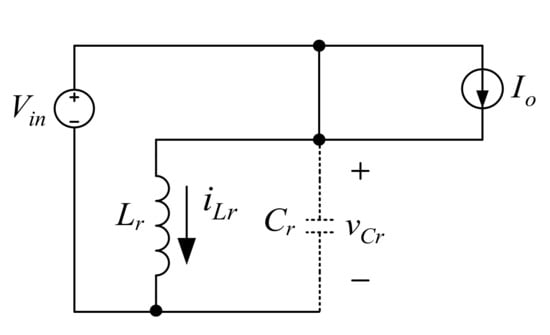

State 4 ($t_3\le t\le t_4$): As shown in Figure 1, Figure 2, and Figure 6, the main switch S₁ is on and the auxiliary switch S₂ is off, whereas the output diode D₁ is on but the auxiliary diode D₂ is still off. The resonant voltage v_Cr is clamped at the input voltage V_in, making the resonant capacitor C_r open-circuited and the resonant current i_Lr linearly rising. As soon as i_Lr rises to the output current I_o, the operation goes to state 5.

The corresponding initial conditions are

$$\left\{\begin{array}{l}{i}_{Lr}(t_3)=0\\ v_{Cr}(t_3)=V_{in}\end{array}\right.$$

(21)

The corresponding equations based on Figure 6 can be described as

$$i_{Lr}(t)=i_{Lr}(t_3)+\frac{1}{L_r}{\int }_{t_{{}_3}}^t{V}_{in}dt=i_{Lr}(t_3)+\frac{V_{in}}{L_r}(t-t_3)$$

(22)

By substituting the initial values of Equation (21) into (22), the following simplified equations can be obtained as

$$i_{Lr}(t)=\frac{V_{in}}{L_r}(t-t_3)$$

(23)

At the time instant of t₄, the result is

$$i_{Lr}(t_4)=I_o$$

(24)

Therefore, based on Equations (23) and (24), the corresponding time elapsed is

$$T_d=t_4-t_3=\frac{I_o{L}_r}{V_{in}}$$

(25)

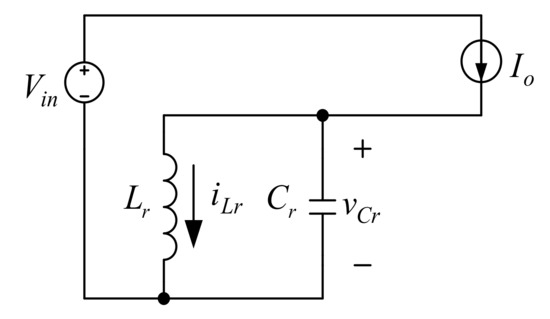

State 5: ($t_4\le t\le t_5$): As shown in Figure 1, Figure 2, and Figure 7, the main switch S₁ is still on and the auxiliary switch S₂ is still off, whereas the output diode D₁ and the auxiliary diode D₂ both are off. The resonant inductor L_r resonates with the resonant capacitor C_r. C_r transfers energy to L_r, so the resonant voltage v_Cr falls and the resonant current i_Lr rises. Once S₁ is cut off, the operation proceeds to state 6.

The corresponding initial conditions are

$$\left\{\begin{array}{c}{i}_{\mathit{Lr}}(t_4)=I_o\\ v_{\mathit{Cr}}(t_4)={\mathrm{V}}_{\mathit{in}}\end{array}\right.$$

(26)

The corresponding equations based on Figure 7 can be described as

$$\left\{\begin{array}{l}{i}_{Lr}(t)=I_o-i_{Cr}(t)=I_o-C_r\frac{d{v}_{Cr}(t)}{dt}\\ v_{Cr}(t)=L_r\frac{d{i}_{Lr}(t)}{dt}\end{array}\right.$$

(27)

By taking the Laplace transform of Equation (27), the resulting equations can be shown in Equation (28):

$$\left\{\begin{array}{l}{i}_{Lr}(s)=\frac{I_o}{s}-V_{in}{C}_r-s{C}_r{v}_{Cr}(s)\\ v_{Cr}(s)=s{i}_{Lr}(s)L_r-I_o{L}_r\end{array}\right.$$

(28)

By solving Equation (28) and then taking the inverse Laplace transform of this solution, the resulting time-domain equations can be obtained as

$$\left\{\begin{array}{l}{i}_{Lr}(t)=I_o+\left[i_{Lr}(t_4)-I_o\right]\cos {\omega }_0(t-t_4)+\frac{v_{Cr}(t_4)}{Z_0}\sin {\omega }_0(t-t_4)\\ v_{Cr}(t)=Z_0\left[I_o-i_{Lr}(t_4)\right]\sin {\omega }_0(t-t_4)+v_{Cr}(t_4)\cos {\omega }_0(t-t_4)\end{array}\right.$$

(29)

By substituting the initial values of Equation (26) into (29), the following equations simplified can be obtained as

$$\left\{\begin{array}{l}{i}_{Lr}(t)=I_o+\frac{V_{in}}{Z_0}\sin {\omega }_0(t-t_4)\\ v_{Cr}(t)=V_{in}\cos {\omega }_0(t-t_4)\end{array}\right.$$

(30)

As the resonance starts at the time of t₄, i_Lr continues to rise. When all the energy stored in C_r is sent to L_r, the maximum value of i_Lr is I_o + V_in/Z₀. After this peak value, the energy stored in L_r is transferred back to C_r to make v_Cr rise in the opposite direction and i_Lr fall. As soon as i_Lr drops to zero, S₁ is turned off, achieving ZCS turn-off, the operation enters state 6.

At the time instant of t₅, the result is

$$i_{Lr}(t_5)=0$$

(31)

Therefore, based on Equations (30) and (31), the corresponding time elapsed is

$$T_e=t_5-t_4=\frac{\sin \left(\frac{-{\mathrm{Z}}_0{I}_o}{V_{in}}\right)}{{\omega }_0}$$

(32)

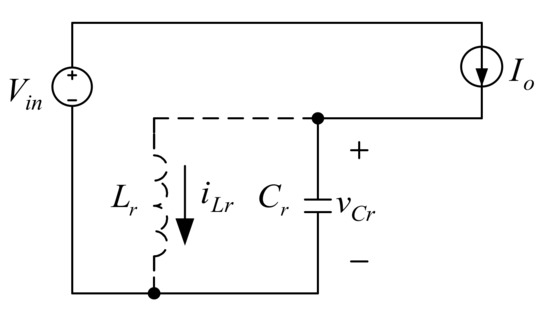

State 6 ($t_5\le t\le t_6$): As shown in Figure 1, Figure 2, and Figure 8, the main switch S₁ and the auxiliary switch S₂ are both off. There is no resonance loop. Hence, there is no energy stored in L_r and only the input current I_o charges the resonant capacitor C_r, making the resonant voltage v_Cr linearly rising. Once v_Cr reaches the input voltage V_in, the output diode D₁ is turned on and the operation goes to state 1 with the next cycle repeated.

The corresponding initial conditions are

$$\left\{\begin{array}{l}{i}_{\mathit{Lr}}(t_5)=0\\ v_{\mathit{Cr}}(t_5)=V_{in}\cos {\omega }_0(t_5-t_4)\end{array}\right.$$

(33)

The corresponding equations based on Figure 8 can be described as

$$v_{Cr}(t)=v_{Cr}(t_5)+\frac{1}{C_r}{\int }_{t_{{}_5}}^t{I}_{o}dt=v_{Cr}(t_5)+\frac{I_o}{C_r}(t-t_5)$$

(34)

By substituting the initial values of Equation (33) into (34), the following simplified equations can be obtained as

$$v_{Cr}(t)=V_{in}\cos {\omega }_0(t_5-t_4)+\frac{I_o}{C_r}(t-t_5)$$

(35)

At the time instant of t₆, the result is

$$v_{Cr}(t_6)=V_{in}$$

(36)

Therefore, based on Equations (35) and (36), the corresponding time elapsed is

$$T_f=t_6-t_5=\frac{-C_r\cdot V_{in}\cos {\omega }_0(t_5-t_4)}{I_o}$$

(37)

3. Design Considerations

Prior to this section,

Table 1. System Specifications.

Parameters	Specifications
System operating mode	CCM
Input rated voltage (Vin)	48 V
The output voltage (Vo)	24 V
Output rated current (Io)	5 A
Rated output power (Po,rated)	120 W
Minimum output power (Po,min)	12 W
System switching frequency (fs)	250 kHz
Output Inductor (L)	50 μH
Output Capacitor (C)	10 μF

shows system specifications. In the following, the design of the resonant inductor L_r and the resonant capacitor C_r is taken into consideration.

As it is well recognized, the resonant behavior occurs at the resonant radian frequency ω₀ and on the condition of ZCS turn-off is $I_o\le V_{in}/Z_0$, namely, $Z_0\le V_{in}/I_o$. Therefore, the choice of ω₀ and Z₀ should be determined first.

Since the voltage conversion ratio $V_o/V_{in}$ is 0.5, then the corresponding duty cycle D is ideally 0.5, meaning that each duty cycle for S₁ and S₂ is ideally 0.25 due to time division multiplexing operation between the two switches. Accordingly, the resonant frequency f₀ is larger than 1 MHz, which is equal to 250 kHz divided by 0.25. Finally, the value of f₀ is chosen to be 1.1 MkHz.

After determination of f₀, the choice of Z₀ follows. From [17], it is assumed that $Z_0^{’}=V_{in}/I_{o,rated}=48/5=9.6{\Omega }$ and the value of Z₀ locates between $0.2Z_0^{’}$ and $0.7Z_0^{’}$ so as to avoid the internal impedance effect. Finally, the value of Z₀ is chosen to be $0.5Z_0^{’}$, equal to 4.8Ω. In addition, the inequality equations of L_r and C_r are

$$\left\{\begin{array}{l}{L}_r\le \frac{Z_0}{2\pi f_0}\\ C_r\ge \frac{1}{2\pi f_0{Z}_0}\end{array}\right.$$

(38)

Therefore, the value of L_r is smaller than 0.69 μH and the value of C_r is larger than 30 nF. Eventually, the value of L_r is 0.65 μH and the value of C_r is 35 nF.

4. Control Strategy

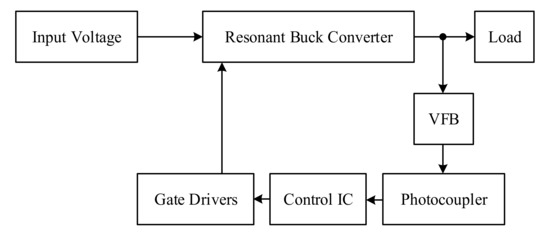

As shown in Figure 9, the resonant buck converter is powered by the input voltage. In the feedback block (VFB), a high-voltage operational amplifier is used to feedback the output voltage. However, because the load and the circuit do not share the same ground, a photocoupler should be used to isolate the two. The feedback signal is sent to the control integrated circuit (IC), named UC3842, to obtain a suitable PWM control signal. Afterwards, this signal is sent to the gate driver to drive the switch so that the output voltage is regulated at the prescribed value.

5. Experimental Results

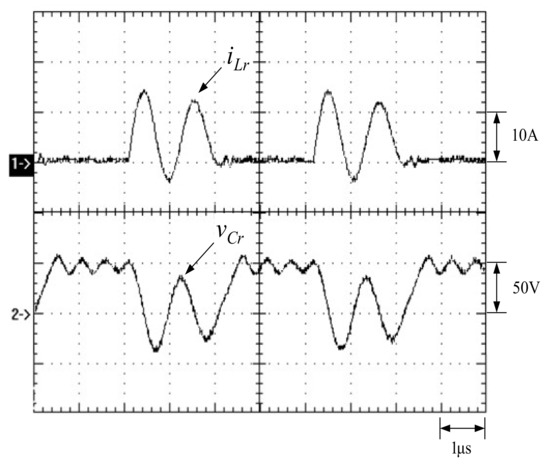

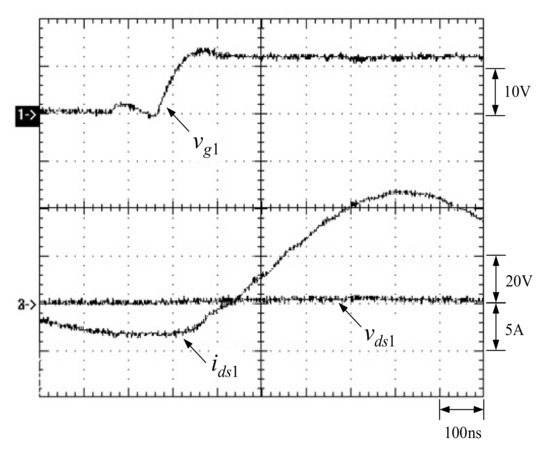

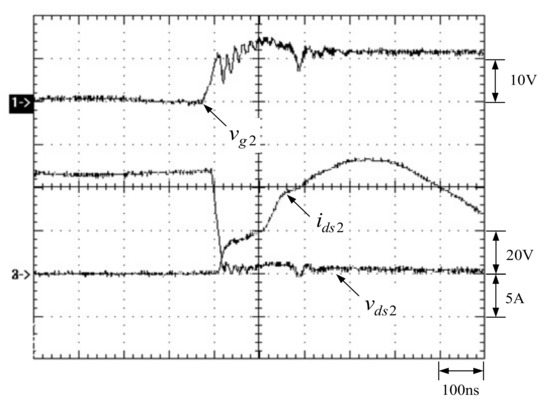

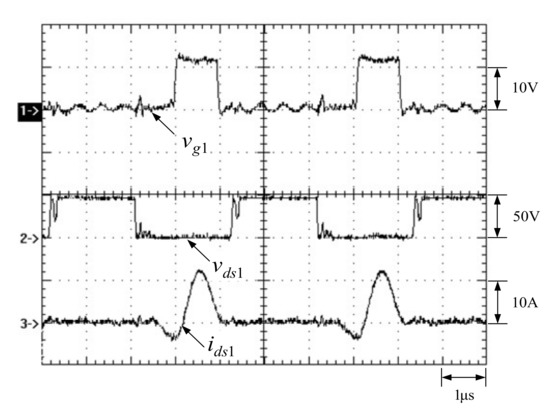

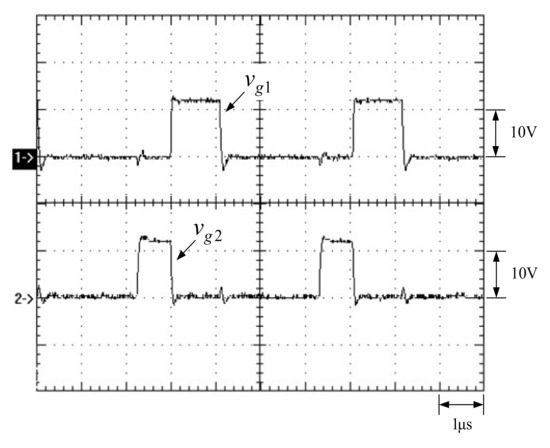

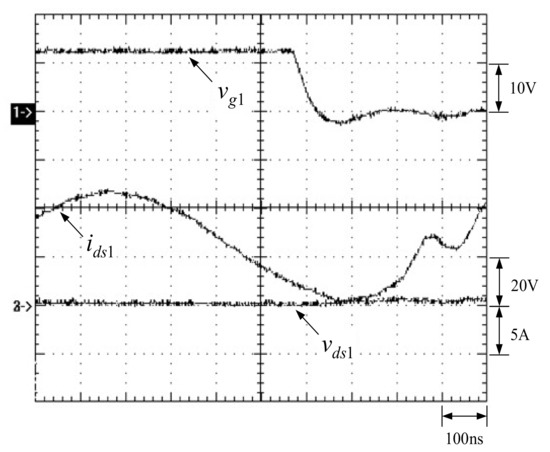

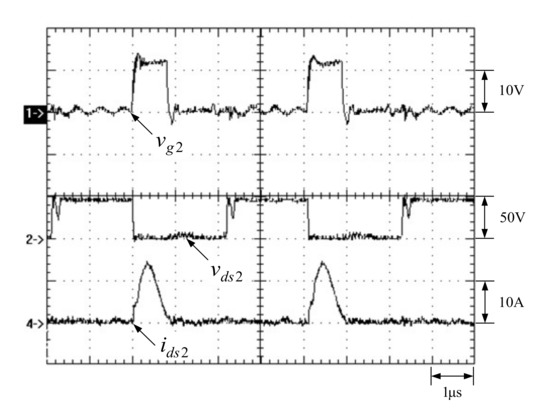

The following waveforms are measured at rated load. Figure 10 shows the resonant current i_Lr and the resonant voltage v_Cr. Figure 11 shows the gate driving signals v_g1 and v_g2 for S₁ and S₂, respectively. Figure 12 shows the gate driving signal v_g1 for S₁, the voltage across S₁, called v_ds1, and the current flowing through S₁, called i_ds1. Figure 13 shows the zoom-in of Figure 12 for ZVS turn-on of S₁. Figure 14 shows the zoom-in of Figure 12 for ZCS turn-off of S₁. Figure 15 shows the gate driving signal v_g2 for S₂, the voltage across S₂, called v_ds2, and the current flowing through S₂, called i_ds2. Figure 16 shows the zoom-in of Figure 15 for ZVS turn-on of S₂. Figure 17 shows the zoom-in of Figure 15 for ZCS turn-off of S₂. Figure 18 shows the efficiency comparison between with and without the proposed soft switching strategy.

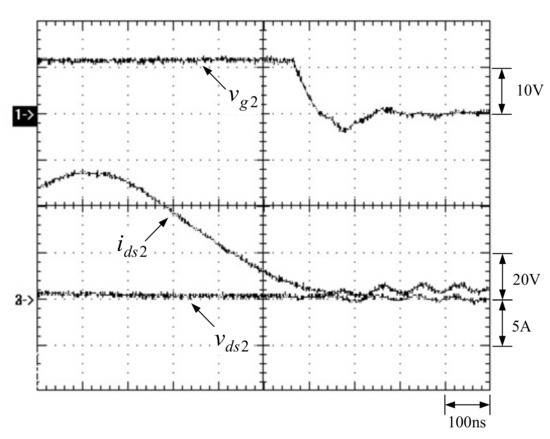

From Figure 10, it can be seen that the peak value of i_Lr is 14 A, which is smaller than 15 A (=I_o + V_in/I_o,rated), and the peak value of v_Cr is 45 V, which is smaller than the input voltage of 48 V. From Figure 11, it can be seen that the switch-on instant for S₂ is prior to that for S₁ and time division multiplexing operation between S₁ and S₂ holds. From Figure 13, Figure 14, Figure 16, and Figure 17, it can be seen that the proposed soft switching strategy based on time division multiplexing can make S₁ and S₂ both have ZVS turn-on and ZCS turn-off. From Figure 18, it can be seen that the maximum efficiencies with and without the proposed soft switching are 92.8% and 90.7%, respectively, and the maximum difference in efficiency between the two is about 2.1%.

6. Comparison

The comparison between the buck-type circuits and the proposed circuit is shown in

Table 2. Circuit Comparison.

Comparison Items		Compared Circuits
		[2]	[3]	[4]	[8]	[13]	Proposed
Topology		SR Buck	Coupled Buck	Two-Switch Forward	Inverting Buck	Forward	Buck
Soft switching features	Main switch	ZVS	ZVS	ZVS	ZCS	ZVS	ZVS/ZCS
	Auxiliary switch	----	ZVS	ZVS	----	ZVS/ZCS	ZVS/ZCS
Auxiliary circuit components	Diode	0	0	1	1	1	1
	Magnetic element	2	2	1	2	1	1
	Capacitor	3	2	1	1	2	1
	Auxiliary switch	0	2	1	0	1	1
	Isolated gate driver	0	2	1	0	1	0
Output power (W)		1500	240	300	10	150	120
Output voltage (V)		130	12	48	36	24	24
Switching frequency (kHz)		50	75	100	100	100	250
Soft switching strategy		Resonant	PWM	PWM	Resonant	Resonant	Resonant
Maximum efficiency (%)		94.0	90.3	93.6	92.5	93.5	93.3
Common-ground auxiliary switch		----	No	No	----	No	Yes

, in terms of soft switching features, auxiliary circuit components, output power, output voltage, switching frequency, soft switching strategy, maximum efficiency, and common-ground auxiliary switch. From these comparison items, the proposed circuit has some characteristics: (i) under the smallest number of auxiliary circuit components used, both the main and auxiliary switches have ZVS turn-on and ZCS turn-off; (ii) only the proposed auxiliary circuit has a common-ground auxiliary switch; and (iii) the average performance of the maximum efficiency is mainly due to the highest switching frequency used.

7. Conclusions

The proposed circuit has several merits described as follows:

(1)

The converter adopts an auxiliary circuit with fewer components to realize that both the main and auxiliary switches have ZVS turn-on and ZCS turn-off.

(2)

These two switches take the time division multiplexing operation plus the width modulation (PWM) control technique so that the circuit components are designed easily.

(3)

The main and auxiliary switches are connected to the common ground so that the two switches are driven easily.

(4)

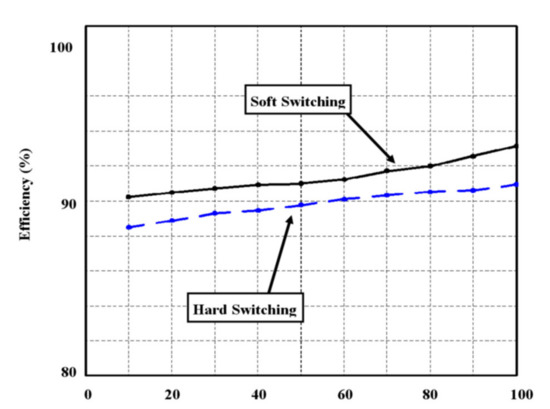

From the experimental results, it can be seen that the maximum efficencies with and without the proposed soft switching are 93.3% and 90.7%, respectively, and the maximum difference in efficiency between the two is about 2.6%.
