Easily Prepared Transparent Electrodes for Low-Cost Semitransparent Inverted Polymer Solar Cells

Abstract

The continuous thin film of silver (Ag) film is important for semitransparent electrodes in polymer solar cells, while the Ag atoms form as non-continuous below a critical thickness. Here, semitransparent inverted polymer solar cells were fabricated using thermally evaporated Ag/germanium (Ge)/Ag as highly transparent electrodes. An ultra-thin Ge film was introduced to modify the growth mode of Ag. The dependence of the device performance and the thickness of the outer Ag film was investigated. Ag/Ge/Ag electrodes exhibited excellent optical and electrical properties, which were proved by the transmittance and reflectance spectra. A champion efficiency of 5.1% was achieved with an open-circuit voltage level of 0.703 V, a short current density of 11.63 mA/cm², and a fill factor of 63%. The average visible transmittance (300–800 nm) of devices with Ag/Ge/Ag was calculated as 25%.

1. Introduction

Polymer solar cells (PSCs) show strong competitiveness in future energy sources due to their solution processing, large area printing, easy manufacturing, flexibility, and low material costs [1,2,3,4,5,6,7,8,9,10,11,12,13]. In the past decades, the power conversion efficiency (PCE) level has exceeded 18% due to the progress made in bulk heterojunction solar cells [14,15]. Among them, PSCs with semitransparent electrodes show great application prospects [16,17,18,19,20,21]. An ideal transparent electrode of devices should have both high charge carrier collection efficiency and high transmittance in order to produce better performance. Nevertheless, the poor ability to transport charges—caused by the non-continuous clusters of silver (Ag) atoms of thin-film—results in lower device efficiency, while thicker Ag film causes low transmittance [22]. During the deposition of Ag film, there is a critical thickness of about 15 nm. Ag film deposited on the substrate initially produced isolated islands and formed non-continuous clusters below this thickness. Then, these islands joined together and resulted in a continuous Ag film.

In recent years, a variety of semitransparent electrode structures have been developed [23,24,25]. Some ultra-thin metal films were introduced to replace Ag in the formation of semitransparent electrodes. For example, a thin gold film was introduced by Li et al. to obtain a single-layer, semitransparent electrode [26]. Despite their excellent transmittance, these solar cell devices suffer from some inherent drawbacks, such as high series resistance and low FF [27,28,29].

In this paper, a multi-layer electrode structure of Ag/germanium (Ge)/Ag was fabricated and investigated. The growth mode of Ag could be affected by the presence of a germanium (Ge) nucleation layer, which has been reported by Cioarec et al. [30,31]. As reported, Ag atoms were deposited on a Ge layer using a Volmer–Weber model, leading to the small and dense nucleation on dots, which contributed to the fast coalescence (critical thickness < 1 nm) in the initial step. Eventually, a smooth surface was completed. According to the work in the research of organic light-emitting devices (OLEDs), the ultra-thin Ge layer of 1 nm can also markedly affect the growth mode of Ag [32]. The potential of the Ag/Ge/Ag electrode was further explored in the PSCs. The dependence of device performance on the thickness of each layer was investigated; meanwhile, the transmittance, reflectance, and color-neutrality of the different electrodes are also analyzed through various thicknesses of the Ag capping layer.

2. Experimental

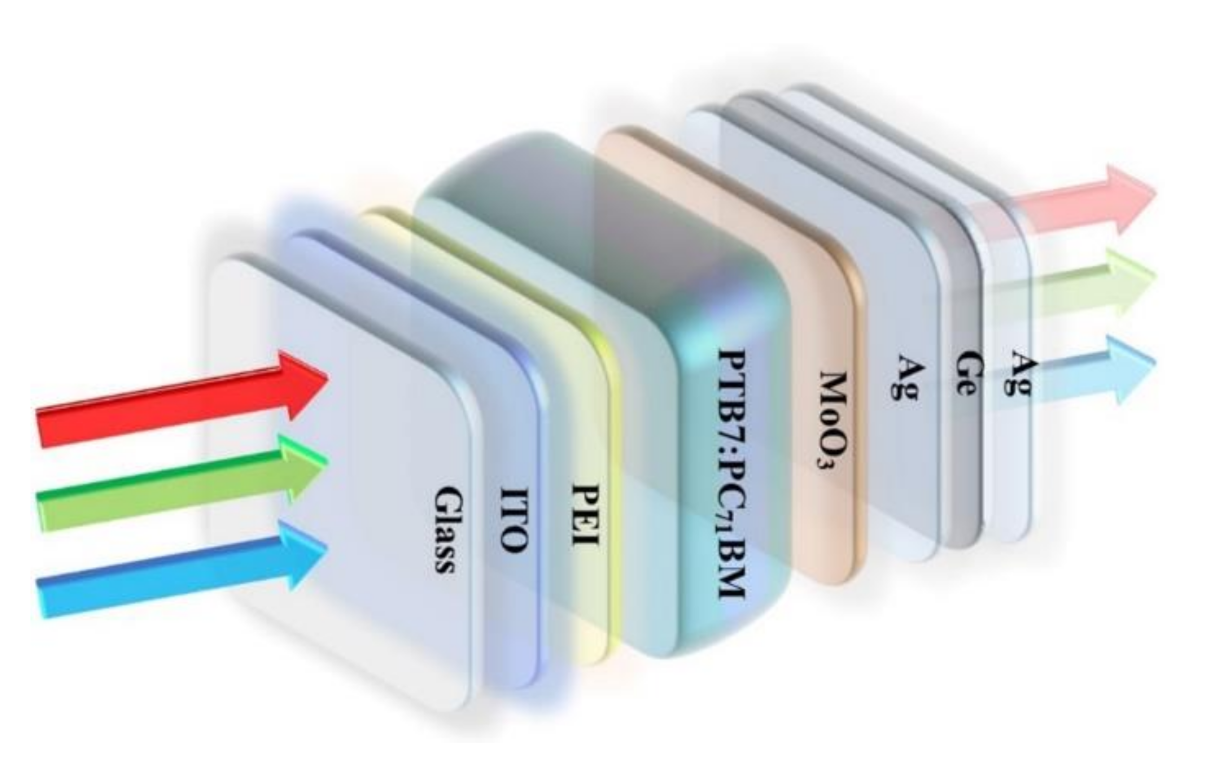

The photovoltaic device has the structure of ITO/polyethyleneimine (PEI)/PTB7:PC₇₁BM/MoO₃/Ag/Ge/Ag, as shown schematically in Figure 1. The electron acceptor material of PC₇₁BM and the electron donor material of PTB7 were obtained from 1-Material Inc. (Hackensack, NJ, USA) and Lumtek Corp., respectively, without any purification. To fabricate inverted PSCs, ITO-coated substrates were precleaned using acetone, ethanol, and de-ionized water, respectively, and were then dried using nitrogen. Subsequently, PEI was dissolved in deionized water at a concentration of 1 mg/mL and spin-casted on the ITO substrate to produce ETL. Afterward, PEI films were thermally annealed at 100 °C for 15 min. PTB7 was dissolved in chlorobenzene to produce a 10 mg/mL solution, followed by blending with PC₇₁BM in a 2:3 weight ratio. The blend was stirred for 72 h before spin-coating on the top of PEI film and was then dried for 3–5 min in the air. Finally, the devices were transferred into a vacuum chamber. The MoO₃ buffer layer (8 nm) and the Ag/Ge/Ag electrode layer, with different thickness compositions, were thermally evaporated in sequence under a high vacuum (~10⁻⁵ Tor) without disrupting the vacuum [33]. The evaporation rate of Ag (1 nm)/Ge (1 nm) deposition was 0.02 Å/s. Finally, the coater Ag film was deposited with an evaporation rate of 0.20 Å/s.

The Ag/Ge/Ag electrode area of the device is defined by the shadow mask. The current density–voltage (J-V) characteristics were measured using a computer-programmed Keithley 2400 source/meter under Air Mass 1.5 Global (AM 1.5 G) solar illuminations with an Oriel 300 W solar simulator intensity of 100 mW cm⁻² [34]. The light intensity was calibrated with a photometer (International light, IL1400), which was corrected using a standard silicon solar cell. The incident photon-to-current efficiency (IPCE) spectra of devices were also measured. The transmission and reflection spectra were measured using an ultra-violet/visible spectrometer (UV 1700, Shimadzu, Kyoto, Japan). The morphology of Ag films was investigated through scanning electron microscopy (SEM) using an LEO 1525 Gemini high-resolution field emission gun scanning electron microscope. The work function (WF) of the Ag/Ge/Ag film was calculated through ultraviolet photoelectron spectra (UPS) measurement using He I radiation. The morphology of the electrode was tested through atomic force microscopy (AFM) in the tapping mode (Dimension Icon Scanasyst). The color perception indices were calculated using the CIE 1931 xy color space to quantify the color-neutrality of different films. All average parameters of device performance in this study were summarized for over 32 devices.

3. Result and Discussion

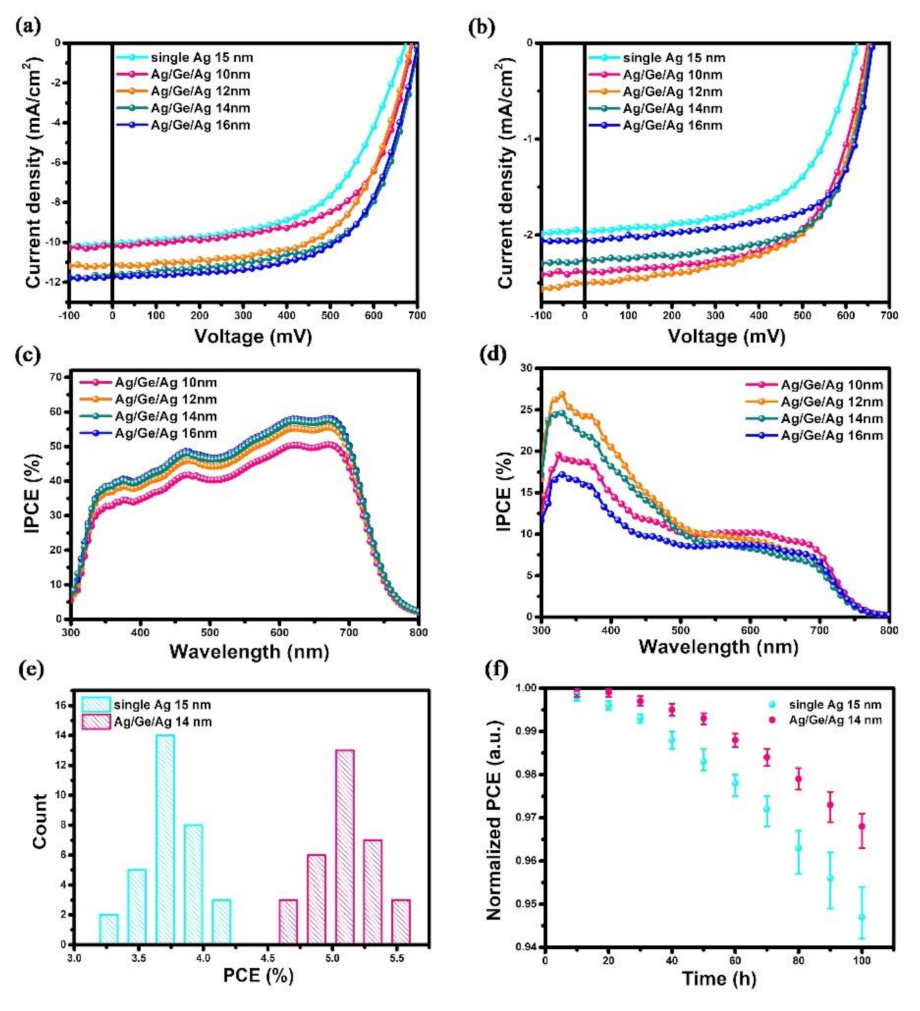

To investigate the role of the Ag/Ge/Ag electrode on the performance of PSCs, the devices with Ag (1 nm)/Ge (1 nm)/Ag (10, 12, 14, and 16 nm) and single Ag layers (15 nm) were fabricated and tested. The thickness of a single Ag electrode was decided using the critical thinness, below which the Ag atoms form non-continuous clusters [32]. The J-V characteristics of devices, illuminated from the ITO side and Ag/Ge/Ag side, are shown in Figure 2a,b. A summary of the average parameters of the device performance is shown in

Table 1. Characteristic data of semitransparent inverted PSCs with different thicknesses of the Ag capping layer, as illuminated from the ITO (bottom) and the Ag/Ge/Ag (top) sides.

Device (nm)	Illumination	JSC (mA/cm2)	VOC (V)	FF (%)	PCE (%)
Single Ag 15	Bottom	10.07	0.673	56	3.8
Single Ag 15	Top	1.96	0.626	58	0.7
Ag/Ge/Ag 10	Bottom	10.16	0.688	62	4.3
Ag/Ge/Ag 10	Top	2.39	0.651	62	1.0
Ag/Ge/Ag 12	Bottom	11.18	0.686	61	4.7
Ag/Ge/Ag 12	Top	2.51	0.654	61	1.0
Ag/Ge/Ag 14	Bottom	11.63	0.703	63	5.1
Ag/Ge/Ag 14	Top	2.27	0.659	66	1.0
Ag/Ge/Ag 16	Bottom	11.75	0.702	62	5.1
Ag/Ge/Ag 16	Top	2.04	0.660	69	1.0

. With a J_SC of 10.07 mA/cm², a V_OC of 0.673 V, and an FF of 56%, a device with a single Ag electrode yields a lower PCE of 3.8%. Conversely, a significant increase in J_SC is observed in devices with the Ag/Ge/Ag electrode. When the thickness of the Ag capping layer was 14 nm—possessing the same Ag thickness as with a single Ag electrode—the performance of the device was dramatically enhanced, indicating that the conductivity and hole collection abilities of the Ag/Ge/Ag electrode were improved through the incorporation of 1 nm Ge. The composite Ag/Ge/Ag electrode influenced the growth mode of the Ag through the growth of denser and smaller nucleation in the initial step, which lead to a more continuous and smoother surface. Thus, the performance of PSCs was significantly increased. However, even the ultra-thin Ge film can influence the growth mode of Ag; devices with an Ag capping layer of less than 14 nm still exhibited poor performance. Moreover, the devices with a thicker Ag capping layer of 16 nm were fabricated and measured; the results showed a PCE of 5.1%, which indicates no enhancement when compared with the device with a 14 nm Ag capping layer. Besides, the transmittance of the semitransparent electrode would be affected by a thicker Ag film of 16 nm. Therefore, the Ag/Ge/Ag (14 nm) was supposed to be the optimal semitransparent structure. The J-V characteristics in the forward and reverse scans were also measured and are shown in Figure S1. The parameters are listed in Table S1. The statistical data for 32 devices, as well as the stability of the devices stored in the air, are shown in Figure 2e,f. An enhancement in stability was observed for devices with the Ag/Ge/Ag electrode, which could be attributed to the denser morphology of the upper coated electrode.

When the light was illuminated from the top side, the absorption of the active layer material was directly proportional to the transmittance of the incidence electrode, which means the thinnest Ag layer would result in the largest absorption. However, the device with a 10 nm Ag layer exhibited a lower J_SC compared to the device with a 12 nm Ag layer. This decrease was attributed to the non-continuous clusters, which had not formed a smooth surface. Moreover, the unsmooth J-V curve of the device also confirmed the unstable transport ability and unequal illumination caused by the non-continuous clusters of the 10 nm Ag layer [35,36], which was consist with the lower J_SC. With the increase in the Ag capping layer from 12 nm to 16 nm, the J_SC value gradually decreased due to the lower transmittance. It can be seen that the V_OC of devices from the top illumination measurement was significantly decreased. The dependence of the V_OC and the photo-current (I_ph) can be generally expressed as follows [37]:

$${\mathrm{V}}_{\mathrm{OC}} = \frac{KT}{q}\log (\frac{Iph}{Is} + 1)$$

(1)

where I_s is the reverse saturation current, K is the Boltzman constant, T is the temperature, and q is the charge. In Equation (1), V_OC is directly proportional to I_ph. The I_ph from the ITO side was much bigger than that from the Ag/Ge/Ag side, which is shown in Table 1.

To further explore the relationship between the J_SC value and electrode thickness, the IPCE values of the devices were measured when the light was illuminated from both the ITO side (Figure 2c) and the Ag/Ge/Ag electrode side (Figure 2d). As shown in Figure 2c, with the Ag capping layer increased from 10 nm to 16 nm, the IPCE was enhanced in the whole range from 300 nm to 800 nm. The enhancement was attributed to the improved conductivity of the continuous Ag film and the increased reflected light. As for the IPCE measured from the Ag/Ge/Ag electrode side, the value did not decrease linearly with the Ag thickness. The highest IPCE was not observed from the device with the Ag/Ge/Ag (10 nm) electrode, which achieved the highest transmittance value and allowed more incident light to the active layer. The highest IPCE value of 26.85% was observed at 330 nm from the device with the Ag/Ge/Ag (12 nm) electrode due to its better continuity compared to 10 nm Ag.

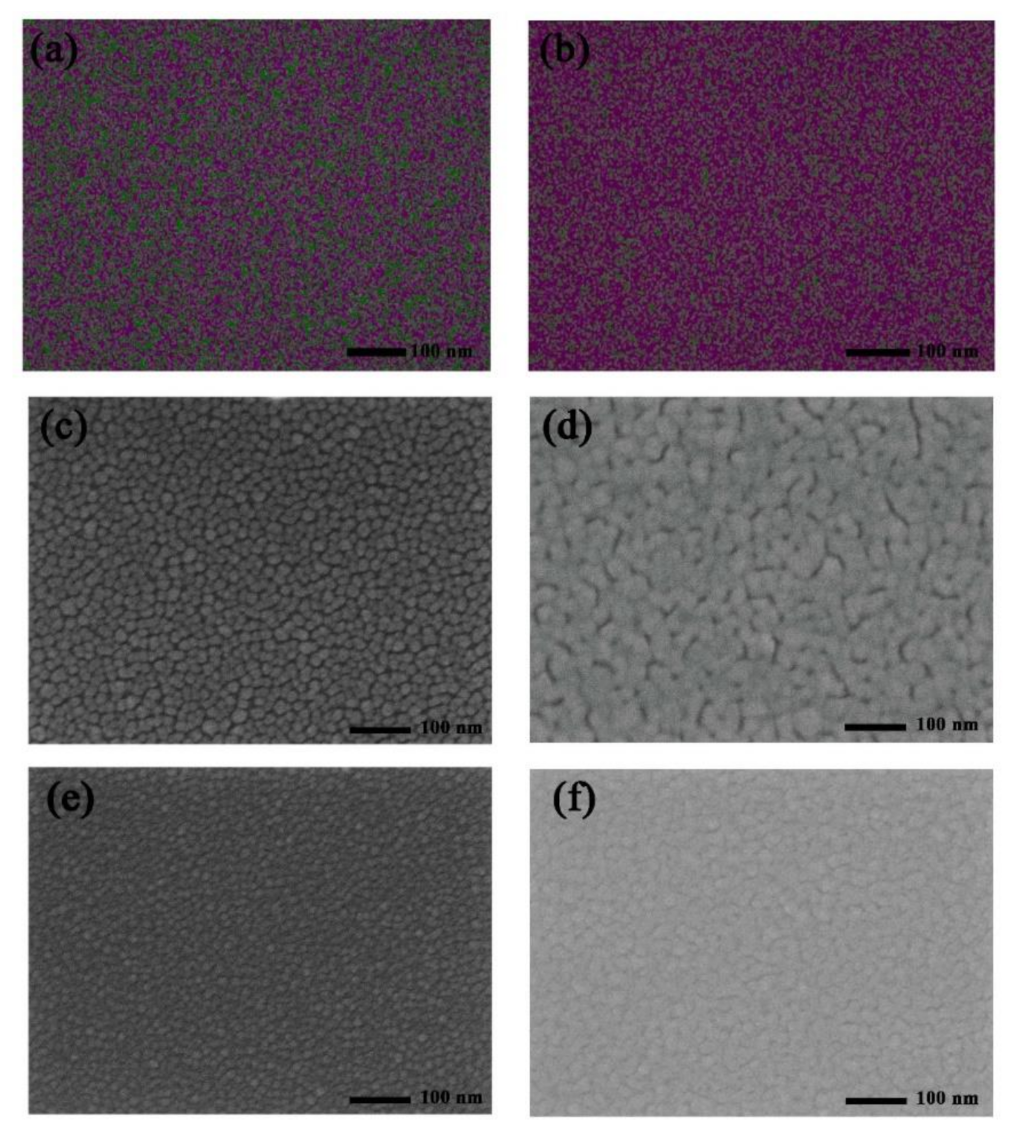

In order to explore the uniformity of evaporated Ag and Ge, the SEM-EDX images of Ag (1 nm)/Ge (1 nm) and Ag (1 nm)/Ge (1 nm)/Ag (14 nm) were measured and are shown in Figure 3a,b. The composition of Ag is represented by the color red and the composition of Ge is represented by the color green. The mass fraction of Ge is 26.06% and Ag is 73.94% for the Ag/Ge film with uniform separation of Ag and Ge. In the Ag/Ge/Ag layer, the composition of Ag became continuous. The mass fraction of Ge is 1.87% and Ag is 98.13%. According to a study of Ag/Ge deposition, the film of the semitransparent electrode becomes more compact with the incorporation of Ge [38,39,40,41,42]. The WF of the Ag/Ge/Ag layer, calculated through UPS, was −4.18 eV (Figure S2). In order to further understand the role of Ge on the Ag deposition, the morphology of the Ag film was examined using SEM. Figure 3c,d displays Ag film deposited on MoO₃, with thicknesses of 3 nm and 12 nm, while Figure 3e,f displays Ag film deposited on Ag (1 nm)/Ge (1 nm) film, with thicknesses of 3 nm and 12 nm. When the thickness of the Ag film on MoO₃ was 3 nm, the Ag islands with larger sizes can be clearly seen when compared with Ag deposited on the Ag/Ge film. The Ag islands deposited on the Ag/Ge film exhibited better morphology, as they were much smaller and denser. Finally, Ag deposited on MoO₃ formed a film with obvious gaps, which will affect the conductivity of the Ag electrode [43], while Ag deposited on the Ag/Ge film exhibited a film with a smoother surface where gaps can barely be seen. To further elucidate the growth mode of Ag, Figure 4 shows that morphology is altered with the Ag deposited on the MoO₃ (Figure 4a,b) and Ag/Ge (Figure 4c,d) films. When Ag atoms were deposited directly on MoO₃, the clusters were formed with larger sizes and larger gaps (Figure 4a). The merging of clusters was difficult due to the gaps. Finally, the gaps affected the performance of the semitransparent electrode (Figure 4b). However, Ag atoms deposited on an Ag/Ge film grew in the Volmer–Weber model due to the larger activation energy for Ag diffusion on a Ge surface, leading to smaller and denser nucleation on dots in the initial step (Figure 4c) [39]. As a consequence, the fast coalescence was completed with small clusters within a thickness of 1 nm. With clusters growing and merging during the thermal depositing, a uniform and dense film with the optimized electrical property was eventually formed (Figure 4d). AFM images of the single Ag film and the Ag/Ge/Ag film were also measured (Figure 4e,f). It can be seen that the size of the clusters on the surface of the Ag/Ge/Ag film was significantly decreased compared to the clusters on the single Ag surface. The roughness of the single Ag film is 1.31 nm, while the roughness of the Ag/Ge/Ag film is 0.69 nm.

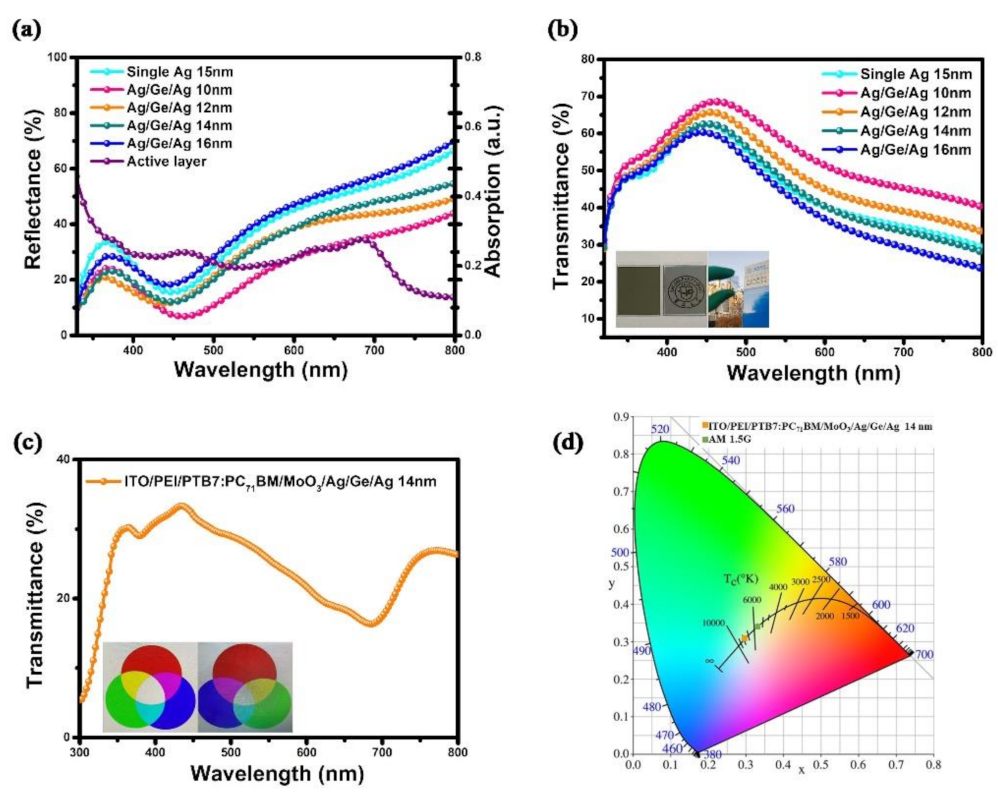

To further elucidate the properties of semitransparent electrodes, the reflectance and transmittance spectra of the Ag (1 nm)/Ge (1 nm)/Ag (10, 12, 14, and 16 nm) films were measured. The reflectance spectra from 320 nm to 800 nm were measured and are shown in Figure 5a. Further, the absorption spectrum of the active layer was included to make a comparison. The reflectance was enhanced with the increase in the wavelength, which matches the absorption spectrum of the active layer in the range 450–700 nm, so that the J_SC was increased with the deposition of Ag when illuminated from the ITO side. The photo in Figure 5b displays a printed school emblem of a university covered by a 100 nm Ag film (left) and an Ag/Ge/Ag (14 nm) film. The logo is clearly observed through the Ag/Ge/Ag film, while the logo under the Ag film is invisible. The sight of the building through the Ag/Ge/Ag film under natural light is also shown in this inset picture. The reflectance, transmittance, and absorbance spectra of the Ag (15 nm) and the Ag/Ge/Ag (14 nm) films were plotted separately in Figure S3. The optical transmittance spectrum of the semitransparent device with the Ag/Ge/Ag electrode is shown in Figure 5c. Further, the RGB picture observed through the device with the Ag/Ge/Ag electrode (right) is still clear and vivid compared to the origin RGB picture (left). The ATV of devices with Ag/Ge/Ag was calculated as 25%, which is generally agreed to be the benchmark for window applications [44]. To quantify the color-neutrality of devices with the semitransparent electrode, color perception indices of the device with the Ag/Ge/Ag semitransparent electrode were calculated and are displayed in the CIE 1931 xy chromaticity diagram in Figure 5d. Meanwhile, AM1.5 illumination is also shown in the diagram.

4. Conclusions

In summary, we present efficient semitransparent inverted PSCs comprising an Ag/Ge/Ag multilayer structure as the transparent electrode. The ultra-thin Ge layer was introduced to affect the Ag growth mode, contributing to the fast coalescence (critical thickness <1 nm) in the initial step. Eventually, a smoother surface of Ag was fabricated, which is more efficient than a single semitransparent Ag electrode. The performance of devices with different thicknesses of each layer was investigated, and a PCE of 5.1% was achieved when the structure of the electrode was Ag (1 nm)/Ge (1 nm)/Ag (14 nm) with an AVT of 25%.
