Article

A Multi-Criteria Decision-Making Approach for Energy Storage Technology Selection Based on Demand

School of Management, China University of Mining and Technology, Beijing 100083, China
*
Author to whom correspondence should be addressed.
Energies 2021, 14(20), 6592; https://doi.org/10.3390/en14206592
Submission received: 28 July 2021 / Revised: 17 August 2021 / Accepted: 4 October 2021 / Published: 13 October 2021

Abstract

:
Energy storage technologies can reduce grid fluctuations through peak shaving and valley filling and effectively solve the problems of renewable energy storage and consumption. The application of energy storage technologies is aimed at storing energy and supplying energy when needed according to the storage requirements. The existing research focuses on ranking technologies and selecting the best technologies, while ignoring storage requirements. Here, we propose a multi-criteria decision-making (MCDM) framework for selecting a suitable technology based on certain storage requirements. Specifically, we consider nine criteria in four aspects: technological, economic, environmental, and social. The interval number, crisp number, and linguist terms can be transformed into a probabilistic dual hesitant fuzzy set (PDHFS) through the transformation and fusion method we proposed, and a suitable technology can be selected through distance measurements. Subsequently, the proposed method is applied in a representative case study for energy storage technology selection in Shanxi Province, and a sensitivity analysis gives different scenarios for elaboration. The results show that the optimal selection of energy storage technology is different under different storage requirement scenarios. The decision-making model presented herein is considered to be versatile and adjustable, and thus, it can help decision makers to select a suitable energy storage technology based on the requirements of any given use case.

1. Introduction

Traditional fossil fuels such as coal, oil, and natural gas are the most prominent sources of energy in the 21st century. The use of traditional fossil energy has promoted global economic development; however, it has also caused serious environmental problems. For example, the burning of fossil fuels produces a large amount of carbon dioxide, which is the main cause of the greenhouse effect. Consequently, new energy and renewable energy with abundant resources and low environmental pollution footprints have progressed significantly. The development of renewable energy is fundamental to reduce carbon dioxide emissions and solve environmental problems, and it is an important strategy recognized by countries all over the world to deal with atmospheric pollution and resource depletion. However, the development of renewable energy has faced challenges and limitations. Renewable energy-based energy generation depends on the availability of natural resources, which is volatile and intermittent. These characteristics make it difficult to adjust and control power generation, and also affect the safe and stable operation of the power grid. Therefore, nowadays, storage of energy is a key issue in the development of renewable energy.
In more detail, large-scale energy storage technology, which can solve the problems of randomness and the volatility of power generation, is an effective measure to solve such problems encountered in the current development of renewable energy, with similar solutions being applied across the electricity chain, i.e., from the stage of power generation to the distribution of electricity to end-users. It can be used as emergency energy and can also be used for peak shaving and valley filling to reduce grid fluctuations. However, different storage technologies show different characteristics in terms of technological, economic, social, and environmental aspects, and can satisfy different storage requirements. The development of new and renewable energy features different implications and requirements for different geographical areas and contexts, and the selection of technology needs to consider such requirements throughout the different development stages of such transitions. Hence, the question of how to select a suitable energy storage technology on the basis of the development of renewable energy is a key issue in energy planning, and it is also a prerequisite for solving energy security problems [1].
Specifically, energy storage technology selection needs to achieve multiple goals and consider many factors, including economic, technological, social, and environmental. Different approaches are used to optimize the selection of energy storage technologies, with some of them using state of the art practices, e.g., machine learning techniques [2,3,4,5,6], while other scholars use multi-objective optimization methods for technology selection [7]. However, various aspects often conflict with each other. For example, technologies that introduce lower levels of pollution are usually more expensive. This makes it difficult for decision makers to directly select a suitable storage technology. With this in mind, the energy storage technology selection problem, involving numerous fuzzy factors, can be formulated as an MCDM problem, with the pros and cons of decision variables often requiring the use of interval numbers, crisp numbers, and linguistic terms expressed in natural language. MCDM methods are commonly used in the field of energy research, such as renewable energy siting [8], solar power plant location selection [9], photovoltaic system selection [10], and selection of suitable locations for wind and solar farms [11,12]. T. Chen et al. used the MCDM approach to select a suitable renewable energy source (RES) alternative [13], and Şengül et al. ranked renewable energy supply and selected priority renewable energy [14]. Some scholars have combined MCDM methods with other methods such as the analytic hierarchy process (AHP), the technique for order preference by similarity to an ideal solution (TOPSIS), and geographic information systems (GIS) [11,12,15]. Actually, it can be argued that most of the existing literature combines the MCDM method and other methods for ranking the alternatives and selecting the best ranking energy storage technology. However, an important factor for energy storage selection which is ignored in the above literature is the requirements that storage technologies are used to fulfill. The purpose of energy storage is to meet storage requirements; both excessive and insufficient storage are unreasonable and may result in non-viable investments. Therefore, energy storage requirements should be considered in the selection of energy storage technology. Consequently, this paper proposes an MCDM energy storage approach for selecting a suitable energy storage technology considering the power storage requirements.
The combination of the fuzzy method and MCDM is an effective way to solve the problem recognized by many scholars. On the basis of the above analysis, the selection of energy storage is in a fuzzy environment and needs to consider the energy storage requirement, which is hard to concretely express. Therefore, combining the MCDM and fuzzy method to solve the problem of energy storage technology selection is an effective method. The methods commonly used by scholars in fuzzy areas are intuitionistic fuzzy numbers, type-2 fuzzy sets [9], neutrosophic fuzzy numbers [16], dual hesitant fuzzy sets [7], and triangular interval-valued fuzzy numbers [17]. Zhang et al. use dual hesitant fuzzy sets to express the characteristics of storage technologies and generate the relevant assessment [18]. A. Barin et al. and J. Ren proposed a method on the basis of AHP and fuzzy sets for ranking and selecting storage technologies [19,20]. However, the number of technologies and criteria in those studies is limited. What is more, the above body of literature does not take into account probability in the decision, while the probability information has an impact on the decision-making results. This study aims to construct an MCDM approach based on probabilistic dual hesitant fuzzy sets (PDHFSs) and construct a framework for the selection of energy storage technology. This study comes with two contributions: (1) the design of the transformation and fusion method for real (crisp) numbers to probabilistic dual intuitionistic fuzzy numbers; (2) the proposal of a framework for selecting the energy storage technology based on energy storage requirements and provide an orientation for future research as well as suggestions and references for decision makers to make decisions and policies.
This study is organized as follows: the background of energy storage technology development and the problems in existing studies are introduced in Section 1. Section 2 describes the energy storage technologies and characteristics of these technologies. Section 3 discusses the evaluation criteria and gives the characteristics of energy storage technologies based on the analysis of recent literature. The MCDM methodology and the decision-making framework are explained in Section 4. In Section 5, the case study and scenarios analysis are presented to illustrate the approach of this paper. Finally, the conclusions and directions for further research are presented in Section 6.

2. Energy Storage Technologies

There are many classification standards for energy storage technology, such as the storage method, storage duration, response time, etc. [21,22,23]. The most popular method in the above classifications which has been recognized by many scholars is the form of storage [23]. According to the form of storage, technologies can be classified into mechanical, electrochemical, chemical, electrical, and thermochemical [18,21].
Mechanical storage is the most common storage technology, and the installed capacity of mechanical energy storage accounts for more than 90% of the total capacity [20]. Technologies that belong to this category mainly include pumped hydro storage (PHS), compressed air energy storage (CAES), and flywheel energy storage (FES). Electrochemical storage includes lead–acid, lithium-ion (Li-ion), nickel–cadmium [24], etc. Among them, Li-ion and lead–acid occupy the majority of market shares [25]. Chemical storage technologies include hydrogen and synthetic natural gas technology [26]. Of the two technologies, hydrogen storage technology is the most important chemical storage technology. Electrical storage includes capacitors and superconducting magnetic energy storage (SMES) [27]. Based on the above, this study considers nine technologies in five categories as follows:
  • PHS, CAES and FES (mechanical storage);
  • Li-ion and lead-acid (electrochemical storage);
  • Hydrogen (chemical storage);
  • Capacitors and SMES (electrical storage);
  • Thermochemical.

3. Evaluation Criteria for Energy Storage Technologies

Some influencing factors should be considered when selecting the suitable technology. These factors are divided into four categories: technological factors [7,18], economic factors [20], environmental factors, and social factors, as shown in Table 1. From a technological perspective, indicators are used to express the characteristics of technologies, which include storage capacity, response time, lifetime, energy and power density, risk and safety, energy efficiency, and energy intensity. The references for these factors are shown in Table 1. Among these indicators, some are difficult to express with a specific value, such as storage capacity, which indicates the maximum amount of electricity that the energy storage technology can store. Excluding these indicators, we select some representative indicators, including energy efficiency, response time, lifetime, energy density, and self-discharge losses as the technological factors in the MCDM. The energy efficiency was used to measure the degree of energy utilization. Response time measures the time required for the system to react and be able to supply electricity; it can usually be measured in minutes and seconds. Lifetime is a period in which energy storage technology equipment can operate. Energy density measures the amount of energy per unit of a size of the installation, and the unit of this index is Wh/kg which is the unit of weight. Self-discharge losses indicate the energy lost during a period in which the system remains idle.
Economic factors include input cost, investment costs, operation costs, economic benefits, power capital cost and energy capital cost. These factors are mainly from the perspective of economic cost to measure the economic characteristics of technology. This paper selects two representative indicators among these factors: power capital cost and energy capital cost, to represent the economic characteristics. Environmental factors include emissions, CO2 intensity, stress on ecosystems, protection of the environment, resource consumption, and land use. However, some indicators are difficult to measure because the lifetime of energy storage technologies is difficult to determine; therefore, referring to [18], we comprehensively consider the environmental impact to evaluate the energy storage technology. Social factors include job creation, social acceptance, government incentives, and health and safety. Taking these factors into consideration, we selected social acceptance to express social characteristics.
Following the determination of parameters involved in the problem, in this paper, storage is applied to power generation and distribution, with energy transformations also included in the evaluation process. Subsequently, by considering the above, the respective value ranges are shown in Table 2.

4. Methodology

Based on the above analysis, energy storage technology selection needs to achieve multiple goals, whereas various goals often conflict with each other. There are some criteria that should be considered in the process of selection [53]. In this section, an MCDM is proposed to select energy storage technology. First, fuzzy sets and PDHFSs are introduced to express the uncertain information. To compare the distance between two probabilistic dual hesitant fuzzy numbers (PDHFNs), a distance measurement is proposed. Subsequently, the transformation of the data is defined to transform certain data into a probabilistic dual hesitant fuzzy number. Next, the criteria weights and expert weights are calculated using the entropy method and maximizing deviation approach, respectively. Finally, the framework and steps for energy storage technology decision making are described.

4.1. Fuzzy Sets and Probabilistic Dual Hesitant Fuzzy Sets

The concept of fuzzy sets, which can avoid detailed uncertain information loss, was first proposed by Atanassov, and it contains the three dimensions of uncertainty: membership degree, non-membership degree, and hesitancy degree [54]. In order to describe the hesitation information more comprehensively, the hesitant fuzzy set (HFS) was proposed. Compared with fuzzy numbers, the HFS contains information regarding hesitant degree [55]. Moreover, to overcome the shortcomings of both the fuzzy set and HFS by expressing the uncertain information more accurately, the dual hesitant fuzzy set (DHFS) was proposed by Zhu et al. [56], which combines the characteristics of the fuzzy set and HFS. The definition [57] of the DHFS is:
Definition 1.
Let  X = { x 1 , x 2 , , x n } be a universe of discourse for each  x X . The DHFS D can be defined in Equation (1) as:
D u = x , h ˜ ( x ) , g ˜ ( x ) | x X ,
where  h ˜ ( x )  is the membership degree function and  g ˜ ( x )  is the non-membership degree function, and the degrees of these two value strictly satisfy  0 h ˜ ( x ) 1 , 0 g ˜ ( x ) 1 , and 0 h ˜ ( x ) + g ˜ ( x ) 1 .
On this basis, some scholars have further integrated the possibility of DHFS to express some preference information. For example, if the probability of membership is 0.2, and the probability of non-membership is 0.8. Thus, using preference information in the DHFS can describe uncertain information more comprehensively. For including probability information in the DHFS, the PDHFS was proposed by Hao et al. [58], as defined in the following:
Definition 2.
For every x X , PDHFS PD is defined in Equation (2):
P D = { x , h p ˜ ( x ) , g p ˜ ( x ) | x X } ,
where  h p ˜ ( x )  is the membership function, and  g p ˜ ( x )  is the non-membership function. Let  γ | p h  and  φ | p g  be the elements in  h p ˜ ( x )  and  g p ˜ ( x ) , respectively. For every  x X , γ , φ [ 0 , 1 ] . γ +  and  φ +  are the maximum values in  h p ˜ ( x )  and  g p ˜ ( x ) , respectively. Moreover,  γ +  and  φ +  satisfy  0 γ + + φ + 1 . p h  and  p g  are the probabilities of  γ  and  φ , respectively, and satisfy  0 p h 1 , 0 p g 1 , p h 1  and  p g 1 . p d = h p ˜ ( x ) , g p ˜ ( x )  is the element of PDHFS, which is called PDHFN and is expressed as  p d = h p ˜ , g p ˜ .
Let p d 1 = h p ˜ 1 , g p ˜ 1 and p d 2 = h p ˜ 2 , g p ˜ 2 be two PDHFNs, and the operations of a PDHFN are [58]:
(1)
p d 1 p d 2 = γ 1 | p 1 h h p 1 ˜ , φ 1 | p 1 g g p 1 ˜ γ 2 | p 2 h h p 2 ˜ , φ 2 | p 2 g g p 2 ˜ ( γ 1 + γ 2 γ 1 γ 2 ) | p 1 h p 2 h , φ 1 φ 2 | p 1 g p 2 g
(2)
p d 1 p d 2 = γ 1 | p 1 h h p 1 ˜ , φ 1 | p 1 g g p 1 ˜ γ 2 | p 2 h h p 2 ˜ , φ 2 | p 2 g g p 2 ˜ γ 1 γ 2 | p 1 h p 2 h , ( φ 1 + φ 2 φ 1 φ 2 ) | p 1 g p 2 g
(3)
λ p d 1 = γ 1 | p 1 h h p 1 ˜ , φ 1 | p 1 g g p 1 ˜ λ > 0 ( 1 ( 1 γ 1 ) ) λ | p 1 h , φ 1 λ | p 1 g
The weight of each PDHFN may be different, and each PDHFN should be weighted using weighted averaging operators. Let ( p d 1 , p d 2 , , p d n ) be the vector of n PDHFNs, and use W = ( w 1 , w 2 , , w n ) to represent the weight vector, where each weight satisfies w j 0 , and j = 1 n w j = 1 , j = 1 , 2 , n . The weighted averaging operator for the PDHFN is:
P D H F W ( p d 1 , p d 2 , , p d n ) = j = 1 n w j p d j = γ 1 | p 1 h h p 1 ˜ , φ 1 | p 1 g g p 1 ˜ γ 2 | p 2 h h p 2 ˜ , φ 2 | p 2 g g p 2 ˜ ( 1 Π i = 1 n ( 1 γ i ) w i ) | Π i = 1 n p i h , Π i = 1 n φ i w i | Π i = 1 n p i g , j = 1 , 2 , , n

4.2. Distance Measurement for PDHFS

In the MCDM process, we should compare different alternatives and choose the one that is closest to the ideal solution. The smaller the distance, the closer the two PDHFNs are. To compare the alternatives which are expressed in a PDHFS, a distance measurement is proposed based on [59].
It is assumed that M A = { 1 , 2 , , m A } , N A = { 1 , 2 , , n A } , N B = { 1 , 2 , , n B } , M B = { 1 , 2 , , m B } , where i M A , j N A , i M B , and j N B . Then, let A = x , h p A i ˜ ( x ) , g p A j ˜ ( x ) | x X and B = x , h p B i ˜ ( x ) , g p B j ˜ ( x ) | x X be two PDHFNs; the distance between A and B is defined by Garg and Kaur as [59]:
d A , B = v = 1 n w v k = 1 n 1 n 1 M A i = 1 M A γ A i x k p A i h x k 1 M B i = 1 M B γ B i x k p B i h x k λ 2 + 1 N A j = 1 N A φ A j x k p A j g x k 1 N B j = 1 N B φ B j x k p B j g x k λ 2 1 λ
where γ A i h p A i , γ B i h p B i , φ A j g p A j , φ B j g p B j . Parameter λ is a real number, and the value of λ is usually assumed as 2 [60]. The distance, d, satisfies 0 d ( A , B ) 1 [59].

4.3. Data Transformation and Fusion

The data we collected are usually of three types: interval numbers, crisp numbers, and linguistic terms, each of which needs to be converted. Decision makers should transform a certain value into uncertain data before the distance measurement. On the basis of the method proposed by Zhang et al. [18], the above three types of real numbers can be transformed to fuzzy numbers. The transformation approach of the three types of data is:
(1)
Transformation of interval numbers
The interval number comprises the upper and lower bounds of the variable. Let the interval number be a i j = ( a i j L , a i j U ) , where i represents the i-th alternative, and j represents the j-th criteria. a i j U is the upper bound and a i j L is the lower bound of the variable. The unit of the initial value of every alternative may differ; thus, the initial interval number needs to be normalized first, as shown in Equation (5), before the transformation.
a i j * = a ¯ i j L , a ¯ i j U a ¯ i j L = a i j L i = 1 m ( a i j L ) 2 + ( a i j U ) 2 , a ¯ i j U = a i j U i = 1 m ( a i j L ) 2 + ( a i j U ) 2
The transformation information was constructed by Guo [61], shown in Equation (6). Membership and non-membership are determined by the average and spread of the initial interval number. The greater the average, the greater the degree of membership, and the greater the interval number’s spread, the greater the degree of non-membership. Consequently, following Equation (6), a fuzzy number is constructed.
α i j = ( h i j , g i j ) ,   i = 1 , 2 , , m j = 1 , 2 , , n h i j = a ¯ i j L , g i j = 1 a ¯ i j U
where α i j = ( h i j , g i j ) is the fuzzy number, and a ¯ i j L and a ¯ i j U are the normalized values of a i j L and a i j U , respectively.
(2)
Transformation of crisp numbers
When the values of attributes are described in terms of crisp numbers, Equations (7) and (8) can be used for transformation. Equation (7) is the normalized function, and a i j * is the normalized value of a i j . Following these two equations, we can transform the crisp numbers to fuzzy numbers.
a i j * = a i j i = 1 m a i j 2 ,
α i j = ( h i j , g i j ) ,   i = 1 , 2 , , m j = 1 , 2 , , n h i j = a i j * , g i j = 1 a i j *
(3)
Transformation of linguistic terms
Sometimes, the value of attribute can only be expressed in linguistic terms, such as high/good, medium, and low/short; we should also consider the transformation of linguistic terms. Based on Guo [61], the linguistic terms can be divided into five levels, and each level has its corresponding fuzzy set, as shown in Table 3.
After the above transformation, interval numbers, crisp numbers, and linguistic terms can be transformed into fuzzy numbers. However, a PDHFS not only involves fuzzy information but also includes probability information. The probability should be added to the transformation process, and then, a PDHFS can be constructed based on fuzzy numbers. Due to the fact that probability information is difficult to calculate using a formula, probability information is usually given by an expert. Therefore, in the transformation, every expert should give the probability based on their preference, and the PDHFS can finally be formed.

4.4. Criteria Weights and Expert Weights Calculation

4.4.1. Criteria Weights Calculation

The importance of different criteria may be different, and the weight of criteria should be distinguished accordingly. We used the entropy weight method to calculate the weight of each criterion. The entropy value is used to judge the degree of dispersion of an index based on the definition of information entropy in this method. For a certain criterion, the smaller the value of the information entropy, the greater the degree of dispersion of the criterion, and the greater the weight of the criterion. The core part of the calculation with this method is to calculate the degree of difference between the criterion value and the average value of criteria. Thus, the average value of each criterion should be obtained before calculating the information entropy of each criterion. Based on the Equation (9), it can be calculated [62].
p d ˜ j = γ ˜ j | p ˜ j h , φ ˜ j | p ˜ j g γ ˜ j = 1 m i = 1 m γ i j , φ ˜ j = 1 m i = 1 m φ i j , p ˜ j h = 1 m i = 1 m p i j h , p ˜ j g = 1 m i = 1 m p i j g
Then, the information entropy of each criterion can be calculated using Equation (10):
e j = 1 ln ( m ) i = 1 m D ( p d ˜ j , p d i j ) i = 1 m D ( p d ˜ j , p d i j ) ln ( D ( p d ˜ j , p d i j ) i = 1 m D ( p d ˜ j , p d i j ) ) ,
where D ( p d ˜ j , p d i j ) is the Euclidean distance, and the calculated formula [63] is shown in Equation (11):
D ( p d 1 , p d 2 ) = ( γ 1 p 1 h γ 2 p 2 h ) 2 + ( φ 1 p 1 g φ 2 p 1 g ) 2 ,
Finally, based on Equation (12), the weight of each criterion can be calculated:
w i j = 1 e j j = 1 m ( 1 e j ) ,

4.4.2. Expert’s Weights Calculation

In the process of MCDM, experts from various related fields are invited to contribute to the evaluation. Because the experience and knowledge backgrounds of each expert are different, the weights of evaluation from each expert are correspondingly different; for example, the higher weight refers to the expert who has richer experience and knowledge. Thus, it is essential to generate the weight vectors of the experts. This study used the maximizing deviation measurement to calculate the experts’ weights, as proposed by Xu and Cai [64]. The core of this approach is that the greater the deviation of the expert decision values, the greater the given weight; conversely, the smaller the deviation, the smaller the given weight. Therefore, the calculation formula is given by Equation (13):
η k = j = 1 n i = 1 m 1 g = i + 1 m D ( p d i j , k , p d g j , k ) k = 1 z j = 1 n i = 1 m 1 g = i + 1 m D ( p d i j , k , p d g j , k ) , k = 1 , 2 , , z ,
where η k represents the kth expert weight, z is the number of experts, D ( p d i j , k , p d g j , k ) is the Euclidean distance, and the calculation formula is shown in Equation (11).

4.5. Decision Steps

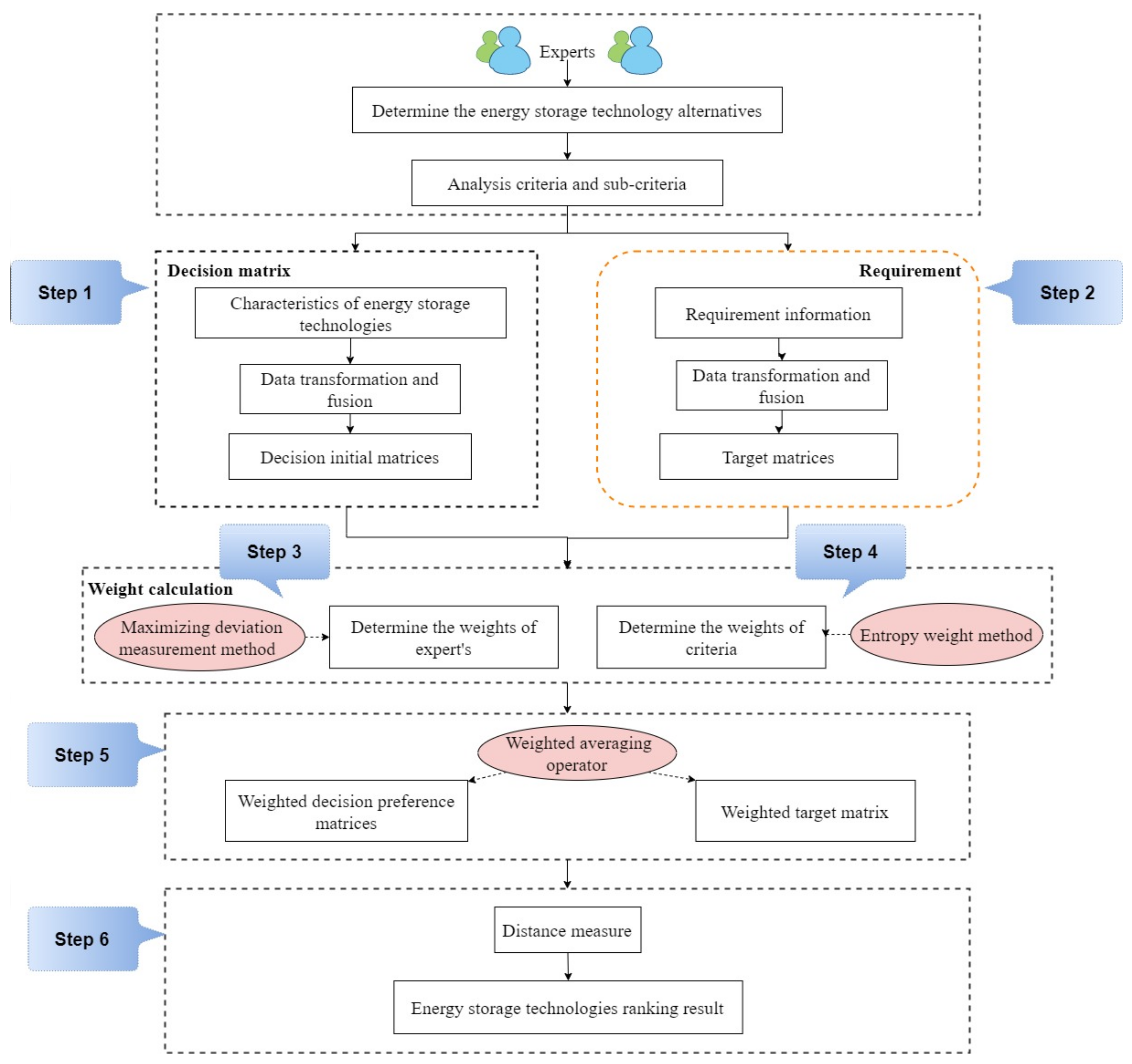

The framework and steps of the decision-making model are presented in this section. Before the process starts, the decision makers make a first, rough selection of energy storage technologies based on the use case examined. We use m to indicate the number of energy storage technology alternatives, and A = { a 1 , a 2 , a i , , a m } to indicate the set of alternatives, where a i A i is the i-th energy storage technology. We let C = { c 1 , c 2 , c j , , c n } be a set of criteria, and c j present the j-th criteria, where j = 1 , 2 , , n . Let W = { w 1 , w 2 , w j , , w n } denotes the weight of the criteria set, and w j is the weight of c j . For j n , 0 w j 1 and j = 1 n w j = 1 .
In addition, energy storage requirements need to be considered in the energy storage technology selection model. If decision makers ignore the requirements and blindly choose the energy storage technology, they may cause some issues which could not solve the problems of new and renewable energy storage. Thus, in the process of MCDM, a suitable energy storage technology should be selected based on the requirements information given by experts. The decision-making framework is shown in Figure 1, and the decision-making steps are:
Step 1: Establish the initial decision matrices based on the transformation and fusion method for interval numbers, crisp numbers, and linguistic terms in Section 4.3; every datum can be transformed into a PDHFN, and the decision matrices of each expert can be established.
Step 2: Determine the initial target matrix based on the requirement information; the initial target matrix can be established based on the transformation and fusion method in Section 4.3. T m represents the target matrix and it is shown in Equation (14). In the matrix, t m k j is the PDHFN obtained by the transformation of the k-th expert under the j-th criteria.
D m = d m 11 d m 12 d m 1 j d m 1 n d m 21 d m 22 d m 2 j d m 2 n d m k 1 d m k 2 d m k j d m k n d m z 1 d m z 2 d m z j d m z n ,
Step 3: Calculate criteria weights. Based on Equations (9)–(12), the weights of the criteria can be obtained, and the weight vector W = { w 1 , w 2 , w j , , w n } can be obtained.
Step 4: Calculate the weight of each expert. Using the maximizing deviation approach based on Equation (13), the expert’s weight vector η = { η 1 , η 2 , η k , , η z } can be obtained.
Step 5: Calculate the weighted probabilistic dual hesitant fuzzy number (PDHFW). Based on the weighted averaging operator shown in Equation (3) and the weights of the criteria, a PDHFW for every alternative can be obtained.
Step 6: Distance calculation. Calculate the distance between the target matrix and the PDHFW based on Equation (4). The ranking result of energy storage technologies based on the distance calculation equation can be obtained, and the most suitable technology for the given storage requirements can be selected.

5. Case Study

This section presents the implications of the proposed approach for energy storage technology selection in Shanxi Province, China. China has put forward the goal of reducing carbon dioxide emissions by 2030 and striving to achieve carbon neutrality by 2060. The use of traditional fossil energy has caused air pollution, and thus the application of renewable energy is an effective way to reduce carbon dioxide emissions and solve the current problems. From the perspective of power structure, China’s renewable energy power generation has been increasing since 2010, as shown in Figure 2. The 14th Five-Year Plan formulated by China in 2020 pointed out that it is necessary to promote the clean, low-carbon, safe, and efficient use of energy.
Shanxi Province is located in the west of Taihang mountain. The total area of the province is 156,000 km2 and the province’s permanent population was 37.292 million in 2020. Shanxi is the largest coal producing province in China, and its annual raw coal production has long been in the at forefront of the country’s coal industry, accounting for more than a quarter of the total production. As a traditional coal-producing province in China, Shanxi Province actively implements energy structure transformation. Shanxi’s annual electricity consumption was 4.98 × 107 MWh in 2020, and the proportion of renewable energy power generation has continued to increase. Figure 3 shows the utilization and development of some renewable energy sources. From Figure 3, we can see that the cumulative installed capacity of photovoltaic power, wind power, and biomass power continues to grow from 2015 to 2020. According to the data from the National Development and Reform Commission of China, the share of renewable energy power generation increased from 11.21% in 2015 to 31.6% in 2020. In addition, the 14th Five-Year Renewable Energy Plan of Shanxi Province suggests that during the 14th Five-Year Plan period, Shanxi’s investment in renewable energy will further increase, and by 2025, renewable energy power generation will account for 40% of the total power generation. At the same time, some renewable energy storage projects will be implemented with the development of renewable energy. For a renewable energy storage project, a decision-making approach for energy storage technology selection is necessary. This paper uses simulation to carry out model verification and case analysis.

5.1. Decision-Making Process

5.1.1. Determination of Alternatives and Criteria

To initiate the decision-making process, energy storage technologies were first selected. In this paper, we assumed that the selected alternative technologies are: PHS (A1), CAES (A2), FES (A3), lead–acid (A4), Li-ion (A5), hydrogen (A6), supercapacitors (A7), SMES (A8), and thermochemical storage (A9). Based on a previous study [7,18,22,34], the criteria that needed to be considered were determined, including energy efficiency (C1), response time (C2), lifetime (C3), energy density (C4), self-discharge losses (C5), power capital cost (C6), energy capital cost (C7), environmental dimension (C8), and social acceptance (C9). The characteristics of each criterion of the alternative technologies are shown in Table 2 in Section 3. In addition, we invited ten experts to provide their opinions on energy storage technology selection. These experts were from China University of Mining and Technology (Beijing), North China Electric Power University, Shanxi International Energy Company, and other units. Experts in the corresponding research fields have rich experience and knowledge in energy storage. Hence, their evaluation is considered reliable.

5.1.2. Evaluation of Storage Requirements

In the approach proposed in this study, experts provided storage requirements information associated with the development of renewable energy for the given use case. Assuming that the specific requirement information is shown in Table 4, then the initial target matrix can be constructed according to the requirement information.

5.1.3. Data Transformation and Fusion

The initial decision matrices could be obtained based on the approach in Section 4. However, the characteristics of each criterion of energy storage technologies are not only a definite value; for example, the PHS’s energy efficiency may be 65–75 [37] or 75–80 [38], meaning the numbers in this interval are likely to be taken and all of them were likely to be selected as the basic data when experts constructed the initial matrices for decision making. Hence, there could have been many situations in the initial decision matrices, and every expert needed to determine the decision’s basic data value of the characteristics of each criterion on the basis of data in Table 2. Subsequently, we transformed the data into fuzzy numbers and added a probability evaluation following the rules in Section 4; thus, the initial decision matrices could finally be obtained. The decision basic data and initial decision matrix of Expert 1 are shown in Table 5 and Table 6, and the other experts’ decision basic data and matrices are given in Appendix A.
In addition, based on the method of transformation and fusion in Section 4, the initial energy requirement information in Table 4 could be transformed into a PDHFS, and the target matrix is shown as follows:
D m = [ ( 0.1605 | 0.5500 , 0.7432 | 0.4500 ) ( 0.1765 | 0.6500 , 0.7593 | 0.3500 ) ( 0.1541 | 0.6300 , 0.7432 | 0.3700 ) ( 0.2186 | 0.4500 , 0.7501 | 0.5500 ) ( 0.2030 | 0.6400 , 0.6877 | 0.3600 ) ( 0.2030 | 0.8000 , 0.7033 | 0.2000 ) ( 0.2343 | 0.4500 , 0.7501 | 0.5500 ) ( 0.2186 | 0.8000 , 0.7564 | 0.2000 ) ( 0.1874 | 0.4000 , 0.7501 | 0.6000 ) ( 0.2186 | 0.7000 , 0.7189 | 0.3000 ) ( 0.3500 | 0.3500 , 0.6000 | 0.6500 ) ( 0.1000 | 0.8000 , 0.9000 | 0.2000 ) ( 0.1000 | 0.3500 , 0.9000 | 0.6500 ) ( 0.5000 | 0.5500 , 0.4500 | 0.4500 ) ( 0.5000 | 0.7500 , 0.4500 | 0.2500 ) ( 0.3500 | 0.5000 , 0.6000 | 0.5000 ) ( 0.3500 | 0.3400 , 0.6000 | 0.6600 ) ( 0.5000 | 0.6800 , 0.4500 | 0.3200 ) ( 0.1000 | 0.4600 , 0.9000 | 0.5500 ) ( 0.3500 | 0.3500 , 0.6000 | 0.6500 ) ( 0.0847 | 0.6500 , 0.8306 | 0.3500 ) ( 0.1411 | 0.6400 , 0.7742 | 0.3600 ) ( 0.1411 | 0.3500 , 0.8306 | 0.6500 ) ( 0.1129 | 0.5500 , 0.7742 | 0.4500 ) ( 0.1694 | 0.7500 , 0.7177 | 0.2500 ) ( 0.2258 | 0.3500 , 0.6613 | 0.6500 ) ( 0.2258 | 0.5700 , 0.4354 | 0.4300 ) ( 0.1411 | 0.5800 , 0.8024 | 0.4200 ) ( 0.0847 | 0.4500 , 0.8024 | 0.5500 ) ( 0.0565 | 0.6000 , 0.8306 | 0.4000 ) ( 0.1458 | 0.5700 , 0.7630 | 0.4300 ) ( 0.0729 | 0.6500 , 0.7995 | 0.3500 ) ( 0.2005 | 0.5500 , 0.7083 | 0.4400 ) ( 0.0547 | 0.4500 , 0.7083 | 0.5500 ) ( 0.1094 | 0.3500 , 0.6354 | 0.6500 ) ( 0.1641 | 0.7500 , 0.7812 | 0.2500 ) ( 0.1276 | 0.6500 , 0.7448 | 0.3500 ) ( 0.1458 | 0.7500 , 0.6901 | 0.2500 ) ( 0.1641 | 0.8600 , 0.7488 | 0.1400 ) ( 0.1823 | 0.4500 , 0.6536 | 0.5500 ) ( 0.0221 | 0.4500 , 0.7574 | 0.5500 ) ( 0.0044 | 0.5500 , 0.6031 | 0.4500 ) ( 0.0022 | 0.2500 , 0.7133 | 0.7500 ) ( 0.0022 | 0.5000 , 0.69127 | 0.5000 ) ( 0.0110 | 0.5000 , 0.7574 | 0.5000 ) ( 0.0221 | 0.6500 , 0.6427 | 0.3500 ) ( 0.0044 | 0.5500 , 0.6251 | 0.4500 ) ( 0.0441 | 0.6000 , 0.6692 | 0.4000 ) ( 0.0004 | 0.8000 , 0.7354 | 0.2000 ) ( 0.0662 | 0.9000 , 0.6913 | 0.1000 ) ( 0.0645 | 0.6000 , 0.8066 | 0.4000 ) ( 0.0322 | 0.7500 , 0.4198 | 0.2500 ) ( 0.0645 | 0.5500 , 0.6777 | 0.4500 ) ( 0.0484 | 0.6000 , 0.7099 | 0.4000 ) ( 0.0322 | 0.3500 , 0.8388 | 0.6500 ) ( 0.0645 | 0.3600 , 0.7421 | 0.6400 ) ( 0.0484 | 0.8000 , 0.7905 | 0.2000 ) ( 0.0645 | 0.6500 , 0.7421 | 0.3500 ) ( 0.1289 | 0.3300 , 0.6132 | 0.6700 ) ( 0.0387 | 0.5500 , 0.7905 | 0.4500 ) ( 0.0430 | 0.8500 , 0.9283 | 0.1500 ) ( 0.0144 | 0.5000 , 0.9319 | 0.5000 ) ( 0.0430 | 0.4000 , 0.9139 | 0.6000 ) ( 0.0359 | 0.5400 , 0.7848 | 0.4600 ) ( 0.0215 | 0.3000 , 0.7131 | 0.7000 ) ( 0.0072 | 0.7500 , 0.6414 | 0.2500 ) ( 0.0574 | 0.4700 , 0.2827 | 0.5300 ) ( 0.0359 | 0.8000 , 0.5696 | 0.2000 ) ( 0.0251 | 0.2600 , 0.9139 | 0.7400 ) ( 0.0359 | 0.3000 , 0.9211 | 0.7000 ) ( 0.3500 | 0.5000 , 0.6000 | 0.5000 ) ( 0.1000 | 0.5600 , 0.9000 | 0.4400 ) ( 0.1000 | 0.4600 , 0.9000 | 0.5400 ) ( 0.3500 | 0.5300 , 0.6000 | 0.4700 ) ( 0.3500 | 0.7500 , 0.6000 | 0.3500 ) ( 0.3500 | 0.8000 , 0.6000 | 0.2000 ) ( 0.1000 | 0.6500 , 0.9000 | 0.3500 ) ( 0.5000 | 0.5000 , 0.4500 | 0.5000 ) ( 0.5000 | 0.7500 , 0.4500 | 0.2500 ) ( 0.1000 | 0.8000 , 0.9000 | 0.2000 ) ( 0.7500 | 0.2000 , 0.2000 | 0.8000 ) ( 0.7500 | 0.5500 , 0.2000 | 0.4500 ) ( 0.9000 | 0.4000 , 0.1000 | 0.6000 ) ( 0.7500 | 0.7500 , 0.2000 | 0.2500 ) ( 0.5000 | 0.7000 , 0.4500 | 0.3000 ) ( 0.7500 | 0.5500 , 0.2000 | 0.4500 ) ( 0.7500 | 0.8000 , 0.2000 | 0.2000 ) ( 0.5000 | 0.3500 , 0.4500 | 0.6500 ) ( 0.7500 | 0.4700 , 0.2000 | 0.5300 ) ( 0.9000 | 0.4200 , 0.1000 | 0.5800 ) ]
Therefore, the initial decision matrices and initial target matrix were obtained through the above transformation.

5.1.4. Weight Calculation

The calculation of the criteria weight comprises three steps. First, calculate the average value of the criteria based on the Equation (9). The average value matrices for each expert were obtained and detailed in Appendix B. Second, calculate the entropy of each criterion based on Equation (10), and the entropy can be used in the third step of the weight calculation based on Equation (11). The criteria weights could be calculated based on each expert’s decision matrix as shown in Table 7. After obtaining the criteria weights of Expert 1 to Expert 10, we calculated the final weight vector of criteria by averaging ten criteria weights, with the final weight vector of criteria being: W = { 0.0994 , 0.1047 , 0.1024 , 0.1022 , 0.1178 , 0.1416 , 0.1535 , 0.0940 , 0.0844 } .
Based on the initial target matrix, the weights of the experts could be calculated using the maximizing deviation measurement and Euclidean distance in Equation (13). The calculation result of the expert weight vector was η = { 0.1055 , 0.0964 , 0.0980 , 0.1076 , 0.0985 , 0.0924 , 0.1011 , 0.0971 , 0.1056 , 0.0976 } .

5.1.5. Distance Measurement and Energy Storage Technology Selection

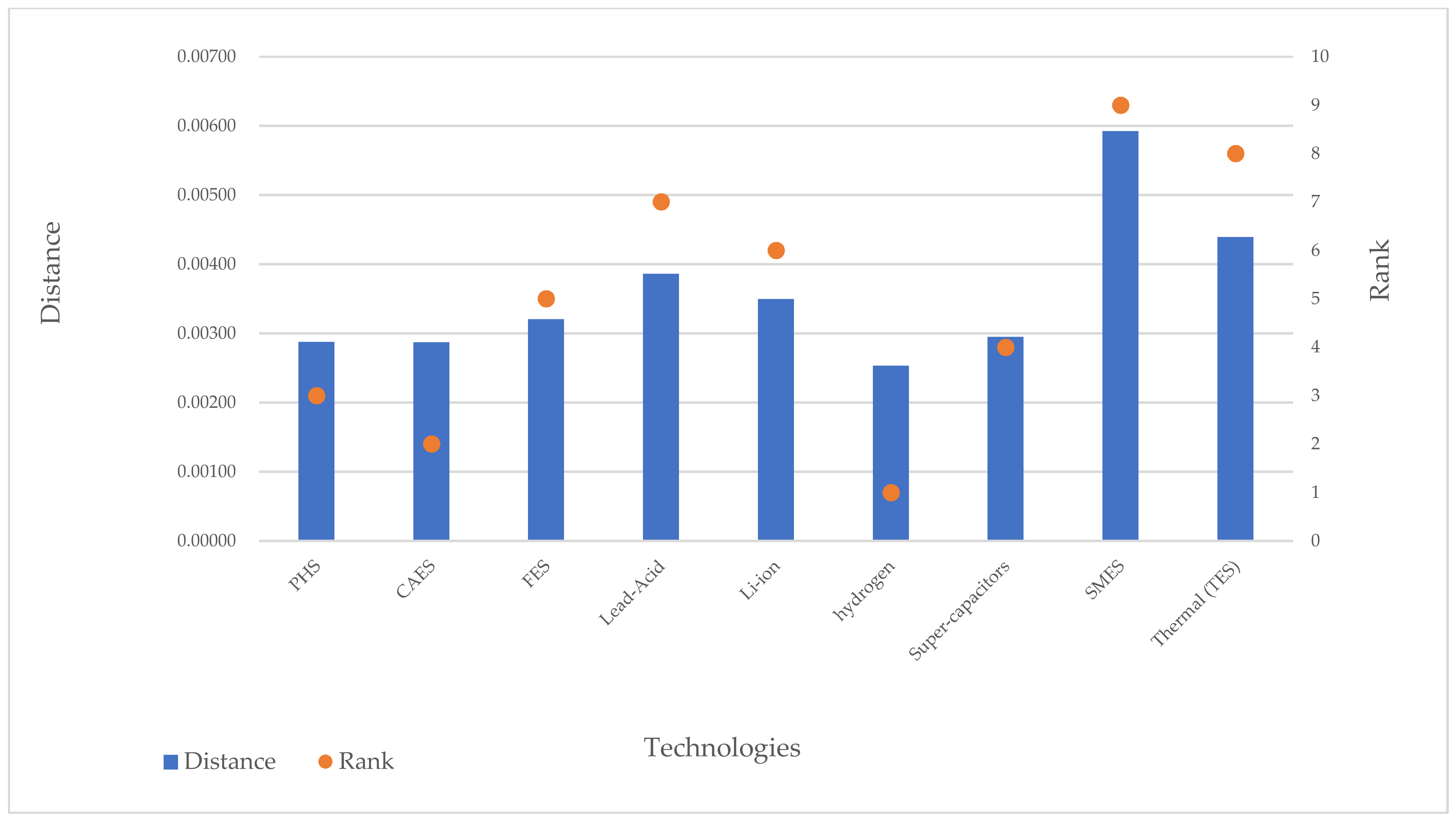

Distance measurement should use a weighted matrix, and the initial decision matrix and initial target matrix need to be weighted first using the weighted averaging operator. The weighted decision matrix and target matrix are shown in Appendix C. To that end, we can calculate the distance between decision matrix and the target matrix. The distance between the decision matrix and target matrix can be obtained based on the calculation following Equation (4). The value of distance and the ranking results are shown in Figure 4. We can see in Figure 4 that the results for nine different storage technologies are different. The smaller the distance value, the closer the storage is to the target, and the better it can meet the requirements set. Therefore, when choosing the energy storage technology, we ranked distance values from the lowest to the highest, and the ranking results are shown in Figure 4. The distances from low to high were ranked as A6 > A2 > A1 > A7 > A3 > A5 > A4 > A9 > A8. This shows that according to the views of experts, hydrogen is the most suitable energy storage technology based on the requirements set for renewable energy storage.

5.2. Sensitivity Analysis

A sensitivity analysis was conducted to show the application of the approach in different scenarios. Suitable energy storage technologies for energy storage requirements may be different when the storage requirements of new energy and renewable energy are different. Thus, three scenarios are given to illustrate the different requirements of different energy storage projects. In each scenario, every expert gives the requirement information of each criterion, and the information in Scenarios 1 to 3 are shown in Appendix D.

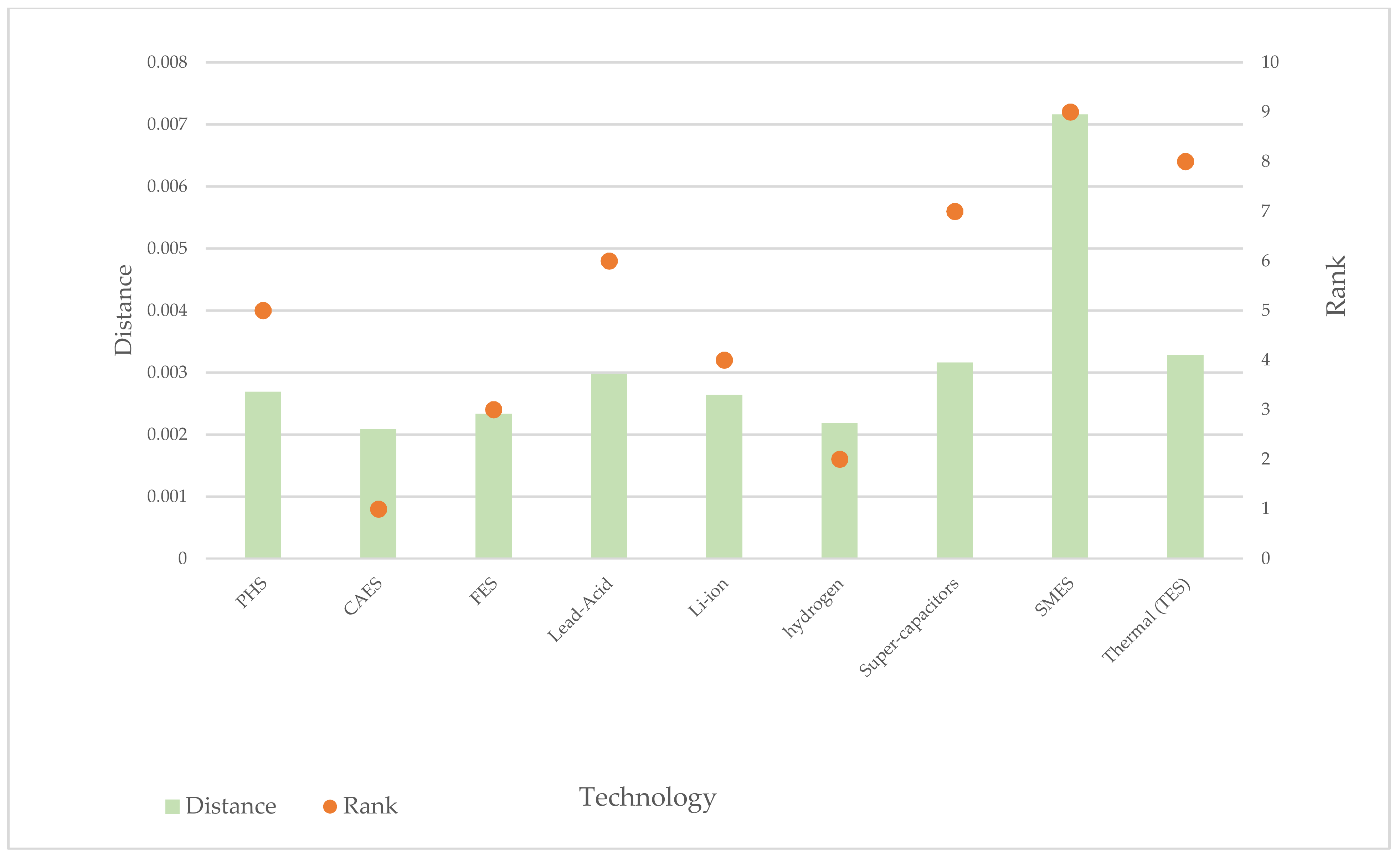

Using the calculation of the model proposed herein, the results in each scenario can be obtained. The distance calculation result and ranking result in Scenario 1 are shown in Figure 5. It is indicated that in Scenario 1, the distances from low to high are ranked as: A2 > A6 > A3 > A5 > A1 > A4 > A7 > A9 > A8. In this scenario, the most suitable technology is compressed air energy storage. Regarding Scenario 2, the distance calculation result and ranking result are shown in Figure 6. According to the distance value and ranking of Figure 6., we can see that the ranking of storage technologies is A6 > A2 > A1 > A3 > A7 > A5 > A4 > A9 > A8. In this scenario, the most suitable energy storage technology is hydrogen. Finally, in Scenario 3, the distance ranking is A2 > A6 > A1 > A3 > A5 > A7 > A4 > A9 > A8, as shown in Figure 7, and the optimal energy storage technology is compressed air energy storage.

5.3. Discussion

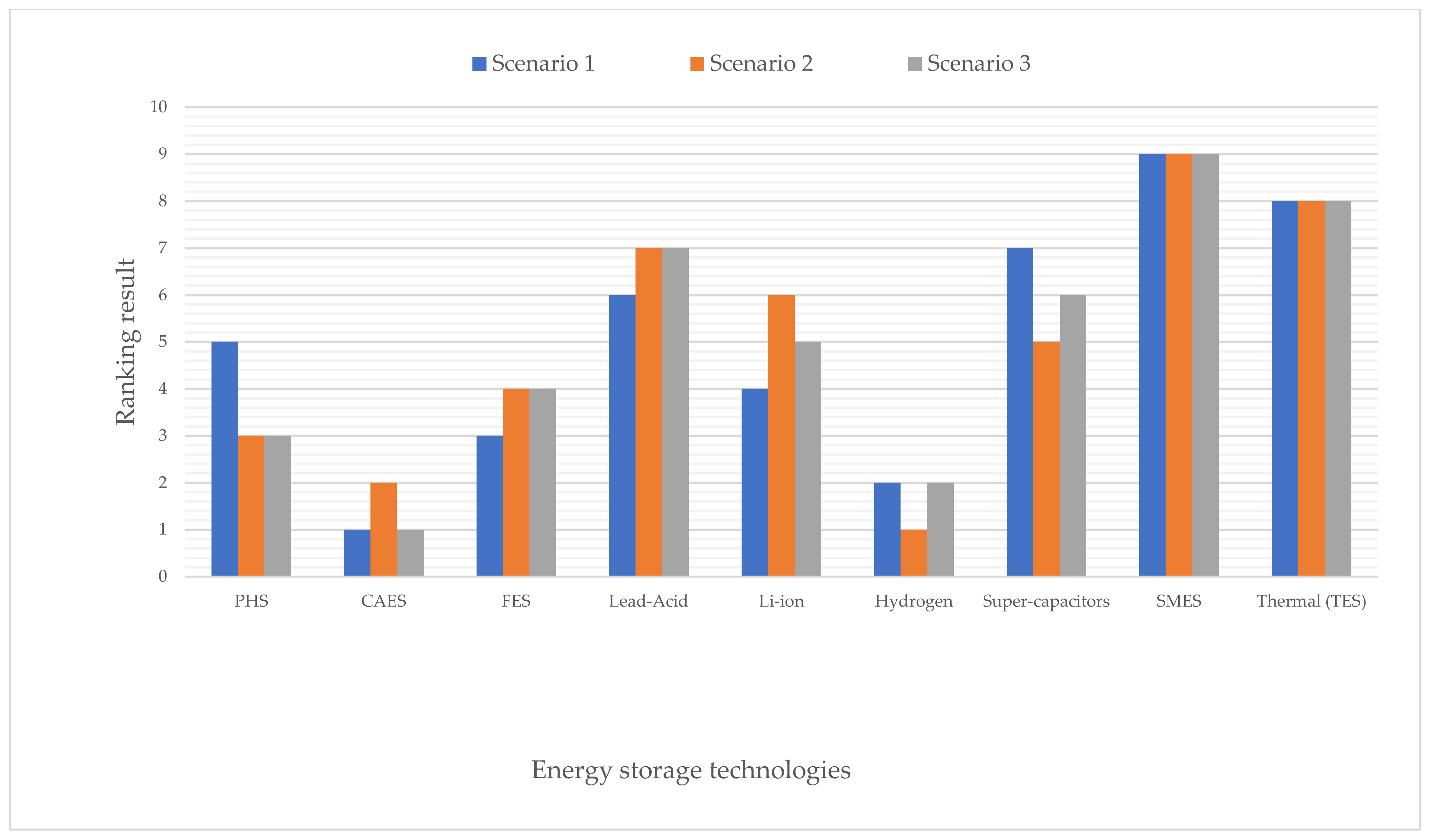

The results obtained indicate that in different requirement scenarios, the most suitable storage technology selection is different (shown in Figure 8); for example, in Scenario 2, the optimal energy storage technology is hydrogen, whereas in Scenario 1 and Scenario 3, compressed air is the most suitable energy storage technology. Compared to the existing reference, Zhang et al. [18] used the intuitionistic fuzzy MULTI-MOORA approach for energy storage technology selection and ranked all technologies separately based on technology, economy, and environment, and then integrated the ranks of all aspects to obtain comprehensive sorting, finally obtaining the best and worst energy storage technology. L. Li et al. proposed a multi-objective optimization approach to obtain optimal energy storage alternatives for applications [18], while Y. Liu and Du [16], Ren and Ren [28], and Çolak and Kaya [29] ranked energy storage technologies and obtained an optimal energy storage technology using MCDM methods. The above references only use a variety of different methods to rank energy storage technologies, not capturing storage requirements and relevant application scenarios. Albawab et al. [31] conducted a sensitivity analysis and obtained different ranking results under different scenarios. However, the reference only changes the weights of the criteria and does not consider the requirements. As shown in the sensitivity analysis, the energy storage technologies selected in different storage requirement scenarios are different, and energy storage requirements affect the choice of energy storage technology. This also means that the energy storage technology selection should be based on actual needs and requirements and that the energy storage technology selection model proposed herein has practical significance.

6. Conclusions

This study develops a method for selecting suitable energy storage technology based on energy storage requirements. In this work, we regard energy storage technology selection as an MCDM problem and construct a transformation and fusion method to express the information in a PDHFS. Next, the entropy weight method and maximizing deviation measurement are used to calculate the weights of the criteria and experts, respectively. Based on this distance measurement, a suitable energy storage technology can be selected. Finally, the developed framework is applied, using the Shanxi Province in China as a case study in the phase of energy transition to an energy mix with high shares of renewables. The strengths of this study are: (1) the method for data transformation and fusion contains probability information transformation, in that the expert can give the probability evaluation for each criterion. The background of energy storage technology selection is complex, and some characteristics cannot be expressed in certain data. Consequently, a PDHFS is required to describe uncertain information. (2) The framework for energy storage technology selection proposed herein considers the energy storage requirements and can thus be applied to actual renewable energy storage projects, capturing not only technology, but also economic, social, and environmental criteria.

Author Contributions

X.Q.: theoretical framework, software, methodology, data processing, writing original draft. R.Z.: resources, methodology, supervision, funding acquisition. Y.H.: data curation, methodology, writing, review, and editing. X.S.: data curation, review, and editing. X.C.: data curation, review, and editing. All authors have read and agreed to the published version of the manuscript.

Funding

This work was supported by the Major Science and Technology Projects in Shanxi Province [No. 20181102017], and the Fundamental Research Funds for the Central Universities [No. 2021YJSGL11].

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

Nomenclature

Nomenclature T m The Target Matrix
Variable
DuDual hesitant fuzzy setsParameter
PD, M A , N A , M B , N B Probability dual hesitant fuzzy set γ + Maximum values in h p ˜ ( x )
p d Probability dual hesitant fuzzy number φ + Maximum values in g p ˜ ( x )
WThe weight of PDHFNs p h Probabilities of γ
PDHFWThe weighted PDHFNs p g Probabilities of φ
( a i j L , a i j U ) The lower bound and upper bound of the Interval number a i j λ Parameter in distance function, usually assumed as 2.
d(A,B)Distance between PDHFS A and BzThe number of experts
( a ¯ i j L , a ¯ i j U ) Normalized value of ( a i j L , a i j U )
α i j Fuzzy numberAbbreviation
h i j Membership degree of fuzzy number α i j MCDMMulti-criteria decision-making
g i j Non-membership degree of fuzzy number α i j PHSPumped hydro storage
h p ˜ ( x ) Membership degree function of PDHFS PDHFSHesitant fuzzy set
g p ˜ ( x ) Non-membership function of PDHFS PDCAESCompressed air energy storage
γ | p h Elements in h p ˜ ( x ) FESFlywheel energy storage
φ | p g Elements in g p ˜ ( x ) Li-ionlithium-ion
D ( p d 1 , p d 2 ) Euclidean distanceSMESSuperconducting magnetic energy storage
η The expert weight vectorDHFSDual hesitant fuzzy set
A The set of energy storage technologiesPDHFSProbability dual hesitant fuzzy set
C The set of criteriaPDHFNProbability dual hesitant fuzzy number

Appendix A

The decision basic data and initial decision matric of experts are shown in Table A1, Table A2, Table A3, Table A4, Table A5, Table A6, Table A7, Table A8, Table A9, Table A10, Table A11, Table A12, Table A13, Table A14, Table A15, Table A16, Table A17 and Table A18 in Appendix A.
Table A1. Decision basic data of Expert 2.
Table A1. Decision basic data of Expert 2.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(65, 80)Medium (30, 60)(0.5, 1.5)(0.0001, 0.0001) (600, 4600)(5, 430)Very high Very high
CAES(41, 75) Long (20, 40)(30, 60) (0.0001, 0.0001) (400, 800) (50, 150) Very highVery high
FES(80, 85)Medium(15, 20) (10, 30)(20, 100) (250, 350) (1000, 5000) Very high Very high
Lead–acid(75, 80)Very short(3, 12) (30, 50)(0.1, 0.3) (300, 600)(150, 500)Very high Medium
Li-ion(65, 78)Very short(5, 15)(75, 250) (0.1, 0.3) (1200, 4000)(600, 2500)Low High
Hydrogen(35, 40)Medium(5, 20)(800, 1000)(0.5, 2) (500, 10,000)(2, 15) High Medium
Super-capacitors(85, 98) Short (10, 20)(0.1, 15) (20, 40) (100, 300) (300, 2000) Low Medium
SMES(90, 95) Short(20, 30) (0.5, 5)(10, 15) (200, 300) (1000, 10,000) Very high Medium
Thermal (TES)(14, 18)Long (5, 15)(30, 60) (0.05, 1) (100, 400) (3, 130)Low Medium
Table A2. Initial decision matrix of Expert 2.
Table A2. Initial decision matrix of Expert 2.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(0.2153|0.7520, 0.7315|0.2480)(0.5000|0.6400, 0.4500|0.3600)(0.3000|0.6000, 0.4001|0.4000)(0.0004|0.6200, 0.9989|0.3800)(0.0000|0.3600, 1.0000|0.6400) (0.0505|0.7600, 0.6127|0.2400)(0.0004|0.6000, 0.9634|0.4000)(0.9000|0.4570, 0.1000|0.5430)(0.9000|0.6580, 0.1000|0.3420)
CAES(0.1358|0.5400, 0.7516|0.4600)(0.7500|0.7600, 0.2000|0.2400)(0.2000|0.7600, 0.6001|0.2400)(0.0229|0.6540, 0.9543|0.3460)(0.0000|0.7400, 1.0000|0.2600) (0.0337|0.8450, 0.9326|0.1550)(0.0043|0.4200, 0.9872|0.5800)(0.9000|0.7540, 0.1000|0.2460)(0.9000|0.6250, 0.1000|0.3750)
FES(0.2649|0.8560, 0.7185|0.1440)(0.5000|0.5400, 0.4500|0.4600)(0.1500|0.6200, 0.8000|0.3800)(0.0076|0.5420, 0.9771|0.4580)(0.1773|0.4340, 0.1137|0.5660)(0.0211|0.6350, 0.9705|0.3650)(0.0851|0.6430, 0.5747|0.3570)(0.9000|0.7350, 0.1000|0.6250)(0.9000|0.5460, 0.1000|0.4540)
Lead–acid(0.2484|0.6200, 0.7351|0.3800)(0.1000|0.6570, 0.9000|0.3430)(0.0300|0.4340, 0.8800|0.5660)(0.0229|0.2400, 0.9619|0.7600)(0.0009|0.7530, 0.9973|0.2470)(0.0253|0.7630, 0.9495|0.2370)(0.0128|0.4260, 0.9575|0.5740)(0.9000|0.5400, 0.1000|0.4600)(0.5000|0.4670, 0.4500|0.5330)
Li-ion(0.2153|0.7000, 0.7417|0.3000)(0.1000|0.3760, 0.9000|0.6240)(0.0504|0.5400, 0.8487|0.4600)(0.0572|0.3500, 0.8095|0.6500)(0.0009|0.3460, 0.9973|0.6540)(0.1010|0.5640, 0.6632|0.4360)(0.0510|0.6600, 0.7873|0.3400)(0.3500|0.8600, 0.6000|0.1400)(0.7500|0.6700, 0.2000|0.3300)
Hydrogen(0.1159|0.7540, 0.8675|0.2460)(0.5000|0.5600, 0.4500|0.4400)(0.0500|0.4310, 0.8500|0.5690)(0.6097|0.3700, 0.2379|0.6300)(0.0044|0.7600, 0.9823|0.2400)(0.0421|0.7630, 0.1580|0.2370)(0.0002|0.6420, 0.9987|0.3580)(0.7500|0.3560, 0.2000|0.6440)(0.5000|0.6500, 0.4500|0.3500)
Super-capacitors(0.2815|0.8700, 0.6755|0.1300)(0.3500|0.4860, 0.6000|0.5140)(0.0500|0.7640, 0.8000|0.2360)(0.0001|0.6400, 0.9886|0.3600)(0.1773|0.7300, 0.6455|0.2700)(0.0084|0.4760, 0.9747|0.5240)(0.0255|0.7600, 0.8299|0.2400)(0.3500|0.8300, 0.6000|0.1700)(0.5000|0.3700, 0.4500|0.6300)
SMES(0.2980|0.2400, 0.6854|0.7600)(0.3500|0.8000, 0.6000|0.2000)(0.2000|0.4250, 0.7000|0.5750)(0.0004|0.7400, 0.9962|0.2600)(0.0886|0.8670, 0.8671|0.1330)(0.0168|0.8600, 0.9747|0.1400)(0.0851|0.4700, 0.1494|0.5300)(0.9000|0.8590, 0.1000|0.1410)(0.5000|0.7674, 0.4500|0.2326)
Thermal (TES)(0.0464|0.4200, 0.9404|0.5800)(0.7500|0.3000, 0.2000|0.7000)(0.0500|0.6250, 0.8500|0.3480)(0.0229|0.7360, 0.9543|0.2640)(0.0004|0.4860, 0.9911|0.5140)(0.0084|0.2590, 0.9663|0.7410)(0.0003|0.5700, 0.9889|0.4300)(0.3500|0.5300, 0.6000|0.4700)(0.5000|0.6540, 0.4500|0.3460)
Table A3. Decision basic data of Expert 3.
Table A3. Decision basic data of Expert 3.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(70, 75)Medium (30, 60)(0.5, 1.5)(0.0001, 0.0001) (700, 2000)(5, 100)Very high Very high
CAES(41, 75) Long (20, 40)(30, 60) (0.0001, 0.0001) (400, 800) (50, 150) Very highVery high
FES(80, 90)Medium(15, 20) (10, 30)(20, 100) (250, 350) (1000, 5000) Very high Very high
Lead–acid(75, 80)Very short(3, 12) (30, 50)(0.1, 0.3) (300, 600)(150, 500)Very high Medium
Li-ion(65, 78)Very short(5, 15)(75, 250) (0.1, 0.3) (1200, 4000)(600, 2500)Low High
Hydrogen(35, 40)Medium(5, 20)(800, 1000)(0.5, 2) (500, 10,000)(2, 15) High Medium
Super-capacitors(85, 98) Short (10, 25)(0.1, 15) (20, 40) (100, 300) (300, 2000) Low Medium
SMES(90, 95) Short(20, 30) (0.5, 5)(10, 15) (200, 300) (1000, 10,000) Very high Medium
Thermal (TES)(14, 18)Long (5, 15)(30, 60) (0.05, 1) (100, 400) (3, 130)Low Medium
Table A4. Initial decision matrix of Expert 3.
Table A4. Initial decision matrix of Expert 3.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(0.2308|0.3760, 0.7527|0.6240)(0.5000|0.3600, 0.4500|0.6400)(0.2966|0.8100, 0.4067|0.1900)(0.0004|0.4250, 0.9989|0.5750)(0.0000|0.4310, 1.0000|0.5690)(0.0629|0.7600, 0.8204|0.2400)(0.0004|0.7600, 0.9915|0.2400)(0.9000|0.2600, 0.1000|0.7400)(0.9000|0.3430, 0.1000|0.6570)
CAES(0.1352|0.5600, 0.7527|0.4400)(0.7500|0.7400, 0.2000|0.2600)(0.1978|0.5300, 0.6045|0.4700)(0.0229|0.6520, 0.9543|0.3480)(0.0000|0.7640, 1.0000|0.2360)(0.0359|0.2390, 0.9282|0.7610)(0.0043|0.4860, 0.9872|0.5140)(0.9000|0.5660, 0.1000|0.4340)(0.9000|0.6240, 0.1000|0.3760)
FES(0.2638|0.3500, 0.7032|0.6500)(0.5000|0.4340, 0.4500|0.5660)(0.1483|0.4260, 0.8022|0.5740)(0.0076|0.2390, 0.9771|0.7610)(0.1773|0.6400, 0.1137|0.3600)(0.0224|0.6000, 0.9686|0.4000)(0.0851|0.8000, 0.5744|0.2000)(0.9000|0.2470, 0.1000|0.7530)(0.9000|0.4400, 0.1000|0.5600)
Lead–acid(0.2473|0.3700, 0.7362|0.6300)(0.1000|0.7530, 0.9000|0.2470)(0.0297|0.6600, 0.8813|0.3400)(0.0229|0.6000, 0.9619|0.4000)(0.0009|0.6000, 0.9973|0.4000)(0.0269|0.7520, 0.9461|0.2480)(0.0128|0.7630, 0.9574|0.2370)(0.9000|0.6540, 0.1000|0.3460)(0.5000|0.5140, 0.4500|0.4860)
Li-ion(0.2143|0.6400, 0.7428|0.3600)(0.1000|0.5920, 0.9000|0.4080)(0.0494|0.6820, 0.8517|0.3180)(0.0572|0.2400, 0.8095|0.7600)(0.0009|0.2400, 0.9973|0.7600)(0.1078|0.5400, 0.6408|0.4600)(0.0511|0.6000, 0.7872|0.4000)(0.3500|0.2400, 0.6000|0.7600)(0.7500|0.2000, 0.2000|0.8000)
Hydrogen(0.1154|0.3800, 0.8681|0.6200)(0.5000|0.3800, 0.4500|0.6200)(0.0494|0.5850, 0.8022|0.4150)(0.6097|0.3800, 0.2379|0.6200)(0.0044|0.6400, 0.9823|0.3600)(0.0449|0.4260, 0.1020|0.5740)(0.0002|0.6600, 0.9987|0.3400)(0.7500|0.5490, 0.2000|0.4510)(0.5000|0.8700, 0.4500|0.1300)
Super-capacitors(0.2803|0.7400, 0.6768|0.2600)(0.3500|0.7400, 0.6000|0.2600)(0.0989|0.8450, 0.7528|0.1550)(0.0001|0.7400, 0.9886|0.2600)(0.1773|0.3800, 0.6455|0.6200)(0.0090|0.5850, 0.9731|0.4150)(0.0255|0.6420, 0.8298|0.3580)(0.3500|0.5850, 0.6000|0.4150)(0.5000|0.6420, 0.4500|0.3580)
SMES(0.2968|0.5510, 0.6867|0.4490)(0.3500|0.2390, 0.6000|0.7610)(0.1978|0.6350, 0.7034|0.3650)(0.0004|0.5510, 0.9962|0.4490)(0.0886|0.7400, 0.8671|0.2600)(0.0180|0.8450, 0.9731|0.1550)(0.0851|0.8600, 0.1488|0.1400)(0.9000|0.8450, 0.1000|0.1550)(0.5000|0.7600, 0.4500|0.2400)
Thermal (TES)(0.0462|0.4590, 0.9406|0.5410)(0.7500|0.6000, 0.2000|0.4000)(0.0494|0.7630, 0.8517|0.2370)(0.0229|0.4590, 0.9543|0.5410)(0.0004|0.6200, 0.9911|0.3800)(0.0090|0.2400, 0.9641|0.7600)(0.0003|0.3560, 0.9889|0.6440)(0.3500|0.6350, 0.6000|0.3650)(0.5000|0.4700, 0.4500|0.5300)
Table A5. Decision basic data of Expert 4.
Table A5. Decision basic data of Expert 4.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(65, 75)Medium (30, 60)(0.5, 1.5)(0.0001, 0.0001) (600, 2000)(5, 100)Very high Very high
CAES(41, 75) Long (20, 40)(30, 60) (0.0001, 0.0001) (400, 800) (50, 150) Very highVery high
FES(80, 90)Medium(15, 20) (5, 50)(20, 100) (250, 350) (1000, 5000) Very high Very high
Lead–acid(75, 80)Very short(3, 12) (30, 50)(0.1, 0.3) (300, 600)(150, 500)Very high Medium
Li-ion(65, 75)Very short(5, 15)(75, 250) (0.1, 0.3) (1200, 4000)(600, 2500)Low High
Hydrogen(35, 40)Medium(5, 20)(800, 1000)(0.5, 2) (500, 10,000)(2, 15) High Medium
Super-capacitors(85, 98) Short (10, 20)(0.1, 15) (20, 40) (100, 300) (300, 2000) Low Medium
SMES(90, 95) Short(20, 30) (0.5, 5)(10, 15) (200, 300) (1000, 10,000) Very high Medium
Thermal (TES)(14, 18)Long (5, 15)(30, 60) (0.05, 1) (100, 400) (3, 130)Low Medium
Table A6. Initial decision matric of Expert 4.
Table A6. Initial decision matric of Expert 4.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(0.2157|0.7400, 0.7511|0.2600)(0.5000|0.5600, 0.4500|0.4400)(0.3000|0.5600, 0.4001|0.4400)(0.0004|0.5920, 0.9989|0.4080)(0.0000|0.7600, 1.0000|0.2400)(0.0539|0.3900, 0.8203|0.6100)(0.0004|0.7000, 0.9915|0.3000)(0.9000|0.8820, 0.1000|0.1180)(0.9000|0.4300, 0.1000|0.5700)
CAES(0.1360|0.5510, 0.7511|0.4490)(0.7500|0.5490, 0.2000|0.4510)(0.2000|0.5490, 0.6001|0.4510)(0.0229|0.5490, 0.9543|0.4510)(0.0000|0.4600, 1.0000|0.5400)(0.0359|0.7800, 0.9281|0.2200)(0.0043|0.5320, 0.9872|0.4680)(0.9000|0.3050, 0.1000|0.6950)(0.9000|0.6250, 0.1000|0.3750)
FES(0.2654|0.7600, 0.7014|0.2400)(0.5000|0.2390, 0.4500|0.7610)(0.15000|0.2390, 0.8000|0.7610)(0.0038|0.2390, 0.9619|0.7610)(0.1773|0.6520, 0.1137|0.3480)(0.0225|0.4500, 0.9686|0.5500)(0.0851|0.6930, 0.5744|0.3070)(0.9000|0.4400, 0.1000|0.5600)(0.9000|0.6520, 0.1000|0.3480)
Lead–acid(0.2489|0.2390, 0.7346|0.7610)(0.1000|0.6000, 0.9000|0.4000)(0.0300|0.6000, 0.8800|0.4000)(0.0229|0.6000, 0.9619|0.4000)(0.0009|0.2390, 0.9973|0.7610)(0.0270|0.4900, 0.9461|0.5100)(0.0128|0.2390, 0.9574|0.7610)(0.9000|0.2000, 0.1000|0.8000)(0.5000|0.2390, 0.4500|0.7610)
Li-ion(0.2157|0.6000, 0.7511|0.4000)(0.1000|0.3900, 0.9000|0.6100)(0.0500|0.5920, 0.8500|0.4080)(0.0571|0.5920, 0.8096|0.4080)(0.0009|0.6000, 0.9973|0.4000)(0.1078|0.2700, 0.6406|0.7300)(0.0511|0.6000, 0.7872|0.4000)(0.3500|0.5600, 0.6000|0.4400)(0.7500|0.6000, 0.2000|0.4000)
Hydrogen(0.1161|0.2700, 0.8673|0.7300)(0.5000|0.7800, 0.4500|0.2200)(0.0500|0.7800, 0.8000|0.2200)(0.6094|0.5920, 0.2382|0.4080)(0.0044|0.2400, 0.9823|0.7600)(0.0449|0.7200, 0.1016|0.2800)(0.0002|0.5490, 0.9987|0.4510)(0.7500|0.5490, 0.2000|0.4510)(0.5000|0.5490, 0.4500|0.4510)
Super-capacitors(0.2820|0.7200, 0.6748|0.2800)(0.3500|0.4500, 0.6000|0.5500)(0.1000|0.4500, 0.8000|0.5500)(0.0001|0.4500, 0.9886|0.5500)(0.1773|0.5550, 0.6455|0.4450)(0.0090|0.3380, 0.9730|0.5850)(0.0255|0.6820, 0.8298|0.3180)(0.3500|0.8300, 0.6000|0.1700)(0.5000|0.8300, 0.4500|0.1700)
SMES(0.2986|0.5490, 0.6848|0.4510)(0.3500|0.5850, 0.6000|0.4150)(0.2000|0.5850, 0.7000|0.4150)(0.0004|0.5850, 0.9962|0.4150)(0.0886|0.4900, 0.8671|0.5100)(0.0180|0.8600, 0.9730|0.8450)(0.0851|0.5850, 0.1488|0.4150)(0.9000|0.8590, 0.1000|0.1410)(0.5000|0.7340, 0.4500|0.2660)
Thermal (TES)(0.0465|0.5850, 0.9403|0.4150)(0.7500|0.8450, 0.2000|0.1550)(0.0500|0.8450, 0.8500|0.1550)(0.0229|0.4590, 0.9543|0.5410)(0.0004|0.3100, 0.9911|0.6900)(0.0090|0.2590, 0.9641|0.6350)(0.0003|0.7900, 0.9889|0.2100)(0.3500|0.4300, 0.6000|0.5700)(0.5000|0.3700, 0.4500|0.6300)
Table A7. Decision basic data of Expert 5.
Table A7. Decision basic data of Expert 5.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(65, 75)Medium (30, 60)(0.5, 1.5)(0.0001, 0.0001) (600, 4600)(5, 100)Very high Very high
CAES(41, 75) Long (20, 40)(30, 60) (0.0001, 0.0001) (400, 800) (50, 150) Very highVery high
FES(80, 90)Medium(15, 20) (10, 30)(20, 100) (250, 350) (1000, 5000) Very high Very high
Lead–acid(70, 80)Very short(3, 12) (30, 50)(0.1, 0.3) (300, 600)(150, 500)Very high Medium
Li-ion(65, 75)Very short(5, 15)(75, 250) (0.1, 0.3) (1200, 4000)(600, 2500)Low High
Hydrogen(35, 40)Medium(5, 20)(800, 1000)(0.5, 2) (500, 10,000)(2, 15) High Medium
Super-capacitors(85, 98) Short (10, 20)(0.1, 15) (20, 40) (100, 300) (300, 2000) Low Medium
SMES(90, 95) Short(20, 30) (0.5, 5)(10, 15) (200, 300) (1000, 10,000) Very high Medium
Thermal (TES)(14, 18)Long (5, 15)(30, 60) (0.05, 1) (100, 400) (3, 130)Low Medium
Table A8. Initial decision matric of Expert 5.
Table A8. Initial decision matric of Expert 5.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(0.2156|0.6750, 0.7513|0.3250)(0.5000|0.3750, 0.4500|0.6250)(0.3026|0.6850, 0.3948|0.3150)(0.0004|0.5400, 0.9989|0.4600)(0.0000|0.5430, 1.0000|0.4570)(0.0539|0.3590, 0.8203|0.6410)(0.0004|0.4570, 0.9915|0.5430)(0.9000|0.7820, 0.1000|0.2180)(0.9000|0.6430, 0.1000|0.3570)
CAES(0.1360|0.5450, 0.7513|0.4550)(0.7500|0.5650, 0.2000|0.4350)(0.2017|0.4670, 0.5965|0.5330)(0.0229|0.4320, 0.9543|0.5680)(0.0000|0.3460, 1.0000|0.6540)(0.0359|0.6780, 0.9281|0.3220)(0.0043|0.6720, 0.9872|0.3280)(0.9000|0.3000, 0.1000|0.7000)(0.9000|0.4500, 0.1000|0.5500)
FES(0.2819|0.6500, 0.7015|0.3500)(0.5000|0.7240, 0.4500|0.2760)(0.1513|0.5400, 0.7983|0.4600)(0.0076|0.7970, 0.9771|0.2030)(0.1773|0.6560, 0.1137|0.3440)(0.0225|0.4500, 0.9686|0.5500)(0.0851|0.6930, 0.5744|0.3070)(0.9000|0.5400, 0.1000|0.4600)(0.9000|0.4200, 0.1000|0.5800)
Lead–acid(0.2321|0.7420, 0.7347|0.2580)(0.1000|0.4570, 0.9000|0.5430)(0.0303|0.3500, 0.8790|0.6500)(0.0229|0.7160, 0.9619|0.2840)(0.0009|0.7400, 0.9973|0.2600)(0.0270|0.6850, 0.9461|0.3150)(0.0128|0.2400, 0.9574|0.7600)(0.9000|0.2900, 0.1000|0.7100)(0.5000|0.4670, 0.4500|0.5330)
Li-ion(0.2156|0.7240, 0.7513|0.2760)(0.1000|0.6720, 0.9000|0.3280)(0.0504|0.5400, 0.8487|0.4600)(0.0572|0.2400, 0.8095|0.7600)(0.0009|0.4800, 0.9973|0.5200)(0.1078|0.4670, 0.6406|0.5330)(0.0511|0.5400, 0.7872|0.4600)(0.3500|0.4600, 0.6000|0.5400)(0.7500|0.3700, 0.2000|0.6300)
Hydrogen(0.1161|0.5400, 0.8674|0.4600)(0.5000|0.5600, 0.4500|0.4400)(0.0504|0.3940, 0.8487|0.6060)(0.6097|0.6430, 0.2379|0.3570)(0.0044|0.3430, 0.9823|0.6570)(0.0449|0.5400, 0.1016|0.4600)(0.0002|0.5400, 0.9987|0.4600)(0.7500|0.5490, 0.2000|0.4510)(0.5000|0.6420, 0.4500|0.3580)
Super-capacitors(0.2819|0.6520, 0.6750|0.3480)(0.3500|0.8700, 0.6000|0.1300)(0.1009|0.4830, 0.7983|0.5170)(0.0001|0.5400, 0.9886|0.4600)(0.1773|0.7550, 0.6455|0.2450)(0.0090|0.7550, 0.9730|0.2450)(0.0255|0.6200, 0.8298|0.3800)(0.3500|0.4300, 0.6000|0.5700)(0.5000|0.4800, 0.4500|0.5200)
SMES(0.2985|0.7520, 0.6850|0.2480)(0.3500|0.1900, 0.6000|0.8100)(0.2017|0.2100, 0.6974|0.7900)(0.0004|0.5540, 0.9962|0.4460)(0.0886|0.4900, 0.8671|0.5100)(0.0180|0.4900, 0.9730|0.5100)(0.0851|0.8500, 0.1488|0.1500)(0.9000|0.5900, 0.1000|0.4100)(0.5000|0.7970, 0.4500|0.2030)
Thermal (TES)(0.0464|0.4730, 0.9403|0.5270)(0.7500|0.7120, 0.2000|0.2880)(0.0504|0.1750, 0.8487|0.8250)(0.0229|0.3400, 0.9543|0.6600)(0.0004|0.5310, 0.9911|0.4690)(0.0090|0.5310, 0.9641|0.4690)(0.0003|0.8900, 0.9889|0.1100)(0.3500|0.3430, 0.6000|0.6570)(0.5000|0.7160, 0.4500|0.2840)
Table A9. Decision basic data of Expert 6.
Table A9. Decision basic data of Expert 6.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(65, 75)Medium (30, 60)(0.5, 1.5)(0.0001, 0.0001) (600, 2000)(5, 100)Very high Very high
CAES(41, 75) Long (20, 40)(30, 60) (0.0001, 0.0001) (400, 800) (50, 150) Very highVery high
FES(80, 90)Medium(15, 20) (10, 30)(20, 100) (250, 350) (1000, 5000) Very high Very high
Lead–acid(75, 80)Very short(3, 12) (30, 50)(0.1, 0.3) (300, 600)(150, 500)Very high Medium
Li-ion(65, 75)Very short(5, 15)(75, 250) (0.1, 0.3) (1200, 4000)(600, 2500)Low High
Hydrogen(35, 40)Medium(5, 15)(800, 1000)(0.5, 2) (500, 10,000)(2, 15) High Medium
Super-capacitors(85, 98) Short (10, 20)(0.1, 15) (20, 40) (100, 300) (300, 2000) Low Medium
SMES(90, 95) Short(20, 30) (0.5, 5)(10, 15) (200, 300) (1000, 10,000) Very high Medium
Thermal (TES)(14, 18)Long (5, 15)(30, 60) (0.05, 1) (100, 400) (3, 130)Low Medium
Table A10. Initial decision matrix of Expert 6.
Table A10. Initial decision matrix of Expert 6.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(0.2157|0.4450, 0.7511|0.5550)(0.5000|0.4040, 0.4500|0.5960)(0.3026|0.6570, 0.3948|0.3430)(0.0004|0.4000, 0.9989|0.6000)(0.0000|0.5420, 1.0000|0.4580)(0.0539|0.5640, 0.8203|0.4360)(0.0004|0.7400, 0.9915|0.2600)(0.9000|0.4460, 0.1000|0.5540)(0.9000|0.4030, 0.1000|0.5970)
CAES(0.1360|0.5300, 0.7511|0.4700)(0.7500|0.5560, 0.2000|0.4440)(0.2017|0.3760, 0.5965|0.6240)(0.0229|0.6100, 0.9543|0.3900)(0.0000|0.7500, 1.0000|0.2500)(0.0359|0.6500, 0.9281|0.3500)(0.0043|0.5320, 0.9872|0.4680)(0.9000|0.5400, 0.1000|0.4600)(0.9000|0.6470, 0.1000|0.3530)
FES(0.2654|0.4300, 0.7014|0.5700)(0.5000|0.8630, 0.4500|0.1370)(0.1513|0.4600, 0.7983|0.5400)(0.0076|0.2200, 0.9771|0.7800)(0.1773|0.3660, 0.1137|0.6340)(0.0225|0.4500, 0.9686|0.5500)(0.0851|0.4600, 0.5744|0.5400)(0.9000|0.6440, 0.1000|0.3560)(0.9000|0.4110, 0.1000|0.5890)
Lead–acid(0.2489|0.7700, 0.7346|0.2300)(0.1000|0.7520, 0.9000|0.2480)(0.0303|0.4600, 0.8790|0.5400)(0.0229|0.4110, 0.9619|0.5890)(0.0009|0.6340, 0.9973|0.3660)(0.0270|0.4900, 0.9461|0.5100)(0.0128|0.4600, 0.9574|0.5400)(0.9000|0.2420, 0.1000|0.7580)(0.5000|0.4670, 0.4500|0.5330)
Li-ion(0.2157|0.3240, 0.7511|0.6760)(0.1000|0.5750, 0.9000|0.4250)(0.0504|0.6340, 0.8487|0.3660)(0.0572|0.2640, 0.8095|0.7360)(0.0009|0.6600, 0.9973|0.3400)(0.1078|0.4270, 0.6406|0.5730)(0.0511|0.6340, 0.7872|0.3660)(0.3500|0.5600, 0.6000|0.4400)(0.7500|0.6700, 0.2000|0.3300)
Hydrogen(0.1161|0.3980, 0.8673|0.6020)(0.5000|0.3460, 0.4500|0.6540)(0.0504|0.3980, 0.8487|0.6020)(0.6097|0.5800, 0.2379|0.4200)(0.0044|0.6410, 0.9823|0.3590)(0.0449|0.6470, 0.1016|0.3530)(0.0002|0.4400, 0.9987|0.5600)(0.7500|0.5400, 0.2000|0.4600)(0.5000|0.8070, 0.4500|0.1930)
Super-capacitors(0.2820|0.6000, 0.6748|0.4000)(0.3500|0.2400, 0.6000|0.7600)(0.1009|0.4600, 0.7983|0.5400)(0.0001|0.4270, 0.9886|0.5730)(0.1773|0.4500, 0.6455|0.5500)(0.0090|0.6800, 0.9730|0.3200)(0.0255|0.5600, 0.8298|0.4400)(0.3500|0.8300, 0.6000|0.1700)(0.5000|0.4260, 0.4500|0.5740)
SMES(0.2986|0.7100, 0.6848|0.2900)(0.3500|0.1940, 0.6000|0.8060)(0.2017|0.6340, 0.6974|0.3660)(0.0004|0.2420, 0.9962|0.7580)(0.0886|0.4900, 0.8671|0.5100)(0.0180|0.8640, 0.9730|0.1360)(0.0851|0.5400, 0.1488|0.4600)(0.9000|0.8900, 0.1000|0.1100)(0.5000|0.6400, 0.4500|0.3600)
Thermal (TES)(0.0465|0.3200, 0.9403|0.6800)(0.7500|0.4400, 0.2000|0.5600)(0.0504|0.6600, 0.8487|0.3400)(0.0229|0.6470, 0.9543|0.3530)(0.0004|0.2310, 0.9911|0.7690)(0.0090|0.6530, 0.9641|0.3470)(0.0003|0.7200, 0.9889|0.2800)(0.3500|0.4300, 0.6000|0.5700)(0.5000|0.4100, 0.4500|0.5900)
Table A11. Decision basic data of Expert 7.
Table A11. Decision basic data of Expert 7.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(75, 80)Medium (30, 60)(0.5, 1.5)(0.0001, 0.0001) (600, 2000)(5, 100)Very high Very high
CAES(41, 75) Long (20, 40)(30, 60) (0.0001, 0.0001) (400, 800) (50, 150) Very highVery high
FES(88, 90)Medium(15, 20) (5, 130)(20, 100) (250, 350) (1000, 5000) Very high Very high
Lead–acid(75, 80)Very short(3, 12) (30, 50)(0.1, 0.3) (300, 600)(150, 500)Very high Medium
Li-ion(65, 75)Very short(5, 15)(75, 250) (0.1, 0.3) (1200, 4000)(600, 2500)Low High
Hydrogen(35, 40)Medium(5, 15)(800, 1000)(0.5, 2) (500, 10,000)(2, 15) High Medium
Super-capacitors(85, 98) Short (10, 20)(0.1, 15) (20, 40) (100, 300) (300, 2000) Low Medium
SMES(90, 95) Short(20, 30) (0.5, 5)(10, 15) (200, 300) (1000, 10,000) Very high Medium
Thermal (TES)(14, 18)Long (5, 15)(30, 60) (0.05, 1) (100, 400) (3, 130)Low Medium
Table A12. Initial decision matrix of Expert 7.
Table A12. Initial decision matrix of Expert 7.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(0.2442|0.7610, 0.7396|0.2390)(0.5000|0.5500, 0.4500|0.4500)(0.3026|0.5250, 0.3948|0.4750)(0.0004|0.8790, 0.9989|0.1210)(0.0000|0.6250, 1.0000|0.3750)(0.0539|0.4300, 0.8203|0.5700)(0.0004|0.6200, 0.9915|0.3800)(0.9000|0.8800, 0.1000|0.1200)(0.9000|0.5420, 0.1000|0.4580)
CAES(0.1335|0.4000, 0.7558|0.6000)(0.7500|0.5100, 0.2000|0.4900)(0.2017|0.6520, 0.5965|0.3480)(0.0228|0.4670, 0.9545|0.5330)(0.0000|0.5420, 1.0000|0.4580)(0.0359|0.6250, 0.9281|0.3750)(0.0043|0.4800, 0.9872|0.5200)(0.9000|0.3050, 0.1000|0.6950)(0.9000|0.6020, 0.1000|0.3980)
FES(0.2865|0.4510, 0.7070|0.5490)(0.5000|0.5320, 0.4500|0.4680)(0.1513|0.2390, 0.7983|0.7610)(0.0038|0.7700, 0.9014|0.2300)(0.1773|0.2360, 0.1137|0.7640)(0.0225|0.2390, 0.9686|0.7610)(0.0851|0.6600, 0.5744|0.3400)(0.9000|0.4400, 0.1000|0.5600)(0.9000|0.5400, 0.1000|0.4600)
Lead–acid(0.2442|0.6100, 0.7396|0.3900)(0.1000|0.6930, 0.9000|0.3070)(0.0303|0.6000, 0.8790|0.4000)(0.0228|0.4400, 0.9621|0.5600)(0.0009|0.7000, 0.9973|0.3000)(0.0270|0.6000, 0.9461|0.4000)(0.0128|0.2390, 0.9574|0.7610)(0.9000|0.6100, 0.1000|0.3900)(0.5000|0.4670, 0.4500|0.5330)
Li-ion(0.2116|0.3900, 0.7558|0.6100)(0.1000|0.5920, 0.9000|0.4080)(0.0504|0.6100, 0.8487|0.3900)(0.0569|0.6100, 0.8104|0.3900)(0.0009|0.3180, 0.9973|0.6820)(0.1078|0.6100, 0.6406|0.3900)(0.0511|0.6000, 0.7872|0.4000)(0.3500|0.3900, 0.6000|0.6100)(0.7500|0.3900, 0.2000|0.6100)
Hydrogen(0.1139|0.6020, 0.8698|0.3980)(0.5000|0.3360, 0.4500|0.6640)(0.0504|0.3900, 0.8487|0.6100)(0.6069|0.3800, 0.2414|0.6200)(0.0044|0.4150, 0.9823|0.5850)(0.0449|0.7200, 0.1016|0.2800)(0.0002|0.6000, 0.9987|0.4000)(0.7500|0.4830, 0.2000|0.5170)(0.5000|0.4830, 0.4500|0.5170)
Super-capacitors(0.2767|0.5400, 0.6810|0.4600)(0.3500|0.2700, 0.6000|0.7300)(0.1009|0.4830, 0.7983|0.5170)(0.0001|0.7400, 0.9886|0.2600)(0.1773|0.2100, 0.6455|0.4400)(0.0090|0.3380, 0.9730|0.5400)(0.0255|0.6100, 0.8298|0.3900)(0.3500|0.8300, 0.6000|0.1700)(0.5000|0.8300, 0.4500|0.1700)
SMES(0.2930|0.7110, 0.6907|0.2890)(0.3500|0.5550, 0.6000|0.4450)(0.2017|0.2160, 0.6974|0.7840)(0.0004|0.2160, 0.9962|0.7840)(0.0886|0.4900, 0.8671|0.5100)(0.0180|0.8600, 0.9730|0.7340)(0.0851|0.5850, 0.1488|0.4150)(0.9000|0.5320, 0.1000|0.4680)(0.5000|0.7340, 0.4500|0.2660)
Thermal (TES)(0.0456|0.2400, 0.9414|0.7600)(0.7500|0.4900, 0.2000|0.5100)(0.0504|0.1500, 0.8487|0.8500)(0.0228|0.1500, 0.9545|0.8500)(0.0004|0.3100, 0.9911|0.6900)(0.0090|0.2590, 0.9641|0.3700)(0.0003|0.7900, 0.9889|0.2100)(0.3500|0.6930, 0.6000|0.3070)(0.5000|0.4600, 0.4500|0.5400)
Table A13. Decision basic data of Expert 8.
Table A13. Decision basic data of Expert 8.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density Wh/kgSelf-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(65, 75)Medium (30, 60)(0.5, 1.5)(0.0001, 0.0001) (600, 2000)(5, 100)Very high Very high
CAES(41, 75) Long (20, 40)(30, 60) (0.0001, 0.0001) (400, 800) (50, 150) Very highVery high
FES(80, 90)Medium(15, 20) (5, 130)(20, 100) (250, 350) (1000, 5000) Very high Very high
Lead–acid(75, 80)Very short(3, 12) (30, 50)(0.1, 0.3) (300, 600)(150, 500)Very high Medium
Li-ion(65, 78)Very short(5, 15)(75, 250) (0.1, 0.3) (1200, 4000)(600, 2500)Low High
Hydrogen(35, 40)Medium(5, 15)(800, 1000)(0.5, 2) (500, 10,000)(2, 15) High Medium
Super-capacitors(85, 98) Short (10, 20)(0.1, 15) (20, 40) (100, 300) (300, 2000) Low Medium
SMES(90, 95) Short(20, 30) (0.5, 5)(10, 15) (200, 300) (1000, 10,000) Very high Medium
Thermal (TES)(14, 18)Long (5, 15)(30, 60) (0.05, 1) (100, 400) (3, 130)Low Medium
Table A14. Initial decision matrix of Expert 8.
Table A14. Initial decision matrix of Expert 8.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(0.2151|0.6100, 0.7518|0.3900)(0.5000|0.4600, 0.4500|0.5400)(0.3026|0.7800, 0.3948|0.2200)(0.0004|0.7160, 0.9989|0.2840)(0.0000|0.6400, 1.0000|0.3600)(0.0539|0.5460, 0.8203|0.4540)(0.0004|0.7540, 0.9915|0.2460)(0.9000|0.8000, 0.1000|0.2000)(0.9000|0.5430, 0.1000|0.4570)
CAES(0.1357|0.3900, 0.7518|0.6100)(0.7500|0.6340, 0.2000|0.3660)(0.2017|0.4500, 0.5965|0.5500)(0.0228|0.2400, 0.9545|0.7600)(0.0000|0.5630, 1.0000|0.4370)(0.0359|0.7540, 0.9281|0.2460)(0.0043|0.5320, 0.9872|0.4680)(0.9000|0.3800, 0.1000|0.6200)(0.9000|0.7250, 0.1000|0.2750)
FES(0.2648|0.5400, 0.7021|0.4600)(0.5000|0.5400, 0.4500|0.4600)(0.1513|0.4900, 0.7983|0.5100)(0.0038|0.6430, 0.9014|0.3570)(0.1773|0.3460, 0.1137|0.6540)(0.0225|0.4500, 0.9686|0.5500)(0.0851|0.6930, 0.5744|0.3070)(0.9000|0.4320, 0.1000|0.5680)(0.9000|0.5400, 0.1000|0.4600)
Lead–acid(0.2482|0.3940, 0.7352|0.6060)(0.1000|0.5510, 0.9000|0.4490)(0.0303|0.7200, 0.8790|0.2800)(0.0228|0.7110, 0.9621|0.2890)(0.0009|0.6400, 0.9973|0.3600)(0.0270|0.4120, 0.9461|0.5880)(0.0128|0.2300, 0.9574|0.7700)(0.9000|0.2800, 0.1000|0.7200)(0.5000|0.4700, 0.4500|0.5300)
Li-ion(0.2151|0.3200, 0.7418|0.6800)(0.1000|0.7800, 0.9000|0.2200)(0.0504|0.6930, 0.8487|0.3070)(0.0569|0.6930, 0.8104|0.3070)(0.0009|0.4880, 0.9973|0.5120)(0.1078|0.2700, 0.6406|0.7300)(0.0511|0.6000, 0.7872|0.4000)(0.3500|0.5110, 0.6000|0.4890)(0.7500|0.5670, 0.2000|0.4330)
Hydrogen(0.1158|0.4800, 0.8676|0.5200)(0.5000|0.4500, 0.4500|0.5500)(0.0504|0.2390, 0.8487|0.7610)(0.6069|0.2700, 0.2414|0.7300)(0.0044|0.3300, 0.9823|0.6700)(0.0449|0.7200, 0.1016|0.2800)(0.0002|0.5490, 0.9987|0.4510)(0.7500|0.5490, 0.2000|0.4510)(0.5000|0.8700, 0.4500|0.1300)
Super-capacitors(0.2813|0.4880, 0.6756|0.5120)(0.3500|0.4900, 0.6000|0.5100)(0.1009|0.4830, 0.7983|0.5170)(0.0001|0.7200, 0.9886|0.2800)(0.1773|0.5470, 0.6455|0.4530)(0.0090|0.3550, 0.9730|0.6450)(0.0255|0.6800, 0.8298|0.3200)(0.3500|0.7530, 0.6000|0.2470)(0.5000|0.5400, 0.4500|0.4600)
SMES(0.2979|0.3300, 0.6856|0.6700)(0.3500|0.2700, 0.6000|0.7300)(0.2017|0.1700, 0.6974|0.8300)(0.0004|0.5510, 0.9962|0.4490)(0.0886|0.4230, 0.8671|0.5770)(0.0180|0.8600, 0.9730|0.1400)(0.0851|0.5850, 0.1488|0.4150)(0.9000|0.8000, 0.1000|0.2000)(0.5000|0.7300, 0.4500|0.2700)
Thermal (TES)(0.0463|0.5550, 0.9404|0.4450)(0.7500|0.5550, 0.2000|0.4450)(0.0504|0.1410, 0.8487|0.8590)(0.0228|0.4590, 0.9545|0.5410)(0.0004|0.3300, 0.9911|0.6700)(0.0090|0.2750, 0.9641|0.7250)(0.0003|0.7800, 0.9889|0.2200)(0.3500|0.3430, 0.6000|0.6570)(0.5000|0.3070, 0.4500|0.6930)
Table A15. Decision basic data of Expert 9.
Table A15. Decision basic data of Expert 9.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density Wh/kgSelf-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(65, 80)Medium (30, 60)(0.5, 1.5)(0.0001, 0.0001) (600, 2000)(5, 100)Very high Very high
CAES(41, 75) Long (20, 40)(30, 60) (0.0001, 0.0001) (400, 800) (50, 150) Very highVery high
FES(85, 90)Medium(15, 20) (10, 30)(20, 100) (250, 350) (1000, 5000) Very high Very high
Lead–acid(75, 80)Very short(3, 12) (30, 50)(0.1, 0.3) (300, 600)(150, 500)Very high Medium
Li-ion(65, 78)Very short(5, 15)(75, 250) (0.1, 0.3) (1200, 4000)(600, 2500)Low High
Hydrogen(35, 40)Medium(5, 20)(800, 1000)(0.5, 2) (500, 10,000)(2, 15) High Medium
Super-capacitors(85, 98) Short (10, 20)(0.1, 15) (20, 40) (100, 300) (300, 2000) Low Medium
SMES(90, 95) Short(20, 30) (0.5, 5)(10, 15) (200, 300) (1000, 10,000) Very high Medium
Thermal (TES)(14, 18)Long (5, 15)(30, 60) (0.05, 1) (100, 400) (3, 130)Low Medium
Table A16. Initial decision matrix of Expert 9.
Table A16. Initial decision matrix of Expert 9.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(0.2133|0.5000, 0.7375|0.5000)(0.5000|0.4670, 0.4500|0.5330)(0.3000|0.5510, 0.4001|0.4490)(0.0004|0.6700, 0.9989|0.3300)(0.0000|0.7000, 1.0000|0.3000)(0.0539|0.4300, 0.8203|0.5700)(0.0004|0.7570, 0.9915|0.2430)(0.9000|0.6670, 0.1000|0.3330)(0.9000|0.4500, 0.1000|0.5500)
CAES(0.1345|0.6500, 0.7539|0.3500)(0.7500|0.6700, 0.2000|0.3300)(0.2000|0.6700, 0.6001|0.3300)(0.0229|0.4880, 0.9543|0.5120)(0.0000|0.5320, 1.0000|0.4680)(0.0359|0.6250, 0.9281|0.3750)(0.0043|0.6100, 0.9872|0.3900)(0.9000|0.4610, 0.1000|0.5390)(0.9000|0.6400, 0.1000|0.3600)
FES(0.2789|0.4300, 0.7047|0.5700)(0.5000|0.8700, 0.4500|0.1300)(0.1500|0.8700, 0.8000|0.1300)(0.0076|0.7300, 0.9771|0.2700)(0.1773|0.6930, 0.1137|0.3070)(0.0225|0.5420, 0.9686|0.4580)(0.0851|0.6930, 0.5744|0.3070)(0.9000|0.5440, 0.1000|0.4560)(0.9000|0.4200, 0.1000|0.5800)
Lead–acid(0.2461|0.7820, 0.7375|0.2180)(0.1000|0.5400, 0.9000|0.4600)(0.0300|0.7570, 0.8800|0.2430)(0.0229|0.2800, 0.9619|0.7200)(0.0009|0.2390, 0.9973|0.7610)(0.0270|0.4670, 0.9461|0.5330)(0.0128|0.2390, 0.9574|0.7610)(0.9000|0.2100, 0.1000|0.7900)(0.5000|0.4670, 0.4500|0.5330)
Li-ion(0.2133|0.4520, 0.7441|0.5480)(0.1000|0.6930, 0.9000|0.3070)(0.0500|0.6100, 0.8500|0.3900)(0.0572|0.6100, 0.8095|0.3900)(0.0009|0.5600, 0.9973|0.4400)(0.1078|0.5600, 0.6406|0.4400)(0.0511|0.6000, 0.7872|0.4000)(0.3500|0.4670, 0.6000|0.5330)(0.7500|0.6670, 0.2000|0.3330)
Hydrogen(0.1148|0.4560, 0.8688|0.5440)(0.5000|0.2390, 0.4500|0.7610)(0.0500|0.3100, 0.8000|0.6900)(0.6097|0.5600, 0.2379|0.4400)(0.0044|0.5440, 0.9823|0.4560)(0.0449|0.5490, 0.1016|0.4510)(0.0002|0.5030, 0.9987|0.4970)(0.7500|0.4900, 0.2000|0.5100)(0.5000|0.8700, 0.4500|0.1300)
Super-capacitors(0.2789|0.6460, 0.6785|0.3540)(0.3500|0.3180, 0.6000|0.6820)(0.1000|0.2700, 0.8000|0.7300)(0.0001|0.5490, 0.9886|0.4510)(0.1773|0.8400, 0.6455|0.1600)(0.0090|0.8300, 0.9730|0.1700)(0.0255|0.8200, 0.8298|0.1800)(0.3500|0.8300, 0.6000|0.1700)(0.5000|0.5400, 0.4500|0.4600)
SMES(0.2953|0.5000, 0.6883|0.5000)(0.3500|0.4150, 0.6000|0.5850)(0.2000|0.2400, 0.7000|0.7600)(0.0004|0.8300, 0.9962|0.1700)(0.0886|0.5420, 0.8671|0.4580)(0.0180|0.8820, 0.9730|0.1180)(0.0851|0.4220, 0.1488|0.5780)(0.9000|0.8500, 0.1000|0.1500)(0.5000|0.7000, 0.4500|0.3000)
Thermal (TES)(0.0459|0.2190, 0.9409|0.7810)(0.7500|0.4500, 0.2000|0.5500)(0.0500|0.1700, 0.8500|0.8300)(0.0229|0.5000, 0.9543|0.5000)(0.0004|0.4670, 0.9911|0.5330)(0.0090|0.3050, 0.9641|0.6950)(0.0003|0.5990, 0.9889|0.4010)(0.3500|0.3400, 0.6000|0.6600)(0.5000|0.3450, 0.4500|0.6550)
Table A17. Decision basic data of Expert 10.
Table A17. Decision basic data of Expert 10.
TechnologiesEnergy Efficiency
(%)
Response TimeLifetime (Years)Energy Density Wh/kgSelf-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(65, 75)Medium (30, 60)(0.5, 1.5)(0.0001, 0.0001) (600, 2000)(5, 100)Very high Very high
CAES(41, 75) Long (20, 40)(30, 60) (0.0001, 0.0001) (400, 800) (50, 150) Very highVery high
FES(80, 90)Medium(15, 20) (5, 130)(20, 100) (250, 350) (1000, 5000) Very high Very high
Lead–acid(75, 80)Very short(3, 12) (30, 50)(0.1, 0.3) (300, 600)(150, 500)Very high Medium
Li-ion(65, 75)Very short(5, 15)(75, 200) (0.1, 0.3) (1200, 4000)(600, 2500)Low High
Hydrogen(35, 40)Medium(5, 20)(800, 1000)(0.5, 2) (500, 10,000)(2, 15) High Medium
Super-capacitors(85, 98) Short (10, 20)(0.1, 15) (20, 40) (100, 300) (300, 2000) Low Medium
SMES(90, 95) Short(20, 30) (0.5, 5)(10, 15) (200, 300) (1000, 10,000) Very high Medium
Thermal (TES)(14, 18)Long (5, 15)(30, 60) (0.05, 1) (100, 400) (3, 130)Low Medium
Table A18. Initial decision matrix of Expert 10.
Table A18. Initial decision matrix of Expert 10.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(0.2157|0.5400, 0.7511|0.4600)(0.5000|0.4500, 0.4500|0.5500)(0.3000|0.6930, 0.4001|0.3070)(0.0004|0.4880, 0.9989|0.5120)(0.0000|0.8700, 1.0000|0.1300)(0.0539|0.6400, 0.8203|0.3600)(0.0004|0.6400, 0.9915|0.3600)(0.9000|0.7200, 0.1000|0.2800)(0.9000|0.3200, 0.1000|0.6800)
CAES(0.1360|0.3940, 0.7511|0.6060)(0.7500|0.4900, 0.2000|0.5100)(0.2000|0.2700, 0.6001|0.7300)(0.0229|0.3300, 0.9542|0.6700)(0.0000|0.5400, 1.0000|0.4600)(0.0359|0.3300, 0.9281|0.6700)(0.0043|0.5630, 0.9872|0.4370)(0.9000|0.5630, 0.1000|0.4370)(0.9000|0.4800, 0.1000|0.5200)
FES(0.2654|0.3200, 0.7014|0.6800)(0.5000|0.7200, 0.4500|0.2800)(0.1500|0.7200, 0.8000|0.2800)(0.0038|0.5470, 0.9007|0.4530)(0.1773|0.7340, 0.1137|0.2660)(0.0225|0.5470, 0.9686|0.4530)(0.0851|0.3460, 0.5744|0.6540)(0.9000|0.2390, 0.1000|0.7610)(0.9000|0.6250, 0.1000|0.3750)
Lead–acid(0.2489|0.4800, 0.7346|0.5200)(0.1000|0.4800, 0.9000|0.5200)(0.0300|0.5510, 0.8800|0.4490)(0.0229|0.5510, 0.9618|0.4490)(0.0009|0.7200, 0.9973|0.2800)(0.0270|0.4230, 0.9461|0.5770)(0.0128|0.6400, 0.9574|0.3600)(0.9000|0.6400, 0.1000|0.3600)(0.5000|0.4700, 0.4500|0.5300)
Li-ion(0.2157|0.2700, 0.7511|0.7300)(0.1000|0.2390, 0.9000|0.7610)(0.0500|0.3200, 0.8500|0.6800)(0.0573|0.7800, 0.8473|0.2200)(0.0009|0.6930, 0.9973|0.3070)(0.1078|0.3300, 0.6406|0.6700)(0.0511|0.4880, 0.7872|0.5120)(0.3500|0.5600, 0.6000|0.4400)(0.7500|0.6700, 0.2000|0.3300)
Hydrogen(0.1161|0.3460, 0.8673|0.6540)(0.5000|0.3460, 0.4500|0.6540)(0.0500|0.4800, 0.8000|0.5200)(0.6108|0.4500, 0.2364|0.5500)(0.0044|0.2390, 0.9823|0.7610)(0.0449|0.2000, 0.1016|0.8000)(0.0002|0.3300, 0.9987|0.6700)(0.7500|0.5490, 0.2000|0.4510)(0.5000|0.6930, 0.4500|0.3070)
Super-capacitors(0.2820|0.6400, 0.6748|0.3600)(0.3500|0.3200, 0.6000|0.6800)(0.1000|0.6250, 0.8000|0.3750)(0.0001|0.3570, 0.9885|0.6430)(0.1773|0.3570, 0.6455|0.6430)(0.0090|0.5600, 0.9730|0.4400)(0.0255|0.5400, 0.8298|0.4600)(0.3500|0.8300, 0.6000|0.1700)(0.5000|0.5700, 0.4500|0.4300)
SMES(0.2986|0.4600, 0.6848|0.5400)(0.3500|0.1900, 0.6000|0.8100)(0.2000|0.5420, 0.7000|0.4580)(0.0004|0.2890, 0.9962|0.7110)(0.0886|0.2890, 0.8671|0.7110)(0.0180|0.5490, 0.9730|0.4510)(0.0851|0.4230, 0.1488|0.5770)(0.9000|0.8590, 0.1000|0.1410)(0.5000|0.6420, 0.4500|0.3580)
Thermal (TES)(0.0465|0.6340, 0.9403|0.3660)(0.7500|0.4600, 0.2000|0.5400)(0.0500|0.4670, 0.8500|0.5330)(0.0229|0.3070, 0.9542|0.6930)(0.0004|0.2310, 0.9911|0.7690)(0.0090|0.4900, 0.9641|0.5100)(0.0003|0.3300, 0.9889|0.6700)(0.3500|0.4300, 0.6000|0.5700)(0.5000|0.3700, 0.4500|0.6300)

Appendix B

The average value matrices for each expert are detailed in Table A19 in Appendix B.
Table A19. The average value matrices for each expert.
Table A19. The average value matrices for each expert.
ExpertsEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density Wh/kgSelf-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
Expert 17.965909.27802 8.993358.732409.004729.942918.2612711.552046.98992
Expert 27.886409.199596.413557.901599.695958.888347.266639.109357.42257
Expert 35.947759.328115.942268.783318.945459.947988.0404911.674516.41061
Expert 47.6812411.059096.976678.1329410.961029.337518.2612711.552048.37422
Expert 55.3492110.672887.629179.385729.306156.783499.5847811.081395.63756
Expert 67.462969.658765.835869.771537.593726.466016.4917310.432687.03724
Expert 77.411597.365568.2805611.981768.539869.475468.268059.584186.50334
Expert 83.694448.485229.586557.362558.071669.966478.3263810.947467.88742
Expert 97.279229.416229.910319.099379.509548.924278.5012711.278777.04607
Expert 105.4796810.613536.437569.5752711.493346.197167.0080711.095206.82443

Appendix C

The weighted initial decision matrix is shown in Table A20 in Appendix C.
Table A20. The weighted initial decision matrix.
Table A20. The weighted initial decision matrix.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(0.2197|0.0051, 0.7472|0.0001)(0.5000|0.0005, 0.4500|0.0015)(0.3010|0.0155, 0.3981|0.0000)(0.0004|0.0064, 0.9989|0.0000)(0.0000|0.0064, 1.0000|0.0000) (0.0545|0.0012, 0.7976|0.0003)(0.0004|0.0171, 0.9888|0.0000)(0.9000|0.0109, 0.1000|0.0000)(0.9000|0.0005, 0.1000|0.0012)
CAES(0.1355|0.0010, 0.7522|0.0008)(0.7500|0.0053, 0.2000|0.0001)(0.2006|0.0011, 0.5987|0.0004)(0.0229|0.0005, 0.9543|0.0009)(0.0000|0.0027, 1.0000|0.0001) (0.0357|0.0053, 0.9286|0.0000)(0.0043|0.0018, 0.9872|0.0004)(0.9000|0.0002, 0.1000|0.0017)(0.9000|0.0060, 0.1000|0.0001)
FES(0.2704|0.0011, 0.7042|0.0002)(0.5000|0.0053, 0.4500|0.0000)(0.1505|0.0006, 0.7994|0.0003)(0.0061|0.0008, 0.9524|0.0001)(0.1773|0.0004, 0.1137|0.0005)(0.0223|0.0005, 0.9688|0.0012)(0.0851|0.0086, 0.5744|0.0000)(0.9000|0.0002, 0.1000|0.0027)(0.9000|0.0011, 0.1000|0.0006)
Lead–acid(0.2462|0.0023, 0.7357|0.0001)(0.1000|0.0079, 0.9000|0.0000)(0.0301|0.0038, 0.8796|0.0001)(0.0229|0.0009, 0.9619|0.0003)(0.0009|0.0027, 0.9973|0.0001)(0.0268|0.0023, 0.9464|0.0002)(0.0128|0.0000, 0.9574|0.0052)(0.9000|0.0000, 0.1000|0.0044)(0.5000|0.0003, 0.4500|0.0024)
Li-ion(0.2148|0.0003, 0.7482|0.0009)(0.1000|0.0015, 0.9000|0.0002)(0.0502|0.0038, 0.8495|0.0001)(0.0571|0.0002, 0.8133|0.0009)(0.0009|0.0005, 0.9973|0.0009)(0.1072|0.0001, 0.6428|0.0027)(0.0511|0.0051, 0.7872|0.0001)(0.3500|0.0009, 0.6000|0.0003)(0.7500|0.0013, 0.2000|0.0002)
Hydrogen(0.1157|0.0004, 0.8679|0.0012)(0.5000|0.0001, 0.4500|0.0021)(0.0502|0.0002, 0.8240|0.0019)(0.6092|0.0003, 0.2385|0.0016)(0.0044|0.0002, 0.9823|0.0014)(0.0447|0.0034, 0.1060|0.0001)(0.0002|0.0017, 0.9987|0.0004)(0.7500|0.0013, 0.2000|0.0007)(0.5000|0.0355, 0.4500|0.0000)
Super-capacitors(0.2809|0.0130, 0.6762|0.0000)(0.3500|0.0001, 0.6000|0.0009)(0.1003|0.0012, 0.7944|0.0002)(0.0001|0.0038, 0.9886|0.0001)(0.1773|0.0010, 0.6455|0.0001)(0.0089|0.0009, 0.9732|0.0002)(0.0255|0.0145, 0.8298|0.0000)(0.3500|0.0514, 0.6000|0.0000)(0.5000|0.0030, 0.4500|0.0001)
SMES(0.2974|0.0015, 0.6861|0.0002)(0.3500|0.0000, 0.6000|0.0051)(0.2006|0.0000, 0.6991|0.0045)(0.0004|0.0005, 0.9962|0.0003)(0.0886|0.0012, 0.8671|0.0002)(0.0179|0.0815, 0.9732|0.0000)(0.0851|0.0039, 0.1489|0.0001)(0.9000|0.0874, 0.1000|0.0000)(0.5000|0.0386, 0.4500|0.0000)
Thermal (TES)(0.0463|0.0001, 0.9405|0.0032)(0.7500|0.0011, 0.2000|0.0003)(0.0502|0.0000, 0.8495|0.0010)(0.0229|0.0002, 0.9543|0.0016)(0.0004|0.0000, 0.9911|0.0064)(0.0089|0.0000, 0.9643|0.0041)(0.0003|0.0099, 0.9889|0.0000)(0.3500|0.0003, 0.6000|0.0016)(0.5000|0.0002, 0.4500|0.0019)

Appendix D

The expert’s evaluation information in Scenario 1 to Scenario 3 are shown in Table A21 to Table A23 in Appendix D.
Table A21. The expert’s evaluation information in Scenario 1.
Table A21. The expert’s evaluation information in Scenario 1.
ExpertsEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
Expert 1(55, 80)Short (12, 35)(40, 70)(5, 15)(100, 700)(100, 300)LowVery high
Expert 2(55, 75)Short (20, 40)(20, 105)(1, 10)(300, 1000)(200, 650)LowMedium
Expert 3(50, 85)Very short(15, 30)(30, 80)(0.5, 12)(300, 600)(600, 5000)MediumVery high
Expert 4(60, 80)Medium(20, 30)(15, 60)(0.2, 5)(150, 600)(250, 1000)LowHigh
Expert 5(75, 82)Very short(10, 50)(25, 120)(2, 25)(100, 500)(300, 550)Very lowHigh
Expert 6(44, 85)Short(20, 60)(25, 60)(2, 50)(200, 600)(400, 1000)LowMedium
Expert 7(55, 90)Very short(40, 50)(15, 80)(0.1, 15)(250, 500)(1000, 10,000)Very lowHigh
Expert 8(62, 90)Short (20, 35)(40, 85)(10, 25)(600, 1000)(250, 1000)MediumHigh
Expert 9(40, 80)Very short(10, 30)(35, 80)(0.5, 20)(500, 800)(350, 1000)MediumHigh
Expert 10(70, 80)Short (10, 30)(45, 65)(55, 85)(120, 650)(500, 800)Very lowVery high
Table A22. The expert’s evaluation information in Scenario 2.
Table A22. The expert’s evaluation information in Scenario 2.
ExpertsEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
Expert 1(65, 80)Very short (15, 36)(50, 80)(5, 15)(300, 700)(150, 300)LowVery high
Expert 2(65, 75)Short (25, 40)(40, 105)(2, 10)(400, 1000)(250, 650)LowMedium
Expert 3(60, 85)Very short(18, 30)(50, 80)(0.5, 20)(350, 650)(800, 5000)MediumVery high
Expert 4(70, 80)Medium(20, 30)(35, 60)(0.2, 10)(250, 700)(250, 1000)LowHigh
Expert 5(75, 90)Very short(20, 50)(45, 120)(5, 25)(150, 600)(400, 550)Very lowHigh
Expert 6(60, 85)Short(35, 60)(35, 60)(8, 55)(300, 600)(400, 1000)LowMedium
Expert 7(70, 90)Very short(40, 55)(55, 88)(0.1, 20)(350, 550)(1000, 10,000)Very lowHigh
Expert 8(66, 90)Short (20, 45)(40, 95)(10, 25)(650, 1100)(350, 1100)MediumMedium
Expert 9(60, 80)Very short(10, 30)(40, 82)(0.5, 25)(500, 850)(450, 1100)MediumHigh
Expert 10(77, 80)Short (25, 30)(50, 70)(60, 85)(120, 750)(500, 850)Very lowVery high
Table A23. The expert’s evaluation information in Scenario 3.
Table A23. The expert’s evaluation information in Scenario 3.
ExpertsEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
Expert 1(50, 70)Short(8, 30)(40, 65)(1, 5)(100, 300)(50, 200)LowVery high
Expert 2(50, 70)Medium(15, 20)(10, 100)(0.5, 5)(300, 800)(200, 350)Very lowHigh
Expert 3(45, 80)Very short(12, 30)(15, 75)(0.1, 8)(100, 500)(500, 3000)Very lowVery high
Expert 4(60, 80)Medium(12, 35)(15, 45)(0.1, 5)(150, 450)(150, 400)LowHigh
Expert 5(70, 75)Medium(12, 40)(25, 110)(0.5, 10)(50, 250)(300, 400)Very lowMedium
Expert 6(40, 75)Short(25, 50)(20, 30)(0.1, 25)(200, 300)(100, 1000)LowHigh
Expert 7(50, 85)Medium(15, 50)(10, 50)(0.1, 10)(200, 400)(1000, 5000)Very lowHigh
Expert 8(55, 80)Medium(10, 30)(45, 80)(9, 15)(500, 1000)(150, 600)LowMedium
Expert 9(35, 65)Very short(5, 15)(30, 80)(0.5, 10)(400, 600)(350, 600)MediumHigh
Expert 10(60, 70)Short(10, 35)(45, 65)(25, 45)(80, 300)(200, 600)Very lowVery high

References

  1. Azzuni, A.; Breyer, C. Energy security and energy storage technologies. Energy Procedia 2018, 155, 237–258. [Google Scholar] [CrossRef]
  2. Zitnick, C.L.; Chanussot, L.; Das, A.; Goyal, S.; Heras-Domingo, J.; Ho, C.; Hu, W.; Lavril, T.; Palizhati, A.; Riviere, M.; et al. An Introduction to Electrocatalyst Design using Machine Learning for Renewable Energy Storage. arXiv 2020, arXiv:2010.09435. [Google Scholar]
  3. Bui, Y.-H.; Hussain, A.; Kim, H.-M. Double Deep Q-Learning-Based Distributed Operation of Battery Energy Storage System Considering Uncertainties. IEEE Trans. Smart Grid 2019, 11, 457–469. [Google Scholar] [CrossRef]
  4. Gao, T.; Lu, W. Machine learning toward advanced energy storage devices and systems. iScience 2020, 24, 101936. [Google Scholar] [CrossRef]
  5. Sidorov, D.; Liu, F.; Sun, Y. Machine Learning for Energy Systems. Energies 2020, 13, 4708. [Google Scholar] [CrossRef]
  6. Xu, B.; Rizzo, D.; Onori, S. Machine Learning Based Optimal Energy Storage Devices Selection Assistance for Vehicle Propulsion Systems. SAE Tech. Pap. 2020. [Google Scholar] [CrossRef]
  7. Liu, Y.; Du, J.-L. A multi criteria decision support framework for renewable energy storage technology selection. J. Clean. Prod. 2020, 277, 122183. [Google Scholar] [CrossRef]
  8. Kumar, A.; Sah, B.; Singh, A.R.; Deng, Y.; He, X.; Kumar, P.; Bansal, R. A review of multi criteria decision making (MCDM) towards sustainable renewable energy development. Renew. Sustain. Energy Rev. 2017, 69, 596–609. [Google Scholar] [CrossRef]
  9. Wang, C.-N.; Nguyen, V.T.; Thai, H.T.N.; Duong, D.H. Multi-Criteria Decision Making (MCDM) Approaches for Solar Power Plant Location Selection in Viet Nam. Energies 2018, 11, 1504. [Google Scholar] [CrossRef] [Green Version]
  10. Strategy, C.C.; Arabia, S. Optimal Decision-Making in Photovoltaic System Selection in Saudi Arabia. World Health 2011, 18, 1–14. [Google Scholar]
  11. Gigovic, L.; Pamucar, D.; Lukić, D.; Marković, S. GIS-Fuzzy DEMATEL MCDA model for the evaluation of the sites for ecotourism development: A case study of “Dunavski ključ” region, Serbia. Land Use Policy 2016, 58, 348–365. [Google Scholar] [CrossRef]
  12. Giamalaki, M.; Tsoutsos, T. Sustainable siting of solar power installations in Mediterranean using a GIS/AHP approach. Renew. Energy 2019, 141, 64–75. [Google Scholar] [CrossRef]
  13. Chen, T.; Wang, Y.-T.; Wang, J.-Q.; Li, L.; Cheng, P.-F. Multistage Decision Framework for the Selection of Renewable Energy Sources Based on Prospect Theory and PROMETHEE. Int. J. Fuzzy Syst. 2020, 22, 1535–1551. [Google Scholar] [CrossRef]
  14. Şengül, Ü.; Eren, M.; Shiraz, S.E.; Gezder, V.; Şengül, A.B. Fuzzy TOPSIS method for ranking renewable energy supply systems in Turkey. Renew. Energy 2015, 75, 617–625. [Google Scholar] [CrossRef]
  15. Özkan, B.; Kaya, I.; Cebeci, U.; Başlıgil, H. A Hybrid Multicriteria Decision Making Methodology Based on Type-2 Fuzzy Sets For Selection Among Energy Storage Alternatives. Int. J. Comput. Intell. Syst. 2015, 8, 914–927. [Google Scholar] [CrossRef] [Green Version]
  16. Pamucar, D.; Deveci, M.; Schitea, D.; Erişkin, L.; Iordache, M.; Iordache, I. Developing a novel fuzzy neutrosophic numbers based decision making analysis for prioritizing the energy storage technologies. Int. J. Hydrog. Energy 2020, 45, 23027–23047. [Google Scholar] [CrossRef]
  17. Wang, X.; Wang, K. A multi-criteria decision-making method based on triangular interval-valued fuzzy numbers and the VIKOR method. J. Intell. Fuzzy Syst. 2021, 40, 221–233. [Google Scholar] [CrossRef]
  18. Zhang, C.; Zhang, C.; Zhang, C.; Chen, C.; Chen, C.; Chen, C.; Streimikiene, D.; Streimikiene, D.; Streimikiene, D.; Balezentis, T.; et al. Intuitionistic fuzzy MULTIMOORA approach for multi-criteria assessment of the energy storage technologies. Appl. Soft Comput. 2019, 79, 410–423. [Google Scholar] [CrossRef]
  19. Barin, A.; Canha, L.N.; Abaide, A.R.; Magnago, K.F.; Wottrich, B.; Machado, R.Q. Multiple Criteria Analysis for Energy Storage Selection. Energy Power Eng. 2011, 3, 557–564. [Google Scholar] [CrossRef] [Green Version]
  20. Ren, J. Sustainability prioritization of energy storage technologies for promoting the development of renewable energy: A novel intuitionistic fuzzy combinative distance-based assessment approach. Renew. Energy 2018, 121, 666–676. [Google Scholar] [CrossRef]
  21. Rahman, M.; Oni, A.O.; Gemechu, E.; Kumar, A. Assessment of energy storage technologies: A review. Energy Convers. Manag. 2020, 223, 113295. [Google Scholar] [CrossRef]
  22. Chen, H.; Cong, T.N.; Yang, W.; Tan, C.; Li, Y.; Ding, Y. Progress in electrical energy storage system: A critical review. Prog. Nat. Sci. 2009, 19, 291–312. [Google Scholar] [CrossRef]
  23. Zhao, H.; Wu, Q.; Hu, S.; Xu, H.; Rasmussen, C.N. Review of energy storage system for wind power integration support. Appl. Energy 2015, 137, 545–553. [Google Scholar] [CrossRef]
  24. Ferreira, H.L.; Garde, R.; Fulli, G.; Kling, W.; Lopes, J.A.P. Characterisation of electrical energy storage technologies. Energy 2013, 53, 288–298. [Google Scholar] [CrossRef] [Green Version]
  25. DOE Global Energy Storage Database. 2018. Available online: http://Www.EnergystorageeXchange.Org/Projects/Data_visualization (accessed on 23 January 2021).
  26. Haas, J.; Cebulla, F.; Nowak, W.; Rahmann, C.; Palma-Behnke, R. A multi-service approach for planning the optimal mix of energy storage technologies in a fully-renewable power supply. Energy Convers. Manag. 2018, 178, 355–368. [Google Scholar] [CrossRef]
  27. Aneke, M.; Wang, M. Energy storage technologies and real life applications—A state of the art review. Appl. Energy 2016, 179, 350–377. [Google Scholar] [CrossRef] [Green Version]
  28. Ren, J.; Ren, X. Sustainability ranking of energy storage technologies under uncertainties. J. Clean. Prod. 2018, 170, 1387–1398. [Google Scholar] [CrossRef]
  29. Çolak, M.; Kaya, I. Multi-criteria evaluation of energy storage technologies based on hesitant fuzzy information: A case study for Turkey. J. Energy Storage 2020, 28, 101211. [Google Scholar] [CrossRef]
  30. Zhao, H.; Guo, S.; Zhao, H. Comprehensive assessment for battery energy storage systems based on fuzzy-MCDM considering risk preferences. Energy 2018, 168, 450–461. [Google Scholar] [CrossRef]
  31. Albawab, M.; Ghenai, C.; Bettayeb, M.; Janajreh, I. Sustainability Performance Index for Ranking Energy Storage Technologies using Multi-Criteria Decision-Making Model and Hybrid Computational Method. J. Energy Storage 2020, 32, 101820. [Google Scholar] [CrossRef]
  32. Alizadeh, R.; Soltanisehat, L.; Lund, P.D.; Zamanisabzi, H. Improving renewable energy policy planning and decision-making through a hybrid MCDM method. Energy Policy 2019, 137, 111174. [Google Scholar] [CrossRef]
  33. Zakeri, B.; Syri, S. Electrical energy storage systems: A comparative life cycle cost analysis. Renew. Sustain. Energy Rev. 2015, 42, 569–596. [Google Scholar] [CrossRef]
  34. Beaudin, M.; Zareipour, H.; Schellenberglabe, A.; Rosehart, W. Energy storage for mitigating the variability of renewable electricity sources: An updated review. Energy Sustain. Dev. 2010, 14, 302–314. [Google Scholar] [CrossRef]
  35. Luo, X.; Wang, J.; Dooner, M.; Clarke, J. Overview of current development in electrical energy storage technologies and the application potential in power system operation. Appl. Energy 2015, 137, 511–536. [Google Scholar] [CrossRef] [Green Version]
  36. Castillo, A.; Gayme, D.F. Grid-scale energy storage applications in renewable energy integration: A survey. Energy Convers. Manag. 2014, 87, 885–894. [Google Scholar] [CrossRef]
  37. Kaldellis, J.; Zafirakis, D. Optimum energy storage techniques for the improvement of renewable energy sources-based electricity generation economic efficiency. Energy 2007, 32, 2295–2305. [Google Scholar] [CrossRef]
  38. Landry, M.; Gagnon, Y. Energy Storage: Technology Applications and Policy Options. Energy Procedia 2015, 79, 315–320. [Google Scholar] [CrossRef] [Green Version]
  39. Denholm, P.; Kulcinski, G.L. Life cycle energy requirements and greenhouse gas emissions from large scale energy storage systems. Energy Convers. Manag. 2004, 45, 2153–2172. [Google Scholar] [CrossRef]
  40. Medina, P.; Bizuayehu, A.W.; Catalao, J.P.S.; Rodrigues, E.M.G.; Contreras, J. Electrical Energy Storage Systems: Technologies’ State-of-the-Art, Techno-economic Benefits and Applications Analysis. In Proceedings of the 2014 47th Hawaii International Conference on System Sciences, Waikoloa, HI, USA, 6–9 January 2014; pp. 2295–2304. [Google Scholar] [CrossRef]
  41. Ibrahim, H.; Ilinca, A.; Perron, J. Energy storage systems—Characteristics and comparisons. Renew. Sustain. Energy Rev. 2008, 12, 1221–1250. [Google Scholar] [CrossRef]
  42. Rydh, C.J. Environmental assessment of vanadium redox and lead-acid batteries for stationary energy storage. J. Power Sources 1999, 80, 21–29. [Google Scholar] [CrossRef]
  43. Poullikkas, A. A comparative overview of large-scale battery systems for electricity storage. Renew. Sustain. Energy Rev. 2013, 27, 778–788. [Google Scholar] [CrossRef]
  44. Argyrou, M.C.; Christodoulides, P.; Kalogirou, S.A. Energy storage for electricity generation and related processes: Technologies appraisal and grid scale applications. Renew. Sustain. Energy Rev. 2018, 94, 804–821. [Google Scholar] [CrossRef]
  45. Adachi, K.; Tajima, H.; Hashimoto, T.; Kobayashi, K. Development of 16 kWh power storage system applying Li-ion batteries. J. Power Sources 2003, 119–121, 897–901. [Google Scholar] [CrossRef]
  46. Benitez, L.E.; Benitez, P.C.; van Kooten, G.C. The economics of wind power with energy storage. Energy Econ. 2008, 30, 1973–1989. [Google Scholar] [CrossRef] [Green Version]
  47. Díaz-González, F.; Sumper, A.; Gomis-Bellmunt, O.; Villafafila-Robles, R. A review of energy storage technologies for wind power applications. Renew. Sustain. Energy Rev. 2012, 16, 2154–2171. [Google Scholar] [CrossRef]
  48. Hadjipaschalis, I.; Poullikkas, A.; Efthimiou, V. Overview of current and future energy storage technologies for electric power applications. Renew. Sustain. Energy Rev. 2009, 13, 1513–1522. [Google Scholar] [CrossRef]
  49. Schoenung, S.M.; Hassenzahl, W. Characteristics and Technologies for Long- vs. Short-Term Energy Storage; Sandia National Laboratories: Albuquerque, NM, USA, 2001; Volume 3, 46p. [Google Scholar]
  50. Liu, M.; Tay, N.S.; Bell, S.; Belusko, M.; Jacob, R.; Will, G.; Saman, W.; Bruno, F. Review on concentrating solar power plants and new developments in high temperature thermal energy storage technologies. Renew. Sustain. Energy Rev. 2016, 53, 1411–1432. [Google Scholar] [CrossRef]
  51. Masaud, T.M.; Lee, K.; Sen, P. An overview of energy storage technologies in electric power systems: What is the future? In Proceedings of the North American Power Symposium 2010, Arlington, TX, USA, 26–28 September 2010; pp. 1–6. [Google Scholar] [CrossRef]
  52. Sabihuddin, S.; Kiprakis, A.E.; Mueller, M. A Numerical and Graphical Review of Energy Storage Technologies. Energies 2014, 8, 172–216. [Google Scholar] [CrossRef]
  53. Deveci, M.; Cali, U.; Kucuksari, S.; Erdogan, N. Interval type-2 fuzzy sets based multi-criteria decision-making model for offshore wind farm development in Ireland. Energy 2020, 198, 117317. [Google Scholar] [CrossRef]
  54. Atanassov, K.T. Intuitionistic fuzzy sets. Fuzzy Sets Syst. 1986, 20, 87–96. [Google Scholar] [CrossRef]
  55. Torra, V. Hesitant Fuzzy Sets Vicenc¸Torra. Int. J. Intell. Syst. 2010, 25, 529–539. [Google Scholar] [CrossRef]
  56. Zhu, B.; Xu, Z.; Xia, M. Dual Hesitant Fuzzy Sets. J. Appl. Math. 2012, 2012, 879629. [Google Scholar] [CrossRef]
  57. Zhu, B.; Xu, Z. Some results for dual hesitant fuzzy sets. J. Intell. Fuzzy Syst. 2014, 26, 1657–1668. [Google Scholar] [CrossRef]
  58. Hao, Z.; Xu, Z.; Zhao, H.; Su, Z. Probabilistic dual hesitant fuzzy set and its application in risk evaluation. Knowl. Based Syst. 2017, 127, 16–28. [Google Scholar] [CrossRef]
  59. Garg, H.; Kaur, G. Algorithm for Probabilistic Dual Hesitant Fuzzy Multi-Criteria Decision-Making Based on Aggregation Operators with New Distance Measures. Mathematics 2018, 6, 280. [Google Scholar] [CrossRef] [Green Version]
  60. Liu, P.; Cheng, S. Interval-Valued Probabilistic Dual Hesitant Fuzzy Sets for Multi-Criteria Group Decision-Making. Int. J. Comput. Intell. Syst. 2019, 12, 1393–1411. [Google Scholar] [CrossRef] [Green Version]
  61. Guo, J. Hybrid Multiattribute Group Decision Making Based on Intuitionistic Fuzzy Information and GRA Method. ISRN Appl. Math. 2013, 2013, 1–10. [Google Scholar] [CrossRef]
  62. Zhou, J.; Wu, Y.; Wu, C.; He, F.; Zhang, B.; Liu, F. A geographical information system based multi-criteria decision-making approach for location analysis and evaluation of urban photovoltaic charging station: A case study in Beijing. Energy Convers. Manag. 2019, 205, 112340. [Google Scholar] [CrossRef]
  63. Li, J.; Chen, Q.; Niu, L.-L.; Wang, Z.-X. An ORESTE approach for multi-criteria decision-making with probabilistic hesitant fuzzy information. Int. J. Mach. Learn. Cybern. 2020, 11, 1591–1609. [Google Scholar] [CrossRef]
  64. Xu, Z.; Cai, X. Recent advances in intuitionistic fuzzy information aggregation. Fuzzy Optim. Decis. Mak. 2010, 9, 359–381. [Google Scholar] [CrossRef]
Figure 1. The decision-making framework for energy storage technology selection.
Figure 1. The decision-making framework for energy storage technology selection.
Energies 14 06592 g001
Figure 2. The composition of China’s power generation from 2010 to 2019.
Figure 2. The composition of China’s power generation from 2010 to 2019.
Energies 14 06592 g002
Figure 3. The cumulative installed capacity of photovoltaic power, wind power, and biomass power in Shanxi Province from 2015 to 2020.
Figure 3. The cumulative installed capacity of photovoltaic power, wind power, and biomass power in Shanxi Province from 2015 to 2020.
Energies 14 06592 g003
Figure 4. Distance calculation and ranking results.
Figure 4. Distance calculation and ranking results.
Energies 14 06592 g004
Figure 5. The distance calculation and ranking results in Scenario 1.
Figure 5. The distance calculation and ranking results in Scenario 1.
Energies 14 06592 g005
Figure 6. The distance calculation and ranking results in Scenario 2.
Figure 6. The distance calculation and ranking results in Scenario 2.
Energies 14 06592 g006
Figure 7. The distance calculation and ranking results in Scenario 3.
Figure 7. The distance calculation and ranking results in Scenario 3.
Energies 14 06592 g007
Figure 8. The ranking results in Scenario 1, Scenario 2, and Scenario 3.
Figure 8. The ranking results in Scenario 1, Scenario 2, and Scenario 3.
Energies 14 06592 g008
Table 1. Evaluation criteria for energy storage technologies and the literature source.
Table 1. Evaluation criteria for energy storage technologies and the literature source.
AspectsFactorsReferences
TechnologicalLifetime[7,18,28,29,30,31]
Storage capacity[7,16,29,30]
Response time[7,16,18]
Energy density[7,18,28,29,30,31]
Risk/safety[29,30]
Energy efficiency[28,30]
Energy intensity[28,30]
Self-discharge losses[3]
EconomicInput cost[1]
Investment costs[16,28,29,32]
Operation costs[16,18,28,29,30,31,32]
Economic benefits[7,30]
Power capital cost[22,33,34]
Energy capital cost[22,27,34,35,36]
EnvironmentalEmissions [7,29,30,31]
CO2 intensity[28,29,30]
Stress on ecosystem[1]
Protection of the environment[7]
Resource consumption[29]
Land use[4]
SocialJob creation [7,16,29]
Social acceptance [7,29]
Health and safety[29,31]
Government incentive[4]
Table 2. The characteristics and relevant value ranges of energy storage technologies.
Table 2. The characteristics and relevant value ranges of energy storage technologies.
TechnologiesEnergy Efficiency
(%)
Response TimeLifetime
(years)
Energy Density
(Wh/kg)
Self-Discharge Losses (%/day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(65, 75) [37], (75, 80) [38]Seconds–minutes [36](30, 60) [34](0.5, 1.5) [18,27] (0.0001, 0.0001) [18](700, 2000) [33], (600, 2000) [27], (500, 4600) [39](5, 100) [27], (5, 430) [40]Very high [18]Very high, high
CAES(41, 75) [23]Minutes [36](20, 40) [22](30, 60) [18] [27](0.0001, 0.0001) [18](400, 800) [34](50, 150) [35], Very high [18]Very high, high
FES85 [41], (80, 90) [23]Seconds [36](15, 20) [34],(10, 30) [27], (5, 130) [18](20,100) [18](250, 350) [27](1000, 5000) [35]Very high [18]Very high, high
Lead–acid(70, 80) [42], (75, 80) [37]<Seconds [36](3, 12) [43](30, 50) [18](0.1,0.3) [22](300, 600) [34](150, 500) [44]Very high [18]Medium
Li-ion(65, 75) [23], 78 [45]Seconds [36](5, 15) [23], (75, 200) [27], (75, 250) [18](0.1, 0.3) [22](1200, 4000) [23](600, 2500) [44]Low [18]High, Medium
Hydrogen(35, 40) [46] Minutes [44](5, 20), (5, 15) [22](800, 1000) [18](0.5, 2) [18](500, 10,000) [34](2, 15) [47]High [18]Medium, high
Super-capacitors(85, 98) [48]Milliseconds [49](10, 20) [34], 20+ [27](0.1, 15) [18], (2.5, 15) [27](20, 40) [22](100, 300) [22](300, 2000) [36]Low [18]Medium
SMES(90, 95) [44],Milliseconds(20, 30) [34](0.5, 5) [27] [18](10, 15) [22](200, 300) [22](1000, 10,000) [22]Very high [18]Medium
Thermal (TES)(14, 18) [50]Not for rapid [44](5, 15) [22](30, 60) [22], <60 [51](0.05, 1) [22](100, 400) [35](3, 130) [52]Low [22]Medium
Table 3. The transformation for linguistic terms.
Table 3. The transformation for linguistic terms.
Linguistic Terms ( h i j , g i j )
Very high, better, very long(0.90, 0.10)
High, good, long(0.75, 0.20)
Medium (0.50, 0.45)
Low, bad, short(0.35, 0.60)
Very low, worse, very short(0.10, 0.90)
Table 4. Demand evaluation information of experts.
Table 4. Demand evaluation information of experts.
ExpertsEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
1(50, 80)Short (10, 30)(40, 70)(1, 8)(100, 1000)(50, 300)Low High
2(55, 75)Very short(15, 25)(10, 100)(0.5, 8)(300, 1000)(200, 450)Very lowHigh
3(48, 80)Very short(12, 30)(20, 80)(0.5, 10)(200, 500)(600, 5000)Very lowVery high
4(60, 80)Medium (15, 30)(15, 50)(0.1, 5)(150, 500)(150, 500)LowHigh
5(70, 80)Medium (10, 40)(25, 120)(0.5, 15)(50, 300)(300, 450)LowMedium
6(40, 85)Short (20, 50)(20, 50)(0.1, 30)(200, 400)(200, 1000)Low High
7(50, 95)Short (15, 50)(12, 80)(0.1, 15)(200, 500)(1000, 10,000)Very lowHigh
8(60, 90)Medium (10, 35)(40, 80)(9, 18)(600, 1000)(150, 800)Medium Medium
9(35, 75)Very short(5, 20)(35, 80)(0.5, 11)(400, 600)(350, 600)MediumHigh
10(65, 80)Short (10, 30)(45, 60)(25, 55)(80, 500)(200, 800)Very lowVery high
Table 5. Decision basic data of Expert 1.
Table 5. Decision basic data of Expert 1.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(65, 75) Medium (30, 60)(0.5, 1.5)(0.0001, 0.0001) (600, 2000)(5, 100)Very high Very high
CAES(41, 75) Long (20, 40)(30, 60) (0.0001, 0.0001) (400, 800) (50, 150)Very highVery high
FES(80, 90)Medium(15, 20) (10, 30)(20,100) (250, 350)(1000, 5000) Very high Very high
Lead–Acid(75, 80)Very short(3, 12) (30, 50)(0.1,0.3) (300, 600)(150, 500)Very high Medium
Li-ion(65, 75)Very short(5, 15)(75, 250)(0.1, 0.3) (1200, 4000)(600, 2500)Low High
Hydrogen(35, 40)Medium(5, 15)(800, 1000)(0.5, 2) (500, 10,000)(2, 15) High Medium
Super-capacitors(85, 98)Short(10, 20)(0.1, 15)(20, 40) (100, 300) (300, 2000) Low Medium
SMES(90, 95) Short (20, 30)(0.5, 5)(10, 15) (200, 300) (1000, 10,000) Very high Medium
Thermal (TES)(14, 18)Long (5, 15)(30, 60) (0.05, 1) (100, 400) (3, 130)Low Medium
Table 6. Initial decision matrix of Expert 1.
Table 6. Initial decision matrix of Expert 1.
TechnologiesEnergy Efficiency (%)Response TimeLifetime (Years)Energy Density (Wh/kg)Self-Discharge Losses (%/Day)Power Capital Cost (USD/kw)Energy Capital Cost (USD/kwh)Environmental DimensionSocial Acceptance
PHS(0.2157|0.6500, 0.7511|0.3500)(0.5000|0.4400, 0.4500|0.5600)(0.3026|0.8100, 0.3948|0.1900)(0.0004|0.9000, 0.9989|0.1000)(0.0000|0.7600, 1.0000|0.2400) (0.0539|0.3900, 0.8203|0.6100)(0.0004|0.7000, 0.9915|0.3000)(0.9000|0.8820, 0.1000|0.1180)(0.9000|0.4300, 0.1000|0.5700)
CAES(0.1360|0.5000, 0.7511|0.5000)(0.7500|0.5140, 0.2000|0.4860)(0.2017|0.5300, 0.5965|0.4700)(0.0229|0.4670, 0.9543|0.5330)(0.0000|0.4600, 1.0000|0.5400) (0.0359|0.7800, 0.9281|0.2200)(0.0043|0.5320, 0.9872|0.4680)(0.9000|0.3050, 0.1000|0.6950)(0.9000|0.6250, 0.1000|0.3750)
FES(0.2655|0.4930, 0.7014|0.5070)(0.5000|0.8400, 0.4500|0.1600)(0.1513|0.5490, 0.7983|0.4510)(0.0076|0.7700, 0.9771|0.2300)(0.1773|0.2360, 0.1137|0.7640)(0.0225|0.4500, 0.9686|0.5500)(0.0851|0.6930, 0.5744|0.3070)(0.9000|0.4400, 0.1000|0.5600)(0.9000|0.5420, 0.1000|0.4580)
Lead–acid(0.2489|0.8000, 0.7346|0.2000)(0.1000|0.7810, 0.9000|0.2190)(0.0303|0.7570, 0.8790|0.2430)(0.0229|0.7110, 0.9619|0.2890)(0.0009|0.7000, 0.9973|0.3000)(0.0270|0.4900, 0.9461|0.5100)(0.0128|0.2390, 0.9574|0.7610)(0.9000|0.2000, 0.1000|0.8000)(0.5000|0.4670, 0.4500|0.5330)
Li-ion(0.2157|0.3200, 0.7511|0.6800)(0.1000|0.5920, 0.9000|0.4080)(0.0504|0.6100, 0.8487|0.3900)(0.0572|0.2400, 0.8095|0.7600)(0.0009|0.4880, 0.9973|0.5120)(0.1078|0.2700, 0.6406|0.7300)(0.0511|0.6000, 0.7872|0.4000)(0.3500|0.5600, 0.6000|0.4400)(0.7500|0.6700, 0.2000|0.3300)
Hydrogen(0.1161|0.4800, 0.8673|0.5200)(0.5000|0.3360, 0.4500|0.6640)(0.0504|0.3900, 0.8487|0.6100)(0.6097|0.3800, 0.2379|0.6200)(0.0044|0.3300, 0.9823|0.6700)(0.0449|0.7200, 0.1016|0.2800)(0.0002|0.5490, 0.9987|0.4510)(0.7500|0.5490, 0.2000|0.4510)(0.5000|0.8700, 0.4500|0.1300)
Super-capacitors(0.2820|0.6600, 0.6748|0.3400)(0.3500|0.2700, 0.6000|0.7300)(0.1009|0.4830, 0.7983|0.5170)(0.0001|0.7400, 0.9999|0.2600)(0.1773|0.5550, 0.6455|0.4450)(0.0090|0.3380, 0.9731|0.6620)(0.0255|0.6820, 0.8298|0.3180)(0.3500|0.8300, 0.6000|0.1700)(0.5000|0.5400, 0.4500|0.4600)
SMES(0.2986|0.7250, 0.6848|0.2750)(0.3500|0.1900, 0.6000|0.8100)(0.2017|0.2160, 0.6974|0.7840)(0.0004|0.5510, 0.9962|0.4490)(0.0886|0.4900, 0.8671|0.5100)(0.0180|0.8600, 0.9731|0.1400)(0.0851|0.5850, 0.1488|0.4150)(0.9000|0.8590, 0.1000|0.1410)(0.5000|0.7340, 0.4500|0.2660)
Thermal (TES)(0.0465|0.2900, 0.9403|0.7100)(0.7500|0.4180, 0.2000|0.5820)(0.0504|0.1500, 0.8487|0.8500)(0.0229|0.4590, 0.9543|0.5410)(0.0004|0.3100, 0.9911|0.6900)(0.0090|0.2590, 0.9641|0.7410)(0.0003|0.7900, 0.9889|0.2100)(0.3500|0.4300, 0.6000|0.5700)(0.5000|0.3700, 0.4500|0.6300)
Table 7. Weights of the evaluation criteria.
Table 7. Weights of the evaluation criteria.
CriteriaEnergy EfficiencyResponse TimeLifetimeEnergy DensityDischarge DurationPower Capital CostEnergy Capital CostEnvironmental DimensionSocial Acceptance
Expert 10.12240.16830.08550.12760.06510.14250.11090.08880.0889
Expert 20.11520.09080.16540.04990.10220.08630.17820.12640.0855
Expert 30.04900.12600.09930.09990.18240.12380.17950.06920.0710
Expert 40.08640.08860.07800.18260.09720.15050.13090.09290.0929
Expert 50.08390.07780.15190.12390.09120.09640.19420.06280.1178
Expert 60.09990.08440.08100.10610.16250.20580.10750.09650.0563
Expert 70.12760.08440.09470.05960.12340.16220.17380.11130.0628
Expert 80.04050.17320.14630.06830.12870.08690.14040.11390.1017
Expert 90.20860.07320.04110.11480.13260.11320.12950.10780.0792
Expert 100.06040.08030.08110.08960.09210.24810.19020.07020.0880
Final weight0.09940.10470.10240.10220.11780.14160.15350.09400.0844
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Qie, X.; Zhang, R.; Hu, Y.; Sun, X.; Chen, X. A Multi-Criteria Decision-Making Approach for Energy Storage Technology Selection Based on Demand. Energies 2021, 14, 6592. https://doi.org/10.3390/en14206592

AMA Style

Qie X, Zhang R, Hu Y, Sun X, Chen X. A Multi-Criteria Decision-Making Approach for Energy Storage Technology Selection Based on Demand. Energies. 2021; 14(20):6592. https://doi.org/10.3390/en14206592

Chicago/Turabian Style

Qie, Xiaotong, Rui Zhang, Yanyong Hu, Xialing Sun, and Xue Chen. 2021. "A Multi-Criteria Decision-Making Approach for Energy Storage Technology Selection Based on Demand" Energies 14, no. 20: 6592. https://doi.org/10.3390/en14206592

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
