Self-Acting Formation of an ANFO Similar Type of Explosive under Fire Conditions: A Case Study

Abstract

On 2 October 2003 in Saint-Romain-en-Jarez (France) a fire in a farm building triggered an explosion in which 26 people were injured. Police investigation, based solely on an analysis of the effects and on general engineering knowledge, showed that the explosion was caused by an uncontrollably generated mixture of ammonium nitrate (AN) and molten plastic crates which formed an explosive mixture similar to ammonium nitrate fuel oil (ANFO). This is the only commonly known example of an ammonium nitrate blast taking place at its end user destination. Is such an explanation of the incident plausible and could a similar blast possibly happen anywhere else? The experimental results support this thesis of French investigators but raise further doubts. Laboratory reconstruction of the self-acting process of generating the explosive material confirmed the investigators’ report. However, other materials at the incident site could have influenced the final outcome too. The lab-recreated explosion of a mixture of AN and molten plastic partially confirmed the report’s thesis.

1. Introduction

Due to the widespread use of ammonium nitrate(V) (AN) as the basic ingredient of fertilizers, there were tests carried out in order to complete a list of substances that may generate explosives in contact with AN under fire conditions. The event in question differs from the ones most frequently described both in scientific literature and in trade journals, as the explosion did not take place within a plant or where large amounts of AN are normally stored, but at the end user’s—in this case a French farmer. However, such an accident could have happened anywhere else. Although the problem is much wider, only this specific event has so far been identified and analyzed in detail.

There were, i.a., a gasoline-powered forklift, agricultural machinery, two 13 kg gas cylinders, 500 kg quicklime, 500 wooden boxes, 6000–7000 plastic boxes and 3–5 tons of AN in 500 kg flexible intermediate bulk containers stored in the barn. Bales of hay and straw were stored on the mezzanine and about 500 kg of apples was kept in the cold storage in the attic. The fire started at 15:00. Firefighters were notified of the fire an hour later, and, upon reaching the scene, they began extinguishing at 16:23. The explosion took place at 17:12, as a result of which 26 people were injured, most of them firefighters. An investigation led by the police experts found that the explosive, which detonated as a result of high temperature of the fire environment, was a mixture of AN with molten polyethylene (PE) or polypropylene (PP) from the fruit crates.

Reactivity of AN is strongly influenced by the presence of other compounds (including impurities) which catalyze decomposition reactions, leading to thermal destabilization [1]. Therefore, understanding interactions of AN with other compounds is essential for the safe storage and handling of materials containing AN. At the stage of production, storage, transport and usage, AN may be contaminated with various compounds such as inorganic acids, organic oils and others. Organic substances with a confirmed significant negative impact on the stability and safety of AN include: dinitrotoluene, nitronaphthalene and similar nitro compounds, ethylenediamine dinitrate, alkylamines and their salts, glycerol esters and aliphatic alcohols. The addition of ammonium chloride (NH₄Cl) and rapid self-ignition of the mixture in contact with metallic zinc (Zn) is a classic example [2]. Research on the influence of a microstructured charcoal additive on the properties of ammonium nitrate fuel oil (ANFO), first proposed by Cornet and Boodberg in 1953, was published in [3,4] and the influence of silicon dioxide in [5]. Polyolefin-waste-derived pyrolysis fuel oils were also used as a substitute and it was checked as to whether they could be used as a fuel component for ANFO [6,7]. Another examined aspect was the influence of AN granulation [8] and porosity [9] on the thermal decomposition of ANFO. However, the influence of many organic compounds on the thermal stability of AN has not been clearly defined so far. Once mixed with numerous substances, nitrates form explosive or self-igniting mixtures [10].

Table 1. Influence of selected ammonium nitrate (AN) additives on the temperature of the mixture’s decomposition initiation.

AN Content (Analytical Grade), Mass%	Additive		Temperature, °C, of Mass Loss of Mass %			Total Mass Loss, Mass %	Temp. at the Beginning of Sample Decomposition, °C
	Name	Content, Mass%	0.0	10.0	50.0		Endothermic	Exothermic
95.2	H2O	4.8	123	230	255	100.0	249	215
80.0	Quicklime	20.0	35	142	-	47.8	100	272

contains substances that have an impact on AN decomposition and that were not taken into consideration within the report, even though they had been stored in the described facility—quicklime in the amount of 500 kg (exact location not specified) and water used by firefighters to extinguish the fire [11].

Obtaining liquid PE and PP from fruit crates is very simple under fire conditions, even if the fire source is located at a considerable distance from the material in question, because the average fire temperature in the developed phase reaches 600 °C [12,13,14], and the thermal radiation from the top layer is able to melt the two substances. Their melting point is, respectively: approx. 130 °C for PE and approx. 160 °C for PP [15].

2. Materials and Methods

In order to verify the thesis of French investigators about the cause of the explosion, there was a series of thermal analyses of AN mixtures carried out on the two most common polymers in this type of packaging—PE and PP [16]. The analysis of the effect of additives on the decomposition process was carried out using a differential scanning calorimeter (DSC) and a thermogravimetric analyzer (TGA), taking into account several parameters such as the composition of the mixture and the heating rate of the samples.

Measurement methodology, very high sensitivity of the apparatus and the risk of its damage during a potential explosion require the use of a small mass of the tested sample [17]—about 5 mg. For this reason, there was a decision made to crush the granular materials present in the sample, thanks to which it was possible to transfer the ratio of their size and geometry from the real scale to the microscale. The materials were mechanically disintegrated in liquid nitrogen atmosphere, thanks to which the heat released as a result of friction did not lead to irreversible changes in their structure [18]. Then, the samples were fractionated using sieves, the 0.29–0.1 mm fraction was dried in a chamber dryer at 28 °C and in negative pressure of 25 kPa for 24 h and then placed in a desiccator under nitrogen atmosphere for another 48 h. Such a process was necessary due to the hygroscopicity of AN; even a slight dampness of the material could significantly affect the obtained results [19].

The components of the mixture for analysis were weighed with an accuracy of ±0.01 mg, and then a sample of 5.00 ± 0.15 mg was placed in an analytical 25 µL aluminum vessel with a lid with a hole of 0.3 mm in diameter. The opening in the upper part of the vessel allowed for the removal of exhaust gases and minimized the pressure increase inside the vessel, thanks to which the obtained results to a greater extent reflected the influence of the temperature alone on the sample decomposition [20]. DSC analysis was performed on a DSC 3500 Sirius NETZSCH apparatus in the range of 25–400 °C under nitrogen atmosphere with a constant flow of 50 mL/min. The sample was heated at a rate of 2 or 10 °C/min in a linear manner. The value of the DSC signal was measured every 0.1 °C.

3. Results

Ammonium nitrate (AN) is a polymorphic substance, which means that in specific temperature ranges it occurs in a specific crystalline form [21]. These are endothermic changes, as are the melting (about 169 °C) and thermal decomposition (about 281 °C) of AN at atmospheric pressure. This means that while the processes in question take place, heat is extracted from the environment [22]. Under high pressure conditions which may occur, for example, during improper storage of AN, the decomposition reaction may be exothermic, i.e., accompanied by the release of heat [23]. In the case of the tested polymers, the observations are quite similar—for pure materials, an endothermic melting process and an exothermic decomposition can be observed. They differ in the temperatures of the process (135 °C for PE and 170 °C for PP) and the course of reaction, but none of them is explosive; in both cases, a gradual and slow release of heat appears. AN decomposes into gaseous products—depending on the reaction conditions it can be nitrogen gas, its oxides, oxygen and water vapor [24]. Gases, being released, lead to an increase in pressure, and if the appropriate conditions are met, a shock wave may arise. To sum up, thermal decomposition of pure AN, PE and PP is constituted of relatively safe reactions if carried out in a controlled manner.

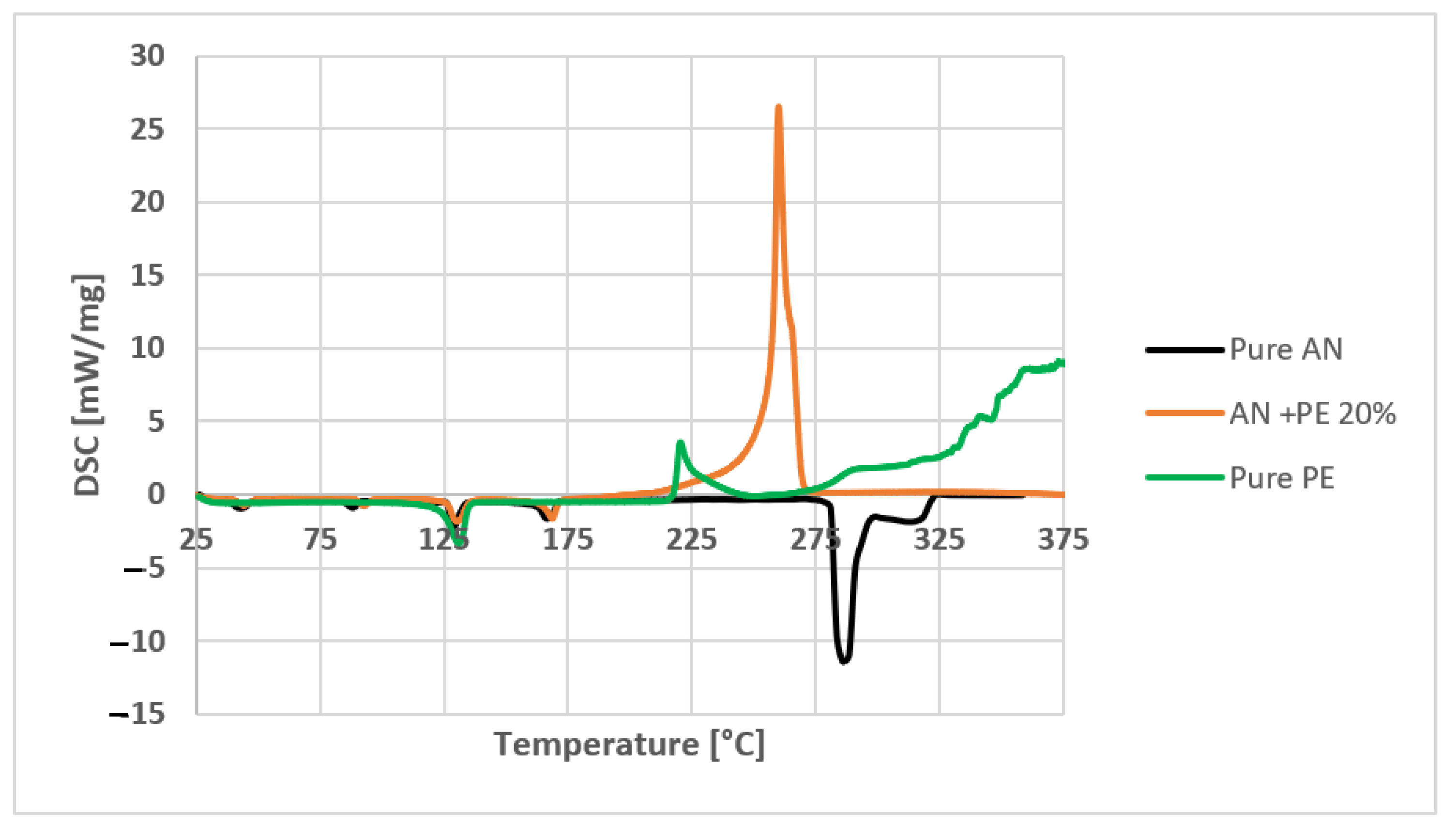

However, the course of the reaction is entirely different when AN is mixed with any of the tested substances, as shown in Figure 1 and Figure 2. The admixture of 20% polymer in both cases results in the formation of high-energy mixtures that decompose in a potentially explosive manner. The decomposition of the mixtures is rapid and accompanied by significant amounts of released heat—1496 J/g for a mixture with PE and 1310 J/g for a mixture with PP. Another significant change which can be observed from the safety point of view is the temperature of the decomposition process initiation. The presence of the polymer results in a significant reduction of the reaction temperature. In the case of PE addition, the decomposition reaction begins at 257 °C and in the case of PP, at 270 °C. By comparison, pure AN decomposes at around 281 °C. Moreover, the results show that decomposition of both mixtures is complete before decomposition of pure AN even begins. Depending on the distance from the heat source and its temperature in real conditions, such a difference may translate into a significant reduction in the amount of time in which actions can be taken to prevent a catastrophe in the event of fire on the site.

In the case of crystallographic changes reaction and melting of AN, no significant changes were observed from the safety point of view. These are still endothermic processes. There are some shifts in reaction temperatures and their enthalpies, but they should not significantly affect the behavior of the mixture in relation to pure AN. The major change can be the formation of local polymer melt structures if the temperature rises above the melting point of the polymer but below that of AN. The presence of such structures can be disadvantageous due to the possibility of frictional heat generation during the transport of the fertilizer.

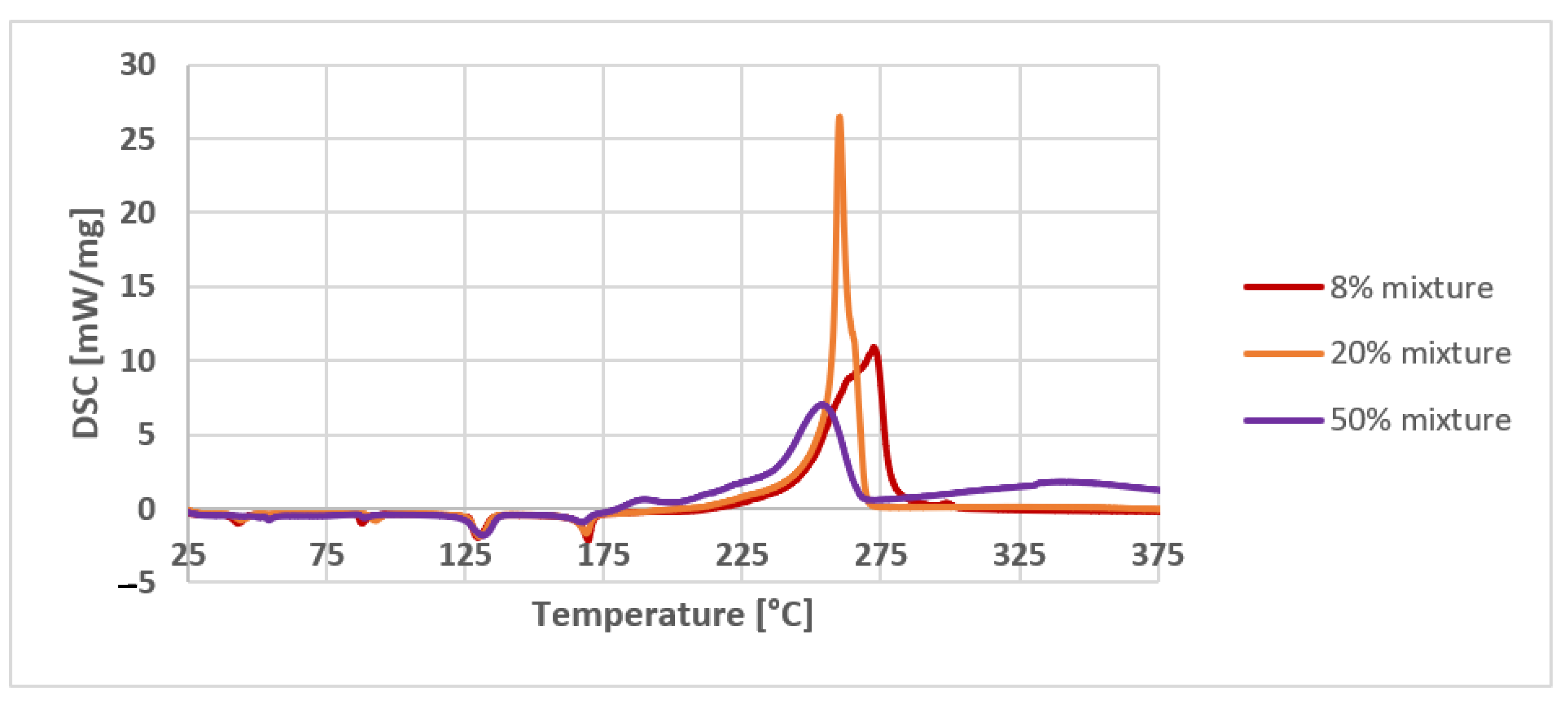

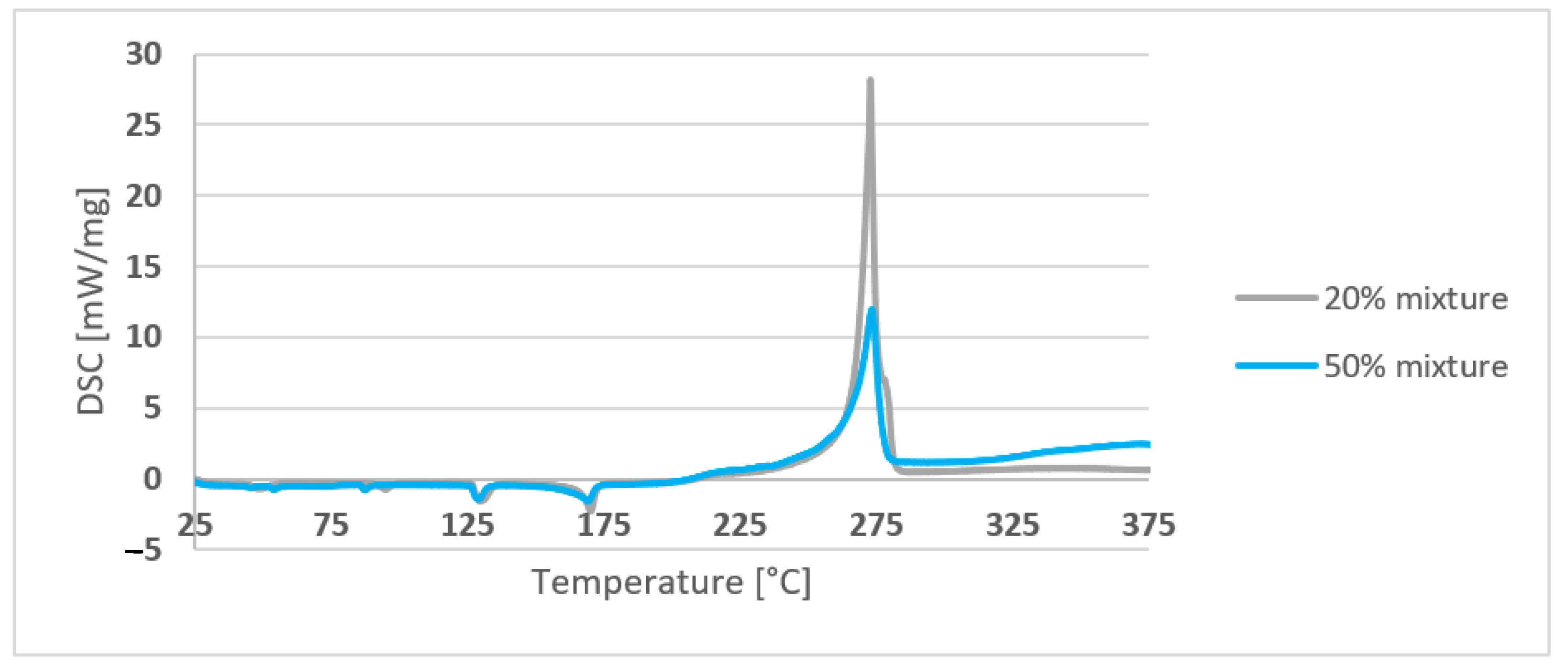

The influence of the amount of polymer on the course of the thermal decomposition of the mixture is different for both tested polymers, as shown in Figure 3 and Figure 4. In both cases the addition of about 20% by mass of polymers turns out to be the most dangerous due to the highest values of released heat; moreover, the process takes place in the most rapid way possible. Increasing the amount of polymer to 50% results in a lower thermal effect in both tested samples. Another difference from the mixture with 20% polymer addition is that after the main decomposition process, further decomposition reactions take place in the sample. This may be explained by the mass of the solid residue which remains after the sample decomposition. In the case of the PE mixture with a higher polymer content, the residue mass constitutes more than 20.7% of the original sample mass, compared to about 9% for the sample with lesser content of polymer.

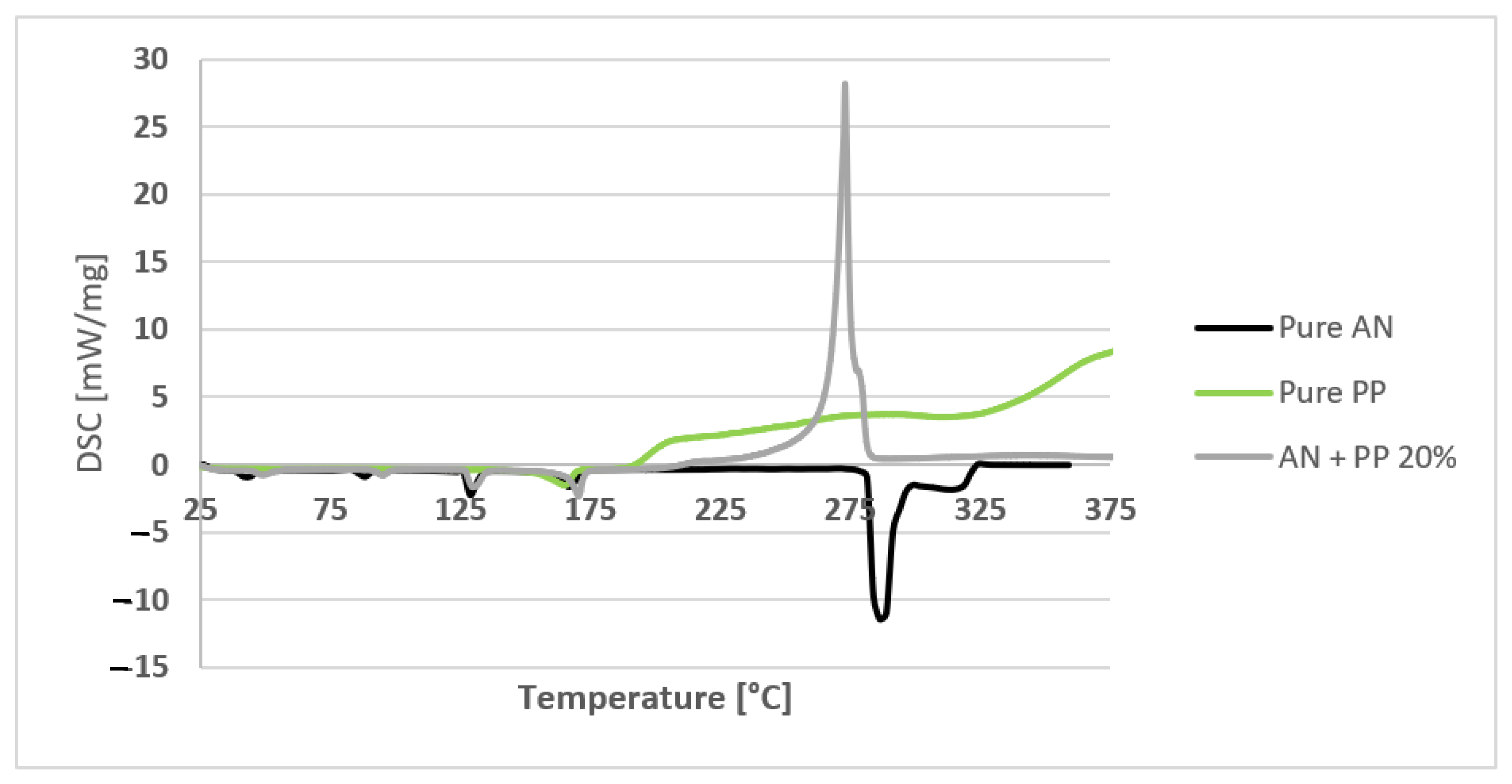

Coming to PP, we do not observe a significant change in the temperature of the decomposition reaction along with the change in the amount of polymer in the sample, which is illustrated in Figure 4. This is different in the case of PE. The addition of 50% of polymer causes an earlier initiation of the reaction at 232.8 °C compared to 257.1 °C. In addition, a melting reaction residue can be observed in the PE mixture, which is not the case in the PP mixture. Furthermore, the enthalpy of PE decomposition reaction has a much lower value—968 J/g compared to 1496 J/g. For PP, this difference constitutes 757 J/g compared to 1310 J/g. In the sample with a PE content of about 8%—which is equivalent to the amount of organic oil in ANFO, a popular explosive [25]—the course of the decomposition reaction initiation is similar to the sample with 20% polymer addition. However, it is not so rapid, because the reaction ends at about 275 °C, compared to 265 °C, and less heat is released during its course. Nevertheless, in all the discussed mixtures, a significant amount of energy is released which, even if it does not initiate an explosion, may lead to the initiation of other processes inside the stored deposit.

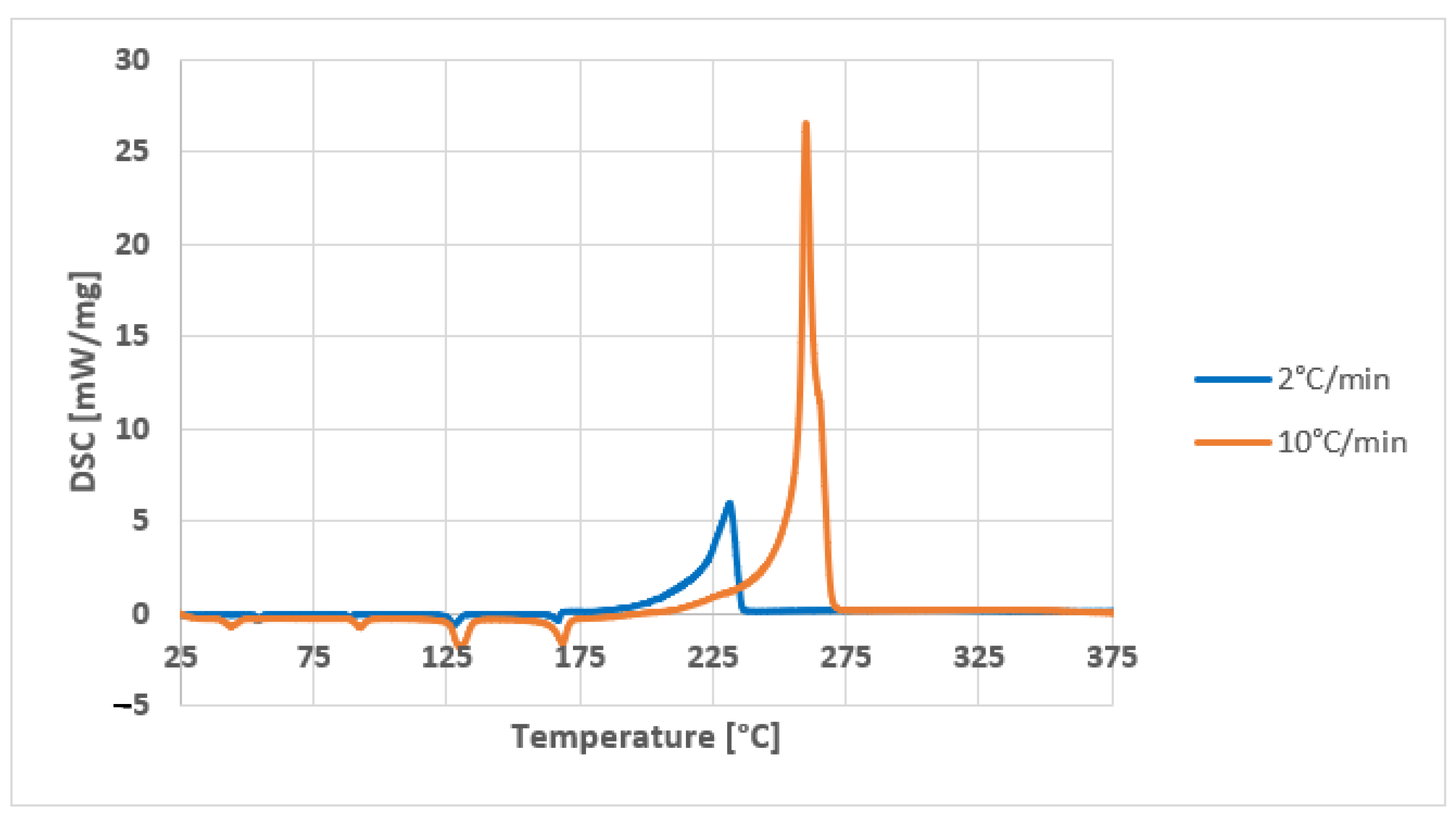

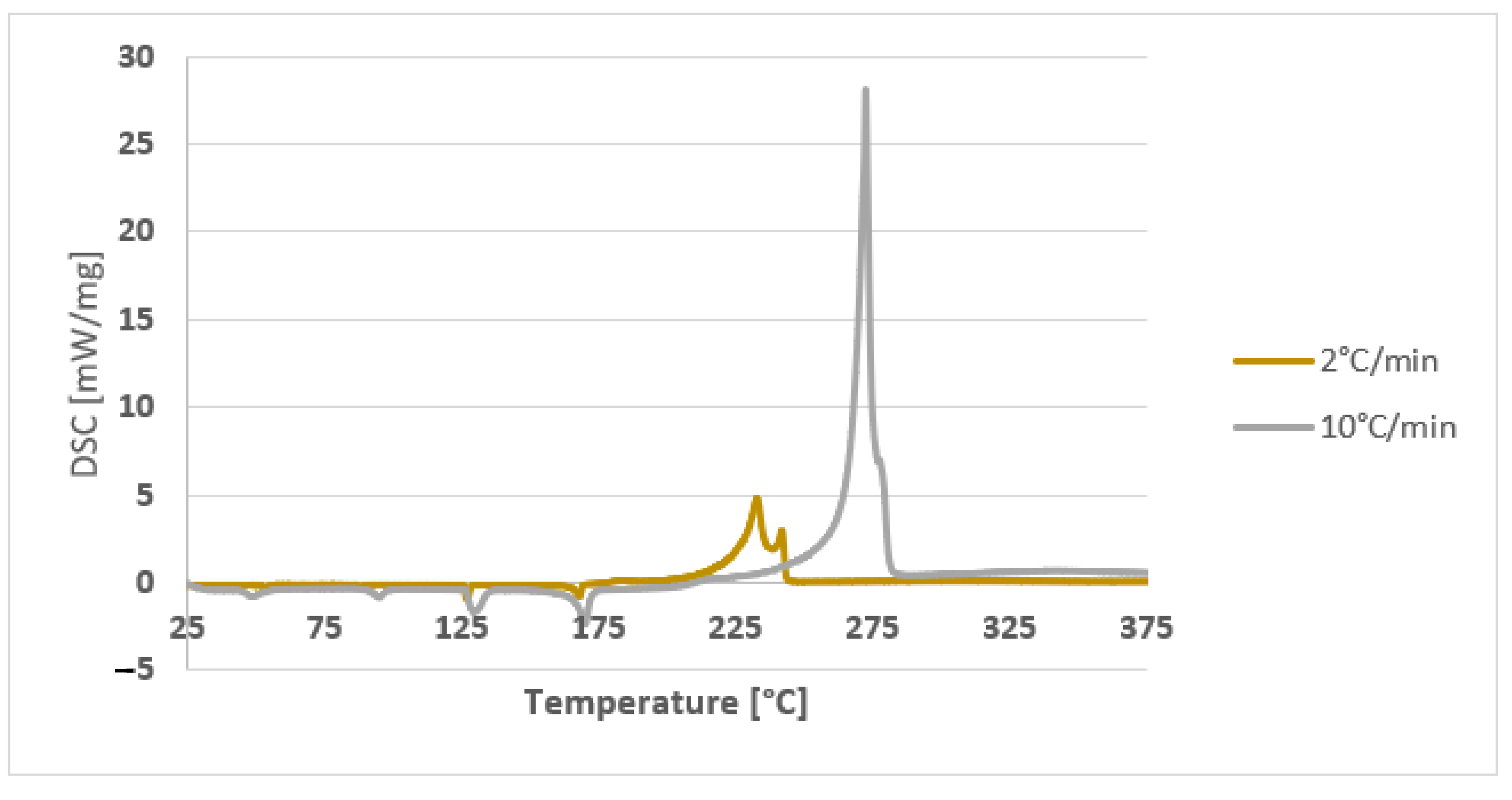

Another case for which the analysis was carried out is the slow heating of the mixture, as shown in Figure 5 and Figure 6. This may occur when the stored material is not in the vicinity of the fire source or when it is located in another room. The results show that reducing the heating rate of the material from 10 to 2 °C/min for mixtures containing 20% of the polymer leads to a significant reduction in the initiation temperature of the decomposition reaction—216.4 °C for PE and 226.4 °C for PP. Similar behavior can also be observed for pure AN (268.3 °C). However, the amount of heat released is significantly lower than in the discussed case, and the reaction itself is not explosive. This does not mean that this is a safe process—the heat released in its course may initiate further processes inside the stored material, which may lead to an explosion.

Laboratory tests using, as samples, mixtures of AN and powdered PE and PP (from the original fruit crates) with different percentage composition show that an explosion can occur regardless of the proportions of both materials. Even a small addition of polymer—which may appear during the transport of the material as a result of NA granules rubbing against the walls of polymer packaging—may, in extreme cases, lead to an explosion. The main difference between substances is the energy released during decomposition and the temperature at which decomposition takes place. Due to the lack of detailed data on the initial amounts of substances which uncontrollably formed an explosive resembling ANFO in its chemical composition, and the inability to determine the amount of substances that reacted, calculation methods were used to reproduce the effects of the explosion recorded at the scene (see

Table 2. Damage extent and types after the explosion ¹.

No.	Type of Damage	Damage Range
1	Lightweight damage (broken glass panes, tile dislocation)	650 m
2	Major damage (cracked walls, chassis degradation)	350 to 580 m
3	Serious damage (structural deterioration, displaced partition walls)	150 m
4	Fragment projections	800 m

¹ Fire inside a barn and explosion of fertilizer, 2 October 2003, Saint Romain-en-Jarez (Loire) France. French Ministry for Sustainable Development—DGPR/SRT/SDRA/BARPI, Aria Report No. 25669.

), presenting several possible variants. The research did not take into account the very probable impurities that could have emerged due to the ammonium nitrate being stored for a long time, as well as the influence of quicklime and water used for extinguishing purposes in the course of the reaction.

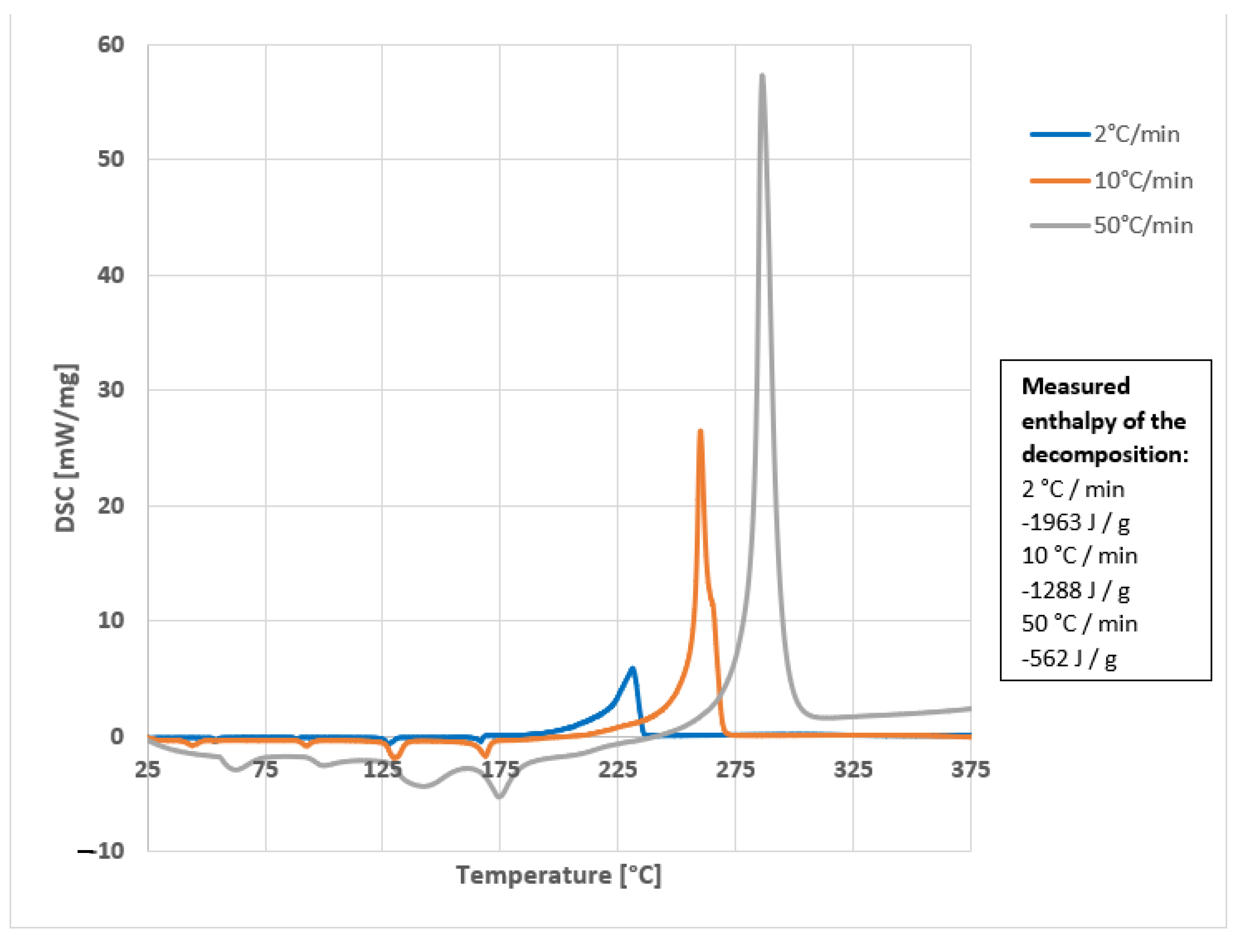

Heat rate influence is shown in the chart (Figure 7).

The enthalpy of reaction can be determined by several different methods. One of the most frequently used is the method based on theoretical calculations. Having knowledge of its mechanism as well as of its chemical and physical course, it is possible to determine the reaction on the basis of balance calculations. The obtained results allow one to receive precise values for the enthalpy of the reaction. This facilitates the modeling of the processes in which this reaction may occur due to the full control of the course of the process in a function, e.g., the degrees of reaction. This method also has a number of disadvantages. One of them is the need to possess detailed practical knowledge about the conditions of the course of the reaction and the influence of factors that may modify it. It is difficult to take into account some additional phenomena which occur in the sample during a practical experiment (e.g., the degree of mixing). For the decomposition reaction in question, such phenomena include polymorphism, and additionally, the geometry of nitrate and polymer particles, the influence of possible impurities and humidity as well as the scattering of a part of the material during an explosion. During the DSC measurement, it is possible to determine the enthalpy of the reaction by measuring the area under the chart for the given peaks. This is due to the equation:

$$\frac{dQ}{dt}=C_p\frac{dT}{dt}+f\left(T,t\right),$$

where:

dQ/dt-differential heat flow rate [W],

C_p-heat capacity [J/K],

dT/dt-heat rate [°C/min],

f(T,t)-kinetic heat flow [W].

This procedure allows accurate measurement of enthalpy under real-world conditions, but it is very sensitive to the value of heat flux supplied to or received from the sample during the DSC measurement. This is due to several phenomena. The most important issue is that the thermal conductivity of the analyzed sample is relatively low. Consequently, there is a difference between the temperature of the surface of the sample and its interior. This difference increases significantly with the value of supplied heat per unit of measurement time. For this reason, a phenomenon called temperature lag or thermal inertial effect occurs, where certain reactions inside the sample take place later than on its surface. Moreover, as the heat flux increases, the reaction time of the test equipment increases. When making a series of measurements, the heat flux of the same value and samples of the same size should be used. Thanks to this, it is possible to compare the thermal effects of the reaction on the basis of a graphical comparison of the area of the peaks.

In the case described in this article, the fact that the analyzed samples are two-component mixtures constitutes an additional difficulty. The components of these mixtures differ from each other in terms of both temperatures and thermal effects of changes, including melting. During the heating procedure we are dealing with a changing mixture of a varied structure—from a mixture of bodies with a crystalline and semi–crystalline structure (polymer), through a semi–liquid mixture to a completely liquid mixture which then decomposes, forming gaseous products. Both thermal parameters, such as thermal conductivity coefficients, and the geometry of the system (air present between the particles of the substance, which is absent in the molten polymer) significantly hinder making a description—based on calculations only—of the phenomenon which would reflect the actual behavior of the material. For this reason, in the conducted research, it was decided to present the practical enthalpy values obtained directly during the DSC measurement.

4. Discussion

The knowledge derived from the research results is intended to help not only the intervention services to plan rescue operations and decide on the time and area from which people at risk of consequences of a potential explosion should be evacuated, but also to prepare and develop social campaigns targeted at the end users—i.e., farm owners—in order to eliminate potential threats. According to the analysis of the available scientific literature, the number of substances that can potentially react with ammonium nitrate is much greater than that which remains in the public consciousness. The conducted laboratory tests are intended to provide the initial research material for the assessment of the time that, under certain conditions, is available to rescuers between a fire and the probable time of unprompted emergence of an explosive in the fire environment. This can improve the safety of rescuers and bystanders in the event of fires in facilities containing components (e.g., soybean oil [26]) that could potentially produce an ANFO-like explosive in an uncontrolled manner. This similarity results not only from the similar chemical structure of the organic substance in the mixture, but also from the similar course of the decomposition reaction. Importantly, it is hard to believe that with a huge number of events, there is only one case of an explosion of this type that has been confirmed. One hundred years of history of the massive use of AN resulted in numerous disastrous events: starting with the Oppau explosion in 1921 [27] and ending with the Beirut explosion in 2020 [28] with many other significant blasts in the meantime, such as the one in a fertilizer production plant in Toulouse, France [29] in 2001.

The incident in the French department of Loire is unusual—for the first time it became known to the public that although trace amounts of AN are stored in farm premises (compared to chemical factories or large warehouses, e.g., in ports), they can cause unnaturally rapid development of fire or, under specific conditions, cause explosions in farm buildings. It turns out that even ordinary plastic apple crates can be a component of a strong explosive. Due to the widespread use of artificial fertilizers based on AN on a global scale, in almost all climate conditions in millions of farms, in the authors’ opinion the explosion in Saint-Romain-en-Jarez has not been the only one that arose as a result of self-acting production of explosive material. During other proceedings, the actual causes of the incident may have gone undetected and their effects may have been attributed to other factors. The conducted laboratory tests did not concern animals directly and did not pose a threat to human health and life.

5. Conclusions

The conducted research showed that the two most popular plastics in combination with ammonium nitrate(V) (AN) or artificial fertilizers based on this substance, under fire conditions, pose a real threat of a significant increase in the fire dynamics or even an explosion. The results of the analyses and considerations about what may be stored in farm buildings led to the decision to undertake further laboratory research. This time, other plastics which are components of building materials have been adopted as agents that can produce an explosive in a mixture with AN. An answer is to be sought as to whether storing such materials in the immediate vicinity of AN is likely to cause analogous, rapid exothermic reactions which may bring about similar effects as those described in this study. If such an event occurs, there may always appear a suspicion of intentional human activity, unless detailed analyses are carried out [30]. It is also worth paying attention to how the reaction is initiated. In the described case, the heating process was a consequence of fire development, but the cause can also be mechanical, e.g., an explosion of a smaller charge or other material as well as strike, light or electric current, or contact with another chemical substance [31]. AN contamination with metal shavings or powdered metal dramatically increases the explosion force [32]. It can also be the result of deliberate action or simply improper storage of the fertilizer in the utility room. Thus, this aspect is also worth a deeper analysis and conduction of appropriate trials, preceded by on-site verification of buildings. The ethical review and approval were waived for this study due to the lack of any effects on humans and animals.
