Abstract

:
It is well known that over the last 60 years the trend of long-lived greenhouse gas emissions have shown a strong acceleration. There is an increasing concern and a mounting opposition by public opinion to continue with the use of fossil energy. Western countries are presently involved in a so-called energy transition with the objective of abandoning fossil energy for renewable sources. In this connection, hydrogen can play a central role. One of the sustainable ways to produce hydrogen is the use of microalgae which possess two important natural catalysts: photosystem II and hydrogenase, used to split water and to combine protons and electrons to generate gaseous hydrogen, respectively. For about 20 years of study on photobiological hydrogen production, our scientific hopes were based on the application of the sulfur protocol, which indisputably represented a very important advancement in the field of hydrogen production biotechnology. However, as reported in this review, there is increasing evidence that this strategy is not economically viable. Therefore, a change of paradigm for the photobiological production of hydrogen based on microalgae seems mandatory. This review points out that an increasing number of microalgal strains other than Chlamydomonas reinhardtii are being tested and are able to produce sustainable amount of hydrogen without nutrient starvation and to fulfill this goal including the application of co-cultures.

1. Introduction

Microalgae are capable of converting light energy into chemical energy. Biofuels such as biodiesel, biohydrogen, and bioethanol can be derived from microalgae [1]. Photosynthesis in microalgae is coupled to the splitting of water and the evolution of oxygen (O2). This process is catalyzed by the membrane-bound multi-protein complex photosystem II (PSII) [2].
It has has been known since 1942, when Gaffron and co-workers noticed that under anaerobic conditions Scenedesmus obliquus cells can transiently produce hydrogen (H2) upon illumination when deprived of oxygen [3]. In microalgae, hydrogenase enzyme catalyzes H2 production in a light-dependent process [4]. Upon illumination, after a dark incubation period, due to light-driven electron transport from ferredoxin to hydrogenase, H2 production is observed. H2 production in microalgae can be divided into direct or indirect processes [5]. A direct process occurs when electrons (e−) from water splitting are transferred via PSII and ferredoxin to hydrogenase. An indirect process occurs when e− are derived from the metabolism of carbohydrates, previously accumulated during the (light) aerobic phase, and then utilized for H2 production via both a photo-fermentation process involving photosystem I (PSI) and in a process in the dark, involving the enzyme pyruvate:ferredoxin oxidoreductase (PFR). In Chlamydomonas reinhardtii (hereafter C. reinhardtii), PFR enzyme catalyzes the reduction of ferredoxin (Fdx) and the transfer of e− to hydrogenase in a similar pathway to that utilized by bacteria (Figure 1) [6]. In C. reinhardtii, up to 92% of the final H2 output comes from the direct photolysis coupled to the water oxidation operated by PSII [7]. Contribution of dark fermentation to the overall H2 output is considered negligible (about 4%) in C. reinhardtii, but it can be significant in other microalgae such as Chlorella, as recently shown [8]. Microalgal hydrogenase enzymes are inactivated by the presence of molecular oxygen, and their expression is induced under anaerobic conditions.
In recent years, energy-related H2 demands have prompted scientists to develop methods that greatly enhance the H2-evolving ability of microalgae. The most promising approach has been the so-called “two-stage process” of photosynthesis (stage 1) and H2 production (stage 2) [9]. In this process, there is a separation of the reactions of oxygen and hydrogen production. This bypasses the sensitivity of the hydrogenase enzyme to oxygen. Under such conditions, it was possible to produce significant volumes of H2 by C. reinhardtii in a sustained process.
Several microalgae species have been studied for H2 production, especially C. reinhardtii, Chlorella vulgaris, and Chlorella pyrenoidosa [10,11,12,13]. Among them, C. reinhardtii is a model microorganism widely recognized as an H2 producer, presenting a hydrogenase with an enzymatic activity 10 to 100 times higher than other species [14]. H2 production requires many optimization steps in order to reach a sustainable process [8,14,15,16,17]. Some of these parameters include choosing a proper microalgae strain and selecting appropriate culture conditions (growth media, light, pH, temperature, chlorophyll concentration) and proper photobioreactor (PBR) designs [18,19,20].
Many works have reported improved H2 production in many microalgal strains by using sulfur, phosphorus, or nitrogen-depleted media [12,21,22,23]. In such culture conditions, microalgae sustain H2 production only for some days since macro/micro-nutrient depletion in the culture compromises cell viability. This is the major drawback in microalgal H2 production processes carried out by nutrient deprivation. Microalgae-based H2 production requires anaerobic conditions due to the sensitivity of hydrogenase to O2 [24]. O2 sensitivity of hydrogenase is a major issue for H2 production; therefore, there are many studies on oxygen suppression in order to improve H2 production yield. Genetic and metabolic engineering of microalgae [25,26], nutrient stresses [27,28], light conditions optimization [29], and elimination of competing pathways for electrons [30] are examples of strategies used to improve H2 evolution in microalgae.
This review provides an overview of the most relevant achievements in the photobiological production of H2 by microalgae, and proposes a change of paradigm for the future research in the field.

2. Genetic Modification

Krishna et al. reported that sustained H2 production is achieved by altering the ratio between PSI and PSII [31]. In this work, a C. reinhardtii C3 mutant with a modified PSI/PSII ratio (0.33) produced H2 with a rate of 3 mL H2/L/d for 42 days. Chen et al. identified a C. reinhardtii mutant strain hpm91 lacking proton gradient regulation 5, with 30-fold H2 production yield compared to wild type (WT) [32]. Characterization of the hpm91 strain revealed an increased reactive-oxygen-species-scavenging capacity. This translates into an enhanced stability of PSII complex and increased H2 production yield. Steinbeck et al. investigated the capacity of C. reinhardtii pgr5 and pgr5 pgrl1 double mutant to produce H2 [33]. The pgr mutants showed four times higher maximal enhanced H2 production rate (7 mL/L/h) than the WT. Pinto et al. studied a Chlamydomonas mutant with reduced rubisco levels, activity, and stability [34]. This mutant was used to reduce carbon fixation by Calvin cycle activity, which is the main competitor for the reducing power required by the hydrogenase. In this work, the rubisco mutant presented 15 times higher H2 production than the WT. Eilenberg et al. studied the in vivo H2 production efficiency of a C. reinhardtii strain Fd-HydA containing ferredoxin fused to HydA. H2 production rate was 4.5 times higher than that of the native HydA in vivo [35]. Torzillo et al. showed that the in vivo H2 production of the C. reinhardtii mutant strain L159I-N230Y was up to 5-fold higher (16 nmoles H2/μgchl/h) than that of C. reinhartii CC 124 [36,37]. Batyrova et al. developed a genetically modified C. reinhardtii strain that activates photosynthesis in a cyclical manner. In this strain, the low O2 production benefits H2 production [38]. In comparison with the WT, this genetically modified strain presented higher H2 production levels. Kosourov et al. showed that a truncated light antenna C. reinhardtii mutant could produce six times more H2 compared to the WT strain [39]. Xu et al. introduced a catalase gene from Synechococcus elongatus PCC7942 and an Escherichia coli pyruvate oxidase gene, both driven by a HSP70A/RBCS2 promoter, into the chloroplast of C. reinhardtii [40]. Under low light, these microalgal cells consumed more O2 than WT, resulting in a lower O2 content and increased H2 production [40]. Kruse et al. used the Chlamydomonas strain Stm6, which has a modified respiratory metabolism and large starch reserves compared with the WT [41]. Chlamydomonas strain Stm6 presented 5–13 times increased H2 production rate (540 mL H2/Lculture) compared to the WT [41]. Later, Volgusheva et al. obtained similar results by using the Chlamydomonas Stm6 mutant [42]. They attained an anaerobic condition much faster in the Stm6 strain than in the WT. This was a result of the higher respiration rate and lower initial O2 production rate. H2 production was four times higher in the Stm6 strain compared to the WT. Oey and co-workers reported the knock-down of the LHCMB 1, 2, and 3 proteins in the C. reinhardtii strain Stm6Glc4 [43]. The produced C. reinhardtii mutant exhibited increased light-to-H2 and biomass conversion efficiencies of 180% and 165%, respectively. Wu et al. introduced a leghemoglobin gene (lba) into chloroplasts of C. reinhardtii. The genetically modified Chlamydomonas with lba gene consumed O2 faster than WT, thus improving H2 production [44]. Noone et al. introduced the clostridial hydrogenase gene into C. reinhardtii that contains insertionally inactivated hydrogenase genes. The presence of the more O2-tolerant clostridial hydrogenase led to more sustained H2 production [45].
Nowadays, the primary current challenge of such a process is the development of an oxygen-resistant hydrogenase. However, other bottlenecks may also be of significant importance, such as the oxygen sensitivity of hydrogenases. In this case, a number of other scientific and engineering issues are very likely to arise. They may include: (1) maximizing photosynthetic light-conversion efficiency (LCE); finding the proper redox potential balance in the organism to facilitate H2 production; (2) preventing the effect of the buildup of high relative H2 partial pressure restricting the process by feedback inhibition; (3) addressing inefficient metabolic processes such as unneeded ATP generation during H2 production in microalgae; (4) examining issues associated with the generation of destructive, active-oxygen species; and (5) minimizing the production of alternative, carbon-containing products that drain usable reducing power from the system. Recently, an increased H2 output was attained by bioengineering photosynthesis [46].
In the following paragraphs, some of the most recent strategies used for sustained photobiological H2 production by microalgae are summarized.

3. O2 Removal

The use of inert gas (such as N2 or Ar) is another type of strategy to remove the O2 in microalgal cultures [47,48]. Alternatively, O2 scavengers can be employed to remove the O2 in order to induce anaerobiosis in the culture. Paramesh and Chandrasekhar screened three O2 scavengers individually in order to improve H2 production in Chlorococcum minutum [49]. In the presence of all three O2 scavengers, efficient H2 generation was found. They found that sodium sulfite was the best one for enhancement of H2 production. Nagy et al. showed that the simultaneous addition of glucose, glucose oxidase, and ascorbate to the C. reinhardtii culture resulted in reduced O2 content in the headspace and tenfold-increased H2 production [30]. Su et al. created an O2-consuming sandwich-like layer by using tannic acid, polydopamine, and laccase, in order to generate anaerobiosis around the Chlorella pyrenoidosa cells [50]. This layer enabled the encapsulated cell to switch from O2 production to H2 production. Márquez-Reyes et al. found that the chemical reducing agent cysteine induced anaerobic H2 production in cultures of Chlamydomonas gloeopara and Scenedesmus obliquus cultures [51]. In the presence of cysteine, H2 production was 5 times higher compared to the sulfur-starvation protocol. Chen and coworkers found that C. reinhardtii produce H2 at a rate of 0.44 μmol H2/h/mgchl per month by using a chemoenzymatic cascade system (CEC). The CEC system contained four components: glucose oxidase, catalase, glucose, and Mg(OH)2. In this CEC, they combined O2 consumption, cell aggregation, and pH maintenance to activate hydrogenase [52]. Nagy et al. showed that the application of an iron-based O2 absorbent (O20TM) in C. reinhardtii cultures, in which the activation of the Calvin–Benson–Bassham cycle in the light was prevented, presented a H2 production yield of 2.58 mL/L/h, to which corresponded a mean LCE (light to H2) of 0.27% [30].

4. Co-Cultures

Another approach to create an anaerobic environment is the addition of living aerobic bacteria to the microalgae cultures (co-culture) [53]. Many works have proven the possibility of increasing H2 production by co-culturing microalgae and bacteria [28,54,55,56,57]. The main advantage of co-culturing microalgae with heterotrophic bacteria is the efficient removal of the O2 from the growth media. Simultaneously, the CO2 released during bacterial fermentation of an organic substrate can support microalgae growth. Moreover, many metabolites can be exchanged between these microorganisms, such as carbon, nitrogen, phosphorous, and sulfur sources, and vitamins [58,59]. The presence of bacteria inside the microalgal culture enhances starch accumulation [60]. Different Chlamydomonas WT co-cultures incubated in sulfur depleted TAP medium employing Pseudomonas sp. or Bradirizhobium japonicum have achieved high H2 production rates (165–170 mL H2/L) [54,60]. Fakhimi et al. evaluated H2 production by C. reinhardtii in co-cultures with different bacteria strains [28]. They found that co-culturing Pseudomonas spp. with Chlamydomonas significantly improved microalgal H2 production. Interestingly, the integration of the photobiological and the fermentative H2 production in Chlamydomonas and Escherichia coli co-cultures resulted in H2 production 60% higher than the sum of the respective monocultures [28]. Chlamydomonas co-cultures with Pseudomonas sp. and Bradyrhizobium japonicum (not H2-producing bacteria) in sulfur-depleted TAP medium improved H2 production by 22.7 times and 32.3 times compared to the pure microalgal cultures, respectively [57]. Furthermore, the production of H2 by C. reinhardtii in nutrient-replete cultures is strongly limited by the O2 release, unless it is performed under very low light irradiance (lower than 20 µmol photons/m2/s), but it may become feasible under higher light irradiance by using different consortia, which allow the maintenance of anaerobiosis conditions, thus creating an opportunity to use full medium and much higher light irradiance, enhancing the H2 output. Finally, it must be pointed out that large-scale production of H2 with Chlamydomonas and other microalgae will be necessarily carried out not with axenic cultures, but rather a microalgae–bacteria consortium, therefore understanding the complex interplay between microalgae H2 producers and bacteria is important for the economic exploitation of an industrial H2 production process.

5. Immobilization

Microalgae immobilization can increase the H2 production yield [61]. The main reason for their higher performance is that such experiments are usually carried out by using a much higher chlorophyll concentration compared to liquid cultures. The process of switching between oxygenic photosynthesis (aerobiosis) and H2 production (anaerobiosis) can be facilitated by using cell immobilization systems [62]. One of the most used materials for microalgae encapsulation is calcium alginate [63]. Immobilization in calcium alginate matrix allows high cell density and protection from mechanical stress and contamination and is easy to scale-up [64]. Immobilization of microalgal cells could increase their LCE [62]. Using Calothrix, Anabaena, and Chlamydomonas cells immobilized on thin calcium alginate films gave an LCE of 2.5% of the photosynthetically active radiation [48,65]. C. reinhardtii immobilized on calcium alginate films in nutrient-depleted cultures (-P,-S) presented a H2 production rate of 12.5 μmol/mgChl/h [66]. Ruiz-Marin et al. proposed immobilization of Chlorella vulgaris and Scenedesmus obliquus cells in calcium alginate for the production of H2 [11]. These microalgae were grown in urban wastewater under sulfur starvation and blue or purple light conditions. The maximum H2 production obtained under red light was 204.8 mL H2/L/d for Scenedesmus obliquus and 39.1 mL H2/L/d for Chlorella vulgaris [11]. Maswanna et al. studied H2 production by Tetraspora sp. CU2551 cells immobilized in a 4% w/v calcium alginate matrix in their recent work. They obtained a maximum H2 production rate of 182 ± 20 nmol/mg of cell dry weight/h [67].
Our group recently tested the capability of immobilized Chlorella vulgaris (BEIJ G-120 strain) cells in a calcium alginate (3%w/v) gel matrix to produce H2 in a direct light-driven process under continuous illumination. Calcium alginate beads were stable, showing minimal cell leakage, and they measured 4.69 ± 0.02 mm in diameter and 54.01 ± 0.03 μL in volume, carrying 145.5 ± 8.9 μg of microalgal cells (biomass dry weight/bead) (Figure 2). Immobilized cells retained their viability for more than 30 days (Figure 3A). Immobilized Chlorella cells were capable of generating H2 without nutrient deprivation with a maximum rate of 162 mL/L (Figure 3B). Anaerobiosis was maintained by the presence of glucose and the high respiration rate of the strain.

6. Hydrogen Production without Nutrient Starvation

The H2 production protocol by Melis and coworkers based on sulfur starvation greatly improved light-driven, algal H2 production, and particularly the possibility for researchers to study the process [68]. However, in the recent years it has become clear that it is not adequate for an industrial development of the process since it requires one to eliminate sulfur residues. Moreover, the severe reduction of PSII activity caused by the sulfur deprivation greatly reduces the H2 production and thus the viability of the process. Awareness of these limits has prompted several workers to eliminate the sulfur deprivation phase by selecting strains with high respiration-to-photosynthesis ratios.
Liu et al. presented a work on H2 production of Chlorella pyrenoidosa using NaHCO3 as a carbon source and N′-(3,4-Dichlorophenyl)-N,N-dimethylurea (DCMU) [69]. In this work, Chlorella pyrenoidosa cells showed an overall H2 production of 93.86 mL/L. In a recent work, Li et al. constructed a transgenic C. reinhardtii strain (amiRNA-D1) with a heat-inducible expression system targeting D1 gene (psbA). After a heat-shock, the transgenic C. reinhardtii strain presented a 73% decrease of psbA gene expression and a 60% increase of H2 content compared to the WT strain [70]. Ben-Zvi et al. explored the in vivo H2 production of HydA–SOD fusion phenotype in C. reinhardtii and found that expression of an active hydrogenase superoxide dismutase fusion protein resulted in sustained H2 production with a rate of 20 mL H2/L/d for 8 days [71]. Hwang et al. showed that the over-expression of the hydrogenase gene in Chlorella vulgaris resulted in H2 production under aerobic conditions with continuous illumination using CO2 as the sole source of carbon [72]. Under 5% O2 and 10% CO2, Chlorella vulgaris strains YSL01 and YSL16 produced 1.9 mL H2/h and 1.2 mL H2/h in 3 and 4 days, respectively. In another of their works, this group studied and compared the photosynthetic activities of C. reinhardtii and Chlorella sorokiniana with different acetate/Cl− ratios [73]. They found that maintaining acetate/Cl− ratios greater than 60–100 led to continuous O2 depletion. Using fermenter effluents, at an acetate/Cl− ratio of 150, Chlorella sorokiniana and C. reinhardtii presented an H2 production rate of 0.25–0.33 mmol/L/min and 0.20–0.38 mmol/L/min, respectively. Kosourov et al. demonstrated sustained H2 production by C. reinhardtii by shifting the culture light conditions from continuous illumination to a set of light pulses interrupted by longer dark phases [29]. In a recent work, Sirawattanamongkol et al. demonstrated that Chlorella sp. strain KLS Sc59 was able to produce up to 750 mL H2/L in the presence of reducing agents such as ethanol and dithionite [74]. H2 production rates in various microalgae strains are summarized in Table 1.
In our recent work, we reported H2 production by Chlorella vulgaris (strain BEIJ G-120) without the use of nutrient deprivation [8]. This Chlorella strain presents two main properties: high respiration rate and high light compensation point. By exploiting these two properties, it was possible to efficiently consume the photosynthetically produced O2, thus maintaining anaerobiosis, even under light conditions. In this work, Chlorella cells presented a maximum H2 production rate of 12 mL/L/h and an average rate of 4.98 mL/L/h. The strain was capable of producing H2 in the dark as well, by fermentation of glucose. The excessive accumulation of byproducts of the fermentation (e.g., acetate, formate, lactate, ethanol) may inhibit H2 production. However, the possibility of also producing H2 in the dark by microalgae is desirable for the development of the process under natural light/dark cycle. On the other hand, some of the byproducts of dark fermentation, such as acetate, can be used as substrate for mixotrophic grown during the following light phase.

7. Theoretical Limit for Biological Hydrogen Production

Only a small fraction of the total solar light radiation (>1,100,000 EJ per year) can potentially be transformed into H2 energy using the process of photosynthesis, according to the following general equation:
2H2O + 8 photons = O2↑+ 4e− + 4H+ = 2H2↑
Step 1 indicates the total incident radiation received at the surface of the culture (100%) (Figure 4). It follows that:
  • Approximately 10% is lost by reflection and scattering (90% of initial remaining).
  • Approximately 55% of radiation is not available to drive photosynthesis since it falls outside of the photosynthetically active radiation (400–700 nm) and thus is not utilized by photosynthetic pigments. As a result, the total amount of available light drops to 41%.
  • About 20.4% of the radiation is lost as heat [82].
  • Assuming as quantum requirement that 8 photons are required to produce 2 mol of H2, and considering that 1 mol of H2 is 286 KJ, and the mean energy for charge separation at PSII and PSI is 173.5 KJ/mol, it follows that the efficiency of the process will be the following: (286 KJ/mol × 2)/(173.5 KJ/mol × 8) × 100 = 41.2%, with a corresponding loss of energy of 59%. Consequently, the theoretical LCE for H2 production, attainable by direct biophotolysis is about 13.4% of incident solar light [83].
  • With a LCE of about 10%, assuming that approximately 20% of the energy can be lost for cell maintenance, it might be possible to produce about 600,000 m3/ha/y of H2 in sunny areas.

8. Chlorophyll Fluorescence Measurements as a Tool for Monitoring Changes of Photochemical Efficiency during the Hydrogen Production Process

Chlorophyll fluorescence is a fast and non-invasive tool for monitoring residual photosynthetic activity during the H2 production process through changes in the maximum quantum yield of PSII (Fv/Fm) and the effective quantum yield (∆F/F′m) [38]. In particular, it has been observed that in C. reinhardtii, at the occurrence of anaerobiosis, the value of ∆F/F′m rapidly declined, and this drop could be ascribed to the state 1 to state 2 transition, controlled by the redox state of plasto-quinone (PQ)-pool [36,84,85,86]. This mechanism regulates the migration of the light-harvesting complex (LHC) from PSII (state 1) to PSI (state 2), and it is induced under high level of PQ-pool reduction and excess of light energy. The start of the H2 production induces a partial oxidation of the photosynthetic electron chains, comprising PQ-pool, with a partial recovery of ∆F/F′m. In C. reinhardtii, migration of LHC can involve up to 80% of the total LHC. The redox potential of the cells represents another important parameter related to the cell physiology under anaerobiosis, as it is the result of a balance between starch degradation, the capacity of PSII to perform photosynthesis, and the ability of cell to dissipate electrons from PQ-pool. Indeed, after establishing anaerobiosis, the value of the redox potential changes from a positive initial value to a very low value (about –550mV in C. reinhardtii). The changes of the values of the redox potential lag behind the changes in the yield and are less rapid that the chlorophyll fluorescence changes. In Figure 5, an example of the typical kinetics of chlorophyll fluorescence yield and redox potential in the different phases of the H2 production process is reported.
Other important information on the changes of the photosynthetic efficiency can be provided by the chlorophyll fluorescence rise kinetics (OJIP curve), strictly reflecting the progressive reduction of the photosynthetic electron transport chain [60,87], which can indicate and quantify the reduction of electrons transport for each step [88]. The most evident change occurs at the J-step level, indicating the reduced transfer of electrons further than QA, measured by VJ parameter, and thus, an accumulation of reduced QA− [88]. An example of the changes of the shape of the OJIP curve during the occurrence of anaerobiosis in C. reinhardtii is reported in Figure 6.
In Chlorella sorokiniana, nutrient starvation conditions reduce photosynthetic activity and induce anaerobiosis and H2 production, indicated by the decrease of both Fv/Fm and ∆F/F′m. Similarly, to what was observed in C. reinhardtii, the maintenance of a residual PSII activity provides electron to hydrogenase enzyme [90]. The same behavior was observed in Chlorella vulgaris without nutrient starvation with a strain able to reach anaerobiosis in complete medium, showing a decline of Fv/Fm and ∆F/F′m within 24 h [8].
In conclusion, the use of fluorescence measurements to monitor changes in photosynthetic activity can help us to better understand the physiological status of microalgae during the H2 production process, making it easier to interfere in the cell metabolism or enhance the production process. Moreover, the application of chlorophyll fluorescence helps in selecting strains more resistant to the stress imposed by anaerobic conditions, and with higher potential H2 output.

9. Photobiological Hydrogen Production in Outdoor Photobioreactors

Until now, H2 production experiments using C. reinhardtii have been carried out mostly under laboratory conditions. Mean LCE in sulfur-deprived laboratory cultures grown in well-mixed PBR has hardly surpassed 1% (light to H2). The necessity to downregulate the PSII activity to the level of the respiration is considered the main reason for such a low efficiency. As a matter of fact, the LCE strongly increased when it was possible to use microalgal strains with high respiration-to-photosynthesis ratio. This was the case of the Chlorella strain G-120, which averaged 3.2%, over the 8-day period [8].
The utilization of solar energy is mandatory for the economical scale-up of the H2 production process. However, under solar light, the light energy received by microalgae cells exceeds their ability of light conversion into valuable biomass. This leads to either energy dissipation as heat or to photodamage and cell death, which strongly reduce the LCE. To reduce the “saturation effect”, a number of PBR designs have been proposed [91]. Torzillo and coworkers reported H2 production of about 21% of that attained under laboratory in an outdoor 50 L tubular PBR using C. reinhardtii under sulfur deprivation (Figure 7) [92]. The PBR consisted of ten glass tubes (2.0 m length and 4.85 cm internal diameter) placed horizontally and connected by polyvinylchloride U-bends (Figure 7). The PBR was placed in a stainless-steel container with temperature-controlled water. A polyvinyl chloride pump allowed the culture to circulate.
The low performance of the culture was explained by the rapid PSII inactivation by the high light irradiation, which during the experiments reached as much as 1850 µmol photons/m2/s in the middle of day. In order to avoid the problem of light saturation, Giannelli and Torzillo, 2012 [79] proposed a 110 L PBR in which the culture tubes were immersed in water with light-scattering silica nanoparticles. The PBR contained 64 glass tubes (length 2.0 m, internal diameter 27.5 mm) arranged on an 8 × 8 square pitch cell and connected by polyvinylchloride U-bends. The PBR was immersed in a rectangular parallelepiped tank made of isotactic polypropylene, except for the opposite square faces, which were made of transparent Plexiglas. The culture was circulated with a peristaltic pump. The light scattering promoted by nanoparticles permitted a homogeneous distribution of light on the surface of the PBR (Figure 8). Solar light was collected by two sun-tracking mirrors, which delivered light to the opposite faces of the reactors through two light ducts (Figure 8c).
The total amount of H2 collected reached 3.5 L, which was almost 2-fold higher than that obtained with the 50 L tubular PBR per unit of volume of reactor. Furthermore, in the scaled-up PBR, the LCE of the process increased from 0.055% in the 50 L horizontal PBR to 0.213% in the 110 L PBR, which was much closer to that attained in the laboratory with sulfur-deprived C. reinhardtii cultures. This still-low efficiency was the result of a number of factors: (i) the necessity to carry out the process according to the two-step protocol (sulfur starvation), which strongly reduces the contribution of PSII; (ii) the need to attain sulfur starvation by culture dilution, which normally yields lower H2 output; and (iii) the longer mixing time of tubular PBRs, which delays reaching H2-saturation levels in the cultures.

10. Optimal Photobioreactor Design for the Hydrogen Production

The experience acquired from experiments with different indoor and outdoor PBRs has provided some guidelines useful for the optimal design of future PBRs for H2 production [93,94]. An in-depth discussion on the influence of the PBR design on the H2 output can be found in a recent book on the subject of H2 production [94].
The development of an economically feasible PBR system is the most important factor for successful H2 production. Closed PBRs (such as flat-panel and tubular) are mandatory for H2 production. Tubular PBRs contain one or more glass tubes arranged in various configurations and orientations. Flat-panel PBRs consist of one or more transparent panels containing the culture, which is circulated between the panels by a pump. Flat-panel PBRs probably meet most of the above-mentioned requirements for H2 production. They present high area-to-volume ratio and good biomass productivity, and shorter mixing time compared to tubular PBRs, which reduces the risk of H2 oversaturation in the reactor. A drawback is the difficulty of controlling the temperature, and the high power consumption for mixing. Although the setup costs of closed PBRs are high, they provide several advantages, such as optimal growth, minimizing the risk of culture contamination, and reduced water and CO2 consumption.
The International Energy Agency established the commercial cost target for H2 production at 0.3 USD/kg. According to James et al., with 10% LCE, the cost could be 2.99 USD per gallon of gasoline equivalent [95]. The authors estimated that by using robust microalgae strains presenting 1.5% LCE, the cost of H2 would be 8.44 USD per gallon of gasoline equivalent. Greater costs for PBR construction are materials, manufacturing, and personnel costs. H2 production prices should be more promising than market prices. Show et al. showed that the costs of fabrication materials and chemical nutrients are the main expenses (84% of the total cost) for PBR development [96]. Recycling metabolic products of PBRs (such as organic acids) and/or considering potentially cheaper nutrient sources are possible ways to reduce the chemical cost of nutrients necessary for microalgal growth [97]. Finally, production cost based on direct bio-photolysis, were estimated to be, 18.45 $/kgH2, for the Netherlands, which is expected to drop significantly in the future (potential cost of 3.10 $/kgH2) [98].

11. Concluding Remarks

This review provides evidence that photobiological H2 production by microalgae and cyanobacteria might be a viable option. The discovery of the sulfur starvation method has allowed maintenance of H2 production for several days, and thus, it has represented an opportunity to study the process beyond scientific curiosity.
Nowadays, however, a substantial change of paradigm in photobiological H2 production is necessary. The opportunity to improve the economic feasibility of the process could come from employing strains which do not need sulfur starvation. These strains feature a high respiration-to-photosynthesis ratio and a higher level of saturation irradiance compared to the C. reinhardtii strains currently available. These characteristics are usually found in microalgal strains with reduced antenna size, which is a very important biotechnological condition to allow penetration of the light deep through the culture layers [99,100,101,102]. Important achievements could be expected from microalgal cultures growing both mixotrophically and heterotrophically in PBRs and fermenter, respectively, in the presence of glucose. A Chlorella strain with such characteristics was recently studied by us under laboratory conditions, but its better H2 performance needs to be proved under solar light in PBRs. Of course, the use of an expensive source such as glucose as a respiratory substrate to maintain anaerobiosis, and thus the functioning of the hydrogenase, halves the efficiency of the process and strongly reduces its sustainability. Therefore, it will be important to consider the potential of much cheaper sources of organic substrates such as wastewater from sugar factories, baker’s yeast, and breweries. The O2 consumption, through respiration of organic substrates, produces H2 with high purity (close to 98%), which strongly reduces the investment cost for H2 purification. The use of molasses, which is very rich in glucose and sucrose, could represent an option.
In conclusion, until a hydrogenase resistant to oxygen is discovered, the selection of strains with higher resistance to oxygen and/or with high respiration-to-photosynthesis ratio represent nowadays the only realistic possibility for the success of photobiological H2 production. This research should proceed in parallel with efforts to engineer organisms with O2-resistant hydrogenases. Success in either direction will lead to expected improvements in technologies to: (1) increase effective conversion efficiency of photosynthesis; (2) reduce or possibly eliminate competing pathways, such as CO2 fixation; (3) increase starch biosynthesis.

Author Contributions

Writing—original draft preparation, E.T., G.T., C.F. and A.M.S.B.; writing—review and editing, E.T. and G.T. All authors have read and agreed to the published version of the manuscript.

Funding

This work received no funds by any research agency.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data that support the findings of this study are available from the corresponding author upon reasonable request.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Moshood, T.D.; Nawanir, G.; Mahmud, F. Microalgae biofuels production: A systematic review on socioeconomic prospects of microalgae biofuels and policy implications. Environ. Chall. 2021, 5, 100207. [Google Scholar] [CrossRef]
  2. Masojídek, J.; Torzillo, G.; Koblízek, M. Photosynthesis in microalgae. In Handbook of Microalgal Culture: Applied Phycology and Biotechnology, 2nd ed.; John Wiley & Sons: Chichester, UK, 2013; pp. 21–36. [Google Scholar]
  3. Gaffron, H.; Rubin, J. Fermentative and photochemical production of hydrogen in algae. J. Gen. Physiol. 1942, 26, 219–240. [Google Scholar] [CrossRef]
  4. Martinez-Burgos, W.J.; de Souza Candeo, E.; Pedroni Medeiros, A.B.; Cesar de Carvalho, J.; Oliveira de Andrade Tanobe, V.; Soccol, C.R.; Sydney, E.B. Hydrogen: Current advances and patented technologies of its renewable production. J. Clean. Prod. 2021, 286, 124970. [Google Scholar] [CrossRef]
  5. Wang, Y.; Yang, H.; Zhang, X.; Han, F.; Tu, W.; Yang, W. Microalgal hydrogen production. Small Methods 2020, 4, 1900514. [Google Scholar] [CrossRef]
  6. Dębowski, M.; Dudek, M.; Zieliński, M.; Nowicka, A.; Kazimierowicz, J. Microalgal hydrogen production in relation to other biomass-based technologies—A review. Energies 2021, 14, 6025. [Google Scholar] [CrossRef]
  7. Kosourov, S.; Nagy, V.; Shevela, D.; Jokel, M.; Messinger, J.; Allahverdiyeva, Y. Water oxidation by photosystem II is the primary source of electron for sustained H2 photoproduction in nutrient-replete green algae. Proc. Natl. Acad. Sci. USA 2020, 117, 29629–29636. [Google Scholar] [CrossRef] [PubMed]
  8. Touloupakis, E.; Faraloni, C.; Silva Benavides, A.M.; Masojídek, J.; Torzillo, G. Sustained photobiological hydrogen production by Chlorella vulgaris without nutrient starvation. Int. J. Hydrog. Energy 2021, 46, 3684–3694. [Google Scholar] [CrossRef]
  9. Melis, A. Photosynthetic H2 metabolism in Chlamydomonas reinhardtii (unicellular green algae). Planta 2007, 226, 1075–1086. [Google Scholar] [CrossRef]
  10. Liu, J.Z.; Ge, Y.M.; Sun, J.Y.; Chen, P.; Addy, M.; Huo, S.H.; Li, K.; Cheng, P.F.; Ruan, R. Exogenic glucose as an electron donor for algal hydrogenases to promote hydrogen photoproduction by Chlorella pyrenoidosa. Bioresour. Technol. 2019, 289, 121762. [Google Scholar] [CrossRef] [PubMed]
  11. Ruiz-Marin, A.; Canedo-López, Y.; Chávez-Fuentes, P. Biohydrogen production by Chlorella vulgaris and Scenedesmus obliquus immobilized cultivated in artificial wastewater under different light quality. AMB Express 2020, 10, 191. [Google Scholar] [CrossRef]
  12. Li, L.; Litao, Z.; Jianguo, L. Proteomic analysis of hydrogen production in Chlorella pyrenoidosa under nitrogen deprivation. Algal. Res. 2021, 53, 102143. [Google Scholar] [CrossRef]
  13. Grechanik, V.; Naidov, I.; Bolshakov, M.; Tsygankov, A. Photoautotrophic hydrogen production by nitrogen-deprived Chlamydomonas reinhardtii cultures. Int. J. Hydrog. Energy 2021, 46, 3565–3575. [Google Scholar] [CrossRef]
  14. Amaro, H.M.; Esquível, M.G.; Pinto, T.S.; Malcata, F.X. Hydrogen Production by Microalgae. In Natural and Artificial Photosynthesis: Solar Power as an Energy Source, 1st ed.; Razeghifard, R., Ed.; John Wiley and Sons, Inc.: Hoboken, NJ, USA, 2013; pp. 231–241. [Google Scholar]
  15. Oliveira, F.; Araujo, A.P.C.; Romao, B.B.; Cardoso, V.L.; Ferreira, J.S.; Batista, F.R.X. Hydrogen photo-production using Chlorella sp. through sulfur-deprived and hybrid system strategy. Chem. Eng. Trans. 2015, 43, 301–306. [Google Scholar]
  16. Jimenez-Llanos, J.; Ramirez-Carmona, M.; Rendon-Castrillon, L.; Ocampo-Lopez, C. Sustainable biohydrogen production by Chlorella sp. microalgae: A review. Int. J. Hydrog. Energy 2020, 45, 8310–8328. [Google Scholar] [CrossRef]
  17. Nagarajan, D.; Dong, C.D.; Chen, C.Y.; Lee, D.J.; Chang, J.S. Biohydrogen production from microalgae-Major bottlenecks and future research perspectives. Biotechnol. J. 2021, 16, e2000124. [Google Scholar] [CrossRef] [PubMed]
  18. Pongpadung, P.; Liu, J.; Yokthongwattana, K.; Techapinyawat, S.; Juntawong, N. Screening for hydrogen producing strains of green microalgae in phosphorus or sulfur deprived medium under nitrogen limitation. Sci. Asia 2015, 41, 97. [Google Scholar] [CrossRef] [Green Version]
  19. Rashid, N.; Lee, K.; Han, J.I.; Gross, M. Hydrogen production by immobilized Chlorella vulgaris: Optimizing pH, carbon source and light. Bioproc. Biosyst. Eng. 2013, 36, 867–872. [Google Scholar] [CrossRef]
  20. Alalayah, W.M.; Alhamed, Y.A.; Al-Zahrani, A.; Edris, G. Influence of culture parameters on biological hydrogen production using green algae Chlorella vulgaris. Rev. Chim. 2015, 66, 788–791. [Google Scholar]
  21. Melis, A. Green alga hydrogen production: Progress, challenges and prospects. Int. J. Hydrog. Energy 2002, 27, 1217–1228. [Google Scholar] [CrossRef]
  22. Tsygankov, A.A.; Kosourov, S.N.; Tolstygina, I.V.; Ghirardi, M.L.; Seibert, M. Hydrogen production by sulfur-deprived Chlamydomonas reinhardtii under photoautotrophic conditions. Int. J. Hydrog. Energy 2006, 31, 1574–1584. [Google Scholar] [CrossRef]
  23. Batyrova, K.; Gavrisheva, A.; Ivanova, E.; Liu, J.G.; Tsygankov, A. Sustainable hydrogen photoproduction by phosphorus-deprived marine green microalgae Chlorella sp. Int. J. Mol. Sci. 2015, 16, 2705–2716. [Google Scholar] [CrossRef]
  24. Rashid, N.; Lee, K.; Mahmood, Q. Bio-hydrogen production by Chlorella vulgaris under diverse photoperiods. Bioresour. Technol. 2011, 102, 2101–2104. [Google Scholar] [CrossRef]
  25. Khetkorn, W.; Rastogi, R.P.; Incharoensakdi, A.; Lindblad, P.; Madamwar, D.; Pandey, A.; Larroche, C. Microalgal hydrogen production—A review. Bioresour. Technol. 2017, 243, 1194–1206. [Google Scholar] [CrossRef]
  26. Kosourov, S.; Böhm, M.; Senger, M.; Berggren, G.; Stensjö, K.; Mamedov, F.; Lindblad, P.; Allahverdiyeva, Y. Photosynthetic hydrogen production: Novel protocols, promising engineering approaches and application of semi-synthetic hydrogenases. Physiol. Plant 2021, in press. [Google Scholar] [CrossRef] [PubMed]
  27. Gonzalez-Ballester, D.; Jurado-Oller, J.L.; Fernandez, E. Relevance of nutrient media composition for hydrogen production in Chlamydomonas. Photosynth. Res. 2015, 125, 395–406. [Google Scholar] [CrossRef]
  28. Fakhimi, N.; Dubini, A.; Tavakoli, O.; González-Ballester, D. Acetic acid is key for synergetic hydrogen production in Chlamydomonas-bacteria co-cultures. Bioresour. Technol. 2019, 289, 121648. [Google Scholar] [CrossRef] [PubMed]
  29. Kosourov, S.; Jokel, M.; Aro, E.M.; Allahverdiyeva, Y. A new approach for sustained and efficient H2 photoproduction by: Chlamydomonas reinhardtii. Energy Environ. Sci. 2018, 11, 1431–1436. [Google Scholar] [CrossRef] [Green Version]
  30. Nagy, V.; Podmaniczki, A.; Vidal-Meireles, A.; Tengölics, R.; Kovács, L.; Rákhely, G.; Scoma, A.; Tóth, S.Z. Water-splitting-based, sustainable and efficient H2 production in green algae as achieved by substrate limitation of the Calvin–Benson–Bassham cycle. Biotechnol. Biofuels 2018, 11, 69. [Google Scholar] [CrossRef]
  31. Krishna, P.S.; Styring, S.; Mamedov, F. Photosystem ratio imbalance promotes direct sustainable H2 production in Chlamydomonas reinhardtii. Green Chem. 2019, 21, 4683–4690. [Google Scholar] [CrossRef] [Green Version]
  32. Chen, M.; Zhang, J.; Zhao, L.; Xing, J.; Peng, L.; Kuang, T.; Rochaix, J.D.; Huang, F. Loss of algal Proton Gradient Regulation 5 increases reactive oxygen species scavenging and H2 evolution. J. Integr. Plant Biol. 2016, 58, 943–946. [Google Scholar] [CrossRef] [Green Version]
  33. Steinbeck, J.; Nikolova, D.; Weingarten, R.; Johnson, X.; Richaud, P.; Peltier, G.; Hermann, M.; Magneschi, L.; Hippler, M. Deletion of proton gradient regulation 5 (PGR5) and PGR5-Like 1 (PGRL1) proteins promote sustainable light-driven hydrogen production in Chlamydomonas reinhardtii due to increased PSII activity under sulfur deprivation. Front. Plant Sci. 2015, 6, 1–11. [Google Scholar] [CrossRef] [Green Version]
  34. Pinto, T.S.; Malcata, F.X.; Arrabaça, J.D.; Silva, J.M.; Spreitzer, R.J.; Esquivel, M.G. Rubisco mutants of Chlamydomonas reinhardtii enhance photosynthetic hydrogen production. Appl. Microbiol. Biotechnol. 2013, 97, 5635–5643. [Google Scholar] [CrossRef]
  35. Eilenberg, H.; Weiner, I.; Ben-Zvi, O.; Pundak, C.; Marmari, A.; Liran, O.; Wecker, M.S.; Milrad, Y.; Yacoby, I. The dual effect of a ferredoxin-hydrogenase fusion protein in vivo: Successful divergence of the photosynthetic electron flux towards hydrogen production and elevated oxygen tolerance. Biotechnol. Biofuels 2016, 9, 182. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  36. Torzillo, G.; Scoma, A.; Faraloni, C.; Ena, A.; Johanningmeier, U. Increased hydrogen photoproduction by means of a sulfur-deprived Chlamydomonas reinhardtii D1 protein mutant. Int. J. Hydrog. Energy 2009, 34, 4529–4536. [Google Scholar] [CrossRef]
  37. Scoma, A.; Krawietz, D.; Faraloni, C.; Giannelli, L.; Happe, T.; Torzillo, G. Sustained H2 production in a Chlamydomonas reinhardtii D1 protein mutant. J. Biotechnol. 2012, 157, 613–619. [Google Scholar] [CrossRef]
  38. Batyrova, K.; Hallenbeck, P.C. Hydrogen Production by a Chlamydomonas reinhardtii strain with inducible expression of photosystem II. Int. J. Mol. Sci. 2017, 18, 647. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  39. Kosourov, S.N.; Ghirardi, M.L.; Seibert, M. A truncated antenna mutant of Chlamydomonas reinhardtii can produce more hydrogen than the parental strain. Int. J. Hydrog. Energy 2011, 36, 2044–2048. [Google Scholar] [CrossRef]
  40. Xu, F.Q.; Ma, W.M.; Zhu, X.G. Introducing pyruvate oxidase into the chloroplast of Chlamydomonas reinhardtii increases oxygen consumption and promotes hydrogen production. Int. J. Hydrog. Energy 2011, 36, 10648. [Google Scholar] [CrossRef]
  41. Kruse, O.; Rupprecht, J.; Bader, K.P.; Thomas-Hall, S.; Schenk, P.M.; Finazzi, G.; Hankamer, B. Improved photobiological H2 production in engineered green algal cells. J. Biol. Chem. 2005, 280, 34170–34177. [Google Scholar] [CrossRef] [Green Version]
  42. Volgusheva, A.; Styring, S.; Mamedov, F. Increased photosystem II stability promotes H2 production in sulfur-deprived Chlamydomonas reinhardtii. Proc. Natl. Acad. Sci. USA 2013, 110, 7223. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  43. Oey, M.; Ross, I.L.; Stephens, E.; Steinbeck, J.; Wolf, J.; Radzun, K.A.; Kugler, J.; Ringsmuth, A.K.; Kruse, O.; Hankamer, B. RNAi knock-down of LHCBM1, 2 and 3 increases photosynthetic H2 production efficiency of the green alga Chlamydomonas reinhardtii. PLoS ONE 2013, 8, e61375. [Google Scholar] [CrossRef]
  44. Wu, S.X.; Yan, G.Y.; Xu, L.L.; Wang, Q.X.; Liu, X.L. Improvement of hydrogen production with expression of lba gene in chloroplast of Chlamydomonas reinhardtii. Int. J. Hydrog. Energy 2010, 35, 13419. [Google Scholar] [CrossRef]
  45. Noone, S.; Ratcliff, K.; Davis, R.; Subramanian, V.; Meuser, J.; Posewitz, M.C.; Ghirardi, M.L. Expression of a clostridial [FeFe]-hydrogenase in Chlamydomonas reinhardtii prolongs photo-production of hydrogen from water splitting. Algal. Res. 2017, 22, 116–121. [Google Scholar] [CrossRef] [Green Version]
  46. Kanygin, A.; Milrad, Y.; Thummala, C.; Reischneider, K.; Baker, P.; Pini, M.; Jacoby, I.; Redding, K.E. Rewriting photosynthesis, I-hydrogenase chimera that makes H2 in vivo. Energy Environ. Sci. 2020, 13, 2903. [Google Scholar] [CrossRef]
  47. Touloupakis, E.; Silva Benavides, A.M.; Cicchi, N.; Torzillo, G. Growth and hydrogen production of outdoor cultures of Synechocystis PCC 6803. Algal. Res. 2016, 16, 78–85. [Google Scholar] [CrossRef]
  48. Kosourov, S.; Murukesan, G.; Seibert, M.; Allahverdiyeva, Y. Evaluation of light energy to H2 energy conversion efficiency in thin films of cyanobacteria and green alga under photoautotrophic conditions. Algal. Res. 2017, 28, 253–263. [Google Scholar] [CrossRef]
  49. Paramesh, K.; Chandrasekhar, T. Improvement of photobiological hydrogen production in Chlorococcum minutum using various oxygen scavengers. Int. J. Hydrog. Energy 2020, 45, 7641–7646. [Google Scholar] [CrossRef]
  50. Su, D.; Qi, J.; Liu, X.; Wang, L.; Zhang, H.; Xie, H.; Huang, X. Enzyme-modulated anaerobic encapsulation of Chlorella cells allows switching from O2 to H2 production. Angew. Chem. Int. Ed. Engl. 2019, 58, 3992–3995. [Google Scholar] [CrossRef] [PubMed]
  51. Márquez-Reyes, L.A.; Sánchez-Saavedra, M.P.; Valdez-Vazquez, I. Improvement of hydrogen production by reduction of the photosynthetic oxygen in microalgae cultures of Chlamydomonas gloeopara and Scenedesmus obliquus. Int. J. Hydrog. Energy 2015, 40, 7291–7300. [Google Scholar] [CrossRef]
  52. Chen, J.; Li, J.; Li, Q.; Wang, S.; Wang, L.; Liu, H.; Fan, C. Engineering a chemoenzymatic cascade for sustainable photobiological hydrogen production with green algae. Energy Environ. Sci. 2020, 13, 2064. [Google Scholar] [CrossRef]
  53. Scognamiglio, V.; Giardi, M.T.; Zappi, D.; Touloupakis, E.; Antonacci, A. Photoautotrophs–bacteria co-cultures: Advances, challenges and applications. Materials 2021, 14, 3027. [Google Scholar] [CrossRef] [PubMed]
  54. Ban, S.; Lin, W.; Wu, F.; Luo, J. Algal-bacterial cooperation improves algal photolysis-mediated hydrogen production. Bioresour. Technol. 2018, 251, 350–357. [Google Scholar] [CrossRef] [PubMed]
  55. He, J.; Xi, L.; Sun, X.; Ge, B.; Liu, D.; Han, Z.; Pu, X.; Huang, F. Enhanced hydrogen production through co-cultivation of Chlamydomonas reinhardtii CC-503 and a facultative autotrophic sulfide-oxidizing bacterium under sulfurated conditions. Int. J. Hydrog. Energy 2018, 43, 15005–15013. [Google Scholar] [CrossRef]
  56. Fakhimi, N.; Tavakoli, O.; Marashi, S.-A.; Moghimi, H.; Mehrnia, M.R.; Dubini, A.; González-Ballester, D. Acetic acid uptake rate controls H2 production in Chlamydomonas-bacteria co-cultures. Algal. Res. 2019, 42, 101605. [Google Scholar] [CrossRef]
  57. Fakhimi, N.; Gonzalez-Ballester, D.; Fernández, E.; Galván, A.; Dubini, A. Algae-bacteria consortia as a strategy to enhance H2 production. Cells 2020, 9, 1353. [Google Scholar] [CrossRef]
  58. Hom, E.; Aiyar, P.; Schaeme, D.; Mittag, M.; Sasso, S. A chemical perspective on microalgal-microbial interactions. Trends Plant Sci. 2015, 20, 689–693. [Google Scholar] [CrossRef] [PubMed]
  59. Fuentes, J.L.; Nores, I.G.; Cuaresma, M.; Montero, Z.; Del Valle, M.G.; Vílchez, C. Impact of microalgae-bacteria interactions on the production of algal biomass and associated compounds. Mar. Drugs 2016, 14, 100. [Google Scholar] [CrossRef] [Green Version]
  60. Xu, L.; Li, D.; Wang, Q.; Wu, S. Improved hydrogen production and biomass through the co-cultivation of Chlamydomonas reinhardtii and Bradyrhizobium japonicum. Int. J. Hydrog. Energy 2016, 41, 9276–9283. [Google Scholar] [CrossRef] [Green Version]
  61. Khosravitabar, F. Microalgal biohydrogen photoproduction: Scaling up challenges and the ways forward. J. Appl. Phycol. 2020, 32, 277–289. [Google Scholar] [CrossRef]
  62. Kosourov, S.N.; He, M.; Allahverdiyeva, Y.; Seibert, M. Immobilization of microalgae as a tool for efficient light utilization in H2 production and other biotechnology applications. In Microalgal Hydrogen Production; Royal Society of Chemistry: London, UK, 2018; pp. 355–384. [Google Scholar]
  63. Touloupakis, E.; Rontogiannis, G.; Silva Benavides, A.M.; Cicchi, B.; Ghanotakis, D.F.; Torzillo, G. Hydrogen production by immobilized Synechocystis sp. PCC 6803. Int. J. Hydrog. Energy 2016, 41, 15181–15186. [Google Scholar] [CrossRef]
  64. Tsygankov, A.; Kosourov, S. Microbial BioEnergy: Hydrogen production, advances in photosynthesis and respiration. In Immobilization of Photosynthetic Microorganisms for Efficient Hydrogen Production; Zannoni, D., De Philippis, R., Eds.; Springer Science & Business Media: Dordrecht, The Netherlands, 2014; pp. 321–347. [Google Scholar]
  65. Laurinavichene, T.V.; Fedorov, A.S.; Ghirardi, M.L.; Seibert, M.; Tsygankov, A.A. Demonstration of sustained hydrogen photoproduction by immobilized, sulfur-deprived Chlamydomonas reinhardtii cells. Int. J. Hydrog. Energy 2006, 31, 659–667. [Google Scholar] [CrossRef]
  66. Kosourov, S.N.; Seibert, M. Hydrogen photoproduction by nutrient-deprived Chlamydomonas reinhardtii cells immobilized within thin alginate films under aerobic and anaerobic conditions. Biotechnol. Bioeng. 2009, 102, 50–58. [Google Scholar] [CrossRef] [PubMed]
  67. Maswanna, T.; Lindblad, P.; Maneeruttanarungroj, C. Improved biohydrogen production by immobilized cells of the green alga Tetraspora sp. CU2551 incubated under aerobic condition. J. Appl. Phycol. 2020, 32, 2937–2945. [Google Scholar] [CrossRef]
  68. Melis, A.; Zhang, L.; Forestier, M.; Ghirardi, M.L.; Seibert, M. Sustained photobiological hydrogen gas production upon reversible inactivation of oxygen evolution in the green alga Chlamydomonas reinhardtii. Plant Physiol. 2000, 122, 127–136. [Google Scholar] [CrossRef] [Green Version]
  69. Liu, J.-Z.; Ge, Y.-M.; Xia, S.-Y.; Sun, J.-Y.; Mu, J. Photoautotrophic hydrogen production by Chlorella pyrenoidosa without sulfur deprivation. Int. J. Hydrog. Energy 2016, 41, 8427–8432. [Google Scholar] [CrossRef]
  70. Li, H.; Liu, Y.; Wang, Y.; Chen, M.; Zhuang, X.; Wang, C.; Wang, J.; Hu, Z. Improved photobio-H2 production regulated by artificial miRNA targeting psbA in green microalga Chlamydomonas reinhardtii. Biotechnol. Biofuels 2018, 11, 36. [Google Scholar] [CrossRef] [Green Version]
  71. Ben-Zvi, O.; Dafni, E.; Feldman, Y.; Yacoby, I. Re-routing photosynthetic energy for continuous hydrogen production in vivo. Biotechnol. Biofuels 2019, 12, 266. [Google Scholar] [CrossRef]
  72. Hwang, J.H.; Kim, H.C.; Choi, J.A.; Abou-Shanab, R.A.; Dempsey, B.A.; Regan, J.M.; Kim, J.R.; Song, H.; Nam, I.H.; Kim, S.N.; et al. Photoautotrophic hydrogen production by eukaryotic microalgae under aerobic conditions. Nat. Commun. 2014, 5, 3234. [Google Scholar] [CrossRef] [Green Version]
  73. Hwang, J.-H.; Lee, M.; Kang, E.H.; Lee, W.H. Renewable algal photo H2 production without S control using acetate enriched fermenter effluents. Int. J. Hydrog. Energy 2021, 46, 1740–1751. [Google Scholar] [CrossRef]
  74. Sirawattanamongkol, T.; Maswanna, T.; Maneeruttanarungroj, C. A newly isolated green alga Chlorella sp. KLSc59: Potential for biohydrogen production. J. Appl. Phycol. 2020, 32, 2927–2936. [Google Scholar] [CrossRef]
  75. Duangjan, K.; Nakkhuntho, W.; Pekkoh, J.; Pumas, C. Comparision of hydrogen production in microalgae under autotrophic mixotrophic media. Bot. Lith. 2017, 23, 169–177. [Google Scholar]
  76. Zhang, L.; He, M.; Liu, J.; Li, L. Role of the mitochondrial alternative oxidase pathway in hydrogen photoproduction in Chlorella protothecoides. Planta 2015, 241, 1005–1014. [Google Scholar] [CrossRef]
  77. Shetty, P.; Boboescu, I.Z.; Pap, B.; Wirth, R.; Kovacs, K.L.; Bíro, T.; Futo, Z.; White, R.A.; Maroti, G. Exploitation of algal-bacterial consortia in combined biohydrogen generation and wastewater treatment. Front. Energy Res. 2019, 7. [Google Scholar] [CrossRef]
  78. Chader, S.; Hacene, H.; Agathos, S.N. Study of hydrogen production by three strains of Chlorella isolated from the soil in the Algerian Sahara. Int. J. Hydrog. Energy 2009, 34, 4941–4946. [Google Scholar] [CrossRef]
  79. Giannelli, L.; Torzillo, G. Hydrogen production with the microalga Chlamydomonas reinhardtii grown in a compact tubular photobioreactor immersed in a scattering light nanoparticle suspension. Int. J. Hydrog. Energy 2012, 37, 16951–16961. [Google Scholar] [CrossRef]
  80. Faraloni, C.; Ena, A.; Pintucci, C.; Torzillo, G. Enhanced hydrogen production by means of sulfur-deprived Chlamydomonas reinhardtii cultures grown in pretreated olive mill wastewater. Int. J. Hydrog. Energy 2011, 36, 5920–5931. [Google Scholar] [CrossRef]
  81. Song, W.; Rashid, N.; Choi, W.; Lee, K. Biohydrogen production by immobilized Chlorella sp. using cycles of oxygenic photosynthesis and anaerobiosis. Bioresour. Technol. 2011, 102, 8676–8681. [Google Scholar] [CrossRef]
  82. Zhu, X.-G.; Long, S.P.; Ort, D.R. What is the maximum efficiency with which photosynthesis can convert solar energy into biomass? Curr. Opin. Biotechnol. 2008, 19, 153–159. [Google Scholar] [CrossRef]
  83. Melis, A. Solar energy conversion efficiencies in photosynthesis: Minimizing the chlorophyll antennae to maximize efficiency. Plant Sci. 2009, 177, 272–280. [Google Scholar] [CrossRef]
  84. Finazzi, G.; Barbagallo, R.P.; Bergo, E.; Barbato, R.; Forti, G. Photoinhibition of Chlamydomonas reinhardtii in State 1 and State 2: Damages to the photosynthetic apparatus under linear and cyclic electron flow. J. Biol. Chem. 2001, 276, 22251. [Google Scholar] [CrossRef] [Green Version]
  85. Antal, T.K.; Krendeleva, T.E.; Laurinavichene, T.V.; Makarova, W.; Ghirardi, M.L.; Rubin, A.B.; Tsygankov, A.A.; Seibert, M. The dependence of algal H2 production on photosystem II and O2 consumption activities in sulphur-deprived Chlamydomonas reinhardtii cells. Biochem. Biophys. Acta 2003, 1607, 153–160. [Google Scholar]
  86. Burlacot, A.; Sawyer, A.; Cuiné, S.; Auroy-Tarrago, P.; Blangy, S.; Happe, T.; Peltiera, G. Flavodiiron-mediated O2 photoreduction links H2 production with CO2 fixation during the anaerobic induction of photosynthesis. Plant Physiol. 2018, 177, 1639–1649. [Google Scholar] [CrossRef] [Green Version]
  87. Antal, T.K.; Kukarskikh, G.P.; Volgusheva, A.A.; Krendeleva, T.E.; Tyystjärvi, E.; Rubin, A.B. Hydrogen photoproduction by immobilized S-deprived Chlamydomonas reinhardtii: Effect of light intensity and spectrum, and initial medium pH. Algal. Res. 2016, 17, 38–45. [Google Scholar] [CrossRef]
  88. Strasser, R.; Srivastava, A.; Govindjee. Polyphasic chlorophyll a fluorescence transient in plants and cyanobacteria. Photochem. Photobiol. 1995, 61, 32–42. [Google Scholar] [CrossRef]
  89. Faraloni, C.; Torzillo, G. Xanthophyll cycle induction by anaerobic conditions under low light in Chlamydomonas reinhardtii. J. Appl. Phycol. 2013, 25, 1457–1471. [Google Scholar] [CrossRef]
  90. Pongpadung, P.; Zhang, L.; Sathasivam, R.; Yokthongwattana, K.; Juntawon, N.; Liu, J. Stimulation of hydrogen photoproduction in Chlorella sorokiniana subjected to simultaneous nitrogen limitation and sulfur- and/or phosphorus-deprivation. J. Pure Appl. Microbiol. 2018, 12, 1719–1727. [Google Scholar] [CrossRef]
  91. Torzillo, G.; Chini Zittelli, G. Tubular photobioreactors. Products and biorefinery design. In Algal Biorefineries; Prokop, A., Bajpai, R.K., Zappi, M.E., Eds.; Springer International Publishing: Cham, Switzerland, 2015; Volume 2. [Google Scholar]
  92. Scoma, A.; Giannelli, L.; Faraloni, C.; Torzillo, G. Outdoor H2 production in a 50-L tubular photobioreactor by means of a sulfur-deprived culture of the microalga Chlamydomonas reinhardtii. J. Biotechnol. 2012, 157, 620–627. [Google Scholar] [CrossRef] [PubMed]
  93. Lindblad, P.; Fuente, D.; Borbe, F.; Cicchi, B.; Conejero, J.A.; Couto, N.; Čelešnik, H.; Diano, M.; Dolinar, M.; Esposito, S.; et al. CyanoFactory, a European consortium to develop technologies needed to advance cyanobacteria as chassis for production of chemicals and fuels. Algal. Res. 2019, 41, 101510. [Google Scholar] [CrossRef]
  94. Siebert, M.; Torzillo, G. Microalgal Hydrogen Production: Achievements and Perspectives; The Royal Society of Chemistry: Cambridge, UK, 2018. [Google Scholar]
  95. James, B.D.; Baum, G.N.; Perez, J.; Baum, K.N. Technoeconomic Analysis of Photoelectrochemical (PEC) Hydrogen Production; (US DOE Contract no. GS-10F-009J); Directed Technologies Inc.: Arlington, VA, USA, 2009. [Google Scholar]
  96. Show, K.-Y.; Yan, Y.; Zong, C.; Guo, N.; Chang, J.-S.; Lee, D.-J. State of the art and challenges of biohydrogen from microalgae. Bioresour. Technol. 2019, 289, 121747. [Google Scholar] [CrossRef]
  97. Silva Benavides, A.M.; Campos Rudin, M.; Villalobos, N.; Touloupakis, E.; Torzillo, G. Growth and hydrogen production by three Chlamydomonas strains cultivated in a commercial fertilizer. Int. J. Hydrog. Energy 2019, 44, 9849–9855. [Google Scholar] [CrossRef]
  98. Frowijn, L.S.F.; van Sark, W.G.J.H.M. Analysis of photon-driven solar-to-hydrogen production methods in the Netherlands, Sustain. Energy Technol. Assess. 2021, 48, 101631. [Google Scholar]
  99. Perrine, Z.; Negi, S.; Sayre, R. Optimization of photosynthetic light energy utilization by microalgae. Algal. Res. 2012, 1, 134–142. [Google Scholar] [CrossRef] [Green Version]
  100. Cazzaniga, S.; Dall’Osto, L.; Szaub, J.; Ballottari, M.; Purton, S.; Bassi, R. Domestication of the green alga Chlorella sorokiniana: Reduction of antenna size improves light-use efficiency in a photobioreactor. Biotechnol. Biofuels 2014, 7, 157–170. [Google Scholar] [CrossRef] [Green Version]
  101. Shin, W.-S.; Lee, B.; Jeong, B.-R.; Chang, Y.K. Truncated light-harvesting chlorophyll antenna size in Chlorella vulgaris improves biomass productivity. J. Appl. Phycol. 2016, 28, 3193–3202. [Google Scholar] [CrossRef]
  102. Hu, G.-R.; Fan, Y.; Zhen, Y.-L.; Xu, F.; Zhang, L.; Li, F.-L. Photoprotection capacity of microalgae improved by regulating the antenna size of high-harvesting complexes. J. Appl. Phycol. 2020, 32, 1027–1039. [Google Scholar] [CrossRef]
Energies 14 07170 g001 550

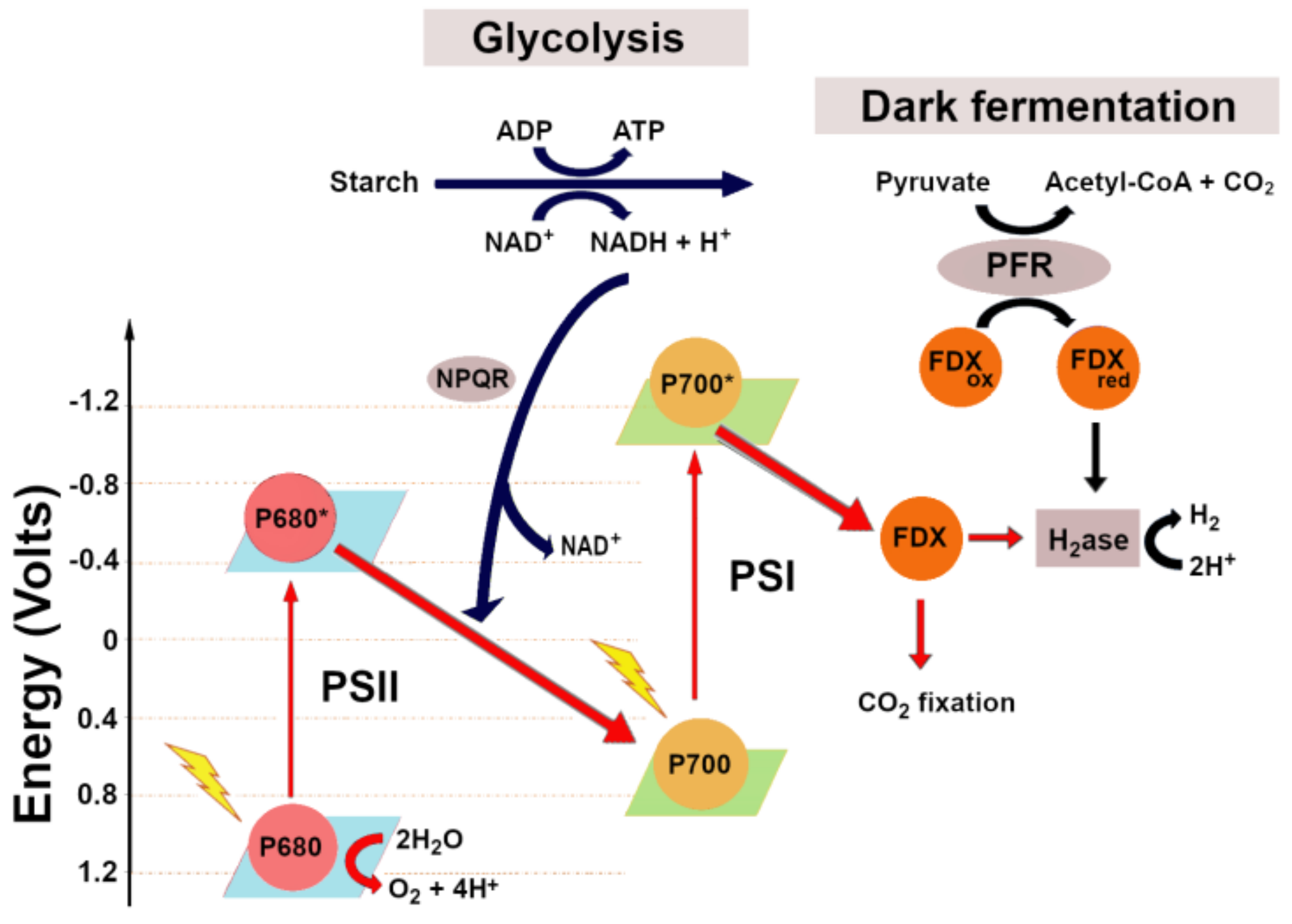

Figure 1. Metabolic hydrogen production pathways used by Chlamydomonas reinhartii.FDX: ferredoxin; H2ase: hydrogenase; NPQR: NADPH−plastoquinone oxidoreductase; PFR: pyruvate:ferredoxin oxidoreductase; PSI: photosystem I; PSII: photosystem II.
Figure 1. Metabolic hydrogen production pathways used by Chlamydomonas reinhartii.FDX: ferredoxin; H2ase: hydrogenase; NPQR: NADPH−plastoquinone oxidoreductase; PFR: pyruvate:ferredoxin oxidoreductase; PSI: photosystem I; PSII: photosystem II.
Energies 14 07170 g001
Energies 14 07170 g002 550
Figure 2. Chlorella vulgaris (BEIJ G-120 strain) immobilized in calcium alginate beads. (A) Calcium-alginate bead; (B) Chlorella vulgaris cells inside the calcium-alginate beads.
Figure 2. Chlorella vulgaris (BEIJ G-120 strain) immobilized in calcium alginate beads. (A) Calcium-alginate bead; (B) Chlorella vulgaris cells inside the calcium-alginate beads.
Energies 14 07170 g002
Energies 14 07170 g003 550

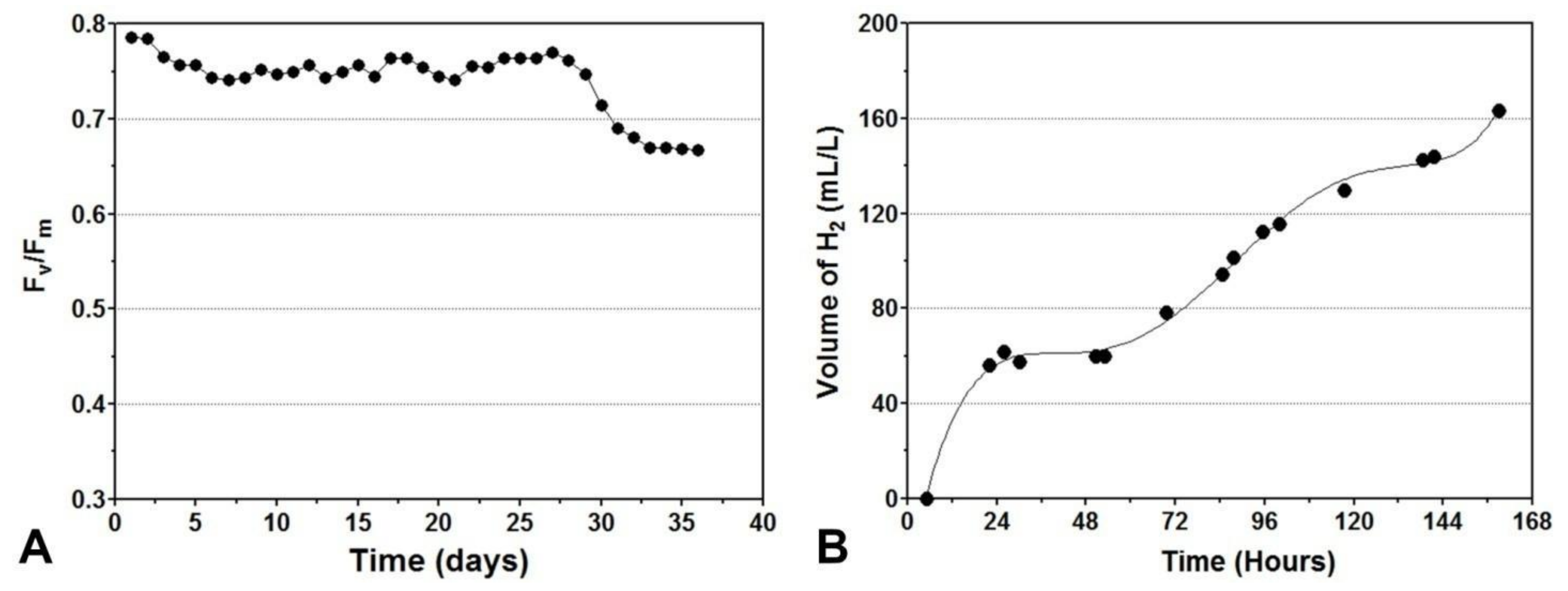

Figure 3. (A) Fv/Fm of immobilized Chlorella vulgaris cells as a function of time; (B) H2 production of the immobilized Chlorella vulgaris cells as a function of time.
Figure 3. (A) Fv/Fm of immobilized Chlorella vulgaris cells as a function of time; (B) H2 production of the immobilized Chlorella vulgaris cells as a function of time.
Energies 14 07170 g003
Energies 14 07170 g004 550

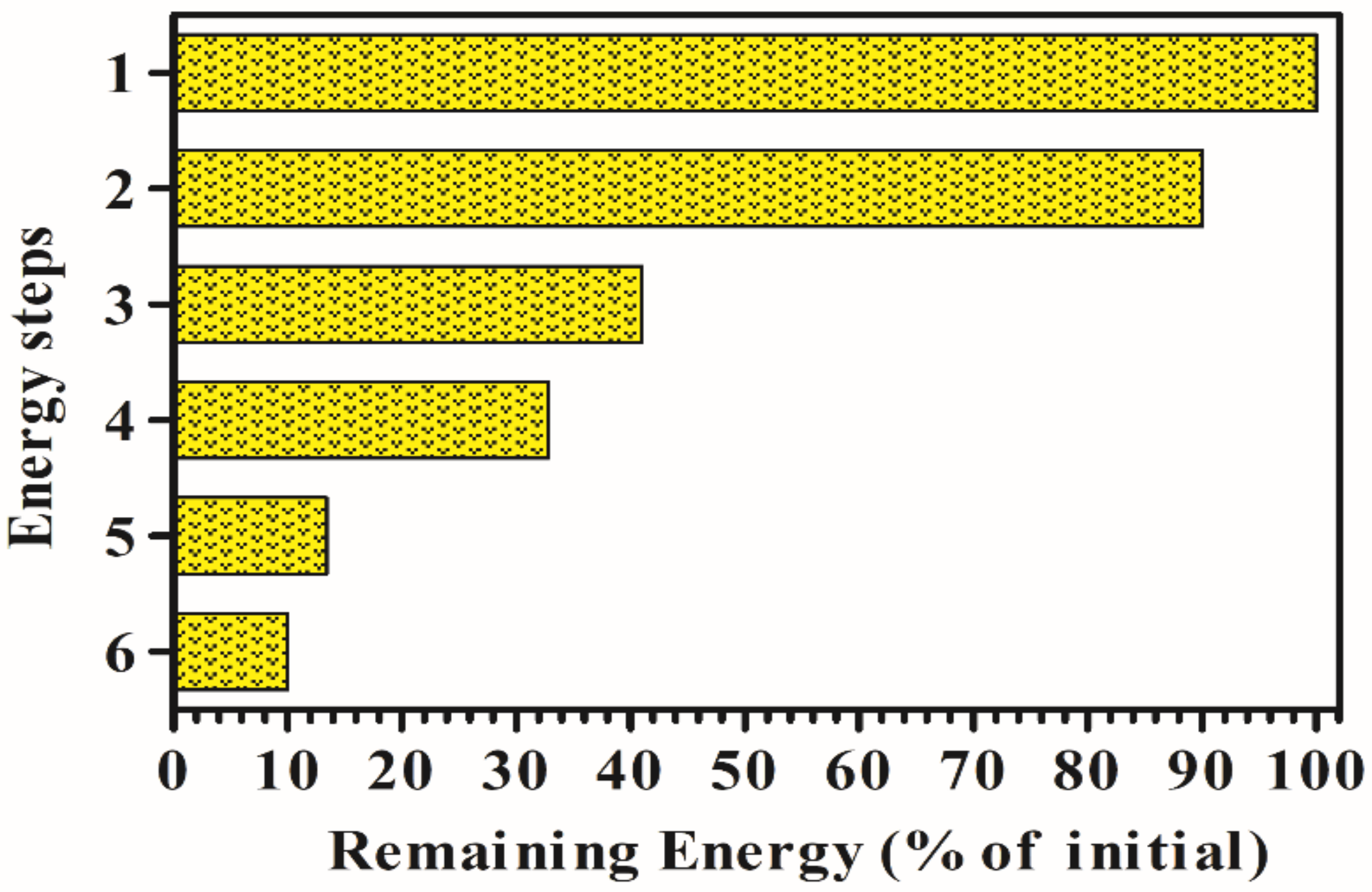

Figure 4. The energy losses of the incident solar light during the different steps of the photobiological H2 production process.
Figure 4. The energy losses of the incident solar light during the different steps of the photobiological H2 production process.
Energies 14 07170 g004
Energies 14 07170 g005 550

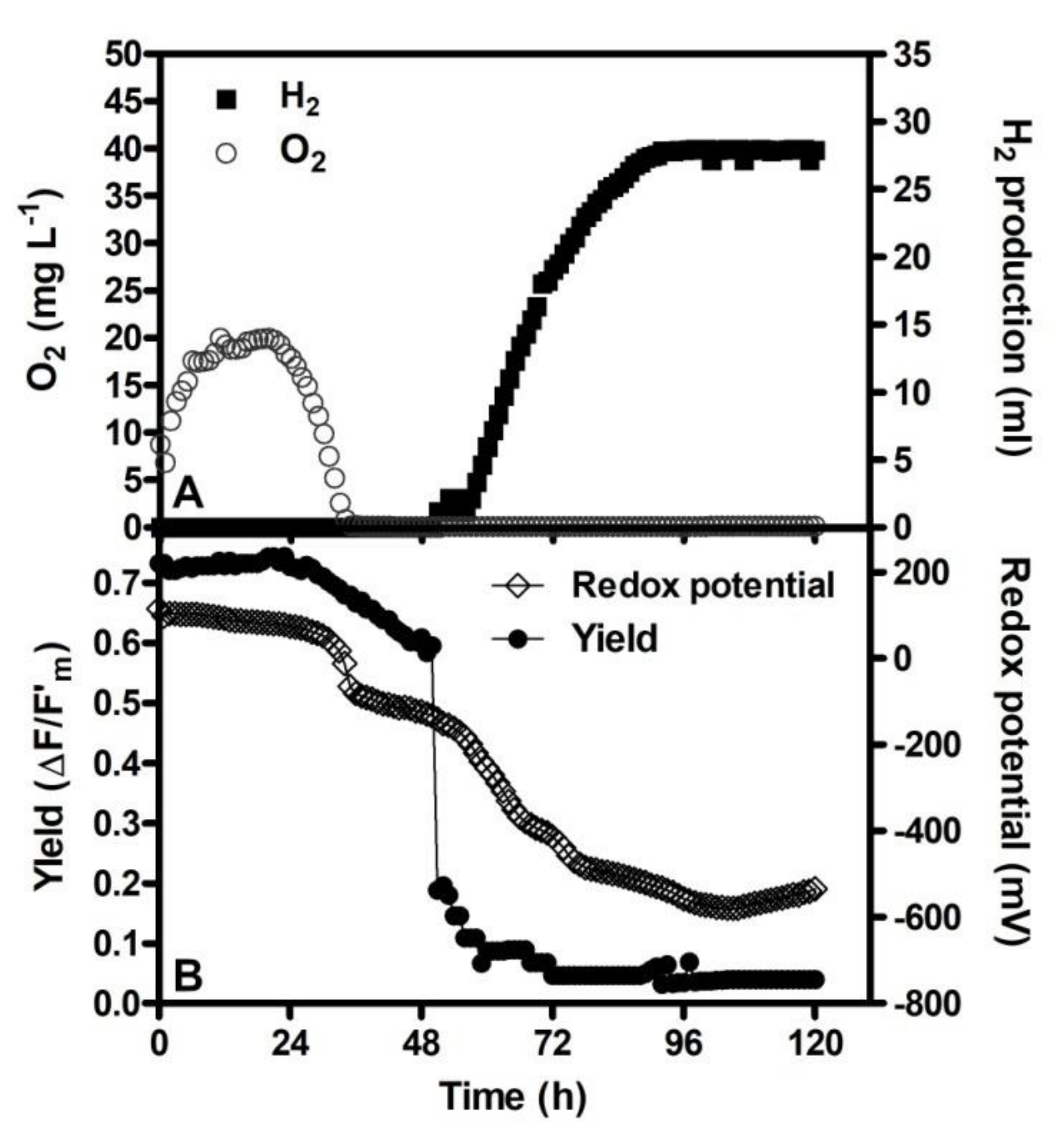

Figure 5. C. reinhardtii kinetics of chlorophyll fluorescence and redox potential during induction of H2 production under sulfur deprivation. (A) Time courses in dissolved oxygen (empty circle) and output of hydrogen (H2) (filled square). (B) The time courses in the effective quantum yield of PSII (∆F/F′m) (filled circle) and the redox potential (Eh) (empty diamond) in C. reinhardtii under sulfur deprivation with 70 μmol photons/m2/s, supplied on both sides of the reactor.
Figure 5. C. reinhardtii kinetics of chlorophyll fluorescence and redox potential during induction of H2 production under sulfur deprivation. (A) Time courses in dissolved oxygen (empty circle) and output of hydrogen (H2) (filled square). (B) The time courses in the effective quantum yield of PSII (∆F/F′m) (filled circle) and the redox potential (Eh) (empty diamond) in C. reinhardtii under sulfur deprivation with 70 μmol photons/m2/s, supplied on both sides of the reactor.
Energies 14 07170 g005
Energies 14 07170 g006 550

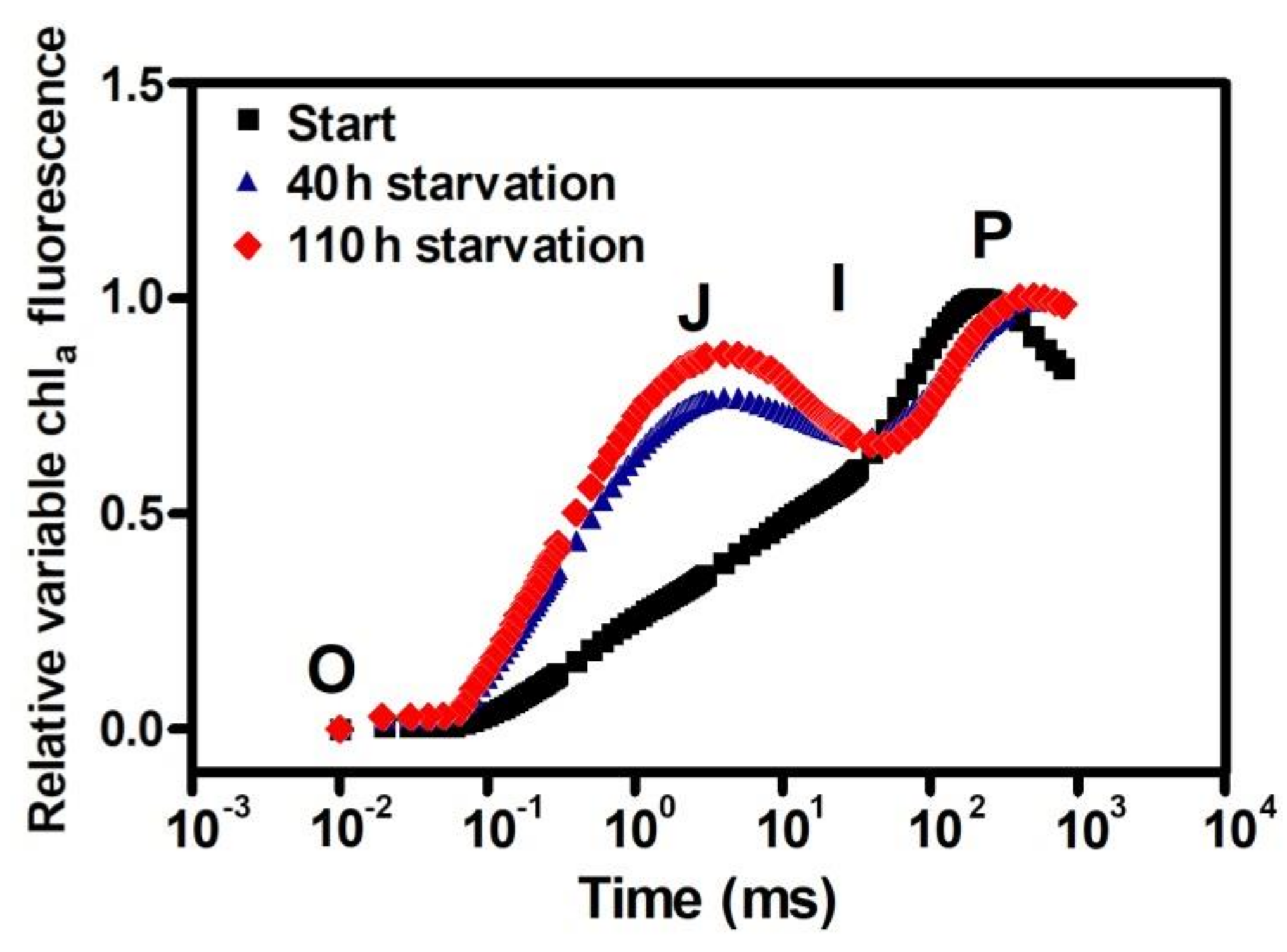

Figure 6. Effect of sulfur deprivation on the chlorophyll a fluorescence transient in C. reinhardtii cultures. Start (dark squares); 40 h of sulfur deprivation (blue triangles); 110 h of sulfur deprivation (red diamonds). Relative variable fluorescence (Vt = (Ft − F0)/(Fm − F0)) [89].
Figure 6. Effect of sulfur deprivation on the chlorophyll a fluorescence transient in C. reinhardtii cultures. Start (dark squares); 40 h of sulfur deprivation (blue triangles); 110 h of sulfur deprivation (red diamonds). Relative variable fluorescence (Vt = (Ft − F0)/(Fm − F0)) [89].
Energies 14 07170 g006
Energies 14 07170 g007 550

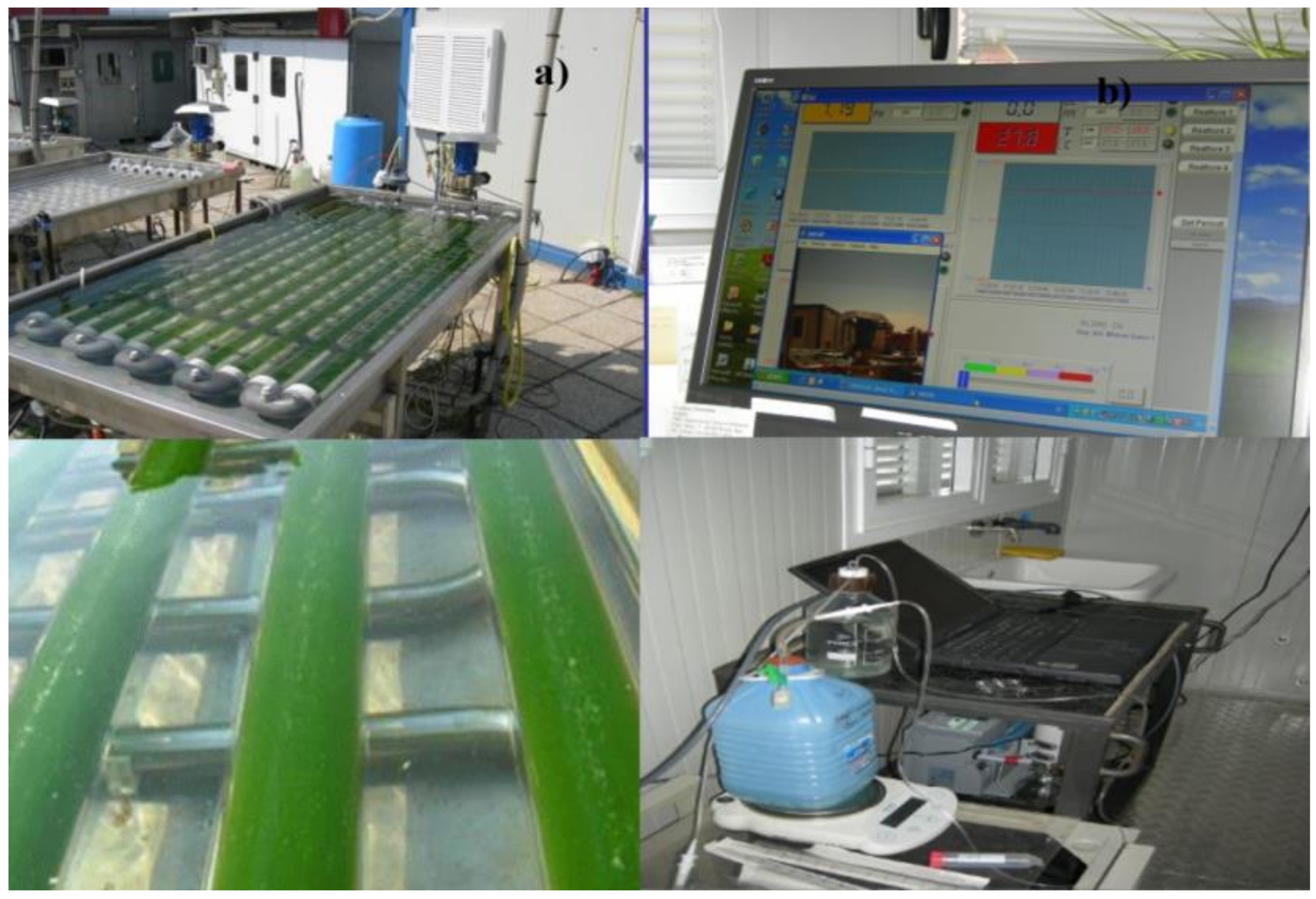

Figure 7. The tubular photobioreactor (working volume 50 L) used for the outdoor H2 production experiments. The photobioreactor was equipped with probes for measurement and control of pH and temperature. Culture speed can be adjusted to reach the desired turbulence.
Figure 7. The tubular photobioreactor (working volume 50 L) used for the outdoor H2 production experiments. The photobioreactor was equipped with probes for measurement and control of pH and temperature. Culture speed can be adjusted to reach the desired turbulence.
Energies 14 07170 g007
Energies 14 07170 g008a 550Energies 14 07170 g008b 550

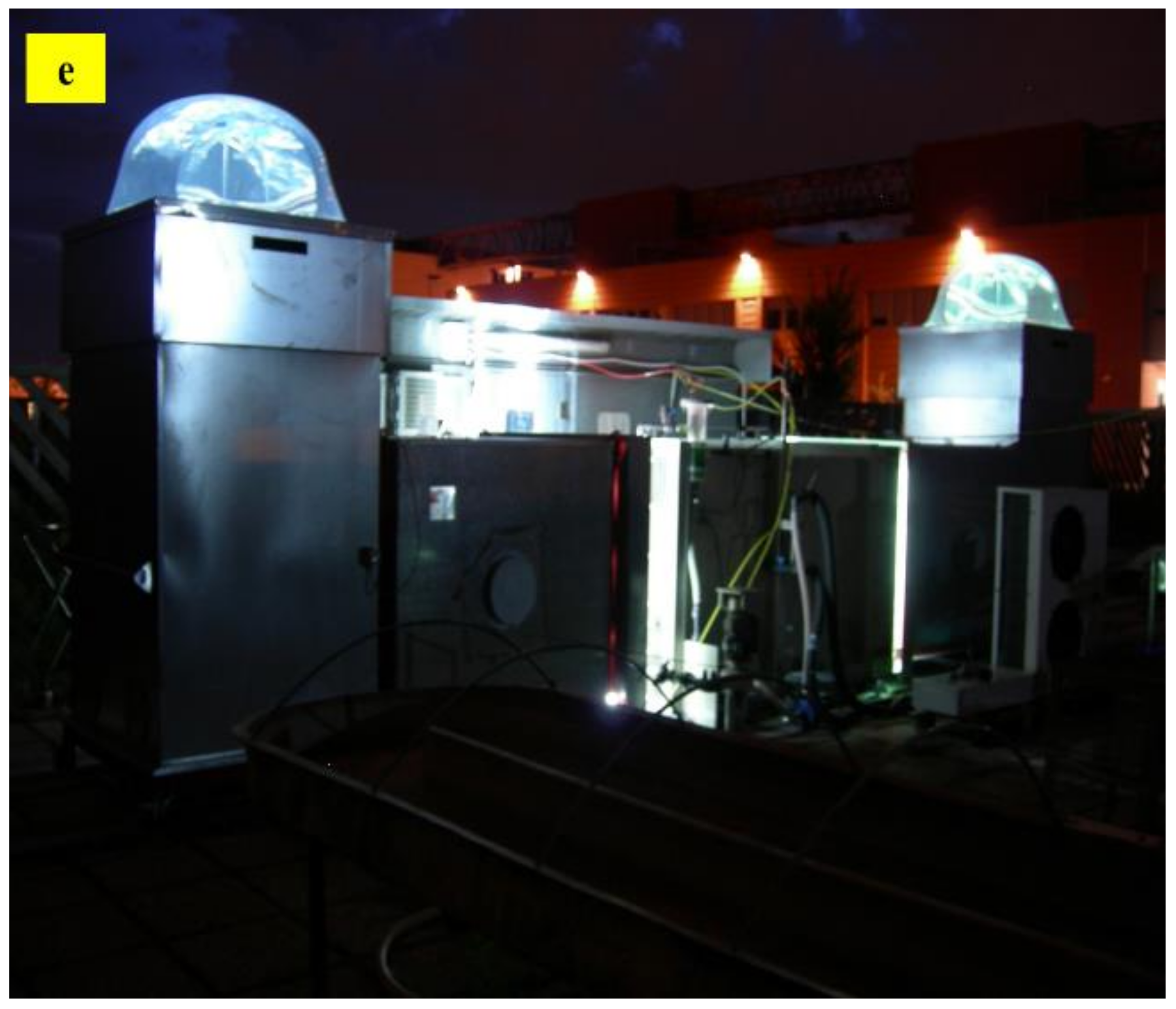

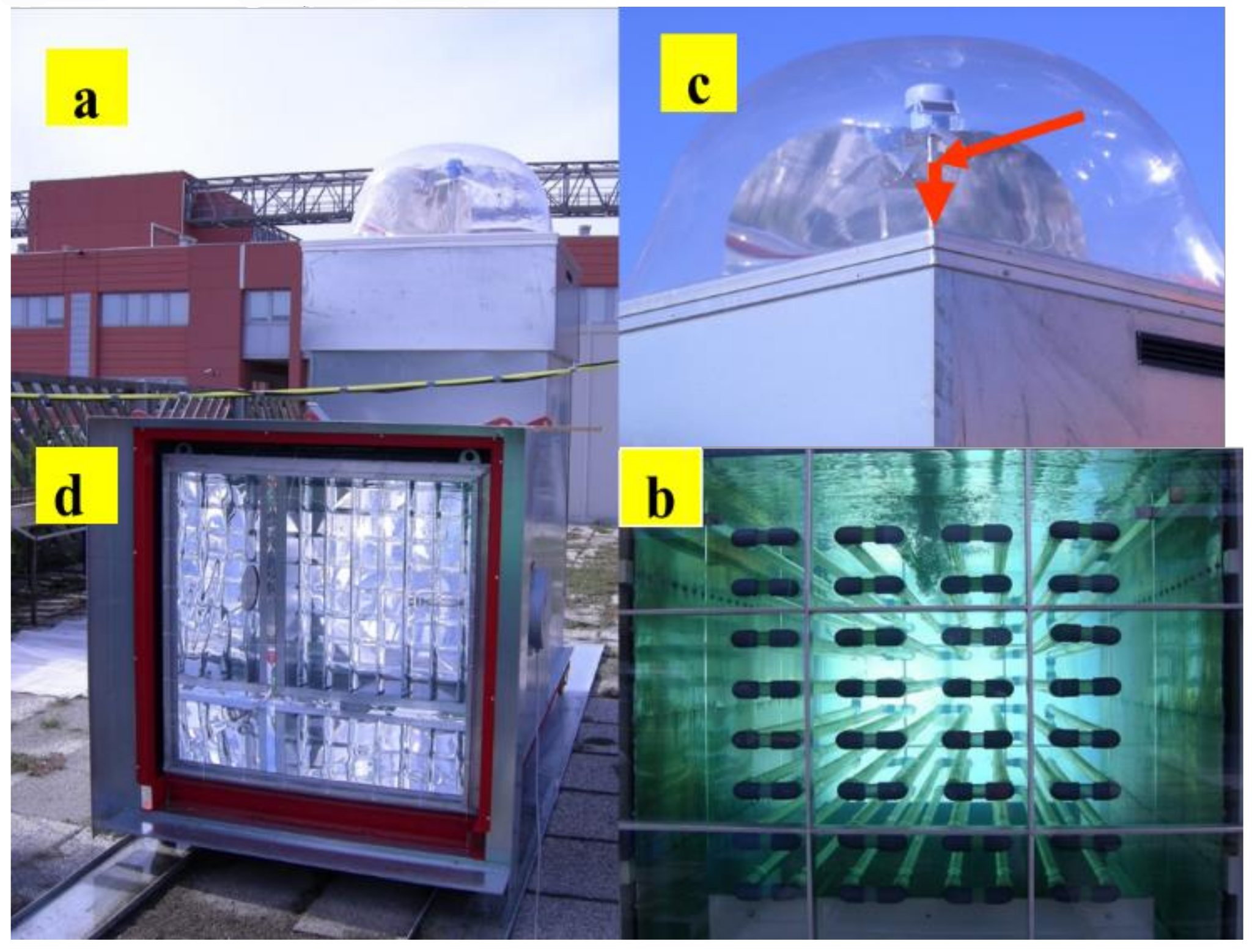

Figure 8. The 110 L photobioreactor utilized for the hydrogen production experiments. (a) General view of the photobioreactor; (b) frontal view of the photobioreactor; (c) sun-tracking mirrors collecting light; (d) light ducts delivering light to the photobioreactor from the opposite sides; (e) nocturnal view of the photobioreactor with two light bulbs (1000 W each) placed in the light duct to provide illumination to the culture during the night.
Figure 8. The 110 L photobioreactor utilized for the hydrogen production experiments. (a) General view of the photobioreactor; (b) frontal view of the photobioreactor; (c) sun-tracking mirrors collecting light; (d) light ducts delivering light to the photobioreactor from the opposite sides; (e) nocturnal view of the photobioreactor with two light bulbs (1000 W each) placed in the light duct to provide illumination to the culture during the night.
Energies 14 07170 g008aEnergies 14 07170 g008b
Table
Table 1. Comparison of H2 production rates in various microalgae strains.
Table 1. Comparison of H2 production rates in various microalgae strains.
Microalgal SpeciesGrowth ModeH2 ProductionReferences
C. reinhardtiiTAP25 μmol/mgChl/h[29]
Chlorella sp. AARL G014TAP-S0.49 mmol/mgChl/h[75]
C. reinhardtii CC-503TAP co-culture255 mmol/mgChl[55]
Chlorella vulgaris strains YSL01BBM-EDTANa21.9 mL/L[72]
Chlorella lewinii KU201TAP-S13.03 mL/L[18]
Chlorella sp. IOAC707STAP-NaCl38.00 mL/L[38]
Chlorella sorokiniana KU204TAP-P69.00 mL/L[18]
Chlorella protothecoidesTAP-NS82.50 mL/L[76]
Chlorella sorokiniana KU204TAP-S89.64 mL/L[18]
Chlorella pyrenoidosaTCP + DCMU93.86 mL/L[69]
C. reinhardtii Stm6TAP-S540 mL/L[41]
C. reinhardtii C3TAP3.0 mL/L/d[31]
C. reinhardtii (HS-14)TAP20 mL/L/d[71]
Immobilized Chlorella vulgarisArtificial wastewater-S39.1 mL/L/d[11]
Chlorella vulgaris MACC360TAP co-culture56.0 mL/L/d[77]
Immobilized Scenedesmus obliquusArtificial wastewater-S204.8 mL/L/d[11]
Chlorella salina MtTAP-S0.5 mL/L/h[78]
C. reinhardtii CC124TAP-S0.6 mL/L/h[79]
C. reinhardtii CC-124TAP-S3.3 mL/L/h[80]
C. reinhardtii pgr5/pgrl1TAP-S7.0 mL/L/h[33]
C. reinhardtii L159I-N230YTAP-S11.1 mL/L/h[37]
Chlorella vulgaris BEIJ (G-120)HM + glucose5.0 mL/L/h.[8]
Immobilized Chlorella vulgaris NIER-10003MA-S + glucose238 mL/L/h[81]
Chlorella sorokiniana150 of acetate/Cl− ratio0.33 mmol/L/min[73]
C. reinhardtii150 of acetate/Cl− ratio0.38 mmol/L/min[73]
C. reinhardtii (ΨH1)TAP3.6 mL/L/h[46]
C. reinhardttiHSM + O2 absorbent2.58 mL/L/h[30]
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Touloupakis, E.; Faraloni, C.; Silva Benavides, A.M.; Torzillo, G. Recent Achievements in Microalgal Photobiological Hydrogen Production. Energies 2021, 14, 7170. https://doi.org/10.3390/en14217170

AMA Style

Touloupakis E, Faraloni C, Silva Benavides AM, Torzillo G. Recent Achievements in Microalgal Photobiological Hydrogen Production. Energies. 2021; 14(21):7170. https://doi.org/10.3390/en14217170

Chicago/Turabian Style

Touloupakis, Eleftherios, Cecilia Faraloni, Ana Margarita Silva Benavides, and Giuseppe Torzillo. 2021. "Recent Achievements in Microalgal Photobiological Hydrogen Production" Energies 14, no. 21: 7170. https://doi.org/10.3390/en14217170

APA Style

Touloupakis, E., Faraloni, C., Silva Benavides, A. M., & Torzillo, G. (2021). Recent Achievements in Microalgal Photobiological Hydrogen Production. Energies, 14(21), 7170. https://doi.org/10.3390/en14217170

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
