Recent Advances of Film–Forming Kinetics in Organic Solar Cells
Abstract
:1. Introduction
2. The Effect of the Film–Forming Kinetics on Film Morphology
2.1. The Film–Forming Kinetics Affect the Degree of Crystallinity of the Blend Film
2.2. The Film–Forming Kinetics Affect the Molecular Orientation of the Donor and Acceptor
2.3. The Film–Forming Kinetics Affect the Domain Sizes of the Blend Film

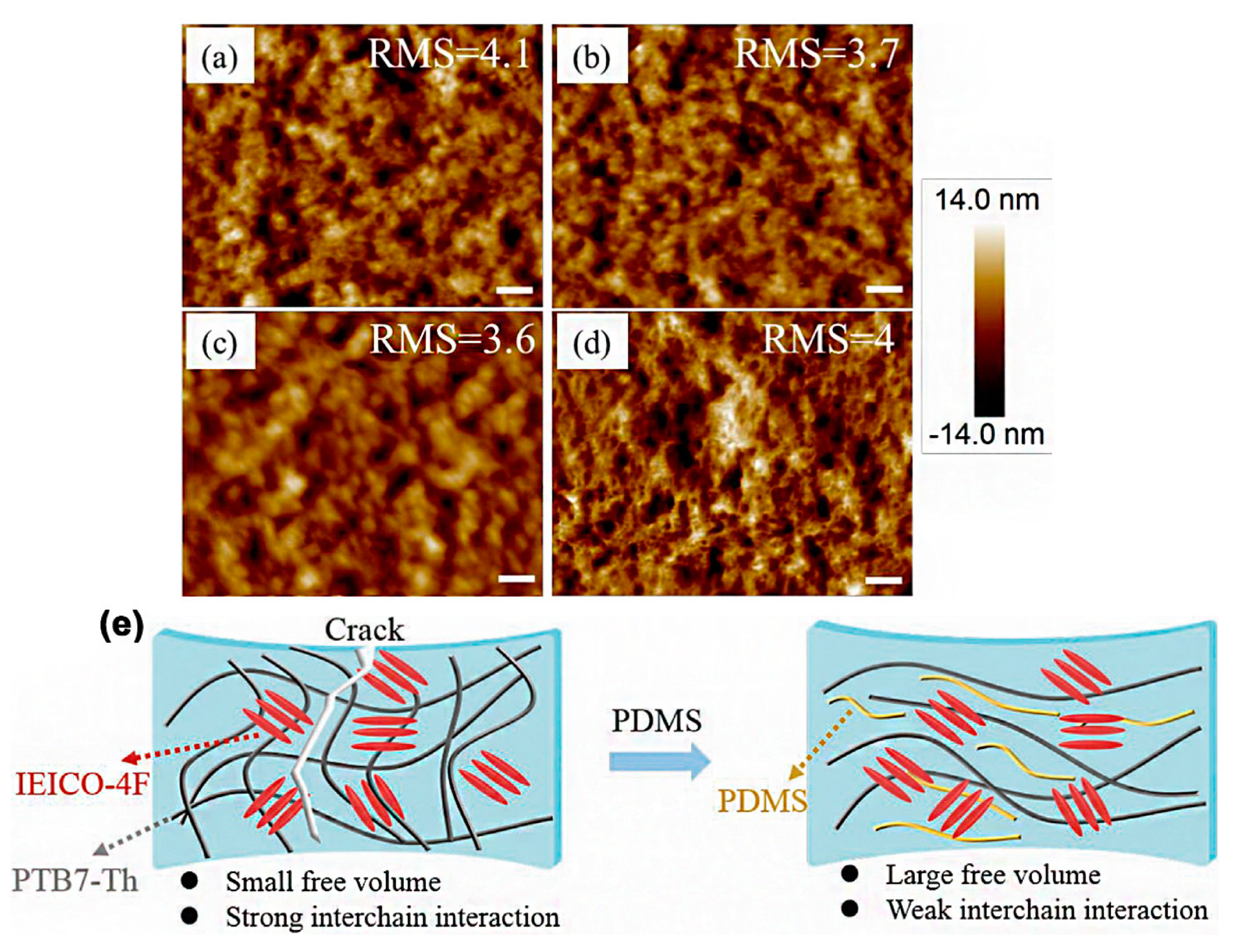

2.4. The Film–Forming Kinetics Affect the Phase Separation Structure of the Blend Film
3. Summary and Perspectives
Author Contributions
Funding
Institutional Review Board Statement
Informed Consent Statement
Data Availability Statement
Acknowledgments
Conflicts of Interest
References
- Servaites, J.D.; Ratner, M.A.; Marks, T.J. Organic solar cells: A new look at traditional models. Energy Environ. Sci. 2011, 4, 4410–4422. [Google Scholar] [CrossRef]
- Service, R.F. Solar energy. Outlook brightens for plastic solar cells. Science 2011, 332, 293. [Google Scholar] [CrossRef] [PubMed]
- Dou, L.; You, J.; Hong, Z.; Xu, Z.; Li, G.; Street, R.A.; Yang, Y. 25th anniversary article: A decade of organic/polymeric photovoltaic research. Adv. Mater. 2013, 25, 6642–6671. [Google Scholar] [CrossRef] [PubMed]
- Krebs, F.C.; Espinosa, N.; Hosel, M.; Sondergaard, R.R.; Jorgensen, M. 25th anniversary article: Rise to power––OPV–based solar parks. Adv. Mater. 2014, 26, 29–38. [Google Scholar] [CrossRef] [PubMed]
- Liu, Q.; Jiang, Y.; Jin, K.; Qin, J.; Xu, J.; Li, W.; Xiong, J.; Liu, J.; Xiao, Z.; Sun, K.; et al. 18% Efficiency organic solar cells. Sci. Bull. 2020, 65, 272–275. [Google Scholar] [CrossRef] [Green Version]
- Song, J.; Zhu, L.; Li, C.; Xu, J.; Wu, H.; Zhang, X.; Zhang, Y.; Tang, Z.; Liu, F.; Sun, Y. High–efficiency organic solar cells with low voltage loss induced by solvent additive strategy. Matter 2021, 4, 2542–2552. [Google Scholar] [CrossRef]
- Meng, H.; Liao, C.; Deng, M.; Xu, X.; Yu, L.; Peng, Q. 18.77% Efficiency Organic Solar Cells Promoted by Aqueous Solution Processed Cobalt(II) Acetate Hole Transporting Layer. Angew. Chem. Int. Ed. 2021, 60, 22554–22561. [Google Scholar] [CrossRef]
- Liu, L.; Chen, S.; Qu, Y.; Gao, X.; Han, L.; Lin, Z.; Yang, L.; Wang, W.; Zheng, N.; Liang, Y.; et al. Nanographene–Osmapentalyne Complexes as a Cathode Interlayer in Organic Solar Cells Enhance Efficiency over 18. Adv. Mater. 2021, 33, e2101279. [Google Scholar] [CrossRef]
- Liu, G.; Xia, R.; Huang, Q.; Zhang, K.; Hu, Z.; Jia, T.; Liu, X.; Yip, H.L.; Huang, F. Tandem Organic Solar Cells with 18.7% Efficiency Enabled by Suppressing the Charge Recombination in Front Sub–Cell. Adv. Funct. Mater. 2021, 31, 2103283. [Google Scholar] [CrossRef]
- Li, C.; Zhou, J.; Song, J.; Xu, J.; Zhang, H.; Zhang, X.; Guo, J.; Zhu, L.; Wei, D.; Han, G.; et al. Non–fullerene acceptors with branched side chains and improved molecular packing to exceed 18% efficiency in organic solar cells. Nat. Energy 2021, 6, 605–613. [Google Scholar] [CrossRef]
- Jin, K.; Xiao, Z.; Ding, L. 18.69% PCE from organic solar cells. J. Semicond. 2021, 42, 060502. [Google Scholar] [CrossRef]
- Guo, C.; Li, D.; Wang, L.; Du, B.; Liu, Z.X.; Shen, Z.; Wang, P.; Zhang, X.; Cai, J.; Cheng, S.; et al. Cold–Aging and Solvent Vapor Mediated Aggregation Control toward 18% Efficiency Binary Organic Solar Cells. Adv. Energy Mater. 2021, 11, 2102000. [Google Scholar] [CrossRef]
- Zhang, T.; An, C.; Bi, P.; Lv, Q.; Qin, J.; Hong, L.; Cui, Y.; Zhang, S.; Hou, J. A Thiadiazole–Based Conjugated Polymer with Ultradeep HOMO Level and Strong Electroluminescence Enables 18.6% Efficiency in Organic Solar Cell. Adv. Energy Mater. 2021, 11, 2101705. [Google Scholar] [CrossRef]
- Liu, F.; Zhou, L.; Liu, W.; Zhou, Z.; Yue, Q.; Zheng, W.; Sun, R.; Liu, W.; Xu, S.; Fan, H.; et al. Organic Solar Cells with 18% Efficiency Enabled by an Alloy Acceptor: A Two–in–One Strategy. Adv. Mater. 2021, 33, 2100830. [Google Scholar] [CrossRef]
- Lin, Y.; Magomedov, A.; Firdaus, Y.; Kaltsas, D.; El–Labban, A.; Faber, H.; Naphade, D.R.; Yengel, E.; Zheng, X.; Yarali, E.; et al. 18.4 % Organic Solar Cells Using a High Ionization Energy Self–Assembled Monolayer as Hole–Extraction Interlayer. ChemSusChem 2021, 14, 3569–3578. [Google Scholar] [CrossRef]
- Li, Y.; Cai, Y.H.; Xie, Y.P.; Song, J.H.; Wu, H.B.; Tang, Z.; Zhang, J.; Huang, F.; Sun, Y.M. A facile strategy for third–component selection in non–fullerene acceptor–based ternary organic solar cells. Energy Environ. Sci. 2021, 14, 5009–5016. [Google Scholar] [CrossRef]
- Cui, Y.; Xu, Y.; Yao, H.; Bi, P.; Hong, L.; Zhang, J.; Zu, Y.; Zhang, T.; Qin, J.; Ren, J.; et al. Single–Junction Organic Photovoltaic Cell with 19% Efficiency. Adv. Mater. 2021, 33, 2102420. [Google Scholar] [CrossRef] [PubMed]
- Chen, X.; Wang, D.; Wang, Z.; Li, Y.; Zhu, H.; Lu, X.; Chen, W.; Qiu, H.; Zhang, Q. 18.02% Efficiency ternary organic solar cells with a small–molecular donor third component. Chem. Eng. J. 2021, 424, 130397. [Google Scholar] [CrossRef]
- Cai, Y.; Li, Y.; Wang, R.; Wu, H.; Chen, Z.; Zhang, J.; Ma, Z.; Hao, X.; Zhao, Y.; Zhang, C.; et al. A Well–Mixed Phase Formed by Two Compatible Non–Fullerene Acceptors Enables Ternary Organic Solar Cells with Efficiency over 18.6%. Adv. Mater. 2021, 33, 2101733. [Google Scholar] [CrossRef] [PubMed]
- Mazzio, K.A.; Luscombe, C.K. The future of organic photovoltaics. Chem. Soc. Rev. 2015, 44, 78–90. [Google Scholar] [CrossRef]
- Hood, S.N.; Kassal, I. Entropy and Disorder Enable Charge Separation in Organic Solar Cells. J. Phys. Chem. Lett. 2016, 7, 4495–4500. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Scharber, M.C.; Sariciftci, N.S. Efficiency of bulk–heterojunction organic solar cells. Prog. Polym. Sci. 2013, 38, 1929–1940. [Google Scholar] [CrossRef] [Green Version]
- Gülen, D. Determination of the exciton diffusion length by surface quenching experiments. J. Lumin. 1988, 42, 191–195. [Google Scholar] [CrossRef]
- Hong, N.H.; Sakai, J.; Huong, N.T.; Poirot, N.; Ruyter, A. Role of defects in tuning ferromagnetism in diluted magnetic oxide thin films. Phys. Rev. B 2005, 72, 045336. [Google Scholar] [CrossRef]
- Zhang, R.; Yang, H.; Zhou, K.; Zhang, J.; Liu, J.; Yu, X.; Xing, R.; Han, Y. Optimized domain size and enlarged D/A interface by tuning intermolecular interaction in all–polymer ternary solar cells. J. Polym. Sci. Part B Polym. Phys. 2016, 54, 1811–1819. [Google Scholar] [CrossRef]
- Chen, S.; Zhang, L.; Ma, C.; Meng, D.; Zhang, J.; Zhang, G.; Li, Z.; Chow, P.C.Y.; Ma, W.; Wang, Z.; et al. Alkyl Chain Regiochemistry of Benzotriazole–Based Donor Polymers Influencing Morphology and Performances of Non–Fullerene Organic Solar Cells. Adv. Energy Mater. 2018, 8, 1702427. [Google Scholar] [CrossRef]
- Zhou, K.; Zhao, Q.; Zhang, R.; Cao, X.; Yu, X.; Liu, J.; Han, Y. Decreased domain size of p–DTS(FBTTh2)2/P(NDI2OD–T2) blend films due to their different solution aggregation behavior at different temperatures. Phys. Chem. Chem. Phys. 2017, 19, 32373–32380. [Google Scholar] [CrossRef]
- Xiao, B.; Du, M.; Wang, X.; Xiao, Z.; Li, G.; Tang, A.; Ding, L.; Geng, Y.; Sun, X.; Zhou, E. Effects of Oxygen Atoms Introduced at Different Positions of Non–Fullerene Acceptors in the Performance of Organic Solar Cells with Poly(3–hexylthiophene). ACS Appl. Mater. Interfaces 2020, 12, 1094–1102. [Google Scholar] [CrossRef]
- Zhou, K.; Wu, Y.; Liu, Y.F.; Zhou, X.B.; Zhang, L.; Ma, W. Molecular Orientation of Polymer Acceptor Dominates Open–Circuit Voltage Losses in All–Polymer Solar Cells. ACS Energy Lett. 2019, 4, 1057–1064. [Google Scholar] [CrossRef]
- Rand, B.P.; Cheyns, D.; Vasseur, K.; Giebink, N.C.; Mothy, S.; Yi, Y.; Coropceanu, V.; Beljonne, D.; Cornil, J.; Brédas, J.-L.; et al. The Impact of Molecular Orientation on the Photovoltaic Properties of a Phthalocyanine/Fullerene Heterojunction. Adv. Funct. Mater. 2012, 22, 2987–2995. [Google Scholar] [CrossRef]
- Zhang, Q.; Xiao, B.; Du, M.; Li, G.; Tang, A.; Zhou, E. A2–A1–D–A1–A2 type non–fullerene acceptors based on methoxy substituted benzotriazole with three different end–capped groups for P3HT–based organic solar cells. J. Mater. Chem. C 2018, 6, 10902–10909. [Google Scholar] [CrossRef]
- Xiao, B.; Tang, A.; Zhang, J.; Mahmood, A.; Wei, Z.; Zhou, E. Achievement of High Voc of 1.02 V for P3HT–Based Organic Solar Cell Using a Benzotriazole–Containing Non–Fullerene Acceptor. Adv. Energy Mater. 2017, 7, 1602269. [Google Scholar] [CrossRef]
- Qiu, N.L.; Yang, X.; Zhang, H.J.; Wan, X.J.; Li, C.X.; Liu, F.; Zhang, H.T.; Russell, T.P.; Chen, Y.S. Nonfullerene Small Molecular Acceptors with a Three–Dimensional (3D) Structure for Organic Solar Cells. Chem. Mater. 2016, 28, 6770–6778. [Google Scholar] [CrossRef]
- Liang, Q.; Han, J.; Song, C.; Yu, X.; Smilgies, D.-M.; Zhao, K.; Liu, J.; Han, Y. Reducing the confinement of PBDB–T to ITIC to improve the crystallinity of PBDB–T/ITIC blends. J. Mater. Chem. A 2018, 6, 15610–15620. [Google Scholar] [CrossRef]
- Liu, J.; Zeng, S.; Zhang, Z.; Peng, J.; Liang, Q. Optimizing the Phase–Separated Domain Size of the Active Layer via Sequential Crystallization in All–Polymer Solar Cells. J. Phys. Chem. Lett. 2020, 11, 2314–2321. [Google Scholar] [CrossRef]
- Xu, X.; Zhang, G.; Yu, L.; Li, R.; Peng, Q. P3HT–Based Polymer Solar Cells with 8.25% Efficiency Enabled by a Matched Molecular Acceptor and Smart Green–Solvent Processing Technology. Adv. Mater. 2019, 31, 1906045. [Google Scholar] [CrossRef] [PubMed]
- Yang, C.; Yu, R.; Liu, C.; Li, H.; Zhang, S.; Hou, J. Achieving over 10 % Efficiency in Poly(3–hexylthiophene)–based Organic Solar Cells via Solid Additives. ChemSusChem 2021, 14, 3607–3613. [Google Scholar] [CrossRef]
- Liu, F.; Zhang, J.Y.; Zhou, Z.C.; Zhang, J.Q.; Wei, Z.X.; Zhu, X.Z. Poly(3–hexylthiophene)–based non–fullerene solar cells achieve high photovoltaic performance with small energy loss. J. Mater. Chem. A 2017, 5, 16573–16579. [Google Scholar] [CrossRef]
- Li, S.; Liu, W.; Shi, M.; Mai, J.; Lau, T. –K.; Wan, J.; Lu, X.; Li, C.–Z.; Chen, H. A spirobifluorene and diketopyrrolopyrrole moieties based non–fullerene acceptor for efficient and thermally stable polymer solar cells with high open–circuit voltage. Energy Environ. Sci. 2016, 9, 604–610. [Google Scholar] [CrossRef]
- Holliday, S.; Ashraf, R.S.; Wadsworth, A.; Baran, D.; Yousaf, S.A.; Nielsen, C.B.; Tan, C.H.; Dimitrov, S.D.; Shang, Z.; Gasparini, N.; et al. High–efficiency and air–stable P3HT–based polymer solar cells with a new non–fullerene acceptor. Nat. Commun. 2016, 7, 11585. [Google Scholar] [CrossRef] [Green Version]
- Liu, J.G.; Zeng, S.Y.; Jing, P.; Zhao, K.; Liang, Q.J. Investigating the effect of cosolvents on P3HT/O–IDTBR film–forming kinetics and film morphology. J. Energy. Chem. 2020, 51, 333–341. [Google Scholar] [CrossRef]
- Liang, Q.; Jiao, X.; Yan, Y.; Xie, Z.; Lu, G.; Liu, J.; Han, Y. Separating Crystallization Process of P3HT and O–IDTBR to Construct Highly Crystalline Interpenetrating Network with Optimized Vertical Phase Separation. Adv. Funct. Mater. 2019, 29, 1807591. [Google Scholar] [CrossRef]
- Gaspar, H.; Figueira, F.; Pereira, L.; Mendes, A.; Viana, J.C.; Bernardo, G. Recent Developments in the Optimization of the Bulk Heterojunction Morphology of Polymer: Fullerene Solar Cells. Materials 2018, 11, 2560. [Google Scholar] [CrossRef] [PubMed] [Green Version]
- Wang, X.; Sun, Q.; Gao, J.; Wang, J.; Xu, C.; Ma, X.; Zhang, F. Recent Progress of Organic Photovoltaics with Efficiency over 17%. Energies 2021, 14, 4200. [Google Scholar] [CrossRef]
- Liao, K.-S.; Yambem, S.D.; Haldar, A.; Alley, N.J.; Curran, S.A. Designs and Architectures for the Next Generation of Organic Solar Cells. Energies 2010, 3, 1212–1250. [Google Scholar] [CrossRef] [Green Version]
- Zhao, Y.; Yuan, G.X.; Roche, P.; Leclerc, M. A Calorimetric Study of the Phase–Transitions in Poly(3–Hexylthiophene). Polymer 1995, 36, 2211–2214. [Google Scholar] [CrossRef]
- Dittmer, J.J.; Lazzaroni, R.; Leclere, P.; Moretti, P.; Granstrom, M.; Petritsch, K.; Marseglia, E.A.; Friend, R.H.; Bredas, J.L.; Rost, H.; et al. Crystal network formation in organic solar cells. Sol. Energy Mater Sol. Cells 2000, 61, 53–61. [Google Scholar] [CrossRef]
- Padinger, F.; Rittberger, R.S.; Sariciftci, N.S. Effects of postproduction treatment on plastic solar cells. Adv. Funct. Mater. 2003, 13, 85–88. [Google Scholar] [CrossRef]
- Jenekhe, S.A.; Yi, S.J. Highly photoconductive nanocomposites of metallophthalocyanines and conjugated polymers. Adv. Mater. 2000, 12, 1274. [Google Scholar] [CrossRef]
- Ma, W.; Yang, C.; Gong, X.; Lee, K.; Heeger, A.J. Thermally Stable, Efficient Polymer Solar Cells with Nanoscale Control of the Interpenetrating Network Morphology. Adv. Funct. Mater. 2005, 15, 1617–1622. [Google Scholar] [CrossRef]
- Lee, H.; Oh, S.; Song, C.E.; Lee, H.K.; Lee, S.K.; Shin, W.S.; So, W.W.; Moon, S.J.; Lee, J.C. Stable P3HT: Amorphous non–fullerene solar cells with a high open–circuit voltage of 1 V and efficiency of 4%. RSC Adv. 2019, 9, 20733–20741. [Google Scholar] [CrossRef] [Green Version]
- Jang, M.; Huh, Y.I.; Chang, M. Effects of Solvent Vapor Annealing on Morphology and Charge Transport of Poly(3–hexylthiophene) (P3HT) Films Incorporated with Preformed P3HT Nanowires. Polymers 2020, 12, 1188. [Google Scholar] [CrossRef]
- Li, G.; Shrotriya, V.; Huang, J.; Yao, Y.; Moriarty, T.; Emery, K.; Yang, Y. High–efficiency solution processable polymer photovoltaic cells by self–organization of polymer blends. Nat. Mater. 2005, 4, 864–868. [Google Scholar] [CrossRef]
- Wu, J.; Yuan, Y.; Gao, M.; Wang, Z.; Jiang, L. Preparation of Single Crystals of Small Molecule Organic Semiconductor via Solvent Vapor Annealing. Acta Chim. Sin. 2015, 73, 23–28. [Google Scholar] [CrossRef] [Green Version]
- Vogelsang, J.; Brazard, J.; Adachi, T.; Bolinger, J.C.; Barbara, P.F. Watching the Annealing Process One Polymer Chain at a Time. Angew. Chem. Int. Ed. 2011, 50, 2257–2261. [Google Scholar] [CrossRef]
- Hammed, W.; Yahya, R.; Bola, A.u.; Mahmud, H. Recent Approaches to Controlling the Nanoscale Morphology of Polymer–Based Bulk–Heterojunction Solar Cells. Energies 2013, 6, 5847–5868. [Google Scholar] [CrossRef]
- Yang, L.; Zhang, S.; He, C.; Zhang, J.; Yao, H.; Yang, Y.; Zhang, Y.; Zhao, W.; Hou, J. New Wide Band Gap Donor for Efficient Fullerene–Free All–Small–Molecule Organic Solar Cells. J. Am. Chem. Soc. 2017, 139, 1958–1966. [Google Scholar] [CrossRef]
- Chang, Y.M.; Wang, L. Efficient Poly(3–hexylthiophene)–Based Bulk Heterojunction Solar Cells Fabricated by an Annealing–Free Approach. J. Phys. Chem. C 2008, 112, 17716–17720. [Google Scholar] [CrossRef]
- Berson, S.; De Bettignies, R.; Bailly, S.; Guillerez, S. Poly(3–hexylthiophene) Fibers for Photovoltaic Applications. Adv. Funct. Mater. 2007, 17, 1377–1384. [Google Scholar] [CrossRef]
- Yang, D.; Yu, K.; Xu, J.; Zhang, J.; Zhang, J.; Gao, J.; Song, W.; Li, D.; Chen, Z.; Ge, Z. Achieving 10% efficiency in non–fullerene all–small–molecule organic solar cells without extra treatments. J. Mater. Chem. A 2021, 9, 10427–10436. [Google Scholar] [CrossRef]
- Wan, J.; Wen, R.; Xia, Y.; Dai, M.; Huang, H.; Xue, L.; Zhang, Z.; Fang, J.; Hui, K.N.; Fan, X. All annealing–free solution–processed highly flexible organic solar cells. J. Mater. Chem. A 2021, 9, 5425–5433. [Google Scholar] [CrossRef]
- Kazerouni, N.; Melenbrink, E.L.; Das, P.; Thompson, B.C. Ternary Blend Organic Solar Cells Incorporating Ductile Conjugated Polymers with Conjugation Break Spacers. ACS Appl. Polym. Mater. 2021, 3, 3028–3037. [Google Scholar] [CrossRef]
- Avalos–Quiroz, Y.A.; Bardagot, O.; Kervella, Y.; Aumaitre, C.; Cabau, L.; Rivaton, A.; Margeat, O.; Videlot–Ackermann, C.; Vongsaysy, U.; Ackermann, J.; et al. Non–Fullerene Acceptors with an Extended pi–Conjugated Core: Third Components in Ternary Blends for High–Efficiency, Post–Treatment–Free Organic Solar Cells. ChemSusChem 2021, 14, 3502–3510. [Google Scholar] [CrossRef] [PubMed]
- Buss, F.; Schmidt–Hansberg, B.; Sanyal, M.; Munuera, C.; Scharfer, P.; Schabel, W.; Barrena, E. Gaining Further Insight into the Solvent Additive–Driven Crystallization of Bulk–Heterojunction Solar Cells by in Situ X–ray Scattering and Optical Reflectometry. Macromolecules 2016, 49, 4867–4874. [Google Scholar] [CrossRef]
- Park, S.H.; Jin, I.S.; Ahn, H.; Jung, J.W. Non–halogenated additive engineering for morphology optimization in environmental–friendly solvent processed non–fullerene organic solar cells. Org. Electron. 2020, 86, 105893. [Google Scholar] [CrossRef]
- Kırbıyık Kurukavak, Ç.; Yılmaz, T.; Çetin, Ş.; Alqadasi, M.M.; Al–Khawlany, K.M.; Kuş, M. Synthesis of boron–doped CQDs and its use as an additive in P3HT:PCBM layer for efficiency improvement of organic solar cell. Microelectron. Eng. 2021, 235, 111465. [Google Scholar] [CrossRef]
- Arbab, E.A.A.; Gebremichael, B.; Kumar, A.; Mola, G.T. Morphology–dependent performance of thin film organic solar cells. J. Mod. Opt. 2018, 66, 399–406. [Google Scholar] [CrossRef]
- Alam, S.; Islam, M.M.; Chowdhury, S.; Meitzner, R.; Kästner, C.; Schubert, U.S.; Hoppe, H. Disentanglement of Degradation Mechanisms by Analyzing Aging Dynamics of Environmentally Friendly Processed Polymer Solar Cells. Energy Technol. 2020, 8, 2000116. [Google Scholar] [CrossRef]
- Shin, N.; Richter, L.J.; Herzing, A.A.; Kline, R.J.; DeLongchamp, D.M. Effect of Processing Additives on the Solidification of Blade–Coated Polymer/Fullerene Blend Films via In–Situ Structure Measurements. Adv. Energy Mater. 2013, 3, 938–948. [Google Scholar] [CrossRef]
- Zhu, L.; Zhong, W.; Qiu, C.; Lyu, B.; Zhou, Z.; Zhang, M.; Song, J.; Xu, J.; Wang, J.; Ali, J.; et al. Aggregation–Induced Multilength Scaled Morphology Enabling 11.76% Efficiency in All–Polymer Solar Cells Using Printing Fabrication. Adv. Mater. 2019, 31, 1902899. [Google Scholar] [CrossRef]
- Li, W.; Chen, M.; Zhang, Z.; Cai, J.; Zhang, H.; Gurney, R.S.; Liu, D.; Yu, J.; Tang, W.; Wang, T. Retarding the Crystallization of a Nonfullerene Electron Acceptor for High–Performance Polymer Solar Cells. Adv. Funct. Mater. 2018, 29, 1807662. [Google Scholar] [CrossRef]
- Zhou, K.; Zhang, R.; Liu, J.; Li, M.; Yu, X.; Xing, R.; Han, Y. Donor/Acceptor Molecular Orientation–Dependent Photovoltaic Performance in All–Polymer Solar Cells. ACS Appl. Mater. Interfaces 2015, 7, 25352–25361. [Google Scholar] [CrossRef] [PubMed]
- Li, M.; Zhou, Y.; Yang, L.; Shen, S.; Liu, Y.; Chen, Y.; Song, J.; Bo, Z. Regulating molecular orientations of dipyran–based nonfullerene acceptors through side–chain engineering at the π–bridge. J. Mater. Chem. A 2020, 8, 22416–22422. [Google Scholar] [CrossRef]
- Lee, C.; Li, Y.; Lee, W.; Lee, Y.; Choi, J.; Kim, T.; Wang, C.; Gomez, E.D.; Woo, H.Y.; Kim, B.J. Correlation between Phase–Separated Domain Sizes of Active Layer and Photovoltaic Performances in All–Polymer Solar Cells. Macromolecules 2016, 49, 5051–5058. [Google Scholar] [CrossRef]
- Chen, J.; Bi, Z.; Xu, X.; Zhang, Q.; Yang, S.; Guo, S.; Yan, H.; You, W.; Ma, W. Fine Optimization of Morphology Evolution Kinetics with Binary Additives for Efficient Non–Fullerene Organic Solar Cells. Adv. Sci. 2019, 6, 1801560. [Google Scholar] [CrossRef] [Green Version]
- Lee, J.K.; Ma, W.L.; Brabec, C.J.; Yuen, J.; Moon, J.S.; Kim, J.Y.; Lee, K.; Bazan, G.C.; Heeger, A.J. Processing Additives for Improved Efficiency from Bulk Heterojunction Solar Cells. J. Am. Chem. Soc. 2008, 130, 3619–3623. [Google Scholar] [CrossRef] [PubMed]
- Sun, Y.; Liu, J.-G.; Ding, Y.; Han, Y.-C. Controlling the surface composition of PCBM in P3HT/PCBM blend films by using mixed solvents with different evaporation rates. Chin. J. Polym. Sci. 2013, 31, 1029–1037. [Google Scholar] [CrossRef]
- Ye, L.; Hu, H.; Ghasemi, M.; Wang, T.; Collins, B.A.; Kim, J.H.; Jiang, K.; Carpenter, J.H.; Li, H.; Li, Z.; et al. Quantitative relations between interaction parameter, miscibility and function in organic solar cells. Nat. Mater. 2018, 17, 253–260. [Google Scholar] [CrossRef]
- Raj Mohan, S.; Singh, M.P.; Joshi, M.P. A Model for Charge Transport in Semicrystalline Polymer Thin Films. J. Polym. Sci. Part B Polym. Phys. 2019, 57, 137–141. [Google Scholar] [CrossRef] [Green Version]
- Ferron, T.; Waldrip, M.; Pope, M.; Collins, B.A. Increased charge transfer state separationviareduced mixed phase interface in polymer solar cells. J. Mater. Chem. A 2019, 7, 4536–4548. [Google Scholar] [CrossRef]
- Fanta, G.M.; Jarka, P.; Szeluga, U.; Tanski, T.; Kim, J.Y. Phase Behavior of Amorphous/Semicrystalline Conjugated Polymer Blends. Polymers 2020, 12, 1726. [Google Scholar] [CrossRef]
- Gu, K.; Wang, Y.; Li, R.; Tsai, E.; Onorato, J.W.; Luscombe, C.K.; Priestley, R.D.; Loo, Y.L. Role of Postdeposition Thermal Annealing on Intracrystallite and Intercrystallite Structuring and Charge Transport in Poly(3–hexylthiophene). ACS Appl. Mater. Interfaces 2021, 13, 999–1007. [Google Scholar] [CrossRef]
- Liang, Q.J.; Hu, Z.B.; Yao, J.H.; Yin, Y.K.; Wei, P.X.; Chen, Z.K.; Li, W.C.; Liu, J.G. Recent advances in intermixed phase of organic solar cells: Characterization, regulating strategies and device applications. J. Polym. Sci. 2021, 1–28. [Google Scholar] [CrossRef]
- Liang, Q.J.; Hu, Z.B.; Yao, J.H.; Wu, Z.H.; Ding, Z.C.; Zhao, K.; Jiao, X.C.; Liu, J.G.; Huang, W. Blending Donors with Different Molecular Weights: An Efficient Strategy to Resolve the Conflict between Coherence Length and Intermixed Phase in Polymer/Nonfullerene Solar Cells. Small 2021. [Google Scholar] [CrossRef]
- Turner, S.T.; Pingel, P.; Steyrleuthner, R.; Crossland, E.J.W.; Ludwigs, S.; Neher, D. Quantitative Analysis of Bulk Heterojunction Films Using Linear Absorption Spectroscopy and Solar Cell Performance. Adv. Funct. Mater. 2011, 21, 4640–4652. [Google Scholar] [CrossRef]
- Landi, G.; Barone, C.; Mauro, C.; De Sio, A.; Carapella, G.; Neitzert, H.; Pagano, S. Probing Temperature–Dependent Recombination Kinetics in Polymer:Fullerene Solar Cells by Electric Noise Spectroscopy. Energies 2017, 10, 1490. [Google Scholar] [CrossRef] [Green Version]
- Engmann, S.; Bokel, F.A.; Ro, H.W.; DeLongchamp, D.M.; Richter, L.J. Real–Time Photoluminescence Studies of Structure Evolution in Organic Solar Cells. Adv. Energy Mater. 2016, 6, 1502011. [Google Scholar] [CrossRef]
- Sim, M.; Shin, J.; Shim, C.; Kim, M.; Jo, S.B.; Kim, J.-H.; Cho, K. Dependence of Exciton Diffusion Length on Crystalline Order in Conjugated Polymers. J. Phys. Chem. C 2014, 118, 760–766. [Google Scholar] [CrossRef]
- Burkhard, G.F.; Hoke, E.T.; Scully, S.R.; McGehee, M.D. Incomplete exciton harvesting from fullerenes in bulk heterojunction solar cells. Nano Lett. 2009, 9, 4037–4041. [Google Scholar] [CrossRef] [PubMed]
- Richter, L.J.; DeLongchamp, D.M.; Bokel, F.A.; Engmann, S.; Chou, K.W.; Amassian, A.; Schaible, E.; Hexemer, A. In Situ Morphology Studies of the Mechanism for Solution Additive Effects on the Formation of Bulk Heterojunction Films. Adv. Energy Mater. 2015, 5, 1400975. [Google Scholar] [CrossRef]
- McDowell, C.; Abdelsamie, M.; Zhao, K.; Smilgies, D.M.; Bazan, G.C.; Amassian, A. Synergistic Impact of Solvent and Polymer Additives on the Film Formation of Small Molecule Blend Films for Bulk Heterojunction Solar Cells. Adv. Energy Mater. 2015, 5, 1501121. [Google Scholar] [CrossRef]
- Zhou, R.; Jiang, Z.; Shi, Y.; Wu, Q.; Yang, C.; Zhang, J.; Lu, K.; Wei, Z. Moving Alkyl–Chain Branching Point Induced a Hierarchical Morphology for Efficient All–Small–Molecule Organic Solar Cells. Adv. Funct. Mater. 2020, 30, 2005426. [Google Scholar] [CrossRef]
- Yu, Q.; Xu, J.; Fu, J.; Xu, T.; Yan, X.; Chen, S.; Chen, H.; Sun, K.; Kan, Z.; Lu, S.; et al. Crystallinity dictates the selection of fullerene or non–fullerene acceptors in a small molecule organic solar cell. Dyes Pigm. 2021, 187, 109085. [Google Scholar] [CrossRef]
- Yu, P.; Feng, G.; Li, J.; Li, C.; Xu, Y.; Xiao, C.; Li, W. A selenophene substituted double–cable conjugated polymer enables efficient single–component organic solar cells. J. Mater. Chem. C 2020, 8, 2790–2797. [Google Scholar] [CrossRef]
- Jiang, H.; Han, C.; Li, Y.; Bi, F.; Zheng, N.; Han, J.; Shen, W.; Wen, S.; Yang, C.; Yang, R.; et al. Rational Mutual Interactions in Ternary Systems Enable High–Performance Organic Solar Cells. Adv. Funct. Mater. 2020, 31, 2007088. [Google Scholar] [CrossRef]
- Osaka, I.; Takimiya, K. Backbone orientation in semiconducting polymers. Polymer 2015, 59, A1–A15. [Google Scholar] [CrossRef]
- Rogers, J.T.; Schmidt, K.; Toney, M.F.; Bazan, G.C.; Kramer, E.J. Time–resolved structural evolution of additive–processed bulk heterojunction solar cells. J. Am. Chem. Soc. 2012, 134, 2884–2887. [Google Scholar] [CrossRef]
- Zhu, Q.; Xue, J.; Zhang, L.; Wen, J.; Lin, B.; Naveed, H.B.; Bi, Z.; Xin, J.; Zhao, H.; Zhao, C.; et al. Intermolecular Interaction Control Enables Co–optimization of Efficiency, Deformability, Mechanical and Thermal Stability of Stretchable Organic Solar Cells. Small 2021, 17, 2007011. [Google Scholar] [CrossRef]
- Park, S.; Ahn, H.; Kim, J.-Y.; Park, J.B.; Kim, J.; Im, S.H.; Son, H.J. High–Performance and Stable Nonfullerene Acceptor–Based Organic Solar Cells for Indoor to Outdoor Light. ACS Energy Lett. 2019, 5, 170–179. [Google Scholar] [CrossRef]
- Cui, Y.; Yao, H.; Zhang, T.; Hong, L.; Gao, B.; Xian, K.; Qin, J.; Hou, J. 1 cm2 Organic Photovoltaic Cells for Indoor Application with over 20% Efficiency. Adv. Mater. 2019, 31, 1904512. [Google Scholar] [CrossRef]
- Lee, J.H.; You, Y.J.; Saeed, M.A.; Kim, S.H.; Choi, S.H.; Kim, S.; Lee, S.Y.; Park, J.S.; Shim, J.W. Undoped tin dioxide transparent electrodes for efficient and cost–effective indoor organic photovoltaics (SnO2 electrode for indoor organic photovoltaics). NPG Asia Mater. 2021, 13, 43. [Google Scholar] [CrossRef]
- Kim, S.H.; Saeed, M.A.; Lee, S.Y.; Shim, J.W. Investigating the Indoor Performance of Planar Heterojunction Based Organic Photovoltaics. IEEE J. Photovolt. 2021, 11, 997–1003. [Google Scholar] [CrossRef]
- You, Y.J.; Song, C.E.; Hoang, Q.V.; Kang, Y.; Goo, J.S.; Ko, D.H.; Lee, J.J.; Shin, W.S.; Shim, J.W. Highly Efficient Indoor Organic Photovoltaics with Spectrally Matched Fluorinated Phenylene–Alkoxybenzothiadiazole–Based Wide Bandgap Polymers. Adv. Funct. Mater. 2019, 1901171. [Google Scholar] [CrossRef]
- Sakata, T.; Kajiya, D.; Saitow, K.I. Brush Printing Creates Polarized Green Fluorescence: 3D Orientation Mapping and Stochastic Analysis of Conductive Polymer Films. ACS Appl. Mater. Interfaces 2020, 12, 46598–46608. [Google Scholar] [CrossRef]
- Qu, G.; Park, K.S.; Kafle, P.; Zhang, F.; Kwok, J.J.; Patel, B.B.; Smilgies, D.-M.; Thomsen, L.; McNeill, C.R.; Diao, Y. Lyotropic Liquid Crystalline Mesophase Governs Interfacial Molecular Orientation of Conjugated Polymer Thin Films. Chem. Mater. 2020, 32, 6043–6054. [Google Scholar] [CrossRef]
- Lee, Y.; Mongare, A.; Plant, A.; Ryu, D. Strain–Microstructure–Optoelectronic Inter–Relationship toward Engineering Mechano–Optoelectronic Conjugated Polymer Thin Films. Polymers 2021, 13, 935. [Google Scholar] [CrossRef]
- Spano, F.C. Modeling disorder in polymer aggregates: The optical spectroscopy of regioregular poly(3–hexylthiophene) thin films. J. Chem. Phys. 2005, 122, 234701. [Google Scholar] [CrossRef]
- DeLongchamp, D.M.; Vogel, B.M.; Jung, Y.; Gurau, M.C.; Richter, C.A.; Kirillov, O.A.; Obrzut, J.; Fischer, D.A.; Sambasivan, S.; Richter, L.J.; et al. Variations in semiconducting polymer microstructure and hole mobility with spin–coating speed. Chem. Mater. 2005, 17, 5610–5612. [Google Scholar] [CrossRef]
- Kitchen, B.; Awartani, O.; Kline, R.J.; McAfee, T.; Ade, H.; O’Connor, B.T. Tuning Open–Circuit Voltage in Organic Solar Cells with Molecular Orientation. ACS Appl. Mater. Interfaces 2015, 7, 13208–13216. [Google Scholar] [CrossRef]
- Luhman, W.A.; Holmes, R.J. Investigation of Energy Transfer in Organic Photovoltaic Cells and Impact on Exciton Diffusion Length Measurements. Adv. Funct. Mater. 2011, 21, 764–771. [Google Scholar] [CrossRef]
- Han, J.; Liang, Q.; Qu, Y.; Liu, J.; Han, Y. Morphology Control of Non–fullerene Blend Systems Based on Perylene. Acta Phys.–Chim. Sin. 2018, 34, 391–406. [Google Scholar] [CrossRef]
- Ruderer, M.A.; Guo, S.; Meier, R.; Chiang, H.-Y.; Körstgens, V.; Wiedersich, J.; Perlich, J.; Roth, S.V.; Müller–Buschbaum, P. Solvent–Induced Morphology in Polymer–Based Systems for Organic Photovoltaics. Adv. Funct. Mater. 2011, 21, 3382–3391. [Google Scholar] [CrossRef]
- Schmidt–Hansberg, B.; Sanyal, M.; Klein, M.F.G.; Pfaff, M.; Schnabel, N.; Jaiser, S.; Vorobiev, A.; Muller, E.; Colsmann, A.; Scharfer, P.; et al. Moving through the Phase Diagram: Morphology Formation in Solution Cast Polymer–Fullerene Blend Films for Organic Solar Cells. ACS Nano 2011, 5, 8579–8590. [Google Scholar] [CrossRef]
- Manley, E.F.; Strzalka, J.; Fauvell, T.J.; Jackson, N.E.; Leonardi, M.J.; Eastham, N.D.; Marks, T.J.; Chen, L.X. In Situ GIWAXS Analysis of Solvent and Additive Effects on PTB7 Thin Film Microstructure Evolution during Spin Coating. Adv. Mater. 2017, 29, 1703933. [Google Scholar] [CrossRef]
- Chen, H.; Tang, H.; Hu, D.; Xiao, Y.; Fu, J.; Lv, J.; Yu, Q.; Xiao, Z.; Lu, X.; Hu, H.; et al. Design of All–Small–Molecule Organic Solar Cells Approaching 14% Efficiency via Isometric Terminal Alkyl Chain Engineering. Energies 2021, 14, 2505. [Google Scholar] [CrossRef]
- Lee, H.; Park, C.; Sin, D.H.; Park, J.H.; Cho, K. Recent Advances in Morphology Optimization for Organic Photovoltaics. Adv. Mater. 2018, 30, 1800453. [Google Scholar] [CrossRef]
- Ayzner, A.L.; Tassone, C.J.; Tolbert, S.H.; Schwartz, B.J. Reappraising the Need for Bulk Heterojunctions in Polymer–Fullerene Photovoltaics: The Role of Carrier Transport in All–Solution–Processed P3HT/PCBM Bilayer Solar Cells. J. Phys. Chem. C 2009, 113, 20050–20060. [Google Scholar] [CrossRef] [Green Version]
- de Villers, B.T.; Tassone, C.J.; Tolbert, S.H.; Schwartz, B.J. Improving the Reproducibility of P3HT:PCBM Solar Cells by Controlling the PCBM/Cathode Interface. J. Phys. Chem. C 2009, 113, 18978–18982. [Google Scholar] [CrossRef] [Green Version]
- Wang, Z.; Xu, M.; Li, Z.; Gao, Y.; Yang, L.; Zhang, D.; Shao, M. Intrinsically Stretchable Organic Solar Cells beyond 10% Power Conversion Efficiency Enabled by Transfer Printing Method. Adv. Funct. Mater. 2021, 31, 2103534. [Google Scholar] [CrossRef]
- Yao, Y.; Hou, J.; Xu, Z.; Li, G.; Yang, Y. Effects of Solvent Mixtures on the Nanoscale Phase Separation in Polymer Solar Cells. Adv. Funct. Mater. 2008, 18, 1783–1789. [Google Scholar] [CrossRef]
Active Layer | Conditions | VOC [V] | JSC [mA cm−2] | FF [%] | PCEmax [%] | Ref. |
---|---|---|---|---|---|---|
P3HT:PCBM | Solvent CB | 0.64 | 1.63 | 52.3 | 0.58 | [69] |
Additive ODT 0.5% | 0.55 | 8.23 | 68.8 | 3.13 | ||
Additive CN 4% | 0.55 | 7.87 | 68.2 | 3.01 | ||
PTzBI–Si:N2200 | Solvent CB | 0.87 | 4.58 | 51.14 | 2.04 | [70] |
Solvent MTHF | 0.88 | 17.62 | 75.78 | 11.76 | ||
PBDB–T:INPIC–4F | Cast under strong SV | 0.84 | 12.8 | 60.5 | 6.5 | [71] |
Cast on 100 °C HS | 0.82 | 21.8 | 73.2 | 13.1 | ||
PTB7–th:P(NDI2OD–T2) | Solvent CN | 0.79 | 1.24 | 55 | 0.6 | [72] |
Solvent o–DCB | 0.77 | 6.82 | 51 | 2.86 | ||
Solvent CB | 0.78 | 8.86 | 50 | 3.63 | ||
Ph–DTDPo–OT:PBDB–T | Additive 1–CN 0.2% | 0.87 | 15.00 | 58.60 | 7.65 | [73] |
Ph–DTDPo–OTE:PBDB–T | Additive 1–CN 0.5% | 0.88 | 18.28 | 68.57 | 10.98 | |
Ph–DTDPo–TE:PBDB–T | Additive 1–CN 0.7% | 0.82 | 20.83 | 71.14 | 12.21 | |
PDFQx3T:P(NDI2OD–T2) | Solvent CF | 0.80 | 10.58 | 60 | 5.11 | [74] |
Solvent CB | 0.79 | 9.12 | 61 | 4.43 | ||
Solvent DCB | 0.80 | 8.44 | 60 | 4.04 | ||
Solvent XY | 0.79 | 7.91 | 61 | 3.83 | ||
FTAZ:ITIC–Th | Solvent CF | 0.907 | 16.8 | 62.57 | 9.72 | [75] |
Additive ODT:DIO 0.375%:0.125% | 0.922 | 17.78 | 66.64 | 11.15 | ||
P3HT:O–IDTBR | Solvent CB | 0.77 | 8.81 | 64 | 4.45 | [42] |
Additive TCB 2% | 0.76 | 13.49 | 70 | 7.18 | ||
PCPDTBT/C71–PCBM | Solvent CB | 0.66 | 11.74 | 43 | 3.35 | [76] |
Additive HS–C8H16–SH 2.5% | 0.64 | 14.48 | 49 | 4.50 | ||
Additive Br–C8H16–Br 2.5% | 0.64 | 15.26 | 48 | 4.66 | ||
Additive I–C8H16–I 2.5% | 0.61 | 15.73 | 53 | 5.12 | ||
P3HT/PCBM | CB/tetralin 1:0.05 | – | 5.76 | 60 | 1.96 | [77] |
Solvent | Solubility (mg/mL) | ||
---|---|---|---|
P3HT | PCBM | ||
Chlorobenzene (CB) | 14 | 35 | |
Additives | 1,8–octanedithiol (ODT) | 0.50 | 30 |
1–chloronaphthalene (CN) | 6.4 | 37 |
Solvent | μh (10−5 cm2/(V s)) | μe (10−5 cm2/(V s)) | PCE(%) |
---|---|---|---|
CN | 0.62 ± 0.10 | 1.01 ± 0.16 | 0.53 ± 0.07 |
o–DCB | 3.90 ± 0.36 | 2.58 ± 0.26 | 2.73 ± 0.13 |
CB | 8.40 ± 0.69 | 6.20 ± 1.51 | 3.52 ± 0.11 |
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations. |
© 2021 by the authors. Licensee MDPI, Basel, Switzerland. This article is an open access article distributed under the terms and conditions of the Creative Commons Attribution (CC BY) license (https://creativecommons.org/licenses/by/4.0/).
Share and Cite
Liang, Q.; Yao, J.; Hu, Z.; Wei, P.; Lu, H.; Yin, Y.; Wang, K.; Liu, J. Recent Advances of Film–Forming Kinetics in Organic Solar Cells. Energies 2021, 14, 7604. https://doi.org/10.3390/en14227604
Liang Q, Yao J, Hu Z, Wei P, Lu H, Yin Y, Wang K, Liu J. Recent Advances of Film–Forming Kinetics in Organic Solar Cells. Energies. 2021; 14(22):7604. https://doi.org/10.3390/en14227604
Chicago/Turabian StyleLiang, Qiuju, Jianhong Yao, Zhangbo Hu, Puxin Wei, Haodong Lu, Yukai Yin, Kang Wang, and Jiangang Liu. 2021. "Recent Advances of Film–Forming Kinetics in Organic Solar Cells" Energies 14, no. 22: 7604. https://doi.org/10.3390/en14227604
