Inspection Robotic UGV Platform and the Procedure for an Acoustic Signal-Based Fault Detection in Belt Conveyor Idler

Abstract

Belt conveyors are commonly used for the transportation of bulk materials. The most characteristic design feature is the fact that thousands of idlers are supporting the moving belt. One of the critical elements of the idler is the rolling element bearing, which requires monitoring and diagnostics to prevent potential failure. Due to the number of idlers to be monitored, the size of the conveyor, and the risk of accident when dealing with rotating elements and moving belts, monitoring of all idlers (i.e., using vibration sensors) is impractical regarding scale and connectivity. Hence, an inspection robot is proposed to capture acoustic signals instead of vibrations commonly used in condition monitoring. Then, signal processing techniques are used for signal pre-processing and analysis to check the condition of the idler. It has been found that even if the damage signature is identifiable in the captured signal, it is hard to automatically detect the fault in some cases due to sound disturbances caused by contact of the belt joint and idler coating. Classical techniques based on impulsiveness may fail in such a case, moreover, they indicate damage even if idlers are in good condition. The application of the inspection robot can “replace” the classical measurement done by maintenance staff, which can improve the safety during the inspection. In this paper, the authors show that damage detection in bearings installed in belt conveyor idlers using acoustic signals is possible, even in the presence of a significant amount of background noise. Influence of the sound disturbance due to the belt joint can be minimized by appropriate signal processing methods.

1. Introduction

Belt conveyors are widely recognized as interesting objects for condition monitoring [1]. There are plenty of articles focused on the diagnostics of drive units (gearboxes, pulleys) using vibration analysis or infrared thermography [2,3,4,5,6] or temperature [7]. The conveyor belt has been defined as one of the most expensive component in conveyor, thus various NDT techniques (image analysis, laser scanning, magnetic field measurement) have been applied [8,9,10,11,12,13].

Researches on idlers were rather focused on rolling resistance, their energy consumption, load distribution, and failure analysis until now [14,15,16,17,18], however, some infrared thermography applications can be found in [5,8,9], among others.

There are also other interesting research problems regarding conveyors, including destructive testing of steel-core belts, modeling of material stream behavior in a transfer point (between two conveyors), or detection of humans in harsh conditions (for the case when they are using conveyors as transport means for miners) [19,20,21]. However, these topics have no direct link to the predictive maintenance of such systems.

Rolling element bearings have been widely discussed in the literature [22,23,24]. In the case of conveyors, bearings are used in electric motors, gearboxes, pulleys, and, on a massive scale, in idlers. Mostly, vibration signals are used for fault detection [22,23,25]. Acoustic emission or just acoustic (sound) signals are rarely explored [26,27,28,29,30,31]. Delgado-Arredondo at all [32], introduced methodology-based sound and vibration signals to fault detection on an induction motor. They used Ensemble Empirical Mode Decomposition to decompose the signal. Afterward, Gabor transform was utilized to calculate the spectral content of signals in the frequency domain. Their method could detect two broken rotor bars and mechanical unbalance defects. In [33] data driven methodology to detect fault in the combustion motor were introduced based on the Wavelet Packet Transform (WPT), Principle Component Analysis (PCA), and Bayesian optimization by using the acoustic signal.

A very interesting application of acoustic-based condition monitoring using a mobile phone has been proposed in [26,27].

Bearings used in idlers are not very often discussed in the literature. The reason for that is likely the fact that vibration measurements are very difficult to perform for so many idlers. Therefore, it might be the best solution (or rather one of the most feasible solutions) to use a sound signal. Unfortunately, there are additional sources of noise and fault detection in such conditions that may be complicated to distinguish, especially if one can consider impulsive (what we will discuss later) disturbances in the acoustic signal.

An impulsive noise in signal processing procedures developed for local damage detection has been recognized as a critical challenge [34,35,36,37,38,39,40,41,42,43,44,45,46,47,48]. It is well known that faulty bearings produce a cyclic impulsive signal and the properties of the Signal of Interest depend on the bearing geometry, rotational speed, and fault size. There are two commonly used approaches for damage detection: searching for impulsiveness and periodicity. In the presence of impulsive disturbance, the first approach fails completely. To identify signatures in the spectrum with so-called fault frequency, one needs some preprocessing, which in practice is prefiltering used to select an informative frequency band. Again, prefiltering is mostly based on the search of impulsive behavior, which is hardly acceptable in this case. Moreover, even a classical envelope spectrum analysis or very advanced bi-frequency maps related to cyclostationary signal analysis may fail if the impulsive disturbance is really high [39,40,41,42,44,46].

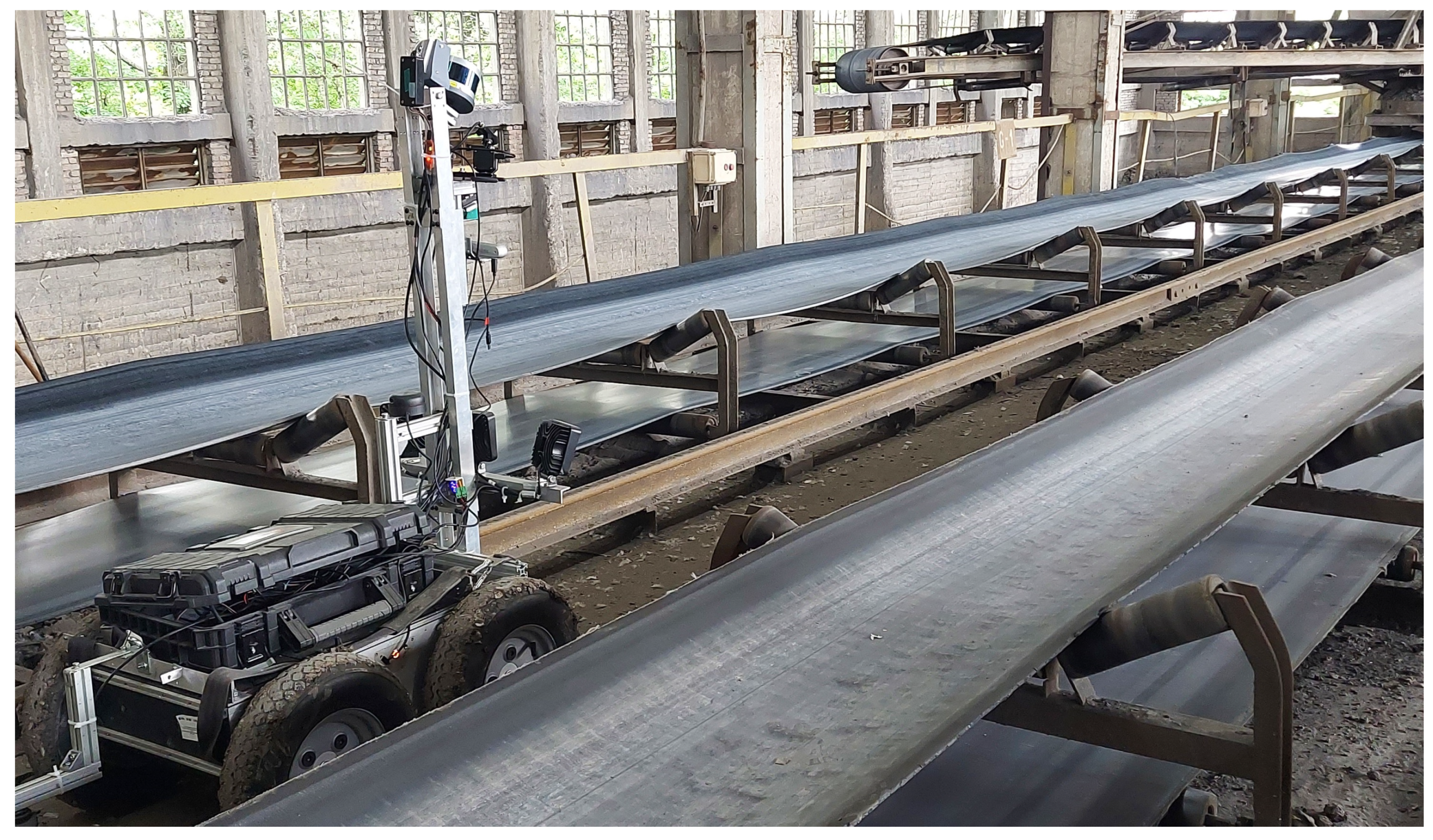

As mentioned, due to the number of idlers located along the conveyor, there is a need to have a method for quick and automatic acoustic measurement and analysis. Thus, there are intensive works on inspection robots equipped with various sensors and data acquisition systems, including sound recording [5,6,8,9,49,50,51]. In the paper, we propose a combination of robotics inspection, acoustic data measurement, and finally signal processing for fault detection in idlers. The novel approach lies in proposing multidimensional data structure called spectral autocorrelation, which is an extension of the ordinary autocorrelation function calculated for the subsignals decomposed in the carrier frequency domain. The advantages of using such map are laid out at the final stage of result demonstration.

The acoustic signals acquired from mining machines are commonly mixed with high-energy environmental noise and interfaces from other neighboring devices. Furthermore, mining machines commonly work under time-varying speed, uncertain load conditions, and noncyclic impulsive noise that lead signals to have a complicated structure. Therefore, it is necessary to reduce this effect on the original signal by applying preprocessing methods. Adaptive mode decomposition approaches are well known and effective methods for dealing with such complex signals. They can identify the local properties of a signal with great confidence of separability. Adaptive mode decomposition approaches are well known and are effective methods for dealing with such complex signals. They can identify the local properties of a signal with great confidence of separability. Empirical mode decomposition (EMD) is a well-known adaptive mode decomposition method proposed to analyze non-stationary signals [52,53]. However, this method is suffering from mode mixing, endpoint effect, pseudo pulses, and other phenomena. Therefore, the local mean decomposition (LMD) was developed to determine the mode mixing problem in EMD. LMD utilized smoothed local means to evoke intrinsic modes from a signal instead of Hilbert transform used in the EMD algorithm [54,55,56]. Consequently, the information loss prompted by the Hilbert transform can be minimized.

The paper is structured as follows: after the introduction, the experiment is described and the most problematic aspects of the data processing are indicated. After that, the key aspects of the processing methods are described in theory. Finally, the results are presented with an indication of all intermediate steps and the conclusions are formed.

2. Experiments and Data Description

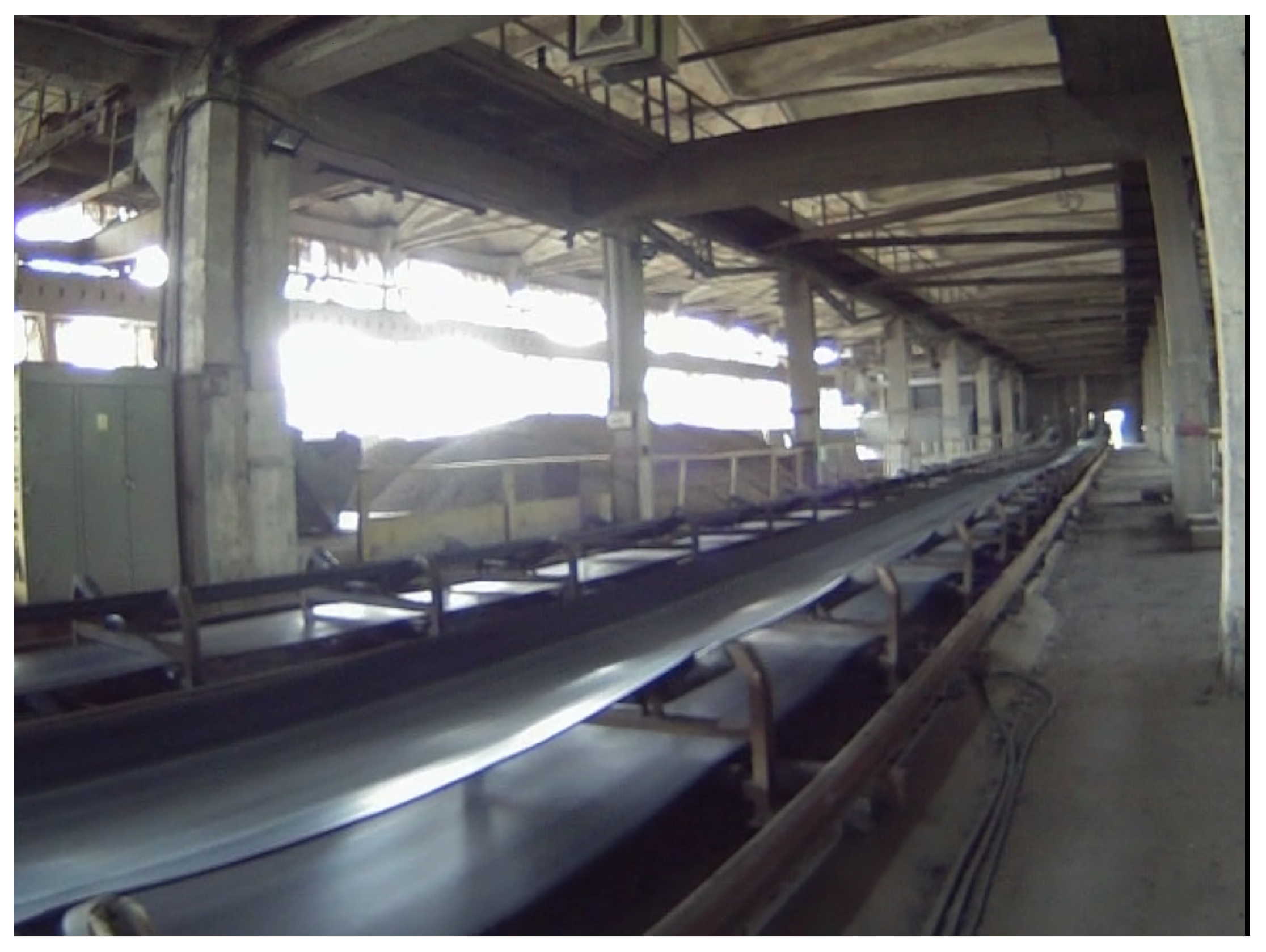

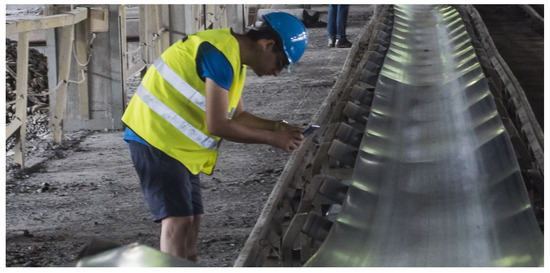

Idlers are rotating elements of the belt conveyor installed to support a moving belt. It consists of a shaft, two bearings, and coating. As the number of idlers is massive in practice (see Figure 1), a quick contactless method for bearing condition evaluation is required. The experiment discussed in this paper has been done on a real industrial object during regular operation. The conveyor itself is installed in a hall encapsulating the final process of the material extraction. In this hall, the final stage of belt conveyors is operated in order to discharge the material transported from the mining pit to the appropriate compartments that are storing the material temporarily. Hence, in this hall some sections of the conveyors are transporting the material to be dropped to the silos, and some of them perform a function of the final stage of conveyor series, where the belt is finalizing the loop and returning towards the excavation area. Until now, the inspection is done in a classical way, i.e., the expert is checking the condition using their own senses, i.e., sight and hearing (see Figure 2). However, the ultimate goal of the project is to replace such “human-based inspection” with a mobile inspection robot, as shown in (see Figure 3). In this figure one can see two belt conveyors installed in parallel. At the moment of the experiment, the right conveyor was stationary, while the left one was in operation and it was a subject of the inspection. While laser scanner was configured in a way to scan both of them, the headpiece containing other measurement devices, such as cameras, was directed towards the left conveyor.

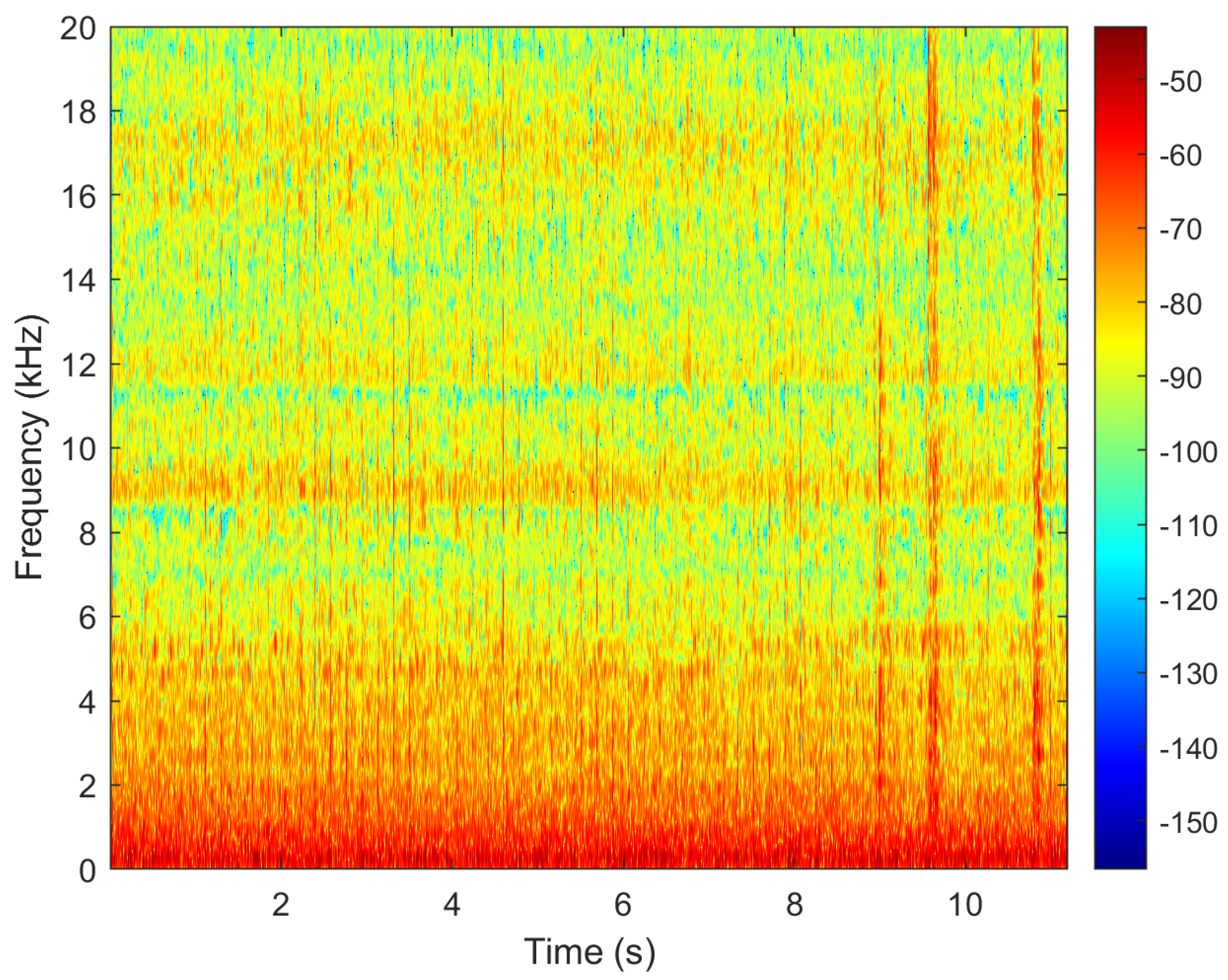

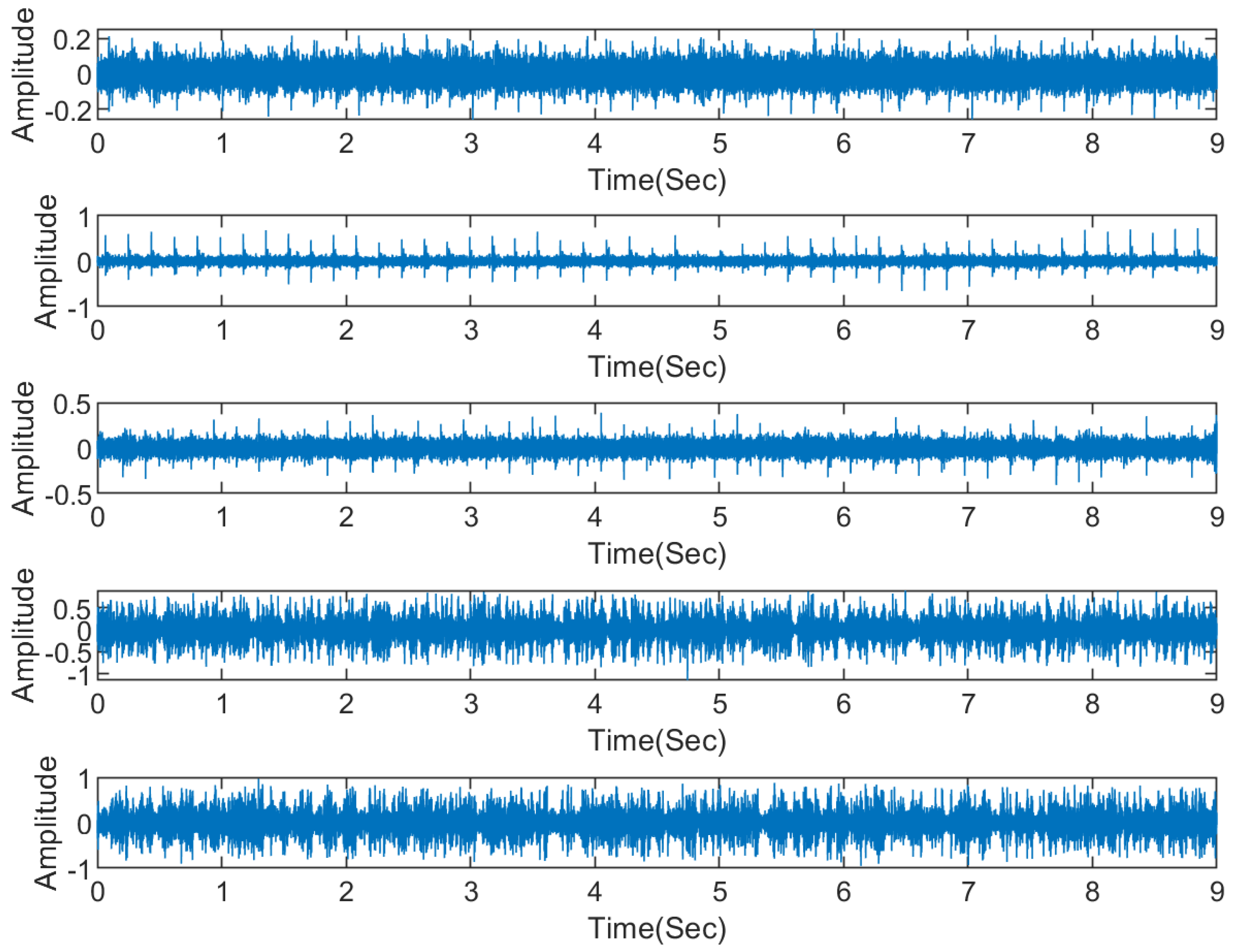

During the experiments, a sound from each idler has been recorded, among others. The duration of the signal is c.a. 10 s, with a sampling frequency of 48 kHz. Several interesting examples have been noticed, i.e., some idlers generated a cyclic impulsive signal, which is a clear signature of faulty bearings (see exemplary signals in Figure 4). However, it has been found that for some measurements, strong impulsive disturbances appeared (see exemplary signals in Figure 5).

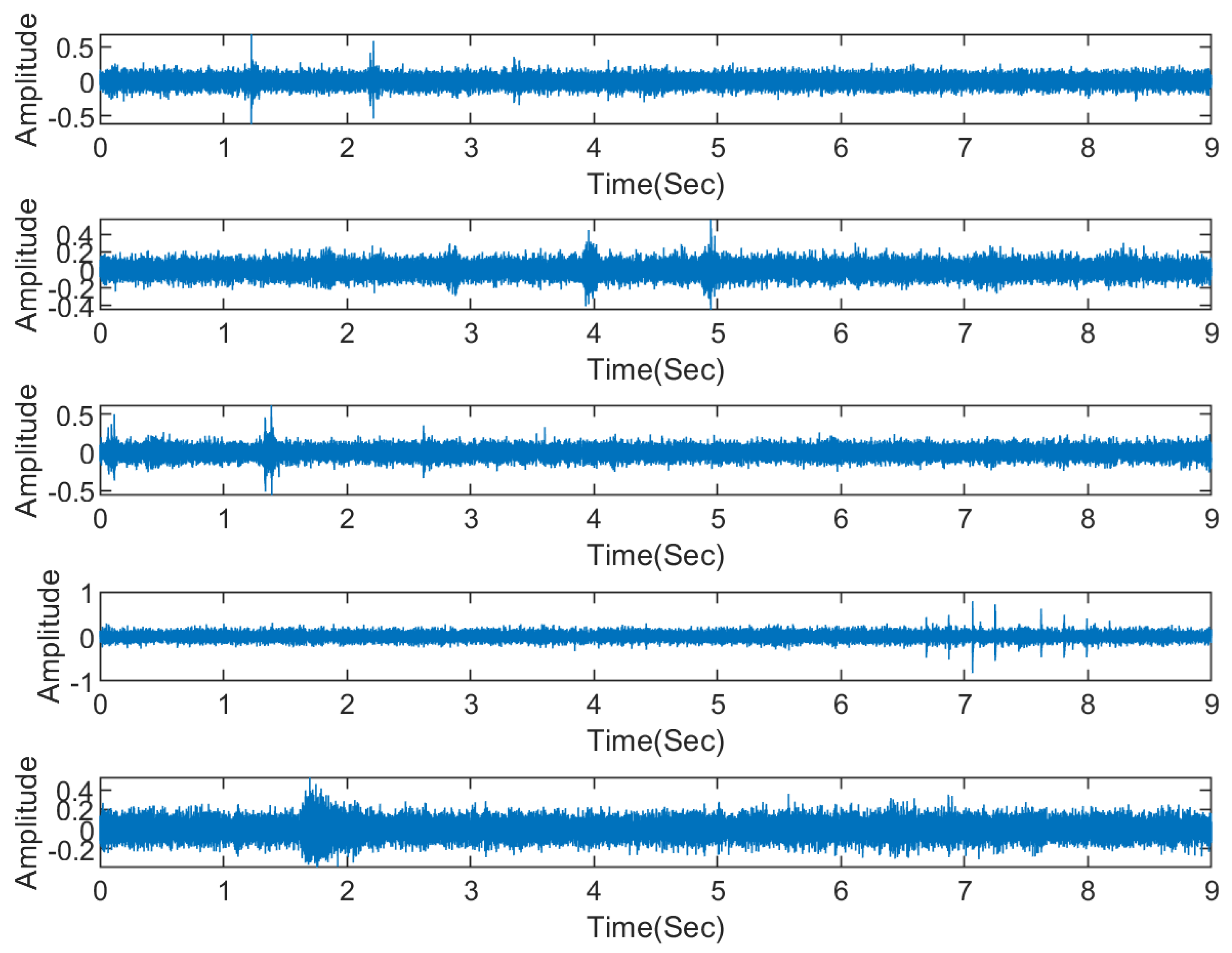

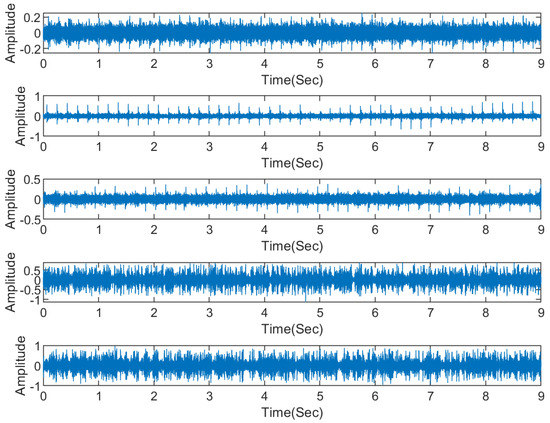

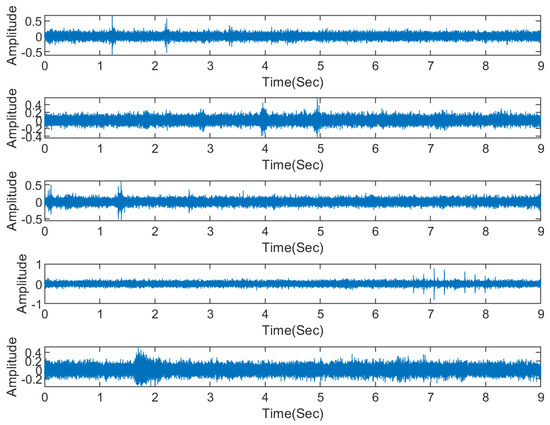

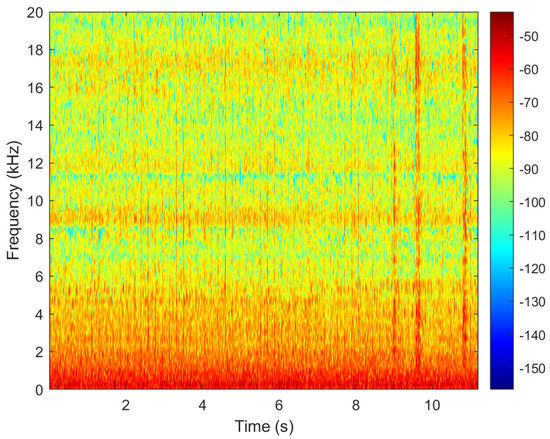

It may be concluded that several classes of signals can be distinguished in such a scenario, namely: non-impulsive signals (healthy case), cyclic impulsive signals (faulty case), noncyclic impulsive signals (or more precisely, impulsive signals that are not related to damage), and finally a mixture of cyclic and noncyclic signals. It is obvious that signals with different properties require more general, i.e., more advanced analysis. The two last cases are difficult to deal with, indeed. Such high energy impulse are represented in the frequency domain as wide-band excitation (see time-frequency representation of the exemplary signal in the Figure 6) and complicate the procedure of so-called informative frequency band detection. A similar effect can be observed in the time domain on the fourth subplot of Figure 5. The source of these noncyclic impulses (not related to damage) is a metal clip connecting two pieces of belt, which moves over the idlers and hits them with a force much stronger than a typical interaction between the belt and idler, see Figure 7. In this context it is important to know that the belt is never a single consistent loop. It is manufactured as a linear strip, which is then installed as a loop by making a connection of the ends. There are many ways to make such connection, which depends on the type of belt used in a given conveyor (steel-core belt, textile belt, etc.) and on the preferred method of making a joint in a given application (sawtooth gluing, layered gluing, multilayer gluing, thermal vulcanization of several types, various types of mechanical connections, etc.).

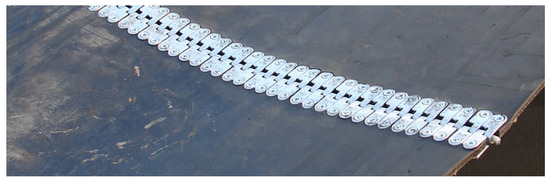

3. Methodology

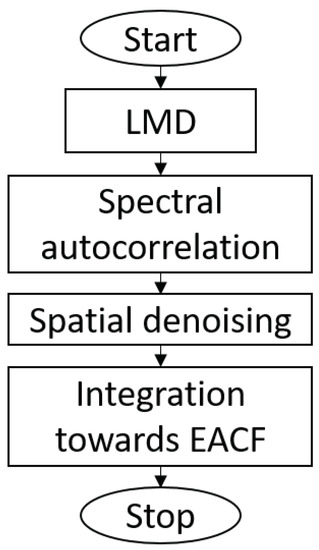

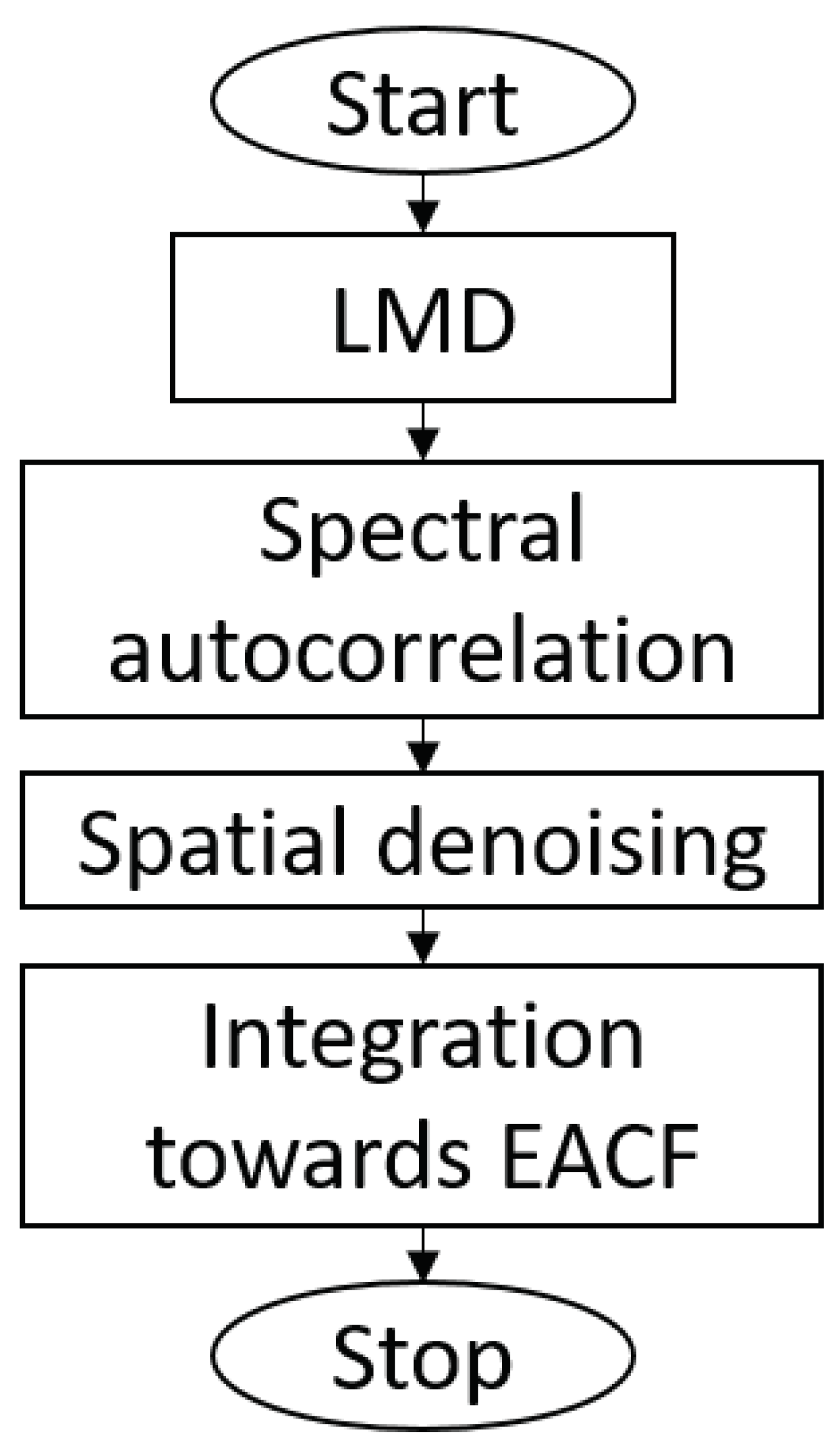

In this section, the key elements of the methodology are described. A general flowchart of the procedure is presented in Figure 8.

Firstly, local mode decomposition (LMD) is used as a way to denoise the input signal in a data-driven manner. Then, a spectral autocorrelation (SAC) map is calculated for the denoised signal. It allows to observe cyclic behavior in the signal with respect to the carrier frequency spectrum. In the final stage of the result section, it is shown how the usage of such an approach provides better results than using ordinary autocorrelation function (ACF). In the next step, the SAC map is spatially denoised to further enhance its quality. Finally, such an enhanced map is integrated along the frequency dimension, which provides enhanced autocorrelation function (EACF), which operates with the same concept as enhanced envelope spectrum produced when cyclostationarity maps are integrated after enhancements. In the end, EACF allows to confirm the frequency of the idler rotation, which indicates the bearing fault.

3.1. Preprocessing

LMD decomposes a complicated signal into a series of product functions (PFs) and a residue. Every PF is a mono-component that is produced from an envelope signal and a frequency modulated signal. In addition, A two-lever excursion algorithm is utilized to integrate the decomposition. The first step, a precise calculation of the PF, is augmented through the inner cycle. Second, in the outer cycle, the decomposition process of the signal is performed based on iterations. For implementing LMD on the signal $x\left(t\right)$, eight steps are required.

Step 1: Extract all local extrema $n_i$ from the raw signal $x\left(t\right)$. Compute the local envelope estimate $a_i$ and local value $m_i$ of two consecutive extrema $n_i$ and $n_{(i+1)}$ by utilizing (1) and (2), respectively.

$$m_i=\frac{n_{i+1}+n_i}{2}$$

(1)

$$a_i=\frac{\left|n_{i+1}-n_i\right|}{2}$$

(2)

Step 2: Make connections using direct lines between the local envelope estimate $a_i$ and local mean values $m_i$.

Step 3: By applying the moving average method to smooth the local mean and envelope estimate, create the amplitude function $a_{11}\left(t\right)$ and local mean function $m_{11}\left(t\right)$.

Step 4: Calculate residue signal $h_{11}\left(t\right)$ by subtracting local mean function $m_{11}\left(t\right)$ from the raw signal.

$$h_{11}\left(t\right)=x\left(t\right)-m_{11}\left(t\right)$$

(3)

Afterward, calculate the frequency modulated signal $s_{11}\left(t\right)$ as follows

$$s_{11}\left(t\right)=\frac{h_{11}\left(t\right)}{a_{11}\left(t\right)}.$$

(4)

Step 5: To extract the envelope estimate $a_{12}\left(t\right)$ of $s_{11}\left(t\right)$, replicate steps 1–3. If the envelope function $a_{11}\left(t\right)=1$, interrupt the process and select $s_{12}\left(t\right)$ as the first frequency modulated $\left(FM\right)$. Otherwise, select $s_{11}\left(t\right)$ instead of the raw signal and repeat Steps 1–4 n times until the envelope function $a_{1(n+1)}\left(t\right)$ of $s_{1n}\left(t\right)$ convince $a_{1(n+1)}\left(t\right)$. The first iterative procedure can be defined as.

$$\left\{\begin{array}{c}{h}_{11}\left(t\right)=x\left(t\right)-m_{11}\left(t\right)\hfill \\ h_{12}\left(t\right)=s_{11}\left(t\right)-m_{12}\left(t\right)\hfill \\ ⋮\hfill \\ h_{11}\left(t\right)=s_{1(n-1)}\left(t\right)-m_{11}\left(t\right)\hfill \end{array}\right.$$

(5)

where

$$\left\{\begin{array}{c}{s}_{11}\left(t\right)=\frac{h_{11}\left(t\right)}{a_{11}\left(t\right)}\hfill \\ s_{12}\left(t\right)=\frac{h_{12}\left(t\right)}{a_{12}\left(t\right)}\hfill \\ ⋮\hfill \\ s_{1n}\left(t\right)=\frac{h_{1n}\left(t\right)}{a_{1n}\left(t\right)}\hfill \end{array}\right.$$

(6)

Step 6: The corresponding instantaneous amplitude of the product function can be computed as follows.

$$a_1\left(t\right)=a_{11}\left(t\right)a_{11}\left(t\right)\dots a_{1n}\left(t\right)=\prod _{q=1}^n{a}_{1q}\left(t\right).$$

(7)

Step 7: Create the first product function $P{F}_1\left(t\right)$, utilizing.

$$P{F}_1\left(t\right)=a_1\left(t\right)s_{1n}\left(t\right).$$

(8)

In theory, $P{F}_1\left(t\right)$ consists of the main signal $x\left(t\right)$ oscillation information. The $IA$ of $P{F}_1\left(t\right)$ is $a_1\left(t\right)$, and the IF can be computed as.

$$f_1\left(t\right)=\frac{1}{2\pi }\frac{d[arccos\left(s_{1n}\left(t\right)\right)]}{dt}.$$

(9)

Step 8: Calculate the residue signal $u_1\left(t\right)$. Consider $u_1\left(t\right)$ as a new signal and perform the described process k times until $u_k\left(t\right)$ does not consist of oscillation. The second iterative process can be represented as follows.

$$\begin{array}{c}{u}_1\left(t\right)=x\left(t\right)-P{F}_1\left(t\right)\hfill \\ ⋮\hfill \\ uk\left(t\right)=u_{k-1}\left(t\right)-P{F}_k\left(t\right)\hfill \end{array}$$

(10)

Therefore, the primary signal can be reconstructed by utilizing it as follows

$$x\left(t\right)=\sum _{p=1}^{k}P{F}_k\left(t\right)+u_k\left(t\right)$$

(11)

where k is shown the number of PFs and $u_k\left(t\right)$ is the residue signal.

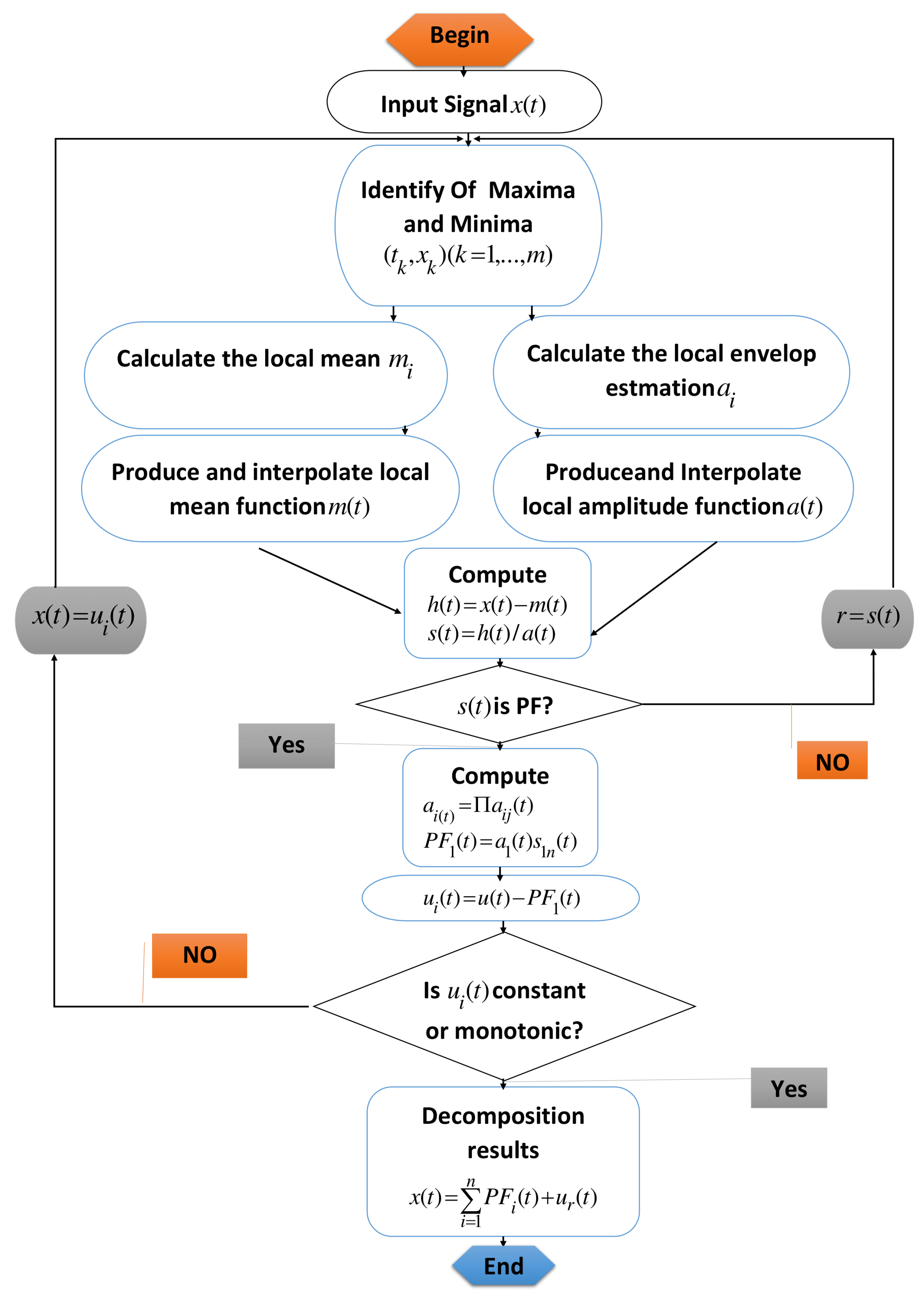

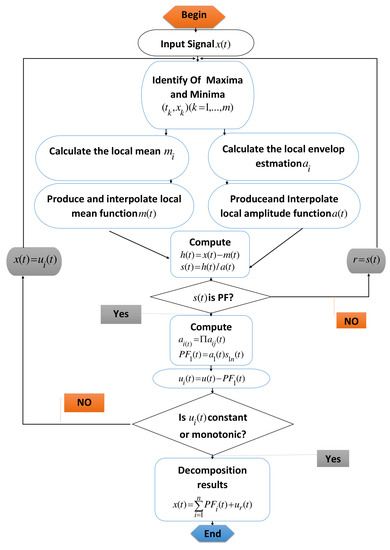

The LMD methods flowchart is demonstrated in the Figure 9.

3.2. Spectral Autocorrelation

To detect the cyclic component present in the signal, the authors propose the use of the spectral autocorrelation method. Firstly, the signal is decomposed in terms of its carrier frequency domain. In practice, this is realized by using a filter array $FA$ of type-1 linear-phase FIR filters with Kaiser window, and filtering the signal using the FFT-based overlap-add method [57,58].

The number of filters in the array can be set as a parameter $nB$ and the filters have equal passband width with respect to $-3$ dB cutoff frequencies with the width $df=fs/(2\ast nB)$. $-3$ dB frequencies of the respective filters are also the crossover points between the neighboring filters. In practice, it means that the array consists of one lowpass filter for the frequency band $[0,df]$, one highpass filter for the frequency band $[fs/2-df,fs/2]$, and $nB-2$ bandpass filter for the remaining part of the Nyquist band. After filtering the input signal with this filter array, one can obtain an array of subsignals $Y^{nB\times T}$ where T is the length of a time series, which is calculated as:

$$Y_i=filter(x,F{A}_i),fori\in 1:nB,$$

(12)

where the usage of operator $F{A}_i$ stands for filtering the same input signal x with consecutive filters from the $FA$ array.

In the next step, for each of the obtained subsignals, the sample autocorrelation function (ACF) is calculated. The autocorrelation itself measures the correlation between samples $y\left[t\right]$ and $y[t+k]$ of the signal y where $k=0,...,K$ and K is a range of the calculated autocorrelation function.

According to [59] the autocorrelation for lag k is defined as:

$$ACF\left[k\right]=\frac{c\left[k\right]}{c\left[0\right]},$$

(13)

where $c_0$ is the sample variance of a time series and

$$c\left[k\right]=\frac{1}{T}\sum _{t=1}^{T-k}(y\left[t\right]-\overline{y})(y[t+k]-\overline{y}).$$

(14)

The full set of obtained ACFs is then arranged in the form of matrix $SA{C}^{nB\times K}$ according to the respective frequency bands of the filter that were used to obtain a given subsignal:

$$SA{C}_i=ACF\left(y_i\right),fori\in 1:nB$$

(15)

3.3. Spatial Noise Modeling

To enhance the quality of the SAC map, the authors decided to introduce a preconditioning step before the actual identification step, in order for noise levels across the map to be spatially modeled and subtracted from the data for each $\Delta f$.

The spatial context is created by the analysis of each carrier frequency bin $f=\left[f_1,\dots ,f_{nB}\right]$ along the lag dimension $\alpha =\left[{\alpha }_1,\dots ,{\alpha }_n\right]$. Each vector is modeled specifically to describe the energy of the noise within this frequency band.

Considering the described modeling conditions, each vector $SAC(f_i,\alpha )$ is modeled with a dual-term exponential function using the nonlinear least squares method. The obtained parameters $a_i\in A,b_i\in B,c_i\in C,d_i\in D$ (where $A,B,C,D$ are vectors of the parameters for the entire f domain) of the exponential function are then allowed to obtain the noise model over the entire domain $\alpha$ for the given $f_i$. Such modeled noise components are arranged into a spatial noise map N, defined as follows:

$$N(i,\alpha )=a_{i}exp\left(b_i\alpha \right)+c_{i}exp\left(d_i\alpha \right),$$

(16)

which can be subtracted from the SAC map, effectively causing its denoising:

$$SA{C}_d=SAC-N,$$

(17)

where $SA{C}_d$ denotes the denoised SAC map.

4. Results

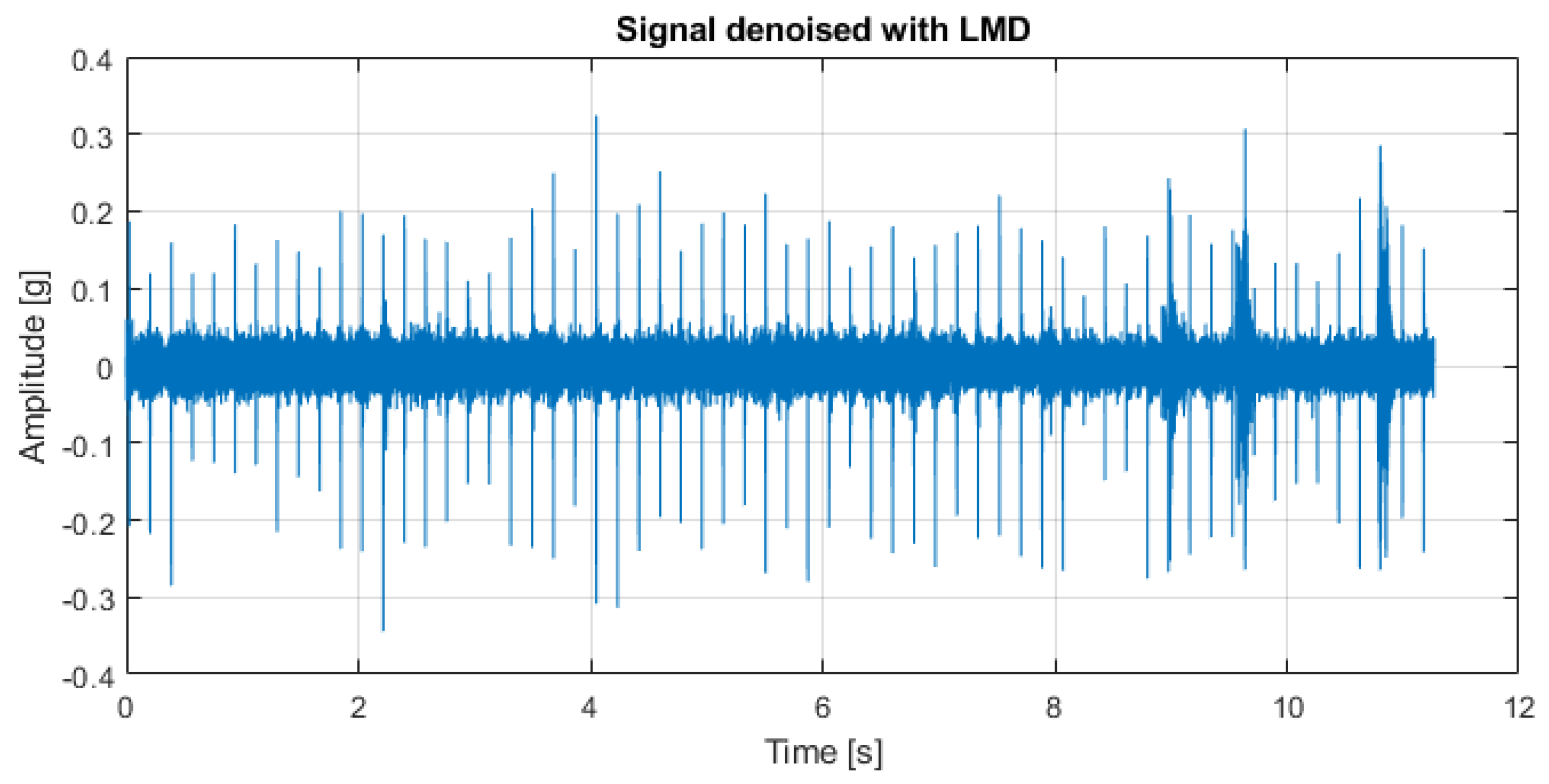

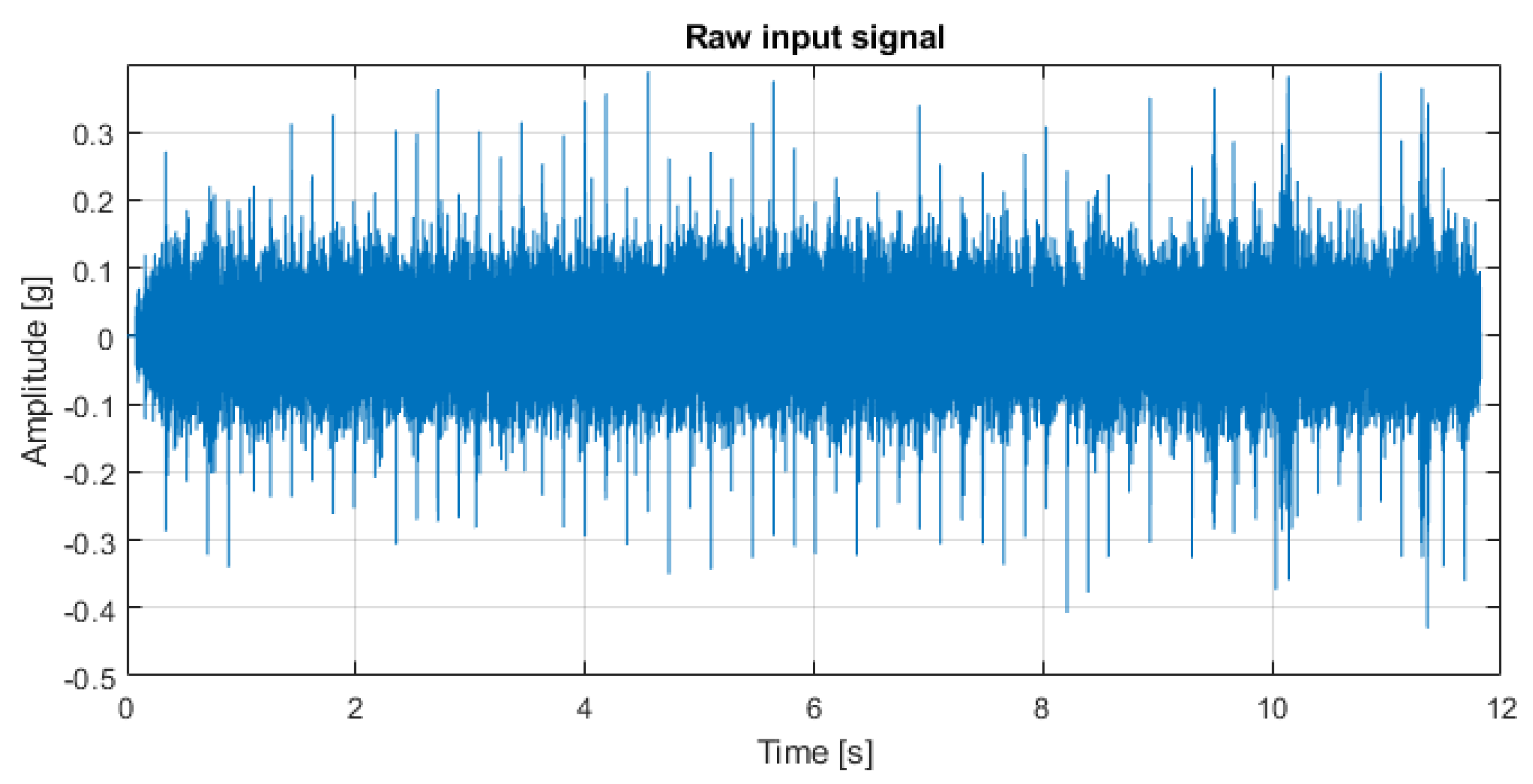

The raw input signal used in this paper is presented in Figure 10. In the first step, the signal has been denoised using the LMD method. The result of this operation is presented in Figure 11. One can notice that both the cyclic impulsive component as well as three noncyclic disturbances are more clearly visible. In general, the level of noise has been greatly reduced. To perform the analysis of cyclic behavior in the presence of large impacts originating from the mechanical joint passing over idlers, a spectral autocorrelation map has been calculated with the range parameter $K=1$ s. Authors found out that it is not needed to set a high resolution in the frequency domain and this representation works better with much lower resolutions than one would set, i.e., for a spectrogram. Hence, the parameter $nB=40$ turned out to be sufficient and the SAC map quality was satisfying, which can be seen in Figure 12.

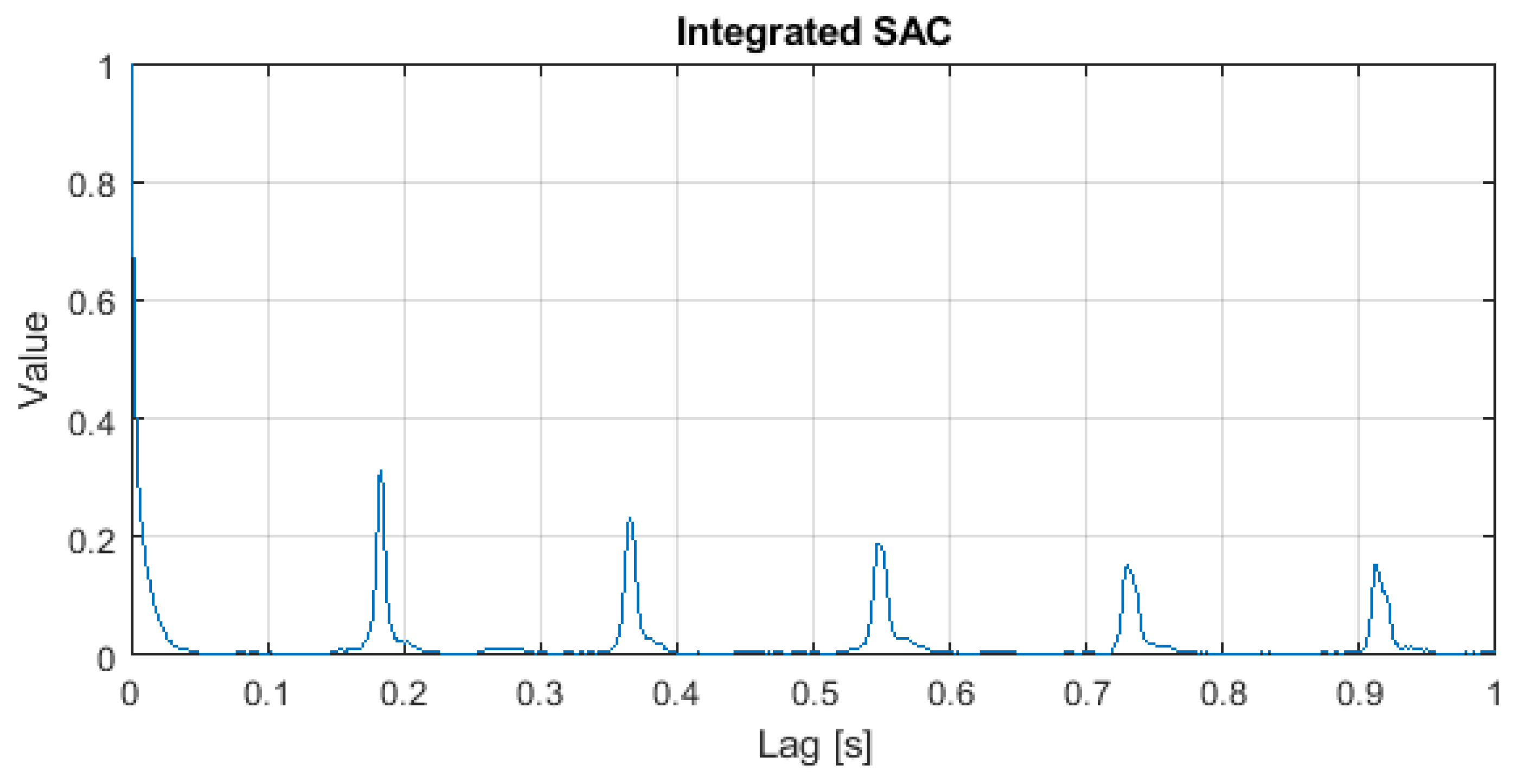

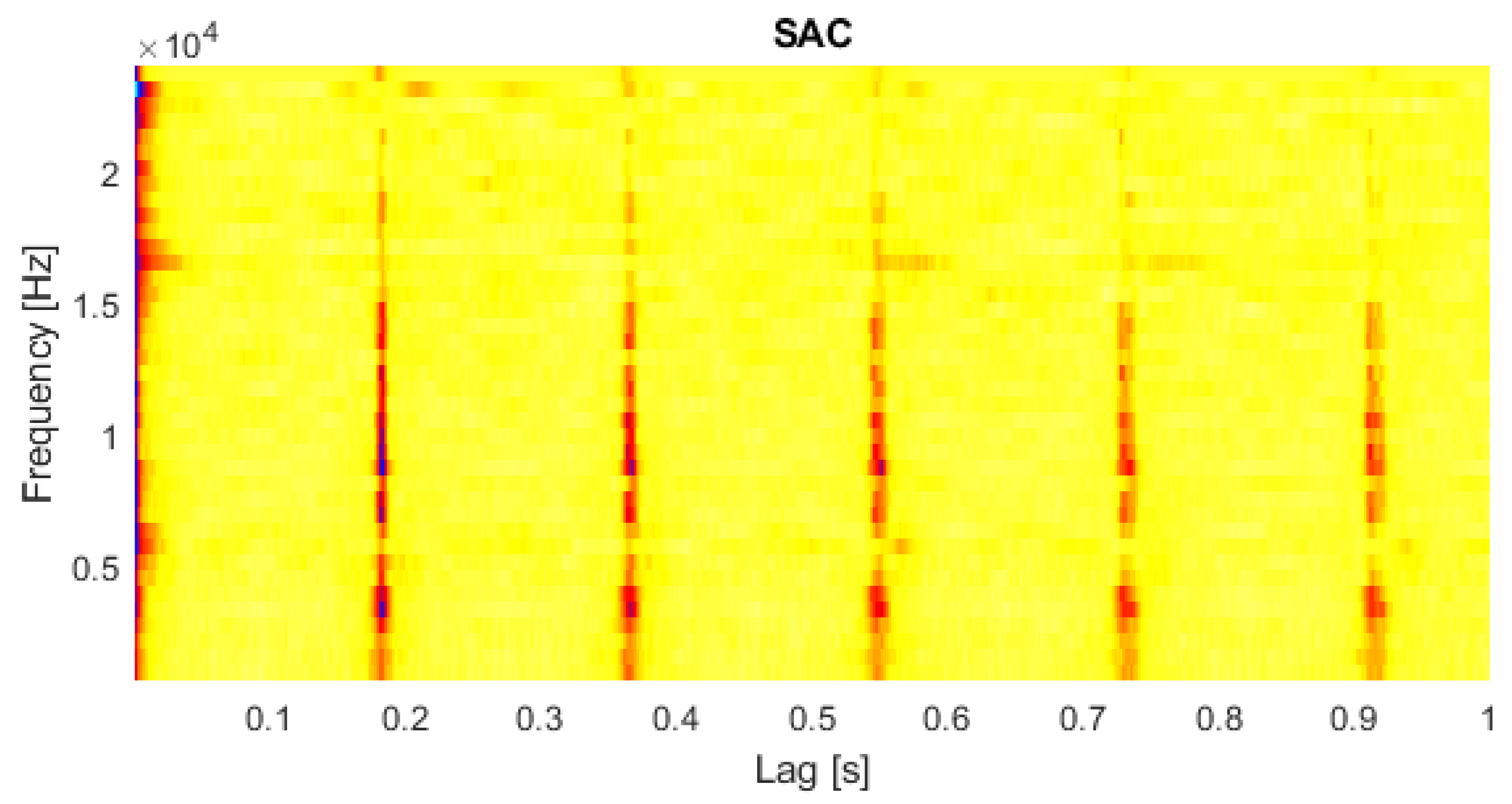

In the next step, the SAC map has been cleaned up by removing the background noise profile that contains high values around the lag values of 0. To visualize this, Figure 13 presents the SAC map integrated along the frequency dimension, which displays the “equivalent autocorrelation function” with respect to the quality of the SAC map that we have at this point.

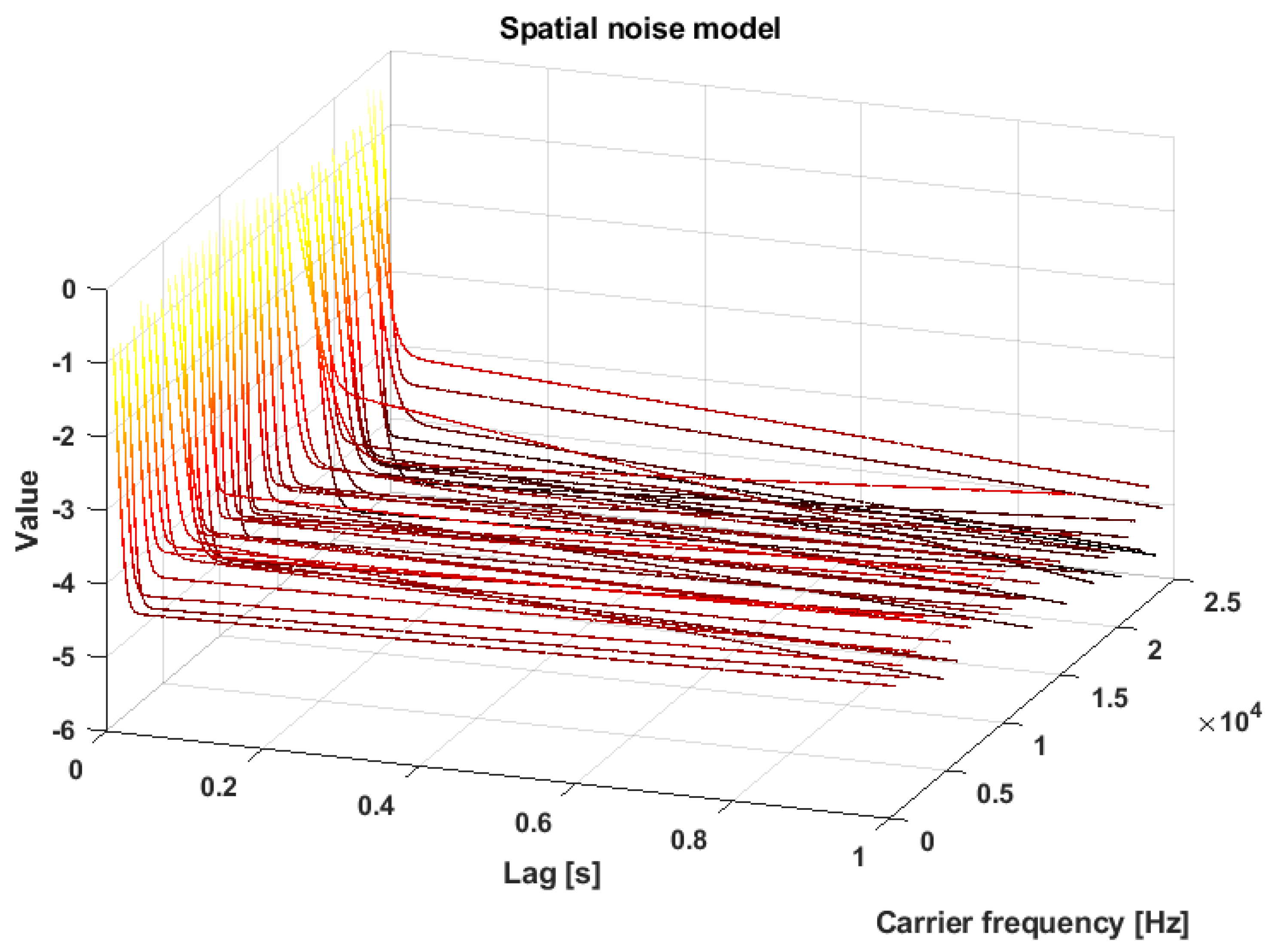

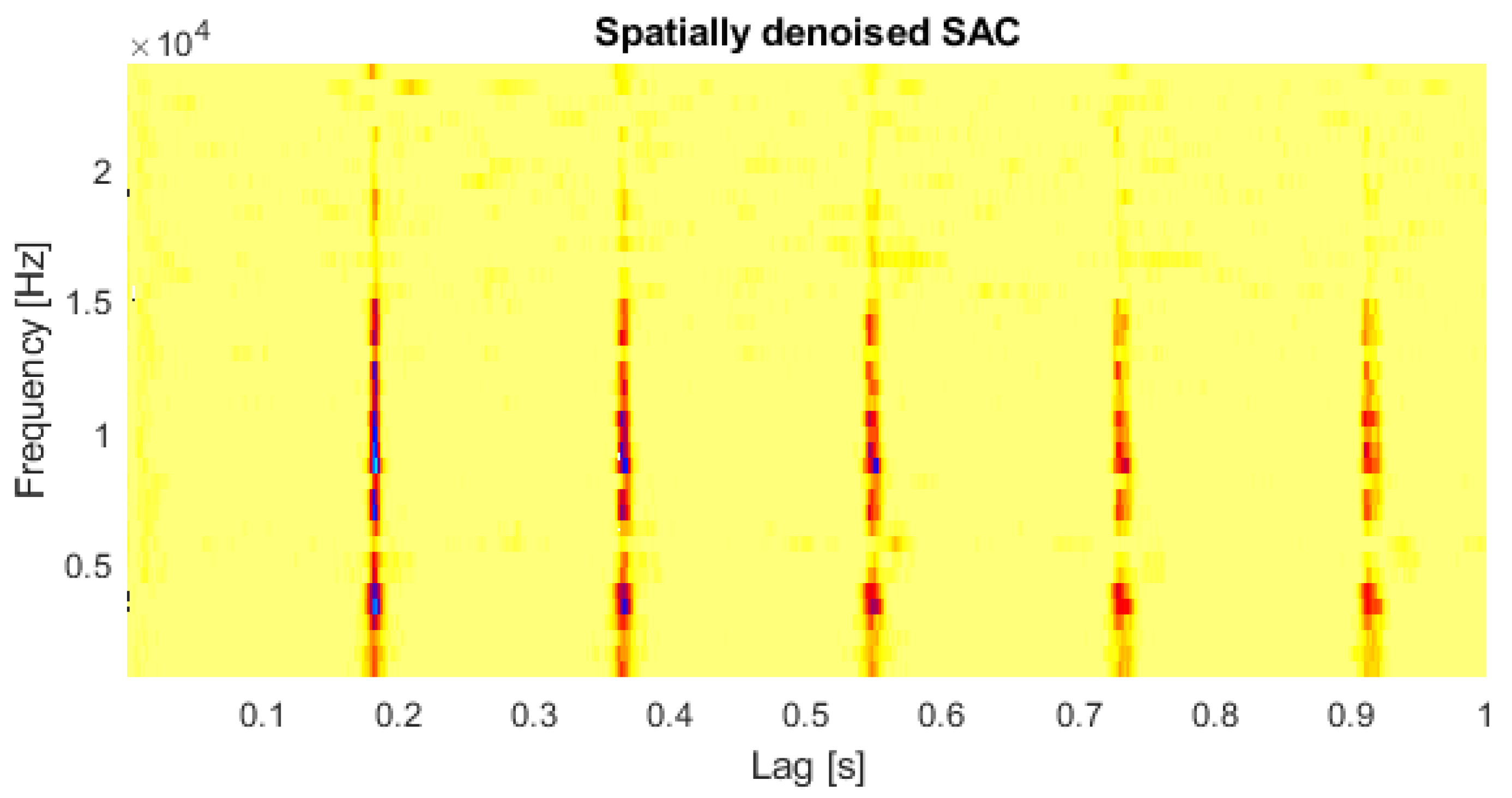

As expected, it is visible that the highest values are concentrated around zero lag, which interferes with thresholding or other simple detection methods. In order to remove this problem, a spatial noise model has been constructed (Figure 14) and removed from the map, which significantly improved the quality and highly simplified the subsequent steps (see Figure 15). One can notice that the vectors corresponding to the frequency bins are different from each other, which means that the unwanted background information is affecting different frequency bands with different strength. This indicates that it is reasonable to construct the model in the multidimensional domain instead of fitting a single model to the function in Figure 13. The model has been displayed in logarithmic scale to better emphasize the differences between the individual vectors.

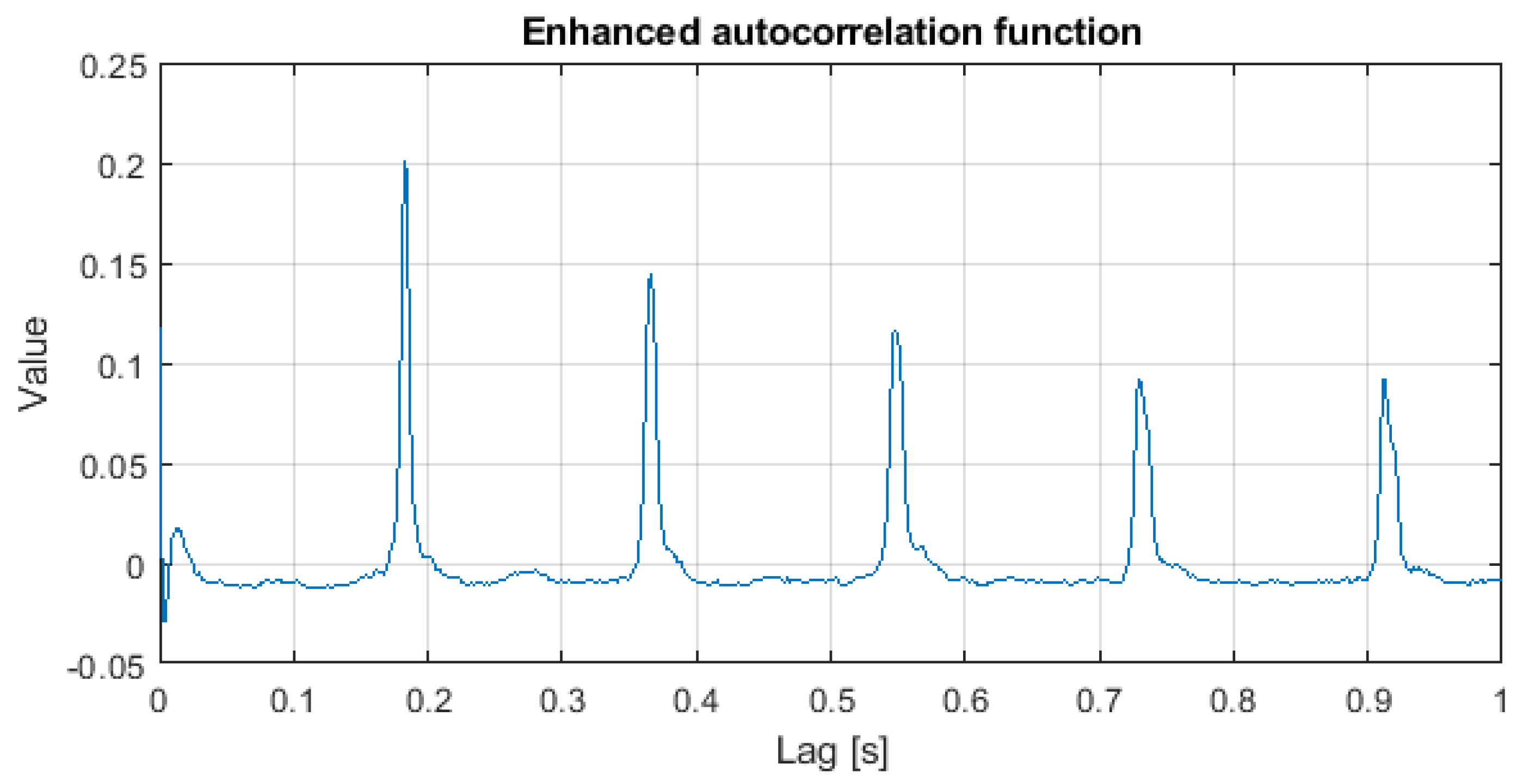

Vectors of the denoised map have been averaged along the frequency axis, which forms a single enhanced autocorrelation function (EACF) (see Figure 16). The maximum value of this function (the value at the first peak) indicates the fundamental period of the cyclic component equal to 0.18 s, which translates to the fault frequency of 5.46 Hz.

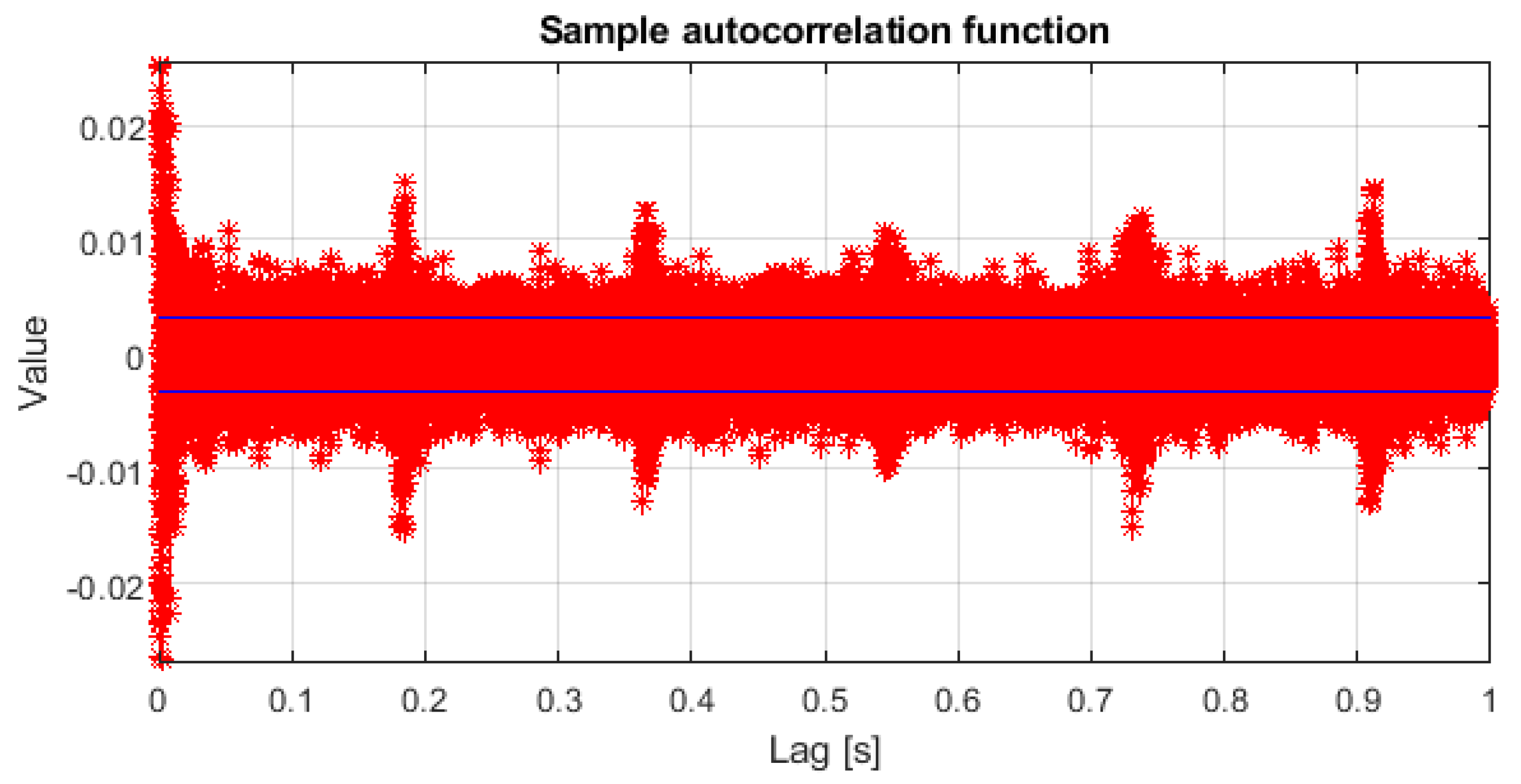

Figure 17 presents the classical autocorrelation function of the signal processed with LMD (which is the same signal that the analysis leading to EACF has been performed on). Comparison of the obtained EACF (see Figure 16) with classic ACF shows how much clarity one can achieve by choosing to perform multidimensional analysis, and how such an approach creates an opportunity to enhance the intermediate data representations leading to a better result.

5. Conclusions

In this paper, the authors present a very promising method for damage detection in belt conveyor idlers. Based on the audio recording acquired by the mobile inspection robot, it was possible to automatically detect cyclic modulations indicating the mechanical fault of the idler. The method is especially useful because of its ability to ignore the information about random noncyclic wideband events such as mechanical connection of the belt. To achieve that, the spectral autocorrelation map was introduced as a base data structure for the analysis. Additionally, noise of the SAC map has been modeled individually with respect to the frequency domain and removed from the map. Finally, it is shown how the usage of SAC map leading to EACF provides better results than using ordinary autocorrelation function. In such scenarios, it is crucial to emphasize how simple it is to acquire data for such analysis. In our case, the mobile robot was used, but theoretically the audio signal could be recorded well enough with a simple voice recorder, or even a smartphone.
