Optimal Degree of Hybridization for Spark-Ignited Engines with Optional Variable Valve Timings

Abstract

The electric hybridization of vehicles with an internal combustion engine is an effective measure to reduce ${\mathrm{CO}}_2$ emissions. However, the identification of the dimension and the sufficient complexity of the powertrain parts such as the engine, electric machine, and battery is not trivial. This paper investigates the influence of the technological advancement of an internal combustion engine and the sizing of all propulsion components on the optimal degree of hybridization and the corresponding fuel consumption reduction. Thus, a turbocharged and a naturally aspirated engine are both modeled with the additional option of either a fixed camshaft or a fully variable valve train. All models are based on data obtained from measurements on engine test benches. We apply dynamic programming to find the globally optimal operating strategy for the driving cycle chosen. Depending on the engine type, a reduction in fuel consumption by up to 32% is achieved with a degree of hybridization of 45%. Depending on the degree of hybridization, a fully variable valve train reduces the fuel consumption additionally by up to 9% and advances the optimal degree of hybridization to 50%. Furthermore, a sufficiently high degree of hybridization renders the gearbox obsolete, which permits simpler vehicle concepts to be derived. A degree of hybridization of 65% is found to be fuel optimal for a vehicle with a fixed transmission ratio. Its fuel economy diverges less than 4% from the optimal fuel economy of a hybrid electric vehicle equipped with a gearbox.

1. Introduction

1.1. Background

In 2020, the European parliament set the ${\mathrm{CO}}_2$ emission limit for new passenger cars to 95 $\mathrm{g}{\mathrm{CO}}_2$/km. This corresponds to a gasoline consumption of $4.06\mathrm{L}/100\mathrm{km}$ [1]. However, a modern passenger vehicle with a conventional internal combustion engine drive train (ICEV) is not capable of achieving such a low fuel consumption [2]. To avoid penalties for exceeding this limit, car manufacturers are extending the variety of their propulsion technologies. The mobility concepts with a high potential to effectively decrease greenhouse gas (GHG) emissions are plug-in hybrid electric vehicles (PHEV), battery EVs (BEVs), and fuel cell EVs (FCVs) [3]. Currently, the electric energy used to charge EVs is accounted for with zero GHG emissions, independently of its production origin [4,5,6]. Hence, from a political point of view, purely electric drive trains are the most effective solution to reduce GHG emissions. However, the number of registrations of new BEVs has not yet reached the level of new registrations of ICEVs. This fact is due mainly to the high initial cost for BEVs, which is mostly determined by the capacity of the battery installed [7,8]. Furthermore, the, up to this time, insufficient range, the lack of charging stations, and the unknown deterioration of the battery slow the growth of the market share of BEVs [9,10].

1.2. Challenges with Regard to the Design and the Operation of Hybrid Electric Vehicles

A conventional hybrid electric vehicle (HEV) can only be operated in a charge-sustaining mode, while a PHEV is capable of driving also in a charge-depleting mode. The charge-sustaining mode is active when the battery is either fully depleted or the manufacturer does not allow the state of charge (SOC) of the battery to diverge significantly from its current state [11,12,13]. The charge-depleting mode is only enabled if the battery of the vehicle is sufficiently charged, which then allows the vehicle to operate mainly electrically. However, if the charge-depleting mode is not active as often as intended, the actual fuel consumption diverges significantly from the values specified by the legislation [14,15,16,17]. Thus, the focus of this paper lies on the sizing and the complexity of the powertrain parts of an HEV such that in the charge-sustaining mode an optimal fuel economy is achieved.

An HEV can be categorized as a P0, P1, P2, P3, or P4 architecture variant, depending on the arrangement of the ICE, the electric machine (EM), and the gearbox. In the architecture variants P0 and P1, the EM is attached to the ICE and serves mainly the start/stop operation. The remaining architecture variants allow the EM to be disengaged from the ICE, which enables pure electric operation and efficient recuperation of braking energy [18,19,20,21,22]. Besides the choice of the HEV architecture, the sizing of the EM, the ICE, and the battery is of significant importance concerning fuel economy. If the EM is too small, it cannot recuperate all the braking energy available. In contrast, oversizing the components leads to an excess of vehicle mass, poor efficiency in part-load operation, and an increase in cost [23]. Plenty of research has been invested in the optimization of the powertrain architecture as described in [24,25,26,27,28,29].

Besides an optimal sizing of the components, an energy management is required such that, compared to an ICEV, with an HEV a lower fuel consumption can be achieved [30,31,32]. The electric hybridization does not only allow the recuperation of braking energy, but also enables the ICE to run at an efficient operating point [33,34]. The operating points with low power demand, where the ICE exhibits poor efficiency, are driven with the EM in pure electric mode [35,36]. In contrast, the ICE is used in operating points with medium to high power demand. If necessary, the load on the ICE can be further increased to simultaneously propel the vehicle and to charge the battery [37]. By increasing the load, this operating point shift (OPS) strategy significantly increases the efficiency of the ICE. The optimal operating strategy can be found with noncausal methods as described in [38,39,40,41]. However, due to the high range of feasible input variables, it is difficult to implement a causal operating strategy in an on-road application [42,43], which performs closely to the optimal strategy found by noncausal methods.

1.3. Our Contribution

In this paper, we analyze the influence of naturally aspirated and turbocharged spark-ignited (SI) engine concepts on the optimal ratio of the maximal power output between the EM and the ICE, which is defined as the degree of hybridization (DOH). The main focus lies in the potential advantage for HEVs when the ICE is equipped with a fully variable valve train (FVVT). An FVVT has been developed internally and tested on a spark-ignited engine. By applying Miller valve timings to achieve the desired engine load instead of adjusting the conventional throttle, the efficiency of the part-load operation is improved [44]. Furthermore, with a cylinder-deactivation mode and the implementation of an x-stroke operation, where the usual four strokes of the engine are extended up to ‘x’ strokes, the efficiency of very low engine loads is increased significantly [45]. To solve the optimization task, we apply dynamic programming (DP), which leads to a noncausal but globally optimal operating strategy [46]. Thus, the results presented are treated as a benchmark for the implementation of causal optimization strategies on the test bench in further investigations. To the best of our knowledge, there has been no research conducted yet, which investigates the influence of an FVVT on part-load efficiency of naturally aspirated and turbocharged ICEs in the application of HEVs.

In ICEVs a gearbox is required to transform low torque values of the engine to high torque values at the wheels, for instance, to accelerate a vehicle from a standstill. If an EM of an HEV exceeds a certain maximal power output, i.e., if a certain DOH is exceeded, the lower gears of the gearbox become redundant since the ICE is not required for the initial acceleration of the vehicle. Thus, we introduce and investigate a vehicle concept where the gearbox is replaced by a fixed transmission drive. This measure reduces the mass of the vehicle and the complexity of the optimization task. Furthermore, in such a setup the EM is well suited for urban usage, while the ICE plays out its advantages on extra-urban routes.

This paper comprises the following points:

• The derivation of the optimal DOH while the 0 to 100 km/h acceleration performance of the vehicle for each DOH is kept constant.
• The analysis of the influence of significant part-load efficiency improvements of the ICE due to the implementation of an FVVT.
• The introduction of a simplified HEV concept without a gearbox.

2. Simulation Environment and Models

This section provides an overview of the models implemented. All investigations presented in this paper are conducted with Matlab simulations. The models for the ICEs are based on data obtained from engine test benches, while the model for the EMs is based on results acquired from the finite elements method (FEM) simulations conducted in MotorCAD by AnSys.

2.1. Parallel Hybrid Electric Vehicle Configuration

A parallel HEV configuration is chosen such that the ICE is coupled mechanically to the wheels. Hence, if required, any torque from the ICE is transmitted directly to the wheels without any conversion losses over the EM [47,48,49]. Figure 1 shows the schematics of the vehicle concepts investigated. The schematic in (a) shows an ICEV, i.e., a vehicle where no electric propulsion is available. The ICE is mechanically connected via a clutch, a gearbox, and final drive to the wheels. This concept serves as a reference point regarding fuel consumption. The schematic in (b) shows a parallel HEV concept with a P2 architecture. The vehicle is propelled either by the ICE or the EM, or both simultaneously. The battery of the vehicle is not shown; its capacity depends on the DOH. The schematic in (c) shows a parallel HEV concept with a fixed transmission. Since the torque output of the ICE cannot be sufficiently amplified without high gear ratios, the EM must be strong enough to cover any dynamic torque demands such as, for instance, accelerating the vehicle from a standstill. Thus, this concept is only feasible with a relatively high DOH. As a result, the vehicle is driven purely electric at low velocities such as those typically occurring during urban trips. In contrast, the ICE is used for extra-urban trips, at higher but rather constant velocities. Due to the smaller ICE and the omission of the gearbox, the weight of the vehicle decreases. Furthermore, the reduction of the transmission complexity increases the efficiency of the propulsion path. Since a purely electric operation is foreseen with this concept, an external charging possibility, i.e., a PHEV concept, is recommended. However, since the optimal DOH is evaluated in the charge-sustaining mode, it is irrelevant whether the concept is realized as an HEV or a PHEV.

For our investigations, a mid-class vehicle is chosen with the individual parameters stated in

Table 1. Mid-class vehicle parameters.

Parameter	Symbol	Value	Unit
Aerodynamic drag coefficient	${\mathrm{c}}_d$	0.3	–
Frontal area	${\mathrm{A}}_f$	2.2	${\mathrm{m}}^2$
Rolling resistance coefficient	${\mu }_r$	0.01	–
Wheel radius	${\mathrm{w}}_r$	0.3	m
Vehicle base mass	${\mathrm{m}}_{\mathrm{base}}$	1350	kg
Gearbox mass	${\mathrm{m}}_{\mathrm{GB}}$	75	kg
Fixed transmission mass	${\mathrm{m}}_{\mathrm{FT}}$	10	kg
Gearbox efficiency	${\eta }_{\mathrm{GB}}$	0.95	–
Fixed transmission efficiency	${\eta }_{\mathrm{FT}}$	0.975	–
Specific power ICE	${\mathrm{p}}_{\mathrm{ICE}}$	800	W/$\mathrm{kg}$
Specific power EM	${\mathrm{p}}_{\mathrm{EM}}$	3000	W/$\mathrm{kg}$
Specific capacity battery	${\mathrm{p}}_{\mathrm{bat}}$	180	$\mathrm{Wh}$/$\mathrm{kg}$
C-rate battery	${\mathrm{C}}_{\mathrm{bat}}$	5	–
Gear ratios	${\mathrm{r}}_{\mathrm{gear}}$	[3.19, 2.19, 1.52, 1.06, 0.74, 0.56, 0.43]	–
Axle ratio	${\mathrm{r}}_{\mathrm{ax}}$	5.26	–
ICE speed range	–	1000–6000	rpm

. The vehicle base mass ${\mathrm{m}}_{\mathrm{base}}$ accounts only for the chassis of the vehicle but not for the powertrain. The total vehicle mass ${\mathrm{m}}_{\mathrm{veh}}$ is defined as

$${\mathrm{m}}_{\mathrm{veh}}={\mathrm{m}}_{\mathrm{base}}+{\mathrm{m}}_{\mathrm{GB}/\mathrm{FT}}+{\mathrm{m}}_{\mathrm{ICE}}+{\mathrm{m}}_{\mathrm{EM}}+{\mathrm{m}}_{\mathrm{bat}}.$$

(1)

Depending on the HEV concept selected, either the mass of a gearbox ${\mathrm{m}}_{\mathrm{GB}}$ or the mass of a fixed transmission ${\mathrm{m}}_{\mathrm{FT}}$ is included. The masses of the ICE ${\mathrm{m}}_{\mathrm{ICE}}$, the EM ${\mathrm{m}}_{\mathrm{EM}}$, and the battery ${\mathrm{m}}_{\mathrm{bat}}$ depend on the DOH, i.e., the power required of each component. Once the power requirements are known, the mass is computed with the specific power-to-mass ratios. The gear ratios are taken from an existing seven-speed gearbox of a mid-class vehicle. The axle ratio is chosen such that in the highest gear and at an engine speed of 2000 rpm a vehicle speed of 100 km/h is achieved.

2.2. Dynamic Programming and Driving Cycle

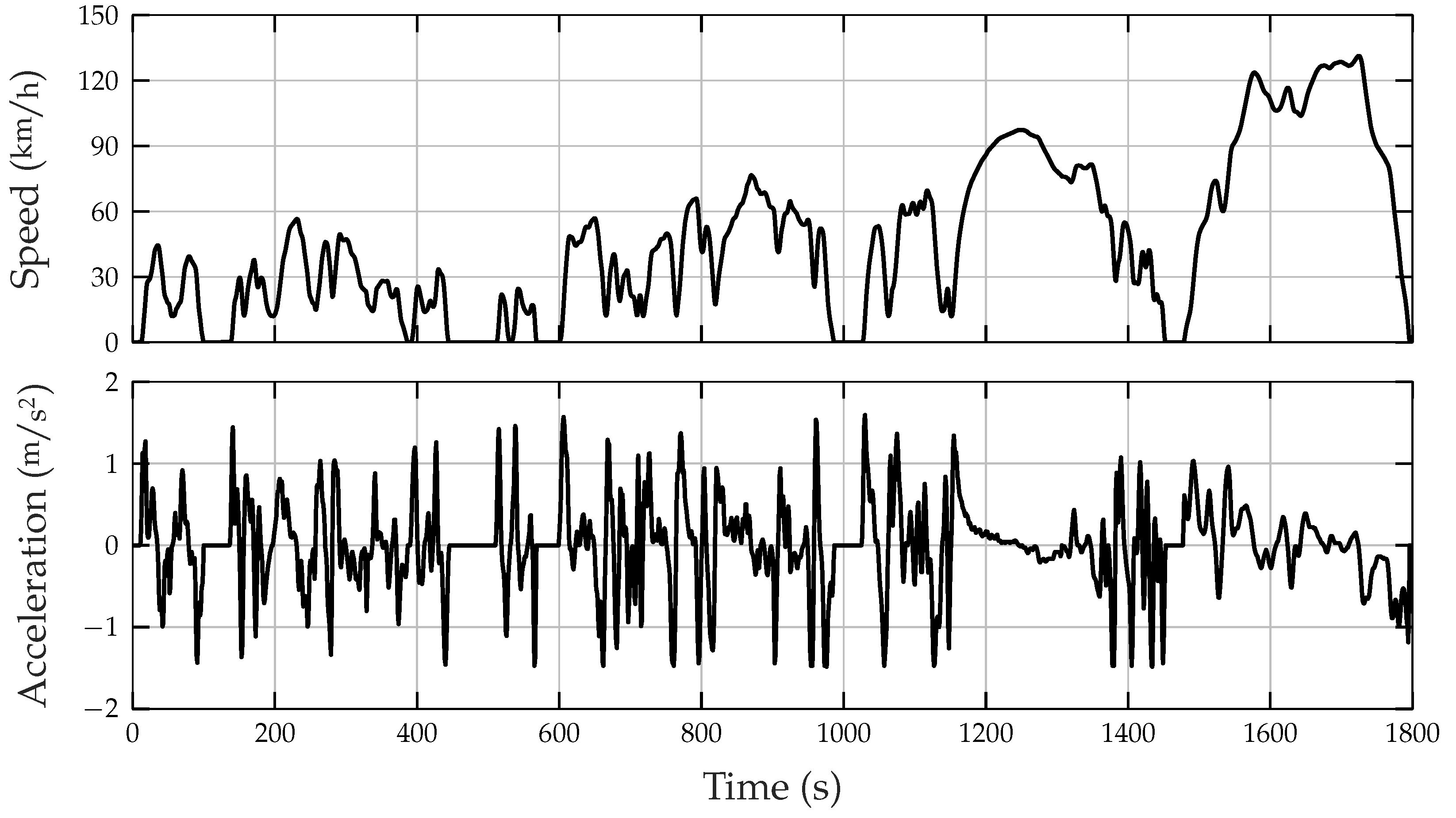

The simulation uses a quasistatic approach in which all state variables, such as the torque required at the wheel, remain constant for the duration of the time step. The driving cycle implemented is the worldwide harmonized light vehicle test cycle (WLTC) of Class 3 with a step resolution of 1 s, as shown in Figure 2.

An HEV in such a setup has two degrees of freedom, namely

• the power split factor between the EM and the ICE,
• and the choice of the gear.

Thus, the optimization variables $u_1$ for the power split factor and $u_2$ for the gear are defined in

Table 2. Optimization variables.

Variable	Range	Description
Power split $u_1$	−1	ICE used for maximal recharging
Power split $u_1$	−1–0	ICE used for recharging and propulsion
Power split $u_1$	0	Only ICE used for propulsion
Power split $u_1$	0–1	ICE and EM used for propulsion
Power split $u_1$	1	Only EM used for propulsion
Gear $u_2$	1–7	Choice of gear

.

We apply dynamic programming to find the fuel-minimizing set of $u_1$ and $u_2$ that guarantees charge-sustaining operation, i.e., that the SOC of the battery at the end of the cycle reaches the value given initially. In [50], a DP script is provided for use within Matlab. DP creates a grid for each time step and each state that is reachable by the optimization variables. Subsequently, beginning from the final state, a backward calculation is performed where for each grid point the torque delivered by the EM and the ICE, the power from or to the battery resulting in a new SOC, and the instantaneous fuel consumption are evaluated. For each time step, the set of $u_1$ and $u_2$ is determined that is feasible and minimizes the cost criteria, in this case, the fuel consumption of the ICE. As the algorithm propagates backward, each new set of $u_1$ and $u_2$ is added to the optimal control input vector. The calculation terminates after reaching the initial time step. Due to the principle of optimality, the solution found by DP through backward calculation is guaranteed to be globally optimal [46,51,52,53].

2.3. Internal Combustion Engine Model

In this paper, a naturally aspirated (NA) and a turbocharged (TC) SI engine are analyzed. The choice of a valve train system, i.e., either a fixed camshaft or a fully variable valve train and its influence on the fuel consumption are investigated for both engine types. The model for the naturally aspirated engine is based on data obtained from measurements on a 2018 2.5 L Atkinson cycle engine with cooled exhaust gas recirculation [54]. The turbocharged engine is modeled with own data obtained from measurements on an engine test bench equipped with a 3.0 L direct-injected SI engine. The increase of the indicated efficiency in part-load operation due to an FVVT is additionally quantified on an engine test bench with a four-cylinder 1.4 L SI engine equipped with an internally developed FVVT [45]. All results are expressed in units that allow a comparison of engines with different displacement volumes [55]. As described in [56], the fuel flow is expressed as the mean fuel pressure $p_{\mathrm{m}\phi }$ and is computed as

$$p_{\mathrm{m}\phi }=\frac{H_l·m_{\phi ,\mathrm{cyc}}}{V_d},$$

(2)

where $H_l$ is the lower heating value of the fuel in J/kg, $m_{\phi ,\mathrm{cyc}}$ is the fuel mass injected during one engine cycle in kg, and $V_d$ is the displacement volume in ${\mathrm{m}}^3$. The mean indicated pressure $p_{\mathrm{mi}}$, i.e., the integral of the pressure over the volume for one engine cycle, divided by $p_{\mathrm{m}\phi }$ yields the indicated efficiency ${\eta }_{\mathrm{ind}}$, i.e.,

$${\eta }_{\mathrm{ind}}=\frac{p_{\mathrm{mi}}}{p_{\mathrm{m}\phi }}.$$

(3)

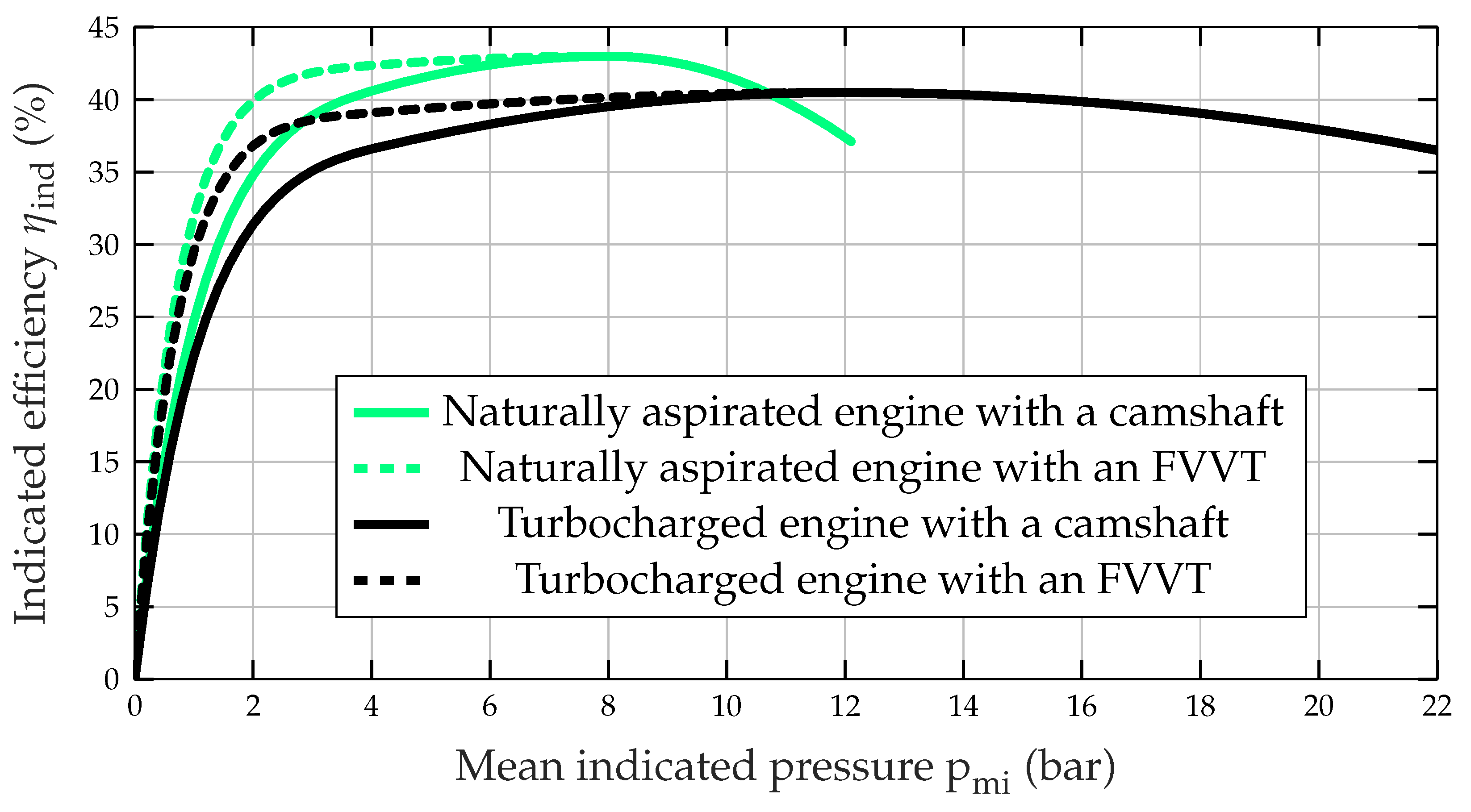

Figure 3 shows the models of the indicated efficiency of four different engines at an engine speed of 2500 rpm. The solid lines represent the indicated efficiency of the engines with a camshaft and are fitted to data obtained from measurements on the test benches. The dashed lines show the potential gain in efficiency if the engines are equipped with an FVVT. The first observation is that the FVVT allows the pumping losses to be reduced from approximately 0.4 bar to 0.2 bar for an operating point with $p_{\mathrm{mi}}=2\mathrm{bar}$. For the engine with the camshaft as well as for the engine with the FVVT, the pumping losses decrease linearly to a minimum of approximately 0.05 bar as the load increases. Second, an FVVT enables the engine to run part-load operating points in an x-stroke operation or with deactivated cylinders, which significantly increases the indicated efficiency as shown in [45]. The lines colored represent NA engines with a maximal value of $p_{\mathrm{mi}}$ of approximately 12.5 bar while the black lines represent TC engines with a maximal $p_{\mathrm{mi}}$ of approximately 22 bar. The studies with the FVVT conducted thus far were focused on the efficiency improvement in part-load operating points. Thus, an improvement in indicated efficiency is only achieved for operating points with a $p_{\mathrm{mi}}$ value of $<11\mathrm{bar}$.

The mean effective pressure $p_{\mathrm{me}}$ is a sum of the mean indicated pressure $p_{\mathrm{mi}}$ and the mean friction pressure $p_{\mathrm{mf}}$. As described in [56], for a four-stroke operated engine it is computed as

$$p_{\mathrm{me}}=p_{\mathrm{mi}}-p_{\mathrm{mf}}=4·\pi ·\frac{T_{\mathrm{e}}}{V_d}.$$

(4)

Here, $T_{\mathrm{e}}$ is the effective engine torque measured at the dynamometer in Nm. With Equations (2) and (4) the engine brake efficiency ${\eta }_{\mathrm{brake}}$ is computed as

$${\eta }_{\mathrm{brake}}=\frac{p_{\mathrm{me}}}{p_{\mathrm{m}\phi }}.$$

(5)

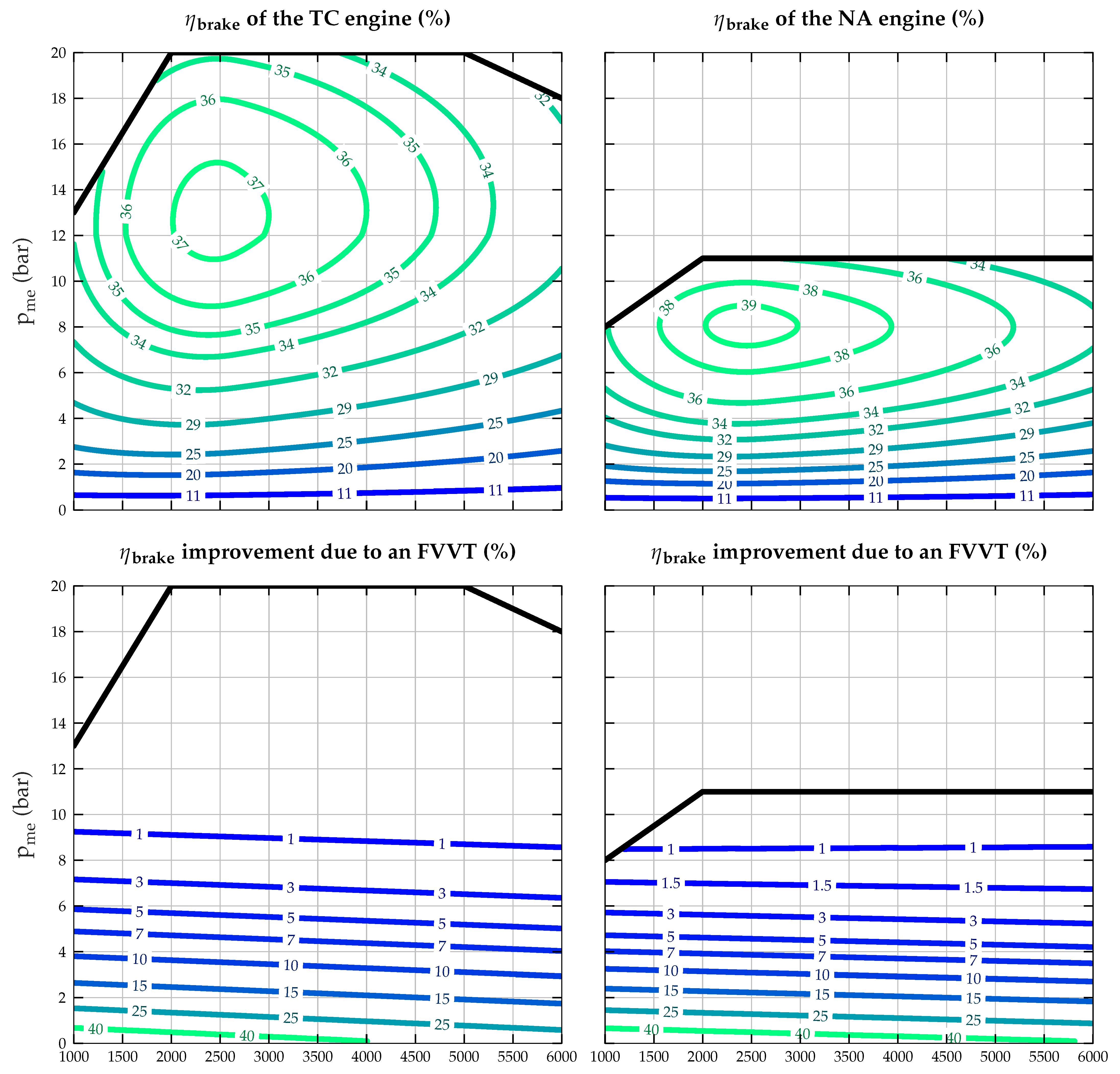

Resulting from Equation (5), Figure 4 shows the brake efficiency models on the left-hand side for a TC engine and on the right-hand side for an NA engine. The x axis shows the engine speed range in rpm while the y axis shows the mean effective pressure $p_{\mathrm{me}}$ in bar. In the upper two plots the iso-efficiency lines show the brake efficiency in %, while in the lower two plots, the results show the brake efficiency improvement in % that is due to an FVVT.

At the minimal speed of 1000 rpm, the maximal engine output of the NA engine equals to a $p_{\mathrm{me}}$ value of $8\mathrm{bar}$. From 1000 rpm to 2000 rpm the maximal engine output increases linearly up to a $p_{\mathrm{me}}$ value of 11 bar where it remains constant up to 6000 rpm. Equipped with a camshaft, the engine achieves a maximal brake efficiency of 39%. The plot in the lower right corner shows the improvement in efficiency due to an FVVT installed on the NA engine. For very low loads, i.e., $p_{\mathrm{me}}\approx 0.5\mathrm{bar}$, the FVVT improves the brake efficiency depending on the engine speed by approximately 40% to 30%. As the load increases, this advantage decreases to around 0% for $p_{\mathrm{me}}\approx 10\mathrm{bar}$.

At the minimal speed of 1000 rpm, the maximal engine output of the TC engine equals to a $p_{\mathrm{me}}$ value of $13\mathrm{bar}$. From 1000 rpm to 2000 rpm the maximal engine output increases linearly up to a $p_{\mathrm{me}}$ value of 20 bar where it remains constant up to 5000 rpm. From 5000 rpm up to 6000 rpm the power output of the engine remains approximately constant, causing the mean effective pressure to decrease accordingly to 18 bar. Equipped with a camshaft, the engine achieves a maximal brake efficiency of 37%. The plot in the lower left corner shows the improvement in efficiency that is due to an FVVT installed on the TC engine. For very low loads, i.e., $p_{\mathrm{me}}\approx 0.5\mathrm{bar}$, the FVVT improves the brake efficiency depending on the engine speed by approximately 40% to 25%. As the load increases, this advantage decreases to around 0% for $p_{\mathrm{me}}\approx 10\mathrm{bar}$.

An FVVT is especially advantageous for part-load operation. Improvements in efficiency thus occur only below a $p_{\mathrm{me}}$ value of 10 bar for TC engines as well as for NA engines. Thus, for a TC engine, the improvements induced by an FVVT affect approximately half of the operating range. However, in the case of an NA engine, an FVVT improves the efficiency for almost the entire operating range. For driving cycles with a low power demand, such as the New European Driving Cycle (NEDC), operating points between 2 bar and 4 bar $p_{\mathrm{me}}$ occur frequently. At those operating points, an FVVT improves the brake efficiency by 10% to 20% for both engine types.

With the operating point defined by the driving cycle, i.e., the required load and the rotational speed, and the brake efficiency map, the fuel flow ${\dot{m}}_{\phi }$ is computed in kg/s for each time step by reordering and extending Equation (5) to

$${\dot{m}}_{\phi }=\frac{p_{\mathrm{m}\phi }·V_d·{\omega }_e}{H_l·4·\pi },$$

(6)

where ${\omega }_e$ describes the rotational engine speed in rad/s.

2.4. Electric Machine Model

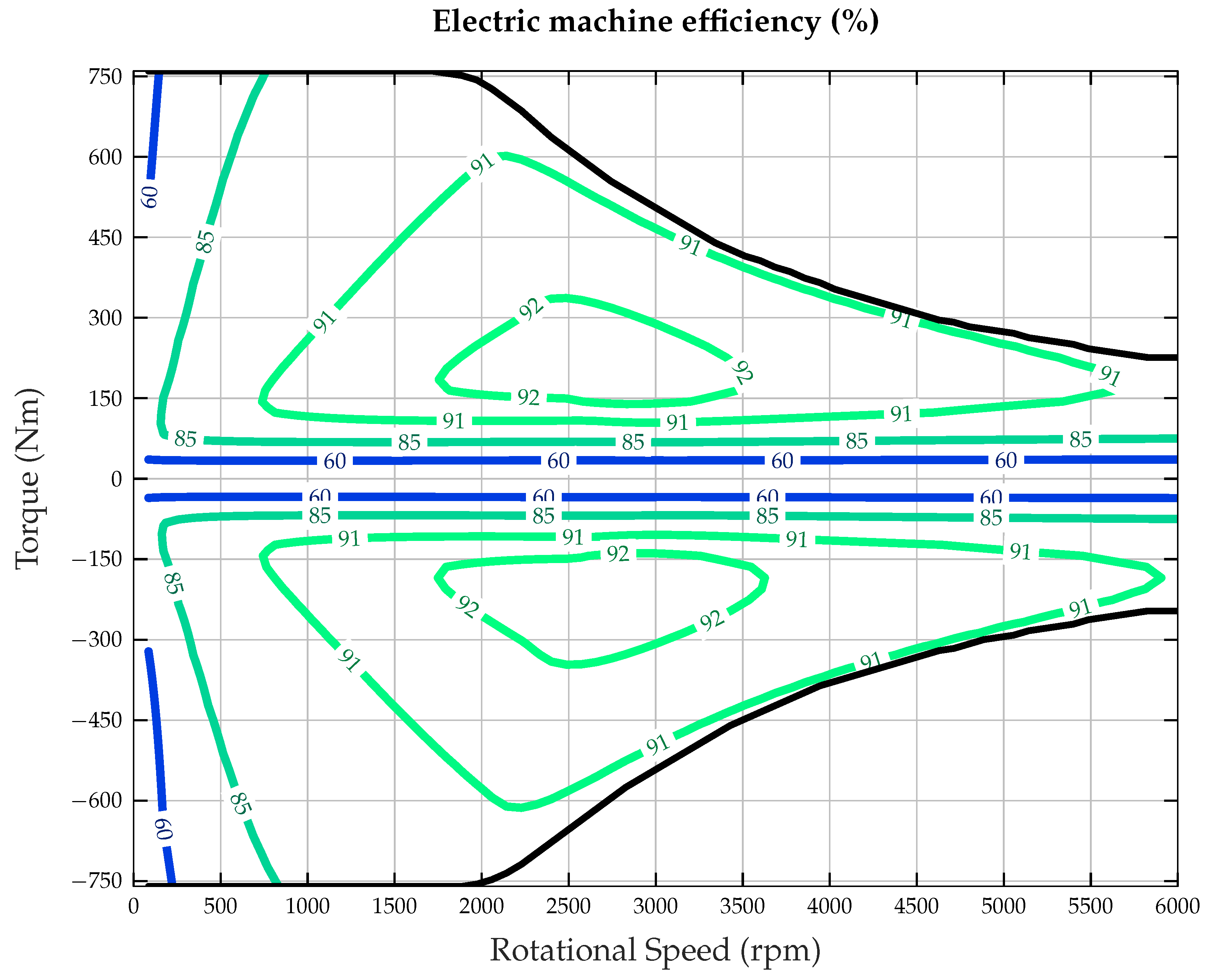

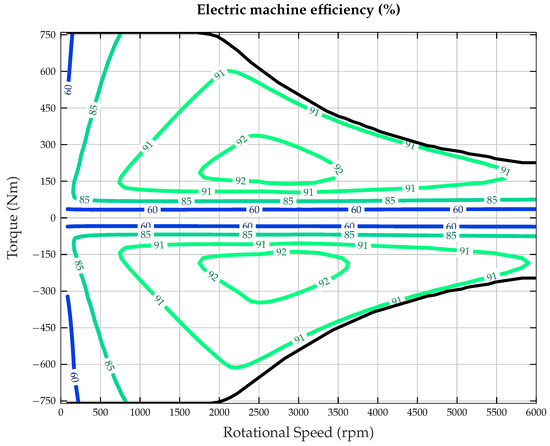

The efficiency map for the electric machine, i.e., the motor and the generator, is obtained from FEM simulations in MotorCAD. MotorCAD is a simulation software owned by AnSys which is specifically created to design electric machines. Figure 5 shows the efficiency map for a reference machine with a maximum power output of 150 kW. For the current investigation, the range of the rotational speed of the electric machine matches the possible engine speed. Investigations documented in [57,58,59] show that the efficiency maps of electric machines of varying power ranges look similar as long as the ratio of the constant torque to constant power region and the type of EM remain constant. Thus, for the variation of the DOH, the y axis, i.e., the torque output, of the reference map in Figure 5 is scaled accordingly.

2.5. Battery Model

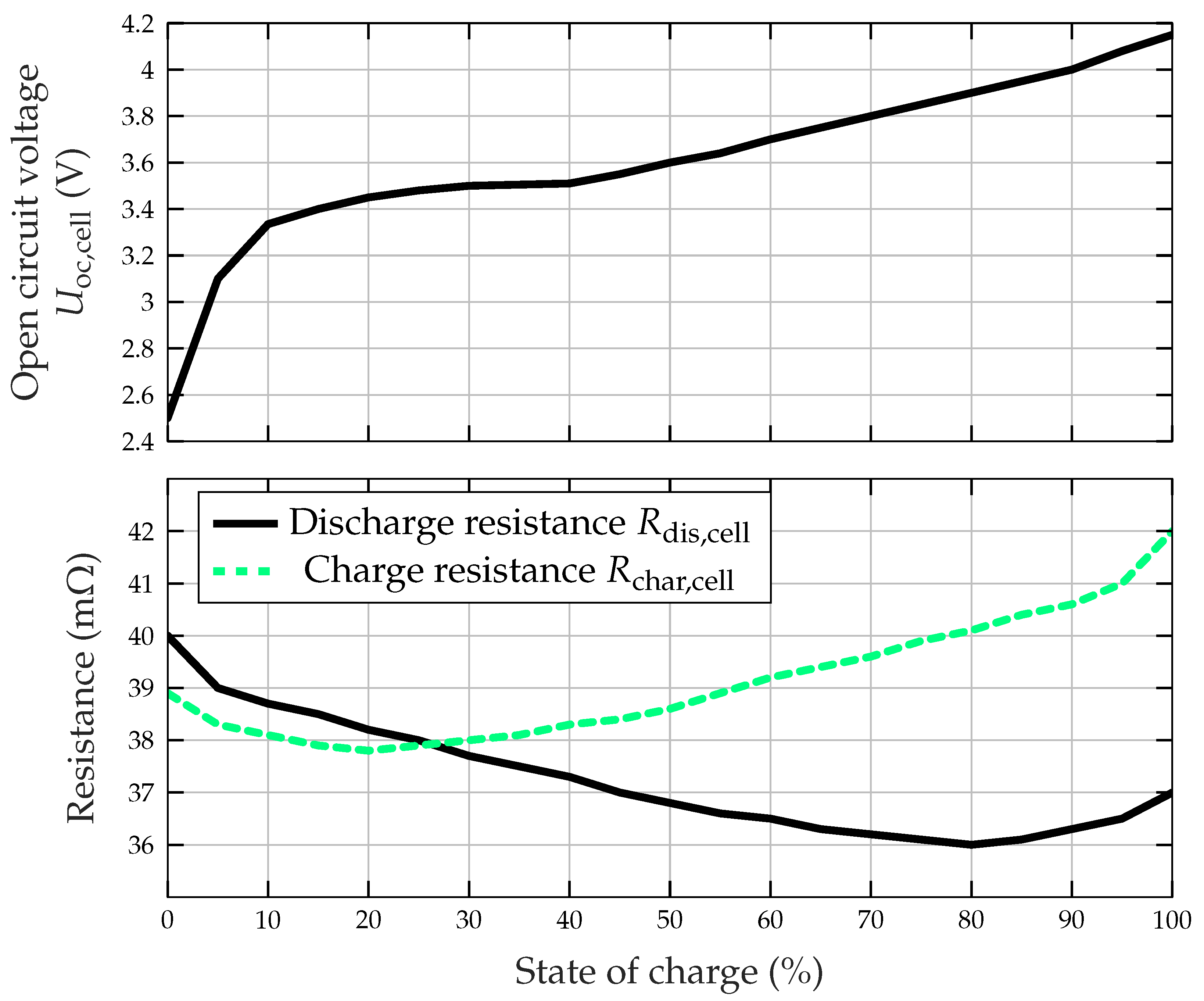

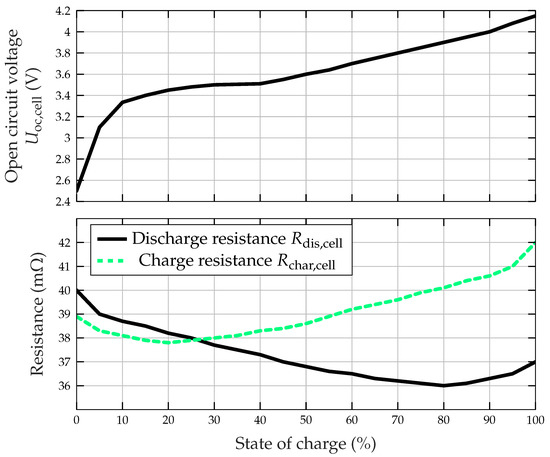

The battery pack is based on a cell by Panasonic of the type NCR18650B with a nominal cell voltage $U_{\mathrm{nom},\mathrm{cell}}$ of 3.6 V and a capacity $C_{\mathrm{cell}}$ of 3.2 Ah. Figure 6 shows the characteristics of the cell taken from the cell data sheet created by Panasonic [60]. The upper plot shows the open-circuit voltage $U_{\mathrm{oc},\mathrm{cell}}$ in V over the state of charge, while the lower plot shows the discharge resistance $R_{\mathrm{dis},\mathrm{cell}}$ as a solid line and the charge resistance $R_{\mathrm{char},\mathrm{cell}}$ as a dashed line, both in $\mathrm{m}\Omega$. Both resistance curves are plotted over the state of charge. The nomenclature used in this paper is as follows: A battery pack consists of multiple battery modules, each of which consists of multiple cells. Those cells are connected in series, while modules are connected in parallel. Hence, the number of cells per module $n_{\mathrm{cell}}$ defines the nominal voltage of the battery pack which here is set to 360 V, i.e., 100 cells per module. Furthermore, the capacity of the battery is made dependent on the DOH, i.e., on the maximal power of the EM, such that the maximal c-rate is always guaranteed. The specific mass assumed of the battery pack including packaging is 180 Wh/kg.

With

$$\begin{array}{c}\hfill U_{\mathrm{oc},\mathrm{mod}}=n_{\mathrm{cell}}·U_{\mathrm{oc},\mathrm{cell}},\end{array}$$

(7)

$$\begin{array}{c}\hfill E_{\mathrm{mod}}=n_{\mathrm{cell}}·C_{\mathrm{cell}}·U_{\mathrm{nom},\mathrm{cell}},\end{array}$$

(8)

$$\begin{array}{c}\hfill R_{\mathrm{dis},\mathrm{mod}}=n_{\mathrm{cell}}·R_{\mathrm{dis},\mathrm{cell}},\end{array}$$

(9)

$$\begin{array}{c}\hfill R_{\mathrm{char},\mathrm{mod}}=n_{\mathrm{cell}}·R_{\mathrm{char},\mathrm{cell}},\end{array}$$

(10)

the open circuit voltage $U_{\mathrm{oc},\mathrm{mod}}$ in V, the capacity $E_{\mathrm{mod}}$ in Wh, and the discharge and charge resistances $R_{\mathrm{dis},\mathrm{mod}}$ and $R_{\mathrm{char},\mathrm{mod}}$ in $\Omega$, of the battery modules are calculated [61]. The number of required modules $n_{\mathrm{mod}}$ depends of the desired battery pack capacity $E_{\mathrm{pack}}$. Subsequently, the open circuit voltage $U_{\mathrm{oc},\mathrm{pack}}$ and the discharge and charge resistances $R_{\mathrm{dis},\mathrm{pack}}$ and $R_{\mathrm{char},\mathrm{pack}}$ are modeled as follows:

$$\begin{array}{c}\hfill n_{\mathrm{mod}}=\frac{E_{\mathrm{pack}}}{E_{\mathrm{mod}}},\end{array}$$

(11)

$$\begin{array}{c}\hfill U_{\mathrm{oc},\mathrm{pack}}=U_{\mathrm{oc},\mathrm{mod}},\end{array}$$

(12)

$$\begin{array}{c}\hfill R_{\mathrm{dis},\mathrm{pack}}=\frac{R_{\mathrm{dis},\mathrm{mod}}}{n_{\mathrm{mod}}},\end{array}$$

(13)

$$\begin{array}{c}\hfill R_{\mathrm{char},\mathrm{pack}}=\frac{R_{\mathrm{char},\mathrm{mod}}}{n_{\mathrm{mod}}}.\end{array}$$

(14)

2.6. Degree of Hybridization

The DOH is defined as

$$\mathrm{DOH}=\frac{P_{\mathrm{EM},\max }}{P_{\mathrm{EM},\max }+P_{\mathrm{ICE},\max }},$$

(15)

where $P_{\mathrm{EM},\max }$ is the maximal power output of the electric machine and $P_{\mathrm{ICE},\max }$ is the maximal power output of the internal combustion engine. Thus, a DOH of 0% corresponds to a conventional vehicle with an ICE as the only propulsion system. On the other hand, a DOH of 100% corresponds to a fully electric vehicle. For each DOH a unique combination of $P_{\mathrm{EM},\max }$ and $P_{\mathrm{ICE},\max }$ exists. Since the power-to-mass ratios of the two propulsion technologies differ, the mass of the vehicle varies in accordance with the DOH. However, the total system power $P_{\mathrm{tot}}$ is not defined by the DOH. To acquire comparable results, $P_{\mathrm{tot}}$ is set for each DOH such that the time to accelerate the vehicle from standstill to 100 km/h is constant at 8 s. The acceleration performance $t_{0-100\mathrm{km}/\mathrm{h}}$ is a function of $P_{\mathrm{tot}}$ and $m_{\mathrm{veh}}$. However, $m_{\mathrm{veh}}$ itself is a function of $P_{\mathrm{tot}}$. Thus, the equation

$$t_{0-100\mathrm{km}/\mathrm{h}}=f(P_{\mathrm{tot}},m_{\mathrm{veh}})=f(P_{\mathrm{tot}},f\left(P_{\mathrm{tot}}\right))$$

(16)

is solved iteratively.

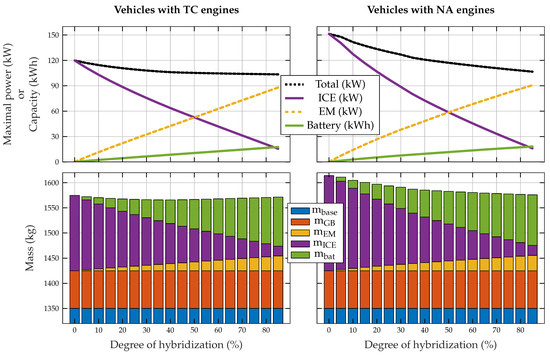

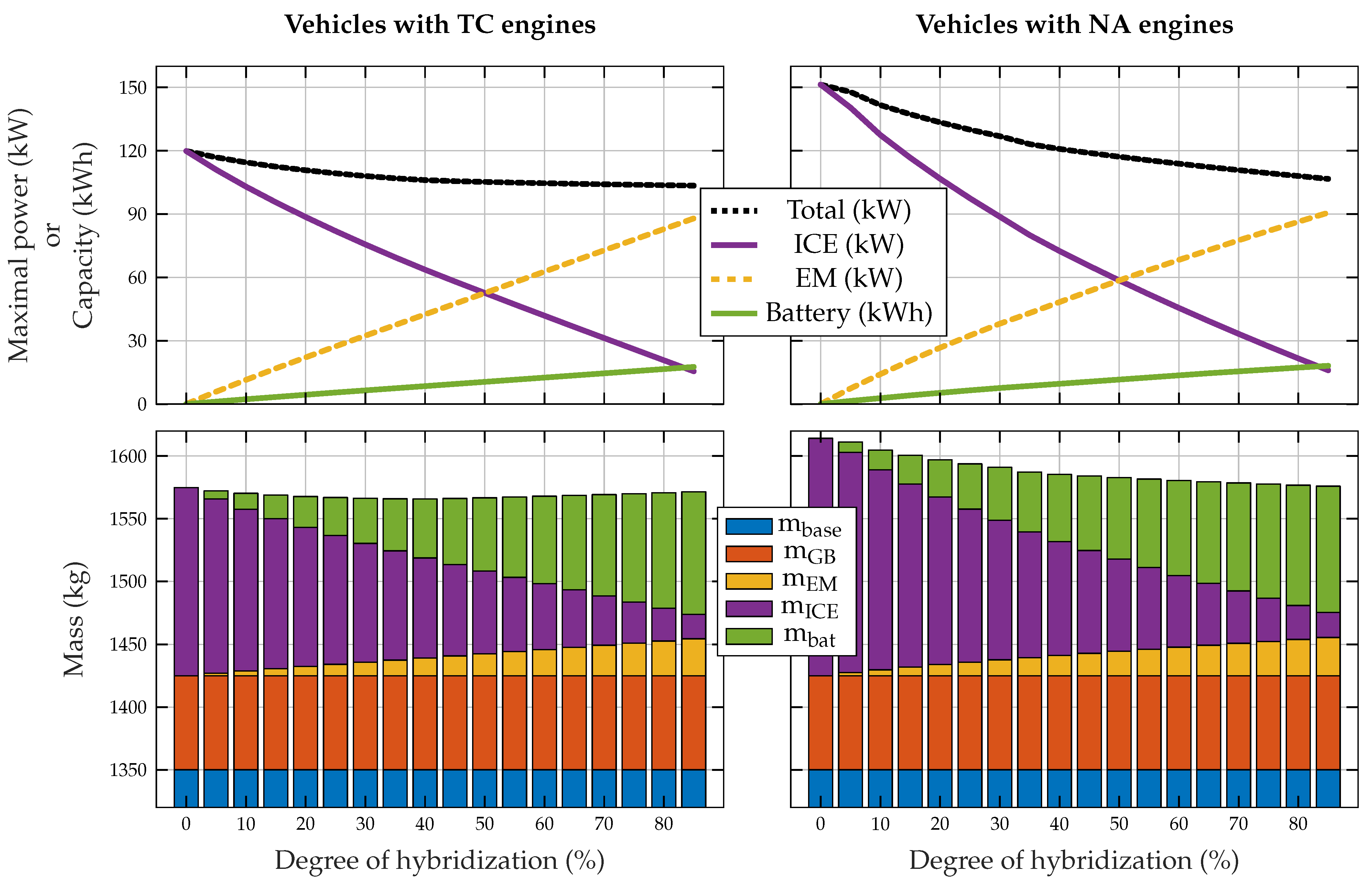

In Figure 7, the upper plot shows the progression of the maximal propulsion power and of the battery capacity while the lower plots show the progression of the vehicle mass as a function of the DOH. The feasible upper limit of the DOH is found to be 85%. A DOH of 90% results in an ICE with a maximal power output of approximately 10 kW. However, the average power demand of the WLTC for the given vehicle is approximately 11 kW. Thus, a DOH greater than 85% leads to an under-dimensioned ICE that is not able to drive the WLTC in the charge-sustaining mode, which renders the results unsuitable for comparisons.

The plots on the left-hand side show the results of vehicles with a TC engine. In addition, the plots on the right-hand side show the results of vehicles with an NA engine. These results are independent of the valve train system, whether that is a camshaft or an FVVT system. The lower plots show that in both cases the base mass $m_{\mathrm{base}}$ and the gearbox mass $m_{\mathrm{GB}}$ remain constant with values of 1350 kg and 75 kg, respectively. The mass of a vehicle with a TC engine and a DOH of 0% is 1575 kg, which decreases as the DOH increases. At a DOH of 40%, a minimal vehicle mass of 1566 kg is calculated. An increase of the DOH above 40% induces an increase in the vehicle mass. The power-to-mass ratio is significantly better for EMs than for ICEs. Thus, electrification of the propulsion system leads to a decrease in total mass. However, to maintain a constant c-rate, the battery must be scaled in accordance with the EM. Above a DOH of 40%, the mass of the battery compensates the mass advantages due to the EM and leads to an increase of the total vehicle mass. In contrast, the power-to-mass ratio of an NA engine is lower than that of a TC engine, which leads to an overall higher vehicle mass. An ICEV with an NA engine has a mass of 1614 kg, which is approximately 2% more than the ICEV with a TC engine. Furthermore, despite a larger battery, the total mass decreases at an increasing DOH due to the mass savings resulting from a smaller NA engine. Thus, the minimal mass of a vehicle with an NA engine is 1576 kg which is found at a DOH of 85%, which is the upper limit of these investigations. Without regard to the engine type, the upper plots indicate a monotonic decrease of the maximal vehicle power required for the desired performance from a standstill to 100 km/h. This is explained by the fact that the acceleration performance is not only dependent on the vehicle mass attained, but also on the torque available. Since an EM allows outputting its maximal torque basically from a standstill, the acceleration performance of the vehicle improves with the increase of the DOH, that is with the increase of the torque available from the EM, despite reduced maximal power.

3. Influence of the Degree of Hybridization on the Fuel Consumption

In this section, the DOH is varied for the HEV concepts introduced in Figure 1. To obtain comparable results of various degrees of hybridization, all vehicles must be operated in the charge-sustaining mode. This means that the SOC of the battery at the end of the test cycle must be identical to the one at the beginning. Thus, it is irrelevant if the concept analyzed is an HEV without external charging possibility or a PHEV with external charging possibility. The operating strategy for each vehicle configuration is obtained with DP and therefore is globally optimal. However, the optimal solution is not necessarily implementable due to, for instance, abrupt changes in the choice of the power split, i.e., the power demand of the ICE and the EM. The development of an operating strategy that is feasible for implementation in the real world is subject to further investigations.

3.1. HEV with a Gearbox

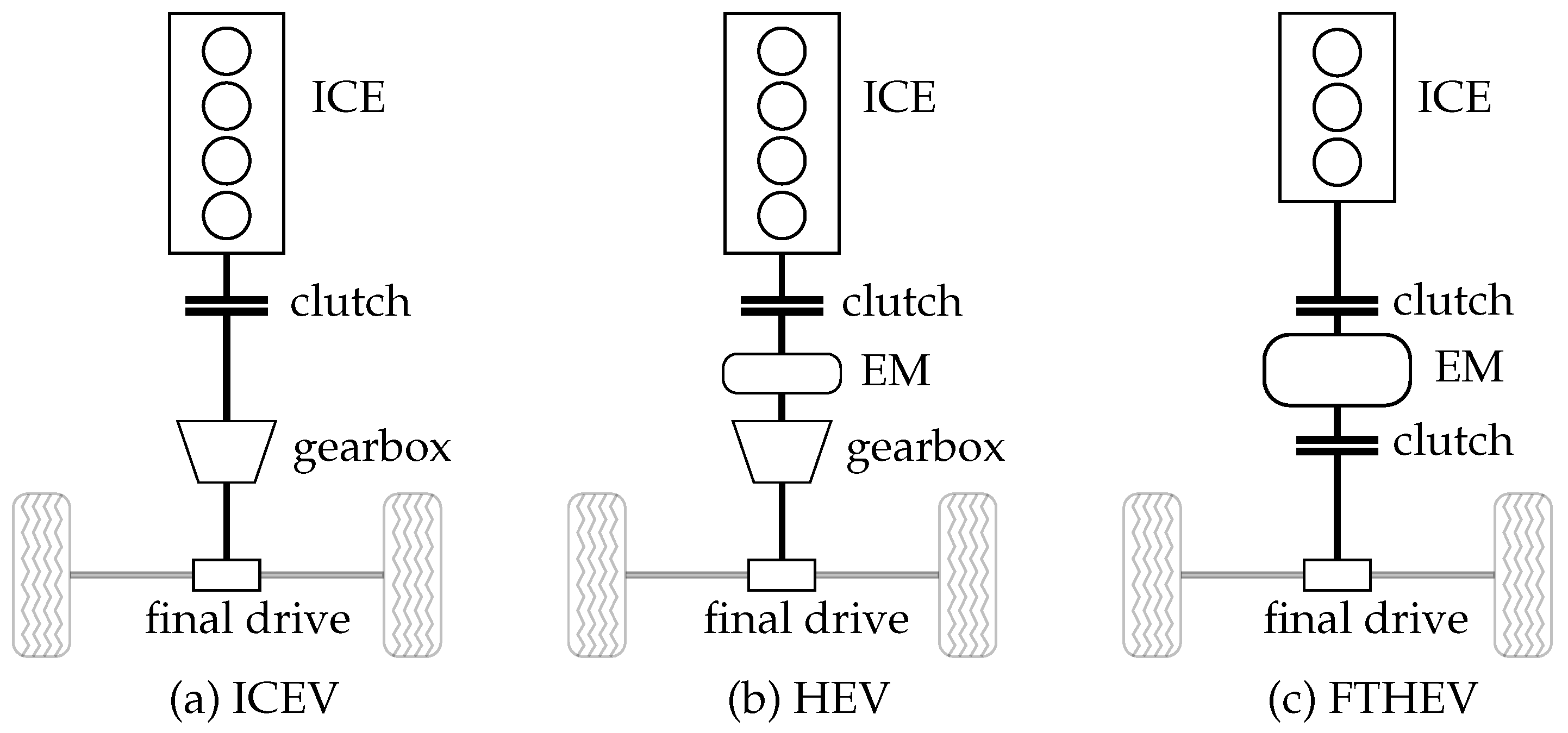

This section analyzes the influence of the DOH on the fuel consumption for the HEV concept (b) depicted in Figure 1.

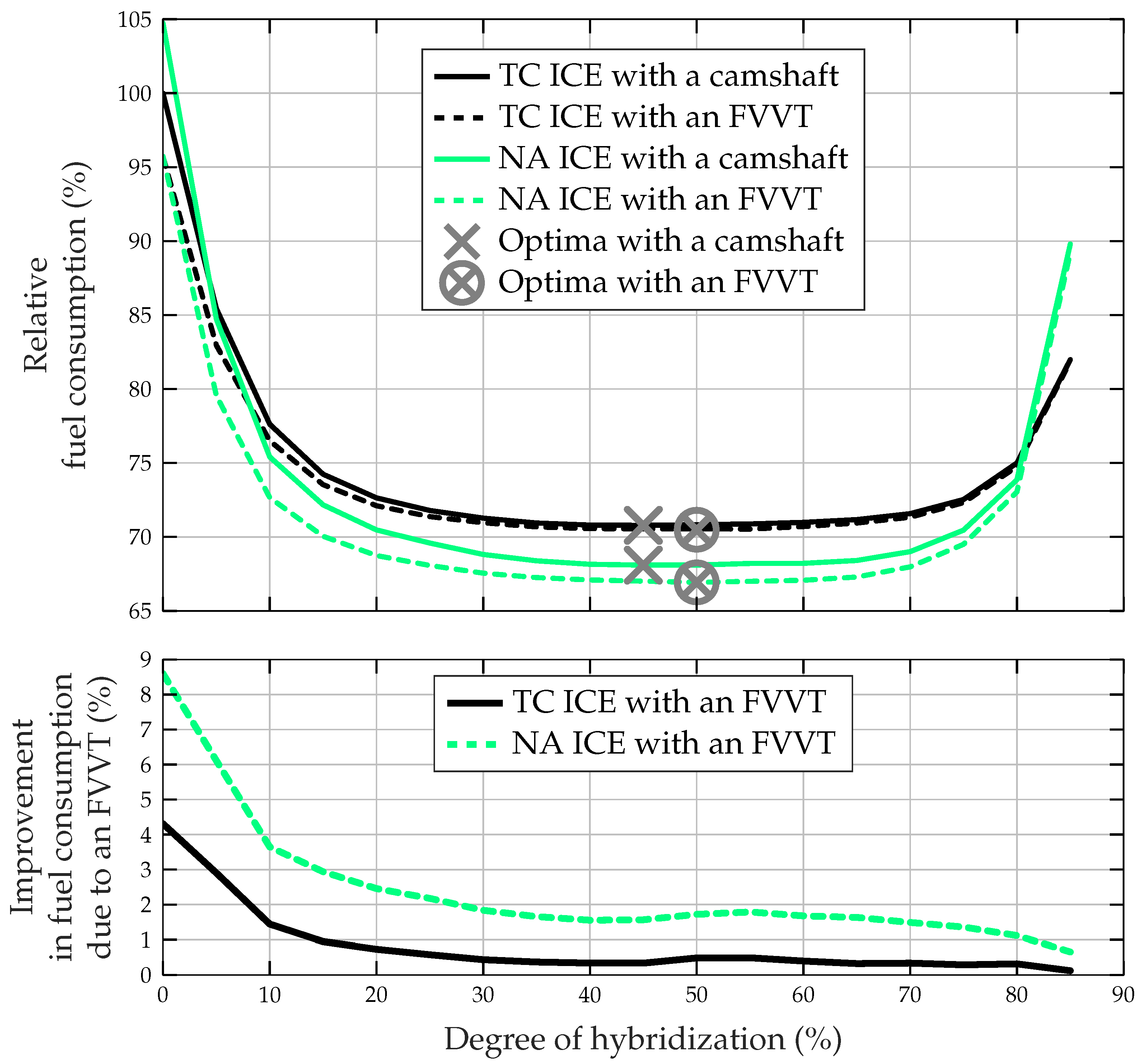

The upper plot in Figure 8 shows the relative fuel consumption over the DOH of all the engine concepts investigated. Here, all results are relative to the fuel consumption value of 100% of the vehicle with a camshaft-equipped TC engine at a DOH of 0%. Compared to the reference vehicle, the fuel consumption of an HEV with a DOH of 10% and a camshaft-equipped TC engine is reduced by approximately 22%. Most of the fuel-saving potential is exploited at a DOH of 25%, where a reduction of approximately 28% is achieved. The fuel-optimal HEV configuration is found at a DOH of 45% with a fuel consumption reduction of 29.2%. HEVs with an NA engine follow a similar tendency. However, at the same degree of hybridization, the fuel consumption of NA engines, on average, decreases by more than 2% further than it does for TC engines. A small degree of hybridization allows the operating points to be shifted towards peak efficiency, which for the modeled NA engine is approximately 2% higher than for the TC engine. Hence, an HEV with a camshaft-equipped NA engine at its fuel-optimal DOH of 45% reaches a fuel consumption reduction of approximately 31.9%. As stated above, in the case of NA engine-equipped HEVs the fuel-saving potential is exploited at a DOH of 25% with an achieved reduction of the fuel consumption of approximately 30%. Furthermore, for both TC and NA engines, an FVVT reduces the fuel consumption over the complete DOH range investigated. For greater detail, the lower plot shows the improvement in fuel consumption due to the FVVT over the DOH in %. These results are relative to their corresponding engine type, TC and NA, respectively. An FVVT reduces the fuel consumption by 4% to 9% for the ICEV at a DOH of 0%, which agrees with the results published in [62]. However, the benefit of an FVVT vanishes rapidly as the DOH increases. At a DOH of 10%, the reduction of the fuel consumption due to the FVVT reaches 3.6% at the most. For FVVT-equipped engines, the optimal HEV configuration is slightly shifted to a DOH of 50% for HEVs with a TC engine as well as for HEVs with an NA engine. At the fuel-optimal DOH, the FVVT improves the fuel consumption for HEVs with NA engines by 1.7% and for HEVs with TC engines by 0.5%. Since an FVVT affects the whole engine map of an NA engine, its positive effect is greater for NA engines than for TC engines.

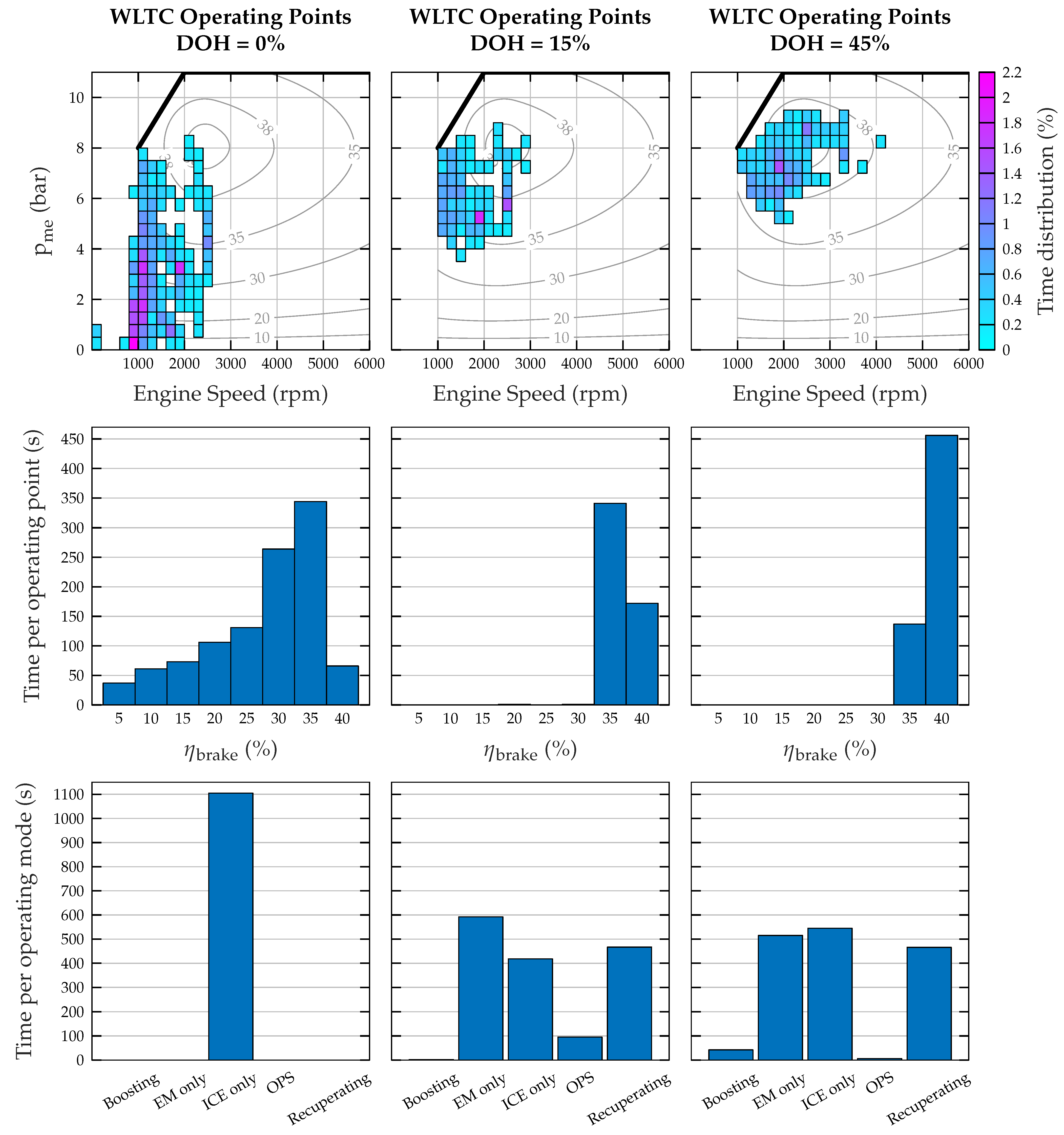

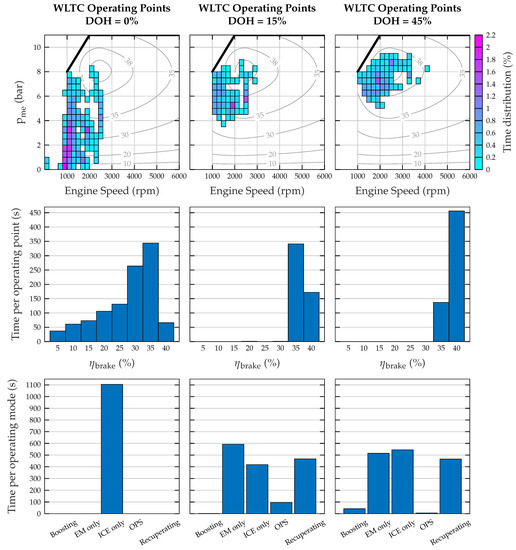

Figure 9 shows the operating points of a camshaft-equipped NA ICE on the WLTC for degrees of hybridization of 0%, 15%, and 45%. The top row shows the engine efficiency maps with the engine speed on the x axis and the mean effective pressure on the y axis. The patches colored visualize the distribution of the duration for which the ICE is running at a certain operating point. The grid of the patches has a resolution of 200 rpm and 0.5 bar and a patch is only displayed if it contains more than 3 s of operating duration. All operating points below 1000 rpm, i.e., below the minimal speed, are operated with an open clutch. Thus, the fuel flow of these points is computed in Equation (6) with ${\omega }_{\mathrm{e}}={\omega }_{\mathrm{e},\min }=1000\mathrm{rpm}$. The middle row shows histograms of the duration of the ICE operated at a certain brake efficiency range. The y axis shows the time in seconds, while on the x axis the brake efficiency of the ICE is arranged in eight bins with a width of five percentage points each. The bottom row shows histograms of the duration of specific operation modes. With $T_{\mathrm{e}}$ as ICE torque and $T_{\mathrm{m}}$ as EM torque, the following possible operation modes are defined:

• Boosting, with $T_{\mathrm{e}}>0$ and $T_{\mathrm{m}}>0$,
• EM only, with $T_{\mathrm{e}}=0$ and $T_{\mathrm{m}}>0$,
• ICE only, with $T_{\mathrm{e}}>0$ and $T_{\mathrm{m}}=0$,
• OPS, with $T_{\mathrm{e}}>0$ and $T_{\mathrm{m}}<0$,
• Recuperating, with $T_{\mathrm{e}}=0$ and $T_{\mathrm{m}}<0$.

Figure 9. Visualization of the camshaft-equipped NA ICE operation for HEVs with a DOH of 0%, 15%, and 45%, respectively. The top row shows the engine maps with time distribution of the operation points. The middle and bottom rows show histograms with the time spent at a specific brake efficiency range and operating mode, respectively.

Figure 9. Visualization of the camshaft-equipped NA ICE operation for HEVs with a DOH of 0%, 15%, and 45%, respectively. The top row shows the engine maps with time distribution of the operation points. The middle and bottom rows show histograms with the time spent at a specific brake efficiency range and operating mode, respectively.

In the column on the left-hand side, the results of an ICEV are visualized. In this case, all points of the WLTC are operated with the ICE and, thus, all points appear on the efficiency map of the engine. The points close to an engine speed of 0 rpm originate from the acceleration from standstill and cannot be omitted. The ICE runs at a wide range of brake efficiency, but most often around 30% to 35% due to the rather high power demand of the WLTC.

The middle column shows that already with a DOH of 15% all operating points below the minimal speed are omitted, i.e., all operating points which in an ICEV would require an open clutch are now driven electrically. Furthermore, the ICE runs almost entirely around a brake efficiency of 35% to 40%. The electric energy used by the EM is replenished either by recuperating energy from the negative acceleration or by the ICE through an OPS strategy. An OPS strategy brings only an advantage if the ICE is oversized in comparison to the average power demand of a given driving cycle as is the case for an HEV with a DOH of 15%.

The column on the right shows the results of an HEV with a DOH of 45%. The engine operates almost entirely at its best brake efficiency since its size at a DOH of 45% is well suited for the power demand of the WLTC. The OPS strategy has a very low relevance in this case, since a significant part of the driving cycle is driven already at a high brake efficiency. In contrast, an OPS strategy would increase the load on the engine further, which would lead to a decrease in efficiency. Thus, an OPS strategy is not applied at a sufficiently high DOH, i.e., at an engine size well suited to the WLTC. The part of the driving cycle with the low-load operating points is driven purely electric with the energy gained almost entirely from recuperation.

3.2. HEV with a Fixed Transmission

In this section, an HEV with a fixed transmission (FTHEV), i.e., the HEV concept (c) shown in Figure 1, is compared to a conventional HEV as in Section 3.1. The idea behind the FTHEV concept is to offer a simpler vehicle setup to reduce mass and cost which still is able to attain a fuel economy that is similar to that of a conventional HEV.

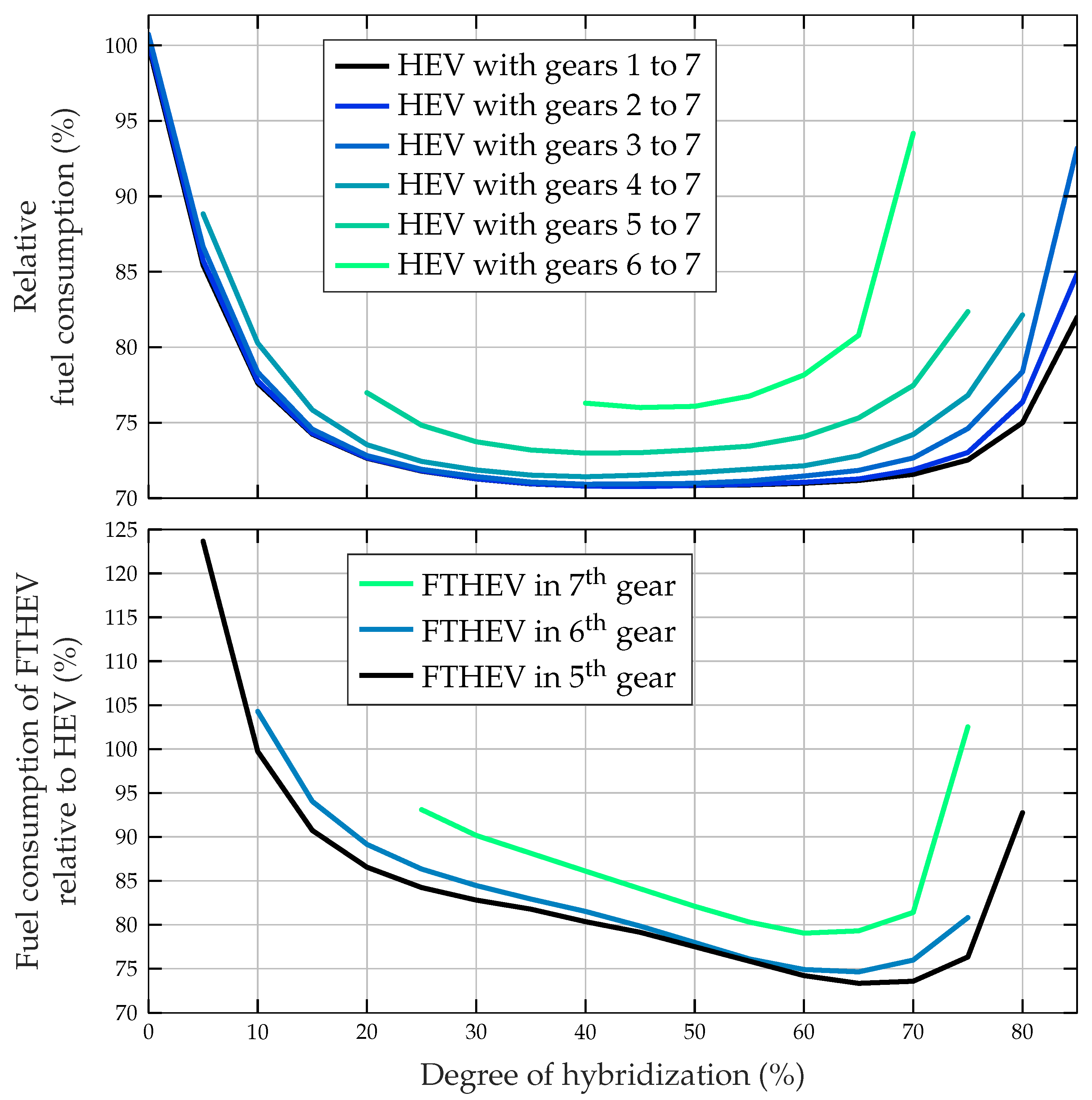

The top plot of Figure 10 shows the relative fuel consumption over the DOH of HEVs with a varying range of available gears and a camshaft-equipped TC ICE. All points are referenced to the fuel consumption of the camshaft-equipped TC ICEV, i.e., a DOH of 0%, with the gears one to seven available. The black line represents the conventional HEVs at a varying DOH with all gears available, as shown in Figure 8. The colored lines represent HEVs, where the available gear ratios are consecutively reduced. In each step, the highest gear ratio is removed, i.e., the smallest gear. To obtain results comparable to the HEV with all gears available, the initially set acceleration performance cannot be guaranteed for the HEVs with a reduced number of gears since this would lead to a change in the sizing of the ICE and the EM.

The results show that by removing the first two gear ratios the fuel consumption increases by 1.6% on average. Removing the third gear requires a DOH of at least 5% and increases the fuel consumption by 2.6% on average. Removing the fourth gear leads to a fuel consumption increase of 5.2% and further decreases the possible range of DOH. Compared to an HEV with all gears available, removing the fifth gear, thus leaving only the two smallest gear ratios, yields an average increase of 12.3% and a DOH required of at least 40%. A simulation with the highest gear only is not feasible. The adaptation of the DOH range is required to enable driving the WLTC in the charge-sustaining mode since the ICE cannot provide enough torque to the wheels if the high gear ratios are removed. Thus, a sufficiently powerful EM, i.e., a certain DOH, is required in order to provide the torque necessary to drive the WLTC. On the other hand, if too many gears are removed, the maximally possible DOH is reduced, as visible in the last three reduction steps, since the ICE cannot be operated such that the conditions on the final SOC are met. The increase in fuel consumption due to the gear removal is an additional check of the feasibility of the DP algorithm. By reducing the input variables to the DP, that is the number of gears available, the new solution must be suboptimal to the solution with a wider input range.

The bottom plot shows the fuel consumption of HEVs with a fixed transmission equivalent to the fifth, the sixth, and the seventh gear, respectively. Choosing a lower gear does not yield any feasible results since the maximal engine speed is exceeded due to the rather high peak velocities in the WLTC. Again, the results in this plot are relative to the fuel consumption of the camshaft-equipped TC ICEV, i.e., a DOH of 0%, with the gears one to seven available. In contrast to the upper plot, the acceleration performance is achieved with all vehicles, with each transmission ratio and at each DOH. The FTHEV in the fifth gear achieves its optimal fuel economy at a DOH of 65%, which diverges only by 3.6% from the fuel consumption of the reference HEV at the optimal DOH. In the sixth gear, the optimum of the FTHEV is found at a DOH of 65% as well and shows an increase in fuel consumption of 5.4% compared to the reference HEV at the optimal DOH. In the seventh gear, the optimum of the FTHEV is found at a DOH of 60% and the fuel consumption increases by 11.7% compared to the reference HEV at the optimal DOH. The increase in fuel consumption towards a DOH of 0% for all transmission ratios analyzed stems from the significant increase of the required total propulsion power in order to achieve the desired acceleration performance with a fixed transmission ratio. The mass of an FTHEV in the fifth gear and at the optimal DOH is reduced by 1.7%, which is mainly due to the removal of the gearbox. However, to ensure the acceleration performance an increase in the total propulsion power by 27% is required, which partially compensates for the advantages due to the lighter transmission.

3.3. Summary of the Results

The results show that a significant reduction in fuel consumption is achieved already with a DOH of 25%, which is in accordance with other research [63,64,65]. For a vehicle with any engine type, i.e., with a TC or an NA engine, equipped with a camshaft or with an FVVT, the DOH for a theoretical fuel-optimal vehicle configuration lies between 45% and 50%. For very low degrees of hybridization, the implementation of an FVVT allows fuel savings of up to 9%. However, at degrees of hybridization higher than 30% the advantage of an FVVT decreases to less than 2%. Furthermore, the fuel consumption diverges by less than 2% from the optimum if the highest two gear ratios are removed from the gearbox in the conventional HEV. Additionally, with a sufficiently high DOH, the transmission of an HEV can be simplified to one fixed gear ratio, which leads to a fuel consumption that is close to that achieved with the conventional HEV.

4. Conclusions

In this paper, we investigated the influence of state-of-the-art naturally aspirated and turbocharged internal combustion engines on the degree of hybridization. Furthermore, both engine concepts are evaluated with a conventional camshaft-driven valve train system and a fully variable valve train system. All internal combustion engine models are based on data obtained from measurements on engine test benches. The advantage of the FVVT is its increased efficiency in part-load operating points due to decreased pumping losses and improved combustion concepts such as the x-stroke operation and the cylinder deactivation mode. However, it is not a priori clear to what extent an improvement in part-load efficiency represents an advantage to hybrid electric vehicles. Thus, four different internal combustion engine types are evaluated with two hybrid electric vehicle concepts, one with a conventional gearbox and one with a fixed transmission ratio. They are then compared to non-hybrid vehicles with regard to fuel consumption.

The highlights of this study can be summarized as follows:

• The core components of a hybrid electric powertrain system, such as the internal combustion engine, the electric machine, and the battery, are modeled in high detail with regard to the tank-to-wheel efficiency of the vehicle.
• The models of the internal combustion engines are based on data obtained from measurements on engine test benches. The brake efficiency improvement by up to 40% by dethrottling and an x-stroke operation has been verified by an internally developed fully variable valve train that was published in [45].
• The acceleration performance is determined by the mass of the vehicle and the available torque of the propulsion system. For the same acceleration performance, an increase of the degree of hybridization from 0% to 50% results in a decrease of the total system power of 13.8% for an HEV with a turbocharged ICE and of 29.2% for an HEV with a naturally aspirated ICE.
• Compared to non-hybrid vehicles, the optimal fuel consumption for camshaft-equipped engines is achieved at a degree of hybridization of 45% with a reduction of 29.2% for HEVs with turbocharged engines and a reduction of 31.9% for HEVs with naturally aspirated engines. However, the majority of the potential fuel-saving is already achieved with a DOH of 25% with reductions of 28% and 30% for HEVs with turbocharged and naturally aspirated engines, respectively.
• By equipping any of the engines investigated with an FVVT the fuel consumption of a non-hybrid vehicle improves by 4% to 9%. However, by increasing the degree of hybridization to 10% the savings amount only to 3% to 4% and decrease further to 1% to 2% for a DOH range of 30% to 60%, depending on the engine type.
• With an increasing degree of hybridization, the internal combustion engine becomes smaller while the electric machine increases in size. At a DOH of 45%, any shifting of the operating point becomes obsolete since the ICE is well suited for the power demand of the chosen driving cycle.
• At a high DOH, the gearbox becomes obsolete due to the high torque available from the electric machine. Thus, an HEV can be realized with a fixed transmission ratio, which reduces the total mass, improves the mechanical transmission efficiency, and achieves almost the identical fuel consumption as an HEV with all gears available.

In this paper, the potential of various spark-ignited internal combustion engine concepts, such as naturally aspirated, turbocharged, and with or without a fully variable valve train, is quantified for their application to hybrid electric vehicles. The results show that independently of the applied engine concept, hybridization significantly decreases the fuel consumption of the vehicle. Furthermore, at a sufficiently high degree of hybridization, the gearbox can be omitted since the electric machine supplies enough torque at a low rotational speed to allow any dynamic acceleration desired.

Further investigations are required to find a suitable transmission ratio between the internal combustion engine, the electric machine, and the wheels while ensuring that all propulsion components are within reasonable manufacturing ranges. The battery sizing also requires investigations without regard to the size of the electric machine since a vehicle with a small degree of hybridization, but with a high battery capacity might present an advantage to consumers with a certain ratio of urban to extra-urban driving range. Last not but not least, economic aspects must be included since the sizing of components such as power electronics and batteries is more cost-sensitive than the potential optimal fuel consumption.
