Design of Static Output Feedback and Structured Controllers for Active Suspension with Quarter-Car Model

Abstract

This paper presents a method to design active suspension controllers for a 7-Degree-of-Freedom (DOF) full-car (FC) model from controllers designed with a 2-DOF quarter-car (QC) one. A linear quadratic regulator (LQR) with 7-DOF FC model has been widely used for active suspension control. However, it is too hard to implement the LQR in real vehicles because it requires so many state variables to be precisely measured and has so many elements to be implemented in the gain matrix of the LQR. To cope with the problem, a 2-DOF QC model describing vertical motions of sprung and unsprung masses is adopted for controller design. LQR designed with the QC model has a simpler structure and much smaller number of gain elements than that designed with the FC one. In this paper, several controllers for the FC model are derived from LQR designed with the QC model. These controllers can give equivalent or better performance than that designed with the FC model in terms of ride comfort. In order to use available sensor signals instead of using full-state feedback for active suspension control, LQ static output feedback (SOF) and linear quadratic Gaussian (LQG) controllers are designed with the QC model. From these controllers, observer-based controllers for the FC model are also derived. To verify the performance of the controllers for the FC model derived from LQR and LQ SOF ones designed with the QC model, frequency domain analysis is undertaken. From the analysis, it is confirmed that the controllers for the FC model derived from LQ and LQ SOF ones designed with the QC model can give equivalent performance to those designed with the FC one in terms of ride comfort.

1. Introduction

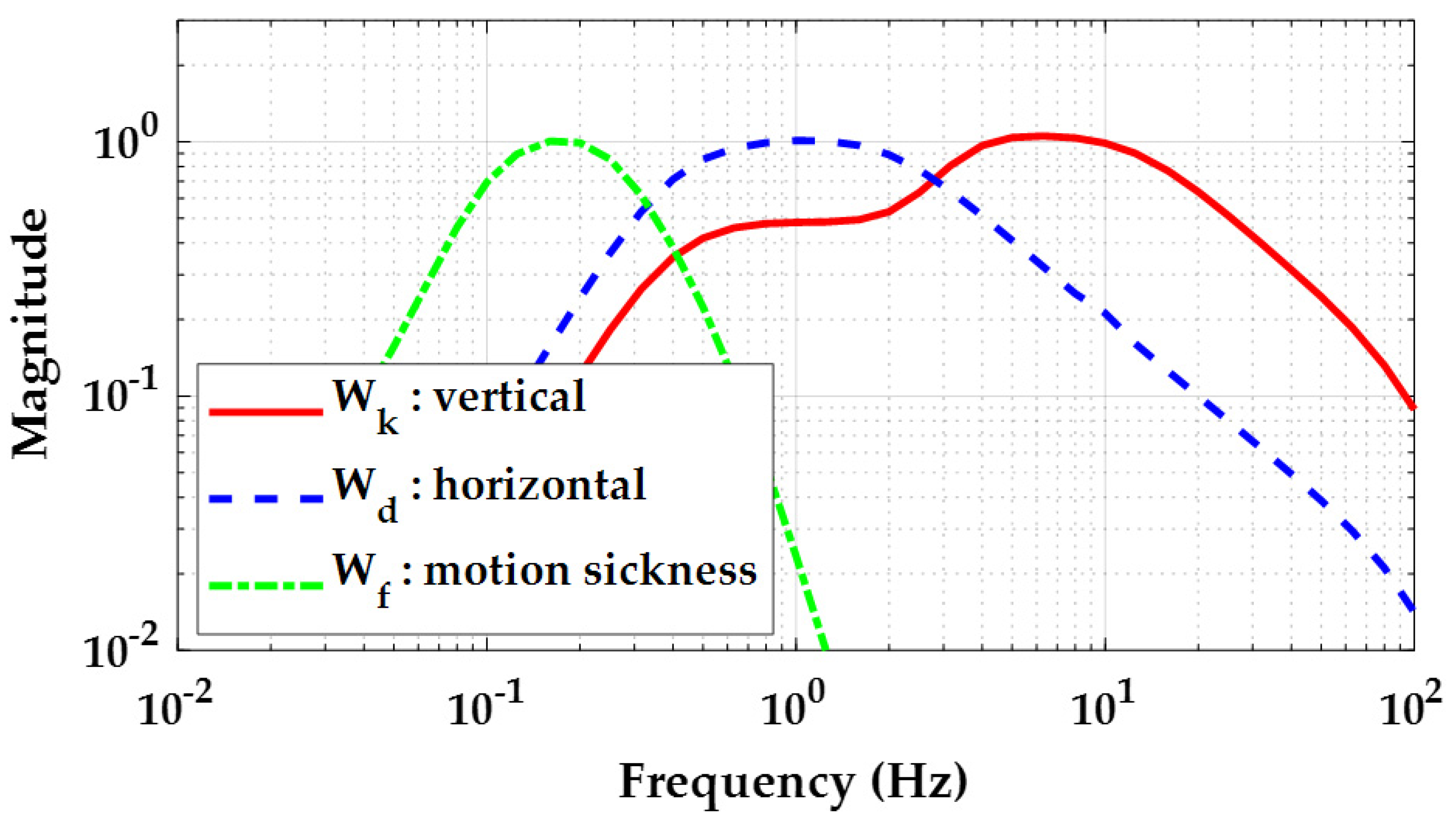

The main objective in designing suspension is to improve ride comfort and road adhesion. Ride comfort can be evaluated with the vertical acceleration of a sprung mass of a vehicle. Figure 1 shows the frequency weightings representing the sensitivity of the human body to vibration, specified in ISO2631-1 [1]. According to Figure 1, human bodies are considered to be most sensitive to frequencies in the 0.5–2 Hz range in horizontal direction and in the 4–10 Hz range in vertical direction. So, it is necessary to reduce the vertical acceleration of the sprung mass near 4–10 Hz range for the ride comfort [2]. Road adhesion can be evaluated with suspension stroke and tire deflection. Generally, it has been known that there is trade-off between the ride comfort and road adhesion [3].

There have been several devices for controlling the suspension in vehicles, such as active suspension, continuous damping control and air spring, etc. Among them, active suspension has been known to be the most effective for enhancing ride comfort and road adhesion. As a result, there have been a lot of studies on active suspension control. Comprehensive surveys on active suspension control can also be found in [3,4,5,6,7]. Recent advances for the last decade in active suspension control are summarized in [8].

Several suspension models have been used in designing a controller for the active suspension. Typical models are 2-Degree-of-Freedom (DOF) quarter-car (QC), 4-DOF half-car (HC) and 7-DOF full-car (FC) ones [6]. Nonlinear elements or actuators have been included in suspension models [9,10]. A typical example including nonlinear elements and actuators is an in-wheel motor system, which has been developed for the last decade [11,12,13]. To capture nonlinearities in suspension models, a Takagi–Sugeno (T-S) or interval fuzzy model has been adopted [14,15,16]. Among these models, 7-DOF linear FC model have been preferred because it can represent the vertical, roll and pitch motions of a sprung mass or vehicle body [3]. However, the FC model is so complex that it is not easy to implement a controller for active suspension.

Several methodologies such as linear optimal control, H_∞ control, nonlinear control, and adaptive control theories have been applied in designing an active suspension controller [3,4,5,6,7,8]. Among these methodologies, linear quadratic regulator (LQR) has been widely adopted with 2-DOF QC and 7-DOF FC models because it can provide a systematic way to design a controller for active suspension. LQR is a full-state feedback controller, which requires all state variables to be measured. However, some of state variables of 7-DOF FC model cannot be measured in real vehicles. For example, the vertical displacement, the roll and pitch angles of a sprung mass are too hard to be measured with commercial sensors. For this reason, a state observer has been adopted for the purpose of estimating state variables of the FC model. Generally, the Kalman filter has been widely adopted as a state observer for LQR. With the Kalman filter and LQR, the linear quadratic Gaussian (LQG) for active suspension control has been extensively studied [17,18,19].

Another drawback in using LQR or LQG with the FC model for active suspension control is that there are so many state variables and control inputs. For example, the FC model has 14 state variables and four control inputs. If LQR is adopted for active suspension control, the dimension of gain matrix is 4 × 14. As a result, it is not easy to implement LQR or LQG on real vehicles. Therefore, it is necessary to design a simple controller, which requires a smaller number of state variables and is easy to implement in real vehicles.

In this paper, a 2-DOF QC model describing the vertical motions of sprung and unsprung masses is used to design a controller for active suspension. LQR is adopted to design the controller with the QC model. Let this controller be denoted as LQRq. LQRq has four elements in the gain matrix. Let the LQR designed with the FC model be denoted as LQRf. LQRf has 56 elements in the gain matrix. Based on the fact that the FC model consists of four QC ones, a full-state feedback controller for the FC model can derived from LQRq with some matrix manipulations. Let this controller be denoted as LQRfq. This is the key contribution of this paper. In LQRfq, the number of distinct gain elements is four, which is borrowed from LQRq. So, LQRfq is much simpler than LQRf and requires a much smaller number of gain elements in the gain matrix. LQRfq can give an equivalent or better performance than LQRf in terms of the ride comfort. This idea was presented in the previous work [20]. In the work, a proportional-integral-derivative (PID) control was adopted with the suspension stroke signal. With this method, it is not easy to evaluate and validate performances of the designed controller. In view of the controller for the FC model, LQRfq is a static output feedback (SOF) or structured controller. Therefore, this controller can be directly designed using LQ SOF control methodology.

Although the number of state variables needed for LQRq is smaller than those for LQRf, it is still not easy to measure some state variables such as vertical displacement of the sprung mass. To cope with the problem, a LQ SOF controller is designed with the QC model and available sensor signals [21,22]. Let this controller be denoted as LQSOFq. Following the identical procedure from LQRq to LQRfq, a full-state feedback controller for the FC model is derived from LQSOFq, designed with the QC model. Let this controller be denoted as LQSOFfq. The number of gain elements needed for LQSOFfq is just 2, which is borrowed from LQSOFq. Moreover, LQSOFfq can give equivalent or better performance than LQRf in terms of the ride comfort.

Another method to cope with the problem is to use an observer-based output feedback controller. LQG is the typical example. In this paper, LQG is designed with the QC and FC models. Let the LQG designed with the QC and FC models be denoted as LQGq and LQGf, respectively. When designing an observer-based output feedback controller for the FC model, the designed controllers from the QC models, i.e., LQRfq and LQSOFfq, are adopted as a full-state feedback controller.

To verify the performance of the controllers derived from ones designed with the QC model, frequency-domain analysis with singular value plot is conducted for the FC model. The full-state feedback, static-output feedback and observer-based output feedback controllers are compared in terms of the ride comfort.

This paper is organized as follows: In Section 2, 2-DOF QC and 7-DOF FC models are presented and modeled as a state-space equation. Based on the QC model, the controller for active suspension is design with LQR. SOF and LQG controllers are also designed with the QC and FC models. In Section 3, frequency-domain analysis with singular value plot is done. The conclusions are given in Section 4.

2. Controller Design for Active Suspension

In this section, the state-space equations for 2-DOF quarter-car and 7-DOF full-car modes following the procedure presented in the previous research [23,24]. In these studies, vector-matrix forms of equations of motions were derived and merged into a single state-space equation. Hereafter, the subscripts q and f mean controllers designed with the QC and FC models, respectively. The subscript fq means a controller for the FC model derived from that designed with the QC model.

2.1. Controller Design with Quarter-Car Model

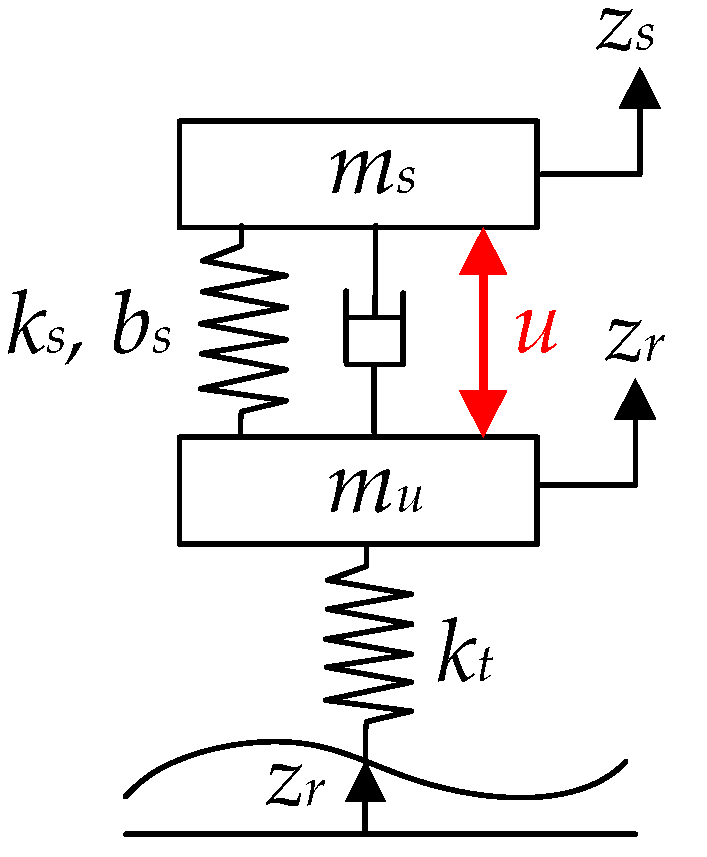

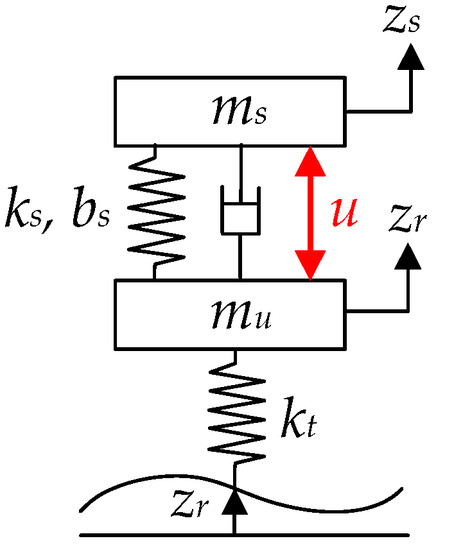

Figure 2 shows a 2-DOF QC model, which describes the vertical motions of sprung and unsprung masses. As shown in Figure 2, the control input u generated by an active suspension is located between the sprung and unsprung masses, m_s and m_u. The disturbance is the road profile, z_r.

The force acting on suspension is derived as (1). The equations of vertical motions of the sprung and unsprung masses are given in (2). By combining (1) and (2), and changing it into vector-matrix form, (3) is obtained.

$$f=-k_s(z_s-z_u)-b_s({\dot{z}}_s-{\dot{z}}_u)+u$$

(1)

$$\{\begin{array}{l}{m}_s{\ddot{z}}_s=f\hfill \\ m_u{\ddot{z}}_u=-f-k_t\left(z_u-z_r\right)\hfill \end{array}$$

(2)

$$\left[\begin{array}{cc}{m}_s& 0\\ 0& m_u\end{array}\right]\left[\begin{array}{c}{\ddot{z}}_s\\ {\ddot{z}}_u\end{array}\right]=\left[\begin{array}{cc}-k_s& k_s\\ k_s& -k_s-k_t\end{array}\right]\left[\begin{array}{c}{z}_s\\ z_u\end{array}\right]+\left[\begin{array}{cc}-b_s& b_s\\ b_s& -b_s\end{array}\right]\left[\begin{array}{c}{\dot{z}}_s\\ {\dot{z}}_u\end{array}\right]+\left[\begin{array}{c}1\\ -1\end{array}\right]u+\left[\begin{array}{c}0\\ k_t\end{array}\right]z_r$$

(3)

New vector and matrices are defined as (4) and (5), respectively [23,24]. With those definitions, (3) is rewritten as (6). The state vector of the QC model is defined as (7). With the definitions of new matrices as given in (8), the state-space equation for QC model is obtained as (9).

$$z={\left[\begin{array}{cc}{z}_s& z_u\end{array}\right]}^T$$

(4)

$$M_q\triangleq \left[\begin{array}{cc}{m}_s& 0\\ 0& m_u\end{array}\right],K_q\triangleq \left[\begin{array}{cc}-k_s& k_s\\ k_s& -k_s-k_t\end{array}\right],B_q\triangleq \left[\begin{array}{cc}-b_s& b_s\\ b_s& -b_s\end{array}\right],U_q\triangleq \left[\begin{array}{c}1\\ -1\end{array}\right],L_q\triangleq \left[\begin{array}{c}0\\ k_t\end{array}\right]$$

(5)

$$M_q\ddot{z}=K_{q}z+B_q\dot{z}+U_{q}u+L_q{z}_r$$

(6)

$$x_q=\left[\begin{array}{c}z\\ \dot{z}\end{array}\right]={\left[\begin{array}{cccc}{z}_s& z_u& {\dot{z}}_s& {\dot{z}}_u\end{array}\right]}^T$$

(7)

$$A_q\triangleq \left[\begin{array}{cc}{0}_{2\times 2}& I_{2\times 2}\\ M_q^{-1}{K}_q& M_q^{-1}{B}_q\end{array}\right],B_{1q}\triangleq \left[\begin{array}{c}{0}_{2\times 1}\\ M_q^{-1}{L}_q\end{array}\right],B_{2q}\triangleq \left[\begin{array}{c}{0}_{2\times 1}\\ M_q^{-1}{U}_q\end{array}\right]$$

(8)

$${\dot{x}}_q=A_q{x}_q+B_{1q}{z}_r+B_{2q}u$$

(9)

The LQ objective function for active suspension control is given as (10). The weights ρ_i can be set to the inverse of the square of the maximum allowable value by Bryson’s rule, i.e., ρ_i = 1/η_i² [25]. For ride comfort, the weight ρ₁ on the vertical acceleration of the sprung mass should be set to higher values while maintaining the other weights constant. On the other hand, for road adhesion or cornering, the weight ρ₃ on the tire deflection should be set to higher. Generally, these two objectives, ride comfort and road adhesion, conflict with each other. The regulated output z_q is defined as (11) with the state vector x_q and the control input u. With (11), the weighting matrices in J_q are obtained as (12). With (12), the LQ objective function (10) can be rewritten into the vector-matrix form, (13). LQR is a controller with the form of full-state feedback, u = −K_qx_q, which minimizes J_q. It is easy to obtain K_q from Riccati equation for a given set of weights, i.e., the matrices Q_q, N_q and R_q, as given in (12). Let denote this controller K_q as LQRq.

$$J_q={\displaystyle \underset{0}{\overset{\infty }{{\displaystyle \int }}}\left\{{\rho }_1{\ddot{z}}_s^2+{\rho }_2{\left(z_s-z_u\right)}^2+{\rho }_3{z}_u^2+{\rho }_4{u}^2\right\}dt}$$

(10)

$$z_q=C_q{x}_q+D_{q}u$$

(11)

$$Q_q=C_q^T{C}_q,N_q=C_q^T{D}_q,R_q=D_q^T{D}_q$$

(12)

$$J_q={\displaystyle \underset{0}{\overset{\infty }{{\displaystyle \int }}}{z}_q^T{z}_{q}dt}={\displaystyle \underset{0}{\overset{\infty }{{\displaystyle \int }}}\left\{{\left[\begin{array}{c}{x}_q\\ u\end{array}\right]}^T\left[\begin{array}{cc}{Q}_q& N_q\\ N_q^T& R_q\end{array}\right]\left[\begin{array}{c}{x}_q\\ u\end{array}\right]\right\}dt}$$

(13)

2.2. Controller Design with Full-Car Model

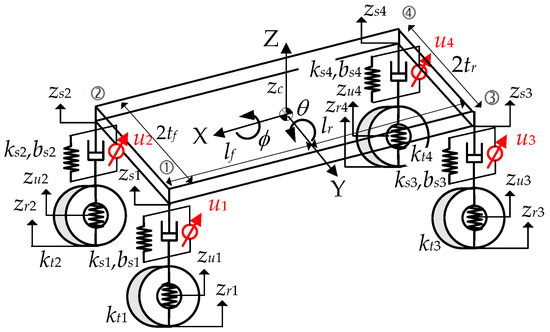

Figure 3 shows a 7-DOF FC model, which describes the vertical, roll and pitch motions of a sprung mass, and the vertical motions of four unsprung masses. As shown in Figure 3, the indices of a suspension are in order of front left, front right, rear left and rear right ones, represented as ①, ②, ③ and ④, respectively. In the FC model, there are four external disturbances, i.e., the road profiles, z_r1, z_r2, z_r3 and z_r4, on the unsprung mass. Actuators located between the sprung and unsprung masses can generate the control inputs, u₁, u₂, u₃ and u₄, at each suspension.

The suspension forces in the FC model are derived as (14). In (14), u_i is the control input or force acting on the i-th suspension, which is identical to (1). The equations of motion for the sprung and unsprung masses are given in (15) and (16), respectively.

$$f_i=-k_{si}(z_{si}-z_{ui})-b_{si}({\dot{z}}_{si}-{\dot{z}}_{ui})+u_i,\hspace{1em}i=1\cdots 4$$

(14)

$$\{\begin{array}{l}{m}_s{\ddot{z}}_c=f_1+f_2+f_3+f_4\hfill \\ I_x\ddot{\varphi }=t_f\cdot f_1-t_f\cdot f_2+t_r\cdot f_3-t_r\cdot f_4\hfill \\ I_y\ddot{\theta }=-l_f\cdot \left(f_1+f_2\right)+l_r\cdot \left(f_3+f_4\right)\hfill \end{array}$$

(15)

$$\{\begin{array}{l}{m}_{u1}{\ddot{z}}_{u1}=-f_1+k_{t1}\left(z_{u1}-z_{r1}\right)\hfill \\ m_{u2}{\ddot{z}}_{u2}=-f_2+k_{t2}\left(z_{u2}-z_{r2}\right)\hfill \\ m_{u3}{\ddot{z}}_{u3}=-f_3+k_{t3}\left(z_{u3}-z_{r3}\right)\hfill \\ m_{u4}{\ddot{z}}_{u4}=-f_4+k_{t4}\left(z_{u4}-z_{r4}\right)\hfill \end{array}$$

(16)

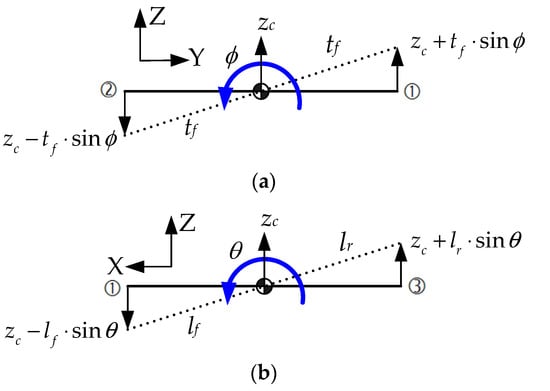

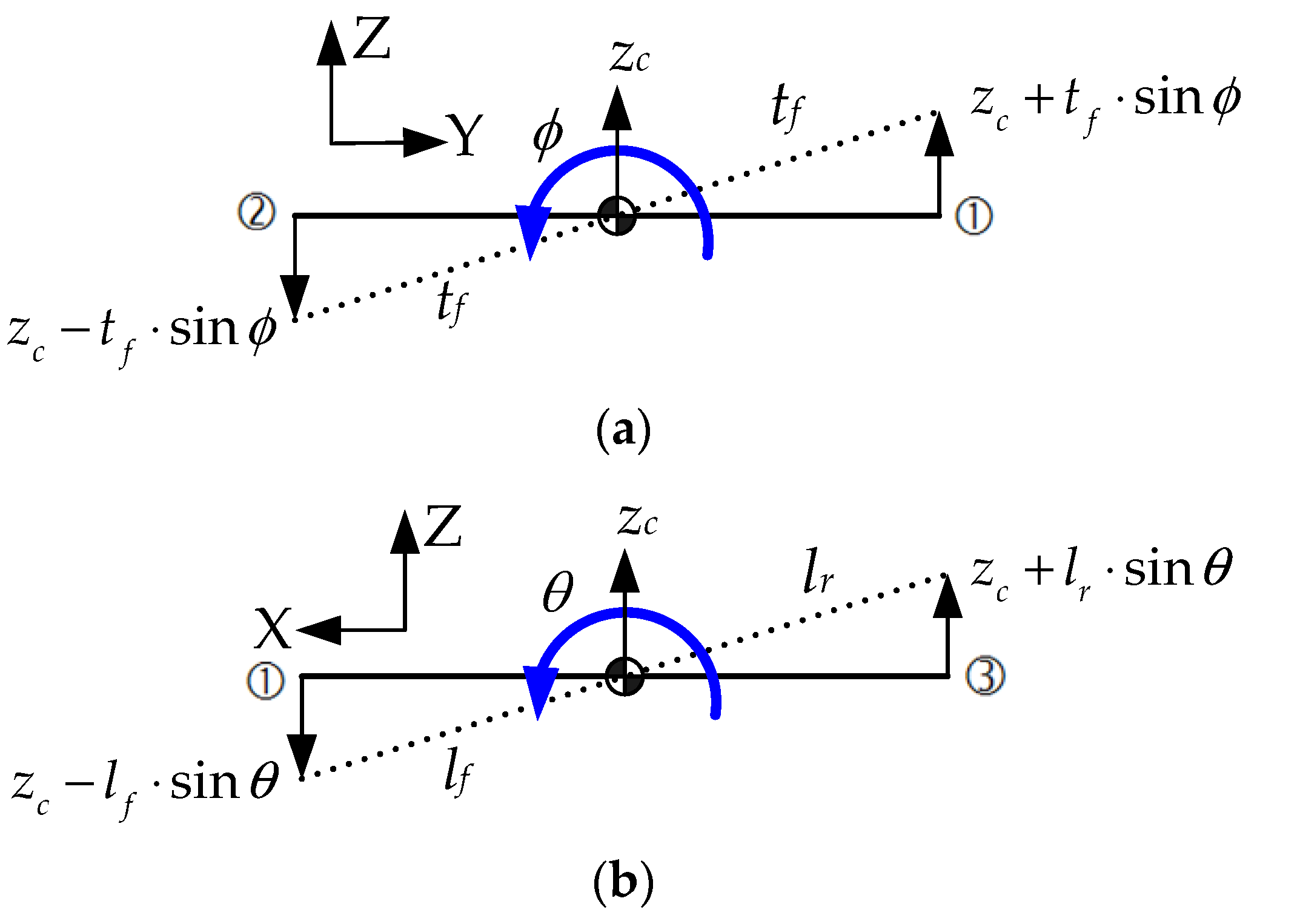

In (14), the vertical displacement of each corner, z_si, is not a state variable. Therefore, it should be derived from state variables. Figure 4 shows the roll and pitch motions of the sprung mass. As shown in Figure 4, the vertical displacements of the sprung mass, i.e., z_s1, z_s2, z_s3 and z_s4, at each corner are derived as (17) from the geometrical relationship under the assumption that the sprung mass is a rigid body. As shown in (17), there is a sine function, which is nonlinear. Generally, the roll and pitch angles are less than 5 deg for most cases of vehicle driving conditions. Under the condition that the roll and pitch angles are small or less than 15 deg, i.e., $\sin \theta \simeq \theta$ and $\sin \varphi \simeq \varphi$, (17) can be rewritten as the vector-matrix form of (18) [23,24]. In (18), the matrix G represents the geometric relationship between the vertical motions of four corners and the vertical, roll and pitch ones of the sprung mass.

$$\{\begin{array}{l}{z}_{s1}=z_c+t_f\cdot \sin \varphi -l_f\cdot \sin \theta \hfill \\ z_{s2}=z_c-t_f\cdot \sin \varphi -l_f\cdot \sin \theta \hfill \\ z_{s3}=z_c+t_f\cdot \sin \varphi +l_r\cdot \sin \theta \hfill \\ z_{s4}=z_c-t_f\cdot \sin \varphi +l_r\cdot \sin \theta \hfill \end{array}$$

(17)

$$\left[\begin{array}{c}{z}_{s1}\\ z_{s2}\\ z_{s3}\\ z_{s4}\end{array}\right]=\underset{G^T}{\underbrace{\left[\begin{array}{ccc}1& t_f& -l_f\\ 1& -t_f& -l_f\\ 1& t_r& l_r\\ 1& -t_r& l_r\end{array}\right]}}\left[\begin{array}{c}{z}_c\\ \varphi \\ \theta \end{array}\right]=G^T\left[\begin{array}{c}{z}_c\\ \varphi \\ \theta \end{array}\right]$$

(18)

For further derivation, the vectors of dynamic variables and the matrices of parameters are defined as (19) and (20), respectively [23,24]. In (20), diag(a,b,c,…) represents the diagonal matrix consisting of the elements, a,b,c,… With those definitions, the Equations (15) and (16) are represented as the vector-matrix forms, (21). Moreover, the Equations (18) and (14) are represented as the vector-matrix forms, (22) and (23), respectively.

$$\{\begin{array}{l}{z}_s\triangleq {\left[\begin{array}{cccc}{z}_{s1}& z_{s2}& z_{s3}& z_{s4}\end{array}\right]}^T,z_u\triangleq {\left[\begin{array}{cccc}{z}_{u1}& z_{u2}& z_{u3}& z_{u4}\end{array}\right]}^T,z_r\triangleq {\left[\begin{array}{cccc}{z}_{r1}& z_{r2}& z_{r3}& z_{r4}\end{array}\right]}^T\\ p\triangleq {\left[\begin{array}{ccc}{z}_c& \varphi & \theta \end{array}\right]}^T,u_f\triangleq {\left[\begin{array}{cccc}{u}_1& u_2& u_3& u_4\end{array}\right]}^T,f\triangleq {\left[\begin{array}{cccc}{f}_1& f_2& f_3& f_4\end{array}\right]}^T\end{array}$$

(19)

$$\{\begin{array}{l}{M}_s\triangleq \mathrm{diag}\left(m_s,I_x,I_y\right),M_u\triangleq \mathrm{diag}\left(m_{u1},m_{u2},m_{u3},m_{u4}\right)\\ K_s\triangleq \mathrm{diag}\left(k_{s1},k_{s2},k_{s3},k_{s4}\right),K_t\triangleq \mathrm{diag}\left(k_{t1},k_{t2},k_{t3},k_{t4}\right)\\ B_s\triangleq \mathrm{diag}\left(b_{s1},b_{s2},b_{s3},b_{s4}\right)\end{array}$$

(20)

$$\{\begin{array}{l}{M}_s\ddot{p}=Gf\\ M_u{\ddot{z}}_u=-f+K_t\left(z_u-z_r\right)\end{array}$$

(21)

$$z_s=G^{T}p$$

(22)

$$f=-K_s\left(z_s-z_u\right)-B_s\left({\dot{z}}_s-{\dot{z}}_u\right)+u_f=-K_s\left(G^{T}p-z_u\right)-B_s\left(G^T\dot{p}-{\dot{z}}_u\right)+u_f$$

(23)

By replacing f of (21) with (23), (21) is converted into (24). (24) is rearranged into (25) as the vector-matrix form. The vectors and matrices in (25) are defined as (26) and (27), respectively. With those definitions, (25) is rewritten into (28).

$$\{\begin{array}{l}{M}_s\ddot{p}=-G{K}_s\left(G^{T}p-z_u\right)-G{B}_s\left(G^T\dot{p}-{\dot{z}}_u\right)+G{u}_f\\ M_u{\ddot{z}}_u=K_s\left(G^{T}p-z_u\right)+B_s\left(G^T\dot{p}-{\dot{z}}_u\right)+K_t\left(z_u-z_r\right)-u_f\end{array}$$

(24)

$$\begin{array}{l}\left[\begin{array}{cc}{M}_s& 0\\ 0& M_u\end{array}\right]\left[\begin{array}{c}\ddot{p}\\ {\ddot{z}}_u\end{array}\right]=\left[\begin{array}{cc}-G{K}_s{G}^T& G{K}_s\\ K_s{G}^T& -K_s+K_t\end{array}\right]\left[\begin{array}{c}p\\ z_u\end{array}\right]\\ \hspace{1em}\hspace{1em}+\left[\begin{array}{cc}-G{B}_s{G}^T& G{B}_s\\ B_s{G}^T& -B_s\end{array}\right]\left[\begin{array}{c}\dot{p}\\ {\dot{z}}_u\end{array}\right]+\left[\begin{array}{c}G\\ -I\end{array}\right]u_f+\left[\begin{array}{c}0\\ -K_t\end{array}\right]z_r\end{array}$$

(25)

$$q\triangleq \left[\begin{array}{c}p\\ z_u\end{array}\right],w_f\triangleq z_r$$

(26)

$$\{\begin{array}{l}{M}_e\triangleq \left[\begin{array}{cc}{M}_s& 0\\ 0& M_u\end{array}\right],K_e\triangleq \left[\begin{array}{cc}-G{K}_s{G}^T& G{K}_s\\ K_s{G}^T& -K_s+K_t\end{array}\right]\\ B_e\triangleq \left[\begin{array}{cc}-G{B}_s{G}^T& G{B}_s\\ B_s{G}^T& -B_s\end{array}\right],U_e\triangleq \left[\begin{array}{c}G\\ -I\end{array}\right],L_e\triangleq \left[\begin{array}{c}0\\ -K_t\end{array}\right]\end{array}$$

(27)

$$M_e\ddot{q}=K_{e}q+B_e\dot{q}+U_e{u}_f+L_e{w}_f$$

(28)

The state vector of the FC model is defined as (29). With the definitions of matrices as given in (30), the state-space equation of the 7-DOF FC model is obtained as (31).

$$x_f\triangleq \left[\begin{array}{c}q\\ \dot{q}\end{array}\right]$$

(29)

$$A_f=\left[\begin{array}{cc}{0}_{7\times 7}& I_{7\times 7}\\ M_e^{-1}{K}_e& M_e^{-1}{B}_e\end{array}\right],B_{1f}=\left[\begin{array}{c}{0}_{7\times 4}\\ M_e^{-1}{L}_e\end{array}\right],B_{2f}=\left[\begin{array}{c}{0}_{7\times 4}\\ M_e^{-1}{U}_e\end{array}\right]$$

(30)

$${\dot{x}}_f=A_f{x}_f+B_{1f}{w}_f+B_{2f}{u}_f$$

(31)

The LQ objective function for active suspension control with the FC model is given as (32). The weights ζ_i can be set to the inverse of the square of the maximum allowable value by Bryson’s rule, i.e., ζ_i = 1/ξ_i² [25]. For ride comfort, the weights ξ₁, ξ₂, and ξ₃ on the vertical, roll and pitch accelerations should be set to higher values. On the other hand, for road adhesion or cornering, the weights ξ₈ and ξ₉ on the suspension stroke and tire deflection should be set to higher. Generally, these two objectives, ride comfort and road adhesion, conflict with each other.

The regulated output z_f is defined as (33) with the state and input vectors, x_f and u_f. With (33), the weighting matrices in J_f are obtained as (34). With (34), the LQ objective function (32) can be rewritten into the vector-matrix form of (35). LQR is a controller with the form of full-state feedback, u_f = −K_fx_f, which minimizes J_f. It is easy to obtain K_f from Riccati equation for a given set of weights, i.e., the weighting matrices Q_f, N_f and R_f, as given in (34). Let denote this controller K_f as LQRf1.

$$J_f={\displaystyle \underset{0}{\overset{\infty }{{\displaystyle \int }}}\left\{\begin{array}{l}{\xi }_1{\ddot{z}}_c^2+{\xi }_2{\ddot{\varphi }}^2+{\xi }_3{\ddot{\theta }}^2+{\xi }_4{\varphi }^2+{\xi }_5{\dot{\varphi }}^2+{\xi }_6{\theta }^2\\ +{\xi }_7{\dot{\theta }}^2+{\xi }_8{\displaystyle \sum _{i=1}^4{\left(z_{si}-z_{ui}\right)}^2}+{\xi }_9{\displaystyle \sum _{i=1}^4{z}_{ui}^2}+{\xi }_{10}{\displaystyle \sum _{i=1}^4{u}_i^2}\end{array}\right\}dt}$$

(32)

$$z_f=C_f{x}_f+D_f{u}_f$$

(33)

$$Q_f=C_f^{T}C{}_f,N_f=C_f^{T}D{}_f,R_f=D_f^{T}D{}_f$$

(34)

$$J_f={\displaystyle \underset{0}{\overset{\infty }{{\displaystyle \int }}}{z}_f^T{z}_{f}dt}={\displaystyle \underset{0}{\overset{\infty }{{\displaystyle \int }}}\left\{{\left[\begin{array}{c}{x}_f\\ u_f\end{array}\right]}^T\left[\begin{array}{cc}{Q}_f& N_f\\ N_f^T& R_f\end{array}\right]\left[\begin{array}{c}{x}_f\\ u_f\end{array}\right]\right\}dt}$$

(35)

The LQ objective function for the FC model, (32), can be converted into that for the QC one, (36), just like (10). This function, (36), has the identical form to (10). The weights σ_i can be set to the inverse of the square of the maximum allowable value by Bryson’s rule, i.e., σ_i = 1/χ_i² [25]. With the new definitions of matrices as given in (37), the output and the weighting matrices are defined as (38) and (39), respectively. With these matrices, the LQ objective function (36) is represented as the vector-matrix form of (40). As mentioned earlier, it is easy to obtain K_f from the Riccati equation for a given set of weights, i.e., the matrices Q_fq, N_fq and R_fq, as given in (39). Let this controller be denoted as LQRf2. LQRf1 and LQRf2 are the full-state feedback controllers, which has different LQ objective functions, (32) and (36).

$$J_{fq}={\displaystyle \underset{0}{\overset{\infty }{{\displaystyle \int }}}\left\{{\sigma }_1{\displaystyle \sum _{i=1}^4{\ddot{z}}_{si}^2}+{\sigma }_2{\displaystyle \sum _{i=1}^4{\left(z_{si}-z_{ui}\right)}^2}+{\sigma }_3{\displaystyle \sum _{i=1}^4{z}_{ui}^2}+{\sigma }_4{\displaystyle \sum _{i=1}^4{u}_i^2}\right\}dt}$$

(36)

$$\{\begin{array}{l}{C}_{zsa}\triangleq G^T{\left[\begin{array}{ccc}{A}_{f,8}& A_{f,9}& A_{f,10}\end{array}\right]}^T\\ C_{zsb}\triangleq G^T{\left[\begin{array}{ccc}{B}_{2f,8}& B_{2f,9}& B_{2f,10}\end{array}\right]}^T\\ C_{ssq}\triangleq \left[\begin{array}{ccc}{G}^T& -I_{4\times 4}& 0_{4\times 7}\end{array}\right]\\ C_{zuq}\triangleq \left[\begin{array}{ccc}{0}_{3\times 4}& I_{4\times 4}& 0_{4\times 7}\end{array}\right]\end{array}$$

(37)

$$z_{fq}=C_{fq}{x}_f+D_{fq}{u}_f=\left[\begin{array}{c}{C}_{zsa}\\ C_{ssq}\\ C_{zuq}\\ 0_{4\times 14}\end{array}\right]x_f+\left[\begin{array}{c}{C}_{zsb}\\ 0_{4\times 4}\\ 0_{4\times 7}\\ I_{4\times 4}\end{array}\right]u_f$$

(38)

$$Q_{fq}=C_{fq}^{T}C{}_{fq},N_{fq}=C_{fq}^{T}D{}_{fq},R_{fq}=D_{fq}^{T}D{}_{fq}$$

(39)

$$J_{fq}={\displaystyle \underset{0}{\overset{\infty }{{\displaystyle \int }}}{z}_{fq}^T{z}_{fq}dt}={\displaystyle \underset{0}{\overset{\infty }{{\displaystyle \int }}}\left\{{\left[\begin{array}{c}{x}_f\\ u_f\end{array}\right]}^T\left[\begin{array}{cc}{Q}_{fq}& N_{fq}\\ N_{fq}^T& R_{fq}\end{array}\right]\left[\begin{array}{c}{x}_f\\ u_f\end{array}\right]\right\}dt}$$

(40)

LQR provides the systematic way to design the active suspension controller. Generally, LQR has the structure of full-state feedback. As shown in (29) and (19), i.e., x_f and u_f, there are 14 state variables and 4 control inputs in the 7-DOF FC model, respectively. So, the dimension of the gain matrix K_f of LQR is 4 × 14. To implement the LQR in real vehicles, it is necessary to precisely measure or estimate 14 state variables. However, it is too hard to measure or estimate those variables in real vehicles. For this reason, it is necessary to design a controller which has the smaller number of state variables and can be used for the FC model.

2.3. How to Use LQR for Quarter-Car Model as a Controller for Full-Car One

As shown in Figure 2 and Figure 3, it can be regarded that the FC model consists of four QC models. The vertical displacements of the sprung and unsprung masses, z_si and z_ui, in the FC model are identical to those of the QC one. Therefore, LQRq can be used to design a full-state feedback controller having the identical structure to LQRf. This subsection explains how to use LQRq in designing the controller.

Some of the state variables in the FC model can be grouped into those of the QC one, x_qi, as given in (41). K_q in (42) represents the gain matrix of LQRq. By multiplying (42) and (41) together, the control input of active suspension at each corner is obtained as (43). With K_q in (42), the control input for FC model, u_f, is calculated as (44), which has the identical form to (43). (44) is converted into (45) with the definition of (22). The four vectors in (45) can be represented by the state vector of the FC model, x_f, as given in (46). With (46), the control input for the FC model is represented as (47) with the gain elements of K_q. This means that the full-state feedback controller for the FC model can be derived from the gain elements of K_q. As shown in (47), the number of gain elements needed to derive the full-state feedback controller for the FC model is just four, which is much smaller than that of K_f. This is the key contribution of this paper.

As given in (48), the gain matrix H has a special structure. Therefore, it is different from the LQR gain matrix, K_f. Let this controller H be denoted as LQRfq. It is expected that LQRfq can give an equivalent performance to LQRf2 because these adopt the identical LQ objective function, (10) and (36).

$$x_{qi}={\left[\begin{array}{cccc}{z}_{si}& z_{ui}& {\dot{z}}_{si}& {\dot{z}}_{ui}\end{array}\right]}^T,\hspace{1em}i=1,2,3,4$$

(41)

$$K_q=\left[\begin{array}{cccc}{k}_1& k_2& k_3& k_4\end{array}\right]$$

(42)

$$u_i=-K_q{x}_{qi}=-\left(k_1{z}_{si}+k_2{z}_{ui}+k_3{\dot{z}}_{si}+k_4{\dot{z}}_{ui}\right),i=1,2,3,4$$

(43)

$$u_f=k_1{z}_s+k_2{z}_u+k_3{\dot{z}}_s+k_4{\dot{z}}_u$$

(44)

$$u_f=k_1{G}^{T}p+k_2{z}_u+k_3{G}^T\dot{p}+k_4{\dot{z}}_u$$

(45)

$$\{\begin{array}{l}p=C_1{x}_f,\hspace{1em}{C}_1\triangleq \left[\begin{array}{cc}{I}_{3\times 3}& 0_{3\times 11}\end{array}\right]\\ \dot{p}=C_2{x}_f,\hspace{1em}{C}_2\triangleq \left[\begin{array}{ccc}{0}_{3\times 7}& I_{3\times 3}& 0_{3\times 4}\end{array}\right]\\ z_u=C_3{x}_f,\hspace{1em}{C}_3\triangleq \left[\begin{array}{ccc}{0}_{4\times 3}& I_{4\times 4}& 0_{4\times 7}\end{array}\right]\\ {\dot{z}}_u=C_4{x}_f,\hspace{1em}{C}_4\triangleq \left[\begin{array}{cc}{0}_{4\times 10}& I_{4\times 4}\end{array}\right]\end{array}$$

(46)

$$\begin{array}{l}{u}_f=k_1{G}^T{C}_1{x}_f+k_2{C}_3{x}_f+k_3{G}^T{C}_2{x}_f+k_4{C}_4{x}_f\\ \hspace{1em}=\left(k_1{G}^T{C}_1+k_2{C}_3+k_3{G}^T{C}_2+k_4{C}_4\right)x_f\\ \hspace{1em}=H{x}_f\end{array}$$

(47)

$$H=\left[\begin{array}{cccccccc}\begin{array}{c}{r}_1\\ r_1\\ r_1\\ r_1\end{array}& \begin{array}{c}-r_2\\ r_2\\ -r_2\\ r_2\end{array}& \begin{array}{c}{r}_3\\ r_3\\ r_4\\ r_4\end{array}& r_5{I}_{4\times 4}& \begin{array}{c}{r}_6\\ r_6\\ r_6\\ r_6\end{array}& \begin{array}{c}-r_7\\ r_7\\ -r_7\\ r_7\end{array}& \begin{array}{c}{r}_8\\ r_8\\ r_9\\ r_9\end{array}& r_{10}{I}_{4\times 4}\end{array}\right]$$

(48)

Indeed, the controller with the form of (47), i.e., LQRfq, is LQ static output feedback (SOF) or structured controller (SC). LQRfq is LQ SOF controller in that some of state variables, i.e., available sensor signals, are used for the feedback. It is also structured controller because H has a special structure, as given in (48). In (48), r_i are distinct gain elements. All the controllers derived from (47) have the identical structure of (48). Although there are 10 gain elements in H, only four gain ones are needed to calculate it, as given in (47).

In (42) and (47), the controller gains, k₁, k₂, k₃ and k₄, are already determined from LQRq. It should be noticed that LQRq has the LQ objective function of (10). Instead of using LQRq to derive H, the four controller gains in H can be directly determined by the optimization method as presented in the previous work [26].

Let the controller gain matrix be defined as S_q as (49). With S_q, the full-state feedback gain matrix S_f for the FC model is obtained as (50). As given in (50), the gain matrix S_f has the form identical to (47). In other words, the full-state feedback controller for the FC model can be designed with four gain elements in S_q. The problem of determining the controller gains of S_q can be formulated as an optimization one, as given in (51). In (51), Re[] is the function that returns real parts of complex numbers. It should be noticed that the LQ objective function of (36) or the weighting matrices of (39) is adopted for this optimization problem, (51). This problem is non-convex and nonlinear. So, it is hard to apply a convex optimization method. To solve this problem, the heuristic optimization method, i.e., the derandomized evolution strategy with covariance matrix adaptation (CMA-ES), is adopted [27]. With the optimum gains obtained by solving (51), the full-state feedback gain matrix S_f is obtained as (50). Let denote this controller S_f as LQSCfq. It is expected that LQSCfq is equivalent to LQRf2 and LQRfq because these have the identical LQ objective function, (36).

$$S_q=\left[\begin{array}{cccc}{q}_1& q_2& q_3& q_4\end{array}\right]$$

(49)

$$u_f=\left(q_1{G}^T{C}_1+q_2{C}_3+q_3{G}^T{C}_2+q_4{C}_4\right)x_f=S_f{x}_f$$

(50)

$$\begin{array}{ll}\underset{q_1,q_2,q_3,q_4}{\min }\hfill & J_{qs}=\frac{1}{2}\mathrm{trace}\left(P_f\right),\hspace{1em}{P}_f=P_f^T>0\hfill \\ s.t.\hfill & \{\begin{array}{l}\max \left(\mathrm{Re}\left[A_f+B_{2f}{S}_f\right]\right)<0\\ {\left(A_f+B_{2f}{S}_f\right)}^T{P}_f+P_f\left(A_f+B_{2f}{S}_f\right)+Q_{fq}+S_f^T{N}_{fq}^T+N_{fq}{S}_f+S_f^T{R}_{fq}{S}_f=0\end{array}\hfill \end{array}$$

(51)

2.4. Static Output Feedback Control with Quarter-Car Model

When using LQR for active suspension control, it is too hard to measure the state variables. For example, the state variables in the QC model, i.e., the vertical displacements and velocities of the sprung and unsprung masses are hard to measure. To cope with this problem, SOF is adopted. SOF uses available sensor signals for feedback control. For the QC model, the typical sensor signals are the suspension stroke and its rate.

The SOF controller has the form of (52). With the definition of the state vector, (7), the vector of sensor outputs, y_q, in the QC model are defined as (53). As shown in (53), the sensor outputs are the suspension stroke and its rate. Therefore, there are two elements in K_SOF while K_q has four elements. By replacing y_q in (52) with the output definition of (53), the control input u is obtained as (54). From (54), the gain matrix of the full-state feedback from LQ SOF controller for the QC model is given in (55). Let this controller be denoted as LQSOFq.

$$u=K_{SOF}{y}_q$$

(52)

$$y_q=\left[\begin{array}{c}{z}_s-z_u\\ {\dot{z}}_s-{\dot{z}}_u\end{array}\right]=\left[\begin{array}{c}\begin{array}{cccc}1& -1& 0& 0\end{array}\\ \begin{array}{cccc}0& 0& 1& -1\end{array}\end{array}\right]x_q=C_s{x}_q$$

(53)

$$u=K_{SOF}{y}_q=K_{SOF}{C}_s{x}_q$$

(54)

$$V_q\triangleq K_{SOF}{C}_s$$

(55)

LQ SOF control is to find K_SOF which gives a minimum of LQ objective function. So, this is formulated as an optimization problem, as given in (56). To find the optimum gain K_SOF, the heuristic optimization method, CMA-ES, is applied [27]. After finding the gain matrix V_q or K_SOF, the active suspension controller for the FC model can be obtained as (57). In (57), v₁, v₂, v₃ and v₄ are the elements of V_q. Let denote this controller as LQSOFfq.

$$\begin{array}{ll}\underset{K_{SOF}}{\min }\hfill & J_{fs}=\frac{1}{2}\mathrm{trace}\left(P_s\right),\hspace{1em}{P}_s=P_s^T>0\hfill \\ s.t.\hfill & \{\begin{array}{l}\max \left(\mathrm{Re}\left[A_q+B_{2q}{V}_q\right]\right)<0\\ {\left(A_q+B_{2q}{V}_q\right)}^T{P}_s+P_s\left(A_q+B_{2q}{V}_q\right)+Q_q+V_q^T{N}_q^T+N_q{V}_q+V_q^T{R}_q{V}_q=0\end{array}\hfill \end{array}$$

(56)

$$u_f=\left(v_1{G}^T{C}_1+v_2{C}_3+v_3{G}^T{C}_2+v_4{C}_4\right)x_f=W{x}_f$$

(57)

Equation (57) has the identical form to (47) and (50). In other words, LQRfq, LQSCfq, and LQSOFfq have the identical form. The difference between these controllers is how to obtain gain elements. The four gain elements of LQRfq are identical to those of LQRq. The four gain elements of LQSCfq and LQSOFfq are obtained from the optimization problem (51) and (56), respectively. The difference between LQSCfq and LQSOFfq is the model used in the optimization. While LQSCfq uses the FC model and the weighting matrices of Q_fq, N_fq and R_fq, LQSOFfq uses the QC one with the weighting matrices Q_q, N_q and R_q.

2.5. Linear Quadratic Gaussian Control with Quarter-Car Model

As mentioned earlier, it is not easy to measure some state variables in LQR. Instead of using SOF, an observer-based controller, especially LQG, has been adopted. In this section, LQG is designed with QC and FC models. In LQG, the gain of LQR for QC model is used to design the full-state feedback controller, as given in (47).

In this paper, it is assumed that the available sensor outputs are the suspension stroke and its rate in the QC model. So, the vector of available sensor outputs is given in (53), which is identical to that of the LQ SOF controller. The state observer or Kalman filter for the QC model has the form of (58). The covariance matrices of system uncertainty and measurement noise are given as M_q and N_q, respectively. The gain matrix of the observer, L_q, is calculated by solving the filter algebraic Riccati equation (FARE) with the matrices A_q, C_s, M_q and N_q. With the estimated state and the controller gain K_q, the control input for the QC model is obtained as (59). The state-space equation of the controlled system and the state observer for the QC model is given as (60). This is called LQG or compensator [28]. Let this controller (60) be denoted as LQGq.

$${\dot{\widehat{x}}}_q=A_q{\widehat{x}}_q+B_{2q}u+B_{1q}{z}_r+L_q\left(y_q-C_s{\widehat{x}}_q\right)$$

(58)

$$u=-K_q{\widehat{x}}_q$$

(59)

$$\left[\begin{array}{c}{\dot{x}}_q\\ {\dot{\widehat{x}}}_q\end{array}\right]=\left[\begin{array}{cc}{A}_q& -B_{2q}{K}_q\\ L_q{C}_s& A_q-B_{2q}{K}_q-L_q{C}_s\end{array}\right]\left[\begin{array}{c}{x}_q\\ {\widehat{x}}_q\end{array}\right]$$

(60)

For the FC model, the vector of available sensor outputs, i.e., the suspension stroke and its rate, given in (53) is represented as (61). In (61), A_f,i represents the i-th row of the matrix A_f. The state observer or Kalman filter for the FC model has the form of (62). The covariance matrices of system uncertainty and measurement noise are given as M_f and N_f, respectively. The gain matrix of the observer, L_f, is calculated by solving FARE with the matrices A_f, C_e, M_f and N_f. With the estimated state and the controller gain K_f, the control input for the FC model is obtained as (63). The state-space equation with the controlled system and the observer for the FC model is given as (64). This is LQG for the FC model.

Let the LQG with the LQ objective functions of (35) and (40), i.e., LQRf1 and LQRf2, be denoted as LQGf1 and LQGf2, respectively. If the controller gain K_f is replaced with H in (64), the controller gain K_q can be used for LQG with FC model, as given in (65). Let the LQG of (65) be denoted as LQGfq. If the controller gain H is replaced with S_f in (65), the controller gain S_q can be used for LQG with FC model. Let this LQG be denoted as LQGSCfq. It is expected that LQGf2 is equivalent to LQGfq and LQGSCfq because these have the identical LQ objective function and the identical sensor signals.

$$y_f=\left[\begin{array}{c}{z}_s-z_u\\ {\dot{z}}_s-{\dot{z}}_u\end{array}\right]=\left[\begin{array}{c}{G}^{T}p-z_u\\ G^T\dot{p}-{\dot{z}}_u\end{array}\right]=\left[\begin{array}{ccc}{G}^T& -I_{4\times 4}& 0_{4\times 7}\\ 0_{4\times 7}& G^T& -I_{4\times 4}\end{array}\right]x_f=C_e{x}_f$$

(61)

$${\dot{\widehat{x}}}_f=A_f{\widehat{x}}_f+B_{2f}{u}_f+B_{1f}{w}_f+L_f\left(y_f-C_e{\widehat{x}}_f\right)$$

(62)

$$u_f=-K_f{\widehat{x}}_f$$

(63)

$$\left[\begin{array}{c}{\dot{x}}_f\\ {\dot{\widehat{x}}}_f\end{array}\right]=\left[\begin{array}{cc}{A}_f& -B_{2f}{K}_f\\ L_f{C}_e& A_f-B_{2f}{K}_f-L_f{C}_e\end{array}\right]\left[\begin{array}{c}{x}_f\\ {\widehat{x}}_f\end{array}\right]$$

(64)

$$\left[\begin{array}{c}{\dot{x}}_f\\ {\dot{\widehat{x}}}_f\end{array}\right]=\left[\begin{array}{cc}{A}_f& B_{2f}H\\ L_f{C}_e& A_f+B_{2f}H-L_f{C}_e\end{array}\right]\left[\begin{array}{c}{x}_f\\ {\widehat{x}}_f\end{array}\right]$$

(65)

3. Frequency-Domain Analysis on Designed Controllers

In this section, frequency-domain analysis is done to check the performance of the designed controllers. Through frequency-domain analysis, full-state feedback, static output feedback and observer-based output feedback controllers, i.e., LQR, LQSOF, and LQG, are compared to one another.

Table 1. Parameters of the 7-DOF full-car model [29].

ms	1653.0 kg	mu	45.0 kg
Ix	614.0 kg·m2	Iy	2765.0 kg·m2
lf	1.402 m	lr	1.646 m
tf, tr	0.8 m	kt	230,000 N/m
ks	34,000 N/m	bs	3500 N·s/m

shows the parameters of 2-DOF QC and 7-DOF FC models, which were referred from E-Class sedan given in CarSim [29]. Weights in LQ objective functions, (10), (32), and (36), are given in

Table 2. Maximum allowable values in LQ cost function.

ξ1	0.2 m/s2	ξ2	10 deg/s2	ξ3	10 deg/s2
ξ4	3 deg	ξ5	10 deg/s	ξ6	3 deg
ξ7	10 deg/s	ξ8	0.2 m	ξ9	0.2 m
ξ10	3000 N	η1, χ1	ξ1	η2, χ2	ξ8
η3, χ3	ξ9	η4, χ4	ξ10

. Those weights emphasize the ride comfort, i.e., the reduction of the vertical acceleration of the sprung mass. As a consequence, the road adhesion will deteriorate. For this reason, frequency responses within the range from 4 to 10 Hz should be focused, as given in Figure 1. In case of the roll and pitch angles, frequency responses within the range from 0.5 to 2 Hz should be focused. In this paper, it is assumed that the actuator used to generate the control input has infinite bandwidth. In other words, delay and saturation of an actuator are not taken into account. The covariance matrices of system uncertainty and measurement noise used in designing LQG are given in

Table 3. Covariance matrices in LQG for quarter-car and full-car models.

Mq	104·I4×4	Nq	10−4
Mf	104·I14×14	Nf	10−4·I8×8

.

3.1. Full-State Feedback Case

The first type of frequency-domain analysis is done for the full-state feedback controllers. For frequency-domain analysis, the FC model is used. Figure 5 shows the frequency responses of each output from the road profile z_r1 with the FC model for each controller. The gain matrices of K_q and S_q of LQRq and LQSCfq are given in

Table 4. Gain matrices of LQR and LQSq.

Kq	$\left[\begin{array}{cccc}-\mathrm{28,929.0}& \mathrm{31,583.0}& -1538.4& 3017.5\end{array}\right]$
Sq	$\left[\begin{array}{cccc}-\mathrm{30,152.0}& \mathrm{32,070.0}& -1968.9& 3102.7\end{array}\right]$

. LQRq was obtained by solving Riccati equation with the state-space Equation (9), the LQ objective function (10) and Table 2. LQSCfq was obtained by solving (51) with the state-space Equation (31), LQ objective function (36) and Table 2. As expected in the Section 2.3, LQRfq and LQSCfq has nearly identical elements as given in Table 4.

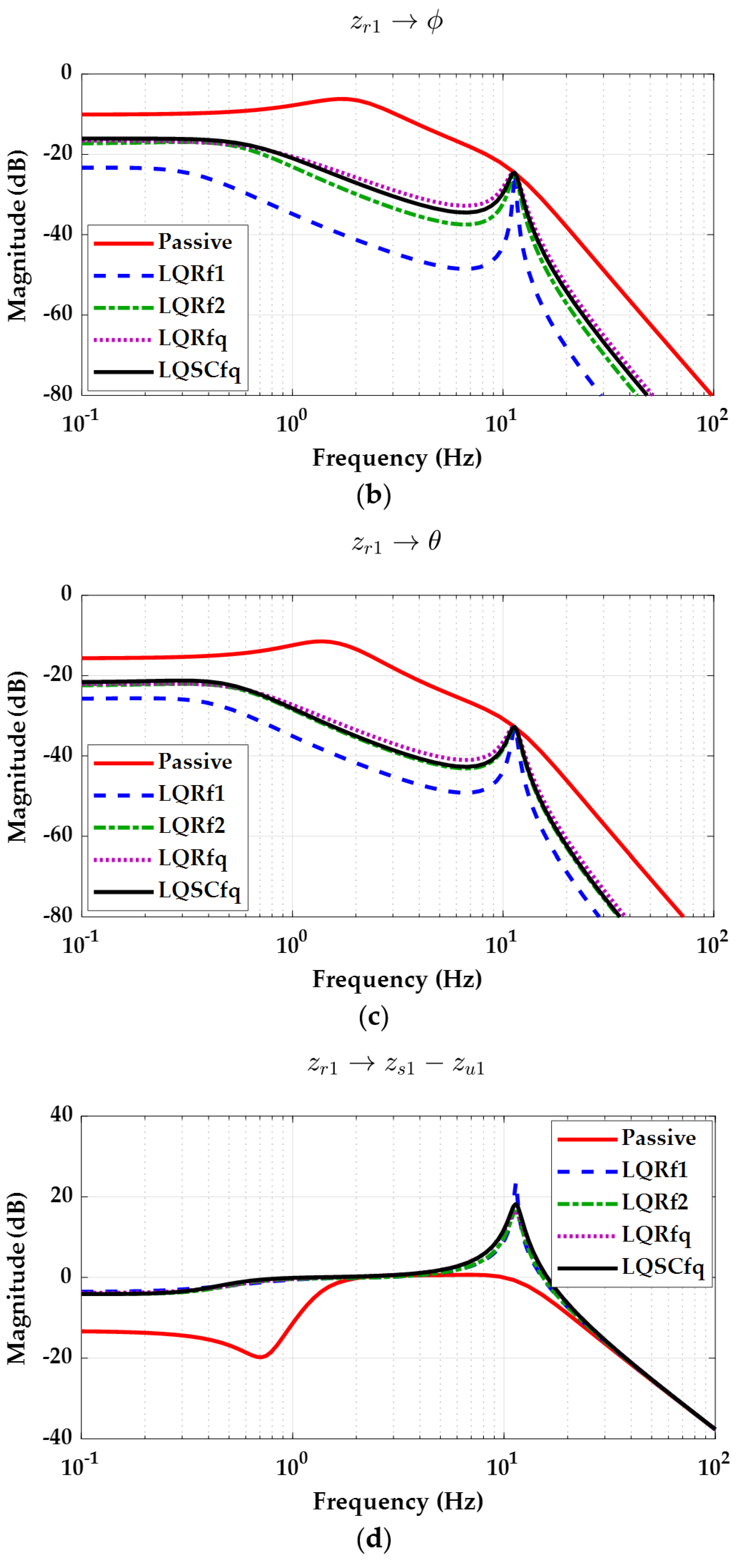

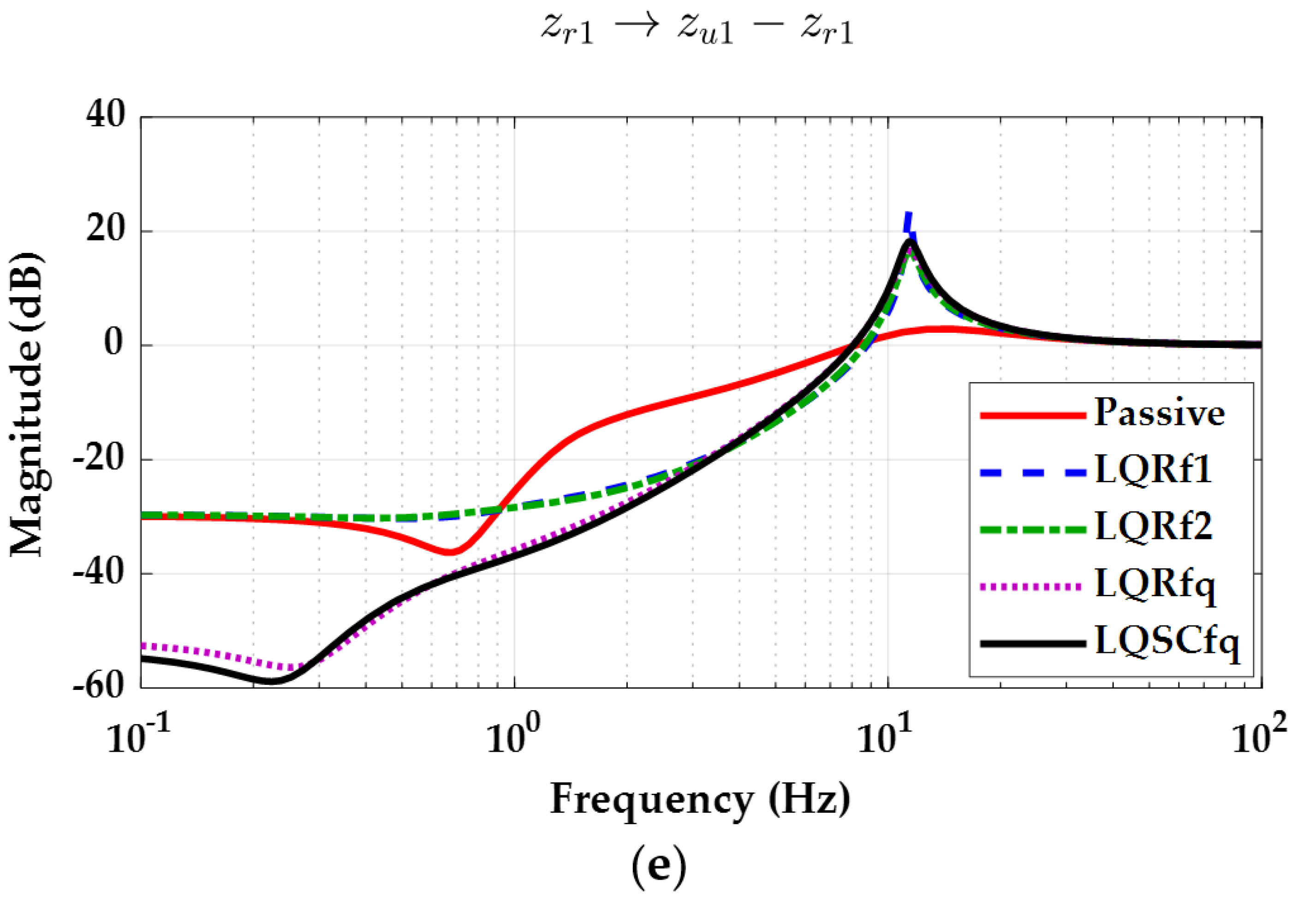

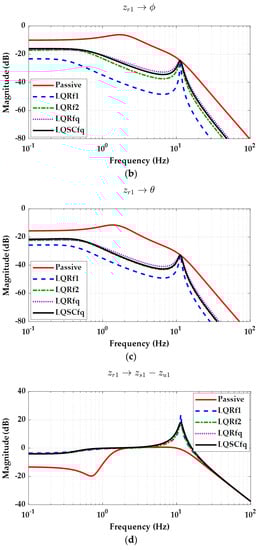

As shown in Figure 5a, LQRf2 is better than LQRf1 in terms of the ride comfort. This means that higher emphasis on the vertical acceleration at each corner in (36) is better than higher emphasis on the vertical, roll and pitch accelerations in (32). On the other hand, LQRf1 is better than LQRf1 in terms of the roll and pitch angles. This is caused by the fact that the LQ objective function of LQRf2, (36), has no terms on the roll and pitch angles.

As shown in Figure 5, LQRf2, LQRfq and LQSCfq show nearly identical performances in terms of the ride comfort and the road adhesion. The measures of the ride comfort, i.e., the vertical acceleration between 4 and 10 Hz, the roll and pitch angle between 0.5 and 2 Hz are improved by the controllers, as shown in Figure 5a–c, respectively. This is natural because these were designed with the identical LQ objective functions. From these results, it can be concluded that the controllers derived from LQRq, i.e., LQRfq and LQSCfq, can give equivalent performance to that designed with the FC one, LQRf2. This is quite important that a much smaller number of gains are needed in designing the active suspension controller for the FC model. In other words, only four gain elements of LQRq can give nearly identical performance to LQRf2 which needs 56 gain elements in the active suspension controller for the FC model.

Another feature of the controllers is that the suspension strokes of the controlled suspensions are nearly identical to one another within the frequency range from 0.1 to 6 Hz, and larger than the passive suspension as shown in Figure 5d. Moreover, the tire deflections of these controllers were smaller than that of the passive system, as shown in Figure 5e. This means that the active suspension controllers enhance the ride comfort by generating larger motion of the suspension stroke, and that the road adhesion was deteriorated by those controllers as a result. This is a natural consequence of the active suspension control. Hereafter, the frequency responses of the suspension stroke and the tire deflection are not presented because it will show identical tendency regardless of controllers.

Table 5. Magnitudes of frequency responses for each controller (dB scale).

	${\ddot{\mathit{z}}}_{\mathit{c}}$	ϕ	θ	zs1 − zu1	zu1 − zr1
Passive	38.9	−7.8	−12.4	0.6	−3.1
LQRf1	29.9	−34.9	−35.1	1.9	−9.8
LQRf2	24.4	−23.1	−28.5	1.9	−9.8
LQRfq	23.7	−20.6	−27.3	2.8	−8.0
LQSCfq	22.0	−21.0	−28.2	2.8	−8.2

shows the decibel scale magnitudes of frequency responses for each controller. The values in Table 5 are calculated from the frequency responses in Figure 5. The magnitudes of the vertical acceleration, the suspension stroke and the tire deflection are sampled at 6 Hz, which is the peak frequency of Wk in Figure 1. The magnitudes of the roll and pitch angles are sampled at 1 Hz, which is the peak frequency of Wd in Figure 1. As shown Table 5, the LQRf2, LQRfq and LQSCfq show nearly similar performance to one another. Moreover, the ride comfort enhancement achieved by these controllers are better than LQRf1. For example, LQRfq reduced the vertical acceleration from 38.9 dB and 29.9 dB the passive system and LQRf1 to 23.7 dB, respectively. These results mean that the vertical acceleration of the passive system and LQRf1 were reduced by 39% and 20% by virtue of LQRfq, respectively. Among these controllers, LQSCfq shows the best performance in terms of the vertical acceleration. On the other hand, the roll and pitch angles of LQRf1 are better than the three controllers because the LQ objective function of LQRf1 has the terms emphasizing the roll and pitch angles. As shown in Figure 5 and Table 5, the suspension stroke increases, and the tire deflection decreases as the vertical acceleration is reduced by the controllers. The smaller the tire deflection, the smaller the vertical and longitudinal/lateral tire forces. As a result, the road adhesion is deteriorated.

3.2. Static Output Feedback Case

The second type of frequency-domain analysis is done for the LQ SOF controllers. Figure 6 shows the frequency responses of each output from the road profile z_r1 with the FC model for each controller. The gain matrices of K_SOF and V_q of LQSOFq are given in

Table 6. Gain matrices of LQSOF and LQSOFq.

KSOF	$\left[\begin{array}{cc}-\mathrm{31,285.0}& -2972.2\end{array}\right]$
Vq	$\left[\begin{array}{cccc}-\mathrm{31,285.0}& \mathrm{31,285.0}& -2972.2& 2972.2\end{array}\right]$

. The gain K_SOF of LQSOF is obtained by solving (56) with the LQ objective function (10) and Table 2.

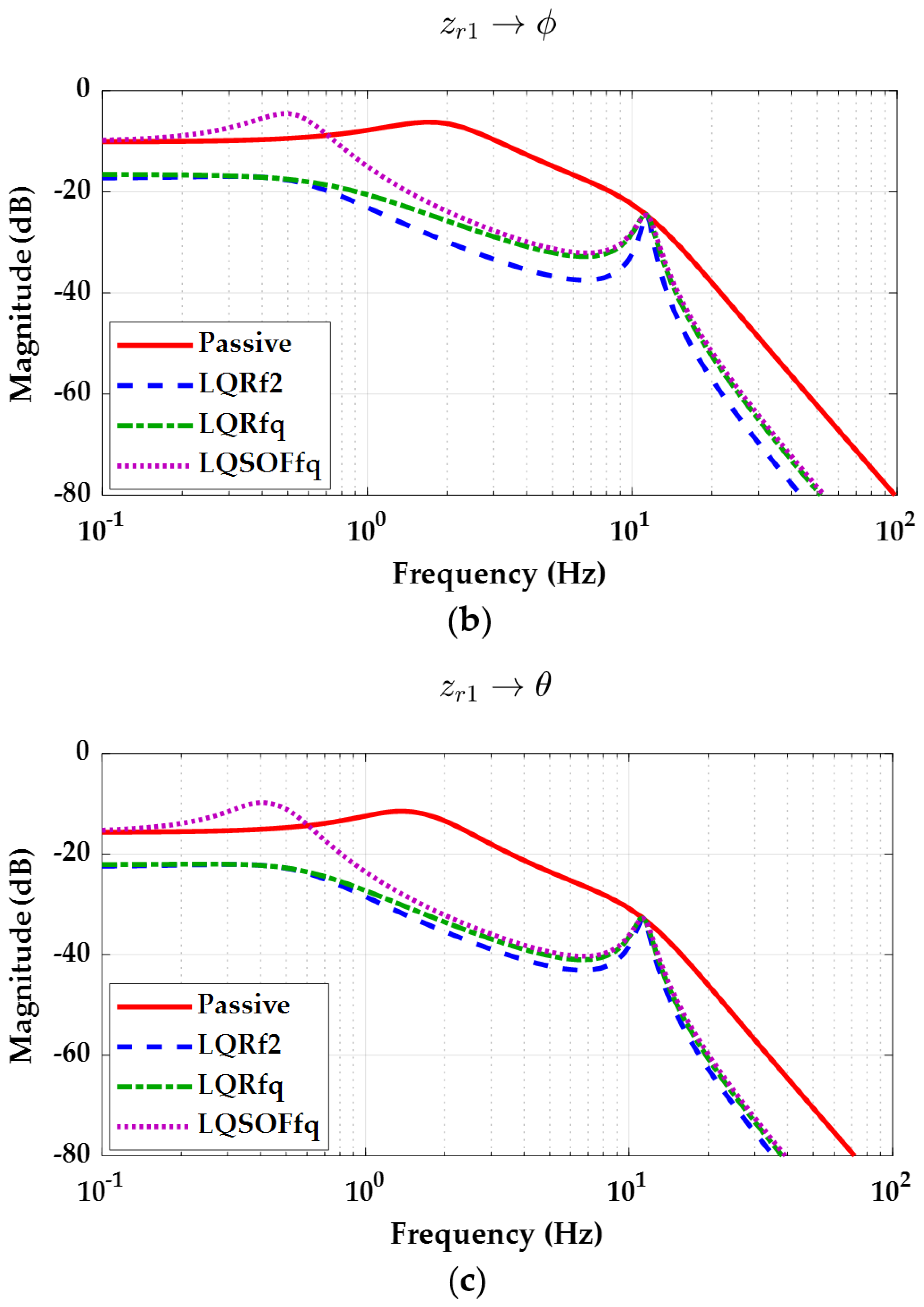

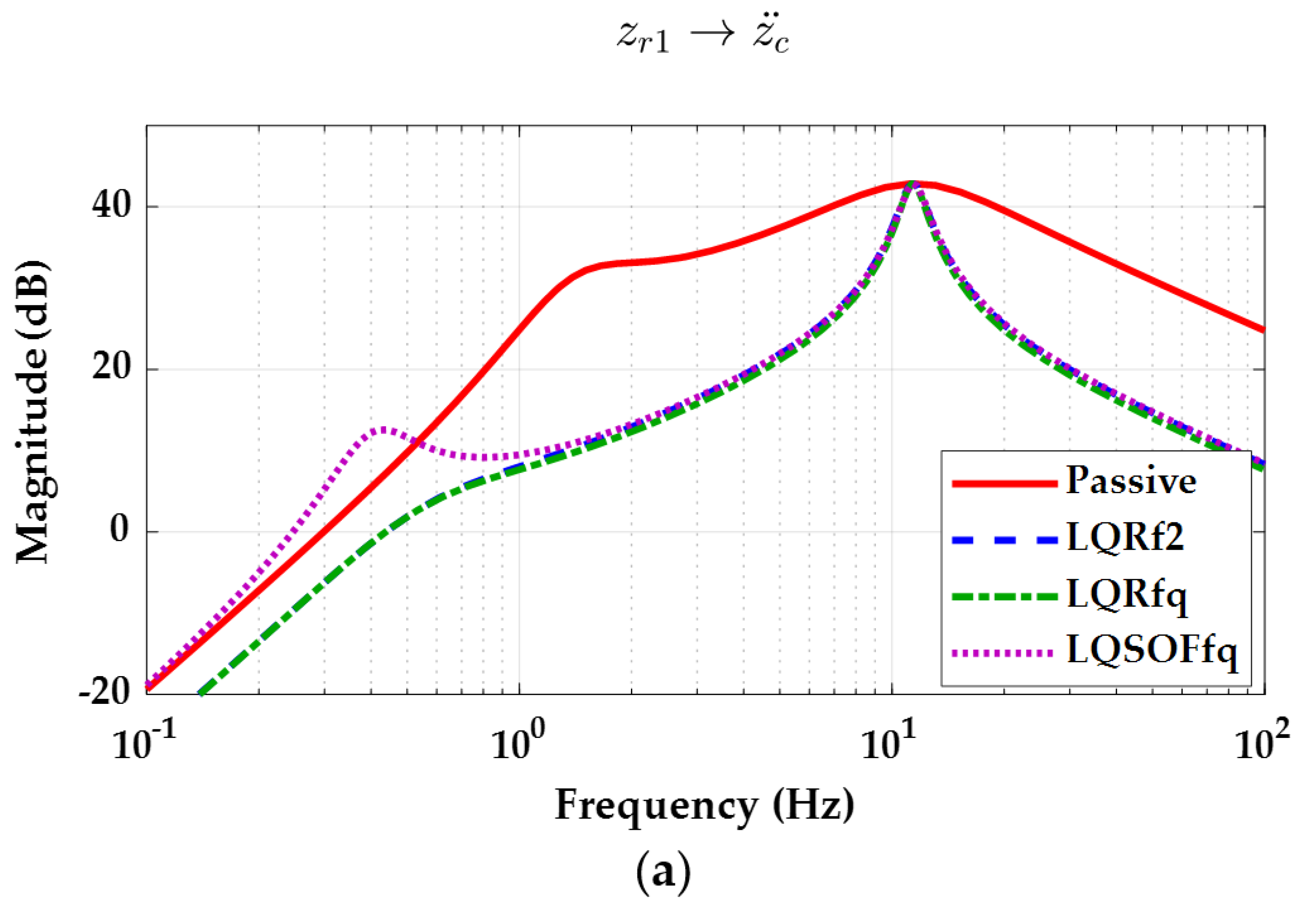

As shown in Figure 6, all the measures of LQSOFfq designed with the QC model are nearly identical to LQRf2 and LQRfq within the frequency range from 2 to 10 Hz. This means that only two gain elements of K_SOF can give the equivalent performance to LQRf2 and LQRfq, the active suspension controller designed with the FC model. The first reason why LQSOFfq gives good performance equivalent to LQRf2 and LQRfq is that the controller structure of LQSOFfq is identical to the suspension force (1). In other words, the first and second gain elements of K_SOF correspond to k_s and b_s of (1), respectively. If those of K_SOF coincide to k_s and b_s of (1), the forces generated from tire cannot be transmitted to the sprung mass. The second reason is that these controllers have identical LQ objective functions of (10) and (36).

As shown in Figure 6, the drawback of LQSOFfq is that its performance is deteriorated in the frequency range below 1 Hz. As shown in Figure 1, the motion sickness near 0.2 Hz and the horizontal motion near 1 Hz are important in terms of the ride comfort. The vertical acceleration of the sprung mass of LQSOFfq is worse than the passive system below 0.5 Hz, as shown in Figure 6a. Moreover, the roll and pitch angles of the sprung mass of LQSOFfq are worse than the passive system below 0.7 Hz, as shown in Figure 6b,c. This is critical because it deteriorates the motion sickness and the ride comfort along the horizontal direction. For this reason, LQSOFfq is not recommended for the ride comfort in spite of its good performance along the vertical direction and the simplicity in controller design procedure.

3.3. LQG Case

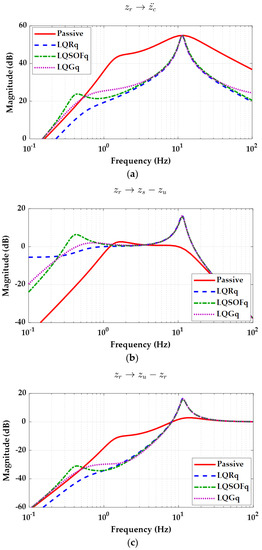

The third type of frequency-domain analysis is done for the observer-based controllers, i.e., LQG. Figure 7 shows the frequency responses of each output from the road profile z_r with the QC model for LQRq, LQSOFq and LQGq, as given in (60).

As shown in Figure 7a, the performance of LQGq is slightly worse than that of LQRq and LQSOFq. Moreover, it becomes worse than LQRq and LQSOFq below 4 Hz and above 40 Hz in terms of the ride comfort. This tendency of LQGq is nearly same as that of LQSOFq, as given in Figure 6. This is caused by the fact that LQSOFq and LQGq use identical sensor signals. Nevertheless, the performance of LQGq is satisfactory in terms of the ride comfort because it shows nearly identical performance to LQRq within the frequency range from 4 to 10 Hz. Moreover, the performance of LQGq is better than LQSOFq for the frequency range below 0.6 Hz, as shown in Figure 7a. The frequency responses of the suspension stroke and the tire deflection in Figure 7b,c show nearly identical tendency to those of Figure 5d,e, respectively.

These results are varied according to the selection of the covariance matrices, i.e., M_q and N_q under the condition that an identical set of weights in LQ objective function is used. It also depends on the selection of the available sensor outputs, as given in (53). If LQSOFq and LQGq use identical sensor signals for output feedback, these can give nearly identical performances, as shown in Figure 7. From these results, it can be concluded that LQG can be adopted as an output feedback controller for the purpose of enhancing the ride comfort.

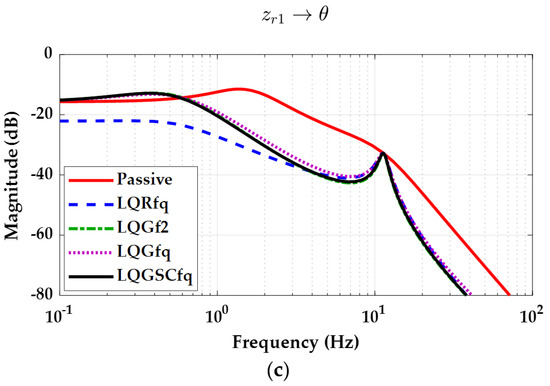

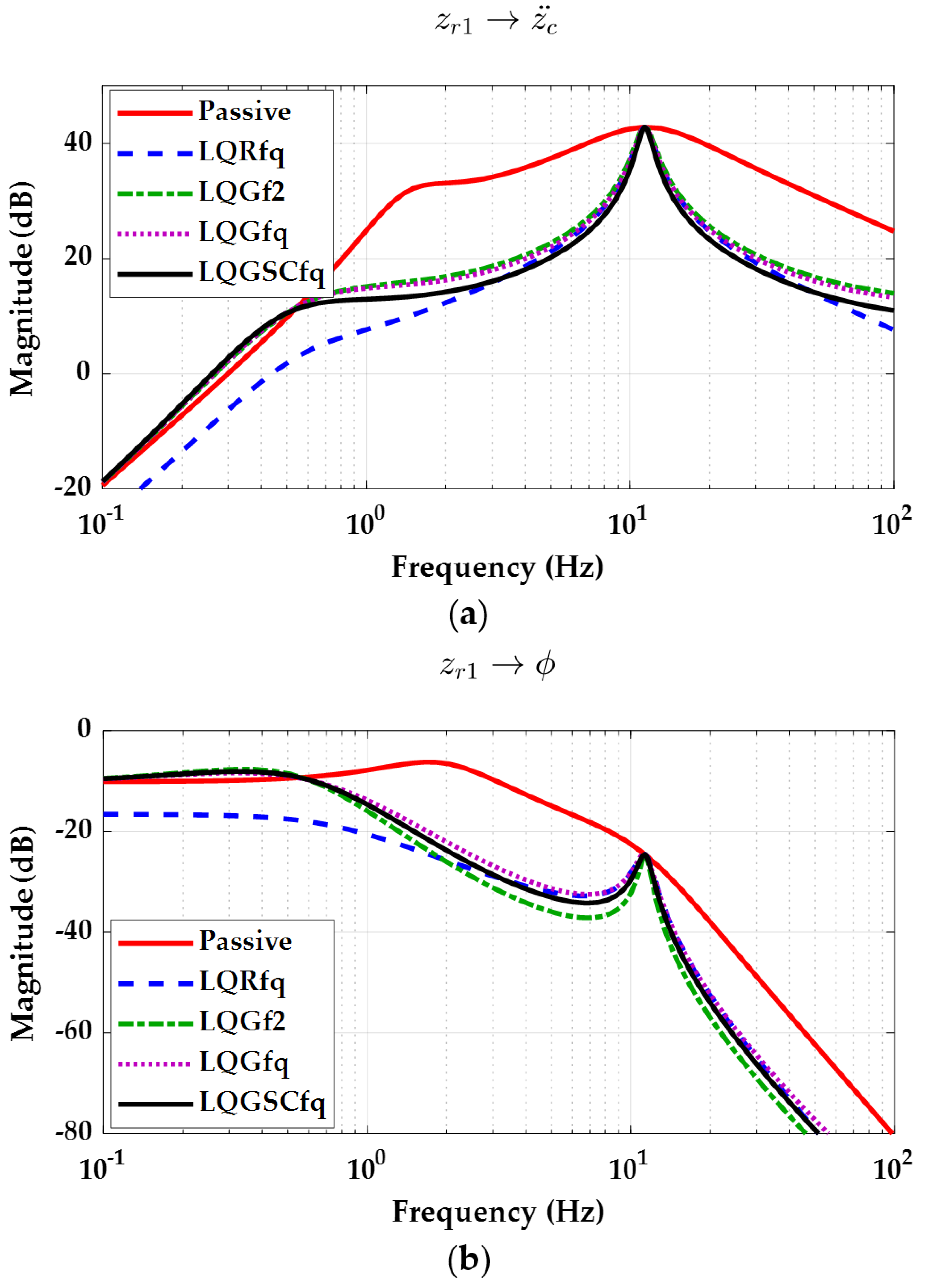

Figure 8 shows the frequency responses of each output from the road profile z_r1 with the FC model for each controller. As shown in Figure 8, the relationship between LQRq and LQGq given in Figure 7 is nearly identical to that of LQRfq and LQGfq. In other words, the performance of LQGfq becomes worse than LQRfq below 4 Hz and above 40 Hz in terms of the ride comfort. This can be checked in Figure 7a and Figure 8a. Moreover, the ride comfort of LQGq becomes identical to the passive system below 0.5 Hz, as shown in Figure 7a. This is also confirmed by the frequency responses of the passive system and LQGfq in Figure 8a. Nevertheless, the LQG controllers, i.e., LQGf2, LQGfq and LQGSCfq, show good performance within the frequency range from 2 to 10 Hz, in terms of the ride comfort.

As shown in Figure 8, the frequency responses of LQGf2, LQGfq and LQGSCfq show identical tendency as LQRf2, LQRfq and LQSCfq, as given in Figure 5. This is confirmed by the fact that the frequency responses of these controllers are nearly identical to each other. This is quite natural because these have the identical LQ objective function and the identical Kalman filter. Moreover, LQGfq and LQGSCfq have the identical controller structure and nearly identical controller gains, as given in Table 4.

Figure 7 did not show the frequency responses of the roll and pitch angles because the QC model has no roll and pitch motions. As shown in Figure 8b,c, the LQG controllers show identical performance to the passive system below 0.6 Hz. This means that the LQG controllers, i.e., LQGf2, LQGfq and LQGSCfq, are not effective in controlling the roll and pitch motions for the ride comfort along the horizontal direction and the motion sickness.

4. Conclusions

In this paper, the controllers for active suspension were designed with the 2-DOF QC and 7-DOF FC models. Two LQRs, i.e., LQRq and LQRf2, were designed with the QC and FC models based on the identical LQ objective functions. To cope with the problem in measuring the state variables of the FC model, LQRq designed with the QC model was used to derive the full-state feedback controller for the FC model, i.e., LQRfq. In deriving LQRfq, only four gain elements of LQRq are needed. To cope with the identical problem, SOF and LQG controllers, i.e., LQSOFq and LQGq, are designed with the QC models and used to derive the controllers for the FC model, i.e., LQSOFfq and LQGfq. In deriving LQSOFfq, only two gain elements of LQSOFq are needed. To verify the fact that the full-state feedback controllers, i.e., LQRfq and LQGfq, derived from LQRq can give equivalent or better performance than LQRf2 and LQGf2 designed with the FC model in terms of the ride comfort, frequency-domain analysis was conducted for full-state feedback, static output feedback and observer-based output feedback controllers. From the analysis, it can be concluded that the controllers with much simpler structure or much smaller gain elements designed with the QC model, i.e., LQRfq, LQSOFfq and LQGfq, can give equivalent performance to LQRf2. The vertical acceleration of the passive system and LQRf1 were reduced by 39% and 20% by virtue of LQRfq, respectively. Further research can include comparison between robust control methodologies in designing active suspension controllers with the QC model for the FC one. Moreover, it can also include test results on a vehicle simulation package and experimental validation on real vehicles.
