1. Introduction
Nowadays, global warming caused by greenhouse gases is becoming a serious problem in the world [
1]. Therefore, electric vehicles (EVs) are receiving great attention for environmental protection, energy efficiency, and reducing our carbon footprint. Wireless power transfer (WPT) technology is being developed for charging EVs because it offers many benefits such as convenience, reliability, safety, and lack of mechanical wear compared to conventional wired charging [
2,
3,
4]. In addition to EV charging, WPT technology has been widely employed for high-power vehicles (e.g., trains and automated guided vehicles) and low-power devices (e.g., implantable devices and consumer electronics) [
5].
Although the WPT, also called inductive power transfer (IPT), employs the same principle as a conventional wired charging system using a transformer, a coupling coefficient (
k) of a loosely coupled transformer (LCT) is very low in the WPT system for EVs and it varies depending on the location of the receiver [
6]. To cope with these problems, research topics include the optimal design of the LCT to achieve a high coupling coefficient and misalignment tolerance [
7,
8], compensation topologies with constant output current/voltage and zero phase angle (ZPA) characteristics [
9], and control methods to regulate the battery charging voltage [
10]. Among them, compensation topology can significantly minimize the volt-ampere (VA) rating of the WPT system, improve the power-transfer capability, and help achieve high efficiencies [
11].
The main research objective of the compensation topology is to minimize the volt-ampere rating of the system and to make a constant output voltage/current. The most basic compensation topology is series–series (SS), series−parallel (SP), parallel–series (PS), and parallel–parallel (PP), which are mature and complete [
12]. Among them, SS topology is widely employed because it can provide the constant output current regardless of the load and achieve the ZPA characteristics [
12]. For these reasons, various control methods in the IPT converter with SS topology have been studied to improve the efficiency or regulate the battery charging voltage [
13,
14]. However, the output characteristic of the basic compensation topology, determined by the LCT parameters, might be limited in EVs because of fixed geometric specifications of the coil and magnetic pads by the SAE J2954 standard [
15]. Additionally, the basic compensation topologies are vulnerable to the bifurcation phenomenon which makes two or more resonant frequencies depending on the variations in the load and coupling coefficient [
12]. Therefore, high-order compensation topologies have been studied to improve the performance of the basic compensation topologies.
Hou et al. [
16] presented the impedance conditions and output current characteristics of different current fed compensation topologies; they analyzed and compared the sensitivities of the output current to parameter variation. Lu et al. [
17] analyzed the resonant conditions of all voltage-fed compensation topologies in a WPT system to achieve a constant-voltage (CV) output and investigated the parameters’ impact on the key performance factors of these composite topologies. Zhang et al. [
18] presented a comprehensive review of existing compensation topologies for the loosely coupled transformer and analyzed how to combine resonant blocks to generate any type of compensation topology, guaranteeing the IPT circuit that achieves a constant output and a minimum input voltage-ampere rating simultaneously. Li et al. [
19] first proposed a double-sided LCC compensation network and its tuning method; they analyzed the parameter design method to achieve constant output current and zero voltage switching conditions. As seen above, the high-order compensation topologies provide a greater design degree of freedom compared to the basic compensation topology as the required output current/voltage can be designed regardless of the parameter LCT. Among them, the LCC configuration is among the popular compensation networks for resonant converters [
20]. This is because the LCC compensation topology on the primary side has the character that the current of the primary coil is not affected by load and mutual inductance. It is more stable and secure than other topologies when there is a large misalignment between primary and secondary coils [
21]. Because of these advantages, DS-LCC and LCC-S compensation topologies are widely adopted among high-order compensation topologies for IPT converters [
22,
23]. The LCC-S compensation topology has a constant output voltage unlike the DS-LCC compensation topology, which has a constant output current regardless of load, so it is preferred for battery charging [
24]. In addition, the LCC-S compensation topology can be applied to various applications as well as EVs since it has a simple structure on the receiver side.
The conventional design methodology for compensation parameters of LCC-S compensation topology as well as other high-order compensation topologies for EVs focuses on designing the required output voltage while minimizing the volt-ampere rating of the system and achieving the zero-voltage switching condition [
22,
23]. Kim et al. [
25] proposed a design and control scheme of the inductive power transfer (IPT) system with LCC-S compensation topology for EVs, considering a wide variation in battery charging voltage and coupling coefficient. The required output voltage is selected in consideration of the variation range of the coupling coefficient and the voltage stress of the dc/dc converter as called the battery management (BM) converter employed to regulate the battery charging voltage [
25]. However, the efficiency of the IPT converter, which has the largest proportion of the overall IPT system, is not considered. Generally, the IPT converter with LCT and compensation topology is the most important part of the WPT system as it generates a significant effect on the power transfer efficiency. Hao et al. [
26] proposed an optimized LCC-S compensation topology to have a more robust power characteristic against variation of coupling coefficient. The output voltage ripple remains low despite coupling coefficient fluctuations. However, in stationary charging applications such as EVs, the charging power, not the coupling coefficient, fluctuates continuously during the charging time. Therefore, an optimal design methodology on the compensation parameters of the IPT converter is required in consideration of the main operating point.
In this paper, an optimal design methodology on the LCC-S compensation parameters of an IPT converter is proposed considering the IPT converter efficiency. To derive the optimal compensation parameters, the losses of the IPT converter are analyzed and compared according to the output voltage of the IPT converter. Based on the above analysis, the study cases are classified according to the main operating point, and each optimal compensation parameter of the IPT converter is derived and designed to have maximum efficiency at the main operating point of each case. Then, the BM converters of each case are designed with consideration of the output voltage of the IPT converter, the fluctuation range of coupling coefficient, and the battery charging voltage. The validity of the proposed design methodology of the IPT converter is verified by designing different compensation parameters and BM converters for each case. The power rating of the three design cases is 3.3 kW with the same magnetic pads satisfying the SAE J2954 WPT 1 class.
2. Theoretical Analysis
2.1. Analysis Outline of the LCC-S Compensation Topology

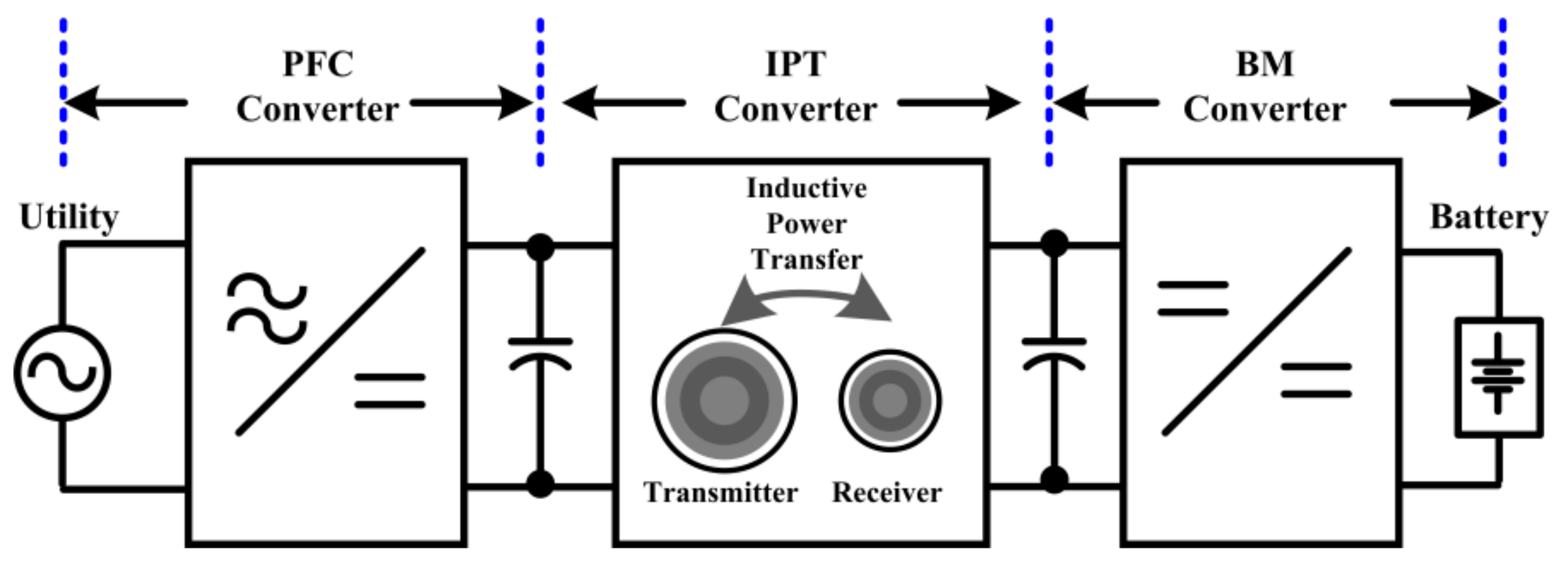

The conventional WPT system is composed of a power factor correction (PFC) converter to correct the power, the inductive power transfer (IPT) converter for power transmission from the transmitter system to the receiver system, and the BM converter on the receiver side, which controls the output power based on the SOC, as shown in
Figure 1. Among them, the IPT converter with the LCC-S compensation topology can be divided into the transmitter and the receiver systems as shown in

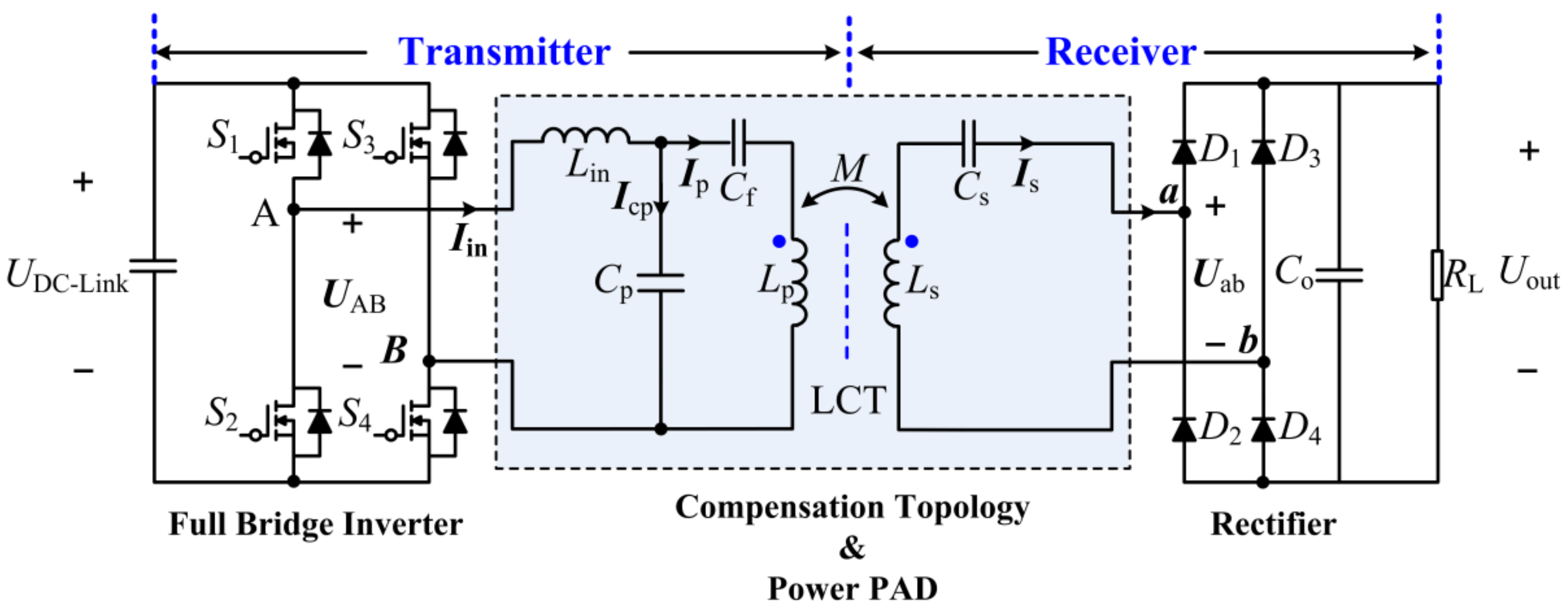

Figure 2. Both systems are magnetically coupled by the LCT. The transmitter system is composed of a full bridge inverter (FBI), a compensation circuit, and primary coil of the LCT in the IPT converter. The FBI comprising four MOSFETs
S1–
S4 is utilized to convert the DC-link voltage
UDC-Link to the AC voltage
UAB as shown in
Figure 2. In the IPT converter, the fundamental harmonic analysis method is widely used for qualitative analysis because the resonant network can suppress harmonics [
11]. The relational expression of
UAB and
UDC-link can be derived as
where
D is the duty cycle of
UAB in the pulse width modulation control [
11]. The LCT comprises transmitter and receiver pads. The transmitter pad has a primary coil and a magnetic pad to transmit energy. The receiver pad has a secondary coil and a magnetic pad to receive energy;
Lp and
Ls represent the self-inductance values of each coil; and
M is defined as the mutual inductance between the two coils. The coupling coefficient of the LCT can be derived using
Lp,
Ls, and
M as follows:
The receiver system is composed of a secondary coil of the LCT, compensation circuit, and rectifier in the IPT converter. The rectifier is composed of four diodes,
D1–
D4 to rectify the AC output voltage
Uab to the DC output voltage
Uout of the IPT converter as shown in
Figure 2. The DC output equivalent load and output filter capacitor of the IPT converter are denoted as
RL and
Co, respectively. When the output low-pass filter is made up of a DC capacitor only, the following equation can be deduced [
11]:
where
Uab represents the root mean square (RMS) value of
Uab. Additionally, the BM converter is utilized on the receiver side to regulate the battery charging voltage as shown in
Figure 1.
RL can be expressed as (4) by using the equivalent resistance of the battery
RBatt and the duty
DBM of the BM converter based on the buck mode or boost mode of the BM converter. The battery charging voltage
UBatt can be expressed as (5) using the BM converter structure based on the buck mode or the boost mode.
The LCC-S compensation topology is designed using (6)–(9) based on the input and output voltages of the IPT converter, the resonant frequency, and the LCT parameters of the transmitter and receiver pads, where
UAB and
Uab represent the RMS value of
UAB and
Uab, respectively [
18]. The input inductor value
Lin is determined by the input/output voltage ratio of the IPT converter, and mutual inductance as given in (6). The value of the parallel compensation capacitor
Cp is determined to resonate with
Lin at the resonant frequency; hence, a constant current is supplied to the primary coil irrespective of the load in an ideal circuit where the parasitic resistance component can be neglected [
18]. The value of the primary side series compensation capacitor
Cf is designed to achieve no zero-phase angle (ZPA) frequency fluctuation depending on the load. The value of the secondary side series compensation capacitor
Cs is determined to resonate with
Ls at the resonant frequency for constant output voltage irrespective of the load [
18].
The current of each component in the IPT converter can be calculated by (10)–(13). Both the parameter and current equation include
UAB and
Uab as given in (6)–(13). In this paper, the values of the parameters and current (6)–(13) are analyzed using the DC values
UDC-link and
Uout derived as given in (1) and (3) because the AC values
UAB and
Uab are not intuitive for the IPT converter analysis. All of the current magnitudes in the transmitter system are proportional to
Uout of the IPT converter except for input current
Iin, which is proportional to the output power
Pout irrespective of
Uout. In contrast, it can be observed that the current
Is in the receiver is inversely proportional to
Uout of the IPT converter.

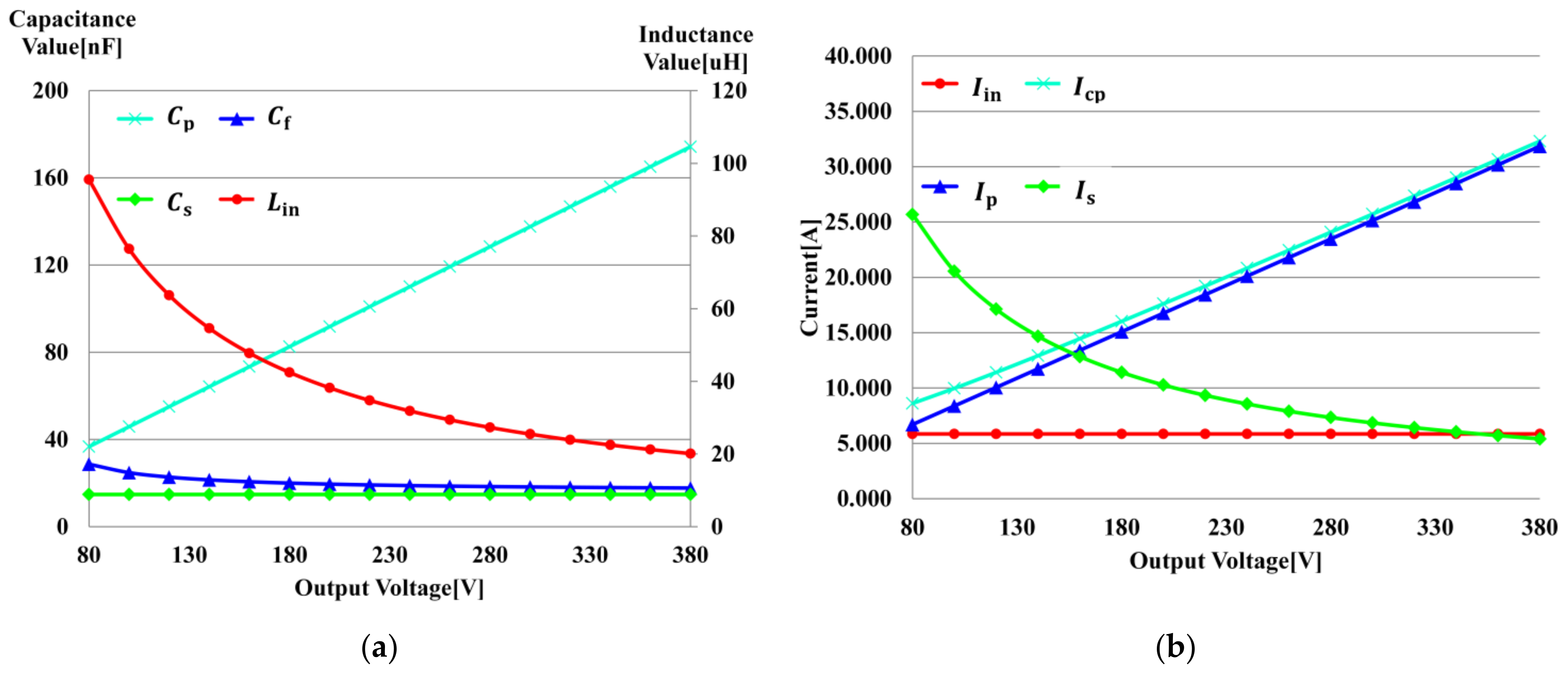

Figure 3 shows the component value and the current magnitude of the LCC-S topology according to
Uout based on
Table 1 including the measured LCT parameters. Therefore, it is possible to derive the optimal
Uout for the IPT converter with the maximum efficiency by analyzing and comparing the losses in the transmitter and receiver systems according to
Uout in the IPT converter.
2.2. Losses Analysis of Power Semiconductor and Compensation Topology
The FBI losses comprise the conduction, switching, parasitic capacitor, and diode losses. The conduction and switching losses that are proportional to
Iin account for the largest proportion of inverter losses. As shown in
Figure 3b,
Iin is a constant value irrespective of
Uout when operating in the ZPA. Therefore, the losses of the inverter are expected to be constant irrespective of
Uout.
The inductor losses are divided into copper and core losses. For copper loss, there are two losses in the IPT converter operating at high frequency: the skin effect (including DC losses) and the proximity effect. A litz wire is used to minimize both losses. The DC resistance
RDC can be derived as (14) using the diameter
d, number of strands
n, length
l, and conductivity σ of the conductor. The skin effect loss
Pskin can be derived as (15) using
FR(f) which is a function of frequency; it represents the increment of the resistance caused by the skin effect. The proximity effect loss
Pprox can be derived as (16) using
GR(f), which is also a function of frequency; it represents the increment of the proximity effect, and
is the peak value of the external magnetic field [
27]. By designing
Lin using the same litz wire and core, the resistance of
Lin is determined in proportion to the number of turns which is proportional to the inductance of
Lin. Thus, the copper loss of
Lin is proportional to
Lin because the value of
Iin is constant irrespective of
Uout.
For core loss, it can be calculated based on Steinmetz equation as
where
kcore,
α, and
β are provided by the manufacture as the coefficient values of the core, and
Bpeak is the peak of magnetic flux density. The core loss of
Lin is determined in proportion to
Bpeak which is proportional to the inductance of
Lin. Thus, the core loss of
Lin is also proportional to
Lin. Therefore, the
Lin losses are inversely proportional to
Uout because
Lin is inversely proportional to
Uout as given in (6).
The capacitor loss can be calculated using the dissipation factor (DF), which is the ratio of the reactance component to the equivalent series resistance (ESR). The DF is calculated as follows:
The ESR value of Cp is expected to be inversely proportional to Uout because the capacitance of Cp is proportional to Uout as given in (7). In contrast, the magnitude of Icp is proportional to Uout as given in (11). Therefore, the loss of Cp is proportional to Uout because the loss is proportional to the square of the current. However, the slope of the loss is expected not to be steep because the ESR is inversely proportional to Uout. The ESR value of the Cf is proportional to Uout because the capacitance of Cf is inversely proportional to Uout as given in (8). Additionally, the magnitude of Ip is proportional to Uout as given in (12). Therefore, the loss of Cf is proportional to Uout, and it can be expected that the slope of the loss is steep. The capacitance of Cs is always constant irrespective of Uout as given in (9), and Is is inversely proportional to Uout as given in (13). Thus, the loss of Cs is inversely proportional to Uout unlike the loss of Cp and Cf.
The rectifier losses are divided into conduction and reverse recovery losses. However, the reverse recovery loss can be neglected because the Schottky diode is used in this study; only the conduction loss is considered, as follows:
where
Is,rms is the rms value of the secondary coil current.
The rectifier loss is inversely proportional to Uout because Is is inversely proportional to Uout. Therefore, the losses of the transmitter and the receiver components in the IPT converter have opposite characteristics based on Uout.
2.3. Loss Analysis of LCT
The losses of the LCT are divided into copper and core losses. The copper loss of the LCT where a litz wire is used can be derived in the same way as that of Lin. From (15) and (16), it can be seen that the copper losses of the primary and secondary coil are proportional to the value of each current. Therefore, the copper loss of the primary coil is proportional to Uout. In contrast, the copper loss of the secondary coil is inversely proportional to Uout. This is because Ip and Is have opposite characteristics with respect to Uout as given in (12) and (13).
For core loss of the LCT, although it is difficult to calculate the accurate core loss of the transmitter and receiver pads in the LCT with a large air gap, it is possible to predict the trend by calculating the magnetic flux of each pad. To analyze the magnetic flux of the LCT, it is necessary to simultaneously analyze the transmitter and receiver pads because the LCT is magnetically coupled as shown in

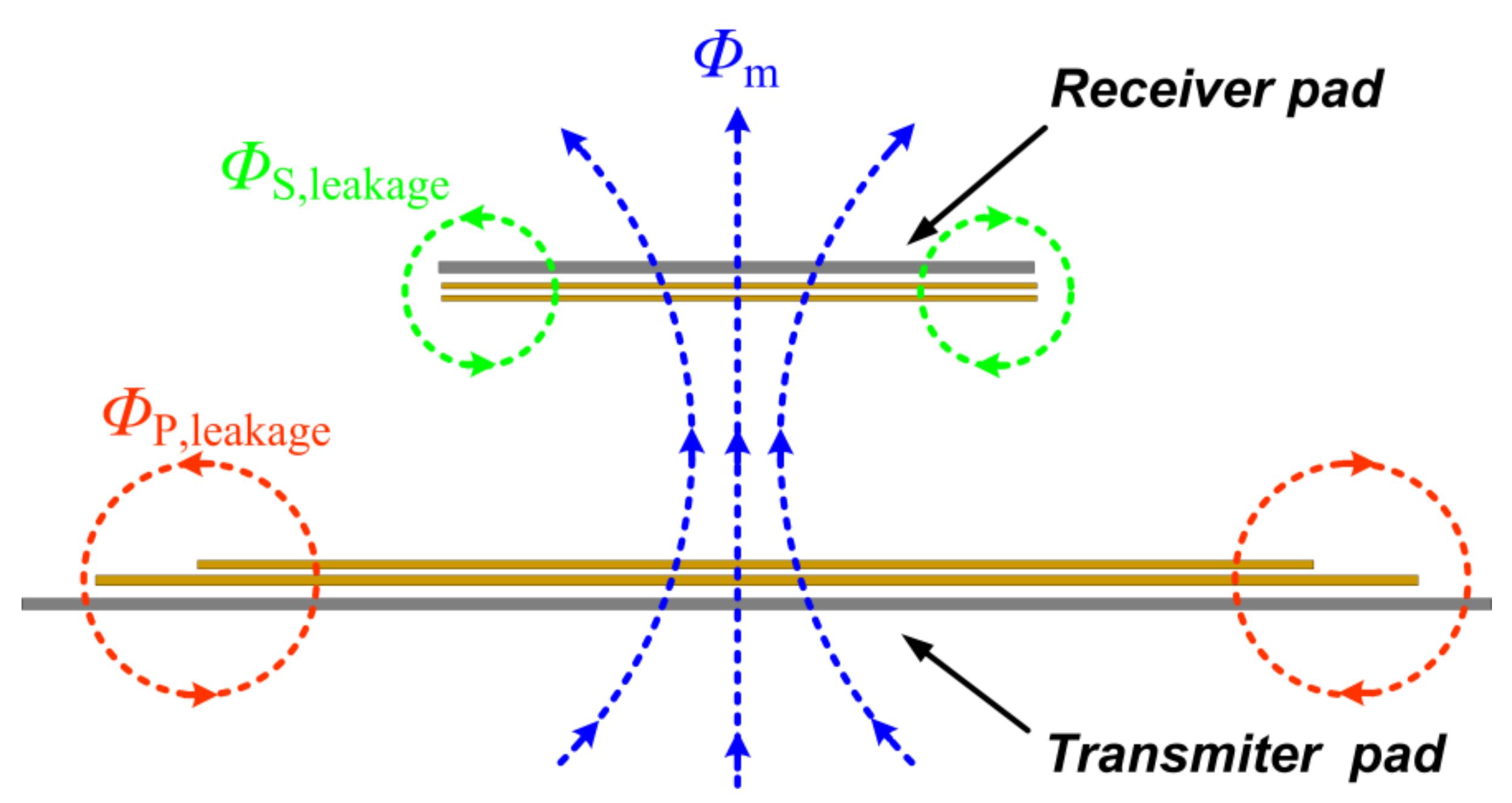

Figure 4. The magnetic flux
Φp of the transmitter pad can be divided into the primary leakage magnetic flux
Φp,leakage and the mutual magnetic flux
Φm combined with the receiver pad as given in (20). The magnetic flux
Φs of the receiver pad can be divided into the secondary leakage magnetic flux
Φs,leakage and the mutual magnetic flux
Φm combined with the transmitter pad as given in (21). Both
Φp,leakage and
Φs,leakage can be derived using the number of turns, the current of each coil, and the leakage inductance through the transformer model as given in (22) and (23), respectively [
11]. In addition,
Φm can be obtained using the number of turns, magnetizing current
Im, and the magnetizing inductance using the transformer model as given in (24) [
11].
The magnetic flux analysis on the LCT with low
k and large leakage inductance should be differently applied from an ideal transformer with high
k and small leakage inductance. This is because the ideal transformer has a constant voltage source, whereas the LCT with the LCC-S compensation topology has a constant current source as shown in

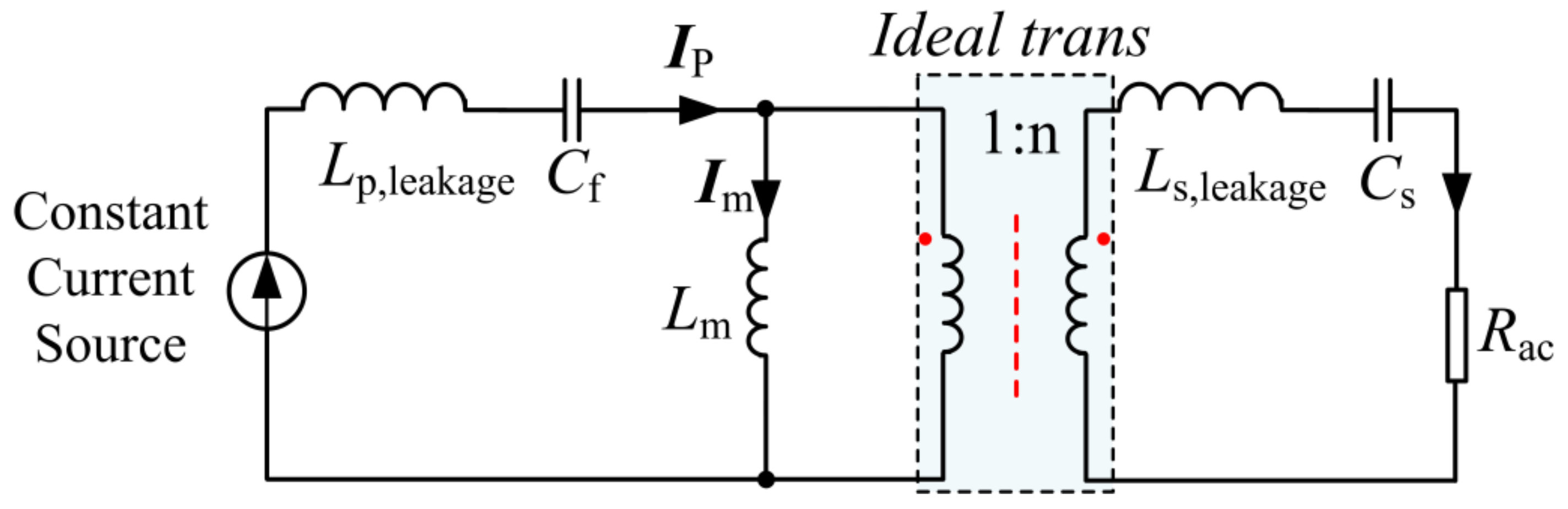

Figure 5. Therefore, the magnetic flux of the LCT is analyzed according to the load and
Uout. The magnitude and the phase of
Im are constant in the ideal transformer because the constant voltage source is applied to the load. In contrast, the magnitude and the phase of
Im are changed in the LCT with the LCC-S compensation topology because the magnitude of
Is is changed as per the load based on the constant
Ip as shown in
Figure 6a. Moreover,
Φm is changed as per the load because the magnitude and phase of
Φm are determined by
Im as given in (24). In the transmitter pad,
Φp,leakage is constant irrespective of the load because
Φp,leakage is determined by the constant
Ip as given in (22). Although
Φm is proportional to the load, the variation of
Φp which is derived from the vector sum is not significant. This is because
Φp,leakage accounts for the majority of
Φp. Therefore, the core loss of the transmitter pad is almost unchanged with the load variation. In the receiver pad,
Φs,leakage which accounts for the majority of
Φs is changed as per the load in addition to
Φm because
Φs,leakage is determined by
Is. The variation of
Φs which is derived using the vector sum is significantly changed according to the load. Therefore, the core loss of the receiver pad is significantly changed based on the load variation, unlike the transmitter pad.
The Φp,leakage and Φm are proportional to Uout because the magnitude of Ip increases in proportion to Uout. Therefore, the core loss of the transmitter pad is proportional to Uout. In the receiver pad, Φs,leakage is inversely proportional to Uout because the magnitude of Is decreases in proportion to Uout. Although Φm is proportional to Uout, Φs is inversely proportional to Uout. This is because Φs,leakage accounts for the majority of Φs. Therefore, the core loss of the receiver pad is inversely proportional to Uout. The copper and core losses of the transmitter pad are almost unchanged according to the load and are proportional to Uout. In contrast, the copper and core losses of the receiver pad are changed as the load varies and are inversely proportional to Uout.

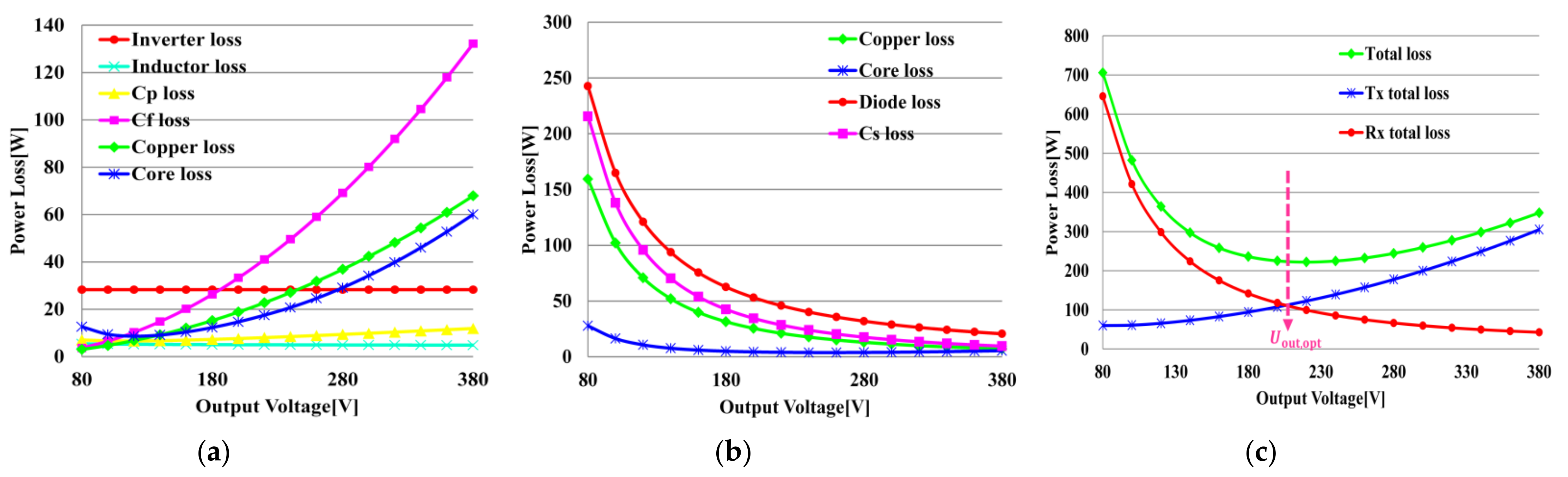

Figure 7 shows all theoretical component losses of the transmitter and receiver system in the IPT converter with a 3.3 kW output power. The finite element method simulation is used for accurate core loss calculation. As expected, the
Cf and transmitter pad losses account for the largest proportion of the transmitter system loss and exhibit the most sensitive fluctuations based on
Uout. All component losses in the receiver system fluctuate sensitively with
Uout. The loss relationship between the transmitter and the receiver system shows a trade-off with
Uout in the IPT converter as shown in
Figure 7c. Therefore, the optimal output voltage
Uout,opt can be selected by the proposed methodology.
3. Optimal Design of IPT Converter Based on the Main Operating Point
Based on the foregoing analysis, the loss in the 3.3 kW class IPT converter can be analyzed, and
Uout,opt can be derived as given in (25).
Furthermore, the BM converter can be designed based on the variation range of
Uout,opt according to the fluctuation range of
k and

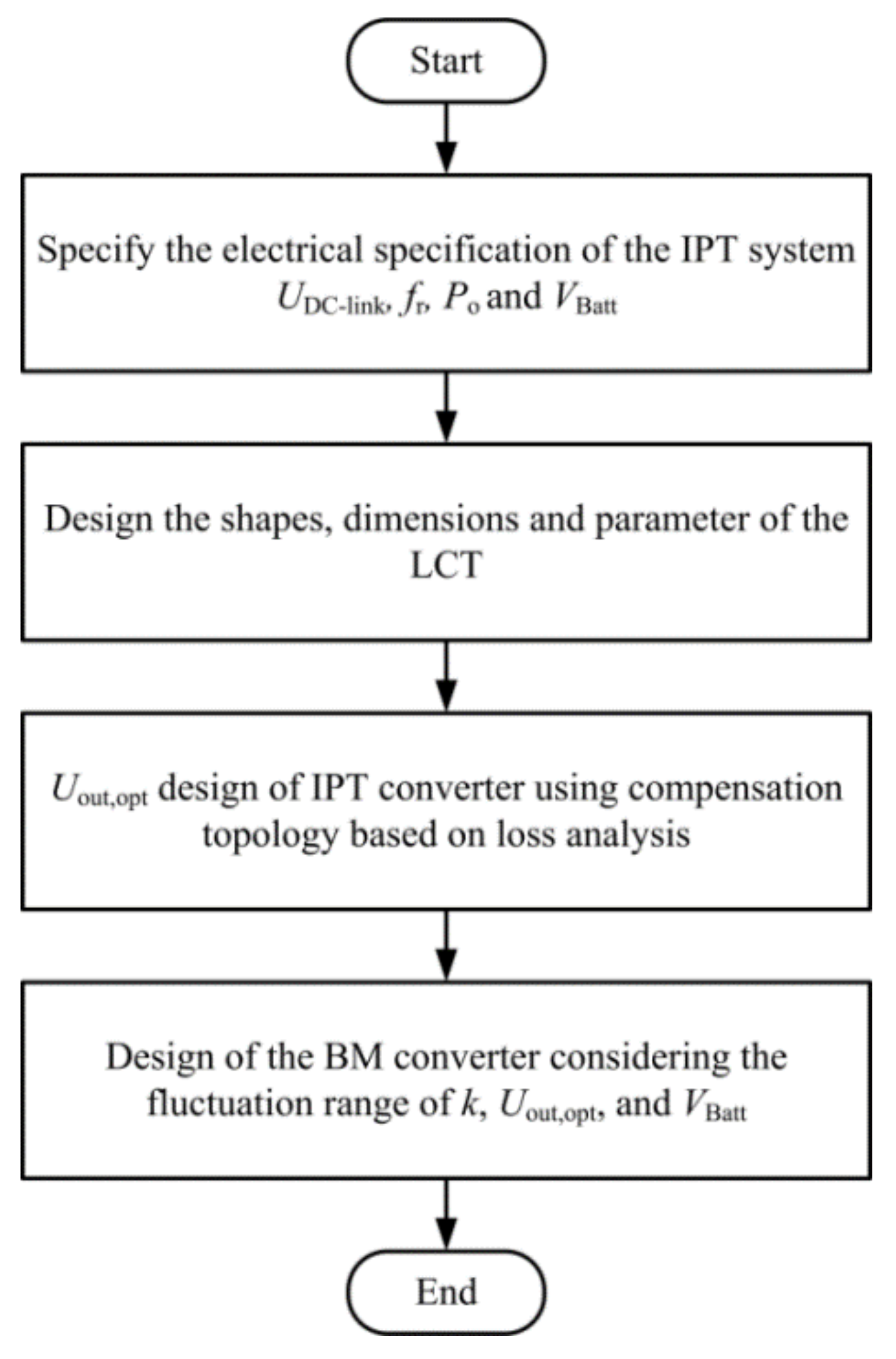

UBatt. Therefore, in the proposed methodology, the compensation parameters are designed in consideration of the efficiency of the IPT converter, and the BM converter is designed in consideration of the input/output voltage range. The proposed methodology can increase the design freedom of the IPT converter by considering the characteristics of the transmitter and receiver system, but the rated coil current of the LCT must be taken into account when analyzing the losses of the IPT converter. The proposed design procedure for optimal efficiency is shown in
Figure 8. In this section, the case studies are classified, and the compensation parameters of each case are designed by applying the proposed methodology.
The electrical specifications of the IPT converter are listed in
Table 1.

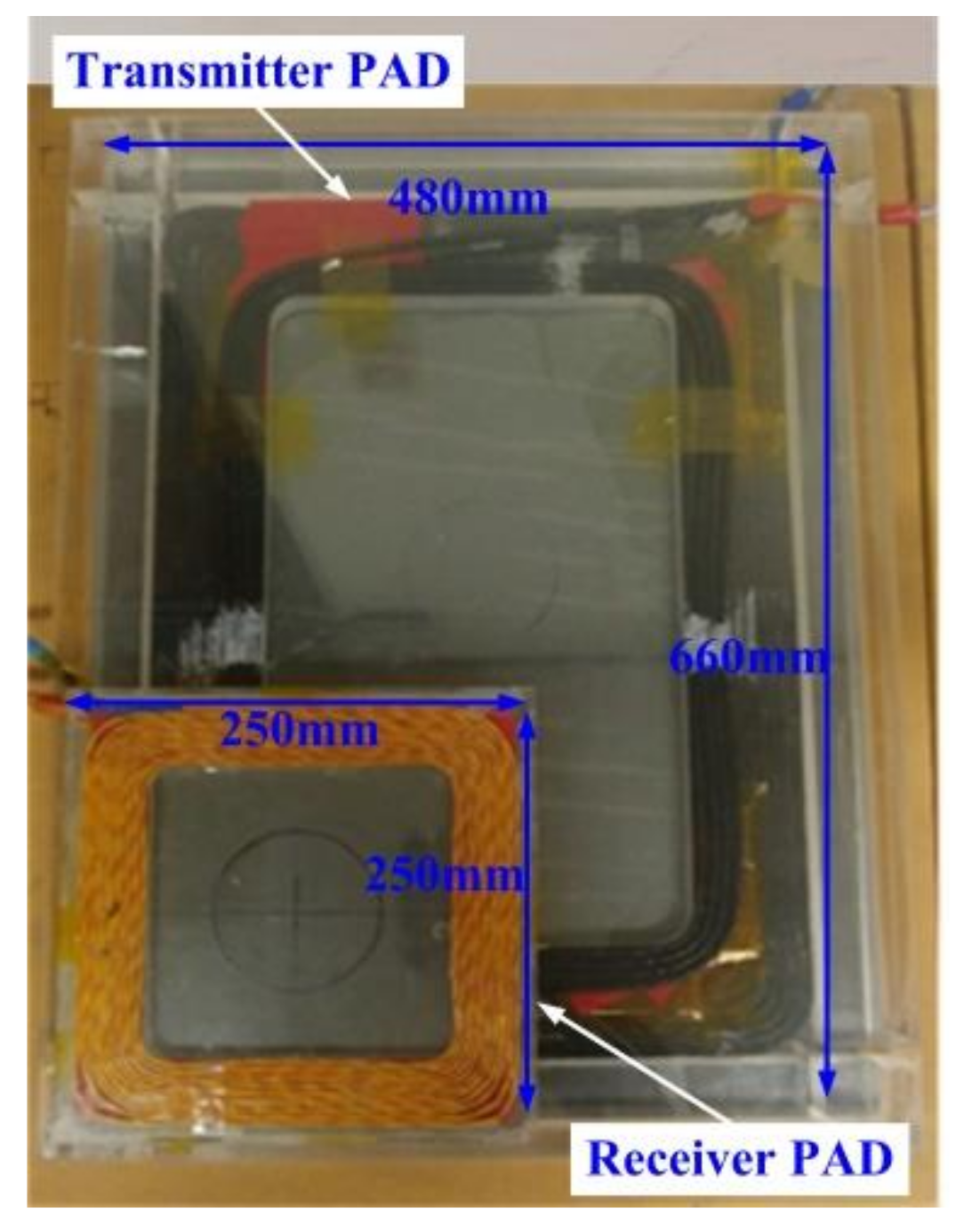

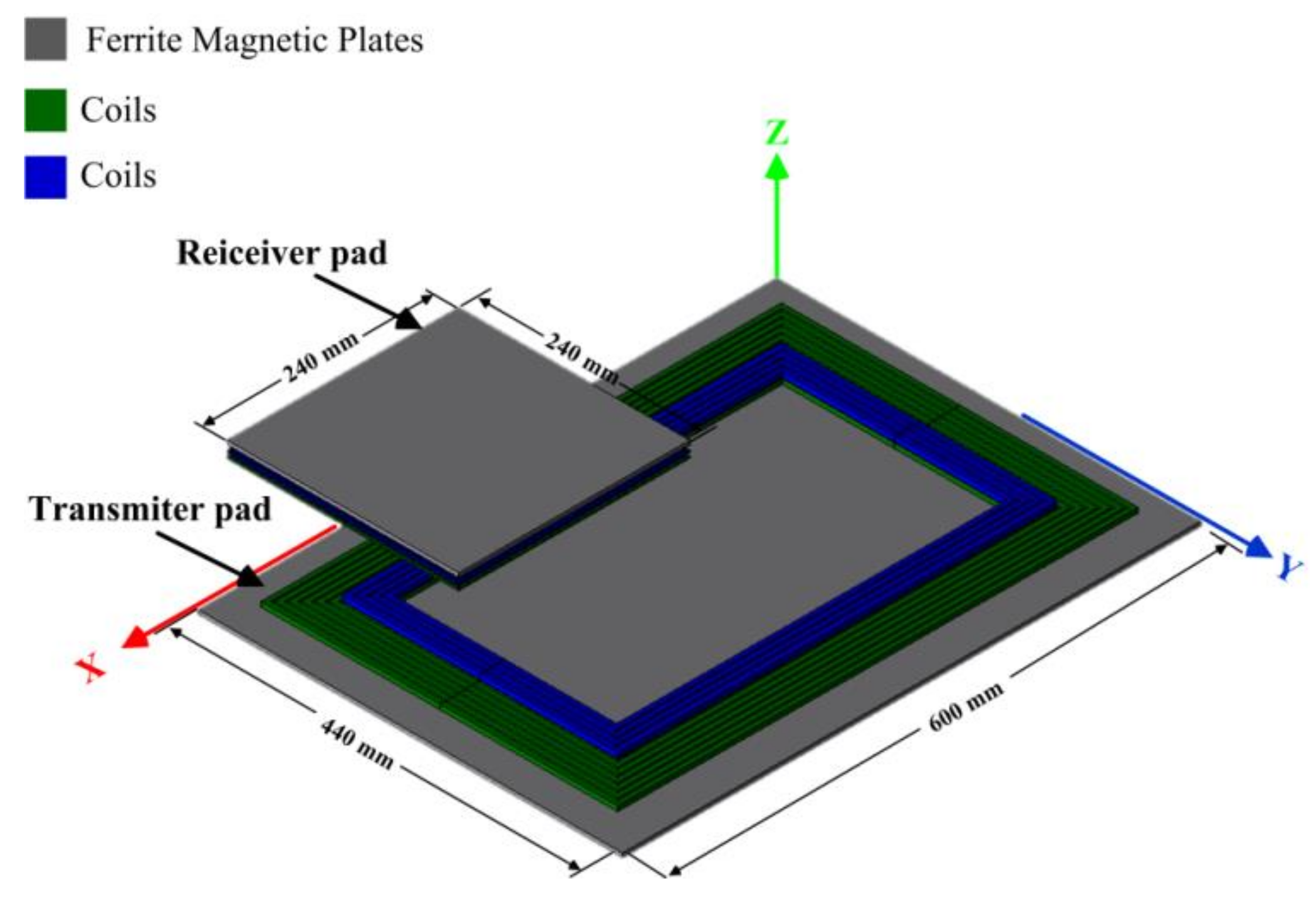

Figure 9 shows the manufactured transmitter and receiver pads based on the recommended case of the WPT1 level of SAE J2954 [
15]; the LCT parameters and pad dimensions are listed in
Table 2. The resistance value of the primary and the secondary coil is calculated by (14)–(16) in consideration of the skin effect and proximity effect. The study cases are classified according to the main operating point and SOC as shown in

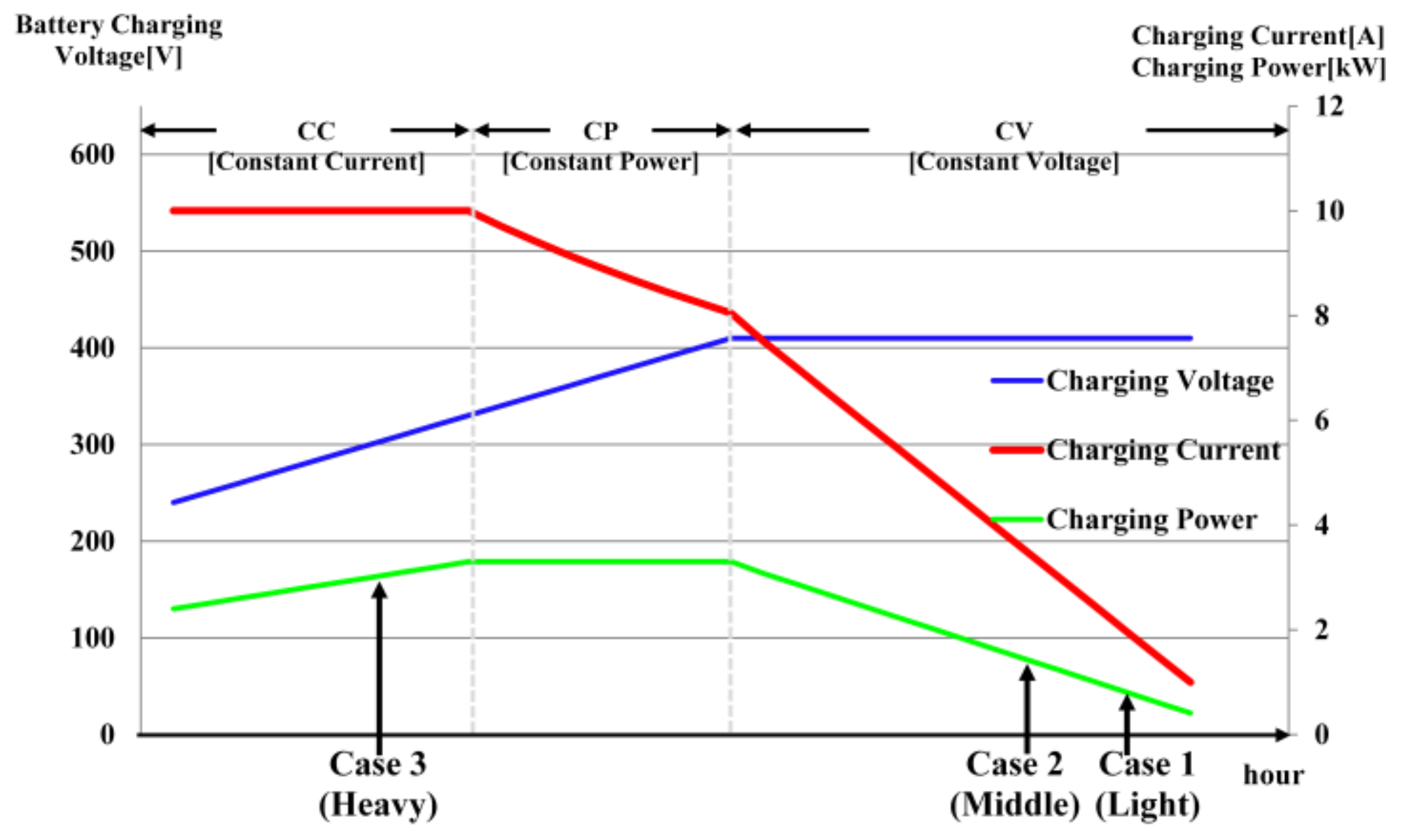

Figure 10, and the loss in each case is analyzed according to
Uout to achieve the maximum efficiency at the main operating point. The main operating points and SOCs of Case 1, Case 2, and Case 3 are 820 W and 90% or more, 1435 W and 80% or more, and 2800 W and 50% or less, respectively, as listed in
Table 3; all cases are rated at 3.3 kW.

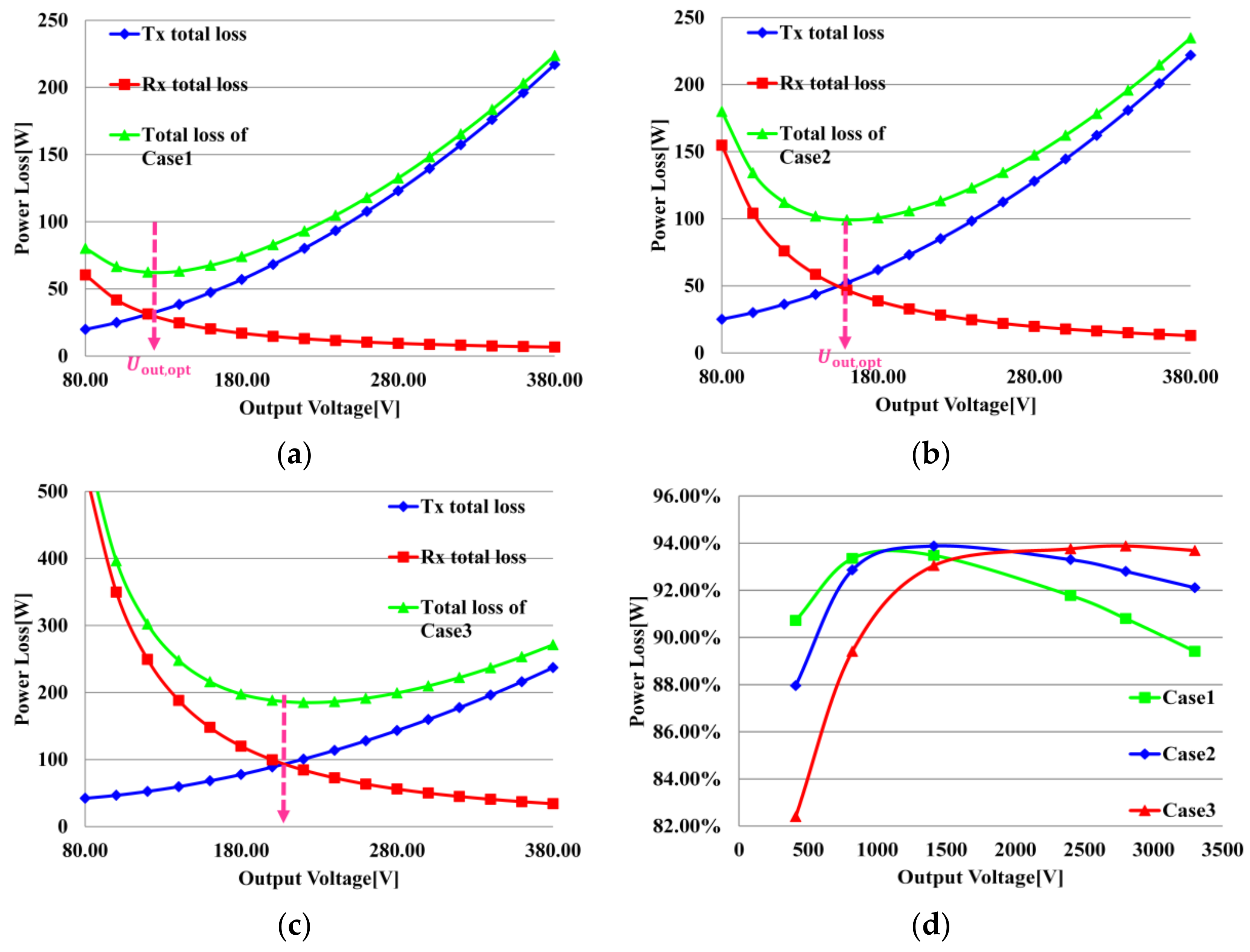

Figure 11 shows the theoretical losses of the transmitter and receiver system for each case at each main operating point; the
Uout,opt values are 130 V, 170 V, and 220 V for Case 1, Case 2, and Case 3, respectively. Depending on the main operating point, the loss fluctuation of the transmitter system is small; in contrast, that of the receiver system is considerable. Consequently, as the output power of the main operating point increases,
Uout,opt increases to reduce the loss of the receiver system.

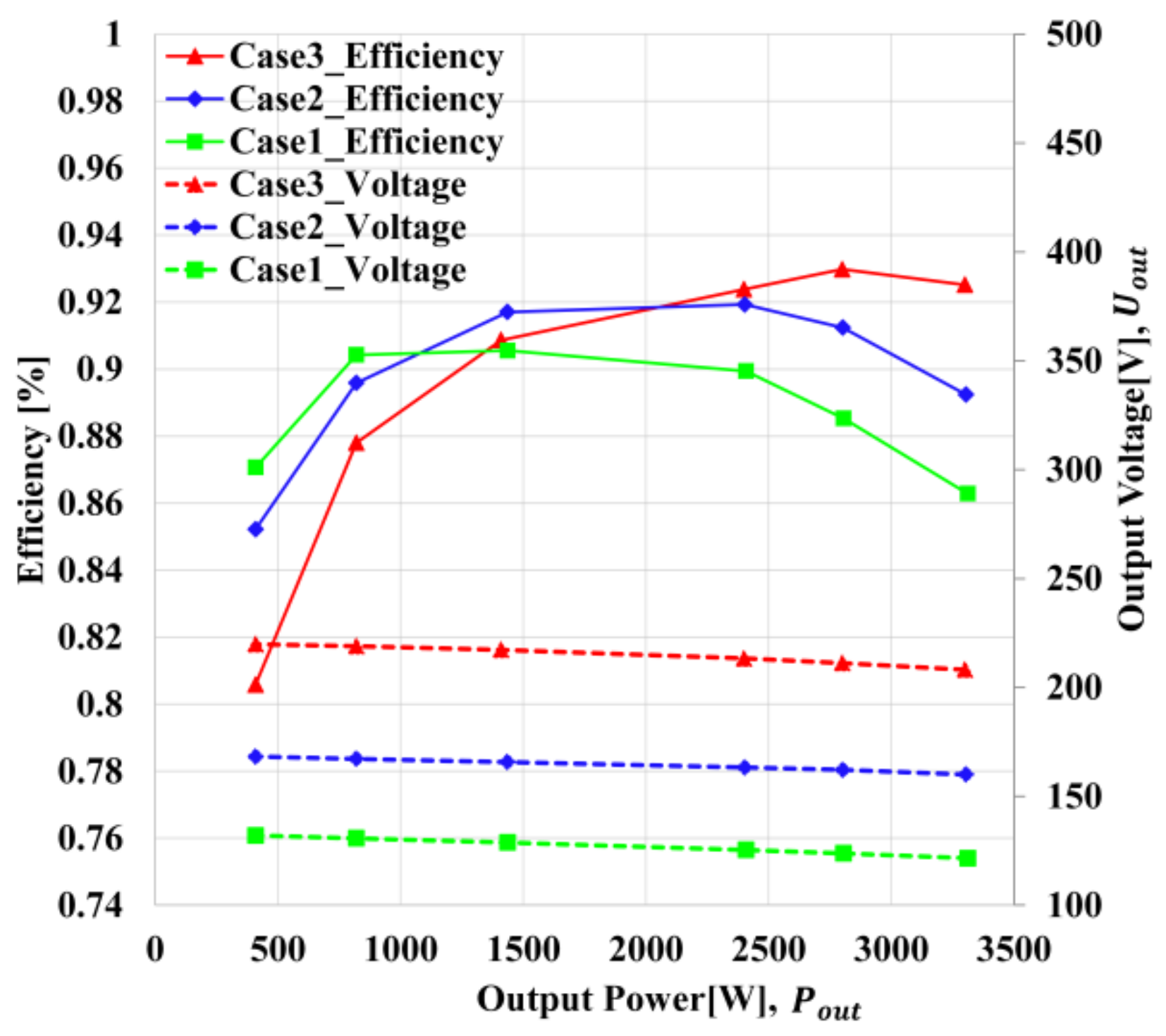

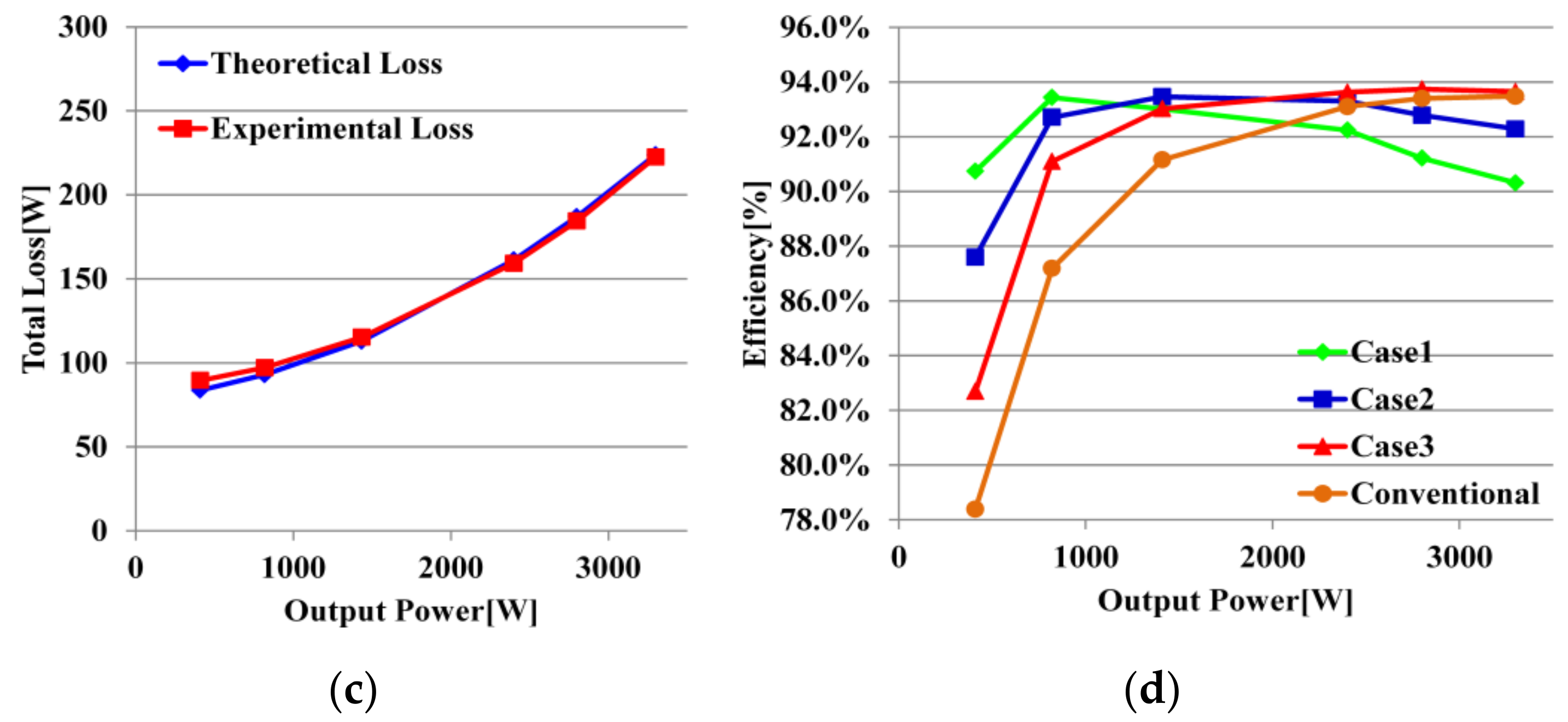

Figure 11d shows the expected efficiency of the IPT converter based on the loss analysis of each case according to
Pout: the maximum efficiency values of Case 1, Case 2, and Case 3 are 93.4% at 820 W, 93.5% at 1435 W, and 93.7% at 2800 W, respectively.

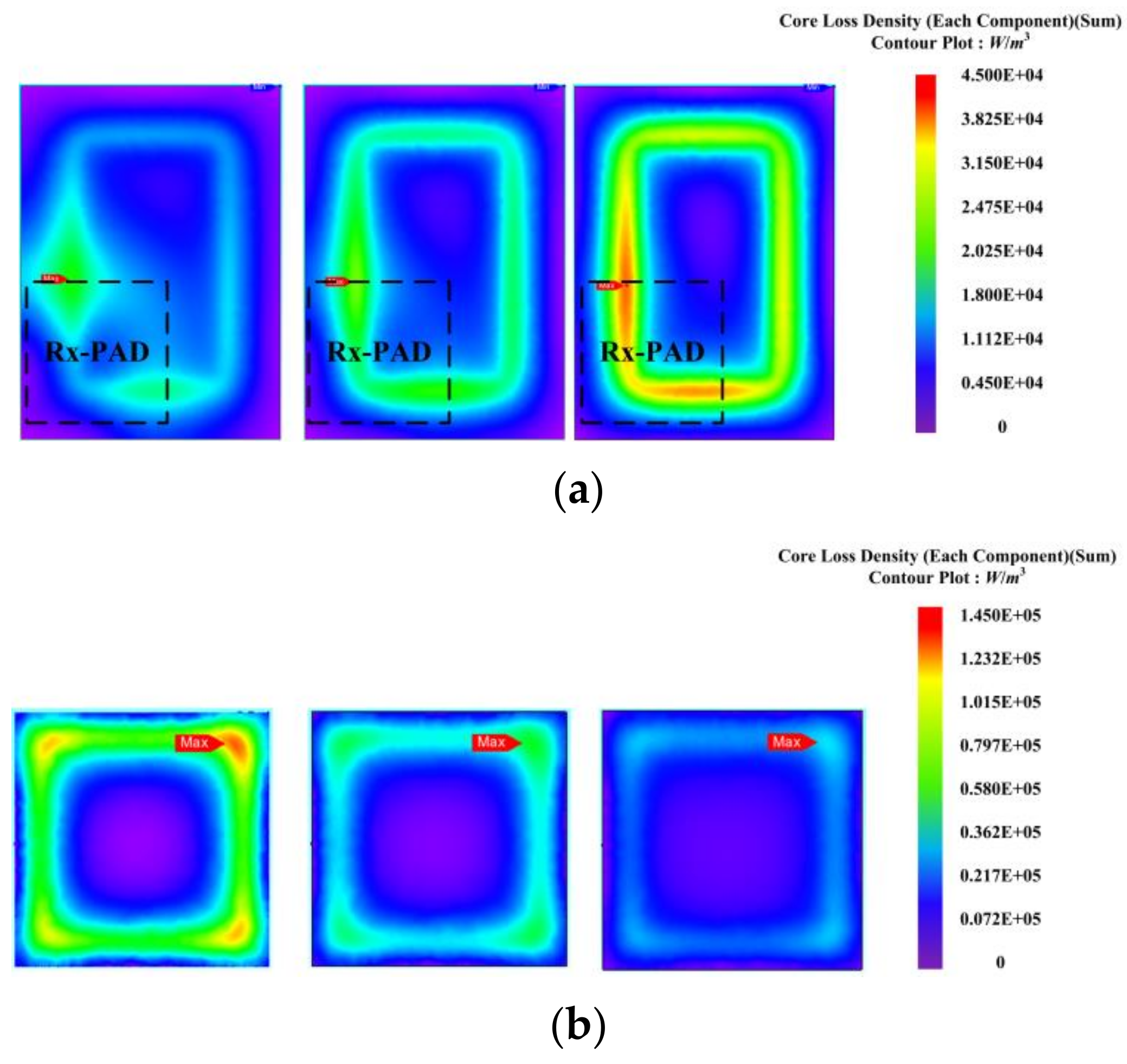

Figure 12 shows the core loss density distributions of the transmitter and receiver pads in each case at the rated output power, as simulated by the JMAG finite element method. For the transmitter pad, the core loss of Case 1 is the smallest because
Uout,opt is the lowest among the cases. In contrast, the core loss of Case 3 is the largest because
Uout,opt is the highest among the cases. For the receiver pad, the core loss of Case 1 is the largest, where
Uout,opt is the lowest among cases. In contrast, the core loss of Case 3 is the smallest, where
Uout,opt is the highest among cases.
Additionally, the core loss of the transmitter pad is higher than that of the receiver pad because of the pad volume in all cases. However, the core loss density (W/m3) of the receiver pad might be higher than that of the transmitter pad in all cases. Consequently, when Uout,opt is designed by the compensation parameter, the thermal characteristics of the transmitter and the receiver pads should be considered at the rated Pout in addition to the efficiency of the IPT converter.
The BM converter is designed as per the variation range of
Uout and
UBatt based on
k and SOC. For Case 1,
UBatt exceeds
Uout throughout the entire ranges of
k and SOC; hence, a two-phase interleaved boost converter can be used as the BM converter. For Case 2 and Case 3, by using a two-phase interleaved cascaded buck–boost converter, the BM converter is designed to enable the step-up and step-down as per the battery charging profile of
Figure 10.
Table 4 shows the
Uout,opt, BM converter, and compensation parameters for each case.
4. Experiment Verification
To verify the proposed design methodology, the 3.3-kW experimental setup of the IPT converter and the BM converter is configured. The PFC converter can be neglected because the
UDC-Link of all three cases is 380 V. The electrical specification of the system is consistent with the parameter listed in
Table 1. The magnetic pads are manufactured in reference to SAE J2954 as shown in
Figure 13. The litz wires (primary coil: AWG 9, secondary coil: AWG 12) are utilized to reduce skin and proximity effects. Both the transmitter and receiver pads are composed of PC 95 ferrite. The parameters and dimensions of the LCT are consistent with those listed in
Table 2. Four MOSFETs (C3M0030090K) and four Schottky diodes (IDW20G120C5B) are selected to construct the FBI and rectifier. MOSFETs (IDW40G65C5), Schottky diodes (C5D50065D), and inductors are selected to construct the BM converter for each case. A DSP TMS320F28335 is used to control the IPT converter and BM converter. To construct the LCC-S compensation topology, a ferrite core PC95PQ30/25-Z is utilized to build
Lin in all cases, and the PCB type compensation capacitor tank is made of a series- parallel connection of SMD chip ceramic capacitors (C1812C222JDGAC7800). The practical parameters are listed in
Table 5; the deviation between the actual and designed parameters is less than 1%. Additionally, the conventional IPT converter is designed in order to compare the conventional and proposed design methodology [
25].

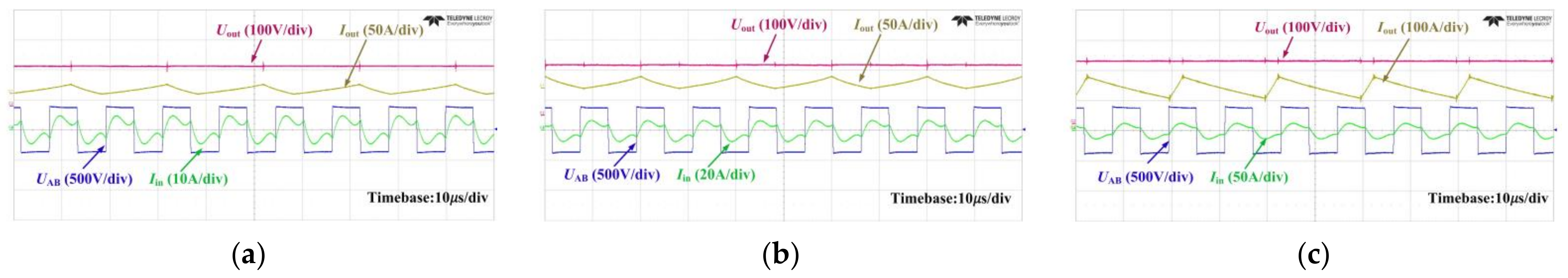

Figure 14 shows the waveforms of
UAB,
Iin,
Uout, and
Iout at the main operating point of each case for
k = 0.08;
UAB is constant, and zero voltage switching (ZVS) is implemented for the entire load in all cases.

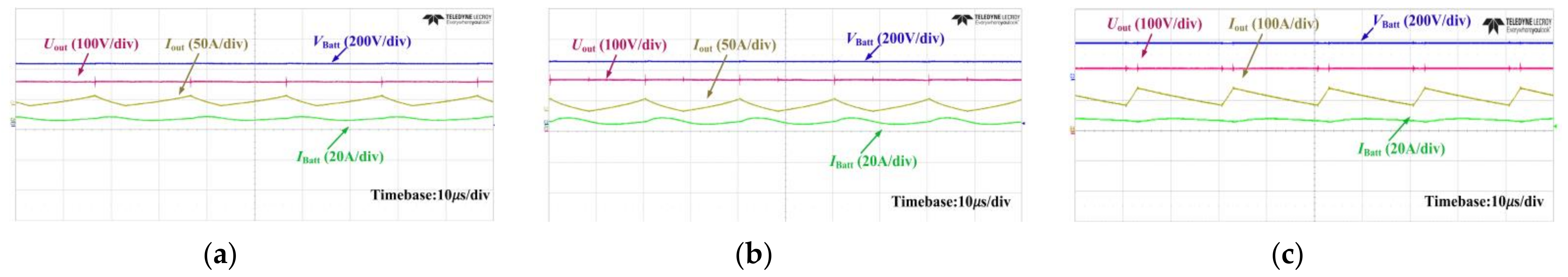

Figure 15 shows the waveforms of
Uout,
Iout,
UBatt, and
IBatt at the main operating point of each case for
k = 0.08. In Case 1 and Case 2, the
UBatt values are 410 V as a boost mode at 820 W and 1435 W, which are the main operating points, respectively. In Case 3, the
UBatt values are 280 V as a boost mode at 2800 W, which is the main operating point. The overall system efficiency
ηDC of the IPT and BM converters for each case is measured via a power analyzer (HIOKI PW6011) according to the battery charging profile of
Figure 10. Maximum
ηDC for Case 1, Case 2, and Case 3 is 90.6% at 820 W
Pout, 91.9% at 1435 W
Pout, and 92.9% at 2800 W
Pout, respectively, as shown in
Figure 16.

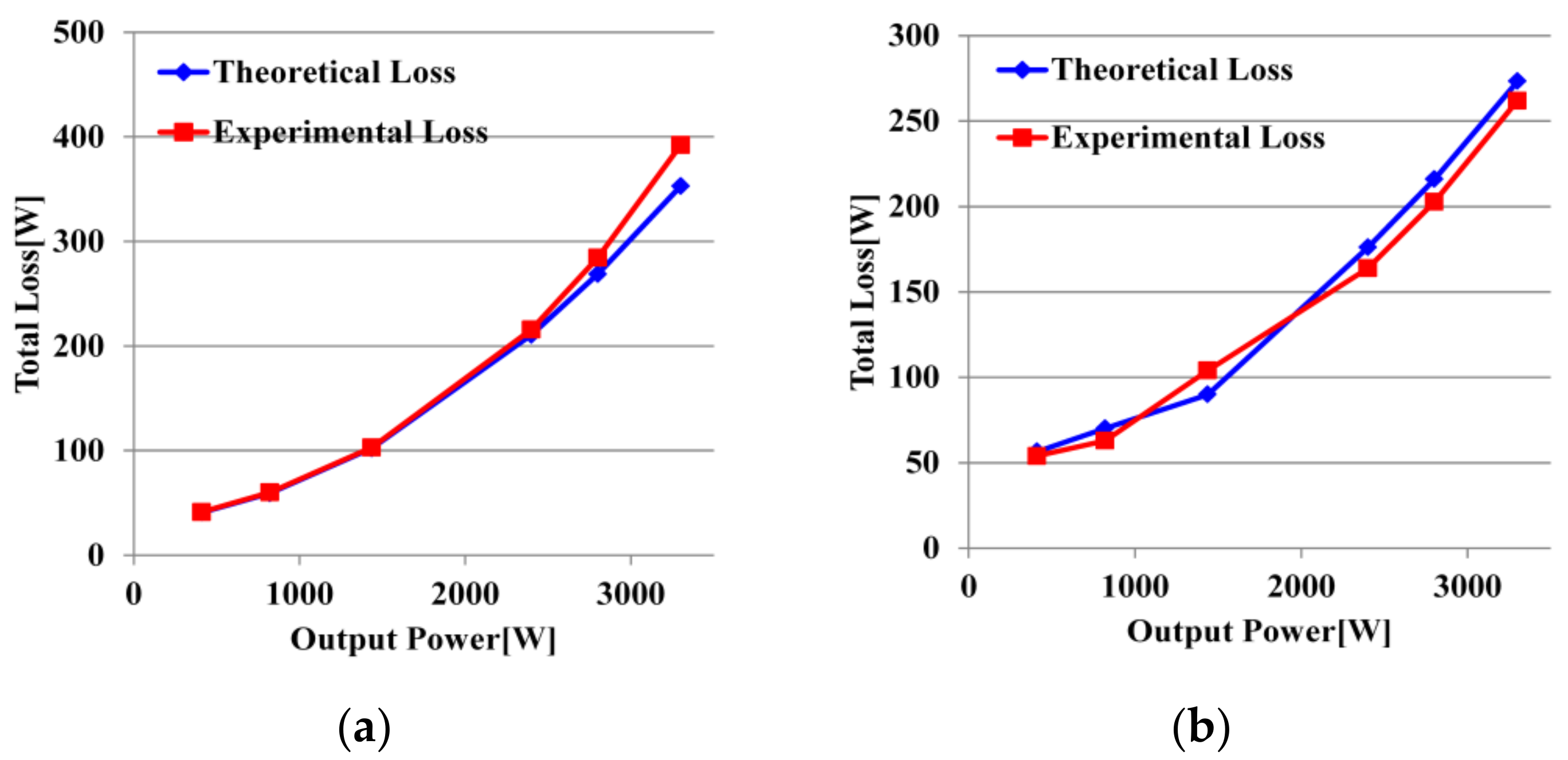

Figure 17 shows the theoretical loss of the IPT converter calculated based on the loss analysis and the experimental loss of the IPT converter measured according to
Pout; the theoretical and experimental losses are considerably similar. Furthermore,
Figure 17d shows the experimental efficiency of the IPT converter for
k = 0.08. The maximum efficiency values of the IPT converter for Case 1, Case 2, and Case 3 are 93.5% at 820 W, 93.7% at 1435 W, and 93.8% at 2800 W, respectively. The maximum efficiency values of the conventional IPT converter is 93.4% at 3300 W. As a result of experiment, it is verified that the maximum efficiency point of the IPT converter can be selected by the proposed design methodology, unlike the conventional design methodology. The deviation between the experimental and expected efficiency of the IPT converter for each case is less than 1%.

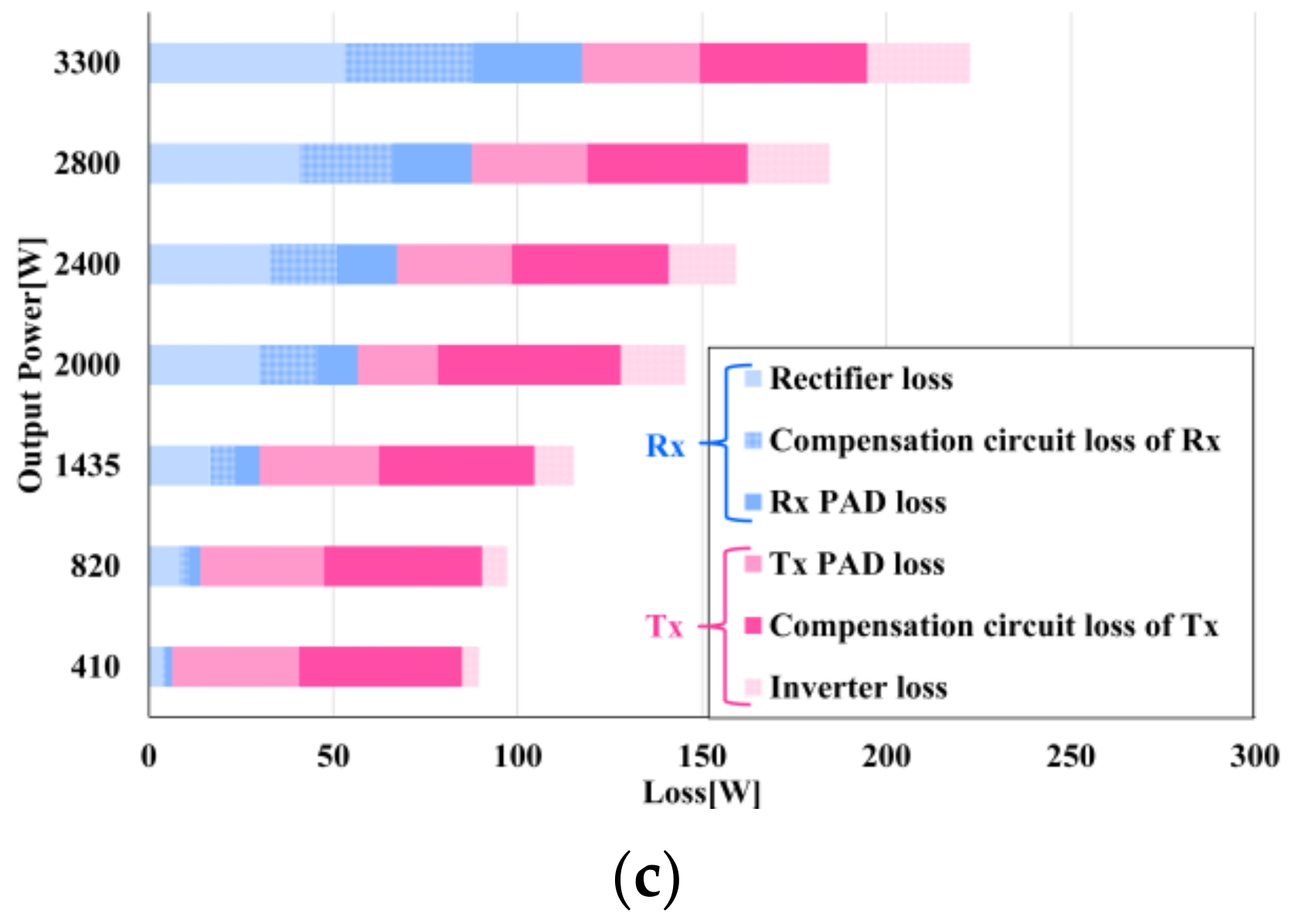

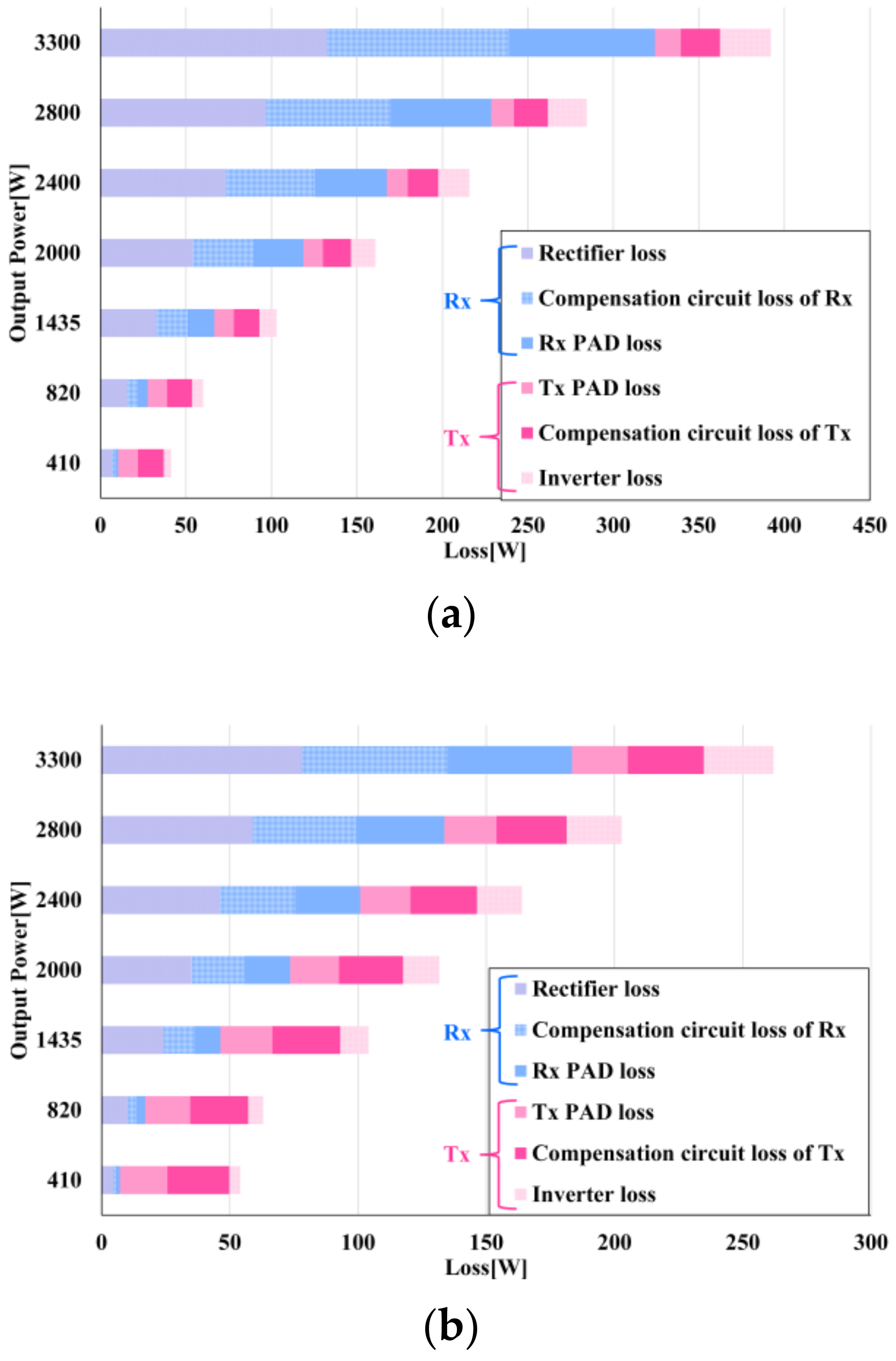

Figure 18 shows the component loss distribution in the IPT converter for each case based on
Pout. In the transmitter system of the IPT converter, the losses of Case 1 and Case 3 are the smallest and largest among all the cases, respectively. In the receiver system of the IPT converter, the losses of Case 1 and Case 3 are the largest and smallest among all the cases, respectively. In addition, the loss in the transmitter system for all cases barely fluctuates depending on
Pout, whereas the loss in the receiver system for all cases fluctuates significantly.
