Maximizing Transfer Efficiency with an Adaptive Wireless Power Transfer System for Variable Load Applications

Abstract

Electronic devices usually operate in a variable loading condition and the power transfer efficiency of the accompanying wireless power transfer (WPT) method should be optimizable to a variable load. In this paper, a reconfigurable WPT technique is introduced to maximize power transfer efficiency in a weakly coupled, variable load wireless power transfer application. A series-series two-coil wireless power network with resonators at a frequency of 150 kHz is presented and, under a variable loading condition, a shunt capacitor element is added to compensate for a maximum efficiency state. The series capacitance element of the secondary resonator is tuned to form a resonance at 150 kHz for maximum power transfer. All the capacitive elements for the secondary resonators are equipped with reconfigurability. Regardless of the load resistance, this proposed approach is able to achieve maximum efficiency with constant power delivery and the power present at the load is only dependent on the input voltage at a fixed operating frequency. A comprehensive circuit model, calculation and experiment is presented to show that optimized power transfer efficiency can be met. A 50 W WPT demonstration is established to verify the effectiveness of this proposed approach.

1. Introduction

Wireless power transfer (WPT) technique is an enabling technology for many consumer electronics and industrial applications [1]. WPT has been an emerging topic since the 1990s and the progress of WPT technology has led commercialization of wireless chargers for toothbrushes, cellphones and medical implants. Further research activities are pursued to expand WPT technology to power applications, such as continuous power delivery to electronics with dynamic power consumption, while preserving an acceptable power transfer efficiency [2,3].

Energy transfer efficiency is one of the important characteristics in WPT. When the coils are far away from each other or loosely coupled, an optimum condition must be established for maximum power transfer efficiency. This particular condition includes size of inductance, coupling coefficient, resonate frequency and load resistance. Among these conditions, load resistance is often considered variable since most of today’s electronic devices have a dynamic loading condition (e.g., brightness change in TV, constant current, constant voltage battery charger, etc.) which indicates that load resistance should be rearranged to the optimum value to achieve maximum energy efficiency. Also, the resistive load under consideration should include electronic appliances with equivalent resistance value higher than 100 Ω.

Typically, there are two different approaches for efficiency optimization in a load-varying application:

(1)

impedance transformation;

(2)

direct current (DC)-DC power converters.

The “maximum power transfer” approach has a limited output power, usually less than 10 W, due to the capacity of a power amplifier and the conjugate matching method loses half of its system power efficiency at the source impedance [4,5,6,7,8,9]. In order to maximize system energy efficiency while delivering high power, a “maximum energy efficiency” approach is pursed in this work. The impedance transformation network typically includes tuning the inductance of the secondary coil [7,10,11], introducing high order compensation network [12,13,14] or employing intermediate resonator [10,15,16,17] to transform the load impedance seen by the source for optimization. Employing an impedance transformation network approach in the previous work is effective for fixed load applications but inductance adjustment is usually difficult, and the overall system size becomes bulky for physical implementation of reconfigurable magnetic coupled coil inductance. Moreover, introducing higher order compensation circuit or intermediate resonator demands an increased overall system size and loss. Some researchers utilize a DC-DC converter to regulate the effective load [18,19]. This approach can effectively handle dynamic loading condition, but additional converter loss and complicated control circuit is inevitable.

In this paper, a simple but effective impedance transformation technique that requires only one additional capacitor element with reconfigurability is presented. Maximum efficiency over a wide range of loading condition can be achieved without using a DC-DC converter or any complicated compensation network. Unlike the other impedance transformation networks, the proposed approach does not require inductance reconfigurability, which makes the system feasible for practical application. This work only uses reconfigurable capacitors, and the inductance of the magnetic coupled coil remains unchanged, which significantly simplifies the system design and implementation. The additional capacitor is placed parallel to the load and when the resistance of the load increases, the impedance of the load can be transformed to a lower value, placing the system at optimized efficiency. Although, a maximum efficiency is achieved, the resonant frequency of the secondary resonator is altered due to the additional capacitance. Hence, the frequency mismatch is resolved by introducing tunable series capacitance of the secondary side. This proposed approach establishes an optimum efficiency over a wide range of load conditions without introducing complicated circuit and the transferred power is independent of the load resistance.

This paper is organized as follows. The conventional compensation techniques for a variable-load WPT system are discussed. Then the proposed approach with reconfigurable capacitor network is presented. Mathematical derivation and calculation are used to show that maximum efficiency and constant power transfer is achieved at the same time. A prototype of the proposed system is fabricated and measured for verification.

2. Conventional Impedance Transformation Technique

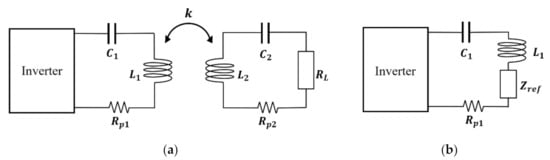

The conventional series-series magnetic coupled wireless power transfer system is shown in Figure 1. The parasitic resistance of the resonators is denoted by $R_p$. Assuming the resonant frequency is equal ($f_0=1/2\pi \sqrt{L_1{C}_1}=1/2\pi \sqrt{L_2{C}_2}$), we can express the secondary circuitry to a reflected impedance, $Z_{ref}$, and the power transfer efficiency as Equations (1) and (2).

$$Z_{ref}=\frac{{\omega }_0^2{M}^2}{R_{p2}+R_L}$$

(1)

$$\eta =\frac{Z_{ref}}{R_{p1}+Z_{ref}}·\frac{R_L}{R_{p2}+R_L}$$

(2)

It is known that there exists a specific load resistance that can maximize the power transfer efficiency [20]. Assuming the resonate frequency of the resonators are equally 150 kHz and the two coils are identical with an inductance of 100 μH, quality factor of 460, the optimum load can be expressed by the following equations. The coupling coefficient between the coils is assumed as 0.02.

$$\frac{\partial \eta }{\partial R_L}=0$$

(3)

$$R_{L\_opt}=R_{p2}\sqrt{1+\frac{{\omega }_0^2{M}^2}{R_{p1}{R}_{p2}}}$$

(4)

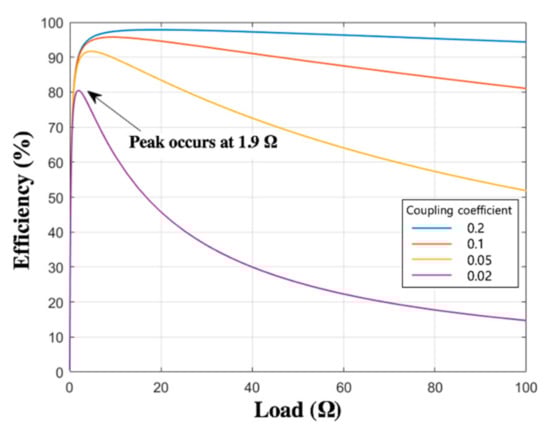

The power transfer efficiency with respect to the load, $R_L$, is illustrated as Figure 2. When the two coils are strongly coupled, the transfer efficiency is close to the maximum at a very wide range of loading condition. As the coupling strength becomes weaker, the transfer efficiency drops dramatically, and the performance is highly dependent on the load resistance. It can be seen that, given the parameters in this design, the optimum efficiency occurs at a load resistance of 1.9 Ω. In order to establish a maximum efficiency at a higher resistive load, the inductance of the secondary resonator has to increase. Using the following equations, (1) and (2) can be solved as (6) and (7).

$$M=k\sqrt{L_1{L}_2}, R_p=\frac{{\omega }_{0}L}{Q}$$

(5)

$$Z_{ref}=\frac{{\omega }^2{k}^2{L}_1{L}_2}{\frac{\omega L_2}{Q_2}+R_L}$$

(6)

$$\eta =\frac{\frac{{\omega }_0^2{k}^2{L}_2}{\frac{{\omega }_0{L}_2}{Q_2}+R_L}}{\frac{{\omega }_0}{Q_1}+\frac{{\omega }_0^2{k}^2{L}_2}{\frac{{\omega }_0{L}_2}{Q_2}+R_L}}·\frac{R_L}{\frac{{\omega }_0{L}_2}{Q_2}+R_L}$$

(7)

By rearranging Equation (7), following equation can be obtained.

$$\eta =\frac{Q_1{Q}_2{\omega }_0^2{k}^2{R}_L}{\frac{{\omega }_0^3{L}_2}{Q_2}+\frac{Q_1{Q}_2{\omega }_0^3{k}^2{L}_2}{Q_2}+{\omega }_0^2{R}_L+{\omega }_0^2{R}_L+Q_1{Q}_2{\omega }_0^2{k}^2{R}_L+\frac{Q_2{\omega }_0{R}_L^2}{L_2}}$$

(8)

The optimum inductance required for a maximum efficiency occurs when

$$\frac{\partial \eta }{\partial L_2}=\frac{-Q_1{Q}_2{\omega }_0^2{k}^2{R}_L\left(\frac{{\omega }_0^3}{Q_2}+\frac{Q_1{Q}_2{\omega }_0^3{k}^2}{Q_2}-\frac{Q_2{\omega }_0{R}_L^2}{L_2^2}\right)}{{\left\{\frac{{\omega }_0^3{L}_2}{Q_2}+\frac{Q_1{Q}_2{\omega }_0^3{k}^2{L}_2}{Q_2}+{\omega }_0^2{R}_L+{\omega }_0^2{R}_L+Q_1{Q}_2{\omega }_0^2{k}^2{R}_L+\frac{Q_2{\omega }_0{R}_L^2}{L_2}\right\}}^2}=0$$

(9)

$$\frac{{\omega }_0^3+Q_1{Q}_2{\omega }_0^3{k}^2}{Q_2}=\frac{Q_2{\omega }_0{R}_L^2}{L_2^2}.$$

(10)

The optimum inductance can be thus obtained as Equation (11).

$$L_{2\_opt}=\frac{Q_2{R}_L}{{\omega }_0\sqrt{1+k^2{Q}_1{Q}_2}}$$

(11)

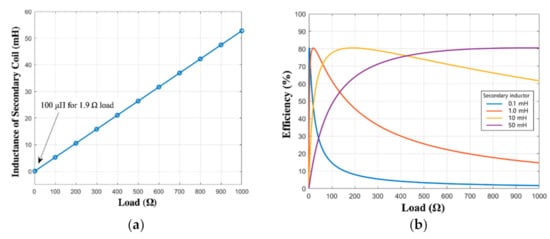

Solving (9) for $L_2$, we can obtain Figure 3.

It can be seen as an example that when the load resistance is 50 Ω, the optimal required inductance has to be more than 10 times the original value. Implementation of a coil with inductance in this range usually requires ferrite material and results in a bulky system. There are other matching techniques in existing literatures to maximize power transfer efficiency, but these techniques are based on radio frequency power amplifiers, in which the maximum deliverable power is typically below 10 W [5,7].

3. Proposed WPT System Design

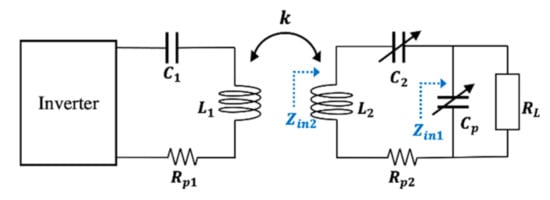

In order to optimize the transfer efficiency under various loading condition, we propose a tunable capacitor network in the secondary resonator (Figure 4).

Addition of a capacitive element parallel to $R_L$ can reduce the resistance of the impedance $Z_{in1}$. From Figure 2, we know that the efficiency can be maximized if we can convert the impedance, $Z_{in1}$, to an optimum value. Assuming that $C_2$ is fixed, satisfying the resonant condition, $f_0=1/2\pi \sqrt{L_2{C}_2}$, the following equations can be derived.

$$Z_{in1}=R_L||\frac{1}{j\omega C_p}=\frac{R_L}{1+{\omega }^2{R}_L^2{C}_p^2}-j\frac{\omega R_L^2{C}_p}{1+{\omega }^2{R}_L^2{C}_p^2}$$

(12)

$$Re\left(Z_{in1}\right)=\frac{R_L}{1+{\omega }^2{C}_p^2{R}_L^2}=1.9 \mathsf{\Omega }$$

(13)

$$Im\left(Z_{in2}\right)=-\frac{\omega R_L^2{C}_p}{1+{\omega }^2{R}_L^2{C}_p^2}-\frac{1}{\omega C_2}+\omega L_2=0 \mathsf{\Omega }.$$

(14)

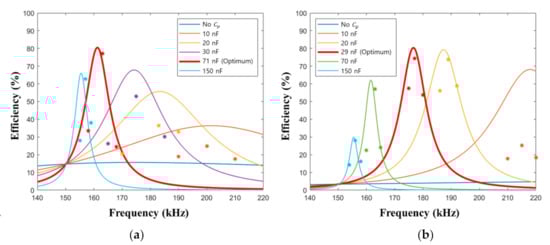

When the coil has inductance and quality factor of 100 μH and 460, respectively, the transfer efficiency is maximized when the resistance and reactance of $Z_{in1}$ becomes 1.9 Ω and 0 Ω, respectively. Note that as the load resistance increases, the required $C_p$ decreases. Figure 5 illustrates the calculated power transfer efficiency respect to frequency. Without the use of any complicated compensation circuit or DC-DC converter system, the capacitive loading technique can significantly increase the power transfer efficiency.

Even though the transfer efficiency can be maximized by employing $C_p$, the resonant frequency of the secondary coil network increases due to the additional parallel capacitance. The frequency shift can be calculated by the following equation.

$${\omega }^2{L}_2{C}_p-\frac{C_p}{C_2}-\frac{{\omega }^2{R}_L^2{C}_p^2}{1+{\omega }^2{R}_L^2{C}_p^2}=0$$

(15)

Assuming that the third term can be approximated to 1, (15) can be reduced to (16).

$${\omega }^2=\frac{1}{L_2}\left(\frac{1}{C_2}+\frac{1}{C_p}\right)$$

(16)

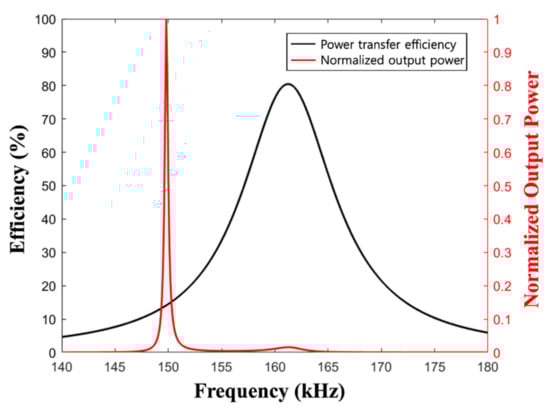

Since there is a noticeable frequency detuning at the secondary resonator, the output power available to $R_L$ is significantly decreased [21]. The amount of power delivered to the load when the maximum power transfer efficiency occurs at 161 kHz is shown in Figure 6. Although the efficiency is maximized at 161 kHz, the available power to the load is very small. On the other hand, considerable power can be delivered when the system is operated at 150 kHz, but the power transfer efficiency is less than 15%, suggesting that this design is not suitable for practical use.

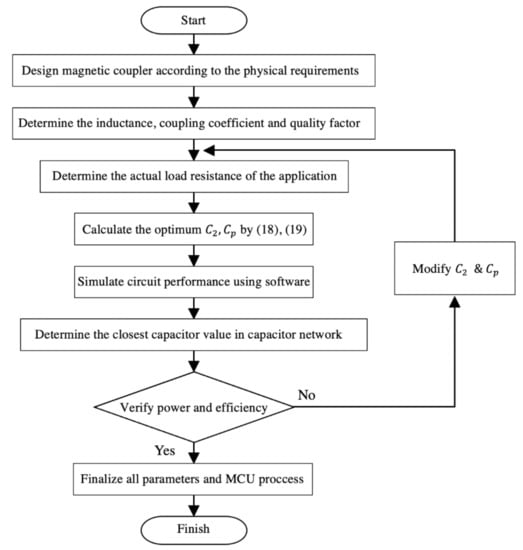

In order to simultaneously coordinate the transfer efficiency and power delivery, the resonant frequency of the primary and secondary resonators should be designed at an equal frequency, $f_0={\omega }_0/2\pi =150$ kHz. The resonant frequency of the secondary resonator can be tuned back to 150 kHz by manipulating the series capacitance $C_2$. Solving for the reactance of the secondary resonator, the required $C_2$ and $C_p$ can be obtained by (17)–(19). The detailed design process flow chart is shown in Figure 7.

$$Im\left(Z_{in2}\right)={\omega }_0{L}_2-\frac{{\omega }_0{R}_L^2{C}_p}{1+{\omega }_0^2{R}_L^2{C}_p^2}-\frac{1}{{\omega }_0{C}_2}=0$$

(17)

$$C_2=\frac{1}{{\omega }_0^2{L}_2-\frac{{\omega }_0^2{R}_L^2{C}_p}{1+{\omega }_0^2{R}_L^2{C}_p^2}}$$

(18)

$$C_p=\frac{1}{{\omega }_0{R}_L}\sqrt{\frac{R_L}{1.9}-1}$$

(19)

4. Experimental Verification

In this work, the coils were implemented using a 360-strand AWG-42 Litz-wire and both were constructed identically. The coil was made up of two stacks of 12-turn circular coils. The inner and outer diameters of the coil were 100 mm and 150 mm, respectively. The coils were installed on acrylic sheets and the distance between the coils was arranged at 180 mm so that it could represent a loosely coupled scenario. The inductance, coupling coefficient and quality factor of the coils was measured at 150 kHz, with results identical to Section 3. An LCR (inductance, capacitance and resistance) meter (E4980AL, Keysight, Santa Rosa, CA, USA) was utilized to characterize all passive elements. A half-bridge inverter, digital signal processor (TM28335, Texas Instrument, Dallas, TX, USA) and a DC power supply (PWR041ML, Kikusui, Yokohama, Japan) were utilized to generate the 150 kHz power source. Series and parallel connected power resistors were used to realize the various load resistance. The input power was obtained by measuring the power consumption of the inverter using a power analyzer (WT333E, Yokogawa, Tokyo, Japan) and the output power was determined by measuring the voltage present at the load. Power and efficiency measurements were taken by manually varying the load resistance and configuring the capacitance values to the optimum values.

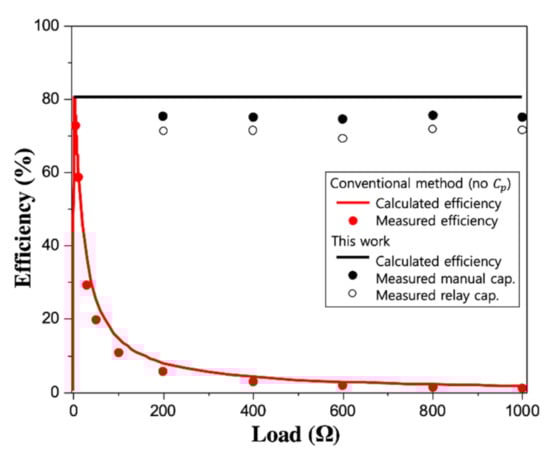

The measured transfer efficiency of the proposed system by capacitance tuning is shown in Figure 8. The power transfer efficiency was determined by considering the DC input power supplied to the inverter and the output power delivered to the load. Even as the load resistance changed, the power transfer efficiency was maintained close to the theoretical maximum. Most of the values closely followed the calculated value from MATLAB at values near 150 kHz but there existed some discrepancy at higher frequencies (Figure 5). The main reason for such discrepancy is due to the fact that the frequency dependency characteristics of passive elements (inductance, quality factor, coupling coefficients, etc.) and the switching loss associated with the power transistors in the inverter circuit were not taken into account in the calculation. The switching loss at the inverter is usually very small compared to the transferred power when dealing with more than 10 W but when the operating frequency is much larger than the resonant frequency of the primary resonator, the total output power becomes so small that the switching power loss becomes significant, further reducing the transfer efficiency. The power delivered to the load was verified up to 50 W. It can be seen from Figure 9 that as long as the coupling coefficient and input voltage remain the same, regardless of the load resistance, the output power is kept at a constant level.

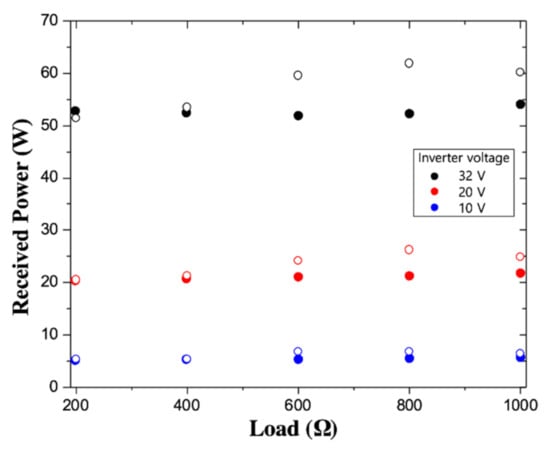

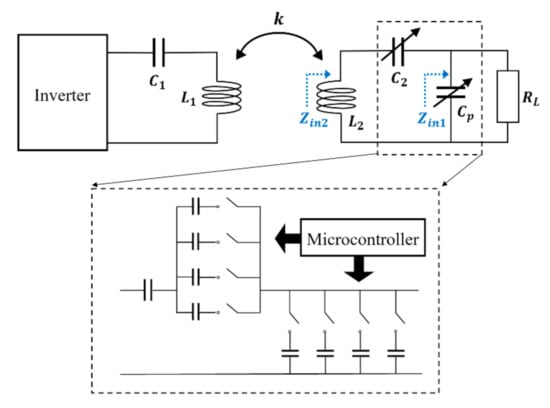

To construct an adaptive reconfigurable system, we used a network of single-pole single-throw relays (SRD-5VDC-SL-C, Ningbo Songle Relay, Yuyao, China) and a microcontroller platform (ATmega328P, Microchip, Chandler, AZ, USA), as shown in Figure 10. As an effort to reduce the voltage stress across $C_2$, the capacitor element was divided into two separate series capacitors. Although the 4-channel capacitance network was not able to implement the optimum capacitance with high accuracy, the discrepancy in the measured efficiency was less than 5%.

Table 1. Capacitance of $C_2$ and $C_p$ used in this work.

	Calculated Ideal Capacitance (nF)		Manually Implemented Capacitance (nF)		Capacitance Implemented with Relay Network (nF)
Load Resistance (Ω)	${\mathit{C}}_{\mathit{p}}$	${\mathit{C}}_{\mathbf{2}}$	${\mathit{C}}_{\mathit{p}}$	${\mathit{C}}_{\mathbf{2}}$	${\mathit{C}}_{\mathit{p}}$	${\mathit{C}}_{\mathbf{2}}$
200	54.2	14.2	55.0	14.3	54.6	14.1
400	38.4	15.9	38.6	16.0	37.1	16.1
600	31.4	17.5	31.7	17.3	30.8	17.3
800	27.2	19.2	27.3	19.2	24.9	20.2
1000	24.3	20.9	24.3	20.9	24.9	20.2

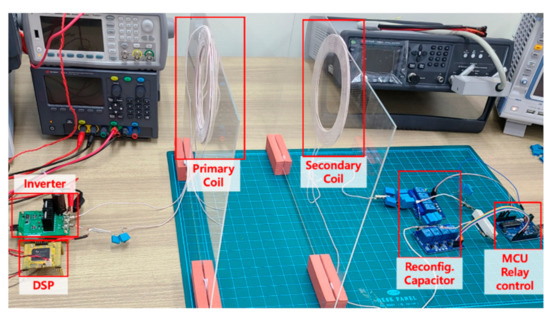

shows a comparison of the calculated ideal capacitance and the actual measured capacitance used in this experiment. A photograph of the experimental demonstration is shown in Figure 11.

5. Conclusions

In this work, a simple WPT solution for a loosely coupled, variable-load application is presented. A circuit model was first used to derive the optimal condition for a load variable environment. By adding an impedance transformation capacitance to the conventional series-series WPT system and following the design process, a power transfer efficiency close to the theoretical maximum was obtained. A detailed numerical derivation is provided to show the process to determine the optimal capacitive values. Calculation results show that maximum efficiency is achieved for a variable load condition. Experiments were carried out to verify the numerical analysis and the proposed approach. The proposed approach is simple, and the design is easily accessible for potential engineers in the wireless power transfer field. Further system miniaturization and precise value can be met by replacing the relays with bidirectional power switches. This proposed work suggests that applications with higher resistive load and distant power transfer range can effectively be wirelessly powered.
