Suggesting a Stochastic Fractal Search Paradigm in Combination with Artificial Neural Network for Early Prediction of Cooling Load in Residential Buildings

Abstract

Early prediction of thermal loads plays an essential role in analyzing energy-efficient buildings’ energy performance. On the other hand, stochastic algorithms have recently shown high proficiency in dealing with this issue. These are the reasons that this study is dedicated to evaluating an innovative hybrid method for predicting the cooling load (CL) in buildings with residential usage. The proposed model is a combination of artificial neural networks and stochastic fractal search (SFS–ANNs). Two benchmark algorithms, namely the grasshopper optimization algorithm (GOA) and firefly algorithm (FA) are also considered to be compared with the SFS. The non-linear effect of eight independent factors on the CL is analyzed using each model’s optimal structure. Evaluation of the results outlined that all three metaheuristic algorithms (with more than 90% correlation) can adequately optimize the ANN. In this regard, this tool’s prediction error declined by nearly 23%, 18%, and 36% by applying the GOA, FA, and SFS techniques. Moreover, all used accuracy criteria indicated the superiority of the SFS over the benchmark schemes. Therefore, it is inferred that utilizing the SFS along with ANN provides a reliable hybrid model for the early prediction of CL.

1. Introduction

Buildings, vehicles, and industry are the three primary energy consumption sectors globally [1,2,3]. Among those, buildings consume a considerable share, which is anticipated to reach over 30% by 2040 [4]. On the other hand, people’s high tendency to dwell in smart cities has resulted in the idea of developing energy-efficient structures [5,6]. Therefore, accurate analysis of buildings’ energy performance (EPB) is a significant step toward this objective. In energy-efficient buildings, heating load (HL) and cooling load (CL) demand account for system energy consumption and are controlled by heating, ventilating, and air conditioning (HVAC) system [7] to provide convenient indoor air condition.

It is well established that the cost and use of energy affect human lives every day. In this sense, many issues arise from the content of energy consumption such as acid rain, dependency on depleting supplies of fossil fuels, greenhouse gas emissions [8,9,10,11,12,13,14,15,16], climate change [17,18,19,20], in addition to environmental concerns that come along with energy power supply [2,21,22,23,24,25,26,27,28,29,30,31,32,33]. In recent years, various techniques have been used for the optimal design of the HVAC system [34,35,36,37,38,39,40,41,42]. Ghahramani et al. [43], for instance, used a systematic model to optimize the performance of the HVAC system in office buildings in terms of temperature setpoints. Moreover, Ferreira et al. [44] used a soft computing method for controlling the HVAC system. Implemented the proposed model led to about 50% saving in energy consumption. The effect of façade parameters (e.g., solar reflectance and U-value) was investigated by Ihara et al. [45], and it was deduced that solar heat gain coefficient (SHGC) could have the most significant impact on energy consumption reduction.

In this way, some drawbacks of forwarding modeling approaches (e.g., modeling in simulation packages), such as large dimensions and inadequacy for occupied spaces [46], have driven engineers to employ artificial intelligence approaches for early estimation of energy [47,48,49]. Artificial intelligence is known as intelligence solutions demonstrated by machines, unlike the natural intelligence provided by animals and humans [50,51,52,53,54,55]. Artificial neural networks (ANNs), as one of the most known AI-based solutions, have received increasing attraction recently [56,57,58,59,60]. More technically, deep-learning-based [61,62,63,64], machine learning [65,66,67], decision-making-based theories, feature selection-based solutions [68,69,70], extremer machine learning solutions [71,72,73,74], and hybrid searching algorithms that enhanced conventional multilayer perceptron such as Harris Hawks optimization [62,75], whale optimizer [76,77], bacterial foraging optimization [78], chaos enhanced grey wolf optimization [79], moth-flame optimizer [72,80], many-objective sizing optimization [81,82,83,84,85,86], driven robust optimization [87], ant colony optimization [88], and global numerical optimization [89]. These techniques are successfully employed in different aspects such as building design [90,91,92,93,94,95,96,97], image processing/classification [97,98,99,100,101,102,103,104], sustainability, and environmental concerns [23,105,106,107]. Various studies are also performed on predicting the HL and CL of residential buildings [39,41,42,108,109,110]. Zhou et al. [42] used an ANN and the nonlinear autoregressive with exogenous inputs (NARX) concept for accurate analysis of thermal load in an academic building. In a similar effort, Koschwitz et al. [111] implemented an approximation of long-term urban heating load using nonlinear autoregressive exogenous recurrent neural networks (NARX RNNs). Roy et al. [112] showed a better performance of neural networks (with a variance accounted for 99.76%) compared to other conventional methods such as gradient boosted machines.

Other predictors such as adaptive neuro-fuzzy inference systems (ANFISs) have shown high robustness for dealing with EPB non-linear problems [113]. Pezeshki and Mazinani [114] concluded the superiority of ANFISs over typical fuzzy logic in buildings’ thermal efficiency because it enjoys the advantages of the ANN as well. Scholars such as Naji et al. [115] and Chou and Bui [116] have demonstrated the applicability of ANFIS and support vector-based methods. More recent studies have suggested utilizing conventional predictors with metaheuristic search schemes for various usages [41,117]. More significantly, for energy consumption modeling, these methods have gained high popularity. Satrio et al. [118] found integrating ANNs and multi-objective genetic algorithms a capable tool for optimizing the HVAC system. Moayedi et al. [4] coupled an ANN with a firefly algorithm based on electromagnetism for predicting building energy consumption. The findings revealed their suggested model’s superiority over conventional models such as typical ANN, genetic programming, and extreme learning machine. Tien Bui et al. [41] could reduce the HL prediction error of the ANN from 2.93 to 2.06 and 2.00 by applying the genetic algorithm and imperialist competition algorithm, respectively. This error also fell down from 3.28 to 2.09 and 2.10 for CL estimation. Particle swarm optimization (PSO) is another capable optimizer that has been widely employed for creating hybrid models [119,120]. Goudarzi et al. [121] also used the PSO to develop a hybrid of autoregressive integrated moving average and SVR for energy consumption modeling. Moreover, in researches by Nguyen et al. [122] and Moayedi et al. [123], novel metaheuristic techniques (e.g., elephant herding optimization, Harris Hawks optimization, and grasshopper optimization algorithm) were applied to enhance the prediction capability of the ANN. Despite the wide use of nature-inspired metaheuristic techniques for optimizing the HVAC system, the wide variety of these techniques motivated the authors to investigate the applicability of a novel member of this family, namely, stochastic fractal search in this paper. Based on our best knowledge, this algorithm has not been previously used in this field.

2. Methodology

2.1. ANN

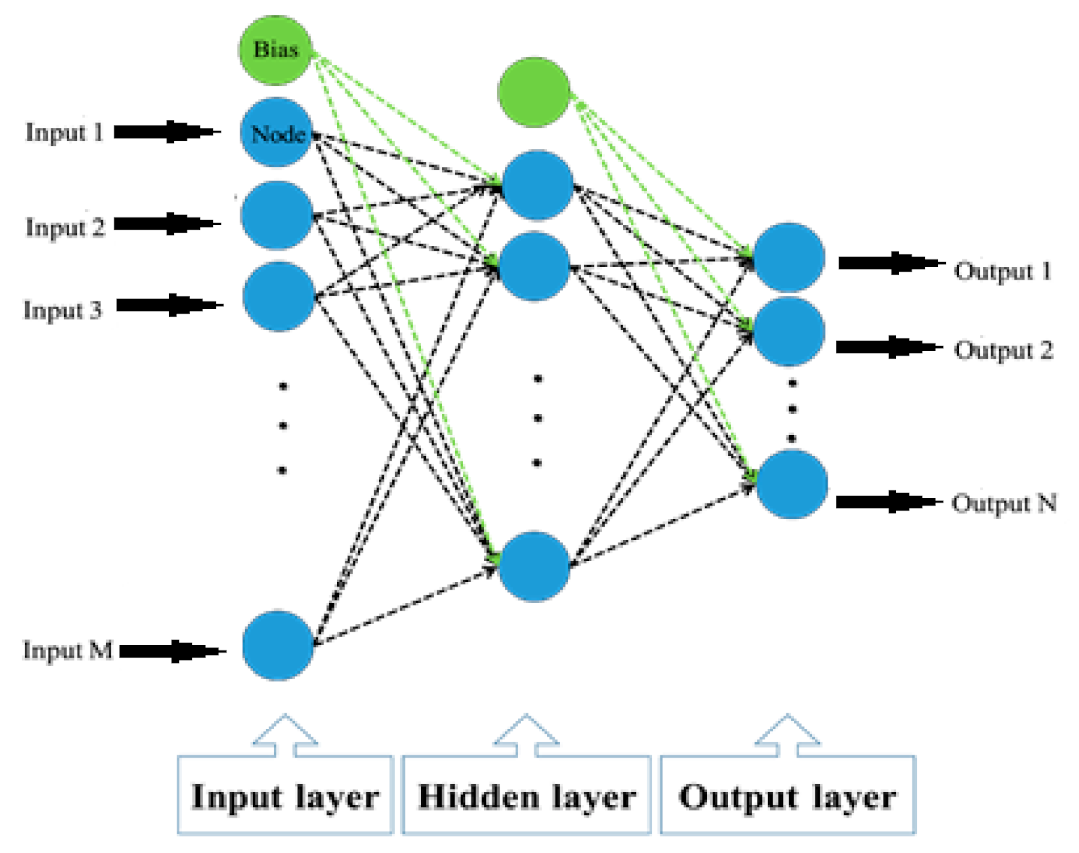

As suggested by McCulloch and Pitts [124], the basic idea of ANNs roots in the biological neural system of humans. The structure of this model comprises several processors named neurons connected by so-called synapses weight. As a potential advantage of this model, the ANNs try to analyze the non-linear association of a set of input-output data by establishing a stage of mathematical relationships [125]. Figure 1 shows the structure of one of the most popular notions of ANNs, namely, multi-layer perceptron (MLP). As shown, this network is composed of one hidden layer. However, based on the problem’s complexity, it can contain two or more hidden layers [126,127].

Input nodes receive the data. Each node assigns (i.e., multiplies) a specific weight factor (W), and the obtained value is added to a bias factor (b). Lastly, an activation function (f) is applied to the whole term to generate the proposed neuron’s response. It is mathematically expressed by Equation (1) as follows:

$$O=f({{\displaystyle \sum }}^{ }IW+b).$$

(1)

2.2. Stochastic Fractal Search

Proposed by Salimi [128], stochastic fractal search (SFS) is a recently developed metaheuristic algorithm. This method is based on the fractal mathematical concept and the diffusion feature. Mosbah and El-Hawary [129] used this approach for training an ANN. The SFS draws on two major processes, namely, diffusing and updating for handling the optimization task. During diffusion, the points exploit the space by diffusing around their current location. It helps the algorithm to protect the solution against local minima. This movement leads to a so-called process Gaussian walk that is mathematically described as follows [130].

$$G{S}_1= G\left(m{n}_{Bp},\delta \right) + \left(a_1{p}_1- a_1{p}_1\right)$$

(2)

$$G{S}_2= G\left(m{n}_p,\delta \right)$$

(3)

$$\delta = \left|\frac{\log \left(z\right)}{z} \left(p_i- p_b\right)\right|,$$

(4)

where G (mn, δ) indicates the Gaussian distribution function with mean mn and standard deviations δ. z shows the iteration, and two terms a₁ and a₂ are random values varying from 0 to 1. Moreover, mn_p and mn_Bp equal to $p_i$ (the position of a given individual) and $p_b$ (the position of the best individual), respectively. The role of $\frac{log \left(z\right) }{z}$ lies in reducing the jump size, which leads to a more localized investigation.

For increasing the exploring ability of the population moving near the present location, two measures may be considered acting on every different vector index and the whole population. After ranking the population in the first measure, they receive a probability index based on the following equation:

$$p_{p_i} = \frac{\mathrm{rank} \left(p_i\right)}{Npop},$$

(5)

where $Npop$ represents the number of the agents. Equation (6) shows how the qth component of the agent i is updated provided that $p_{p_i}$< a (a random number that could be between 0 and 1), otherwise no change takes place.

$$p_i^{z+1} \left(q\right) = p_s^z \left(q\right)- a(p_u^z \left(q\right)- p_i^z \left(q\right)),$$

(6)

where $p_u$ and $p_s$ are random individuals.

Over the second measure, all individuals updated in Equation (6) go through Equation (5) to be ranked provided that $p_{p_i}$ < a, while for $p_i^{z+1}$, the recent individual is updated by the following equations:

$$p_i^n \left(q\right) = p_i^{z+1} - \mu (p_s^{z+1} - p_u) for \mu \le 0.5$$

(7)

$$p_i^n \left(q\right) = p_i^{z+1}+ \mu (p_s^{z+1} - p_u^{z+1}) for \mu > 0.5,$$

(8)

where $p_s^{z+1}$ and $p_u^{z+1}$ denote random agents obtained from the first measure. Moreover,$\mu$ stands for a number generated by Gaussian distribution [131].

2.3. Benchmark Optimizers

As mentioned, the grasshopper optimization algorithm (GOA) and the firefly algorithm (FA) are used to create benchmark hybrids of ANN. Like any other algorithms, these techniques implement their certain search method to attain a globally optimal solution for a given problem [132]. As the name implies, the GOA is inspired by the herding behavior of grasshoppers in nature. It was designed by Saremi et al. [133] in two significant steps, including exploration and exploitation. The herd members (i.e., the grasshoppers) fly to find food, where their swimming movement is affected by three parameters of social relationship, gravity force, and wind advection. More details about the GOA can be found in previous studies [134,135,136].

The FA is also a capable nature-inspired search scheme proposed by Yang [137]. The FA represents the social flashing behavior of fireflies. The intensity variation of light and attractiveness formulation are two crucial ingredients of this algorithm [138]. Three basic rules of the FA are (i) the individuals are unisex and are attracted to each other regardless of gender, (ii) the more brightness, the higher attractiveness, and (iii) the objective function of the problem determines the brightness of a firefly. More mathematical information about the fireflies’ interaction is well-explained in references such as [139,140,141].

3. Data and Statistical Analysis

As is known, using reliable data plays an essential role in the proper development of intelligent models. In the case of this study, the information of a residential building is used. The database is produced by a computer simulation in Ecotect [142] environment. Tsanas and Xifara [143] generated it, and it is now available on http://archive.ics.uci.edu/ml/datasets/Energy+efficiency (accessed on 13 December 2020).

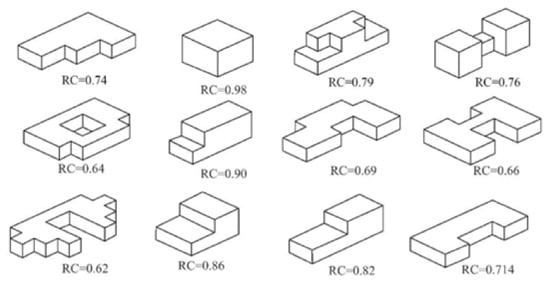

By analyzing 12 different buildings (with a total volume of 771.75 m³), the HL and CL [144] of 768 cases are collected when relative compactness (RC = $\frac{6V^{\frac{2}{3}}}{A}$, which indicates the ratio between the surface area (A) and the corresponding volume (V) [145]), surface area (SA), wall area (WA), roof area (RA), overall height (OH) [144,146], orientation, glazing area (GA, indicating the overall area measured using rough opening consisting of the glazing, frame and sash [147]), and glazing area distribution (GAD, indicating the distribution of the GA within the entire building) [144] are taken as influential parameters (i.e., independent factors).

Note that the orientation consists of the north, east, south, and west, the GA receives four values of 0%, 10%, 25%, and 40% of the floor area [144,146], and the GAD is classified into six groups as follows: (i) uniform (one-fourth glazing on each side), (ii) north: 55% on the north and 15% on the remaining sides each, (iii) east: 55% on the east side and 15% on the remaining sides each, (iv) south: 55% on the south side and 15% on the remaining sides each, (v) west: 55% on the west side and 15% on the remaining sides each, and (vi) no glazing areas [148]. Figure 2 shows the types of building with respect to the RC, which are mostly orthogonal polyhedral adapted from [119].

The statistical description of the parameters (in terms of average value, sample variance, standard error, minimum, and maximum) are presented in

Table 1. Statistical indices to describe the input/target variable(s).

Features	Descriptive Index
	Mean	Standard Error	Sample Variance	Minimum	Maximum
Relative Compactness (m)	0.76	0.00	0.01	0.62	0.98
Surface of the area (m2)	671.71	3.18	7759.16	514.50	808.50
Area of the wall (m2)	318.50	1.57	1903.27	245.00	416.50
Area of the roof (m2)	176.60	1.63	2039.96	110.25	220.50
Height (m)	5.25	0.06	3.07	3.50	7.00
Orientation (-)	3.50	0.04	1.25	2.00	5.00
Area of the glazing (m2)	0.23	0.00	0.02	0.00	0.40
Area distribution of the Glazing (-)	2.81	0.06	2.41	0.00	5.00
Cooling load (kWh/m2)	24.59	0.34	90.50	10.90	48.03

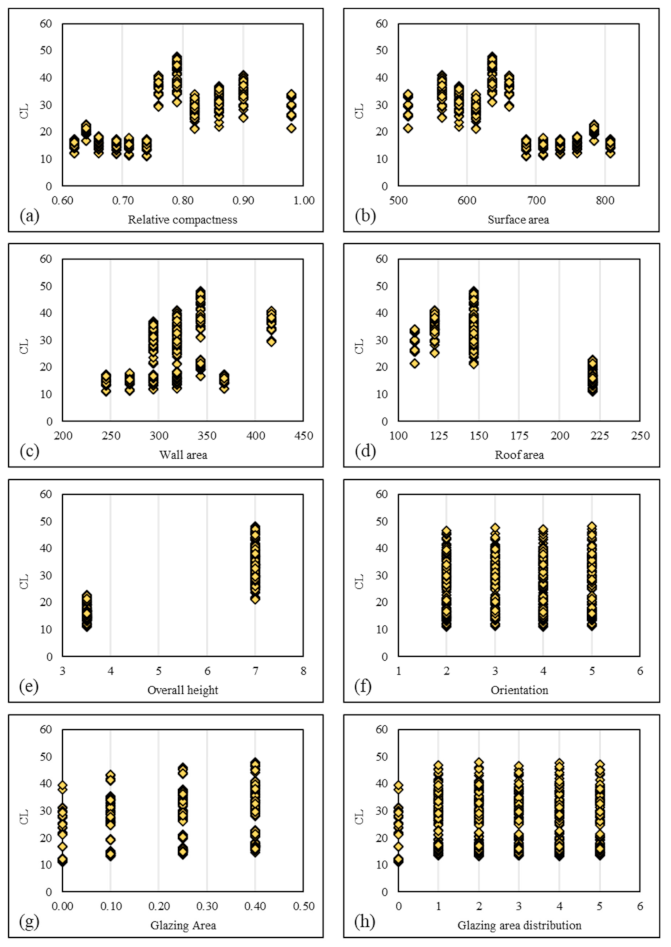

. Figure 3 also illustrates the relationship between the CL and the mentioned parameters.

In order to develop the proposed models, the dataset should be divided into two parts, namely, training and testing groups. In this study, it is conducted with respect to the broadly taken proportion of 80:20. In other words, out of all 768 data, 80% (i.e., 614 samples) are used in the training phase for analyzing the relationship between the CL and influential parameters, and the remaining 20% (i.e., 154 samples) are considered as testing data. This group is provided to the trained networks to assess their generalization capability.

In this dataset, some nominal parameters (e.g., orientations of north, east, south, and west) are represented by values (Figure 3) to be readable for the proposed neural system. These conversions are common ways for making the data accommodable with the mechanism of the model. For example, Moayedi et al. [149] replaced some nominal conditioning factors of a geotechnical issue with values. Apart from this, ANNs are known as powerful classifiers (for diagnoses issues [150] and natural hazard prediction [151]), meaning that they can nicely interpret the relationships between input parameters (or their representative values) and the given output by assigning weight factors. It is worth noting that the data are used in their original format (preferred over the normalized format), due to some factors. Most importantly, first, as Figure 3 shows, there is no large scattering or abrupt change in the behavior of the samples, and second, since a new method is going to be examined, the condition of the problem is better to remain the same as original in order to avoid unwanted effects. Nonetheless, the effect of normalization seems worth investigation in artificial intelligence models.

4. Results and Discussion

This study aims to evaluate the applicability of three notions of metaheuristic algorithms, namely, stochastic fractal search, grasshopper optimization algorithm, and firefly algorithm in the early estimation of cooling load in energy-efficient buildings. In this research, the algorithms are contributed to the problem by optimizing the parameters of an ANN used for estimating the CL by analyzing environmental parameters. The prediction results of the MLP neural network (MLPNN) tool, and the GOA–ANN, FA–ANN, and SFS–ANN ensembles, are presented and discussed in this part.

4.1. Hybridizing the MLPNN Using SFS, FA, and GOA

For executing the models, this study uses MATLAB (an abbreviation of "matrix laboratory, The University of New Mexico, New Mexico, US) programming language on a laptop system with these processing characteristics: Intel (R) Core (TM) i5-4460 CPU @ 3.20Hz RAM 6 Gb. In order to optimize an ANN using optimizer algorithms, they should be mathematically synthesized [122,152]. However, before doing this, the best structure of the ANN should be determined. To this end, the influential parameters, especially the number of hidden neurons, should be optimized. Based on previous studies and the authors’ experience, tangent–sigmoid (Tansig) is selected as the activation function of the ANN neurons. Then, 10 different MLPNN structures (with the number of hidden neurons from 1 to 10) are tested, and it was shown that six neurons generate the most reliable hidden layer. Note that this model was trained by Levenberg–Marquardt [153], which is a powerful candidate for this task.

Next, the predictive structure of the proposed MLPNN is provided to the GOA, FA, and SFS algorithms to construct the hybrid models. Given the training dataset, these algorithms try to find highly optimized weights and biases to build an efficient MLPNN. A total of 1000 repetitions is considered for each algorithm to have enough convergence. For each iteration, an evaluation is carried out by means of an objective function, which is set root mean square error (RMSE) in this study. The RMSE is formulated as follows:

$$RMSE=\sqrt{\frac{1}{Q}{{\displaystyle \sum }}_{i=1}^Q{\left[\left(C{L}_{i_{observed}}-C{L}_{i_{predicted}}\right)\right]}^2},$$

(9)

where the number of involved data is shown by Q, CL_{i observed}, and CL_{i predicted} stand for the CL values obtained by Tsanas and Xifara [143] and our intelligent models, respectively.

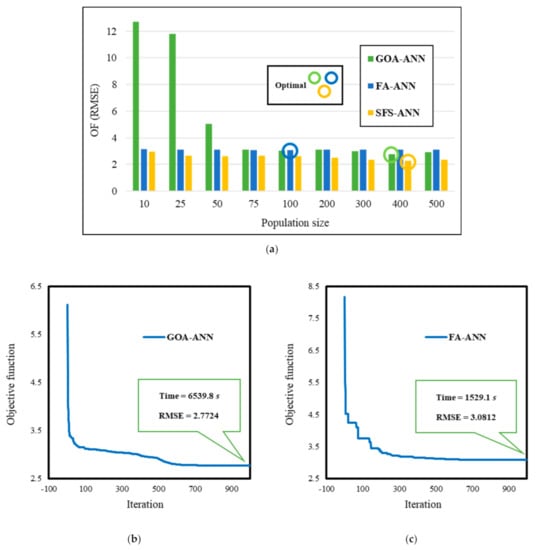

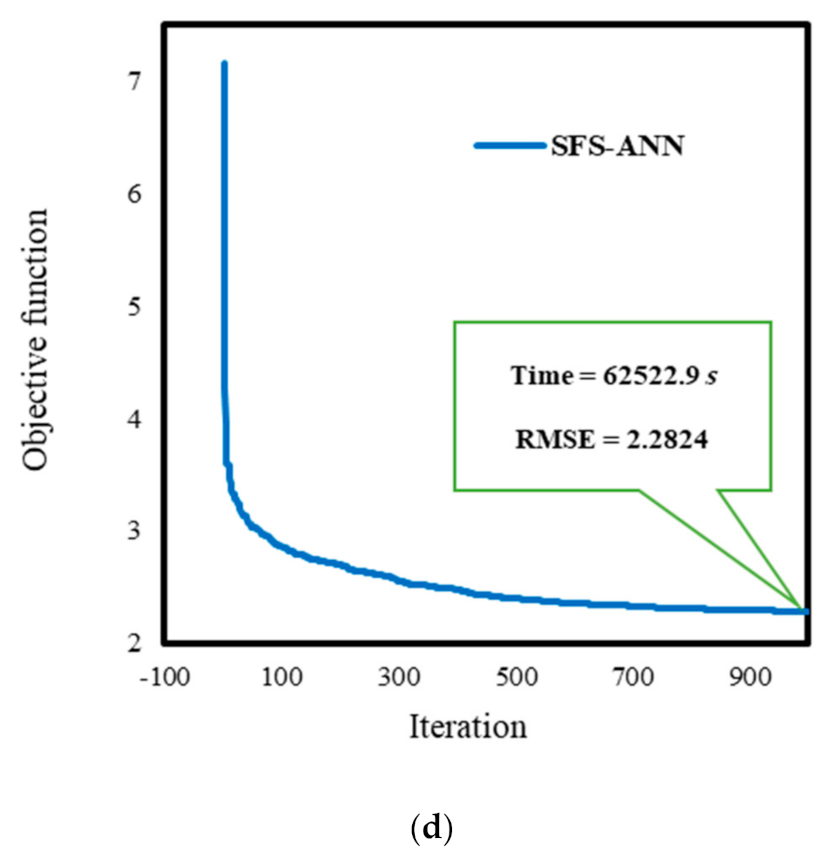

The size of the working population is an influential factor for the performance of the implemented ensemble models. Thus, a trial-and-error process is adopted to ensure that the best population size is used during the optimization. Each model is implemented with nine population sizes of 10, 25, 50, 75, 100, 200, 300, 400, and 500, and the RMSE of the latest iteration is recorded as the best response. The results are shown in Figure 4a. As is seen, the best optimization results for the GOA, FA, and SFS algorithms with 400, 100, and 400 population sizes, respectively. The optimization curves of the mentioned structures are also shown in Figure 4b–d. The other parameters of the SFS algorithm (maximum diffusion = 2 and the type of walk that was the first Gaussian walk) and three parameters of the FA algorithm (α = 0.5, β = 0.2, and γ = 0.1) were manually tuned based on previous experiences or by trial and error. These models are then used to estimate the CL.

4.2. Accuracy Criteria

Along with the RMSE, mean absolute error (MAE) is used to report the error of prediction in both training and testing phases. Moreover, the accommodation of the results is evaluated by the coefficient of determination (R²), which varies from 0 to 1. The larger the R² is, the higher the regression between the results becomes. These two indices (i.e., MAE and R²) are expressed by Equations (10) and (11), respectively.

$$MAE=\frac{1}{Q}{\displaystyle \sum }_{I=1}^Q\left|C{L}_{i_{observed}}-C{L}_{i_{predicted}}\right|$$

(10)

$$R^2=1-\frac{{{\displaystyle \sum }}_{i=1}^Q{(C{L}_{i_{predicted}}-C{L}_i{}_{observed})}^2}{{{\displaystyle \sum }}_{i=1}^Q{(C{L}_i{}_{observed}-{\overline{CL}}_{observed})}^2},$$

(11)

where the average of CL_{i observed} values are addressed by $\overline{CL}$_observed.

4.3. Accuracy Evaluation

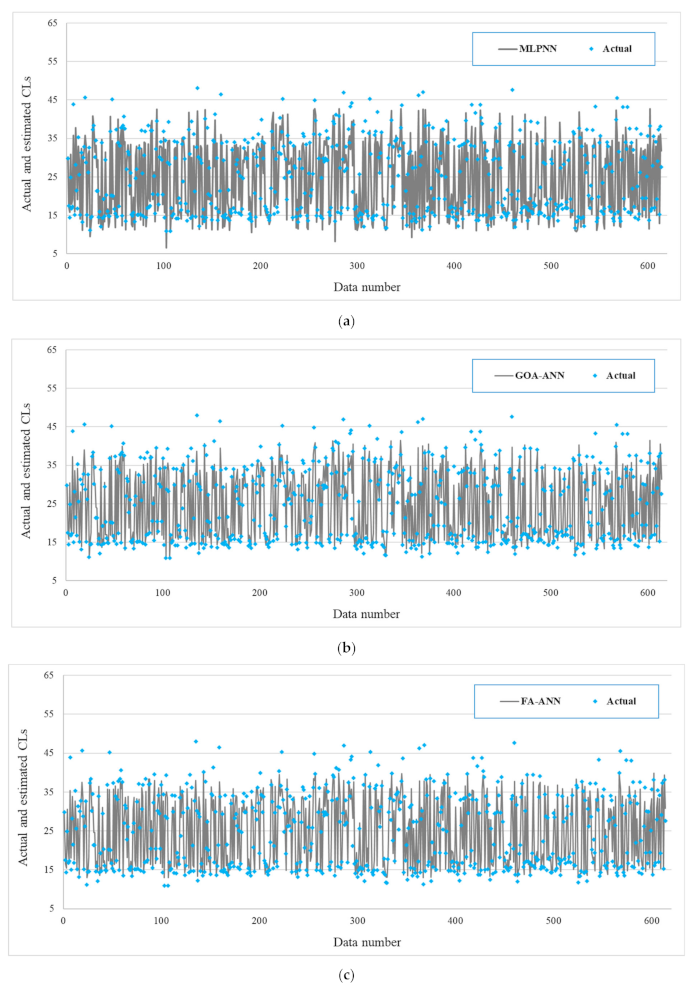

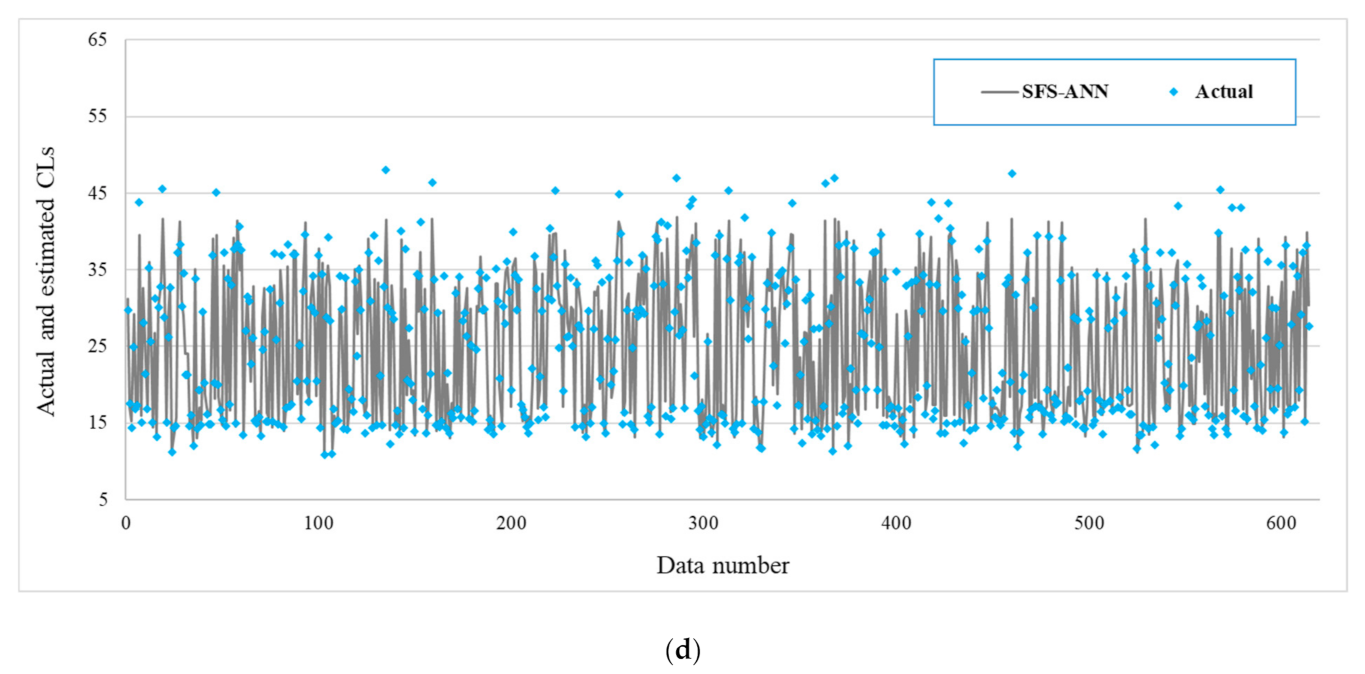

In the training phase, assessing the products showed a good understanding of the relationship between the CL and considered inputs for all used predictors. A comparison between the measured and predicted values of CL is also presented in Figure 5. It can be observed that the models can correctly forecast the overall CL pattern.

In addition, the used error criteria indicate a reasonable error in the learning process. In this regard, the RMSE obtained 3.3916, 2.7725, 3.0812, and 2.2824, respectively, for the MLPNN, GOA–ANN, FA–ANN, and SFS–ANN, respectively. It demonstrates nearly 18% and 9% accuracy enhancement by incorporating the GOA and FA, and more considerably, around 33% by employing the SFS. Reducing the MAE values from 2.6511 to 1.8972 (by 28.44%), 2.1468 (by 19.02%), and 1.6272 (by 38.62%) is another evidence for the efficacy of the applied metaheuristic algorithms. Moreover, the correlation for the training results is reported by the obtained R²s of 0.8804, 0.9156, 0.8957, and 0.9428.

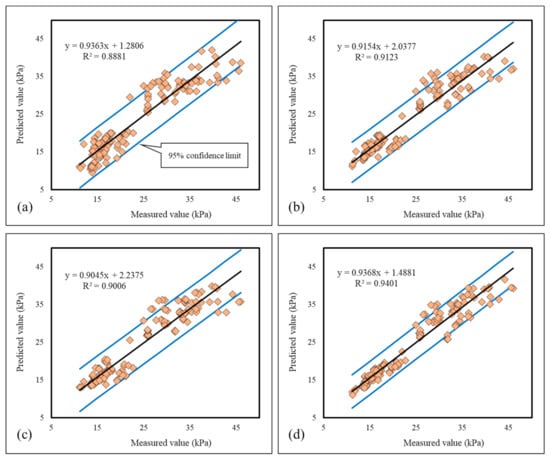

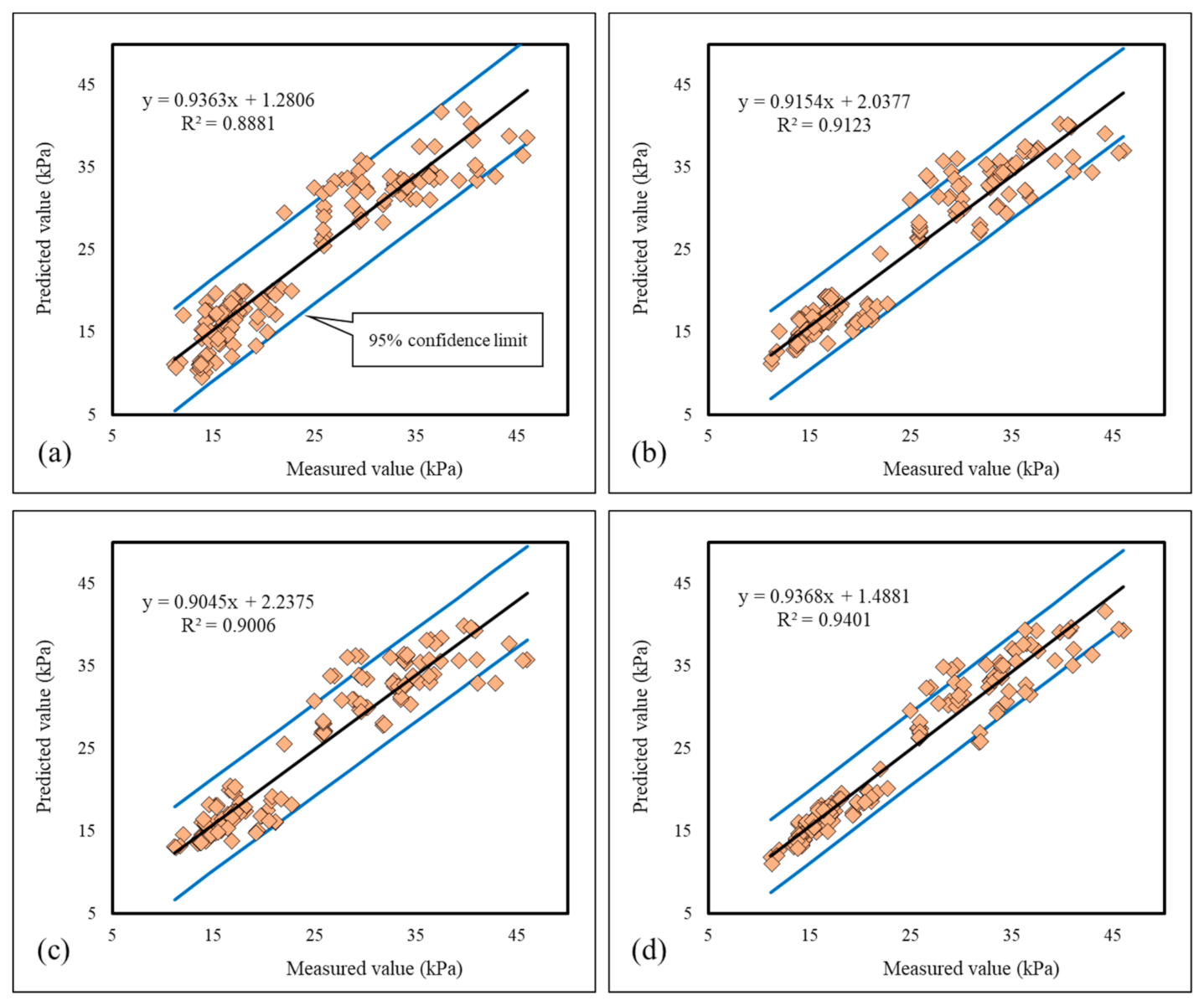

Figure 6 illustrates the regression chart for the testing data. According to this figure, the correlation of the MLPNN results grew from 88% to over 90% after functioning all three metaheuristic algorithms. It is also shown that with an R² of 0.9401, the SFS–ANN produced the most consistent outputs, followed by the GOA–ANN with 0.9123 and FA–ANN with 0.9006. A comparison between the estimated values for the largest and lowest CLs highlights the capability of the models better (

Table 2. Relative errors for predicting five maximum/minimum CL values.

	Measured Values	Predicted Values				Error (%)
		MLPNN	GOA-ANN	FA-ANN	SFS-ANN	MLPNN	GOA-ANN	FA-ANN	SFS-ANN
Minimum	11.17	11.07	11.22	13.08	11.82	0.93	0.45	17.14	5.80
	11.27	10.73	11.82	12.96	11.07	4.77	4.92	14.97	1.78
	11.73	11.41	12.67	13.14	12.01	2.70	8.04	12.03	2.40
	12.04	17.11	15.12	14.60	12.65	42.15	25.58	21.28	5.09
	13.43	10.39	12.89	13.52	13.13	22.65	4.03	0.68	2.20
Maximum	41.07	34.85	34.66	32.89	36.96	15.13	15.60	19.91	10.00
	42.86	34.04	34.51	32.83	36.32	20.59	19.49	23.39	15.26
	44.18	38.95	39.27	37.72	41.58	11.83	11.12	14.63	5.89
	45.52	36.61	36.89	35.61	39.45	19.57	18.96	21.77	13.32
	45.97	38.77	37.14	35.72	39.20	15.67	19.21	22.30	14.72

).

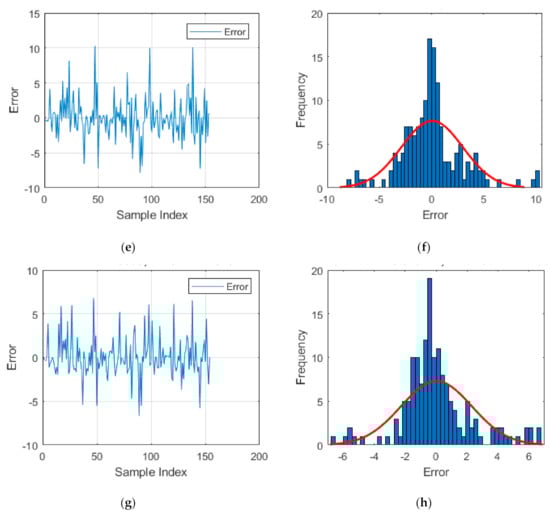

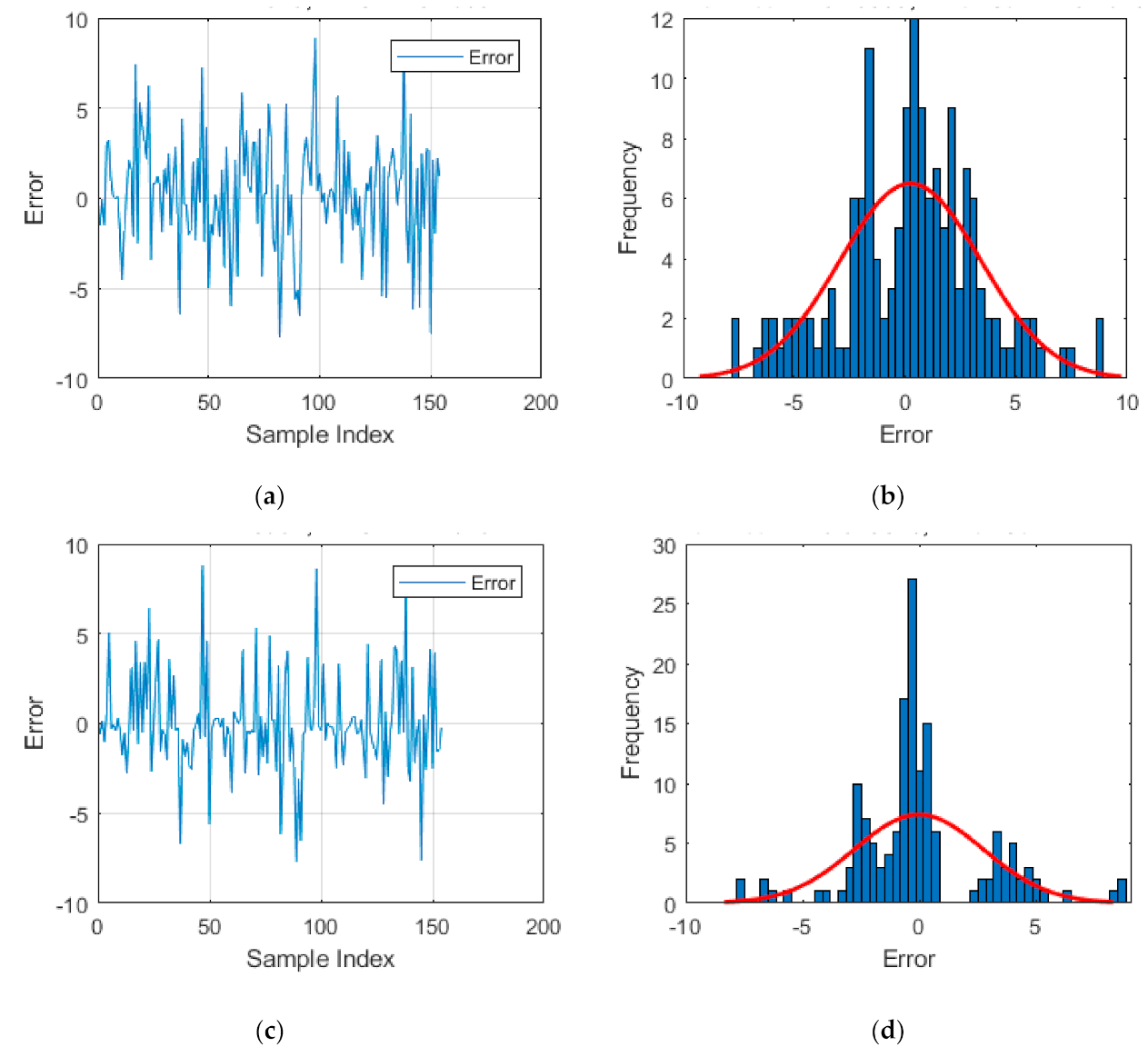

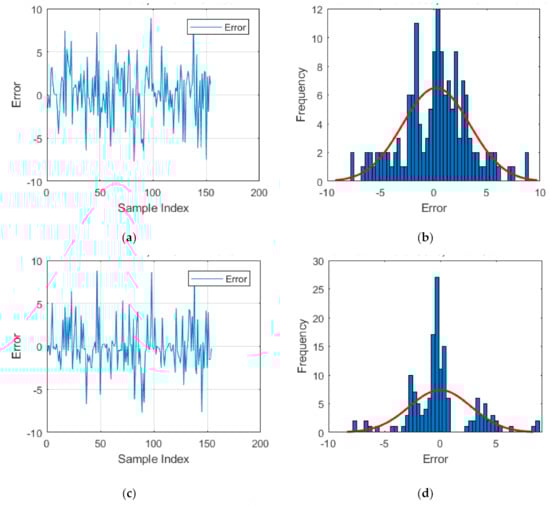

Moreover, the evaluation of the accuracy is conducted by measuring the error of testing data. In this sense, Figure 7a to h depicts the calculated error (= measured CL–predicted CL) for each sample, along with the histogram them showing the frequency of errors in specific ranges. The calculated RMSEs of 3.1663, 2.7628, 2.9411, and 2.2828 indicate around 12.74%, 7.11%, and 27.90% reduction in generalization error of ANN by using the GOA, FA, and SFS techniques, respectively. As for MAE, these values are 22.89%, 17.54%, and 35.56%, as the mean absolute error fell down from 2.4575 to 1.8951, 2.0265, and 1.5836.

Table 3. A summary of accuracy indices obtained in this study.

Models	Network Results
	Training			Testing
	RMSE	MAE	R2	RMSE	MAE	R2
MLPNN	3.3916	2.6511	0.8804	3.1663	2.4575	0.8881
GOA-ANN	2.7725	1.8972	0.9156	2.7628	1.8951	0.9123
FA-ANN	3.0812	2.1468	0.8957	2.9411	2.0265	0.9006
SFS-ANN	2.2824	1.6272	0.9428	2.2828	1.5836	0.9401

provides a summary of the results. Based on the resulted accuracy criteria, three major points can be deduced as follows:

(i).

All used artificial intelligence models are capable enough to learn properly, and subsequently, estimate the CL pattern for buildings with unseen conditions;

(ii).

Synthesizing with three metaheuristic algorithms of GOA, FA, and SFS can significantly improve the regular ANN competency;

(iii).

Comparing the efficiency of the used algorithms reveals the outstanding optimization capability of SFS in optimizing the ANN. After SFS, GOA outperforms FA.

4.4. Presenting the Neural Predictive Formula

As explained, all evidence asserted the superiority of the SFS technique in optimizing the ANN in this study. It means that the solution matrix (i.e., ANN weights and biases) proffered by this scheme develops a more flexible neural network. Therefore, in this section, the SFS–ANN ensemble is presented in the form of a neural-metaheuristic formulation to predict the HL by taking the effective parameters into the equation. It is expressed by Equation (12), which is made of six weights and one bias term belonging to the unique output neuron. As can be derived, this formula needs to receive some inputs shown by A, B, …, F. These parameters symbolize the response of the hidden neurons (see Figure 1), which are calculated by Equation (13). Considering the number of input parameters and hidden neurons, the main matrix comprises eight columns and six rows, which are multiplied by the input matrix. Next, the bias matrix is added, and the Tansig activation function is applied. It is worth noting that to use this predictive formula, the values must be normalized, meaning that the output of the equation is normalized and it should be transformed to the real extent.

CL _SFS-ANN = 0.1898 × A + 0.9542 × B − 0.3437× C + 0.0578 × D + 0.8368 × E − 0.8240 × F − 0.2414

(12)

$$\begin{array}{ll}[A B C D E F]=& \mathit{Tansig} (([1.0336 0.2712-0.9112 0.6027 0.8083 0.1966 0.1951 0.0468 0.7463 -0.4399-0.6948-0.6665\\ & \hspace{1em}-0.7741-0.5713 0.4305-0.5282 0.2431-0.8419 0.3706-0.4923-0.5359-0.0527\\ & \hspace{1em}-1.0335 0.7495 0.4635 0.9505 0.6423-0.0044-1.0053-0.5465-0.3986 0.2620-0.2864 0.1648\\ & \hspace{1em}-0.6859-1.1583-0.4441 0.1043 0.1328-0.9595 0.4652 0.9660 0.8049-0.8814 0.1853-0.5100\\ & \hspace{1em}-0.4416 0.0622]\left[RC \mathit{SA} \mathit{WA} \mathit{RA} \mathit{OH} \mathit{Orientation}\mathit{ }\mathit{GA} \mathit{GAD}\right])\\ & \hspace{1em}+\left[-1.7514-1.0509-0.3503 0.3503-1.0509 1.7514\right])\end{array}$$

(13)

4.5. Future Projects

This study presented a reliable application of optimized intelligent models for dealing with an important energy-related issue. Due to the improvements observed, the suggested method can emerge in the form of a more user-friendly platform (such as graphical user interface) in order to create an effective early prediction system that yields the cooling load by receiving certain input factors. It could be of great interest for engineers and architects to achieve the most optimal design of a residential building (e.g., with respect to geometries).

However, it is believed that the efficiency of the model can increase by doing a number of ideas. Some of these ideas are related to the data. First, the results are recommended to be compared with the case of using normalized data. It should be investigated which type of data are more suitable for these simulations. Second, using an optimal number of inputs may lead to a less complex method, and consequently, a fewer number of parameters to be optimized. Associating the HL along with the CL turns the problem into a double-target simulation, and the benefit should be evaluated versus the complexity caused. Another potential subject could be working on different types of buildings in one specific study. By doing this, the model can be generalized to many other usages of buildings. Lastly, further studies are recommended to focus on comparative efforts in order to point out the most optimal algorithm for coupling with neural networks or even other intelligent tools.

5. Conclusions

In this study, for the first time, three robust optimizers of stochastic fractal search, grasshopper optimization algorithm, and firefly algorithm were applied to the problem of the cooling load early prediction. These algorithms were used to optimize the performance of a neural network by adjusting the computational parameters. The findings revealed, firstly, that the applicability of neural computing for analyzing the non-linear relationship between the CL and eight environmental parameters. Secondly, all three metaheuristic algorithms could promisingly optimize the ANN for the betterment of accuracy. Last but not least, from a comparison among the results, it was concluded that the SFS-based hybrid model enjoys more accuracy than GOA and FA. The governing neural-metaheuristic relationship of the SFS–ANN was also presented in the form of a viable formula for mathematically predicting the CL.
