Applications of Carbon in Rechargeable Electrochemical Power Sources: A Review

Abstract

Rechargeable power sources are an essential element of large-scale energy systems based on renewable energy sources. One of the major challenges in rechargeable battery research is the development of electrode materials with good performance and low cost. Carbon-based materials have a wide range of properties, high electrical conductivity, and overall stability during cycling, making them suitable materials for batteries, including stationary and large-scale systems. This review summarizes the latest progress on materials based on elemental carbon for modern rechargeable electrochemical power sources, such as commonly used lead–acid and lithium-ion batteries. Use of carbon in promising technologies (lithium–sulfur, sodium-ion batteries, and supercapacitors) is also described. Carbon is a key element leading to more efficient energy storage in these power sources. The applications, modifications, possible bio-sources, and basic properties of carbon materials, as well as recent developments, are described in detail. Carbon materials presented in the review include nanomaterials (e.g., nanotubes, graphene) and composite materials with metals and their compounds.

1. Introduction

The development of technology, exponentially accelerating in modern times, is closely related to rising energy needs. Moreover, the human population is constantly rising, reaching 7.8 billion in 2020 according to the UN [1]. The changes in population are leading to a further increase in energy demands. This growing demand is not without influence on the natural environment. Recent increases in pollution and CO₂ emissions are causing a gradual, global shift toward more sustainable energy sources than currently widespread fossil fuels. For example, the European Union aims to be climate-neutral by 2050, as presented in the European Commission’s European Green Deal [2]. This transition to renewable energy sources requires efficient energy storage. Energy production by renewable sources is characterized by a variable output and inconsistent behavior. As a result of these properties, there is a growing demand for fast and cheap energy storage, which can be used to capture the excess energy generated during the periods of high production. This stored energy can then be released when required by a drop in production or a rise in energy usage.

In recent times, there has been great interest in developing materials that will allow effective and economically viable energy storage. This goal can be realized by improvements in currently known power sources, as well as by introducing completely new solutions. One of the materials that is often used during development of such technologies is carbon. It is used in various energy storage technologies, including primary and secondary batteries, fuel cells, flow batteries, and capacitors [3,4,5,6,7,8]. Carbon is a very versatile element, capable of forming various types of bonds and compounds, leading to its very rich organic chemistry. At the same time, even in its elemental form, it can create many different allotropic forms with interesting physical and chemical characteristics. Moreover, recent advances in nanotechnology have opened new avenues of carbon usage [9,10,11]. Carbon nanomaterials have very unique properties, further broadening the possibilities of carbon application in energy storage. The versatility of carbon allows it to find use in a wide range of electrochemical power sources.

The present review describes the uses of carbon in its elemental form in modern rechargeable batteries. The focus of the paper is placed on lithium-ion and lead–acid batteries, as the currently most popular battery types on the market [12]. At the same time, some of the promising technologies that can replace them in the future are discussed, namely, lithium–sulfur and sodium-ion batteries, as well as supercapacitors. Recent developments and characteristics of the carbon materials used in the mentioned power sources are presented.

The described subjects are of a great interest to the scientific community. According to Scopus [13], there have been almost 23,000 papers regarding the topics “lithium-ion” and “carbon”. There have also been many papers in the areas of other battery types; for a search combination of “carbon” and “sodium-ion”, there were over 18,000 studies, while there were almost 18,000 for a search combination involving “lead–acid” and similar number for a search combination involving “supercapacitor”. The joint topics of “lithium–sulfur” and “carbon” have led to over 5000 works. Additionally, in the years 2017–2020, the number of published papers grew annually for each of these subjects.

Selected power sources have different characteristics, such as specific energy, specific power, cycle life, and cost. These variations result in diverse applications found for these sources. A summary comparing the properties of the power sources described in this review is presented in

Table 1. Comparison of different rechargeable electrochemical power sources [14,15,16,17,18,19,20,21,22,23,24].

	Rechargeable Electrochemical Power Source
	Lead–Acid Batteries	Lithium-Ion Batteries	Lithium–Sulfur Batteries	Sodium-Ion Batteries	Supercapacitors
Specific energy (Wh/kg)	35–50	80–180	150–350	75–150	0.05–10
Specific power (W/kg)	150–400	200–1000	100–300	up to 1500	2000–10,000
Cycle life	Moderate (up to 1000 cycles, 2000 cycles for special designs)	High (up to 3000 cycles)	Low (up to a few hundred cycles)	Moderate (up to 1000 cycles)	Very high (over 10,000 cycles)
Self-discharge rate	Low (2–8% per month)	Low (2–10% per month)	Moderate (over 15% per month)	Low (small % per month)	High (over 10% per day)
Approximated cost per unit energy (USD/kWh)	80–200	170–350	~200 (estimated to be lower than lithium-ion batteries)	Estimated as lower than lithium-ion batteries	Over 10,000
Typical applications	SLI batteries; energy storage systems (power walls, UPS systems); vehicular applications (micro- and mild-hybrid electric vehicles)	Portable electronics; vehicular applications (hybrid-electric, electric, and plug-in-hybrid electric vehicles); energy storage systems	Potentially electric vehicles; portable electronics	Potentially electric vehicles; power tools; small energy storage systems (home storage)	Portable electronics; voltage stabilizers; potentially vehicular applications (start–stop and micro-hybrid electric vehicles)

.

2. Lead–Acid Batteries

Lead–acid batteries are used in automotive, traction, and backup applications and are among the biggest parts of the rechargeable battery market, comparable to lithium-ion batteries. The value of produced lead–acid and lithium batteries has almost been equal in recent years; however, taking into account the total energy, lead–acid batteries account for over 70% of the market [12]. Despite the progress in the construction of newer battery types, lead–acid batteries are still a technology that is very cost-effective, proven, reliable, and easily recyclable [3,25]. Carbon is one of the materials commonly used in lead–acid batteries. There are three main parts of these batteries that can be improved by the usage of elemental carbon: the active mass, the current collectors, and the negative plate as a whole [26,27,28].

First, carbon can be used as an additive to both the negative and the positive active mass (NAM and PAM, respectively). However, the use of carbon in NAM, as part of a so-called “expander”, is much more common and is currently a very widespread practice [25,28]. Such an addition to NAM during its preparation improves the electrochemical properties of the finished battery, including its cycle life, charge efficiency, and specific energy [25,29]. This addition is especially important when the battery is working at high-rate charge/discharge currents. For example, lead–acid batteries with carbon additives show a marked improvement in the high-rate partial stage of charge (HRPSoC) conditions, which are relevant for hybrid vehicle usage [28,30]. Figure 1 presents the increase in the number of completed cycles for batteries with carbon additives in NAM compared to a blank battery without such additives.

There have been a few proposed mechanisms of beneficial carbon influence as an NAM additive, but three are most often recognized [27,28,32,33]. First, carbon can change the structure of the active mass and form a conductive skeleton inside it. When NAM is discharged, metallic lead is transformed into nonconductive lead(II) sulfate(VI). Addition of carbon helps the active mass to retain some conductivity and provides a larger active surface area, even when deeply discharged. The second mechanism is a mechanical restriction of the growth of lead(II) sulfate(VI) crystals. The kinetics of dissolution of these crystals during recharging depends on their size. Bigger crystals have lower surface area compared to their volume; thus, their transformation into lead is slower. During a typical charging process of the battery, some of the larger crystals are not reduced fast enough and remain as lead(II) sulfate(VI). This process of plate sulfation leads to some of the active mass not taking part in charge/discharge processes and gradual loss of capacity of the battery. A carbon additive in NAM relieves this problem, as it becomes incorporated into the pores of the mass, which allows it to physically restrict the available space in them and inhibit the growth of lead(II) sulfate(VI) crystals. This steric hindrance to sulfation improves the cyclability of the battery. In the third mechanism, the carbon additive in NAM can work as a capacitor, storing additional energy in its electric double layer. This process is faster than the typical faradaic process in the active mass. The capacitive effect of carbon additives leads to improved charge acceptance and power when using high-rate currents [27,28,32,33].

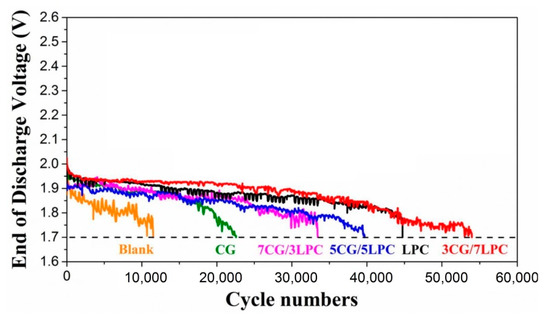

Types of carbon material often used as an NAM additive include activated carbon, carbon black, graphitic powder, graphene, or nanomaterials (e.g., nanotubes, graphene, nanofibers) [32,33,34,35,36]. Nanotubes can be single- or multiwalled, and their surface can be modified to further improve their properties [36,37]. Some of the important properties of carbon materials used as additives are surface area, conductivity, affinity to lead, porosity, hydrogen evolution overpotential, and surface chemistry. Typically used carbon additives have specific surface area and capacitance greater by orders of magnitude than the NAM. When working as a capacitor, an addition of 2 wt.% carbon with a specific capacitance of around 200 F/g can provide around 1–2% of the total capacity of the plate, which is enough when charging/discharging for a short time at high-rate currents [29]. The conductivity of the material depends, among other factors, on the presence of connected domains of carbon atoms with a graphite structure. Amorphous carbons with small particle size, e.g., activated carbon, are in general characterized by worse conductivity [28]. Conductivity is not an important parameter regarding the steric effect of additives on sulfation, but the carbon material needs to be able to be properly mixed with the active mass.

The correct preparation of the active mass when mixing the paste and increased hydrogen evolution are two important aspects that need to be considered when using carbon additives. Carbon materials change the physical and chemical properties of the active mass. In order to achieve a mass with appropriate characteristics for pasting plates, some modifications in the pasting process or composition of the mix may be required. Addition of carbon also leads to acceleration of the hydrogen evolution reaction, resulting in losses of the electrolyte during charging of the batteries. These additives in general have lower hydrogen evolution overpotentials than lead; moreover, they can contain impurities and increase the active surface area, further facilitating the oxidation of hydronium ions.

One of the ways to alleviate the hydrogen evolution problem involves new types of composite carbon materials doped with heteroatoms. Modification of the structure of the carbon material by doping with metals with high hydrogen evolution overpotential allows limiting the reaction rate of hydrogen evolution, while retaining the positive influence of carbon [37,38,39]. Doping with nonmetals, e.g., nitrogen or phosphorus, can also provide similar benefits by modifying the electron density on carbon atoms and the strength of their bonds with hydrogen [40,41].

Carbon additives to NAM are a very important part of the lead–acid battery technology. In the past, they solved the problems of premature capacity loss introduced when organic separators were replaced by synthetic materials [25]. Today, their usage allows surpassing the limitations appearing when lead–acid batteries work in an HRPSoC regime. This topic is very important when taking into account the current energy transformation and spread of electric and hybrid vehicles.

Carbon materials can also be used as an additive to PAM. However, this practice is not so widespread, as they are less stable in the working conditions of PAM and can breakdown during the first cycles of life of the battery. Their positive influence on cycle life is also less pronounced than in the case of NAM or even not observable. On the other hand, there is some research indicating an improvement in the behavior of PAM when some carbon additives are used. An increase in cycle life and capacity when carbon fiber was added was reported [23,42]. The additives can reduce PAM softening and shedding, as well as improve conductivity and porosity [23,42,43]. There are fewer studies in this area than in the case of NAM additives. Nonetheless, the research is still ongoing, and introducing new types of carbon materials, including composites and nanomaterials, gives an opportunity to further improve PAM properties [34,44,45]. Additionally, carbon used as a paste additive can be based on biological sources. Improvements in the characteristics of both PAM and NAM were reported when using porous rice husk-based carbon as an additive [46,47].

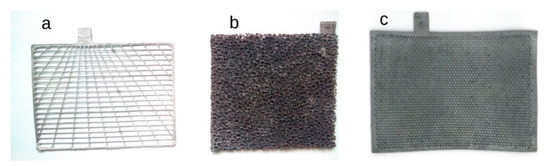

Another part of a lead–acid battery, namely, current collectors, can also be improved by using carbon materials. Typically, a collector is a grid cast from lead alloy. It can be replaced by a much lighter reticulated carbon material, e.g., reticulated vitreous carbon (RVC), as proposed by Czerwiński et al. [48,49,50]. When used in this role, glassy carbon materials are resistant to corrosion while working in the negative plate [51]. On the other hand, the positive plate of the lead–acid battery experiences conditions causing corrosion of reticulated carbon collectors. To use the carbon collectors in this environment, they need to be protected by a corrosion-resistant layer, for example, a galvanically deposited thin layer of lead [49,52]. This protective layer improves both resistance to corrosion and mechanical properties. Using the reticulated carbon collectors can lead to a decrease in weight, an increase in specific energy and active mass utilization, better mechanical support for the mass, and longer cycle life [26,53,54,55,56].

Different forms of carbon can be used as the reticulated current collector. First experiments mainly concerned RVC [49,50,52]. Further studies investigated different materials, such as pitch-based foams [57,58], graphite foams [56], graphite foils [59], graphite punched sheets [60], polymer-graphite composites [61], honeycomb carbon structures [55,62,63], carbon fiber felt [64], or conductive porous carbon [54]. In general, for the mentioned materials, negative plates showed good results regarding capacity and cycle life. The results for positive plates were more mixed. Better cycle life than in comparable standard batteries could be achieved when the positive collectors were prepared using suitable materials and optimal lead (or lead alloy) coatings [54]. Some of the solutions already available on the market use reticulated carbon collectors, e.g., the Oasis battery produced by Firefly Energy in USA. The use of new types of lighter, reticulated current collectors is a promising solution which improves the main weakness of lead–acid batteries: their low specific capacity. At the same time, this new technology can lead to improvements in other areas, such as cycle life, temperature performance, or environmental impact. Figure 2 shows the differences between various types of standard and reticulated collectors.

The capacitance of carbon materials not only plays an important role when the material is used as an additive to the negative mass, but they can also be used to replace a whole standard negative plate with a capacitor plate [65,66]. The capacitor plate uses the capacitance of the carbon material to store charge instead of using typical faradaic reactions in the active mass. Such a solution delivers more power and better charge acceptance but lowers the capacity of the battery. The capacitor plate can be used instead of the standard negative plate or in parallel with it. The former solution is used in Axion Power’s Pb-C battery, whereas the latter is used in the Ultrabattery developed by the Australian Commonwealth Scientific and Industrial Research Organization. These hybrid batteries were characterized by improved power, lifespan, and high-rate charge acceptance [3,66,67]. The properties of the batteries with capacitor plates improve the prospects of using lead–acid batteries in electric and hybrid vehicles.

The use of carbon allowed drastic improvements of current batteries and helped them achieve their current, strong market position. At the same time, new technologies improving the construction of this type of battery are constantly being developed. The main technologies incorporating carbon were described above: additives to the active mass, reticulated current collectors, and capacitor electrodes. There are different forms of carbons being used in these applications with more advanced materials, e.g., composites or nanomaterials, leading to better tailored properties at an increased cost of manufacturing. Using carbon materials allows the continued use of lead–acid batteries as a cheaper and safer alternative to newer battery types. At the same time, lead–acid batteries can constantly improve their electrochemical parameters and achieve good performance. Their main drawback is currently their low specific energy compared to other battery types. Depending on charge/discharge conditions, their cycle life can also be restricted. Current research on the improvement of lead–acid batteries focuses in great part on increasing their capacity and extending their HRPSoC cyclability, while maintaining their low cost and efficient recycling. The total market value of lead–acid batteries is still growing, even in recent years, especially in developing countries [12]. They have good prospects for the near future, as they are an attractive option for the growing market of storage of energy produced from renewable sources.

3. Lithium-Ion Batteries

Lithium-ion batteries are one of the most widely used secondary batteries with a dynamically increasing market share. The worldwide market for lithium-ion batteries was over 55 billion USD in 2017 [12]. In Li-ion batteries, the positive electrode material is an intercalated lithium compound, e.g., LiCoO₂, LiMn₂O₄, lithium nickel manganese cobalt oxides (NMC, layered compositions with different Co:Ni:Mn ratios), or LiFePO₄ [15,68,69]. Most commercial Li-ion batteries have carbon materials as a negative electrode. When a battery is charged, the lithium ion from the positive electrode get inserted into the negative electrode, while the opposite occurs during discharge. During discharge, the carbon material electrode works as an anode. The basic parameters determining the choice of the anode material are the lithium intercalation and de-intercalation reversibility, chemical, thermal, and electrochemical environment, electrical conductivity, cyclic stability, and cost. Due to its good electrical properties and long cycle life, graphite is the most commonly used anode material [70,71]. The stoichiometry of lithium bonding (one Li⁺ can be intercalated per six C atoms—the limiting composition is LiC₆) limits the theoretical specific capacity of graphite to around 370 mAh/g [70,72].

Li_xC₆ ↔ C + xLi⁺ + xe⁻.

(1)

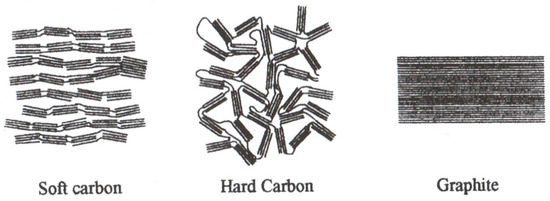

Non-graphitic carbon materials are also used as the negative electrode material. These materials are characterized by the appearance of amorphous areas together with more crystalline ones. Non-graphitic carbons are broadly classified into soft carbons (graphitizable carbons, where crystallites are stacked in the same direction) and hard carbons (non-graphitizable carbons, where crystallites have disordered orientation) [68]. Schematics of the structure of selected carbon materials are presented in Figure 3.

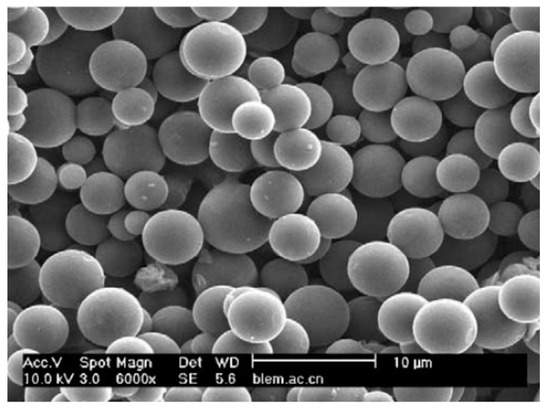

The main advantages of soft carbons are long cycle life, coulombic efficiency over 90%, and highly reversible specific capacity [70]. One of the first soft carbon materials applied in lithium-ion batteries was coke, which offered a capacity around 180 mAh/g and stability in the presence of propylene carbonate-based electrolytes. Currently, various carbon types are used in negative electrodes e.g., graphitic spheres and natural graphite [15,70,73]. Additionally, the improvement of cyclic stability of soft carbons can be achieved by modifying the surface of the carbon material, e.g., by a silane coating [74]. However, the specific capacity of these materials is similar to that of graphite. These properties result quite often in the use of soft carbons in small, low-power devices (portable electronics) but not in hybrid electric vehicles and electric vehicles.

The second group involves hard carbons. These materials offer higher capacity, typically around 500–1000 mAh/g [15,70]. The relatively high capacity of hard carbons compared to graphite can be explained by the fact that lithium in hard carbons additionally occupies the nearest neighbor sites between pairs of graphene sheets [75]. Another mechanism proposed is that lithium may also bind to the hydrogen-containing regions of carbon [76,77]. Hard carbons show a random alignment of graphene sheets and slow lithium diffusion inside the carbon structure. In turn, the disadvantages of hard carbons are its low initial coulombic efficiency and high loss in initial capacity. In connection with these problems, numerous works on hard carbons modification were carried out [78,79,80,81,82,83]. One of the proposed solutions is carbon surface modification by oxidation. It was observed that a mild oxidation of carbon leads to pore production, which is a crucial process in obtaining higher capacity [78]. Another solution is the application of a soft carbon layer on hard carbon. This modification resulted in a high-power performance and good cycling stability [79]. An improvement of the working parameters of negative electrodes based on hard carbons can also be achieved by using high-porosity carbons. Hu et al. [80] obtained and applied hard carbon spherules as a porous carbon material. A scanning electron microscope (SEM) image illustrating the morphology of such a material is presented in Figure 4. The proposed electrode showed an improvement of electrochemical performance and a capacity of almost 390 mAh/g.

Similar capacity (344 mAh/g) was shown by the material obtained by Rao et al. [81]. Hard carbon in this study was prepared by calcination of polypropylene cyanide. The obtained material showed an initial coulombic efficiency over 87% and a superior cycle stability at different current rates compared to graphite. Li et al. [82] examined a microporous hard carbon prepared from potato starch. The electrochemical tests revealed a good cyclic life and high reversible capacity (around 530 mAh/g). Similarly, nanoporous hard carbon obtained from pyrolyzed sucrose exhibited a specific capacity close to 500 mAh/g (at 0.2 C rate) and an equally good capacity, around 330 mAh/g at 5 C rate [83].

Hard carbons in general are characterized by a faster decrease in capacity compared to soft carbons but higher specific capacity (above 500 mAh/g), especially in the case of highly porous materials. At the same time, the price of hard carbons is only about 20% higher than soft carbons. Nevertheless, due to their high energy and power density, they are widely used in batteries in hybrid-electric and electric vehicles.

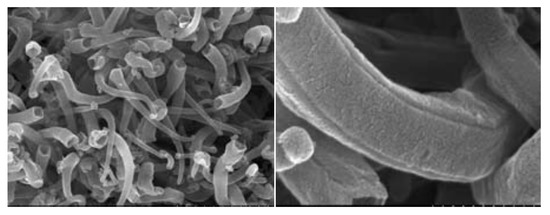

Recently, carbon nanomaterials (such as carbon nanotubes, nanofibers, and graphene) have become very promising candidates for use as anodes in lithium-ion batteries. Compared to other materials, carbons nanomaterials have a higher specific theoretical capacity, e.g., 1116 mAh/g for single-walled nanotubes in LiC₂ stoichiometry [84,85,86]. Nanomaterials also offer other advantages, such as stable cyclic behavior and increased lithium ions diffusion rate. The use of carbon nanotube composites with other carbon materials allowed for the improvement of many parameters, such as electrical conductivity, transport properties, and thermal and mechanical stability. On the other hand, the basic disadvantages of nanosized particles are high surface reactivity, low coulombic efficiency during the first cycle, tendency to aggregation during cycling, and higher price [72,87]. Moreover, in practice, it is difficult to achieve the theoretical capacity, and the properties of carbon nanomaterials depend on the preparation methods and pretreatments (e.g., ball milling, acid treatment) [85]. Various morphological modifications of the nanotubes are known, which allow them to reach a capacity of approximately 1000 mAh/g [88,89]. Appropriate modification of parameters such as the tube diameter, wall thickness, or porosity allows improving the working parameters of such anode materials. Even the shape of the nanotubes can be changed. Bamboo-shaped carbon nanotubes produced by using a cresol precursor are characterized by an improved cycle stability and electric conductivity [88]. Quadrangular carbon nanotubes have a high specific capacity and good high-rate performance [89]. High reversible capacity was also found in the case of chemically nano-drilled multiwalled carbon nanotubes [90]. The structures of such materials are presented in Figure 5 and Figure 6.

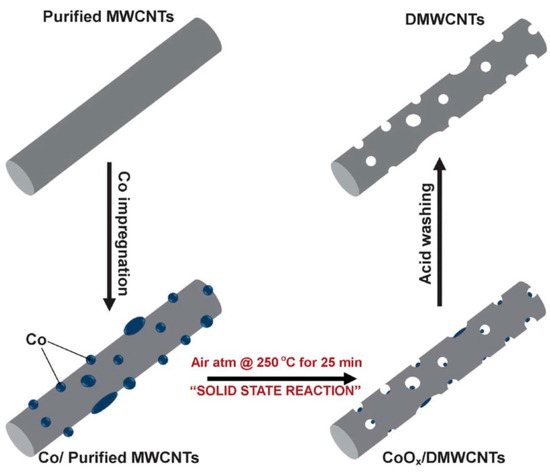

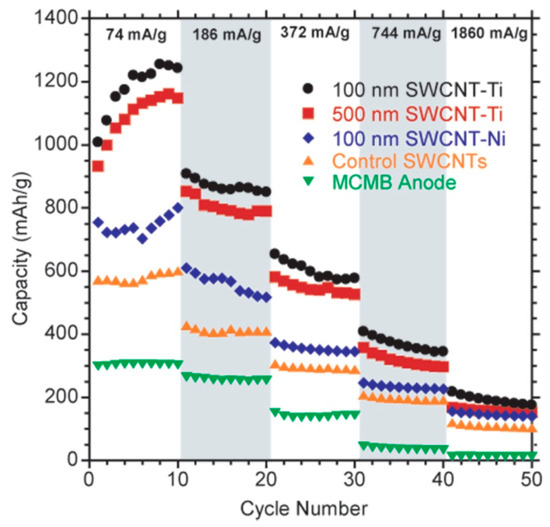

A considerable number of studies investigated composites of carbon nanomaterials (nanotubes, nanofibers) with semi-metals, metals, and metal oxides such as Si, Ti, TiO, MnO, Fe, Fe₂O₃, Fe₃O₄, Co, Ni, Cu, Ge, Nb₂O₇, Sn, SnSb, and SnO₂ [91,92,93,94,95,96,97,98,99]. The use of composite material allows for the improvement of many parameters. It has been found that the use of a nickel and titanium contact in a free-standing single-walled carbon nanotube electrode increased both the reversible lithium ion capacity and the rate capacity [92]. Another example is the Fe₃O₄–carbon nanotube composite presented by Wu et al. [95], which exhibited a high reversible capacity, high rate capability and remarkable capacity retention. Graphene is yet another material of interest for use as the anode material in lithium-ion batteries with a specific capacity at the level of 780–1120 mAh/g, depending on its structure [100,101,102]. Anode materials based on graphene sheets exhibit a high specific capacity (around 1000 mAh/g) and long cycling capability, up to 3000 cycles [100,103,104]. Graphene composite materials are also known to be used as anodes. Good anode properties, highly reversible capacity, and small loss from initial capacity were exhibited by graphene composites with silicon [93], SnO [105], or Fe₃O₄ [106]. Figure 7 illustrates how the introduction of nanomaterials and composite materials can lead to marked improvements in characteristics of the anode.

In recent years, lithium titanate with a spinel structure (LTO) has been studied as a potential anode material characterized by a good cycling stability [107,108]. Over the last 10 years, there has been a continuous increase in the number of studies from about 50 publications per year in 2010 to almost 300 in 2020 [13]. Carbon materials are also used as additives to LTO anodes. Carbon nanotubes and graphene used as additives provide good contact between particles and conductivity at the interfaces [109,110,111]. Additional solutions for improving electrochemical properties and capacity retention are carbon additives with a large surface area such as carbon black, mesoporous carbon, and amorphous carbon [112,113,114].

Another new research area involves lithium-ion capacitors, a combination of a a faradaic lithium-ion battery anode and a supercapacitor cathode, which offers rapid charging–discharging capability and long cycle life. In this promising technology, carbon materials can be used in both the positive and the negative electrode [115,116,117]. Lithium-ion capacitors combine high energy density with high power density and excellent durability. Due to this, an important potential application for lithium-ion capacitors is represented by energy recovery systems in industrial machinery and transportation systems. Hybrid ion capacitors can be successfully used in regenerative braking energy harvesting from trains, heavy automobiles, and ultimately electric and hybrid-electric vehicles.

The carbon materials used during the earlier phases of lithium-ion battery development were mainly graphite and soft and hard carbons. With maturing of the technology and the introduction of new available techniques and concepts, other carbon materials were employed. In particular, the use of carbon nanomaterials is very promising. They can lead to large improvements of the capacity and the cycle life of lithium-ion batteries. Their successful and economically viable introduction into mass-produced battery models would provide lithium-ion batteries with a very dominant position in the current market. Some of the disadvantages of currently used lithium-ion batteries are their temperature limitations, limited safety, and comparatively high cost. To address these problems, many potential solutions are being researched, including technologies beyond the scope of this review, e.g., solid-state electrolytes or new electrode compositions. The recent growth of portable electronic devices and electric vehicles creates a very attractive market for lithium-ion batteries with proper characteristics and provides strong incentives for developing further improvements in these batteries.

4. Lithium–Sulfur Batteries

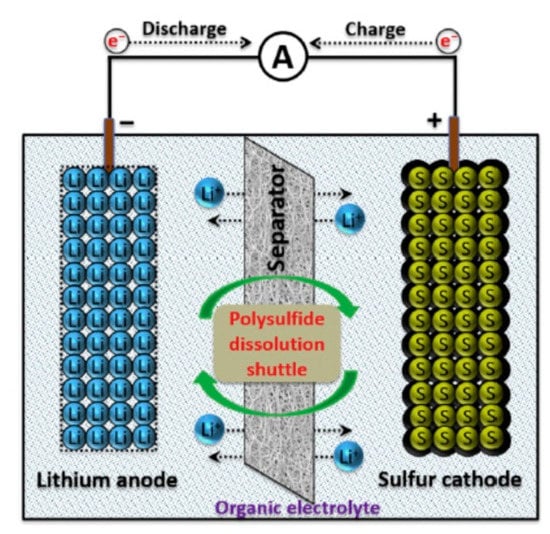

Lithium–sulfur batteries are a promising technology which can replace contemporary lithium-ion batteries. The general concept of Li–S batteries is presented in Figure 8. They are characterized by an impressive theoretical capacity, equal to 1672 mAh/g for the sulfur electrode and 3861 mAh/g for the lithium electrode [118,119,120]. Additionally, the cost of their production is low, as the elements used in their construction, including sulfur, are more abundant than transition metals or rare earth elements required for modern lithium-ion batteries [121,122,123,124].

On the other hand, current Li–S batteries have some drawbacks [119,120,125,126,127]. The sulfur electrode has relatively low utilization of the active material. Additionally, sulfur has low electric conductance and poor high-rate current performance. The density of Li₂S is about 20% lower than that of sulfur (1.66 g/cm³ vs. 2.03 g/cm³, respectively [128]), which leads to changes in the volume of the material during cycling of the sulfur electrode, thereby decreasing the stability and cycle life. Another problem is the so-called shuttle effect. High-order polysulfides are soluble in electrolytes typically used in Li–S batteries and can migrate to the anode and discharge there, which leads to low efficiency and poor cyclic stability. Lastly, because of use of metallic lithium in anodes, Li–S batteries are susceptible to the creation of dendrites, which can increase the self-discharge the battery and create potentially dangerous short-circuits.

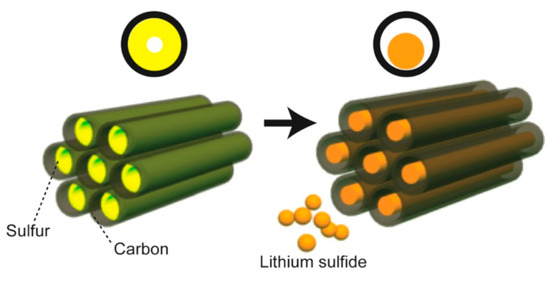

There have been many new technologies in Li–S batteries introduced in recent years to alleviate these problems (e.g., protecting the lithium metal anode surface or using non-lithium anodes, changes in electrolyte composition, and modifications of the separator to block the diffusion of lithium) [125,129]. One of the most popular modifications is the application of carbon in the cathode. Sulfur can be embedded in carbon materials, and appropriate adsorbents for trapping lithium polysulfides can be utilized. Sulfur can be integrated into the carbon microstructure via physical or chemical methods [120,122,130]. The former includes encapsulation and infiltration of sulfur into the carbon material, while the latter involves the creation of bonds between C and S atoms, e.g., via surface functionalization or chemical reaction deposition. Using the described methods to restrict sulfur species to a carbon matrix, while allowing an effective diffusion of lithium, leads to improvements in the electrochemical characteristics of cathode. Materials such as acetylene black, graphene, carbon nanotubes, nanofibers, porous carbon, fullerenes, and hollow materials, e.g., nanospheres, were utilized in this manner in various studies [119,120,131,132,133,134].

When using porous carbon in Li–S batteries, one of the important aspects is the size of its pores. Nanopores have a high surface area and can block the electrolyte molecules from entering and dissolving lithium polysulfides, improving their immobilization. On the other hand, mesoporous materials allow for higher loading of sulfur into the material and better mitigation of stress during expansion of sulfur material, while they are additionally characterized by a better electric conductivity and superior structure properties, and they can be used to prepare electrodes with low thickness [121,129,135,136].

Another carbon material used for the immobilization of sulfur is graphene. It has very good conductance and flexibility but has limited ability to alleviate the shuttle phenomenon. However, this phenomenon can be more readily overcome by using graphene oxide or partially oxygenated graphene [129,137,138].

Carbon nanomaterials, e.g., nanotubes, are also a very interesting materials when used in cathodes, owing to their stability, excellent mechanical properties, and conductivity [129,139,140,141,142,143]. Further improvements can be achieved by doping, e.g., N doping leads to improved charge transport and electrolyte access. Creating hierarchical structures also leads to improvements in the properties of the material when used as a cathode in Li–S batteries, such as its porosity and electrolyte permeability [144]. Carbon nanotubes can also be used to modify the separator, improve the sulfur utilization, and inhibit the diffusion of lithium polysulfides [129,145]. Due to their unique structure, carbon nanofibers are also a material that can be used in cathodes, allowing sulfur to be stored inside them, as shown schematically in Figure 9. When modified by surface activation or combined in composite materials, nanofibers were also successfully used as cathode materials [129,146,147,148,149].

There have been recent interesting developments regarding the source of the carbon for the cathode materials in Li–S batteries. They can be obtained from biomaterials, further decreasing the impact of this technology on the environment. For example, there have been studies of nanofibers generated from bamboo material applied in Li–S batteries [150]. Porous carbon can be based on cinnamon [125], waterweed [151], or silk cocoons [127,152].

The various carbon materials described in this section have their own advantages and disadvantages. Selection of the appropriate material will be largely dependent on the exact application of the battery. Parameters such as the anticipated working conditions, construction and scale of the battery, cost, and availability of synthesis methods need to be considered.

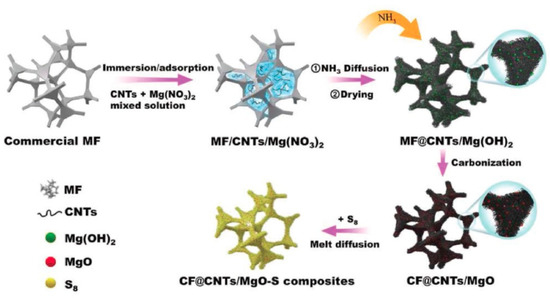

There is also a whole family of composite carbon materials used in Li–S batteries. Composites of graphene with various oxides have a much-improved ability to retain sulfur species in their structure compared to graphene. Oxides such as Co₃O₄, SiO₂, and TiO₂ can be employed in such materials [153,154,155]. Porous carbon can also be used in composite materials instead of graphene, e.g., together with B₂O₃, Nb₂O₅ [156,157], or atomic Co [158,159]. Carbon nanotubes can also be employed in this role. Using carbon nanotube composites with, e.g., MgO, MnO₂, SnO, TiO₂, or Co-based nanoboxes improves the cyclability and sulfur retention inside such materials [119,160,161,162]. Composites of carbon nanospheres with metal oxides (e.g., Fe₃O₄, MnO₂, and TiO₂) also display behavior similar to composites with carbon nanotubes, including improvements when using N-doped nanospheres [163,164,165]. The composite materials often have improved properties compared to their components; however, their preparation can be a complex and multistage process. An example of such a process, along with a schematic representation of the structure of the obtained material, is shown in Figure 10. As indicated earlier, doping carbon with heteroatoms such as nitrogen leads to improvements in polysulfide retention in carbon materials. Such doping is a less expensive and more environmentally friendly option than using metal oxides [22,166].

Metal–organic frameworks (MOFs) are one of the topics of considerable interest at present, and they can also be used as part of the composite material for an Li–S battery cathode. Carbon can be introduced into composite MOF materials, and such solutions usually outperform either component, as well as improve the cycle life and suppress dendrite formation [22,167,168,169].

Currently, the majority of focus in Li–S battery research lies on cathodes; however, there have also been some studies regarding anodes, including the use of carbon materials in them [22,129]. Typical metallic anodes made of lithium are prone to dendrite creation, leading to short-circuits and self-discharge of the Li–S battery. To mitigate this problem different carbon materials can be used. Carbon materials can facilitate the generation of a stable, protective layer in the solid electrolyte interface [143]. The addition of graphitic carbons results in a construction more similar to lithium-ion batteries, where lithium is intercalated in the anode. On the other hand, in contrast to lithium-ion batteries, many exfoliation-preventing solvents cannot be used in Li–S batteries due to their reactivity with sulfur species generated in these batteries [170]. In addition to graphitic carbons, hard carbons, graphene, and composite materials with lithium have been studied as materials used in the construction of anodes [118,120,171]. Carbon materials used in these anodes generally improve the safety and stability of the battery, but they can lead to a decrease in capacity and slower reaction kinetics.

Li–S battery technology is very closely related to carbon materials and has good prospects for the near future, considering its potential for very high capacities and energy densities. The use of carbon materials has allowed greatly mitigating the initial difficulties with the limited stability, shuttling effect, and high self-discharge. Implementation of improved Li–S batteries in electric vehicles could greatly extend their effective range. However, there currently remain problems in the mentioned areas that need to be solved before commercialization, although new generations of carbon materials used as electrode materials offer promising solutions. In particular, the use of nanomaterials and composites can result in materials with very good properties, increasing the loading of sulfur and its effective trapping. Application of these materials can lead to successful implementation of Li–S technology. On the other hand, these batteries are very complex, and changes in one parameter can influence the behavior of the whole system; thus, research on electrode materials has to progress in parallel to work on other battery elements, such as binders, electrolytes, or separators.

5. Sodium-Ion Batteries

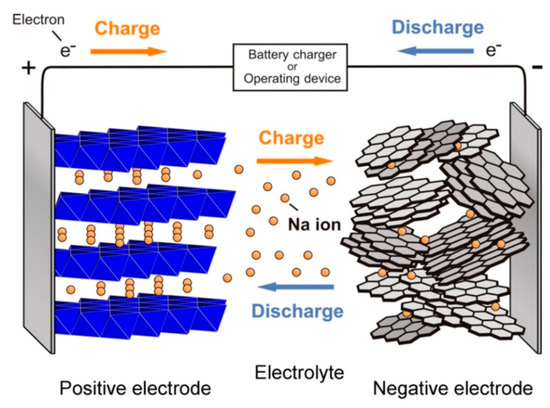

Sodium-ion batteries are also regarded as a potential alternative to lithium-ion batteries. The principle of operation of sodium-ion batteries is the same as that of Li-ion batteries, with the difference being the charge carrier, i.e., sodium ions (Na⁺). The principle of sodium-ion battery operation is shown in Figure 11.

Because of the higher ionic radius for sodium (0.102 nm) than lithium (0.076 nm), larger interstitial sites for Na-ion intercalation are required [172,173,174]. Minimal amounts of sodium ions may be intercalated into graphite—one of the most popular anode materials in lithium-ion batteries. Due to this, various other carbonate materials such as hard carbons, graphene, and graphene-based composites have been considered as the anode material for sodium-ion batteries [175,176]. The main advantages of these carbon materials are conductivity, corrosion resistance, high surface area, and low cost. At the same time, the morphology of carbon materials has a great influence on their properties.

One of the solutions used in sodium-ion batteries is the application of hard carbons. There have been many studies of the use of hard carbons from organic materials and wastes such as sugar [177], banana peels [178], okara [179], waste tire [180], peanut skin [181], grass [182], cellulose [183,184], rise husk [185], coffee [186], wood [187], and lignite [188]. This group of materials is characterized by a good cyclic stability and specific capacity at the level of 200–400 mAh/g. There have also been studies on the application of soft carbon as the anode material. Luo et al. [189] demonstrated that soft carbon can be a competitor to hard carbon if the preparation conditions are optimal. It has been shown that this material has a high cyclic resistance due to highly reversible lattice expansion. Hard carbons are very promising candidates for anode materials with high capacities, but they have highly irreversible capacities. This high irreversibility was reported to depend on particle size, porosity measurements, applied additives, and electrolytes. Due to the large size of the Na ions, anode materials based on soft carbons showed lower specific capacities. Only when the preparation conditions are carefully chosen can soft carbon become a high-rate anode material.

Another proposed solution involves porous carbon nanomaterials. Nanocellular carbon foams exhibit a good capacity retention (around 150 mAh/g after 1600 cycles at 0.1 A/g) due to their large surface area and the surface functional groups available for sodium-ion insertion [190]. An equally high performance was shown by porous carbon nanofibers (high cyclic durability and capacity around 140 mAh/g after 1000 cycles at 0.5 A/g) [191] or three-dimensional amorphous carbon (rate capability 66 mAh/g at 9.6 A/g) [192]. An improvement of working parameters was also obtained by doping the porous carbon materials with heteroatoms such as nitrogen and oxygen [193,194,195,196]. Zhang et al. [196] presented a nitrogen-doped three-dimensional porous carbon anode material which exhibited a specific capacity around 270 mAh/g, excellent cyclic stability, and capacity retention (approximately 91% after 5000 cycles at 1 A/g).

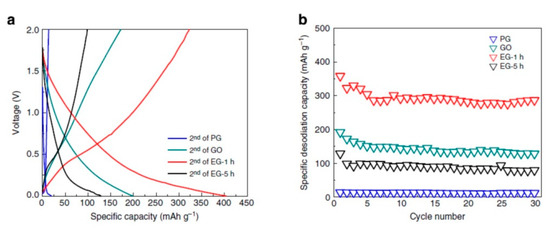

Reduced graphene oxide (RGO) is another promising material for use in sodium-ion batteries due to its superior sodium-ion storage properties. It was shown that RGO with an interlayer spacing of 0.37 nm could deliver a capacity of 174 mAh/g (at 0.04 A/g) [197]. Moreover, expanding the interlayer spacing to 0.43 nm increased the capacity to 280 mAh/g at a current of 0.02 A/g [198]. RGO properties are strongly dependent on the structure and method of preparation. In mass production, RGO is prepared from graphite. The first step is the chemical exfoliation of graphite to graphene oxide, and then the oxide is reduced with chemical agents, such as sodium borohydride [199], potassium carbonate [200], tin chloride [201], or iron metal powder [202]. The metal–reduced graphene obtained by Kumar et al. [203] showed good properties as a negative electrode material in sodium-ion batteries. The tested anode exhibited a specific capacity of approximately 270 mAh/g, good cyclic stability, and a superior rate capability. Figure 12 illustrates the poor capacity of graphite as an anode material in Na-ion batteries and the marked improvements that can be achieved by applying other carbon materials.

The use of carbon composites as a negative electrode material is an interesting solution that combines the advantages of metal alloys and carbon materials [175,204]. Some alloy material elements (Ge, Se, Sn, and Sb) deliver appropriate Na-inserting potential and high theoretical specific capacities (over 600 mAh/g) [205,206,207]. At the same time, carbon additives improve the electrical conductivity, as well as chemical and mechanical stability, of the electrode material, and prevent agglomeration during cycling [175]. Recently, many studies investigated anode materials based on Ti [208,209], Sn [210], Sb [211,212], and P [89,213,214]. Carbon nanotube composites with Sn and/or Sb films featured excellent conductivity, while the modification yielded a capacity of around 600–800 mAh/g and good cyclic stability [210,212,215]. Another example involves TiO₂ nanoparticles grown on N-doped graphene, which exhibited a reversible capacity of approximately 400 mAh/g/ (at 50 mA/g) and 250 mAh/g after 100 cycles [216]. Phosphorus compositing is an effective way to develop high-performance anodes for long cycle life by minimizing drawbacks such as low electrical conductivity and large volume expansion during cycling. The phosphorus–graphite–polyaniline composite anode material presented by Jin et al. [217] showed excellent capacity retention of 520 mAh/g after 1000 cycles at a high current density of 4 A/g. Carbon composites allow improving ionic and electronic transfers, which in turn facilitates better performance with high capacity and stable cycling properties.

Sodium-ion batteries are a promising alternative to lithium-ion batteries. The major advantages of sodium-ion batteries are better sustainability and low cost (about 10–20% less than that of lithium-ion batteries) while maintaining a comparable specific energy. The natural abundance of Na and the possibility of using cathode materials based on metals such as Fe, Mg, V, and Ti, without using Co, make the sodium-ion battery concept economically competitive and environmentally friendly. This battery may find application in short-range electric vehicles and large-scale energy storage systems. Nevertheless, the technology of sodium-ion batteries still needs to be refined, especially in terms of higher-specific-capacity electrode materials, as well as in other aspects such as the development of electrolytes that will improve the performance at high charge–discharge rates over a wide temperature range while exhibiting a long cycle life.

6. Supercapacitors

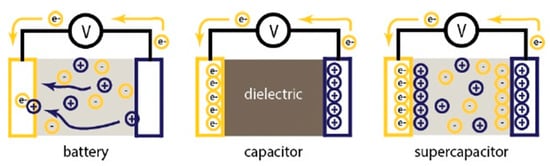

In contrast to standard capacitors based on dielectrics, supercapacitors store charge using electric double-layer capacitance or pseudocapacitance, i.e., electrochemical Faradaic reactions of adsorbed ions [218,219]. A comparison of charge storage mechanisms in different electrochemical power sources is shown in Figure 13. The former mechanism is used in capacitors based on carbon materials with high specific surface areas, whereas the latter is used in metal–oxide supercapacitors, based on compounds such as RuO₂ or MnO₂. Carbon in various forms finds use in both types of supercapacitors, as well as in hybrid capacitors, using composite materials combining carbon and metal oxides [220,221]. Supercapacitors are characterized by a very high specific capacitance; they also display good specific power, high-rate charge and discharge, and a long cycle life. On the other hand, one of their main disadvantages is a relatively low energy density [218,220,222].

Modern electrochemical double-layer capacitors (EDLCs) often employ carbon materials with high specific surface area, such as activated carbon. Other important characteristics of materials used in supercapacitors are the chemical and physical stability, electrical conductivity of the material, and pore size. Greater porosity increases the surface area, but a balance in pore sizes is required as only macro- and mesopores facilitate rapid ion transfer [224,225,226].

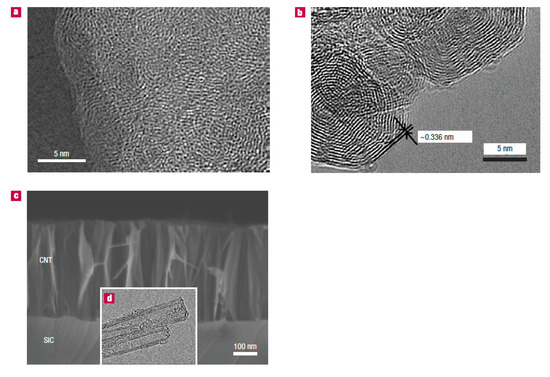

There is a great interest in research on using different carbon materials in EDLCs, including carbon nanomaterials, which are usually characterized by a very high specific surface area, good mechanical strength, flexibility, and electrical conductivity [220,227,228]. On the other hand, nanomaterials have low volumetric capacity and can be difficult to produce [223,229]. Some of the carbon nanomaterials investigated to date are aerogels, nanotubes, graphene, and graphene oxide [229,230,231,232,233,234]. Advantages of carbon aerogels include the lack of the need for a bonding agent, as the aerogel can chemically bond to the collector with high capacitance [220,231]. Graphene electrodes based on graphite oxide have average capacitance, but high stability and high-rate current performance [220,235]. Carbon nanotubes used in supercapacitors have good physical properties, stability, and conductance [220,229]. There have also been studies on spherical, multiwalled onion-like carbons, which showed good performance as supercapacitor materials [229,236]. Microscopic images of some carbon nanomaterials used in supercapacitors are presented in Figure 14.

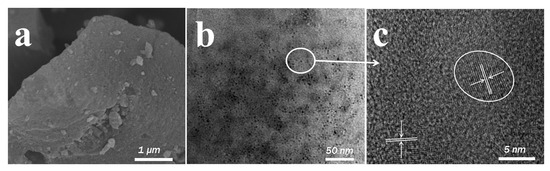

Some composite carbon materials have also been considered for use in EDLC. Examples include carbon quantum dots (with dimensions less than 10 nm) that can be prepared on matrices of a three-dimensional aerogel or activated carbon. They can also create graphene– or carbon nanotube–quantum dot arrays [238,239,240,241,242]. An example of the structure of a material based on carbon quantum dots is presented in Figure 15. Nanotubes and activated carbon can also be used in composite materials to increase their capacitance. This is a better solution than simply mixing these two materials, as it allows for a more uniform embedding, thereby improving the mesoporosity [229]. Research on growing carbon nanotubes on top of carbon nanofibers resulted in a material with very good capacitance [243]. There have also been studies on modified graphene sheets. Chen et al. showed that reduced graphene oxide can be composited with active carbon [244]. Graphene can also be arranged in a hierarchic porous architecture, allowing for more efficient diffusion, as well as higher conductivity and capacitance [208,245,246].

Composite carbon materials can also include heteroatoms in their structure. Introducing these heteroatoms into the lattice changes not only the physical and chemical properties, but also the crystalline and electronic structure. N doping of carbon can lead to many improvements in material characteristics, such as capacitance and higher possible load currents [227,229,247,248].

Carbon materials can also find use in pseudocapacitance-based supercapacitors. This type of capacitor has a higher capacitance than EDLCs; however, in contrast to carbon-based supercapacitors, it has worse stability and high-rate performance. Addition of appropriate carbon materials can, therefore, lead to improved characteristics of composite pseudocapacitors by including electrical double-layer capacitance and providing a conductive backbone. For example, MnO₂ supercapacitors with composite materials containing carbon black, graphene, or carbon nanotubes showed a marked improvement in their performance [249,250,251]. Carbon nanofibers were also used in a flexible, asymmetric capacitor with metal oxides (MnO₂ and MoO₃) [252]. Similar solutions exist for other metal oxides used in pseudocapacitors, e.g., RuO₂ or Co₃O₄ [221,253,254].

Currently, one of the new directions in supercapacitor development involves MOFs. These frameworks provide a template allowing better control and stabilizing the structure of the active material, leading to improved energy density and stability during the cycle life of the capacitor. MOF-based oxides can create a composite with carbon materials, such as graphene, graphene oxide, or nanotubes, to further improve their performance [220,229,255].

Carbon materials can also be applied as current collectors. Typically, in supercapacitors, the current collectors have a form of a metallic foil or mesh, e.g. aluminum, nickel, or stainless steel [236,245,256]. A carbon material with an appropriate structure used in a collector can increase the contact area with the active material and improve corrosion resistance [257,258]. Porous carbon films or nanobrushes can be grown directly on various current collectors [236,255]. Alternatively, the whole collector can be replaced with nanotubes, graphene paper, or with porous carbon nanofoam [236,259].

Carbon can also be used as a binder in the construction of the supercapacitor, thereby increasing the available loading of the active material onto the current collectors. Typically, polymer-based binders are used (e.g. PTFE, PBI), but a bitumen-based paint can also be employed in this role [255].

Another interesting solution using carbon is represented by the electrode manufacture process. Electrodes can be printed using a carbon-based paint in the inkjet printing [260,261]. The carbon material can be utilized there to serve as both the active material and the current collector [262]. Supercapacitor electrodes can be printed using this technique with paint based on carbon material solution in a suitable solvent. A direct drawing using a graphite rod on cellulose paper can also be used to produce supercapacitor electrodes [263].

As shown above, carbon materials can be used in various elements of supercapacitors. This leads to a very broad range of materials used, from carbon-based paints to nanotubes. Regarding their use in the active material, composite materials and nanomaterials are especially promising candidates for future use. One of the important aspects when choosing the appropriate material is the balance between the capacity and cyclic stability, as an increase in the former parameter usually leads to a decrease in the latter.

Different avenues for obtaining carbon materials have also been studied. One of the more interesting sources of these materials is biological and organic waste. Using these sources of carbon can lead to the production of various materials used in more cost-effective and environmentally friendly energy storage [227]. In one study, Hoffman et al. prepared chars designed for use in supercapacitors from potato waste [264]. Rice husks can also be used as a substrate for the production of activated graphene-based supercapacitors [265,266]. Li et al. prepared flexible and self-healing supercapacitors using biochar based on soybean stover [267]. Supercapacitors were also prepared using porous carbon based on loofah sponge [268] or cicada sloughs [269].

In general, supercapacitors are characterized by a very high power and good cycle life at the cost of limited specific energy. Using carbon materials can help them achieve a better balance between capacity and power, broadening their application in areas such as electronics or electric vehicles, especially when applied in parallel with other power sources with a higher capacity but worse high-rate performance.

7. Conclusions

Carbon finds many uses in modern rechargeable batteries. Despite their very different characteristics, carbon can be applied in the construction of each of the presented types. Lead–acid battery properties can be greatly enhanced by using various forms of this element in their construction, allowing them to remain competitive with the more recent battery types. Carbon is one of the main reasons for the strong position of these batteries on the current market, while it also opens new avenues for future use and improvements. Currently, the focus of research on carbon modifications lies on the active mass, current collectors, and capacitor electrodes. The lithium-ion battery is another very popular battery type. In this case, the use of carbon was also one of the crucial elements that led to their dominant position. New types of carbon, including nanomaterials, are currently being used to further improve the properties of lithium batteries, with the bulk of this research focusing on novel anode materials. These materials are also a very important aspect for developing new types of rechargeable batteries. Both lithium–sulfur and sodium-ion batteries are very promising technologies that can replace currently used battery types. Carbon is used in Li–S batteries mostly in the cathodes, while it is used in sodium-ion batteries mainly in the anodes. Recent research on these batteries using carbon-based materials has shown great promise in overcoming their current drawbacks, which can lead to their mass usage in the future. Another electrochemical power source with good prospects for becoming widespread is represented by supercapacitors. Carbon can be used in them both as an active material in the carbon electrode (EDLCs) and as a part of the composite material in pseudocapacitors. Most studies on these materials have focused on improvements in specific energy.

Nanomaterials and composites often display superior properties compared to simpler materials, and they are a very important part of current developments in the reviewed power sources. At the same time, during the introduction of new materials, a balanced choice is often required. Improving one aspect of the battery performance can result in a decrease in other areas. These developments demand careful optimization, and the materials need to be chosen on the basis of the role of the power source. Aspects such as the working conditions, economical cost, or influence on other elements of the battery need to be considered in the selection of the best candidates for usage. Nevertheless, novel materials are being constantly developed, and reports of improvements in parameters of all power sources included in the review have been published.

Carbon is, therefore, a key element used in many materials in modern power sources, leading to more efficient energy storage. As such, it is an important part of the upcoming transformation of the global energy market into a more environmentally friendly structure, based on renewable sources. In this light, one of the important aspects is the source of the carbon materials, which can be derived from various biological sources, as shown in the current review. According to the information presented in this review, it can be concluded that carbon has allowed numerous improvements of battery properties in the past and will probably be crucial to many breakthroughs in the future of energy storage, leading to more efficient, cleaner, renewable energy.
