Review

Characterization of Wax Precipitation and Deposition Behavior of Condensate Oil in Wellbore: A Comprehensive Review of Modeling, Experiment, and Molecular Dynamics Simulation

1
Key Laboratory for Enhanced Oil & Gas Recovery of the Ministry of Education, Northeast Petroleum University, Daqing 163318, China
2
Oil Recovery Plant No. 4, PetroChina Daqing Oilfield Company Limited, Daqing 163511, China
*
Author to whom correspondence should be addressed.
Energies 2022, 15(11), 4018; https://doi.org/10.3390/en15114018
Submission received: 31 March 2022 / Revised: 20 May 2022 / Accepted: 27 May 2022 / Published: 30 May 2022
(This article belongs to the Special Issue Transport Phenomena Studies for Renewable Energy Development)

Abstract

:
Condensate oil is increasingly valued as the high-quality conventional hydrocarbon resources generally decline. The efficient development of condensate oil, however, has always been a world problem; massive condensate oil will be retained in reservoirs in case of improper exploitation process, resulting in a significant resource waste and economic loss. One of the problems closely related to enhancing condensate oil recovery is wax precipitation and deposition in wellbore. Therefore, it is vital to investigate the characterization methods for the wax precipitation and deposition behavior in wellbores. The current status of research on modelling characterization methods, experimental characterization methods and molecular dynamics representation of wax precipitation and deposition behavior is reviewed in this paper; the applicability and limitation of modeling and experiment studies for characterizing wax precipitation and deposition of condensate oil in the wellbore are critically summarized and discussed. Moreover, the molecular dynamics simulation technique characterizes wax precipitation and deposition behavior from the micro scale, which makes up for the deficiencies of macroscopic experiment, enriches the investigation of wax precipitation and deposition, and provides important guidance and reference value for the development of unconventional hydrocarbon exploitation processes.

1. Introduction

With the further deepening of global hydrocarbon exploration, high-quality shallow hydrocarbon resources are increasingly becoming scarce, and the unconventional and deep hydrocarbon resources are gradually becoming vital in the energy structure [1,2]. While continuing to strengthen the exploration and development of conventional crude oil, emphasis should also be placed on accelerating the development of superior resources such as light oil and condensate oil [3,4]. Condensate oil is a colorless and transparent liquid phase component condensed from natural gas in condensate fields or associated gas in oil fields. The main composition is a mixture of C5~C8 hydrocarbons and contains modicum hydrocarbons larger than C8 as well as impurities such as sulfur dioxide, thiophenes, mercaptans, sulfur ethers, and polysulfides, and its heavy hydrocarbon and non-hydrocarbon fractions are lower than that of conventional crude oil [5,6,7]. Large condensate fields have been discovered in over 60 countries and regions worldwide, mainly in the United States, Russia, and the Middle East. Condensate resources are also quite abundant in China, and the existence of condensate reservoirs has been successively proven in major oil fields [8,9]. However, different from conventional reservoirs, the condensate reservoirs are deeply buried and hydrocarbon accumulation is subjected to harsh temperature and pressure environments, resulting in great difficulty in exploitation.
Waxes are present in condensate oil developed in most countries around the world and exist in various phase states (gas, liquid and solid) depending on temperature and pressure [9,10,11,12]. Macrocrystalline and microcrystalline waxes, which are key components of waxy condensate oil, have very different functional properties, including viscosity and melting point [13,14]. Oliveira et al. [15] found through their investigations that although the structure of microcrystalline wax is smaller and thinner than macrocrystalline wax, it was much more difficult to remove from the pipe wall or wellbore wall than macrocrystalline wax. The waxes dissolved in the condensate oil in molecular form undergo a series of processes such as diffusion, aggregation, and phase transition due to changes in the external environment [16]. The properties of the wax crystals are very complex, and the precipitated wax crystals are gradually deposited on the wellbore wall, which reduces the effective flow area of the wellbore [17,18]. At the same time, it will also cause deterioration of the rheological properties of condensate oil, even lead to wellbore blockage, and finally engender serious production and economic losses [19,20]. The schematic diagram of wax precipitation and deposition in the wellbore is shown in Figure 1. Several observations from the industrial field have shown that the formation frequency of wax has been high in condensate oil over the past few decades. The condensate oil production of Miller oilfield in the North Sea dropped sharply from 30,000 barrels per day to zero within 24 h; this could be attributed to the fact that the serious wax blockage occurred in the wellbore during the condensate oil development [21]. Due to the high wax content in the South Pars condensate field in Iran, the wax precipitation and deposition in the process of condensate recovery led to a narrower wellbore diameter, a high flow resistance and a sharp drop in production. In the gathering and transportation process of produced mixed multiphase liquid, the precipitation of a large number of wax crystals was attributed to the low environment temperature, which gelled with each other to form a mesh structure and had an obstructive effect on the transport of the oil and gas multiphase mixtures. As the transportation distance and environment varied, the network structure increasingly expanded, and the wax molecules formed a dense wax layer inside the pipe wall due to their own gravity, which led to the obstruction of condensate hydrocarbons transportation and sale channels [22]. In the production process of condensate oil wells in the Boz block of Tarim Oilfield in China, only ten days after well opening, the wells were shut down due to wax blockage, which seriously caused the normal production of hydrocarbon wells [12]. Arguably the most serious incident of wax deposition causing wellbore blockage might have occurred at the Staffa Field, Block 3/8b, UK North Sea. After several failed attempts to deal with the wax deposit problem in this field, the field and its platform were eventually abandoned and the loss was estimated to be as high as $1 billion [23]. Therefore, the wax precipitation and deposition of condensate oil in the wellbore has become a relevant issue that needs to be urgently addressed. Multi-level revealing and characterizing the wax precipitation and deposition behavior is the key to ensuring the safe and efficient operation of surface systems, developing enhanced condensate oil recovery technology, and designing wax prevention and removal technology development [24].
This paper reviews the current status of modeling and experiment research to characterize the wax precipitation and deposition behavior of condensate oil in the wellbore. The applicability of molecular dynamics (MD) simulation to microstructural characterization makes such simulations well suited for revealing phase transition and solid phase deposition. The research progress of MD in characterizing wax precipitation and deposition behavior is discussed to deepen our microscopic-scale understanding of phenomena determining the wax molecule phase transition, wax precipitation, and wax deposition process. Future applications and development directions of MD simulation methods in characterizing wax precipitation and deposition behavior of condensate oil in the wellbore are put forward to provide a reference for enriching the theoretical understanding of the wax formation process and promoting the development of unconventional hydrocarbon production and transportation technologies.

2. Modeling Characterization of Wax Precipitation and Deposition Behavior

It is necessary to develop models to analyze and characterize wax precipitation and deposition behavior and to calculate relevant parameters such as wax precipitation temperature and amount, wax deposition thickness and rate, which is of great significance for mastering the wax deposition law and formulating a reasonable plugging removal scheme [26,27].

2.1. Modeling Characterization of Wax Precipitation Behavior

The modeling of wax precipitation is based on thermodynamic and kinetic equilibrium to describe the liquid-solid phase transition process of wax molecules [28,29,30]. Different from conventional crude oil, the condensate oil system has the highest wax precipitation temperature near the dew point pressure, this can be attributed to the fact that there are only heavy hydrocarbon components at the dew point, which decreases the wax solubility. When the pressure is higher than the dew point pressure, the content of heavy hydrocarbon components is low. With the increase in pressure, the wax components may dissolve in the gas phase, which decreases the wax precipitation temperature. When the pressure is lower than the dew point pressure, liquid hydrocarbon will appear. As the wax component condenses in the liquid phase, its solubility increases, and the wax precipitation temperature decreases [11,12,31,32]. The phase envelope of the typical condensate oil system is shown in Figure 2.
Generally, the theoretical basis for modeling is a solid solution and multiple solid theories [33,34,35]. Several representative models have been proposed to describe this behavior. Won et al. [36] first developed a model for condensate oil wax precipitation based on solid solution theory in 1986. The SRK equation and the modified regular solution theory were used to describe the non-ideality of the liquid phase, respectively. However, this lack of consistency in thermodynamics limits the prediction ability of this model. Subsequently, Thomas et al. [37] introduced the Poynting factor based on the Won model and considered the effect of pressure on the liquid-solid phase equilibrium. The wax precipitation model established by Lira-Galeana et al. [38] assumed that waxes contained multiple phases, each phase was described by pure component. Additionally, the amount of wax crystals precipitated from a condensate consisting of a mixture of six alkanes with a molar fraction of 400 was measured experimentally as a function of temperature. It was found that the predicted trend of solid content with temperature was in good agreement with the experimental results. However, Pedersen et al. later demonstrated that the model applicable conditions were limited. When the physical parameters of oil samples changed, the calculation results of the model fluctuated greatly. Therefore, Pedersen et al. [39] established a gas-liquid-solid three-phase wax precipitation model with thermodynamic consistency by modifying Won and Lira-Galeana models. The model assumed that wax was an ideal mixture, and only part of the pseudo-components can be regarded as wax. Precipitable and non-precipitable parts of pseudo-components above C7 can be derived from the following equation.
z i S = z i tot   1 0.8824 + 5.353 × 10 4 M i ρ i ρ i p ρ i p 0.1144 ρ i p = 0.3915 + 0.0675 ln M i
where z i tot is the total mole fraction of pseudo-component i; z i S is the mole fraction of the potentially wax forming part of pseudo-component i; ρ i is the density at standard condition of total pseudo-component i, g/cm3; ρ i p is the density at standard conditions of a normal wax with the same molecular weight as pseudo-component i, g/cm3; M i is the molecular weight of pseudo-component i, g/mol. It was shown that the Pedersen model overcame the problem that the Won model severely overestimated the wax precipitation temperature and amount, and its prediction accuracy was higher.
Pan et al. [40] established a wax precipitation model of condensate oil system based on multiple solid theory and used PR state equation to describe the non-ideality of the liquid phase. Since the Lira-Galeana and Pedersen model is not applicable to calculate the wax precipitation characteristics directly through the average physical properties of pseudo-components. For this reason, the pseudo-components were reclassified and a set of physical property calculation formulas for alkanes, cycloalkanes, and aromatic hydrocarbons were given, respectively. In addition, the Pedersen and Pan models have some limitations in considering the effects of solid-phase composition and pressure on solid-phase non-ideality. Although the Won and Thomas models used the regular solution theory to calculate the solid activity coefficient, they ignored the contribution of excess entropy to excess Gibbs free energy.
Furthermore, Nichita [41,42], Daridon [43], Sansot [44], Coutinho [45], and Zuo et al. [46] have successively developed the wax precipitation model of condensate oil system with perfect theory and strong predictability. The effect of pressure on wax precipitation in condensate oil was considered in the Nichita model. The high-temperature and high-pressure environment was considered in modeling by Daridon et al., and the excess Gibbs free energy was calculated. The assumption that the precipitated solid phase consisted of only n-alkanes was considered in the Sansot model. In addition, the effect of pressure on solid-phase fugacity was reflected by the Poynting factor. The local component prediction model developed by Coutinho et al. could well predict the wax precipitation behavior of various oils. In two variant forms of the model, the wax phase was regarded as a single solid solution of n-alkanes and multiple coexisting solid solutions. The effect of solid-phase composition on solid-phase fugacity was described separately in the model by Zuo et al.

2.2. Modeling Characterization of Wax Deposition Behavior

Wax deposition in the wellbore is a very complex process, which refers to the formation and eventual growth of a solid layer attached to the wellbore surface. It can be seen from Figure 2 that the condensate oil system has complex phase evolution characteristics in the wellbore, and wax deposition may occur in each phase. So far, scholars have conducted many studies on wax deposition in single-phase flow. Based on the support of laboratory test data, a series of typical models to characterize wax deposition behavior were proposed by Burger [47], Hamouda [48], Hsu [49], Ramírez-Jaramillo [50], and Singh et al. [51,52,53]. The summary of the wax deposition models is shown in Table 1.
In the Burger model, W t is the rate of wax deposition, kg/(m2·s); ρ r is the wax density, kg/m3; D m is the diffusion coefficient, m2/s; C is the volume fraction concentration of wax in solution; A is the surface available for deposition, m2; r is the pipe radius, m; k is the wax deposition rate constant; C w is the volume fraction concentration of wax out of solution at the wall, and γ is the shear rate, m/s.
In the Hamouda model, m w is the amount of wax deposition, kg; t is the time, h; T is the temperature, °C; A is the wax deposition area, m2; M W w is the molecular weight of wax crystals; N A is the Avogadro constant.
In the Hsu model, Ω is the wax deposition tendency; f s is friction to depict the shear effect; k 0 is the oil thermal conductivity; k m is the constants; μ is the oil velocity, m/s; ρ 0 is the wax density, kg/m3.
In the Ramírez-Jaramillo model, M ( t , z ) is the total amount of deposited mass at time t and distance from inlet z, kg; R w is the pipe radius minus the width of the deposited wax layer, m; J r i the radial mass flux of each component in the mixture.
In the Singh model, ϕ is the mass fraction of sediment in the oil sample; ζ is the thickness of the turbidite layer, m; N u is Nusselt number; R is the circulating flow radius, m; T h is the oil temperature at the center of the pipeline, °C. Huang [54], Eskin [55] and Quan et al. [56] also provided their new insights into the single-phase flow wax deposition model. However, it must be noted that available models tend to consider only some of the mechanisms affecting the wax deposition process, and the accuracy of model calculations cannot be guaranteed. Moreover, most models are established based on empirical and semi-empirical methods, and the actual application of the model prediction results is still a problem that needs to be addressed by the petroleum industry.
In the process of hydrocarbon exploitation, it is not only confined to single-phase flow, but often there are oil-gas, oil-water, and oil-gas-water coexistence conditions [57,58,59]. Since the applicable conditions and assumptions of the wax deposition model are various, it is necessary to establish different types of models to characterize wax deposition behavior in the wellbore. Compared with single-phase flow, the research on wax deposition in multi-phase flow is carried out later and is still in the initial stage [60]. At present, the study on wax deposition law of multi-phase system mainly focuses on oil-gas and oil-water two-phase flows. The effect of different flow patterns on wax deposition is mainly considered in oil-gas two-phase flow. The single-phase flow wax deposition mechanism was utilized for analyzing and modeling in oil-gas two-phase flow. The wax deposition models in the oil-gas two-phase flow were proposed by Elphingstone [61], Apte [62], Gong [63], and Duan [64], and Duan et al. [65], and the model is summarized in Table 2.
In the Elphingstone model, y is the thickness of solid wax deposited; t is time, s; ρ is the total fluid density, kg/m3; c ^ p is average bulk fluid specific heat; D wo is diffusion coefficient of wax in hydrocarbon; ρ s is solid wax density, kg/m3; k is average bulk fluid thermal conductivity; T is time-averaged bulk temperature.
In the Apte model, D w is the molecular diffusion coefficient, m2/s; δ is the wax thickness, m; C w is the wax concentration, wt%; t is the time, s; r is the radial distance, m; Π 1 is the wax deposition coefficient of the wall, which reflects the wax deposition caused by the oil content in the wax deposition layer and molecule diffusion such as turbulent mass transfer, and Π 2 is the wall dewaxing coefficient, which reflects the wall dewaxing caused by shear dispersion. In the Gong model, δ is the wax thickness, m; k , a , b is the constant; Π is the characteristic parameter of flow pattern; Re fp is the Reynolds number of the flow pattern; t is the time, s; T is the temperature, °C.
In the Duan model, δ is deposit thickness, m; ξ is coordinate in a bipolar system, rad; ρ dep is the density of deposited wax, kg/m3; F ¯ w is average wax fraction in the deposit, wt%; t is time, s; D wo is diffusivity wax in crude oil, m2/s; l ξ is scale factors of the bipolar coordinate system; C is the cross-sectional area inside the pipe, m2; D eff is effective diffusivity in the deposit, m2/s.
In the Duan model, M is mass flux; r i is the radial distance from the center to the oil-deposit interface; t is time, s; Δ L is the pipe length of wax deposit buildup, m; D wo is the wax diffusivity in oil, m2/s; C is the wax concentration of crude oil, kg/m3; r is the inner radius of the pipe, m. For the research of the oil-water two-phase flow, Couto et al. [66] proposed a wax deposition kinetic model in oil-water two-phase flow based on the single-phase model they developed. The essence of this model was to replace the physical properties of crude oil with those of oil-water mixture and substituted them into the existing single-phase wax deposition model, but the model did not consider the reverse-phase case. After investigating the Couto model, Bruno et al. [67] found that the accuracy of the Brinkman correlation equation used in the viscosity calculation was highest only when the emulsion water content was below 50%. Thus, Bruno et al. improved the model by calculating the emulsion viscosity using the Richardson correlation equation, and an empirical equation for sediment water content calculation was fitted based on the experimental results.
f w ,   sed   = 0.0283 e 2.4184 f w ,   bulk
Here, f w , sed is the water content of sediment, %; f w , bulk is water content of oil-water mixture, %. The Singh model and Hernandez model in single-phase flow were modified by Wang et al. [68]. The idea that the two-phase diffusion coefficient is a strong function of water content was proposed by considering molecular diffusion and shear dispersion, and the oil-water two-phase wax deposition behavior under different flow conditions was predicted.
d h d t = D ow d C d d T L × d T d r d L × 1 ϕ M wow J sow ρ d 1 M wow
where d h d t is gelling deposition thickness change rate in two-phase oil−water flow, m/s; D ow is diffusion coefficient of wax in the oil, m2/s; d C d d T L is waxy crystals solubility coefficient in two-phase flow with a certain position, °C1−; d T d r d L is a radial temperature gradient in two-phase flow with a certain position, °C/m; M wow is wax fraction in the gelling deposition of two-phase oil−water flow, %; J sow is convective mass flux from bulk to interface in two-phase flow, kg/(m2·s); ρ d is the density of gelling deposition in two-phase flow, kg/m3. The flow loop experiment was used to verify the simulation results of the proposed model. It was found that the error between the quantitative prediction results of the average wax deposition thickness rate and the experimental measurement results was less than 10%, which showed that the model can well adapt to the prediction of the actual wax deposition environment. Then, based on the mechanism of shear dispersion and shear stripping, Wang et al. [69] established an oil-water two-phase wax deposition model incorporating the variation of flow parameters from an energy perspective, and a quantitative method to distinguish between shear dispersion and shear stripping has been proposed at the same time.
t M t , L = 2 π 0 L D w ρ wax d C w d T L d T d r w L r w 1 F wax d x 2 π 0 L D w ρ wax 1 + α 2 F wax 2 1 F wax d C w d T L d T d r w L r w 1 F wax d x + 2 π 0 L k α S w d E s d L r w ρ wax r w μ μ wax 2.3 r w 1 F wax d x
Here, t is formation time of deposits, h; L is pipeline length, m; D w is diffusion coefficient of wax in the oil, m2/s; ρ wax is the density of wax, kg/m3; C w is wax concentration, %; T is temperature, K; r w is the distance from the pipe center to the surface of deposits, m; F wax is wax content of/in wax deposits, %; α is the aspect ratio of wax crystals; k is shearing coefficient; S w is volume concentration of wax crystals on the deposits surface, equivalent to F wax , %; E s is shearing energy, J; μ is the viscosity of waxy crude oil, Pa·s. Currently, wax deposition in multiphase systems is modeled by introducing some parameters into the single-phase flow model to characterize the flow and deposition distribution properties at different flow patterns [70,71]. However, the research of wax deposition model in oil-gas-water three-phase flow is still in the exploration stage. Based on the analysis of experimental results, Quan et al. [72] concluded that the deposition volume caused by gelation was positive correlation with the precipitated wax crystal concentration and gelation temperature, and negative correlation with the shear force. Therefore, the growth rate calculation model of the sediment layer thickness under the oil-gas-water three-phase system was established as follows:
d δ d t = k τ m 1 μ d C d T d T n + 1 d r + k g τ p C C int exp T PP T int
where d δ d t is the wax deposit thickness, m; τ is the shear stress at the pipe wall, Pa; C and C int are the wax molecular concentrations corresponding to temperature conditions at the oil flow center and the oil-sediment interface, respectively; T pp is the gelation temperature of the oil, °C; T int is the temperature at the oil-sediment interface, °C; μ is the viscosity at the oil flow temperature, Pa·s; k , m , n , k g , p are constant, of which k g is the gelation coefficient, which is related to the oil properties and temperature conditions.

3. Experiment Characterization of Wax Precipitation and Deposition Behavior

The modeling characterization has been continuously improved and advanced, but it is still difficult to intuitively describe wax precipitation and deposition behavior. Experimental techniques have been developed along with the improvement of prediction models, and there are dozens of varied methods to characterize the precipitation and deposition behavior in hydrocarbon systems. The common experimental methods are shown in Table 3.

3.1. Experiment Characterization of Wax Precipitation Behavior

As the temperature decreases during the hydrocarbon lifting, the wax dissolved in the hydrocarbon in molecular form gradually precipitates as small grains [73,74,75]. The wax precipitation temperature and amount are important parameters to determine the occurrence of wax precipitation behavior.

3.1.1. Microscopic Observation Method

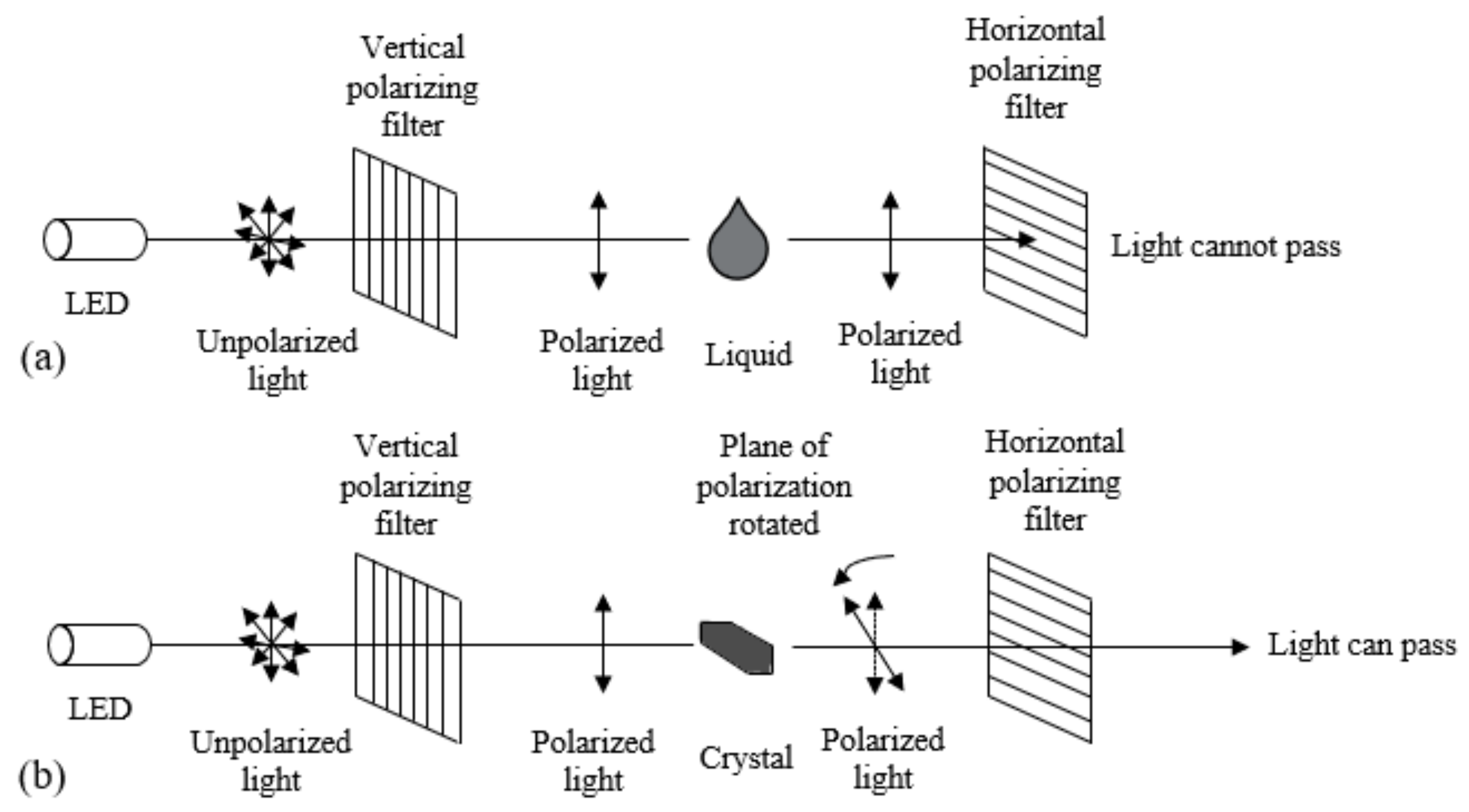

In contrast to oil, wax crystals have a birefringence, and the image of wax crystals can be observed through the microscope after the orthogonally polarized light generated by the light source passes through the oil sample. Its principle is shown in Figure 3. The oil sample is cooled down, and the temperature corresponding to the appearance of wax crystals in the polarized light microscope is recognized as the wax precipitation temperature of the oil sample [76]. However, Shi and Li et al. [77,78] believed that this method mainly relied on visual observation of wax crystal precipitation and judgment of wax precipitation temperature, which was interfered with by man-made subjective factors. Additionally, the existence of impurities and defects in the glass slide would lead to a little error in the observation results. With the development of microscopic image acquisition and processing technology, the results of the microscopic observation method are more accurate and reliable, and the analysis of wax crystal microscopic images focuses on quantitative characterization studies [79,80]. Japper-Jaafar and Bai et al. [81,82] used orthogonally polarized light microscopy to observe the first step point temperature of grain number growth in the images to determine the wax precipitation temperature.

3.1.2. Viscometry Method

When measuring wax precipitation temperature by microscopic observation method, it is often affected by the transparency of the hydrocarbon system. Inspired by Escobedo et al. [84] using the viscometry method to measure asphaltene deposition temperature, the viscometry method was gradually used to determine wax precipitation temperature. The temperature corresponding to the sudden change in viscosity during the cooling process is considered as the wax precipitation temperature of the oil sample. In the study of Li, the wax precipitation temperature of five crude oils was measured by this method [78]. The wax content of the five crude oils ranged from 9.02% to 21.51%, and the rate of temperature drop during the experiment was 0.4 °C/min. The results showed that for crude oil with a slow initial wax precipitation rate and a low wax content, the variation of shear stress was slow under the effect of wax precipitation, so it was difficult to accurately determine the wax precipitation temperature of oil samples.

3.1.3. Differential Scanning Calorimetry Method

Differential scanning calorimetry (DSC) is the best thermal analysis technology with repeatability and quantification as it is based on the change in heat flow of the oil and the reference substance to determine whether wax crystals are precipitated. When no wax crystal appears in the oil sample to be measured, the heat flow curve varies slowly and gently [83]. When the wax crystals are precipitated, the latent heat of wax is released and the heat flow curve will suddenly increase to the maximum, at which time the corresponding temperature is the wax precipitation temperature [85]. The wax precipitation amount can also be measured by this method. Claudy et al. [86] employed the DCS method to measure the wax precipitation temperature of crude oil as early as 1988. Subsequently, a differential scanner was used to characterize the wax precipitation behavior of crude oil and surface condensate oil. The wax precipitation temperature was obtained, and it was also found that the wax precipitation amount increased with the decrease in temperature [87,88]. Additionally, the onset of wax crystallization and the rate of wax precipitation in waxy crude oils were also measured by the DSC technique in the study of Wang et al. [68], and also obtained the amount of wax precipitation at that temperature by plotting and analyzing DSC curves. However, Ronningsen et al. [89] argued that the differential scanner could detect the variation of differential heat flow only when there was wax precipitation in the oil sample, so the measurement results are on the small side.

3.1.4. Laser Scattering Method

When the hydrocarbon system is a single liquid phase, the transmittance is stable, when the system however converts from a single-liquid phase to a liquid-solid two-phase, that is, wax crystals begin to precipitate, the liquid phase system will not change the transmittance, but the precipitated wax crystals will scatter the light beam. The appearance and increase in wax crystals would lead to a dramatic decrease in the light beam transmittance. The measurement accuracy of this method is high, but the transparency of the oil sample will affect the performance of the measured results, so it is very suitable for the determination of wax precipitation temperature of condensate oil with high transparency [90]. The wax precipitation behavior in high-temperature and high-pressure condensate gas wells was characterized by using a solid-phase deposition tester with laser scanning in the research of Zhong et al. [91]. The results showed that when the system pressure was higher than dew point pressure, the pressure had little effect on wax precipitation temperature. When the pressure was close to dew point pressure, the wax precipitation temperature increased obviously with the decrease in pressure. When the system pressure was lower than the dew point pressure, the wax precipitation temperature decreased with the decrease in pressure, and it was also found that the dew point pressure of the system increased with the decrease in temperature.

3.1.5. Ultrasonic Method

The variation of ultrasonic propagation medium density will determine its propagation speed and energy variation, which is manifested in the variations of the ultrasonic time difference, amplitude ratio, first wave frequency, and ultrasonic attenuation coefficient. When the wax crystals are precipitated from the oil sample, the single-phase system is transformed into a two-phase system, the scattering attenuation of the ultrasonic waves is enhanced, and the temperature when the first wave frequency suddenly increases is recognized as the wax precipitation temperature [78,92]. The ultrasonic method can determine the wax precipitation temperature under high pressure, and it is not affected by the color of the oil sample compared with the laser scattering method. However, the equipment of this method is expensive, and the operation is relatively complex.
To sum up, many comparative studies have been conducted on the common methods to characterize the wax precipitation temperature and amount. Hansen [85], Ronningsen [89], Pedersen [93], and Cazaux et al. [94] believed that the results measured by microscopic observation method were more accurate than those measured by viscometry method and DSC method when considering the characteristics of the glass slide and cooling rate, and the results of the research showed that the microscopic observation method yielded the highest wax precipitation temperature, DSC method was the middle, and viscometry method was the lowest. The microscopic observation method and the viscometry method have clear requirements on the wax content, which are not considered suitable for oil samples with slow initial wax precipitation rate and low wax content. For the wax precipitation temperature characterization of the pressurized hydrocarbon system, the DSC method, ultrasonic method, and laser scattering method are usually applied. The DSC method and laser scattering method are often selected to characterize wax precipitation behavior of condensate oil system, however, the laser scattering method has certain shortcomings when the ability to control the low temperature environment is required.

3.2. Experiment Characterization of Wax Deposition Behavior

The modeling is to predict the possibility and severity of wax deposition in the oilfield and thus establish effective deblocking strategy. However, many assumptions are made in establishing wax deposition models, which limits the application of the model. Experimental methods not only can visually characterize wax deposition behavior but also can provide essential data for the development of wax deposition theory.

3.2.1. Cold Plate Method

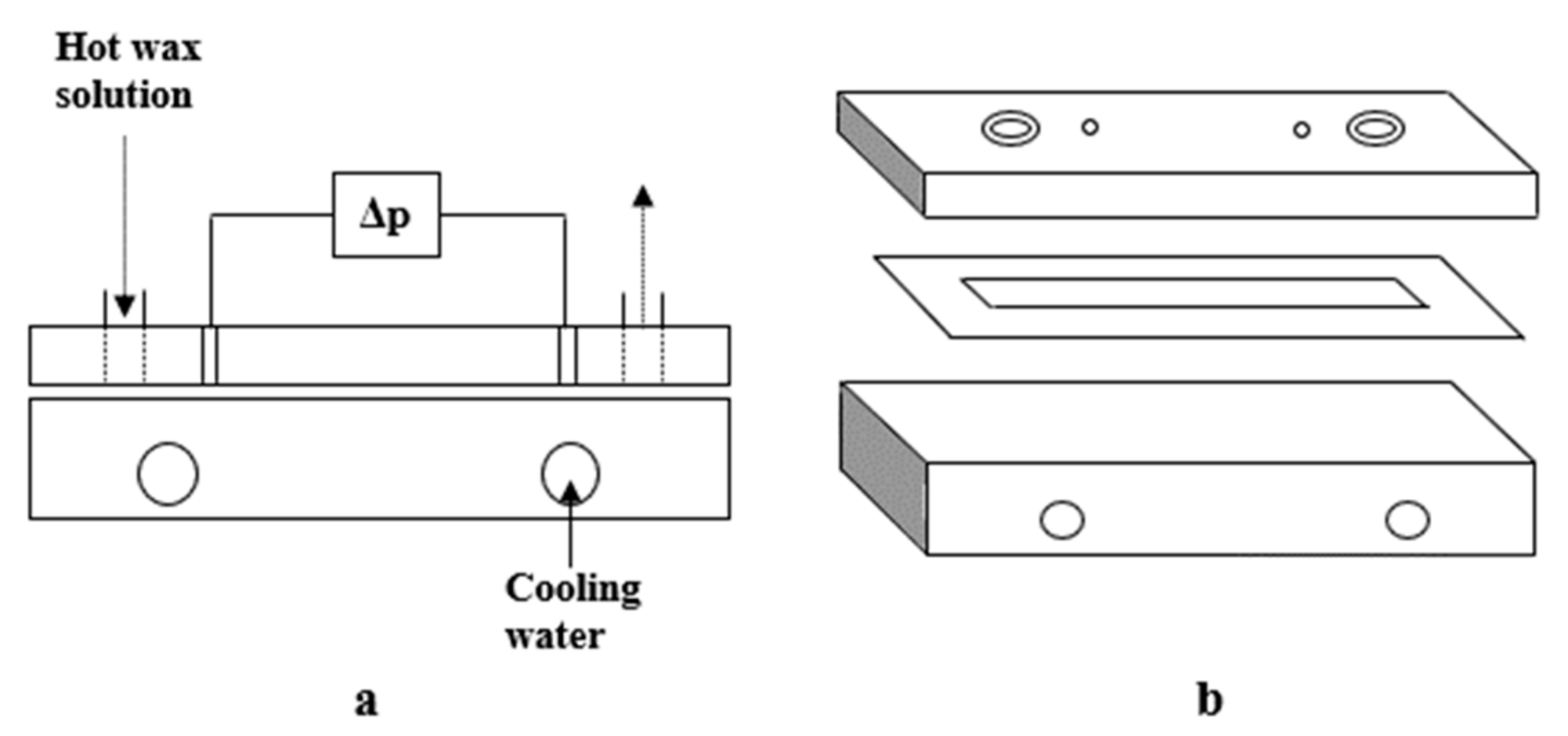

The cold plate is an early experimental apparatus to study wax deposition, which consisted of a cold plate, a water bath, and a stirring device. Cole et al. [95] carried out experiments through a cold plate apparatus as early as 1960 to investigate wax deposition behavior in oil-water two-phase flow and demonstrated that the wax deposition amount was correlated with the cold plate surface characteristics. Subsequently, Hunt et al. [96] simulated wax deposition behavior in wellbores using a cold plate apparatus and found that sediment formation amount was correlated with surface roughness. Besides, Leontaritis et al. [97] investigated the wax deposition behavior under molecular diffusion and shear mechanisms by means of an invented dynamic cold plate, and the effect of shear rate on wax deposition rate was empirically correlated with shear stress. The structure of the cold plate is simple and the temperature difference of the oil and plate is relatively easy to control, but the stability of the equipment has been the main problem that hinders its wide application. Recently, Tinsley et al. [98] made up for the shortcomings of the traditional cold plate apparatus by setting the distance between the two cold plates to provide the required pressure and shear stress conditions, the schematic diagram of the device structure is shown in Figure 4. However, there are significant deficiencies in characterizing wax deposition behavior in the condensate hydrocarbon system due to the finite pressure provided by this apparatus.

3.2.2. Cold Finger Method

The cold finger is divided into two categories: static apparatus and dynamic apparatus. In the study of Bern and Weispfening et al. [99,100], the wax deposition in the hydrocarbon system was characterized using a static cold finger apparatus, which is shown in Figure 5a. Hamouda et al. [101] probed wax deposition in North Sea condensate oil by using a static cold finger apparatus and demonstrated that molecular diffusion was the major mechanism. It was concluded that as the system pressure increased, the lowest carbon value in the sediment decreased, while the lowest carbon number in the oil increased. The wax deposition behavior was also investigated utilizing static cold finger by Zhang [102], Kasumu [103], and Mahir et al. [104] However, the apparatus can only examine wax deposition when the hydrocarbon system was standing, which poorly reflects the real flow field. For this reason, Wang et al. [68] investigated the effect of water content on the carbon number distribution of sediment using a dynamic cold finger apparatus and found that the proportion of C17-C35 in the sediment decreased with increasing water content when the water content was greater than 30%. Subsequently, Wang et al. [69] determined the wax deposition rate under zero-shear and equivalent stirring conditions by a dynamic cold finger apparatus (Figure 5b). The oil-wall temperature difference was also controlled to ensure the molecular diffusion of the wax crystals, while the shear dispersion coefficient was determined. Moreover, Zougari et al. [105] also improved the dynamic cold finger apparatus to perform single-phase, oil-gas, and oil-water two-phase wax deposition experiments under high-pressure and shear conditions (Figure 5c). It was found that the wax deposition rate of degassed crude oil is greater than that of gas-bearing crude oil. The improved dynamic cold finger apparatus also makes it a future addition to characterize the wax deposition behavior of waxy condensate oil in the wellbore.

3.2.3. Rotating Disk Method

The principle of the rotating disk method is similar to that of the cold plate method. The wax deposition behavior is characterized by measuring the amount of wax deposited on the metal disk within a specified time. The schematic diagram of apparatus is shown in Figure 6. Matlach et al. [106] employed the rotating disk method in measuring the wax deposition amount. The method allows control of oil temperature, rotating disk temperature, and rotation speed. This method is relatively easy to measure and control, but it is so inconsistent with the real shear flow field that it has rarely been used to characterize wax deposition behavior.

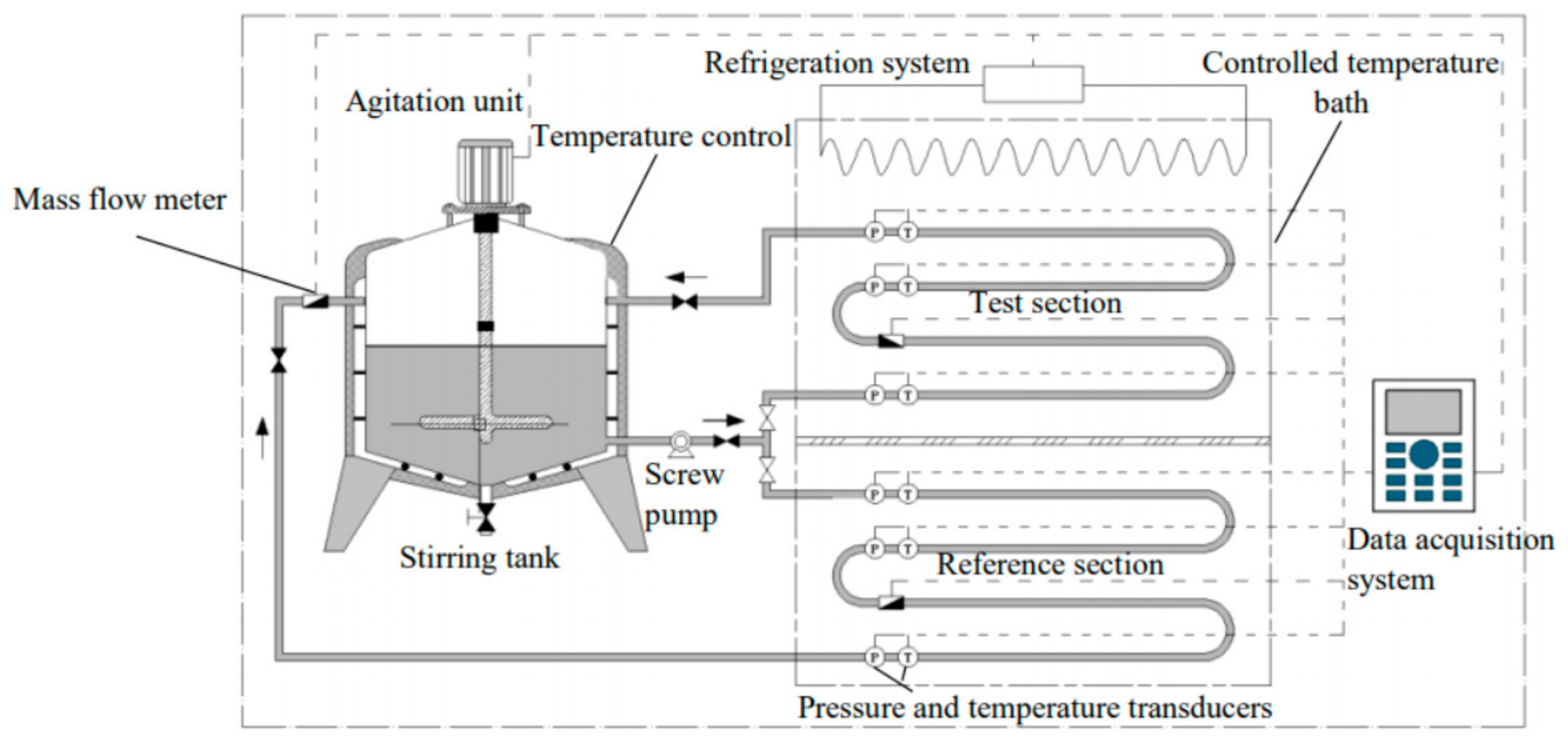

3.2.4. Flow Loop Method

Although flow loop experiment is the most expensive equipment to characterize wax deposition behavior, its characterization effect is the best. The flow field condition in the flow loop is similar to the actual hydrocarbon production and transportation process. Therefore, the study of wax deposition in the flow loop apparatus is more reliable than other deposition apparatuses. Its main components include: regulation system, pumping system, test section and deposit characterization devices [82]. The schematic of the flow loop apparatus is shown in Figure 7. Hsu et al. [49] established a high-pressure flow loop experimental apparatus to calculate the wax deposition by measuring the pressure difference between the test section and the reference section. Professor Bruno [67] of the University of Tulsa conducted a small-scale flow loop experiment of South Pelto crude oil and Garden Banks condensate oil, and concluded that the deposition thickness of both oil samples decreased with the increase in water content. Compared with the test results of South Pelto crude oil, the Garden Banks condensate oil with 85% water cut produced a very thin and hard sedimentary layer, which indicated that the sedimentary mechanism was different from the traditional diffusion theory. Hoffmann et al. [108] investigated wax deposition in single-phase flow at different temperatures and flow conditions with the condensate oil. The finding was that molecular diffusion was indeed the main mechanism controlling wax deposition, but an accurate quantitative description needs to take into account the effects of the deposited wax composition and shear stress. In addition, Rittirong et al. [109] performed wax deposition experiments on condensate oil under segment plug flow conditions using a pressurized flow loop apparatus and showed that the wax deposited thickness and quality were influenced by the variation of surface flow rate or phase flow rate.
From the above research, it is clear that the traditional cold plate and rotating disk methods are rarely used to characterize the wax deposition behavior due to certain defects. Currently, the cold finger method and flow loop method are still the most widely used characterization methods, which allow wax deposition experiments in pressurized systems. However, there are also some deficiencies in characterizing wax deposition behavior of condensate oil in the wellbore.

4. Molecular Dynamics Characterization of Wax Precipitation and Deposition Behavior

In the hydrocarbon industry, Molecular dynamics (MD) simulation can provide significant contributions on upstream and downstream sectors. In terms of upstream hydrocarbon exploitation, computer-based studies are critical for the characterization of oil displacement processes, oil migration within the pore-throat, and oil droplet stripping mechanisms (Figure 8a–d). Fang et al. [110] theoretically discussed the molecular mechanism of viscoelastic polymer to enhance oil recovery. MD simulation was used to study the dynamic process of trapped oil droplet displacement from dead Angle in the nanopore. Zhang and his team [111,112,113] explained the mechanism and experimental phenomena of chemical oil flooding and supercritical CO2 oil flooding at the molecular level, including the stripping mechanism of oil droplets, the effect of oil components, rock surface, and nanoparticles on the stripping of oil droplets, and the migration mechanism of oil in the pore-throat during CO2 flooding and so on. These research topics contribute to the understanding of the underlying molecular processes, which are critical to improving hydrocarbon recovery mechanisms.
In terms of downstream hydrocarbon gathering and treatment, MD simulation mainly focuses on emulsification and demulsification of produced liquid [114], film formation behavior at the oil-water interface [115], and hydrate treatment in low-temperature transportation. Gamba et al. [116] performed a pioneering investigation and proposed a “sandwich” structure to characterize the crude oil emulsion model, which was a lattice arrangement of a given oil and water molecule with a water layer in the middle and an oil layer on both sides for a W/O emulsion, the reverse placement is assigned as the O/W emulsion. The role of sodium dodecylbenzene sulfonate (SDBS) in the separation of the oil-water interface was investigated by Li et al. by MD simulations [117], and it was found that SDBS molecules had an obvious inhibitory effect on the migration of water molecules near the interface, while water molecules far from the interface had a strong migration and diffusion ability. Li et al. [118] analyzed the effects of temperature, pressure, and initial concentration of methane in the liquid phase on the decomposition of methane hydrate in an aqueous environment by MD simulation method to further understand the hydrate dissociation mechanism at the microscopic level. At present, the relevant MD simulation researches mainly focus on the development and mechanism of action of wax inhibitors, while research on wax formation in the hydrocarbon system is still in its infancy. MD simulation as an emerging method for characterizing the wax precipitation and deposition behavior is gaining a lot of attention from petroleum workers.

4.1. MD Simulation of Wax Precipitation Behavior

MD simulation techniques can effectively bridge the experimental gap and describe the microscopic behavior of wax phase transition and precipitation in terms of molecular motion, structure, and geometric changes at the nanoscale. MD simulation was applied to characterize the wax precipitation behavior in the study by Gan et al., Dodecane was used as the oil molecular model, and the mixture of C28 and C36 molecules was used as the wax molecular model; A force field model describing the molecular dynamics process of wax molecule and hydrocarbon mixture has also been established [119]. As shown in Figure 9, the microscopic process of wax molecules transforming from the irregularly dispersed state to larger gelled clusters in the oil system composed of a single hydrocarbon was demonstrated. While the number of wax crystals formed at different operating parameters was also analyzed by the density distribution in each direction. It was proved that the increase in temperature delayed the wax precipitation, and the increase in pressure and water content enhanced the solubility of wax molecules. Meanwhile, the formed emulsified water surface provided more bonding points for wax crystals, which strengthened the agglomeration and precipitation of wax crystals.
Subsequently, Chen et al. [120] characterized the wax precipitation behavior by comparing the self-diffusion coefficients and wax configurations between the two force fields, and also proved that the existence of wax molecules was one of the reasons for oil to inhibit molecular diffusion, where the wax molecular model consisted of a mixture of C26 and C38. Wax molecules in the OPLS-AA force field crystallized when the temperature decreased, and some wax molecules aggregated when the temperature decreased to 313 K. The aggregated wax molecules tended to crystallize. However, no signs of crystallization were shown at any temperature in the APPLE&P force field and the wax molecules were uniformly distributed in the waxy hydrocarbon system. Simultaneously, the self-diffusion coefficient also validated this conclusion (Figure 10).

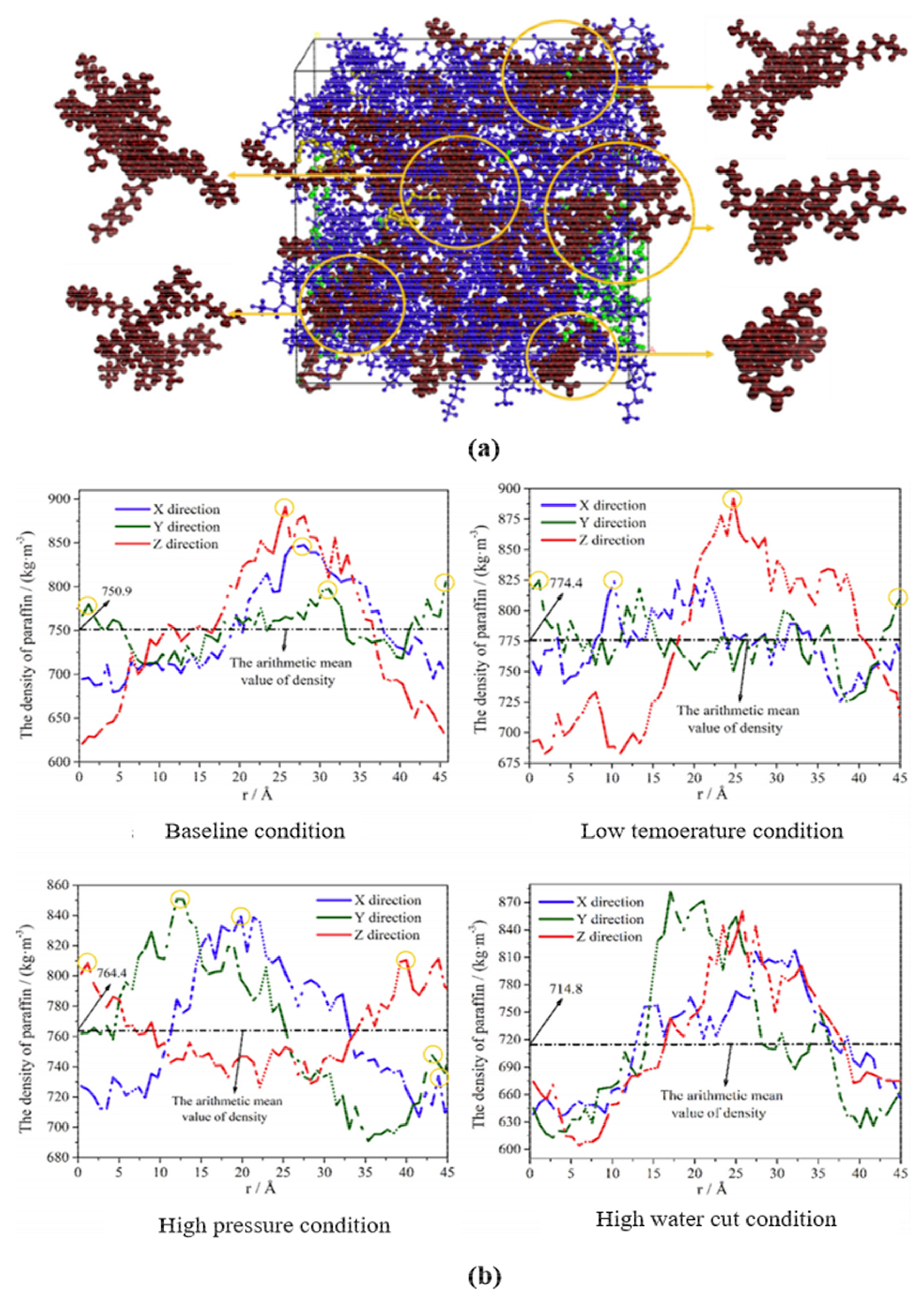

In Cao et al.’s latest research [121], the precipitation behavior of wax (C18, C18+C28, C18+C36) components in a single dodecane oil component model was characterized by MD simulation, and the wax precipitation temperature of the system was analyzed using radial distribution functions and self-diffusion coefficients based on the COMPASS force field. It was found that the wax molecules in the system gradually transformed from the dispersed state to the aggregated state as the temperature decreased, and the lower the temperature was, the easier the wax aggregated, and when the temperature was less than 313.15 K, the system underwent the phase transition process from liquid to solid (Figure 11). The results of the radial distribution functions and the self-diffusion coefficients also proved that the wax molecules underwent a phase transition at 313.15 K, i.e., the wax precipitation process.

4.2. MD Simulation of Wax Deposition Behavior

In order to characterize the microscopic deposition behavior of wax crystals, MD simulation techniques were incorporated. The processes related to the adsorption and deposition of wax molecules on the hematite surface were studied earlier by San-Miguel et al. [122]. It was found that the (0 0 1) surface of hematite was the surface that allowed the wax crystals to grow in the most favorable direction when wax molecules were randomly distributed on the hematite surface. The tendency for wax molecules to aggregate during the temperature drop was also observed. With the increase in the number of added wax molecules, different deposition layers were generated in the system, and the wax molecules had a clear trend of forming crystals. Gan et al. [123] established an oil-wall model to reveal the deposition and wall-sticking behavior of wax clusters in an oil system composed of a single C12 alkane based on the COMPASS force field, and found that the nucleation clusters first adhered to the wall to form a solidified oil layer. Then, wax molecules diffused to the deposition layer, and oil molecules in the solidified oil layer diffused backward toward the oil flow. With the increase in the adhesion and diffusion degree of clusters on the wall, the deposition layer gradually aged and formed a gel deposition layer with high density and hardness. At the same time, it is also found that the higher the surface free energy was, the better the hydrophilicity of the wall was, and the higher the adhesion degree of nucleation clusters on the wall was. In addition, the microscopic mechanism of the selective deposition process was also revealed by analyzing the microscopic information such as deposition location, binding conformation, and binding energy (Figure 12).

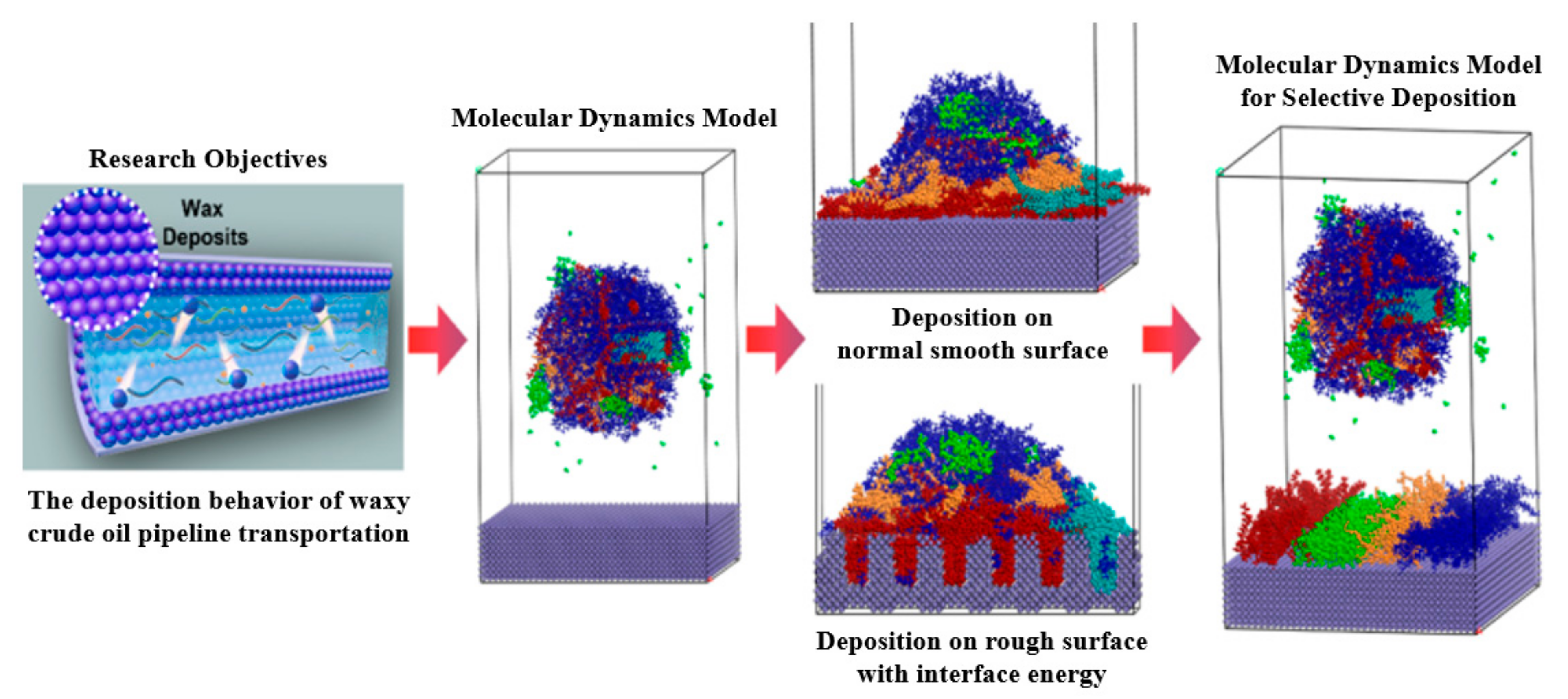

In recent studies, Li et al. [124] took the pipe wall composed of copper molecules as the research object, and the waxy crude oil composed of oil molecules (dodecane), wax molecules (octadecane) and water molecules was modelled by OPSL-AA force field to simulate its deposition process on the pipe wall. It was found that at copper wall temperatures of 283 K, 293 K, and 303 K, the wax crystals formed a mesh structure on the copper wall, resulting in the gelation of waxy crude oil. The wax crystals tended to be horizontally aligned near the wall and vertically aligned away from the wall. The self-diffusion coefficient of wax molecules was smaller than the self-diffusion coefficient of oil molecules, which weakened the diffusion ability of oil molecules when wax molecules were present in the hydrocarbon system. The wax crystal formed a three-dimensional mesh structure in two regions, which wrapped the oil molecules and hindered the movement of oil molecules, thereby reducing the mobility of oil molecules and leading to the solidification of the hydrocarbon system (Figure 13).

5. Challenges and Prospects

It has been a common practice for a long time to reveal and characterize the wax precipitation and deposition behavior mainly by modeling and experiment means, the introduction of MD methods to deepen the description of phase transition and solid deposition has become a novel tendency, and the general idea of investigating wax precipitation and deposition behavior based on MD simulation has also been formed, the advantages and disadvantages of wax precipitation and deposition behavior characterization methods are shown in Figure 14. Nevertheless, in view of the characterization of wax precipitation and deposition behavior of condensate oil system in the wellbore, the following issues still need to be further addressed and investigated in terms of the improvement of predictive models, validation of macroscopic experiments, and expansion of MD simulation applications.
(i)
The above models can characterize the wax precipitation behavior of the condensate oil system with better accuracy. However, the models to predict the wax precipitation temperature and amount of the condensate oil may not give ideal results under certain extreme temperature and pressure conditions, such as deep reservoir forming environment at high temperature and high pressure.
(ii)
There are few experimental studies on the multi-phase flow wax deposition, and the experimental data obtained under different conditions are also scarce. It is also difficult to obtain the relevant data of wax deposition in the wellbore during the condensate oil production, which makes it difficult to provide sufficient data support for modeling and verification of wax deposition in condensate oil.
(iii)
Currently, the common experimental methods for characterizing wax deposition are still the cold finger method and the flow loop method. Although these characterization methods can be performed under the system with pressure, however, the maximum temperature and pressure values of the experimental apparatus are limited, and the shear flow field cannot also be truly reflected. Hence, the experimental method for characterizing the wax deposition behavior of condensate in the wellbore has certain drawbacks.
(iv)
At present, most of the proven condensate oil is buried in deep and ultra-deep formations, and it is difficult to directly understand the wax precipitation and deposition behavior in the wellbore during development. Considering the safety and economy of working under high temperature and high pressure, it is also difficult to conduct large-scale experimental research in the laboratory. MD simulation technology is expected to become a new means to characterize the wax precipitation and deposition behavior of condensate oil in the wellbore, which can supplement and guide the predictive models and experimental studies, help to analyze the microscopic properties, and explain the macroscopic phenomena.
(v)
Considering the parallel calculation and calculation speed, it is inevitable to make appropriate simplifications to build the model, but the actual oil phase components are diverse, and the models containing a single hydrocarbon component are not conducive to the characterization of MD method to the microscopic behavior of wax precipitation and deposition of condensate oil in wellbore.
(vi)
During the condensate oil development, massive wax crystals are often precipitated and adhere to the wellbore wall due to variations in oil phase composition and external environment. Along with the existence of sand and scale, and the possibility of hydrate formation, the wellbore blockage is increasingly becoming serious. Therefore, how to effectively construct a method to characterize the coupled deposition behavior of wax and asphaltene, sand, scale, and hydrate at the microscale is the direction for further investigation and application of MD simulation in the future.

6. Conclusions

In the petroleum industry, wax precipitation and deposition are key challenges leading to flow limitation, productivity decline, and pipe plugging. This paper reviews characterization methods of wax precipitation and deposition behavior, analyses the applicability and limitations of wax precipitation prediction models, and argues that these models fall short in describing the wax precipitation behavior of condensate under specific extreme external conditions. The research on wax deposition models of single-phase, two-phase and multi-phase flow has been progressively progressed, whereas the complex phase transition process of condensate oil in the wellbore makes the wax deposition behavior modeling characterization difficult to be accurately applied. The advantages, disadvantages and operational points of experimental characterization methods for wax precipitation and deposition behavior are summarized, and it is concluded that DSC and laser scattering methods are often used to characterize the wax precipitation behavior of condensate oil, and cold finger and flow loop methods are often used to characterize the wax deposition behavior. Furthermore, MD simulation is applied as an emerging method to characterize wax precipitation and deposition trouble. The application of this technology bridges the gap between modeling, experiment, and simulation, enriches the characterization methods of wax precipitation and deposition, and promote the development of unconventional hydrocarbon production and transportation technologies.

Author Contributions

Y.W. and X.L. performed the literature collection and induction. X.L. and Z.W. prepared the manuscript. Z.H. proofread and edited the manuscript. The whole work was supervised by Y.L. All authors have read and agreed to the published version of the manuscript.

Funding

This work presented in this paper was financially supported by the National Natural Science Foundation of China (Grant No. 52174060; 52074090) and Postdoctoral Scientific Foundation of Heilongjiang Province in China (Grant No. LBH-Q20012).

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

The data presented in this review are available in article.

Acknowledgments

The authors gratefully acknowledge the support from the Heilongjiang Touyan Innovation Team Program, and the CNPC Innovation Foundation.

Conflicts of Interest

The authors declare no conflict of interest.
