Enhanced Photoelectrocatalytic Activity of TiO2 Nanowire Arrays via Copolymerized G-C3N4 Hybridization

by
Yajun Wang
*,†,
Runhua Li
†,
Qiaohuan Wu
,
Zhuang Yang
,
Fan Fan
,
Yuming Li
and
Guiyuan Jiang
*
State Key Laboratory of Heavy Oil Processing, China University of Petroleum, Beijing 102249, China
*
Authors to whom correspondence should be addressed.
†
These authors contributed equally to this work.
Energies 2022, 15(12), 4180; https://doi.org/10.3390/en15124180
Submission received: 15 April 2022 / Revised: 9 May 2022 / Accepted: 14 May 2022 / Published: 7 June 2022
(This article belongs to the Special Issue Energy Storage and Conversion Based on Low-Dimensional Nanostructure)
Browse Figures
Versions Notes

Abstract

:
Photoelectrocatalytic (PEC) oxidation is an advanced technology that combines photocatalytic oxidation (PC) and electrolytic oxidation (EC). PEC activity can be greatly enhanced by the PC and EC synergy effect. In this work, novel copolymerized g-C3N4 (denoted as CNx)/TiO2 core-shell nanowire arrays were prepared by chemical vapor deposition. CNx were deposited on the surface of TiO2 nanowire arrays using organic monomer 4,5-dicyanidazole and dicyandiamide as copolymerization precursor. TiO2 nanowire arrays provide a direct and fast electron transfer path, while CNx is a visible light responsive material. After CNx deposition, the light response range of TiO2 is broadened to 600 nm. The deposition of CNx shell effectively improves the PC efficiency and PEC efficiency of TiO2. Under visible light irradiation and 1 V bias potential, the rate constant k of PEC degradation of CNx/TiO2 core-shell nanowire arrays is 0.0069 min−1, which is 72% higher than that of pure TiO2 nanowires. The built-in electric field formed in the interface between TiO2 core and CNx shell would effectively promote photogenerated charge separation and PEC activity.

1. Introduction

Photocatalytic (PC) oxidation of organic pollutants by semiconductor is one of the most promising waste treatment methods, which can degrade organic compounds into non-toxic small molecules such as CO2 and H2O [1,2,3,4]. A series of photocatalysts with excellent performance have been developed, including metal oxide [5,6], sulfide [7] and nitride [8,9]. Photoelectrocatalytic (PEC) oxidation is an advanced technology that combines photocatalytic oxidation (PC) and electrolytic oxidation (EC), where the PC activity can be greatly enhanced by the synergy effect of PC and EC [10,11]. PEC can greatly enhance the pollutant degradation activity, due to the synergistic effect of PC and EC oxidation [12,13]. PEC can not only improve the efficiency of the reaction, but also solve the problem of difficult separation of powdery photocatalyst from reaction solution.
TiO2 is a kind of catalyst with extensive research and application prospects due to its relatively high photocatalytic activity, good chemical stability and nontoxicity [14,15]. TiO2 nanowires as one-dimensional nanomaterials have been demonstrated to have higher photocatalytic activity due to their large surface area, rapid charge transfer and short carrier diffusion distance [16,17]. One-dimensional TiO2 nanostructure immobilized on conductive substrate have stronger adsorption capacity, more reaction active centers and better reaction stability compared with film electrode [18,19]. However, the low quantum efficiency and poor visible light response of TiO2 greatly restrict its application. Many efforts have been devoted to enhancing the performance of TiO2, such as noble metal deposition [20,21], ion doping [22,23] and semiconductor coupling [24,25].
A semiconductor of narrow band gap combined with TiO2 can effectively improve the efficiency of charge separation and expand the range of light absorption. Numerous TiO2 composite semiconductors have been reported, such as CdS/TiO2 [26,27], CdSe/TiO2 [28,29], C3N4/TiO2 [18,30,31], CdSe/Al2O3/TiO2 [32], etc. However, sulfur compounds are limited in application in the environmental field, due to their photocorrosion and instability in photocatalytic reactions [33,34,35]. Graphitic carbon nitride (g-C3N4), as a visible light photocatalyst with a band gap of 2.7 eV, has become a hotspot in photocatalytic research in recent years. It is particularly stable at room temperature and can also maintain the stable character in the process of photocatalytic reaction [36,37]. Due to the excellent visible light absorption capacity and high conduction band position of g-C3N4, the coupling of g-C3N4 with wide-bandgap semiconductor is a promising system to achieve an enhanced charge separation and improved photocatalytic activity.
Our group prepared g-C3N4/TiO2 nanowire arrays by CVD (chemical vapor deposition) method, and the PC and PEC efficiency of TiO2 effectively improved by the deposition of g-C3N4 shell [18]. However, g-C3N4 composed of 3-s-triazine structural units exists with some disadvantages, such as insufficient light absorption (only light with a wavelength shorter than 460 nm can be absorbed) [38,39], which restrict the PC activity of g-C3N4. Wang et al. have synthesized some molecular doped g-C3N4 by copolymerization of dicyandiamide with organic small molecular [40,41]. Copolymerization of g-C3N4 can significantly narrow its bandgap and enhance its light-harvesting ability [41]. Compared with g-C3N4/TiO2 nanowire arrays, the combination of copolymerized g-C3N4 and TiO2 may further expand the light absorption range and greatly improve the PC activity of TiO2.
Herein, we prepared a copolymerized g-C3N4 (denoted as CNx)/TiO2 core-shell nanowire arrays by one-step CVD method (denoted as CNx/TiO2). CNx with extended light absorption range was achieved by using organic monomer 4,5-dicyanidazole containing cyano group and dicyandiamide as precursor. TiO2 nanowire arrays provide a direct rapid electron transfer path, while CNx serves as the visible light response material. The built-in electric field formed in the interface between TiO2 core and CNx shell would effectively promote photogenerated charge separation and transfer. PC, EC and PEC of CNx/TiO2 core-shell nanowire arrays were systematically studied in this paper, and the mechanism of catalytic activity improvement was also investigated.

2. Experimental Section

Preparation of TiO2 nanowire arrays: TiO2 nanowire arrays were prepared via the method of our previous work [18]. The carbon cloth was cleaned with acetone and methanol, dried after rinsing with deionized water. It was placed in a reactor containing 100 mL of toluene, 10 mL of tetrabutyl titanate, 10 mL of titanium tetrachloride, and 10 mL of hydrochloric acid. It was then put in an oven at 180 °C for 22 h. After cooling down to room temperature, it was rinsed with ethanol and deionized water, and annealed in air at 500 °C for 2 h.
Preparation of copolymerized g-C3N4: 3 g of dicyandiamide and 0.05 g of 4,5-dicyanidazole were dissolved in 15 mL of deionized water, then dried in 80 °C water bath. The obtained powder sample was put into the tube furnace and heated at 550 °C for 4 h with a heating rate at 5 °C/min. CNx was obtained after natural cooling. For comparison, pure g-C3N4 without 4,5-dicyanimidazole was also synthesized in the same procedure.
Preparation of copolymerized CNx/TiO2 core-shell nanowire arrays: CNx was deposited on TiO2 nanowire arrays by one step CVD deposition method. First, 3 g of dicyandiamide and 0.05 g of 4,5-dicyanimidazole dissolved in 15 mL of deionized water, then dried in 80 °C water bath; the obtained powder was ground up and transferred into a porcelain boat with cover. Then, TiO2 nanowire arrays grown on carbon cloth were placed above the porcelain boat, and heated at 550 °C for 4 h with a heating rate at 5 °C/min. CNx/TiO2 core-shell nanowire arrays were obtained after natural cooling.

2.1. Characterization

The crystal structure of the samples was determined as 40 kV, 30 mA, λ = 1.5406 A. The optical response of the samples was analyzed by Hitachi U-4100 UV-visible spectrometer with solid barium sulfate as reference. The micromorphology of the samples was observed by scanning electron microscope (SEM, FEI Quanta 200F, FEI, Hillsboro, OR, USA) and transmission electron microscope (TEM, JEOL JEM 2100, JEOL, Akishima, Japan). The valence bond structure of the sample was analyzed by Thermo Fisher’s k-alpha X-ray photoelectron spectrometer (XPS, Thermo Fisher K-Alpha instrument, Waltham, MA, USA).

2.2. Photoelectrocatalysis Experiments

Methylene blue (MB) was used as the probe to evaluate the PEC activity of the sample. A 300 w Xe lamp with a cutoff filter (λ > 420 nm) was used as the light source, while the electrochemical workstation (CHI660E) applied a bias voltage of 0–2.5 V. About 200 mL of MB solution (the initial concentration of 1.5 × 10–5 mol/L) was added to a 5 × 5 × 10 cm quartz reactor with the light source at a distance of 10 cm from the reactor. After the dark reaction for 30 min, the light was turned on or bias was applied. Every 30 min, 2 mL solution was centrifuged and the absorbance of upper suspension at the wavelength of 664 nm was measured by UV-vis spectrophotometer, then the degradation rate of MB was calculated.

3. Results and Discussion

3.1. Catalyst Characterization

The synthesis process of CNx/TiO2 core-shell nanowire arrays is shown in Figure 1. Firstly, the TiO2 nanowire arrays grew on the carbon cloth by hydrothermal method. Then, CNx were deposited on the surface of TiO2 nanowire arrays by CVD method using organic monomer 4,5-dicyanidazole and dicyandiamide as copolymerization precursor. Figure 2a shows the XRD patterns of TiO2, CNx, and CNx/TiO2 core-shell nanowire arrays. The CNx sample shows the characteristic peak of g-C3N4. The peaks at 13.1° and 27.4° can be indexed to interplanar (100) crystal plane and the stacking of the conjugated aromatic system (002) of C3N4 [42]. Characteristic peaks appearing in CNx/TiO2 core-shell nanowire arrays were corresponded to CNx and TiO2, respectively. The peaks at 27.45°, 36.0°, 41.2° and 54.3° belonged to the (110), (101), (111) and (211) crystal plane of the TiO2 rutile phase, respectively [43]. The characteristic peak of the (002) crystal plane of g-C3N4 cannot be observed because it overlaps with that of the (110) crystal plane of TiO2. Nevertheless, the peak at 13.1° corresponding to the (100) crystal plane of CNx can be obviously seen, indicating the successful deposition of CNx on the TiO2 nanowire. This result suggests that the CNx/TiO2 composite nanowire arrays were successfully synthesized by CVD method, and the crystal structures of TiO2 and CNx were unchanged. Figure 2b shows the UV-vis diffuse reflectance spectrum (DRS) of the prepared samples. As can be seen, TiO2 mainly absorbs light less than 400 nm due to its wide bandgap, while both g-C3N4 and CNx can absorb visible light. Compared with pure g-C3N4, the absorption band edge of CNx shows an obvious red shift to 700 nm (Figure S1). Compared with g-C3N4, the bandgap of CNx is narrowed to 2.2 eV, indicating that the ability of visible light absorption is greatly improved. Compared with pure TiO2 nanowire arrays, all composite samples (g-C3N4/TiO2 and CNx/TiO2) present enhanced light absorption capacity. Moreover, compared with g-C3N4/TiO2 in our previous work [18], CNx/TiO2 has a significantly improved light absorption capacity at 400–600 nm, which is favorable for enhancing the visible light photocatalytic activity.
Figure 3a–c shows the SEM images of pure TiO2 nanowire arrays and the CNx/TiO2 nanowire arrays. As can be seen from Figure 3a, the surface of the TiO2 nanowire arrays is relatively smooth, and the diameter of TiO2 nanowire is about 25 to 40 nm. After deposited with CNx, the surfaces of the TiO2 nanowire become rough, which may be related to the tendency of CNx to form layered structure in the process of CVD (Figure 3b,c). The diameter of CNx/TiO2 core-shell nanowire arrays is about 45–65 nm, indicating the formation of CNx/TiO2 core-shell nanowire composite. Figure 3d shows the HRTEM images of the prepared CNx/TiO2 core-shell nanowire arrays. The HRTEM images of CNx/TiO2 indicates that TiO2 nanowire is covered by a thin layer of CNx. The diameter of CNx/TiO2 measured by HRTEM is about 50 nm, which is consistent with the SEM results. The measured lattice fringe of TiO2 is 0.325 nm, which is related to the rutile TiO2 (110) plane [44]. The measured lattice fringe of 0.325 nm in the deposition layer is correlated with the (002) crystal planes of CNx [45].
X-ray photoelectron spectroscopy was used to analyze the chemical states of g-C3N4/TiO2 and CNx/TiO2 core-shell nanowire arrays (Figure 4a and Figure S2). The peak position correction is based on 283.7 eV of C1 s (Figure S2b). Figure 4 shows the XPS survey spectra and magnified spectra of C1 and N1s. As can be seen from Figure 4a, the peak at 283.7 eV represents the characteristic peak of C–C bond of the carbon cloth. The peak at 287.3 eV is attributed to the characteristic peak of sp2 hybridized carbon [46]. The spectra of CNx/TiO2 core-shell nanowire array remains unchanged relative to that of g-C3N4/TiO2 core-shell nanowire array, indicating that they have similar chemical structures. From the N1s spectrum of g-C3N4/TiO2 and CNx/TiO2 core-shell nanowire arrays (Figure 4b), three peaks can be distinguished to be centered at 403.4 eV, 399.9 eV and 397.9 eV, respectively. The main peak at 397.9 eV can be attributed to the C–N=C of heterocycle. The other two peaks at 403.4 eV, 399.9 eV can be assigned to the positive charge localization effect and N atoms of N–H and N–(C)3. Compared with the g-C3N4/TiO2, the N1s peak of CNx/TiO2 core-shell nanowire array at 399.9 eV shifted 0.5 eV towards the direction of low binding energy, and the peak area and the peak strength were significantly enhanced. It can be indicated that copolymerization can effectively enhance the conjugation effect and extend the π conjugate system, conducive to the transmission and separation of photogenerated charges [47].

3.2. Enhancement of PC and PEC Activity

MB was used as probe to investigate the PEC activity of CNx/TiO2 core-shell nanowire arrays under different test conditions. The PC and PEC degradation processes obey pseudo-first-order kinetics [48]. PC and PEC performance of CNx/TiO2 core-shell nanowire arrays and TiO2 were evaluated under the conditions of visible light irradiation (λ ≥ 420 nm) and bias potential of 1 V (Figure 5a,b). Both PC and PEC degradation rate constant of MB with CNx/TiO2 core-shell nanowire arrays are obviously higher than that of pure TiO2 sample. It can be speculated that the CNx/TiO2 core-shell nanowire arrays heterojunction structure can promote the separation of photogenerated charge carriers and prolong the lifetime of photogenerated carriers, thus the performance of PEC was enhanced. It can be seen from the results that when only PC or only the potential of 1 V is applied, the reaction rate of MB degradation is comparatively slow. However, when the potential of 1 V was applied to both CNx/TiO2 core-shell nanowire arrays and TiO2 samples under visible light irradiation, the degradation rate of MB was significantly increased, indicating that the synergistic effect of PC and EC was beneficial to accelerate the migration of photogenerated carriers and increase the reaction rate. Under visible light irradiation and 1 V bias potential, the rate constant k of PEC degradation of CNx/TiO2 core-shell nanowire arrays is 0.0069 min–1, which is 72% higher than that of pure TiO2 nanowires.
The effect of bias potential on the PEC degradation of MB by CNx/TiO2 core-shell nanowire arrays was explored, and the results are shown in Figure 5c,d, indicating the self-degradation rate of MB under the visible light irradiation without catalyst. The PEC activity of CNx/TiO2 first increases and then decreases with the increasing bias potential. When the potential is reached at 2 V, CNx/TiO2 core-shell nanowire arrays show an optimal PEC activity (the reaction rate constant k is 0.01268 min–1), which is 3.36 times that of PC degradation reaction rate constant. The effect of bias is not only powerful to the formation of active species with stronger oxidation ability, but also provides a driving force for the directional migration of photogenerated electrons, which can greatly improve charge separation efficiency. When the potential increased to 2.5 V, the degradation effect of MB decreased significantly. This is possibly due to MB rapidly decomposed; the decomposition products were accumulated on the surface of the working electrode, thus passivating the PEC reaction. Therefore, it can be determined that the optimal potential for PEC degradation of MB by CNx/TiO2 core-shell nanowire arrays is 2 V.

3.3. Mechanism of Enhancement of PEC Activity

The possible condensation steps of forming the copolymerized g-C3N4 via the precursors of dicyandiamide and 4,5-dicyocyanidazole are shown in Figure S3. It can be seen that the basic structural unit 3-s-triazine ring of g-C3N4 does not change during the condensation process, but only changes the terminal group. On the one hand, the change of the terminal group will bring different π electron delocalization effect, which is beneficial to the separation of photogenerated carriers [49]. On the other hand, by adding 4,5-diabenzimidazole, the bandgap of the as-prepared sample is reduced from 2.70 eV to 2.20 eV, illustrating more visible light could be absorbed. Based on the above characterization and activity tests, the possible mechanism of photoelectric synergistic effect on degradation of MB was discussed (Figure 6). The bandgap of CNx was narrowed compared with pure g-C3N4. The conduction band (CB) of CNx is higher than that of TiO2, and CNx can absorb visible light to generate electrons and holes. Under the visible light excitation, the exited electrons of CNx are transferred to the CB of TiO2, leaving the holes on the CNx, resulting in the reduced photogenerated charge carrier recombination efficiency. Forcing the bias potential, the electrons of TiO2 would transfer to the counter electrode, further enhancing the separation efficiency of photogenerated charge carriers and PEC activity.

4. Conclusions

In summary, we prepared a copolymerized CNx/TiO2 core-shell nanowire arrays by one-step CVD method. CNx serves as the visible light response material, and TiO2 nanowire arrays provide a direct rapid electron transfer path. Compared with pure TiO2 nanowires, the CNx/TiO2 core-shell nanowire arrays present enhanced PC and PEC activity under visible light irradiation. The PEC activity enhancement of the CNx/TiO2 core-shell nanowire arrays is mainly due to extended π conjugation system of C3N4 and matched band energy alignment between the CNx shell and TiO2 core, which can facilitate the separation of photogenerated electrons and holes. The CNx/TiO2 core-shell nanowire arrays synthesized in this work are not only easy to recycle for further use, but also possess the excellent optical properties and PEC degradation ability, making them excellent catalysts for environmental applications.

Supplementary Materials

The following supporting information can be downloaded at: https://www.mdpi.com/article/10.3390/en15124180/s1, Figure S1: (a) UV-Vis diffuse reflectance spectra of g-C3N4 and CNx. (b) Kubelka-Munk transformed reflectance spectra and estimated optical absorption bandgap, Figure S2: (a) XPS spectra of CNx/TiO2 core-shell nanowire arrays. (b) C1s spectra of carbon cloth, Figure S3: The copolymerization of dicyandiamide and 4,5-dicyanoimidazole.

Author Contributions

Investigation, Q.W., F.F. and Y.L.; methodology, Z.Y.; resources, Y.W.; supervision, Y.W. and G.J.; writing—review & editing, Y.W., R.L. and G.J. All authors have read and agreed to the published version of the manuscript.

Funding

This research was funded by the National Key Research and Development Program of China (2019YFC1904500), Science Foundation of China University of Petroleum, Beijing (2462019QNXZ05, 2462020YXZZ018), and State Key Laboratory of Heavy Oil Processing, China University of Petroleum.

Informed Consent Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Liu, Y.; Yao, W.; Liu, D.; Zong, R.; Zhang, M.; Ma, X.; Zhu, Y. Enhancement of visible light mineralization ability and photocatalytic activity of BiPO4/BiOI. Appl. Catal. B Environ. 2015, 163, 547–553. [Google Scholar] [CrossRef]
  2. Sun, J.X.; Yuan, Y.P.; Qiu, L.G.; Jiang, X.; Xie, A.J.; Shen, Y.H.; Zhu, J.F. Fabrication of composite photocatalyst g-C3N4-ZnO and enhancement of photocatalytic activity under visible light. Dalton Trans. 2012, 41, 6756–6763. [Google Scholar] [CrossRef] [PubMed]
  3. Kumar, S.; Baruah, A.; Tonda, S.; Kumar, B.; Shanker, V.; Sreedhar, B. Cost-effective and eco-friendly synthesis of novel and stable N-doped ZnO/g-C3N4 core-shell nanoplates with excellent visible-light responsive photocatalysis. Nanoscale 2014, 6, 4830–4842. [Google Scholar] [CrossRef] [Green Version]
  4. Li, X.; Li, M.; Yang, J.; Li, X.; Hu, T.; Wang, J.; Sui, Y.; Wu, X.; Kong, L. Synergistic effect of efficient adsorption g-C3N4/ZnO composite for photocatalytic property. J. Phys. Chem. Solids 2014, 75, 441–446. [Google Scholar] [CrossRef]
  5. Liu, W.; Wang, M.; Xu, C.; Chen, S.; Fu, X. Significantly enhanced visible-light photocatalytic activity of g-C3N4 via ZnO modification and the mechanism study. J. Mol. Catal. A Chem. 2013, 368–369, 9–15. [Google Scholar] [CrossRef]
  6. Wang, X.-J.; Yang, W.-Y.; Li, F.-T.; Xue, Y.-B.; Liu, R.-H.; Hao, Y.-J. In Situ Microwave-Assisted Synthesis of Porous N-TiO2/g-C3N4 Heterojunctions with Enhanced Visible-Light Photocatalytic Properties. Ind. Eng. Chem. Res. 2013, 52, 17140–17150. [Google Scholar] [CrossRef]
  7. Zhu, Y.; Ling, Q.; Liu, Y.; Wang, H.; Zhu, Y. Photocatalytic H2 evolution on MoS2-TiO2 catalysts synthesized via mechanochemistry. Phys. Chem. Chem. Phys. 2015, 17, 933–940. [Google Scholar] [CrossRef]
  8. Wang, Z.; Guan, W.; Sun, Y.; Dong, F.; Zhou, Y.; Ho, W.K. Water-assisted production of honeycomb-like g-C3N4 with ultralong carrier lifetime and outstanding photocatalytic activity. Nanoscale 2015, 7, 2471–2479. [Google Scholar] [CrossRef]
  9. Li, Y.; Fang, L.; Jin, R.; Yang, Y.; Fang, X.; Xing, Y.; Song, S. Preparation and enhanced visible light photocatalytic activity of novel g-C3N4 nanosheets loaded with Ag2CO3 nanoparticles. Nanoscale 2015, 7, 758–764. [Google Scholar] [CrossRef]
  10. Wang, J.; Yang, Z.; Gao, X.; Yao, W.; Wei, W.; Chen, X.; Zong, R.; Zhu, Y. Core-shell g-C3N4@ZnO composites as photoanodes with double synergistic effects for enhanced visible-light photoelectrocatalytic activities. Appl. Catal. B Environ. 2017, 217, 169–180. [Google Scholar] [CrossRef]
  11. Liang, F.; Zhu, Y. Enhancement of mineralization ability for phenol via synergetic effect of photoelectrocatalysis of g-C3N4 film. Appl. Catal. B Environ. 2016, 180, 324–329. [Google Scholar] [CrossRef]
  12. Zhang, L.; Zhang, X.; Wei, C.; Wang, F.; Wang, H.; Bian, Z. Interface engineering of Z-scheme α-Fe2O3/g-C3N4 photoanode: Simultaneous enhancement of charge separation and hole transportation for photoelectrocatalytic organic pollutant degradation. Chem. Eng. J. 2022, 435, 134873. [Google Scholar] [CrossRef]
  13. Dai, Z.; Lian, J.; Sun, Y.; Li, L.; Zhang, H.; Hu, N.; Ding, D. Fabrication of g-C3N4/Sn3O4/Ni electrode for highly efficient photoelectrocatalytic reduction of U(VI). Chem. Eng. J. 2022, 433, 133766. [Google Scholar] [CrossRef]
  14. Tao, W.; Wang, M.; Ali, R.; Nie, S.; Zeng, Q.; Yang, R.; Lau, W.-M.; He, L.; Tang, H.; Jian, X. Multi-layered porous hierarchical TiO2/g-C3N4 hybrid coating for enhanced visible light photocatalysis. Appl. Surf. Sci. 2019, 495, 143435. [Google Scholar] [CrossRef]
  15. Cheng, D.; Li, Y.; Yang, L.; Luo, S.; Yang, L.; Luo, X.; Luo, Y.; Li, T.; Gao, J.; Dionysiou, D.D. One-step reductive synthesis of Ti3+ self-doped elongated anatase TiO2 nanowires combined with reduced graphene oxide for adsorbing and degrading waste engine oil. J. Hazard. Mater. 2019, 378, 120752. [Google Scholar] [CrossRef] [PubMed]
  16. Janbandhu, S.Y.; Joshi, A.; Munishwar, S.R.; Gedam, R.S. CdS/TiO2 heterojunction in glass matrix: Synthesis, characterization, and application as an improved photocatalyst. Appl. Surf. Sci. 2019, 497, 143758. [Google Scholar] [CrossRef]
  17. Zhao, B.; Xiao, M.; Zhou, Y.N. Synaptic learning behavior of a TiO2 nanowire memristor. Nanotechnology 2019, 30, 425202. [Google Scholar] [CrossRef]
  18. Wang, Y.; Wu, Q.; Li, Y.; Liu, L.; Geng, Z.; Li, Y.; Chen, J.; Bai, W.; Jiang, G.; Zhao, Z. Controlled fabrication of TiO2/C3N4 core–shell nanowire arrays: A visible-light-responsive and environmental-friendly electrode for photoelectrocatalytic degradation of bisphenol A. J. Mater. Sci. 2018, 53, 11015–11026. [Google Scholar] [CrossRef]
  19. Weon, S.; Choi, W. TiO2 Nanotubes with Open Channels as Deactivation-Resistant Photocatalyst for the Degradation of Volatile Organic Compounds. Environ. Sci. Technol. 2016, 50, 2556–2563. [Google Scholar] [CrossRef]
  20. Teng, W.; Li, X.; Zhao, Q.; Chen, G. Fabrication of Ag/Ag3PO4/TiO2 heterostructure photoelectrodes for efficient decomposition of 2-chlorophenol under visible light irradiation. J. Mater. Chem. A 2013, 1, 9060–9068. [Google Scholar] [CrossRef]
  21. Pu, Y.C.; Wang, G.; Chang, K.D.; Ling, Y.; Lin, Y.K.; Fitzmorris, B.C.; Liu, C.M.; Lu, X.; Tong, Y.; Zhang, J.Z.; et al. Au nanostructure-decorated TiO2 nanowires exhibiting photoactivity across entire UV-visible region for photoelectrochemical water splitting. Nano Lett. 2013, 13, 3817–3823. [Google Scholar] [CrossRef] [PubMed]
  22. Xu, M.; Da, P.; Wu, H.; Zhao, D.; Zheng, G. Controlled Sn-doping in TiO2 nanowire photoanodes with enhanced photoelectrochemical conversion. Nano Lett. 2012, 12, 1503–1508. [Google Scholar] [CrossRef] [PubMed]
  23. Zhu, J.; Deng, Z.; Chen, F.; Zhang, J.; Chen, H.; Anpo, M.; Huang, J.; Zhang, L. Hydrothermal doping method for preparation of Cr3+-TiO2 photocatalysts with concentration gradient distribution of Cr3+. Appl. Catal. B Environ. 2006, 62, 329–335. [Google Scholar] [CrossRef]
  24. Sheng, W.; Shi, J.-L.; Hao, H.; Li, X.; Lang, X. Polyimide-TiO2 hybrid photocatalysis: Visible light-promoted selective aerobic oxidation of amines. Chem. Eng. J. 2020, 379, 122399. [Google Scholar] [CrossRef]
  25. Bonan, R.F.; Mota, M.F.; da Costa Farias, R.M.; da Silva, S.D.; Bonan, P.R.F.; Diesel, L.; Menezes, R.R.; da Cruz Perez, D.E. In vitro antimicrobial and anticancer properties of TiO2 blow-spun nanofibers containing silver nanoparticles. Mater. Sci. Eng. C Mater. Biol. Appl. 2019, 104, 109876. [Google Scholar] [CrossRef]
  26. Low, J.; Dai, B.; Tong, T.; Jiang, C.; Yu, J. In Situ Irradiated X-Ray Photoelectron Spectroscopy Investigation on a Direct Z-Scheme TiO2 /CdS Composite Film Photocatalyst. Adv. Mater. 2019, 31, e1802981. [Google Scholar] [CrossRef]
  27. Mehdipour, H.; Akimov, A.V.; Jankowska, J.; Rezakhanai, A.T.; Tafreshi, S.S.; de Leeuw, N.H.; Moshfegh, A.Z.; Prezhdo, O.V. Persistent Quantum Coherence and Strong Coupling Enable Fast Electron Transfer across the CdS/TiO2 Interface: A Time-Domain ab Initio Simulation. J. Phys. Chem. C 2018, 122, 25606–25616. [Google Scholar] [CrossRef] [Green Version]
  28. Laatar, F.; Moussa, H.; Alem, H.; Balan, L.; Girot, E.; Medjahdi, G.; Ezzaouia, H.; Schneider, R. CdSe nanorod/TiO2 nanoparticle heterojunctions with enhanced solar- and visible-light photocatalytic activity. Beilstein J. Nanotechnol. 2017, 8, 2741–2752. [Google Scholar] [CrossRef] [Green Version]
  29. Hua, J.; Wang, M.; Jiao, Y.; Li, H.; Yang, Y. Strongly coupled CdX (X S, Se and Te) quantum dots/TiO2 nanocomposites for photocatalytic degradation of benzene under visible light irradiation. Optik 2018, 171, 95–106. [Google Scholar] [CrossRef]
  30. Sheng, Y.; Wei, Z.; Miao, H.; Yao, W.; Li, H.; Zhu, Y. Enhanced organic pollutant photodegradation via adsorption/photocatalysis synergy using a 3D g-C3N4/TiO2 free-separation photocatalyst. Chem. Eng. J. 2019, 370, 287–294. [Google Scholar] [CrossRef]
  31. Xiao, L.; Liu, T.; Zhang, M.; Li, Q.; Yang, J. Interfacial Construction of Zero-Dimensional/One-Dimensional g-C3N4 Nanoparticles/TiO2 Nanotube Arrays with Z-Scheme Heterostructure for Improved Photoelectrochemical Water Splitting. ACS Sustain. Chem. Eng. 2018, 7, 2483–2491. [Google Scholar] [CrossRef]
  32. Wang, Y.; Bai, W.; Wang, H.; Jiang, Y.; Han, S.; Sun, H.; Li, Y.; Jiang, G.; Zhao, Z.; Huan, Q. Promoted photoelectrocatalytic hydrogen evolution of a type II structure via an Al2O3 recombination barrier layer deposited using atomic layer deposition. Dalton Trans. 2017, 46, 10734–10741. [Google Scholar] [CrossRef] [PubMed]
  33. Agopcan, B.; Akyüz, D.; Karaca, F.; Sarıoğlu, C.; Koca, A. A new sulfur source for the preparation of efficient Cd(1−x)ZnxS photocatalyst for hydrogen evolution reaction. Int. J. Hydrogen Energy 2018, 43, 8206–8220. [Google Scholar] [CrossRef]
  34. Yue, D.; Qian, X.; Zhang, Z.; Kan, M.; Ren, M.; Zhao, Y. CdTe/CdS Core/Shell Quantum Dots Cocatalyzed by Sulfur Tolerant [Mo3S13]2– Nanoclusters for Efficient Visible-Light-Driven Hydrogen Evolution. ACS Sustain. Chem. Eng. 2016, 4, 6653–6658. [Google Scholar] [CrossRef]
  35. Zhong, W.; Huang, X.; Xu, Y.; Yu, H. One-step facile synthesis and high H2-evolution activity of suspensible CdxZn1-xS nanocrystal photocatalysts in a S2−/SO32− system. Nanoscale 2018, 10, 19418–19426. [Google Scholar] [CrossRef]
  36. Tian, H.; Liu, X.; Liang, Z.; Qiu, P.; Qian, X.; Cui, H.; Tian, J. Gold nanorods/g-C3N4 heterostructures for plasmon-enhanced photocatalytic H2 evolution in visible and near-infrared light. J. Colloid Interface Sci. 2019, 557, 700–708. [Google Scholar] [CrossRef]
  37. Tian, Y.; Zhou, L.; Zhu, Q.; Lei, J.; Wang, L.; Zhang, J.; Liu, Y. Hierarchical macro-mesoporous g-C3N4 with an inverse opal structure and vacancies for high-efficiency solar energy conversion and environmental remediation. Nanoscale 2019, 11, 20638–20647. [Google Scholar] [CrossRef]
  38. Fang, X.-X.; Ma, L.-B.; Liang, K.; Zhao, S.-J.; Jiang, Y.-F.; Ling, C.; Zhao, T.; Cheang, T.-Y.; Xu, A.-W. The doping of phosphorus atoms into graphitic carbon nitride for highly enhanced photocatalytic hydrogen evolution. J. Mater. Chem. A 2019, 7, 11506–11512. [Google Scholar] [CrossRef]
  39. Ma, Y.; Yang, Y.; Lu, C.; Xiao, D.; Wu, S.; Liu, Y. Mechanical, thermal, and ablative properties between graphene oxide and graphitic carbon nitride based carbon/phenolic composites: A comparative study. Polym. Compos. 2018, 39, E1928–E1938. [Google Scholar] [CrossRef]
  40. Zhang, J.; Chen, X.; Takanabe, K.; Maeda, K.; Domen, K.; Epping, J.D.; Fu, X.; Antonietti, M.; Wang, X. Synthesis of a carbon nitride structure for visible-light catalysis by copolymerization. Angew. Chem. Int. Ed. Engl. 2010, 49, 441–444. [Google Scholar] [CrossRef]
  41. Zhang, G.; Wang, X. A facile synthesis of covalent carbon nitride photocatalysts by Co-polymerization of urea and phenylurea for hydrogen evolution. J. Catal. 2013, 307, 246–253. [Google Scholar] [CrossRef]
  42. Zhao, S.; Chen, S.; Yu, H.; Quan, X. g-C3N4/TiO2 hybrid photocatalyst with wide absorption wavelength range and effective photogenerated charge separation. Sep. Purif. Technol. 2012, 99, 50–54. [Google Scholar] [CrossRef]
  43. Zhou, J.; Zhang, M.; Zhu, Y. Photocatalytic enhancement of hybrid C3N4/TiO2 prepared via ball milling method. Phys. Chem. Chem. Phys. 2015, 17, 3647–3652. [Google Scholar] [CrossRef]
  44. Yang, N.; Li, G.; Wang, W.; Yang, X.; Zhang, W.F. Photophysical and enhanced daylight photocatalytic properties of N-doped TiO2/g-C3N4 composites. J. Phys. Chem. Solids 2011, 72, 1319–1324. [Google Scholar] [CrossRef]
  45. Chaudhary, D.; Kumar, S.; Khare, N. Boosting the visible-light photoelectrochemical performance of C3N4 by coupling with TiO2 and carbon nanotubes: An organic/inorganic hybrid photocatalyst nanocomposite for photoelectrochemical water spitting. Int. J. Hydrogen Energy 2020, 45, 30091–30100. [Google Scholar] [CrossRef]
  46. Ho, W.; Zhang, Z.; Lin, W.; Huang, S.; Zhang, X.; Wang, X.; Huang, Y. Copolymerization with 2,4,6-triaminopyrimidine for the rolling-up the layer structure, tunable electronic properties, and photocatalysis of g-C3N4. ACS Appl. Mater. Interfaces 2015, 7, 5497–5505. [Google Scholar] [CrossRef]
  47. Che, H.; Liu, C.; Che, G.; Liao, G.; Dong, H.; Li, C.; Song, N.; Li, C. Facile construction of porous intramolecular g-C3N4-based donor-acceptor conjugated copolymers as highly efficient photocatalysts for superior H2 evolution. Nano Energy 2020, 67, 104273. [Google Scholar] [CrossRef]
  48. Diamantopoulou, A.; Sakellis, E.; Romanos, G.E.; Gardelis, S.; Ioannidis, N.; Boukos, N.; Falaras, P.; Likodimos, V. Titania photonic crystal photocatalysts functionalized by graphene oxide nanocolloids. Appl. Catal. B Environ. 2019, 240, 277–290. [Google Scholar] [CrossRef]
  49. Cao, S.; Low, J.; Yu, J.; Jaroniec, M. Polymeric photocatalysts based on graphitic carbon nitride. Adv. Mater. 2015, 27, 2150–2176. [Google Scholar] [CrossRef]
Energies 15 04180 g001 550

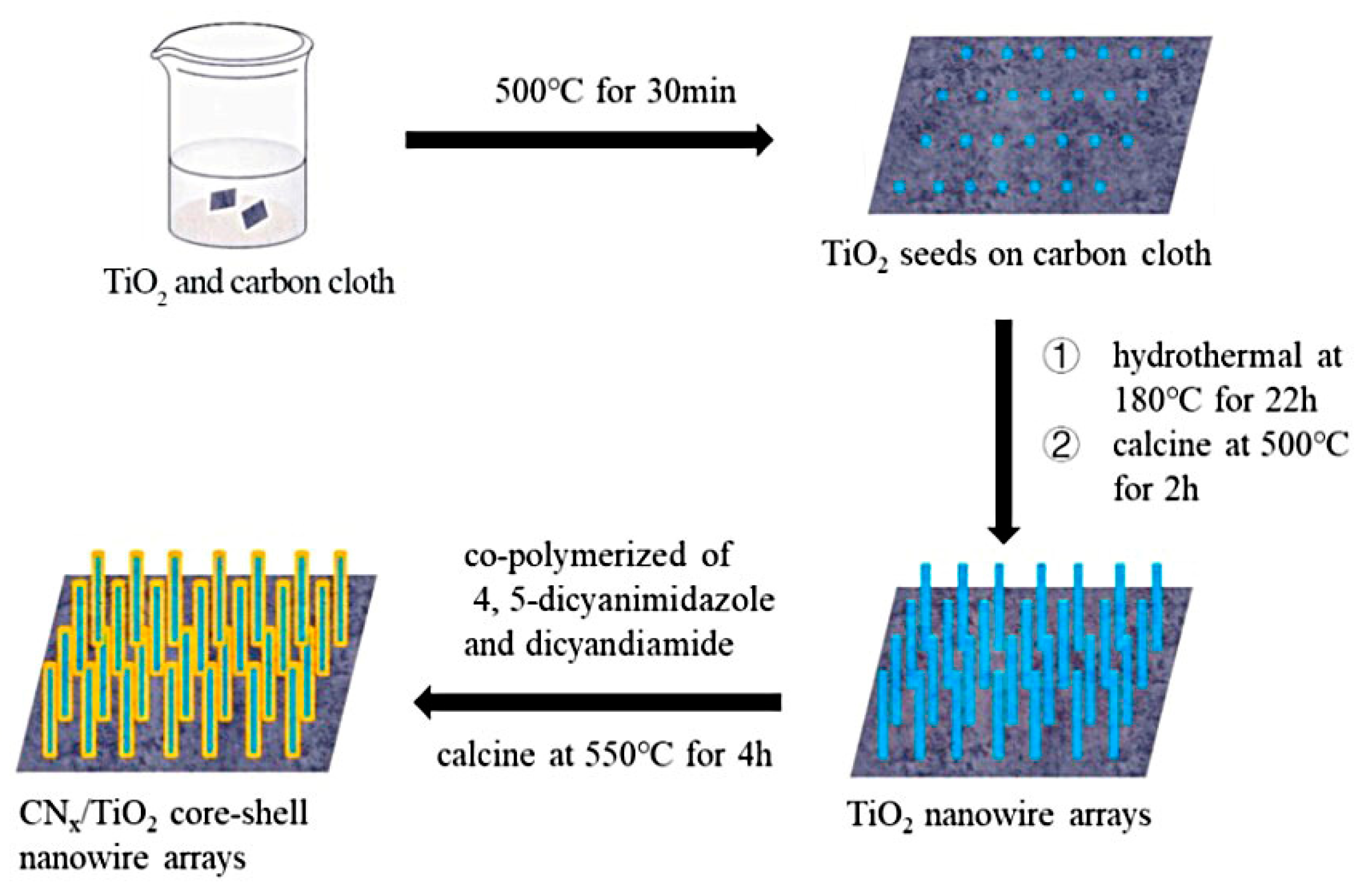

Figure 1. Schematic illustration of CNx/TiO2 core-shell nanowire arrays.
Figure 1. Schematic illustration of CNx/TiO2 core-shell nanowire arrays.
Energies 15 04180 g001
Energies 15 04180 g002 550
Figure 2. (a) XRD patterns of TiO2 nanowire arrays, CNx, CNx /TiO2 core-shell nanowire arrays. (b) UV-Vis diffuse reflectance absorption of TiO2 nanowire arrays, g-C3N4, CNx, g-C3N4/TiO2 nanowire arrays and CNx /TiO2 core-shell nanowire arrays.
Figure 2. (a) XRD patterns of TiO2 nanowire arrays, CNx, CNx /TiO2 core-shell nanowire arrays. (b) UV-Vis diffuse reflectance absorption of TiO2 nanowire arrays, g-C3N4, CNx, g-C3N4/TiO2 nanowire arrays and CNx /TiO2 core-shell nanowire arrays.
Energies 15 04180 g002
Energies 15 04180 g003 550
Figure 3. SEM images of (a) TiO2 nanowire arrays and (b,c) CNx/TiO2 core-shell nanowire arrays, (d) HRTEM image of CNx/TiO2 ore-shell nanowire arrays.
Figure 3. SEM images of (a) TiO2 nanowire arrays and (b,c) CNx/TiO2 core-shell nanowire arrays, (d) HRTEM image of CNx/TiO2 ore-shell nanowire arrays.
Energies 15 04180 g003
Energies 15 04180 g004 550

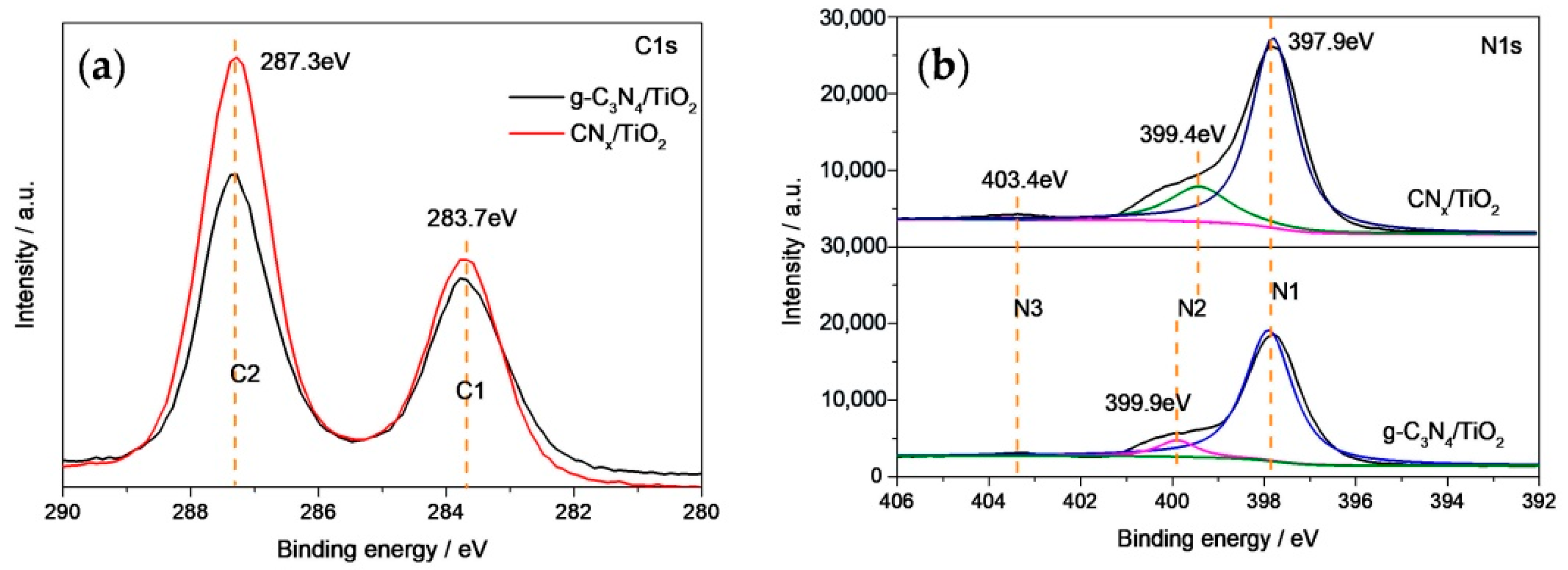

Figure 4. XPS spectra of (a) C1s and (b) N1s peaks of g-C3N4/TiO2 and CNx/TiO2 core-shell nanowire arrays.
Figure 4. XPS spectra of (a) C1s and (b) N1s peaks of g-C3N4/TiO2 and CNx/TiO2 core-shell nanowire arrays.
Energies 15 04180 g004
Energies 15 04180 g005 550
Figure 5. (a,b) Comparison of EC and PEC degradation rate of MB with CNx/TiO2 and TiO2. (c,d) Comparison of PC and PEC degradation rate of MB with CNx/TiO2 core-shell nanowire arrays by different bias voltage under visible light (λ ≥ 420 nm).
Figure 5. (a,b) Comparison of EC and PEC degradation rate of MB with CNx/TiO2 and TiO2. (c,d) Comparison of PC and PEC degradation rate of MB with CNx/TiO2 core-shell nanowire arrays by different bias voltage under visible light (λ ≥ 420 nm).
Energies 15 04180 g005
Energies 15 04180 g006 550
Figure 6. Charge transfer mechanism of CNx/TiO2 core-shell nanowire arrays.
Figure 6. Charge transfer mechanism of CNx/TiO2 core-shell nanowire arrays.
Energies 15 04180 g006
