Article

Design of a Slot-Spaced Permanent Magnet Linear Alternator Based on Numerical Analysis

by
Chin-Hsiang Cheng
1,* and
Surender Dhanasekaran
2
1
Department of Aeronautics and Astronautics, National Cheng Kung University, Tainan City 70101, Taiwan
2
International Doctoral Degree Program on Energy Engineering, National Cheng Kung University, Tainan City 70101, Taiwan
*
Author to whom correspondence should be addressed.
Energies 2022, 15(13), 4523; https://doi.org/10.3390/en15134523
Submission received: 24 May 2022 / Revised: 13 June 2022 / Accepted: 20 June 2022 / Published: 21 June 2022

Abstract

:
Linear alternators work seamlessly with Free-Piston Stirling Engines (FPSE) in the energy conversion process. This research concentrates on the design and development of a tubular slot-spaced Permanent Magnet Linear Alternator (PMLA) to be coupled with the FPSE. In an attempt to increase the power density of the machine over conventional PMLAs, a slot space is added to reduce the total mass of the stator and a parametrical study is carried out for the same. Numerically analyzing the fundamental parameters such as change of stator and magnet materials, and operating conditions frequency and stroke length. The effects of slotting are studied to understand the skinning effects on the tooth and the performance variation of the machine. A modified model is obtained to surpass 100 W from the numerical analysis of the parametric variations. Putting the machine to extreme limitations, the study conducted upon variations of parameters obtained a stable maximum power density of 186 W/kg and produced a power of 921 W for the designed PMLA. The study outlines the variation seen in the performance of the machine in such diverse conditions they go through during their life cycle.

1. Introduction

Climate change is imminent and mitigation policies to limit global warming within 1.5 to 2 °C have been framed all over the world. An estimated 2000 locations will experience 100-year sea-level extreme events by the end of this century even limited under 1.5 °C of global warming [1]. Record shattering climatic events are projected to happen within 2021–2050 based on the rate of global warming rather than the warming level. This probability increases 3 to 21 times in 2051–2080 [2]. Production of clean energy without a carbon footprint is an immediate requirement and the alternative source of energy production is the future to protect the earth we know today. Free-piston Stirling engines are crankless engines, so they provide significant advantages with lower noise and vibration, longevity, low maintenance, and self-operating capabilities [3].
Stirling engines have gained popularity and started to advance in technology in the last 50 years. The ability to harness energy above 300 °C from waste heat recovery systems has been phenomenal [4]. Through cyclic expansion and compression of the FPSE with or without an external driving mechanism creates an oscillatory motion. To convert mechanical energy to electrical energy, linear alternators in the form of electromechanical devices to convert short-stroke oscillatory motion are used [5]. Linear alternators can be used for generation from FPSE and actuation of the FPSE. Linear alternators are generally categorized into flat and tubular types based on the topology [6].
The PMLAs have gained popularity due to their merits, such as high velocity, precise movement, long life, and efficiency. Therefore, they are applied in many areas, for example, power production in free-piston linear generator (FPLG) systems, wave energy converters (WEC), hybrid electric vehicles (HEV), suspension systems of HEVs, thermoacoustic engines, and electric transformers [7,8,9,10,11,12]. Additionally, they can be used in energy recovery systems and power production for the lunar base [13,14,15]. WEC applications for PMLA have become near-perfect that the elimination of cogging forces and producing 50 KW power over long strokes at small frequency is possible [16].
The fundamental components of a PMLA consist of permanent magnets, which are influential parameters of the PMLA performance. Radial, axial, and Quasi-Halbach arrangements of magnets are popular among different topologies used for the arrangement of magnets [17]. In recent developments of NdFeB magnets, they have sustained to withhold temperatures close to 180 °C and their types are categorized based on demagnetization temperature [18]. Quasi-Halbach (QH) is a topological arrangement that produces strong and weak field zones which is an advantage for specific applications. Formed by utilizing axial and radial magnets, the QH arrangement has significant performance differences based on the manner of arrangement [19]. Apart from the utilization of QH arrangement, slot-less stators are used to accommodate coils. Soft Magnetic Composites (SMC) are used for such stators. They attract more researchers due to their high efficiency and lack cogging forces [20]. However, precise manufacturing techniques are required to accommodate coils in slot-less stators, hence leading to high manufacturing costs.
Cogging force affects the performance of PMLA [21]. Adjusting the surface area of the magnet, varying the volume of magnets, changing the shape of magnets on the edge of contact with the stator, and using phase belt toroidal windings are some of the mitigation methods for cogging force reduction in PMLA [22,23,24].
The simulation is a preliminary step for the integration of PMLA with FPSE. A parametric analysis is required before the integration to set the most optimized condition to yield maximum performance out of it [25]. Post-simulation, a dynamic model should be set to understand the experimental performance of the PMLA in real-time operable conditions [26,27].
PMLAs are strong contestants in clean energy production and share equal responsibility in FPLG systems to convert thermal energy to electrical energy. However, extreme limitations of these machines are not carried out in terms of their operating conditions. The structure of the stator studied in this study is made with a slot spacing between every tooth. Conventional linear machine stators are stationary and do not endure movement in their lifetime. Their relative mass is heavier and design choices have a constraint on the power density of the machine. The presented model in this study is a modified version of a conventional tubular PMLA. The present design of the PMLA is stringent in material use and the stator is designed in a skinner manner to decrease the overall mass and achieve a higher power density. A slot space is introduced in the space of the tooth and by doing so, elongating the tooth width. Parametric studies are not commonly found in this stream and this study is a comprehensive method of doing so by varying important parameters of the PMLA working state [28,29]. Moreover, we choose four important parameters such as translator operating frequency, the stroke length of the translator, stator, and magnet materials without changing any dimensional properties of the machine. Since a slot space is introduced, the effects of slotting on the performance of the machine are also studied as a sensitivity analysis. The study is aimed at understanding the best operable conditions to obtain the most out of the machine. The numerical analysis of the developed model is carried out by using commercial software, JMag Designer V18 [30].

2. Structure and Principle of Operation

The tubular topology is preferred for its advantages over flat-type PMLA [6]. This is a slotted machine with five slot arrangements to house coils. Conventional PMLAs consist of a slotted stator. These stators are arranged in such a way that the stacking is made uniform, and the tooth is a continuous stack of metal. To increase the power density of the machine, without changing the designed parameters of the PMLA, a slot space is introduced between each tooth and can be observed in Figure 1. The design is modified so that the Bt and Ss are uniformly maintained at 2.5 mm. An unused tooth slot-gap Ts is introduced to create a hollow spacing and thus reduction in the use of electrical steel. The ratio between So and Sl is 1:1.1 for compact sizing to fit in diverse applications within FPSEs. For effective utilization of the space for high power density, the QH arrangement of magnets is used. Axially and radially arranged magnets are utilized to form a strong and weak field to form a QH pair. A uniform air gap (g) of 1 mm is maintained across the translator and stator. The geometrical parameters of the PMLA are mentioned in Table 1. The choice of material for stator and shaft, coil, and magnets are electrical steel 35CS300, copper, and N48H neodymium magnets correspondingly.
The choice of material and assumptions made for the baseline case is backed by our previous research [28,29]. The induced emf in the PMLA is given by Equation (1):
e = N d ϕ d z d z d t
where ϕ is the magnetic flux through the coil, z is the displacement of the translator and N is the total number of coil turns. The magnetic flux ϕ is given by Equation (2):
ϕ = A B ( t ) · d s
where A is the surface area of the stator tooth, and B is magnetic flux density. The magnetic flux density is given by Equation (3):
B = μ 0 ( H + M )
where μ 0 is vacuum permeability, H is the magnetic field, and M is magnetism.

3. Numerical Module

The numerical module of the PMLA is simulated using the Finite Element Method (FEM) package JMAG Designer [30]. The study is aimed at understanding the influence of variable parameters without changing the dimensions of the PMLA. To do so, certain parameters are kept as fixed conditions to understand the baseline performance of the machine. The geometry mentioned in Table 1 are fixed parameters. Without varying the fixed parameters, interchangeable parameters such as materials and operating conditions are chosen for variable parameters. Stator and magnet materials can be varied and studied for the material category. Operating frequency and stroke length can be varied and studied for the operating conditions category. Thus, four variable parameters are chosen for the parametric study without making any changes to the dimensions of the PMLA.
A fixed baseline case should be studied and the result from this study is set as a benchmark for the parametric analysis of the four chosen conditions. The baseline case for the parametric variation is mentioned in Table 2. Fixing the baseline condition, the specific mass properties of each part are mentioned in Table 3. There are five slots, and each slot consists of 940 coil turns. The thickness of the copper coil is 0.45 mm, and the total internal resistance Rin of the coil is 5 Ω. The baseline case is run in both open and closed-loop conditions to understand the performance of PMLA. A purely resistive external load Rex of 100 Ω is held constant for all the simulation cases.
The numerical simulation is carried out in 100-step intervals for all the cases considered. The element size of all the materials is 2 mm and the air gap element size at 1 mm. The mesh distribution of the PMLA is shown in Figure 2. Consisting of 234,489 elements and 54,393 nodes, the mesh is maintained uniformly across the model. The same mesh distribution is maintained across all the cases considered in this study. Figure 3 and Figure 4 show the magnetic flux density distribution on the PMLA in contour and vector forms for the baseline case, respectively.
The cogging force by the permanent magnets on the translator forces the translator to bring an alignment with the stator tooth. The cogging force or the detent force is an important factor, which significantly affects the performance of the PMLAs. It causes noise and vibration on the translator and acts as an opposing force for the translator’s motion source. The cogging force F can be estimated based on the air-gap flux φ g and the derivative of the air gap reluctance R concerning z as follows:
F = 1 2 φ g R z
where φ g is determined based on the permanent magnet magnetization length h m , the permanent magnet magnetization area S by Equation (5):
φ g = B r h m S h m + g
It should be noted that the air gap flux φ g is inversely proportional to the air gap, as mentioned in Refs. [23,24]. For the same cause, the air gap is kept to the minimum and doable 1 mm.
The forthcoming unloaded voltage Vul, unloaded cogging force Ful, loaded voltage Vl, loaded cogging force Fl, loaded power Pl and total loss L are root mean square (RMS) values. For a 5 mm stroke ( z ) at 60 Hz on an unloaded baseline case, the cogging force is aligned with the displacement and has a sinusoidal profile. Figure 5a shows this profile of displacement. It is evident that the vibration experienced by the translator is kept at a minimum state and ensures the stability of the machine. Figure 5b enumerates an induced emf Vul of 302 V with 146.9 N cogging force on the translator in Figure 5c. The induced terminal voltage for the loaded condition can be obtained from Equation (6)
V e x ( t ) = i ( t ) R e x
where i ( t ) is induced current and it is given by Equation (7):
i ( t ) = ε ( t ) R e x + R i n
To reach the stable-operation state, the numerical model requires at least three cycles. Figure 6 shows the transient evolution in the power-displacement phase space. The power associated with the last stable-operation cycle is 96.8 W for the baseline case.

Motion Condition

The three-dimensional magnetic transient analysis is carried out on JMAG for this study. The translator is moved based on the input assigned in the simulation. Displacement point sequencing is assigned to the translator for a smooth sequential movement. A sinusoidal displacement profile based on the frequency and stroke length is set on the z-axis on the translator. This profile is divided into one hundred equal steps and assigned to the translator. The induced voltage, power, and cogging forces are calculated with the motion variation over time.

4. Validation of Numerical Module

The numerical analysis is validated by comparing the simulated results for the same model proposed by Kim et al. [11]. In Ref. [11], the authors used a regenerative suspension system in vehicles that oscillate to 15 mm stroke at 10 Hz on average. Electronic suspension systems are employed to provide a change in the ergonomics of the vehicle and improve stability on different terrains. To harness the energy from oscillatory motion in the suspension, a linear alternator is replaced with the traditional damping system. The topology, structure, and magnet arrangement of Ref. [11] are similar to the PMLA considered in this study. Therefore, the present numerical module is adopted to simulate the model of Ref. [11], and hence the output power provided in Ref. [11] can be taken as a comparative parameter to validate the present numerical module.
Table 4 shows the major specifications of the model. It is found that the two values of the maximum yield powers are in close agreement, and the relative difference is 0.4%. In addition, Figure 7 conveys the dependence of the average power on the tooth thickness, and Figure 8 shows the variations of power with time. The results of maximum yield powers from Ref. [11] and the present analysis is plotted in Figure 8 and are compared in Table 4. In these two figures, comparisons between the present predictions and the data provided by Ref. [11] are further made. Typically, a discrepancy of 0.5–0.7% rise in power is seen and a phase shift is observed from the present model. This is probably due to the change in the initial position of the translator and the difference in the software package. Nonetheless, the transient output power data are in close agreement.

5. Parametric Analysis

In this section, the parametric study is carried out with varying values of some influential parameters, such as the materials of the stator and the magnet, the operational frequency, and the stroke length around the baseline case. It is important to mention here that the present study is intended to modify the performance of the machine without changing its size. The change in the materials, frequency, or stroke length has no change in size. All simulation cases take at least ten cycles to get the stable-operation state. The SMC core generates negligible eddy-current losses, so this study does not consider this kind of loss. All following simulation cases are set up with an operating temperature of 60 °C.

5.1. Influence of Change in Stator Material

The electrical SMC core for the stator and shaft was made from China steel. The choice of material variation is a series of metals from 20, 35, and 50 based on the laminated steel thickness of 0.2 mm, 0.35 mm, and 0.5 mm. Each material varies with stacking factor ranging from 96 to 98%, it has a high influence on the induced emf and cogging forces on the translator. Figure 9a–d enumerate the influence of stator material on induced power, voltage, cogging force, and losses, respectively. The losses mentioned are joule and iron loss combined. The 50 series metal performs better in induced voltage and power compared to the baseline case material 35CS300. However, the cogging force and losses are equally higher and may not be preferable. 20CS1500HF performs better than the 35CS210 but not significant enough. The 35CS300H is a high magnetic flux density accommodating material and thus it is evident that it is better in comparison to the 35CS300 on all fronts and maintains a similar loss. Pl of 96 W and L of 4.85 W over 4.84 W from the baseline case for 35CS300H. The proportion of difference compared to the baseline case has been similar but incremental in all parameters.

5.2. Influence of Change in Magnet Material

Neodymium-iron-boron magnets are the choice of permanent magnets for their high operable temperature and strong anti-demagnetization nature. The NXXH series of magnets N30H, N35H, N40H, N45H, N48H, and N50H are chosen for the magnetic material variation. The effect of change in magnet material has a significant and linear effect on the power. It is understood that maximum energy product increases the field and thus the induced emf in the coil. Figure 10a–c illustrate the influence of change in magnet material on power, induced voltage, and cogging force, respectively. From N30H-N50H, the cogging force has increased marginally. The baseline case produced a reasonable 96.8 W of power and N50H produced the 100 W mark. However, this comparison clarifies the availability of choice for magnetic material depending on the requirement of the application. To find a balance between power and cogging force, the baseline case is reasonable for the developed application.

5.3. Influence of Change in Frequency

Though PMLAs can be operated at higher frequencies, the application developed ranges from 30 to 60 Hz, and this is variable based on the stiffness factor and cogging force experienced on the translator. Taiwan electrical appliances operate at 60 Hz and a reasonable value to have it as the baseline case. It is split from 10 to 100 Hz, split in multiples of 10. Figure 11a–c show the effects of frequency over the output parameters power, voltage, and cogging force, respectively. The voltage and cogging force have a similar profile and they are closely comparable to each other. It can be observed that the power curve can be split into three phases, the 10–30, 30–60, and 60–100 Hz. The first phase has a significant climb from 10 to 30 Hz with 20.9 W to 72.3 W, the second phase from 30 to 60 Hz there a saturation with 72.3 W to 96.8 W, and from 60 to 100 Hz the saturation is cleaner from 96.8 W to 105.4 W. Though the baseline case is close to the required power, the choice and operable conditions of the application is independent. The maximum cogging force of 269.5 N is observed at 100 Hz which is few more than 260.1 N for the baseline case.

5.4. Influence of Change on Stroke Length

The most influential variation in the performance of PMLA is the stroke length. The stroke length is proportional to the induced emf, as mentioned in Equation (1). The average stroke length of the application varies from 3 to 6 mm. Hence, the reasonable 5 mm stroke is taken for the baseline case, and for the variation analysis, the range is from 2.5 to 25 mm with a 2.5 mm step incremental size. The inference can be observed in Figure 12a–c showing the power, voltage, and cogging force curves, respectively.
The cogging force can be split into two phases: the phase from 2.5 to 7.5 mm and 7.5 to 25 mm. The cogging force climbs linearly in the first phase and approaches saturation in the second. The maximum limitation of the machine variation is extended by 20 mm more than the baseline case. The analysis cannot exceed the 25 mm mark due to the design limitations of the machine. A maximum usable power of 921 W was obtained at peak stroke bringing the power density to 186.4 W/kg.

5.5. Effects of Slotting

The tubular topology PMLA with the stator housing the coil has been a conventional design choice. However, a slot-space is introduced to reduce the overall mass of the stator and in turn, increase the power density of the PMLA. The motivation of the study is to improve the performance of the machine and to understand the performance limitations of the machine without changing any dimension of the designed PMLA. However, this section of the study is to understand the correct dimension of slot-spacing of this PMLA to obtain peak performance. The baseline case and parametric analysis of the aforementioned variations had fixed Ts at 5 mm. The introduction of a slot-space in a tubular topology PMLA has its effects on the performance of the machine. To understand the effects of slot-space, an analysis is carried out by varying Ss and in turn changing Ts. Thus, the slot-spacing varies from 3 mm to 6 mm in multiples of 0.5 mm. The tooth wall is adjusted in such a way that the overall stack length Sl, slot width Sw, and tooth width Tw are maintained constant to achieve this slot-space variation. The case below 3 mm slot-spacing is too small and beyond 6 mm is impractical to maintain constant slot width. The analysis for effects of change in slot-spacing is done by maintaining all aspects of the baseline case from material choice, operating conditions, and meshing.
Figure 13 shows the magnetic flux distribution on the center tooth of the stator for cases 3 mm, 4 mm, 5 mm, and 6 mm. It can be observed that the flow of flux lines on the tooth wall in Figure 13a is stronger than Figure 13d. The free flow of flux lines has a direct impact on the induced power. With lower slot-spacing comes more stator mass. The influence of change in slot-space width over induced power and change in stator mass can be observed in Figure 14. The correlation of the stator mass and induced power mean an influence on power density. The influence of slot-spacing on the power density of the PMLA for the baseline case can be observed in Figure 15. The 20 W/kg mark is an acceptable power density for this PMLA. Hence, the slot-spacing between 5 mm and 6 mm can be chosen based on practicality in the manufacturing aspect. However, 5 mm slot-spacing is maintained for this study.

5.6. Modified Design

The numerical analysis of this model is made without changing any geometrical parameters or altering the topology of the machine. The variation in frequency, stroke, magnet, and stator material yielded a finite conclusion. Table 3 illustrated the baseline case considered for the variation with 60 Hz, 5 mm, 35CS300, and N48H. These baseline cases were from a thorough knowledge of previous iterations of the PMLA development. After the numerical analysis, the study illustrated significant changes in the preliminary consideration. Regarding the stator material, 35CS300H proved to be better by maintaining the same cogging force and increased output power. The N50H magnet providing more power produced more cogging force and the baseline case N48H provided required power with lower cogging force. Hence, the N48H magnet is preferred over the N50H. Regarding the stroke length, 7.5 mm had a significant rise in output power with similar cogging force levels. The frequency and magnet material remain unchanged for the condition from the baseline case. Table 5 shows the modified parametric design for the slot-spaced PMLA. The magnetic flux density distribution on the modified PMLA is shown in Figure 16. With modified design conditions, the PMLA developed 208 W power and 129.5 V load voltage with 329.8 N cogging force.

6. Discussion

The parametric choices yielded a predictable performance for the PMLA. The Special application materials such as 35CS300H and 50CS350H were performing better than 35CS300 and 50CS350 because of the high magnetic flux induction property of the choice of materials. As the name denotes, the iron loss property of the other materials was significantly higher than the 35 series metals. Due to the stacking factor variation between 20 and 50 series metals, the 35 series metal stood out to be a standalone choice balancing the output power, cogging force, and iron loss. The performance variation from the change in magnetic material is a straightforward understanding that the magnetic flux density is varied linearly based on the magnetic remanence of the magnets and thus the reflection in output power and cogging force. Change in frequency produces a constant performance variation over all-important output parameters. The segmentation of the performance is due to the transient response of the magnetic flux induction in the coil. This variation drops beyond the 60 Hz range. There reaches a saturation point and a near impossibility of the operatable condition for these machines. The stroke length performance of the PMLA is a straightforward reflection from Equation (1). The induced emf is proportional to the change in position of the translator. Hence, the induced power, and the cogging force are proportional to the stroke length of the translator. The limitation of the stroke length is due to the design of the PMLA.
The effects of slotting shown in Figure 14 and Figure 15 show significant importance of the tooth space. With larger slotting space, the wall of the stator becomes thinner, and the flow of magnetic flux is getting shortened and congested. Due to the congestion of flux, the emf induced in the coil becomes significantly lower and thus induced power. An unslotted model would produce higher power with more overall mass. This study intends to make a PMLA with a higher power density in its class. The fundamental requirement of developing this PMLA is to obtain a few hundred watts of power from the source it’s designed. The validation of our model is made in comparison with the Ref. [11] model due to the similarity in topology, output power, stroke length, and magnet arrangement. Although the application of both models may differ, the aforementioned properties of both models are in close agreement with each other. Hence, the performance and design parameters of both machines are compared in Table 6. The Ref. [11] is 59% longer in stack length, and 312% heavier than the modified model. Though being bigger and longer, the modified model has a significant advantage over the performance of the Ref. [11] model. It has 32% more peak power and 78% more power density in the highest operable condition over Ref. [11] model. Similarly, the model from Ref. [7] is similar to the modified model. However, the thrust force induced on the translator is ten times more in comparison with the modified model. Additionally, the model from Ref. [31] consisting of a similar size to the modified model operating at 67 Hz with a stroke length of 22 mm can produce a maximum power of 300 W. The merits of the Halbach array are not used to obtain more performance out of this machine. Thus, the modified model is better in all aspects of performance in comparison with three similar linear alternators mentioned above working under similar operating conditions.

7. Conclusions

A slot space is introduced between the stator-tooth to reduce the overall mass of the PMLA and improve the power density of the machine. The developed model is parametrically analyzed for four important variable parameters without a change in model geometry. A baseline case is fixed to run in open and closed-loop conditions to obtain the output power of the machine.
In the case of the parametric variation, the closed-loop condition is adopted to obtain the induced power and losses. The stator material 35CS300H is better than the baseline case 35CS300 concerning power, cogging force, and induced voltage keeping the losses at the same level. The N48H magnet is a preferable candidate for the magnet material and has a similar profile to other magnet materials. The baseline case is an acceptable region for the frequency of operation. A saturation is observed after 60 Hz and the domestic application is limited to this frequency in most countries, and the requirement of a driver circuit is obsolete. The stroke length is a proportional parameter where the performance continues to rise with the rise in stroke length. The design limitations and operable conditions are the limiting factors for the performance analysis in stroke length. However, a stroke length above 7.5 mm is not advisable because of a change in output voltage profile. The best performance of the machine can be obtained at 60 Hz and 7.5 mm to keep a balance between power and cogging force with material choices 35CS300H and N48H for the stator and magnet materials, respectively. The slot-spacing study reassures that 5 mm Ts is best suited and unchanged. This PMLA can produce 921 W in extreme operating conditions with 186.4 W/kg of power density. The flexibility of the operating parameters would yield any power within the range aforementioned. Since the presented model is validated in comparison to a proven model, there is a significant performance difference from conventional models.
The machine is designed in such a manner that the operating conditions can be varied based on the power requirement. However, modularity in the change of material is applicable only for the magnet material after production. Additionally, the cogging force profile is most likely expected to maintain the same profile as the displacement to avoid abnormal vibrations on the translator. Keeping these key points, the future development of this study will concentrate on cogging force reduction, maintaining a sinusoidal cogging force profile, and modularity of the PMLA.

Author Contributions

Data curation, S.D.; Formal analysis, C.-H.C.; Investigation, C.-H.C. and S.D.; Methodology, S.D.; Project administration, C.-H.C.; Resources, C.-H.C.; Software, S.D.; Supervision, C.-H.C.; Validation, S.D.; Writing—original draft, S.D.; Writing—review & editing, C.-H.C. All authors have read and agreed to the published version of the manuscript.

Funding

This research received no external funding.

Institutional Review Board Statement

Not applicable.

Informed Consent Statement

Not applicable.

Data Availability Statement

Not applicable.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Tebaldi, C.; Ranasinghe, R.; Vousdoukas, M.; Rasmussen, D.J.; Vega-Westhoff, B.; Kirezci, E.; Kopp, R.E.; Sriver, R.; Mentaschi, L. Extreme sea levels at different global warming levels. Nat. Clim. Chang. 2021, 11, 746–751. [Google Scholar] [CrossRef]
  2. Fischer, E.M.; Sippel, S.; Knutti, R. Increasing probability of record-shattering climate extremes. Nat. Clim. Chang. 2021, 11, 689–895. [Google Scholar] [CrossRef]
  3. Perozziello, C.; Grosu, L.; Vaglieco, B.M. Free-Piston Stirling Engine Technologies and Models: A Review. Energies 2021, 14, 7009. [Google Scholar] [CrossRef]
  4. Durcansky, P.; Nosek, R.; Jandacka, J. Use of Stirling Engine for Waste Heat Recovery. Energies 2020, 13, 4133. [Google Scholar] [CrossRef]
  5. Boldea, I.; Nasar, S.A. Linear Electric Generators. In Linear Electric Actuators and Generators, 4th ed.; Cambridge University Press: Cambridge, UK, 2005; pp. 201–233. [Google Scholar]
  6. Hung, N.B.; Lim, O. A review of free-piston linear engines. Appl. Energy 2016, 178, 78–97. [Google Scholar] [CrossRef]
  7. Rezaeealam, B. Permanent Magnet Tubular Generator with Quasi-Halbach Array for Free-Piston Generator System. Int. J. Power Electron. Drive Syst. 2017, 8, 1663–1672. [Google Scholar] [CrossRef] [Green Version]
  8. Gargov, N.P.; Zobaa, A.F.; Pisica, I. Investigation of multi-phase tubular permanent magnet linear generator for wave energy converters. Electr. Power Compon. Syst. 2014, 42, 124–131. [Google Scholar] [CrossRef] [Green Version]
  9. Cawthorne, W.R.; Famouri, P.; Chen, J.; Clark, N.N.; McDaniel, T.I.; Atkinson, R.J.; Nandkumar, S.; Atkinson, C.M.; Petreanu, S. Development of a linear alternator-engine for hybrid electric vehicle applications. IEEE Trans. Veh. Technol. 1999, 48, 1797–1802. [Google Scholar] [CrossRef]
  10. Güneş, H. Design and manufacture of tube type nonhollow linear generators for suspension systems of electric and hybrid cars. Proc. Inst. Mech. Eng. Part E J. Process Mech. Eng. 2021, 235, 1420–1428. [Google Scholar] [CrossRef]
  11. Kim, J.H.; Shin, Y.J.; Chun, Y.D.; Kim, J.H. Design of 100W regenerative vehicle suspension to harvest energy from road surfaces. Int. J. Precis. Eng. Manuf. 2018, 19, 1089–1096. [Google Scholar] [CrossRef]
  12. Cho, S.J.; Kim, J.H. Linear electromagnetic electric generator for harvesting vibration energy at frequencies more than 50 Hz. Adv. Mech. Eng. 2017, 9, 1687814017719001. [Google Scholar] [CrossRef]
  13. Wang, D.; Shuttleworth, R. Linear alternator design for use in heat energy recovery system. In Proceedings of the 6th IET International Conference on Power Electronics, Machines and Drives (PEMD 2012), Bristol, UK, 27–29 March 2012. [Google Scholar]
  14. Loktionov, E.Y.; Martirosyan, A.A.; Shcherbina, M.D. Solar powered free-piston stirling—Linear alternator module for the lunar base. In Proceedings of the ICIEAM, Chelyabinsk, Russia, 19–20 May 2016. [Google Scholar]
  15. Li, H.; Tian, X.; Ge, L.; Kang, X.; Zhu, L.; Chen, S.; Chen, L.; Jiang, X.; Shan, J. Development of a Performance Analysis Model for Free-Piston Stirling Power Convertor in Space Nuclear Reactor Power Systems. Energies 2022, 15, 915. [Google Scholar] [CrossRef]
  16. Hodgins, N.; Keysan, O.; McDonald, A.S.; Mueller, M.A. Design and testing of a linear generator for wave-energy applications. IEEE Trans. Ind. Electron. 2011, 59, 2094–2103. [Google Scholar] [CrossRef]
  17. Subramanian, J.; Famouri, P.; Mahmudzadeh, F.; Bade, M. Comparison of Halbach, radial and axial magnet arrangement for single phase tubular permanent magnet linear alternators. In Proceedings of the 2020 IEEE Electric Power and Energy Conference, Edmonton, AB, Canada, 9–10 November 2020. [Google Scholar]
  18. Ma, B.M.; Herchenroeder, J.W.; Smith, B.; Suda, M.; Brown, D.N.; Chen, Z. Recent development in bonded NdFeB magnets. J. Magn. Magn. Mater. 2002, 239, 418–423. [Google Scholar] [CrossRef]
  19. Eckert, P.R.; Wiltuschnig, I.P.; Filho, A.F.F. Design Aspects of Quasi-Halbach Arrays Applied to Linear Tubular Actuators. In Proceedings of the 10th International Symposium on Linear Drives for Industry Applications, Aachen, Germany, 27–29 July 2015; pp. 27–29. [Google Scholar]
  20. Sugiyantoro, B.; Rafsanjani, S.A.; Susilo, W.Y. Slot-less Tubular Linear Permanent Magnet Generator Using Halbach-Array Excitation. In Proceedings of the 10th International Conference on Information Technology and Electrical Engineering (ICITEE), Bali, Indonesia, 24–26 July 2018; pp. 573–576. [Google Scholar]
  21. Abdalla, I.I.; Zainal, A.E.; Ramlan, N.A.; Aziz, A.R.A.; Heikal, M.R. Cogging force investigation of a free piston permanent magnet linear generator. IOP Conf. Ser. Mater. Sci. Eng. 2017, 257, 012055. [Google Scholar] [CrossRef]
  22. Eid, A.M.; Lee, H.W.; Nakaoka, M. Detent Force Reduction of Tubular Linear Generator Using an Axial Stepped Permanent Magnet Structure. J. Power Electron. 2006, 6, 290–297. [Google Scholar]
  23. Si, J.; Yan, Z.; Nie, R.; Xu, S.; Dong, L. Optimal Design of a Tubular Permanent Magnet Linear Generator with 120° Phase Belt Toroidal Windings for Detent Force Reduction. Trans. China Electrotech. Soc. 2021, 36, 1138–1148. [Google Scholar]
  24. Liu, C.; Yu, H.; Hu, M.; Liu, Q.; Zhou, S.; Huang, L. Research on a permanent magnet tubular linear generator for direct drive wave energy conversion. IET Renew. Power Gener. 2014, 8, 281–288. [Google Scholar] [CrossRef]
  25. Li, Q.F.; Xiao, J.; Huang, Z. Parametric study of a free piston linear alternator. Int. J. Automot. Technol. 2010, 11, 111–117. [Google Scholar] [CrossRef]
  26. Wu, D.; Jalal, A.S.; Baker, N. A coupled model of the linear Joule engine with embedded tubular permanent magnet linear alternator. Energy Procedia 2017, 105, 1986–1991. [Google Scholar] [CrossRef]
  27. De la Bat, B.J.G.; Dobson, R.T.; Harms, T.M.; Bell, A.J. Simulation, manufacture and experimental validation of a novel single-acting free-piston Stirling engine electric generator. Appl. Energy 2020, 263, 114585. [Google Scholar] [CrossRef]
  28. Chen, Y.-J. Integrated Model Analysis of a Free-Piston Stirling Engine Incorporated with a Linear Alternator. Master’s Thesis, National Cheng-Kung University, Tainan, Taiwan, 2021. [Google Scholar]
  29. Cheng, C.H.; Dhanasekaran, S. Numerical Analysis and Parametric Study of a 7 kW Tubular Permanent Magnet Linear Alternator. Sustainability 2021, 13, 7192. [Google Scholar] [CrossRef]
  30. Guideline of JMag Designer V18. Available online: https://www.jmag-international.com/products/jmag-designer/index_v180/ (accessed on 19 June 2022).
  31. Subramanian, J.; Mahmudzadeh, F.; Bade, M.; Famouri, P. Simulation and experimental validation of equivalent circuit parameters and core loss in a tubular permanent magnet linear generator for free piston engine applications. In Proceedings of the 2019 IEEE International Electric Machines & Drives Conference (IEMDC), Westin San Diego, CA, USA, 12–15 May 2019. [Google Scholar]

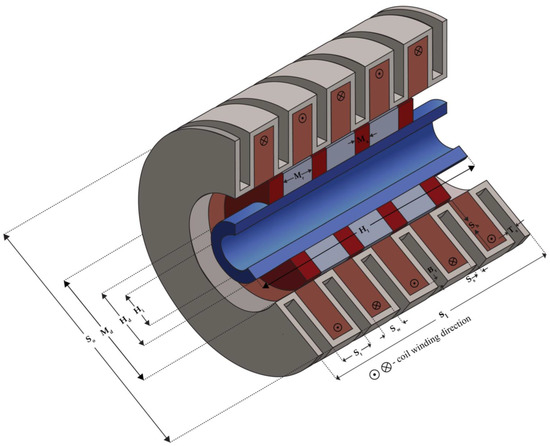

Figure 1. Cut-section schematic of the linear alternator.
Figure 1. Cut-section schematic of the linear alternator.
Energies 15 04523 g001

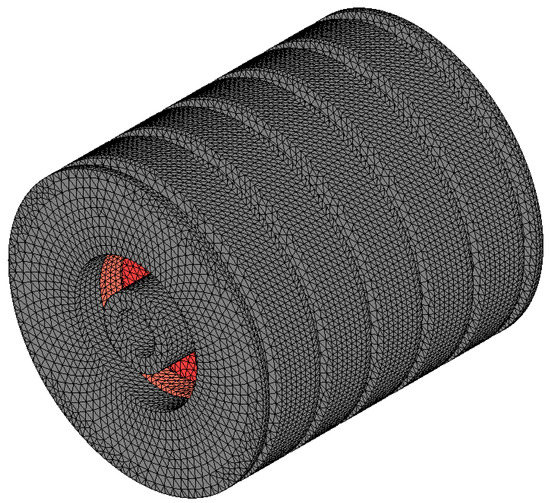

Figure 2. Mesh distribution in the transient analysis.
Figure 2. Mesh distribution in the transient analysis.
Energies 15 04523 g002

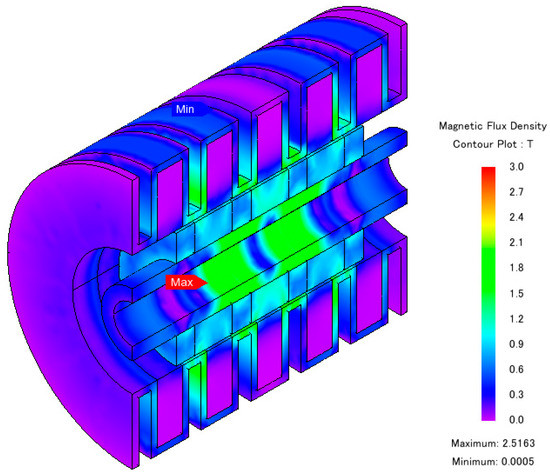

Figure 3. Contour plot of the magnetic flux density across PMLA for the baseline case.
Figure 3. Contour plot of the magnetic flux density across PMLA for the baseline case.
Energies 15 04523 g003

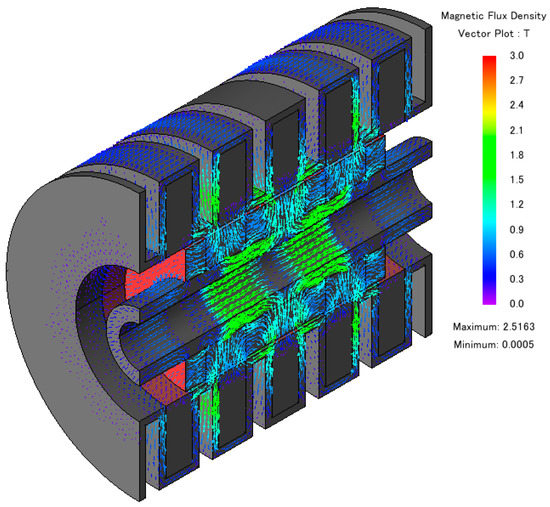

Figure 4. Vector plot of the magnetic flux density across PMLA for the baseline case.
Figure 4. Vector plot of the magnetic flux density across PMLA for the baseline case.
Energies 15 04523 g004

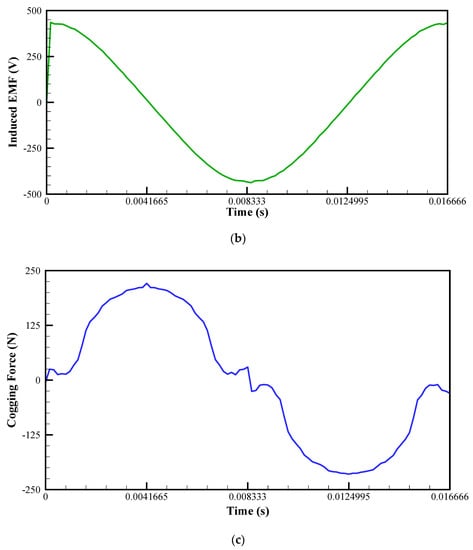

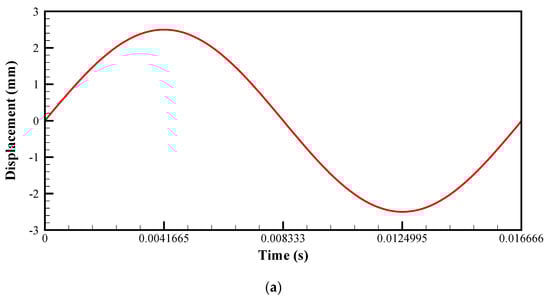

Figure 5. Transient variation of (a) displacement, (b) induced emf, and (c) cogging force for the baseline case.
Figure 5. Transient variation of (a) displacement, (b) induced emf, and (c) cogging force for the baseline case.
Energies 15 04523 g005aEnergies 15 04523 g005b

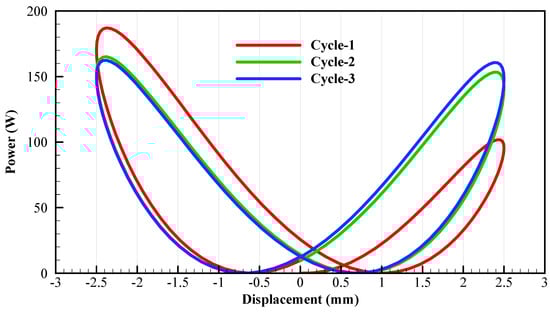

Figure 6. Stable state power.
Figure 6. Stable state power.
Energies 15 04523 g006

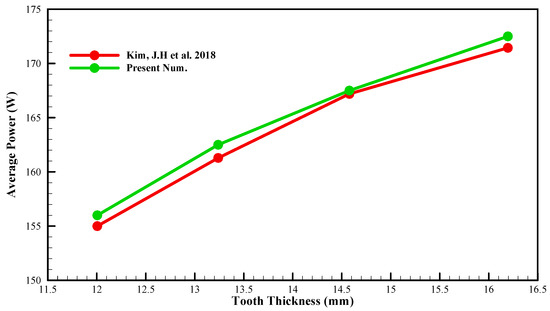

Figure 7. Comparison of change in power with the tooth thickness in the present numerical model and that in Ref. [11].
Figure 7. Comparison of change in power with the tooth thickness in the present numerical model and that in Ref. [11].
Energies 15 04523 g007

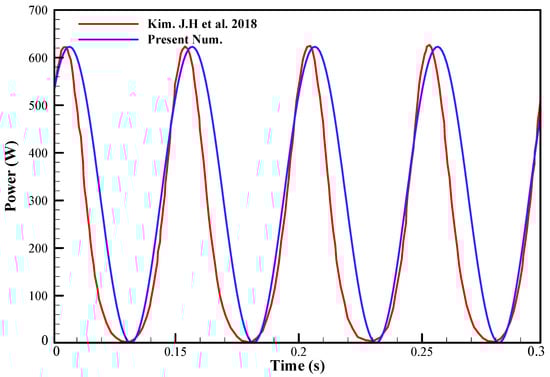

Figure 8. Variation of power with time in the present numerical model and that in Ref. [11].
Figure 8. Variation of power with time in the present numerical model and that in Ref. [11].
Energies 15 04523 g008

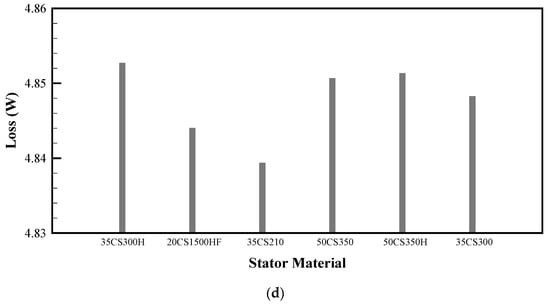

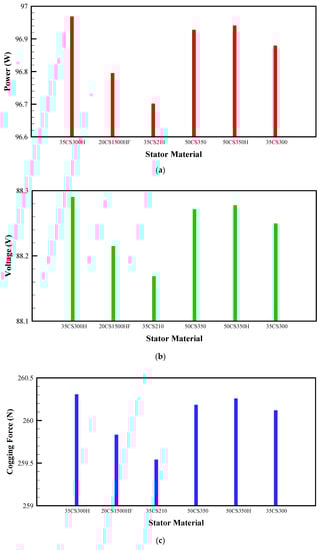

Figure 9. Influence of Stator material on (a) induced power, (b) voltage, (c) cogging force on the translator, and (d) losses.
Figure 9. Influence of Stator material on (a) induced power, (b) voltage, (c) cogging force on the translator, and (d) losses.
Energies 15 04523 g009aEnergies 15 04523 g009b

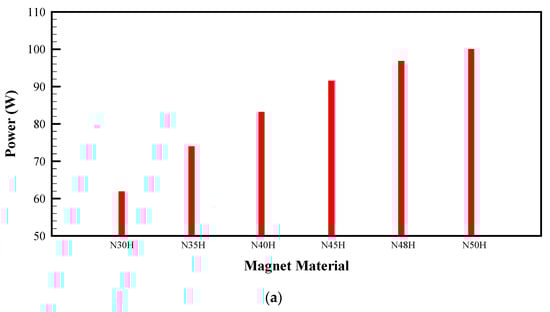

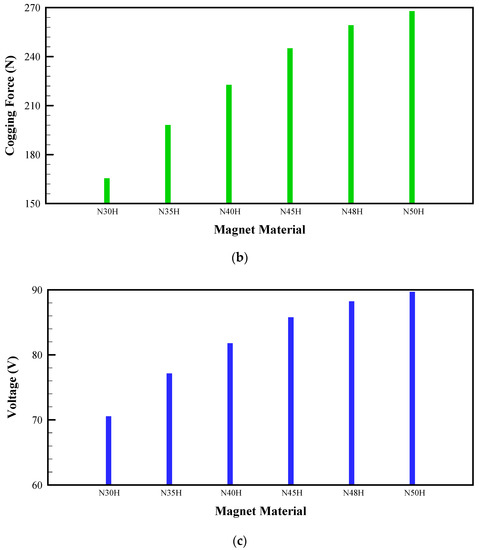

Figure 10. Influence of magnet material on (a) induced power, (b) voltage, and (c) cogging force on the translator.
Figure 10. Influence of magnet material on (a) induced power, (b) voltage, and (c) cogging force on the translator.
Energies 15 04523 g010aEnergies 15 04523 g010b

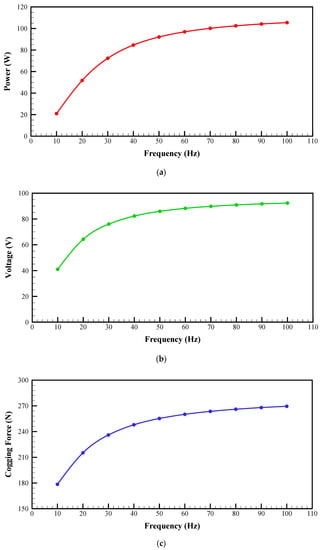

Figure 11. Influence of frequency on (a) power, (b) voltage, and (c) cogging force.
Figure 11. Influence of frequency on (a) power, (b) voltage, and (c) cogging force.
Energies 15 04523 g011

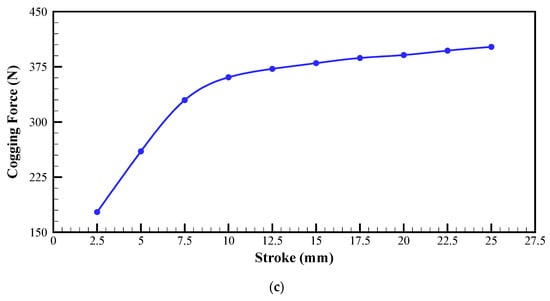

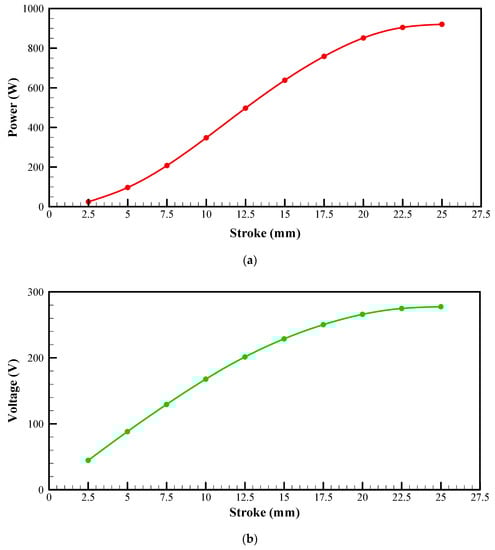

Figure 12. Influence of stroke length on (a) power, (b) voltage, and (c) cogging force.
Figure 12. Influence of stroke length on (a) power, (b) voltage, and (c) cogging force.
Energies 15 04523 g012aEnergies 15 04523 g012b

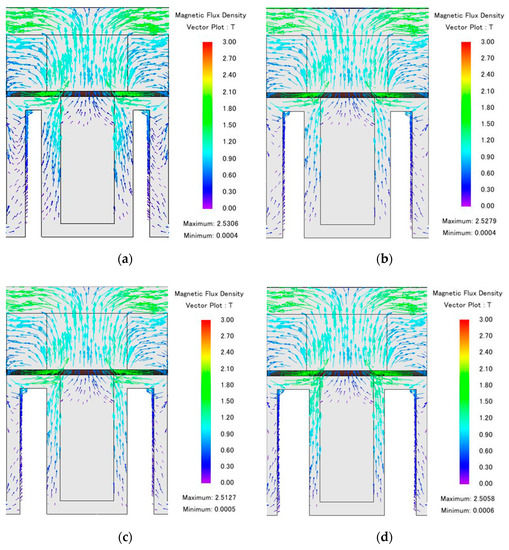

Figure 13. Magnetic flux density for slot spacing of (a) 3 mm, (b) 4 mm, (c) 5 mm, and (d) 6 mm.
Figure 13. Magnetic flux density for slot spacing of (a) 3 mm, (b) 4 mm, (c) 5 mm, and (d) 6 mm.
Energies 15 04523 g013

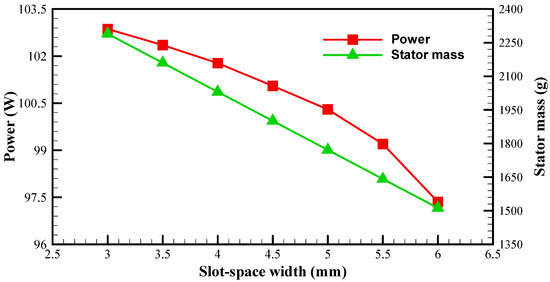

Figure 14. Influence of slot-spacing on power and stator mass.
Figure 14. Influence of slot-spacing on power and stator mass.
Energies 15 04523 g014

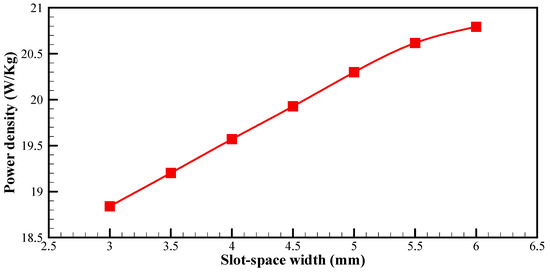

Figure 15. Influence of slot-spacing on power density.
Figure 15. Influence of slot-spacing on power density.
Energies 15 04523 g015

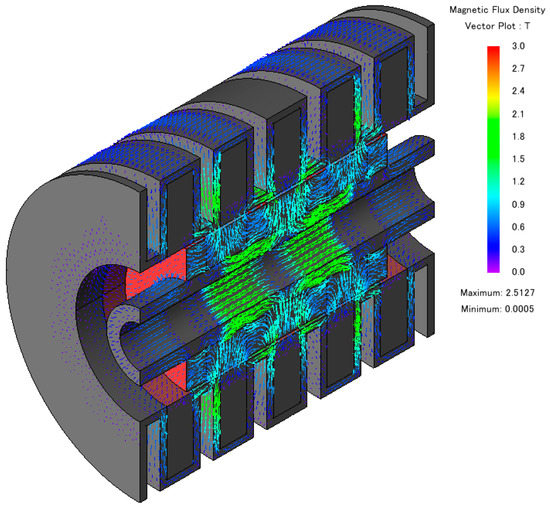

Figure 16. Magnetic flux density distribution of the modified model.
Figure 16. Magnetic flux density distribution of the modified model.
Energies 15 04523 g016
Table 1. Geometrical parameters of the original PMLA.
Table 1. Geometrical parameters of the original PMLA.
ParametersDimensions (mm)
Stator Outer Diameter, So100
Slot Width, Sw10
Tooth Width, Tw10
Slot height, Sh23.5
Back Iron Thickness, Bt2.5
Tooth slot thickness, Ss2.5
Tooth thickness, St5
Tooth slot gap, Ts5
Stator Stack Length, Sl110
Magnet Outer Diameter, Md46
QH(Axial) Magnet thickness, Ma7.5
QH(Radial) Magnet thickness, Mr15
Coil Inner Diameter, Ci48
Coil Outer Diameter, Co95
Shaft Stack Length, Hl110
Shaft Inner Diameter, Hi15
Shaft Outer Diameter, Hd25
Air gap, g1
Table 2. Baseline case parameters.
Table 2. Baseline case parameters.
Baseline ParameterParameter
Stator material35CS300
Magnet materialN48H
Frequency (Hz)60
Stroke Length (mm)5
Table 3. Part mass of PMLA.
Table 3. Part mass of PMLA.
PartMass (g)
Stator1771
Shaft264
Coils2240
Magnets666
Total mass4941
Table 4. Specifications of the model designed by Ref. [11].
Table 4. Specifications of the model designed by Ref. [11].
ParametersRef. [11] Present
Stator Outer Diameter (mm)110110
Slot Width (mm)88
Slot height (mm)14.414.4
Coil thickness (mm)13.413.4
Back Iron Thickness (mm)-12
Tooth width (mm)66
Stator Stack Length (mm)270270
Axial Magnet Outer diameter (mm)-68
Radial Magnet outer diameter (mm)-57.6
QH(Axial) Magnet thickness (mm)12.212.2
QH(Radial) Magnet thickness (mm)77
Coil Inner Diameter (mm)-73.2
Coil Outer Diameter (mm)-100
Shaft Stack Length (mm)-270
Shaft Inner Diameter (mm)-33.6
Shaft Outer Diameter (mm)-43.6
Air gap (mm)-1.2
Maximum yield power (W)625.78628.3
Average power (W)226.94227.6
Table 5. Increase in power via modification.
Table 5. Increase in power via modification.
ParameterOriginal DesignModified Design
Stator material35CS30035CS300H
Magnet materialN48HN48H
Frequency (Hz)6060
Stroke length (mm)57.5
Cogging Force (N)260.12329.8
Load Voltage (V)88.24129.5
Power (W)96.8208
Table 6. Comparison of dimensional and performance parameters of Ref. [11] model and the modified model.
Table 6. Comparison of dimensional and performance parameters of Ref. [11] model and the modified model.
ParametersRef. [11]Modified Model
Stack length (mm)270110
Stator outer diameter (mm)110100
External load resistance (ohm)-100
Total mass (g)15,4654941
Maximum yield power (W)625.78921
Power density (W/kg)40.46186.4
Publisher’s Note: MDPI stays neutral with regard to jurisdictional claims in published maps and institutional affiliations.

Share and Cite

MDPI and ACS Style

Cheng, C.-H.; Dhanasekaran, S. Design of a Slot-Spaced Permanent Magnet Linear Alternator Based on Numerical Analysis. Energies 2022, 15, 4523. https://doi.org/10.3390/en15134523

AMA Style

Cheng C-H, Dhanasekaran S. Design of a Slot-Spaced Permanent Magnet Linear Alternator Based on Numerical Analysis. Energies. 2022; 15(13):4523. https://doi.org/10.3390/en15134523

Chicago/Turabian Style

Cheng, Chin-Hsiang, and Surender Dhanasekaran. 2022. "Design of a Slot-Spaced Permanent Magnet Linear Alternator Based on Numerical Analysis" Energies 15, no. 13: 4523. https://doi.org/10.3390/en15134523

APA Style

Cheng, C. -H., & Dhanasekaran, S. (2022). Design of a Slot-Spaced Permanent Magnet Linear Alternator Based on Numerical Analysis. Energies, 15(13), 4523. https://doi.org/10.3390/en15134523

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
